Correction code NEW NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.

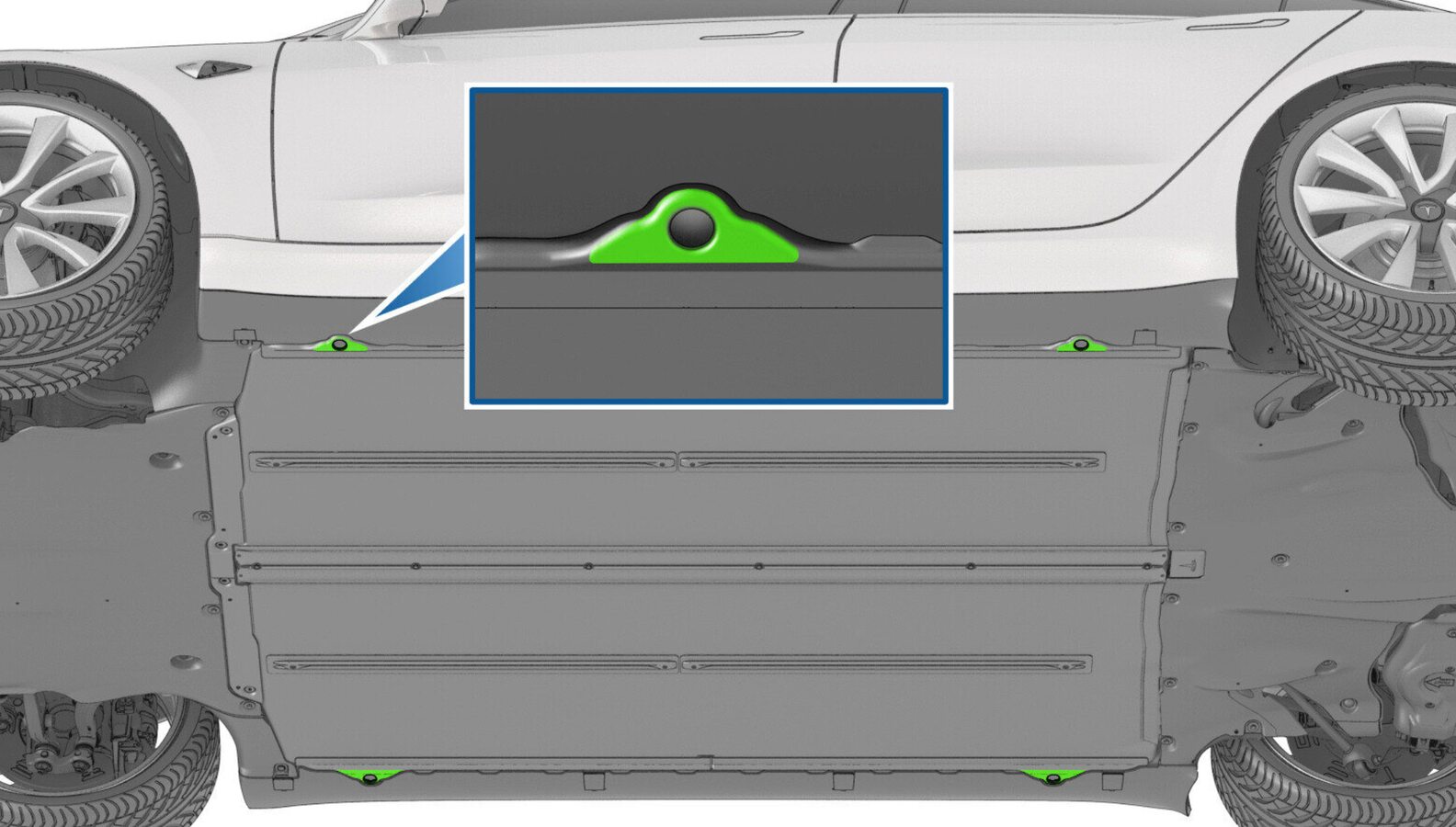

1. Raise and support vehicle
   Note

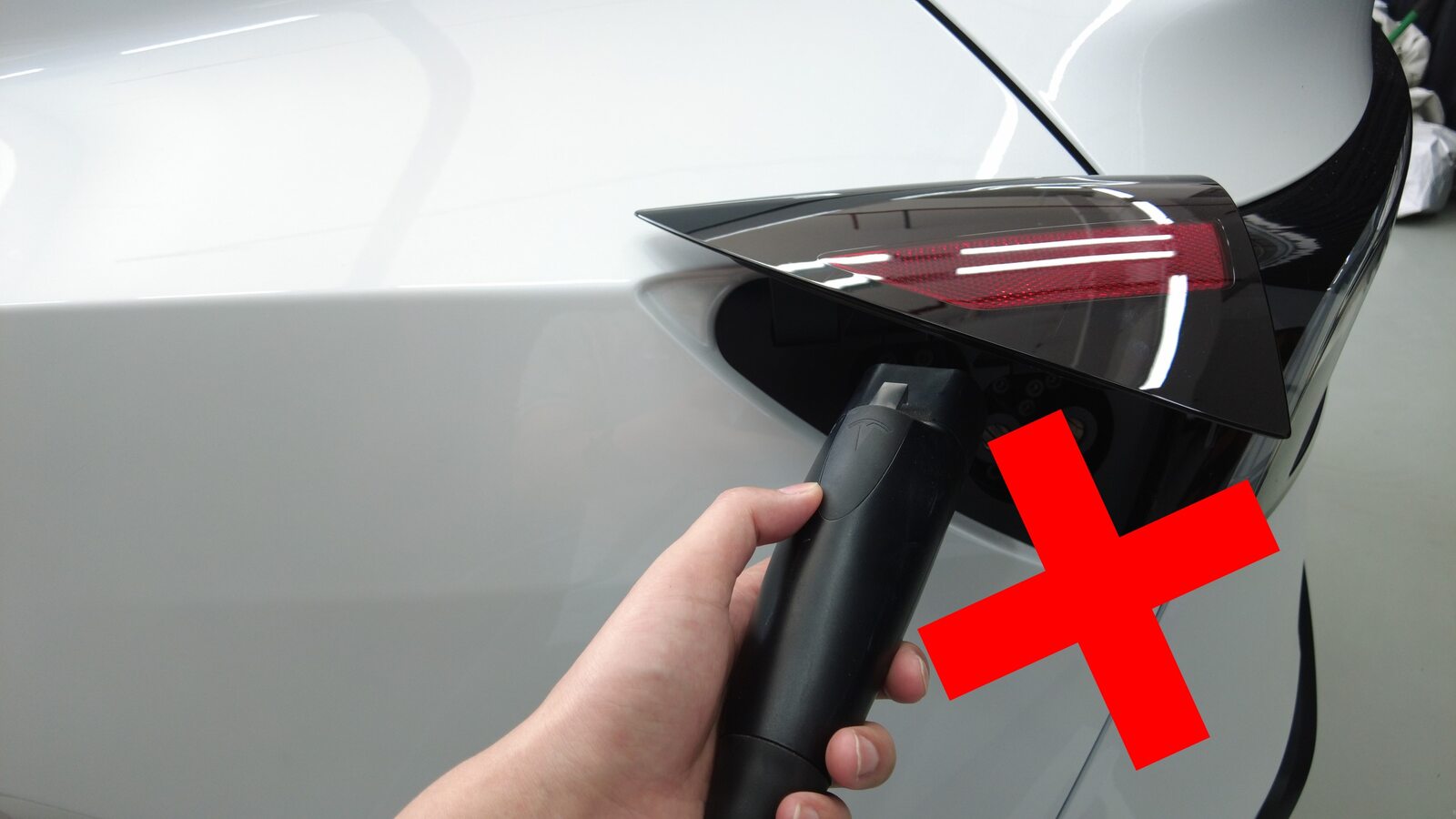

   Ensure vehicle is not charging, Remove charging cable if it's plugged in

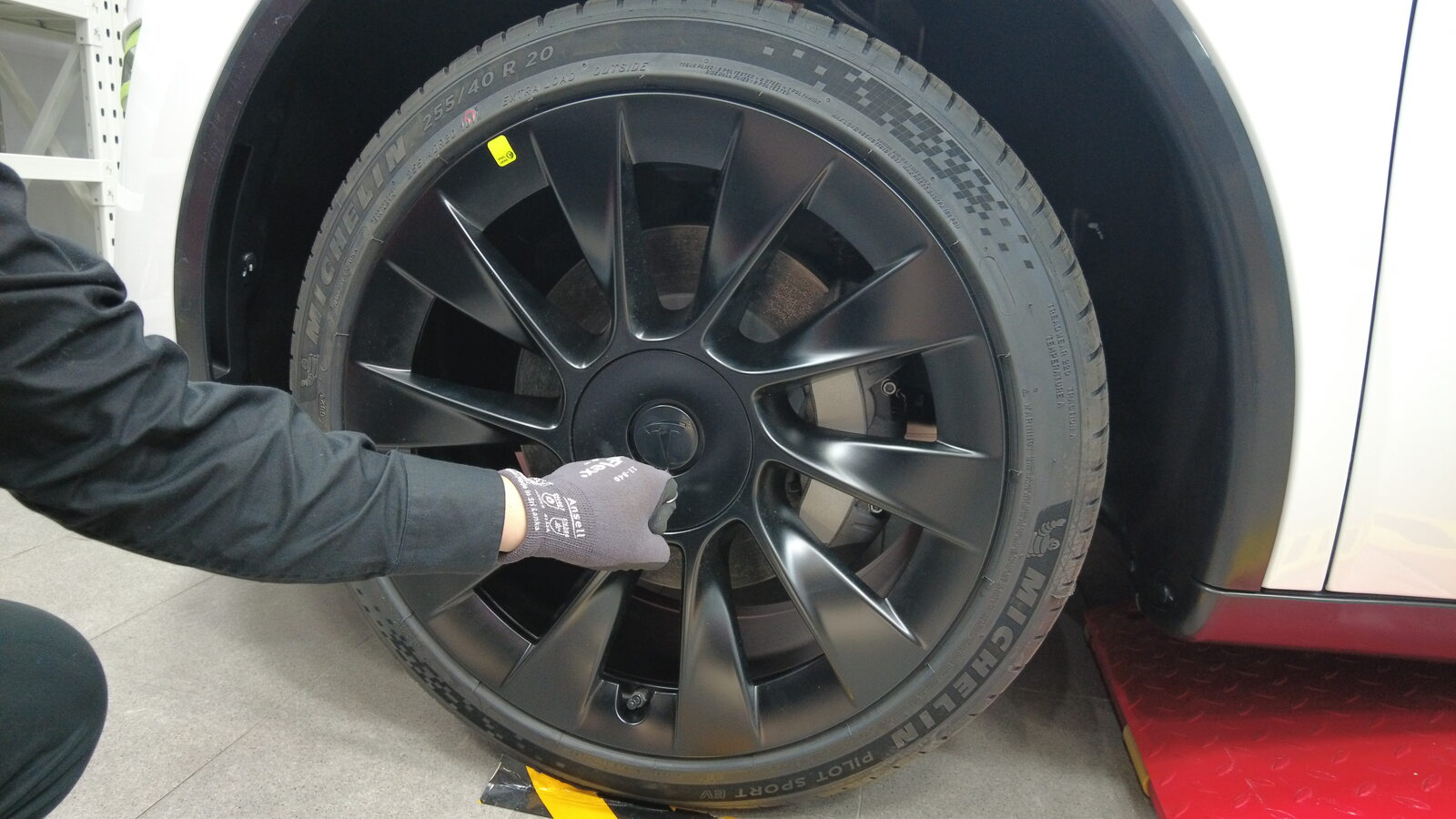

2. Remove LH front wheel cap
   Note

   1x cap, Use tool to gently pull the center wheel cap to release the clips, Wheels may be equipped with different caps



3. Loosen LH front wheel nuts
   Note

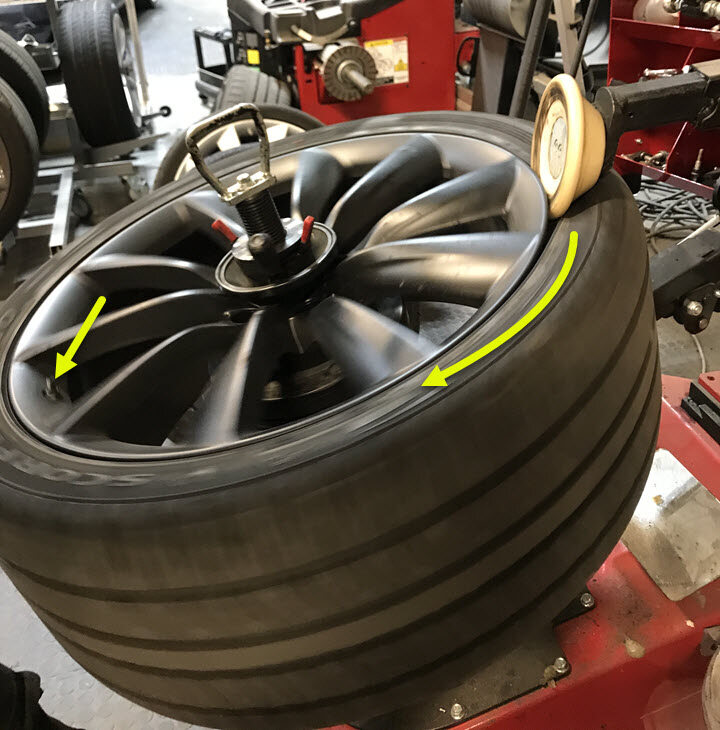

   5x nuts, 21mm, 175 Nm

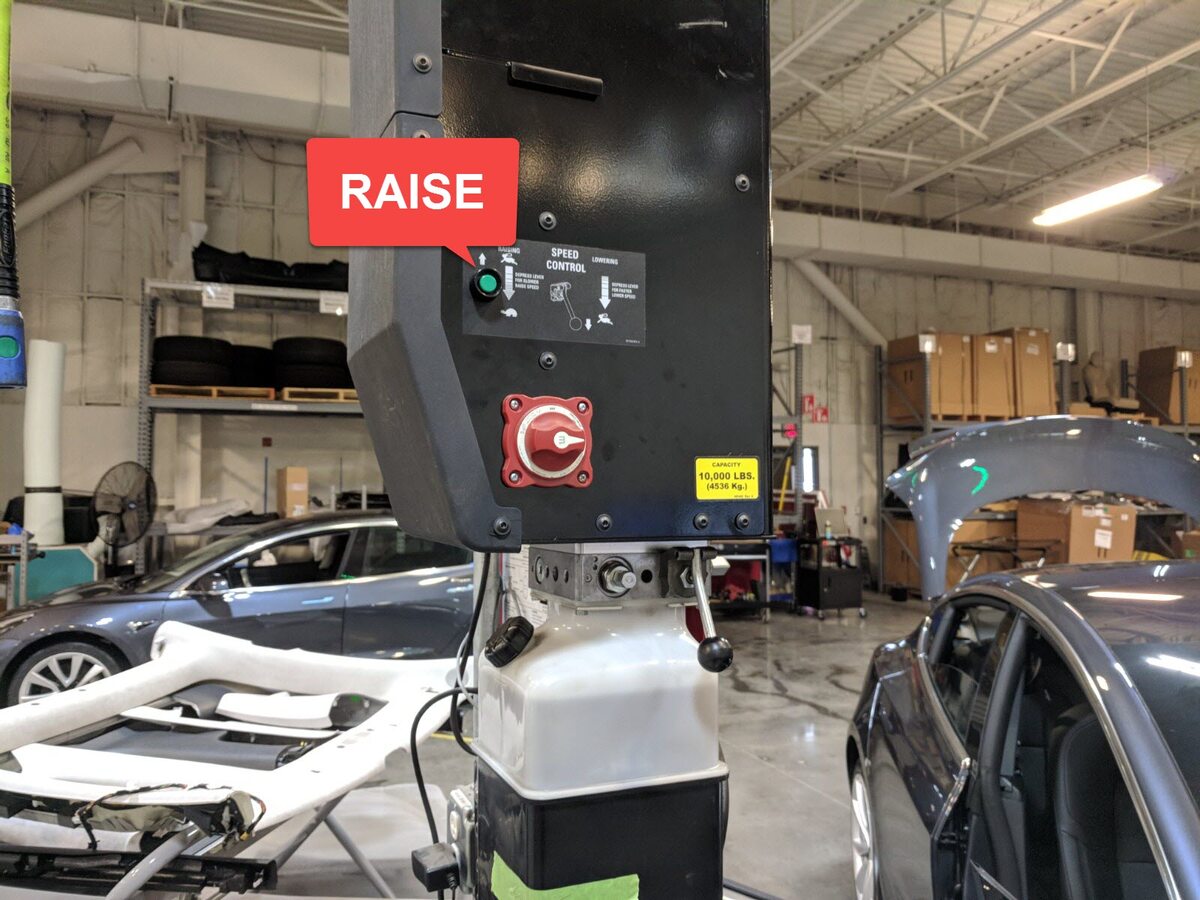

4. Raise vehicle partially and lower lift onto locks
   Note

   Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, Otherwise vehicle may tilt to the side

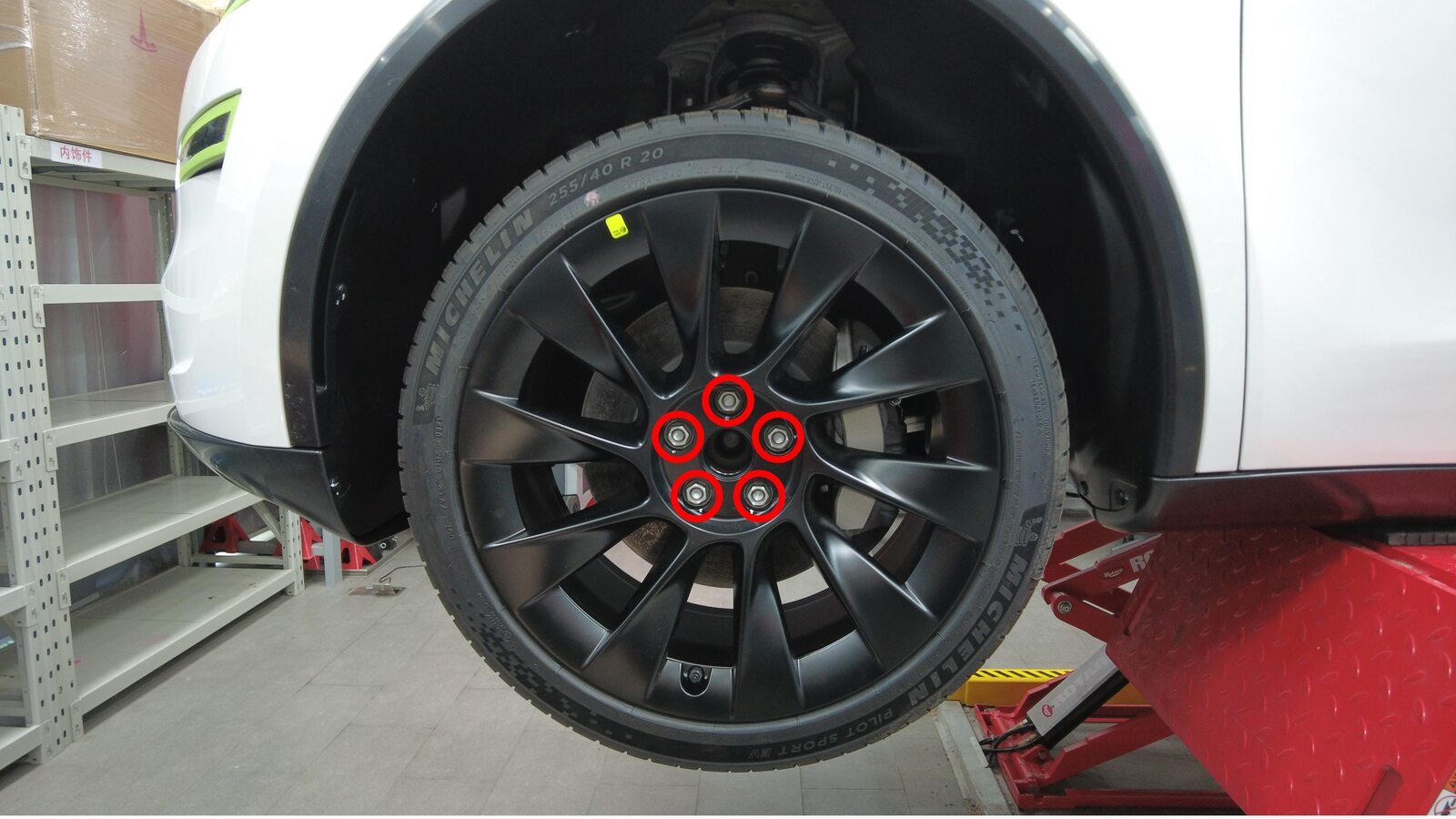

5. Remove LH front wheel
   Note

   5x nuts, 21mm, 175 Nm

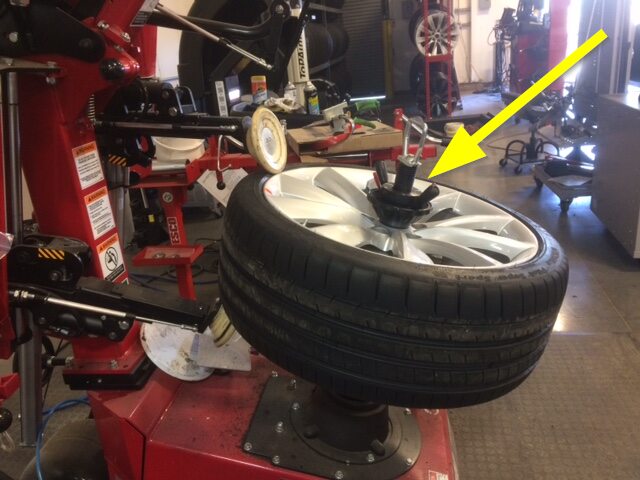

6. Place wheel on tire machine and secure
   Note

   1x wheel clamp

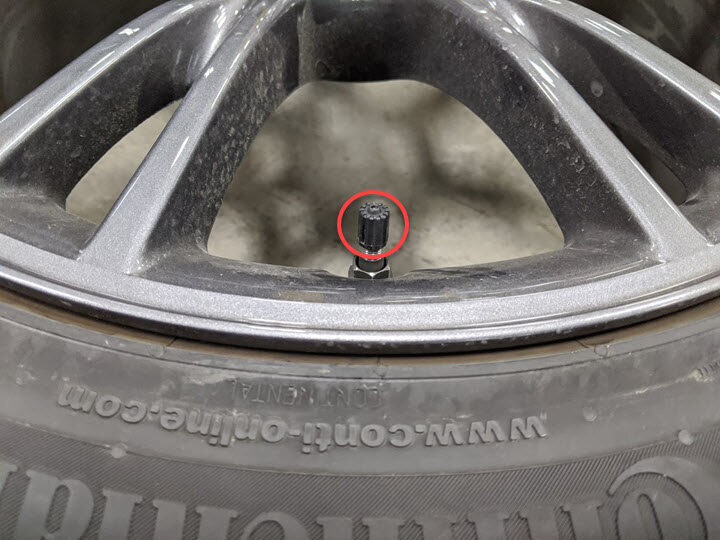

7. Remove valve stem cap
   Note

   1x cap

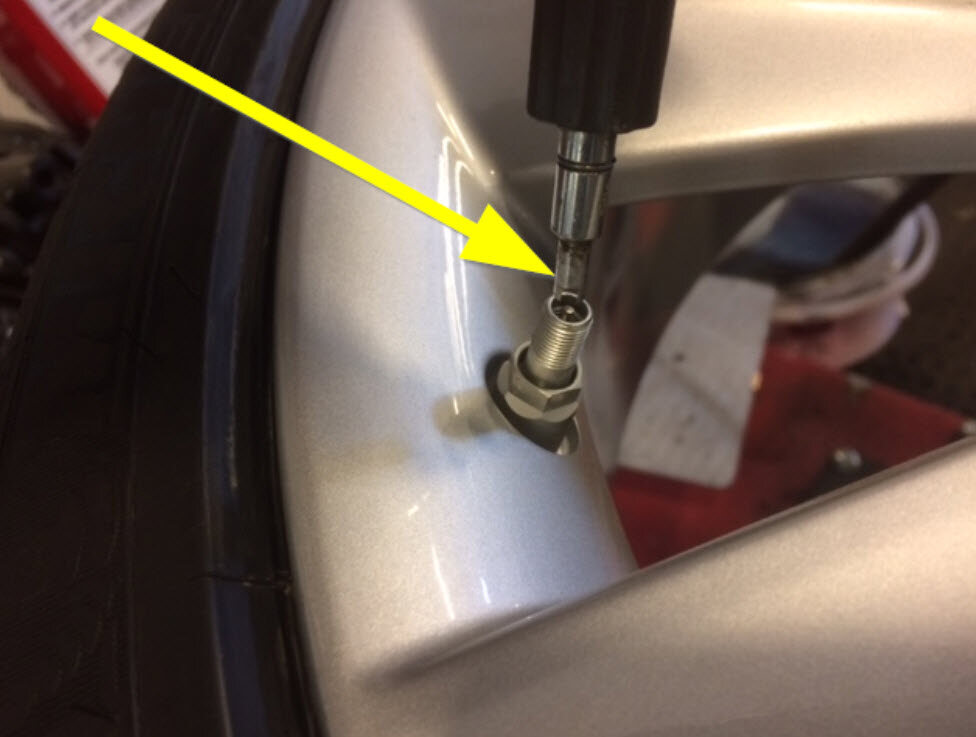

8. Remove valve stem core
   Note

   Exercise caution as tire rapidly deflates, wear appropriate PPE

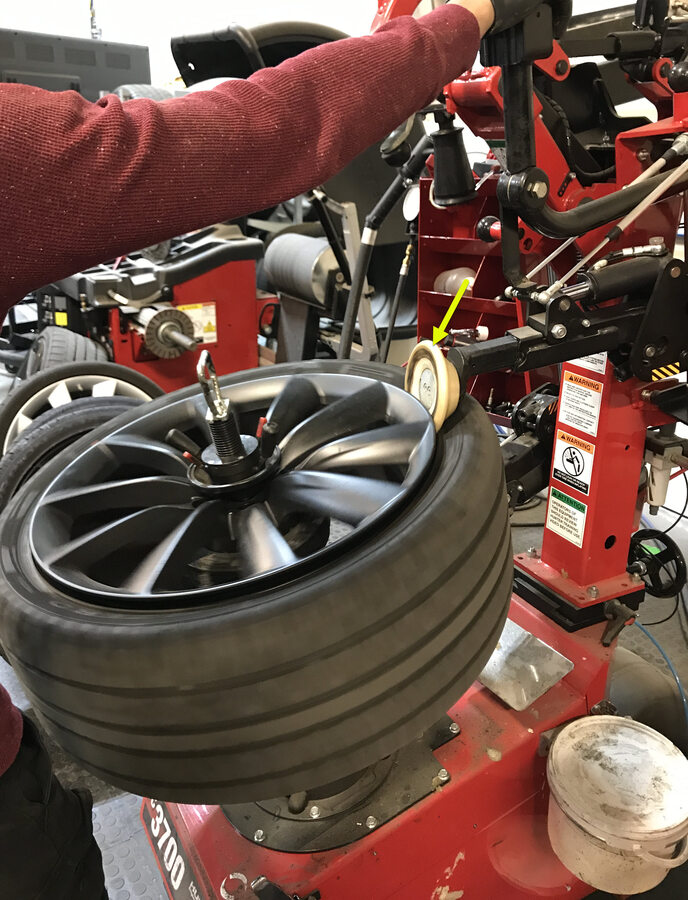

9. Rotate tire and wheel so that upper roller is 100mm in front of the valve



10. Break top tire bead
    Note

    Use lubrication around tire and wheel

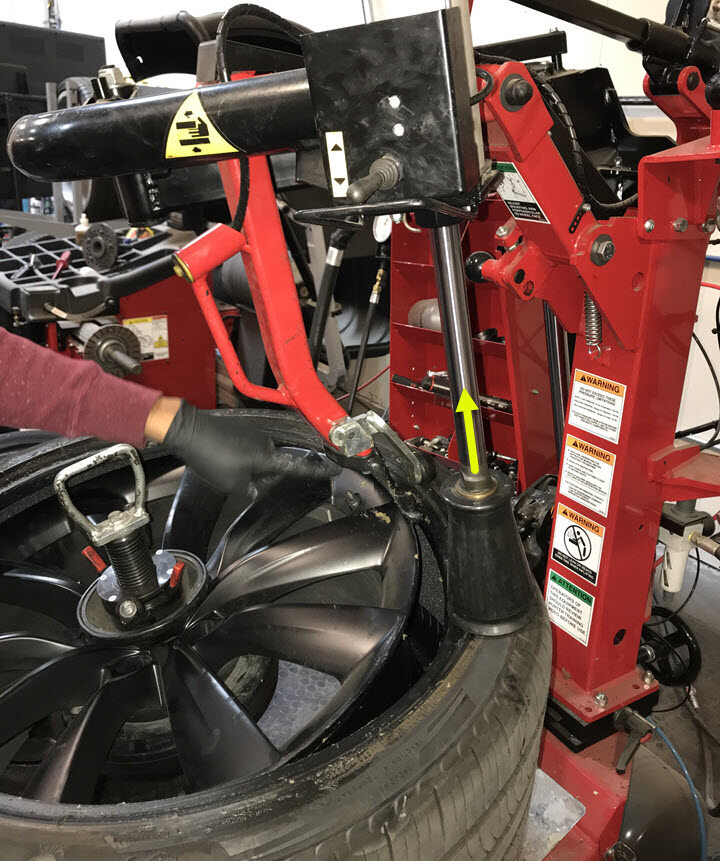

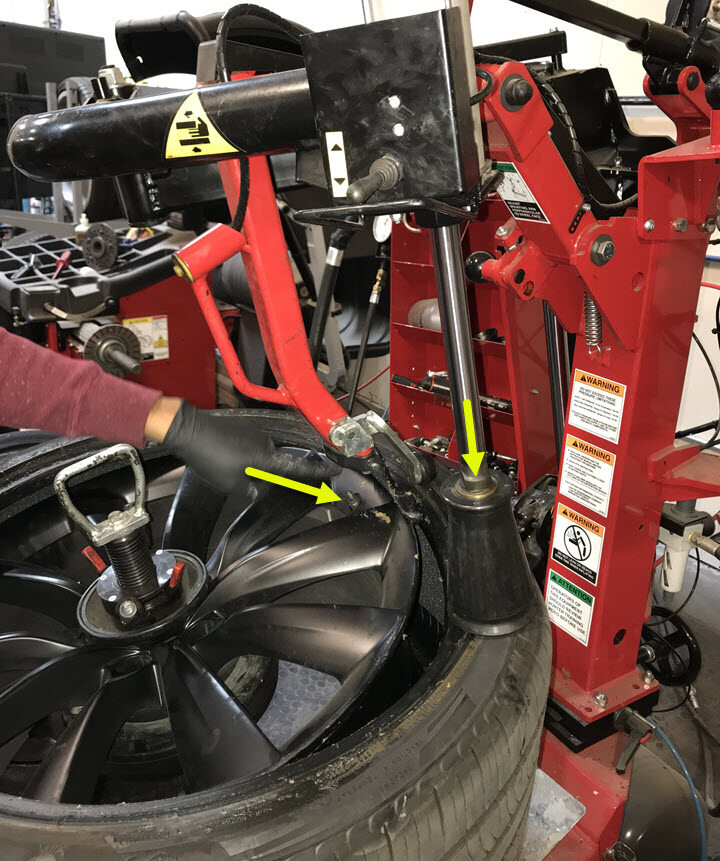

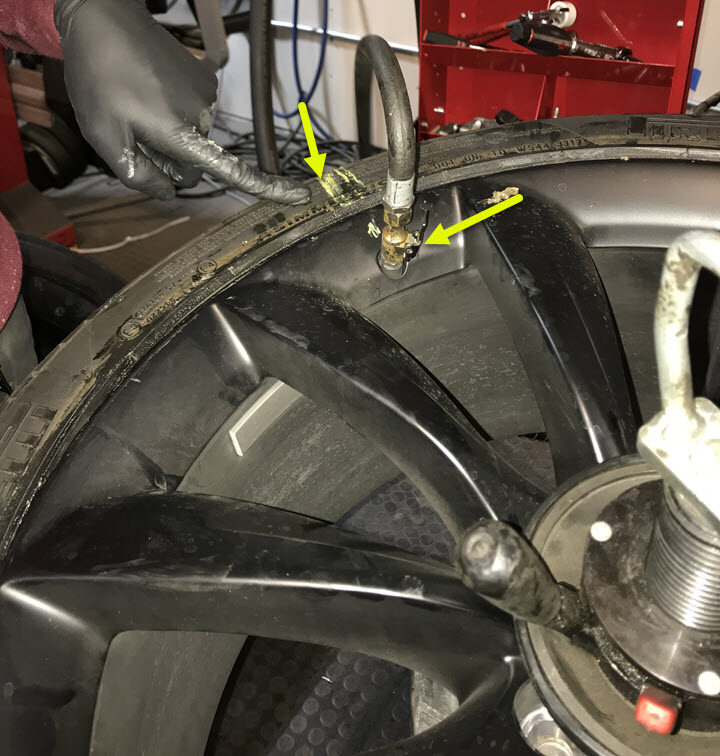

11. Use upper roller to press upper bead down until valve stem is accessible

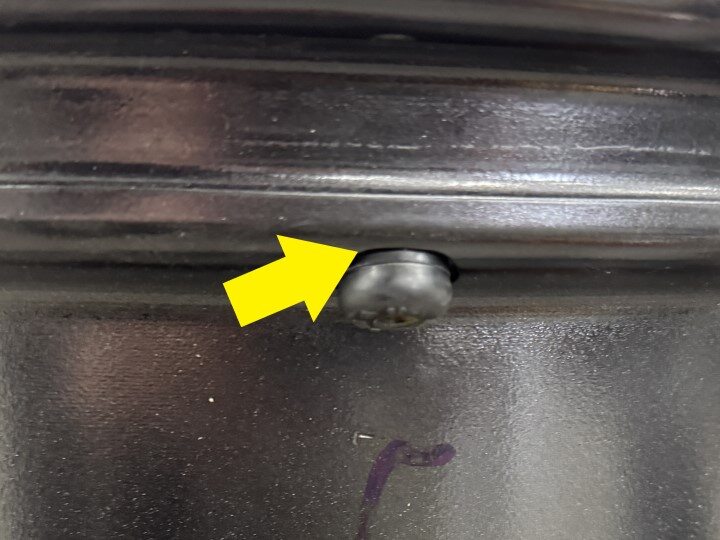

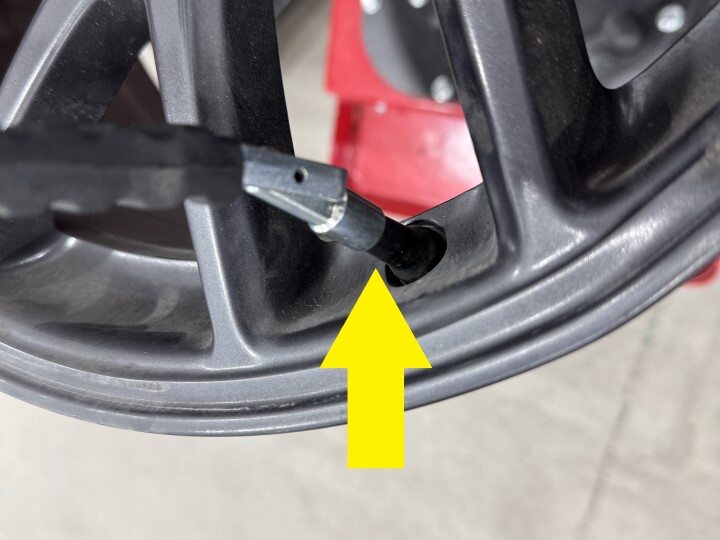

12. Remove rubber valve stem
    Note

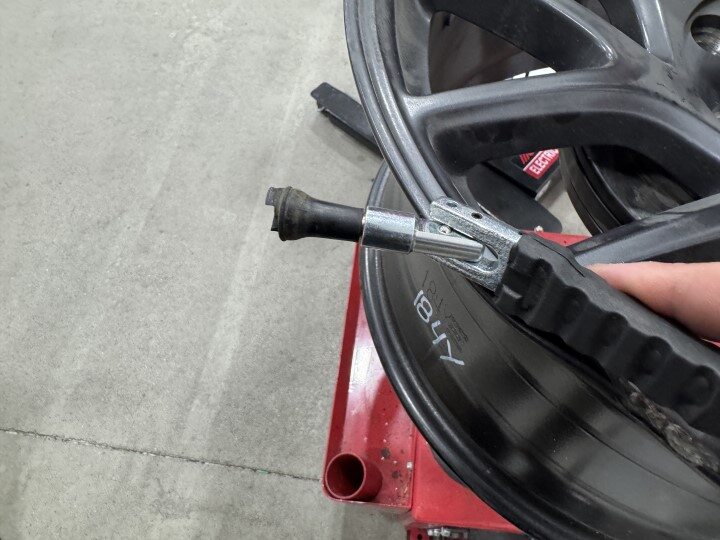

    Cut base of valve stem flush with underside of wheel, Attach valve stem puller to valve stem then pull upwards to release, Discard after removal

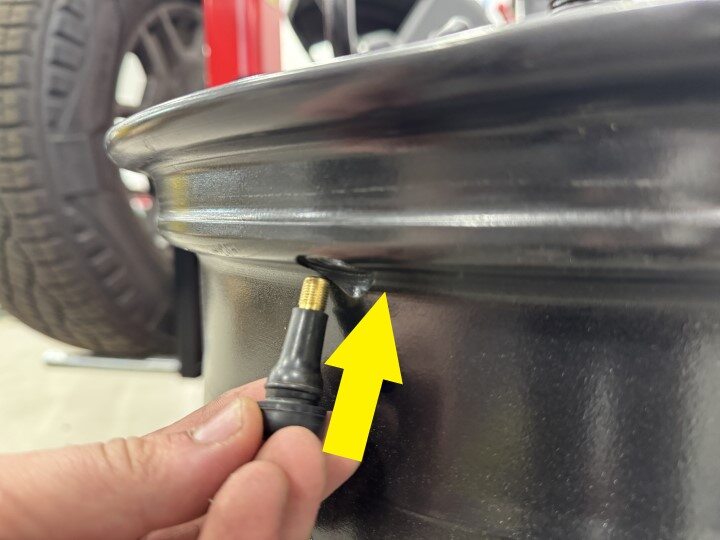

13. Install rubber valve stem
    Note

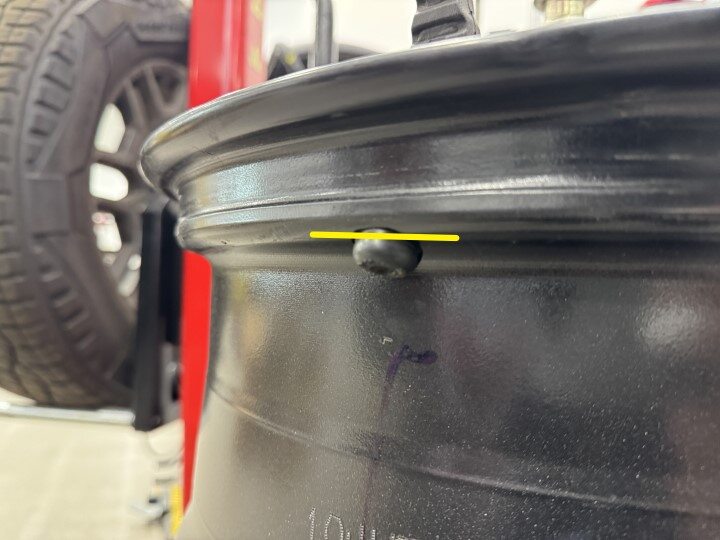

    Remove cap, Position rubber valve stem to wheel, Thread on valve stem installation tool until threads fully engaged, Pivot installation tool over edge of wheel ensuring rubber pad is contacting wheel lip then push downwards to secure valve stem, Ensure valve stem is fully seated against inside of wheel, Remove installation tool once secured









14. Release upper roller and allow top bead to seat against wheel



15. Remove valve stem core
    Note

    Exercise caution as tire rapidly deflates, wear appropriate PPE



16. Inflate the tire to seat the bead
    Note

    Do not exceed the pressure indicated on the tire sidewall, Wear PPE



17. Install valve stem



18. Remove wheel from tire mounting machine



19. Install LH front wheel
    Note

    5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool

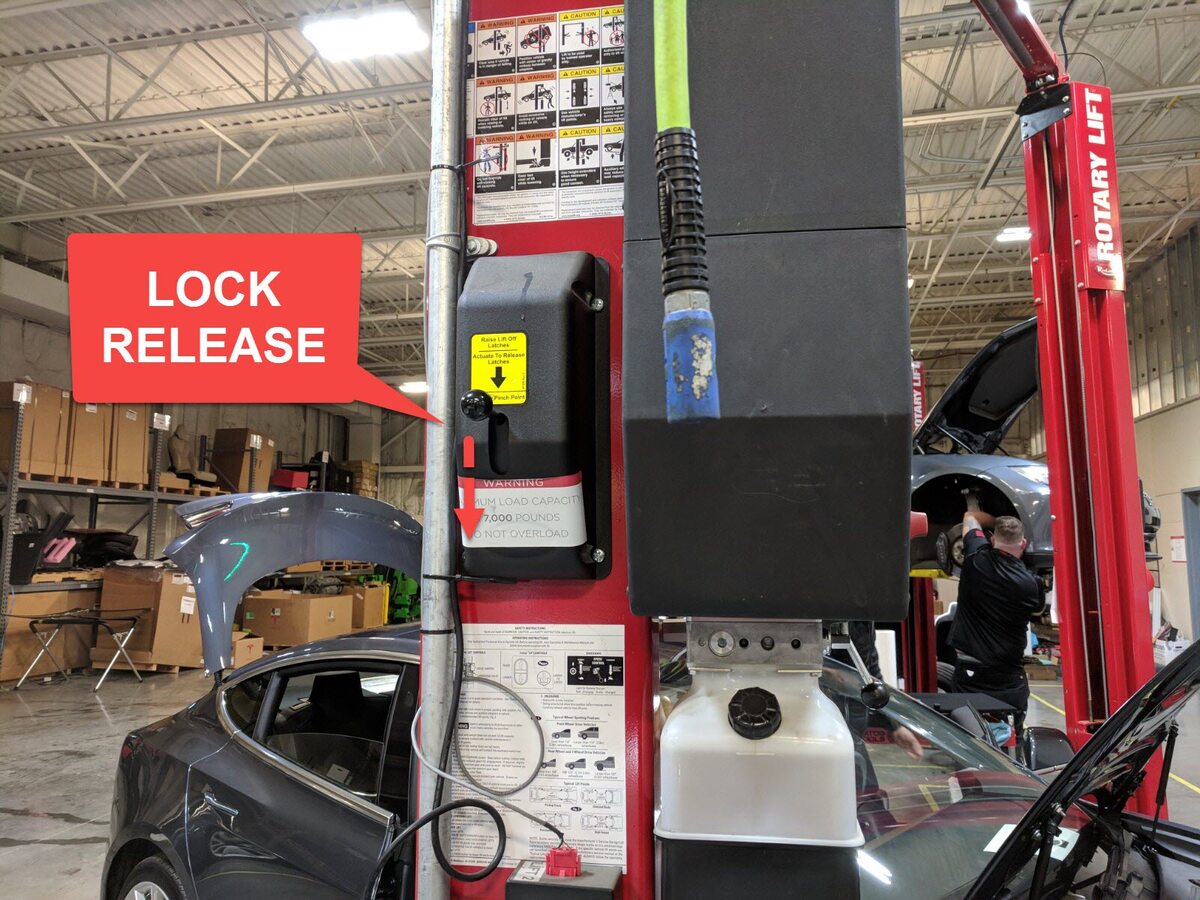

20. Lower vehicle until tires are touching ground
    Note

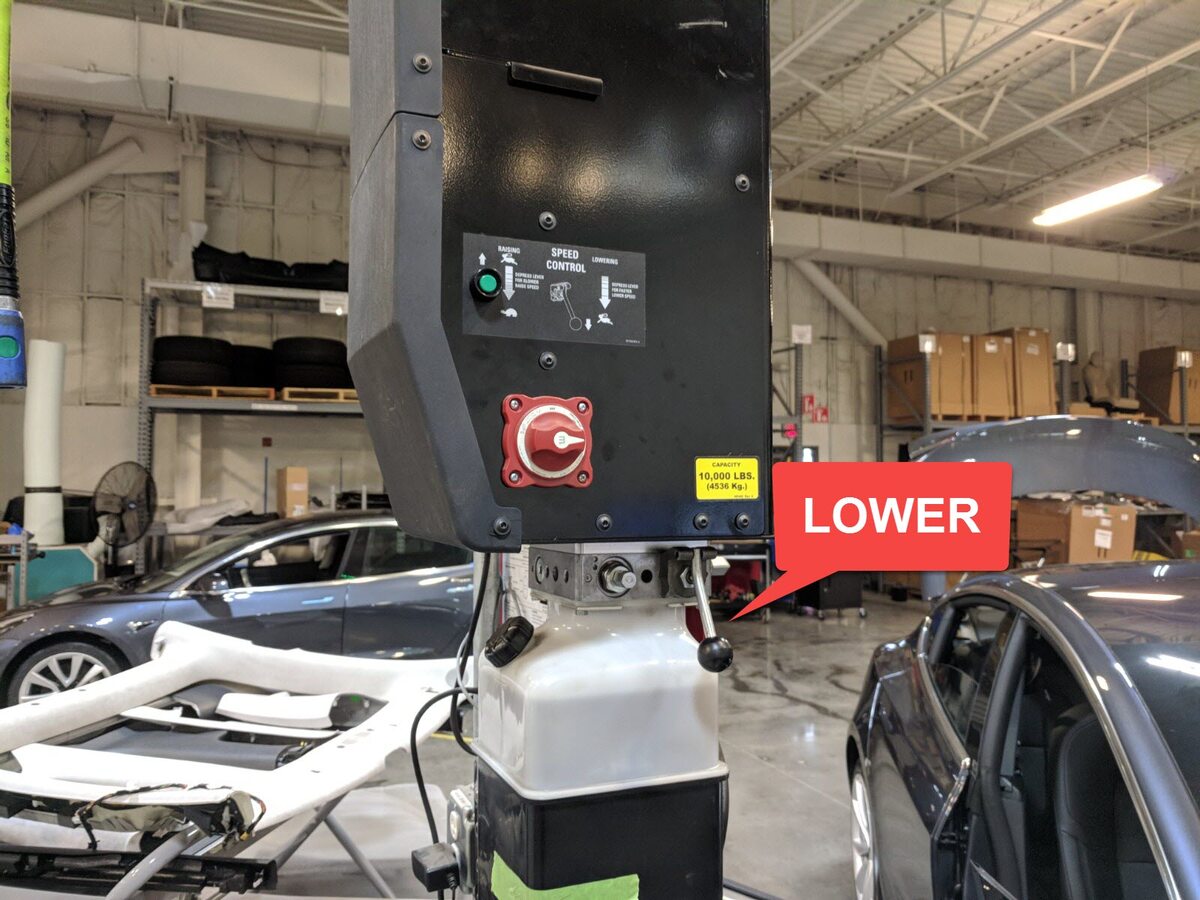

    Raise lift off locks, Then hold lock release lever to keep locks free while vehicle is lowered

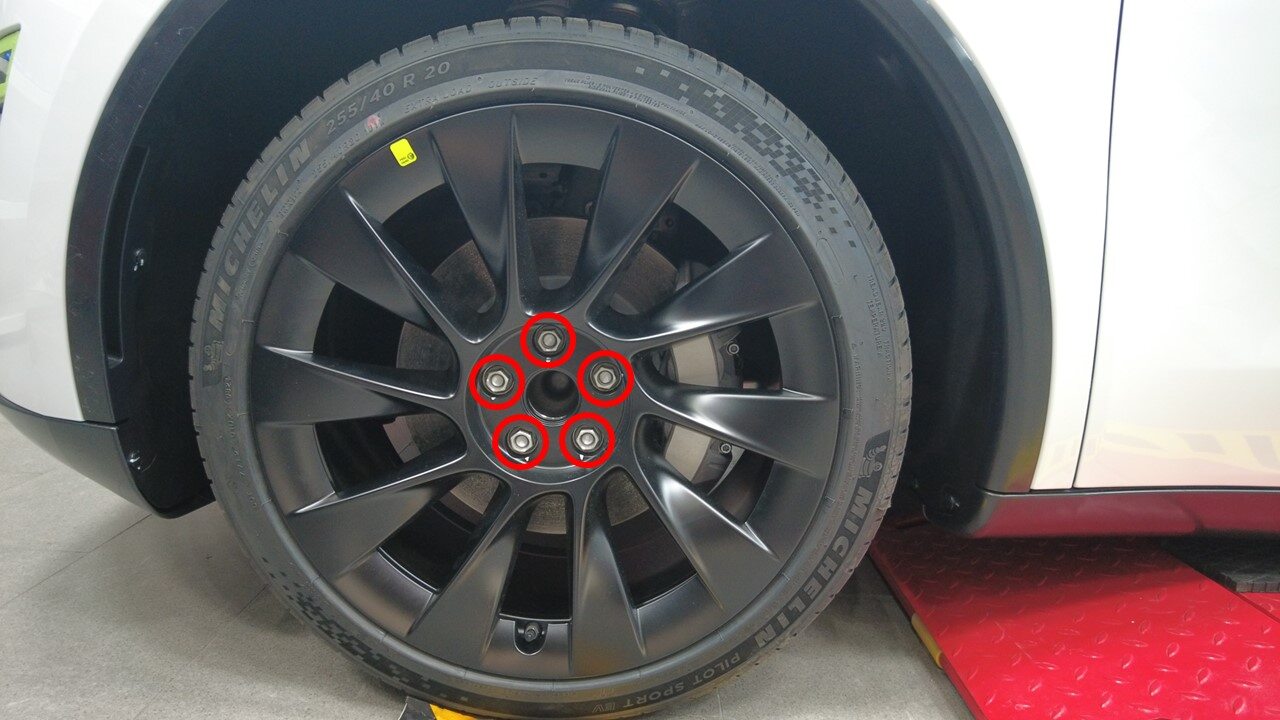

21. Torque LH front wheel nuts
    Note

    5x nuts, 21mm, 175 Nm



22. Install LH front wheel cap
    Note

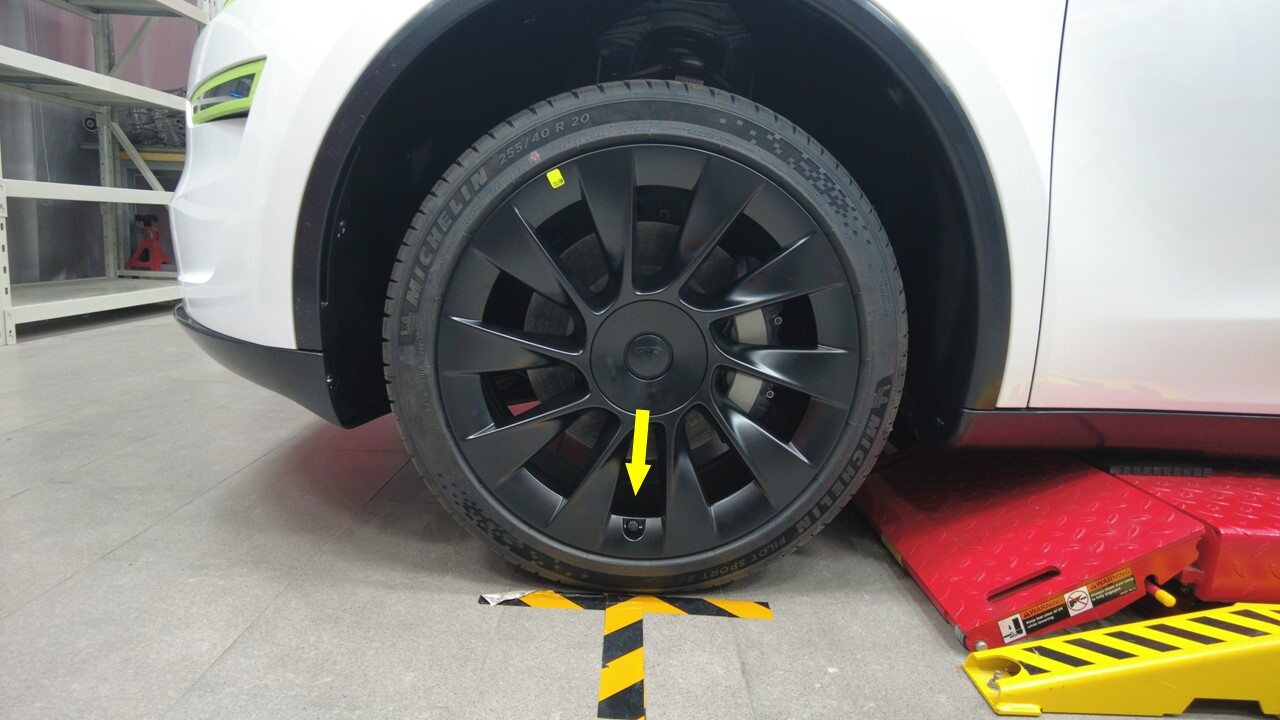

    1x cap, Align valve stem with wheel cap cavity, Wheels may be equipped with different caps

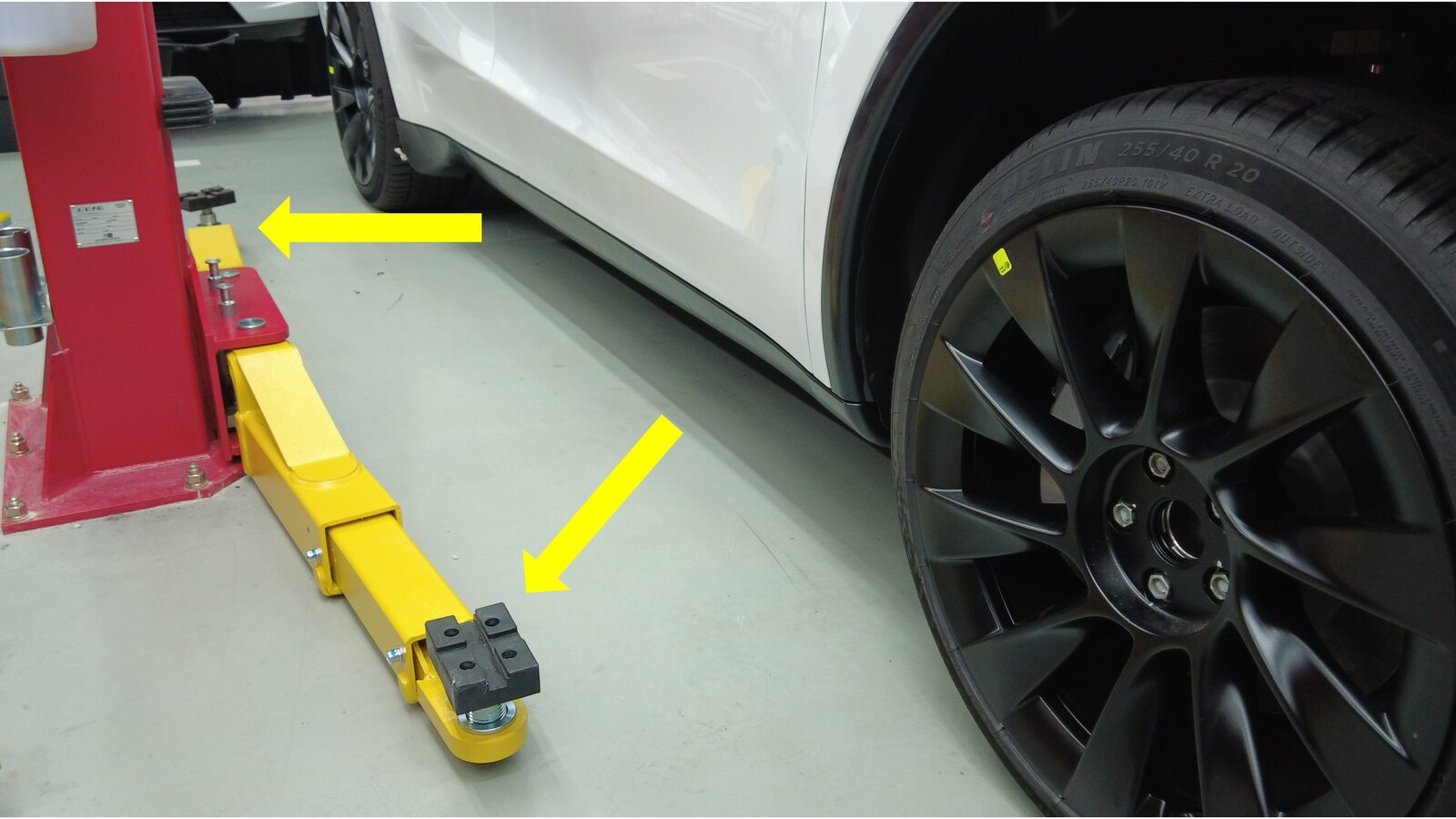

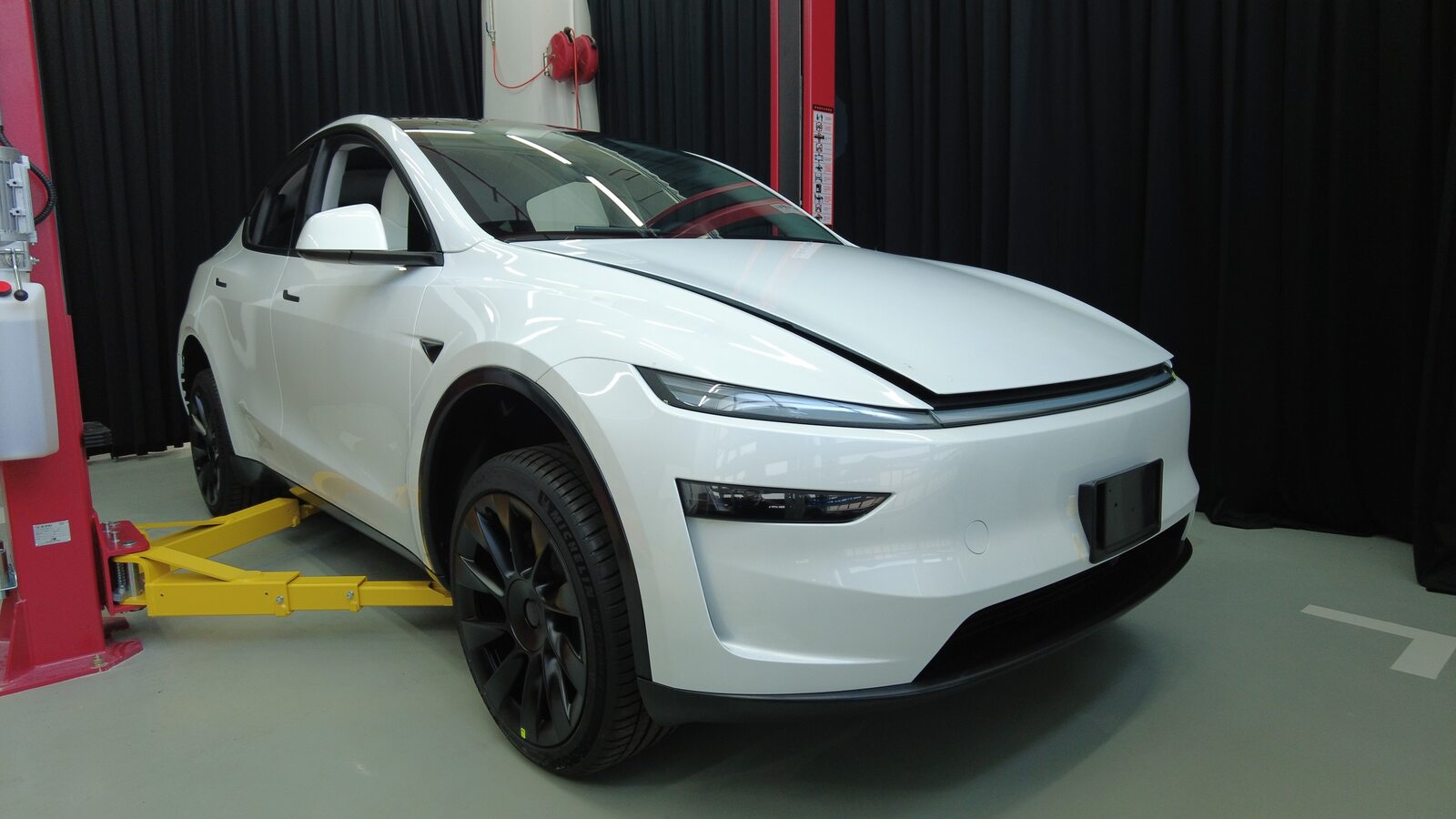

23. Remove vehicle from lift
    Note

    Lower rack arms fully and remove from under vehicle
