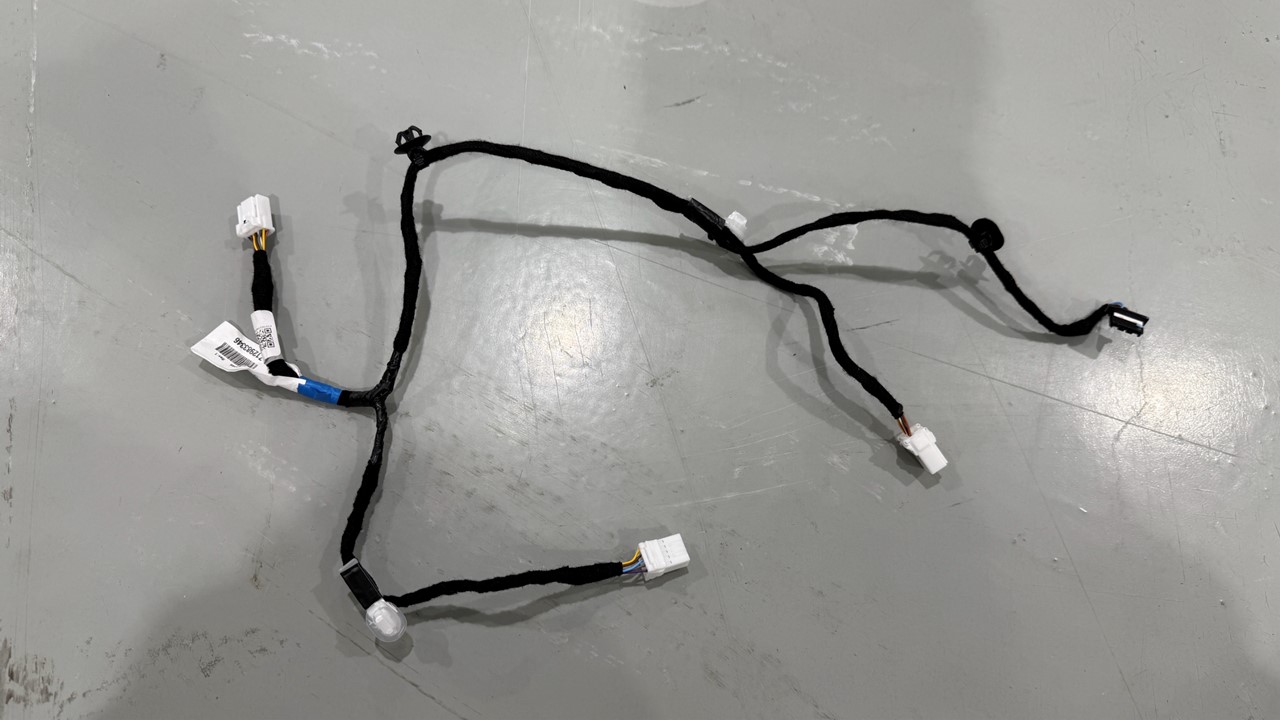

Harness - Instrument Panel Trim - LH (LHD) (Remove and Replace)
Correction code
1710010202
FRT
1.38
NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so.
NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.
Remove
- Remove the instrument panel upper assembly. See Assembly - Instrument Panel - Upper (Remove and Replace).

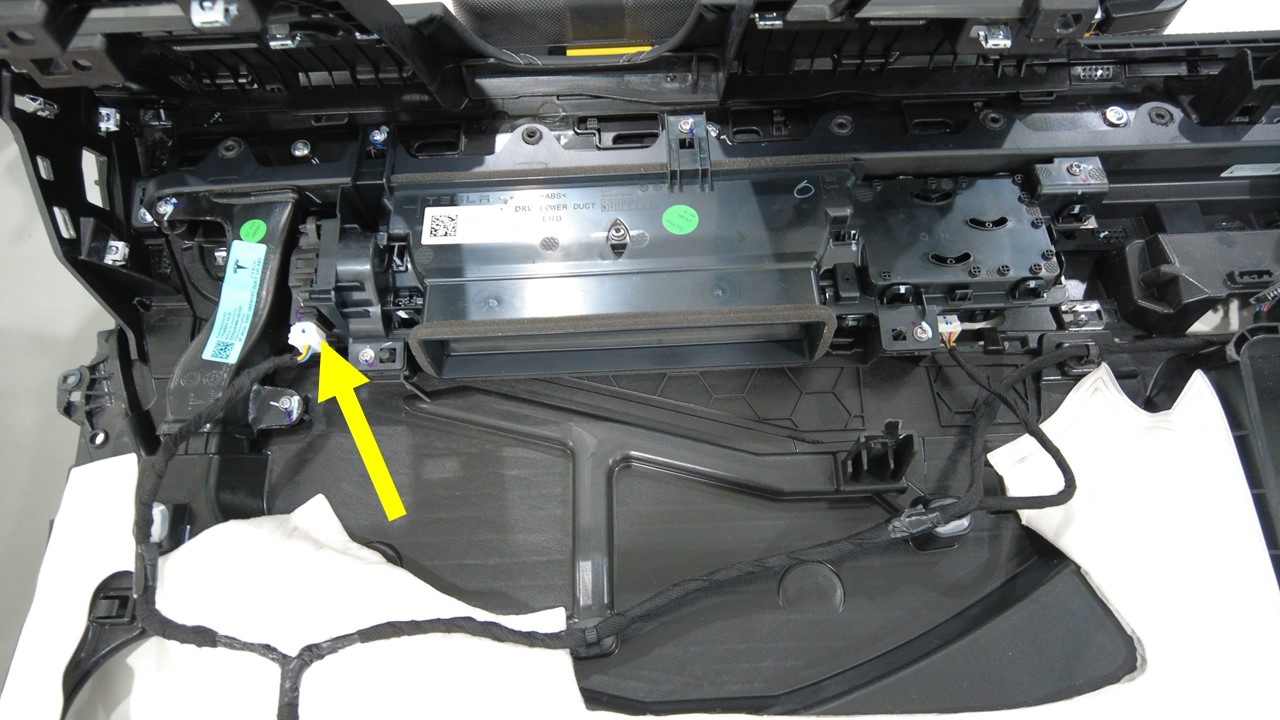

- Disconnect the LH air duct height adjustment actuator connector.

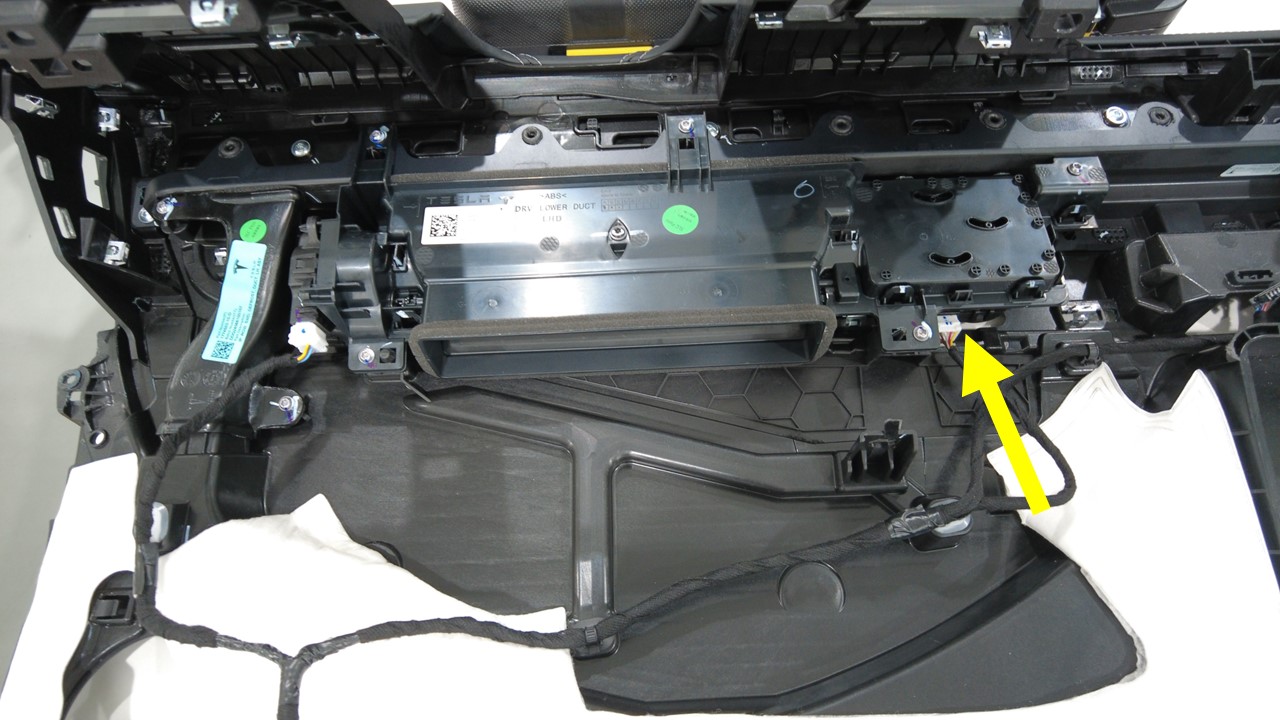

- Disconnect the LH air duct horizontal adjustment actuator connector.

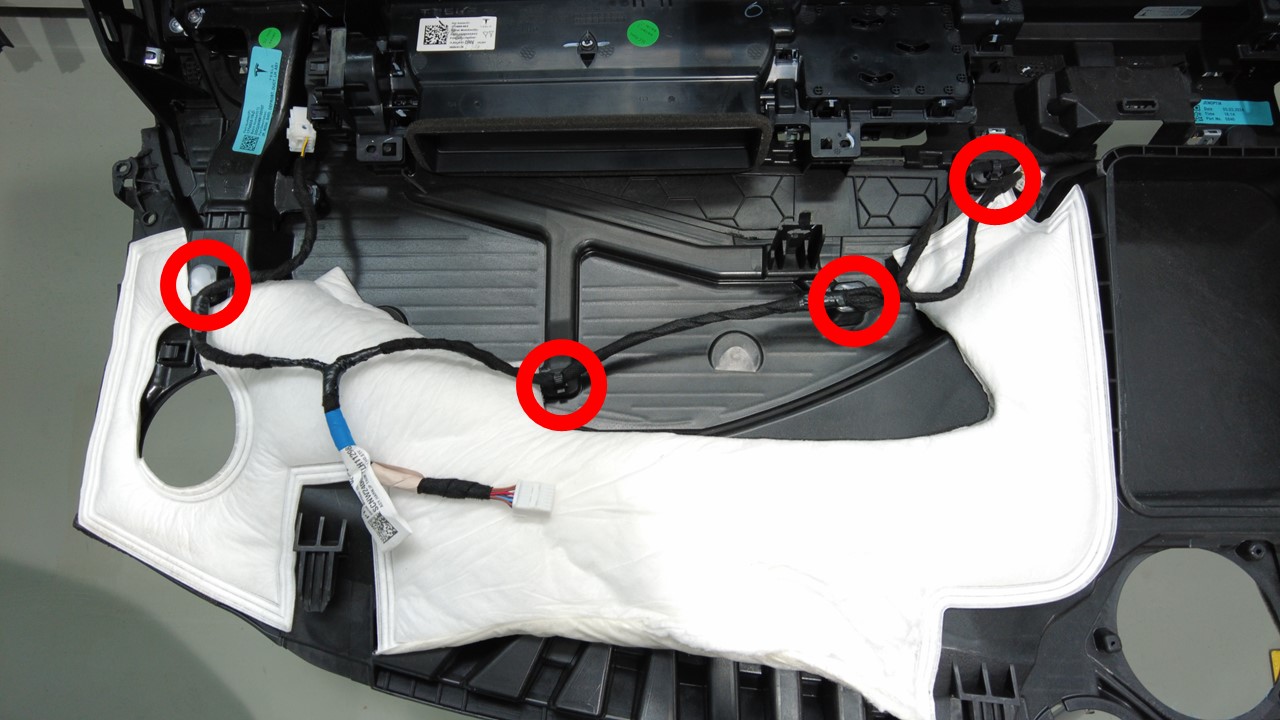

- Remove the clips (x4) to remove the LH instrument panel trim harness.
Install
- Install the clips (x4) to secure the LH instrument panel trim harness.
- Connect the LH air duct horizontal adjustment actuator connector.
- Connect the LH air duct height adjustment actuator connector.
- Install the instrument panel upper assembly. See Assembly - Instrument Panel - Upper (Remove and Replace).
