Harness - Cushion Heat Pad - 2nd Row Seat (Remove and Replace)

Correction code 1710070502 FRT 0.24 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  1. 2025-10-22: Released new procedure.

Remove

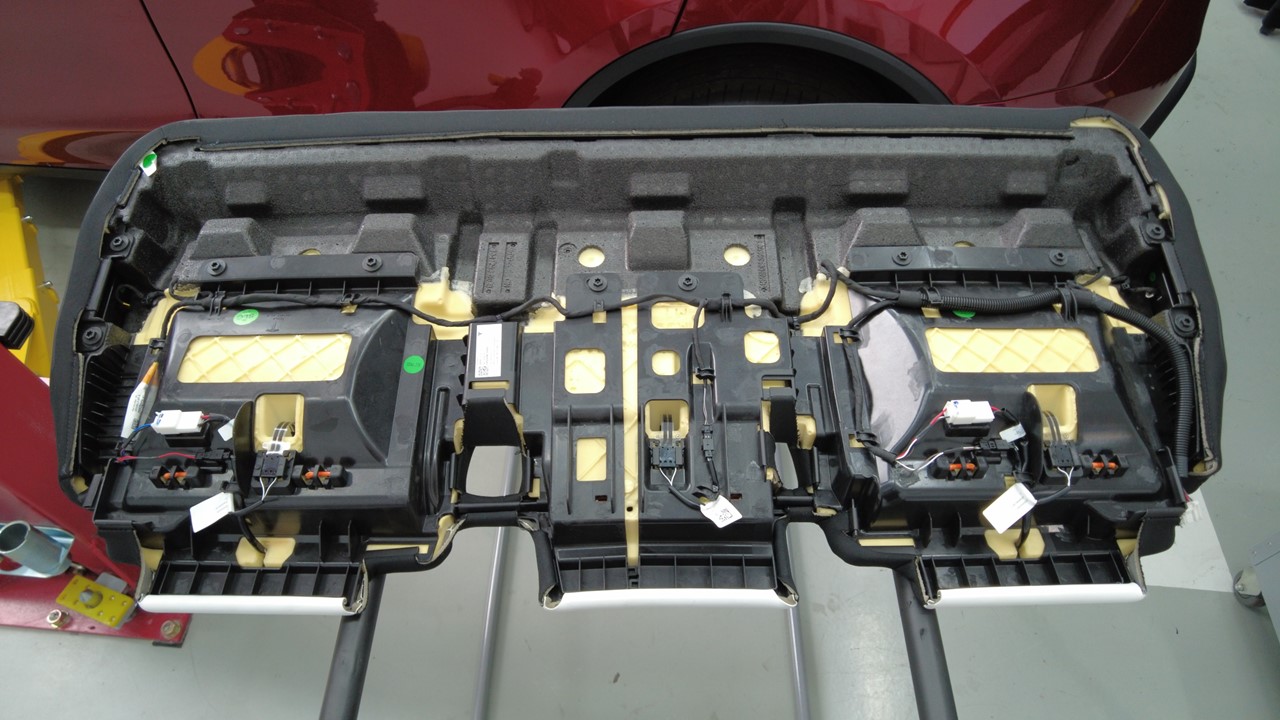

  1. Remove the 2nd row seat cushion. See Seat Cushion - 2nd Row (Remove and Replace).

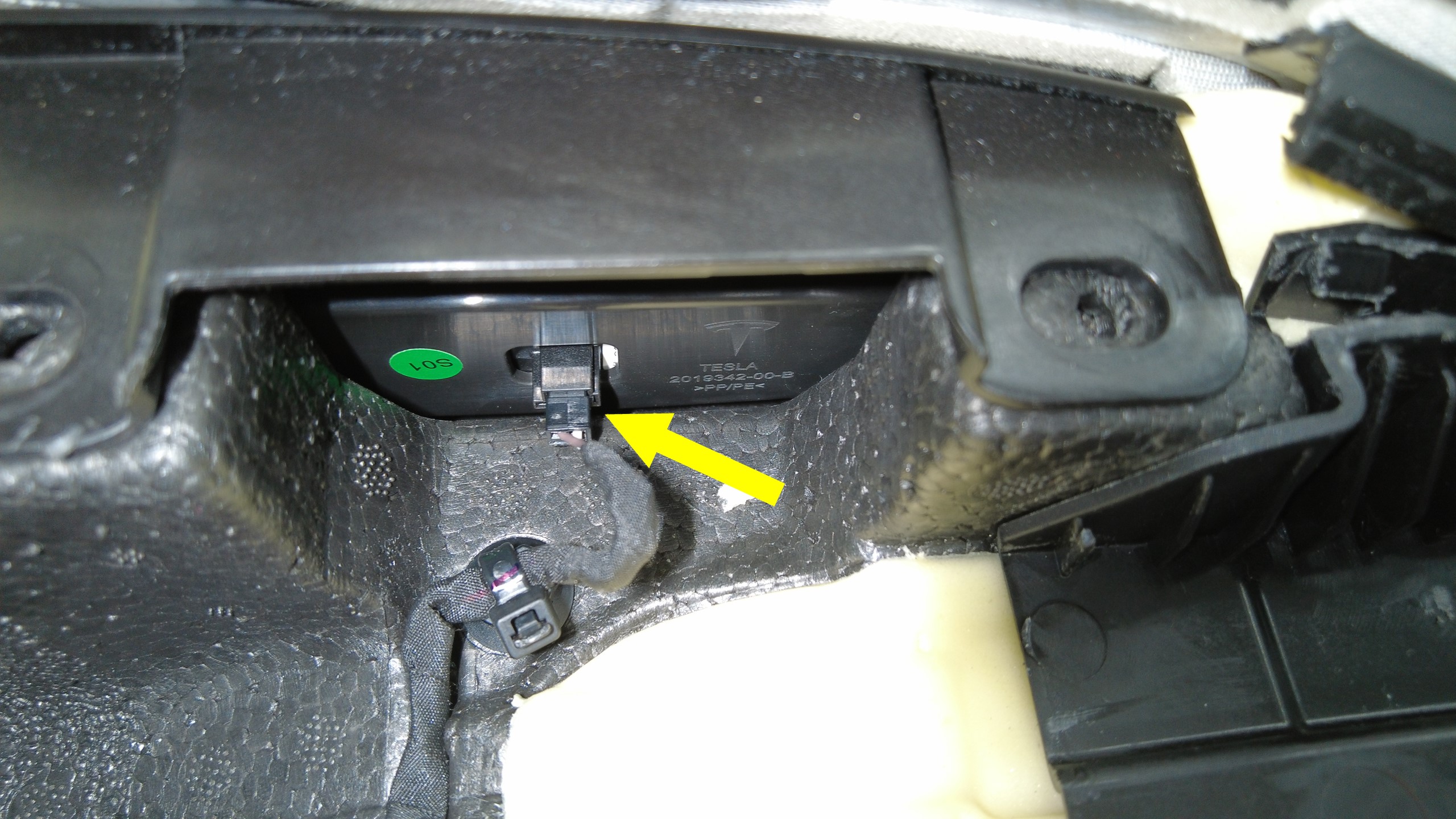

  2. Disconnect the 2nd row LH rear seat fold switch connector.

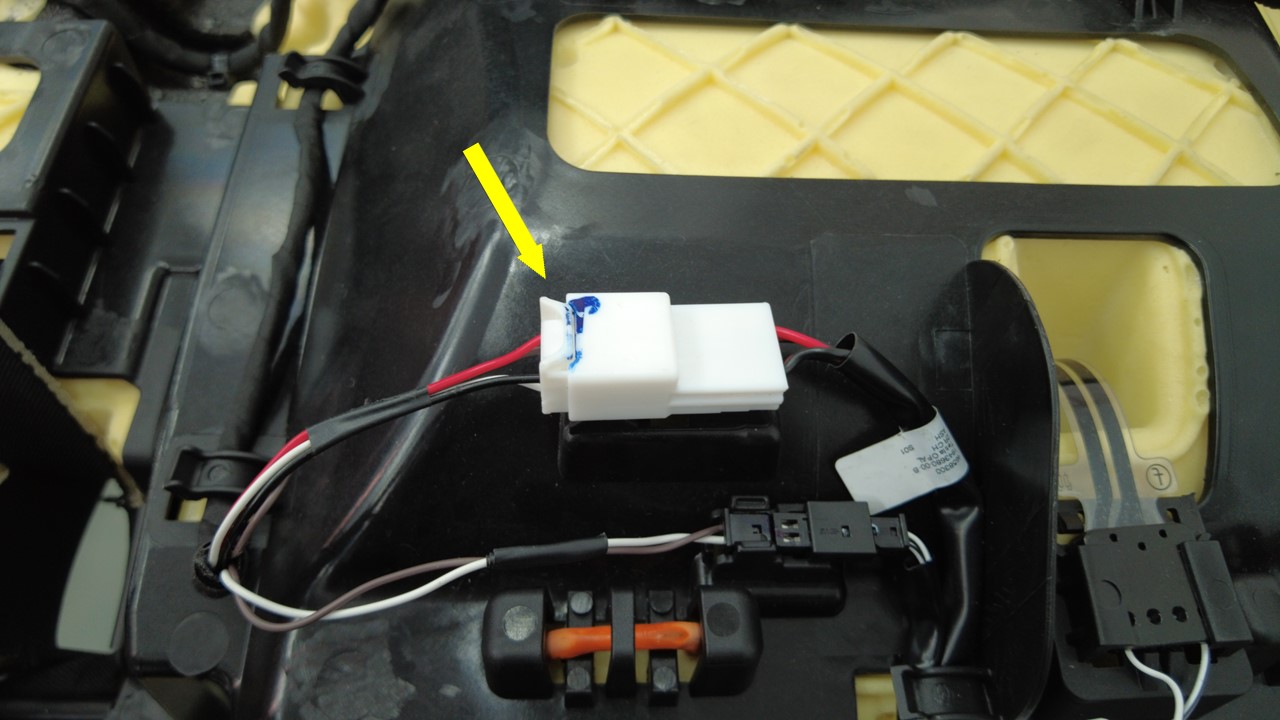

  3. Disconnect the 2nd row LH heat pad connector.

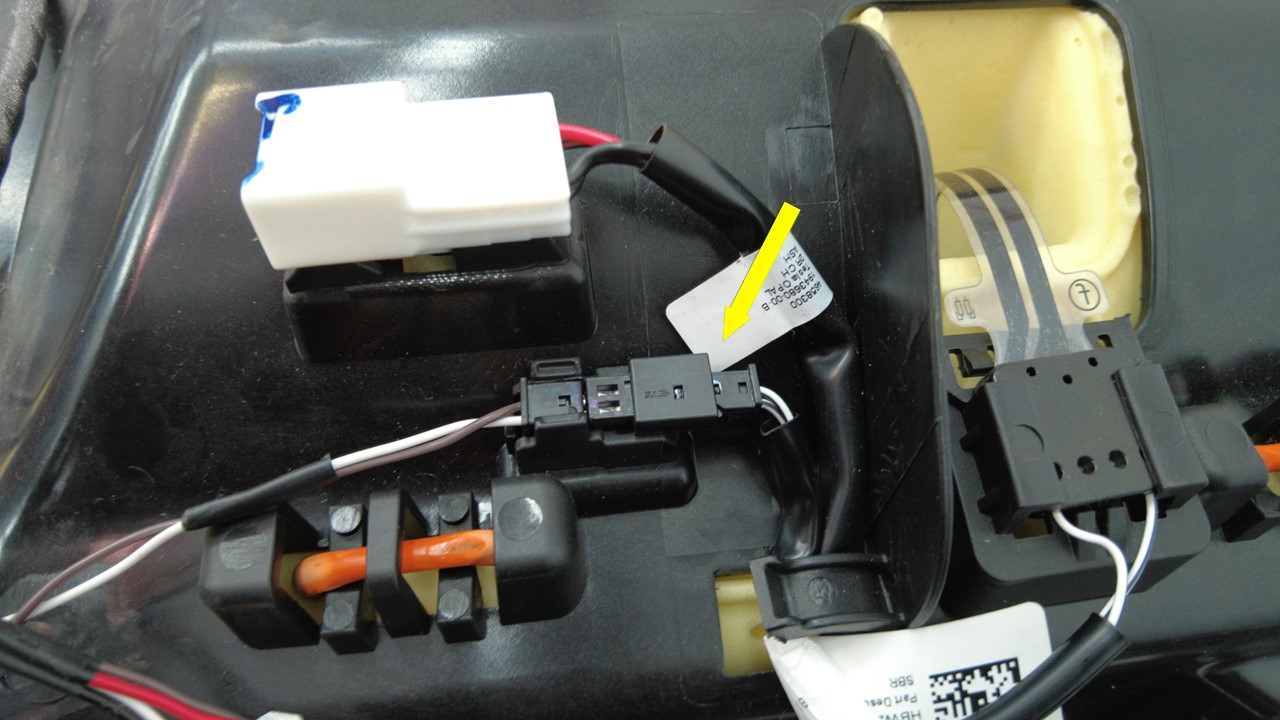

  4. Disconnect the 2nd row LH occupancy connector.

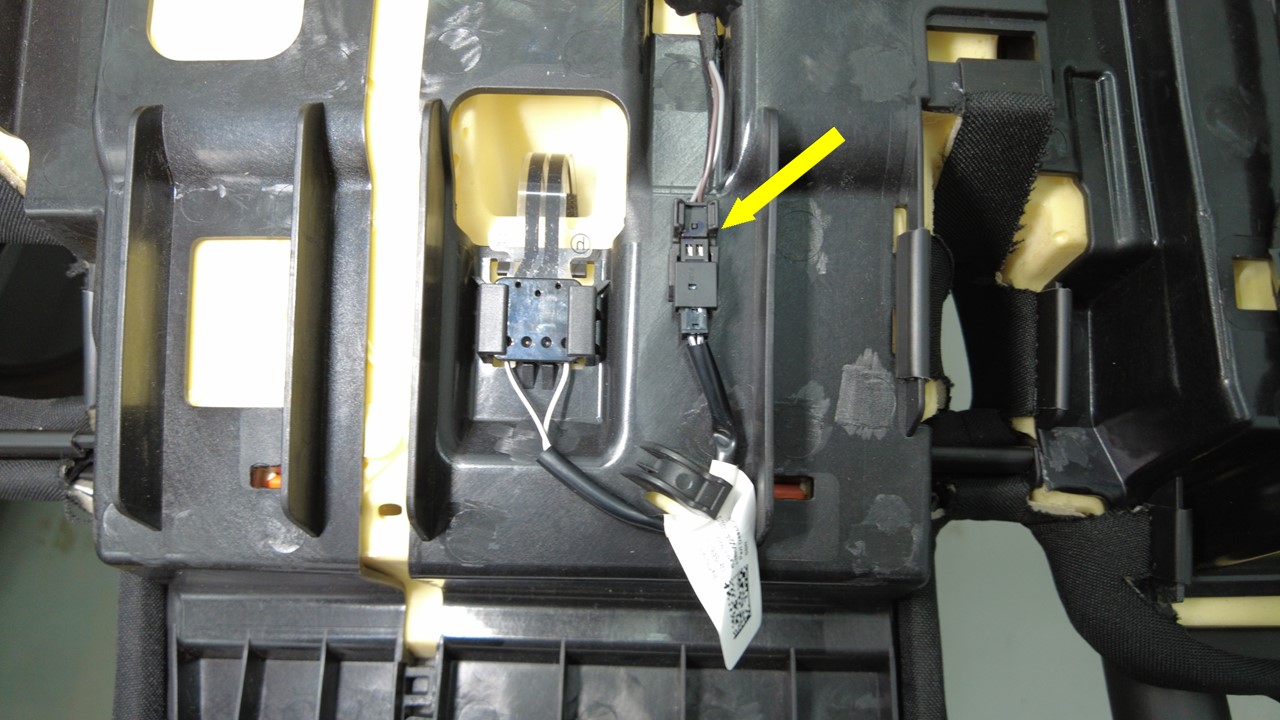

  5. Disconnect the 2nd row middle occupancy connector.
  6. Repeat step 2 through step 4 on the RH side of the vehicle.

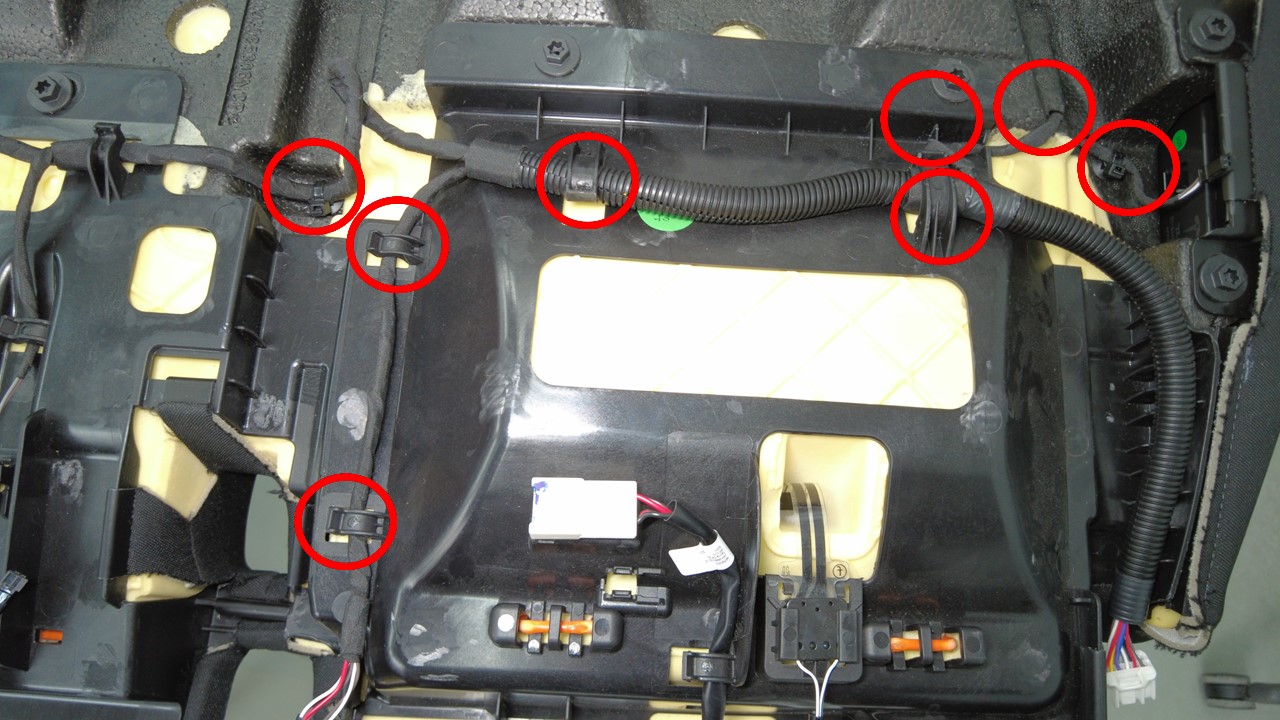

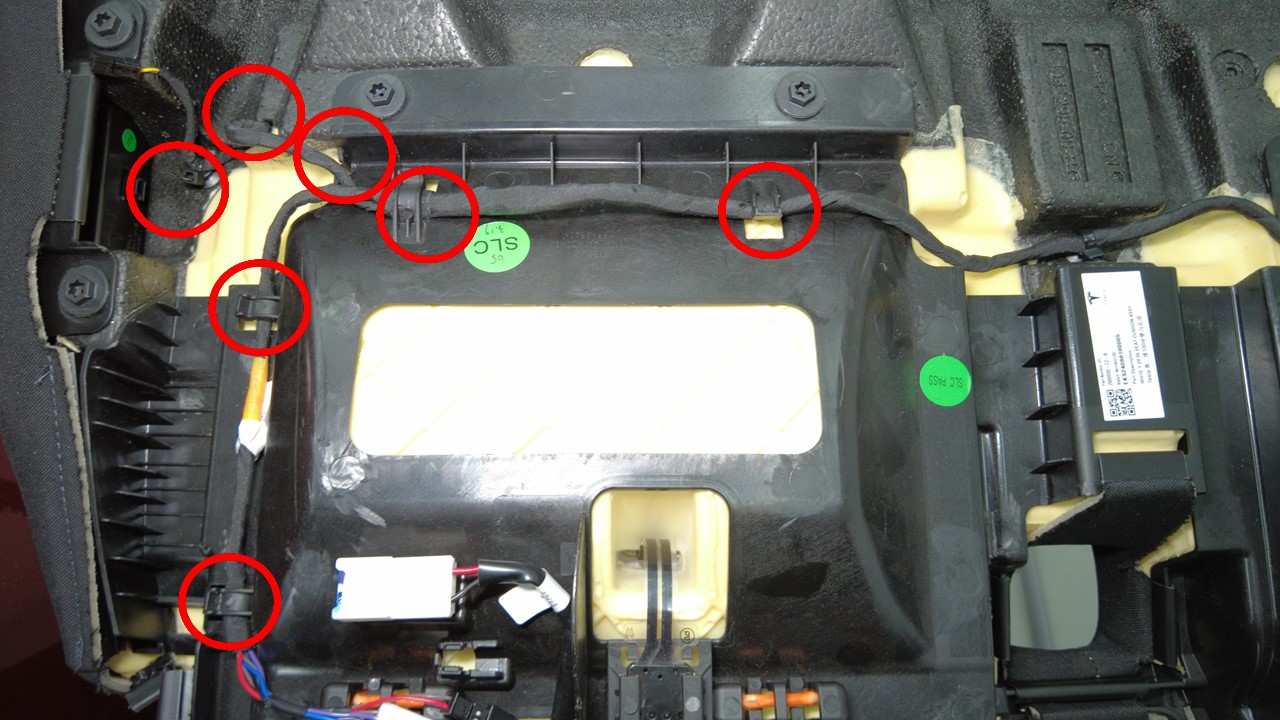

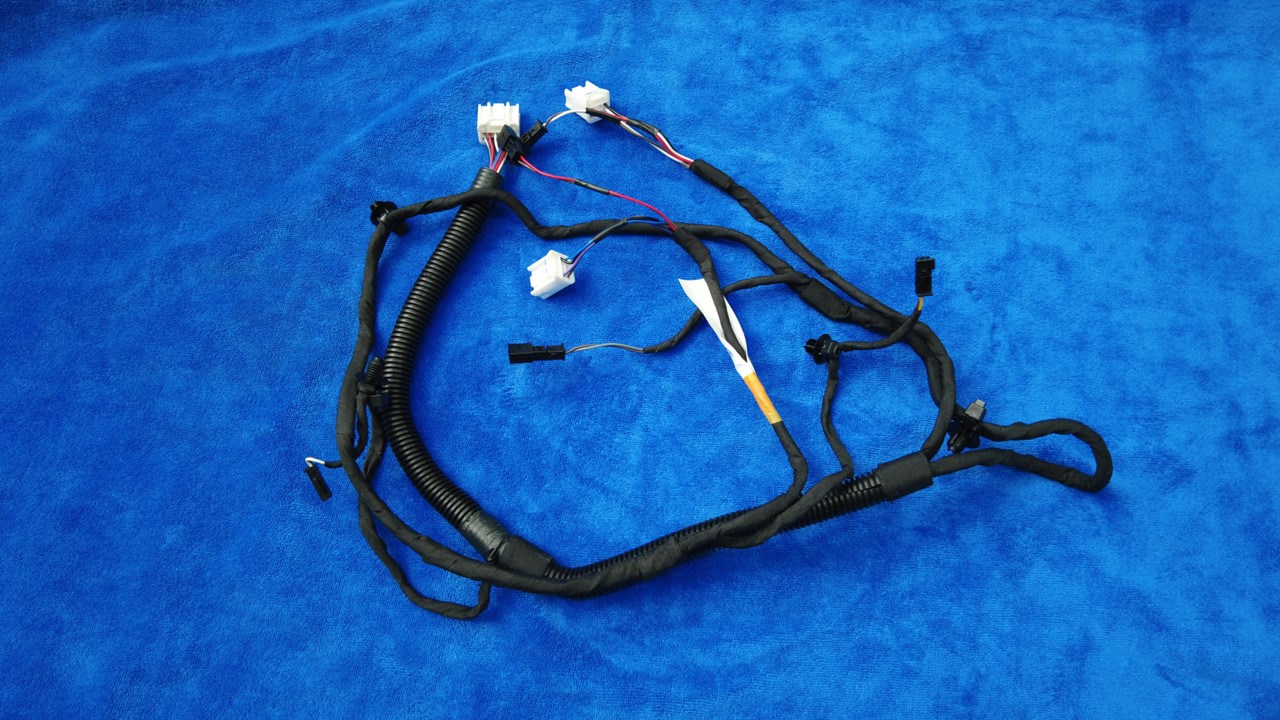

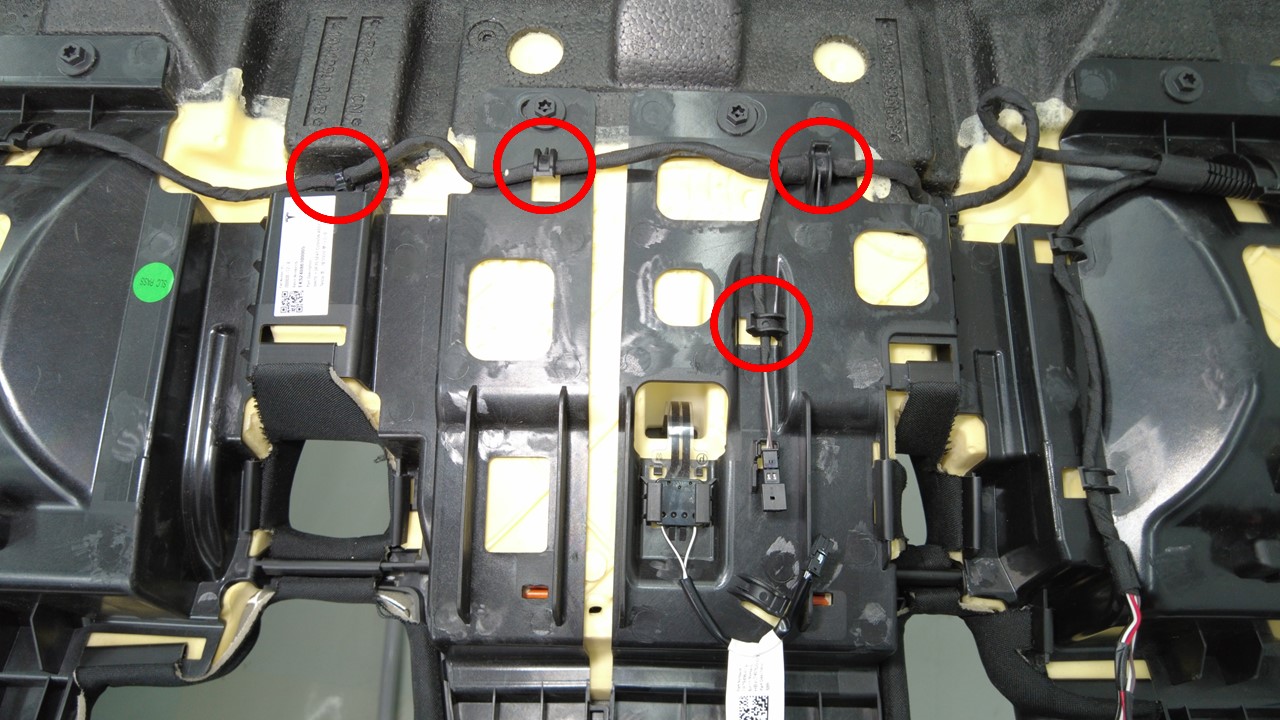

  7. Release the clips (x8) and hooks (x11) that attach the 2nd row seat cushion harness to the cushion, and then remove the harness from the vehicle.

Install

  1. Position the 2nd row seat cushion harness onto the cushion, and then install the clips (x8) and hooks (x11) that attach the harness to the cushion.
  2. Connect the 2nd row LH rear seat fold switch connector.
  3. Connect the 2nd row LH occupancy connector.
  4. Connect the 2nd row LH heat pad connector.
  5. Connect the 2nd row middle occupancy connector.
  6. Repeat step 2 through step 4 on the RH side of the vehicle.
  7. Install the 2nd row seat cushion. See Seat Cushion - 2nd Row (Remove and Replace).
