Spoiler - Carbon Fiber (Remove and Replace)

Correction code 1133050202 FRT 0.36 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

  • 2025-09-11: Released new procedure.

Torque Specifications

Table 1. Torque Specifications: Spoiler - Carbon Fiber (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolts (X2) secure the tuned mass damper to the liftgate.
9 Nm (6.6 lbs-ft)
  • 10 mm socket
  • Ratchet/torque wrench
 Reuse
Nuts (X3) that attach the spoiler outer panel to the liftgate.
5 Nm (3.7 lbs-ft)
  • 10 mm socket
  • Ratchet/torque wrench
 Reuse
Bolts that attach the carbon fiber spoiler to the spoiler outer panel.
2 Nm (1.5 lbs-ft)
  • Torx T25 socket
  • Ratchet/torque wrench
 Reuse

Remove

  1. Remove the spoiler outer panel. See Spoiler Outer Panel (Remove and Replace)

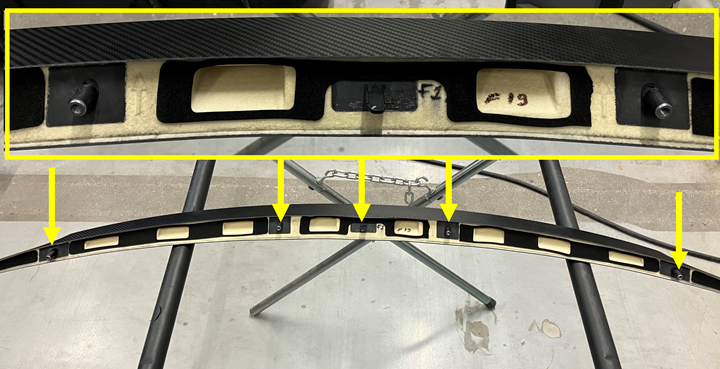

  2. Remove the bolts (x4) that attach the carbon fiber spoiler to the spoiler outer panel, and then remove the carbon fiber spoiler from the spoiler outer panel (5x tabs).

Install

  1. Clean the outer spoiler panel using IPA wipes.
    Informational PurposesAn informational icon, calling your attention
    Note
    Allow 1 minute to dry.
  2. Position the carbon fiber spoiler to the spoiler outer panel (5x tabs).
  3. Install the bolts (x4) that attach the carbon fiber spoiler to the spoiler outer panel.
    2 Nm (1.5 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T25 socket
    • Ratchet/torque wrench
  4. Install the spoiler outer panel. See Spoiler Outer Panel (Remove and Replace)
