Ambient Light - Door Map Pocket - Front - LH (Remove and Replace)
Correction code
1513047012
FRT
0.18
NOTE: Unless
otherwise explicitly stated in the procedure, the above correction code and
FRT reflect all of the work required to perform this procedure, including
the linked procedures. Do
not stack correction codes unless explicitly told to do so.
NOTE: See Flat Rate Times to learn more about FRTs and how they are
created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection to make
sure wearing proper PPE when performing the below procedure.
Remove
- Remove the LH front door trim panel. See Door Trim - Front - LH - LHD (Remove and Install).
- Remove the LH front door trim bolt cover. See Bolt Cover - Door Trim - Front - LH (Remove and Replace).
-

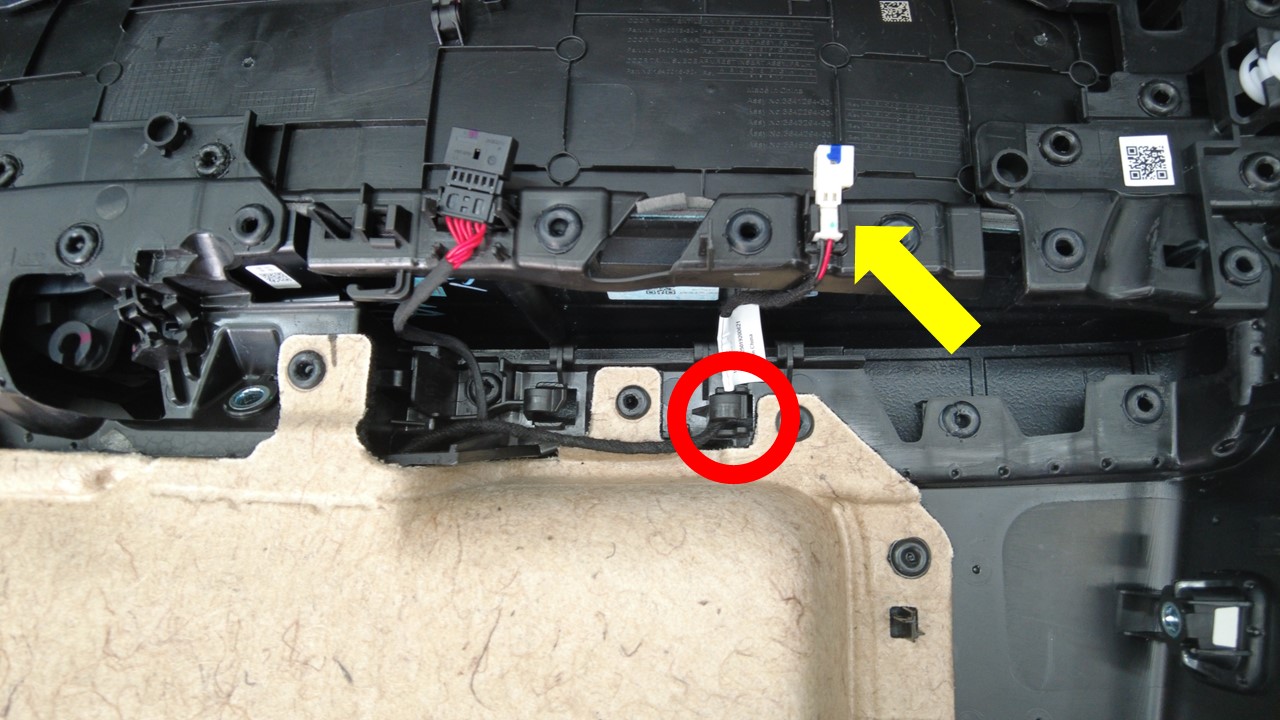

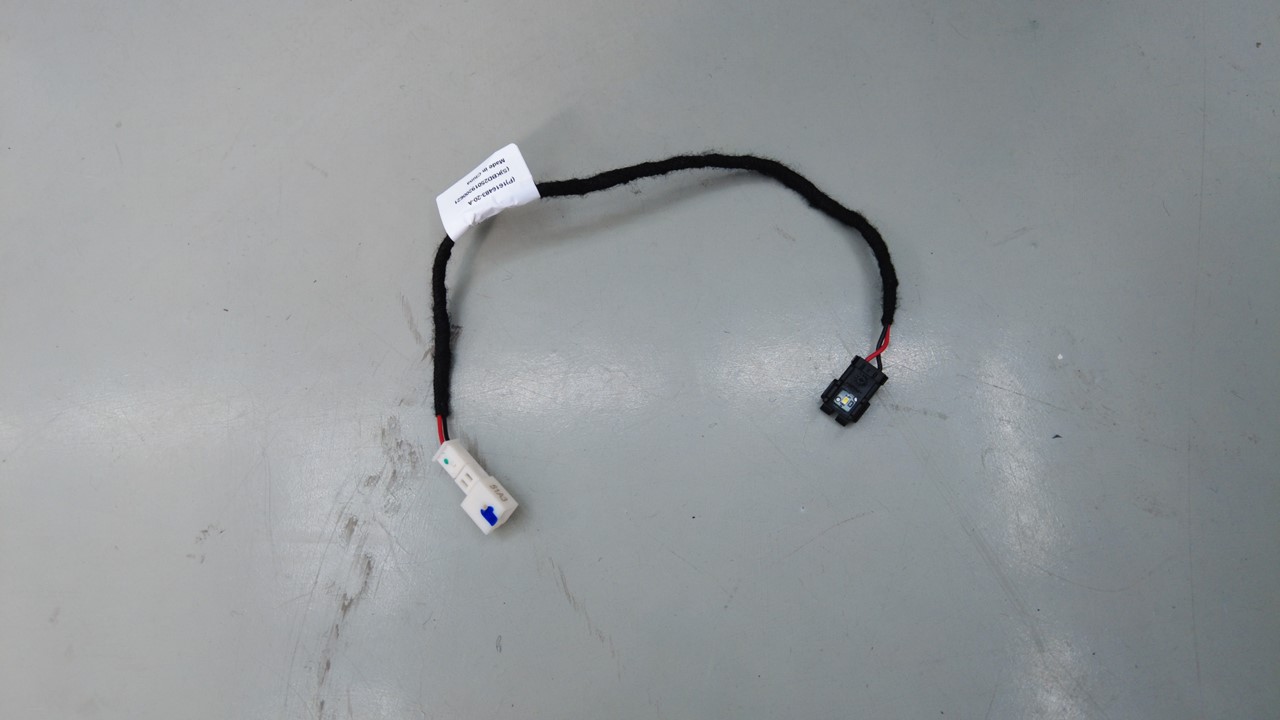

Release the tab and the harness clip to remove the door map pocket ambient light from
the LH front door trim.
Install
-
Secure the tab and the harness clip to install the door map pocket ambient light to
the LH front door trim.
- Install the LH front door trim bolt cover. See Bolt Cover - Door Trim - Front - LH (Remove and Replace).
- Install the LH front door trim panel. See Door Trim - Front - LH - LHD (Remove and Install).
