Headrest - Front Seat - LH (Sport Seat) (Remove and Replace)
Correction code
1304020302
FRT
0.06
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
- 2025-10-30: Released new procedure.
Remove
- Open the LH front door and lower the window.
-

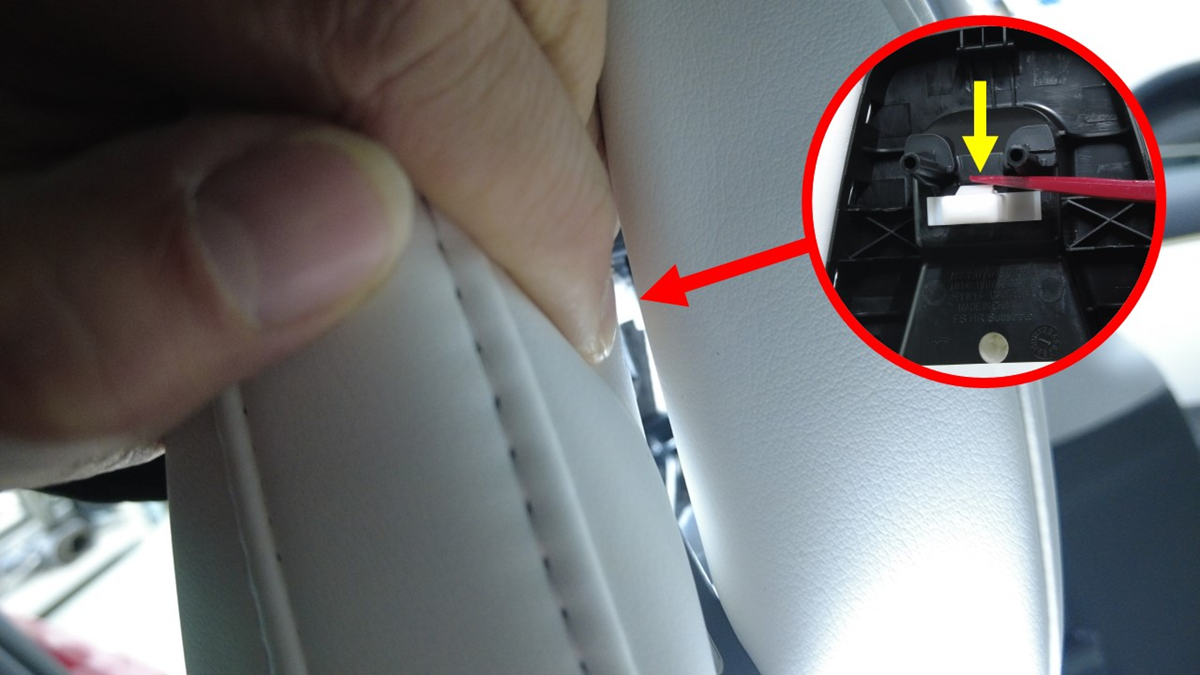

With an assistant, pull a little gap between the seat headrest and the
seatback and find the clip. Use a plastic trim tool to insert and push the

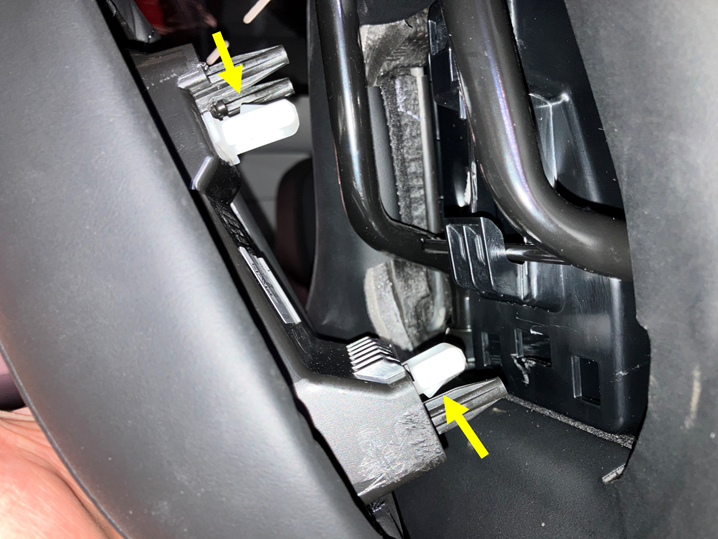

clip to release. The lower clip release is on opposite direction.

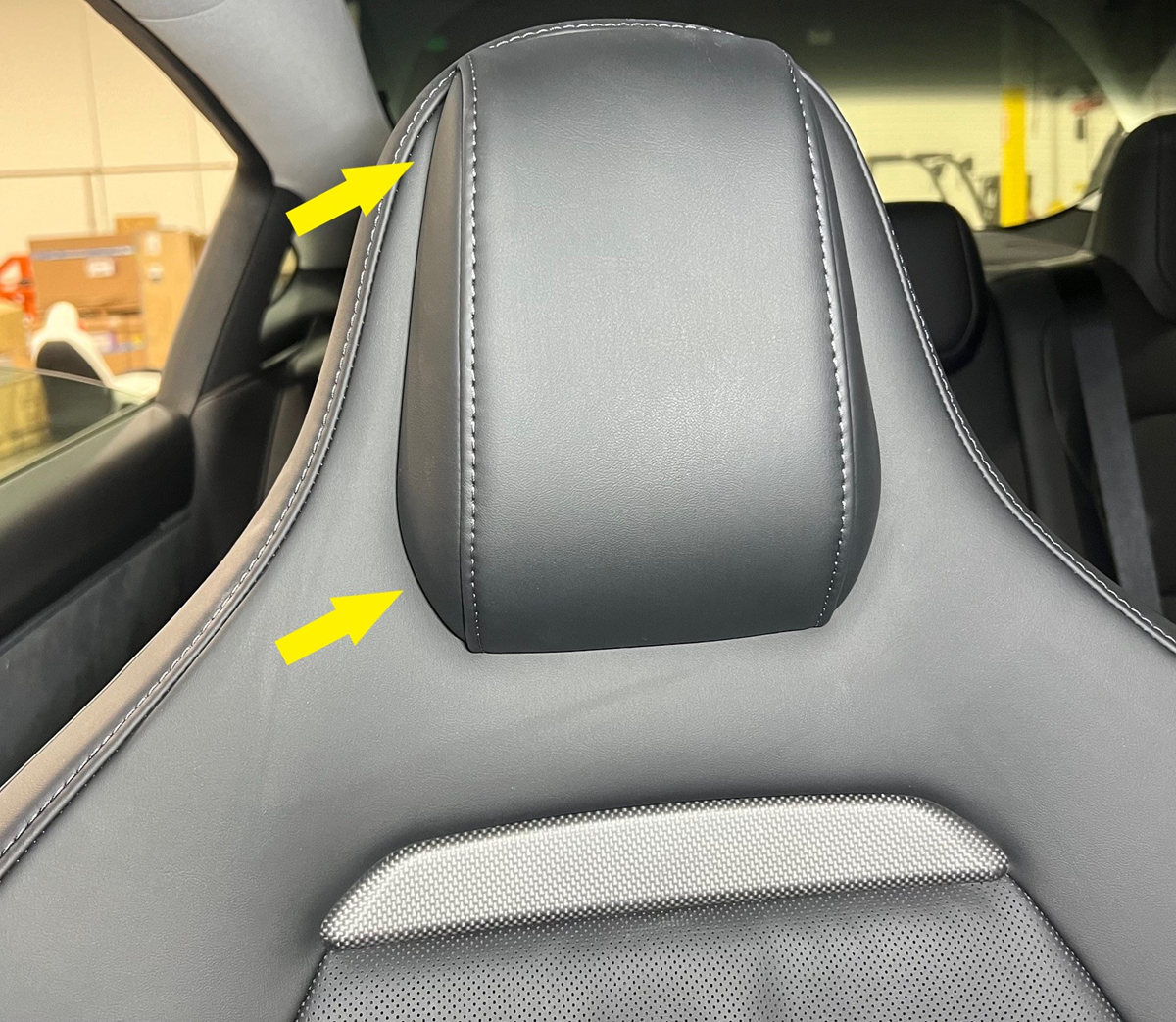

- Release the 1st row headrest from the LH front seat.
Install
-
Install the headrest onto
the seat: align the locking clips, and then push the headrest until it is
fully seated. An audible click will be heard when installing the headrest.
Make sure that the headrest is seated by pulling on the headrest.
- Raise the LH windows and close the LH doors.
