Pencil Brace - Wiper Bracket - RH (Remove and Replace)
Correction code
1010055302
FRT
0.30
NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so.
NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.
NOTE: See Ergonomic Precautions for safe and healthy working practices.
Torque Specifications
| Description | Torque Value | Recommended Tools | Reuse/Replace | Notes |
|---|---|---|---|---|
| Bolts (x2) that attaches the LH/RH wiper bracket pencil brace to the body |
 27 Nm (19.9 lbs-ft) |
|
Reuse |
Remove
- Remove the cowl screen. See Cowl Screen (Remove and Replace).
-

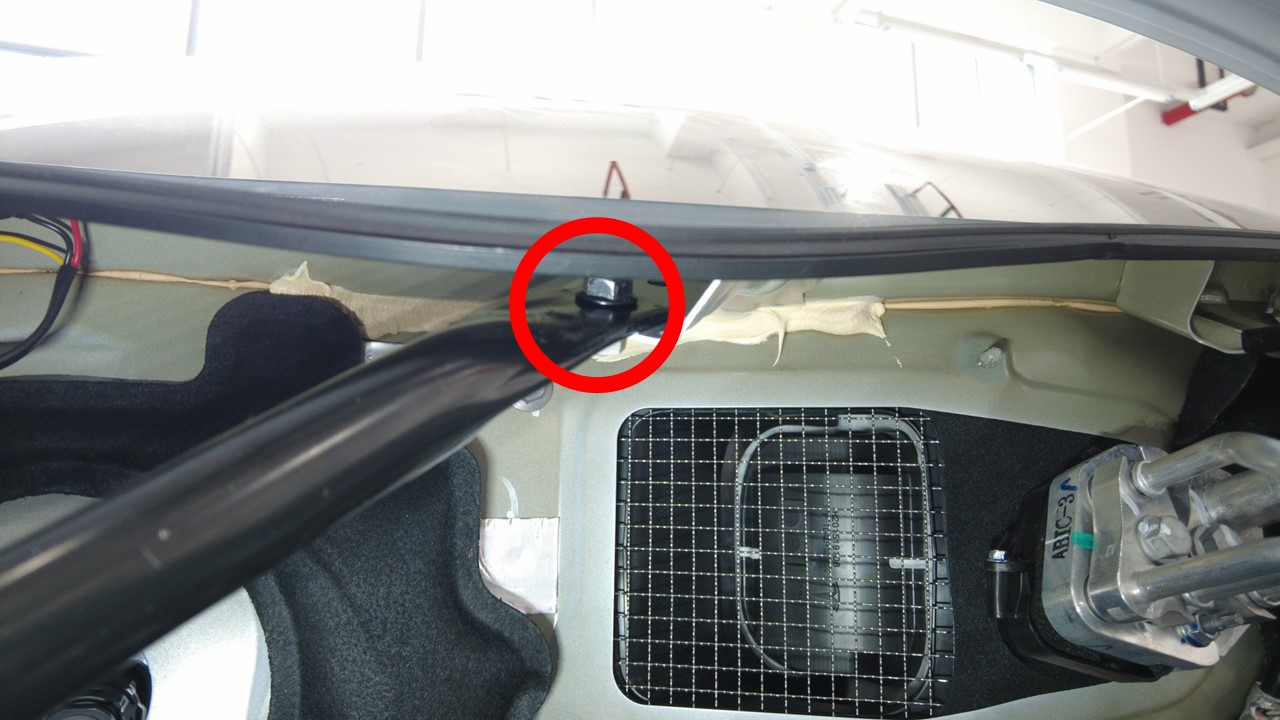

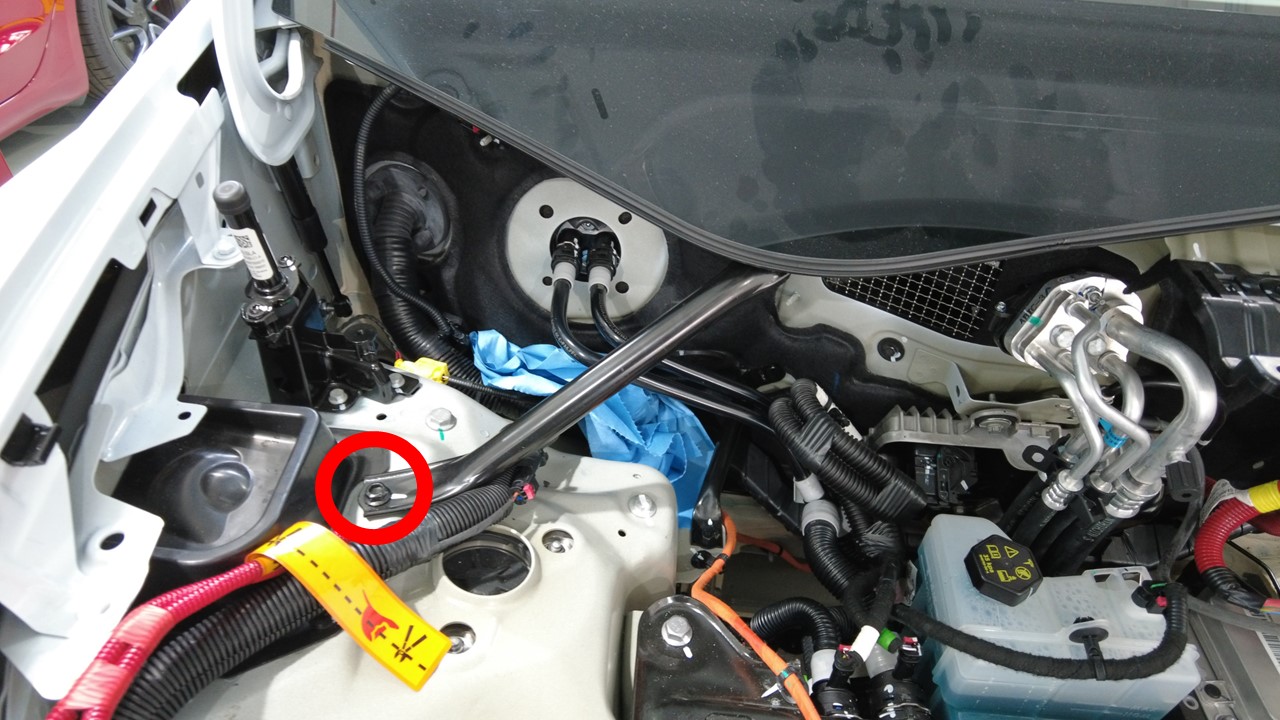

Remove the bolts (x2) that attaches
the RH wiper bracket pencil brace to the body, and then remove the brace from the
vehicle.
NoteUse of the following tool(s) is recommended:
- 13 mm deep socket
Install
-
Hand-tighten the bolts (x2) that
attaches the RH wiper bracket pencil brace to the body, and then torque them.27 Nm (19.9 lbs-ft)NoteBe careful not to damage the windshield.NoteUse of the following tool(s) is recommended:
- 13 mm deep socket
- Install the cowl screen. See Cowl Screen (Remove and Replace).
