Side Panel - Center Console - Front - RH (Model Y Standard) (Remove and Install)

Correction code 15190403801 15190403802 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Move the LH front seat backward.

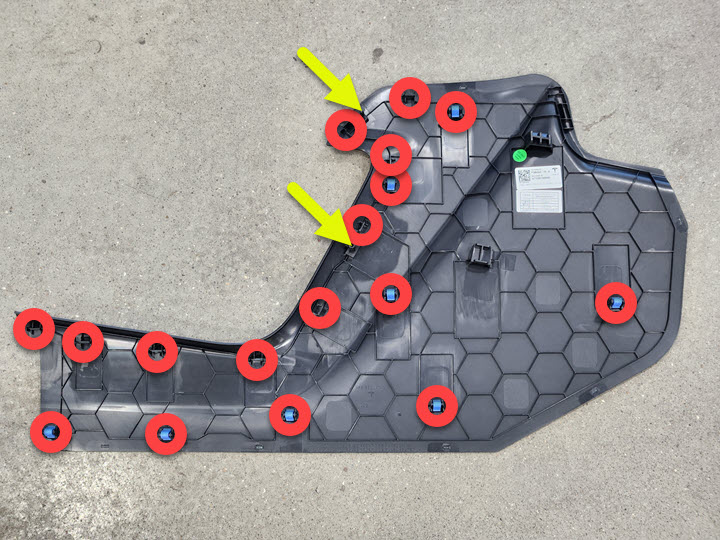

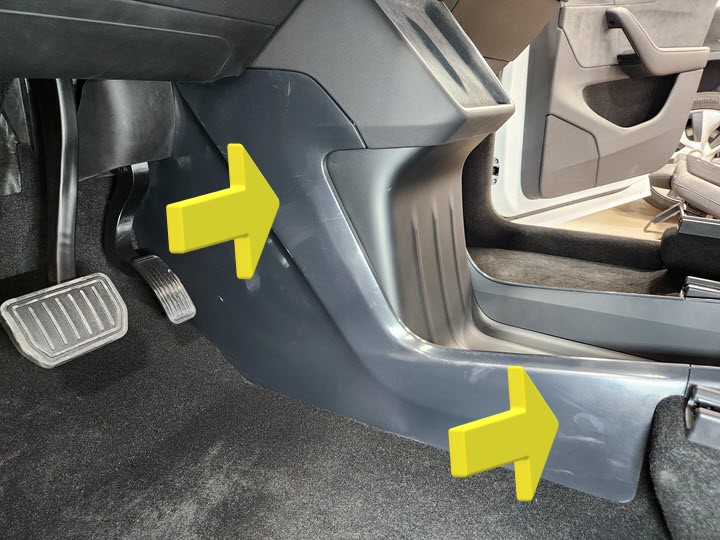

  3. Release the clips (x17) and datums (x2) that attach the LH front side panel to the center console.
    Informational PurposesAn informational icon, calling your attention
    Note

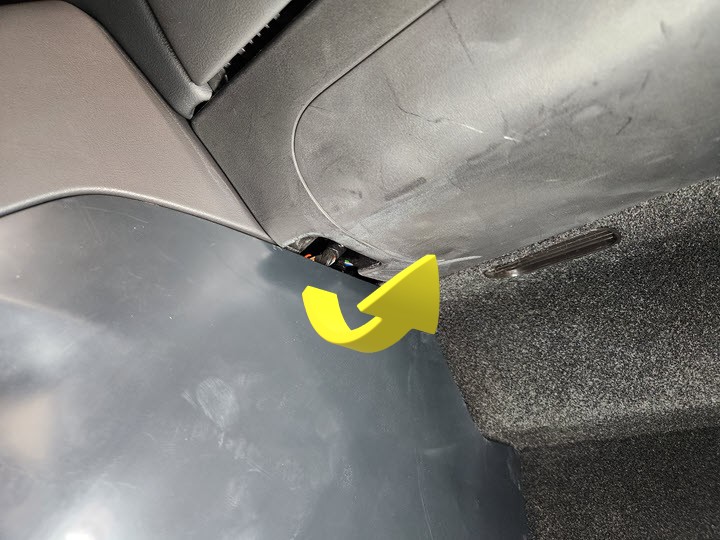

    Maneuver around the KAB cover to avoid damage.

Install

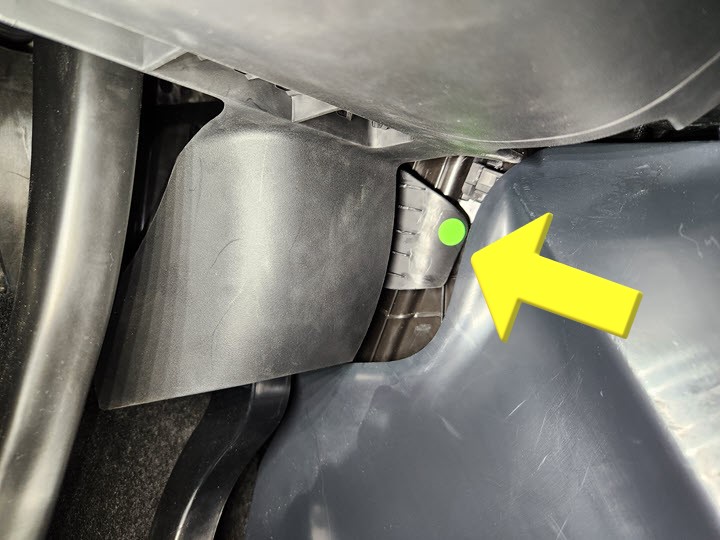

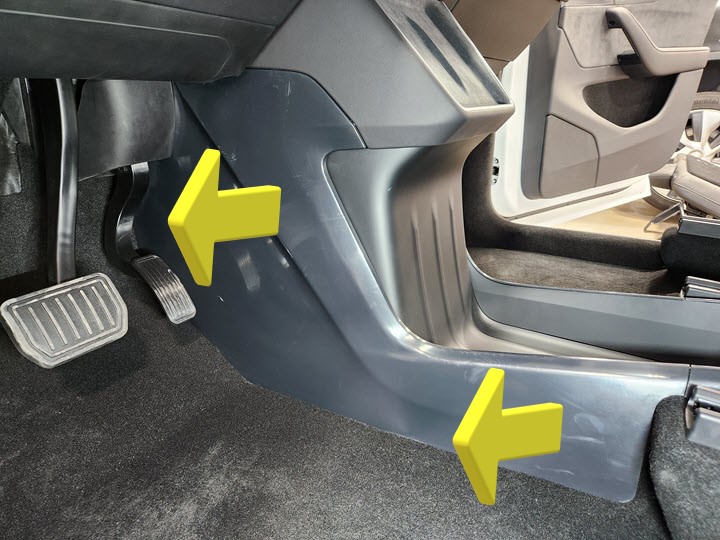

  1. Position the LH front side panel onto the center console assembly, align it with the datums (x2) and pedal cover, then secure the clips (x17) that attach the side panel to the assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Maneuver around the KAB cover to avoid damage.
  2. Move the LH front seat to its original position.
  3. Raise the LH front window and close the LH front door.
