Harness - Body Harness - RH (Model Y Standard)(Remove and Install)

Correction code NEW NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.

Warning

This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.

2025-10-01: Released new procedure.

Remove

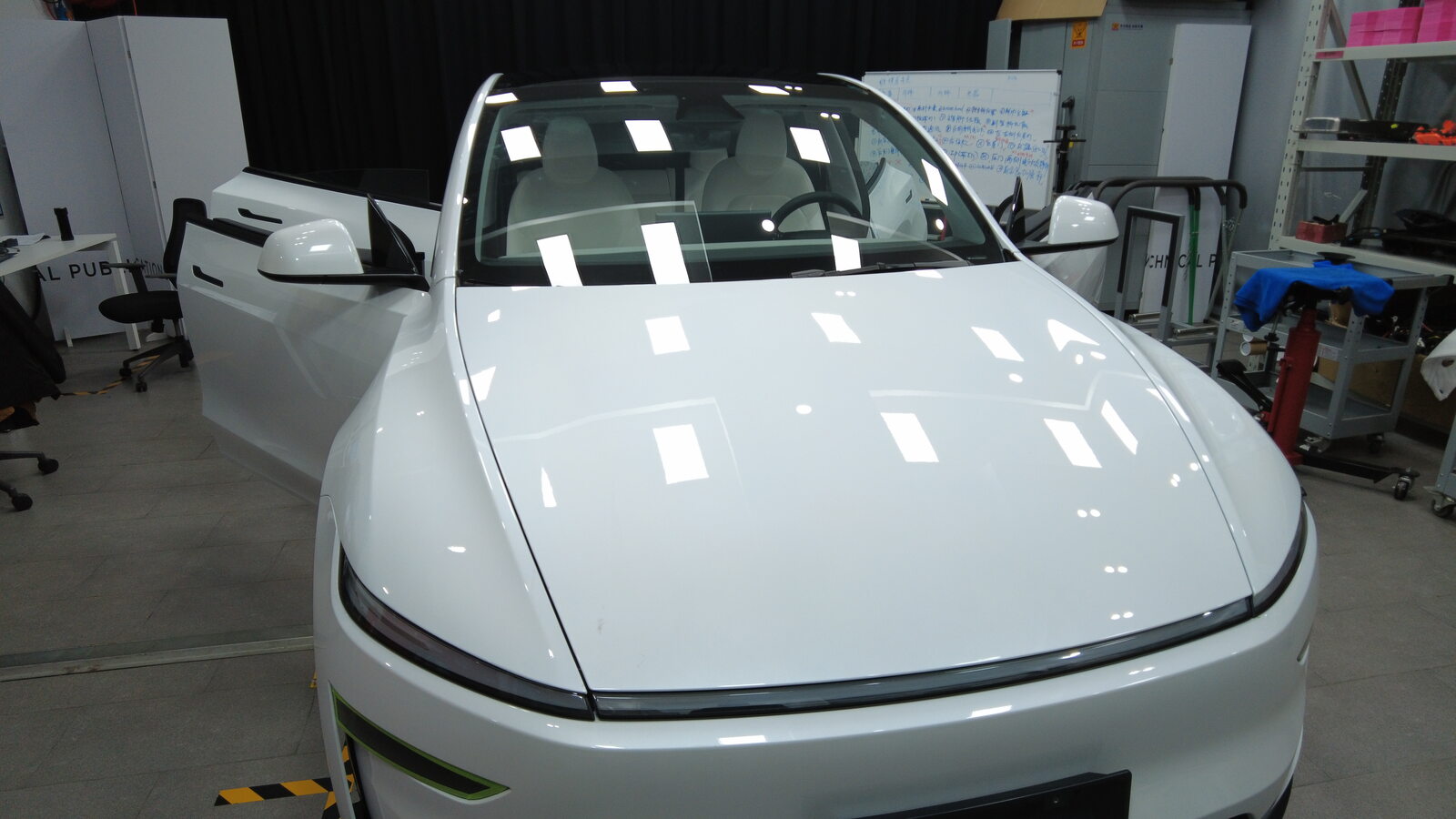

Open all four doors

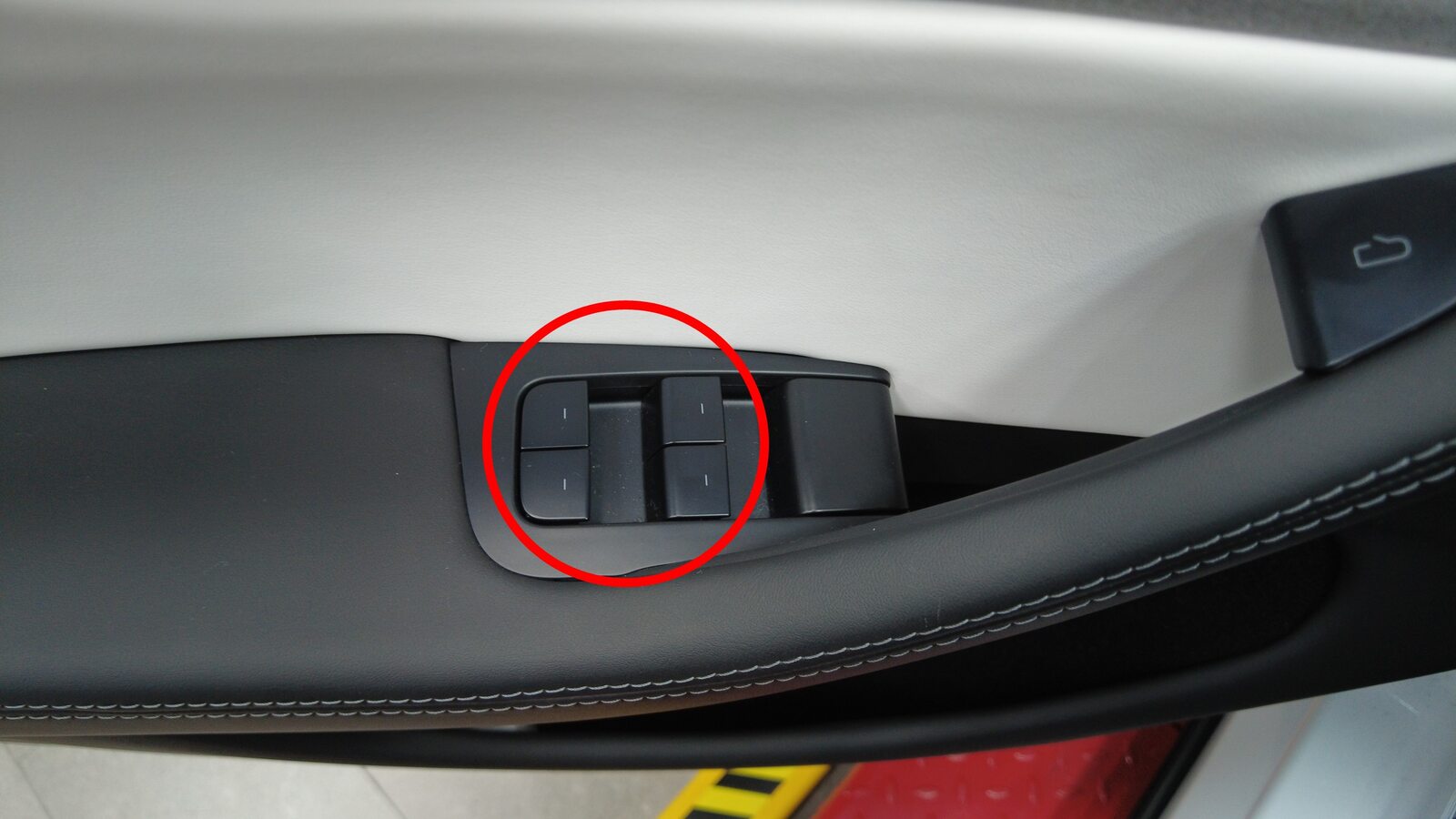

Lower all four windows
Run ODIN routine PROC_ICE_X_ENTER-SERVICE-MODEvia Toolbox: (link)
Release LH front primary door seal near LH end cap

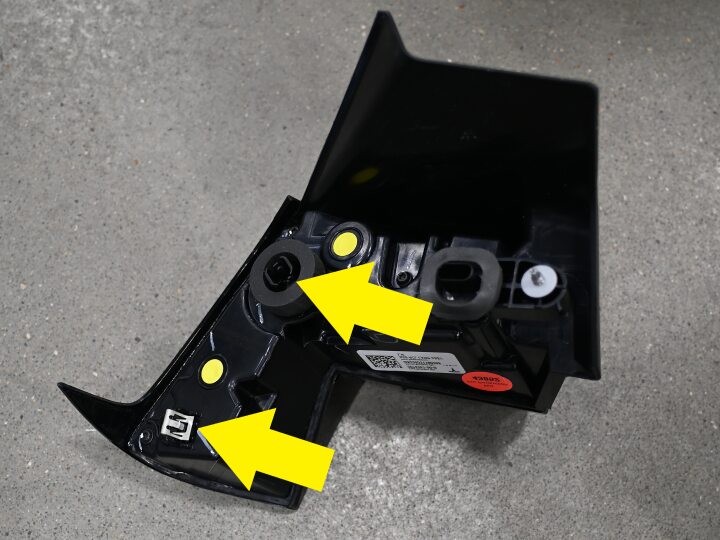

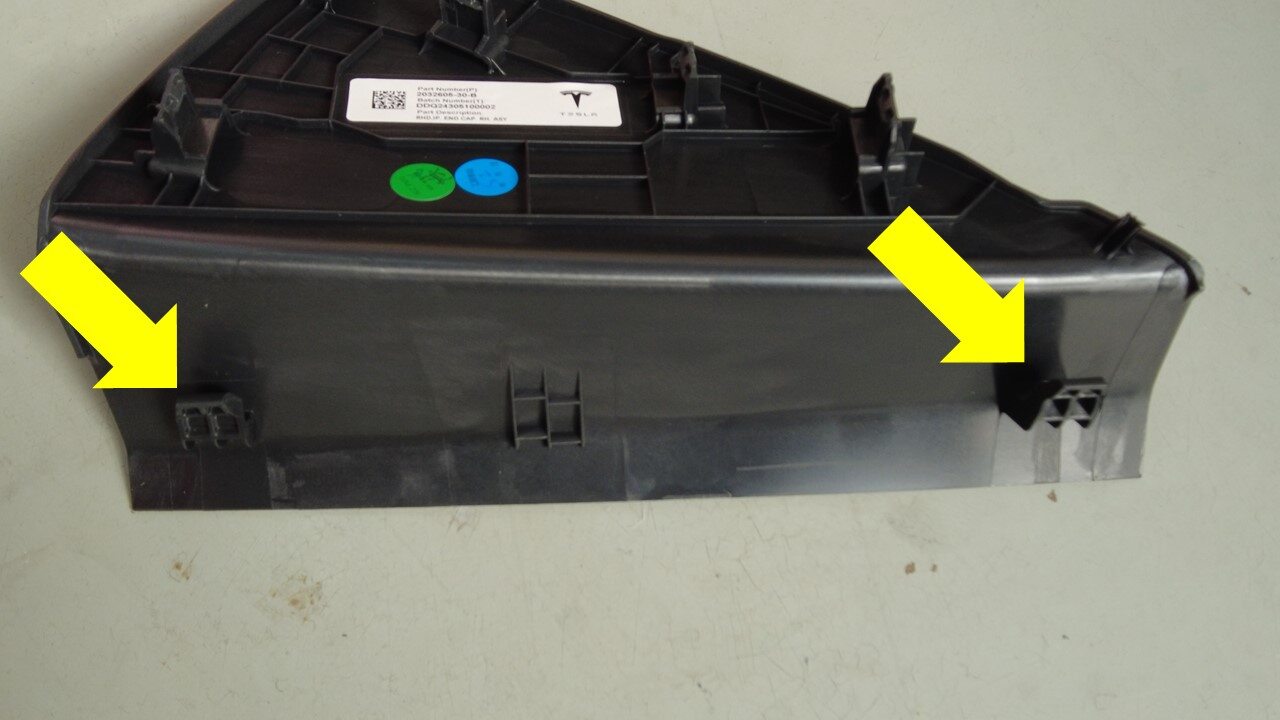

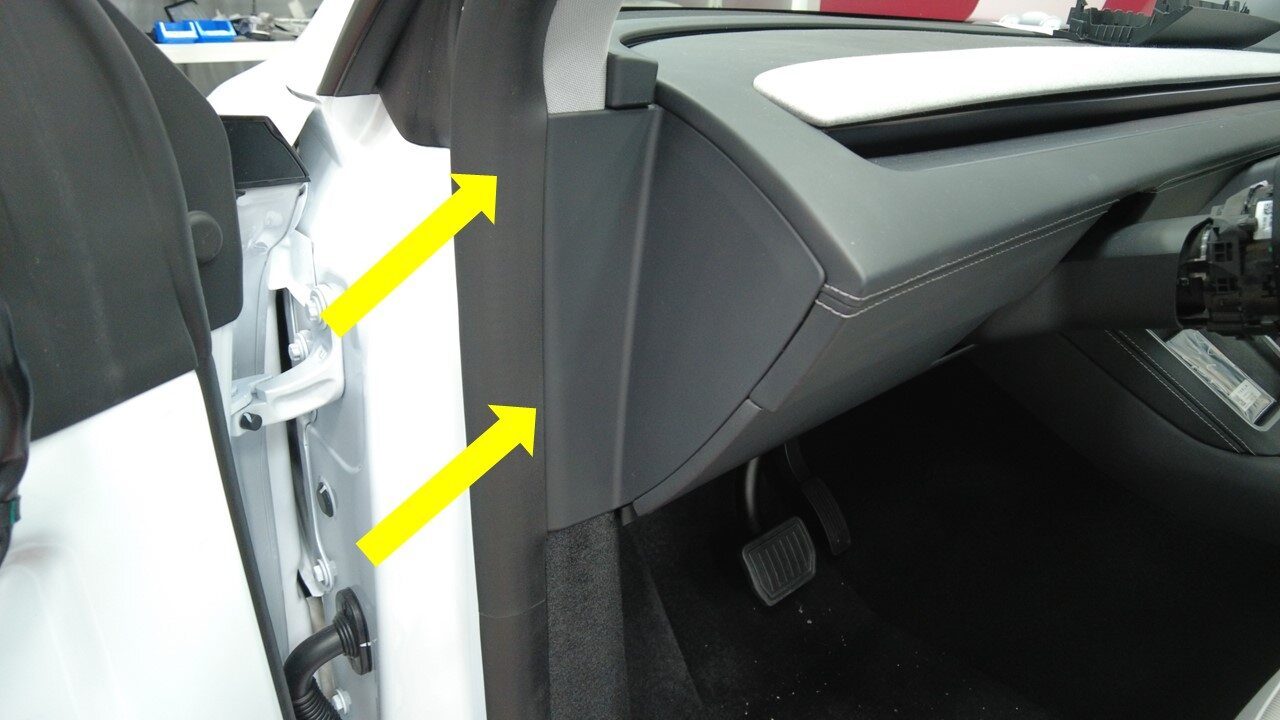

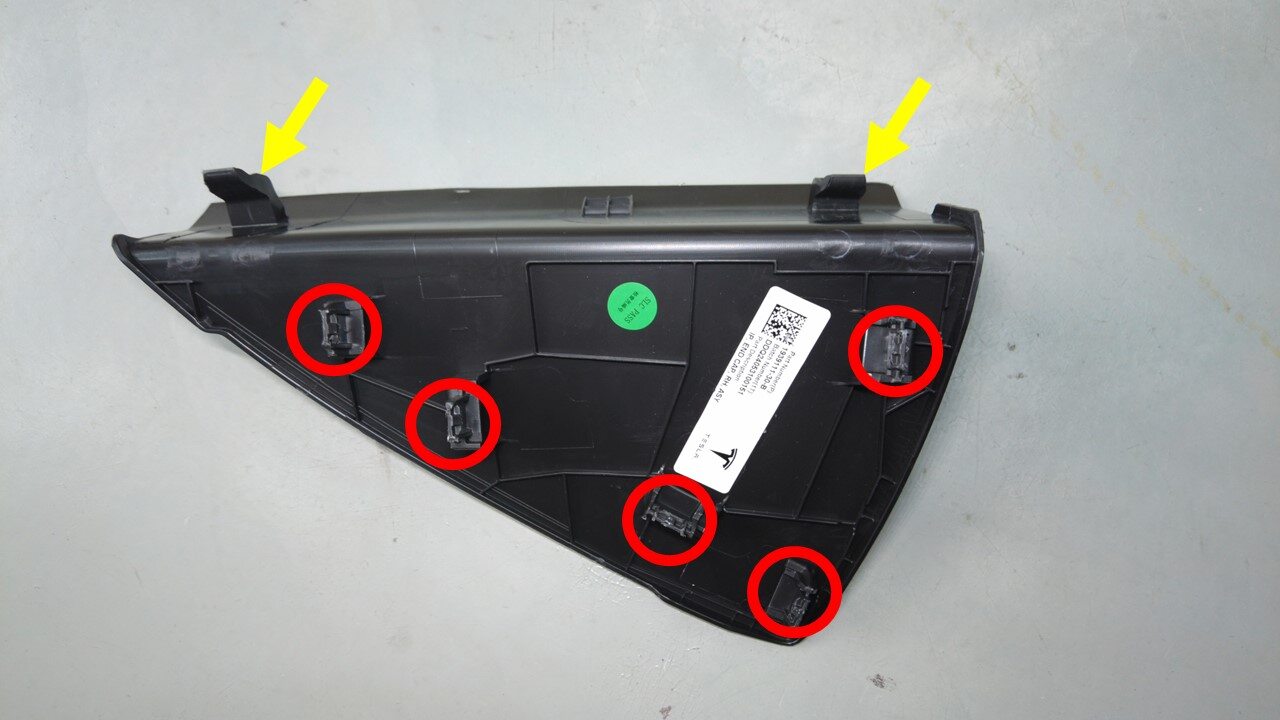

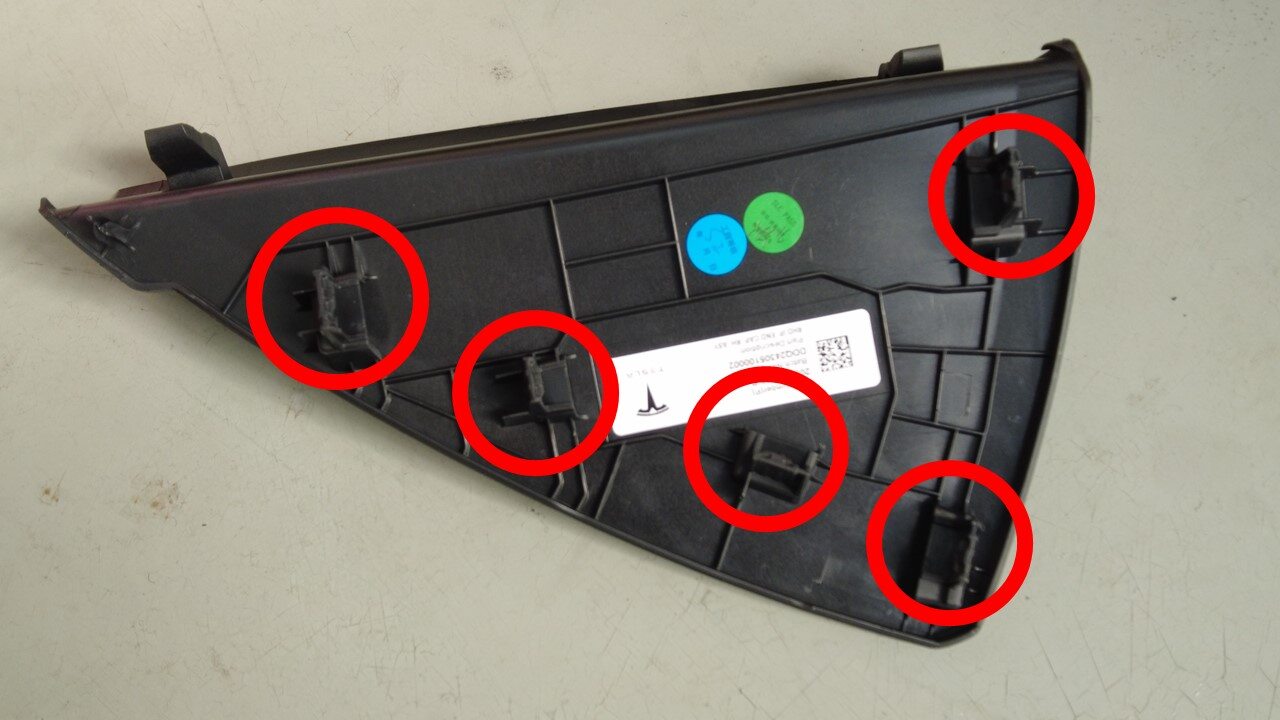

Remove LH IP end cap

Note
5x clips, 2x guide tabs

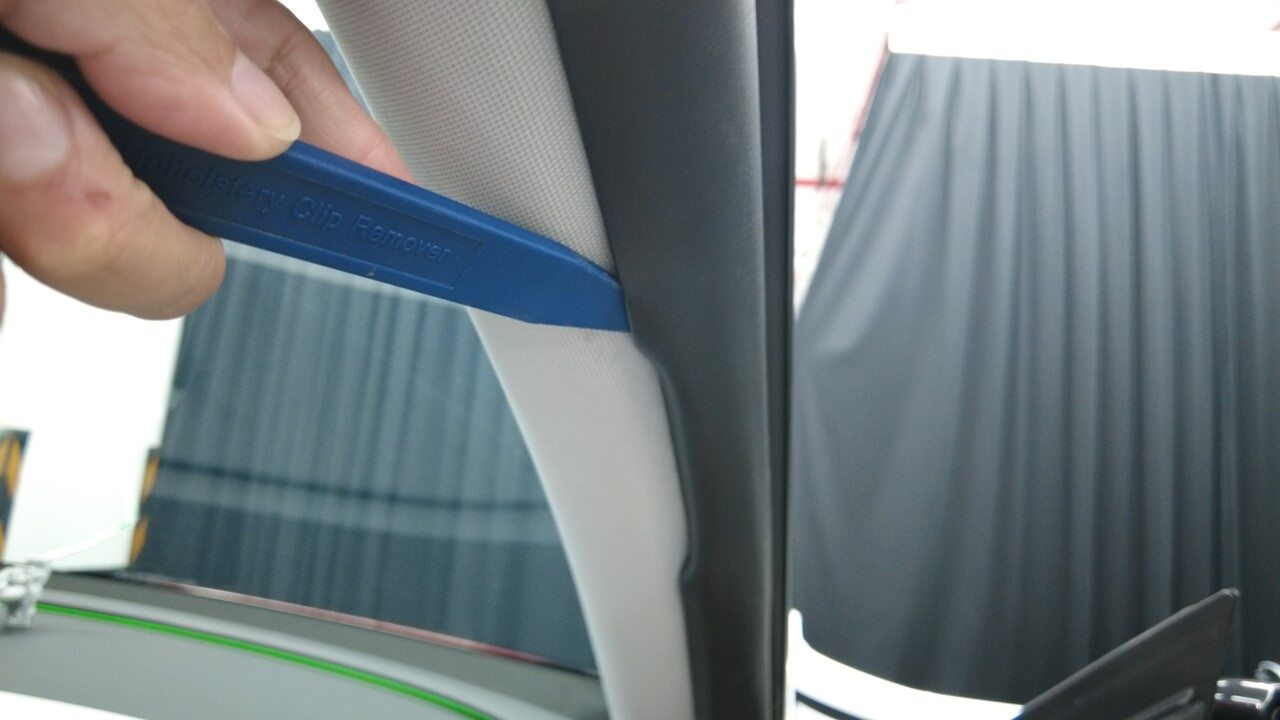

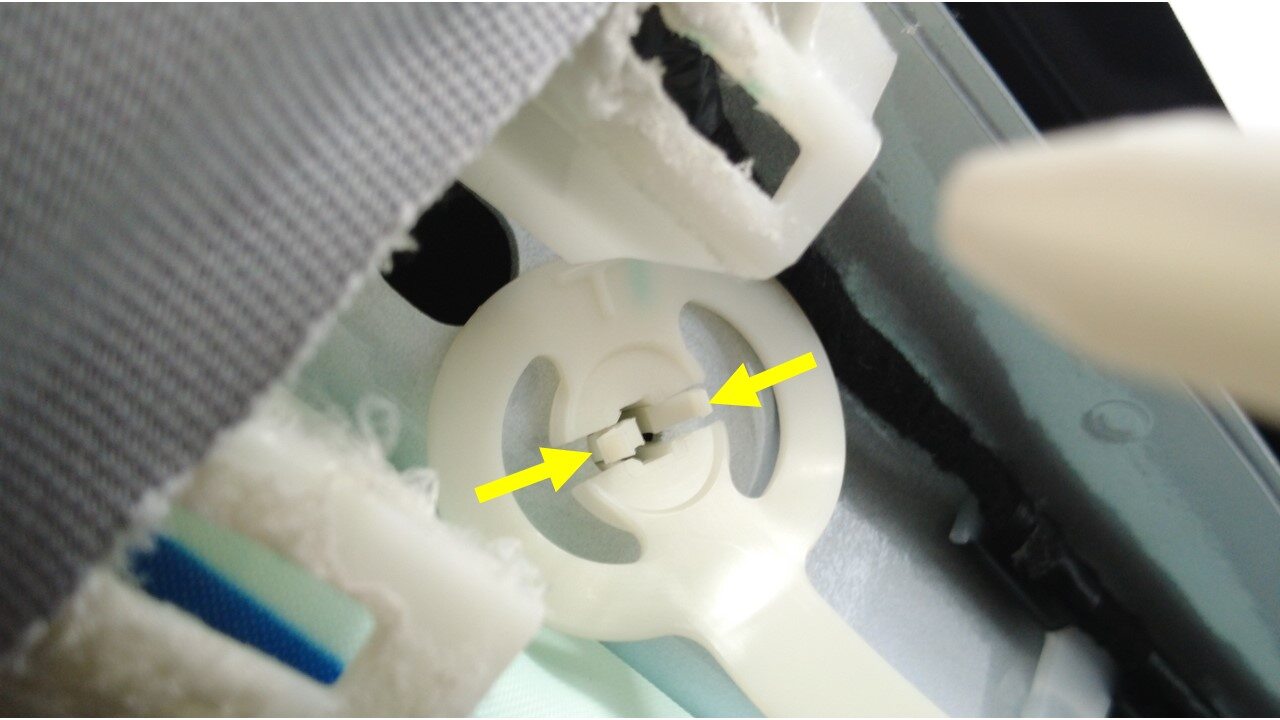

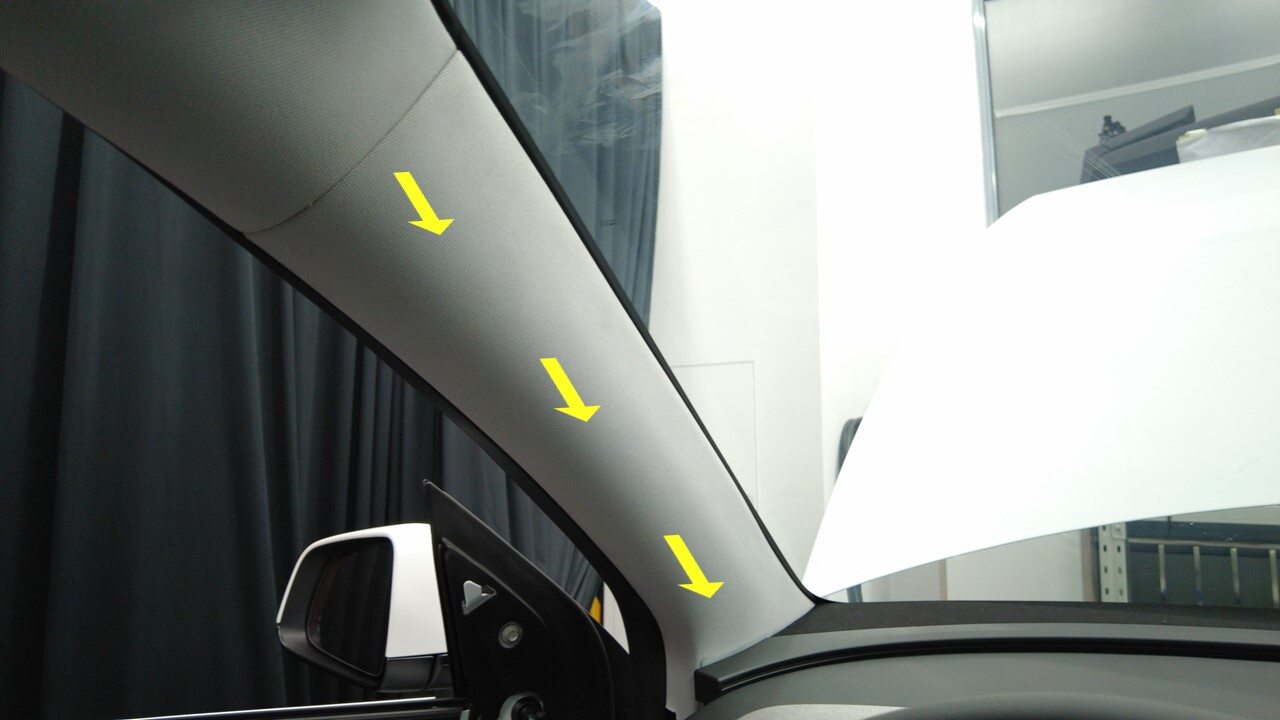

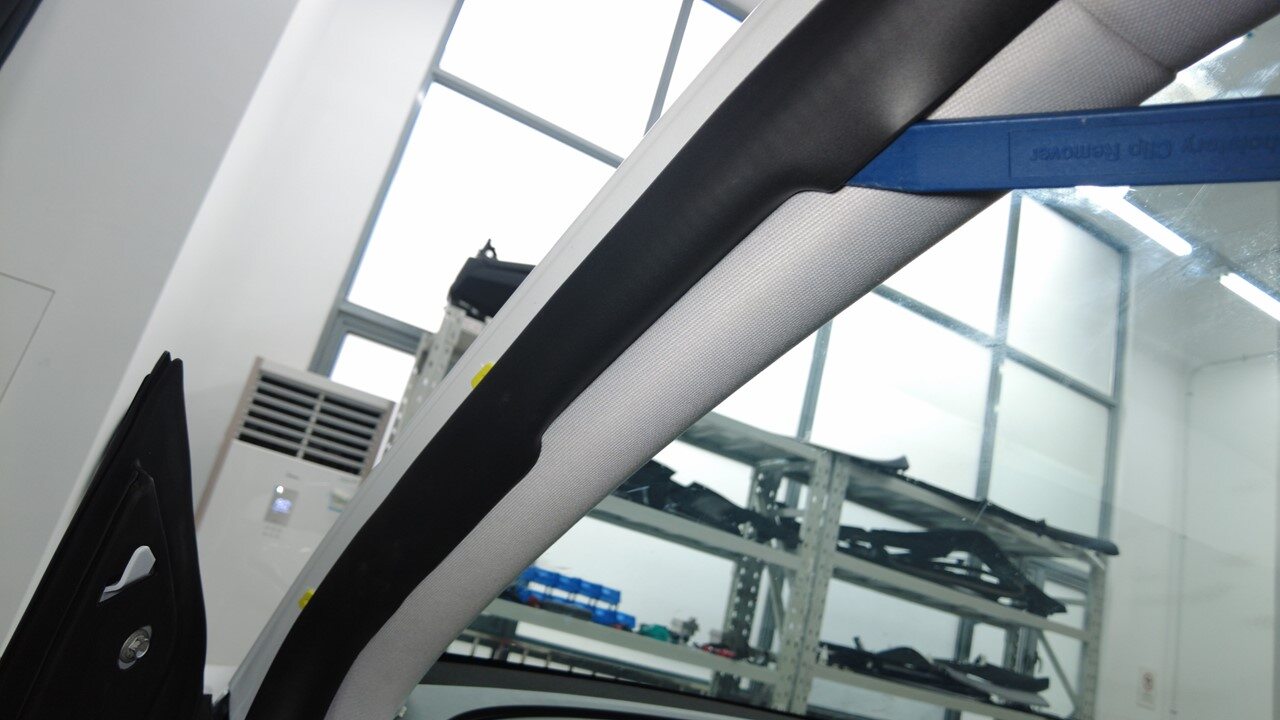

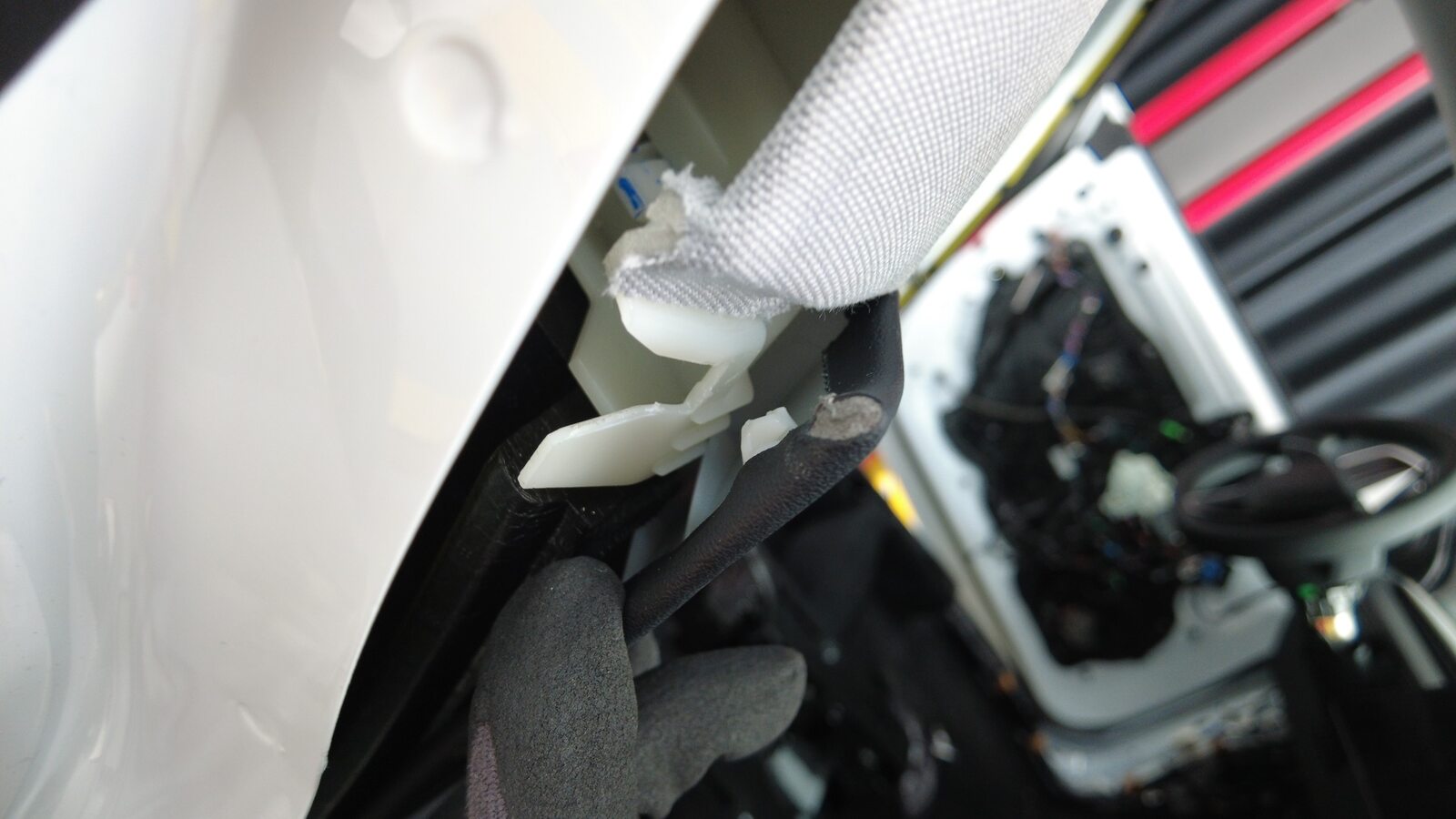

Remove LH upper A pillar trim

Note
5x clips, 2x guide tabs, 1x location pin, 1x tether, Pull inside of the upper portion of upper A pillar, Depress 2x tabs to remove tether from body side, Then pull upper A pillar upward to remove, Tether may very on revision

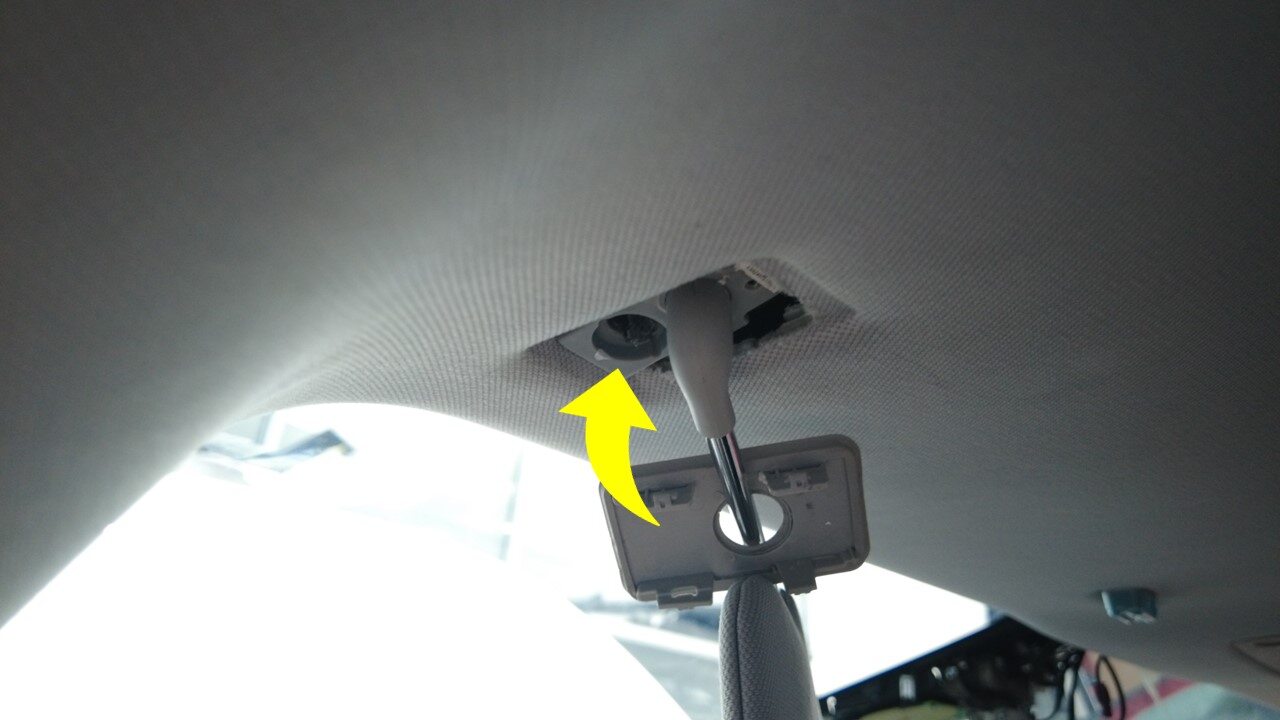

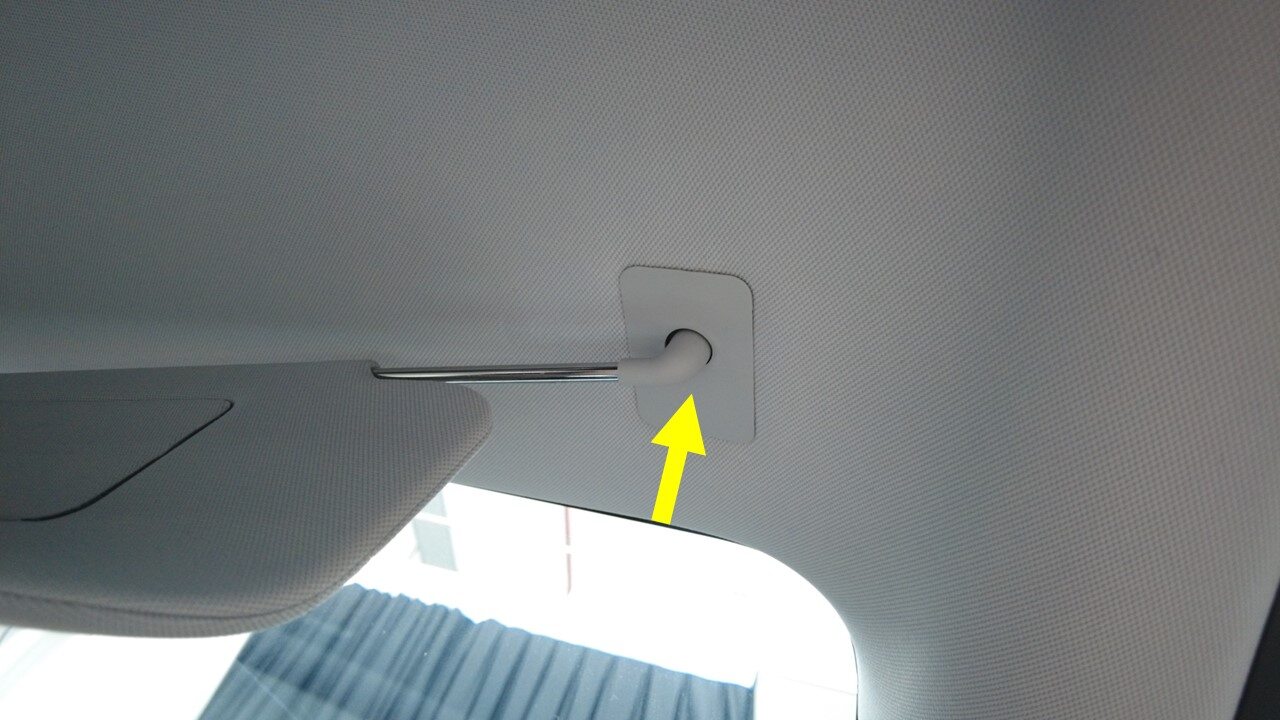

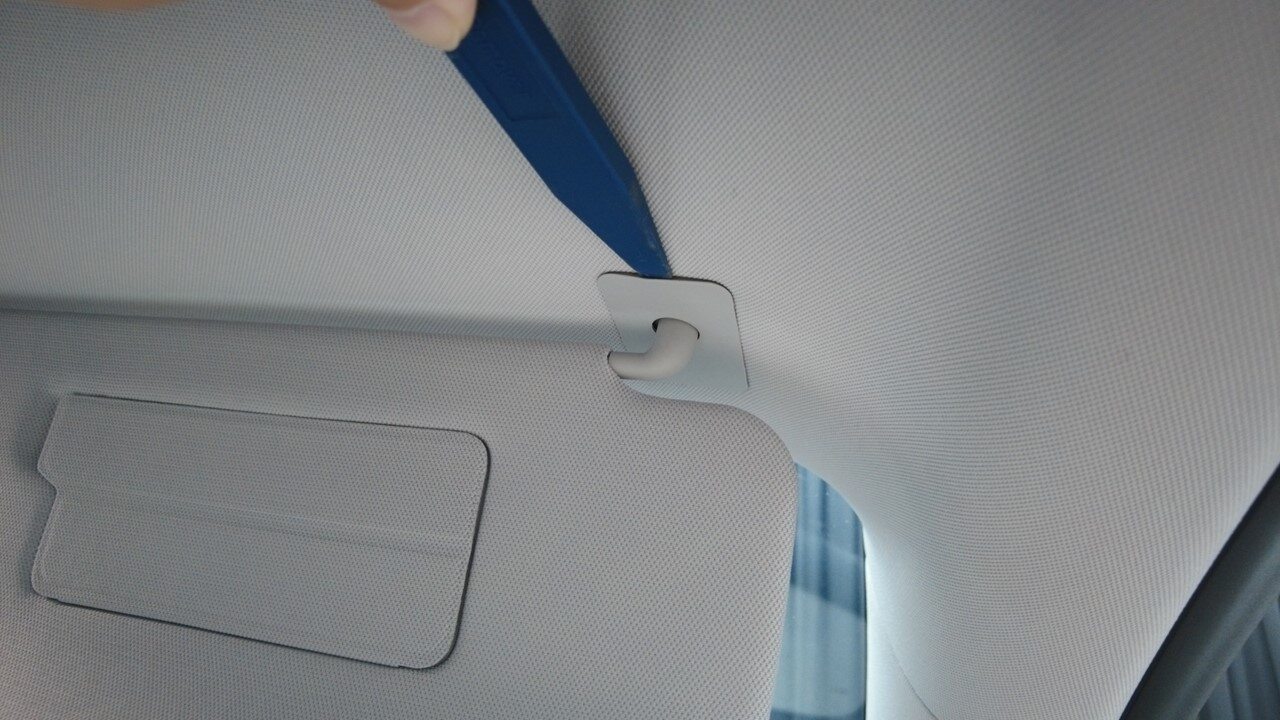

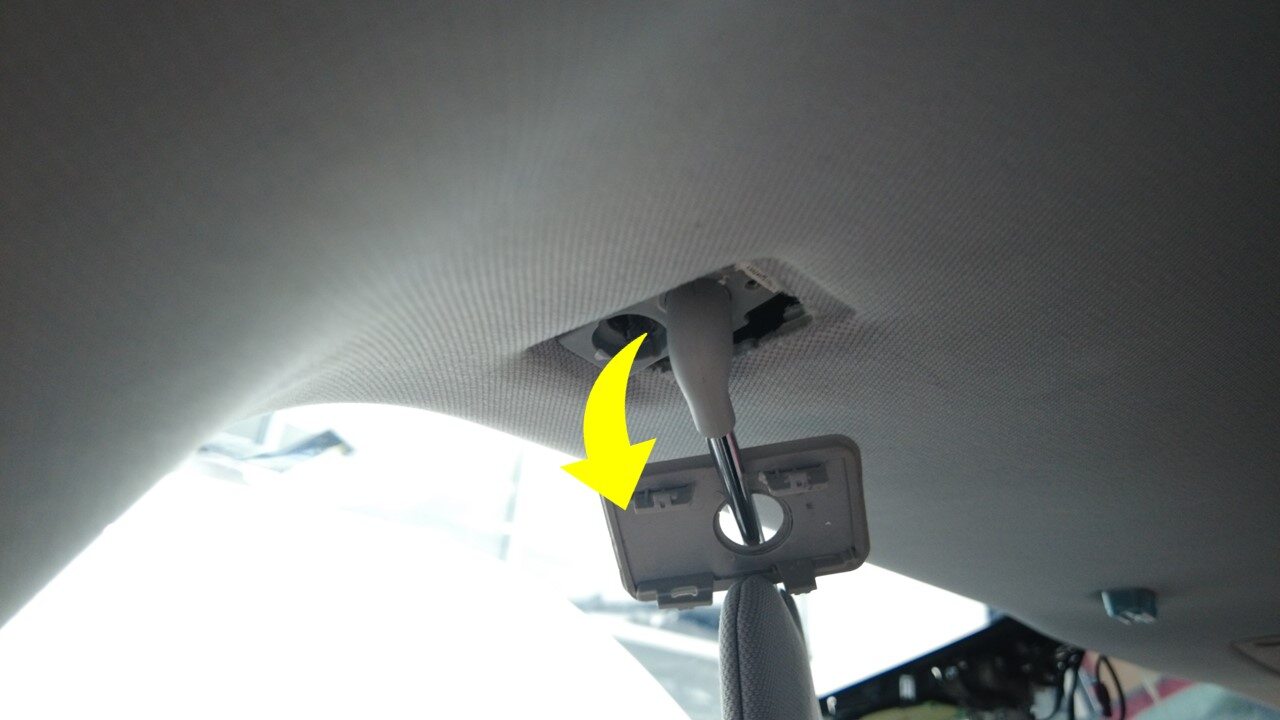

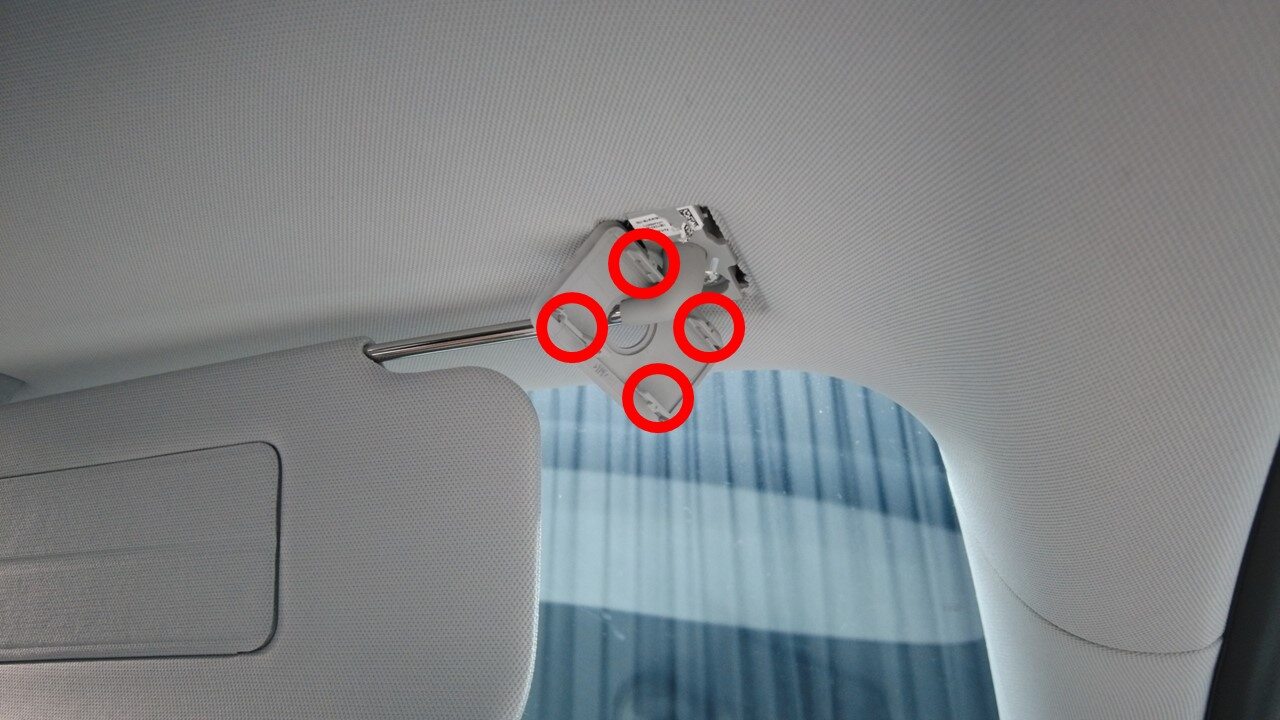

Remove LH sun visor bracket cover

Note

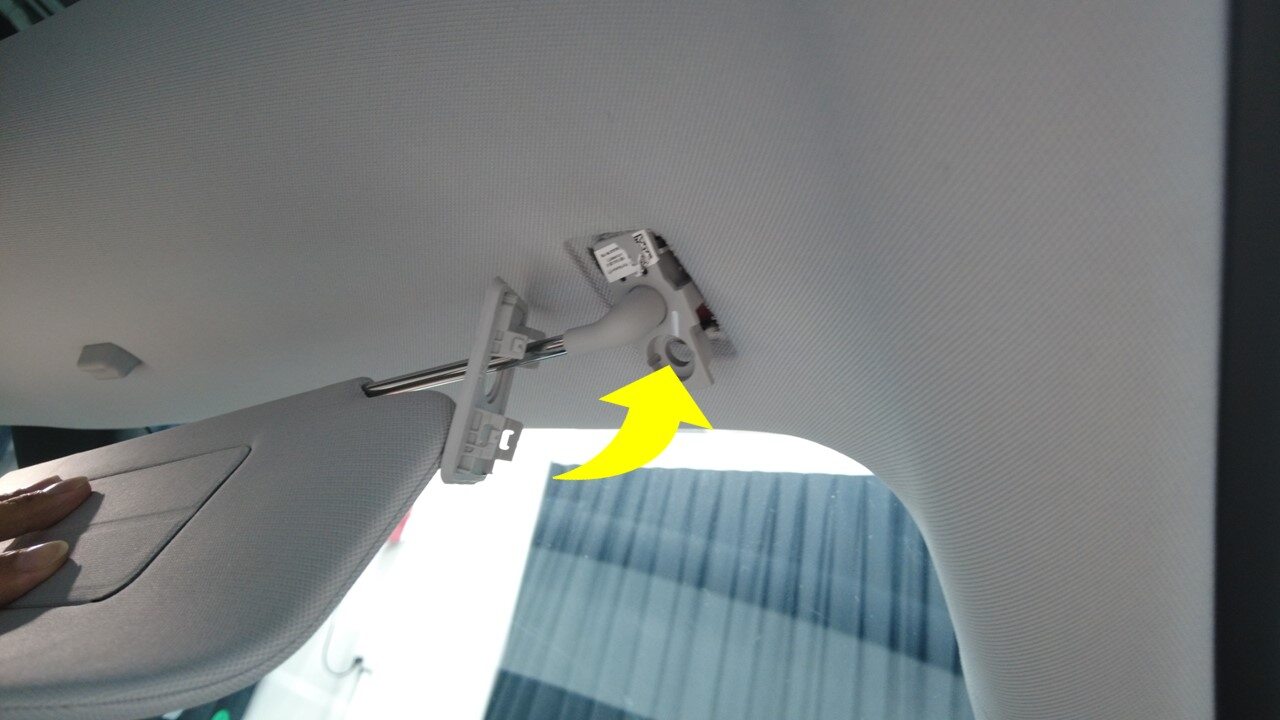

4x clips, Extending the sun visor may allow for extra working room

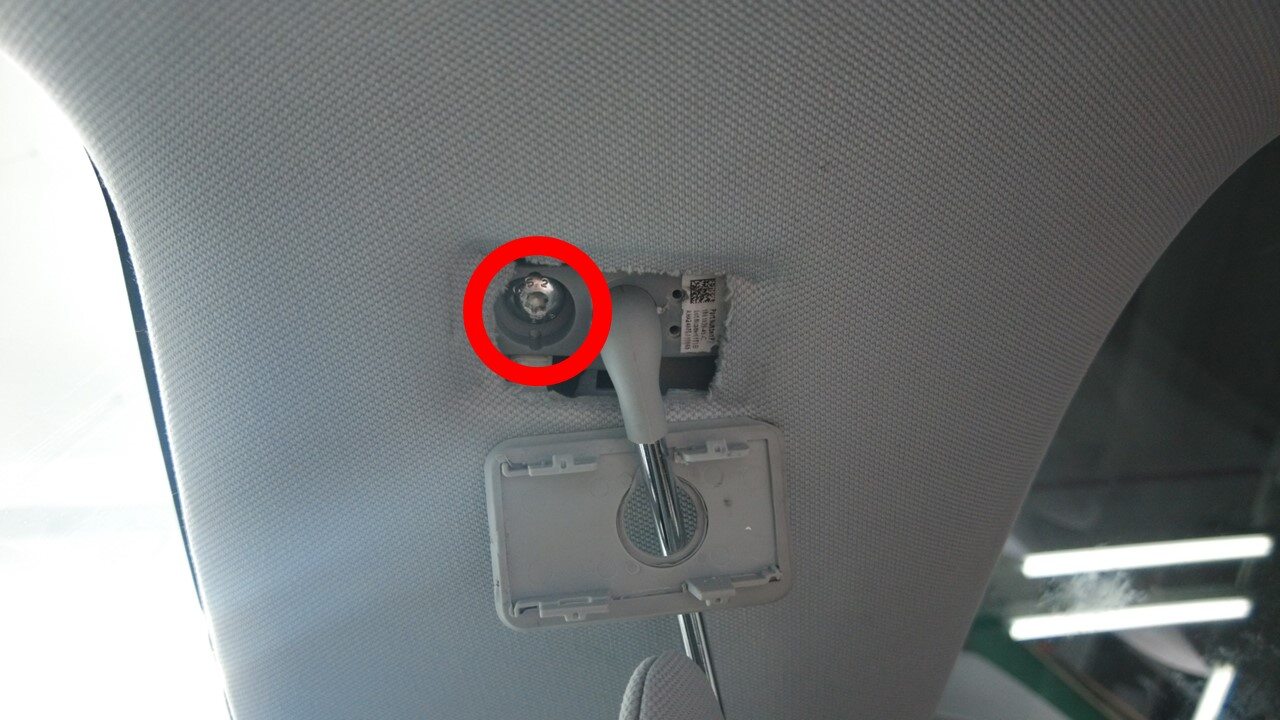

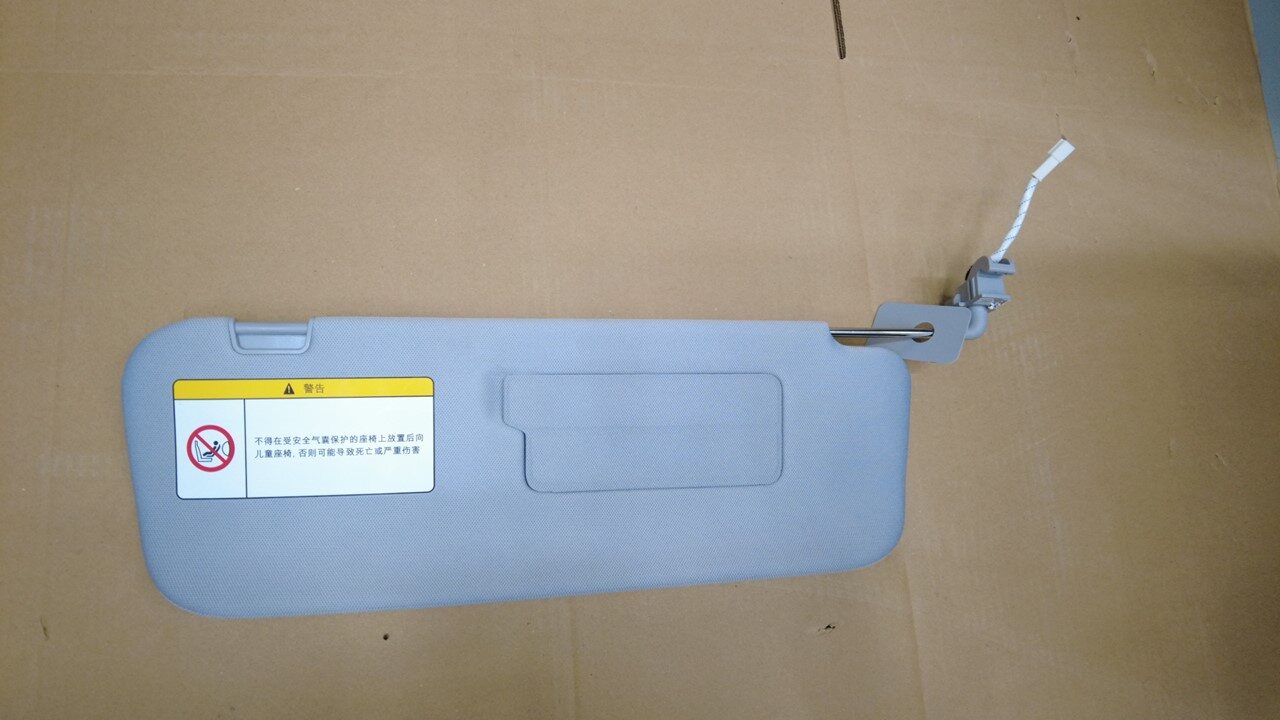

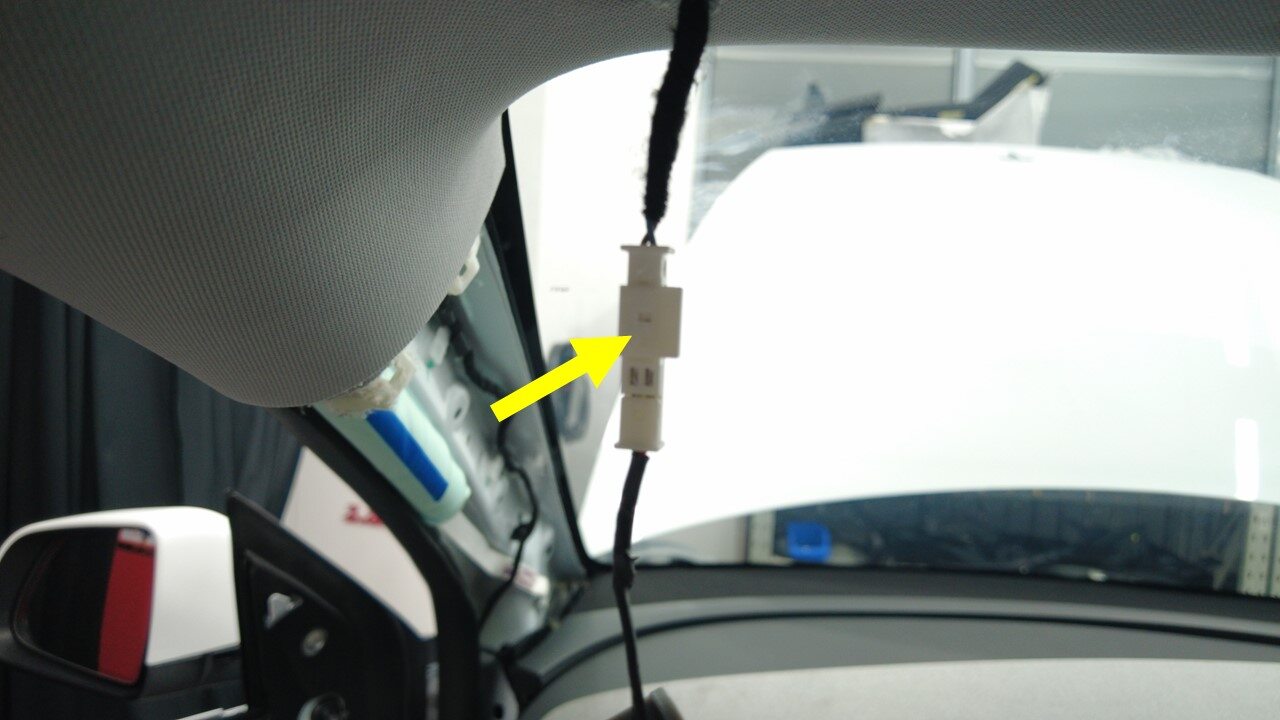

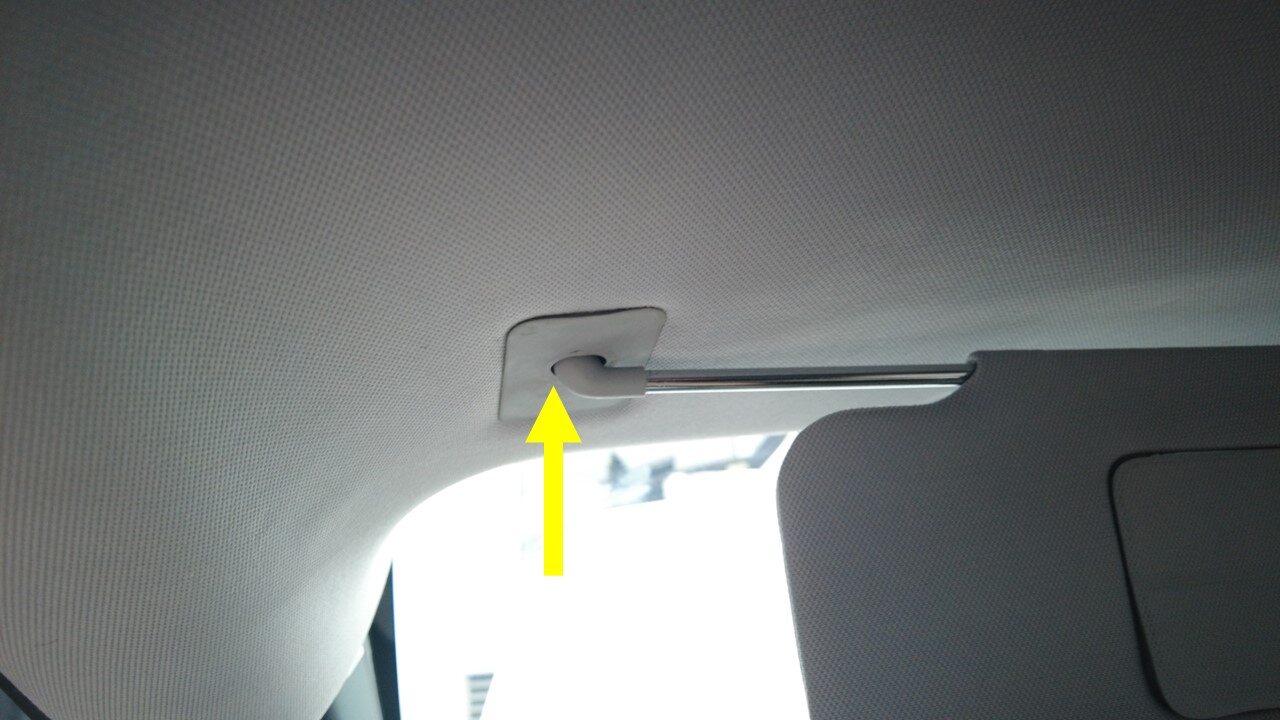

Remove LH sun visor from headliner

Note
1x screw, T25, 3.5 Nm, 1x connector, Fold sun visor to the closed and folded down position but do not latch in place

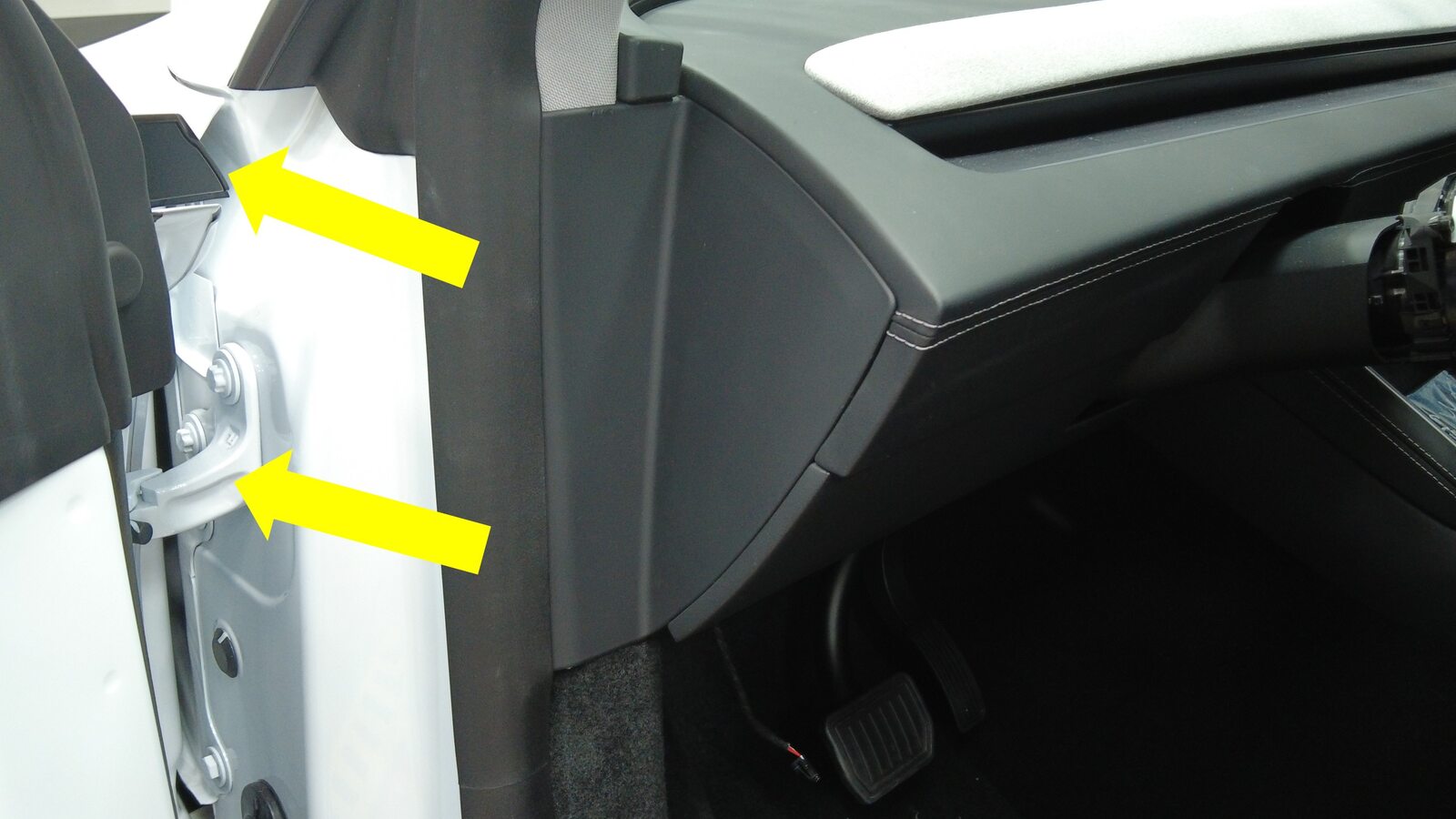

Partially release RH front primary door seal

Note
For remove RH IP end cap, RH lower A pillar trim, RH front B pillar trim

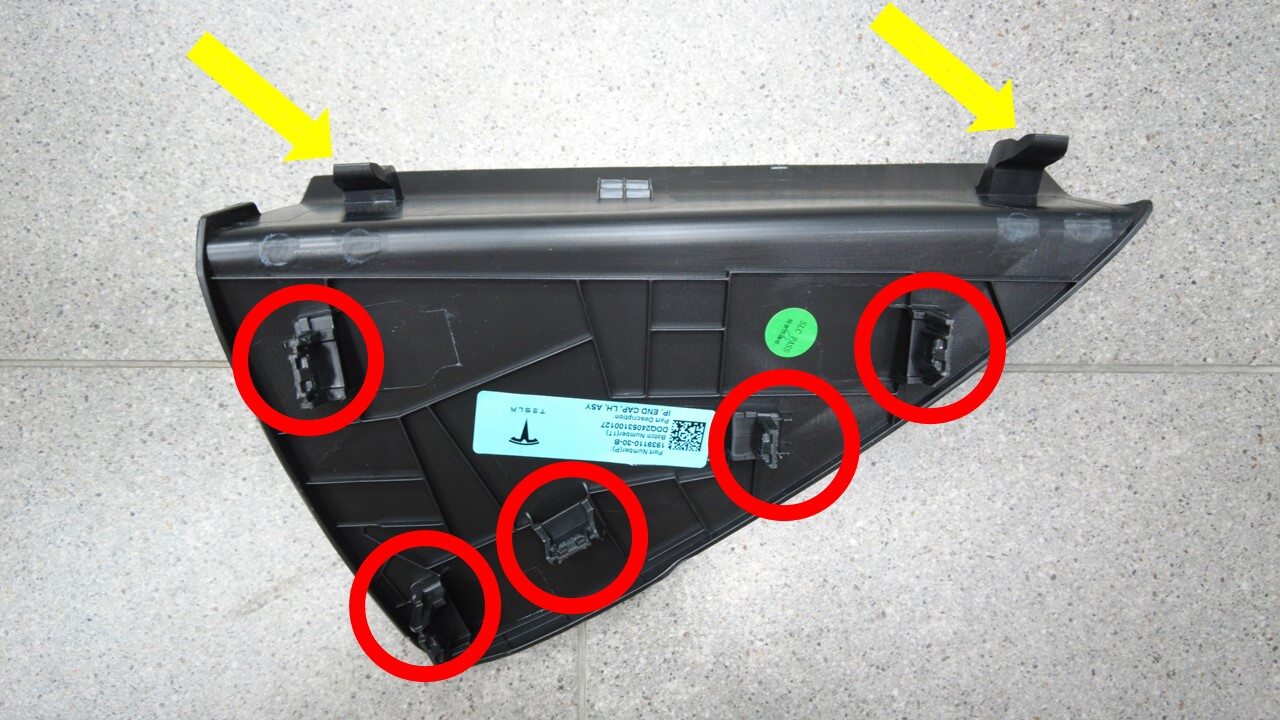

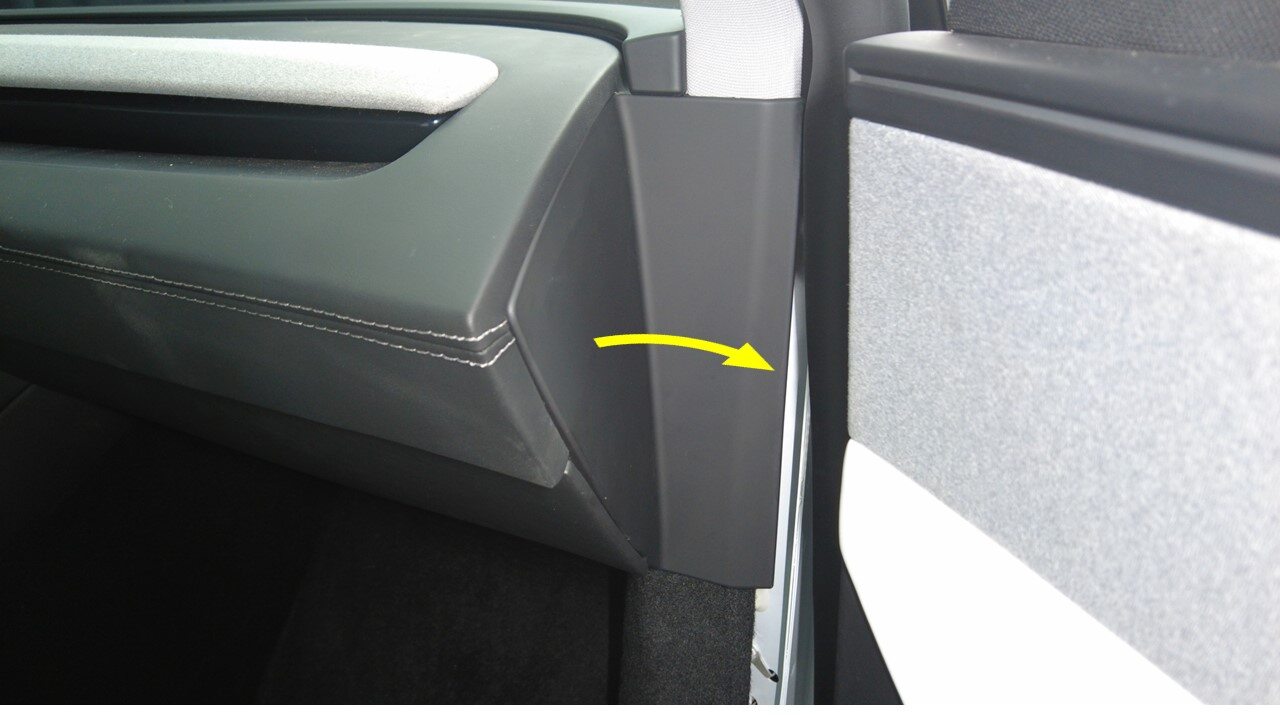

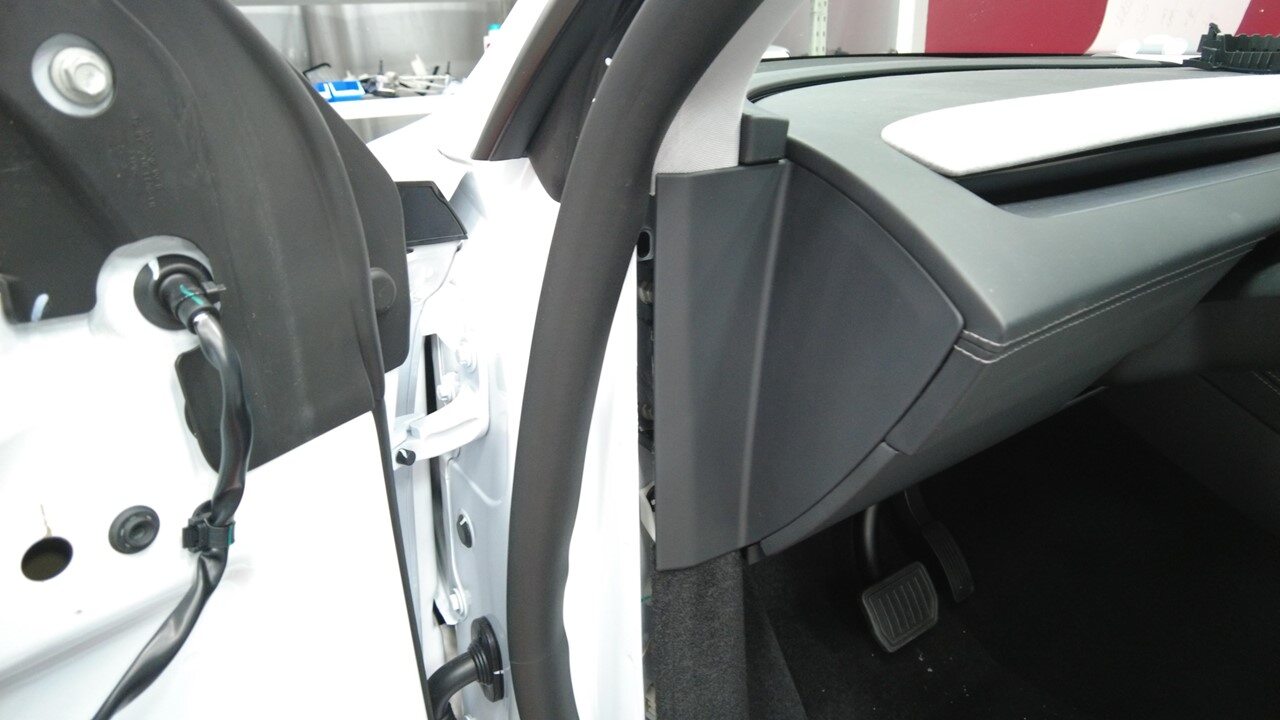

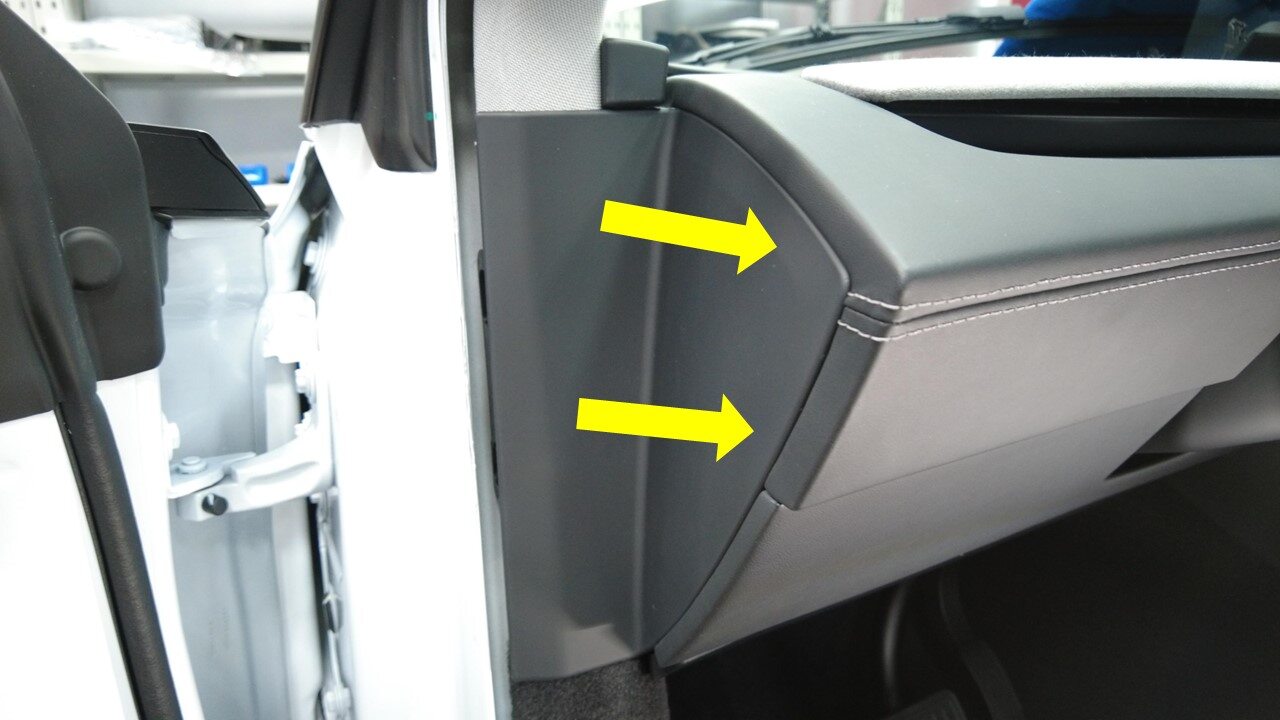

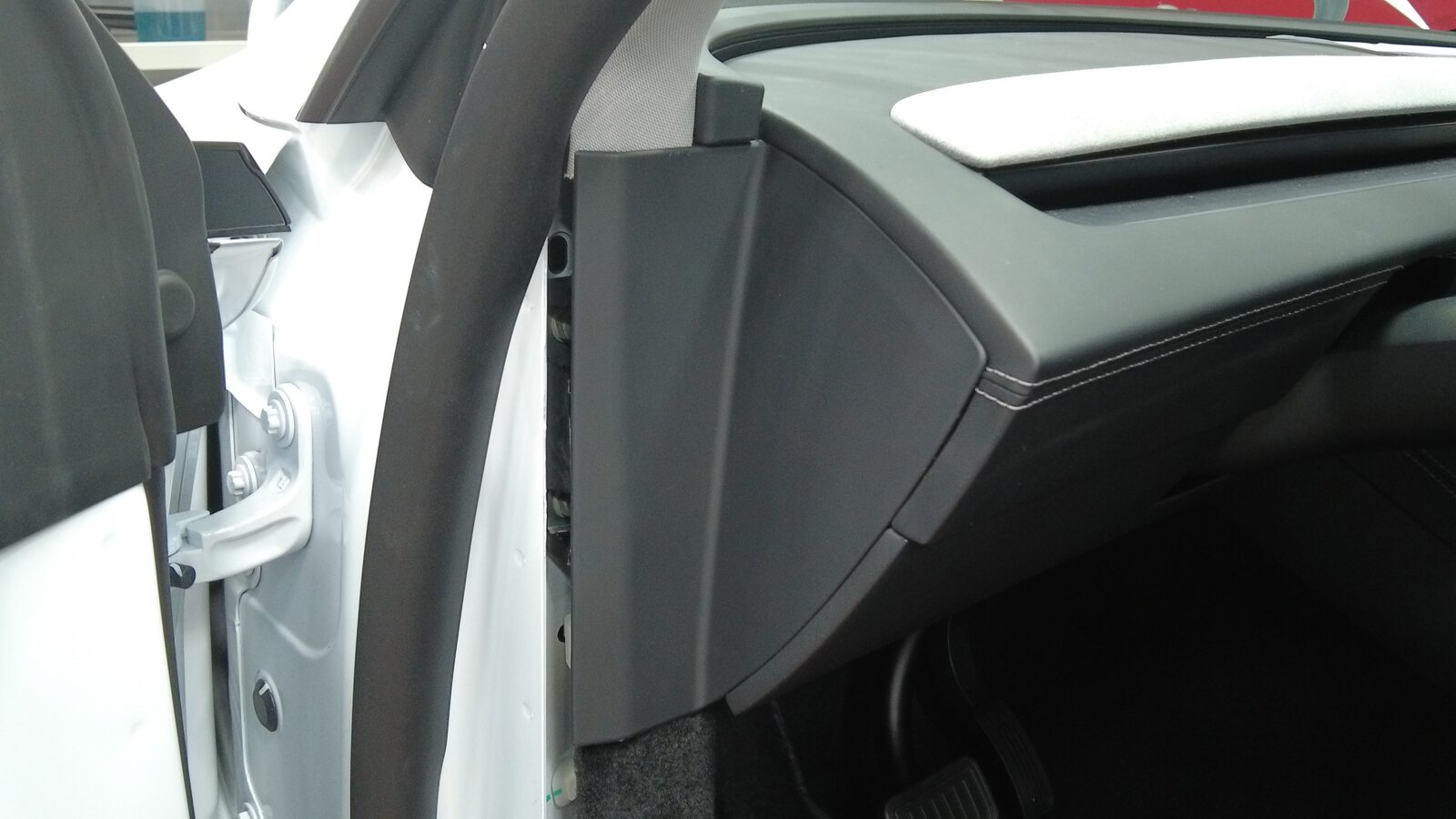

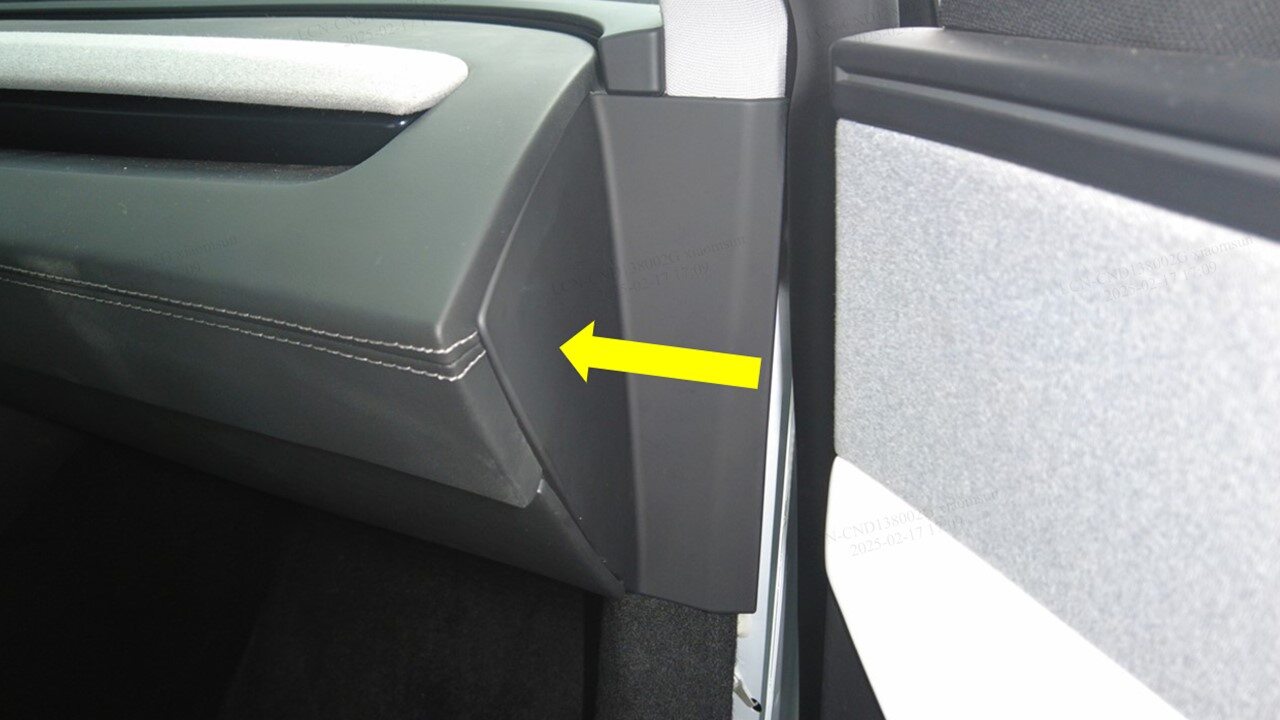

Remove RH IP end cap

Note
5x clips, 2x guide tabs

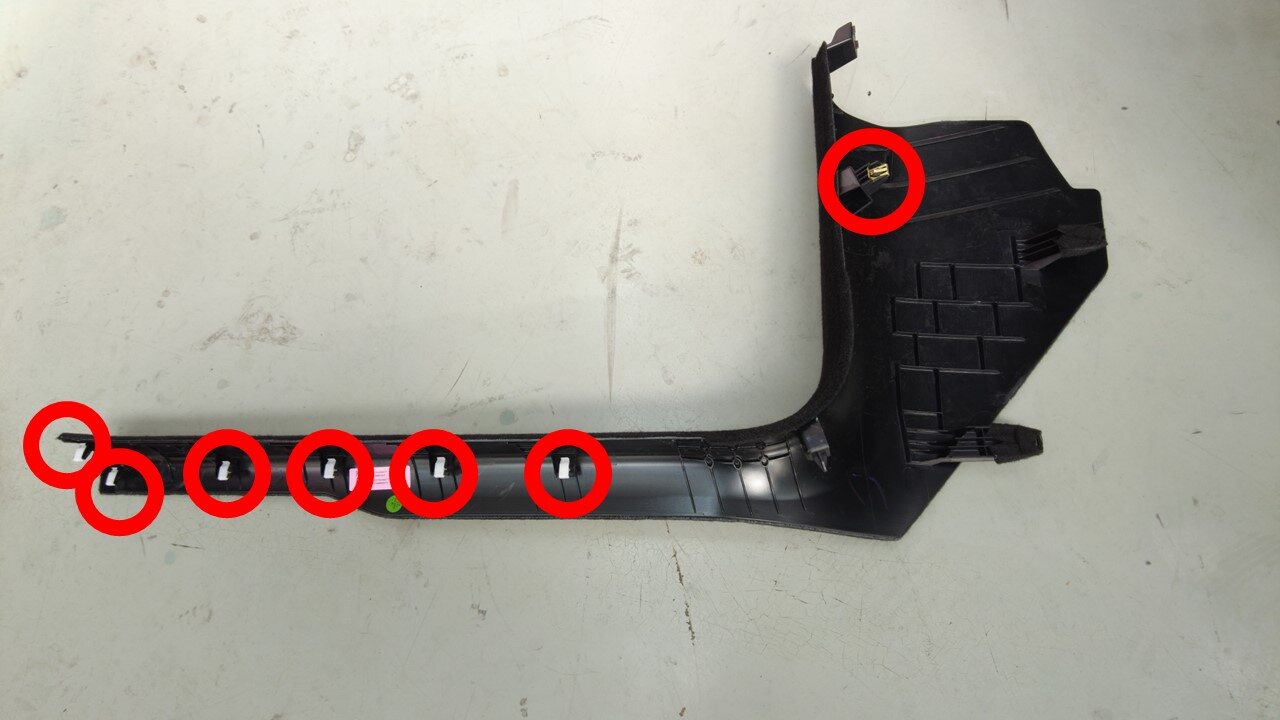

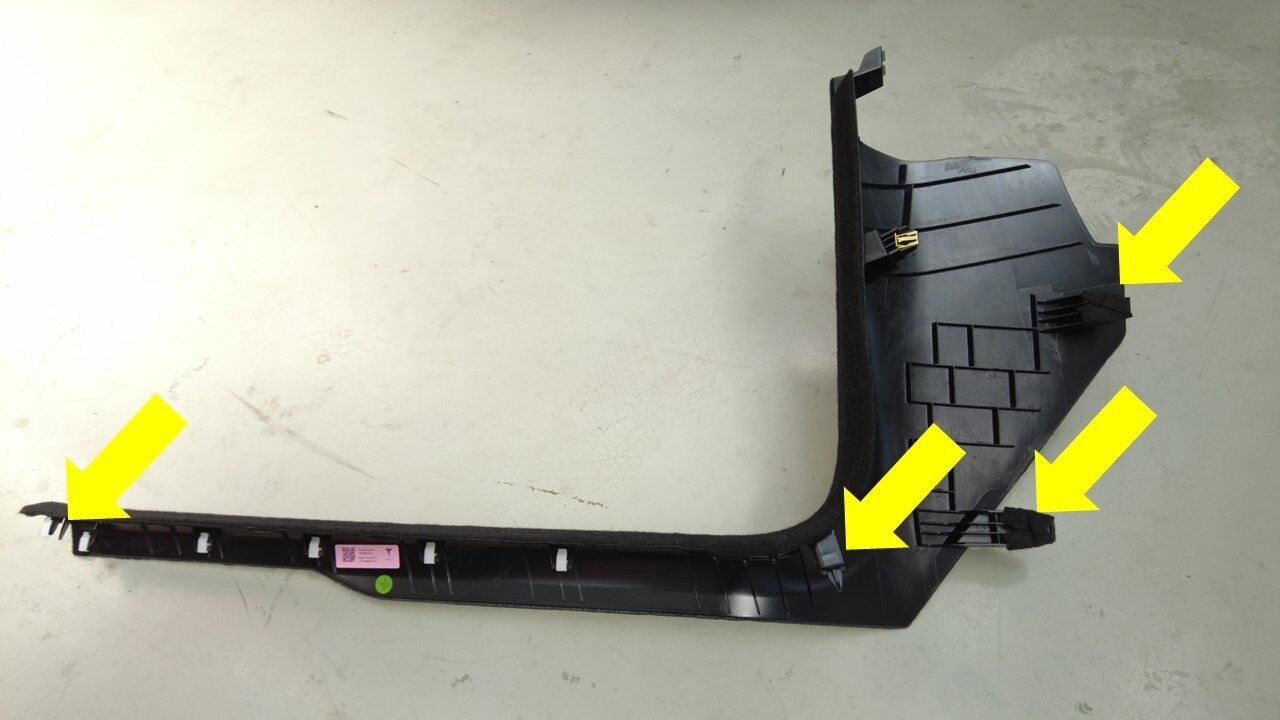

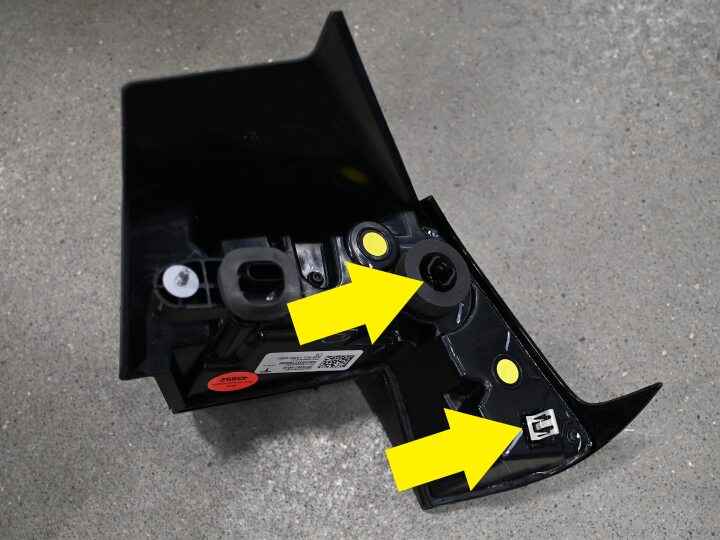

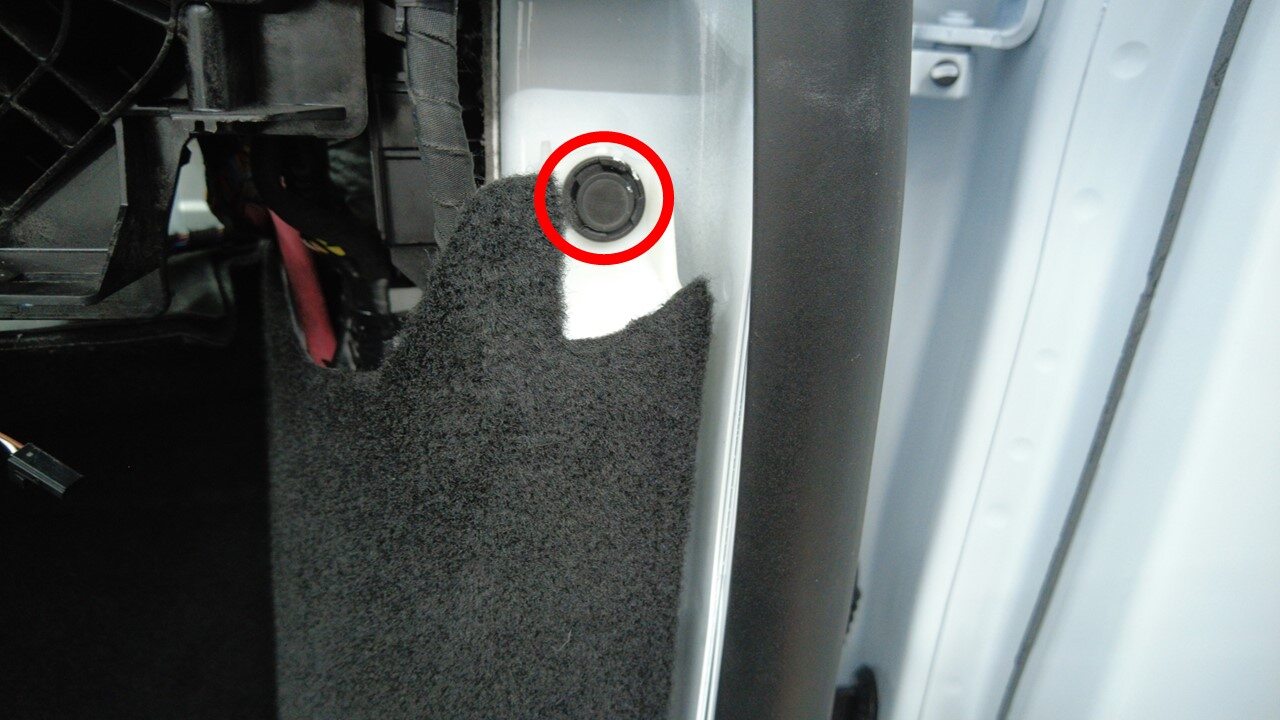

Remove RH lower A pillar trim

Note
7x clips, 4x guide tabs, 1x push clip, Pull rear of lower A-pillar upward to release clip then pull rearward to release front tabs from carpet

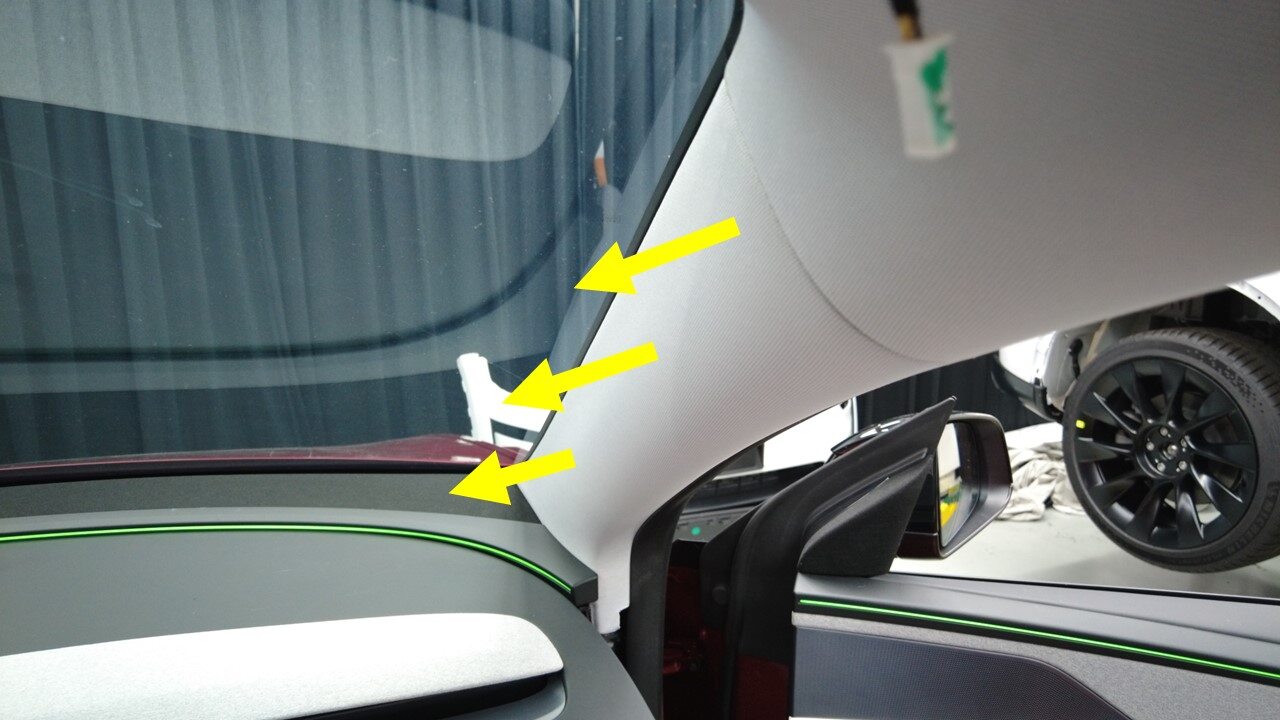

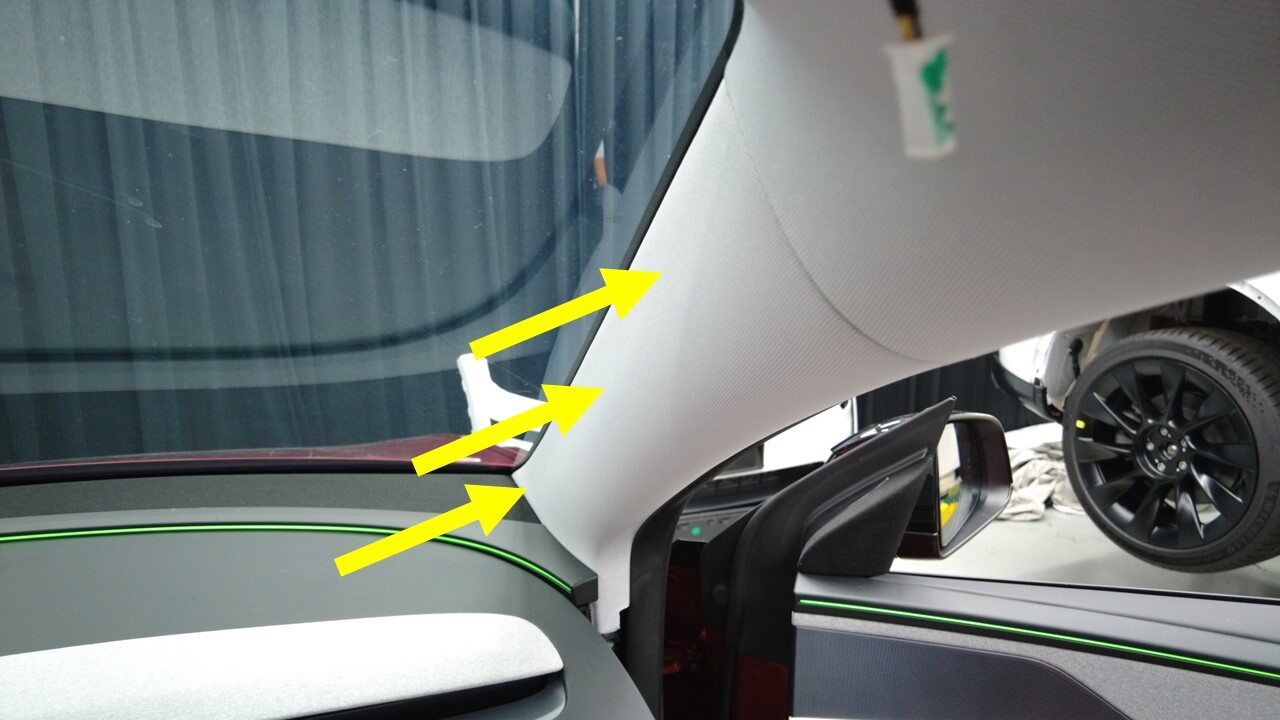

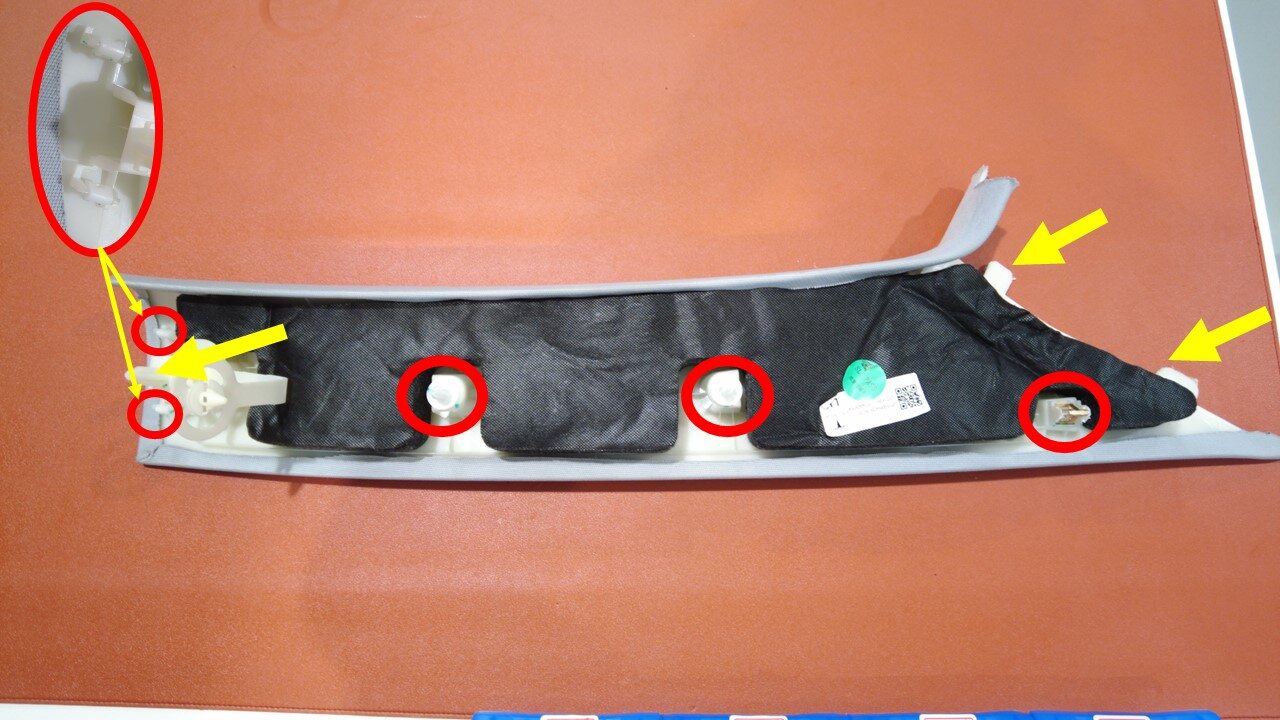

Remove RH upper A pillar trim

Note

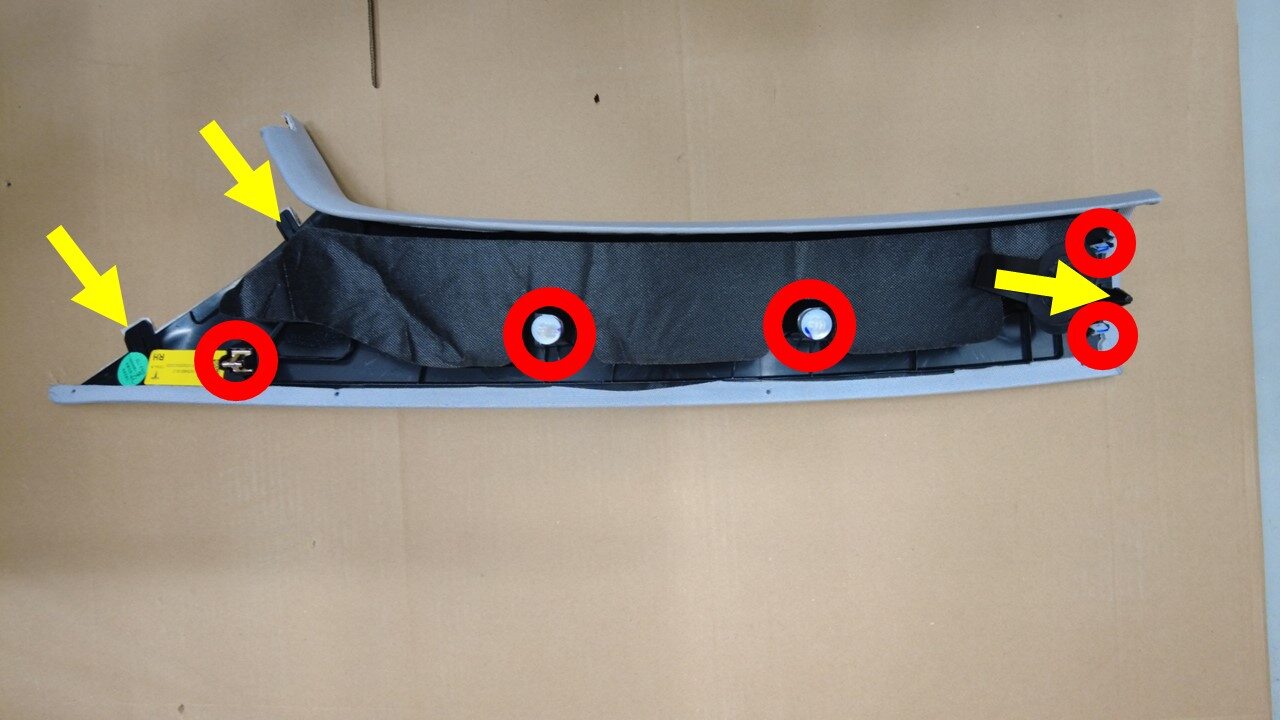

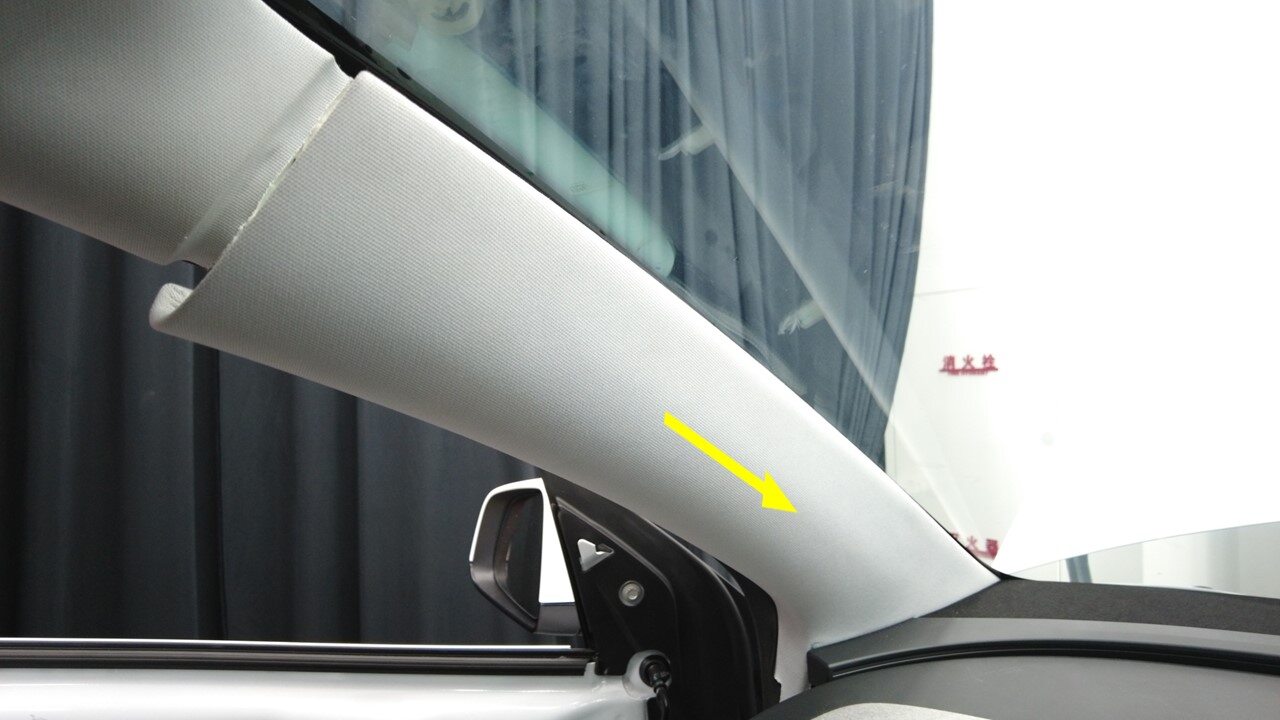

5x clips, 2x guide tabs, 1x location pin, 1x tether, Pull inside of the upper portion of upper A pillar, Depress 2x tabs to remove tether from body side, Then pull upper A pillar upward to remove
Remove RH sun visor bracket cover

Note
4x clips, Extending the sun visor may allow for extra working room
Remove RH sun visor from headliner

Note
1x screw, T25, 3.5 Nm, 1x connector, Fold sun visor to the closed and folded down position but do not latch in place

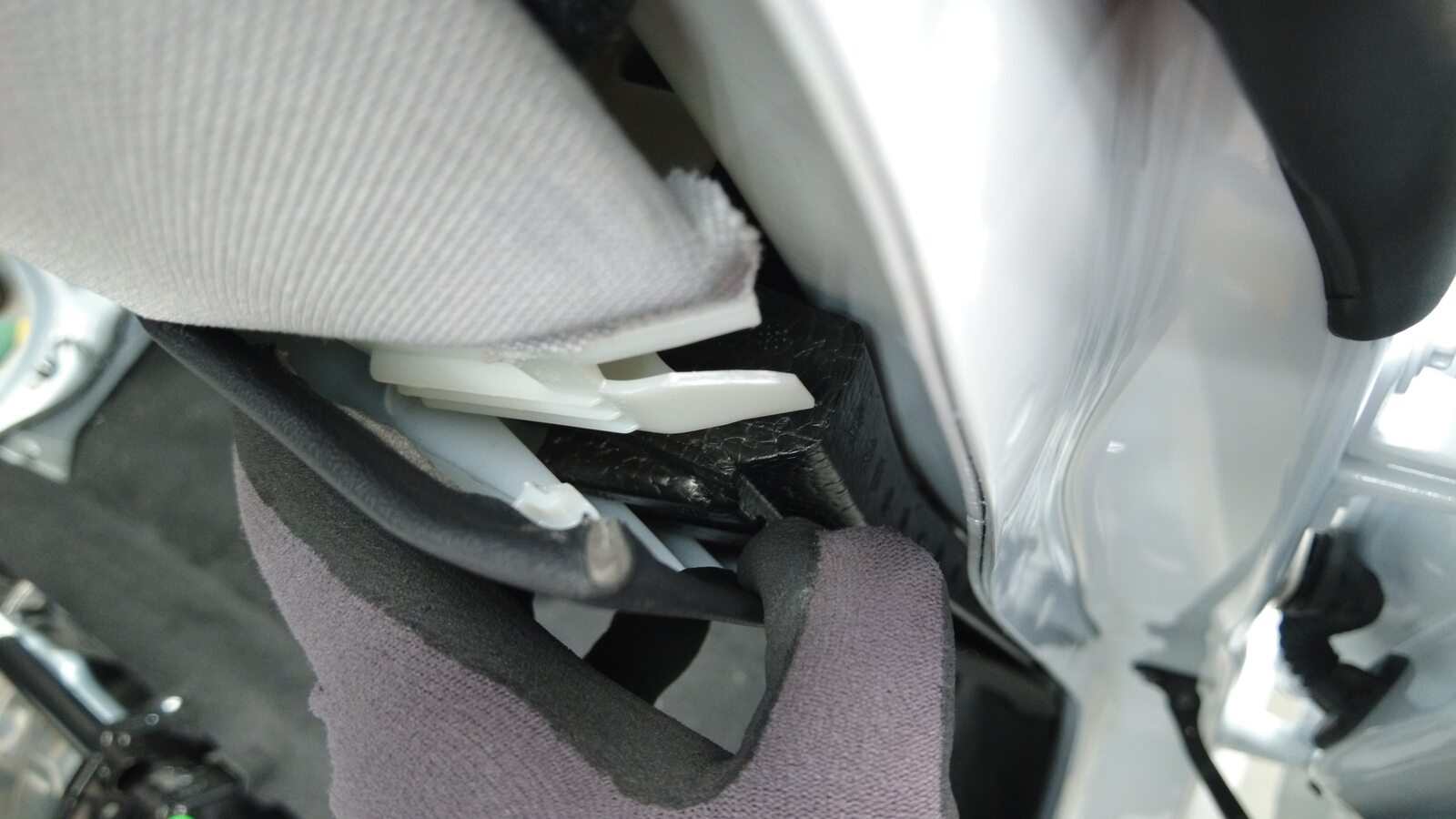

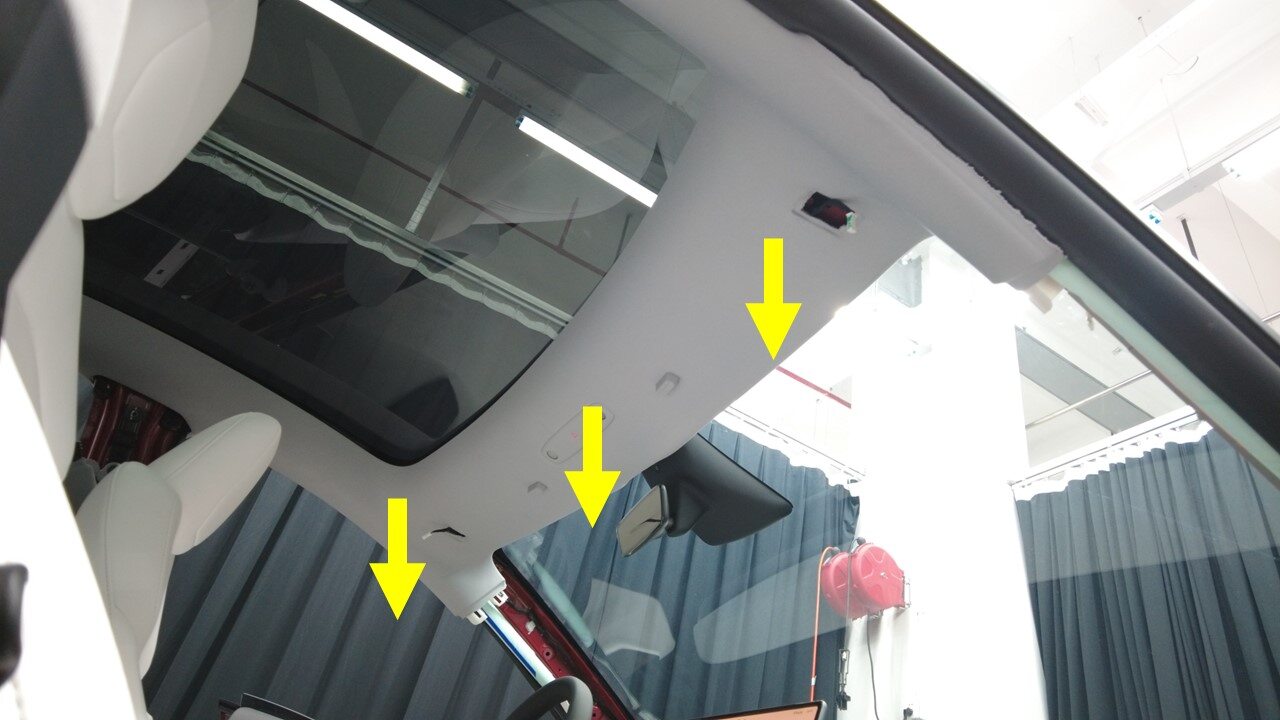

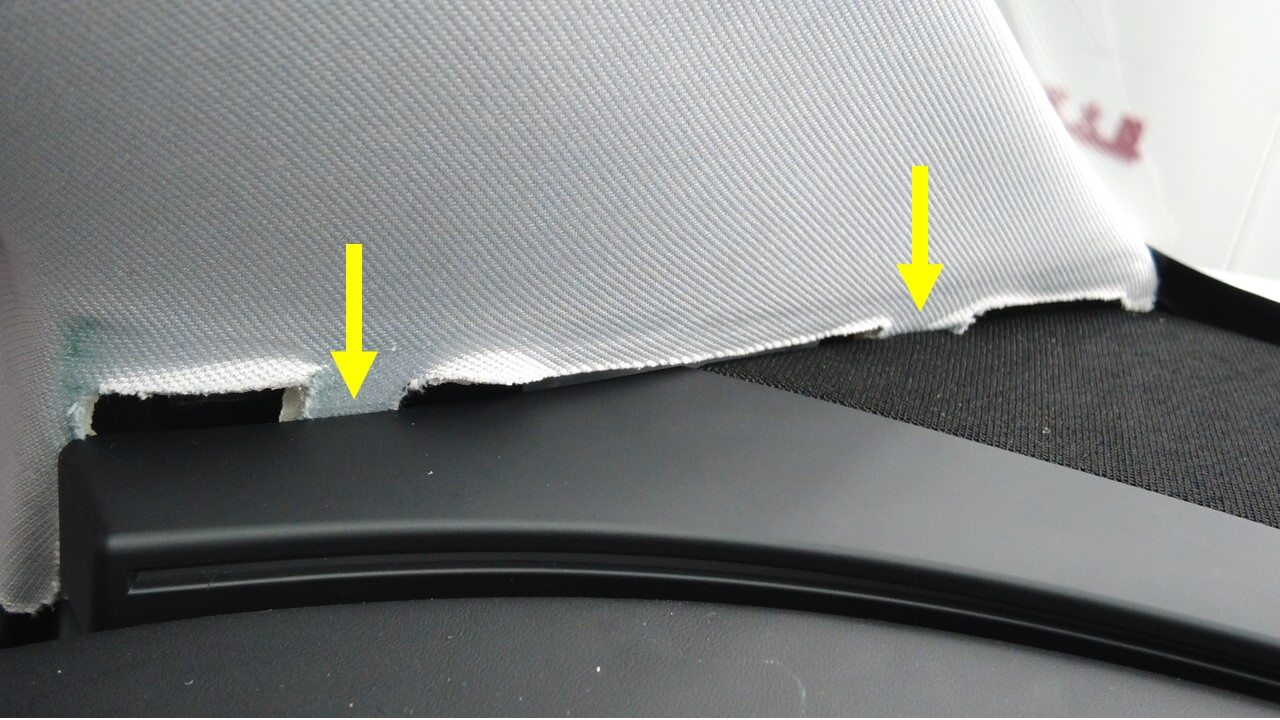

Partially release front end of headliner

Note
5x clips, 1x location pin, Disengage the headliner from the vehicle,Take care not to bend the headliner, Replace any damaged clips

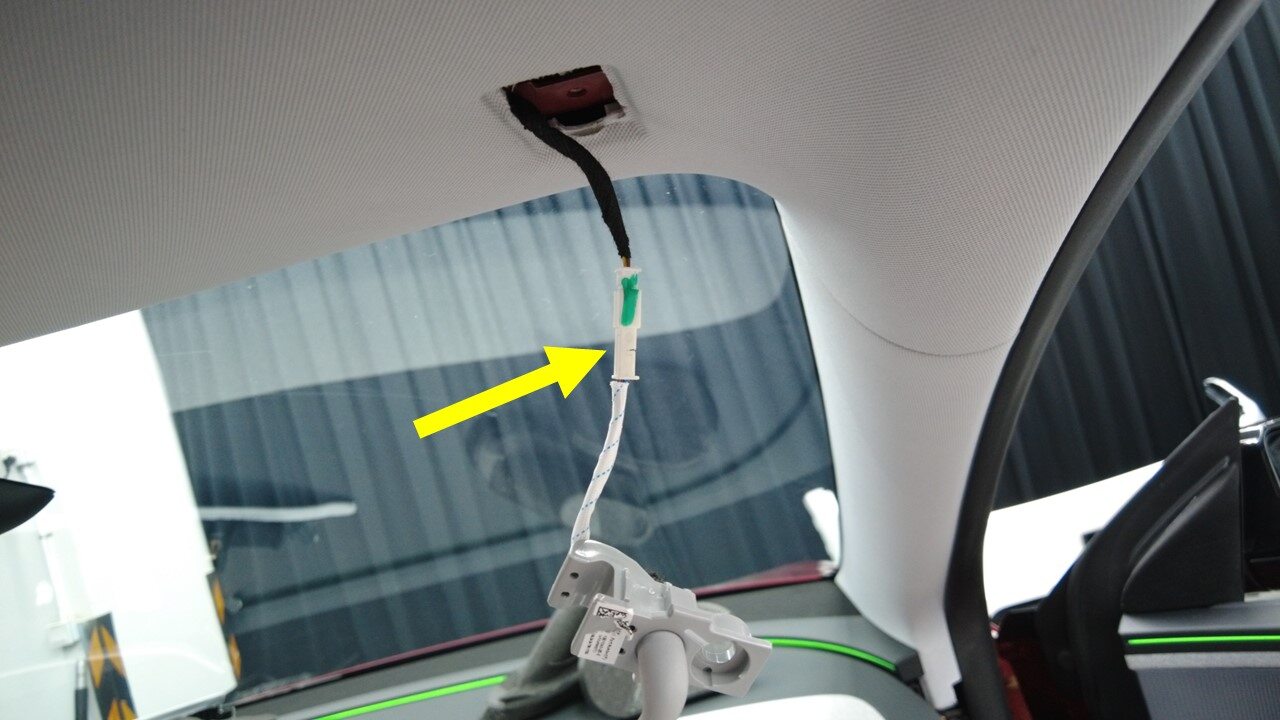

Disconnect connector from interior endpoint

Note
1x connector, Disengage locking tab

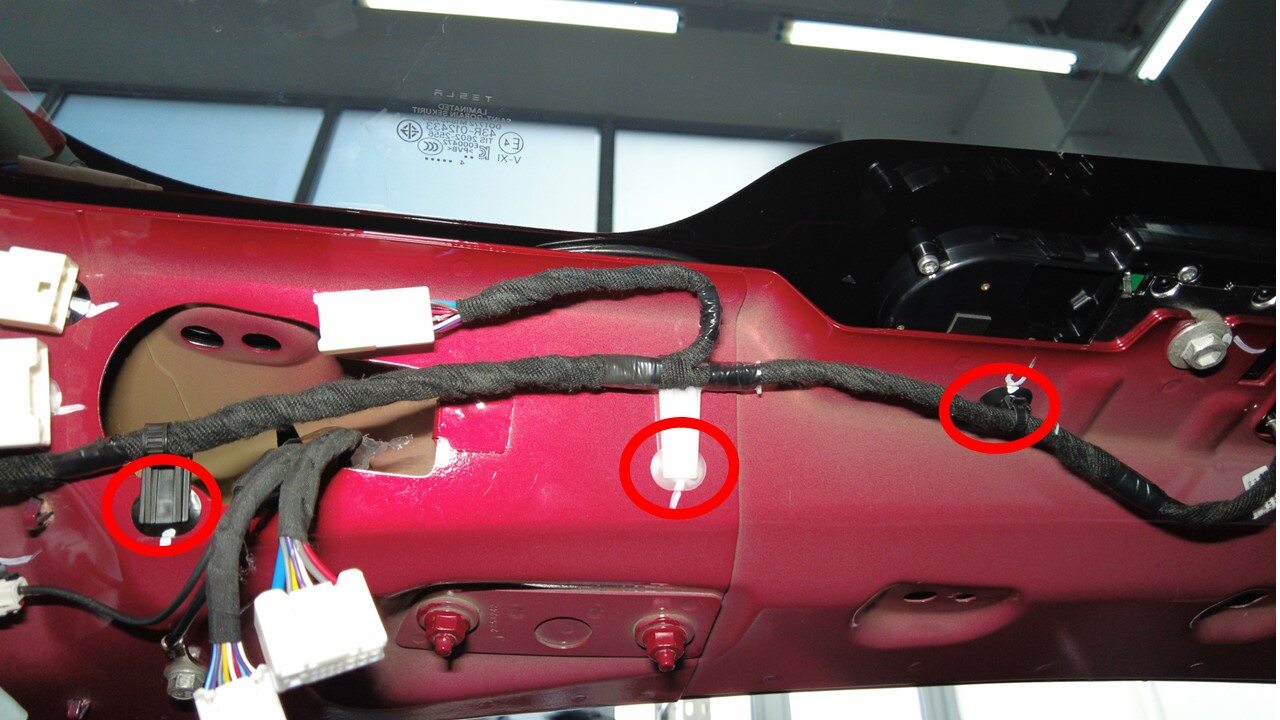

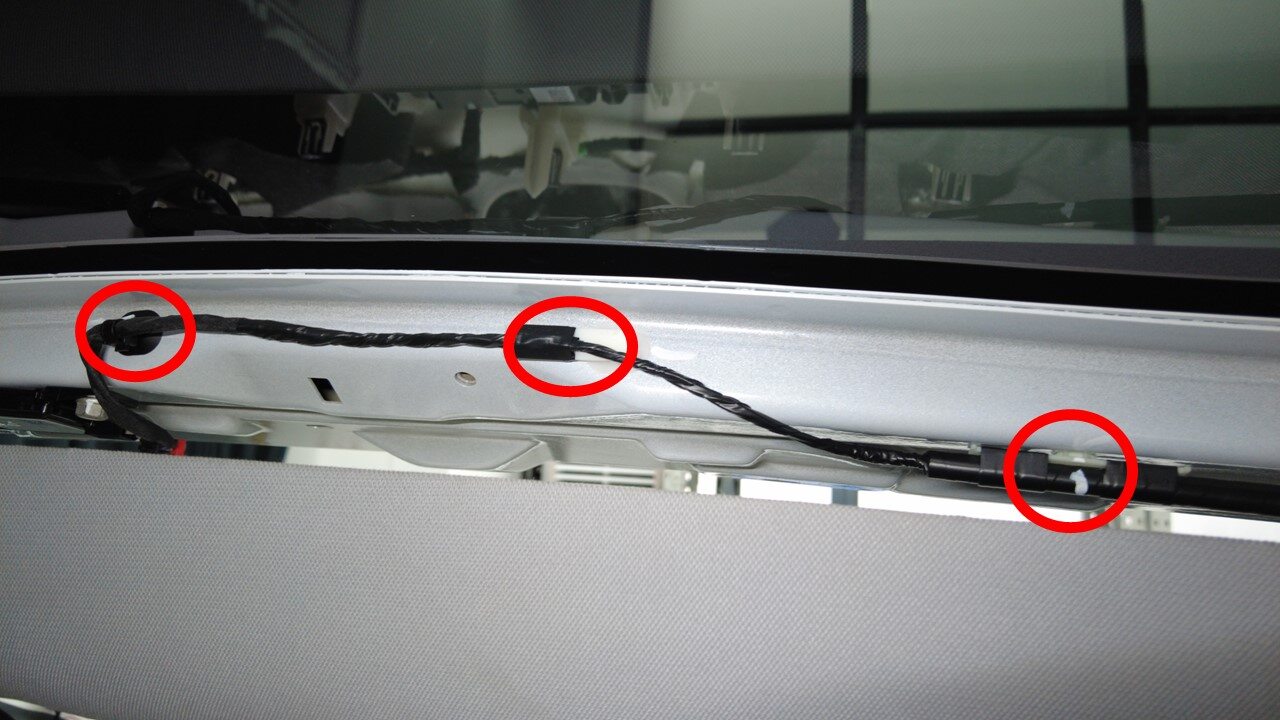

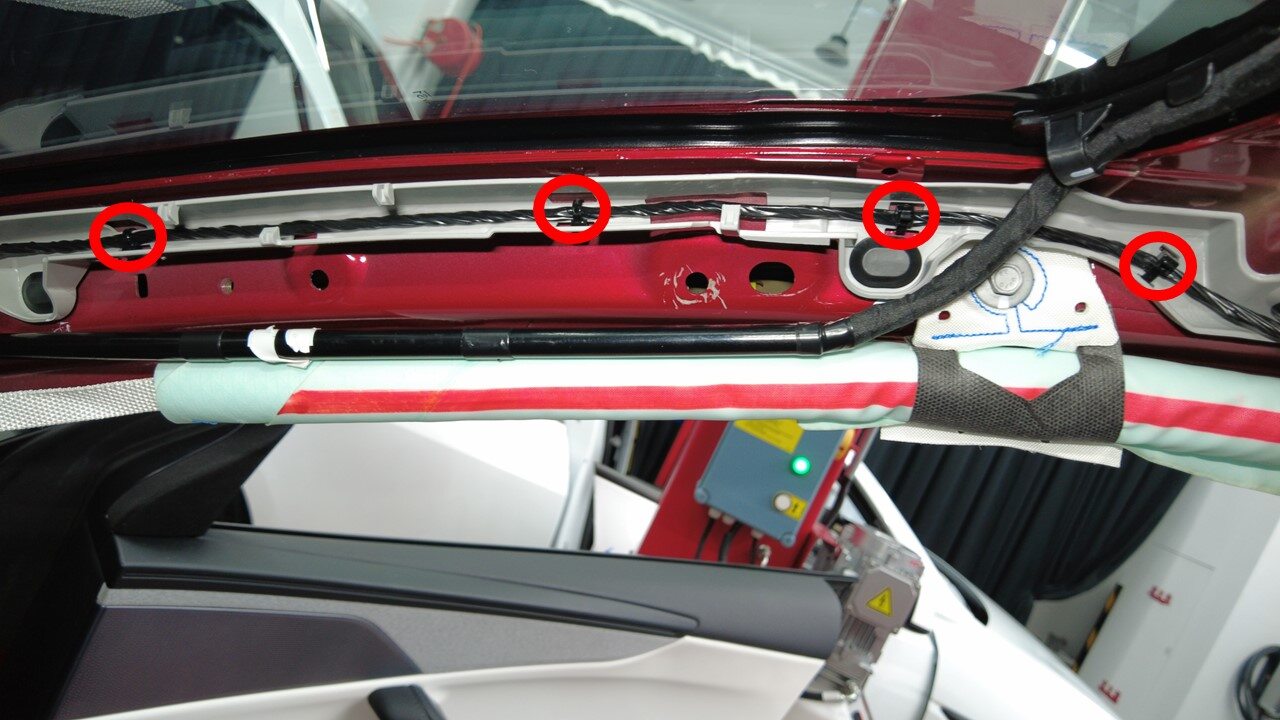

Release RH body harness clips from front head area

Note
5x clips
Release RH body harness from RH A - pillar area

Note
4x nylon ties, 2x tapes, When cutting nylon ties, do not cut the harness

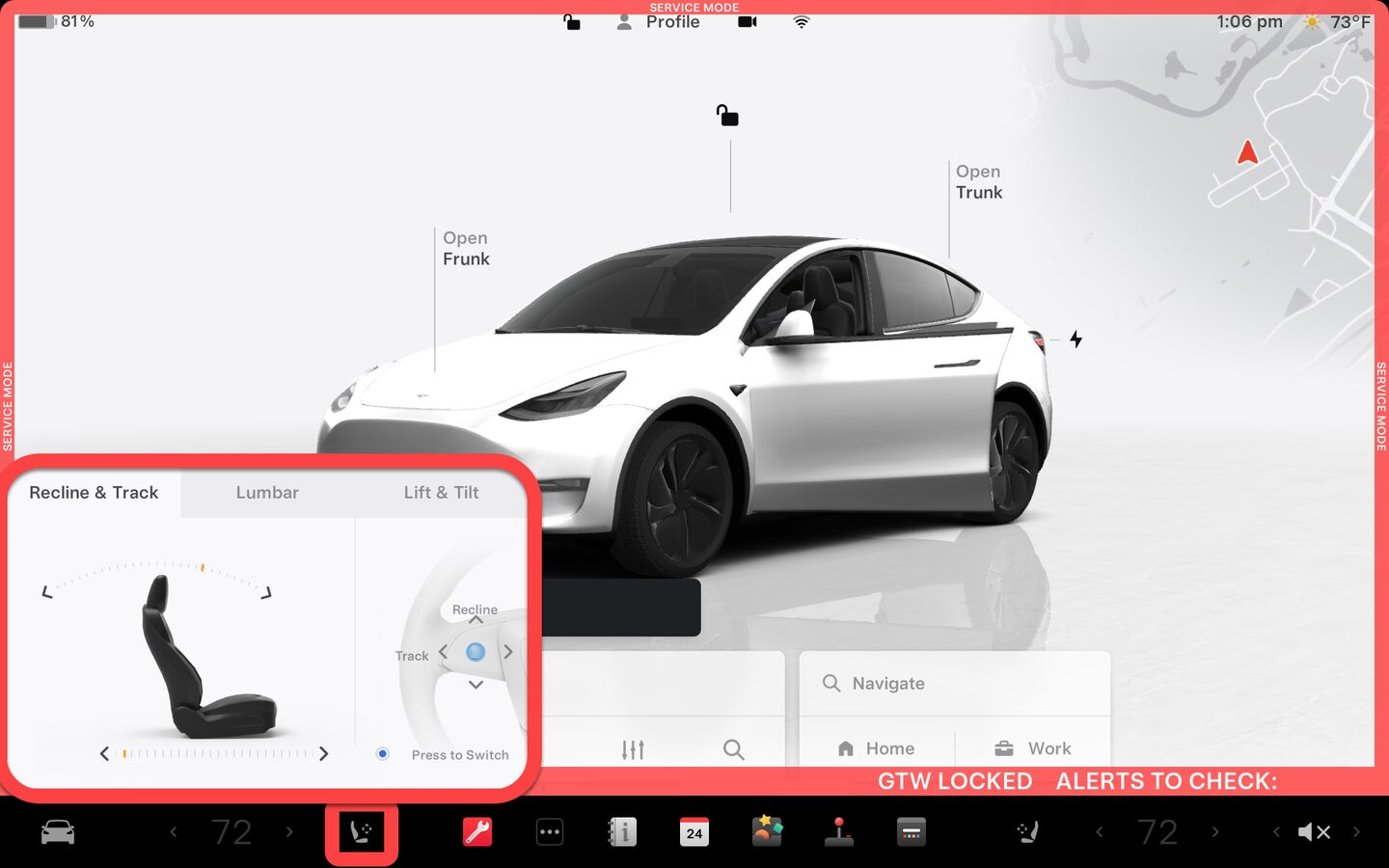

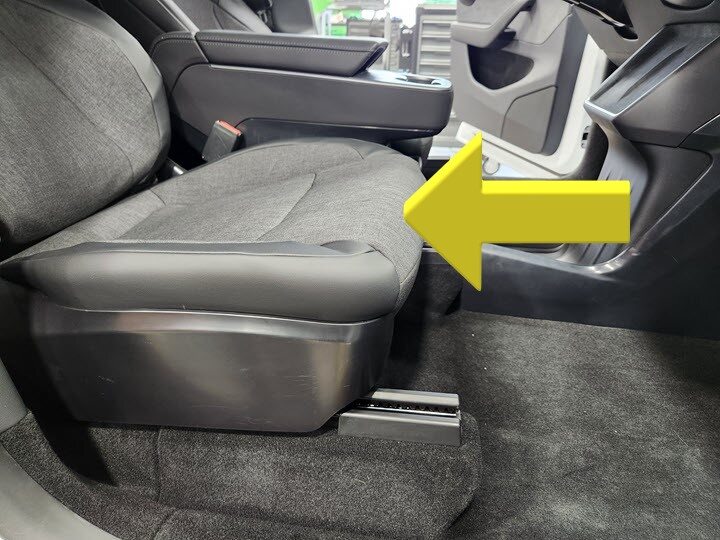

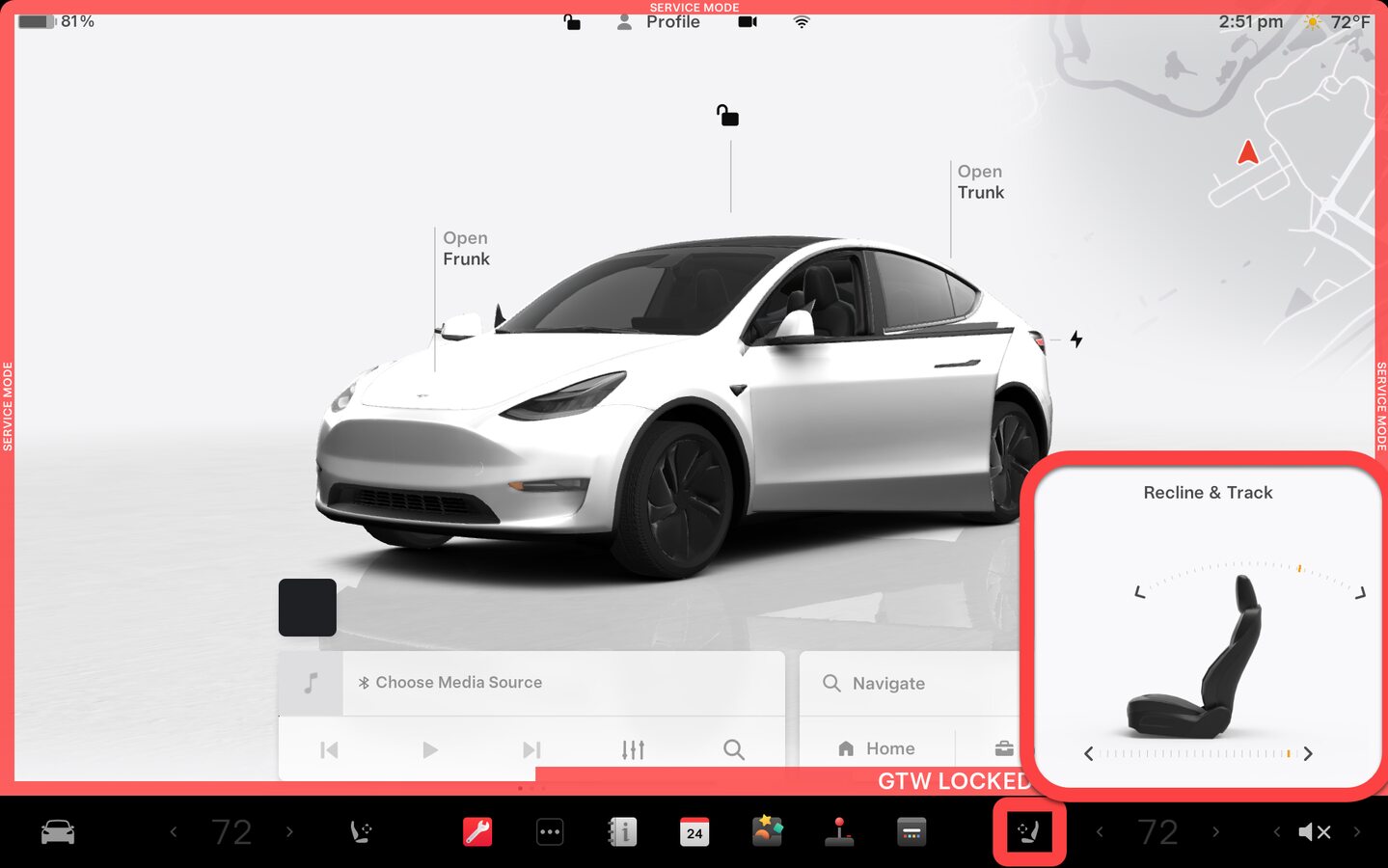

Move LH front seat forward

Note
Via UI > Seat Controls, Use steering wheel scroll wheel as needed

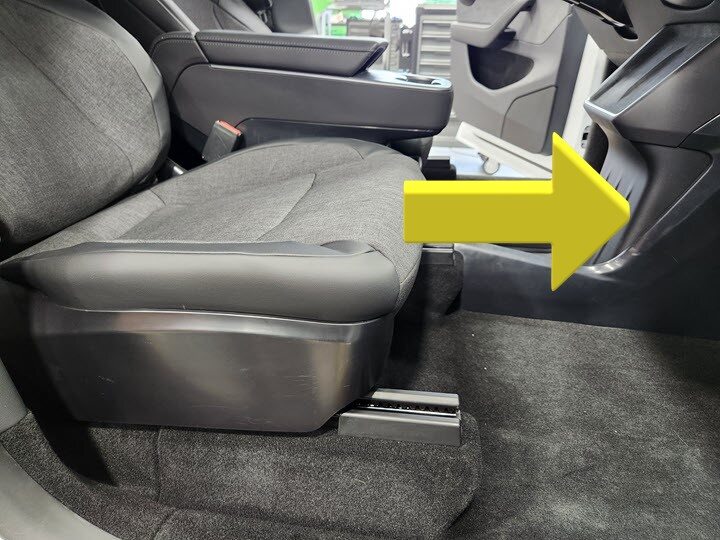

Move RH front seat forward

Note
Via UI > Seat Controls

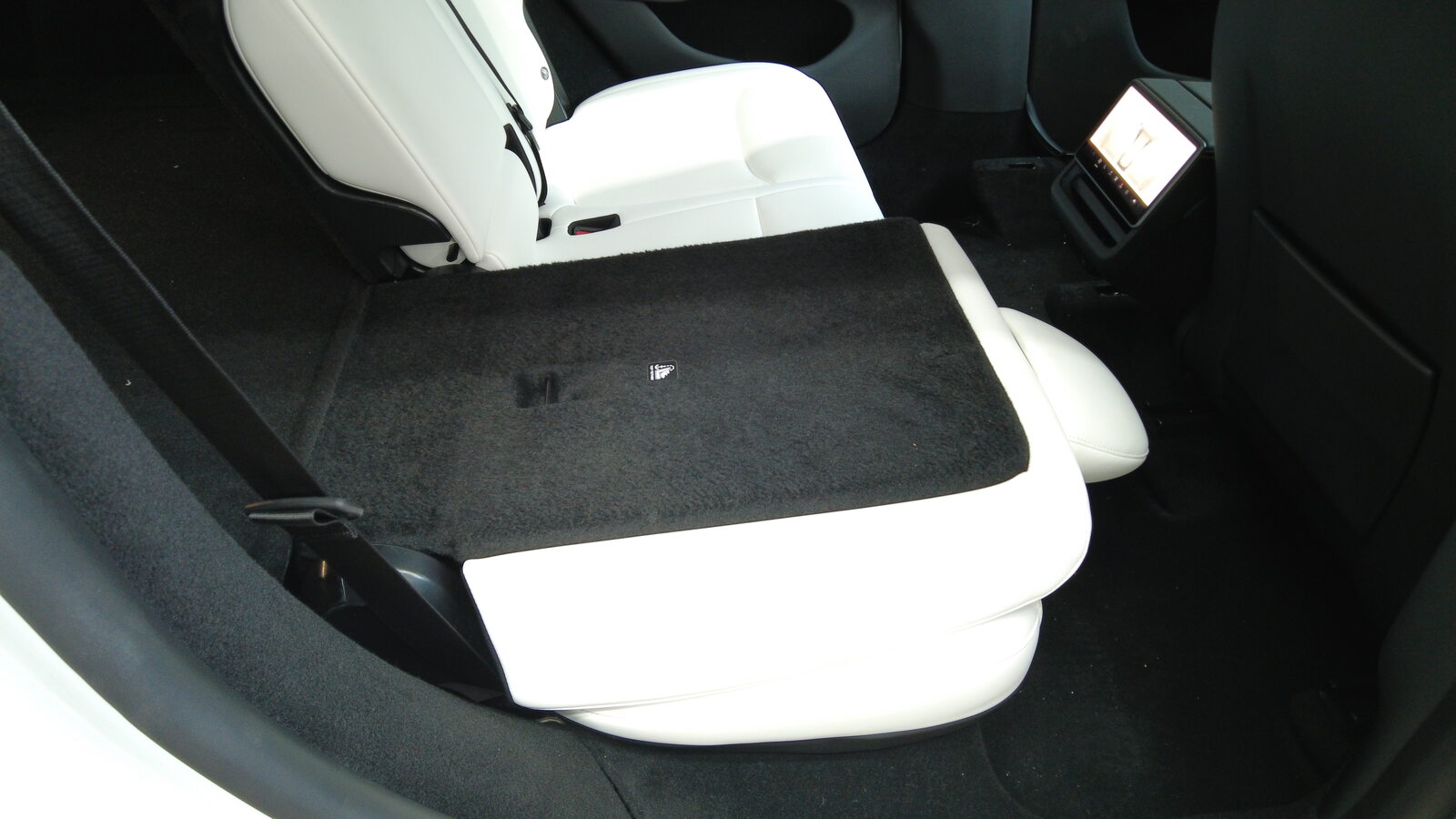

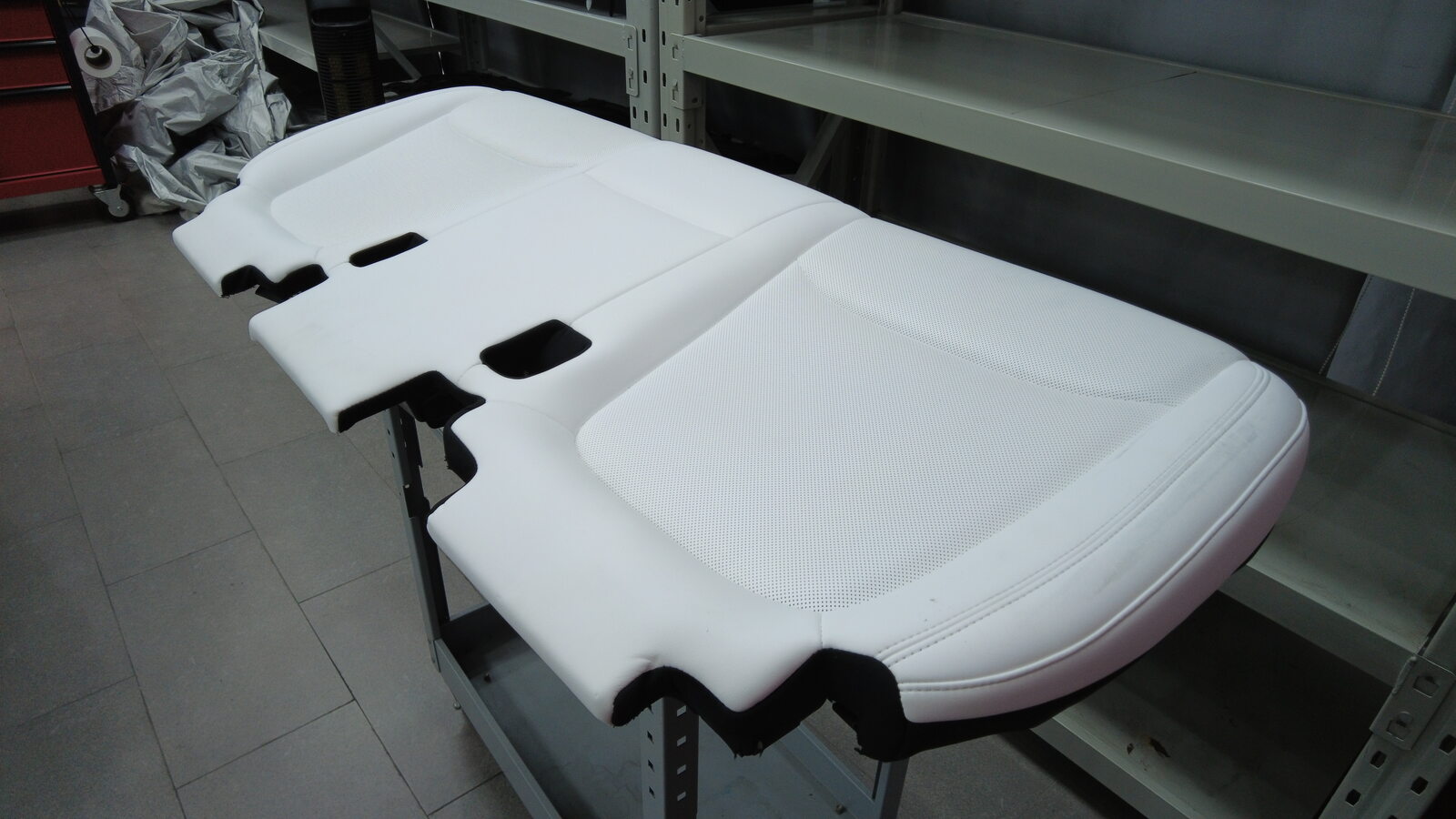

Remove 2nd row seat cushion

Note

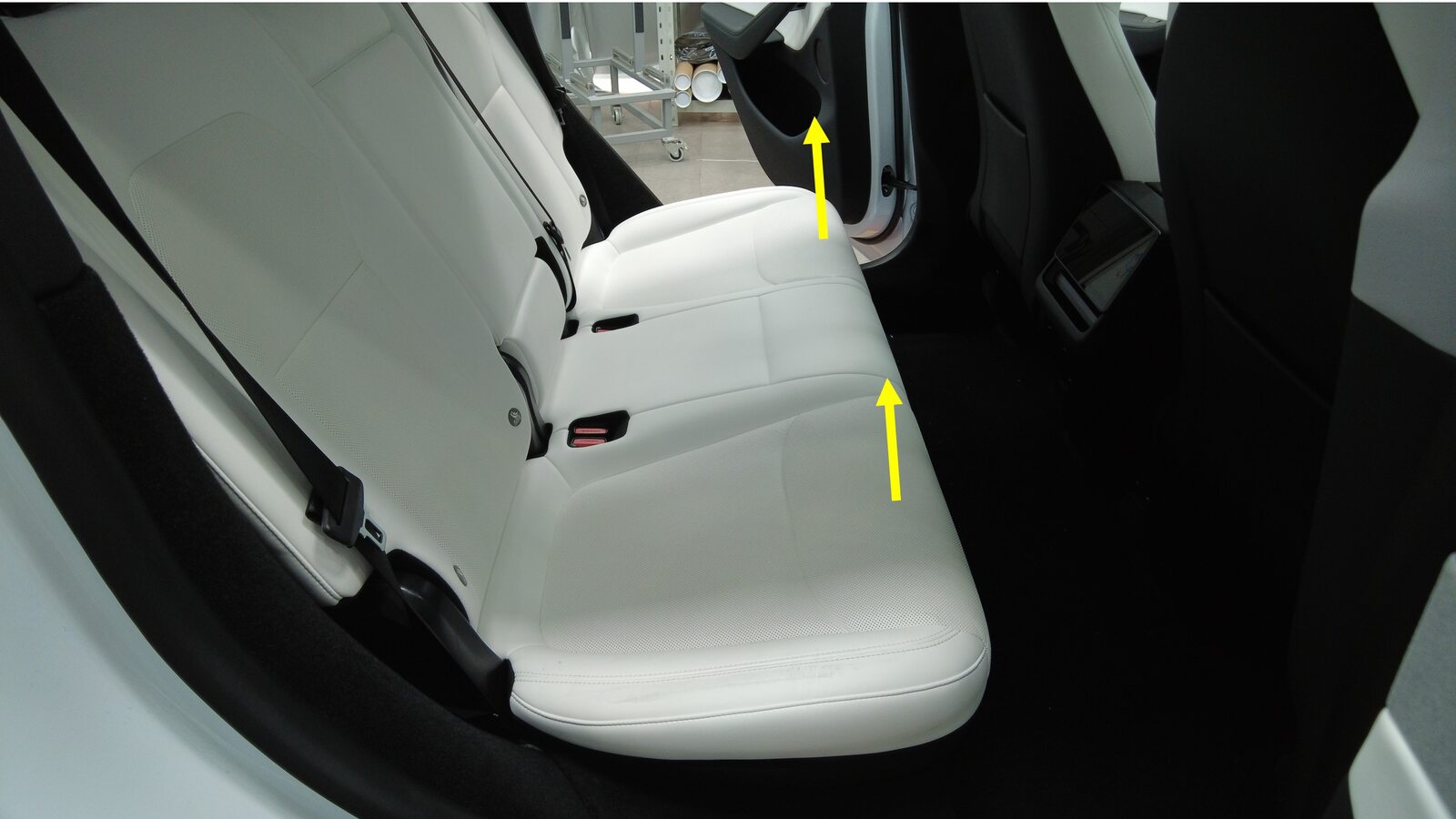

1x connector, Lift front edge of seat cushion upward to release foam from frame, Adjust the backrest to the appropriate position as needed

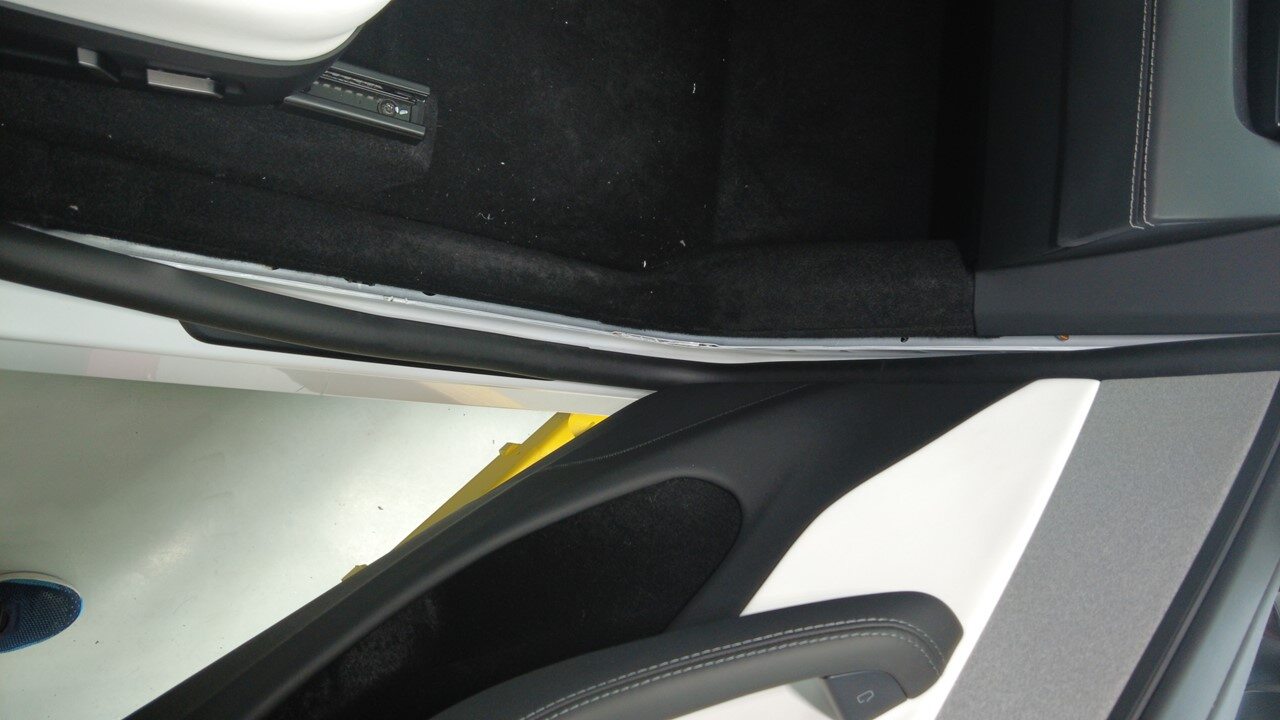

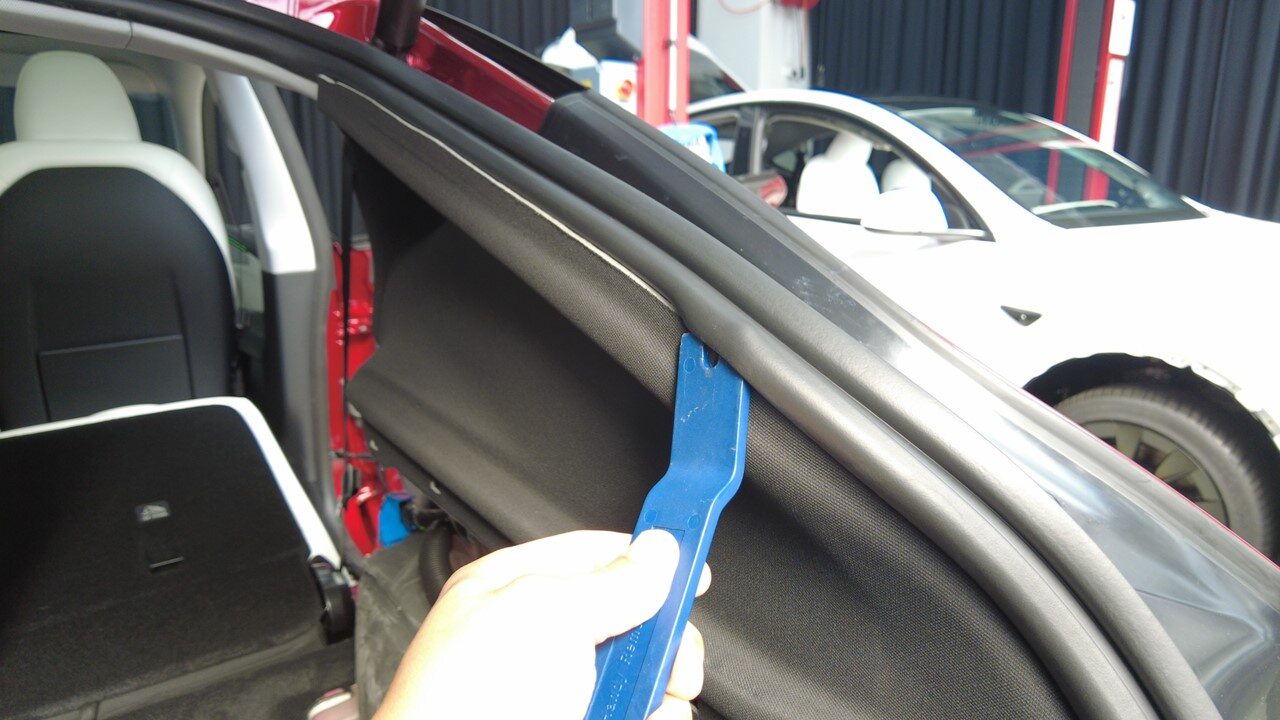

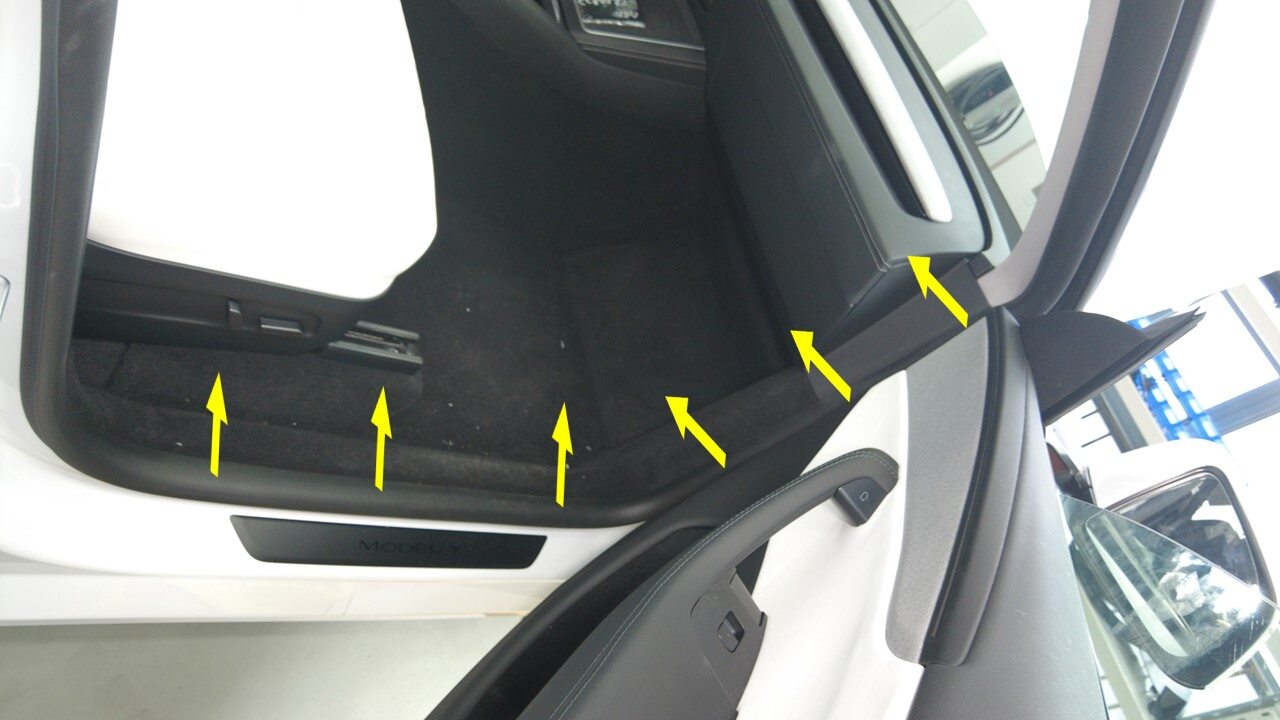

Partially release RH rear primary door seal from body

Note
For remove RH rear B pillar trim, RH lower C pillar trim
Remove RH lower C pillar trim

Note
7x clips, 2x guide tabs, Pull the trim upward to release all clips

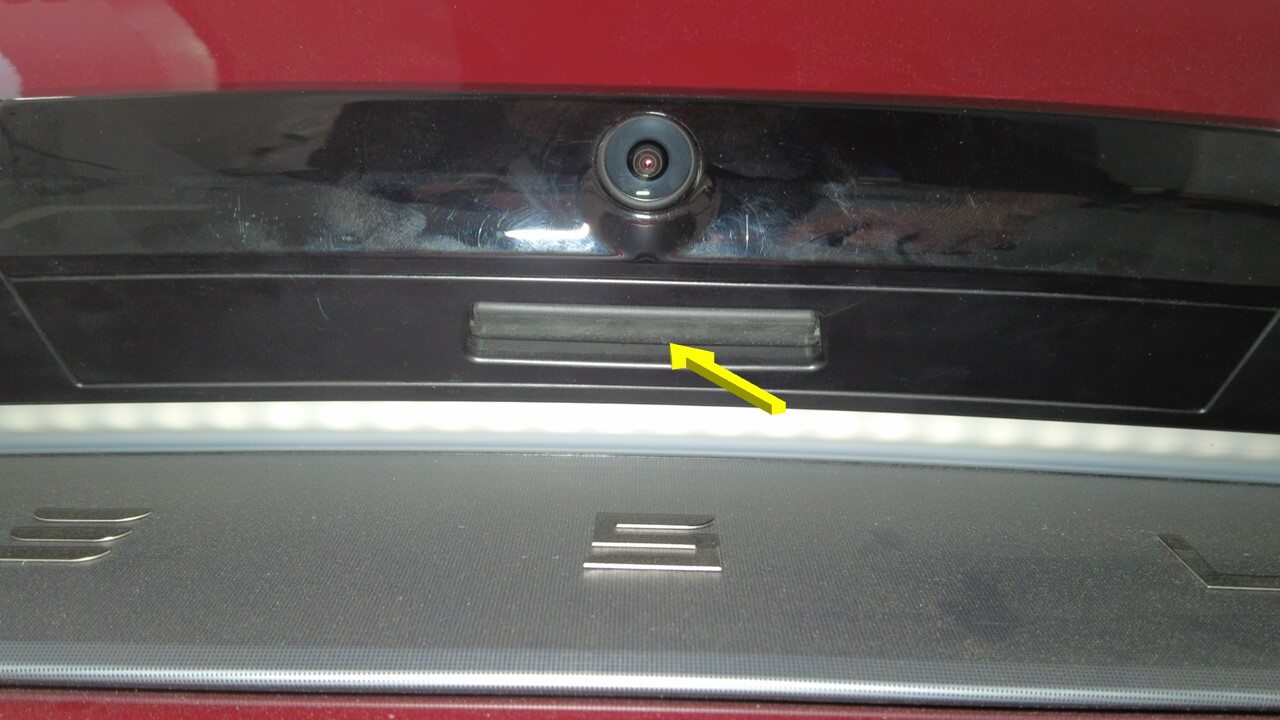

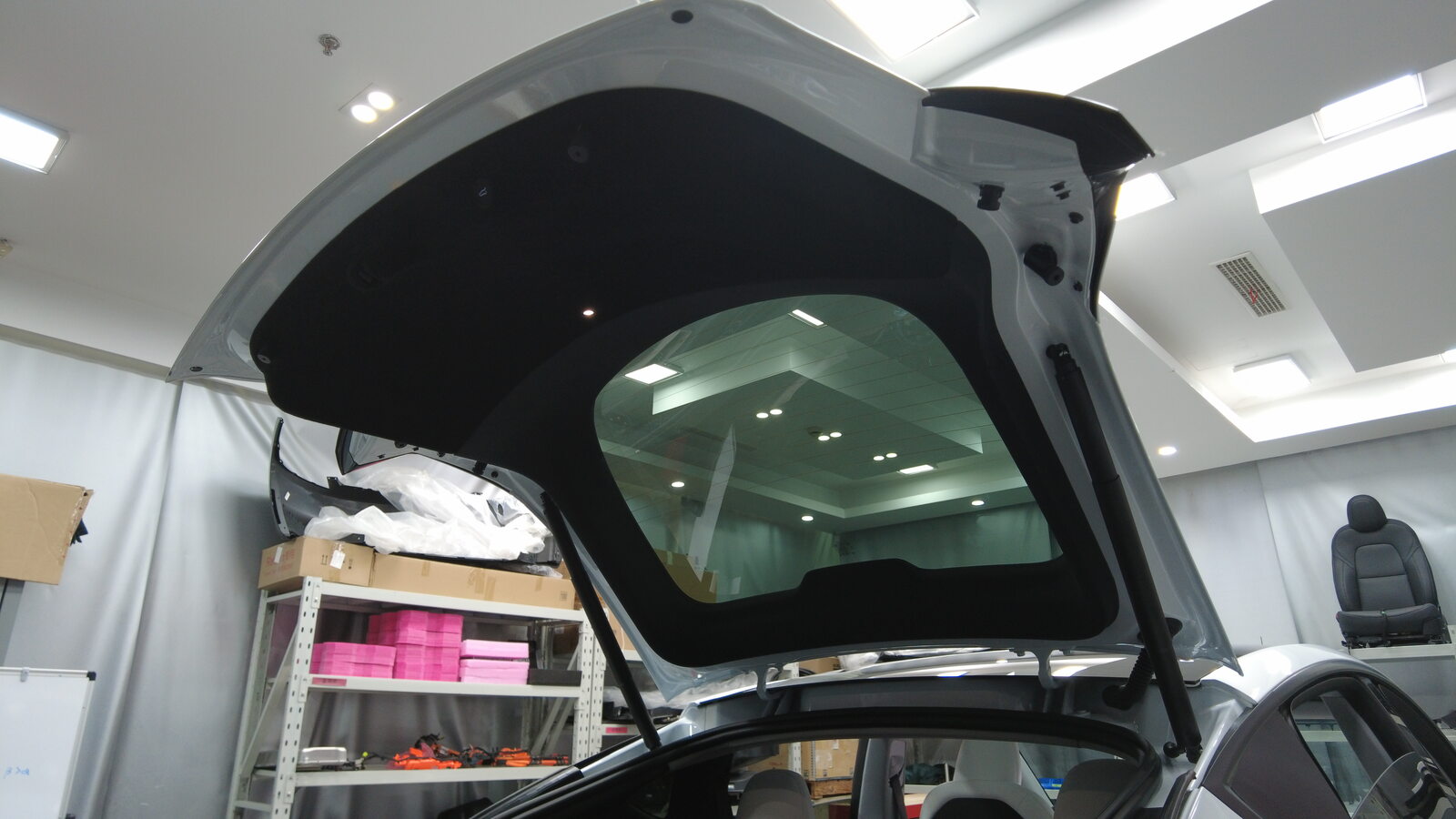

Open liftgate

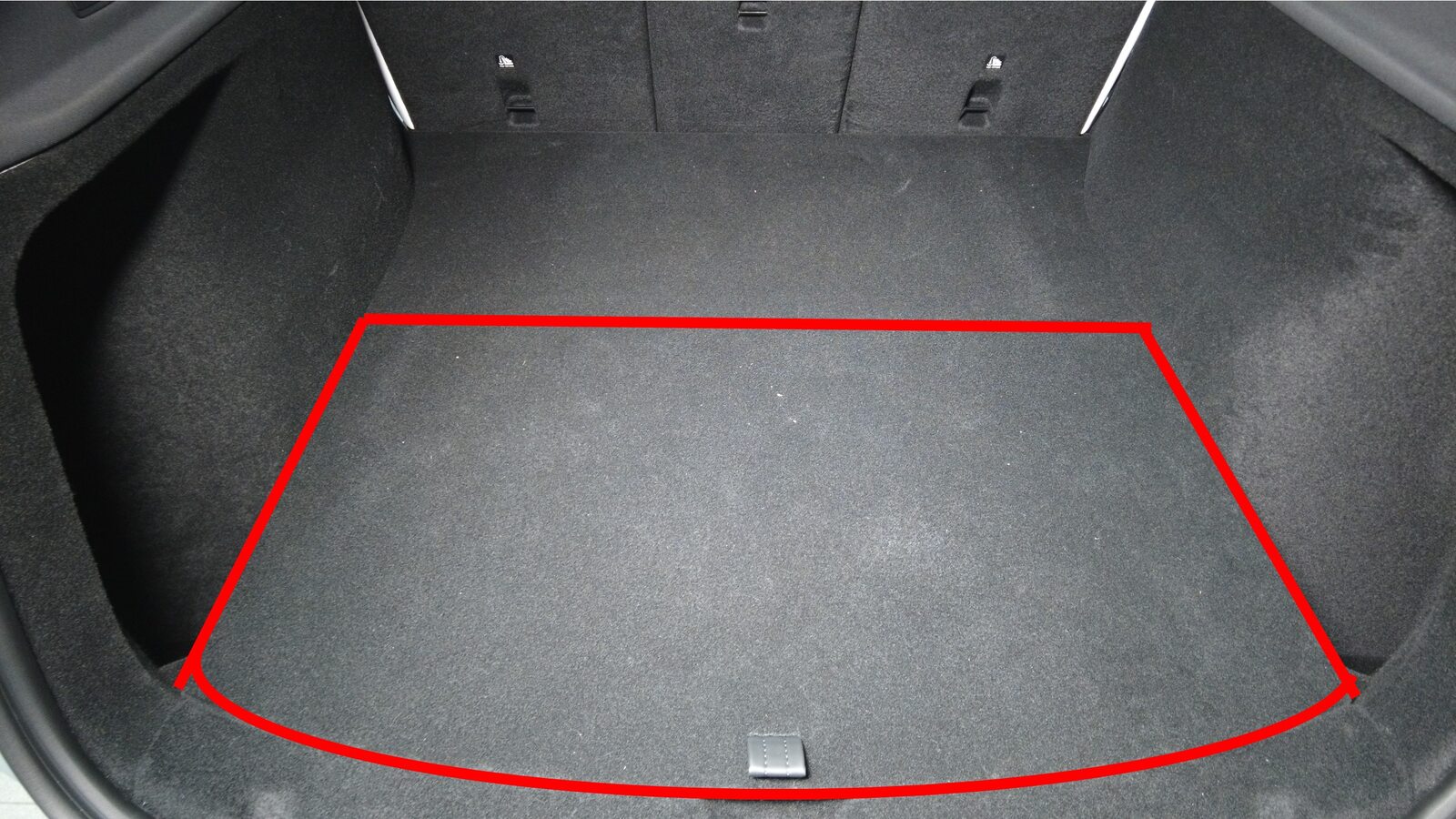

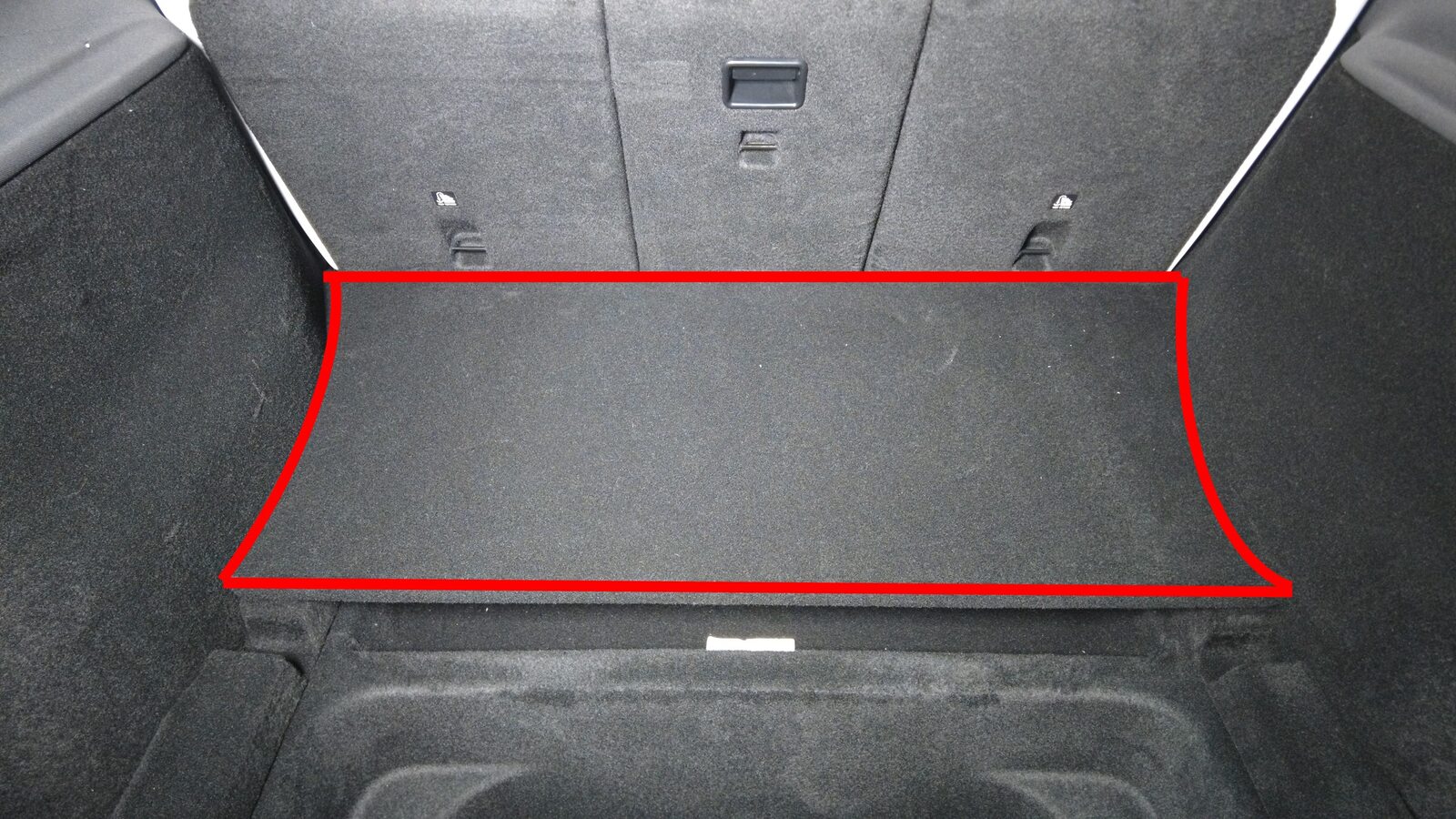

Remove rear load floor

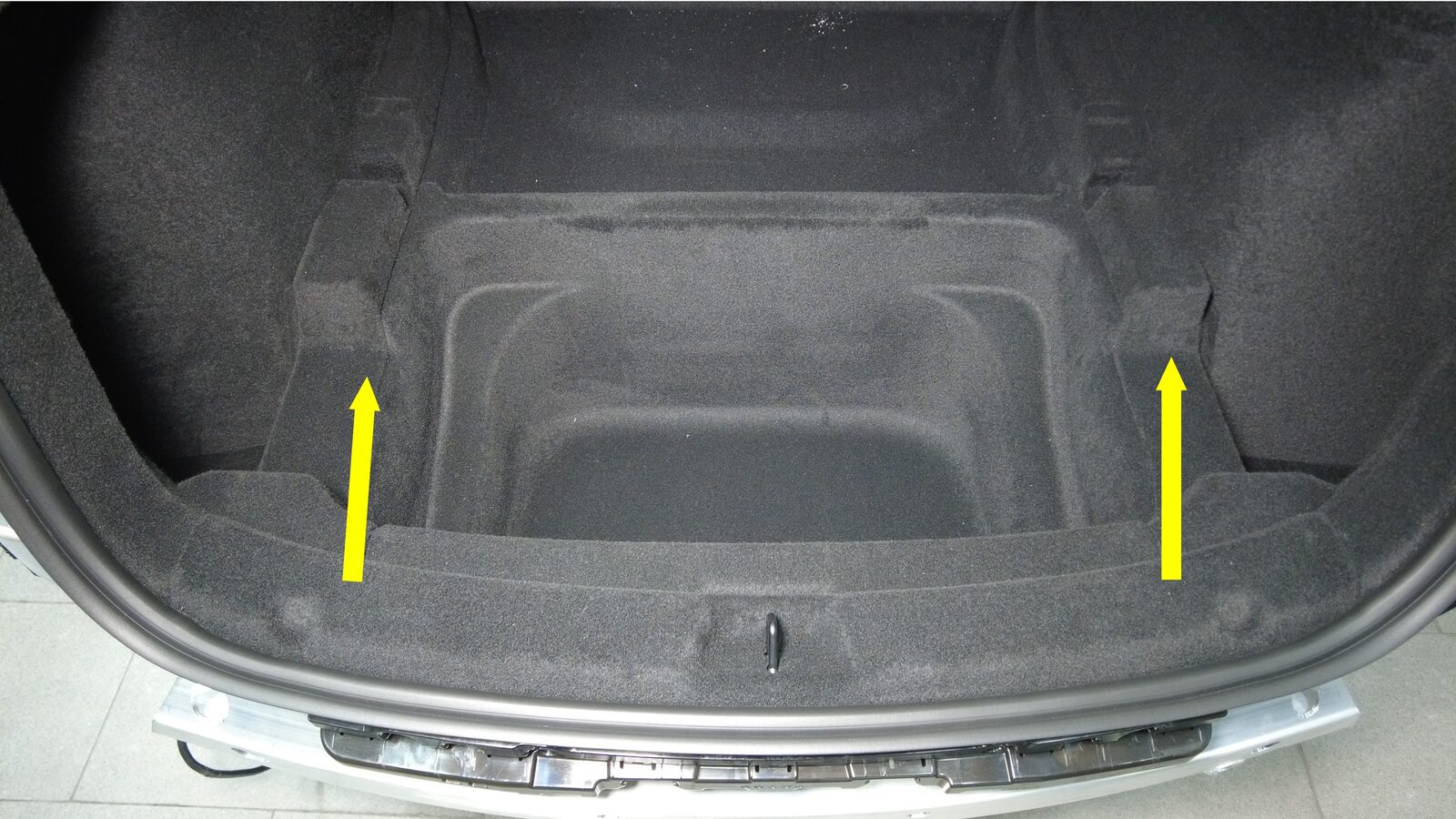

Remove front load floor

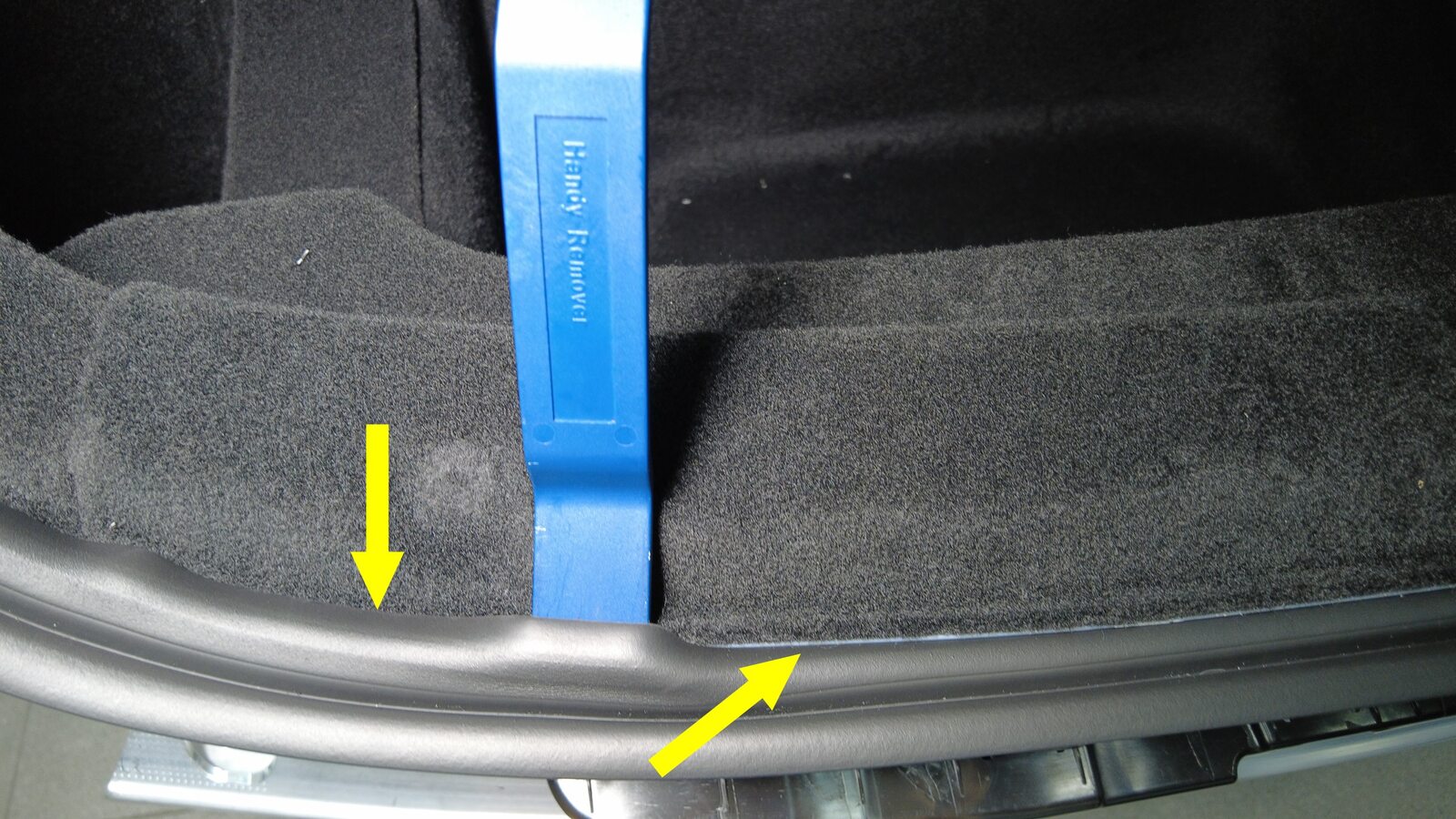

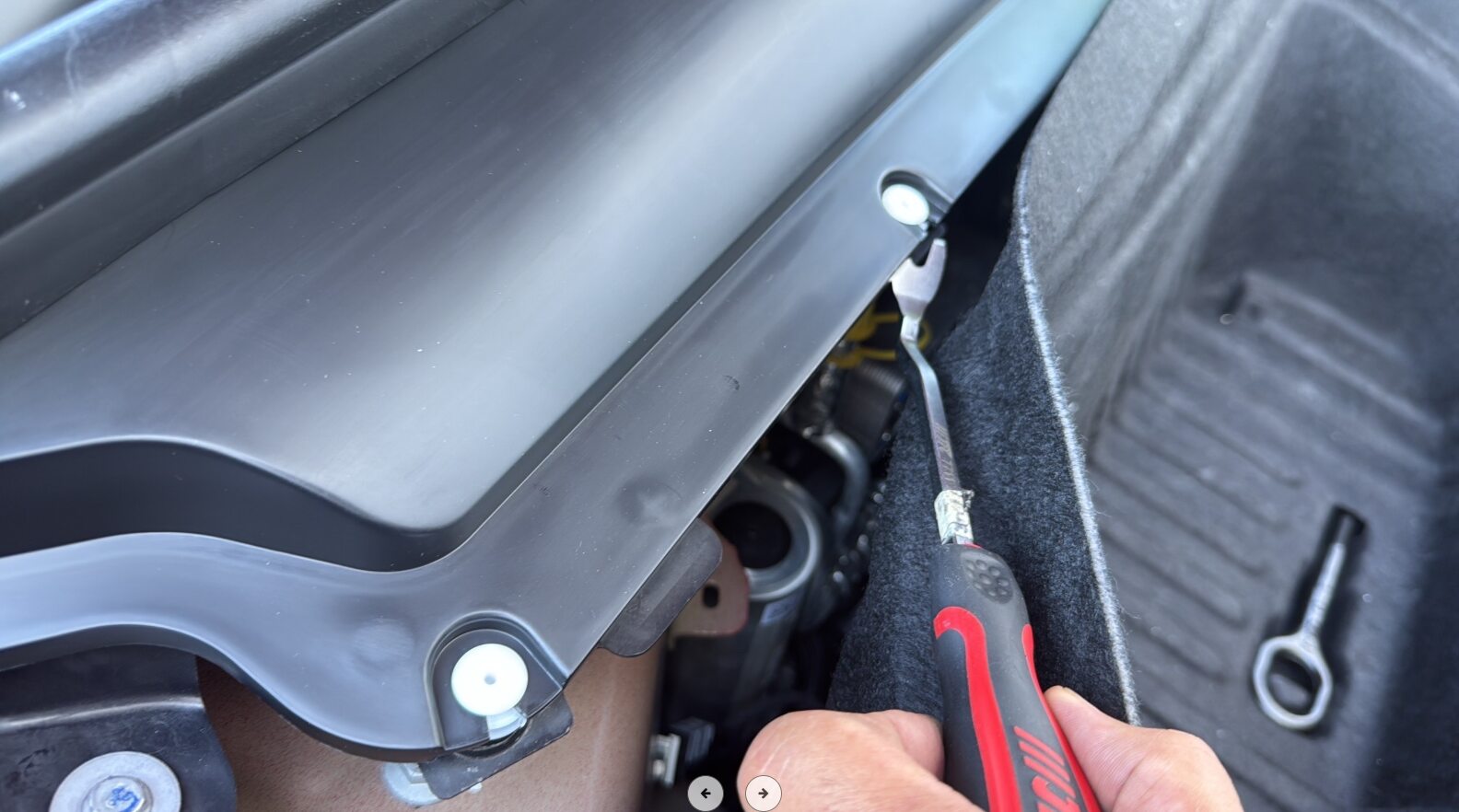

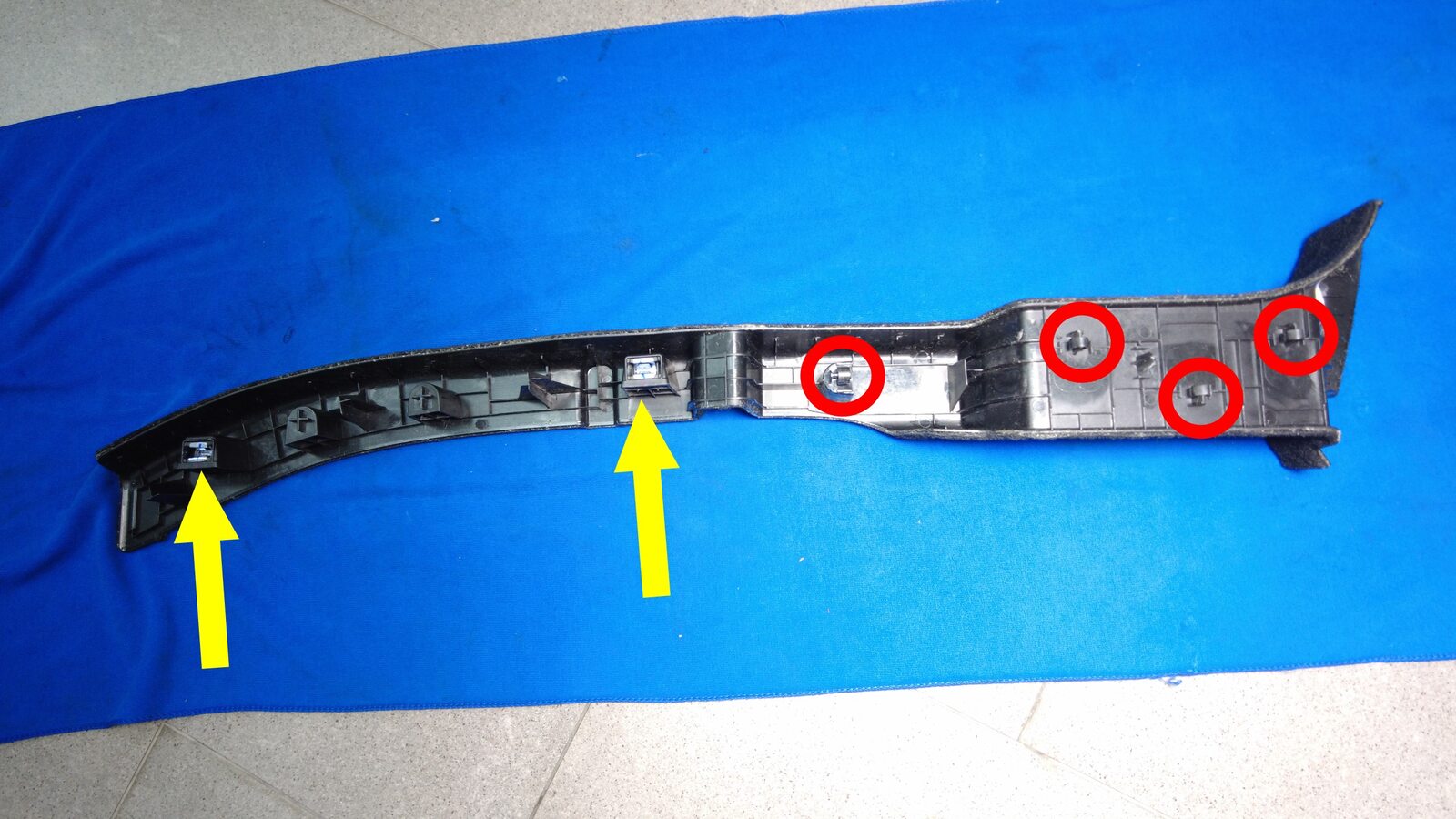

Remove trunk sill trim from vehicle

Note
4x clips, 2x loaction pins

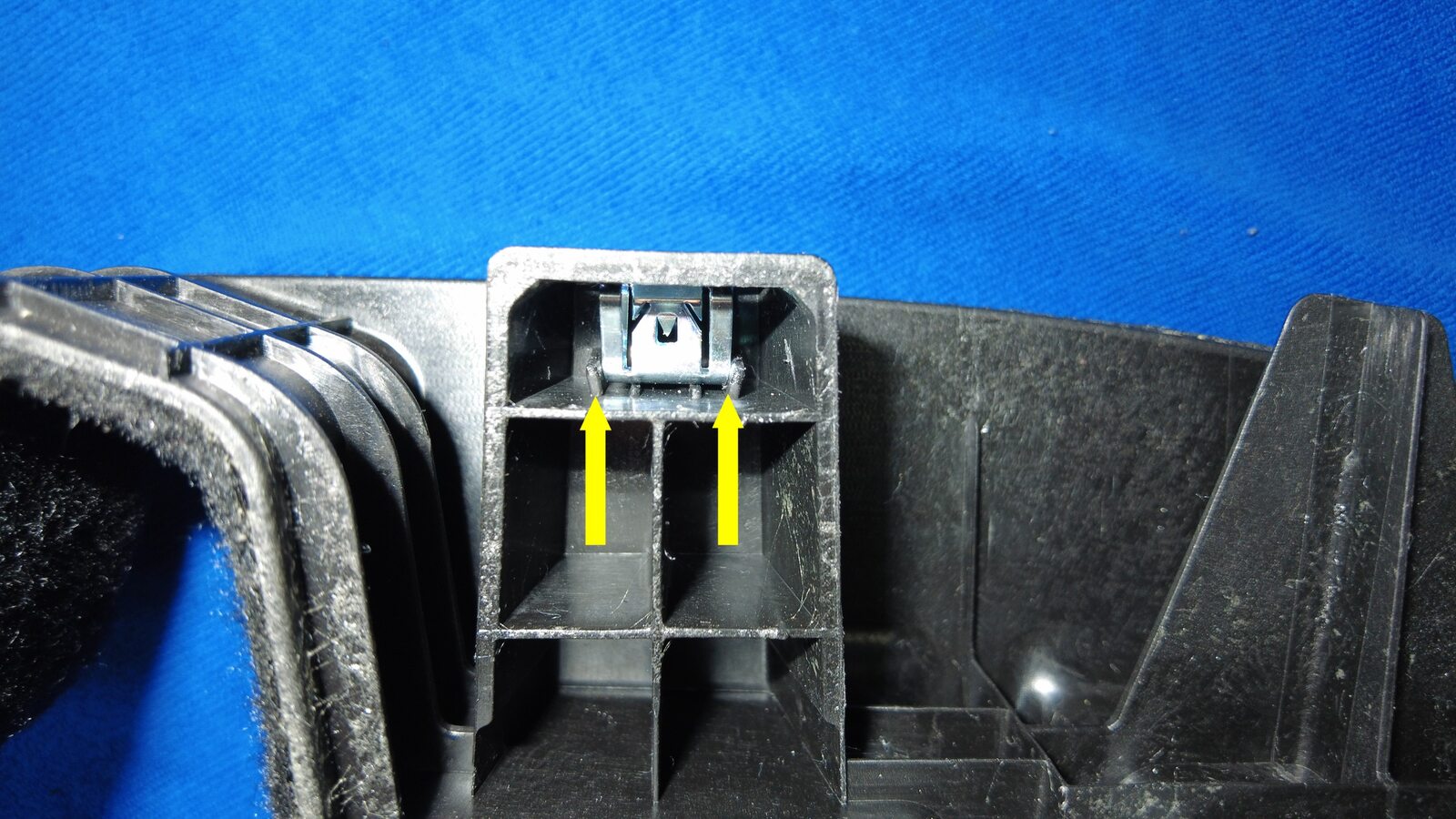

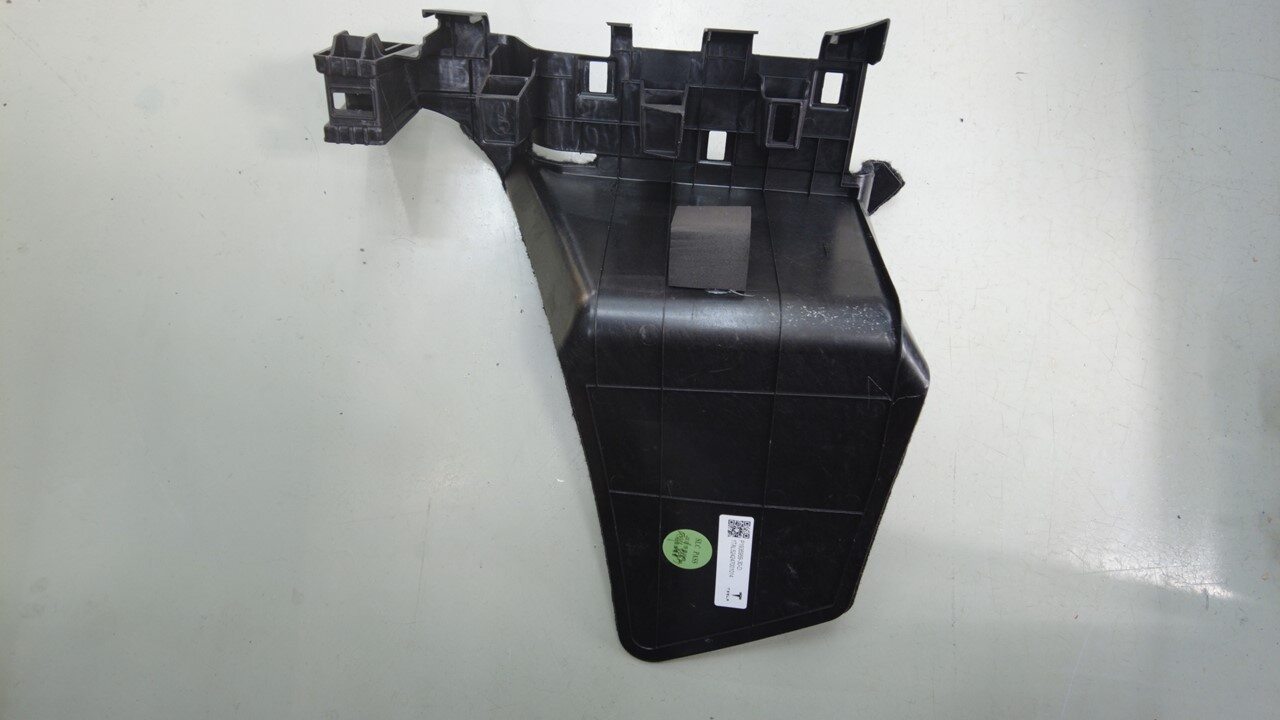

Remove RH load floor bracket

Note

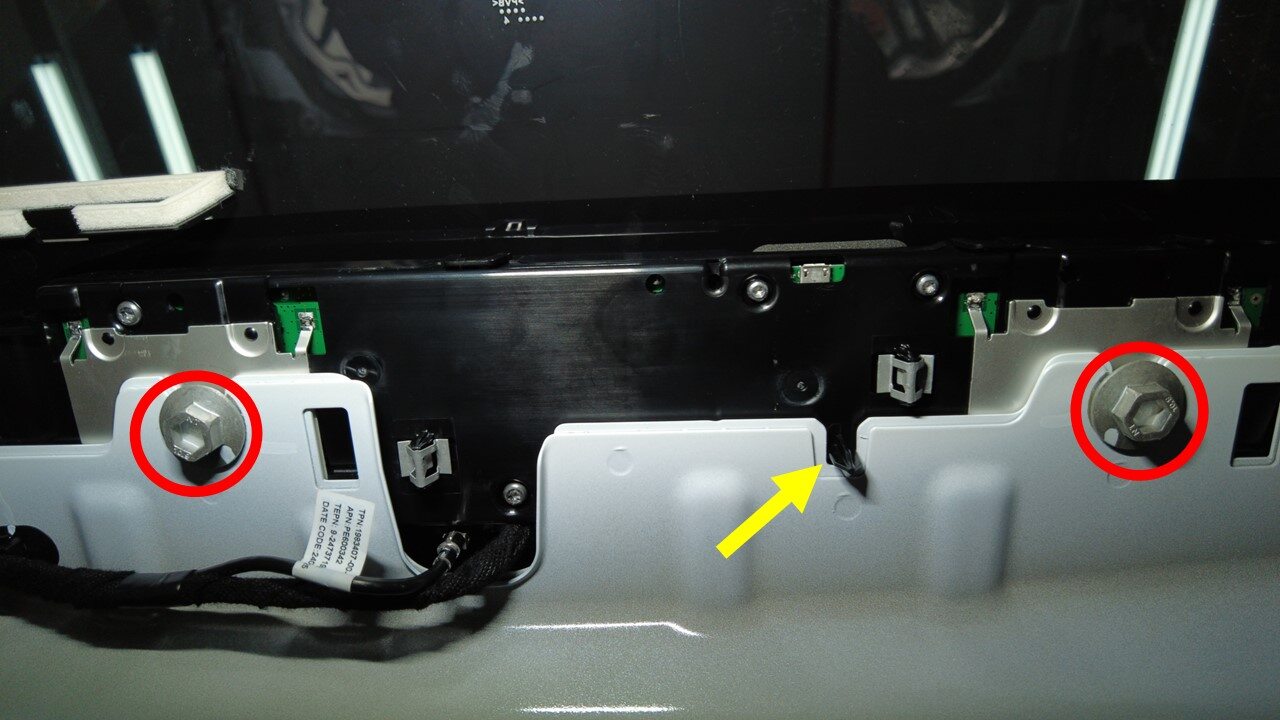

4x tabs, 2x clips, Clip position should not be adjusted after bracket is removed or will result in bracket not seating properly later

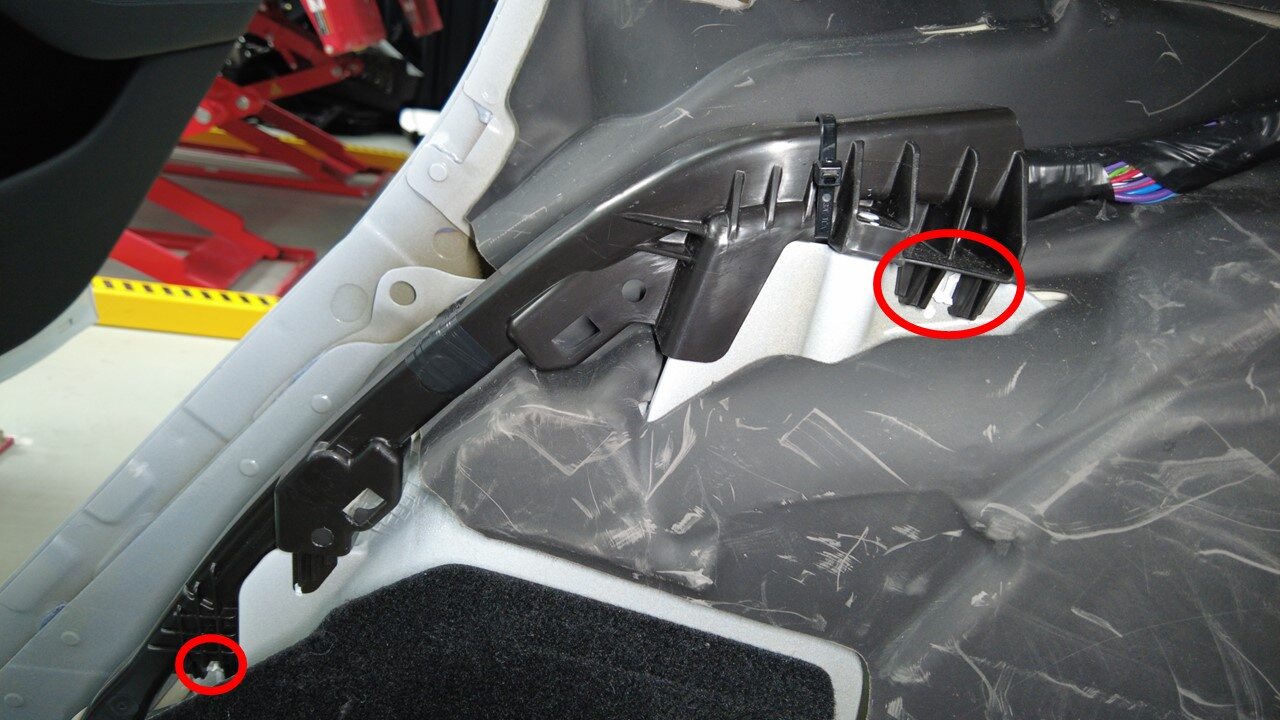

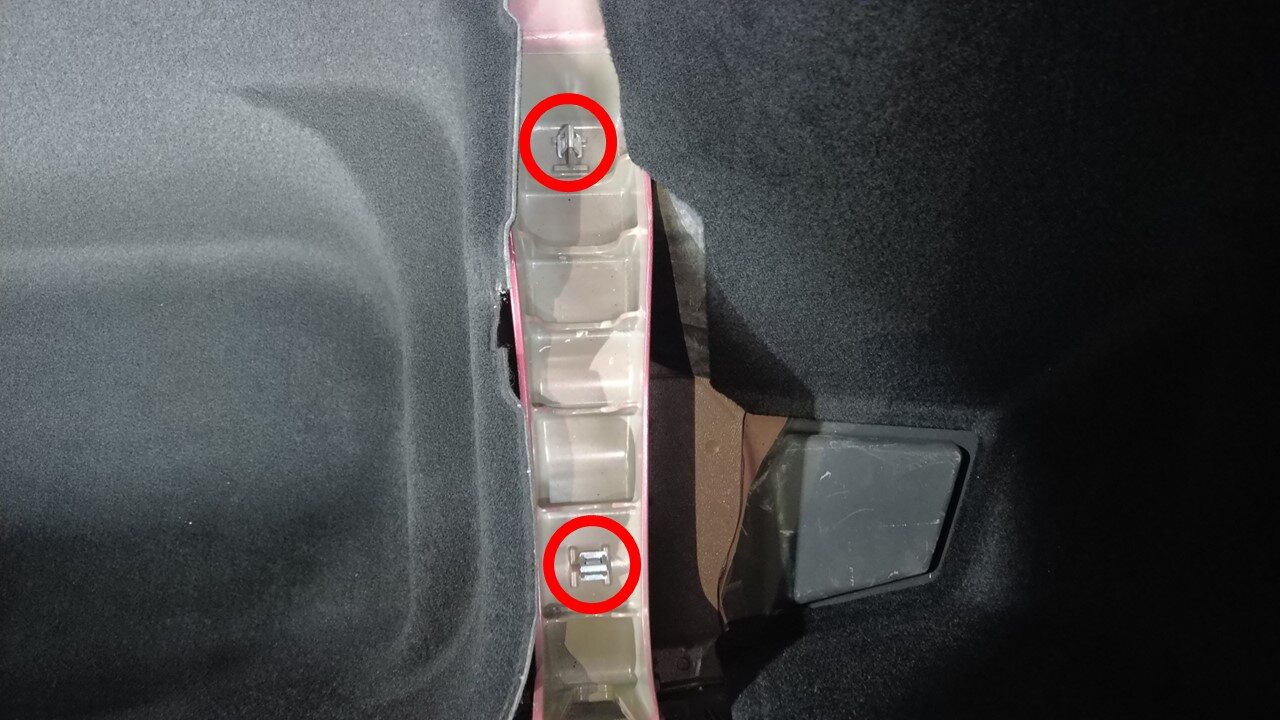

Remove RH trunk pocket bracket

Note

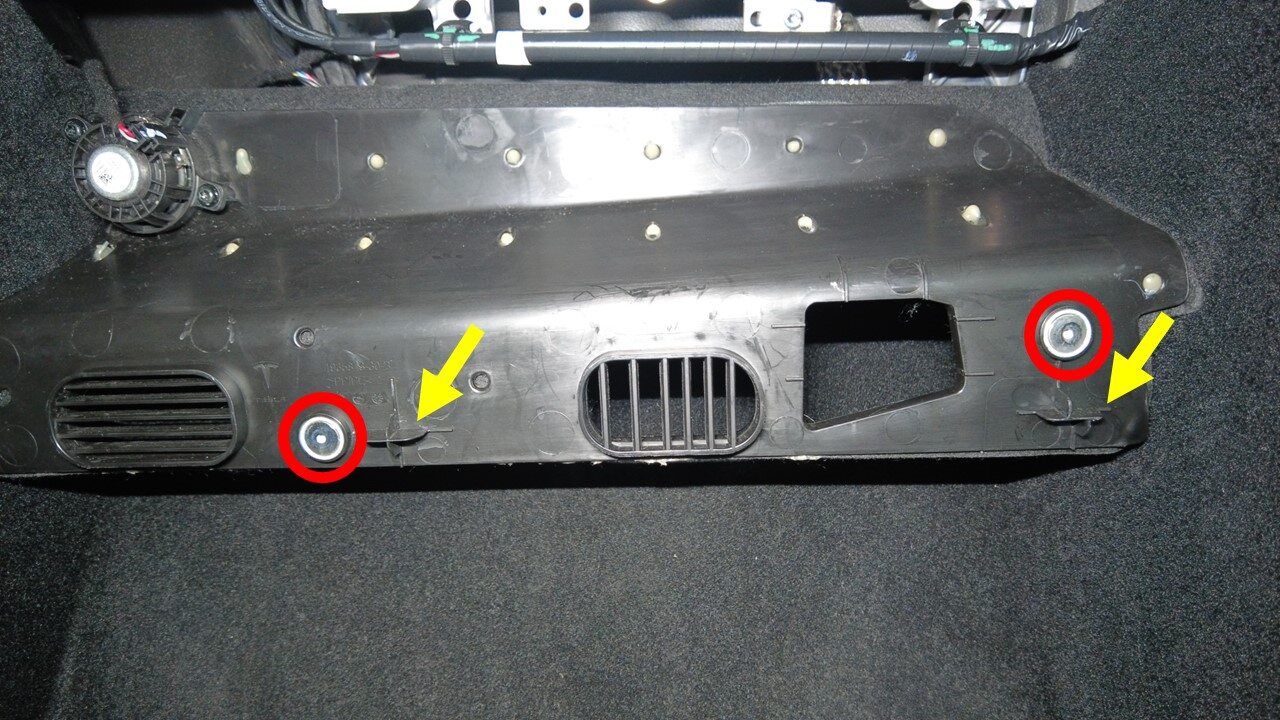

2x clips

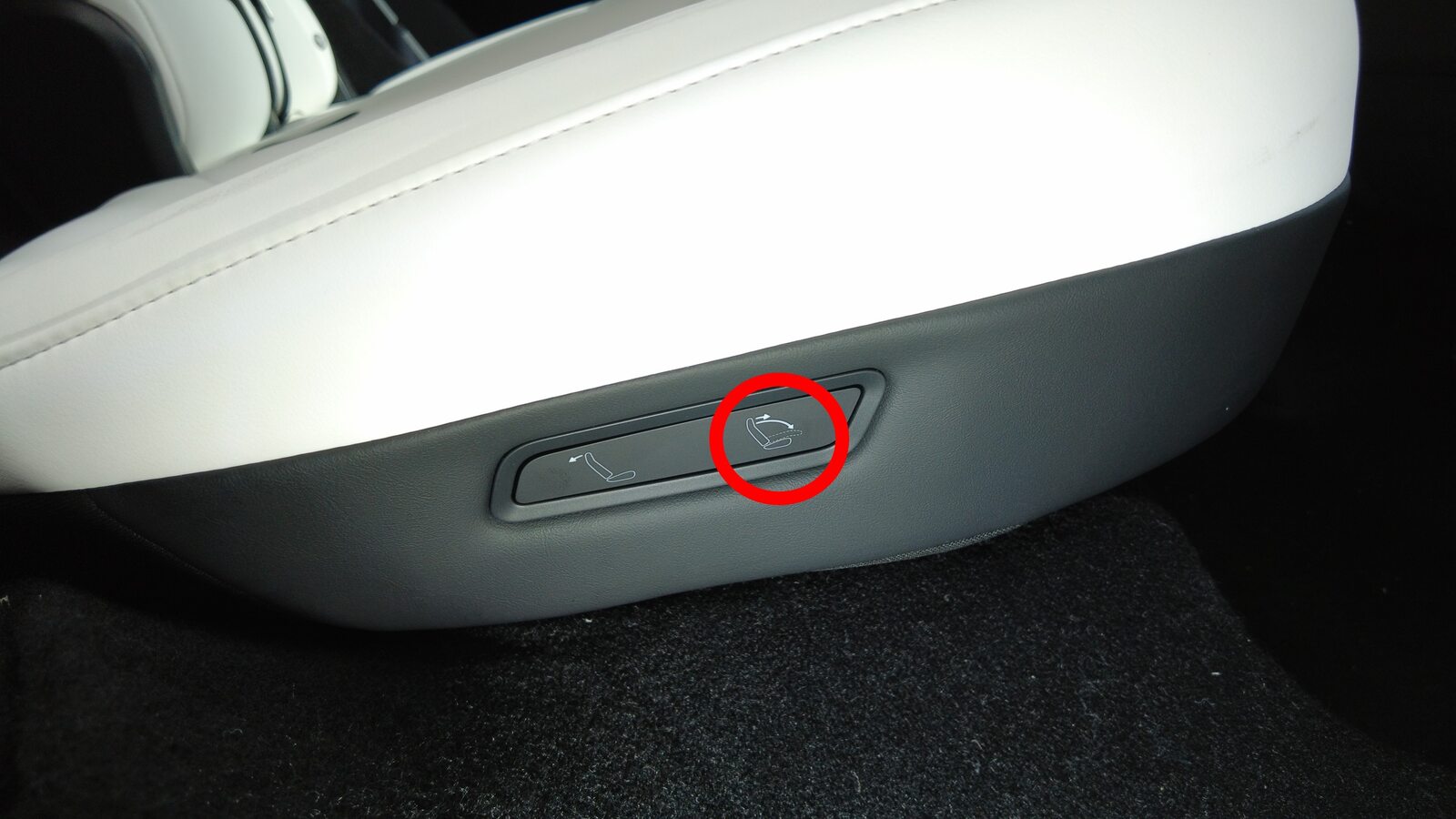

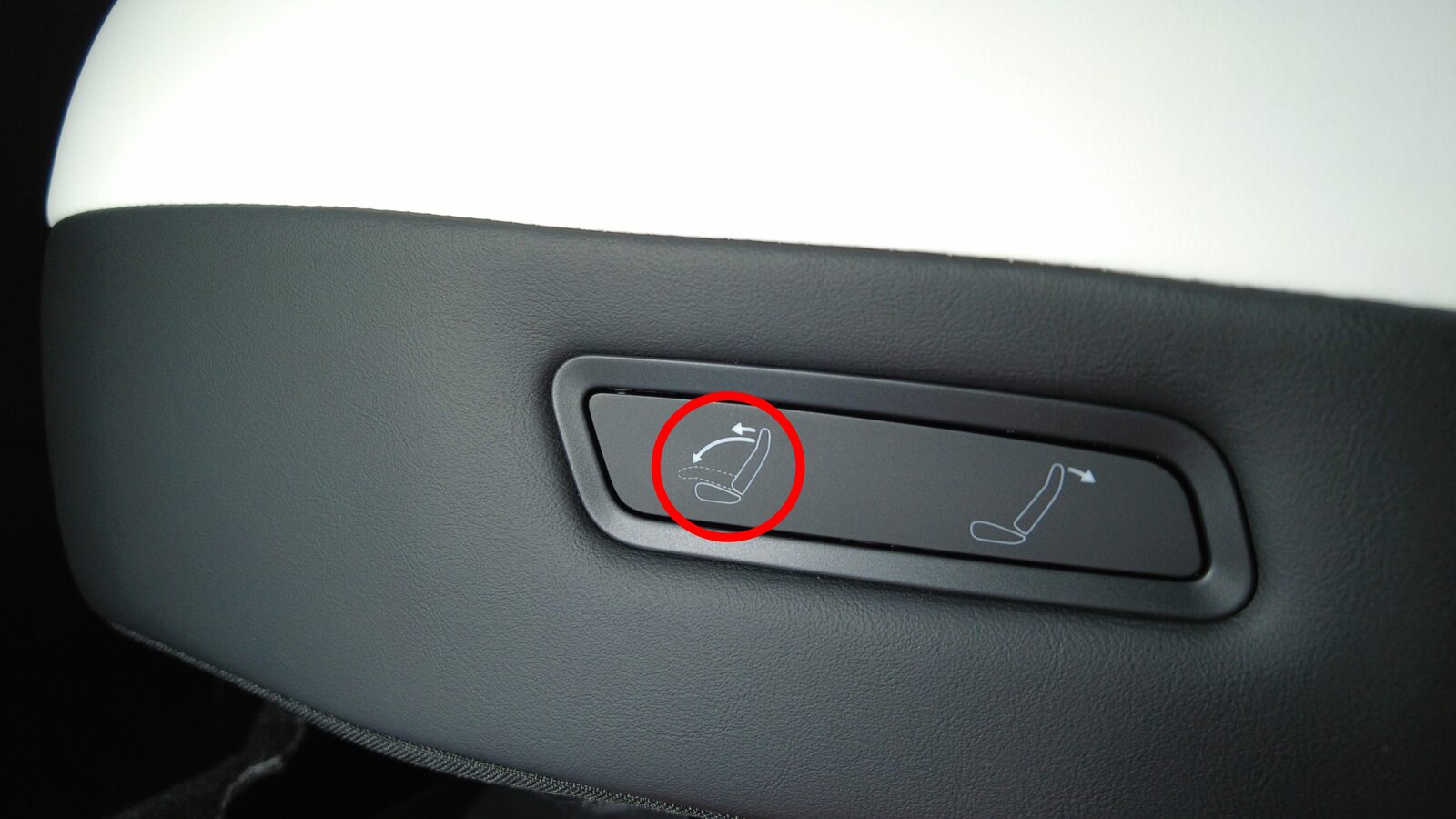

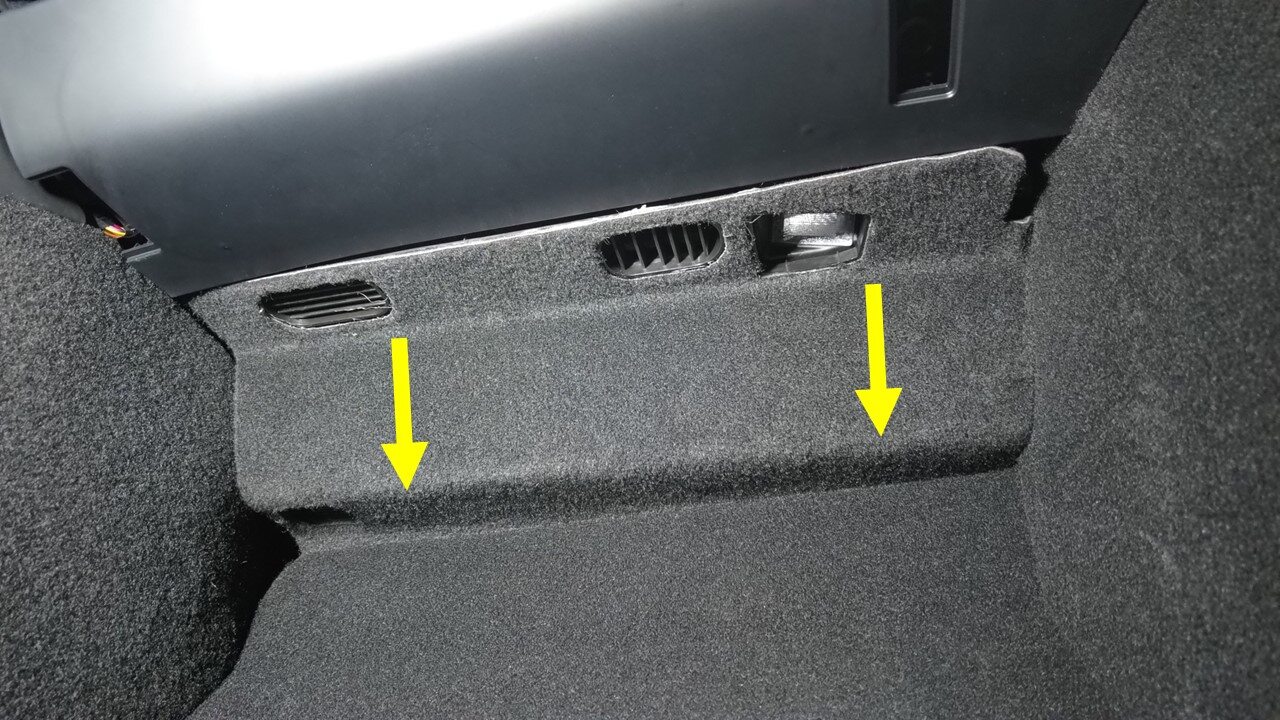

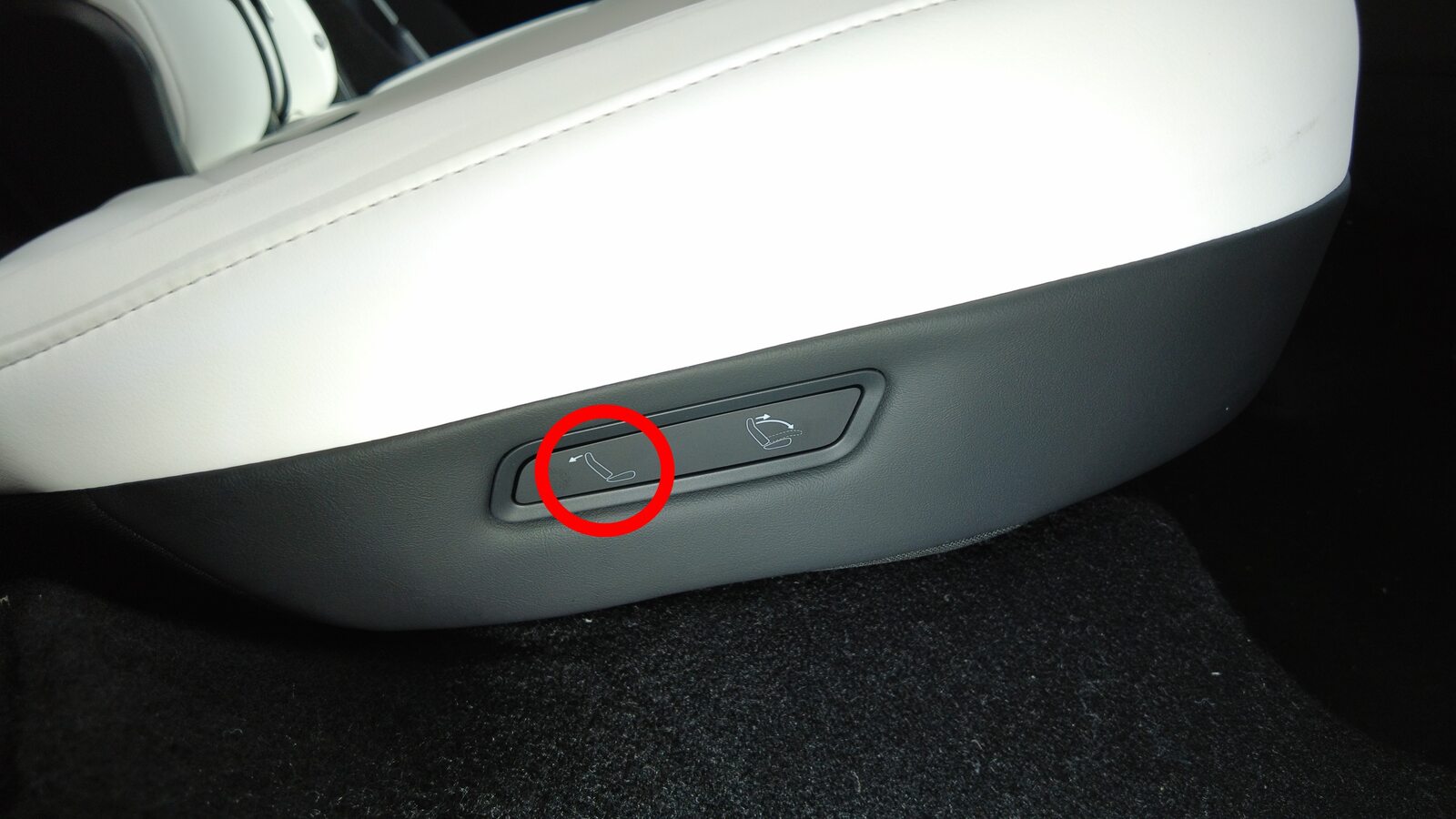

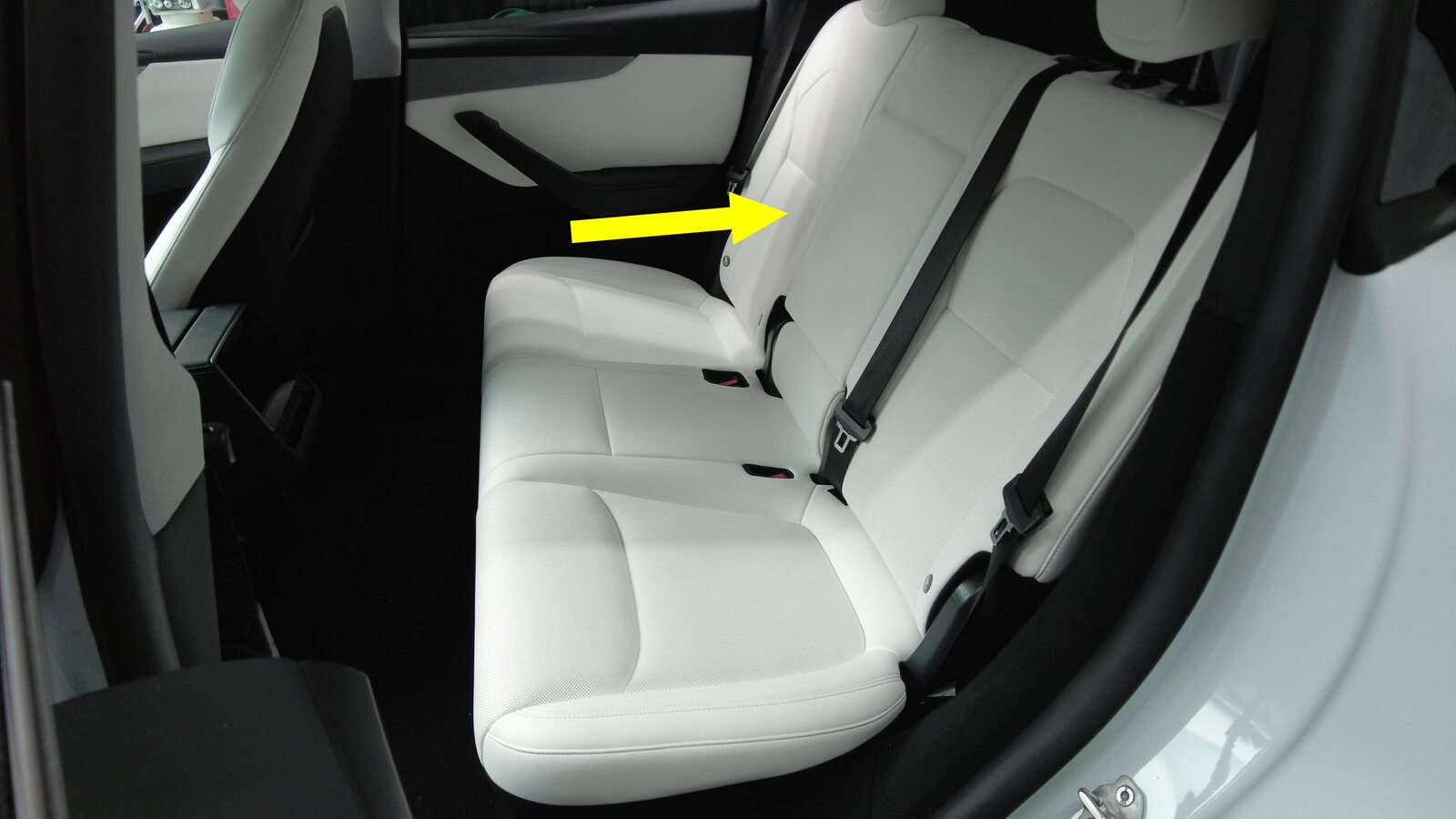

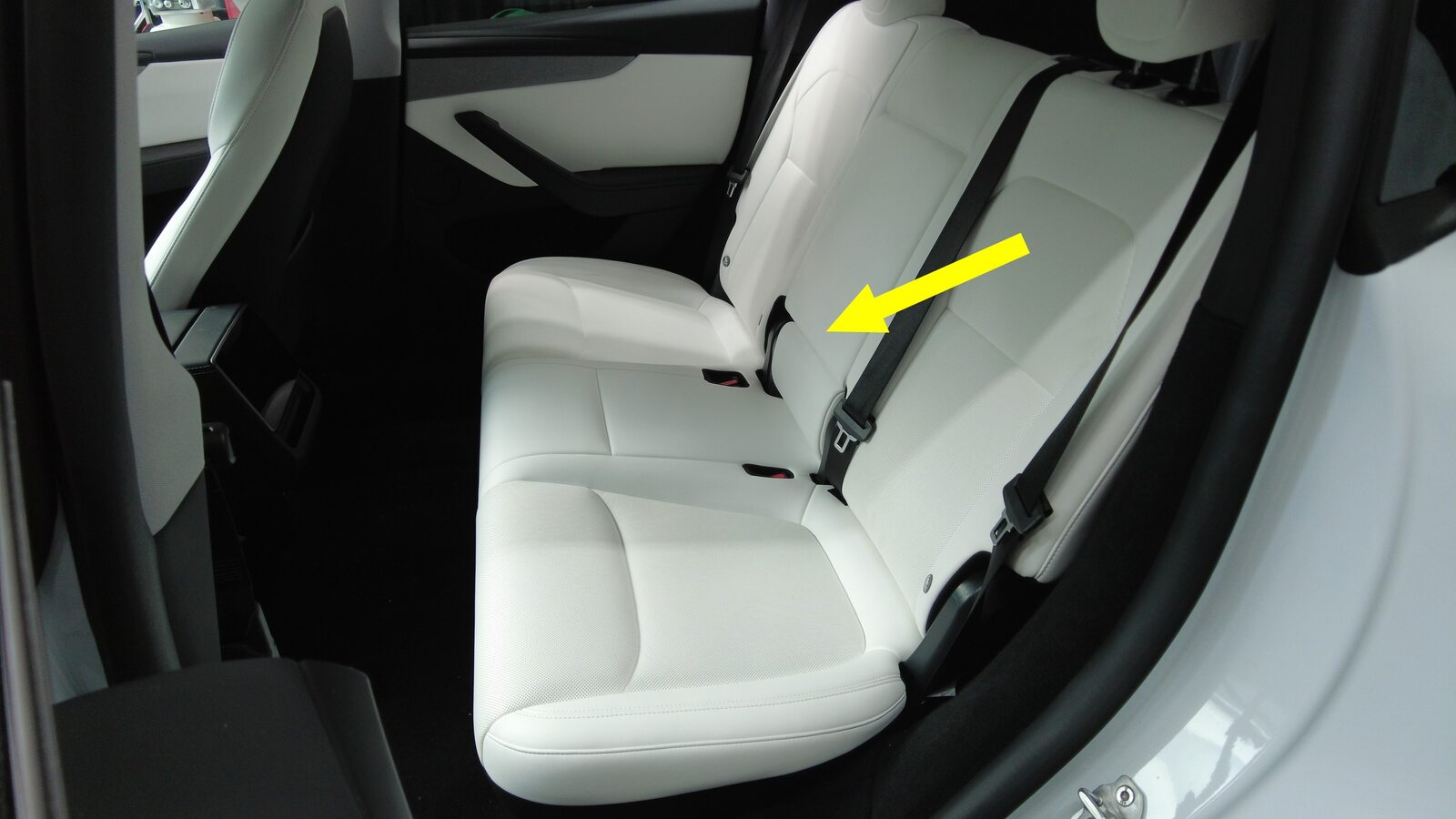

Fold 2nd row 40 seatback down

Note
Via seat switch or manual tether, Protect seat back upholstery if necessary

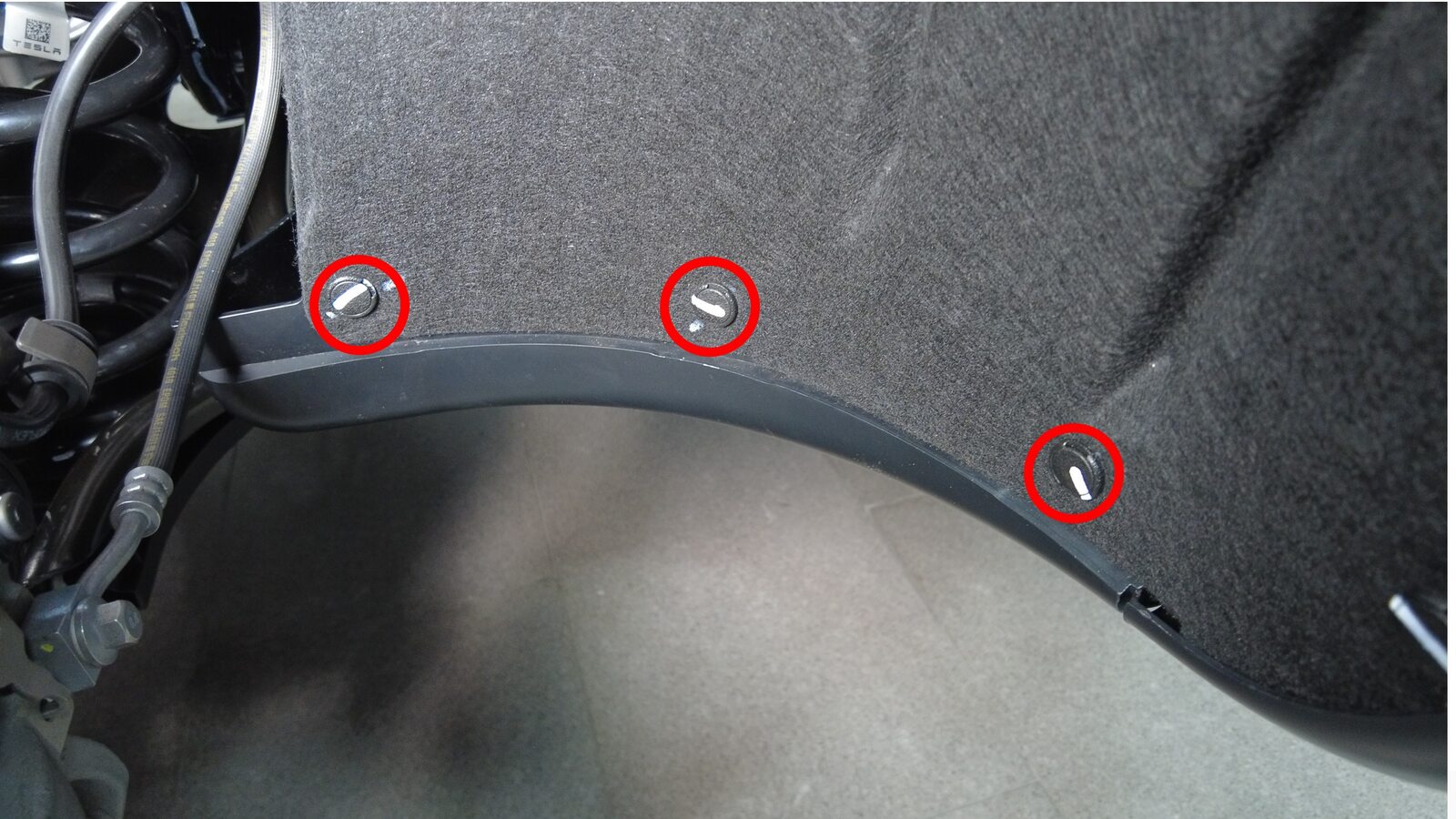

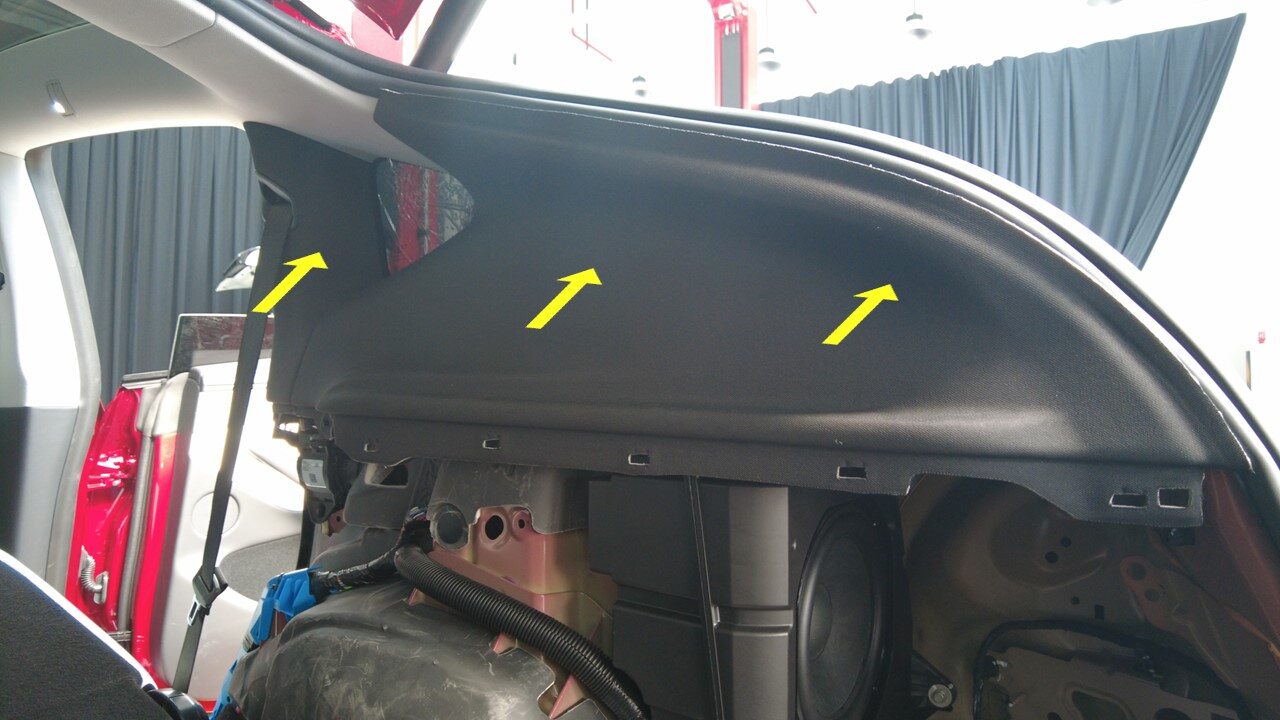

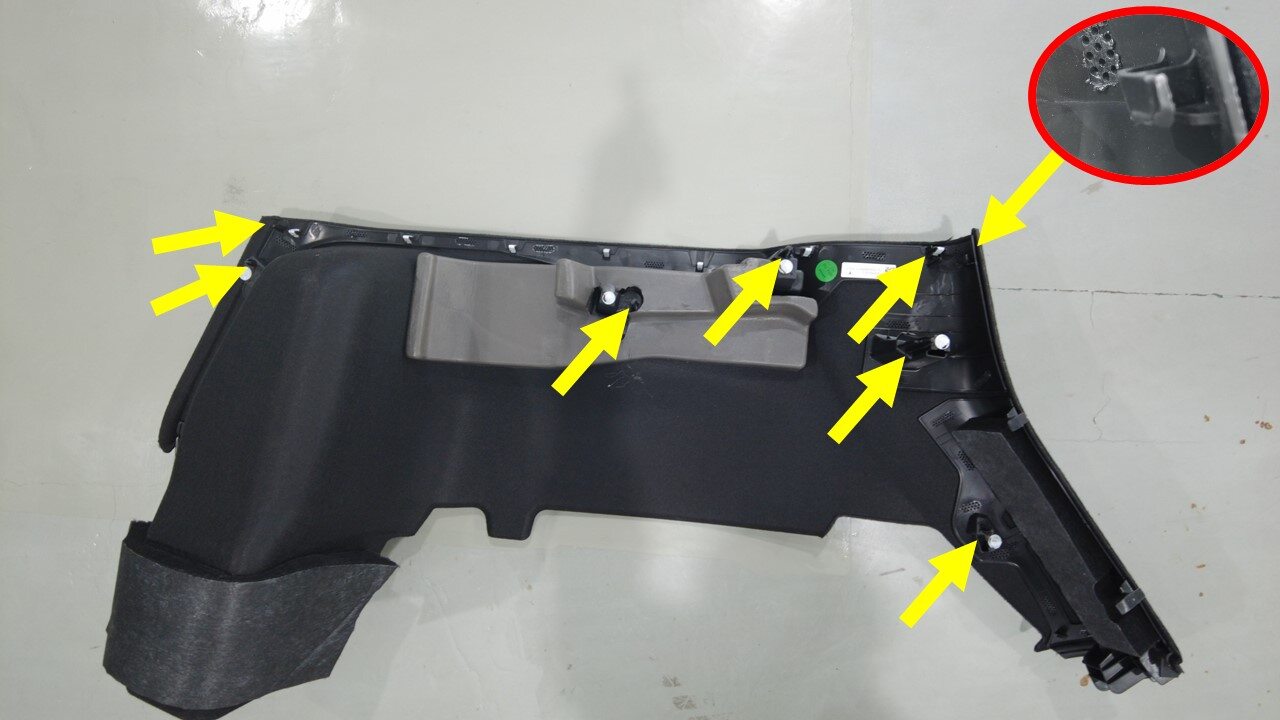

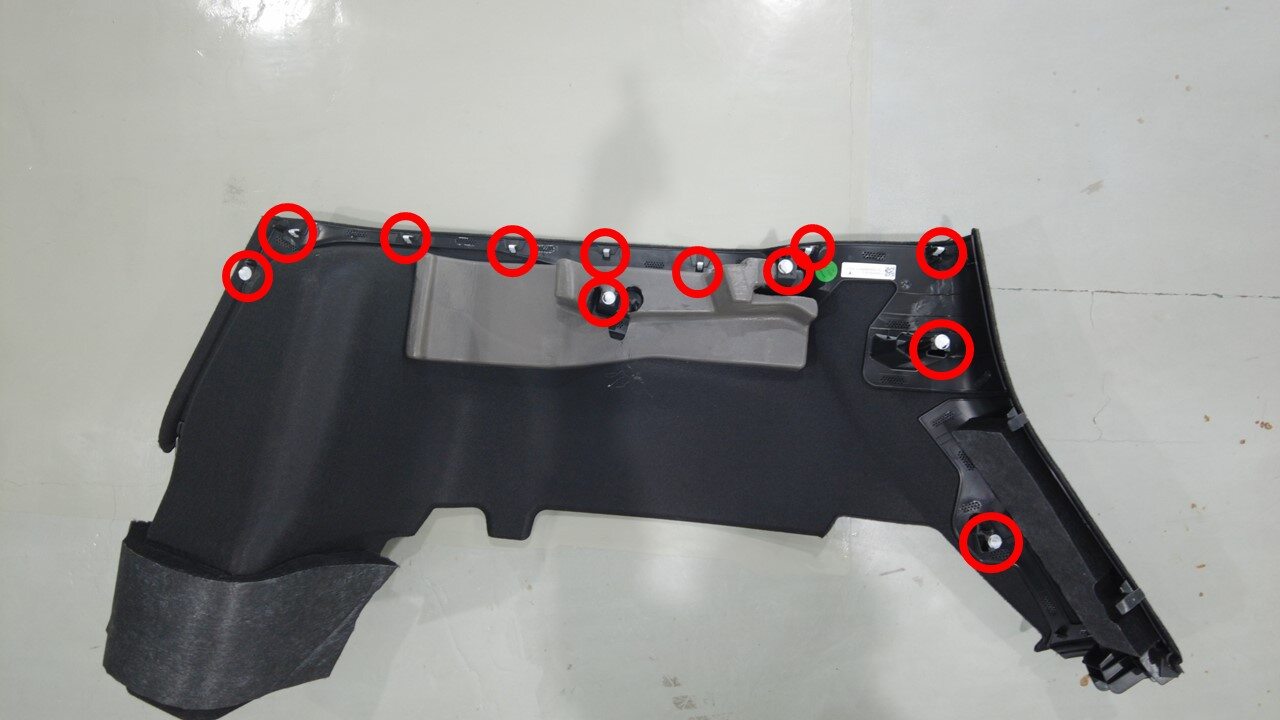

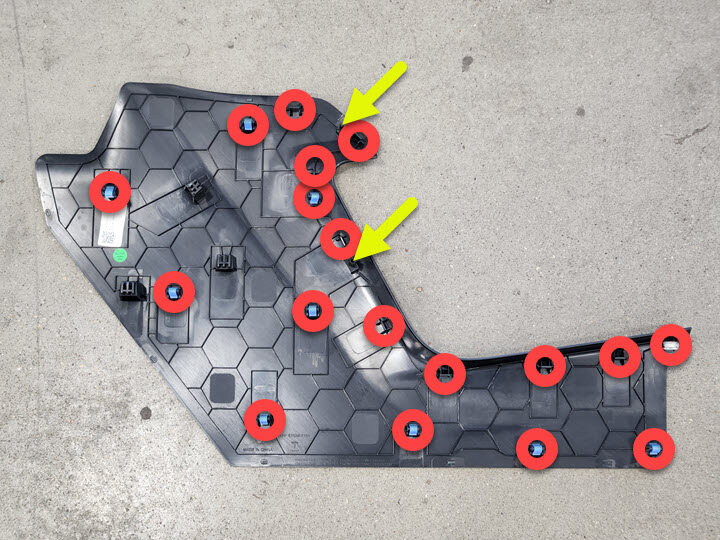

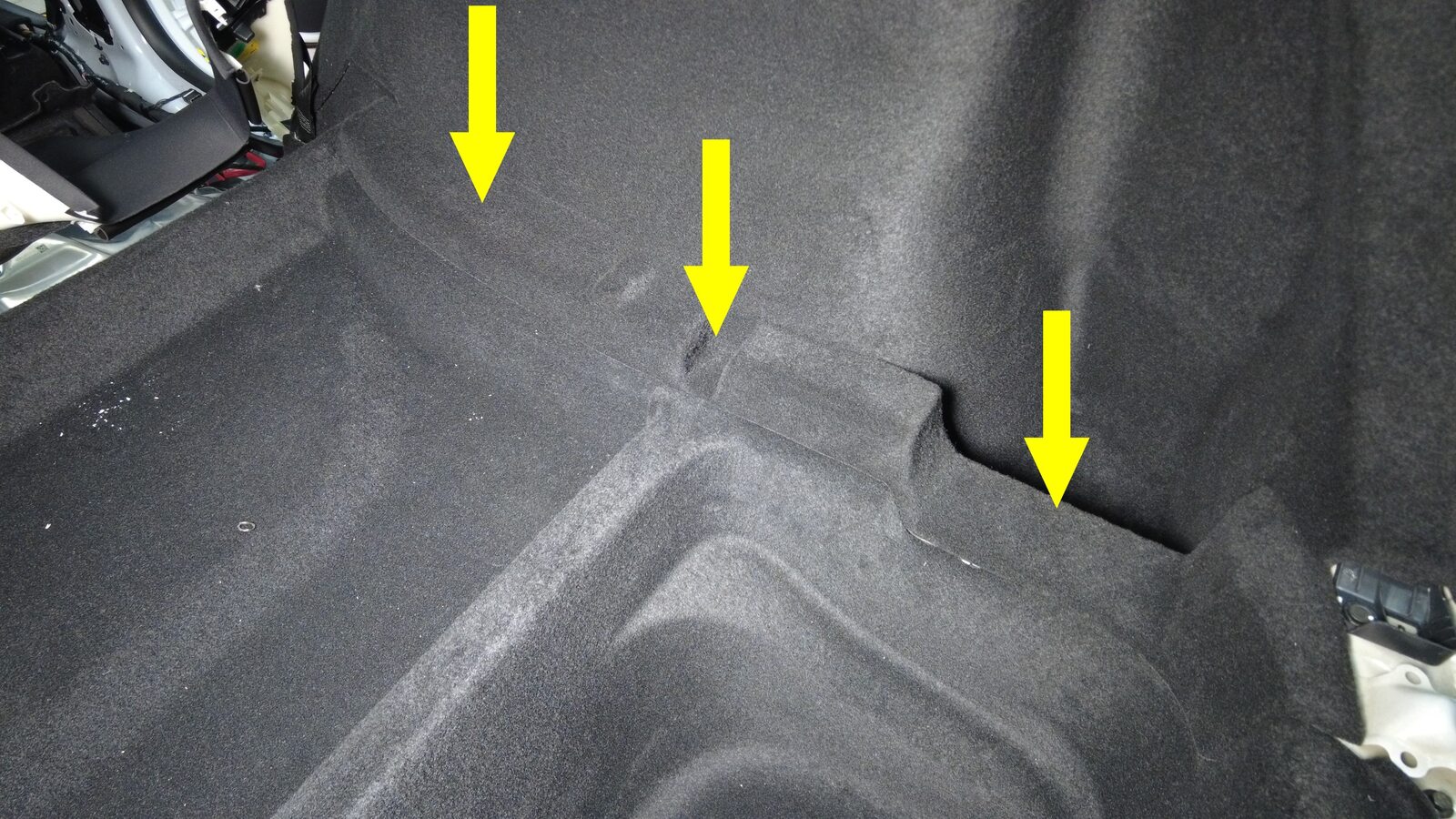

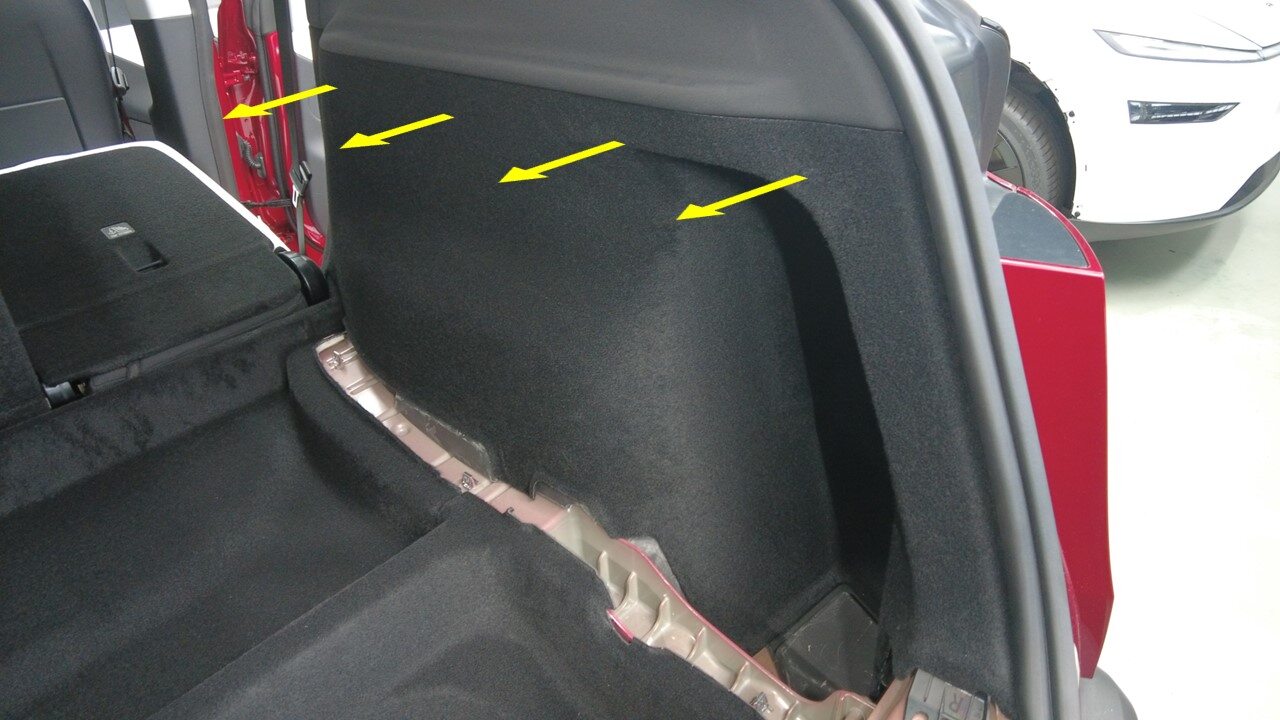

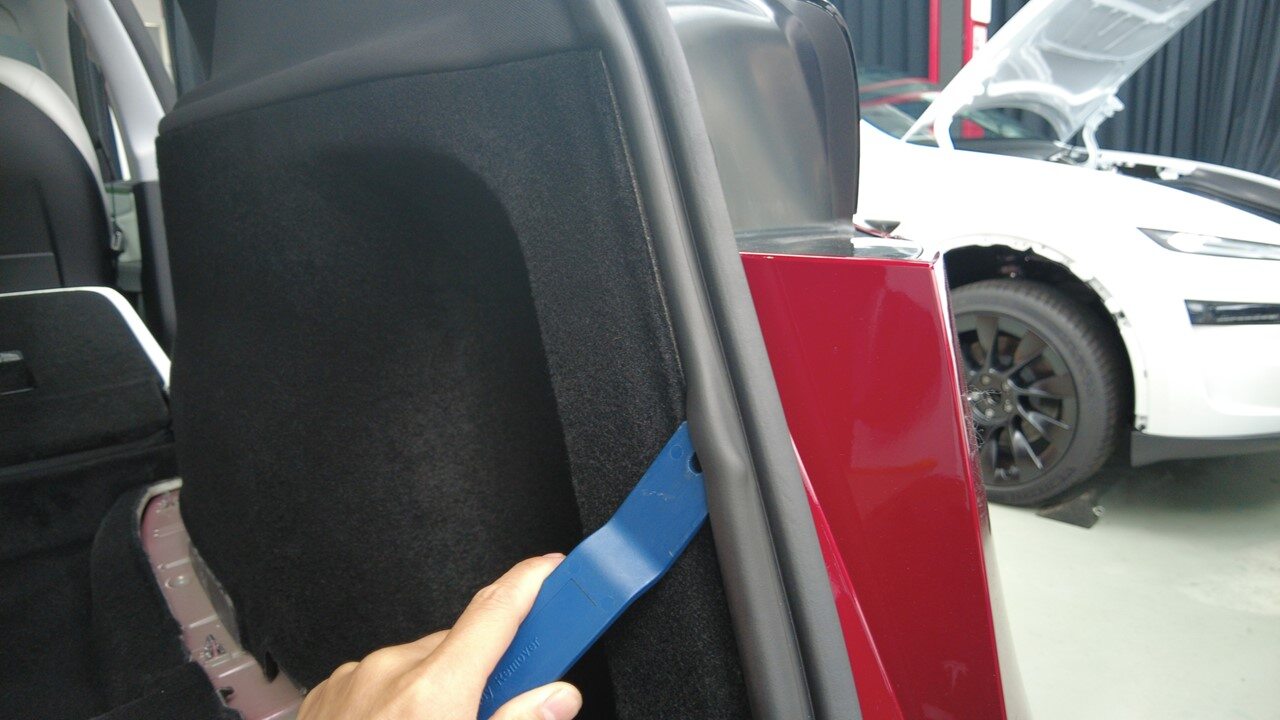

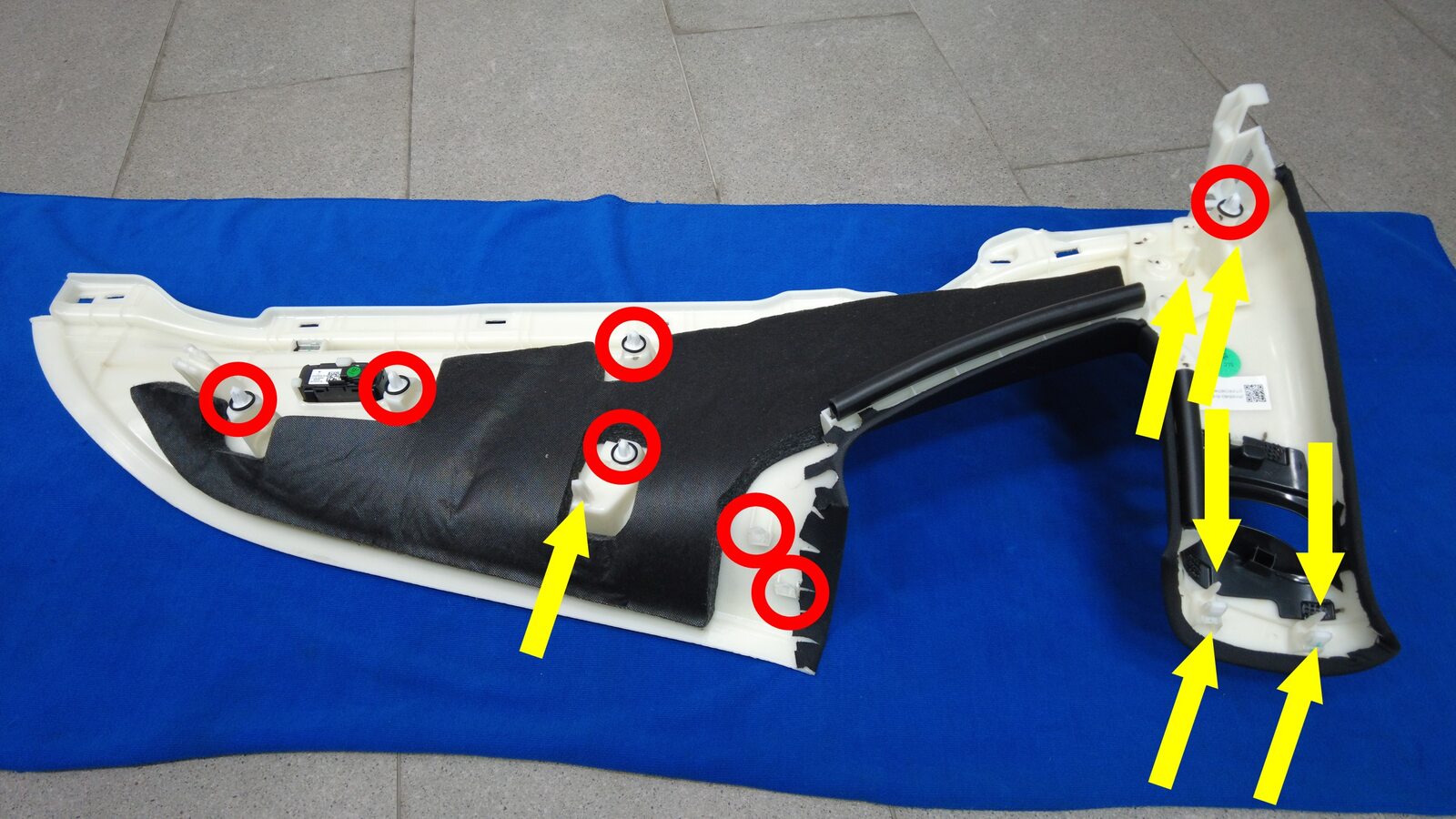

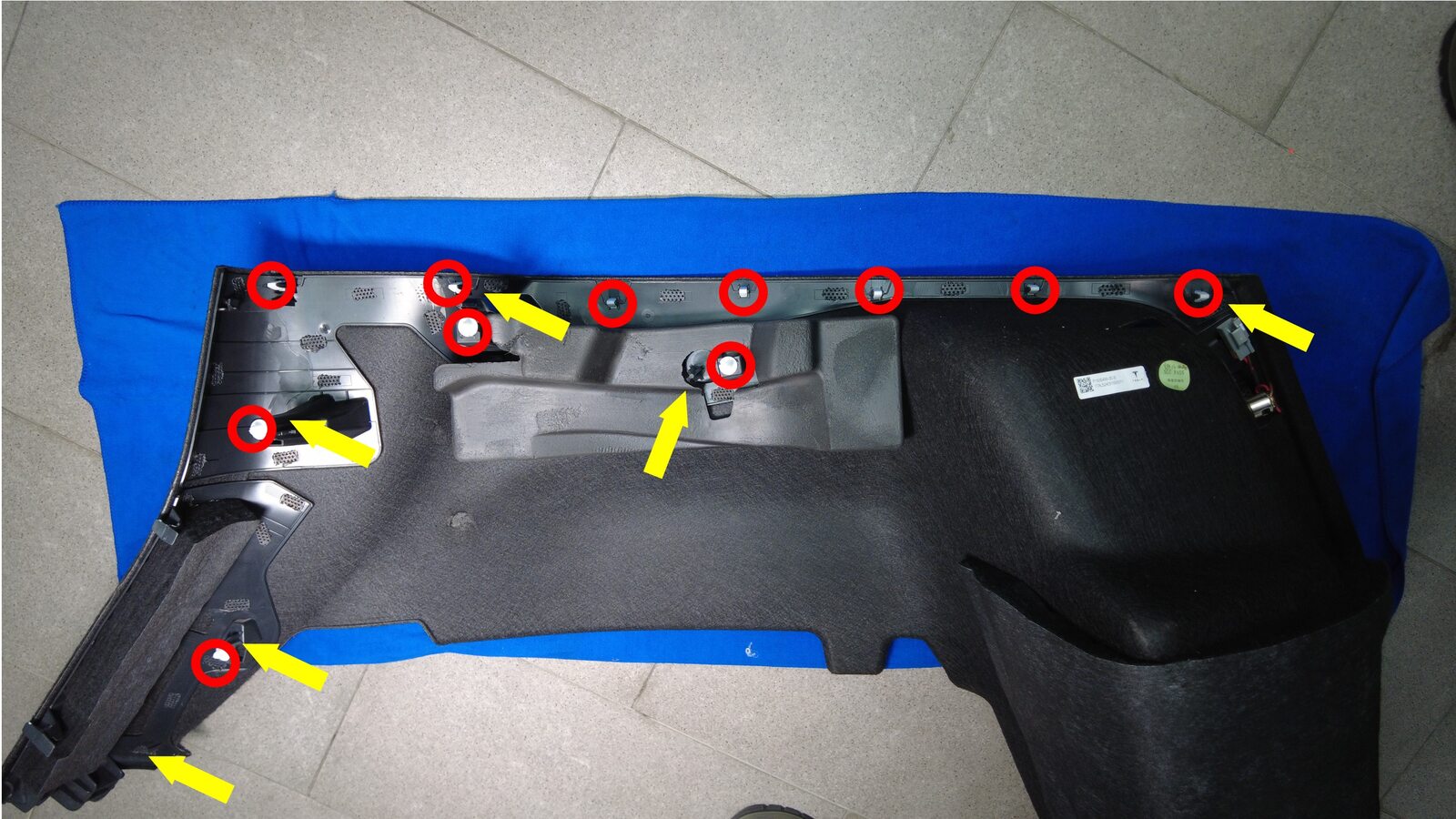

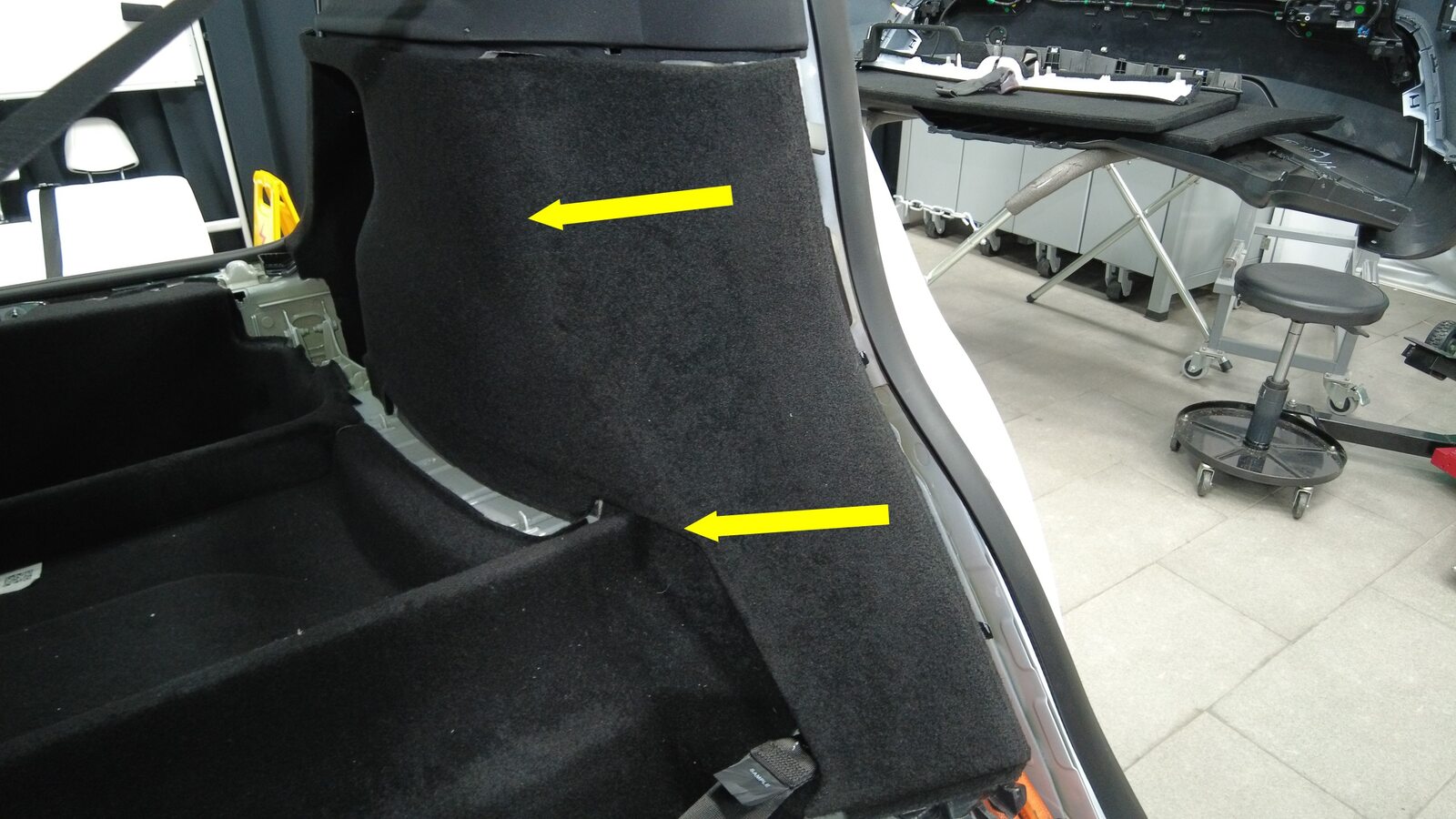

Remove RH trunk side trim

Note

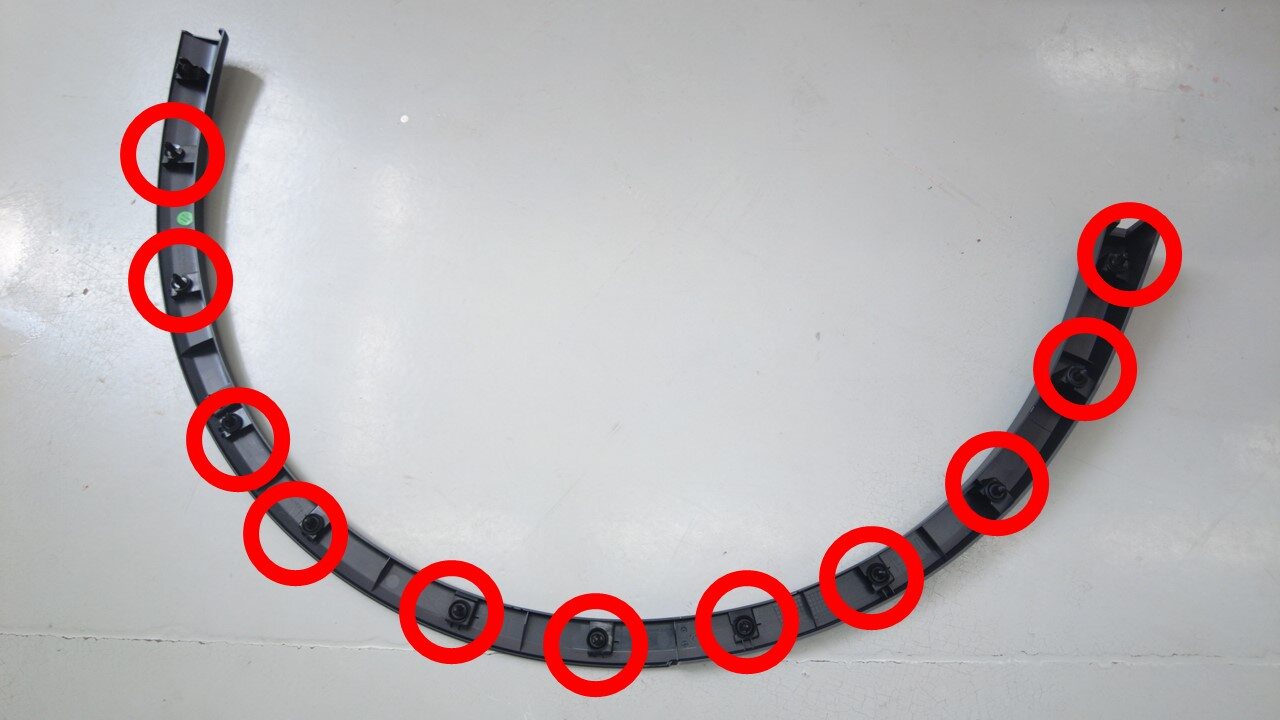

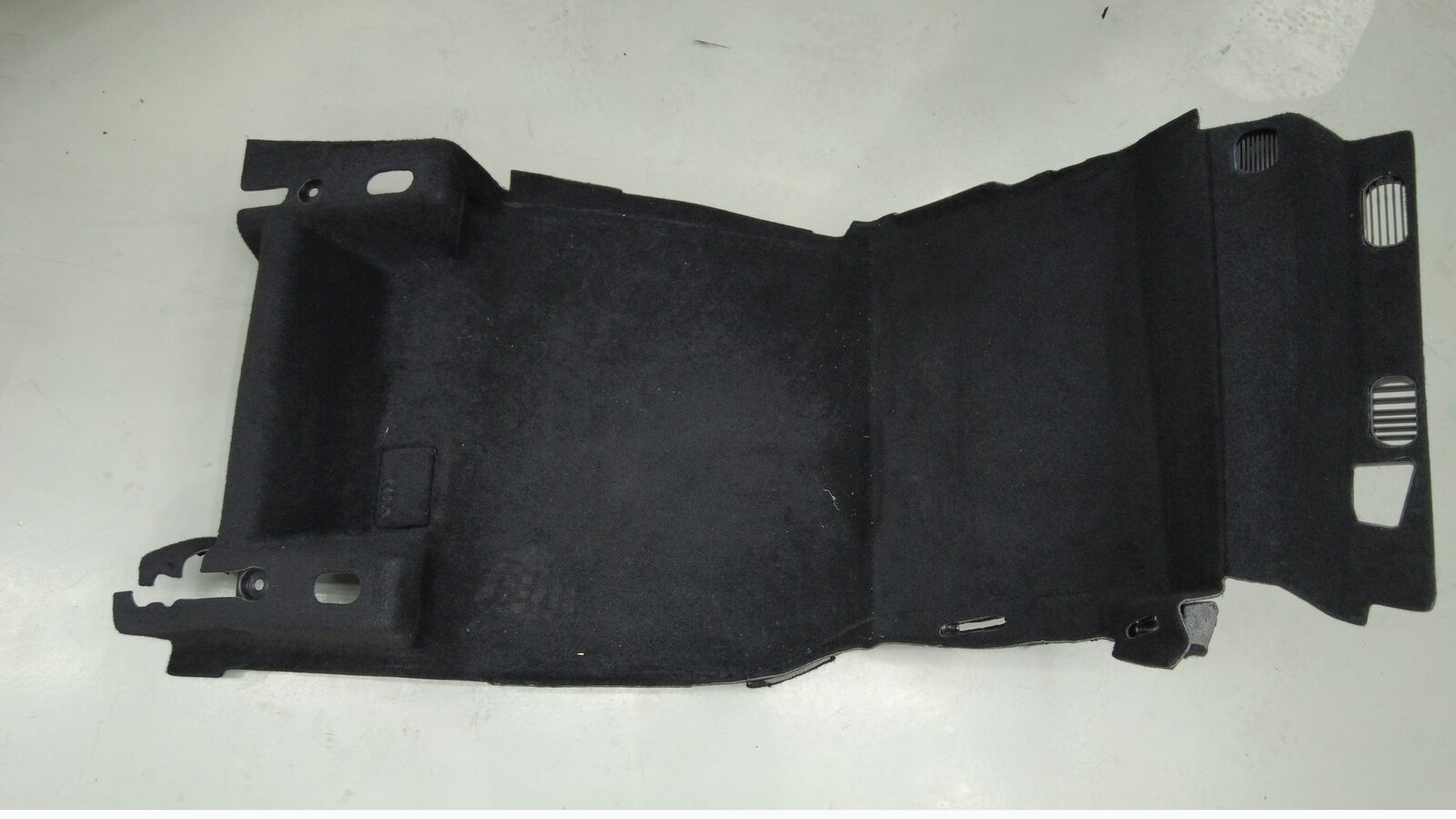

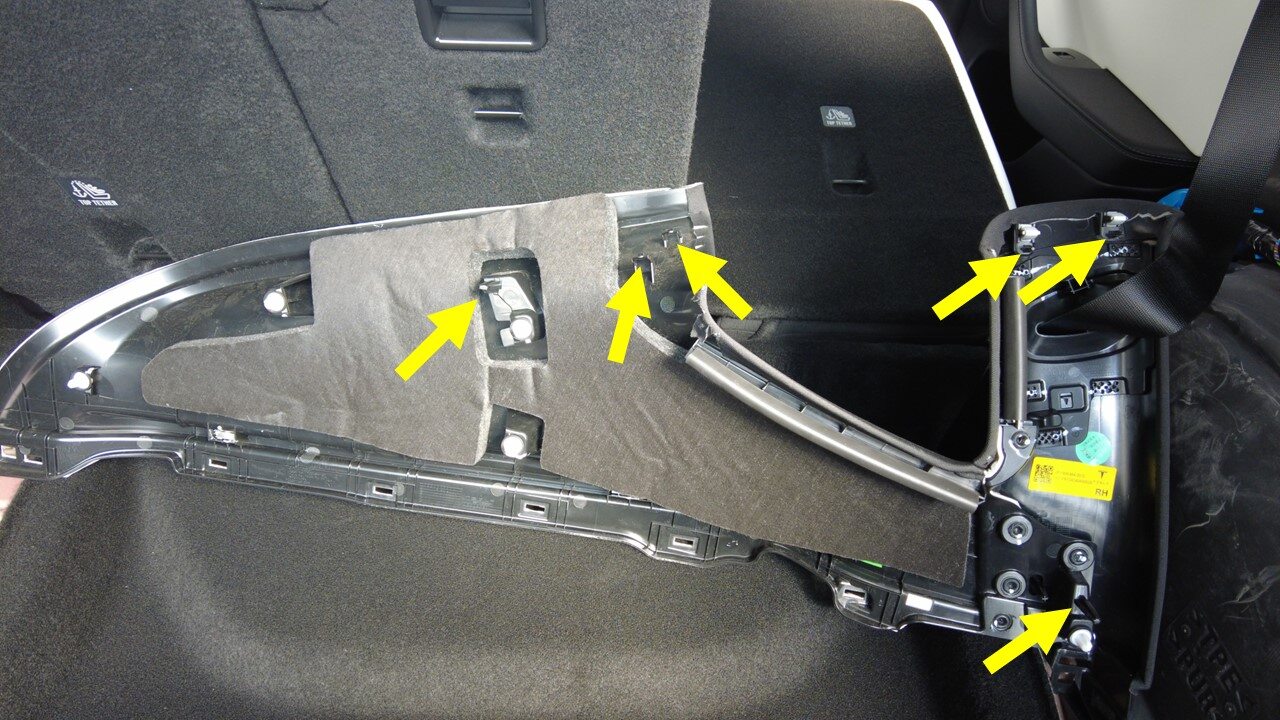

1x push clip, 12x clips, 1x guide tab, 7x location pins

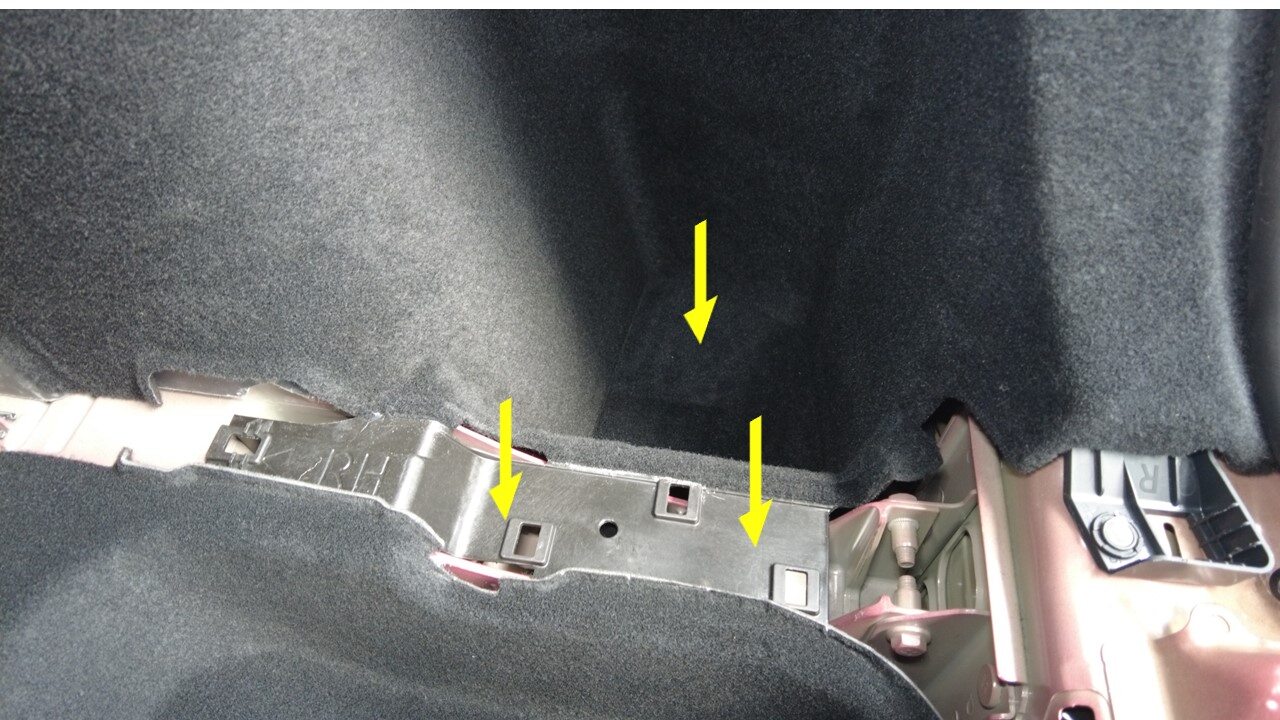

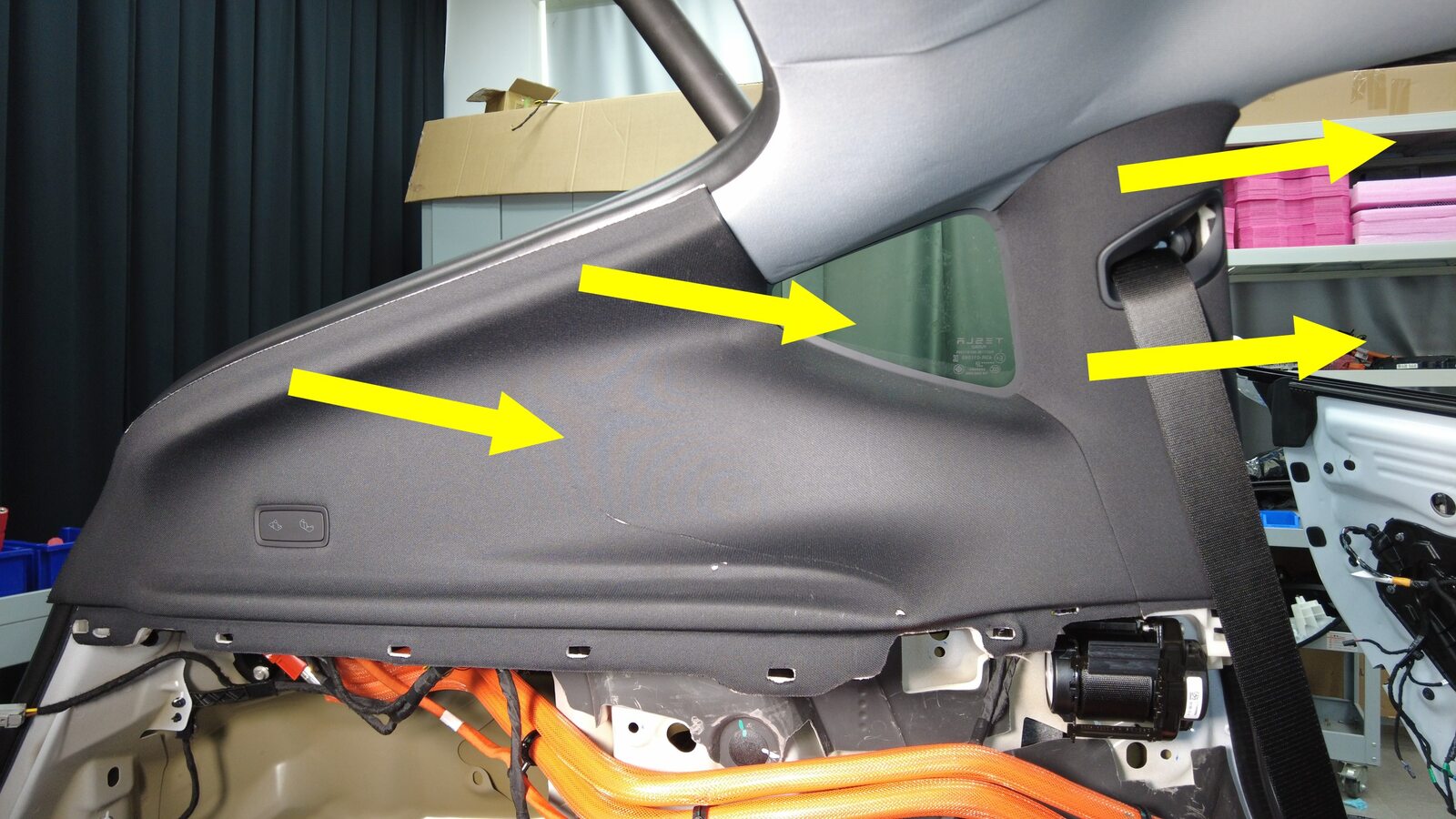

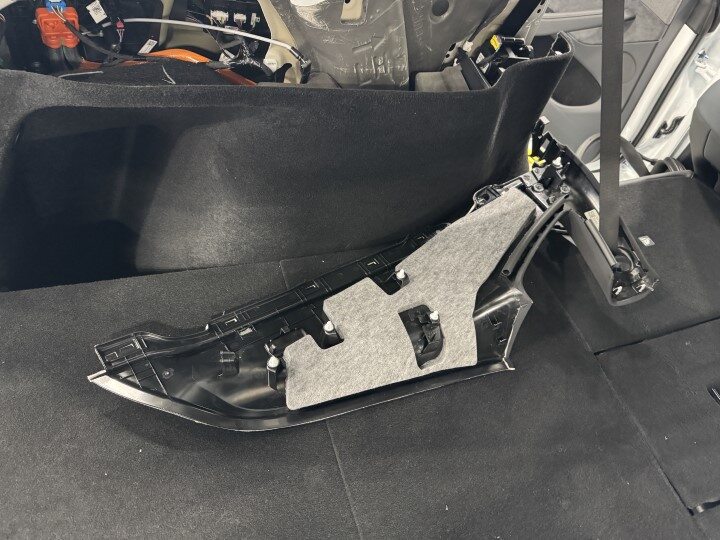

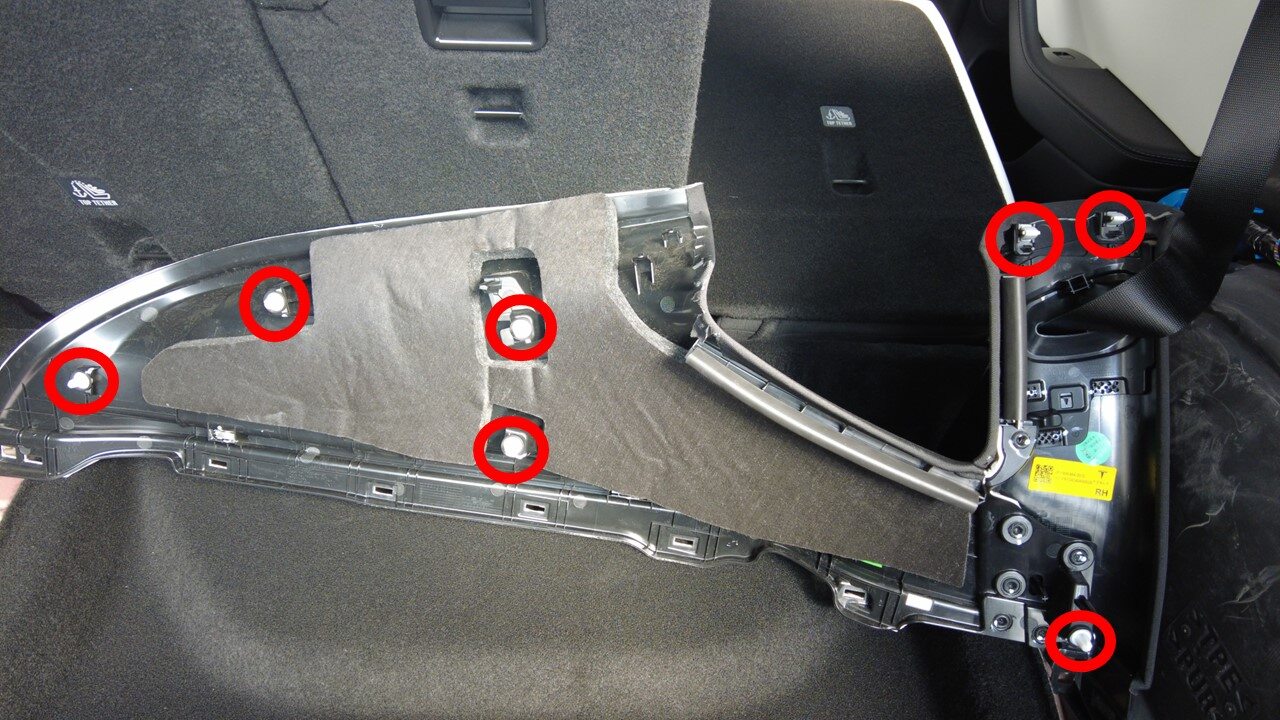

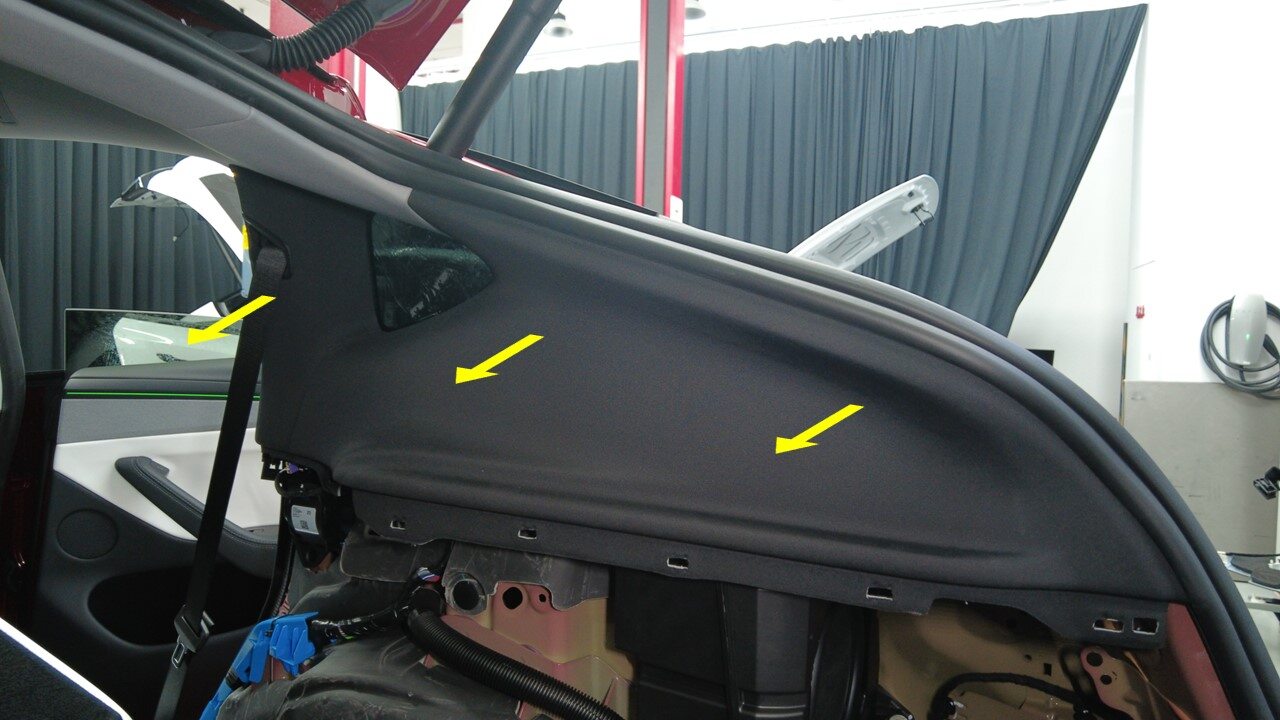

Remove RH upper C-pillar trim

Note
7x clips, 5x datums, 2x tabs, Allow trim to rest on trunk floor

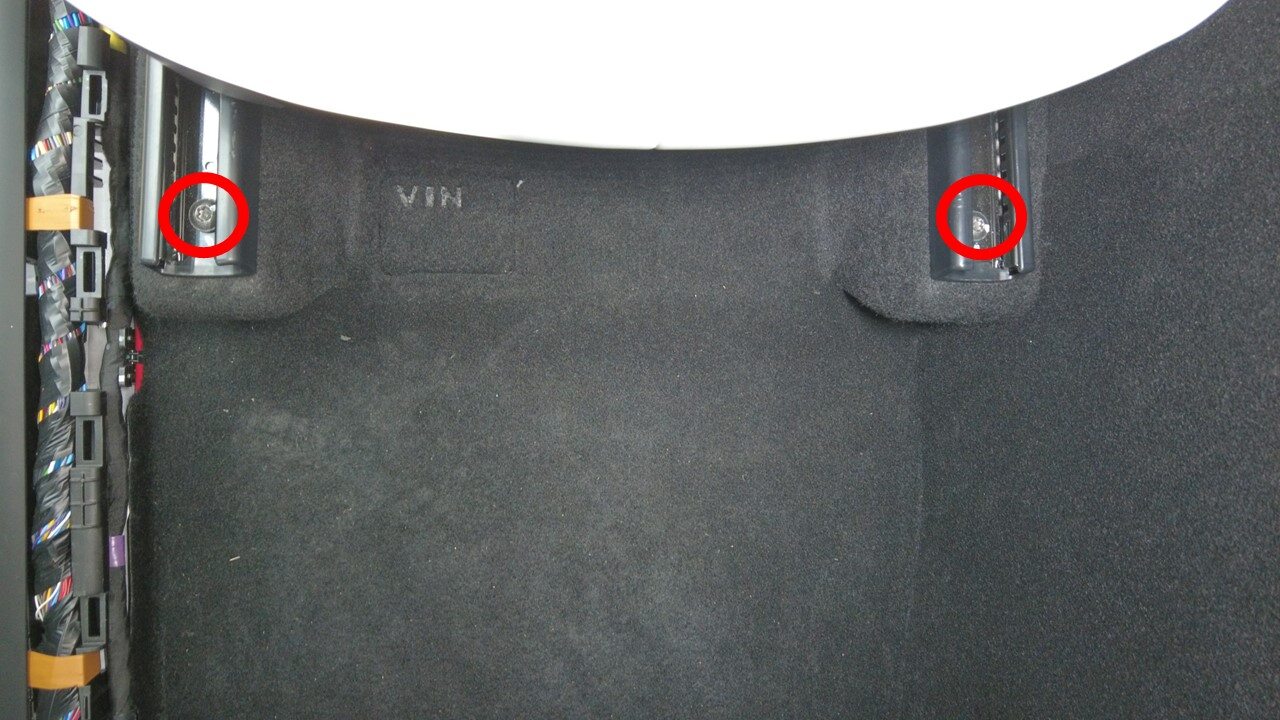

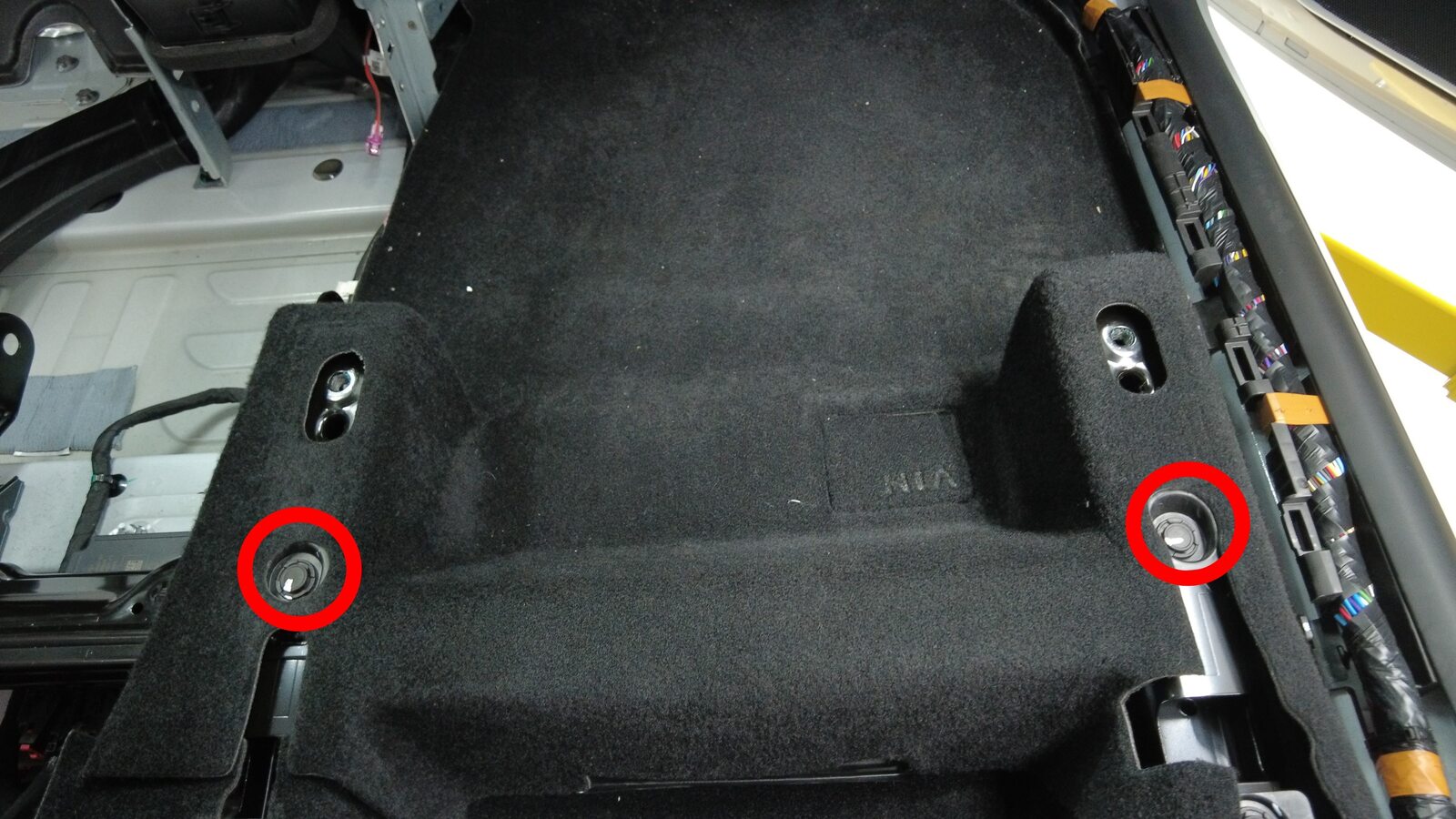

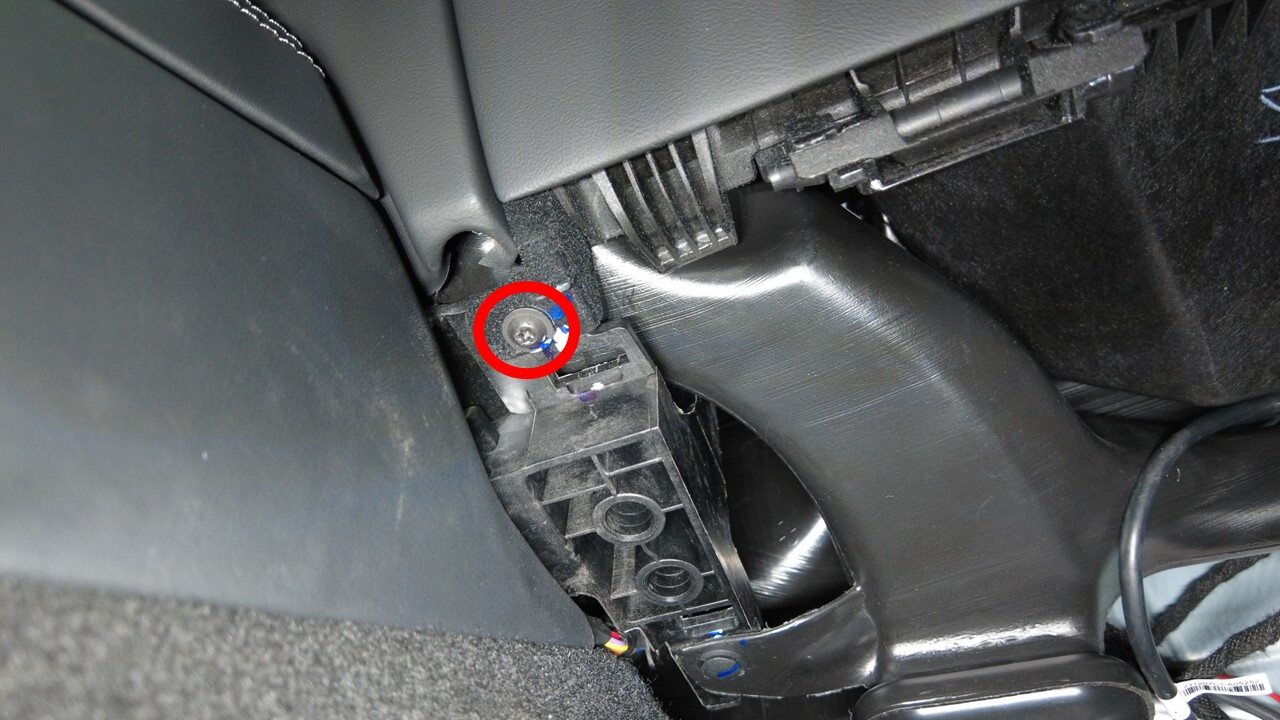

Remove RH front seat rear bolts

Note
2x patch bolts, TP45, 33.5 Nm, Discard patch bolts after removal
Move RH front seat backward

Note
Via UI > Seat Controls

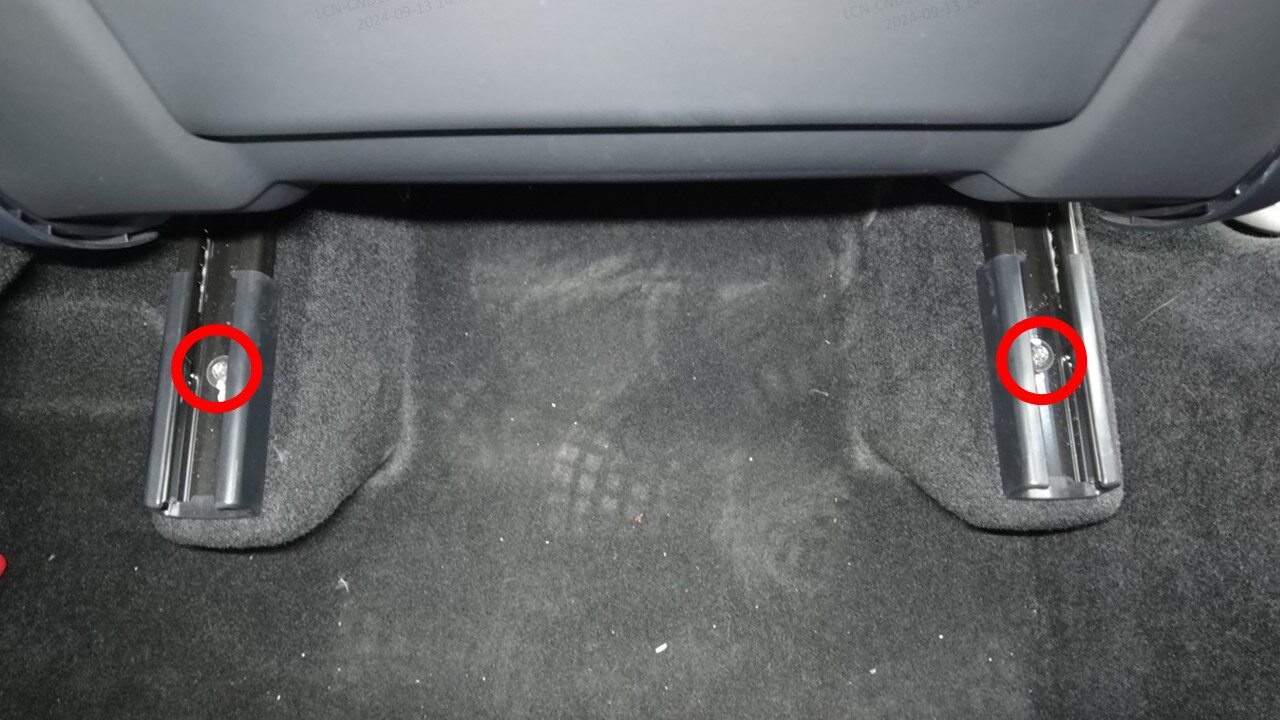

Remove RH front seat front bolts

Note
2x patch bolts, TP45, 33.5 Nm, Discard patch bolts after removal

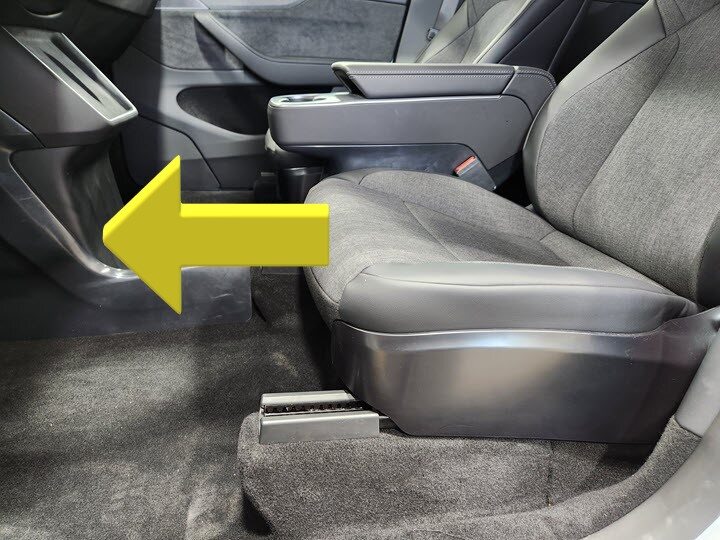

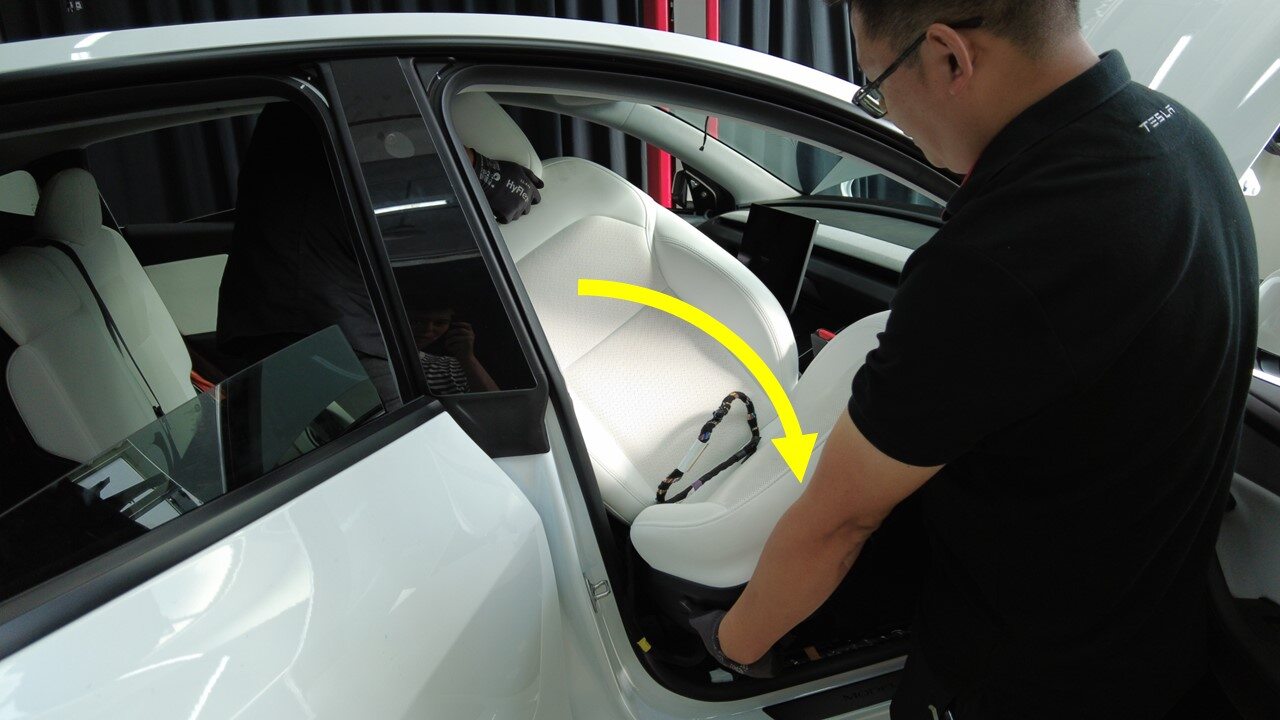

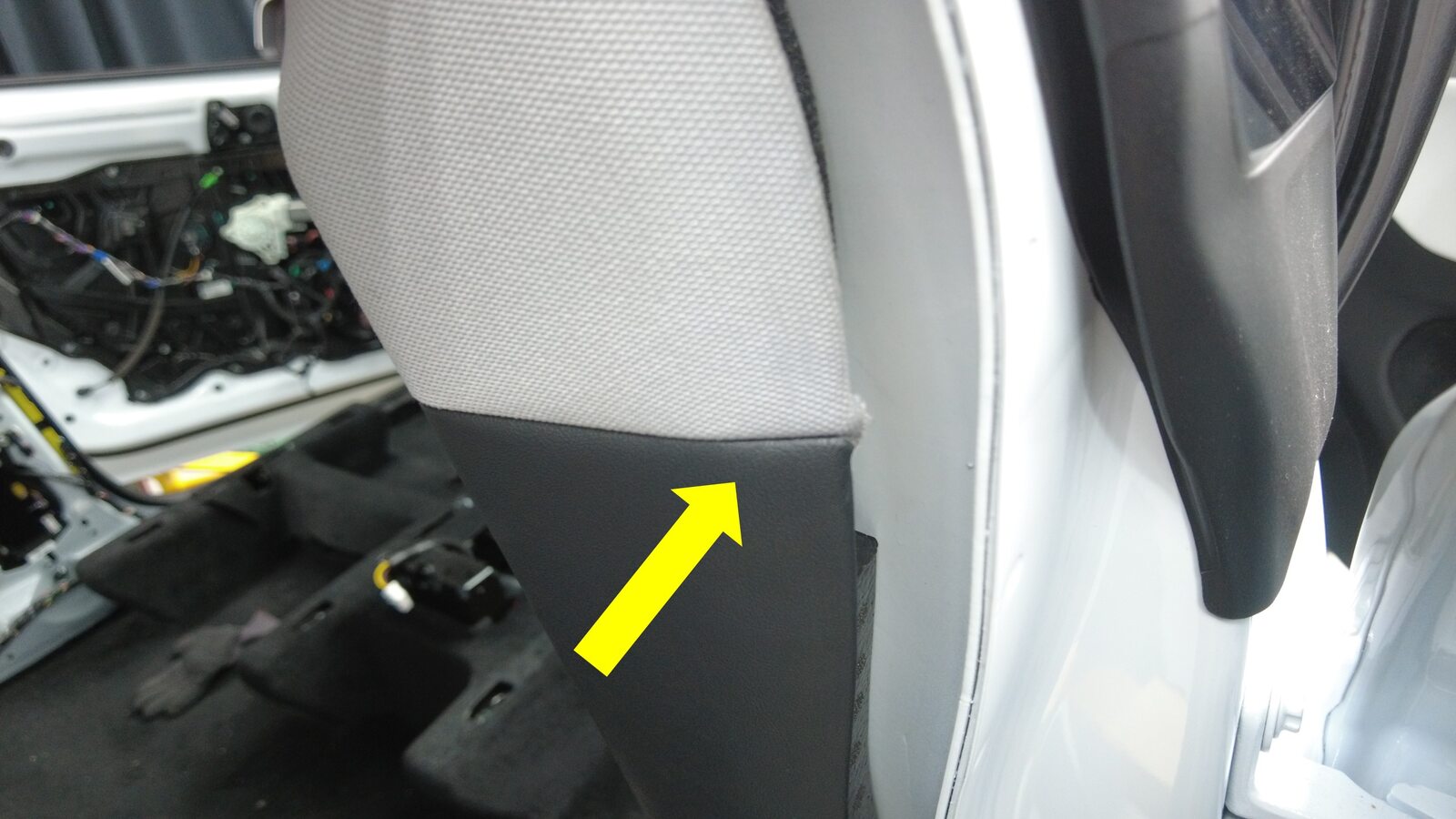

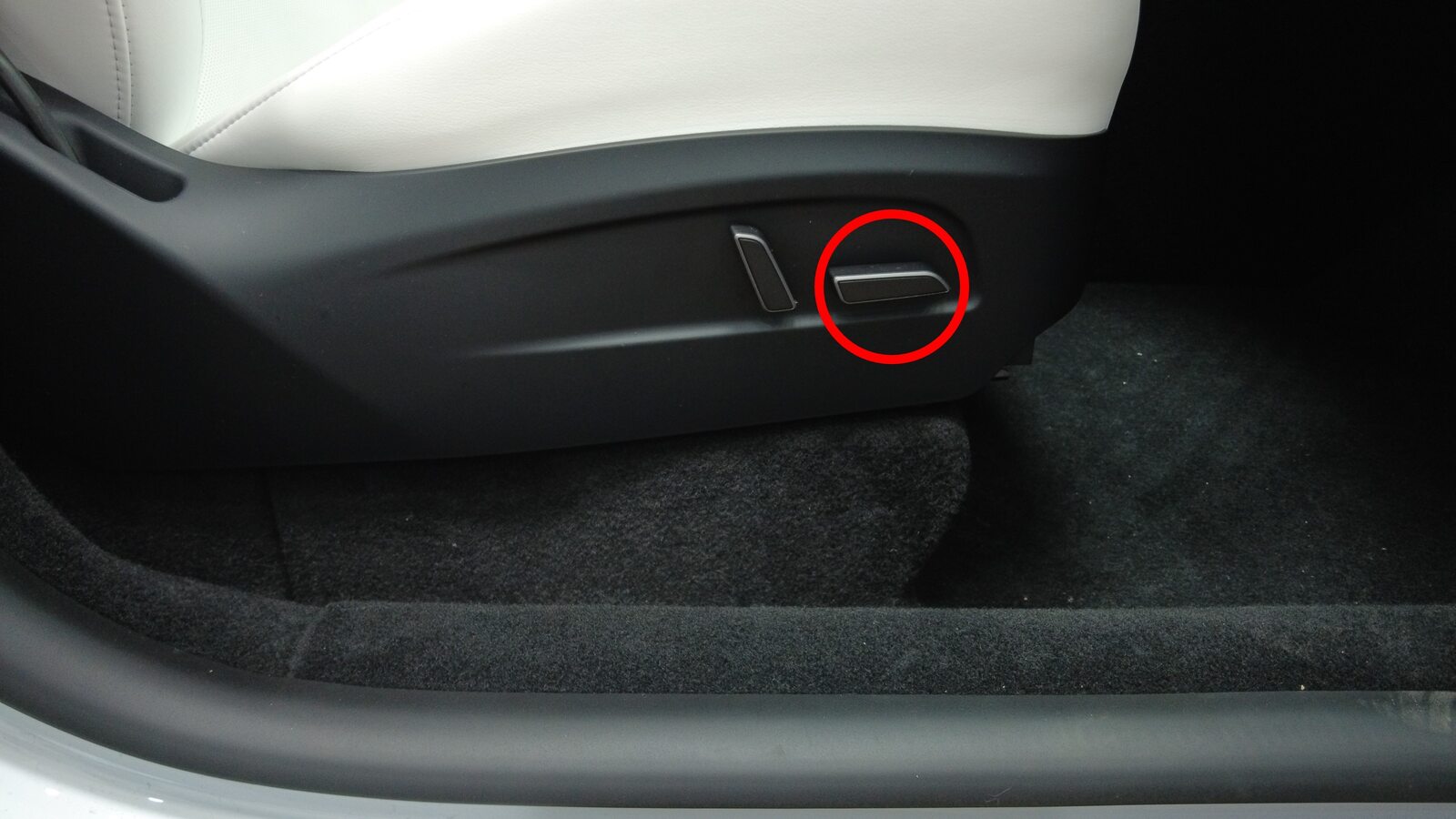

Adjust position of RH front seat for easy removal

Note
Move seat to middle of track at most upright position with seat fully up off floor

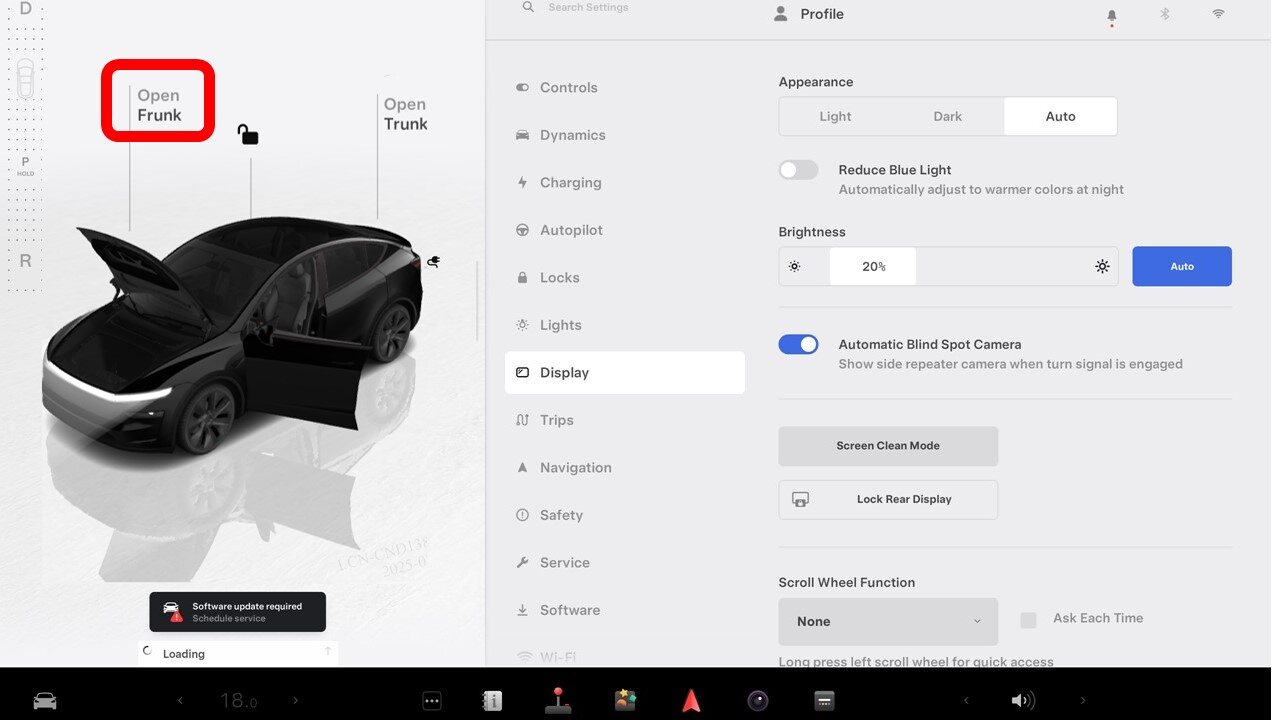

Open hood

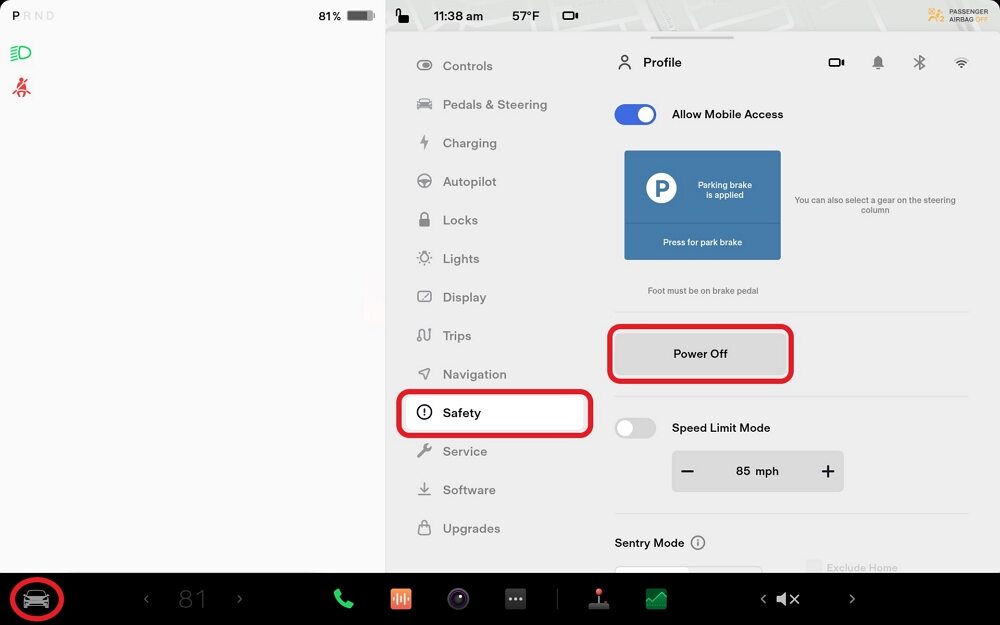

Power off vehicle from center display

Note

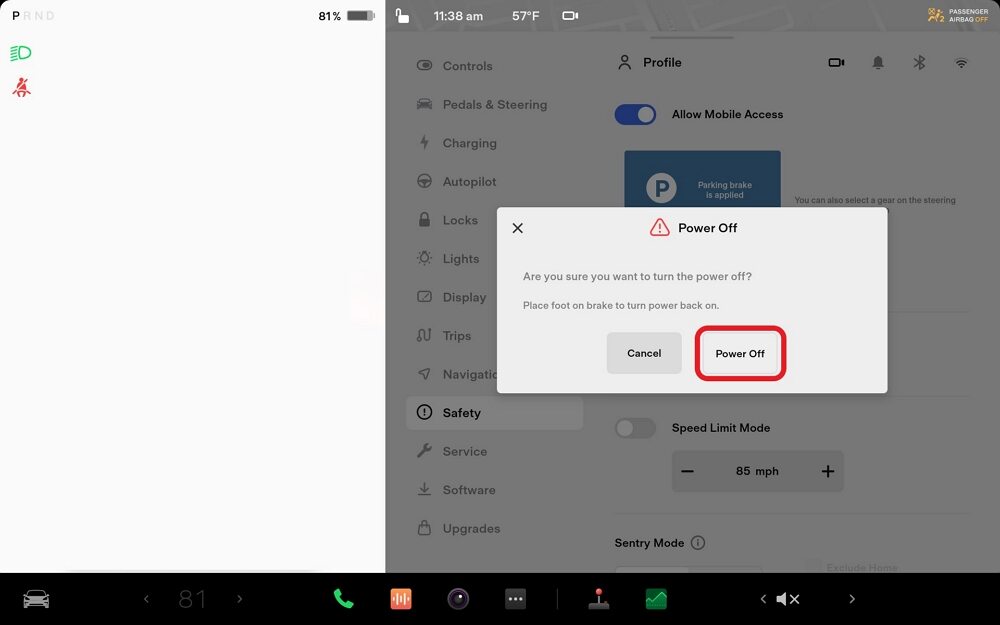

Via Controls > Safety > Power Off, Select Power Off button at warning dialogue box

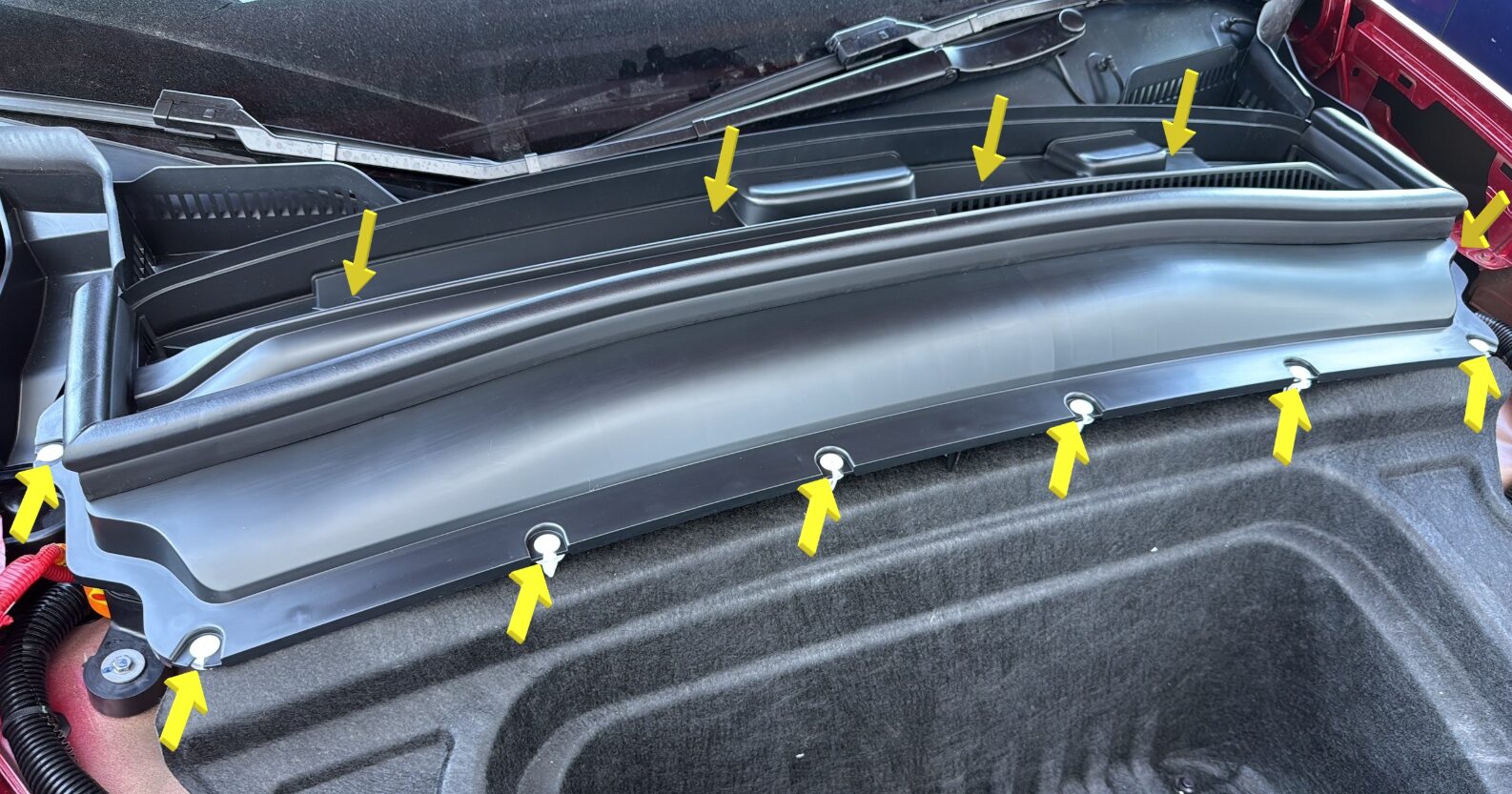

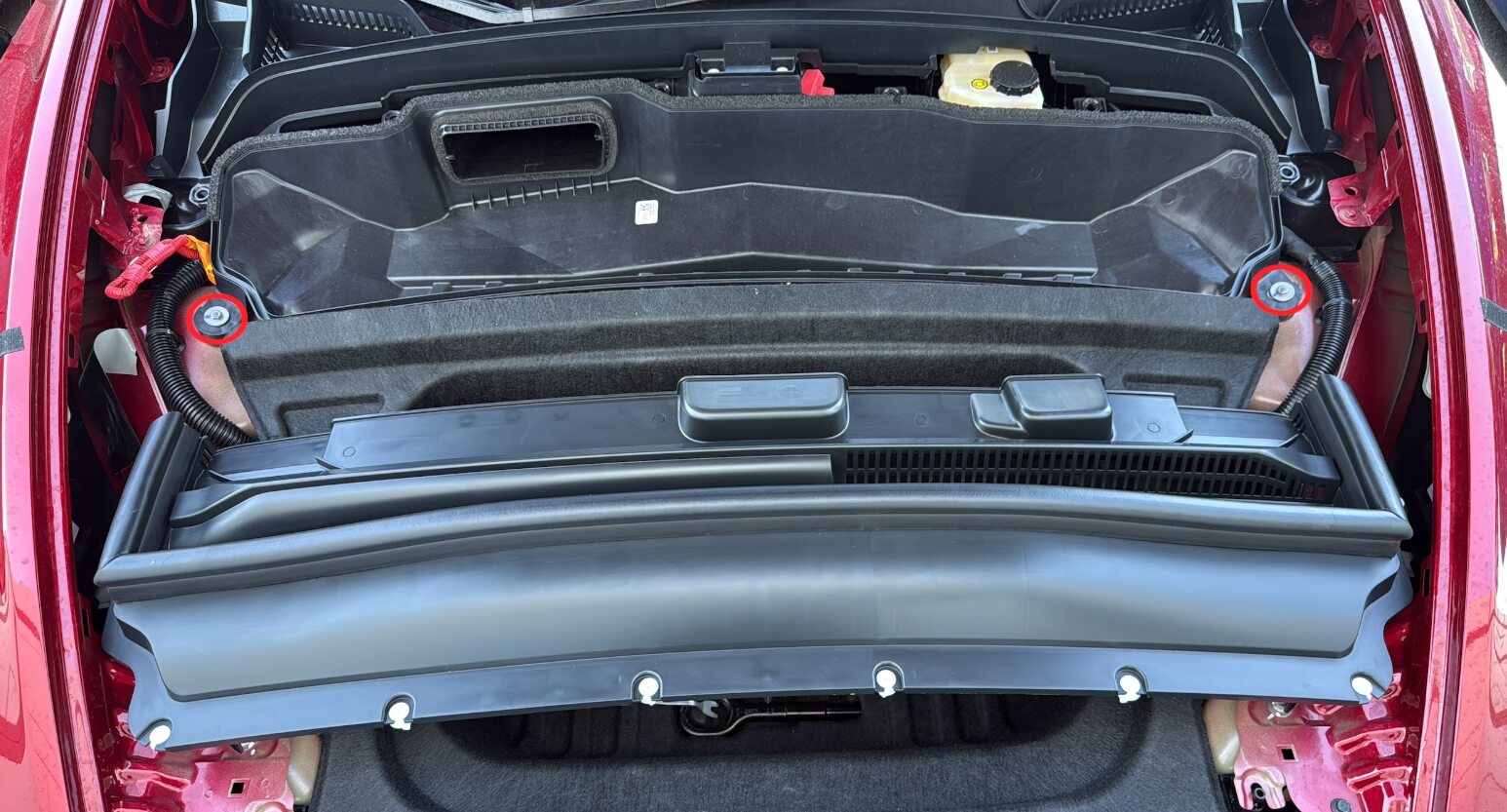

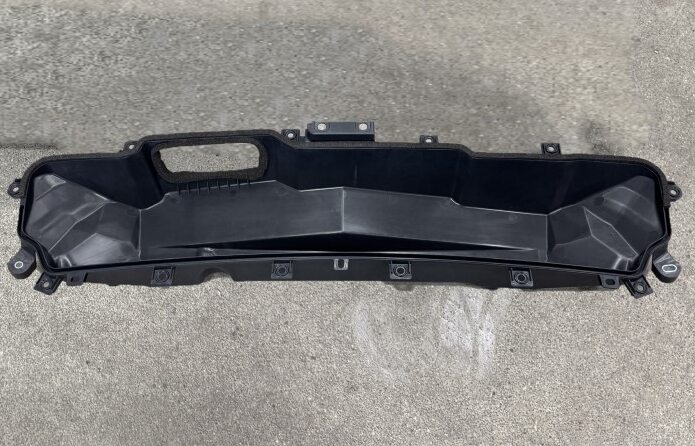

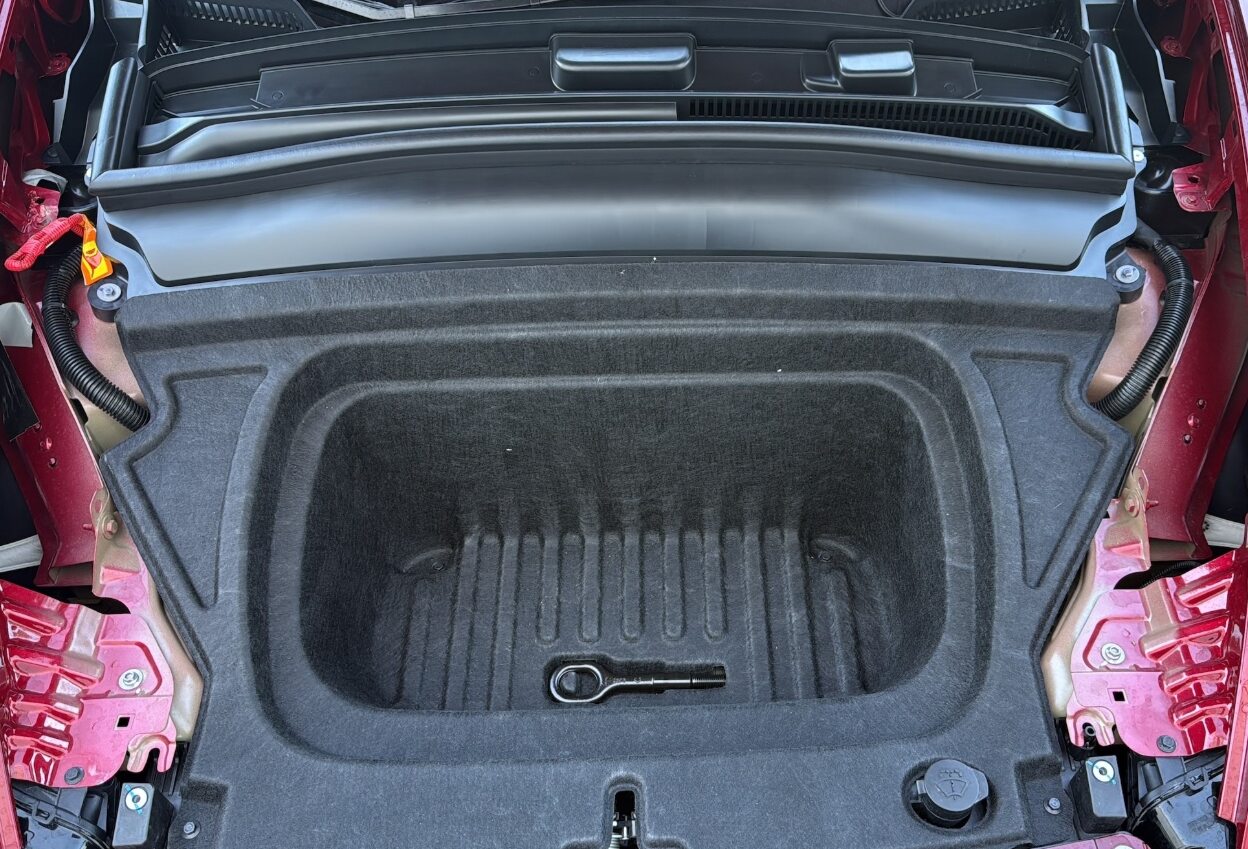

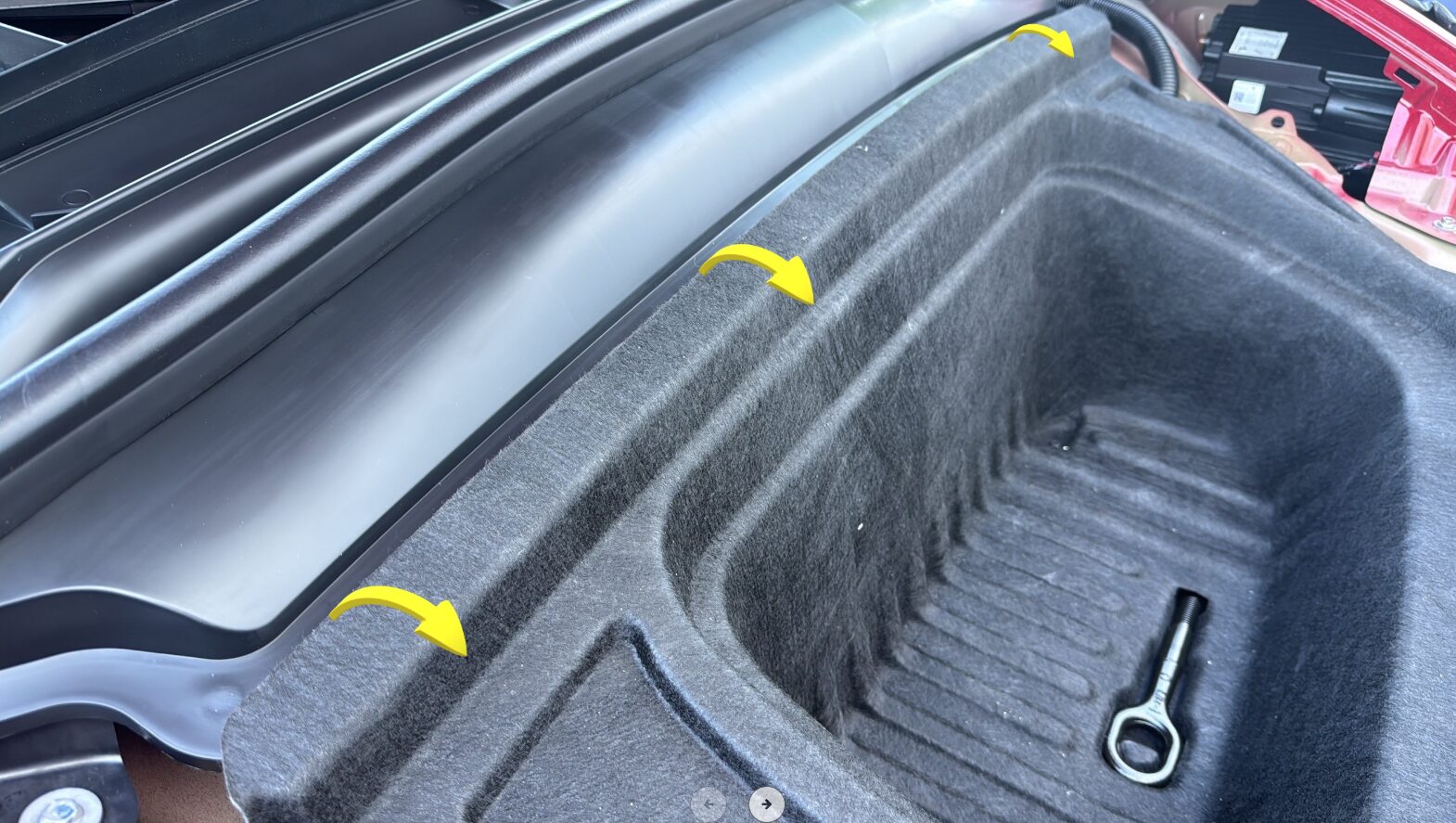

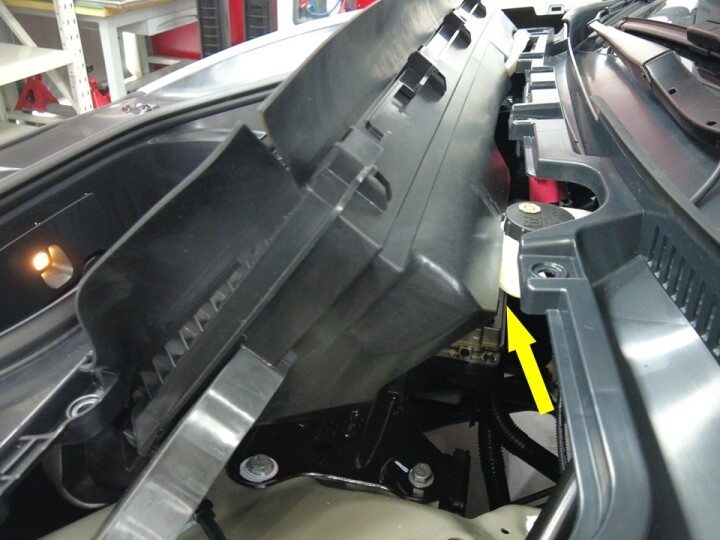

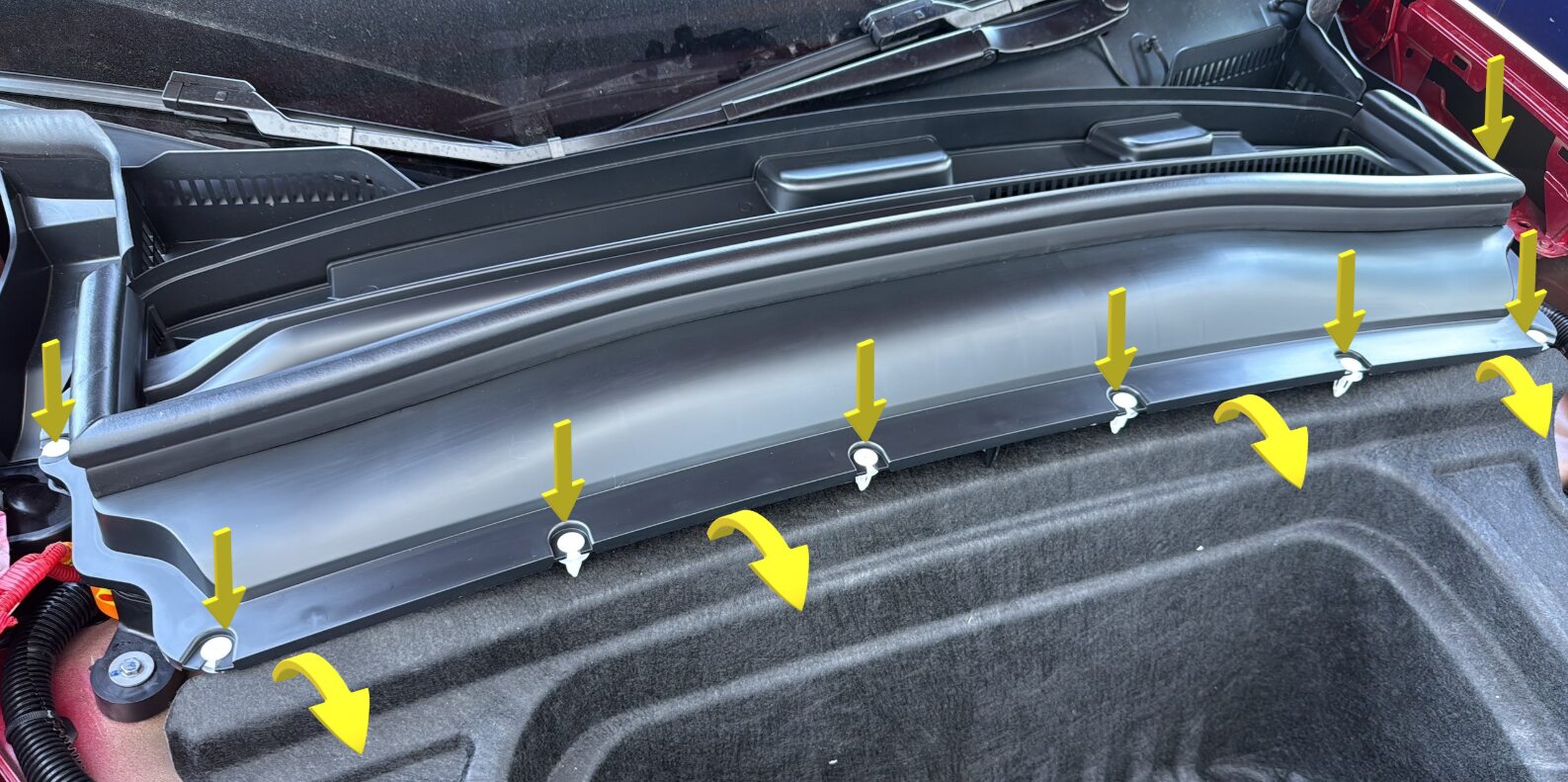

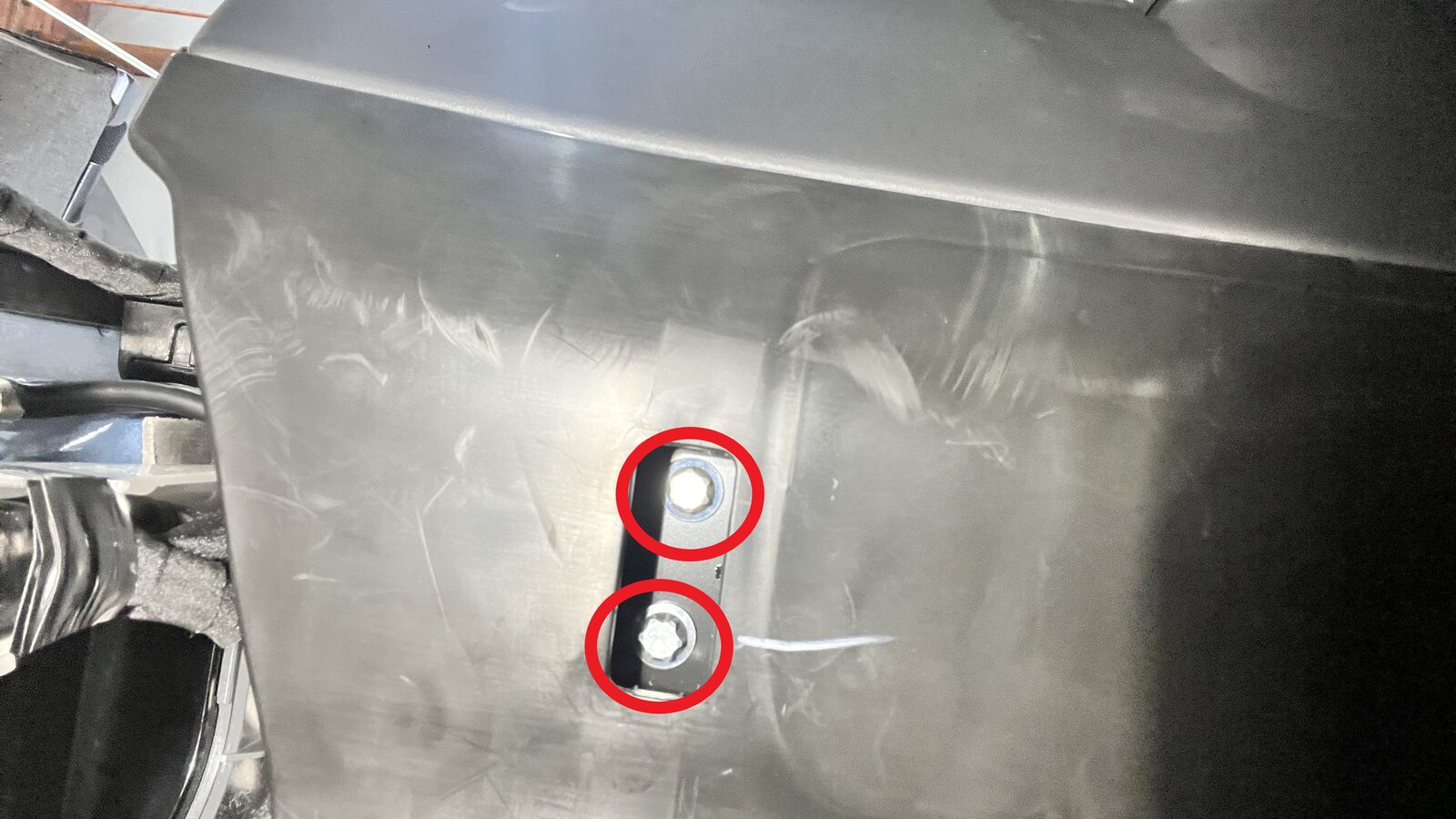

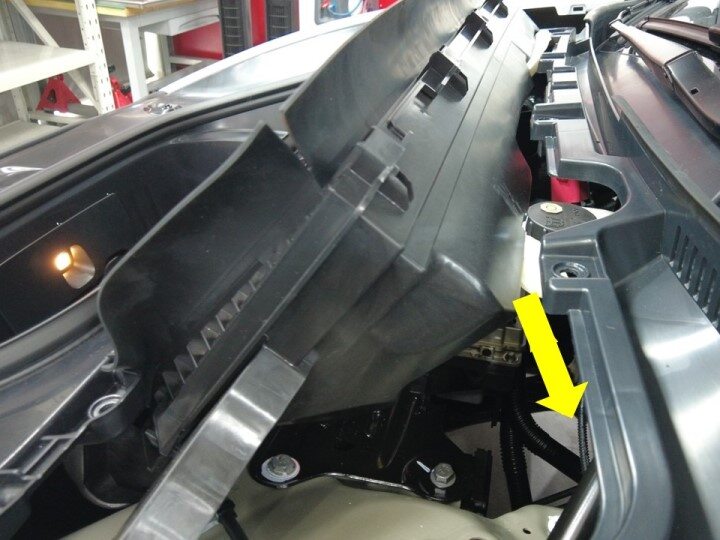

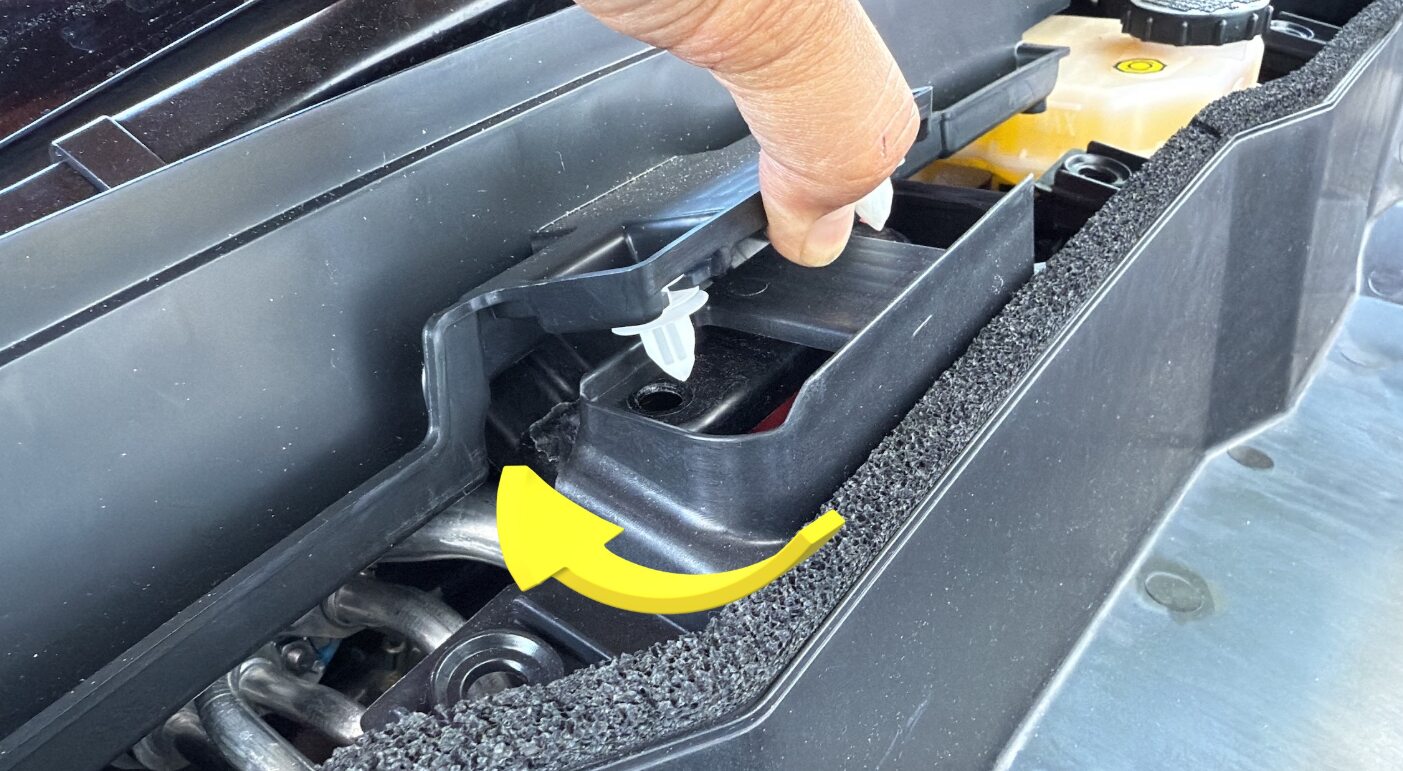

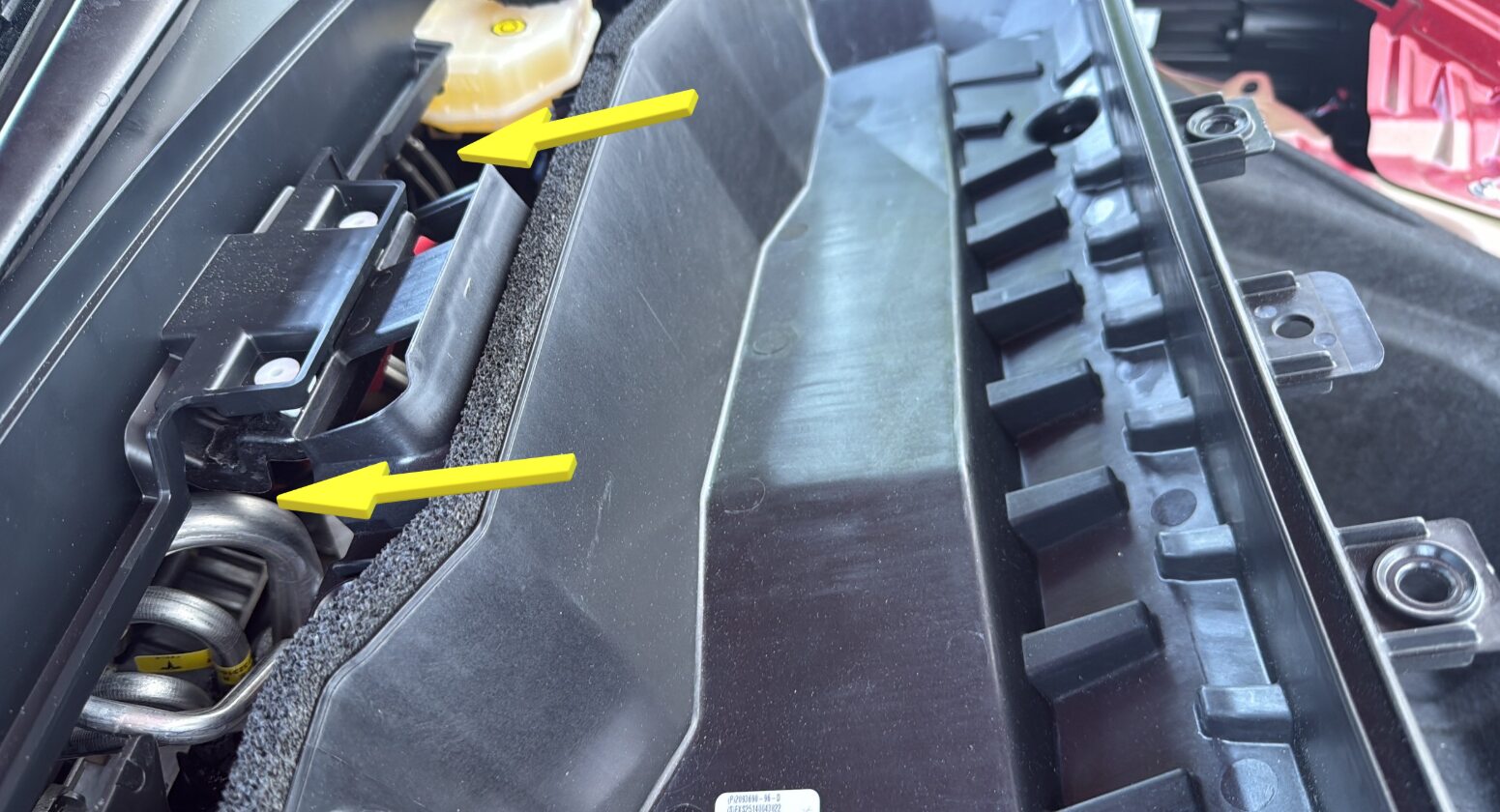

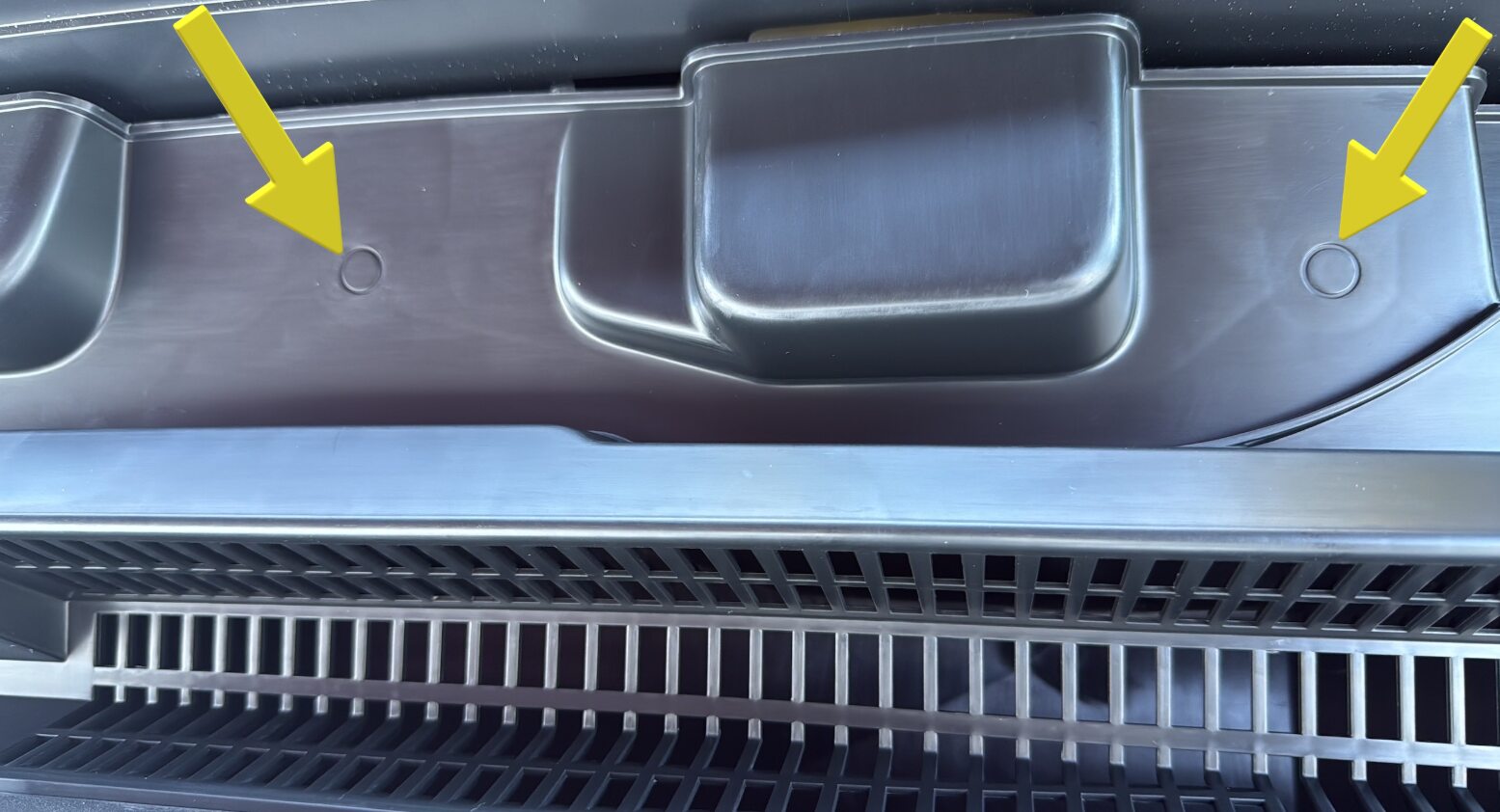

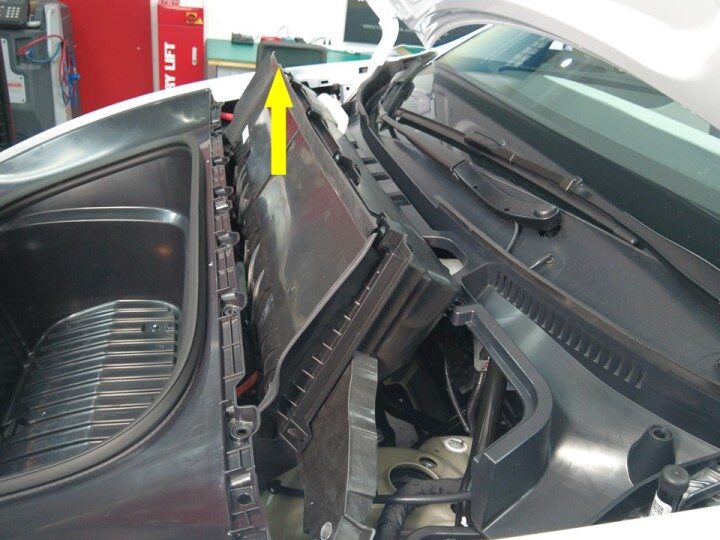

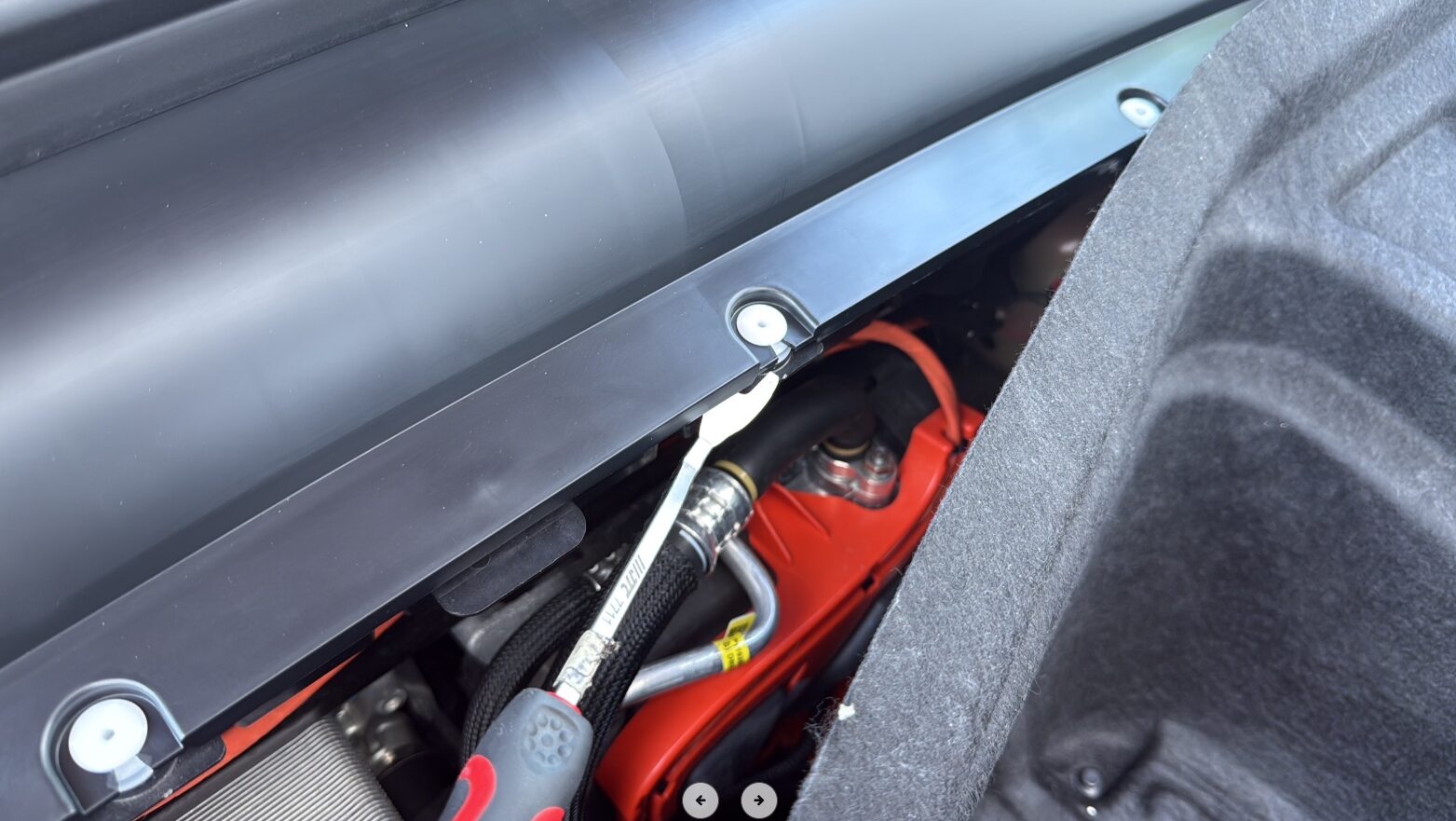

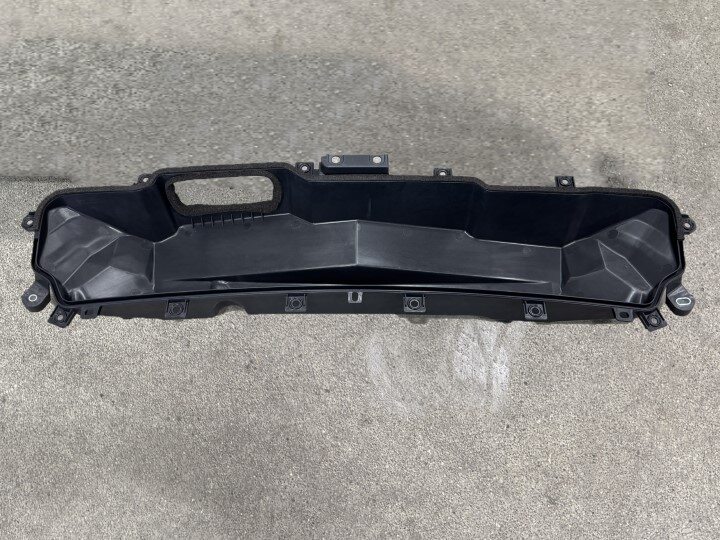

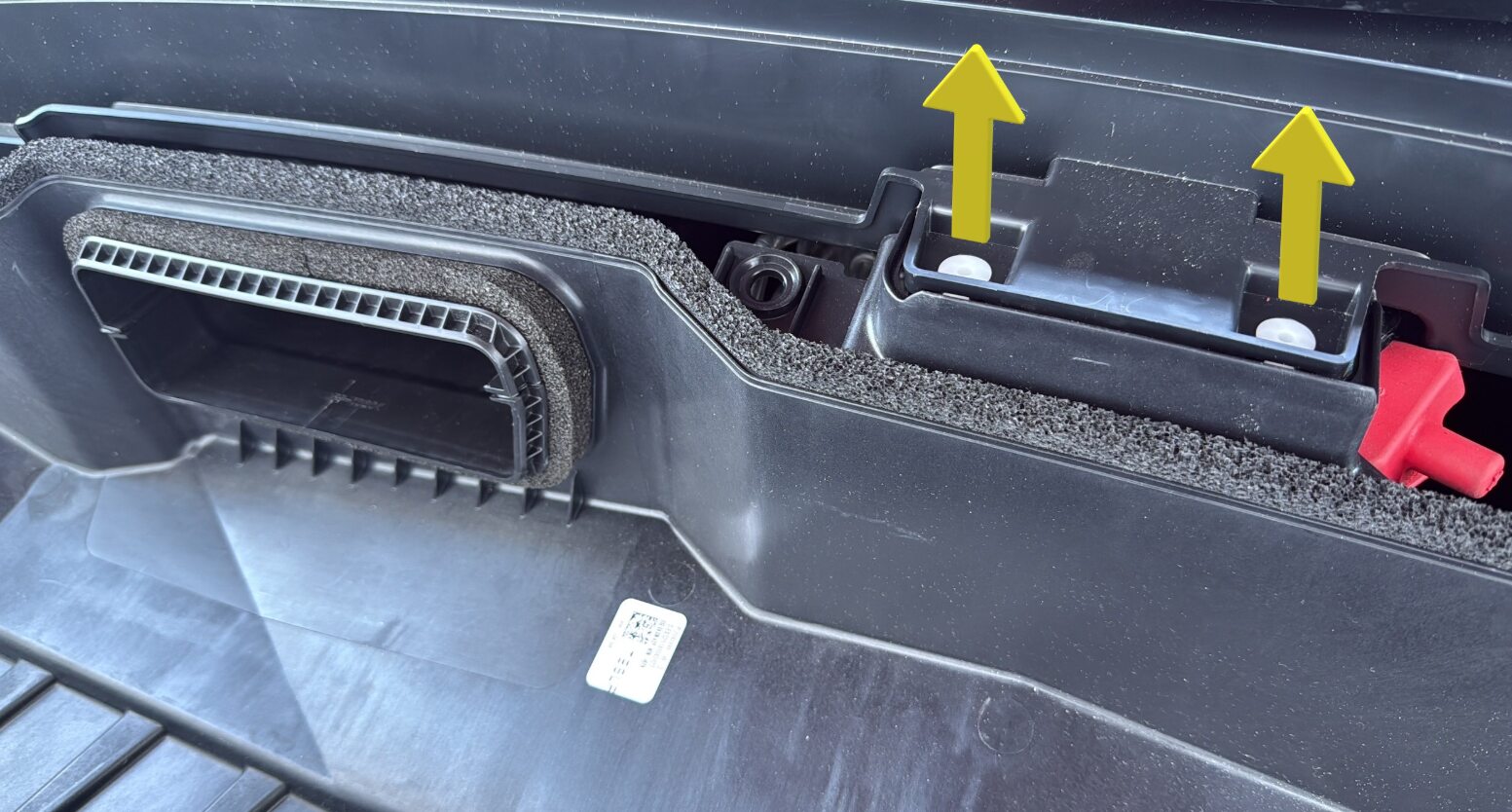

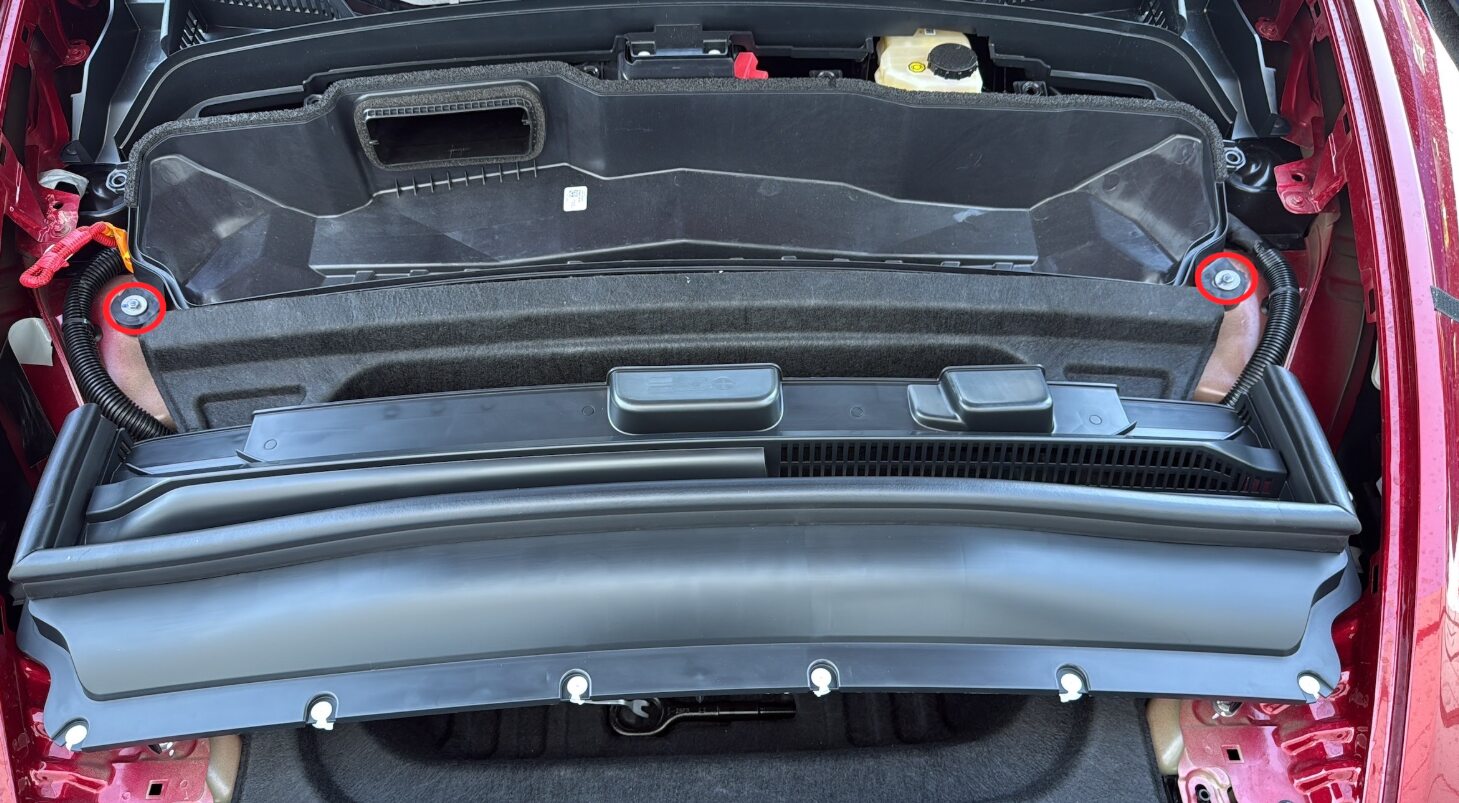

Remove HEPA filter or big basin

Note
Vehicle configuration may vary, W/ HEPA: 2x bolts, 10mm, 10 Nm, Pivot rear edge up past brake reservoir then lift up to clear frunk assembly, W/O HEPA: 2x bolts, 10mm, 10 Nm, 14x clips, Fold rear lip of base frunk forward to access forward cowl clips, Lift cowl clips to release basin bracket

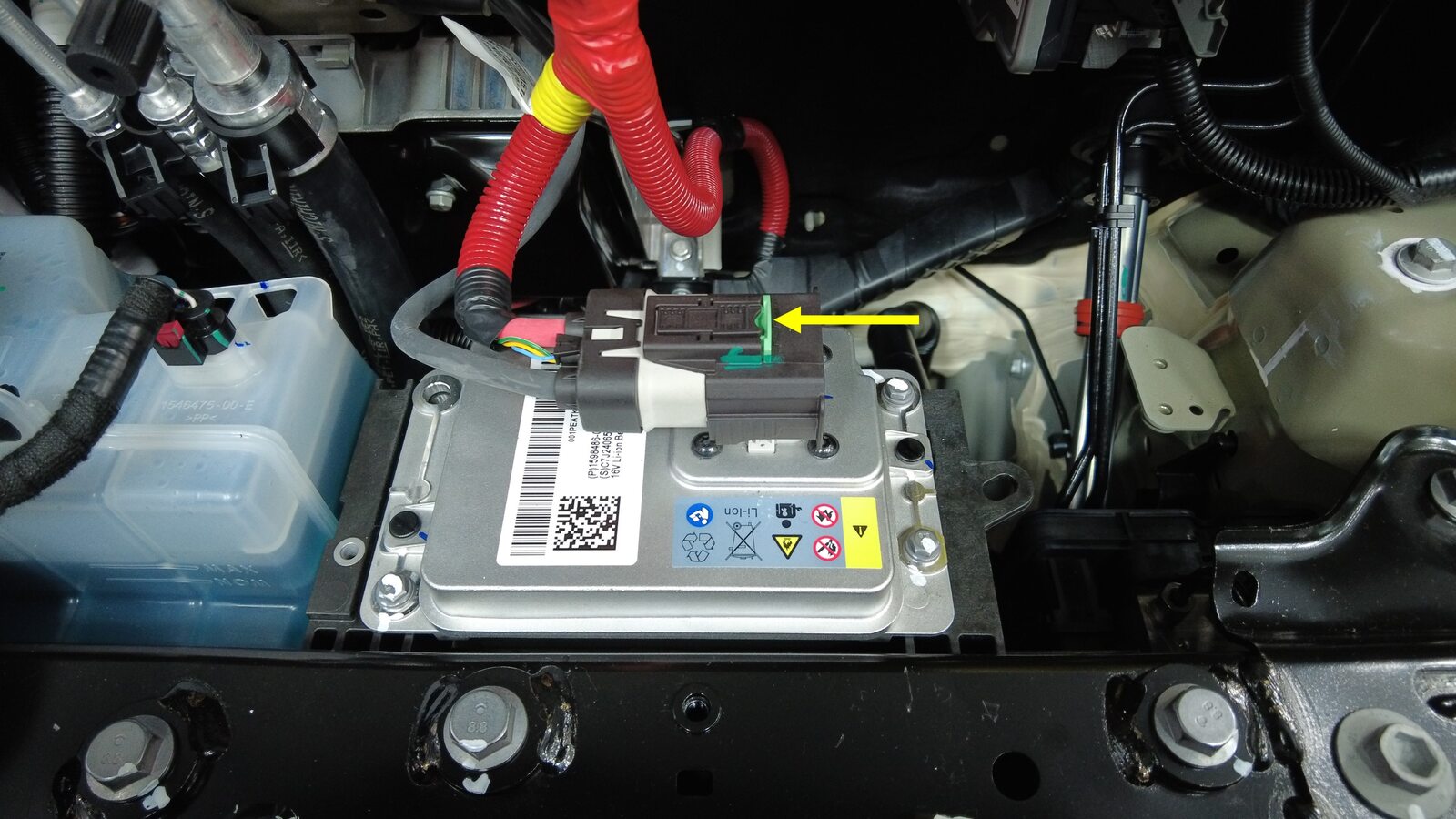

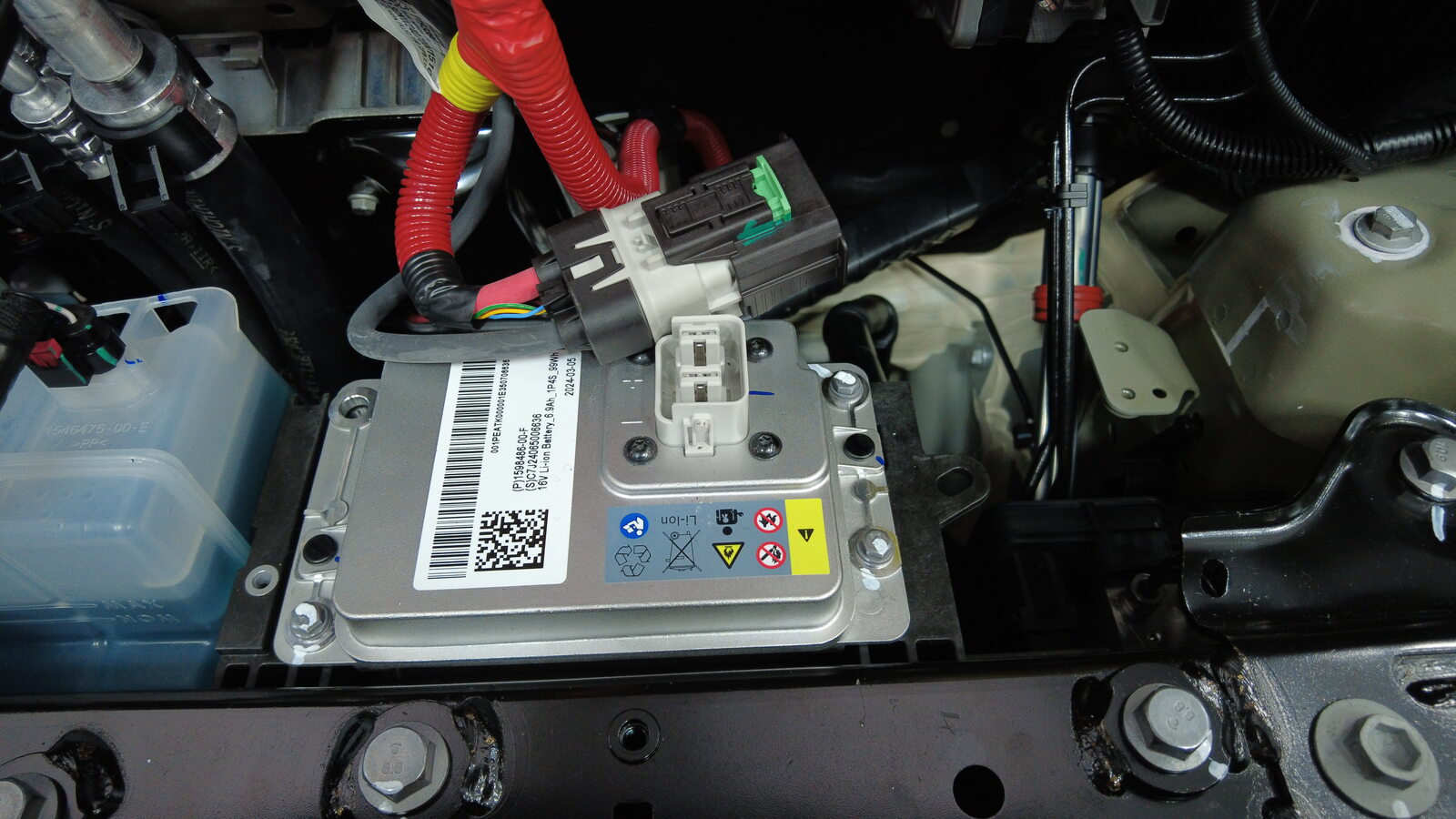

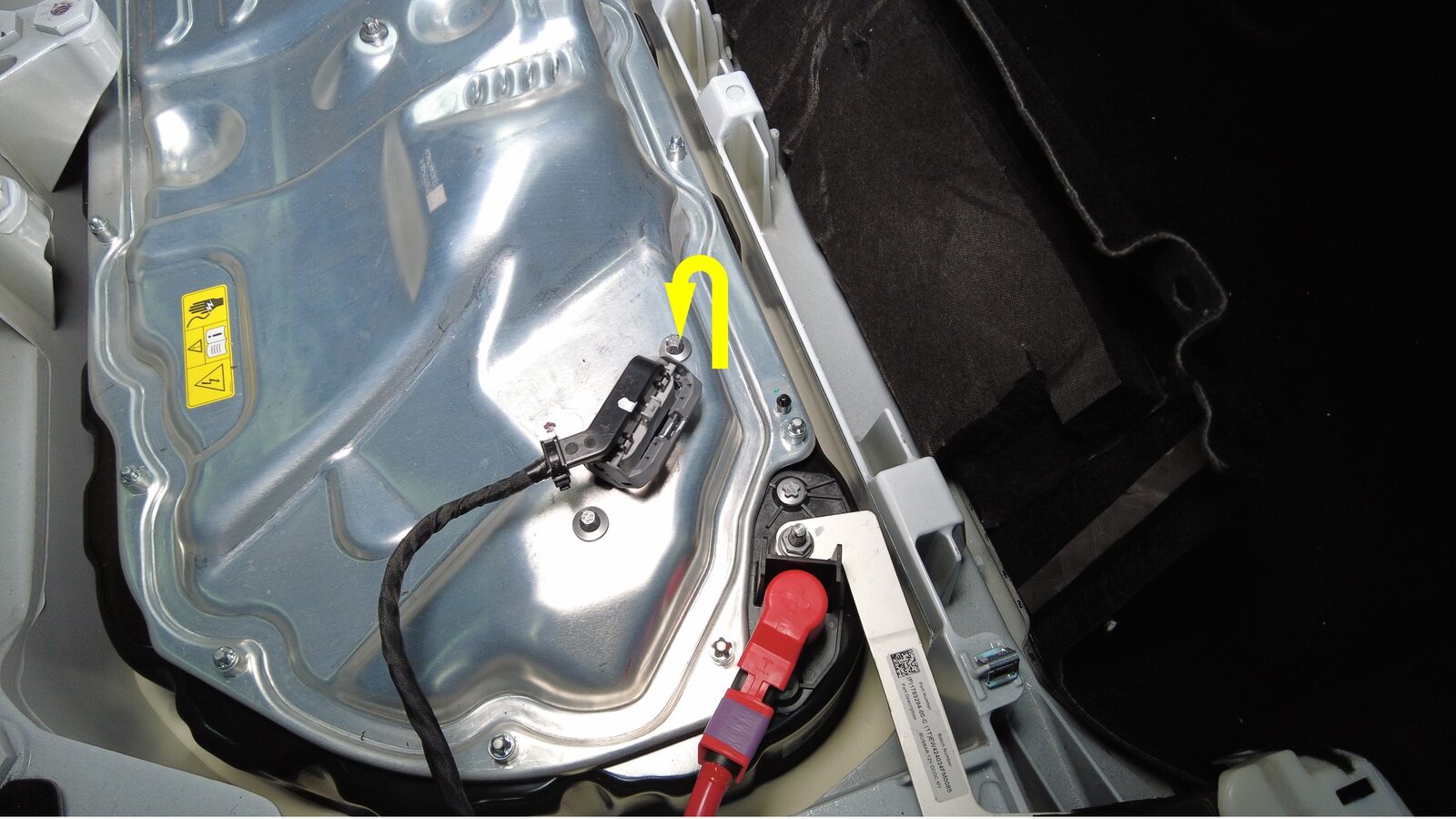

Disconnect LV battery and first responder loop

Note
2x connectors, Release green locking tab, Press black tab then pull black connector lock outwards to release connection, Release red lock tab on FRL, Allow 2 minutes for all electrical circuits to fully discharge

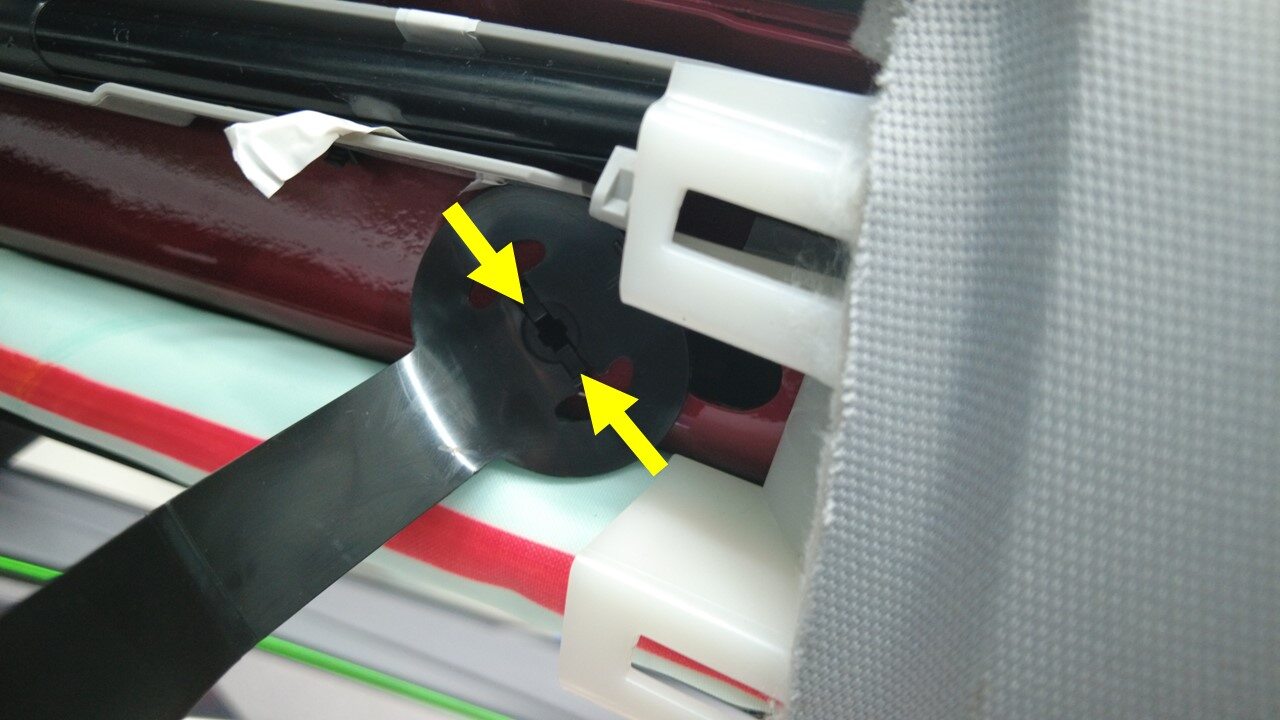

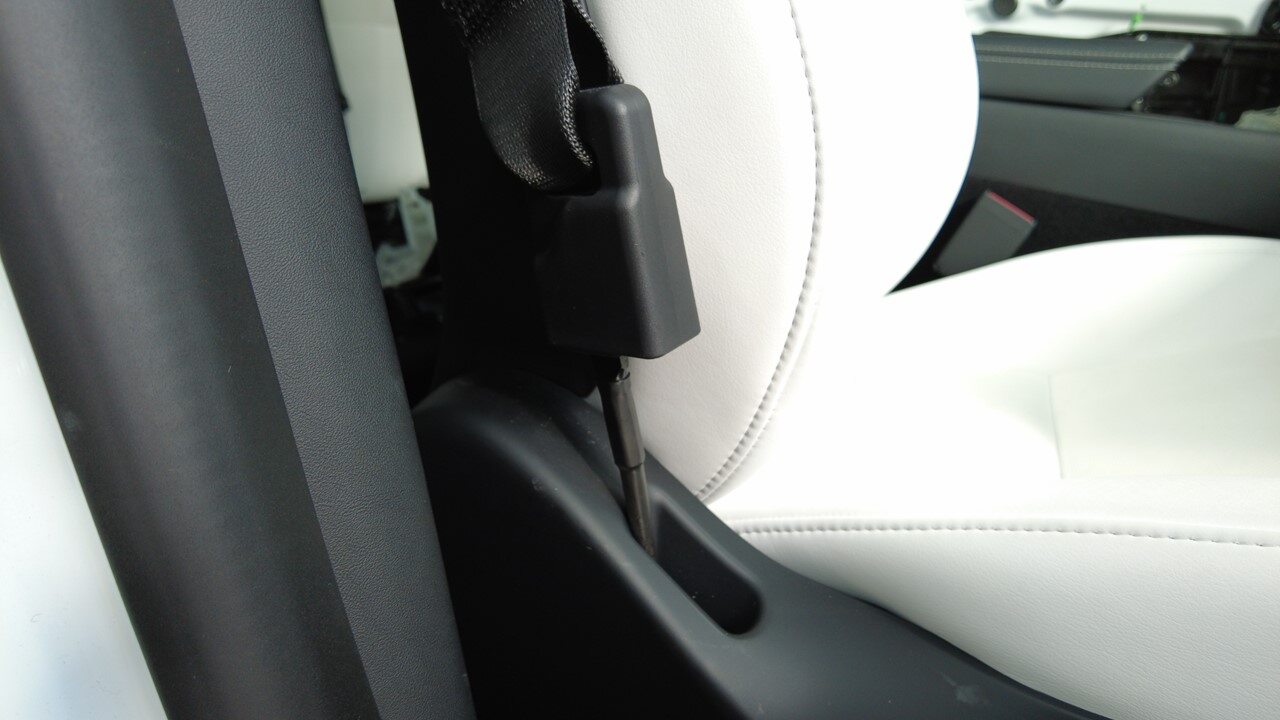

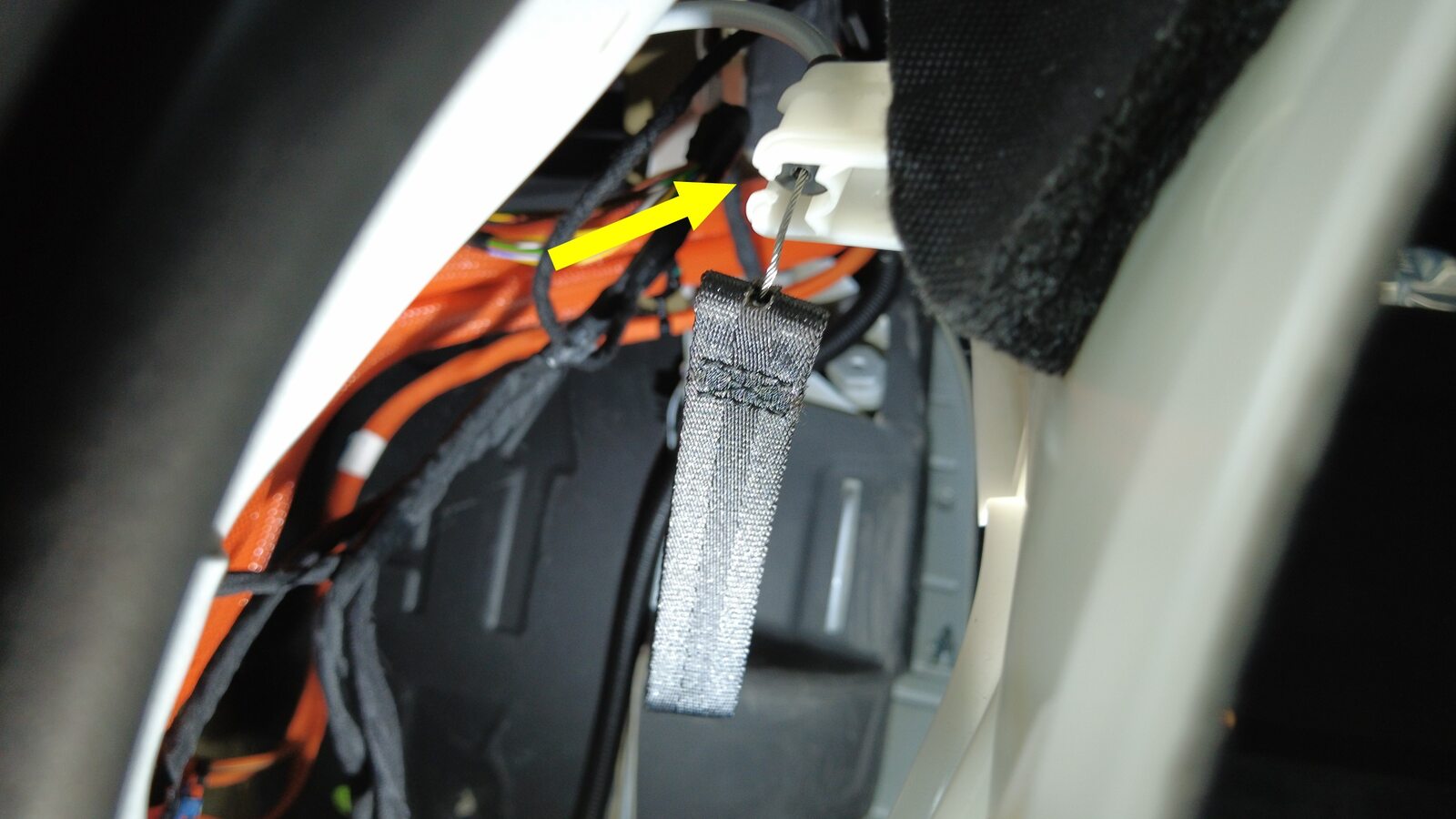

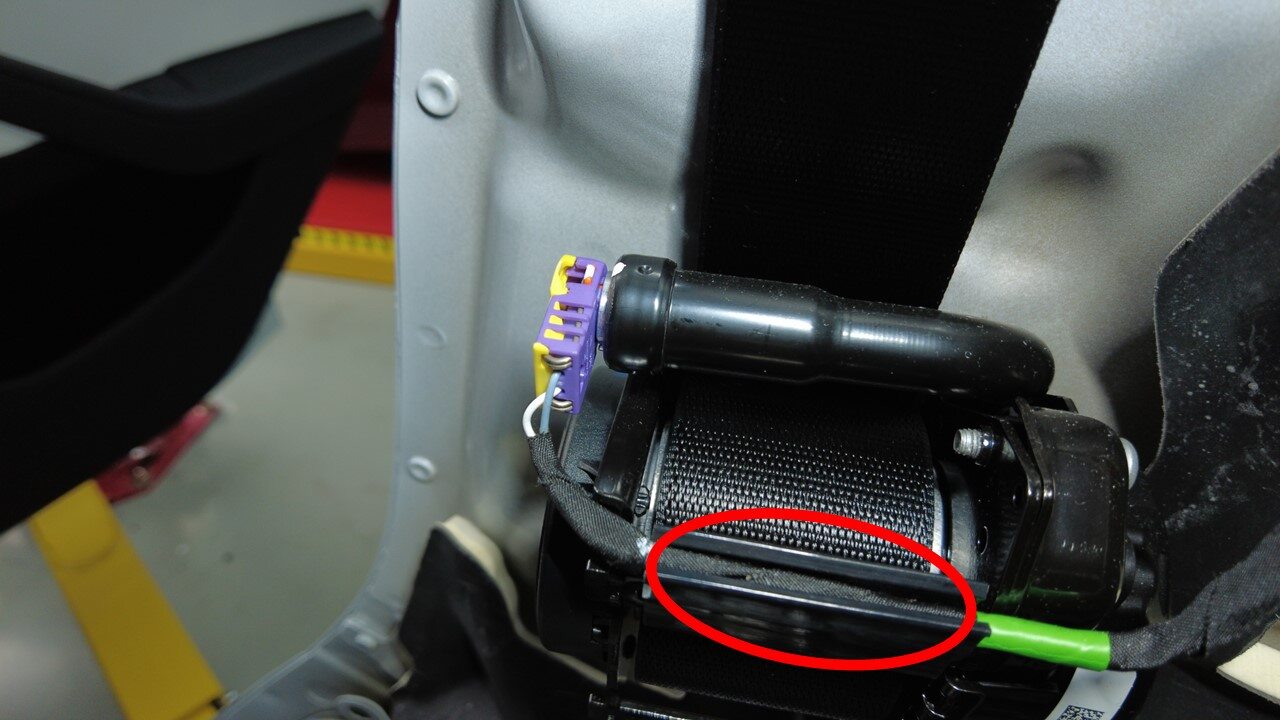

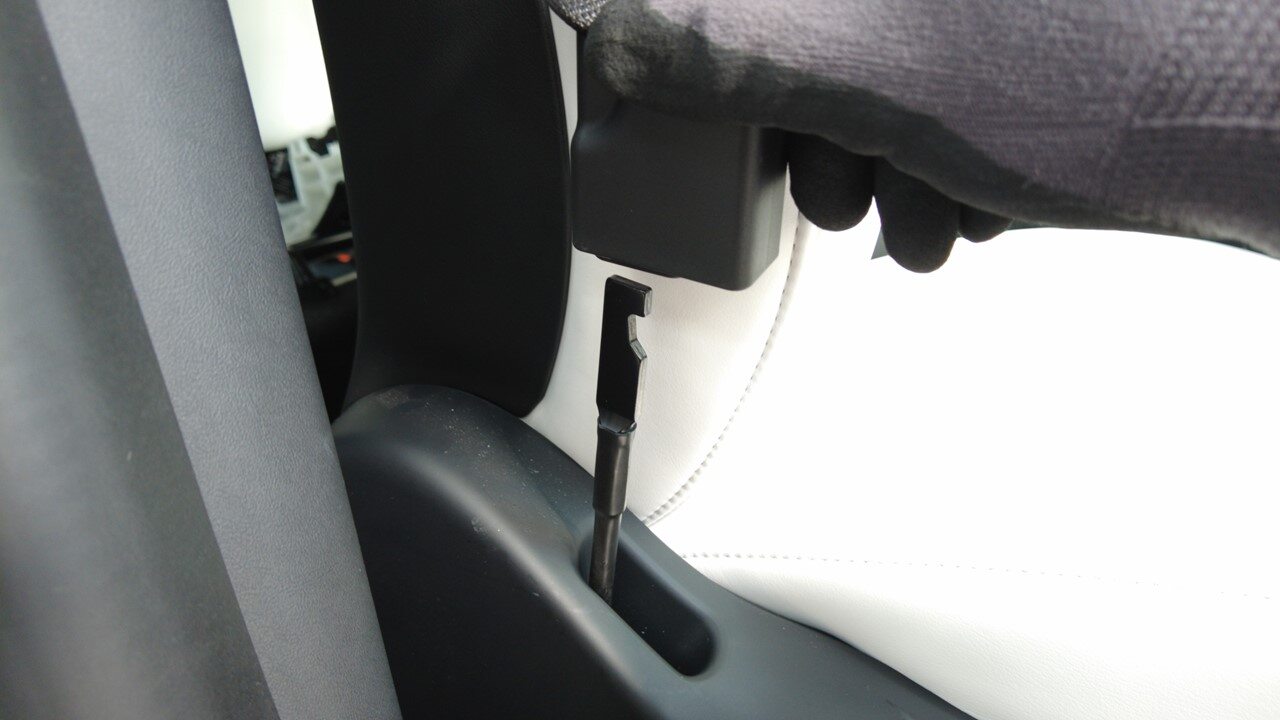

Release seat belt retractor from RH front seat pre tensioner

Note
Insert seat belt release tool in bottom of retractor to release

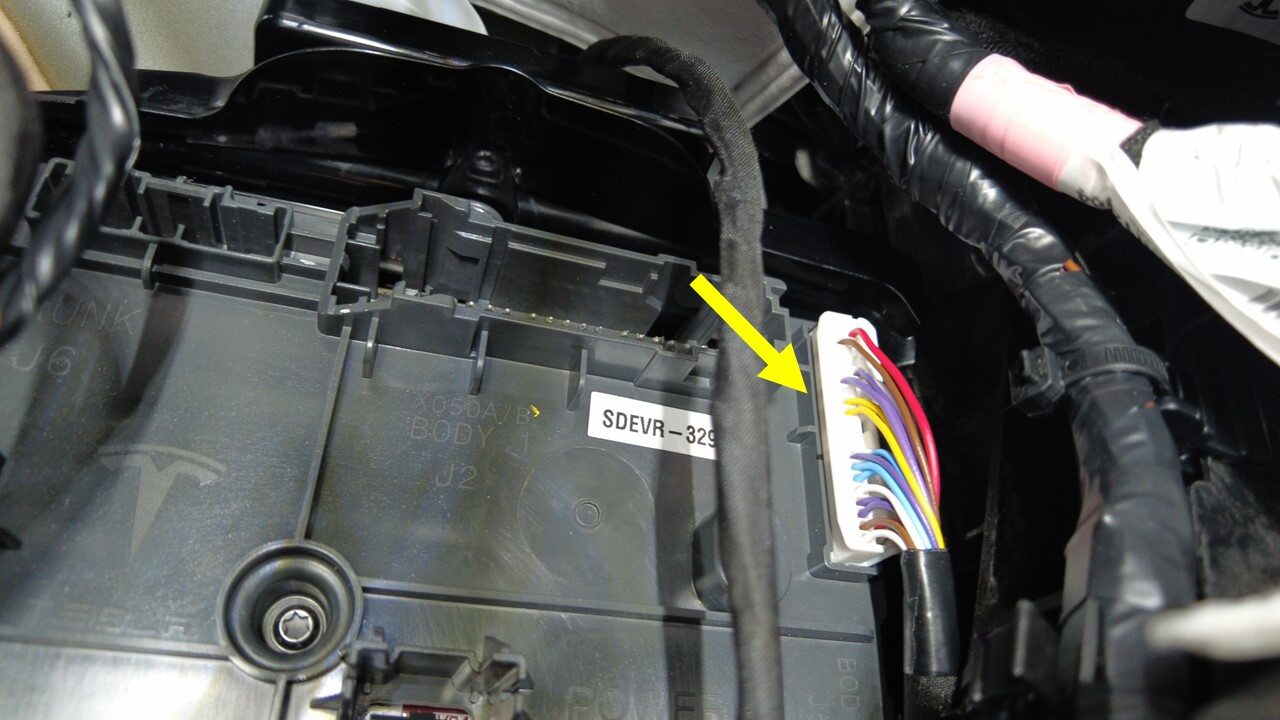

Disconnect RH front seat harness connector from RH body controller

Note
1x connector, Release lock then remove

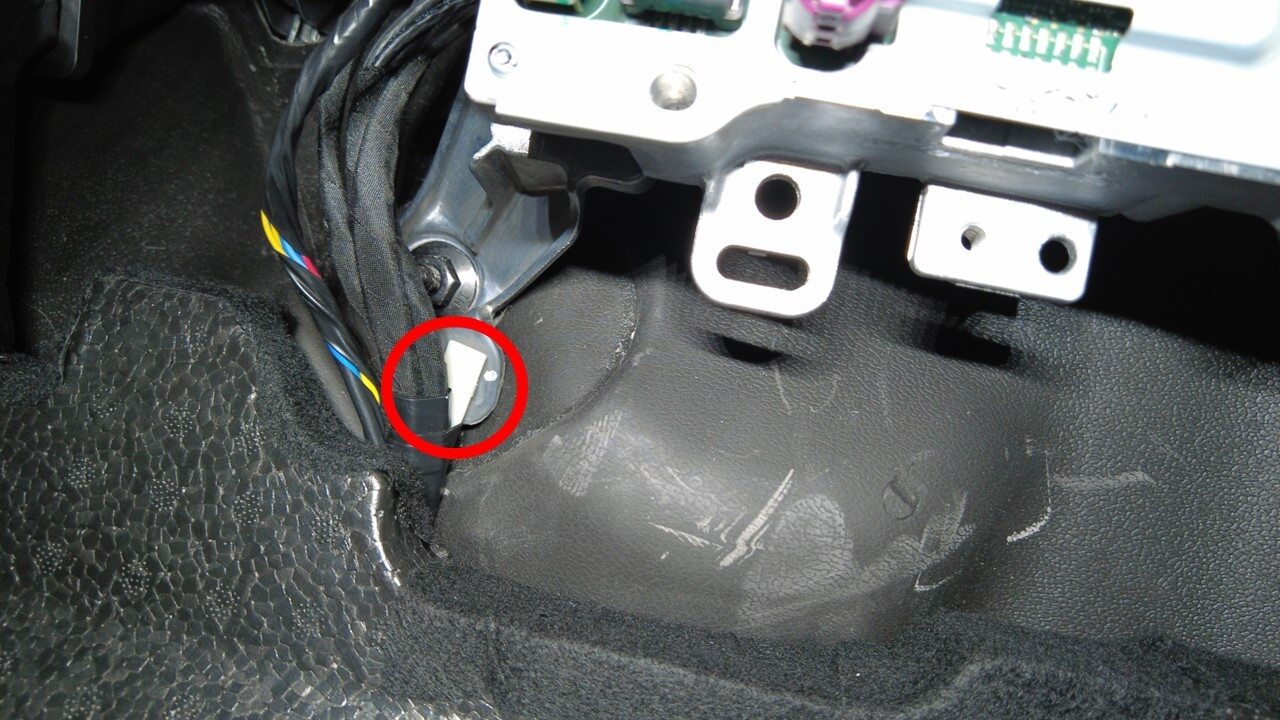

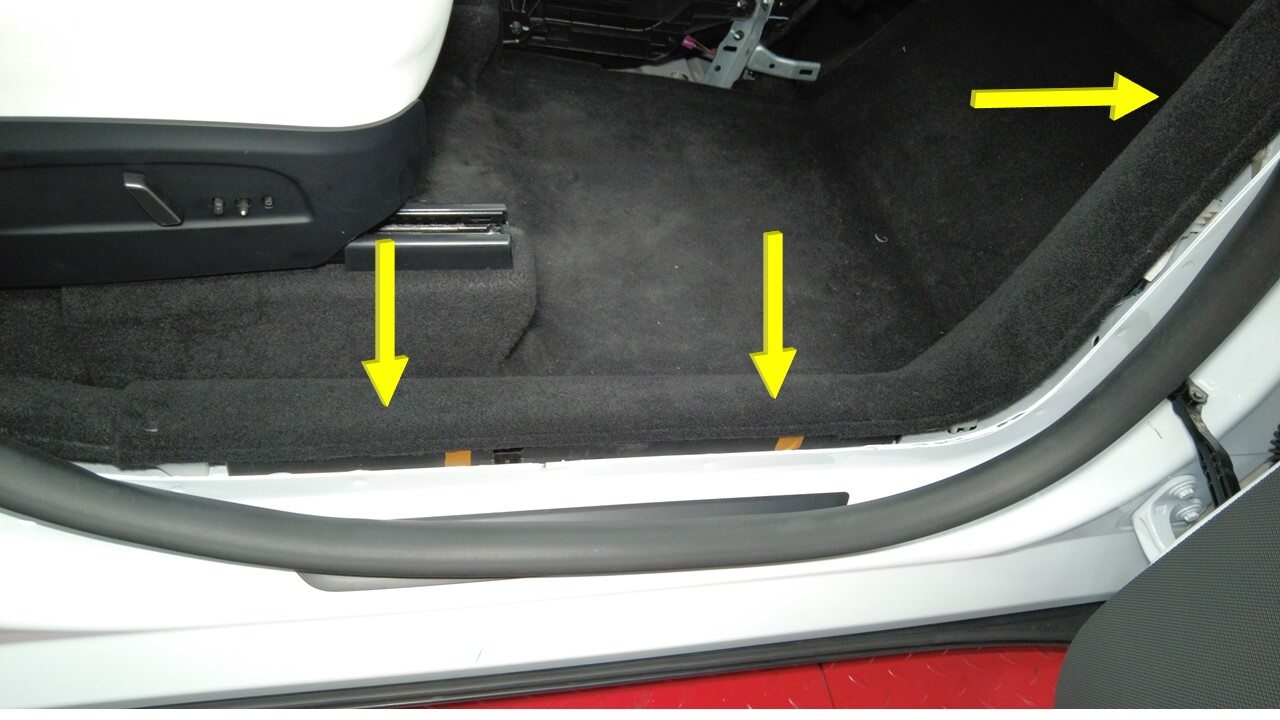

Release RH front seat harness from sill trim clips

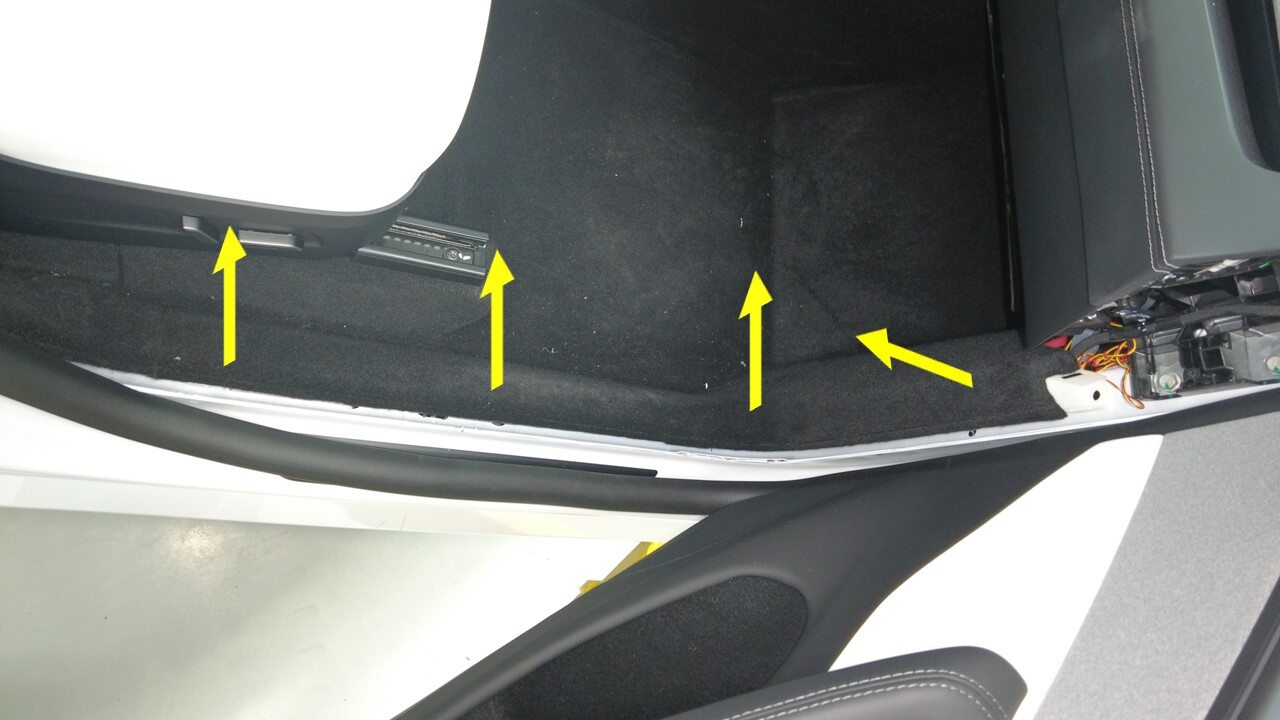

Note
4x clips

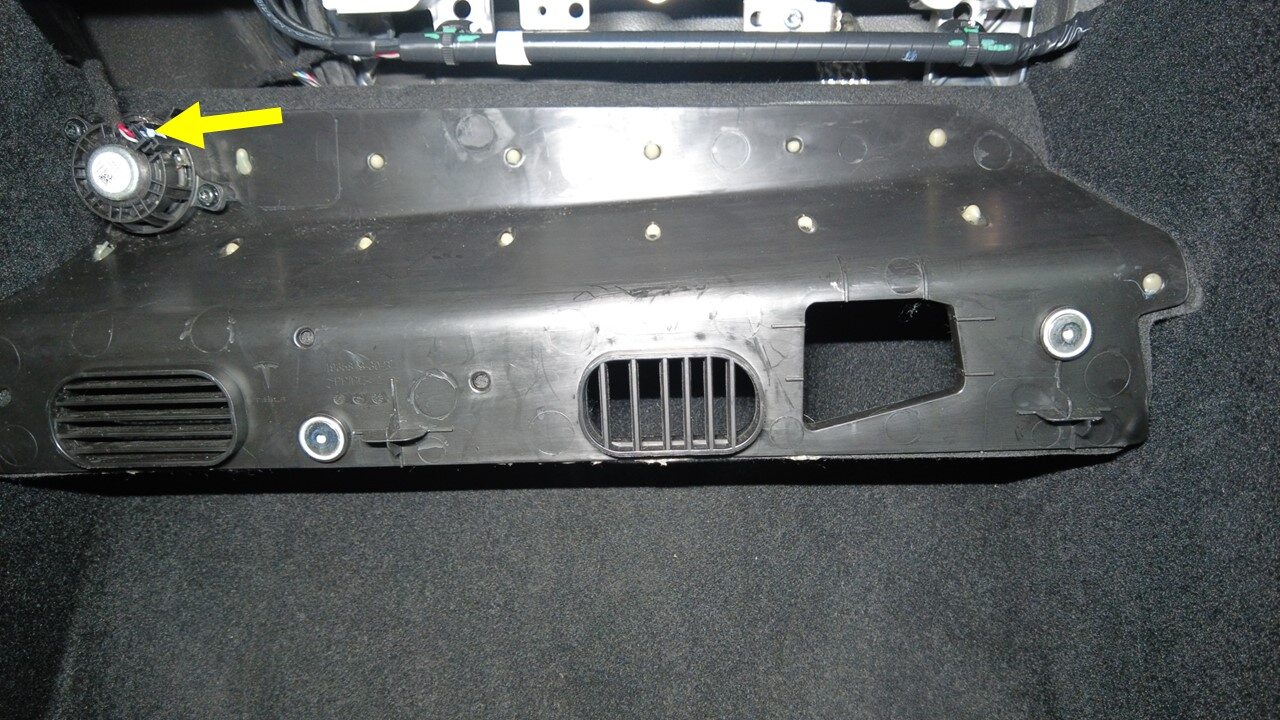

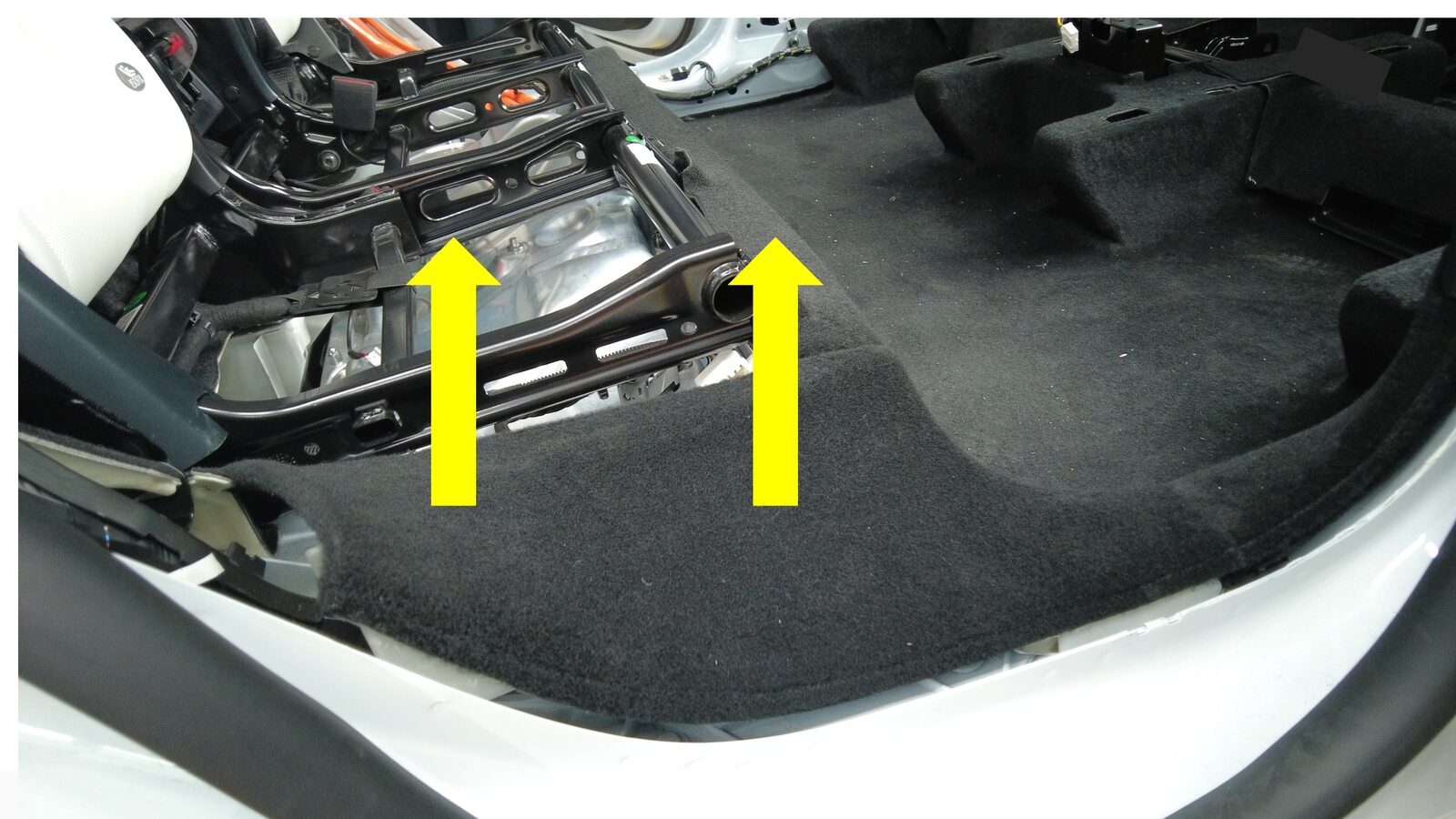

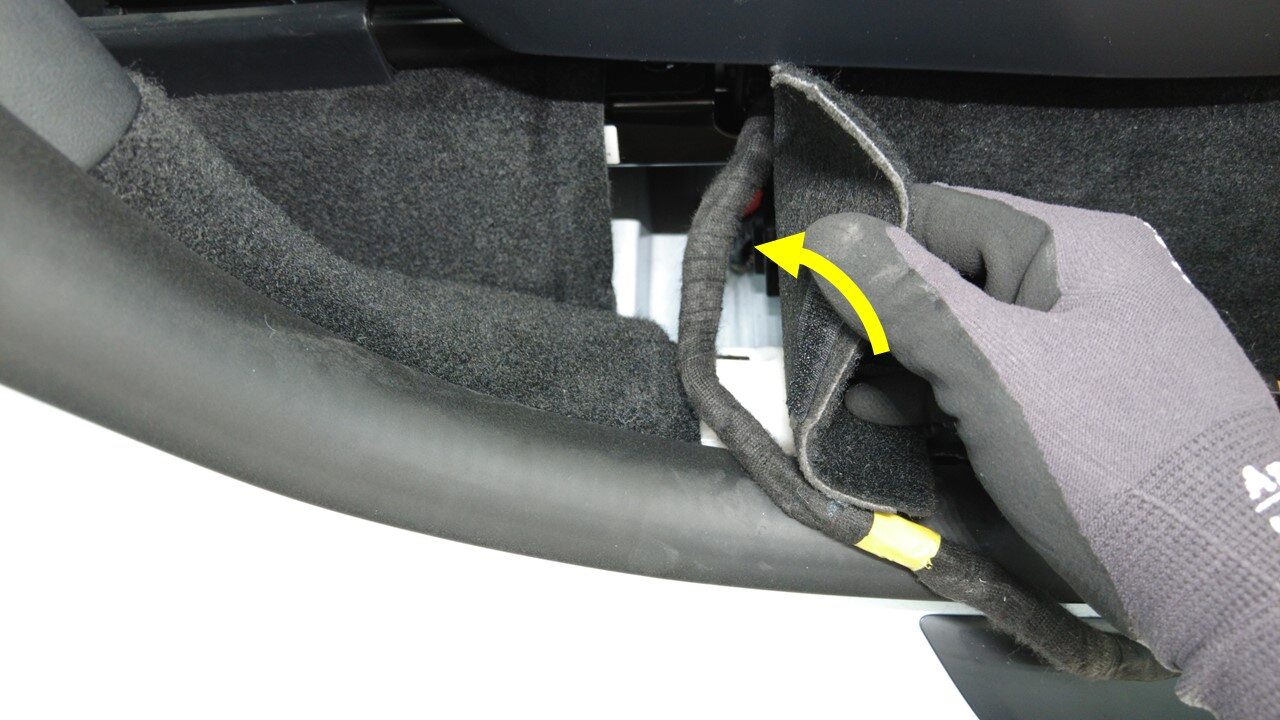

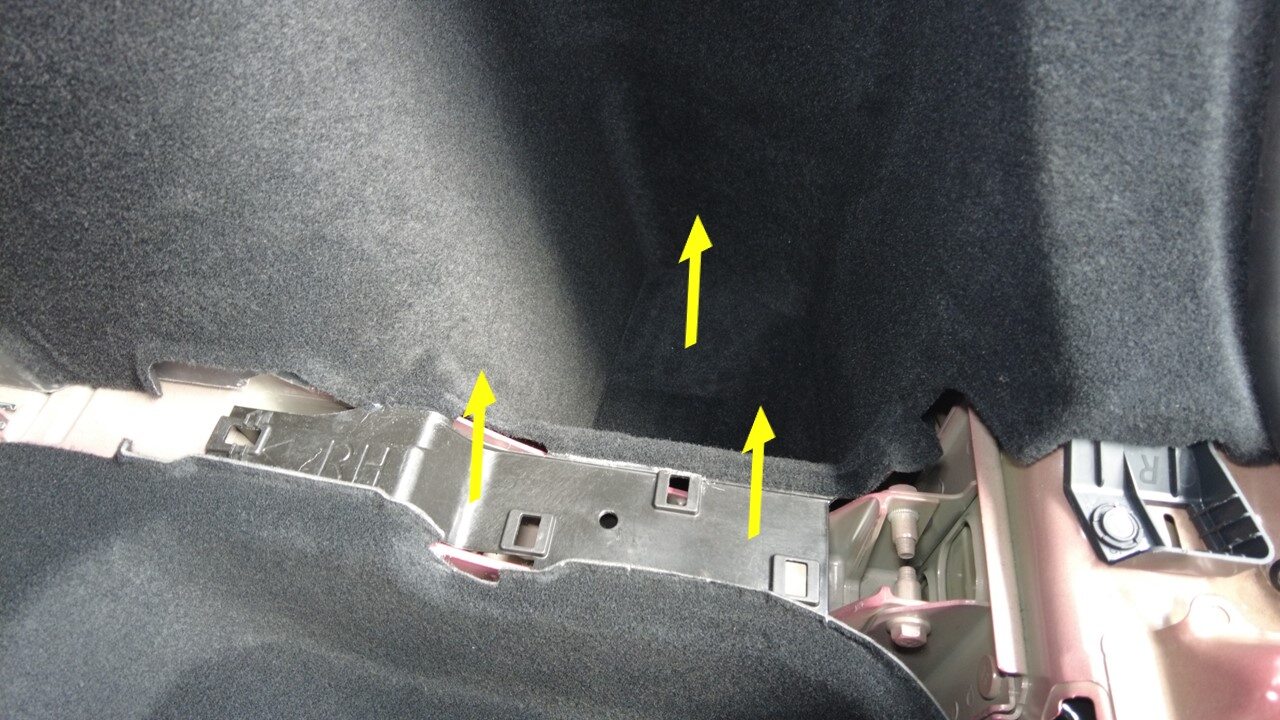

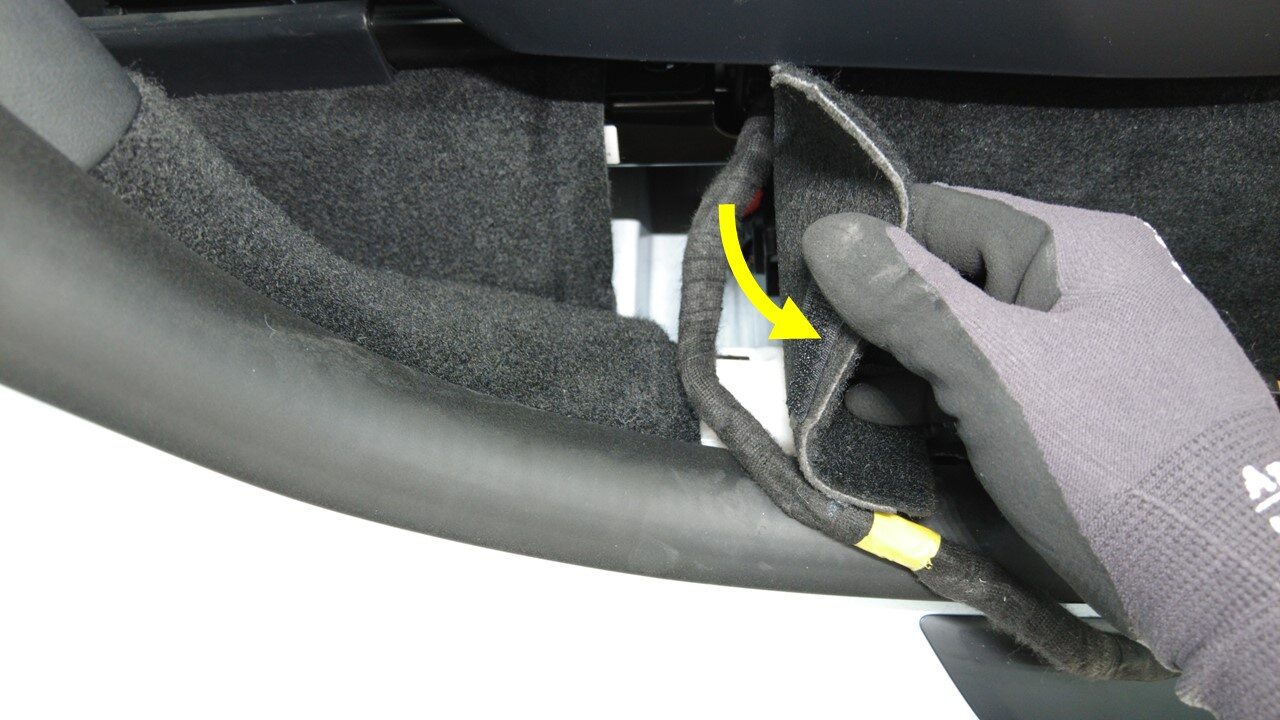

Pull RH front seat harness from under RH front cabin carpet

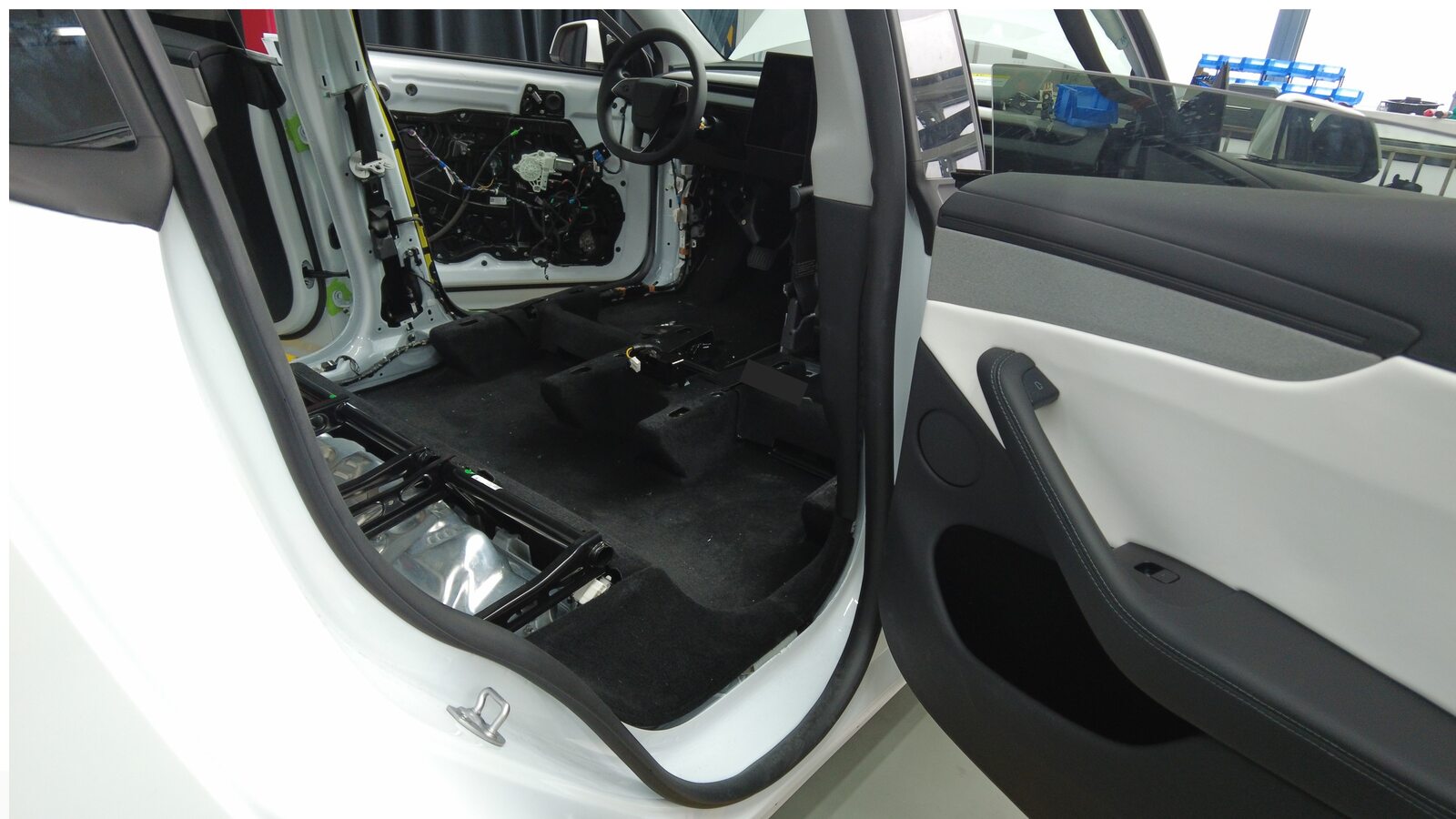

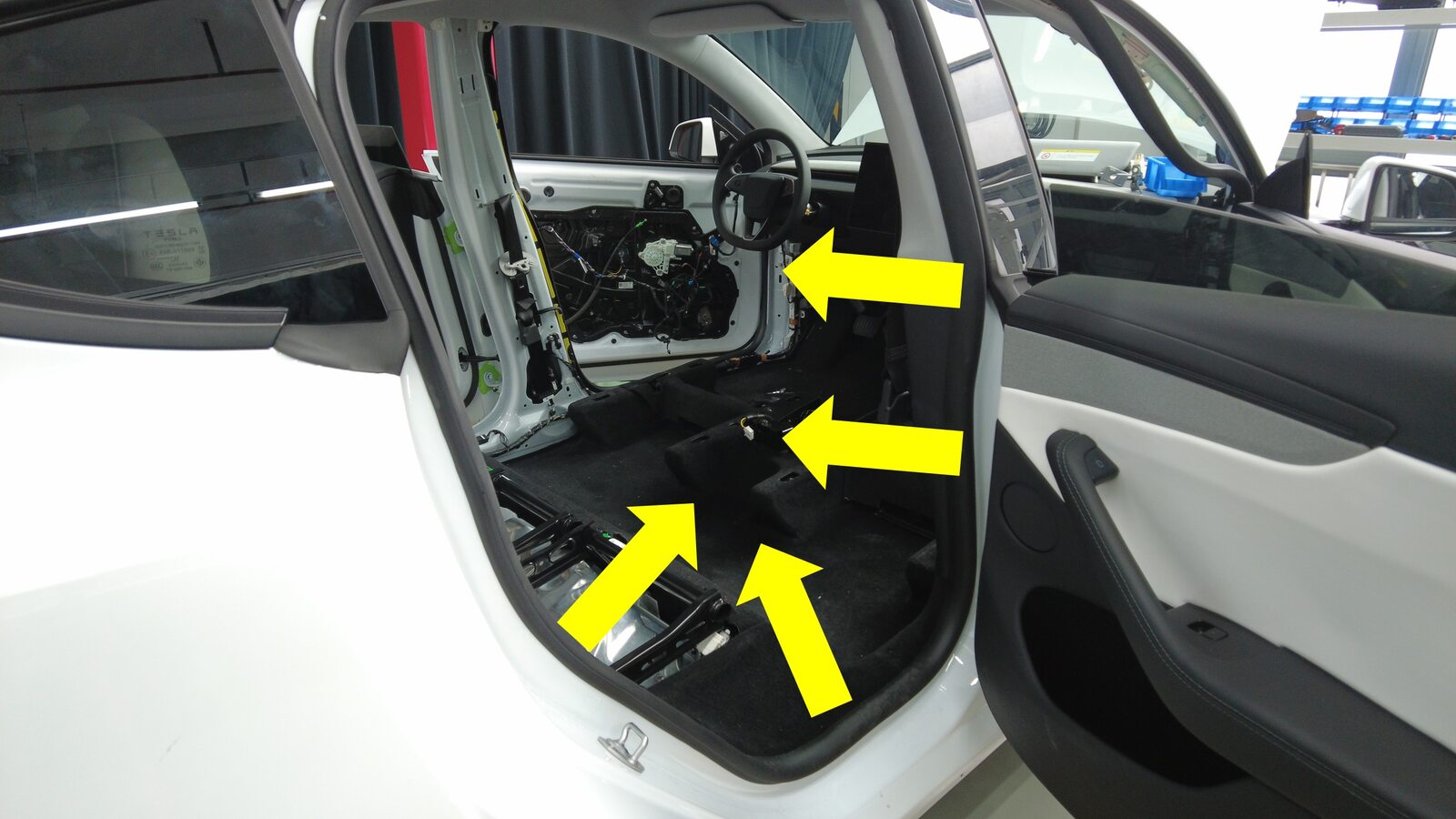

Remove RH front seat from vehicle

Note
Recommend assistance, With assistant supporting seatback from 2nd row seat, Remove seat from front RH door opening, Caution not to damage any trim, Protect the seat upholstery when the seat is outside of the vehicle

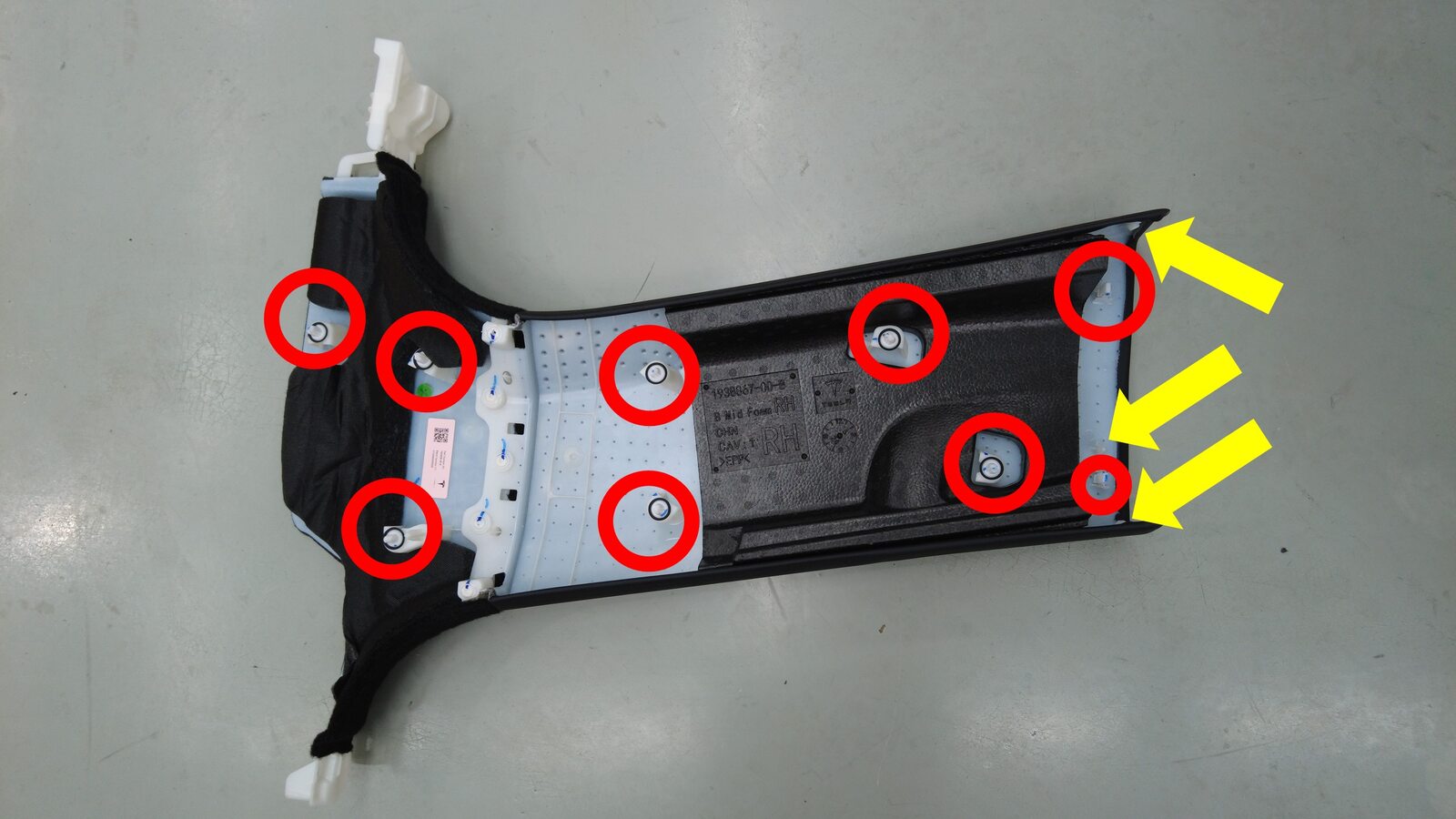

Remove RH lower B pillar trim

Note
2x tabs, 1x locator tab, 9x clips, 1x push clip, Release both top side tabs, first pull upper half trim toward inside of the car, and then pull lower half trim outward to release all clips
Release RH upper B pillar trim

Note
2x edge clips, 2x clips, 2x locator pins, Pull the bottom of the upper B-pillar toward inside of the car, then pull the top to release the remaining clips

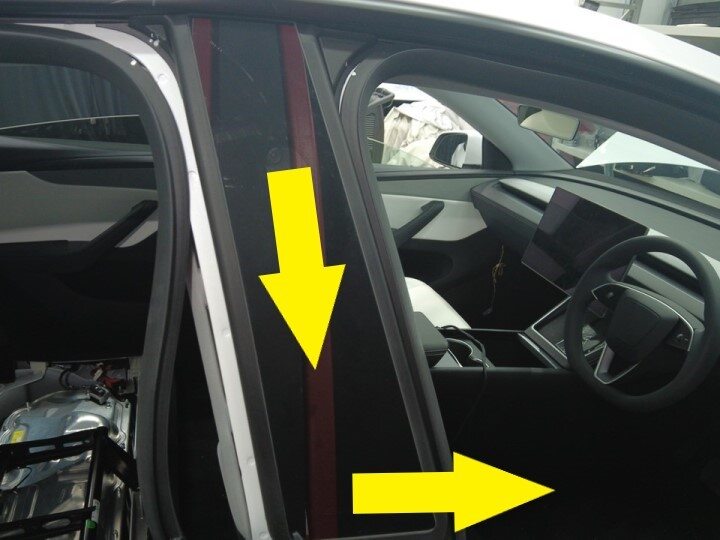

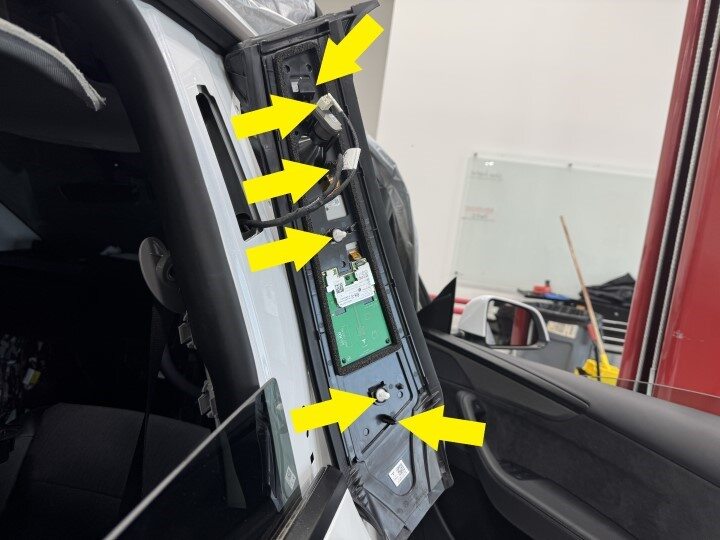

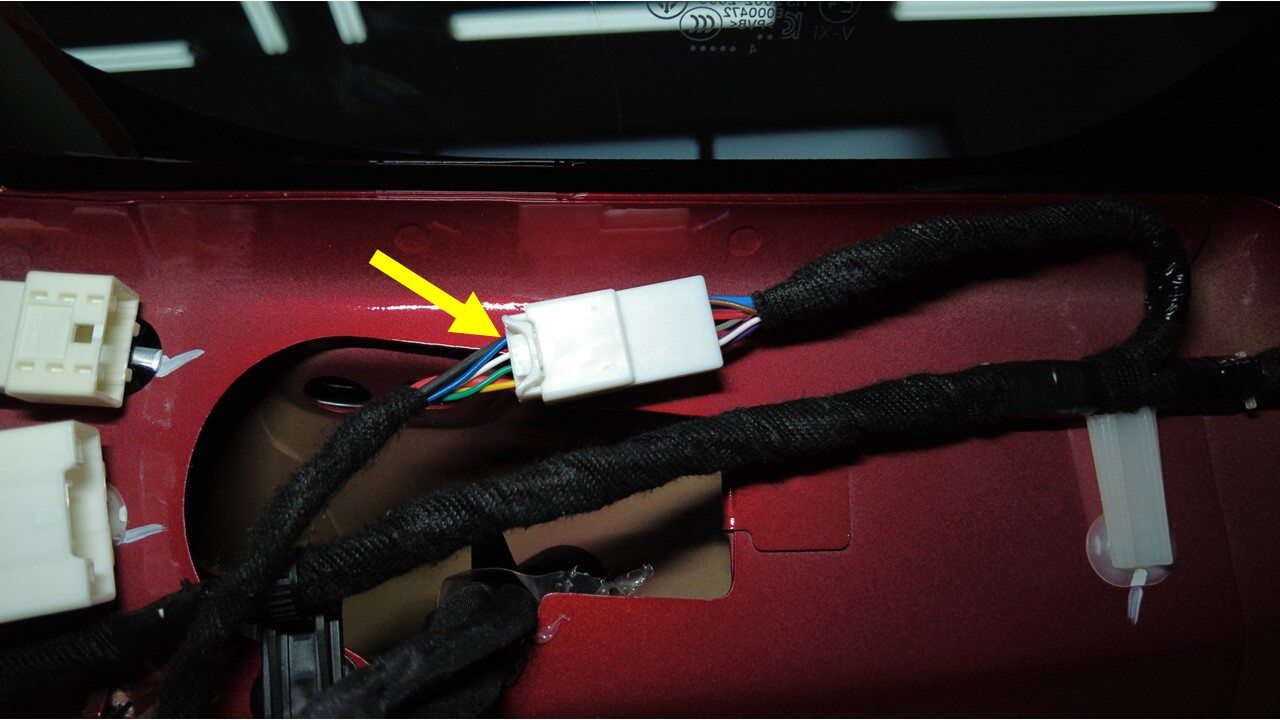

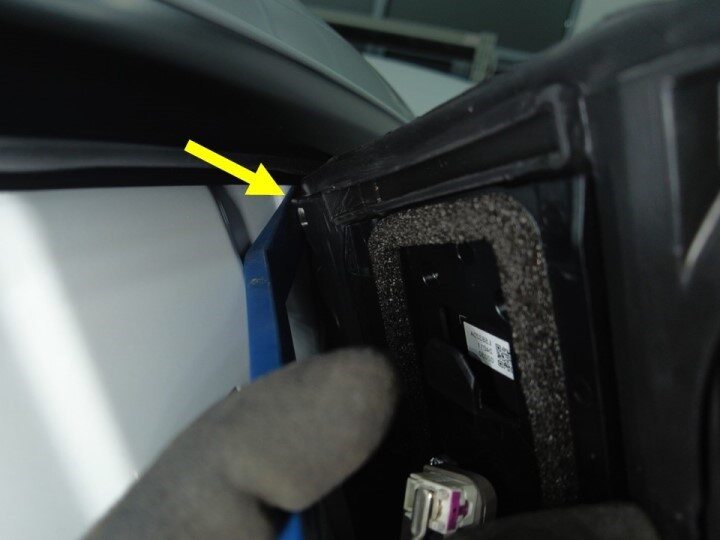

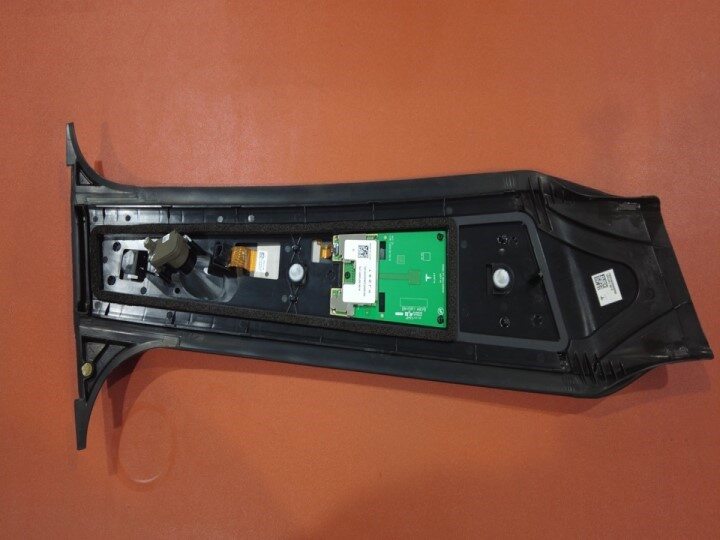

Remove RH B-pillar applique

Note
2x connectors, 3x clips, 2x adhesive strips, 1x hook, 1x datum, Peel lower section of seal away from body to release adhesive, Gently pry away lower section of applique to release clips, Pry directly on clip when releasing upper seal clip as otherwise it may separate from seal, Release locking tabs

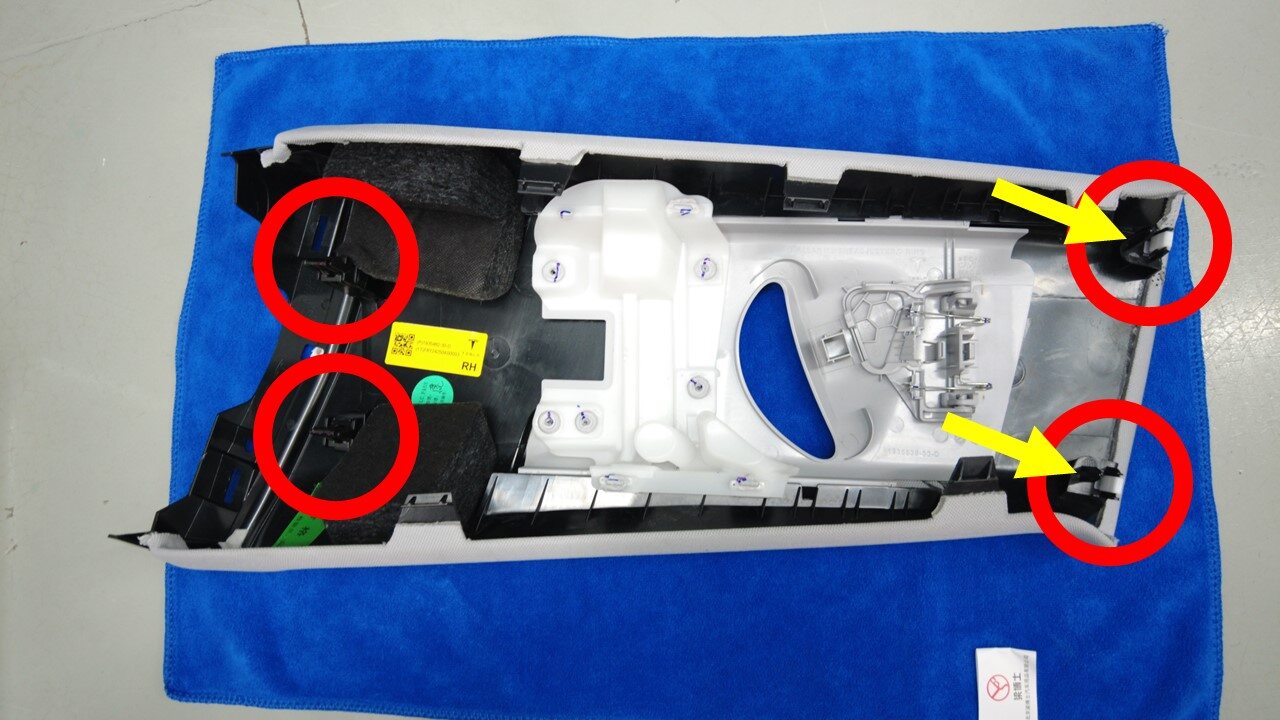

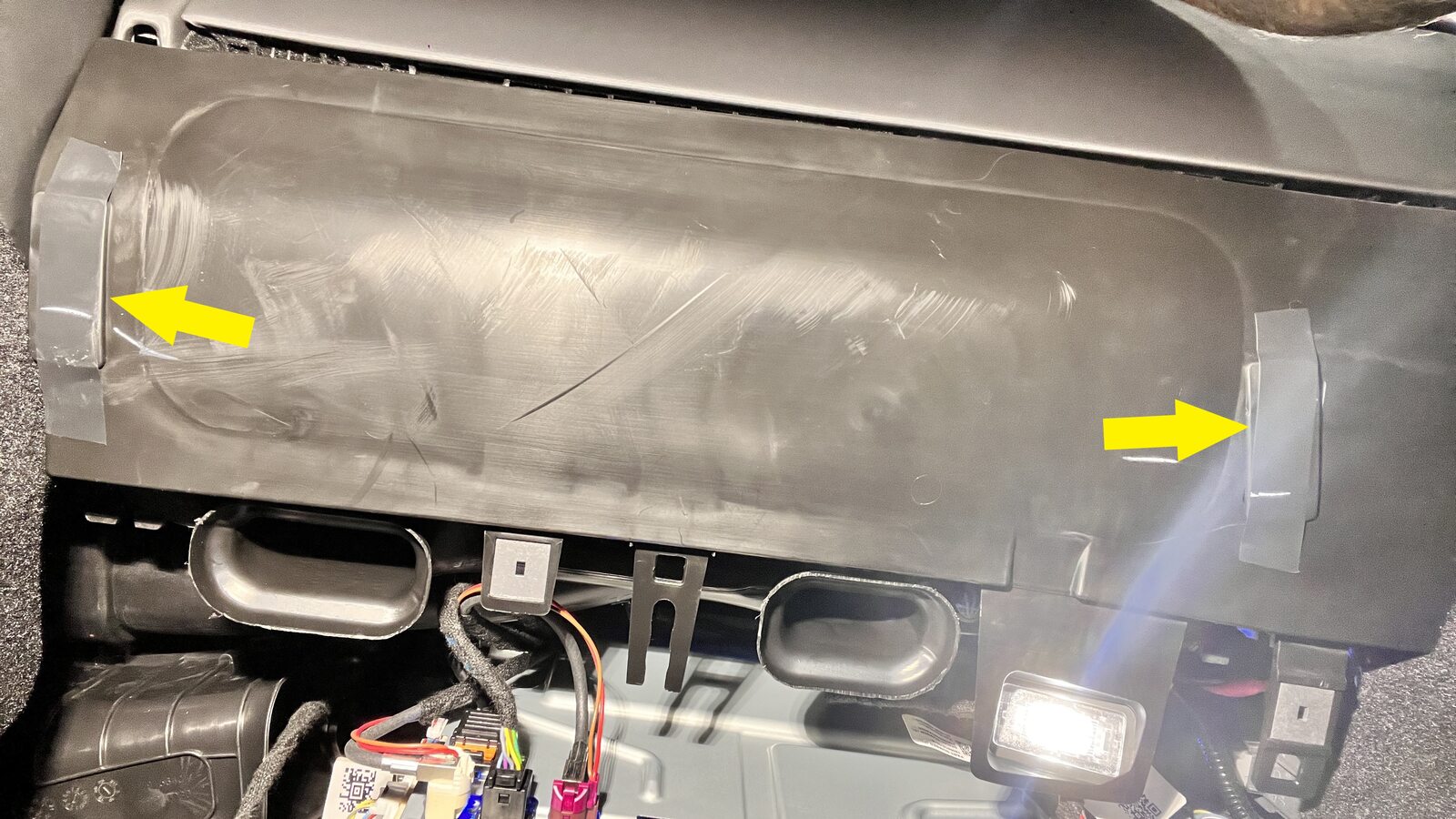

Release front RH cabin carpet cover from RH knee air bag cover

Note
1x connector, 2x magnets, 2x datums

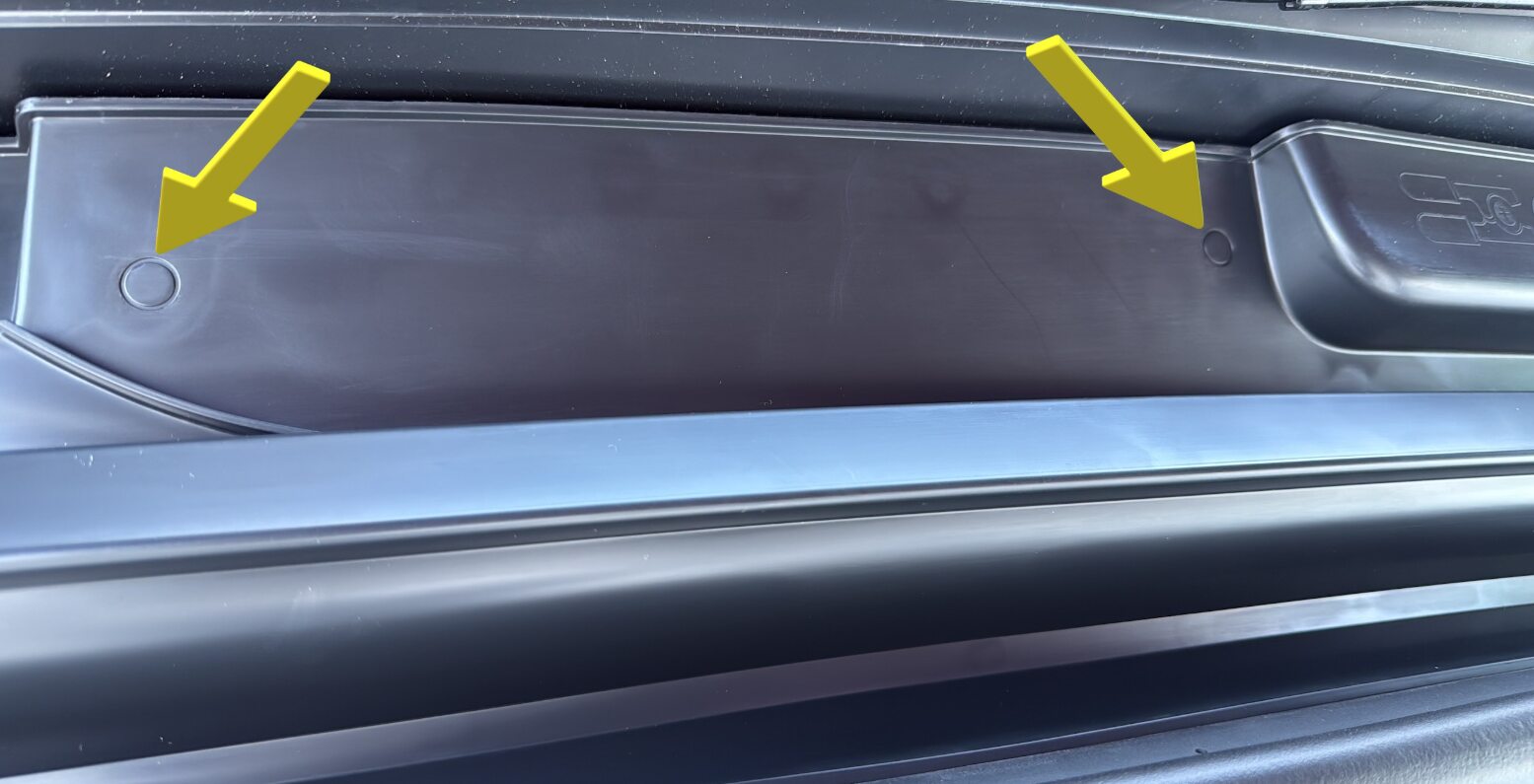

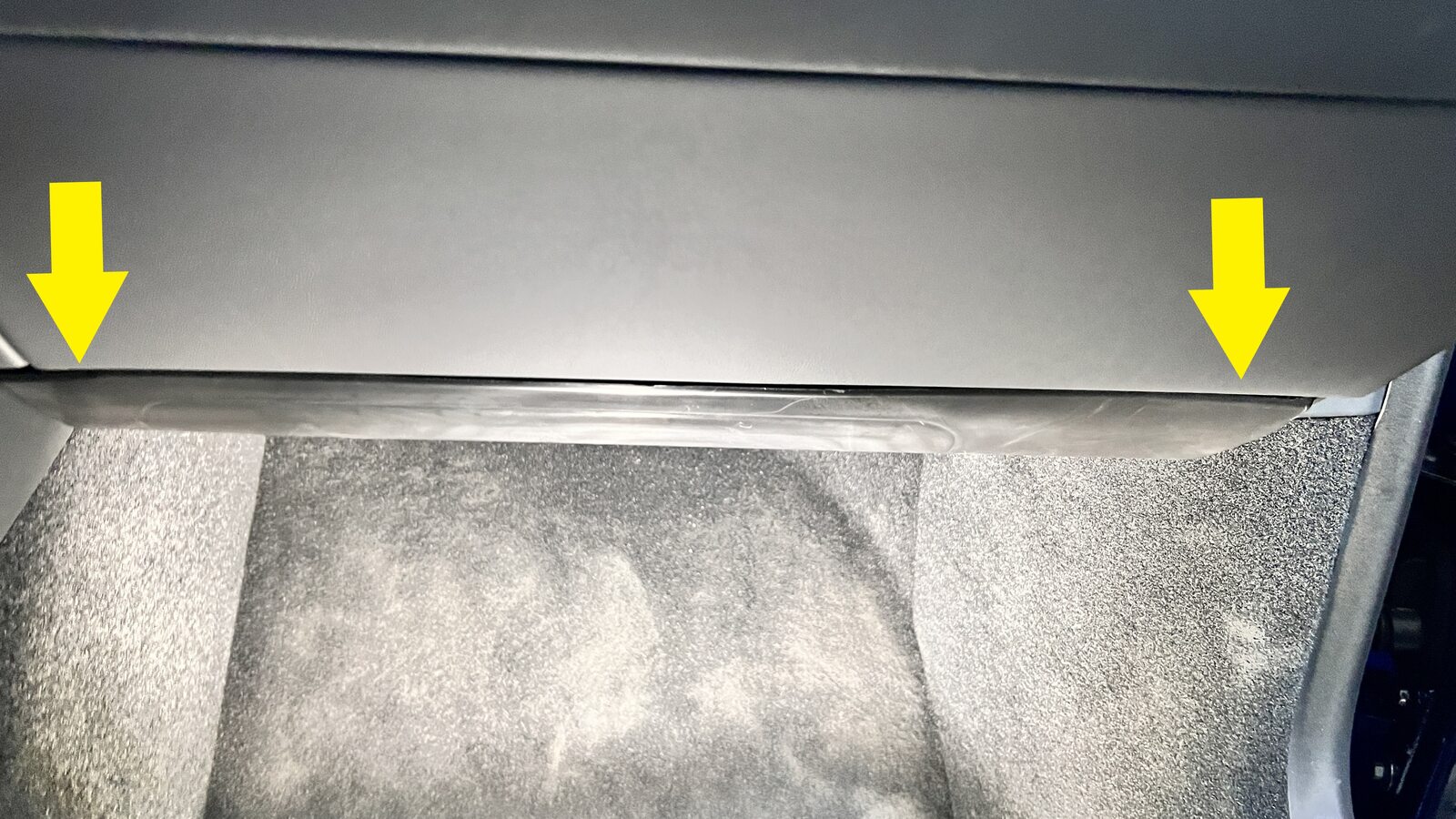

Remove RH knee air bag bolt covers

Note
2x covers
Remove RH knee air bag bolts

Note
4x bolts, EP10, 8.5 Nm, Discard bolts after removal

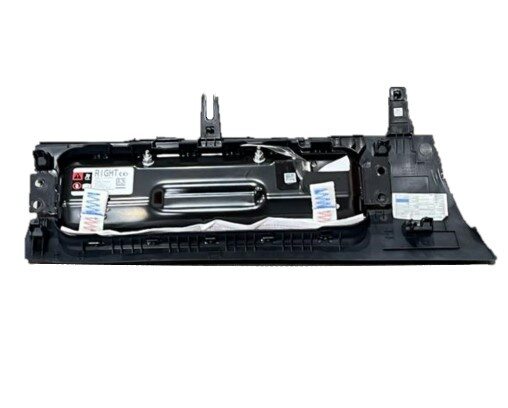

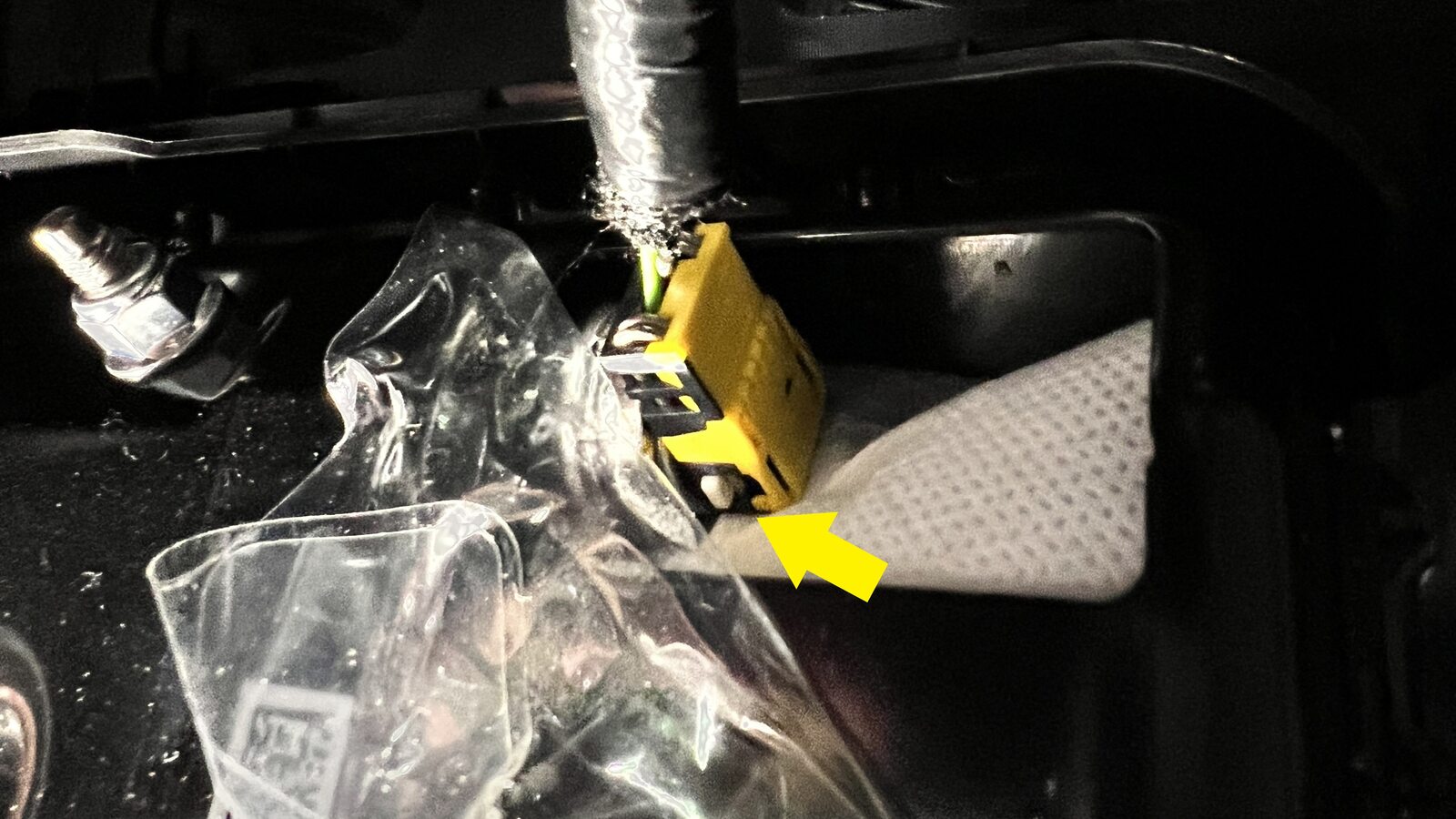

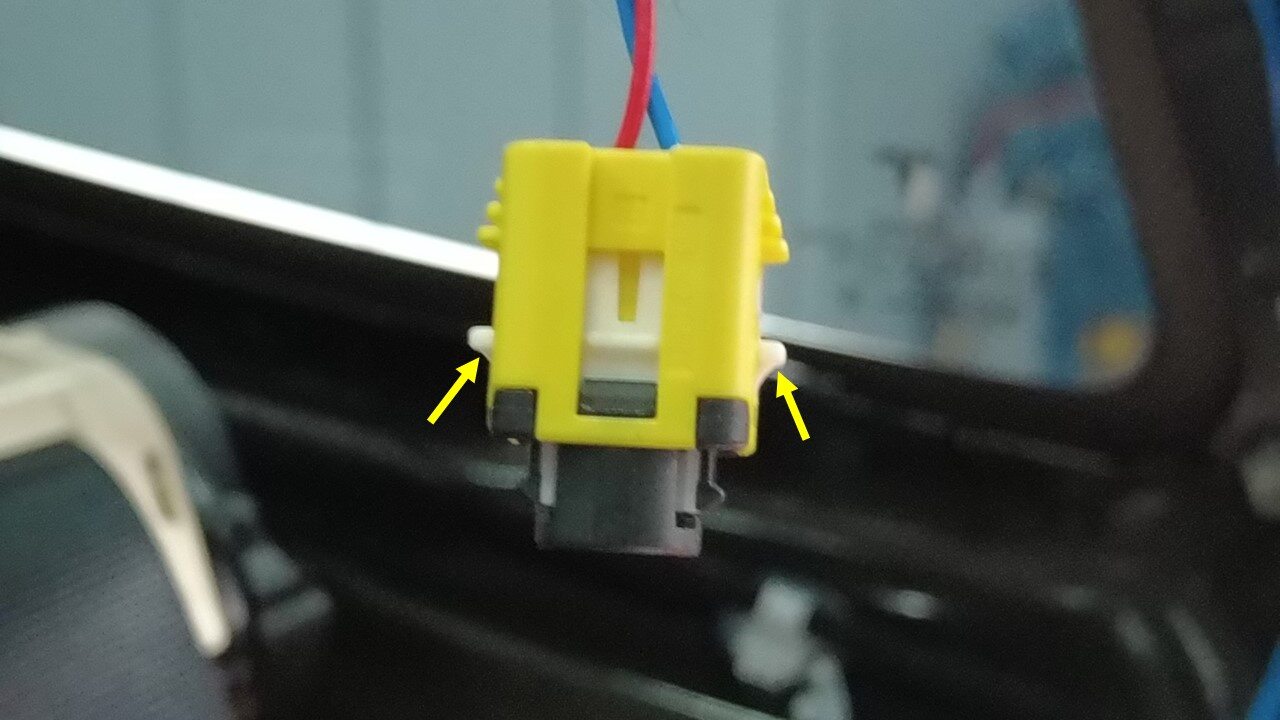

Remove RH knee air bag assembly

Note
1x air bag connector, 1x connector, Peel back plastic film, Release by pulling back both white tabs simutaneously, Avoid straining harness, Only one tab visible in image matching tab is on opposite side
Disconnect glove box USB cable from car computer

Note
1x connector, Release locking tab then release connector
Remove clip securing passenger footwell duct to glove box

Note
1x push clip
Release IP harness from glove box

Note
1x harness guide

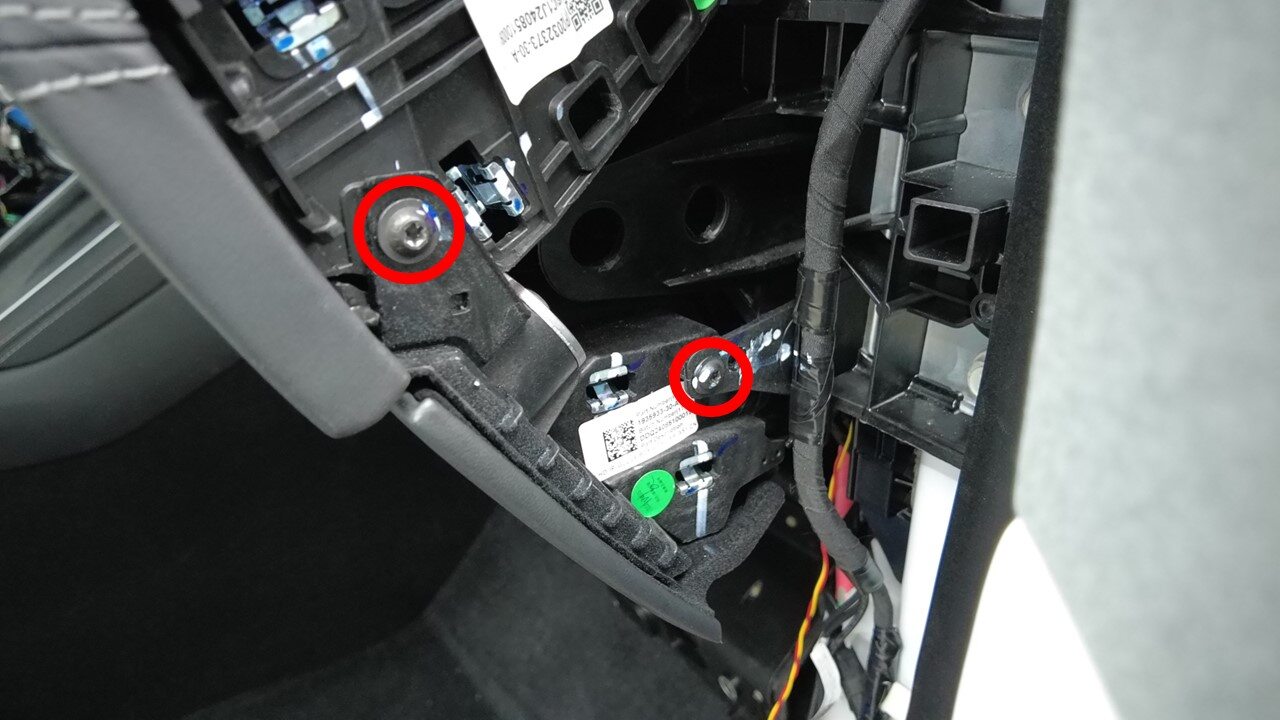

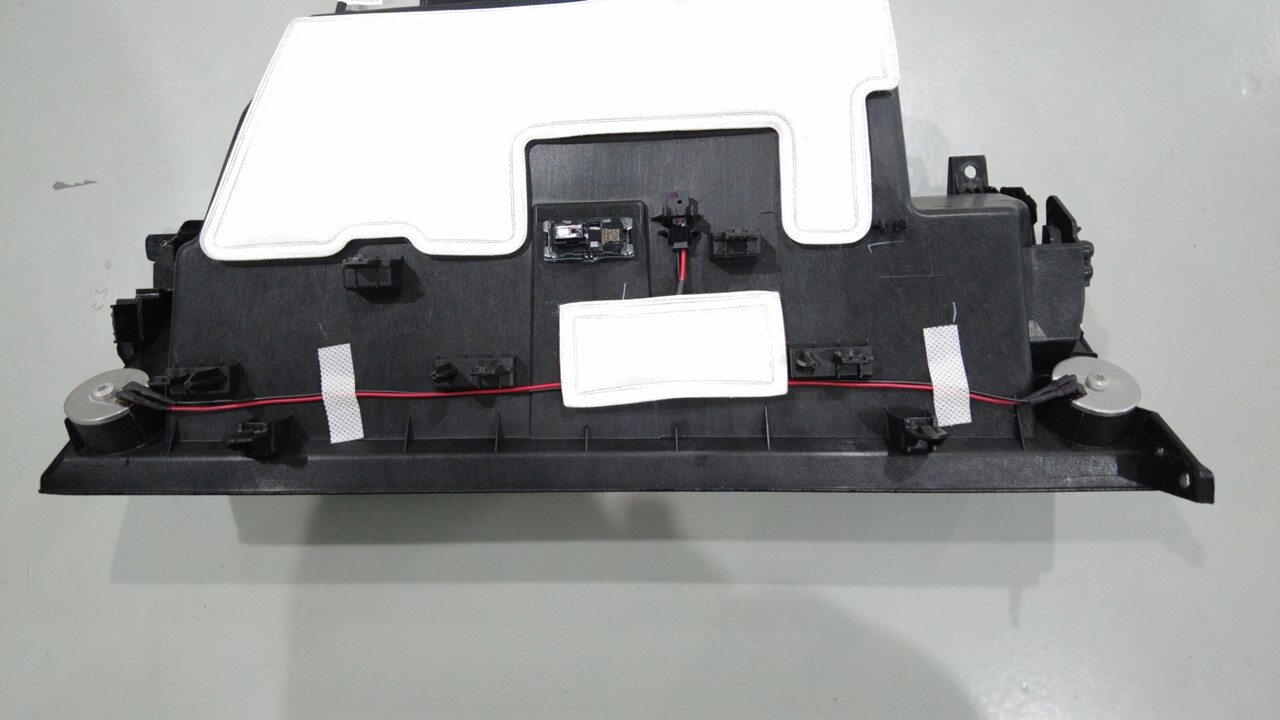

Remove screws securing glove box assembly from IP carrier

Note
4x screws, T20, 2.3 Nm

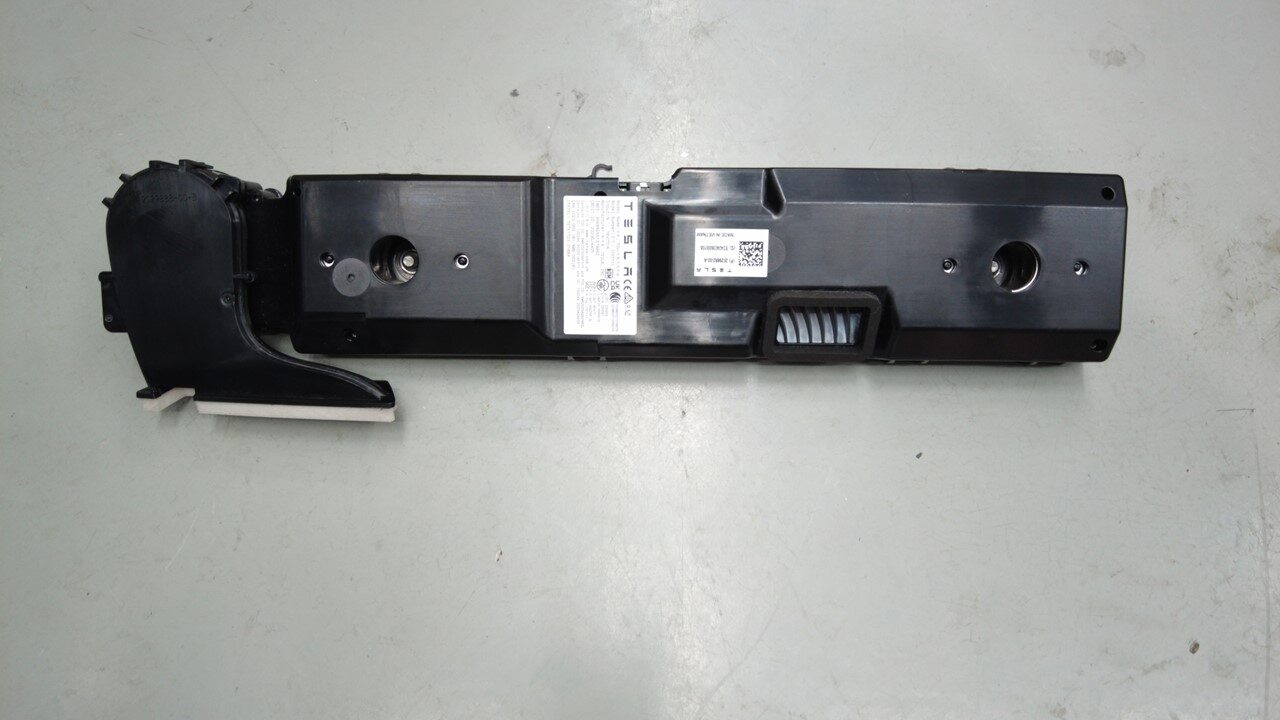

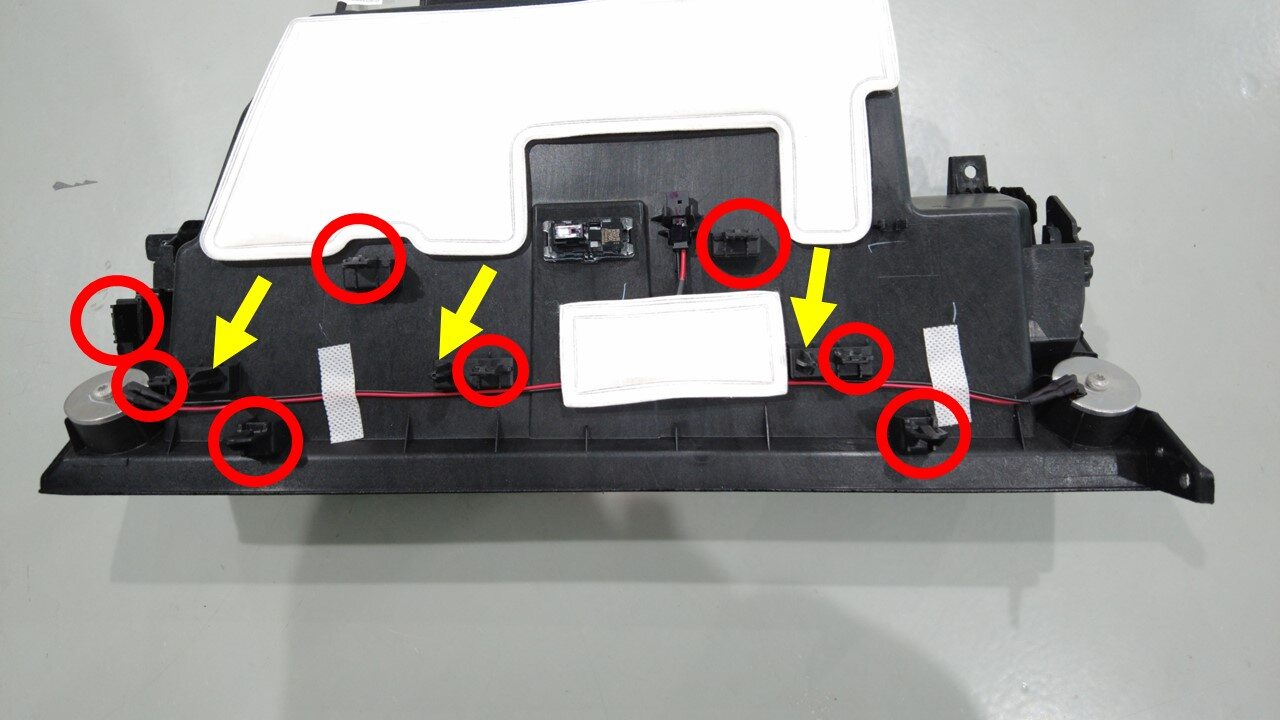

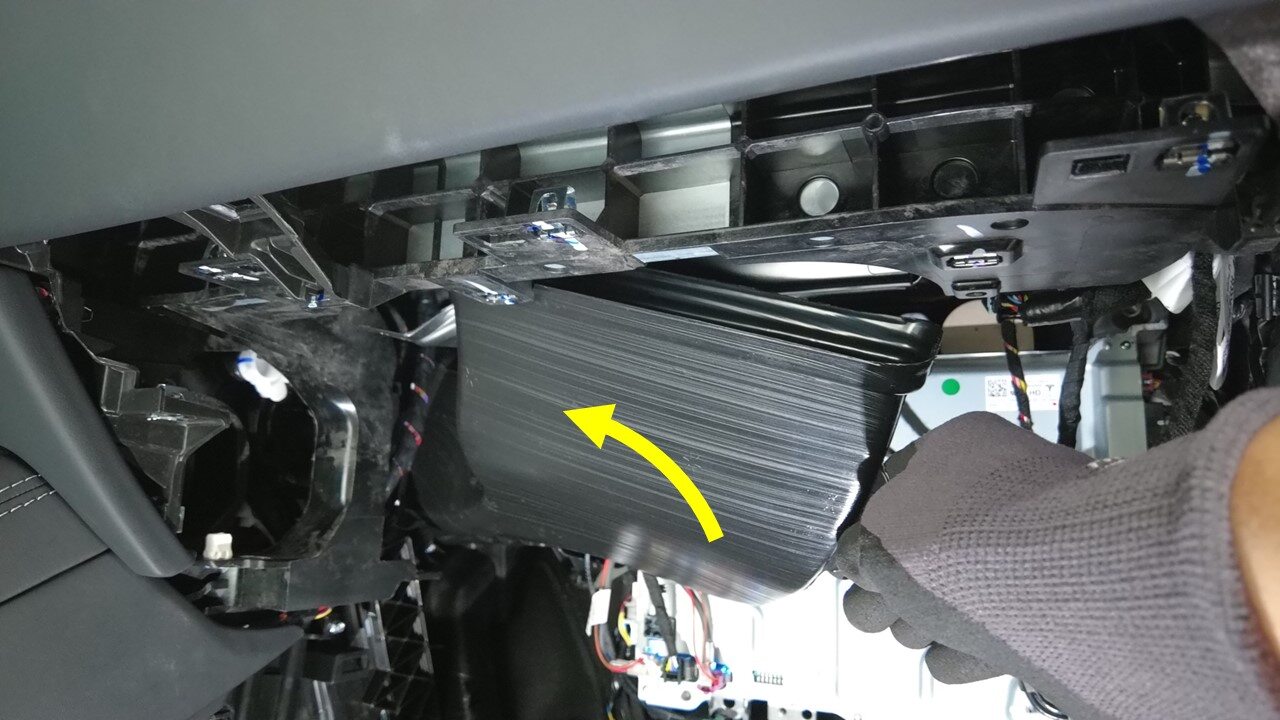

Remove glove box assembly from IP carrier

Note
8x clips, 3x datums
Disconnect glove box assembly connectors

Note

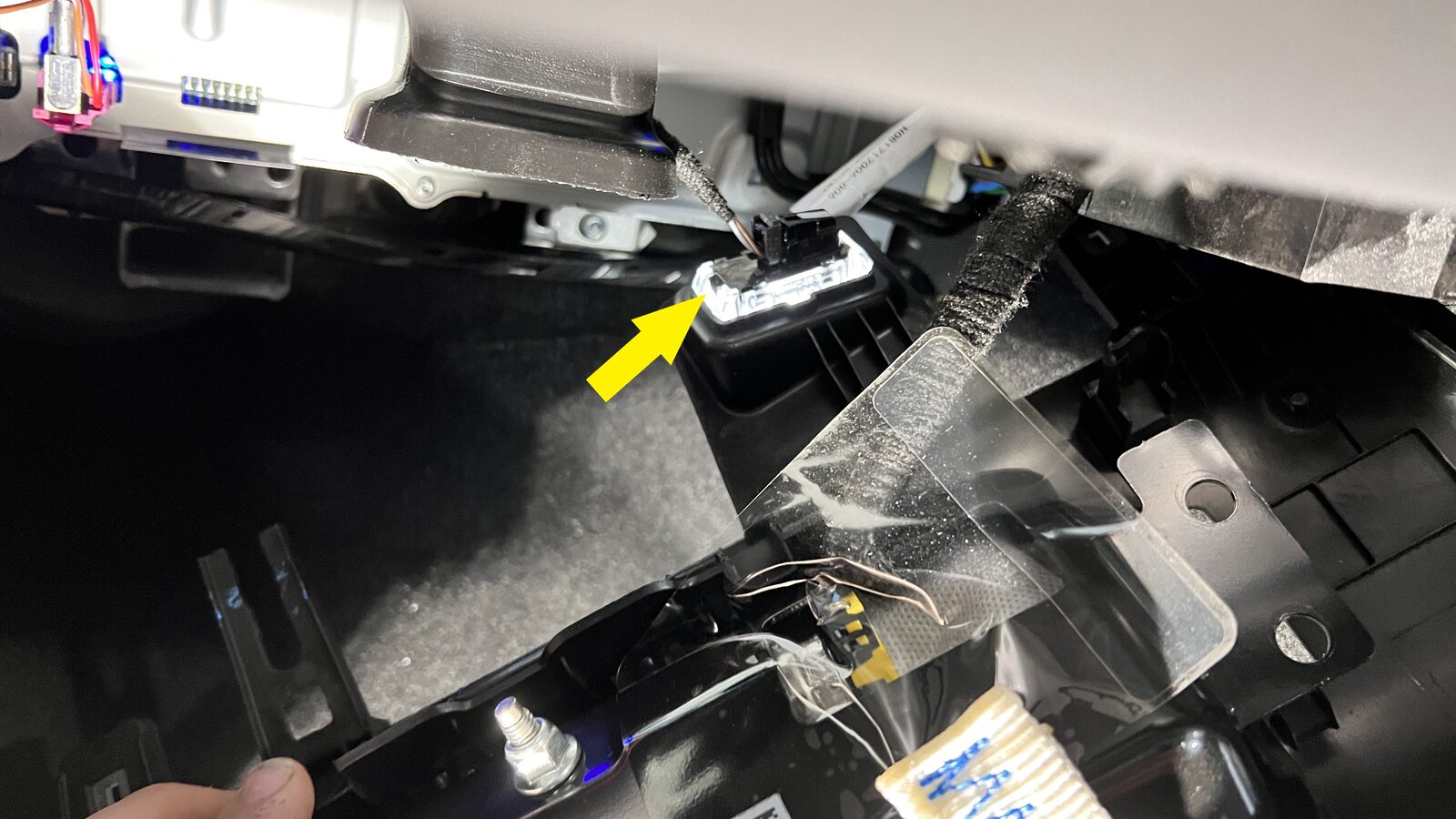

2x connectors, Some vehicles may not be equipped with glove box lamp
Remove clip securing passenger footwell duct from IP carrier

Note
1x push clip

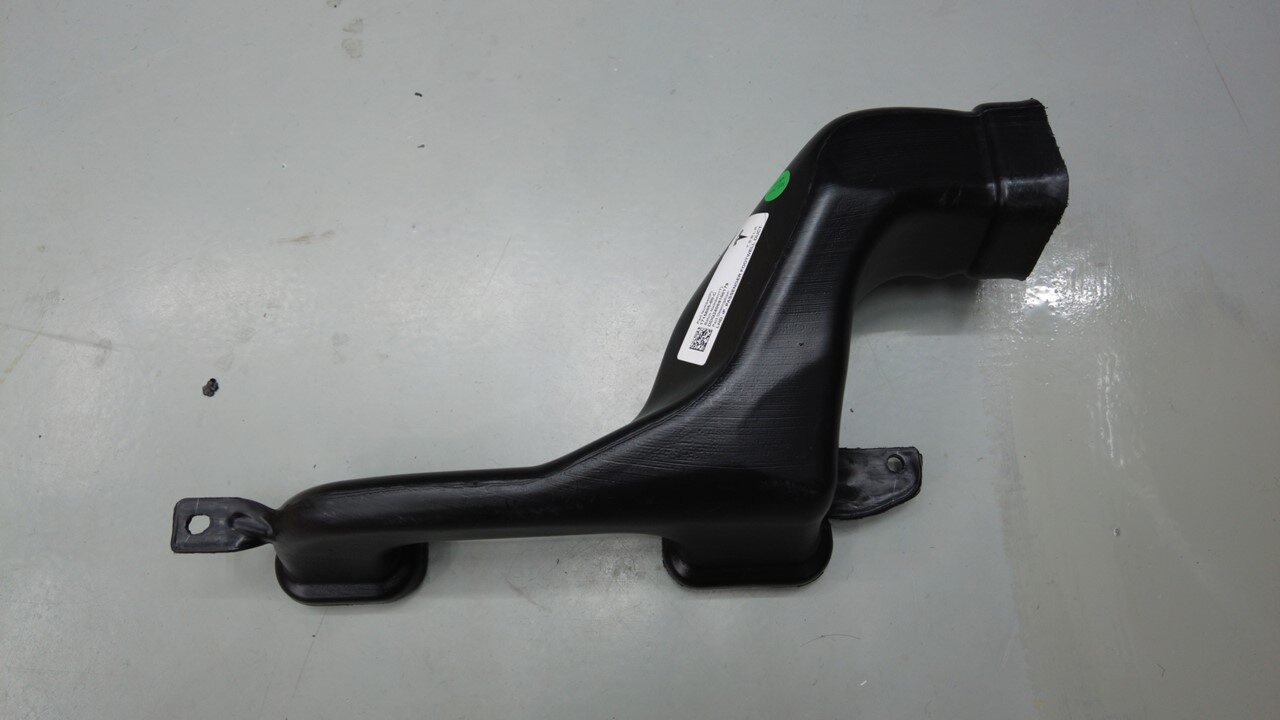

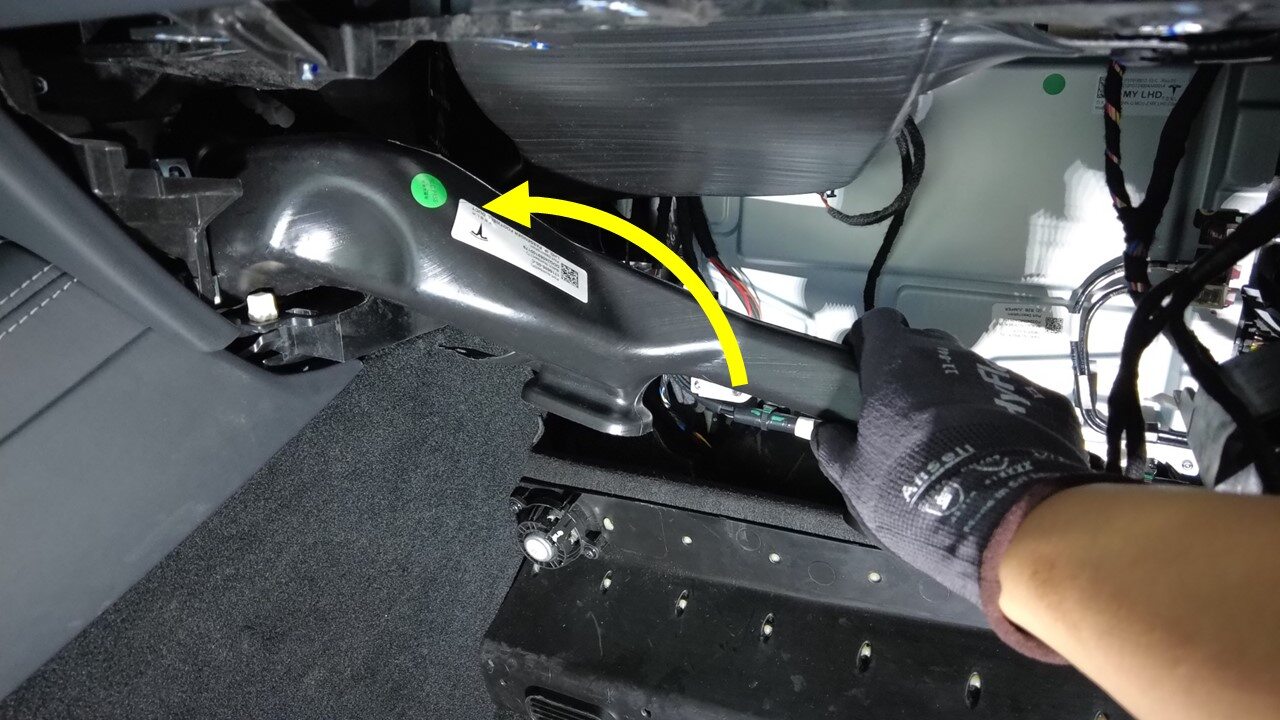

Remove passenger footwell duct from HVAC module

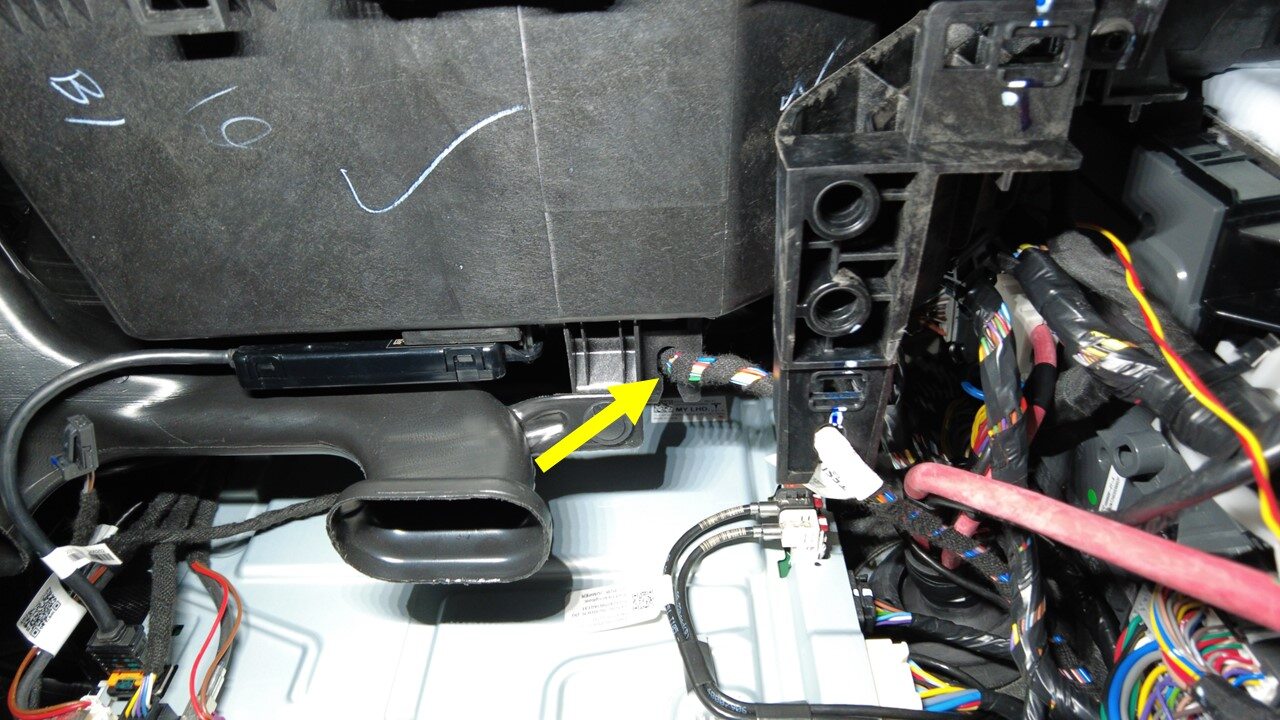

Disconnect RH IP air wave duct thermistor connector

Note
1x connector

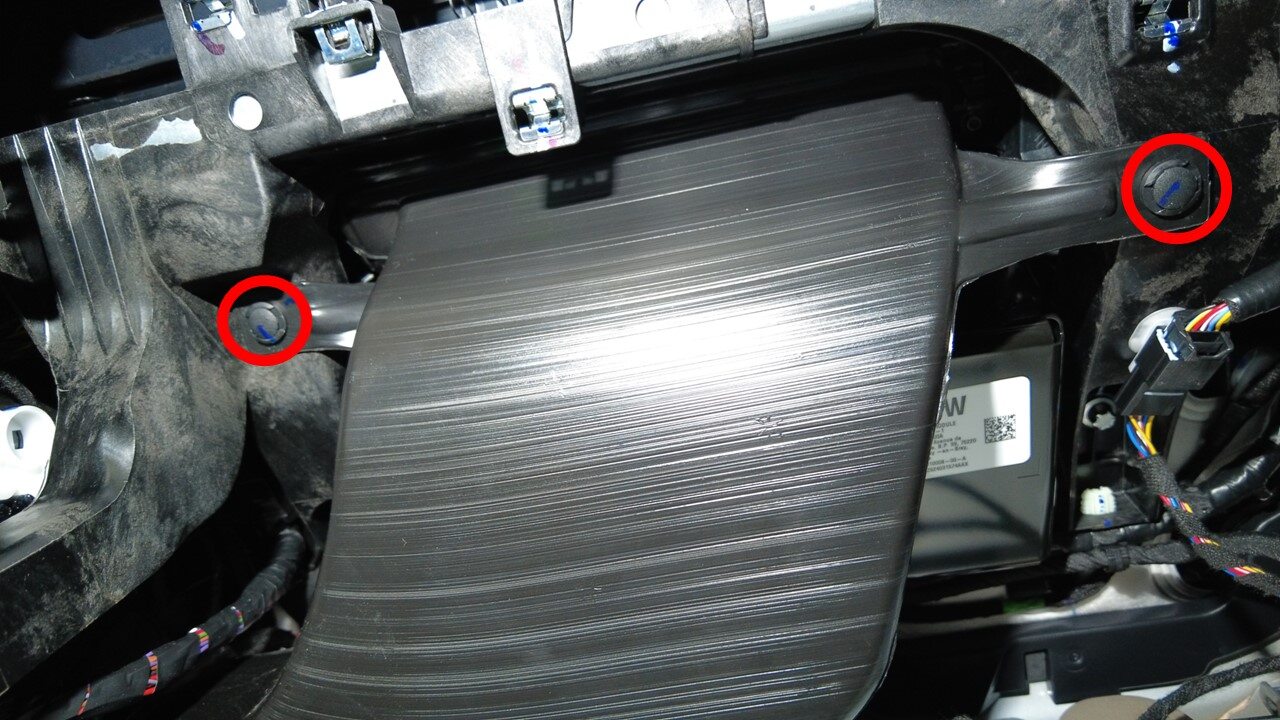

Remove clips securing RH air wave duct from IP carrier

Note
2x push clips
Remove RH IP air wave duct from HVAC module

Note
2x clips

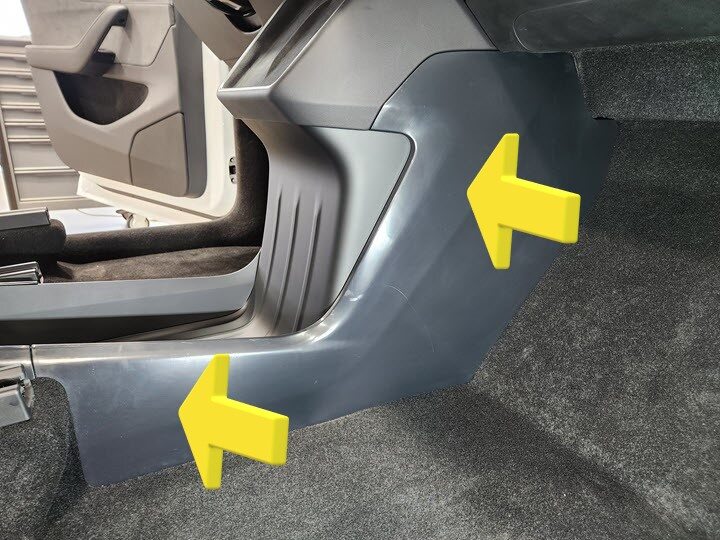

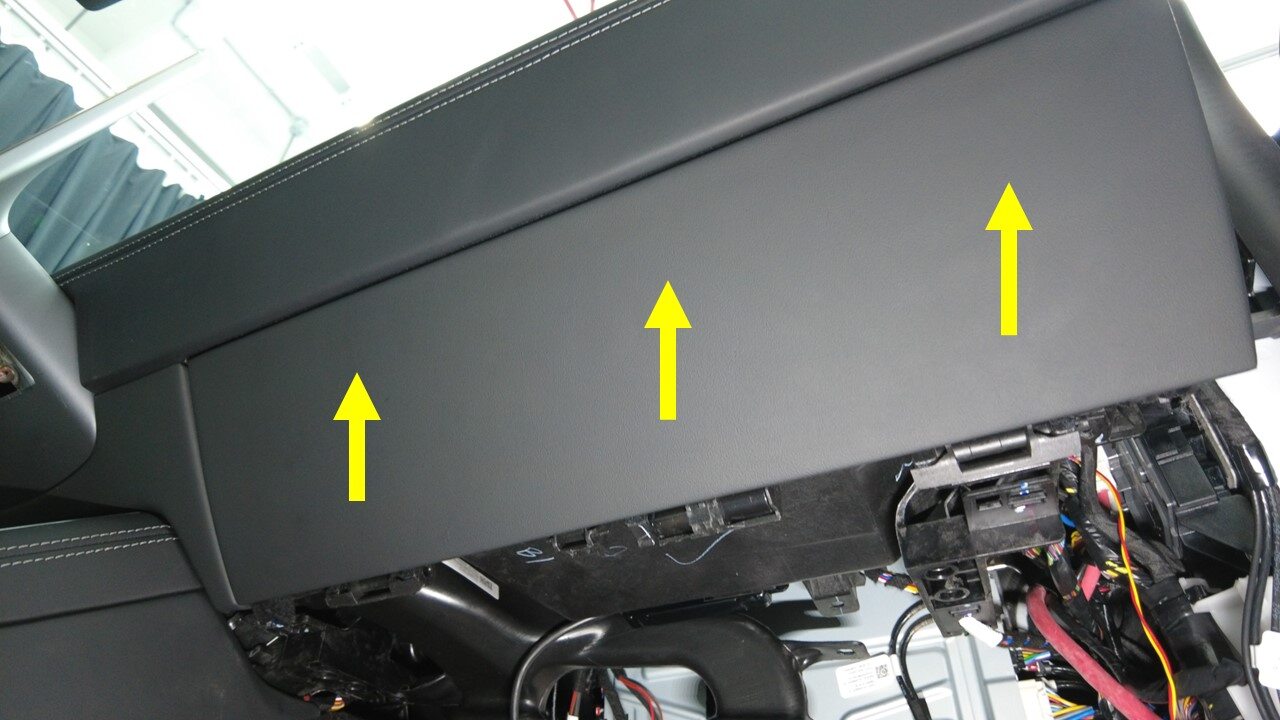

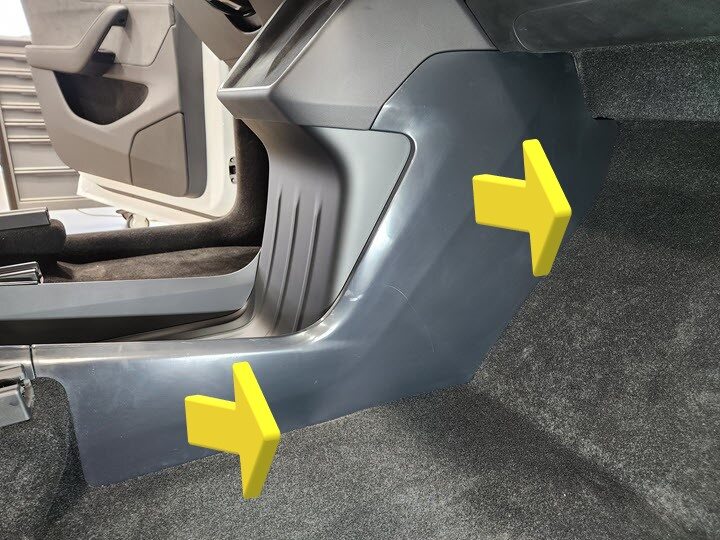

Remove center console RH front side panel

Note
18x clips, 2x datums

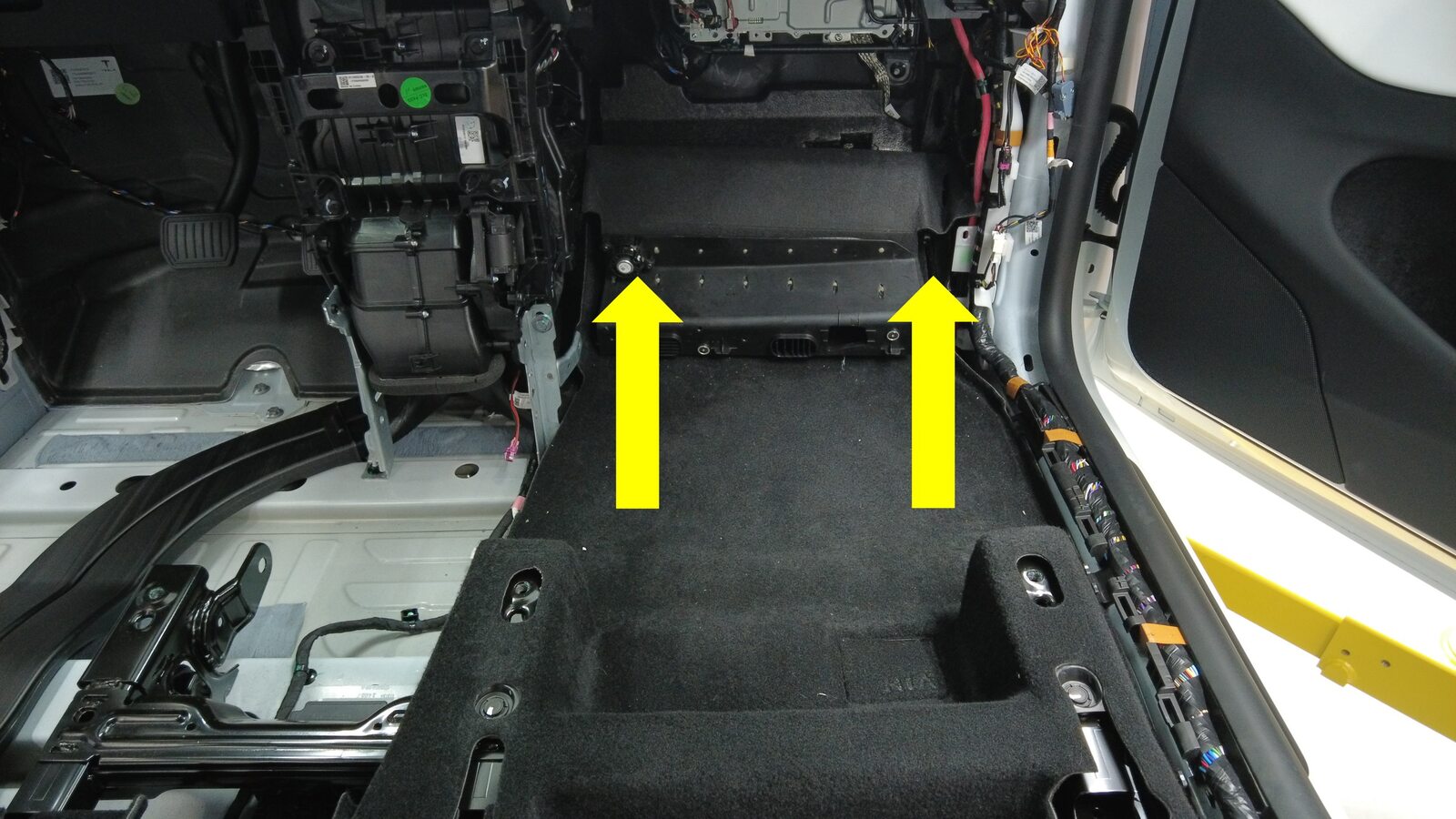

Remove RH front cabin carpet

Note
2x push clips

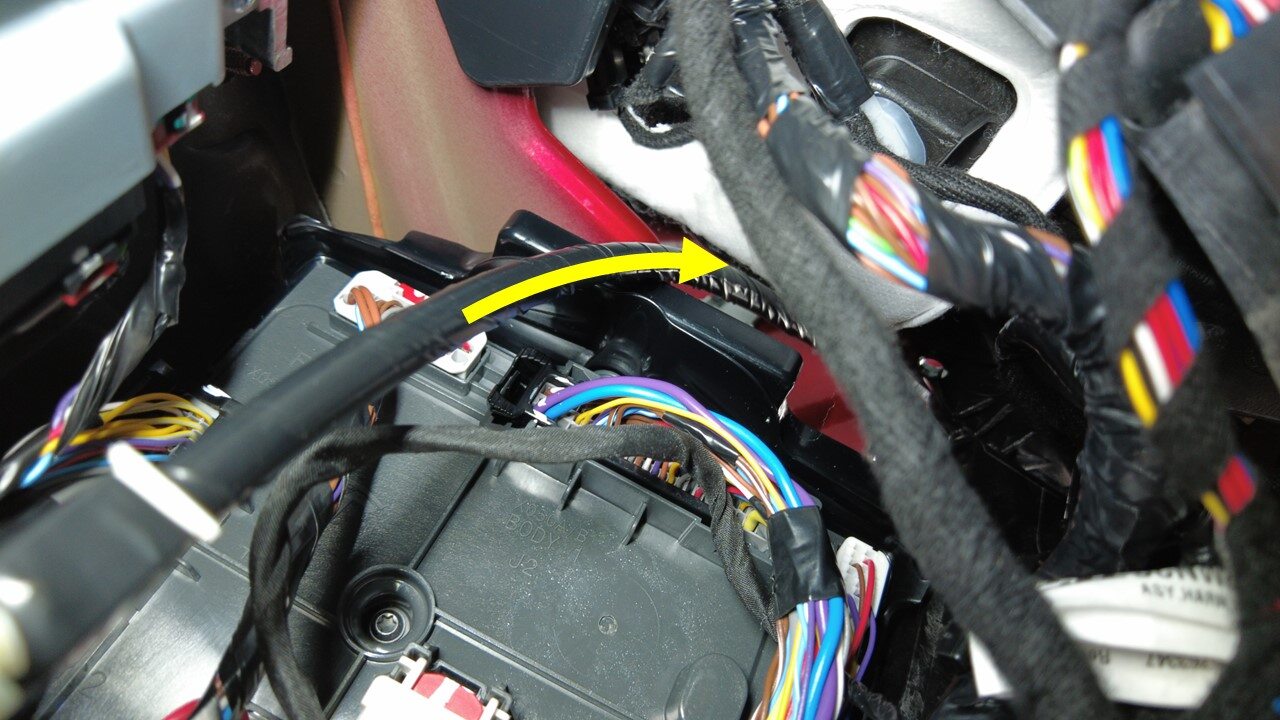

Pull out RH body harness from RH IP

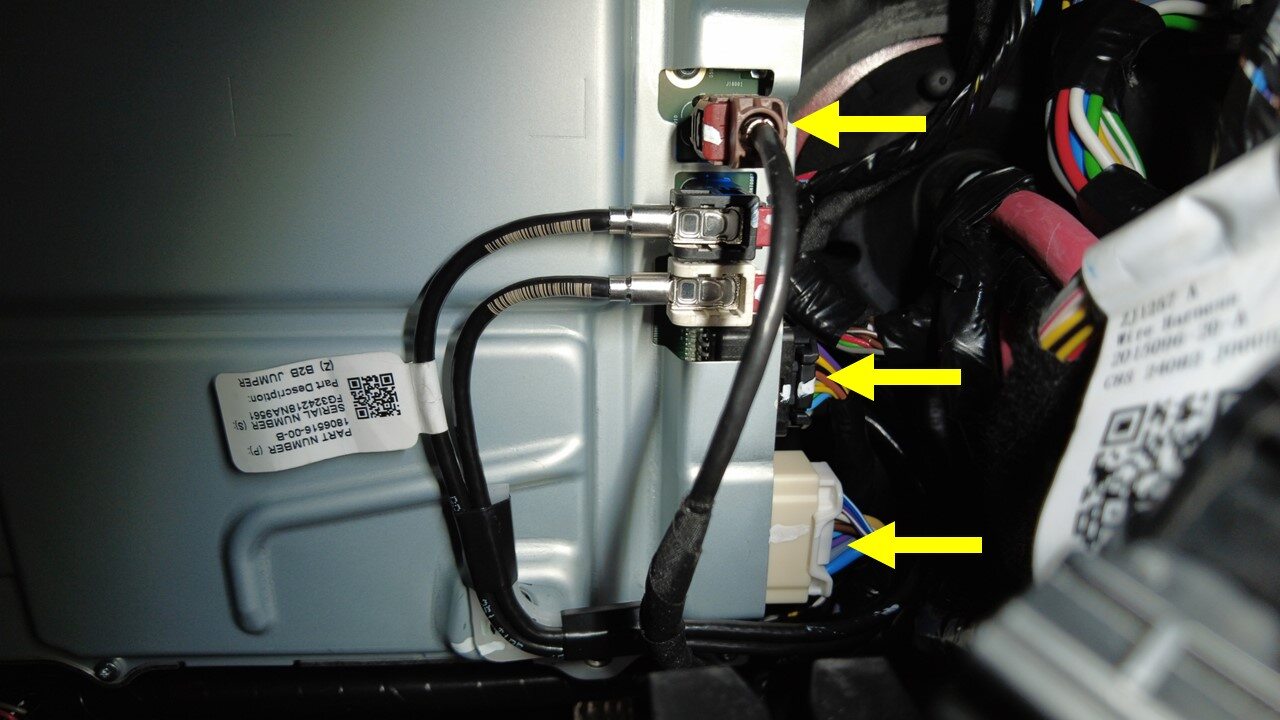

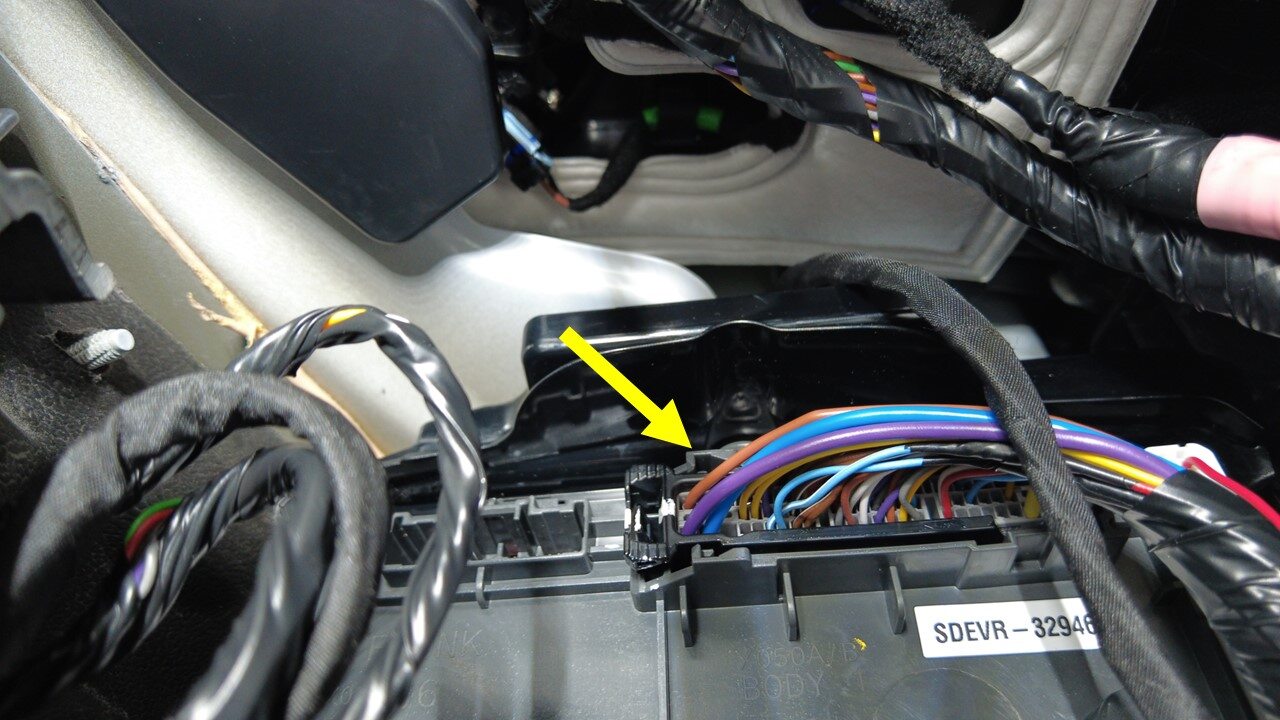

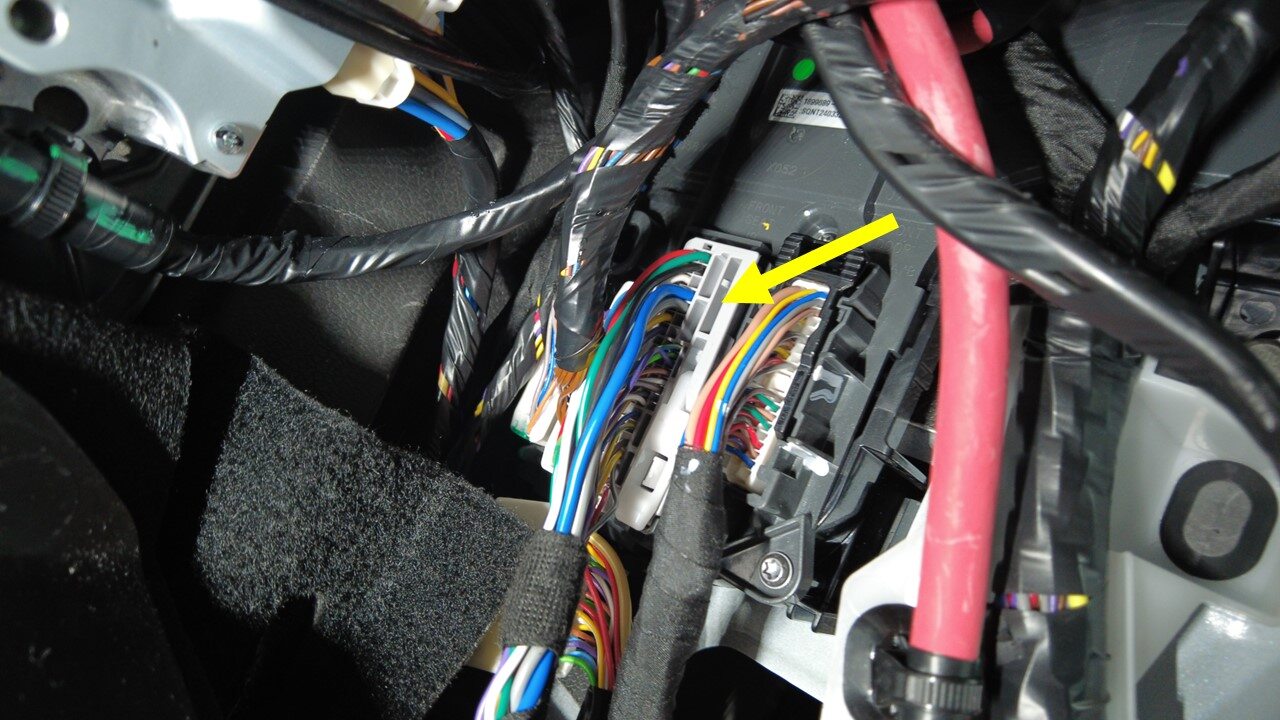

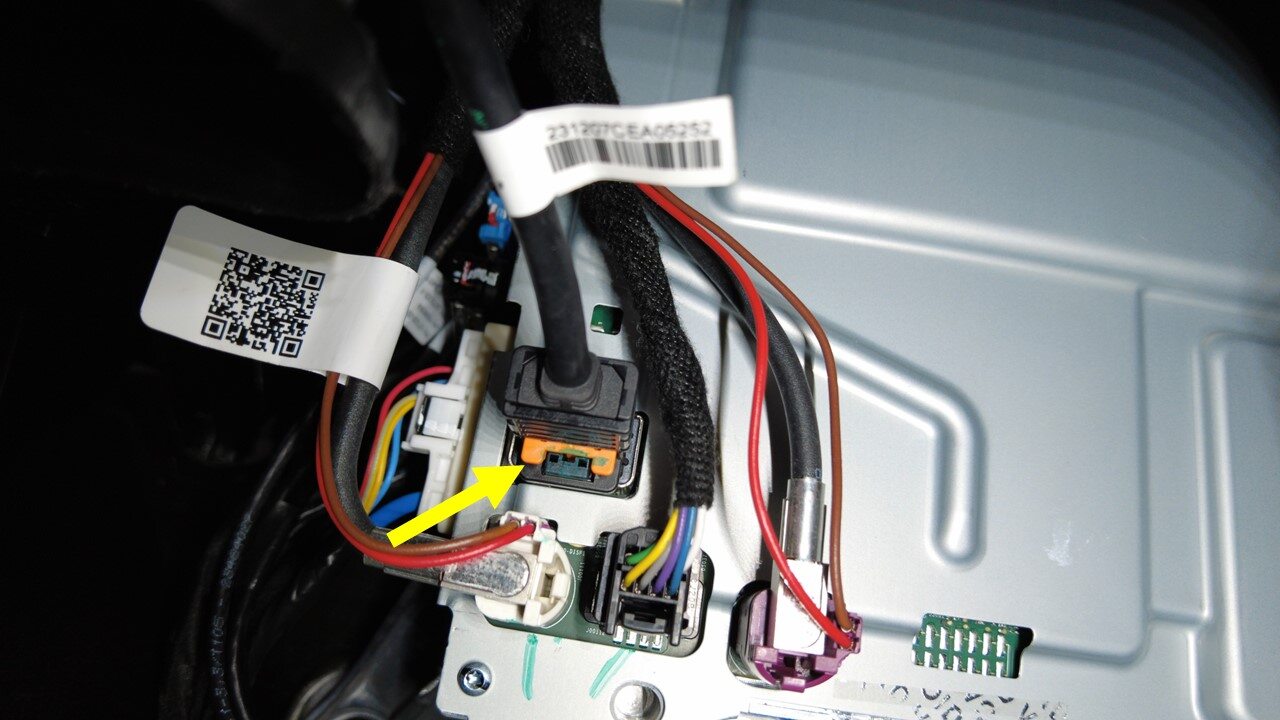

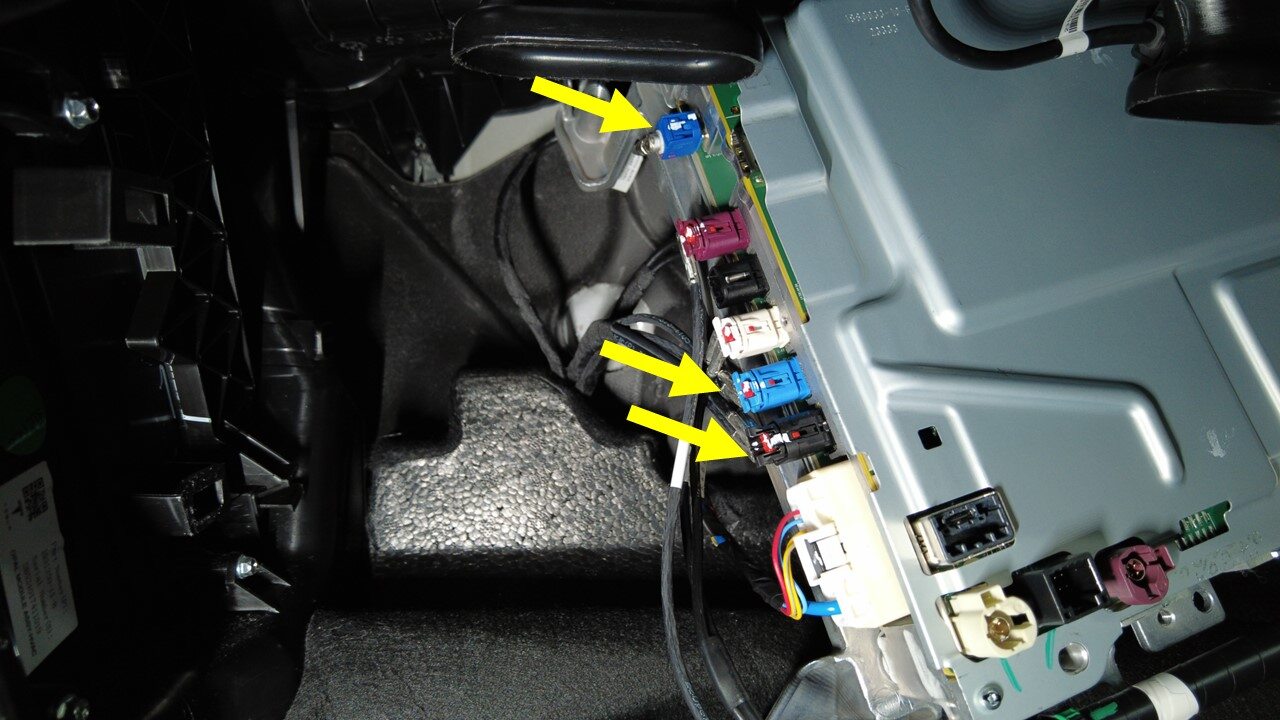

Disconnect RH body harness connectors on LH side of car computer

Note
3x connectors, Release locks on connectors before removal
Disconnect RH body harness connectors on RH side of car computer

Note
3x connectors, Release locks on connectors before removal

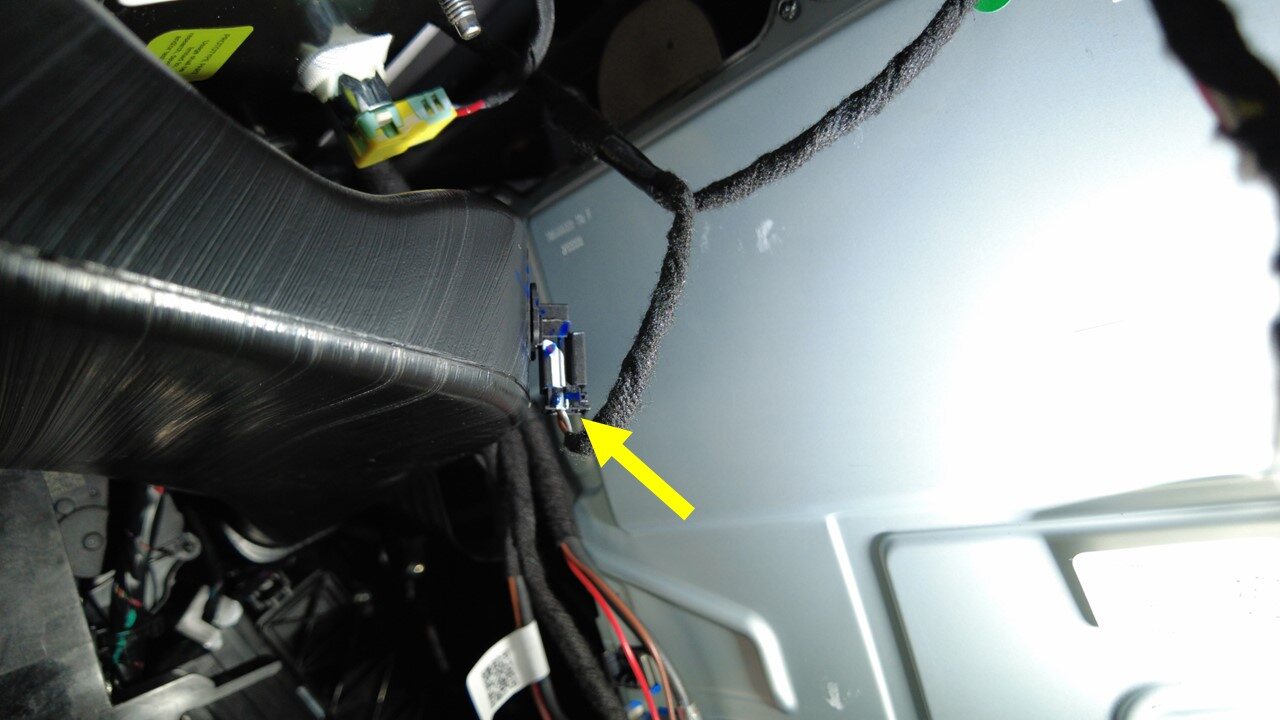

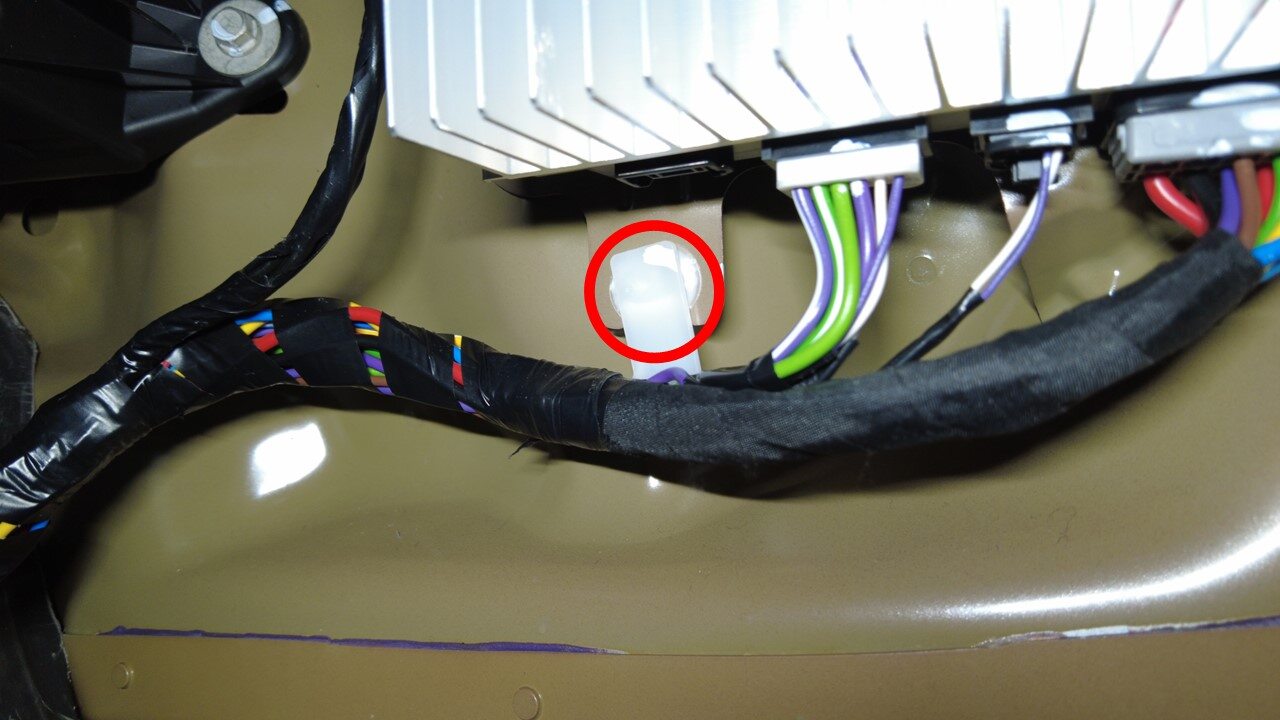

Release harness clip from left lower corner of car computer

Note
1x clip
Release RH body harness clips from RH cowl panel

Note
2x clips

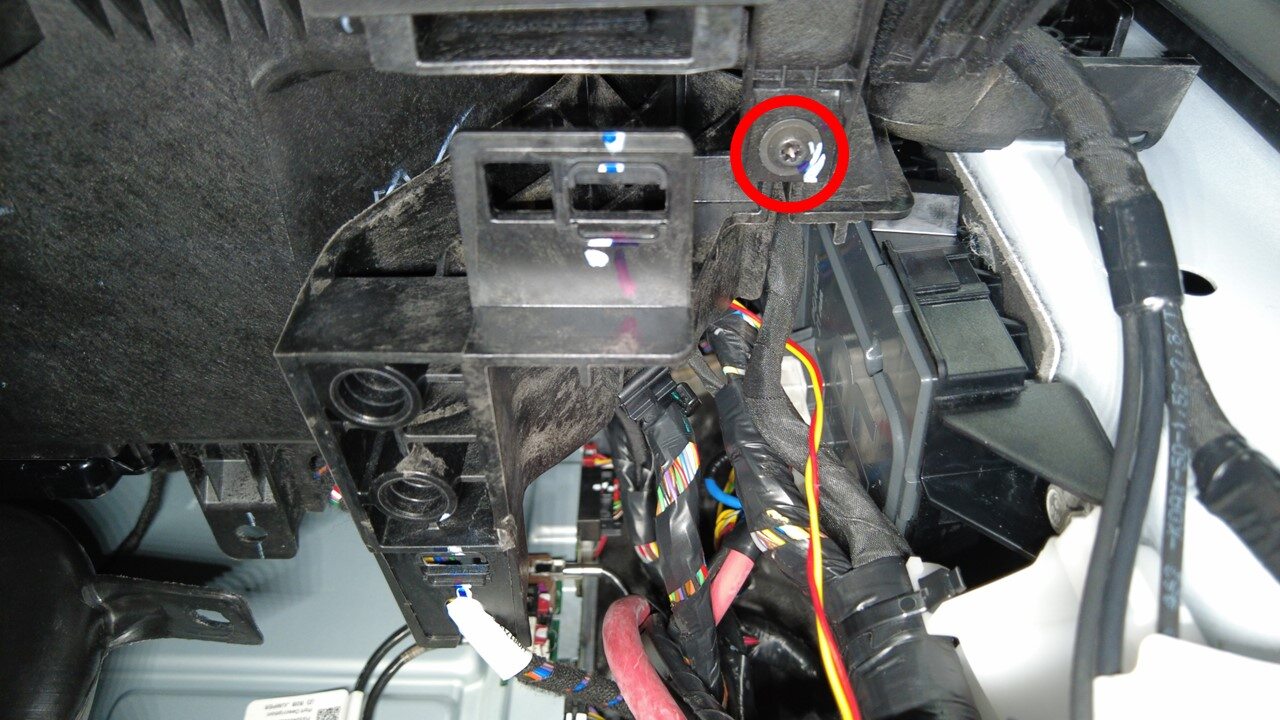

Release front main harness ground on RH A-pillar

Note
1x bolt, 10mm, 10 Nm

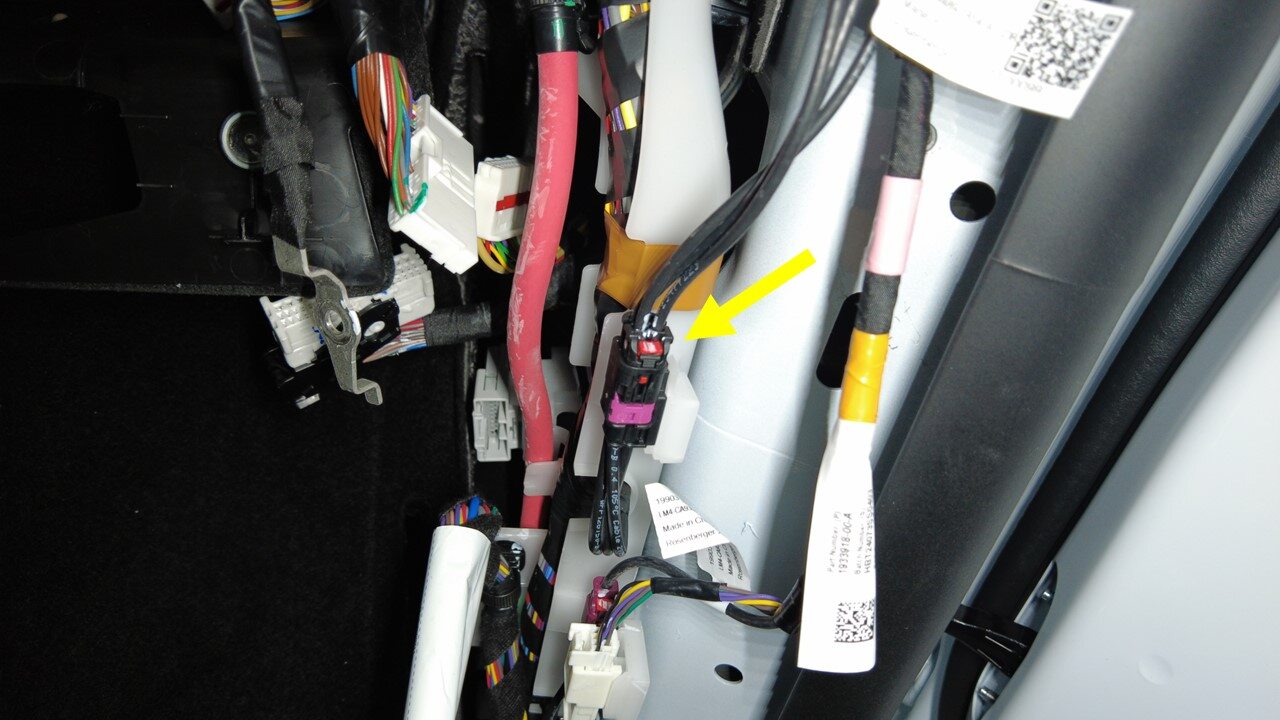

Disconnect front main harness from RH body harness

Note
1x connector, Release locking tab

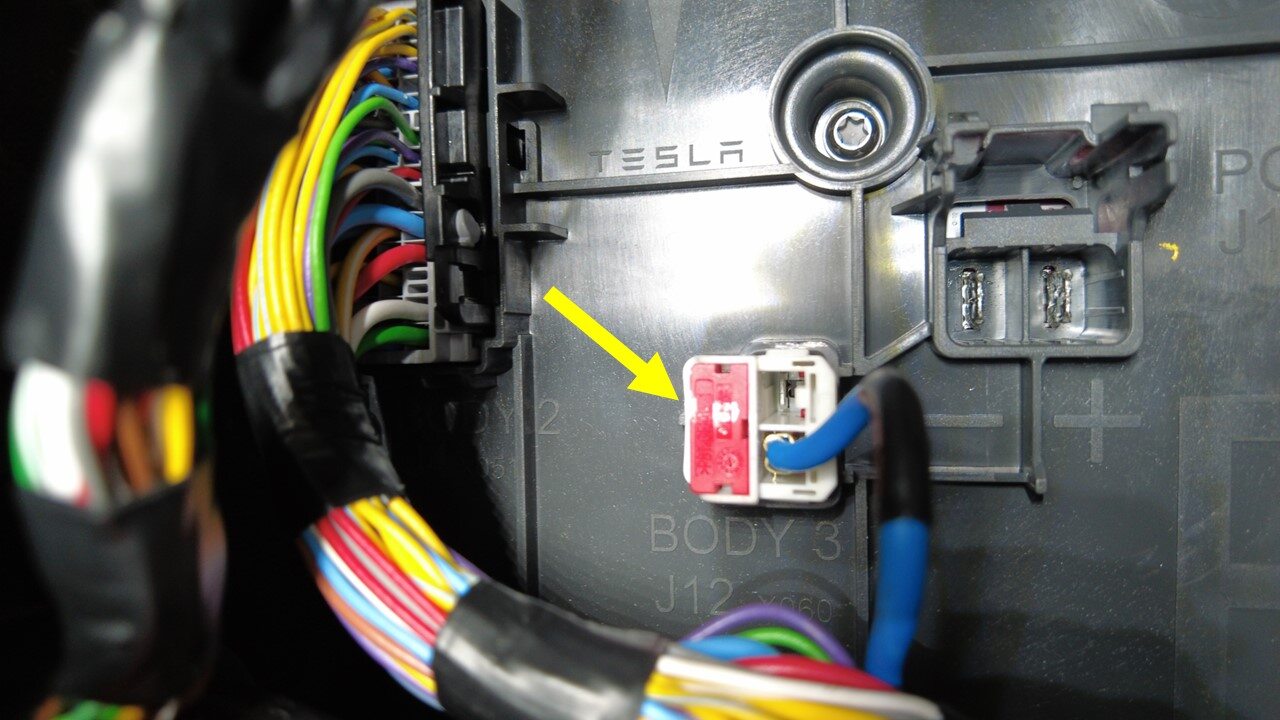

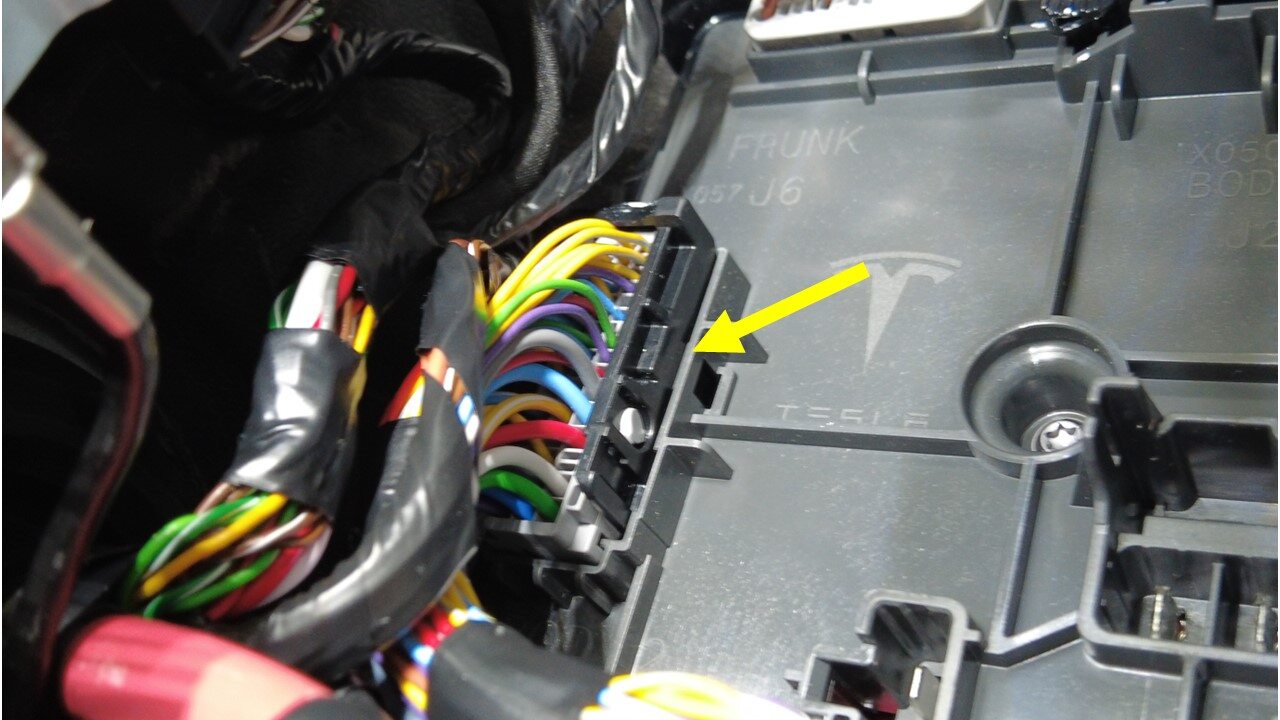

Disconnect RH body harness from RH controller

Note
4x connectors, Connectors J2 J4 J5 J12, Release locking tabs
Disconnect windshield harness connectors from harness guide RH lower A pillar area

Note
3x connectors, Release lock then remove

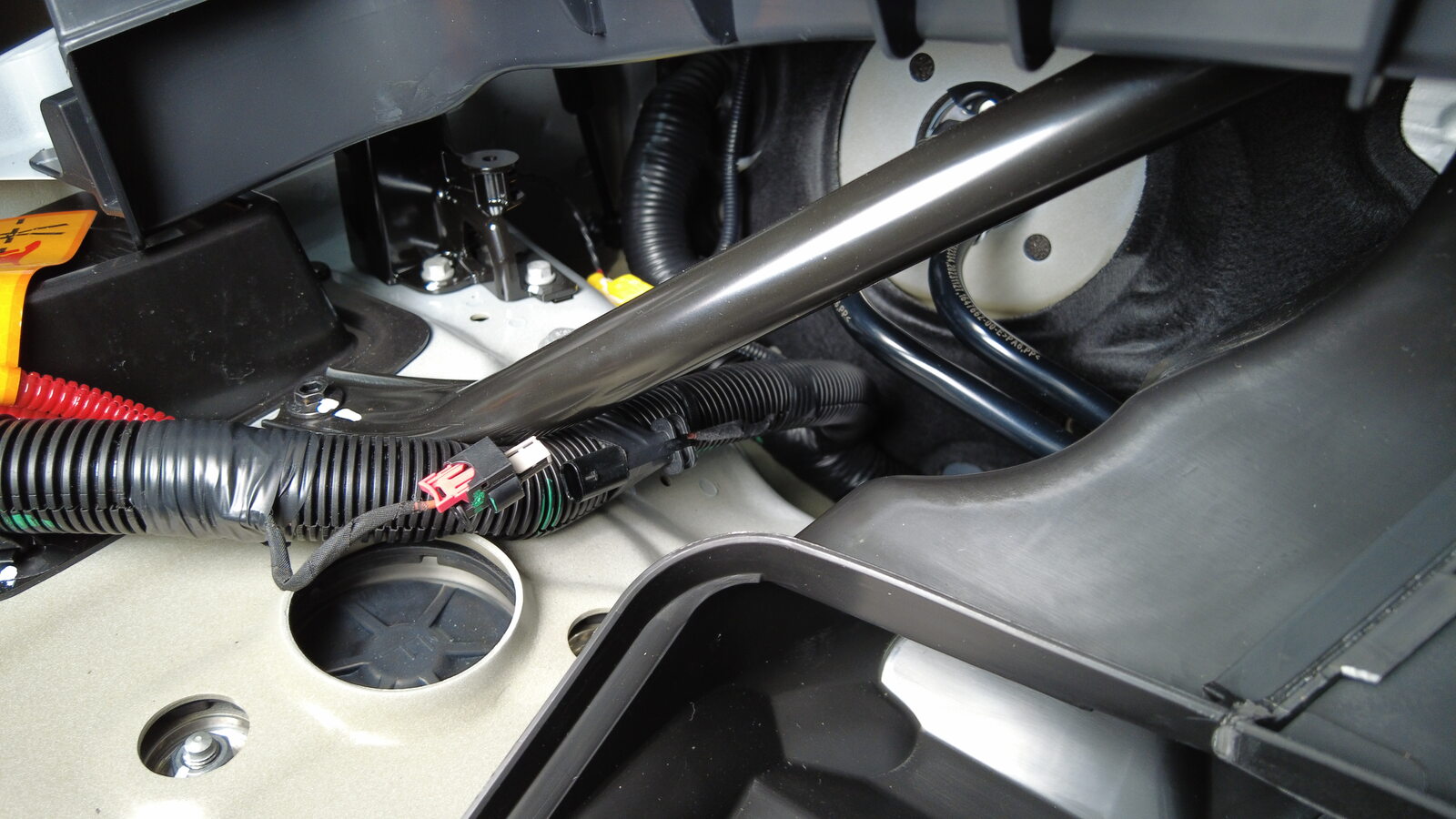

Disconnect front main harness DCDC power cable

Note
1x connector, Release locking tab
Release front main harness DCDC power cable

Note
1x clip, 1x hook

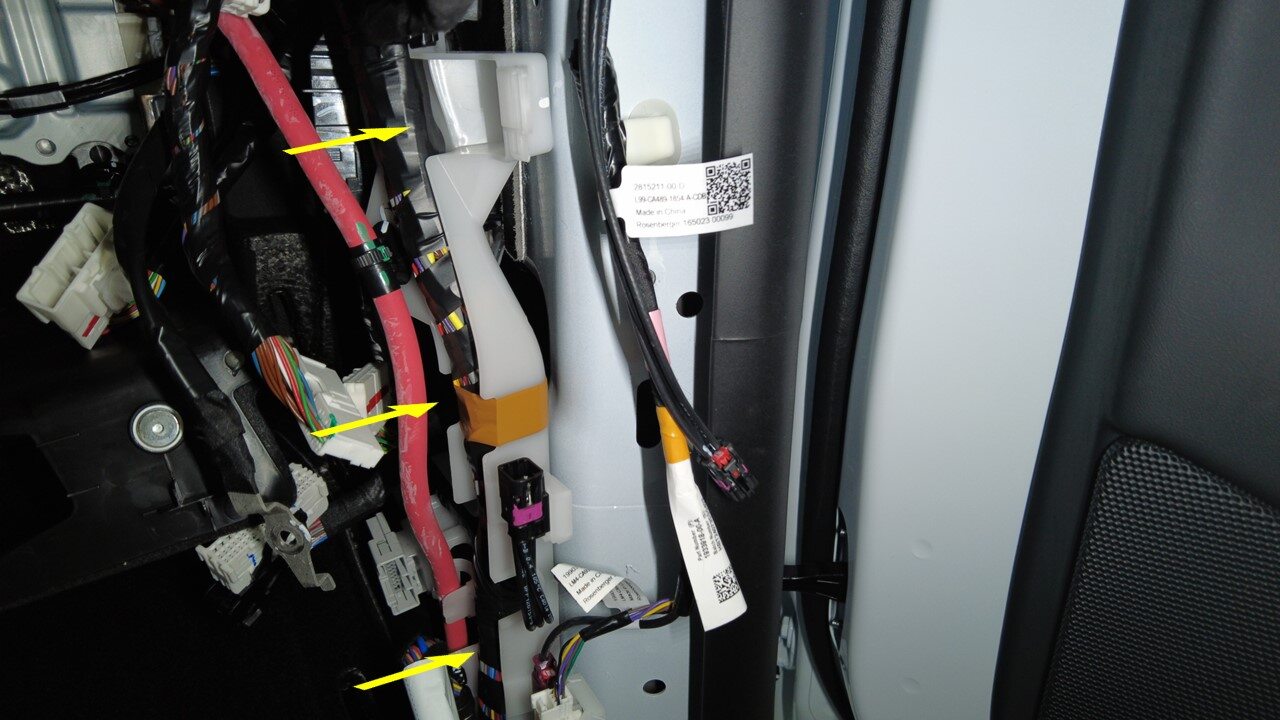

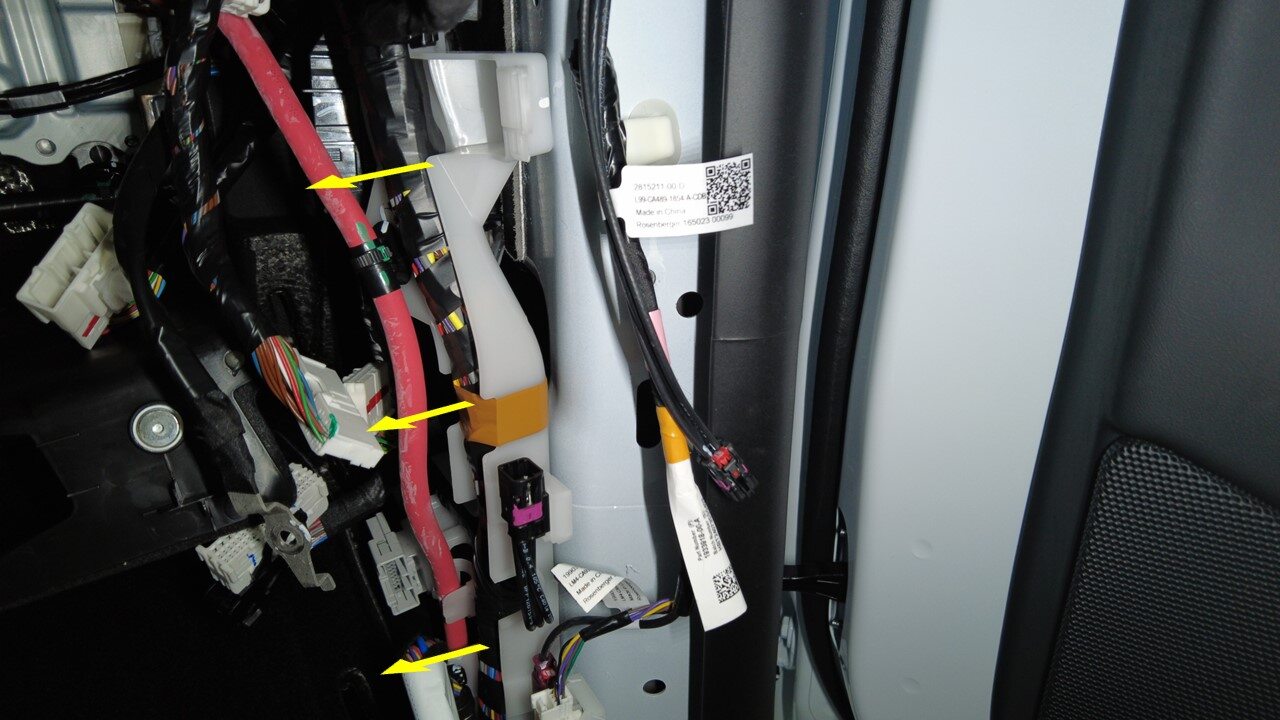

Release RH body harness guide from RH lower A-pillar area

Note
3x clips

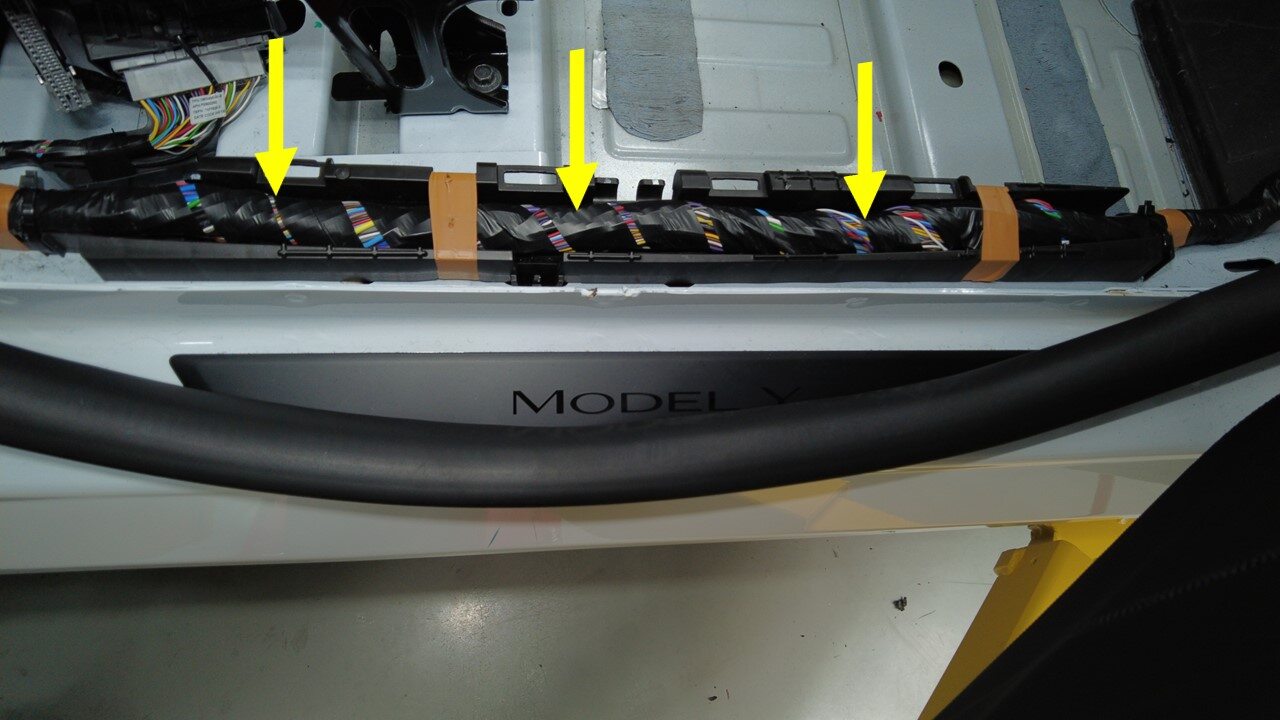

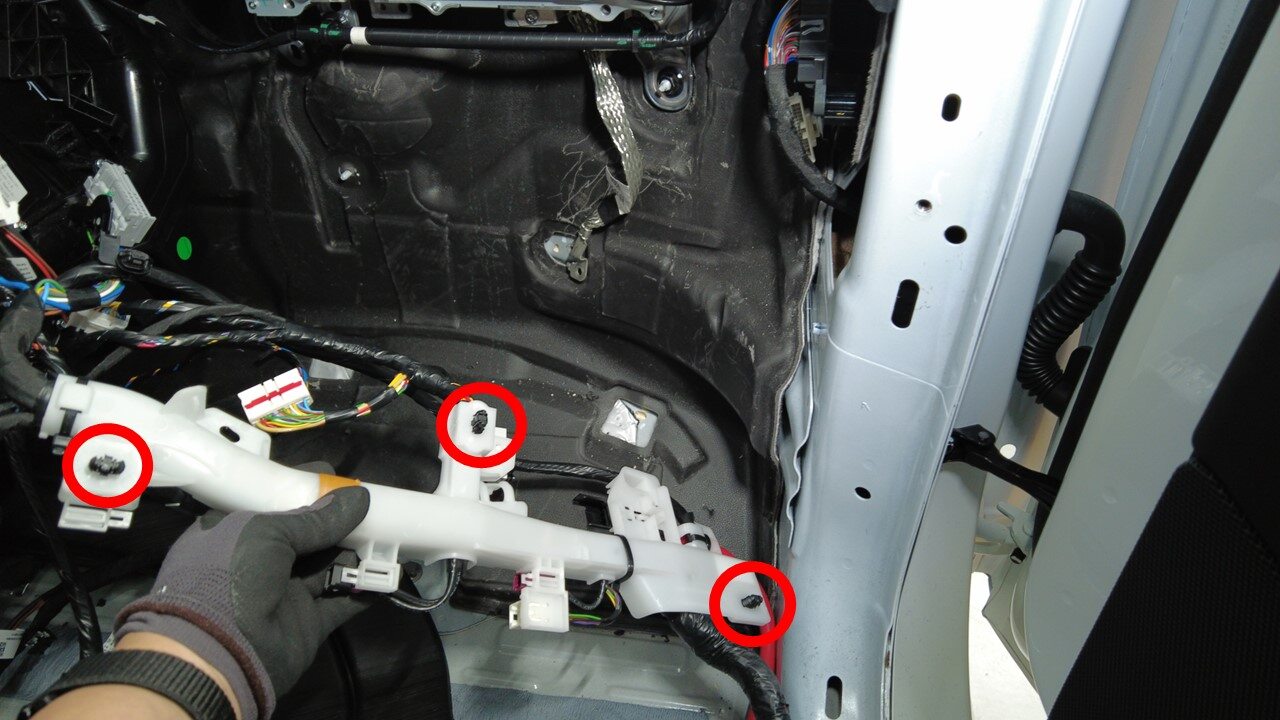

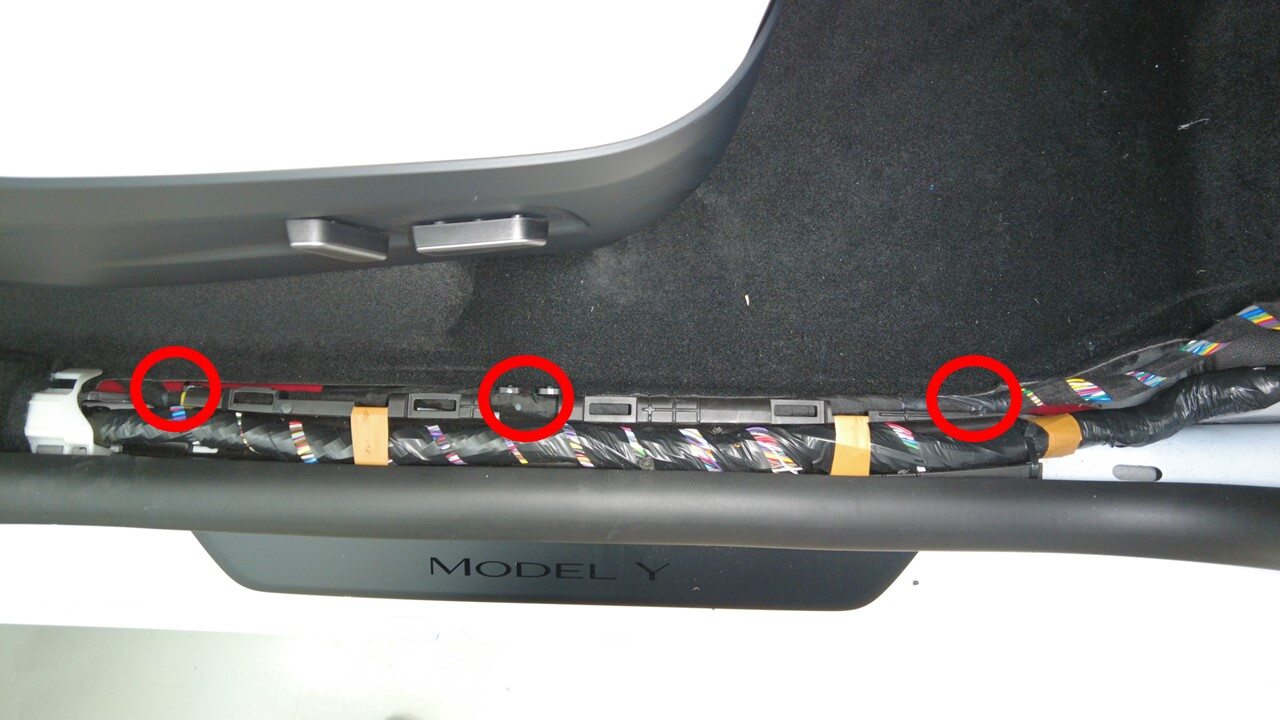

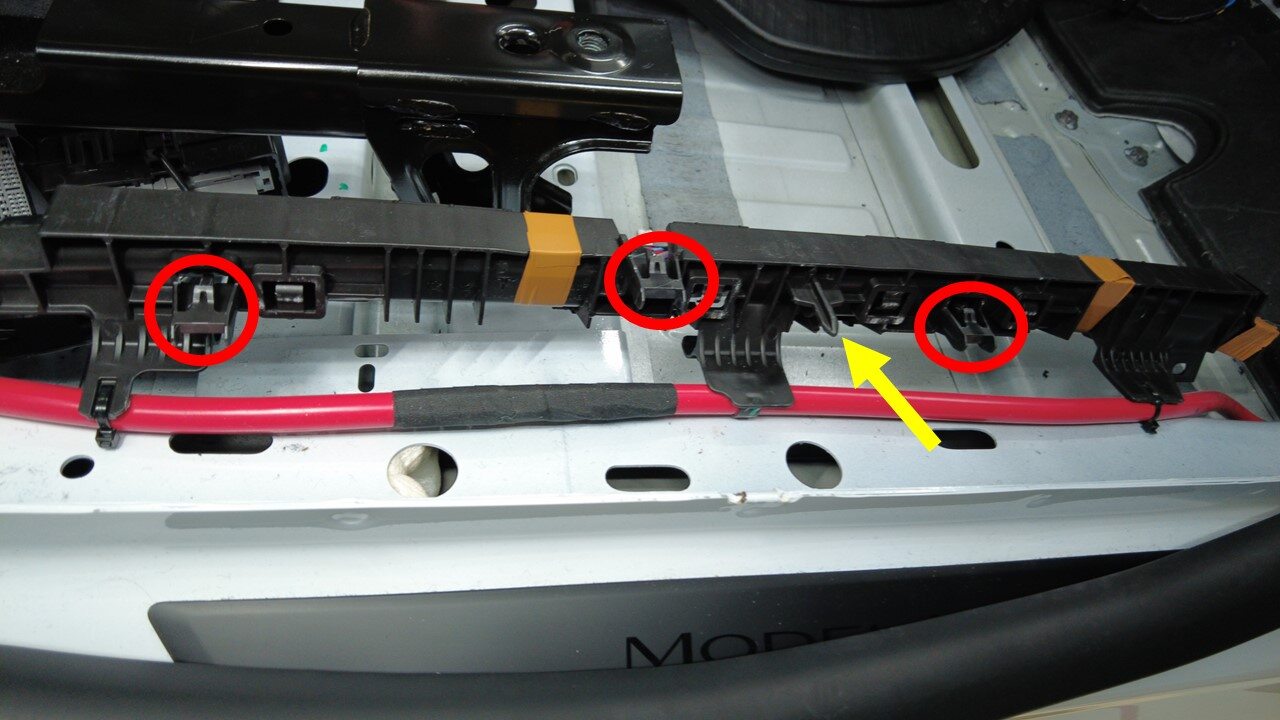

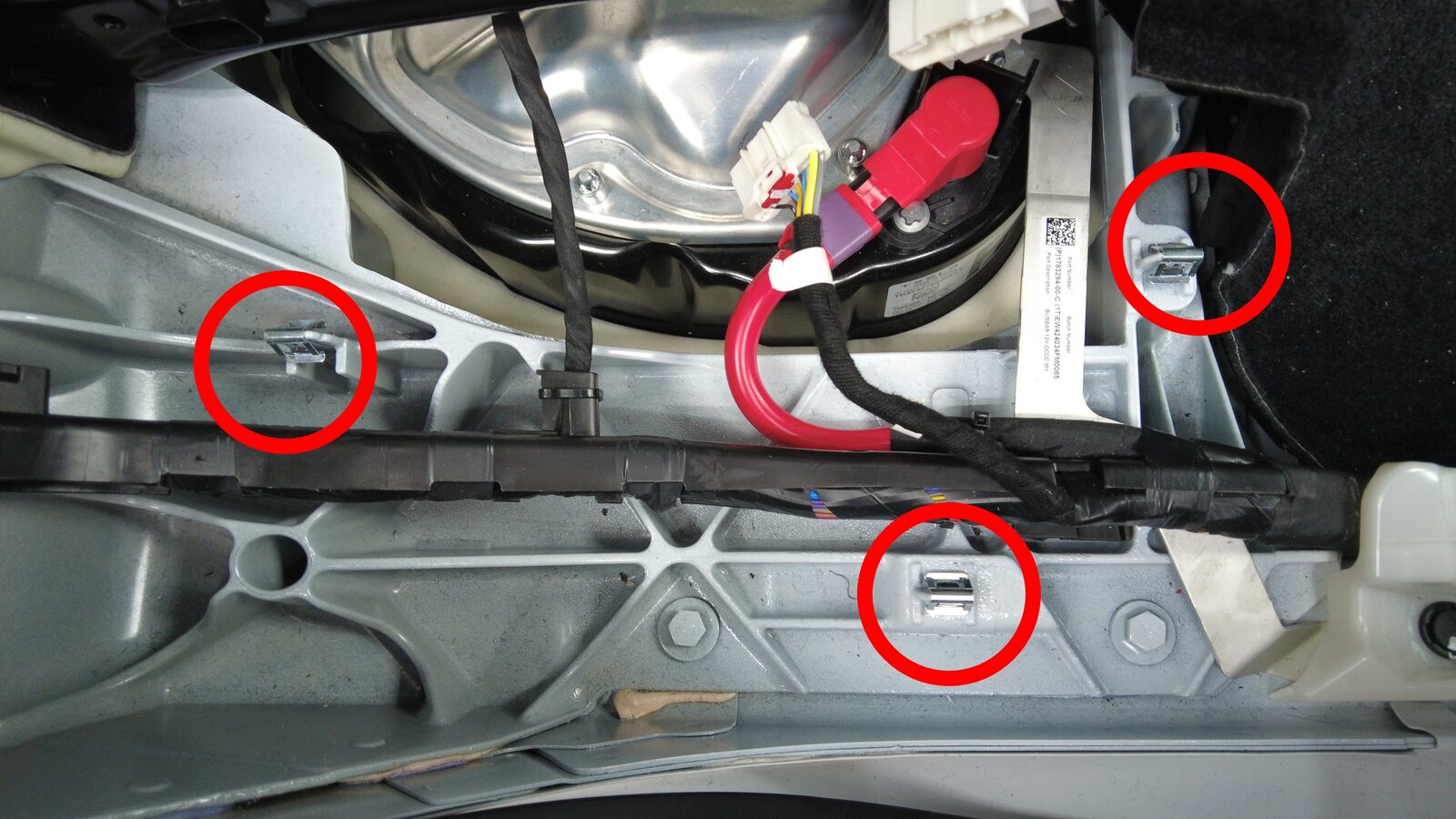

Release RH body harness clips from RH front sill area

Note
3x clips, 1x location pin

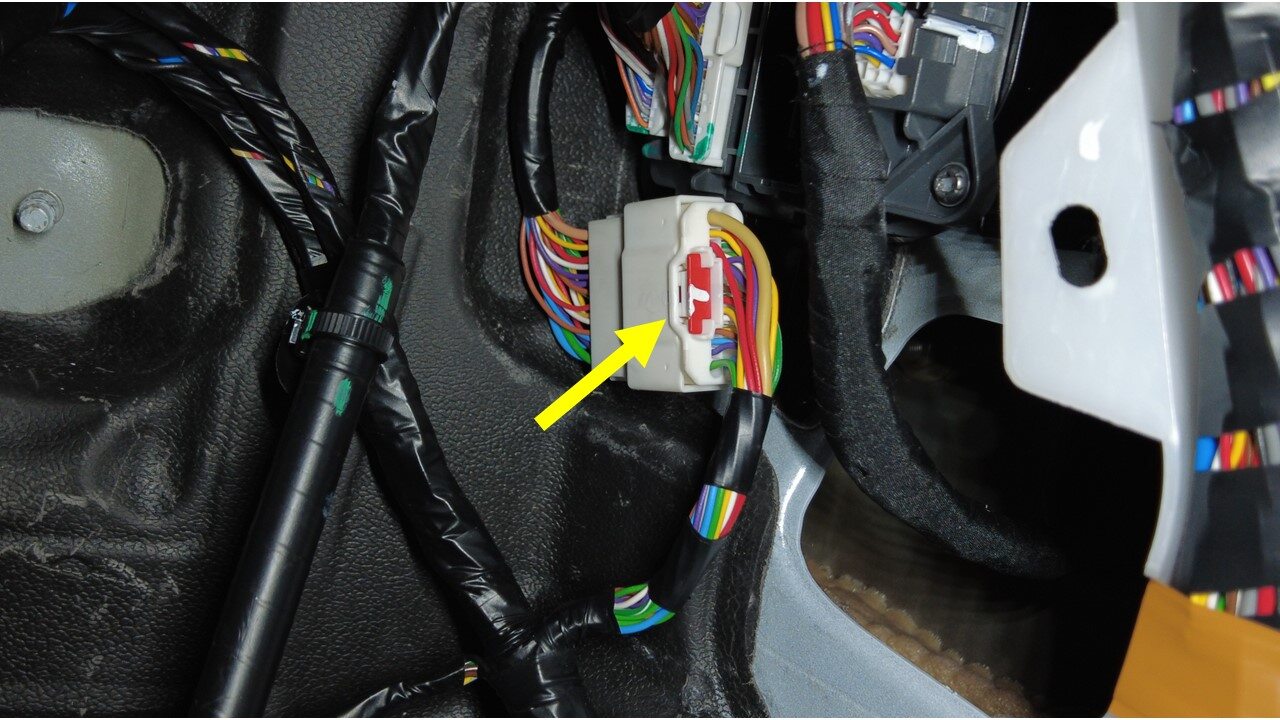

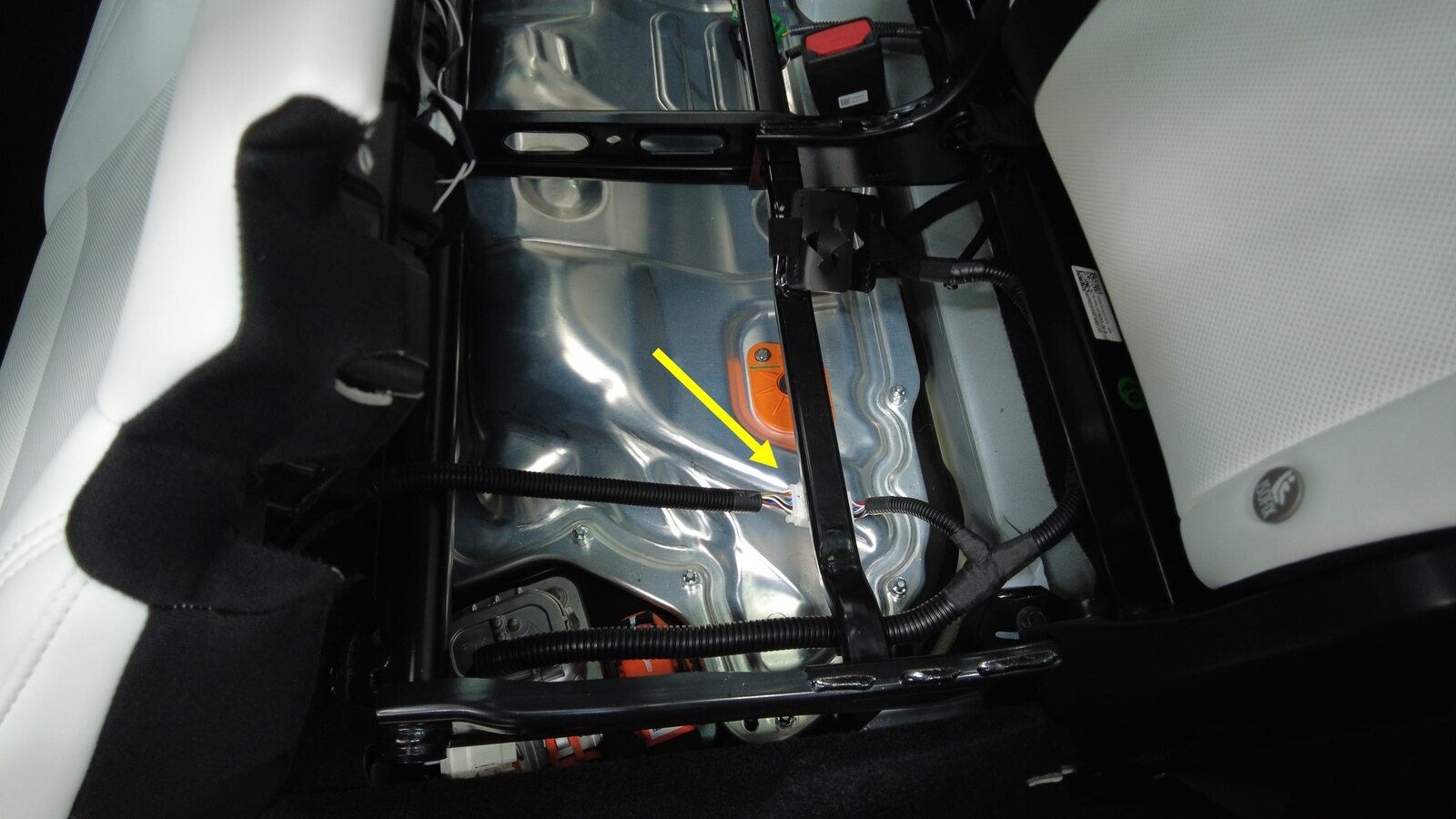

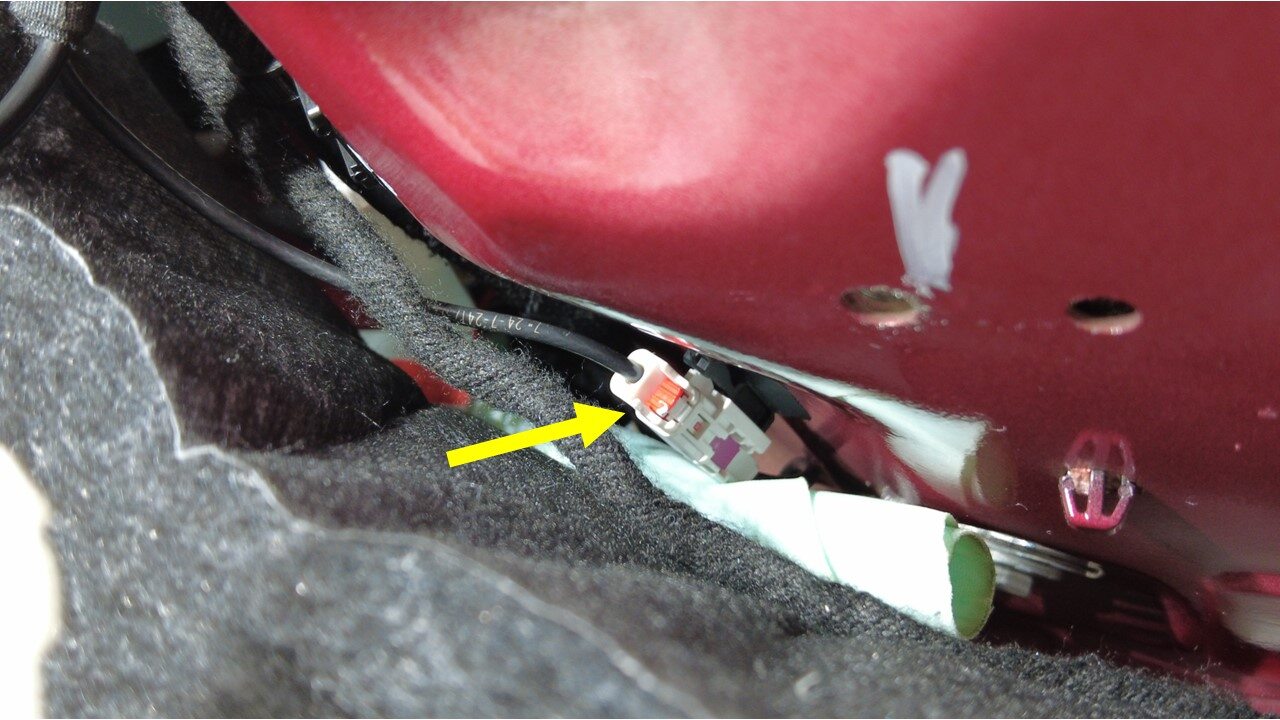

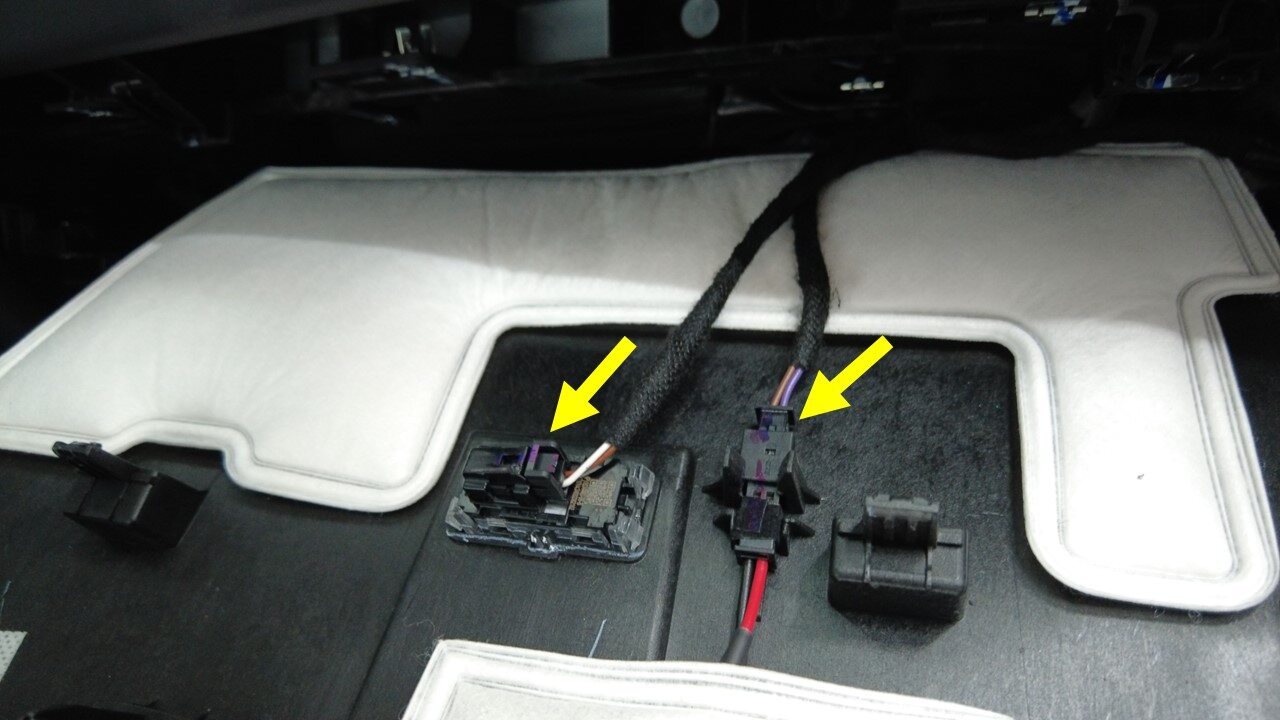

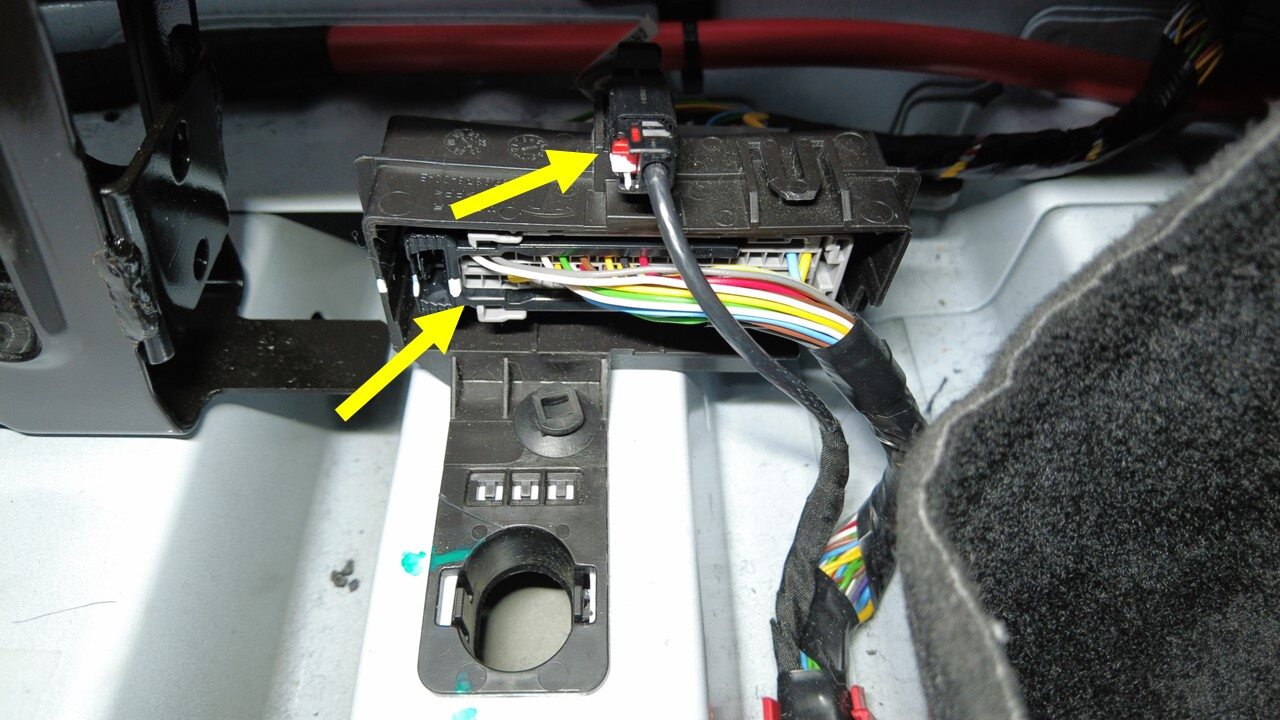

Disconnect LH body harness connectors from below RH front seat

Note
2x connectors, Disengage locking tab

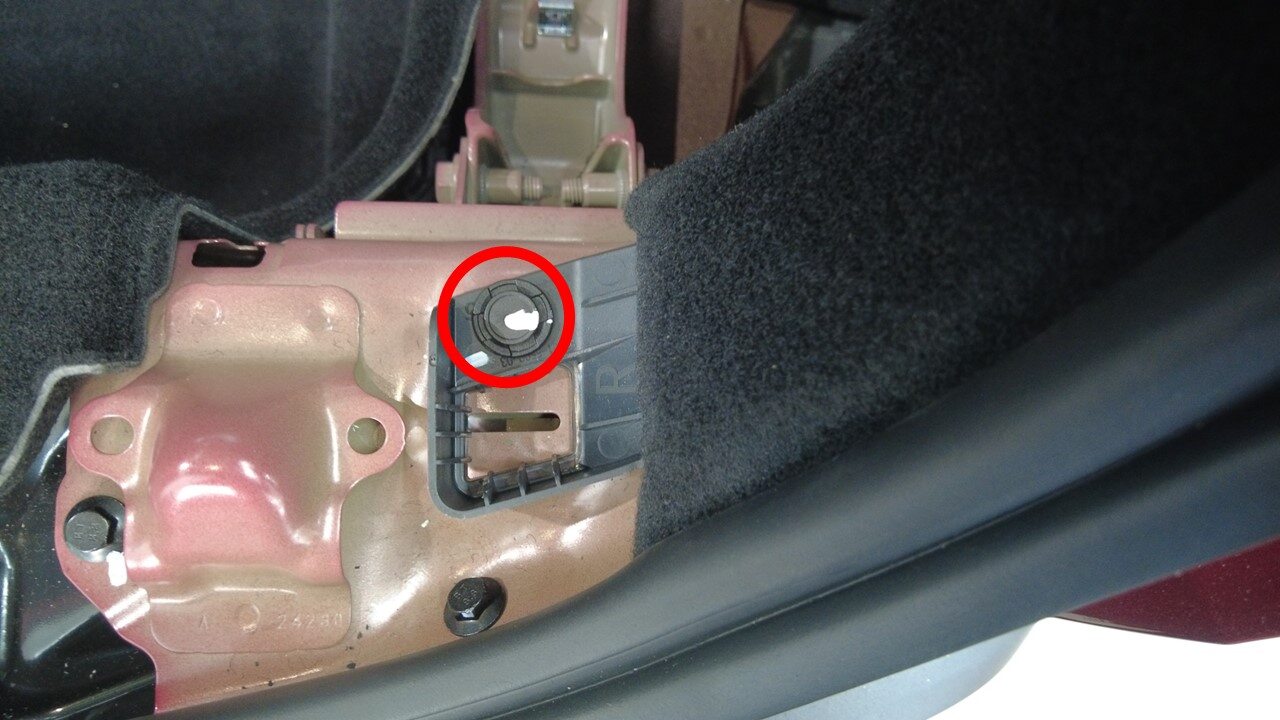

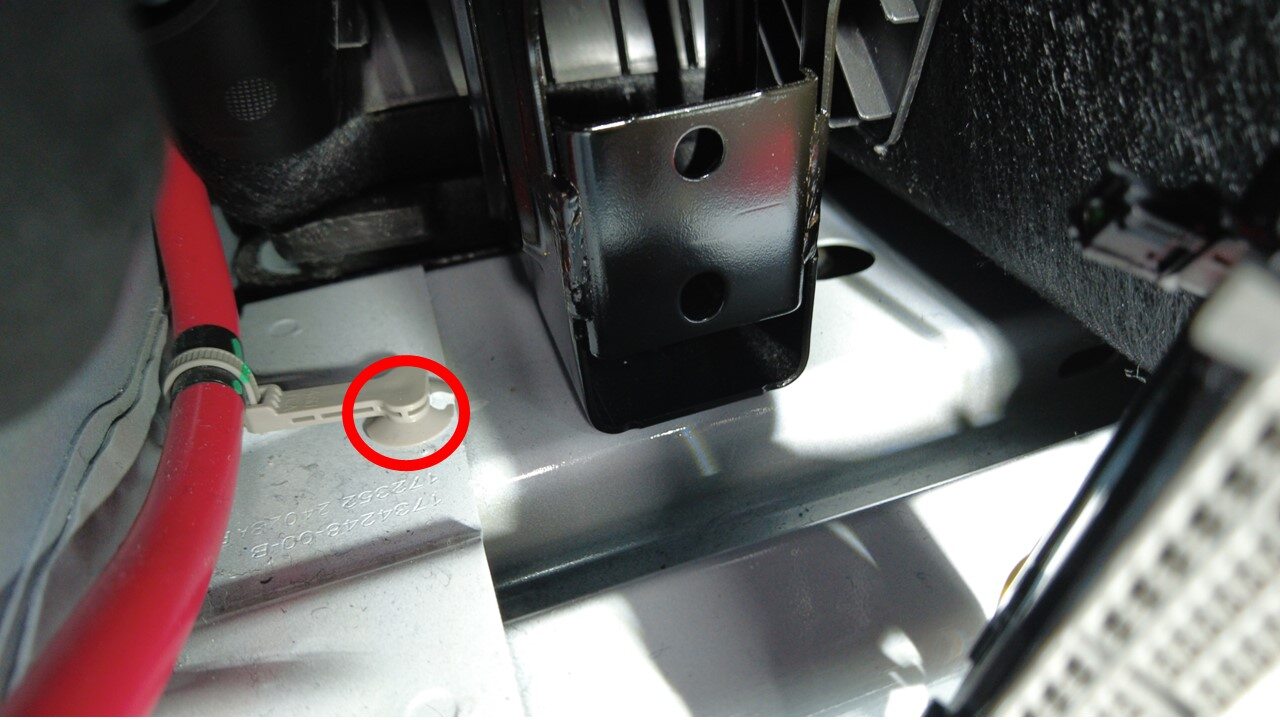

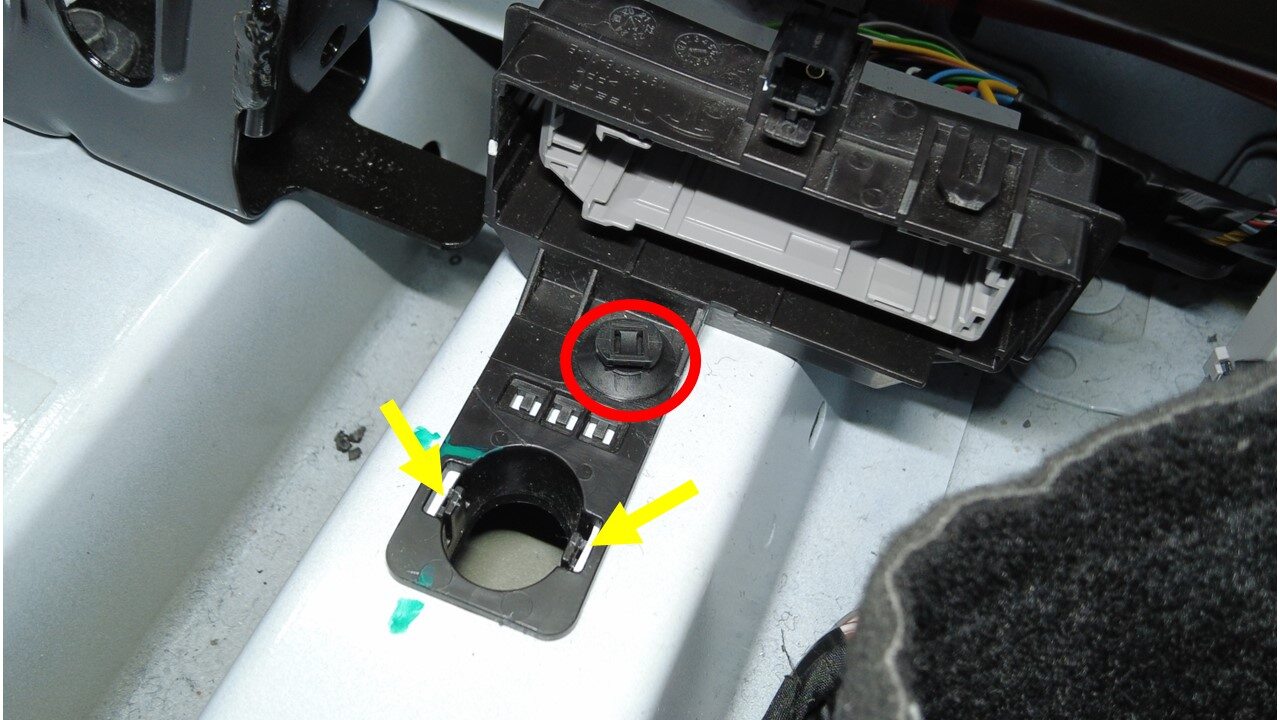

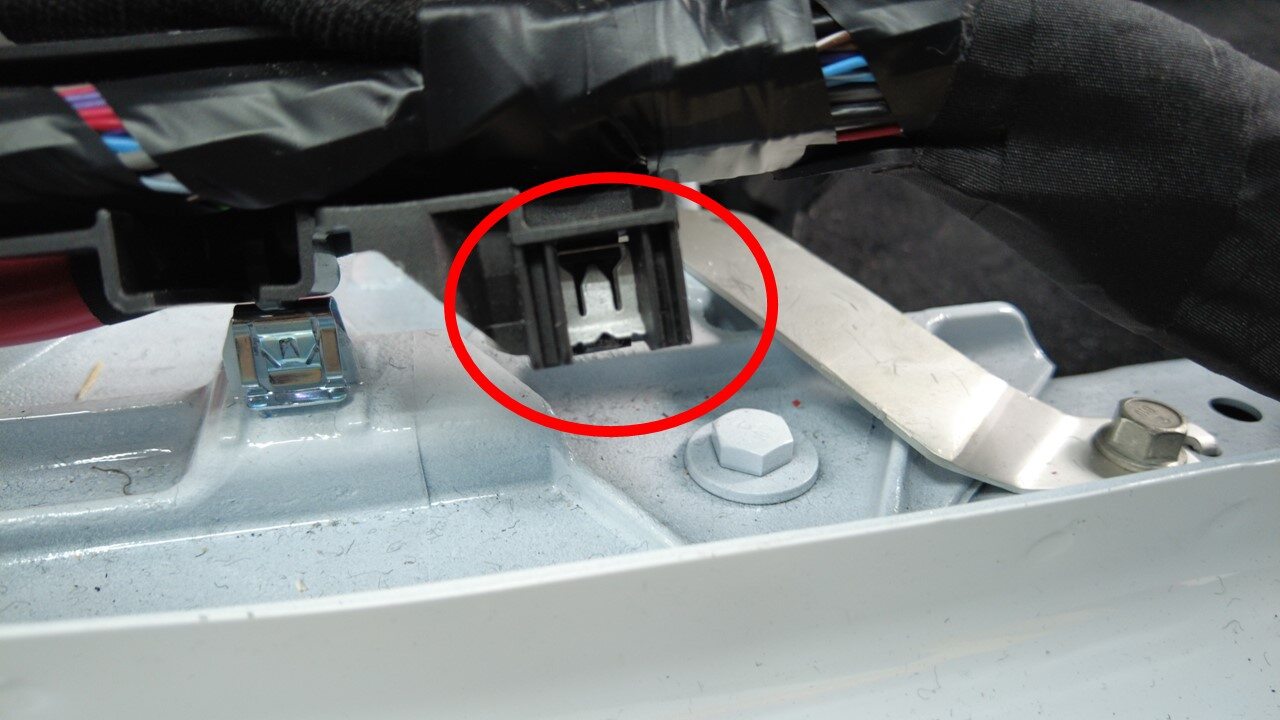

Release RH body harness bracket clip from below RH front seat

Note
1x clip, 2x tabs

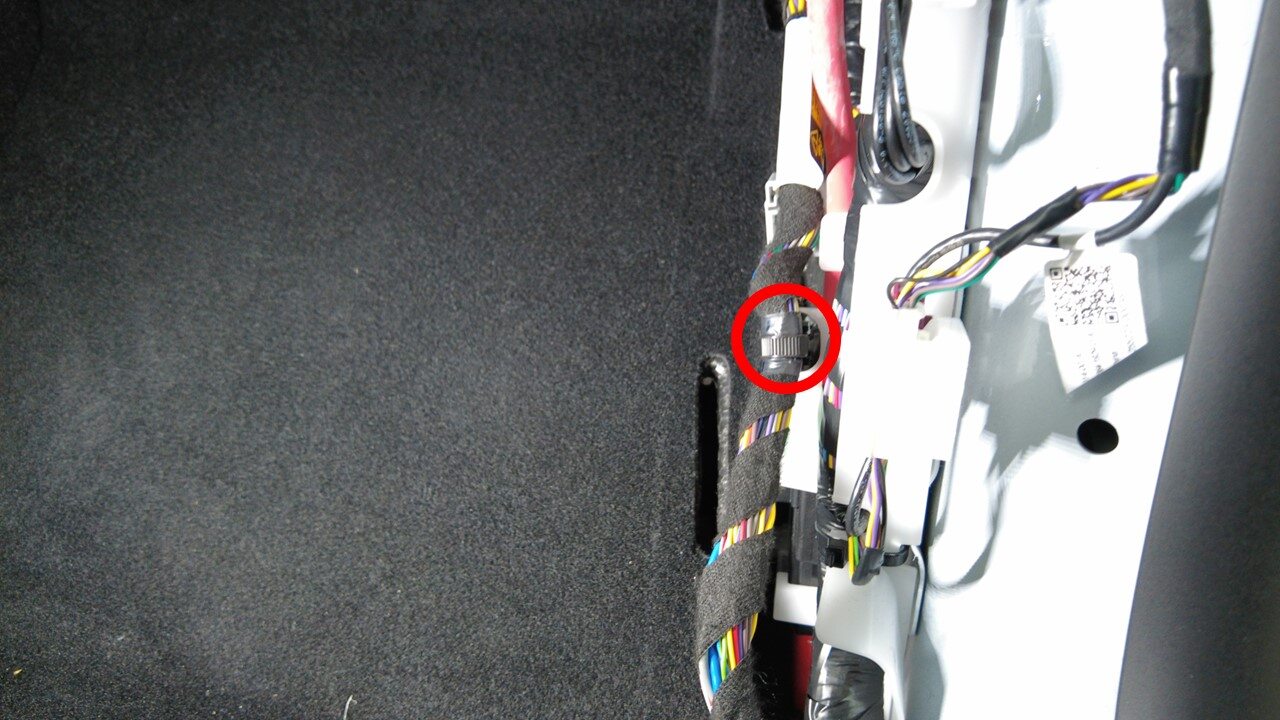

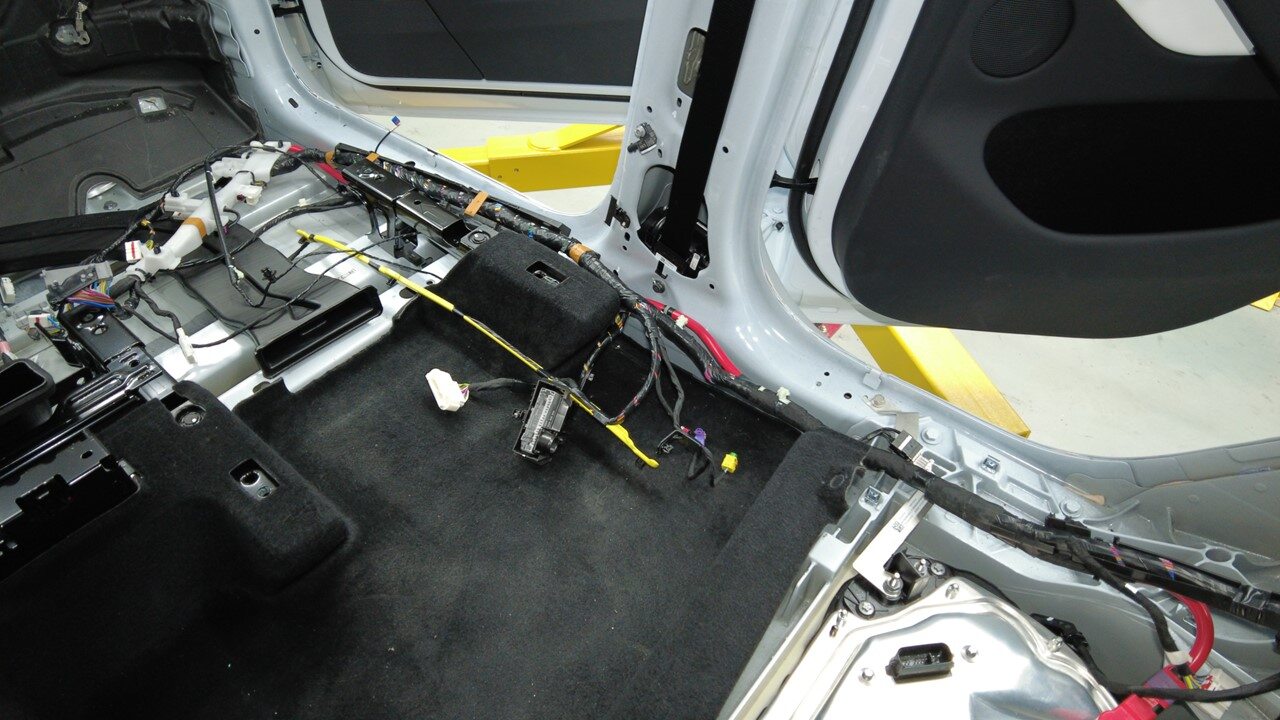

Release RH harness clips from below RH B-pillar area

Note
6x clips

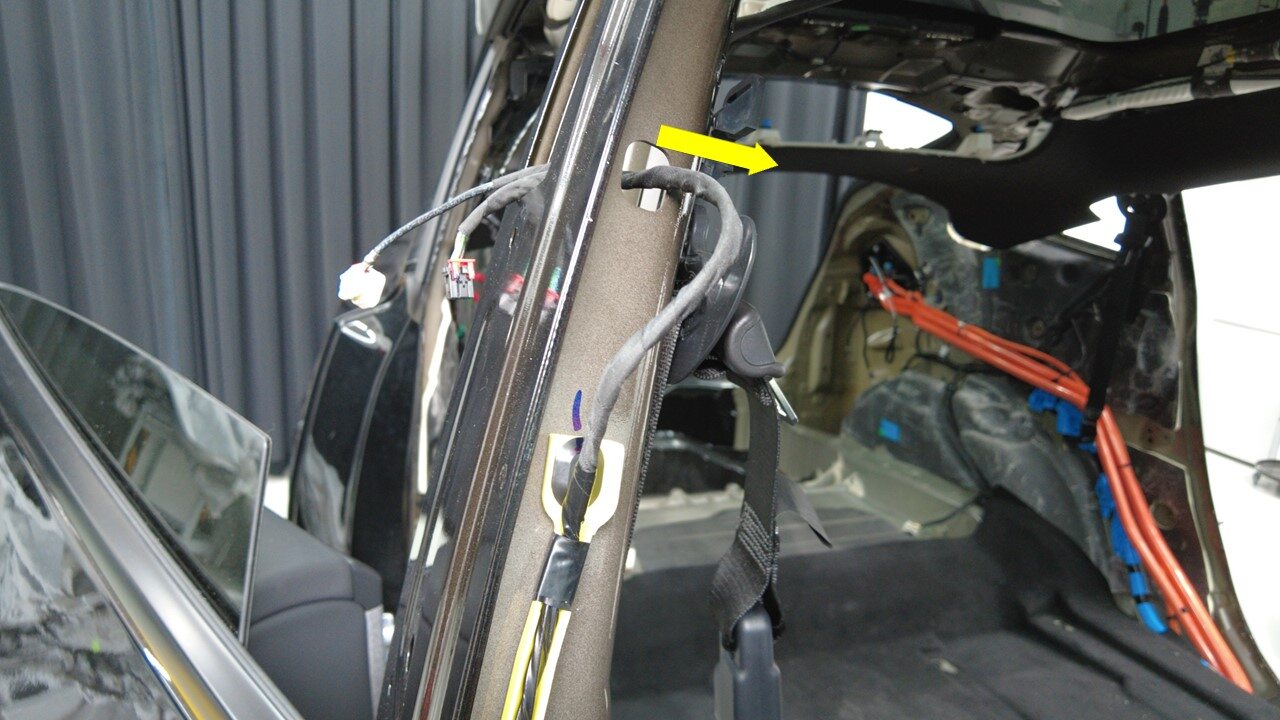

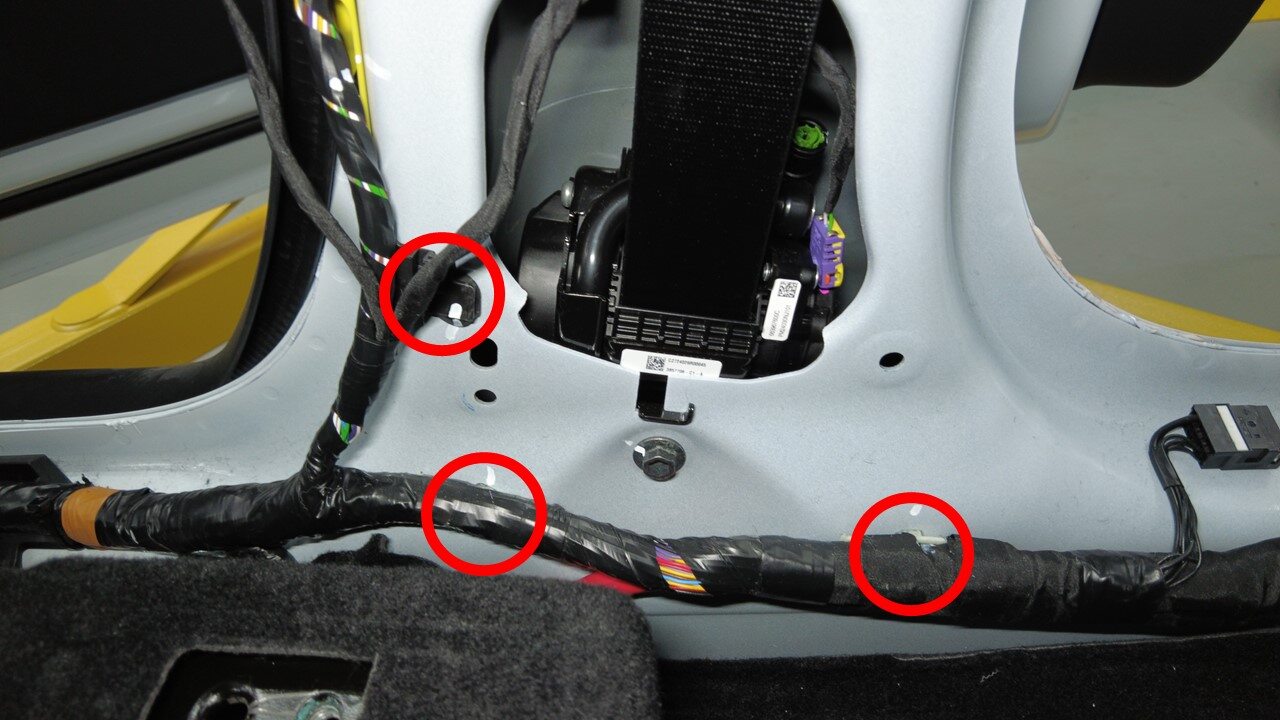

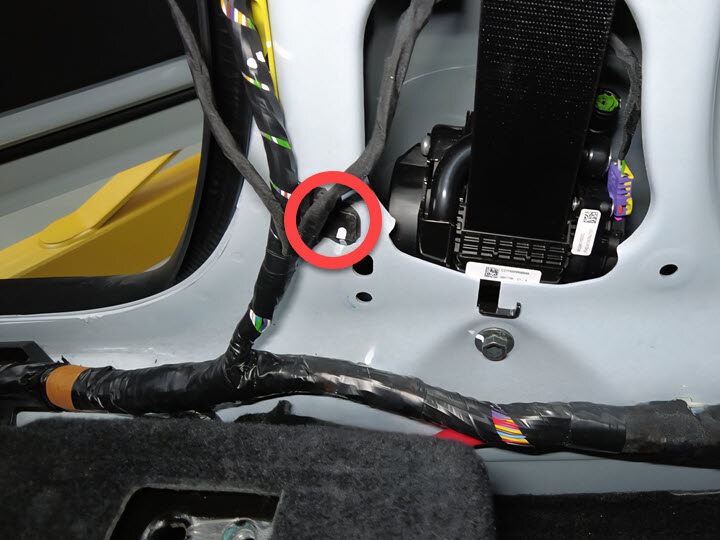

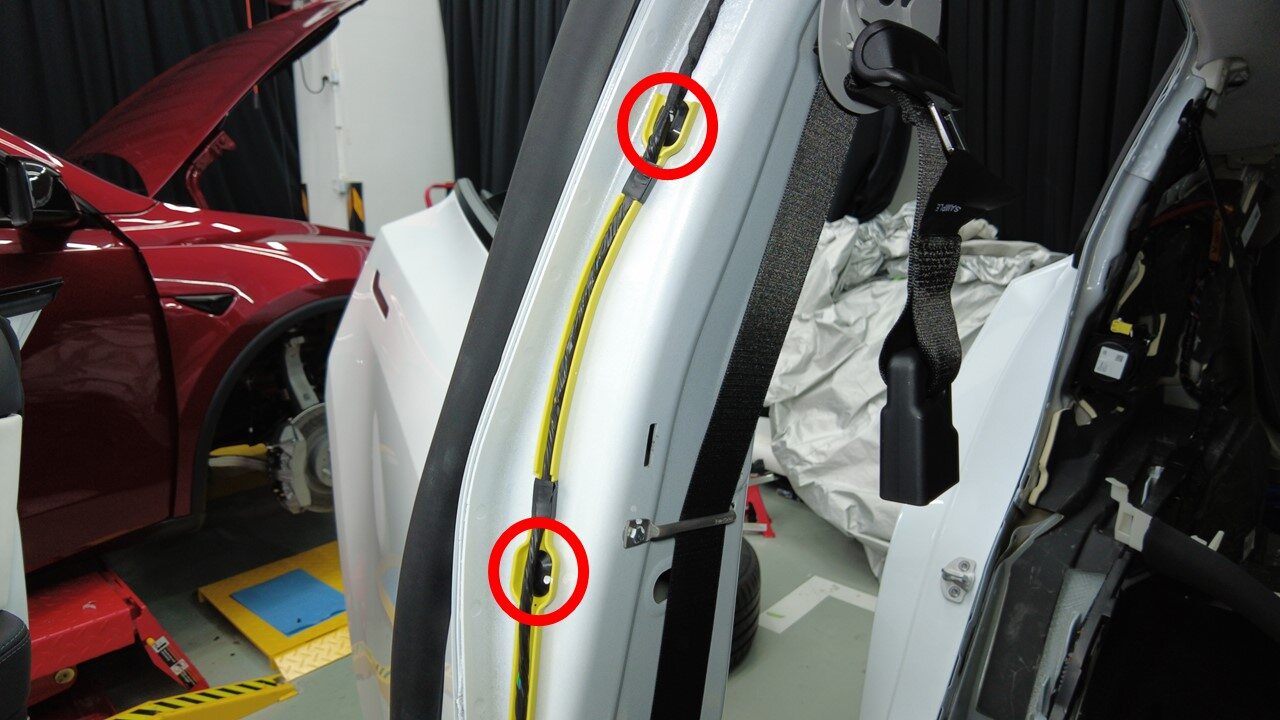

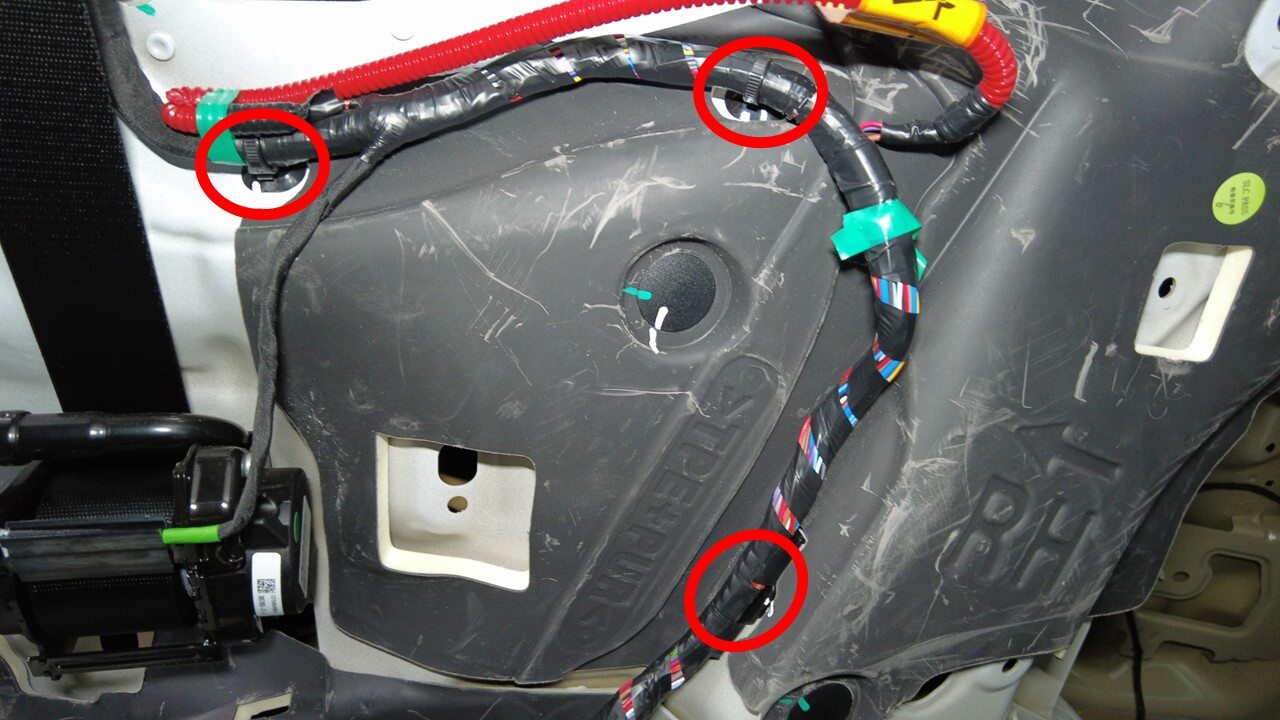

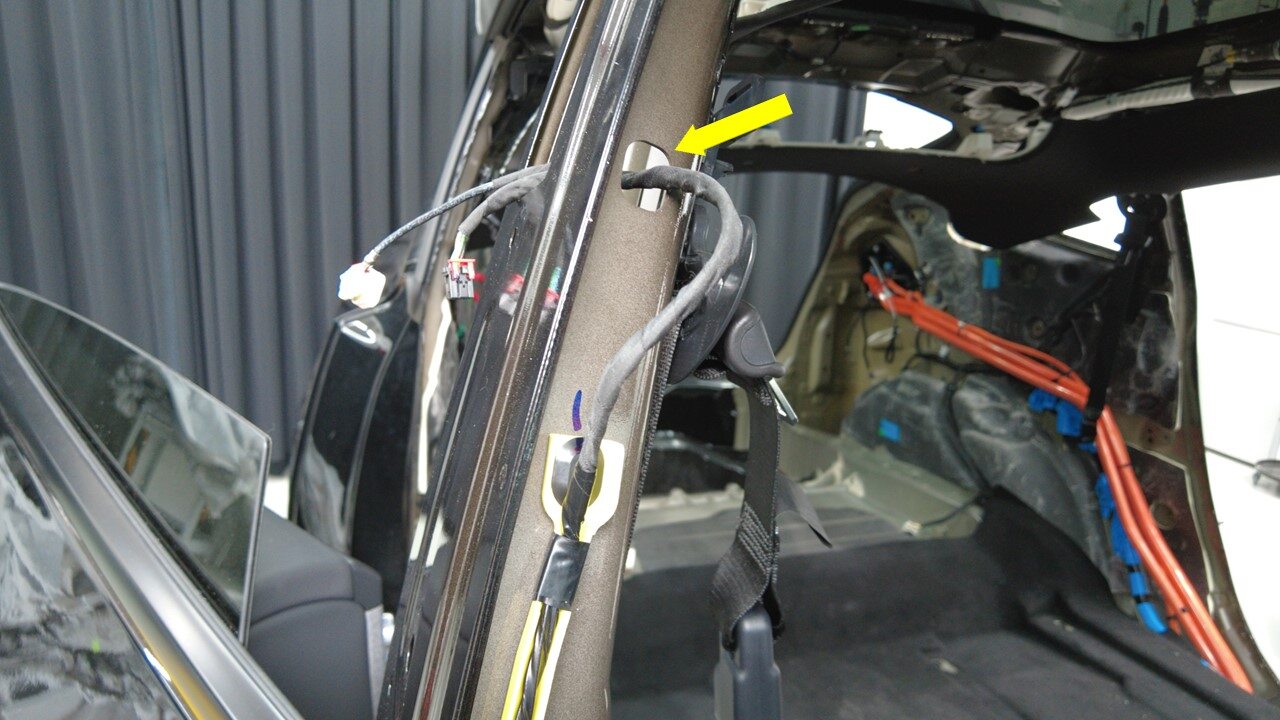

Release RH body harness clips from RH B-pillar side area

Note
3x clips

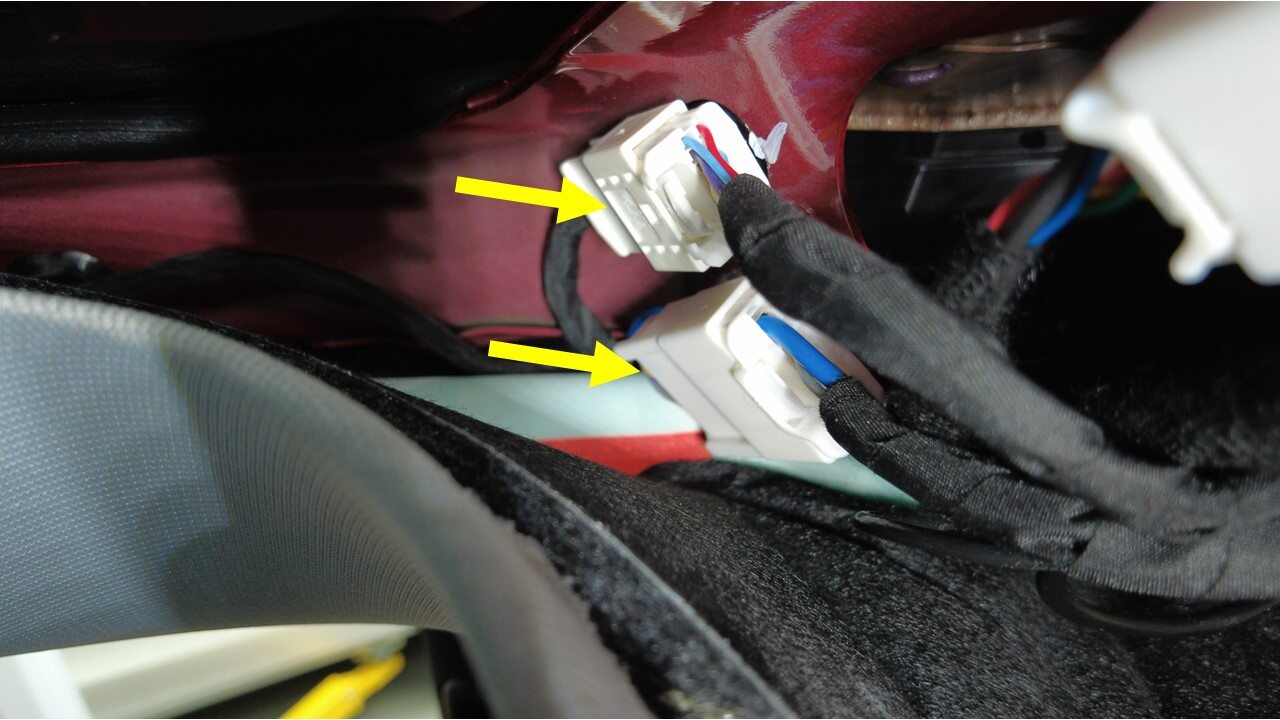

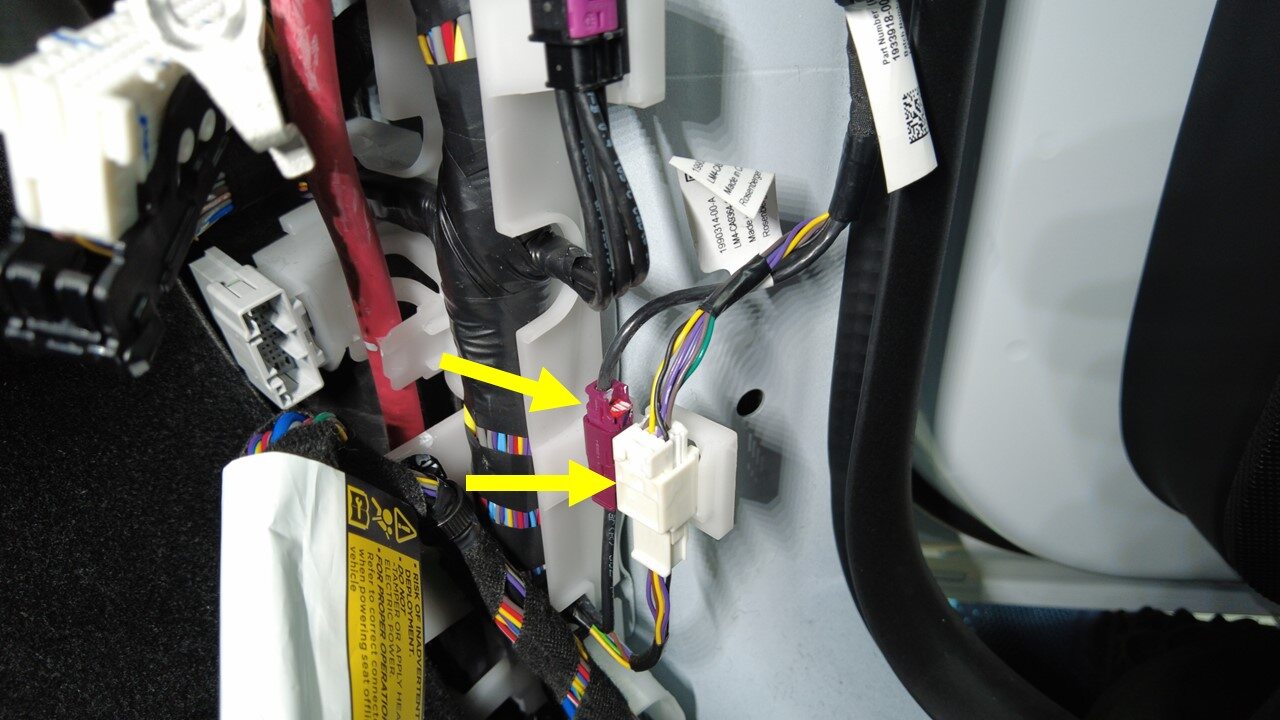

Disconnect RH front retractor connectors

Note
2x stage locking connectors, Lift the orange tab to release the connector

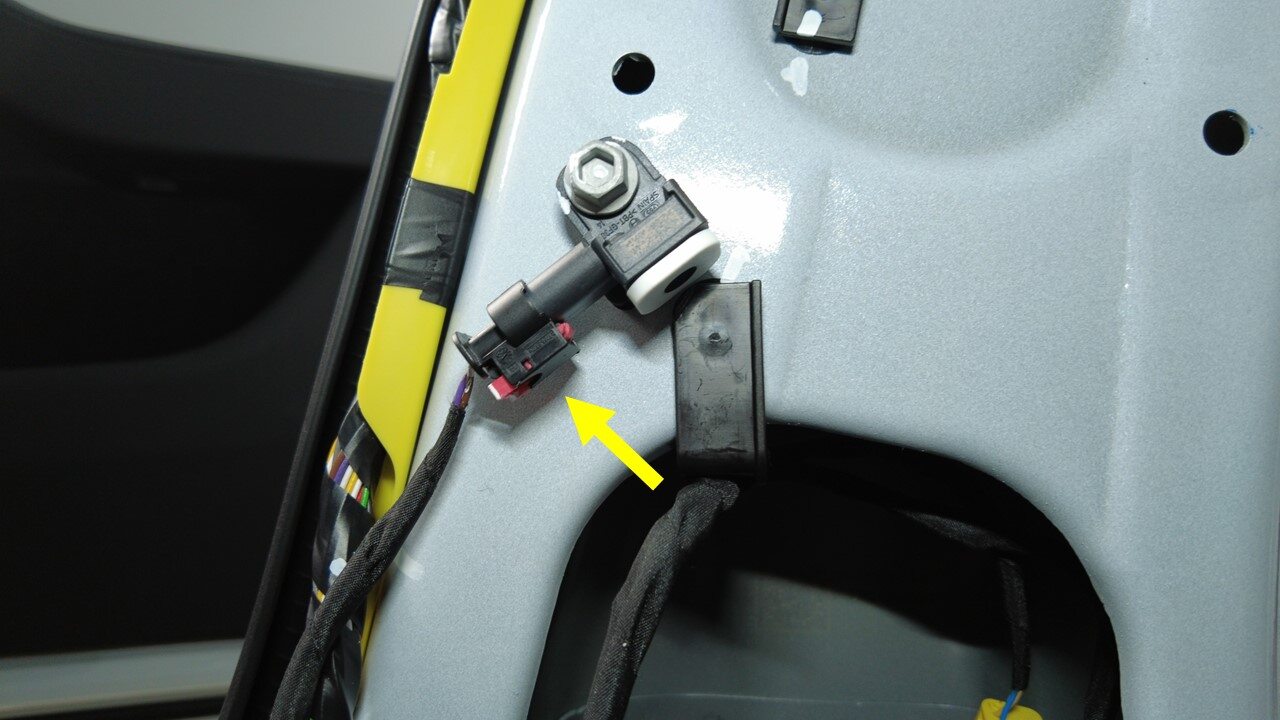

Disconnect RH B pillar accelerometer sensor connector

Note
1x connector, Do not push down on Red tab, Pull red tab to disengage lock, Pull again to release connector

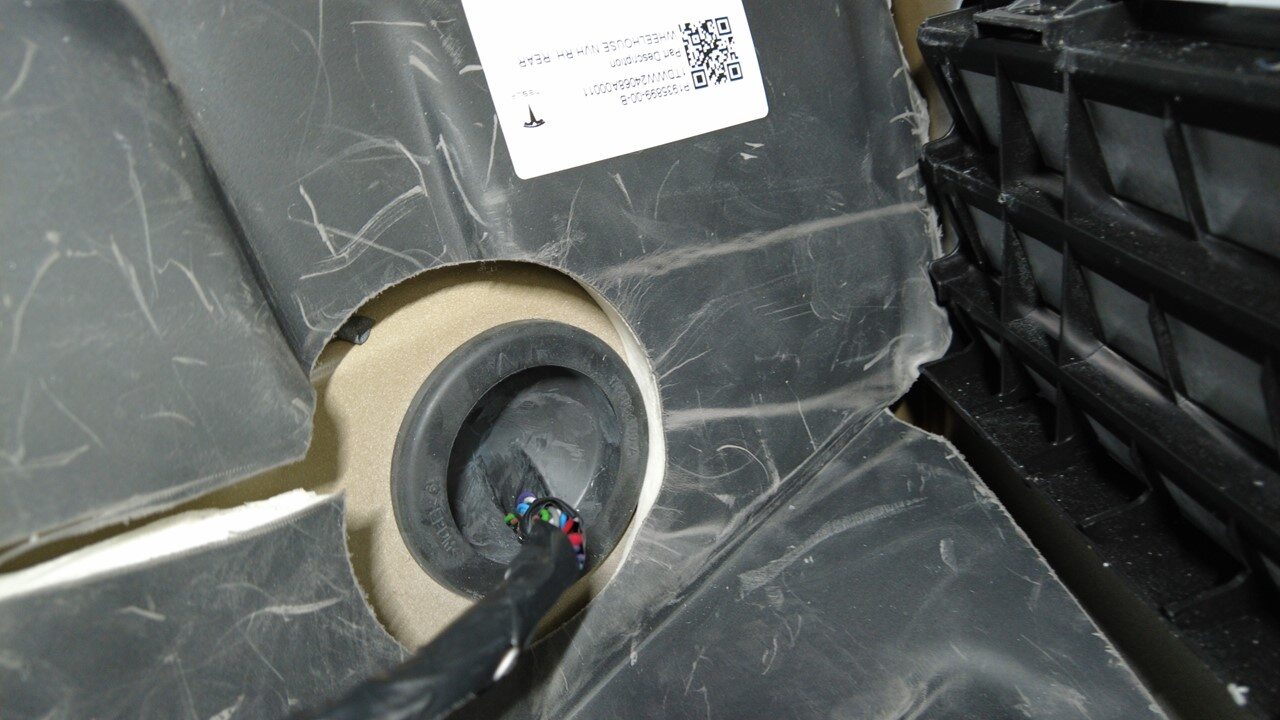

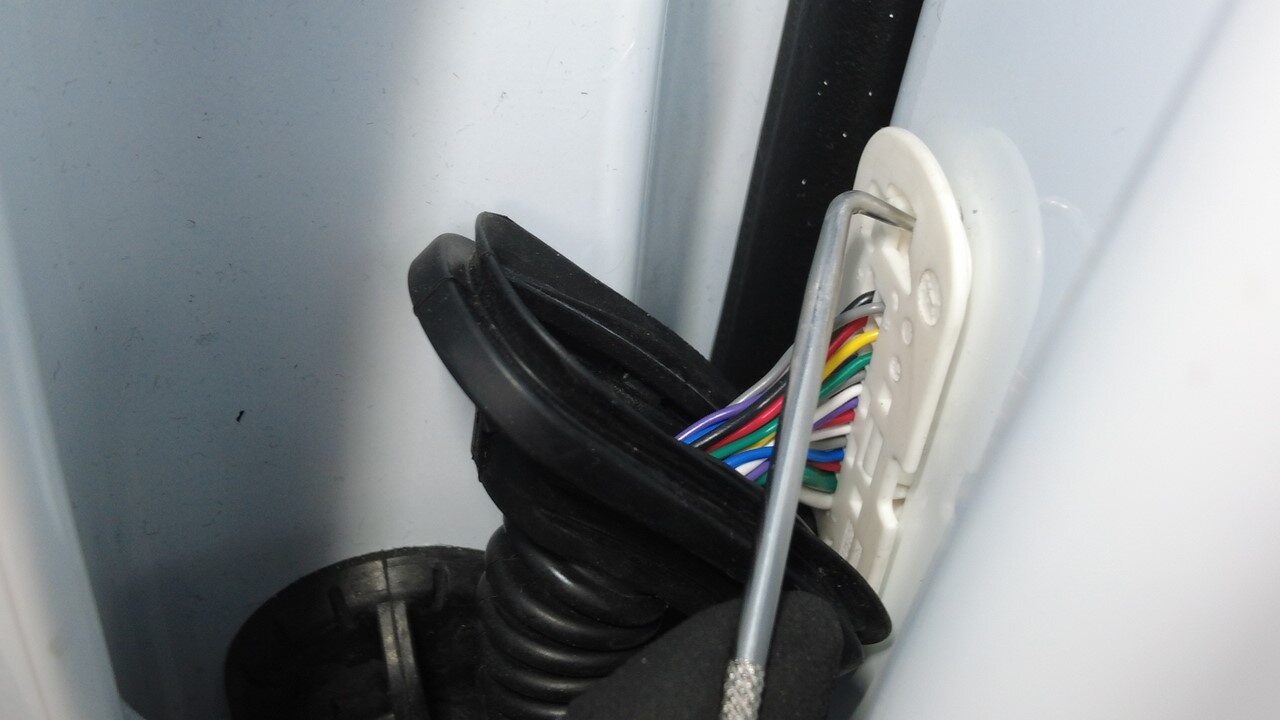

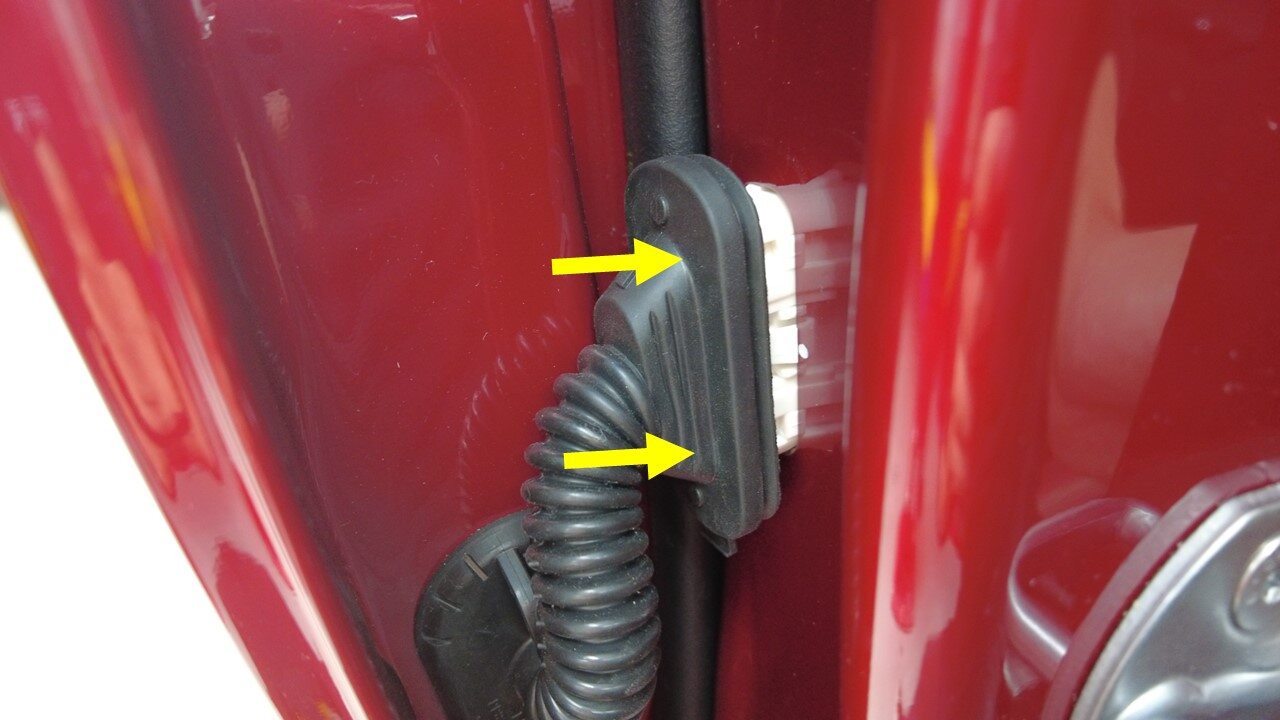

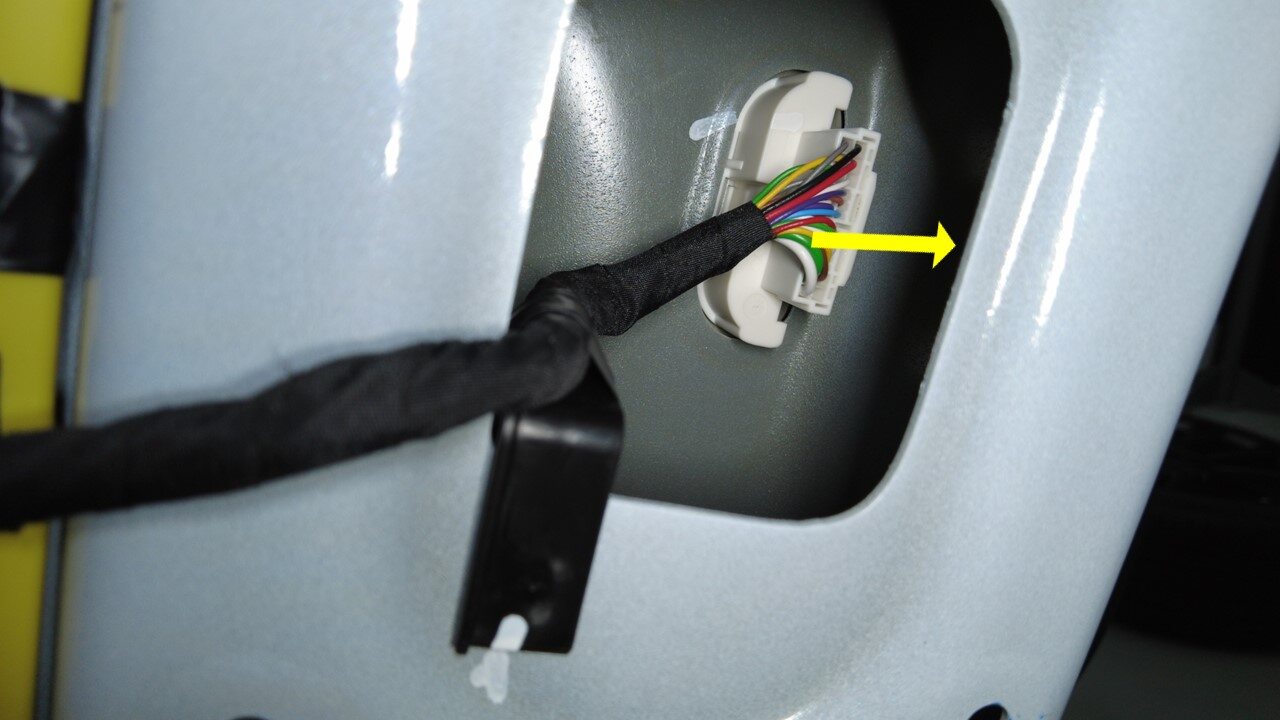

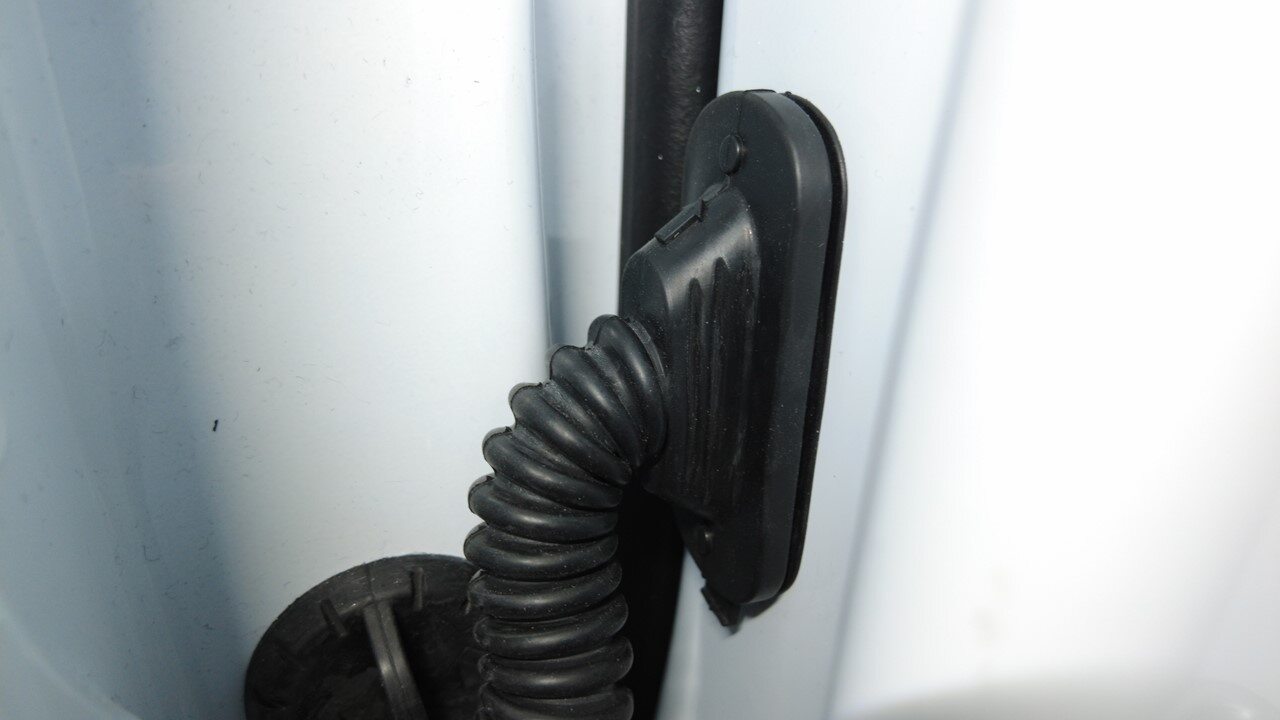

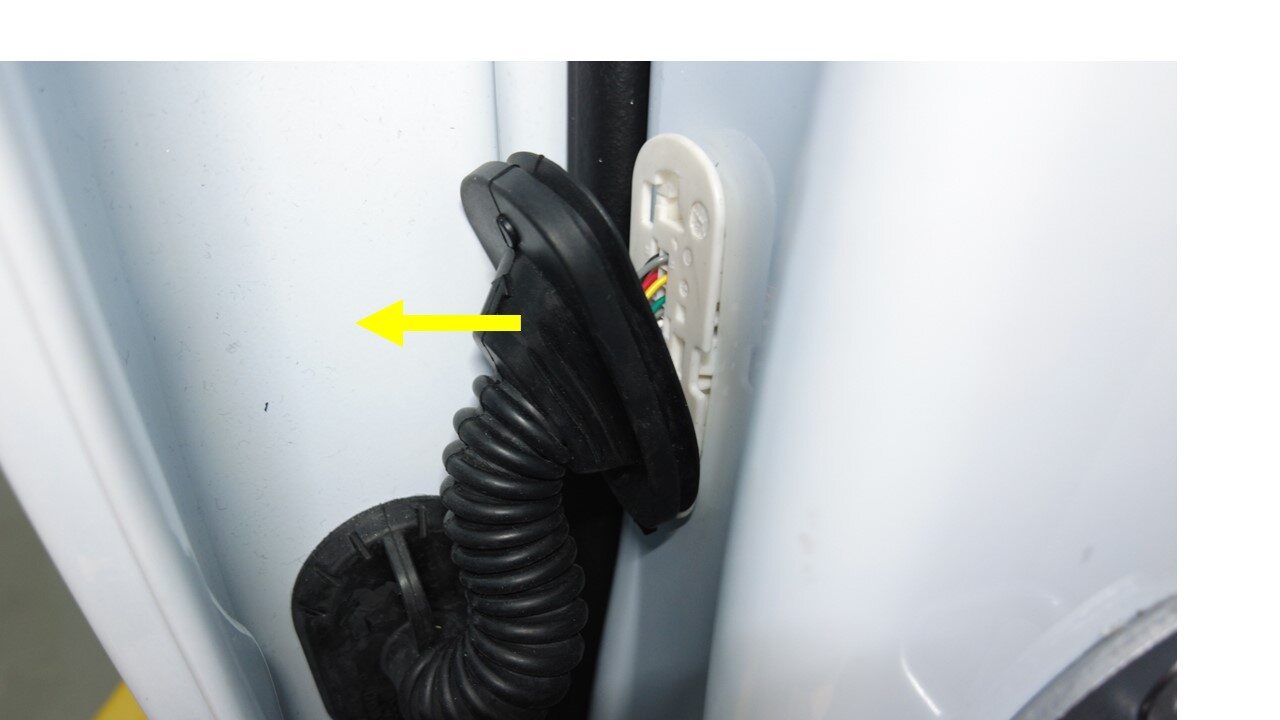

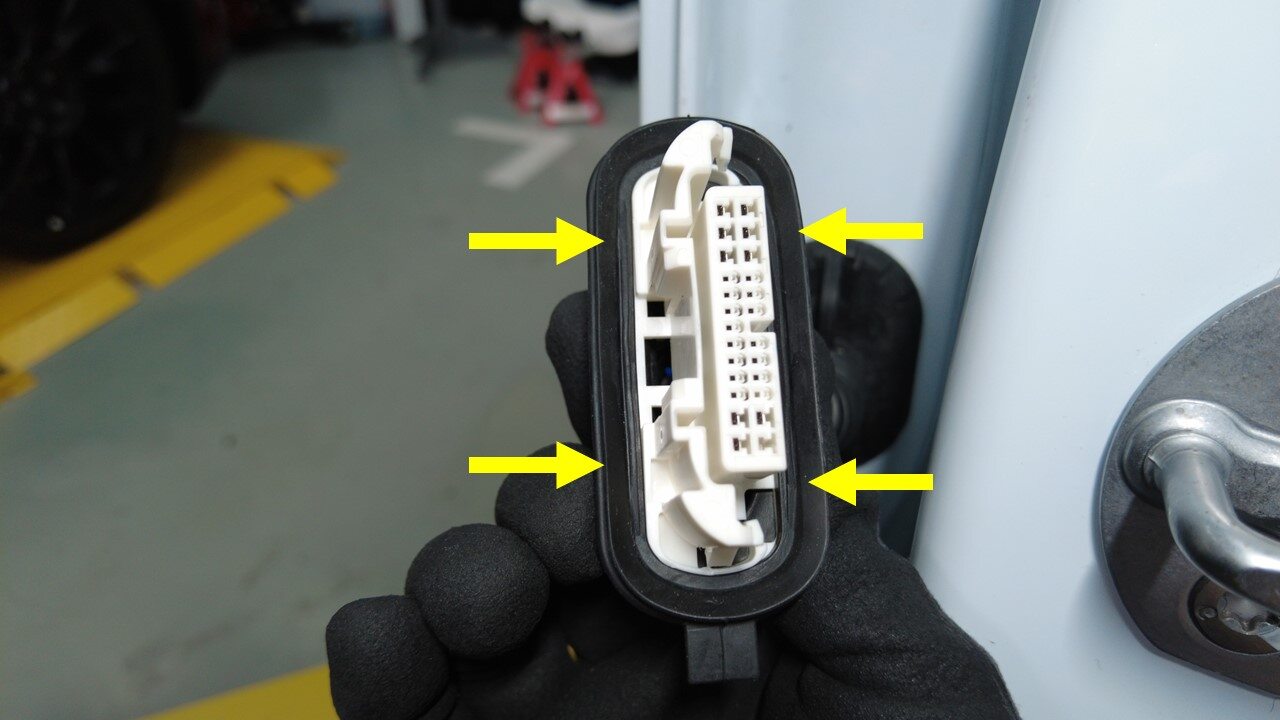

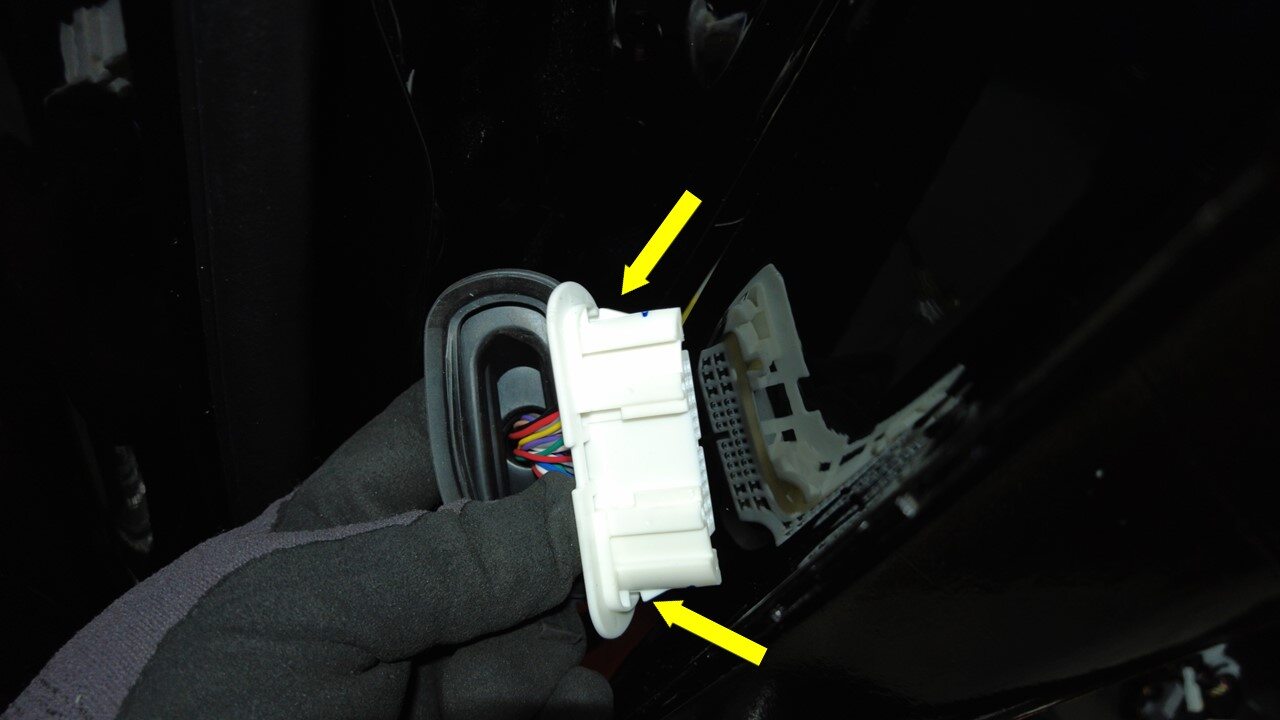

Release grommet connector then remove RH rear door harness from B-pillar area

Note
1x connector, 2x clips, 1x grommet, Pry at both the top and then the bottom of rear door harness grommet while pulling away from B-pillar to release door harness

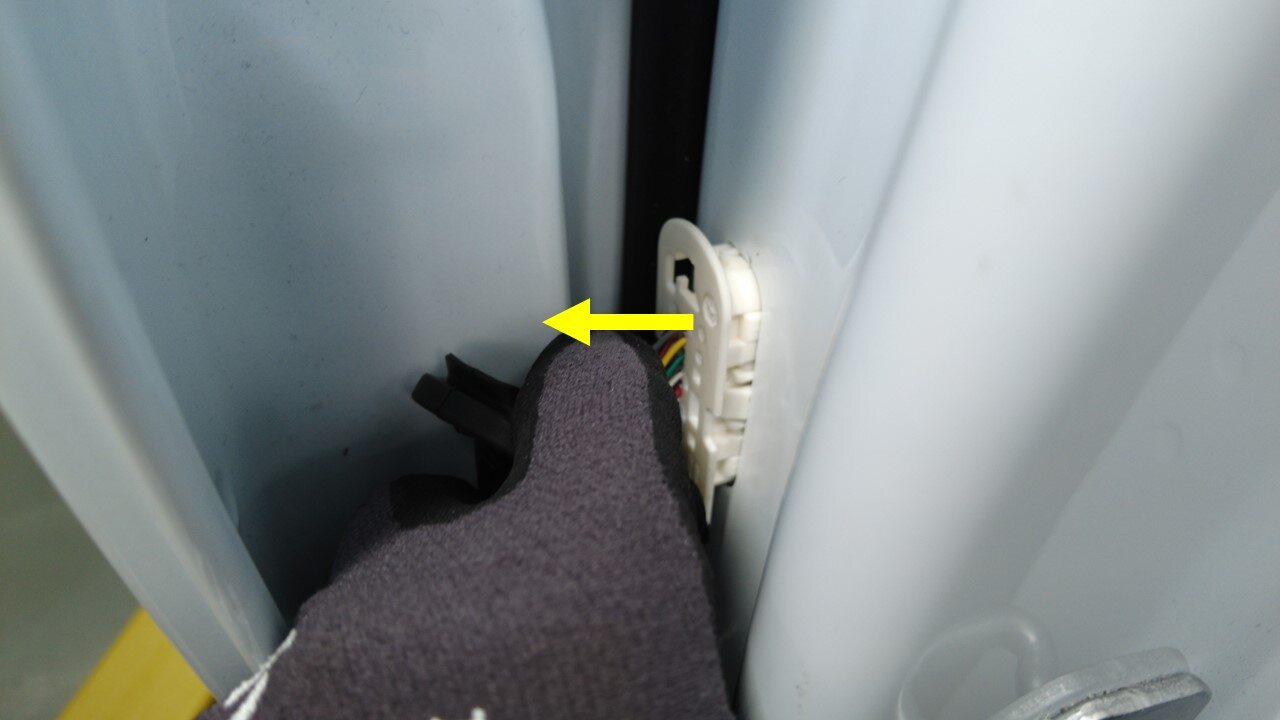

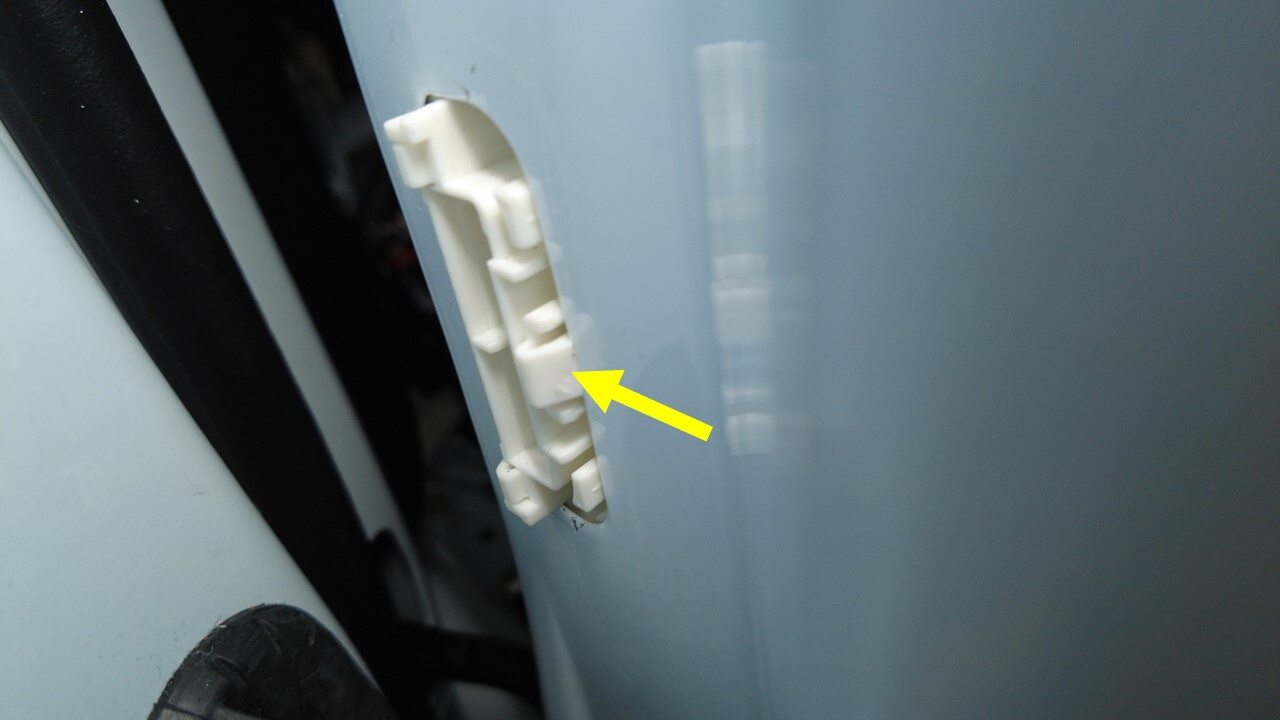

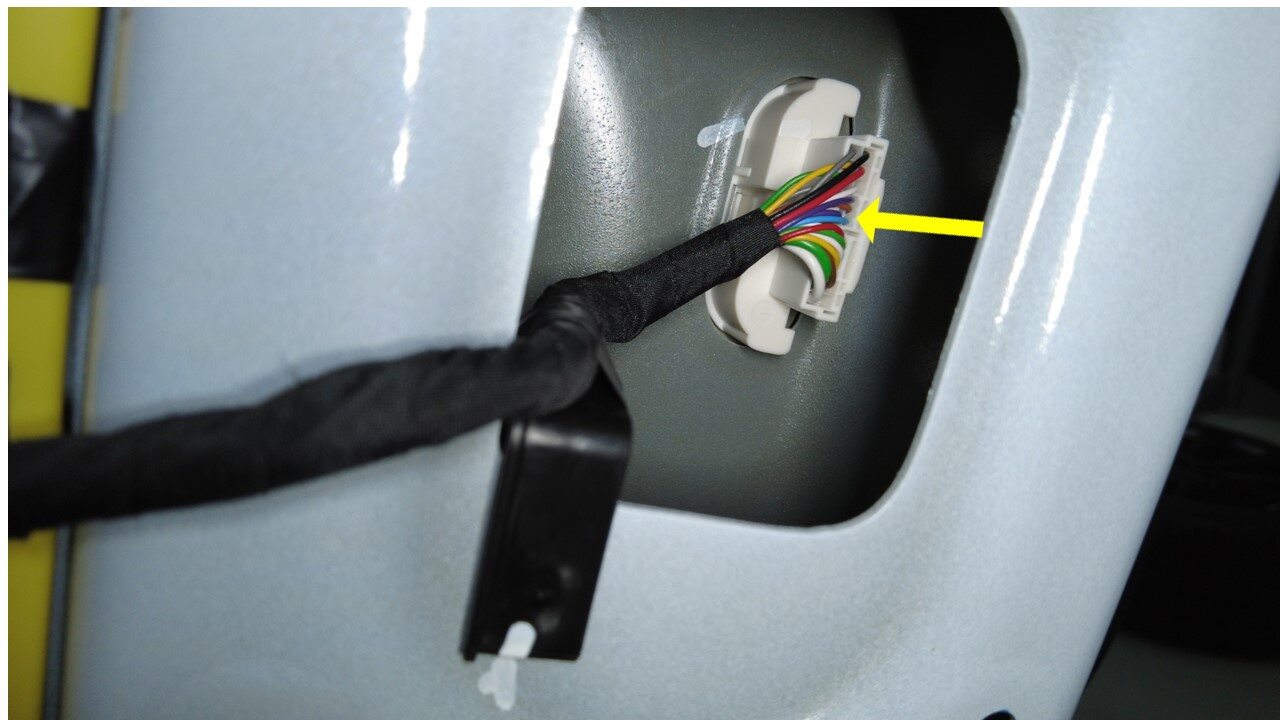

Remove RH rear door harness connector from B-pillar area

Note

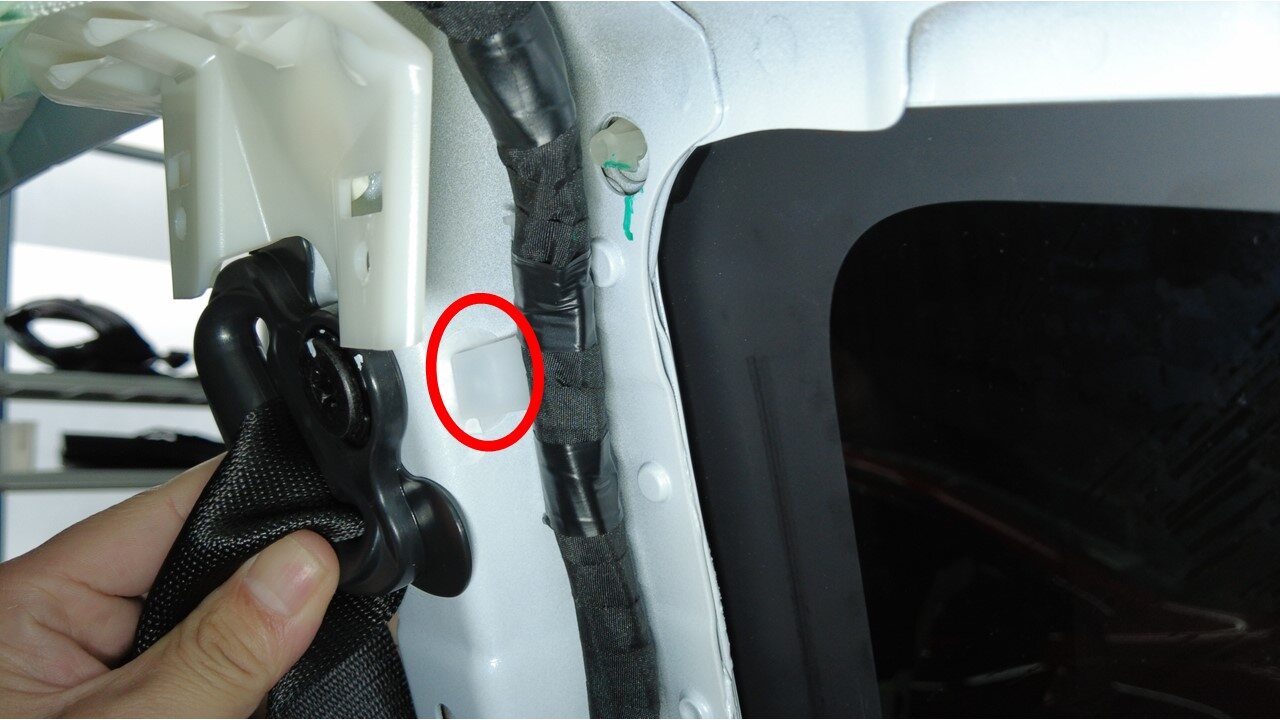

3x clips, Release the connector clip from outer the B-pillar

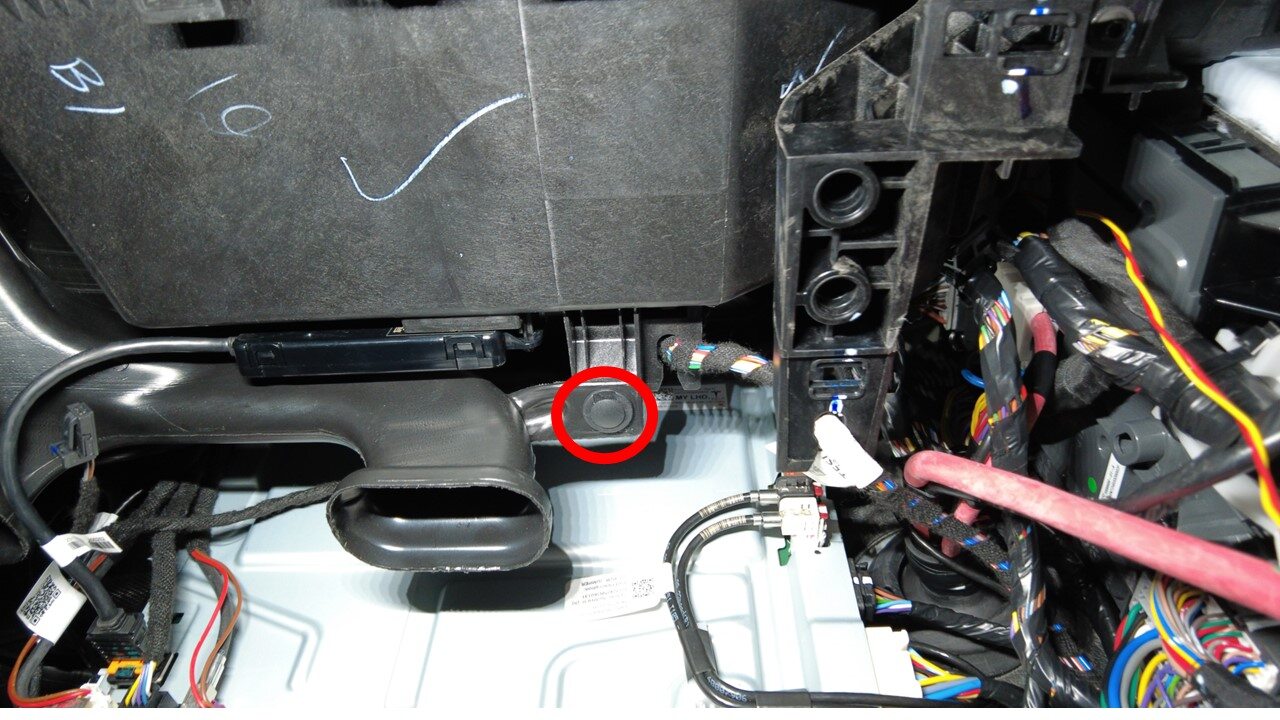

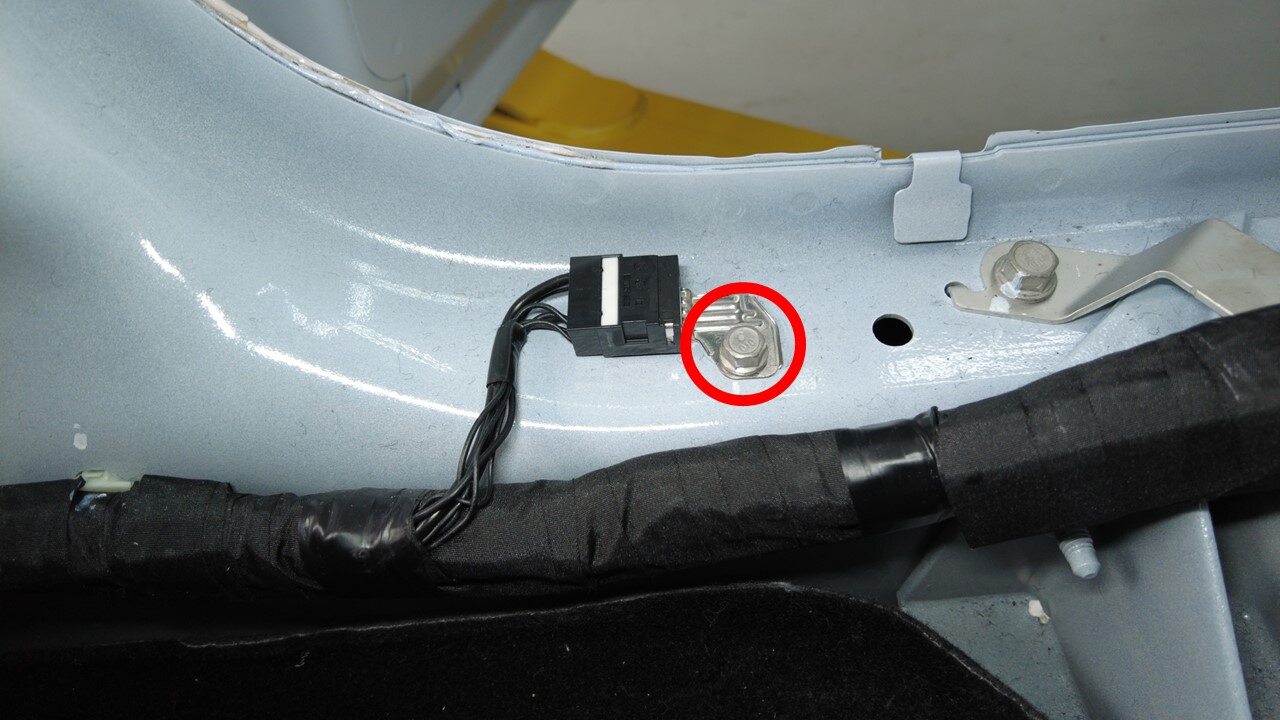

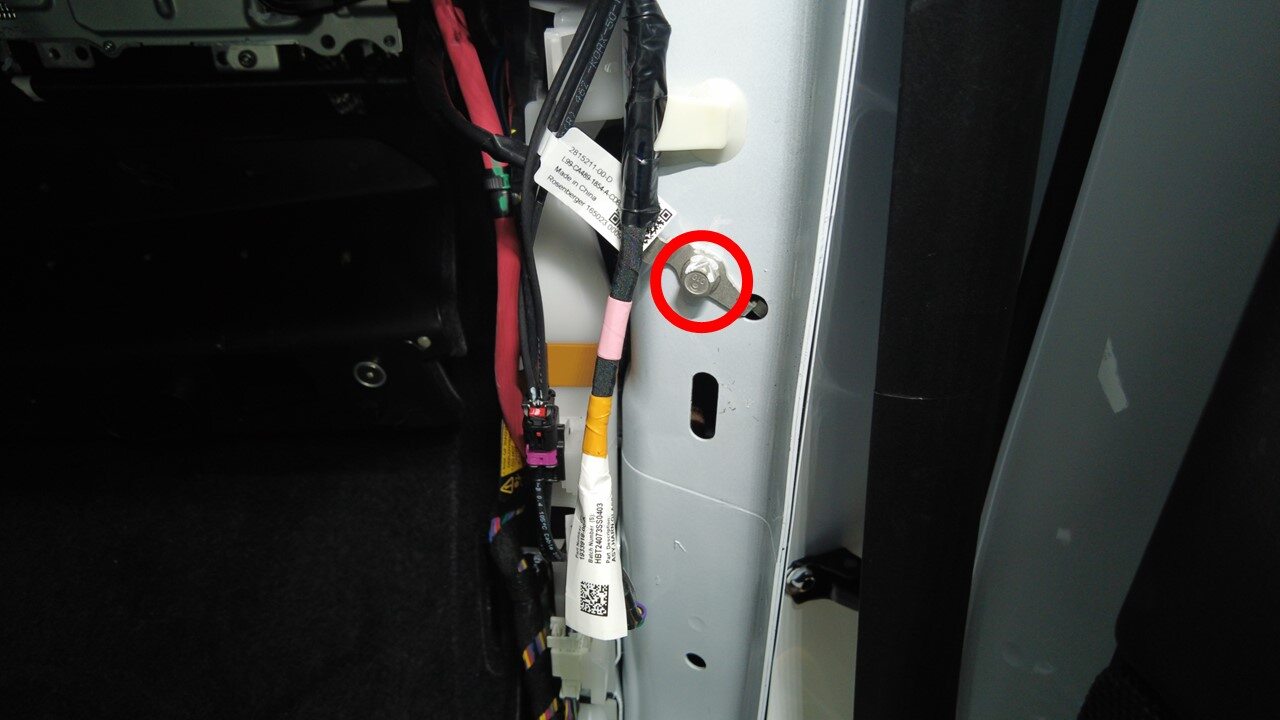

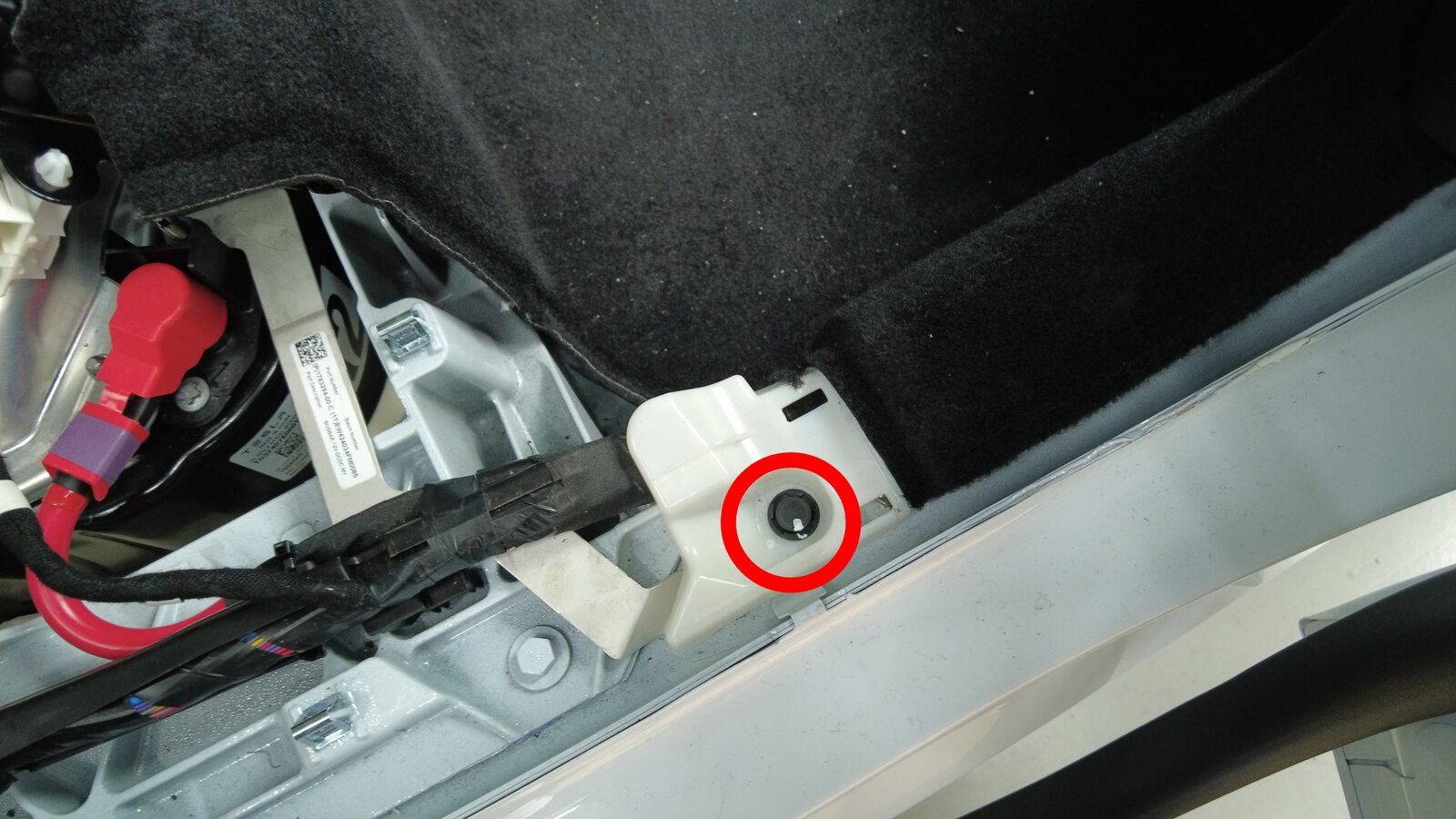

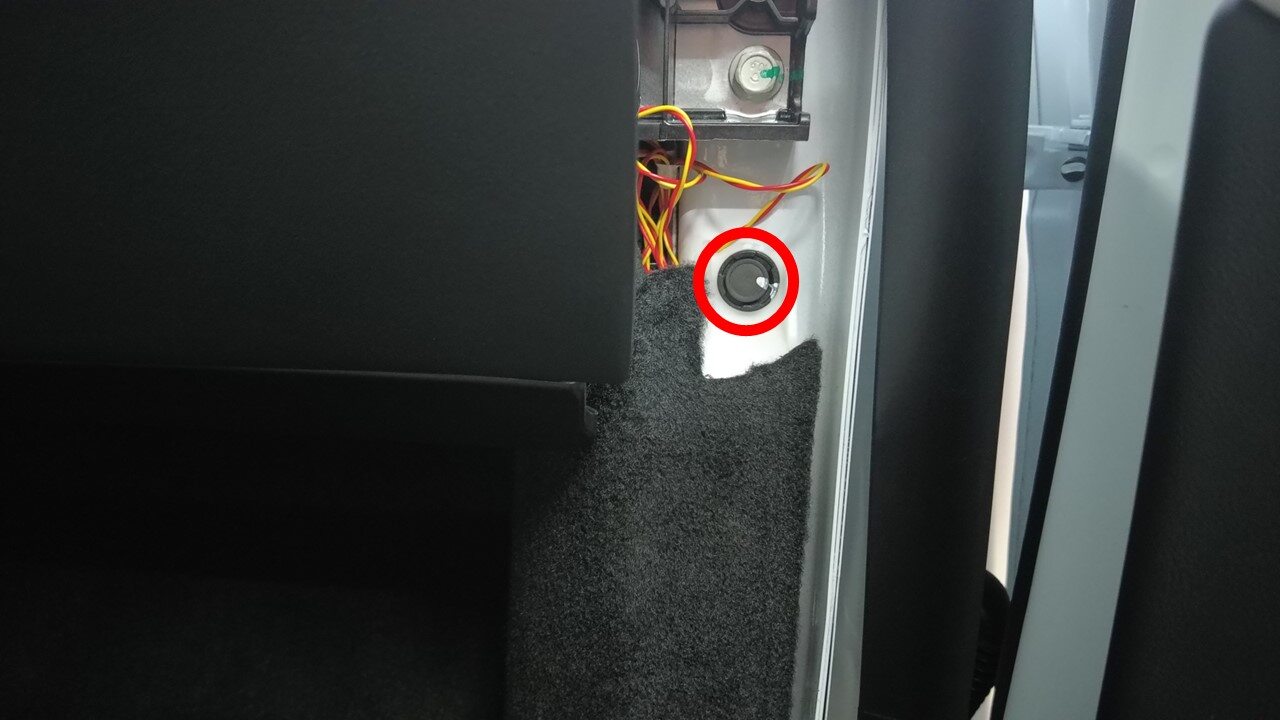

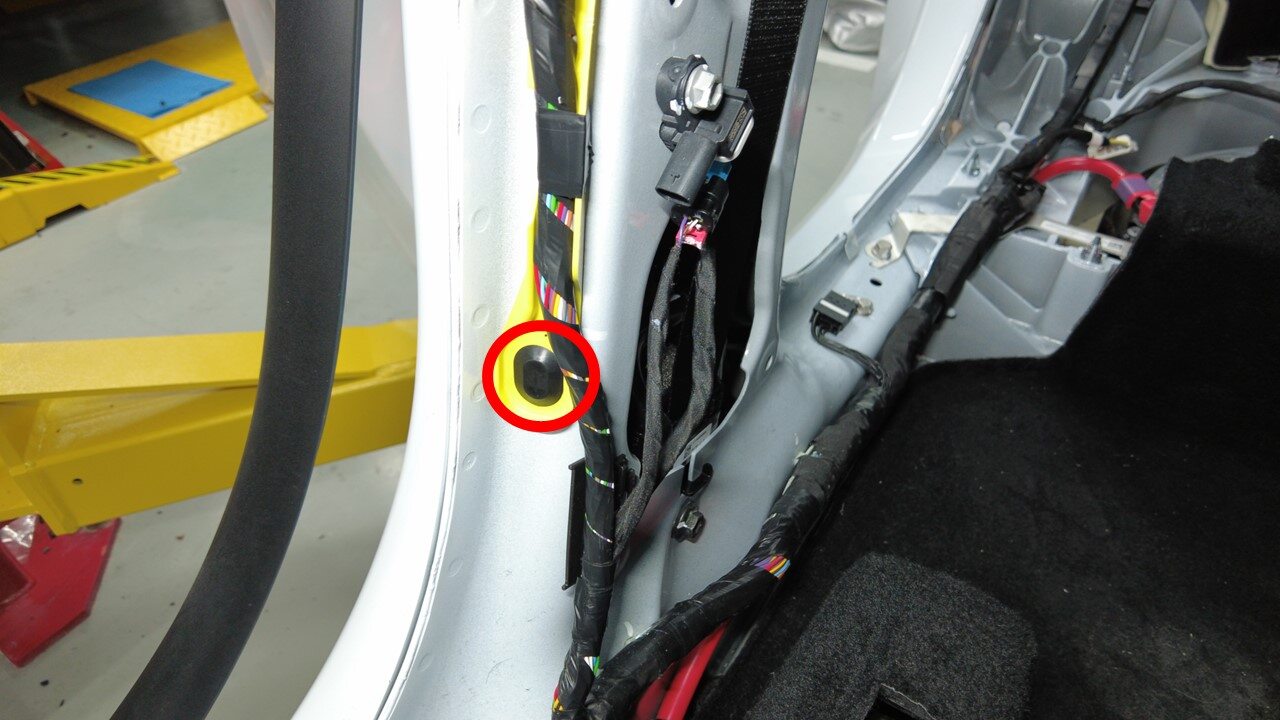

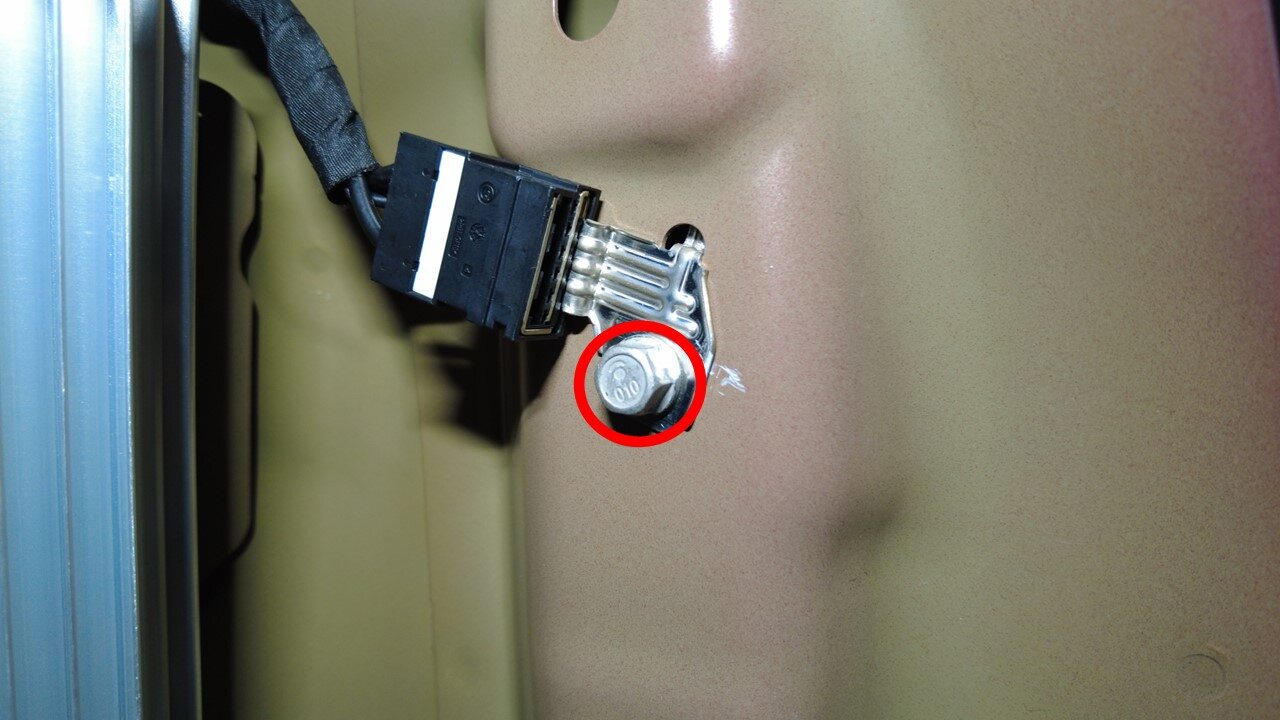

Remove RH body harness ground strap from RH rear sill area

Note
1x bolt, 10mm, 10 Nm

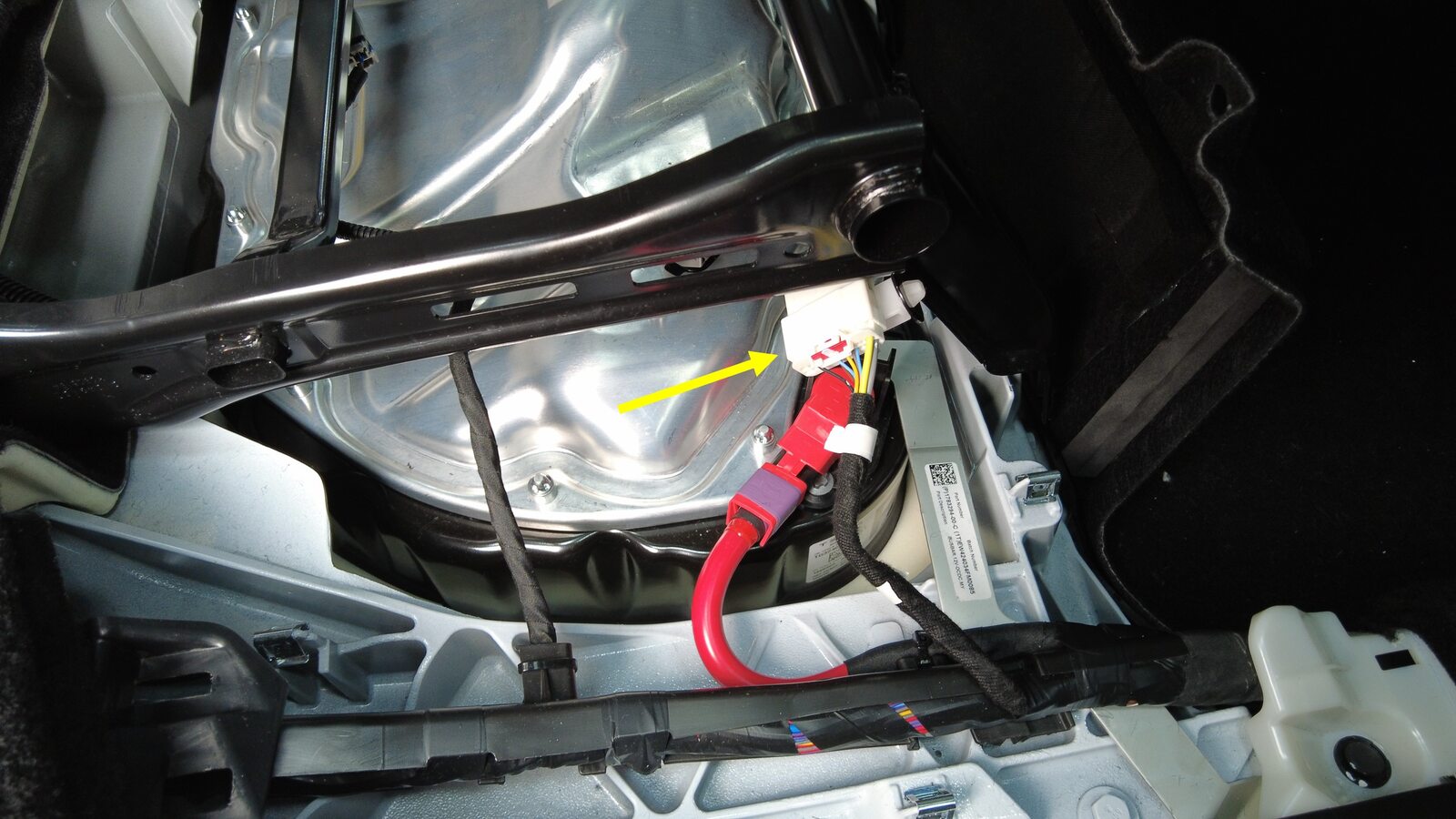

Disconnect 2nd row 40 seat connector

Note
1x connector, Disengage the tab

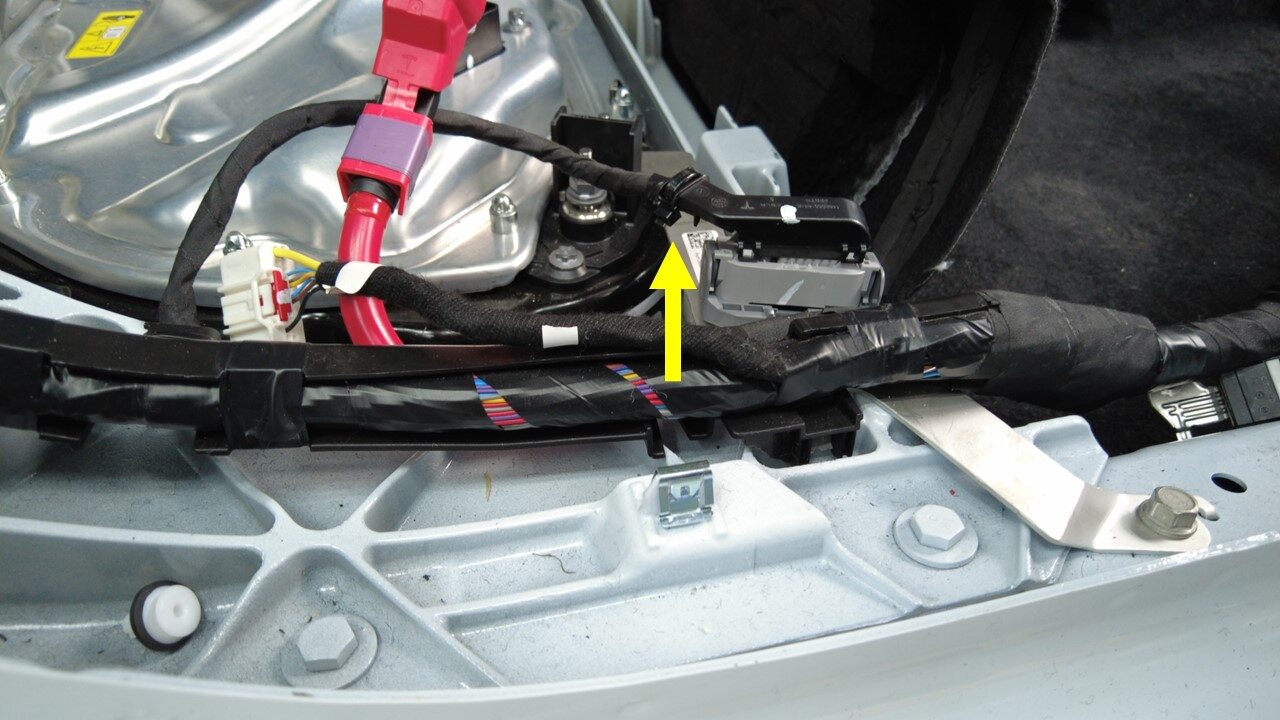

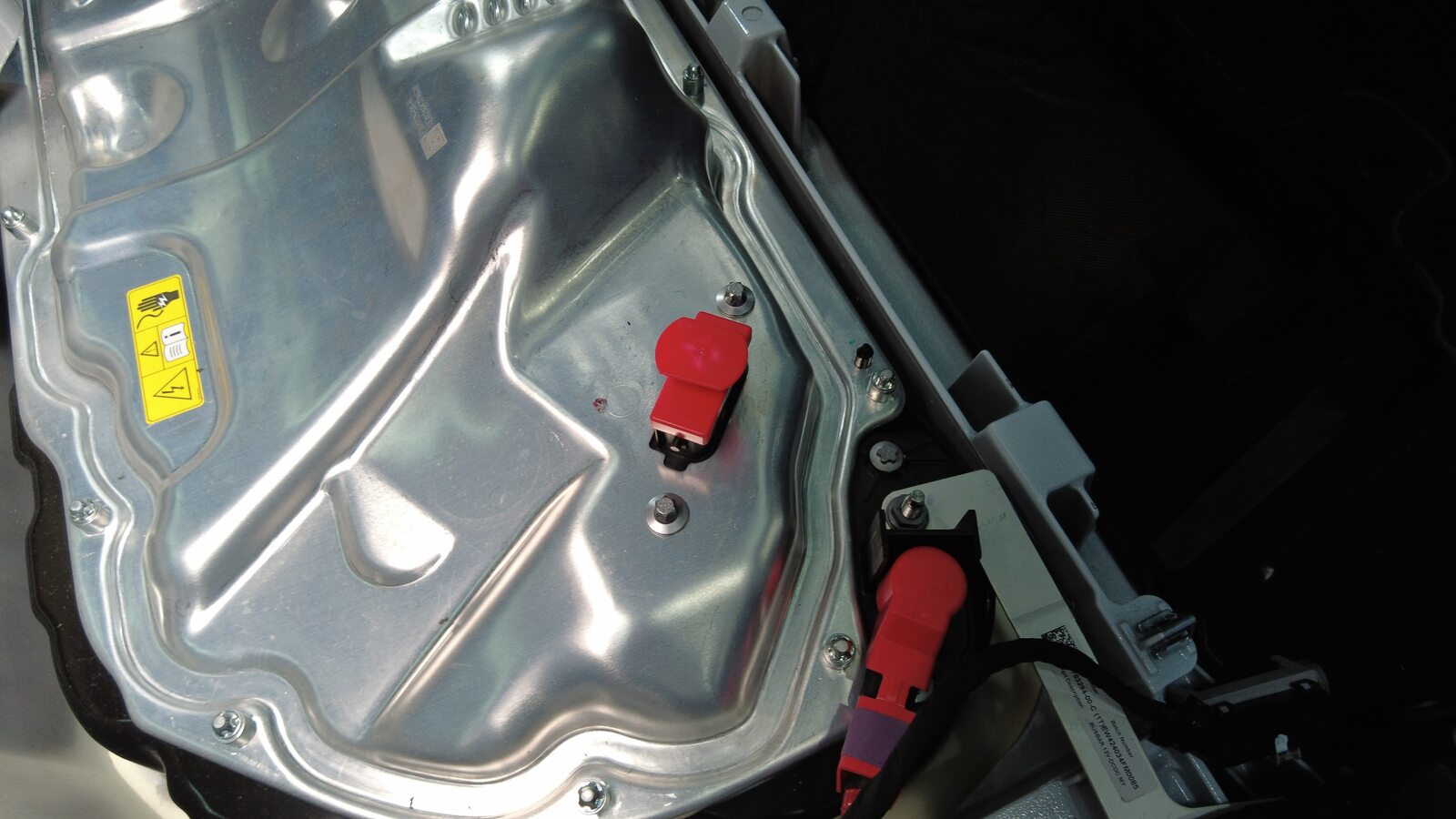

Disconnect HVC logic connector and install logic cap

Note

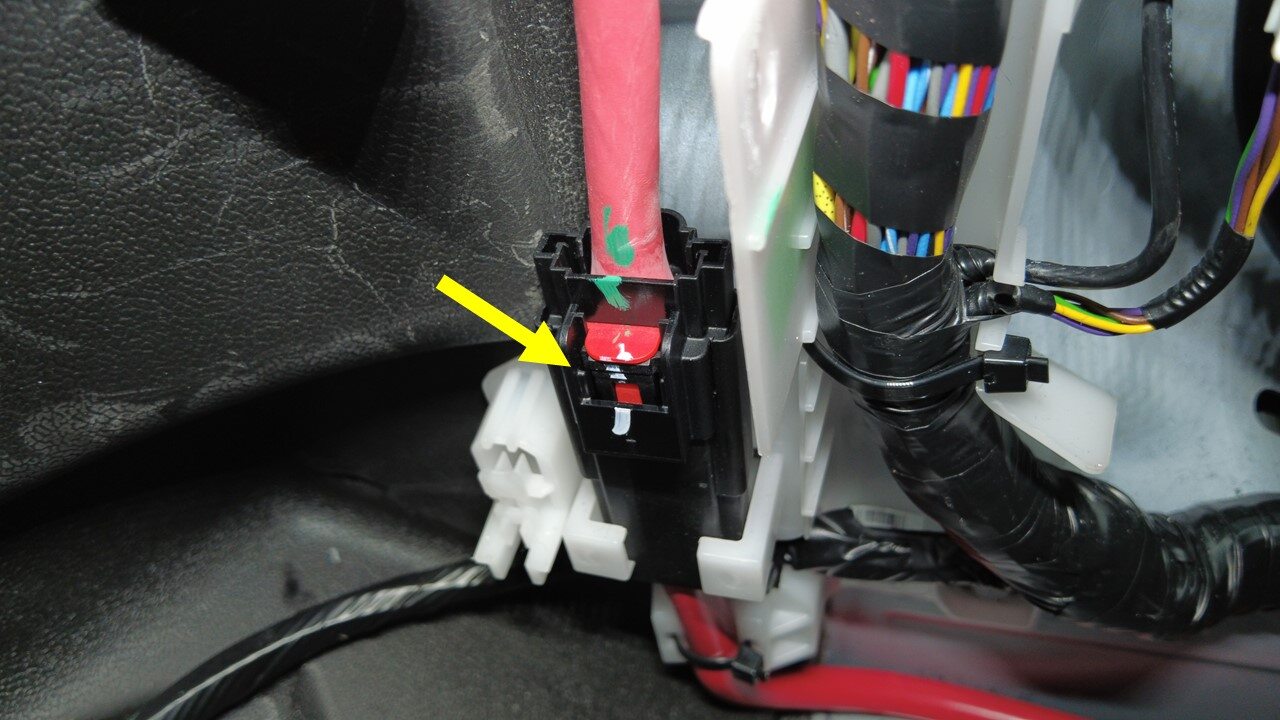

1x connector, 1x cap, Release locking tab then push the handle downward to release connector

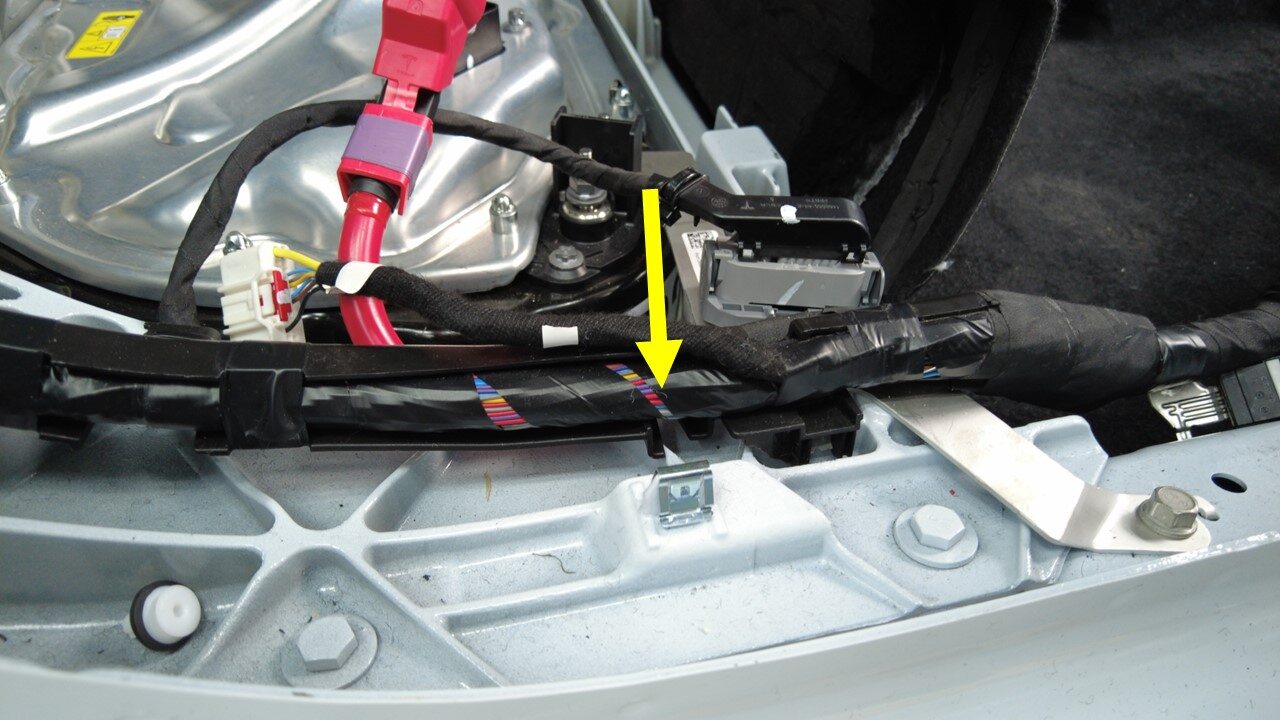

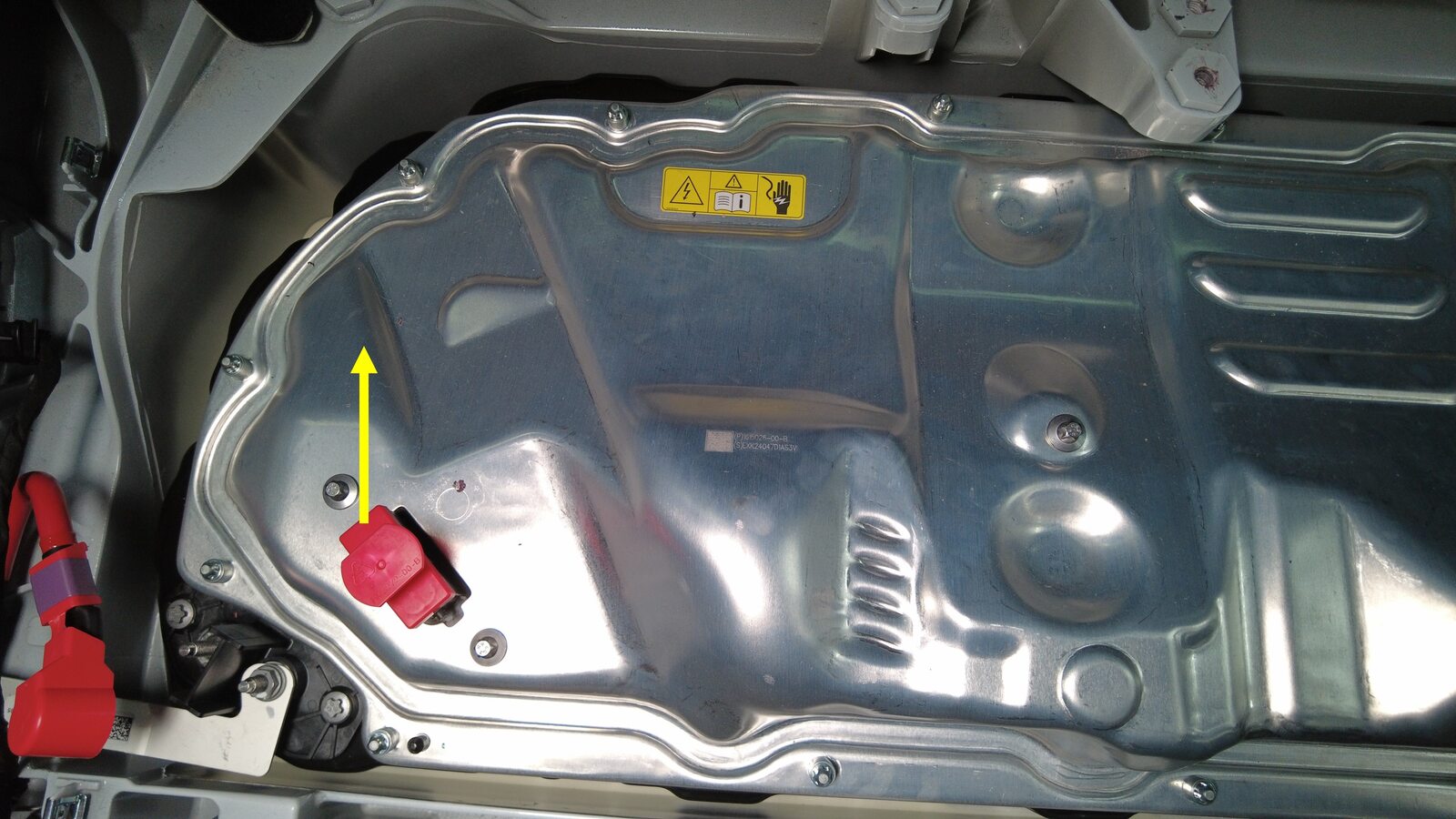

Release positive LV output cover from PCS cable

Note
1x cover

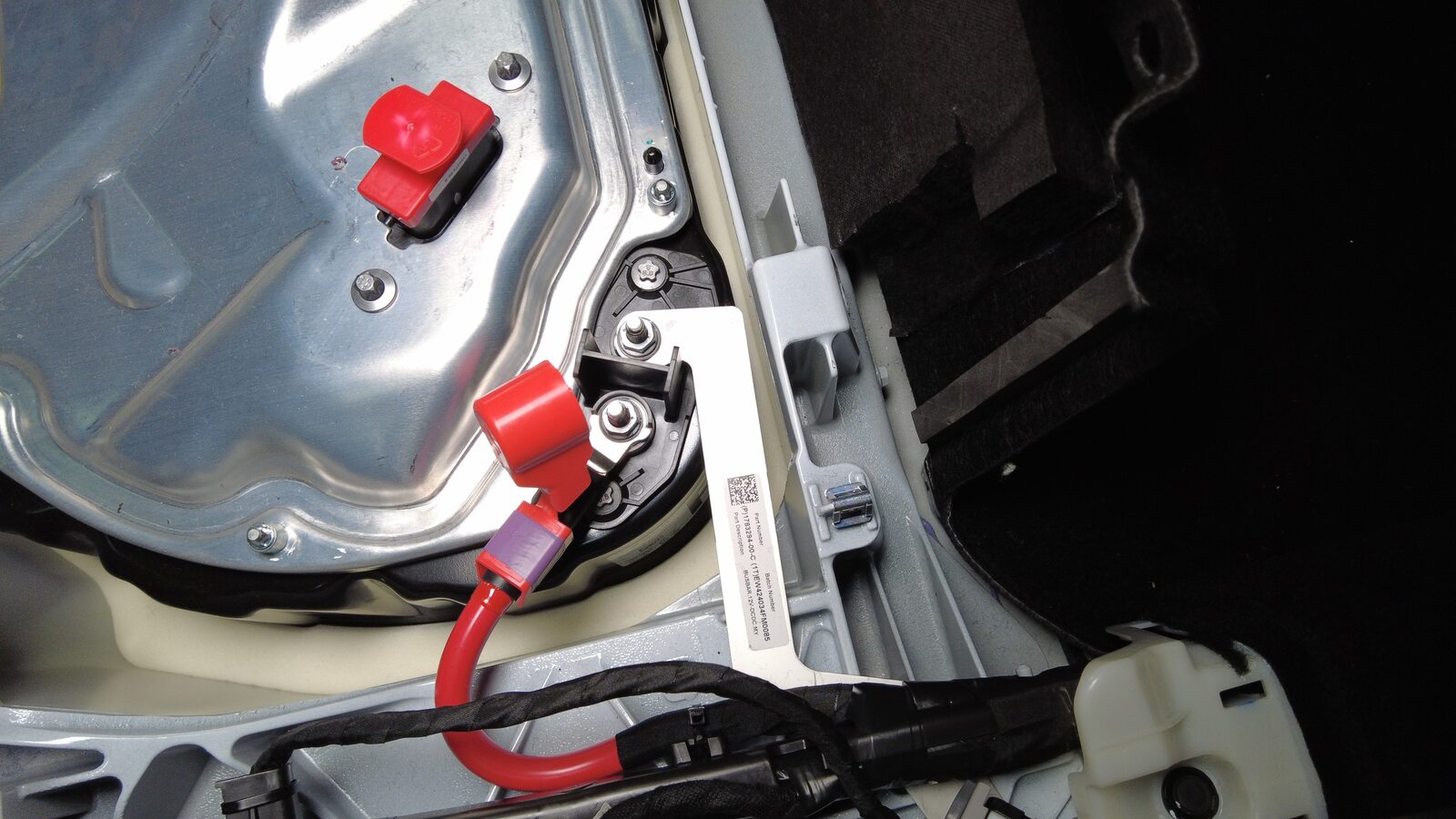

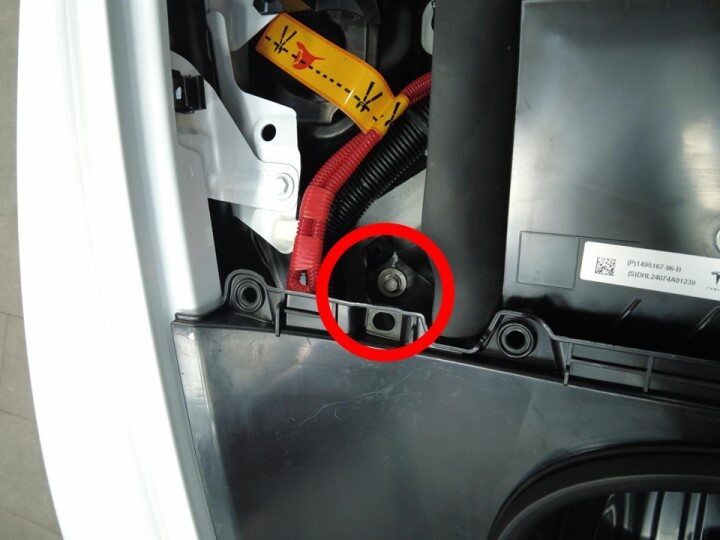

Remove PCS cable from LV passthrough output

Note
1x nut, 13mm, 9 Nm, Discard nut after removal

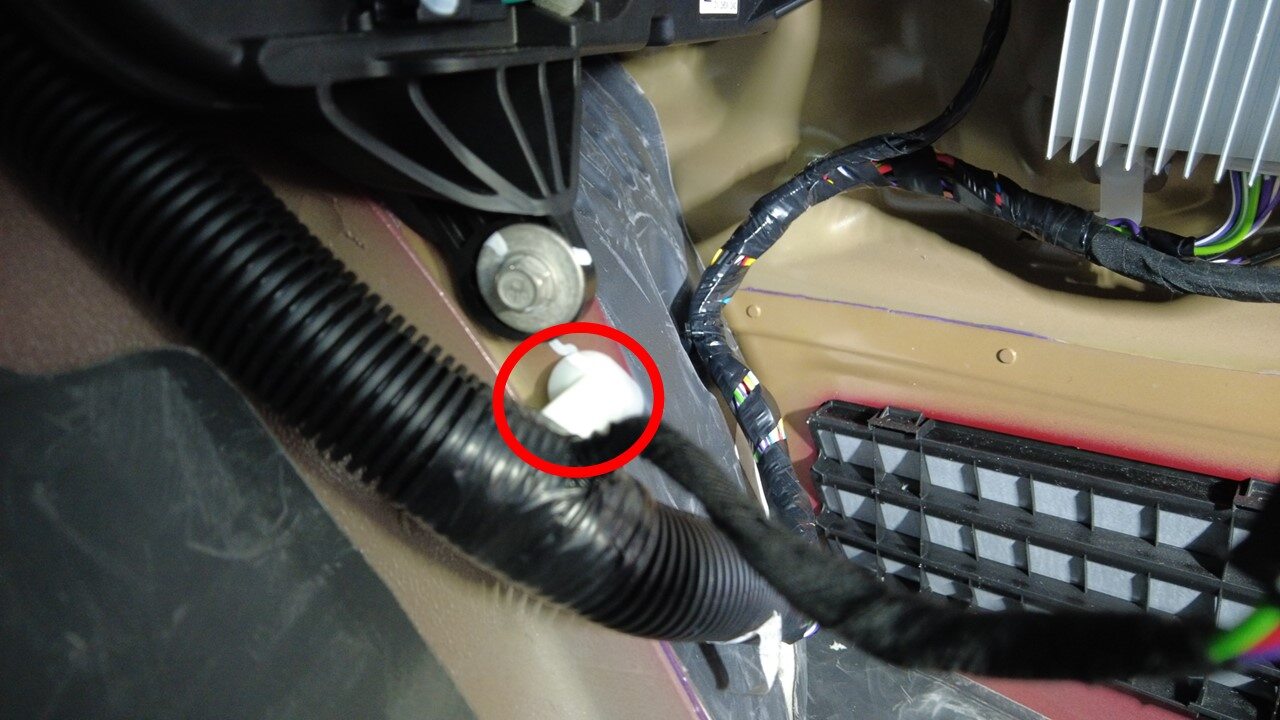

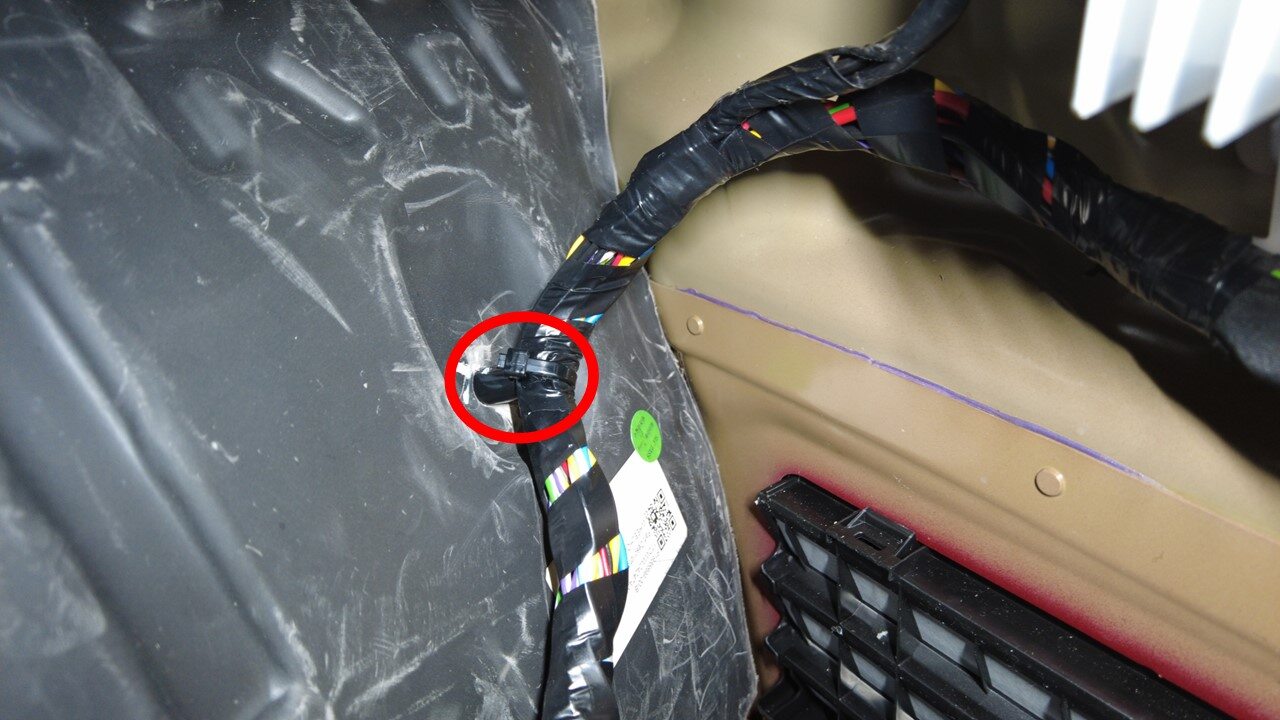

Release RH body harness from RH rear body

Note
1x clip

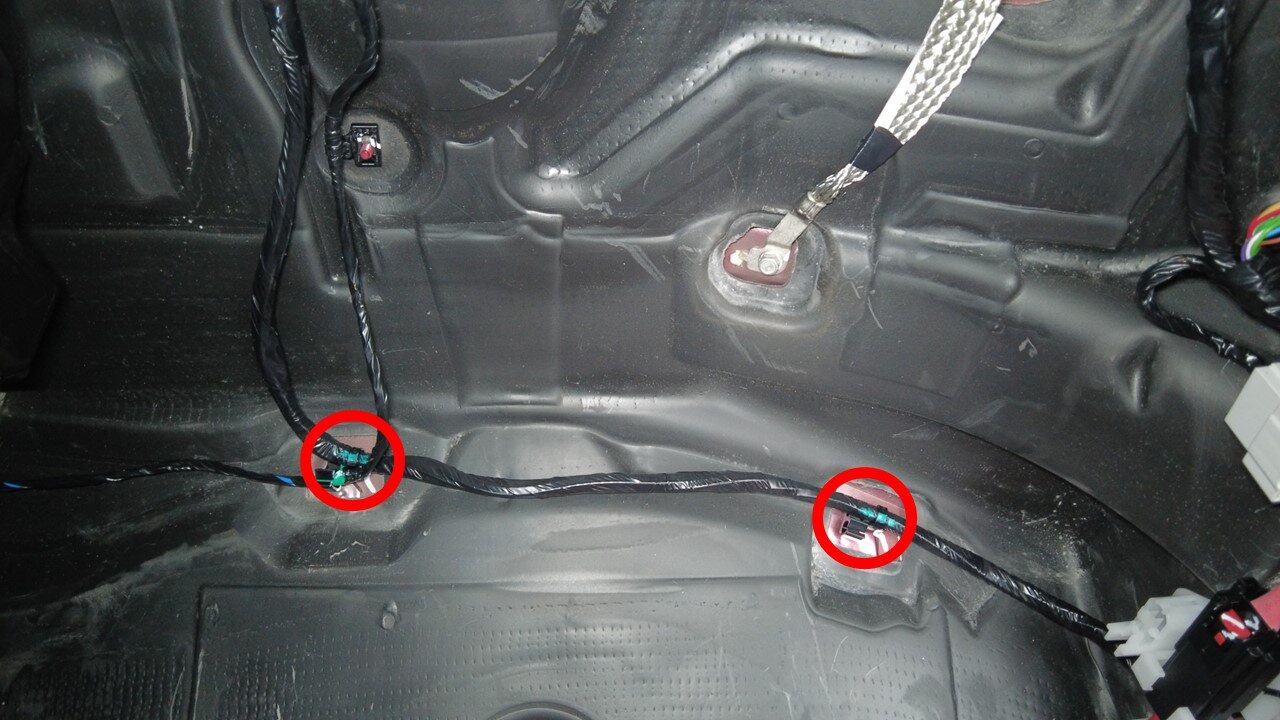

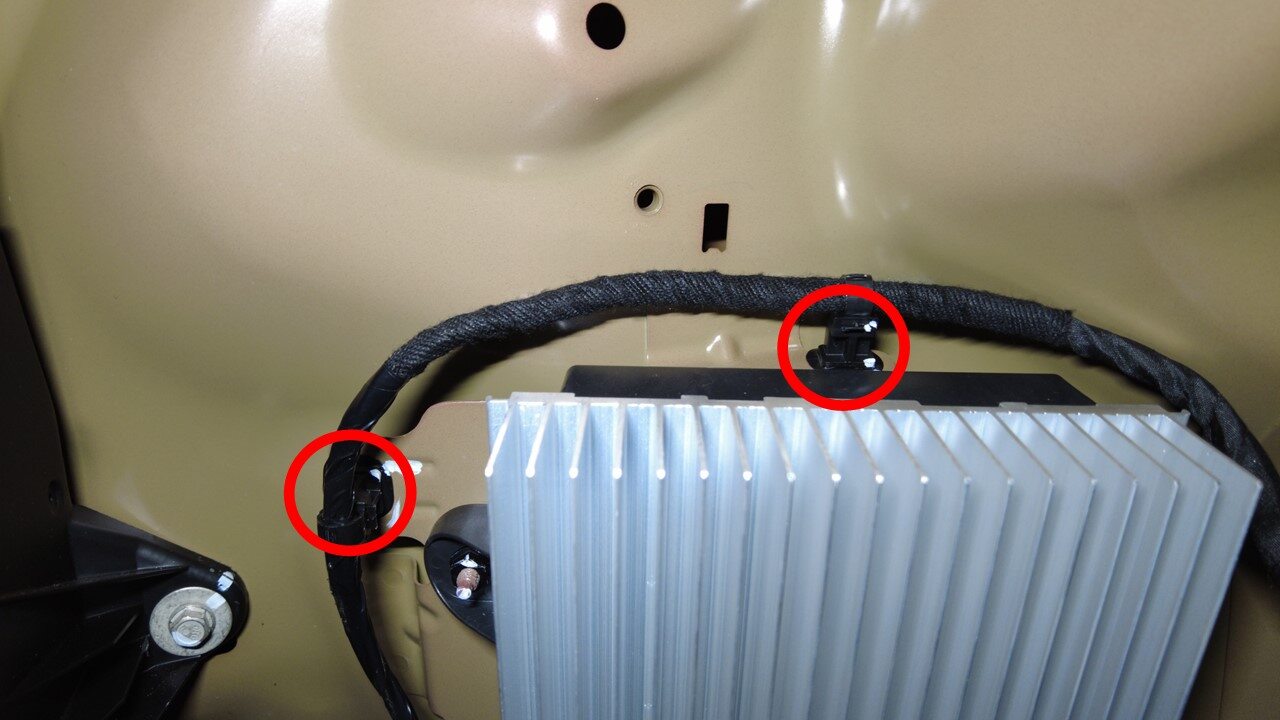

Release clips RH body harness to rear body and move aside

Note
2x clips

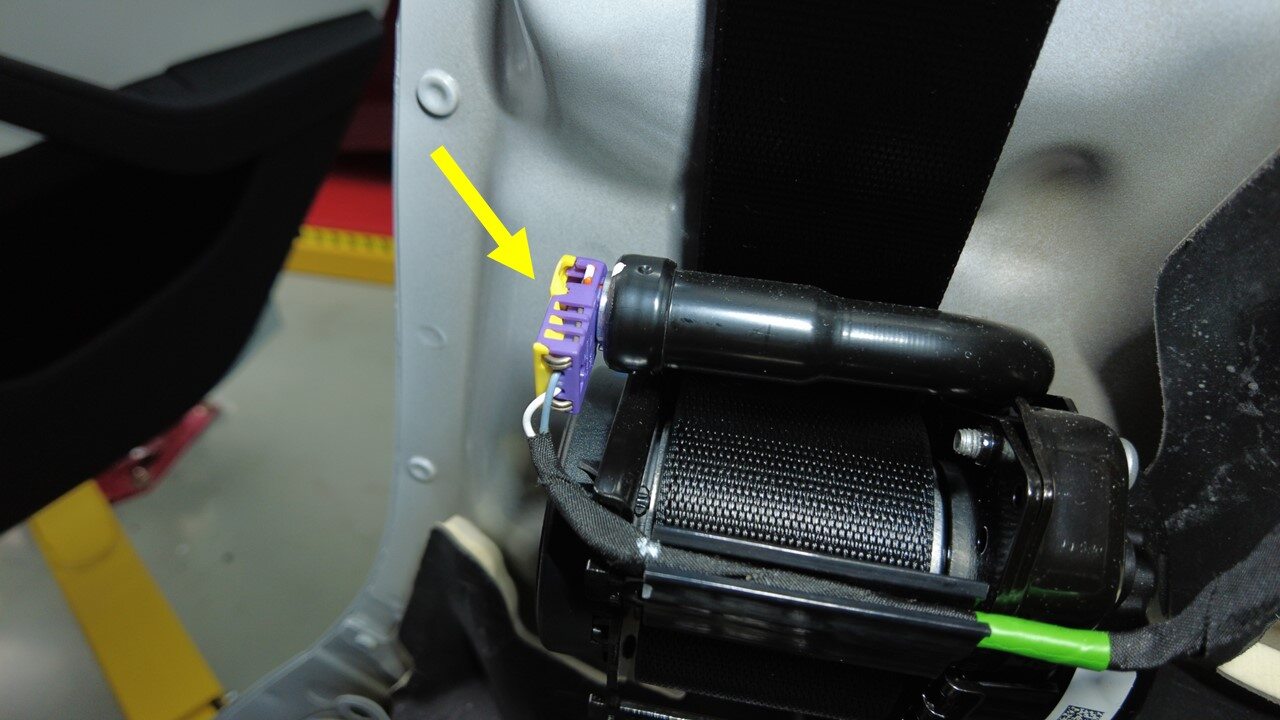

Disconnect RH 2nd row retractor connector

Note

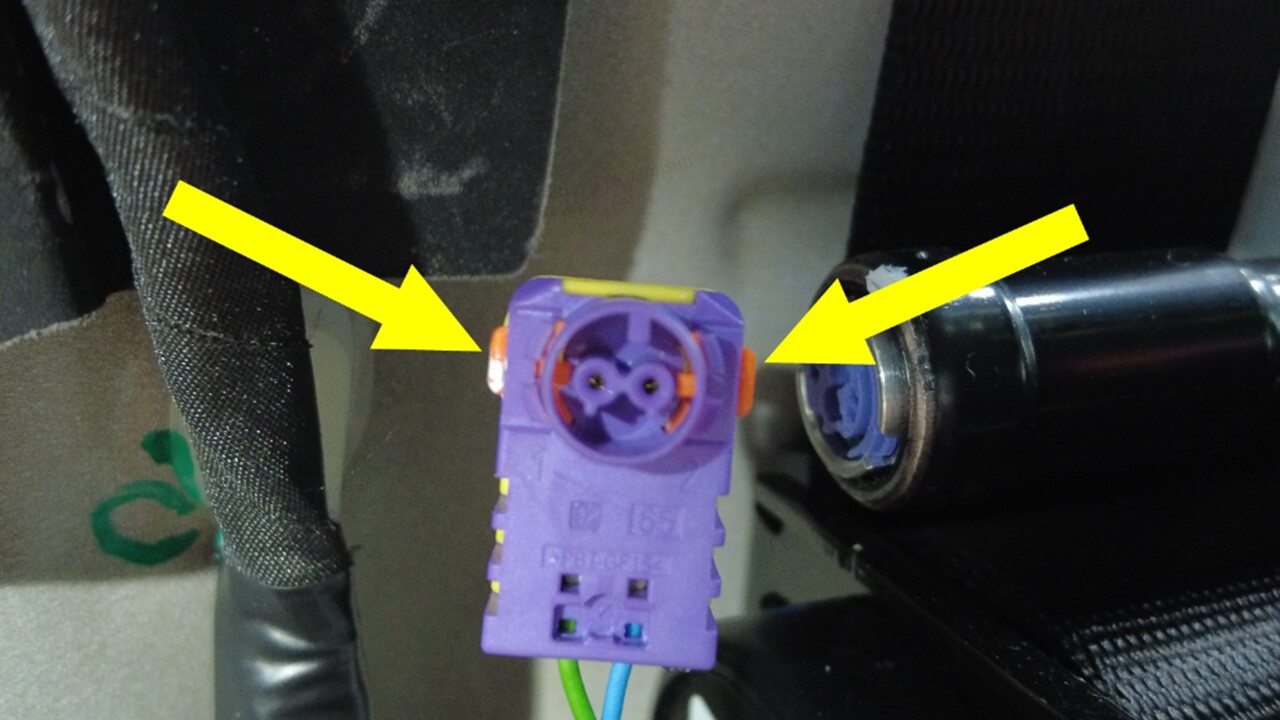

1x connector, Lift orange locking tab then release the connector, And remove it from the harness bracket
Fold 2nd row 60 seatback down

Note
Via seat switch or manual tether, Protect seat back upholstery if necessary

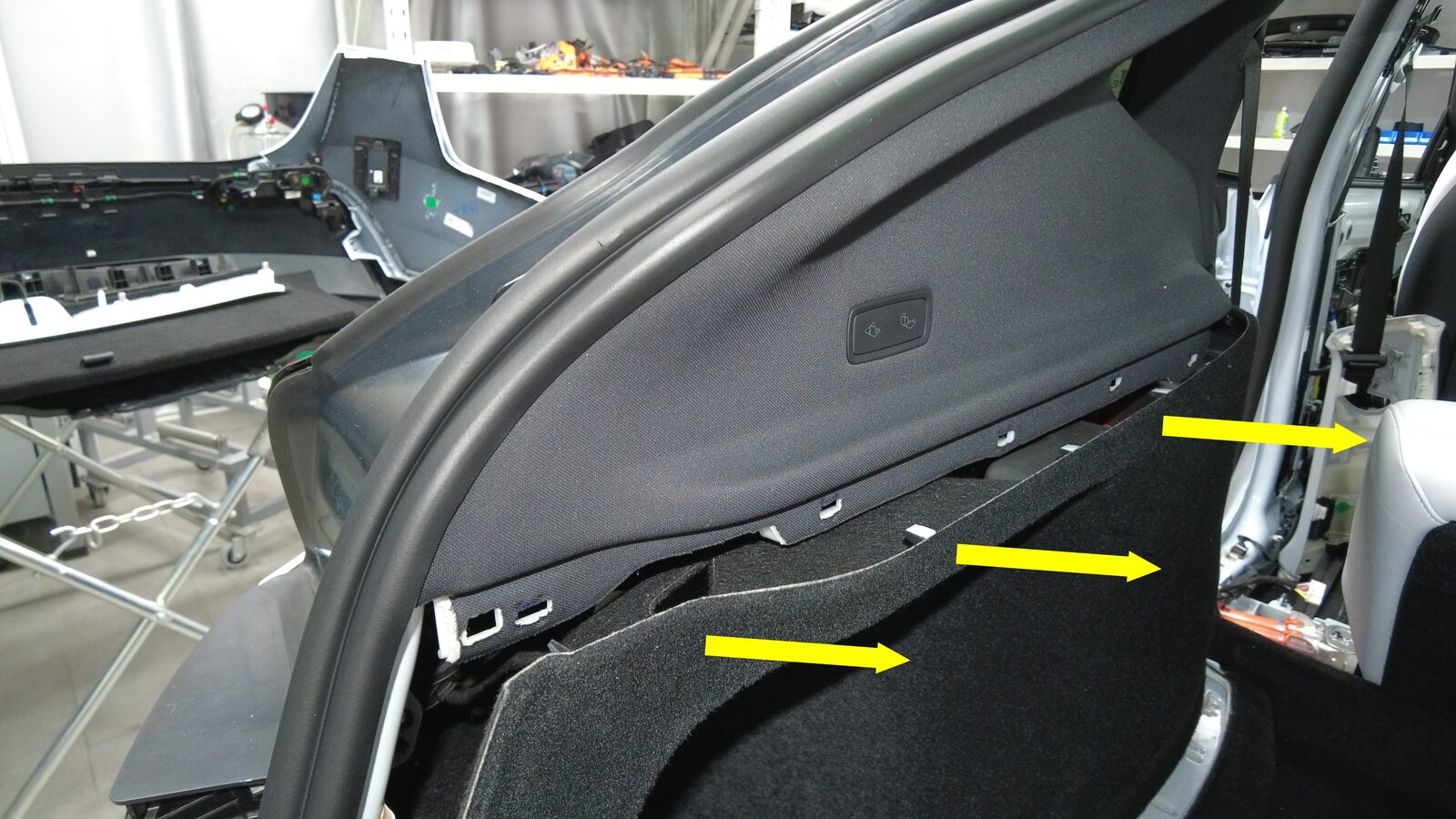

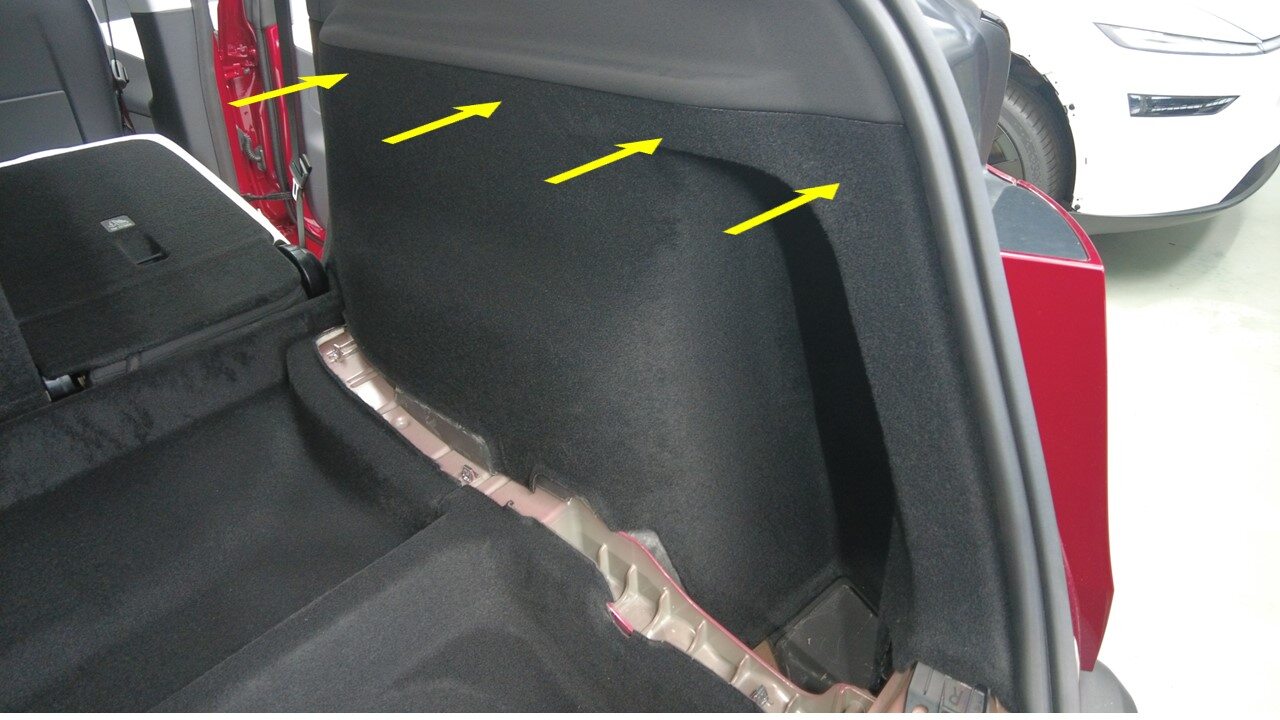

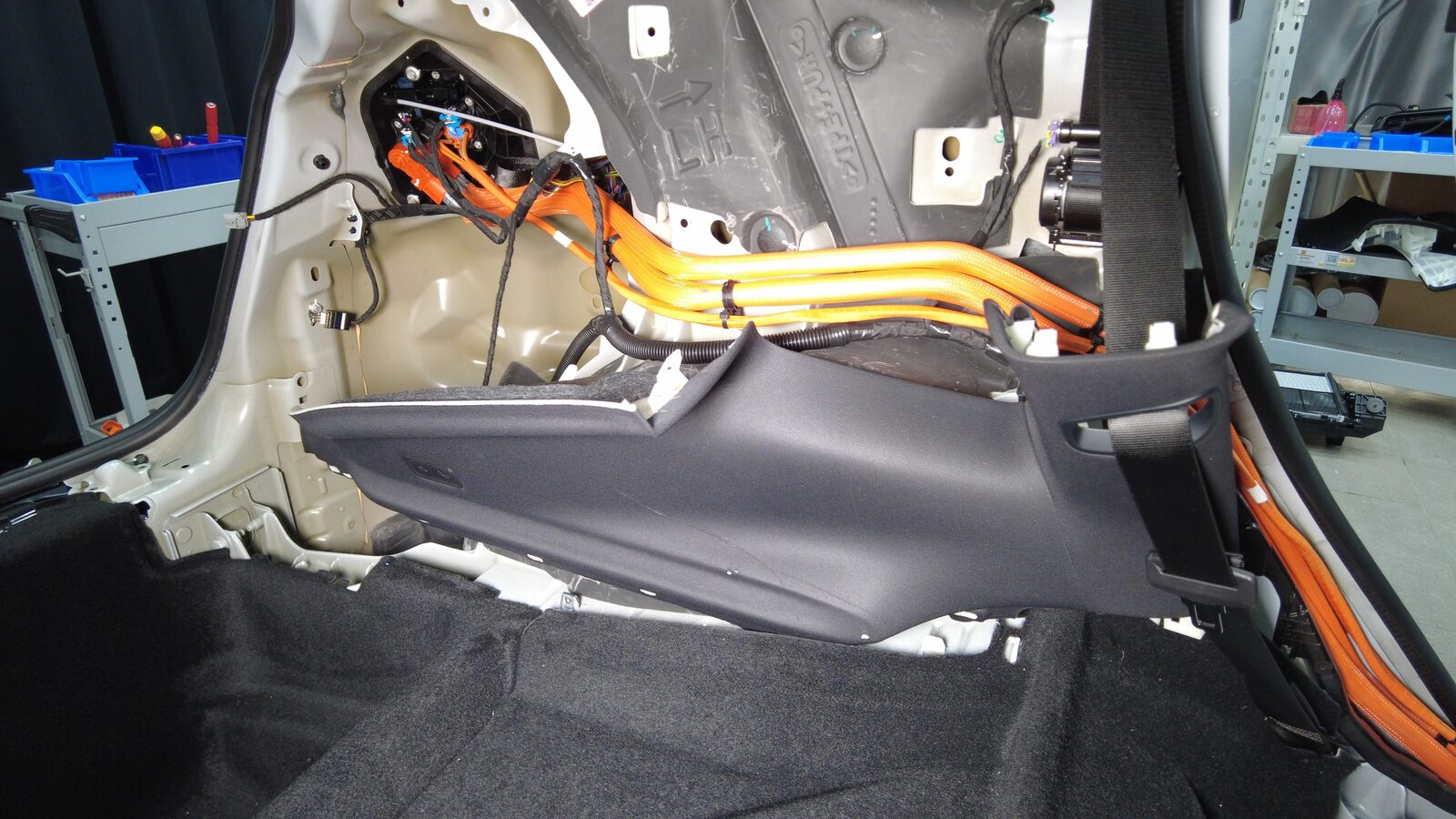

Partially remove LH trunk side trim

Note
9x clips, Release only upper section of trim, Use caution to avoid straining 12v socket harness at rear of trim, All clips and datums shown in image for clarity
Remove LH upper C-pillar trim

Note
7x clips, 5x datums, 2x tabs, 1x release cable, Release chargeport manual release cable from trim, Allow trim to rest on trunk floor

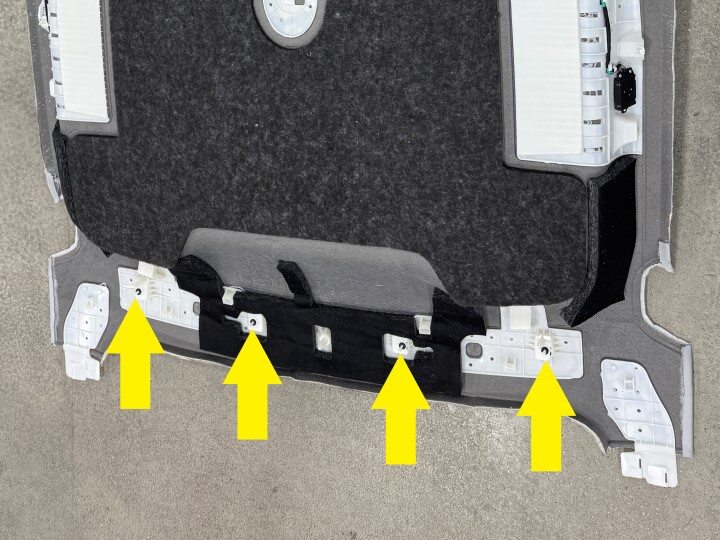

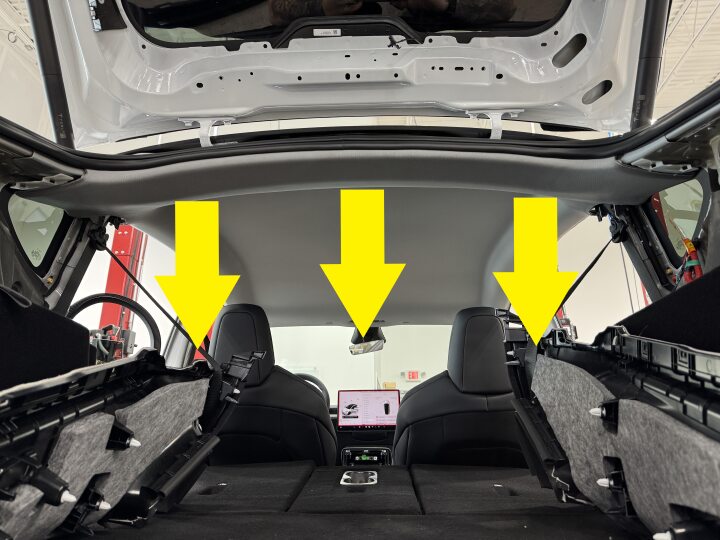

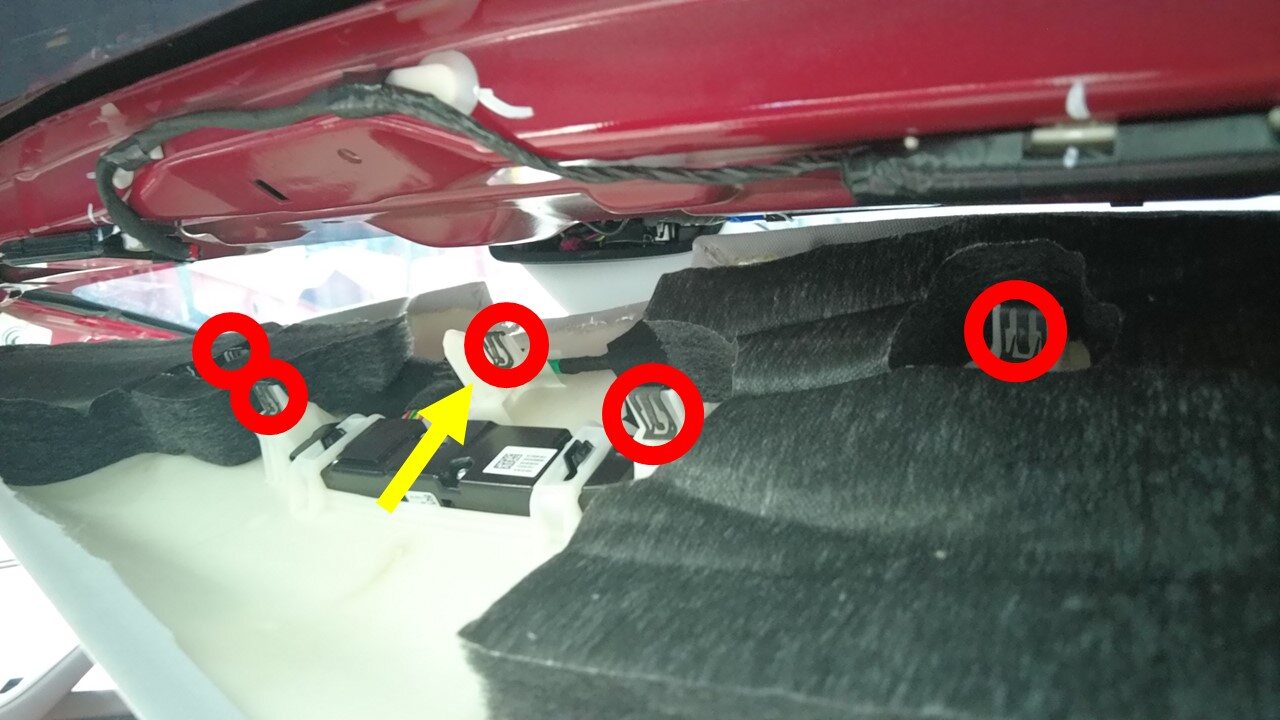

Release rear section of headliner

Note
4x clips, Allow headliner to droop, Pull down as required to provide access to TCU
Remove TCU fastening bolts from body and remove

Note
2x bolts, 13mm, 14 Nm, 1x datum

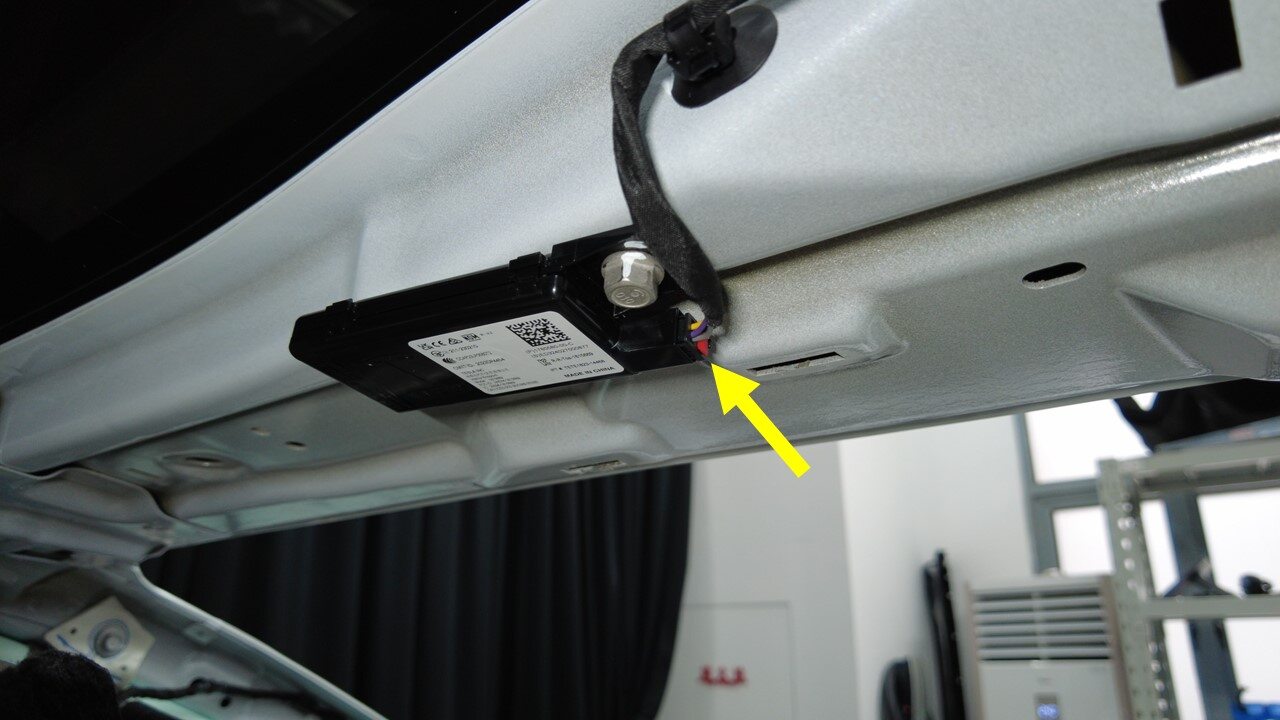

Disconnect TCU connectors

Note
2x connectors, 1x hook, Disengage locking tab

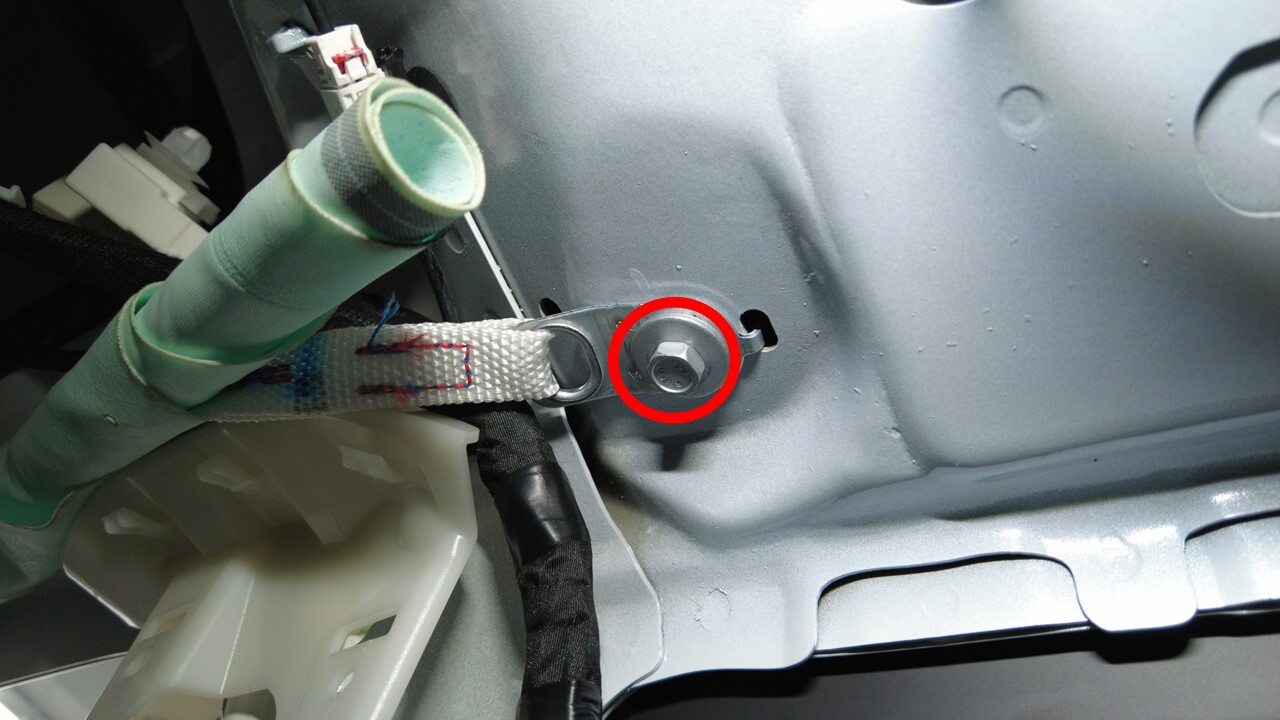

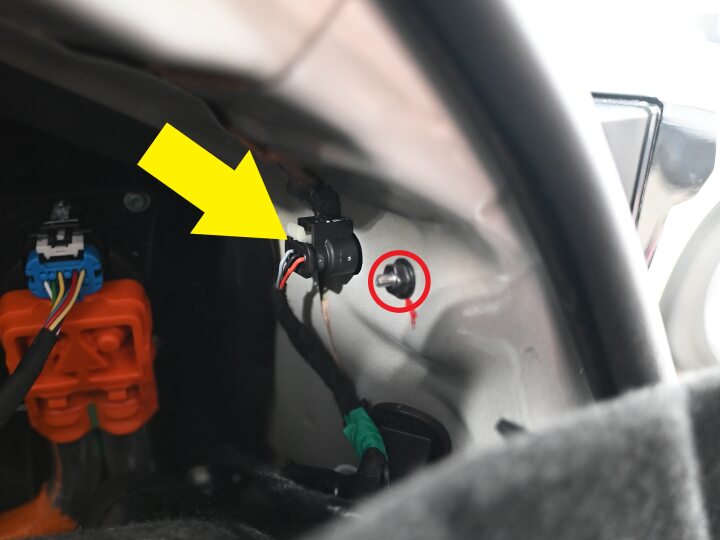

Remove fastening bolt rear RH side curtain air bag from body

Note
1x bolt, 10mm, 8 Nm

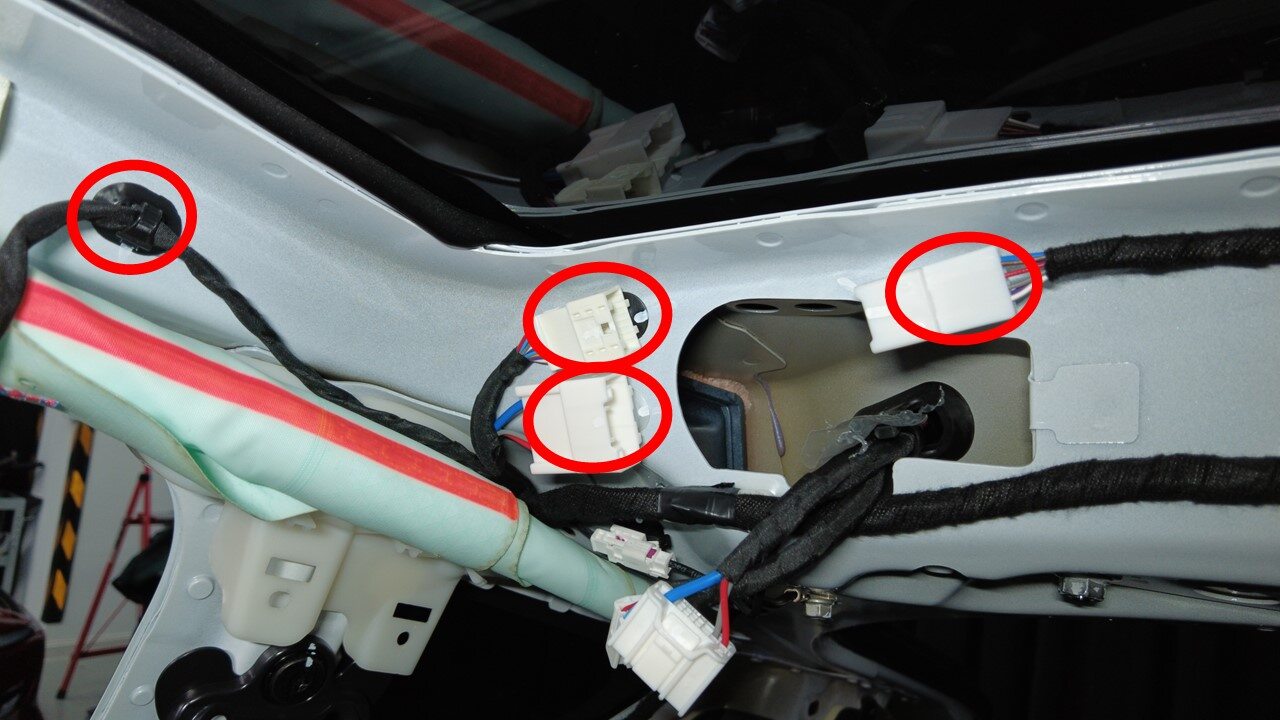

Disconnect liftgate harness connectors from body harness

Note
3x connectors, Disengage locking tab

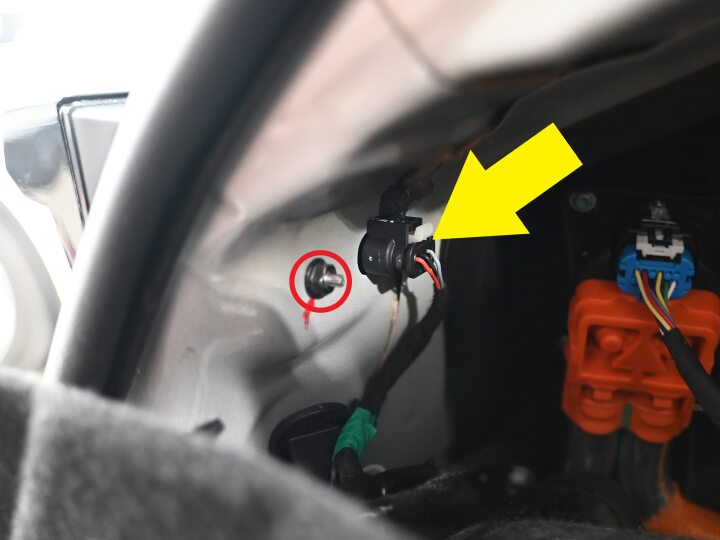

Disconnect RH power strut connector

Note
1x connector

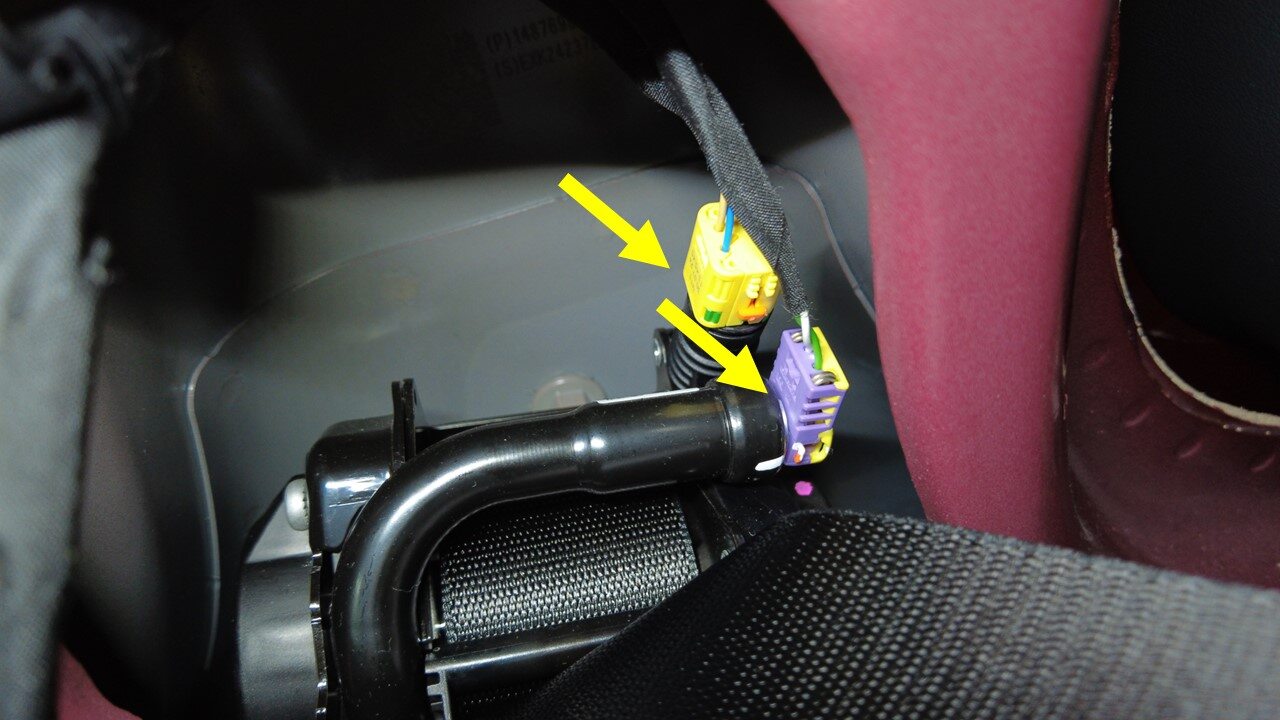

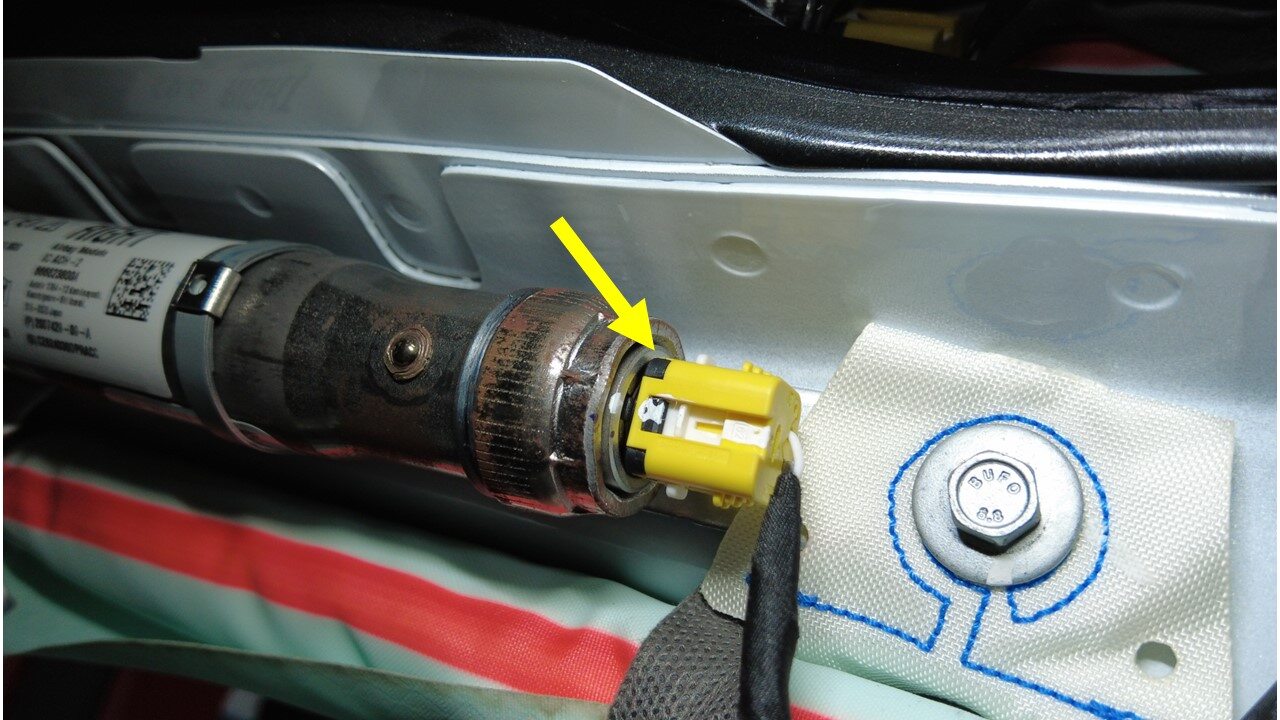

Disconnect harness connector for RH side curtain air bag

Note
1x connector, 2 stage locking connectors, Lift the white tab to release the connector

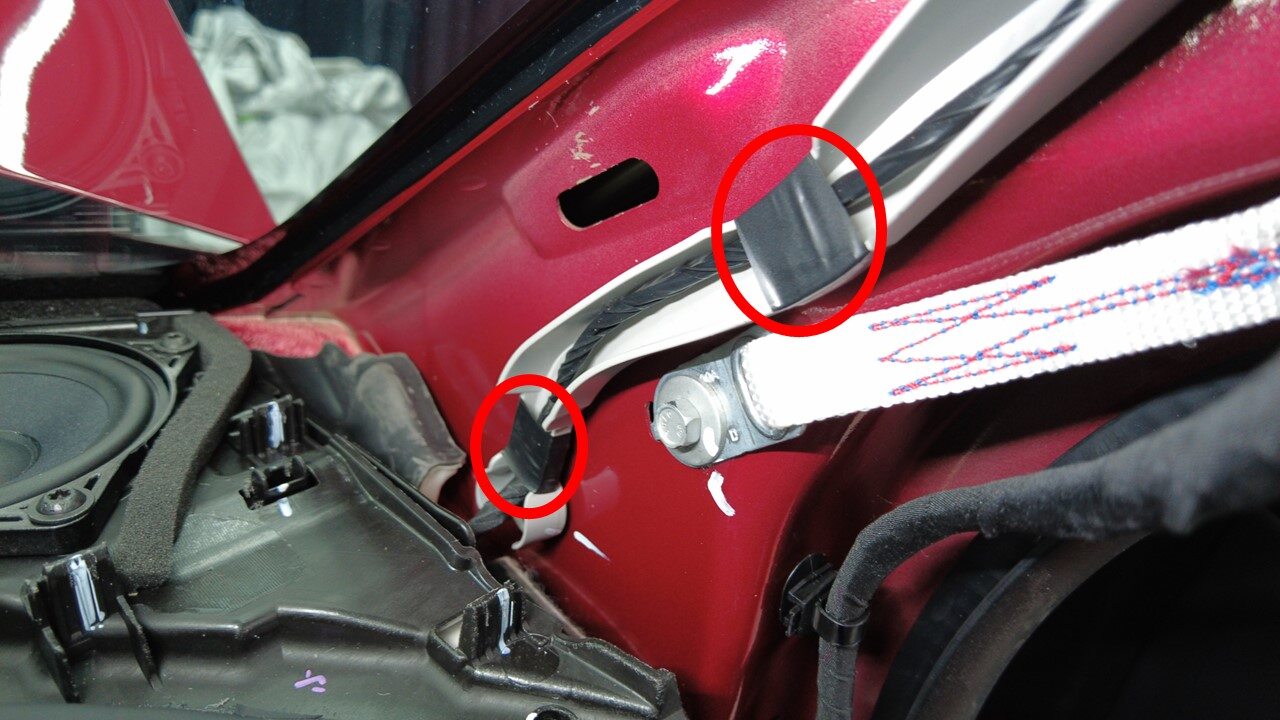

Release RH body harness clips around RH C-pillar area

Note
4x clips

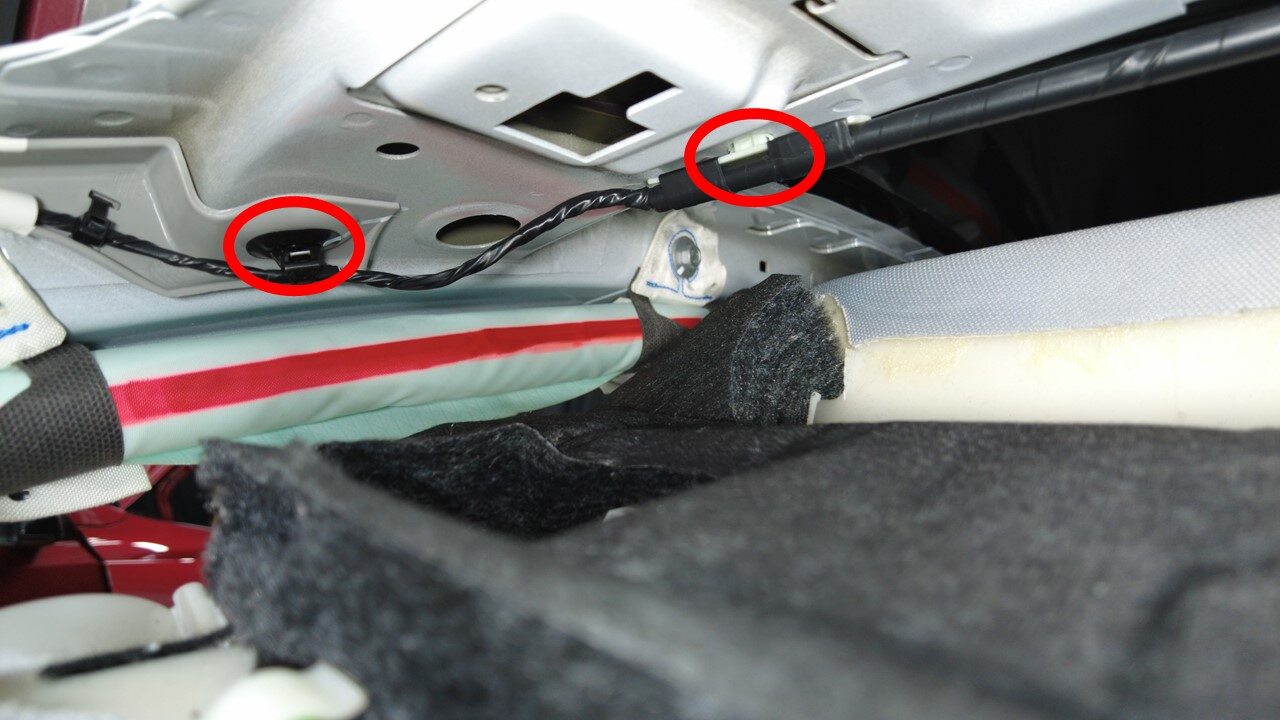

Release RH body harness clips from RH rear head area

Note
8x clips
Remove RH body harness ground strap from RH side trunk area

Note
1x bolt, 10mm, 10 Nm
Release RH body harness clips from RH side trunk area

Note
6x clips

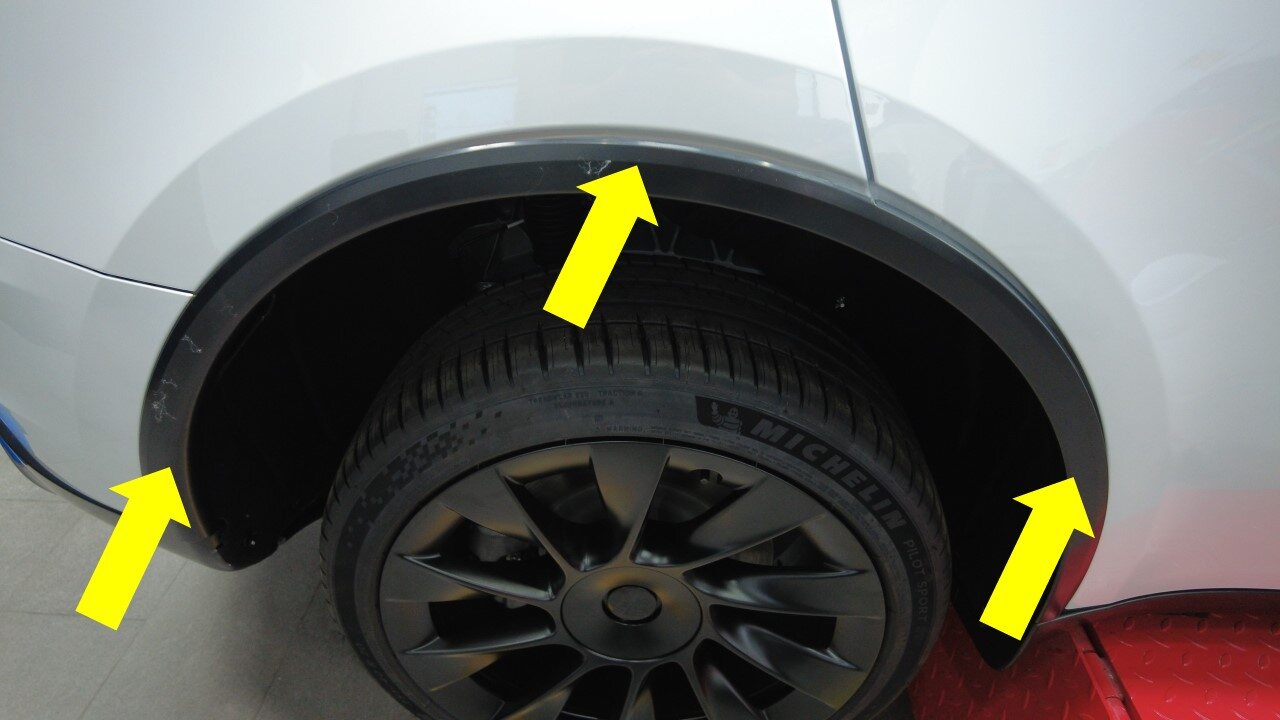

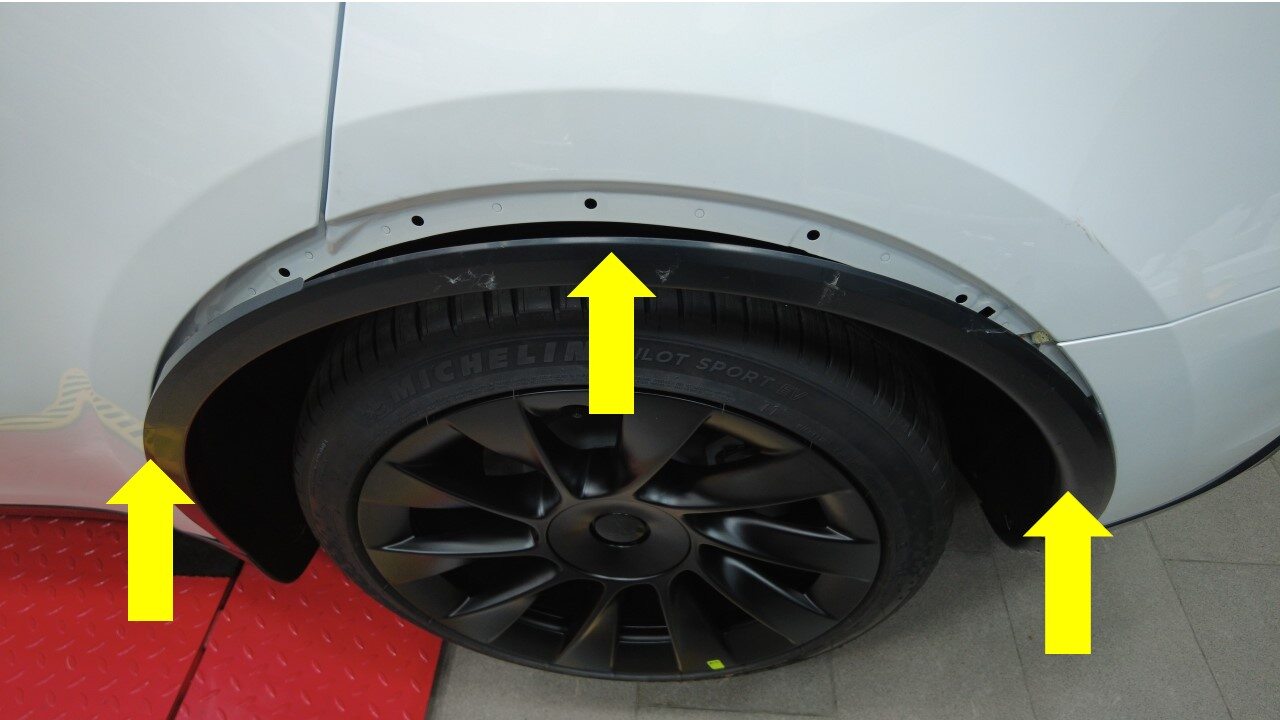

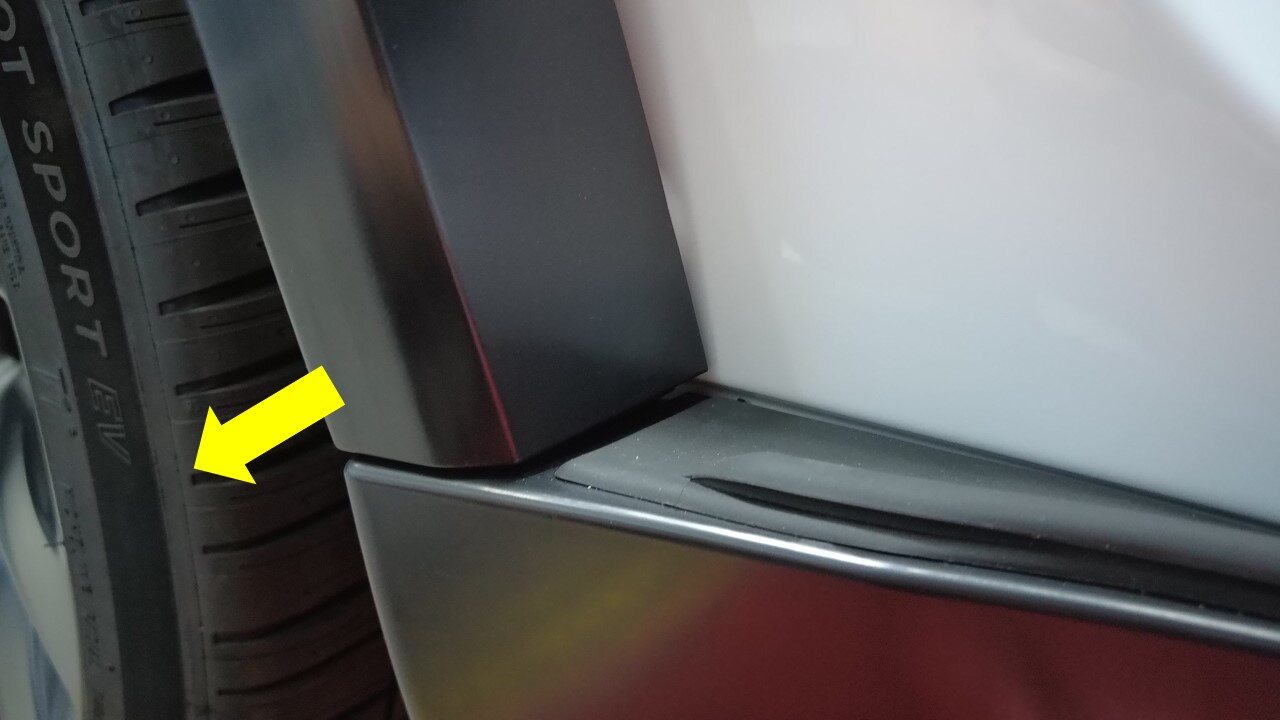

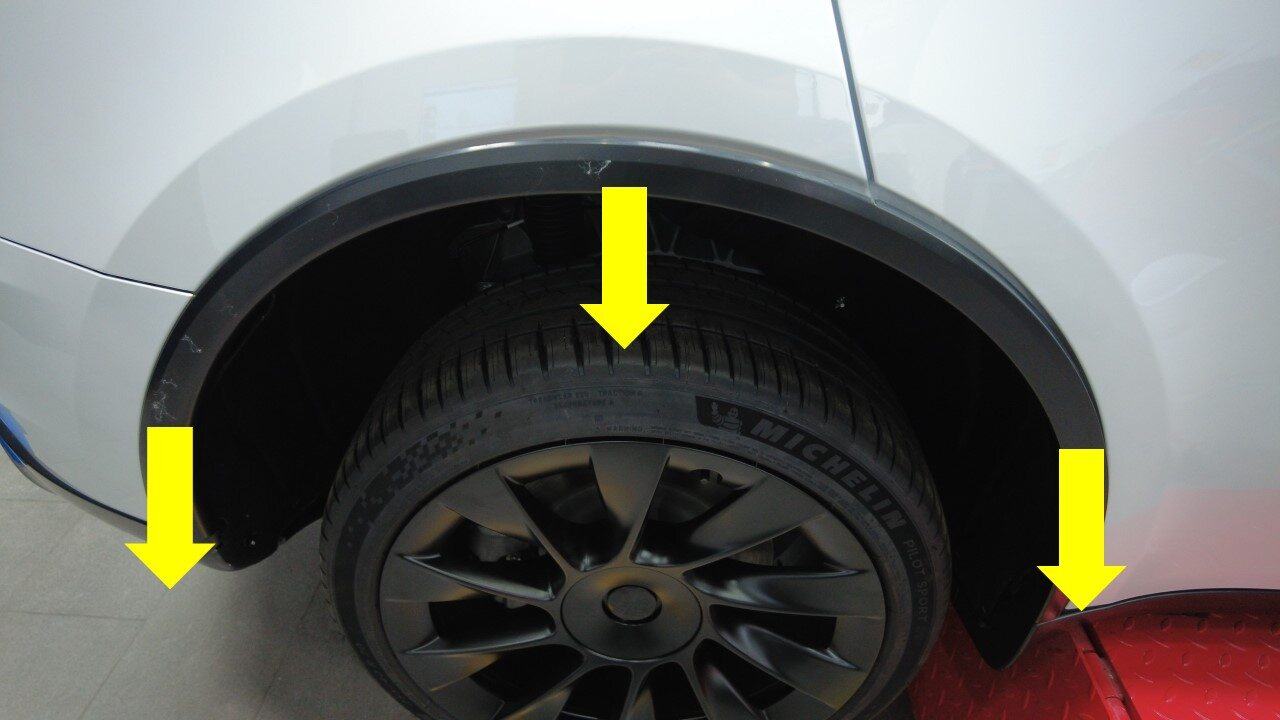

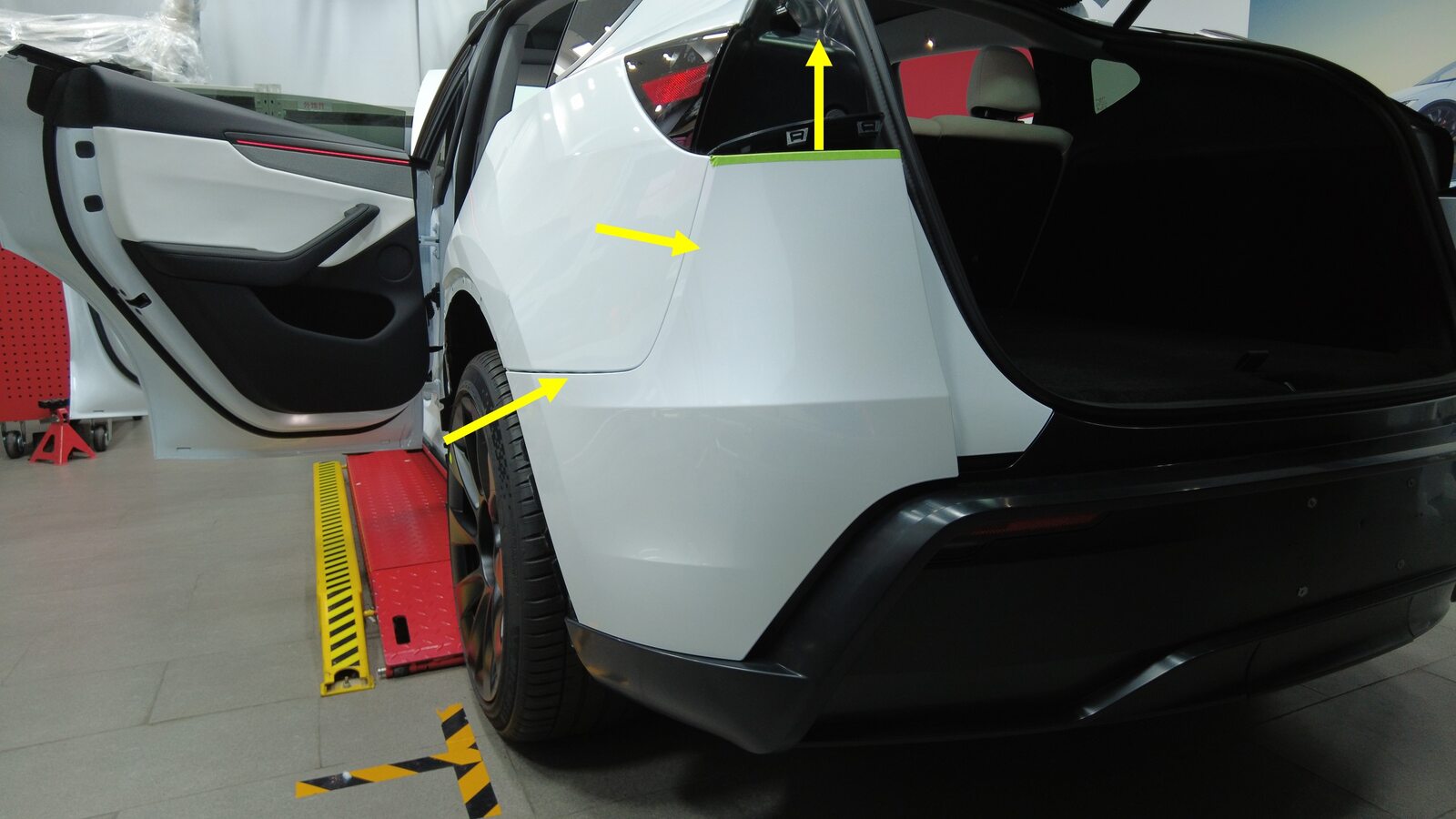

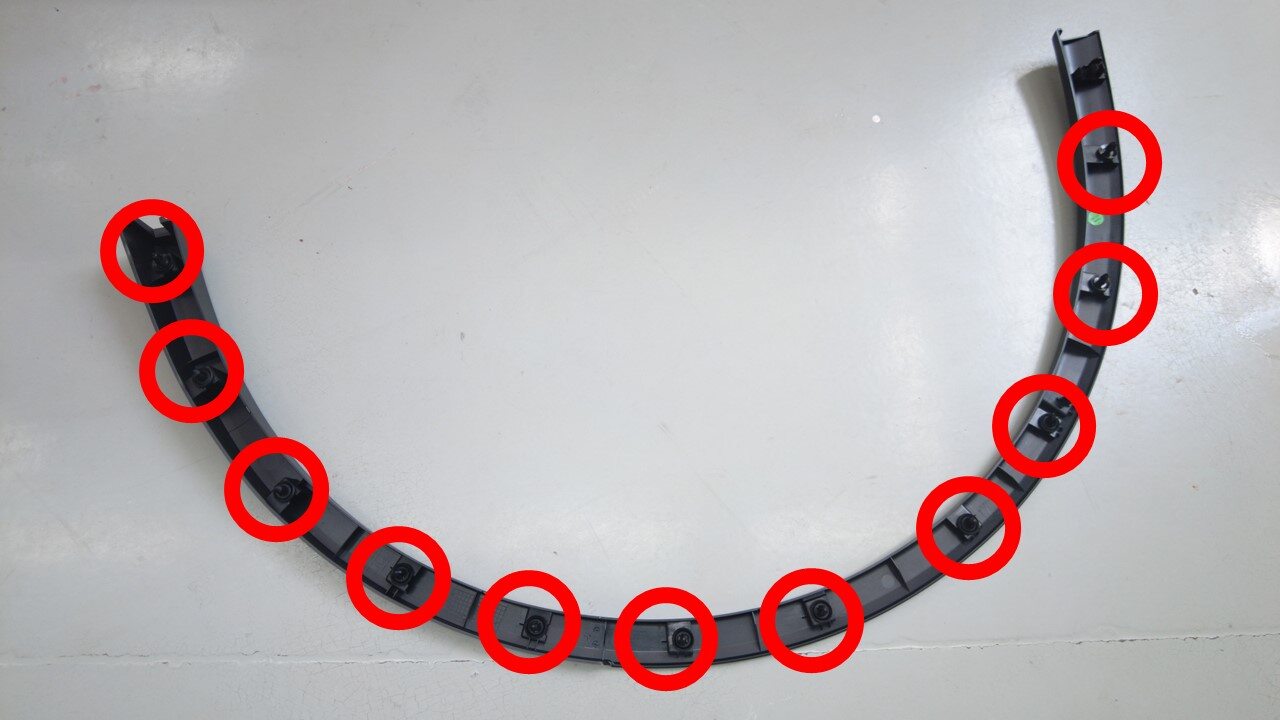

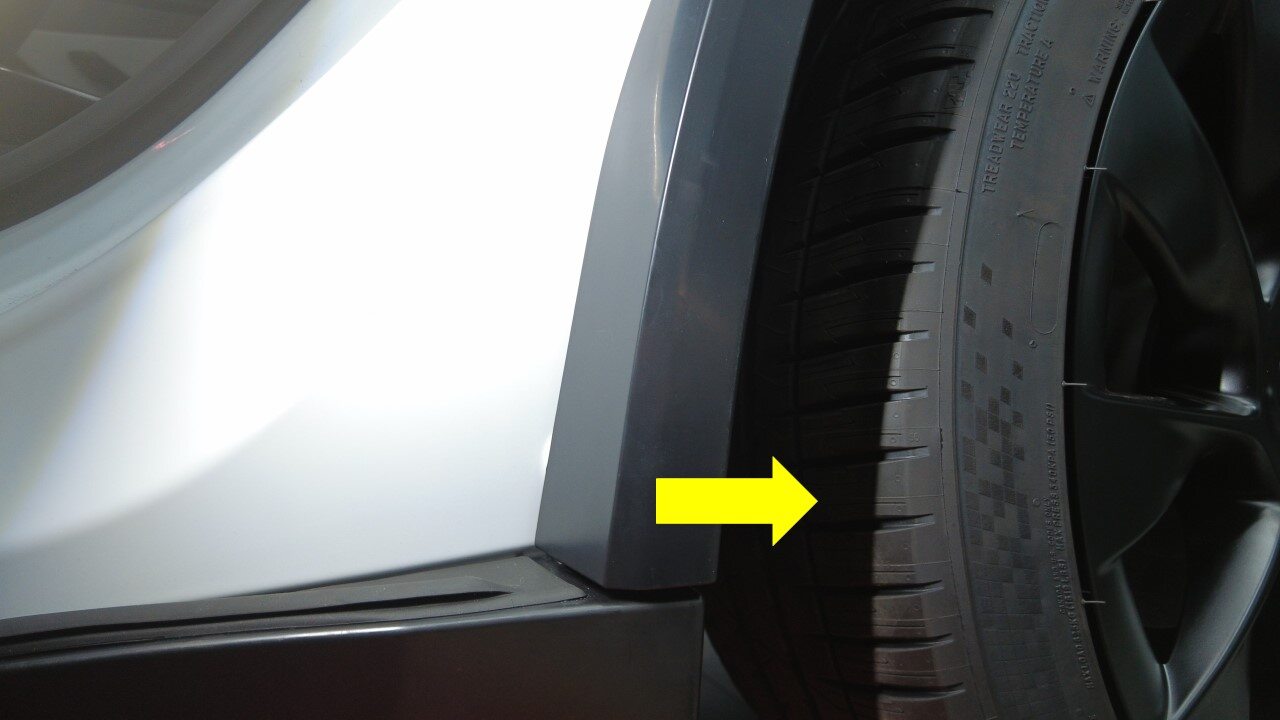

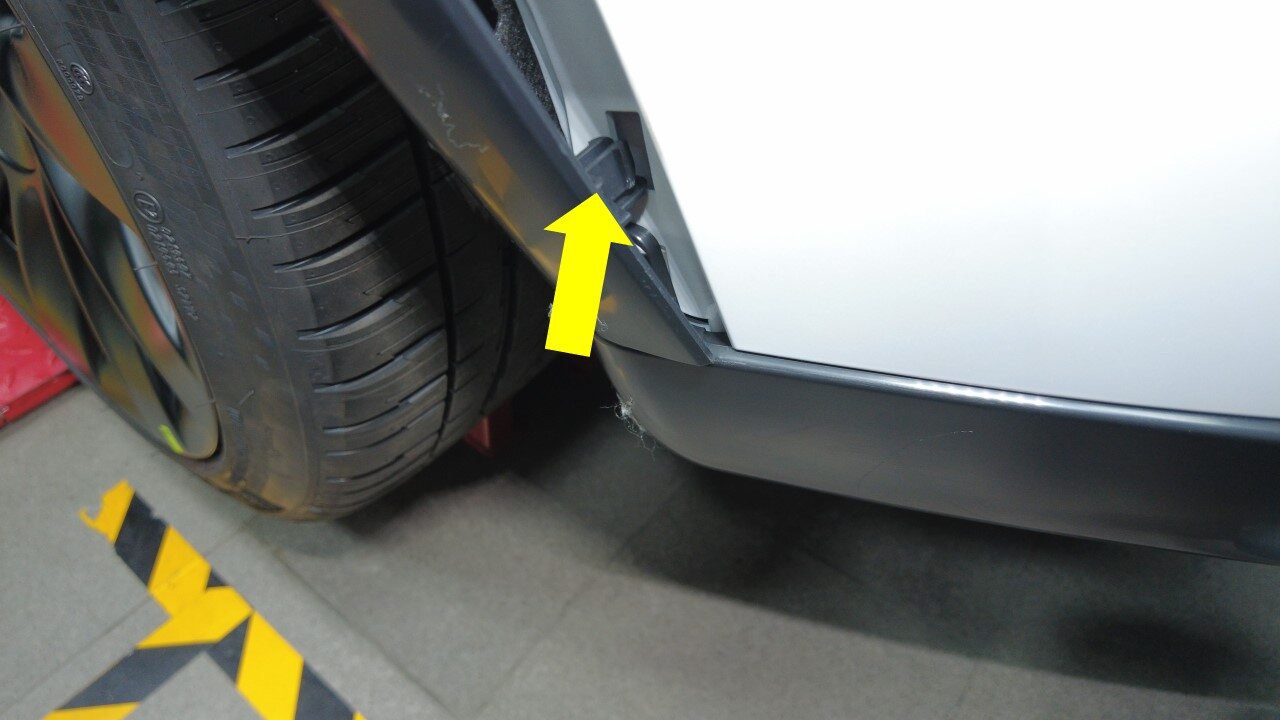

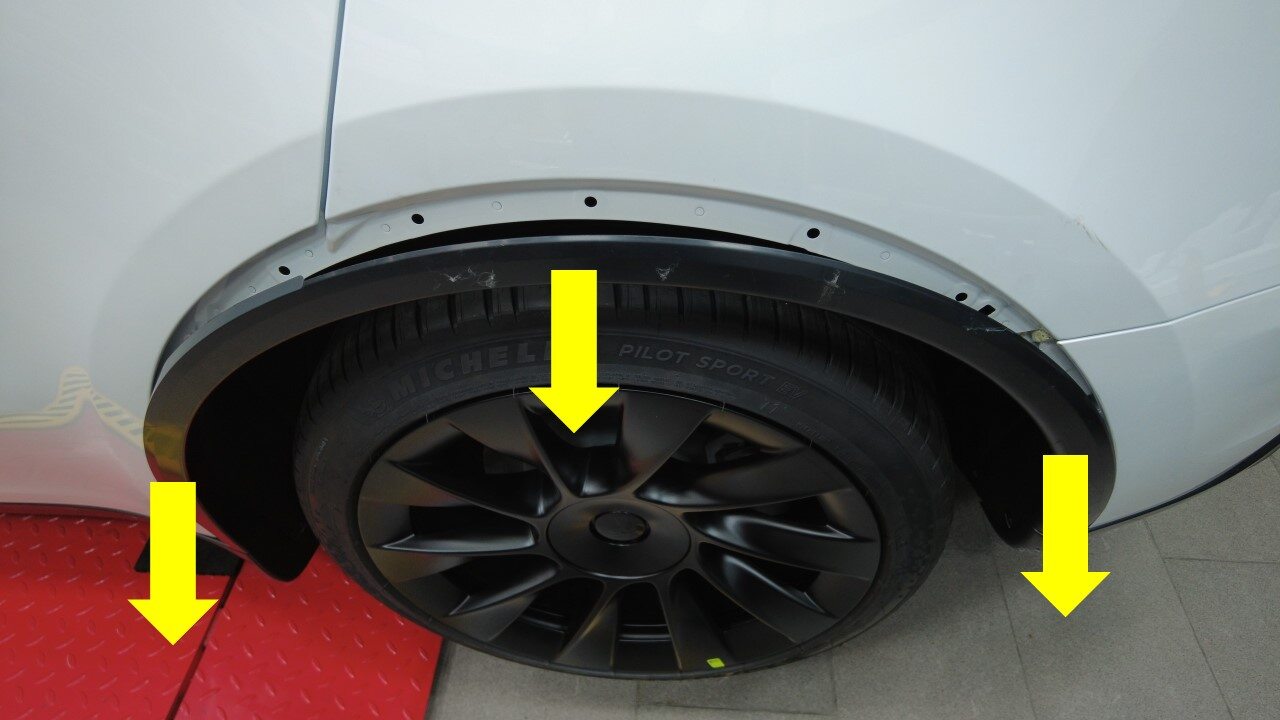

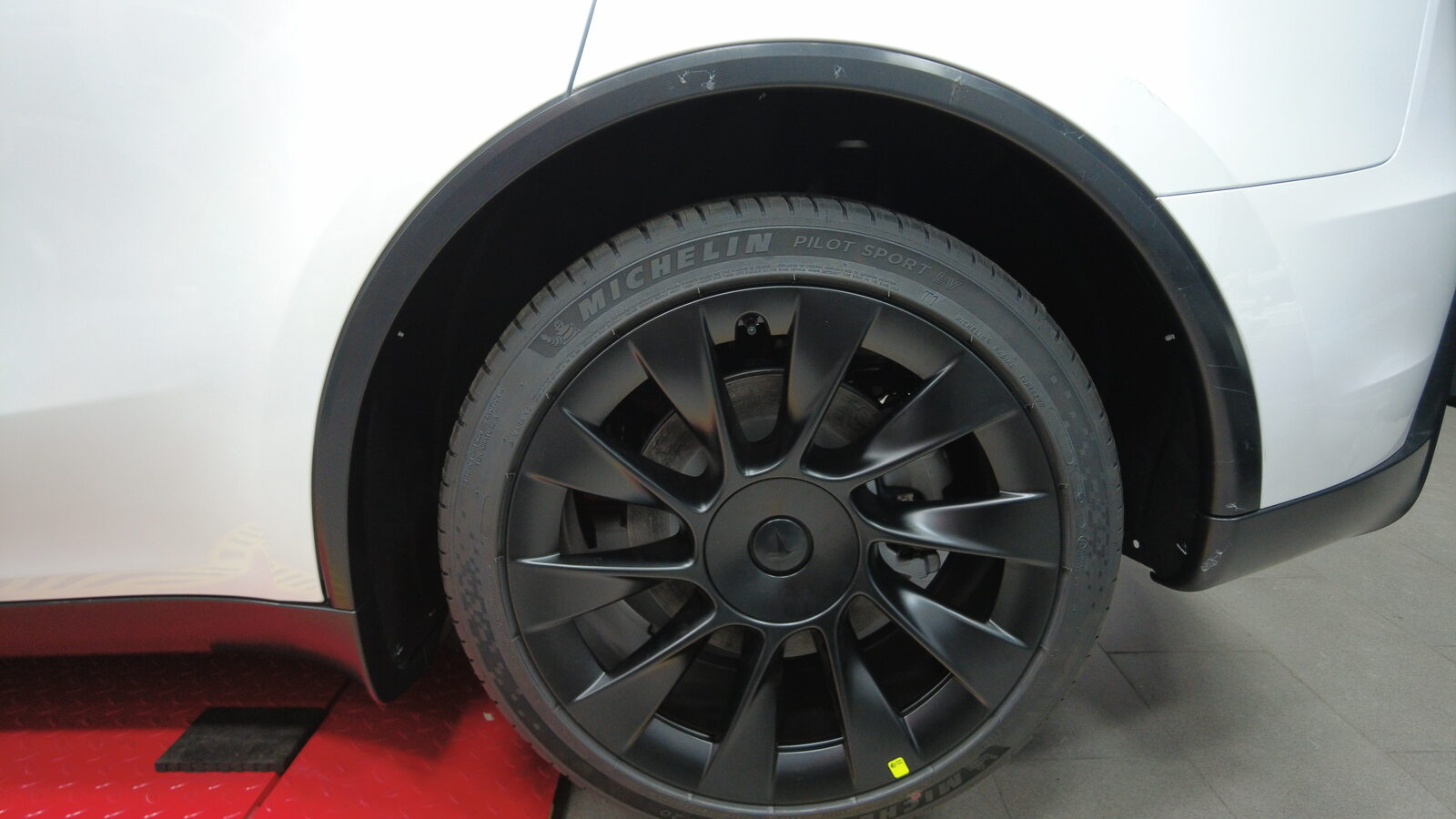

Remove LH rear fender garnish from vehicle

Note
11x clips, 2x tabs, Release from center of garnish and work your way outward towards both ends, Using clip prytool release clips at rear of fascia to avoid damage to garnish

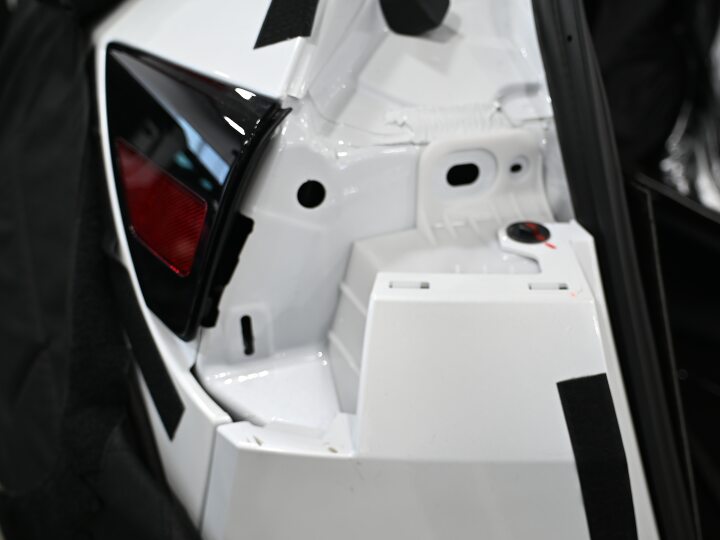

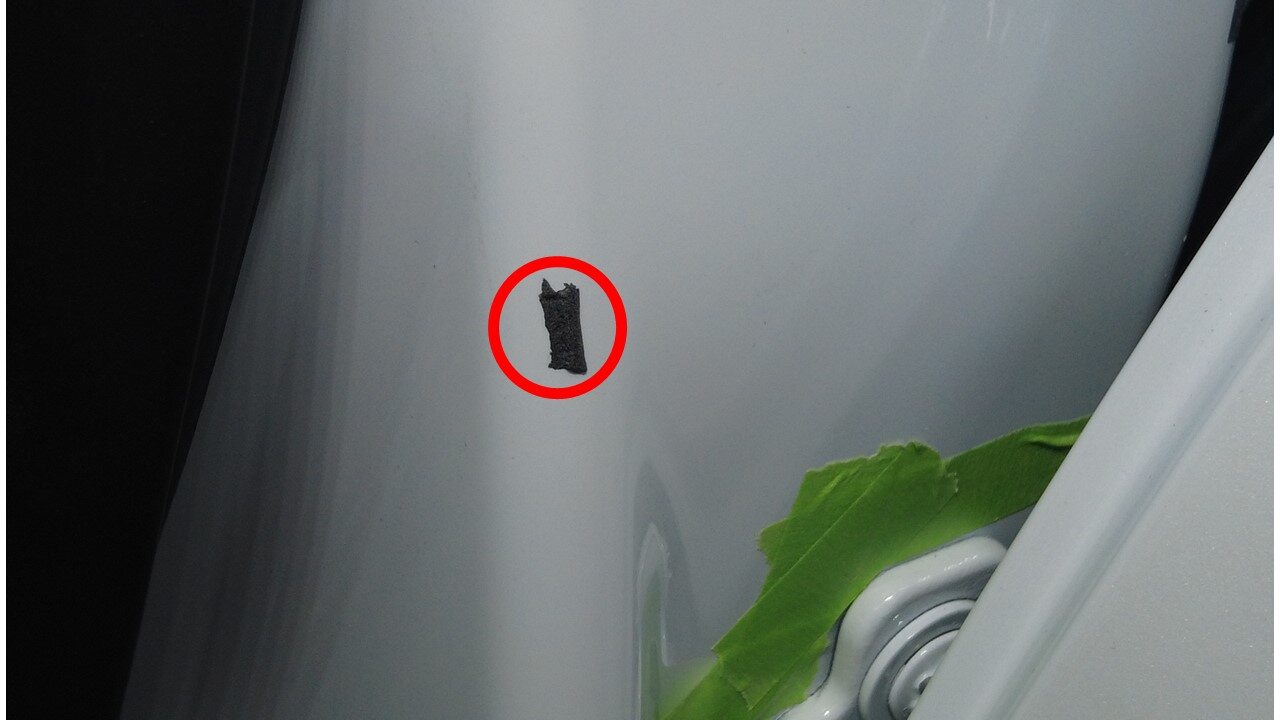

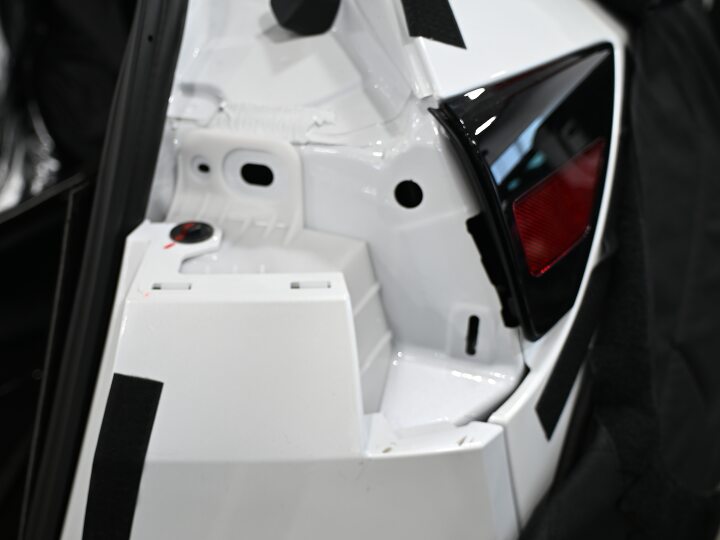

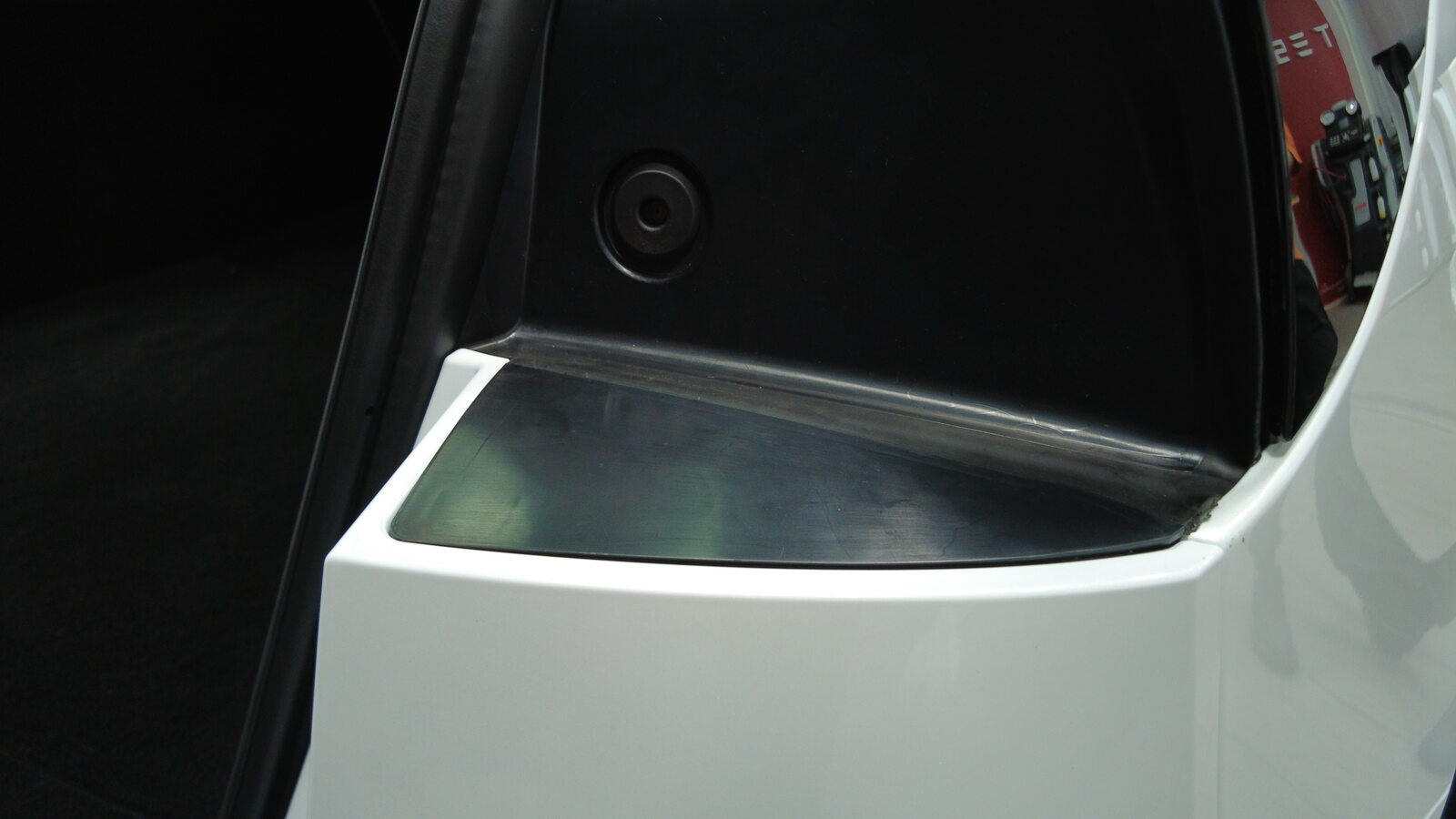

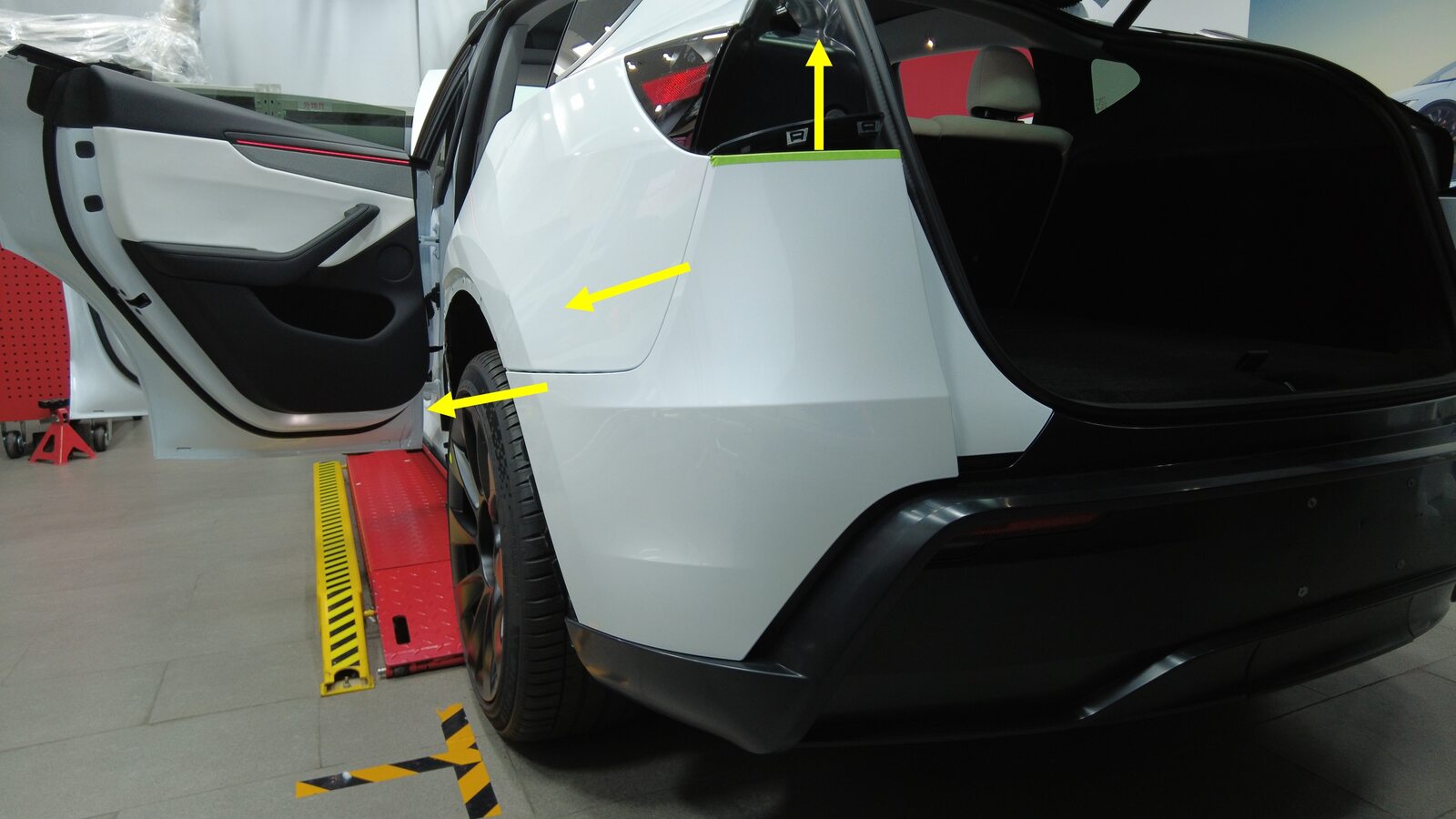

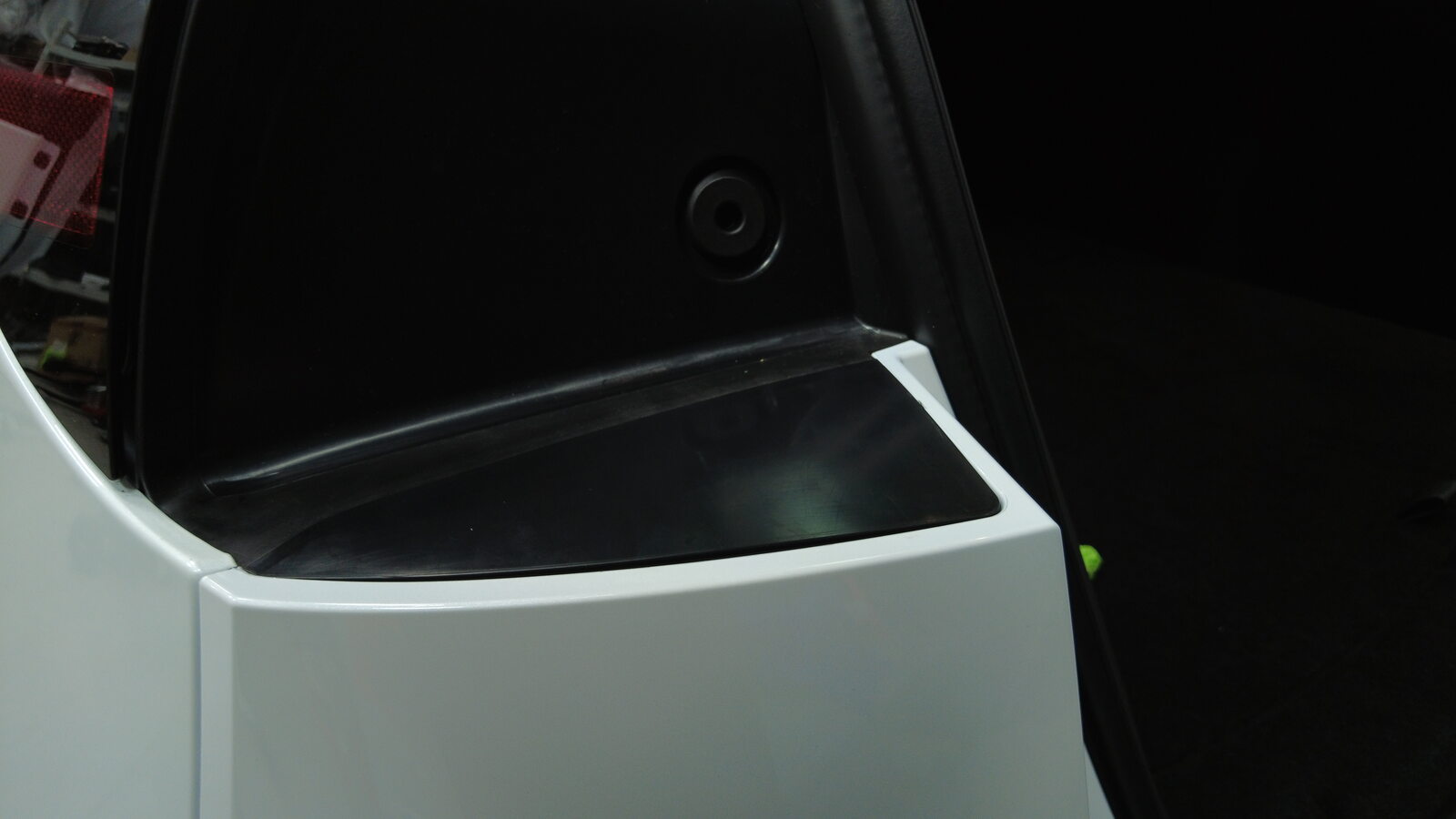

Apply masking tape around LH corner of rear upper fascia

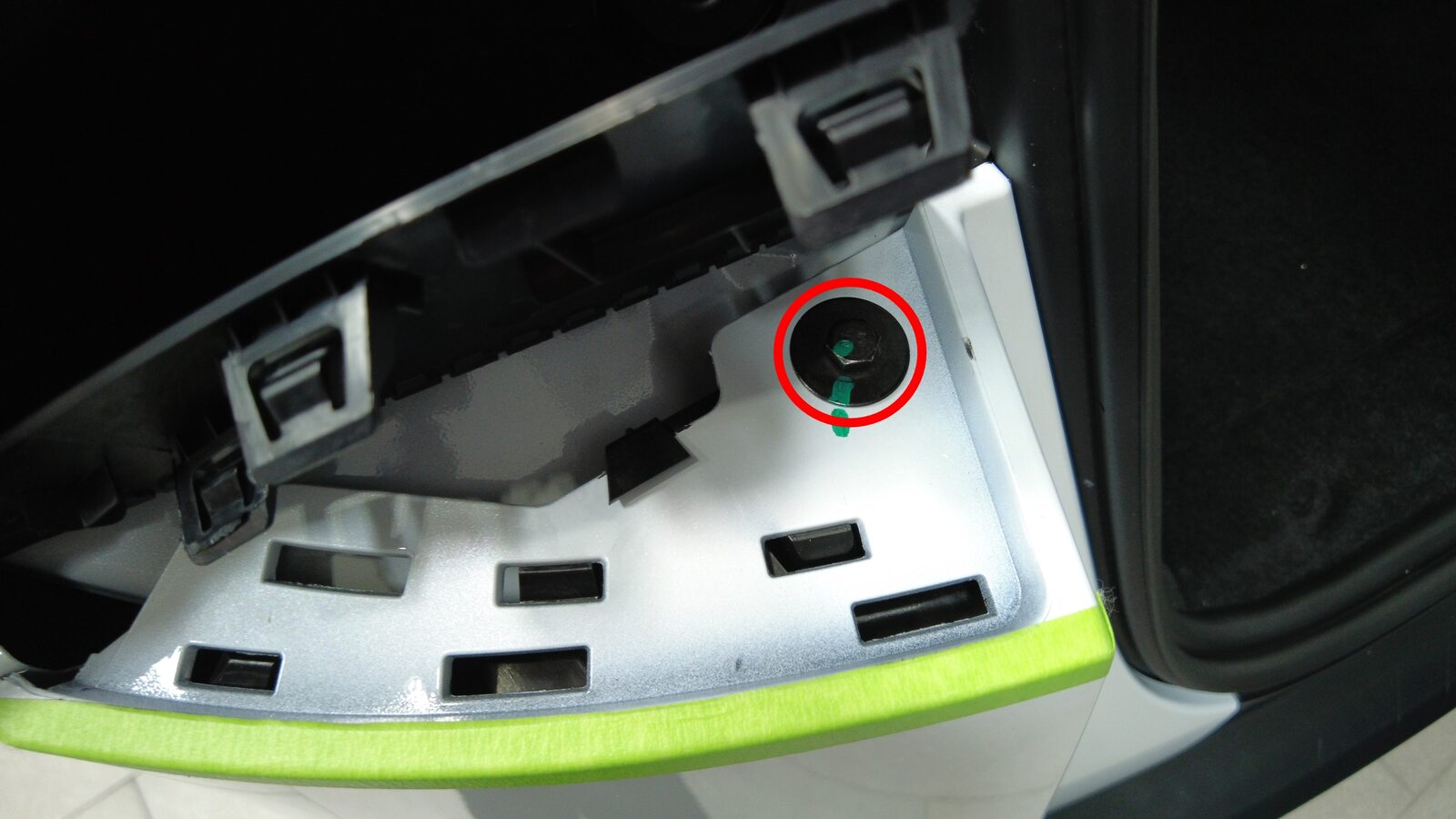

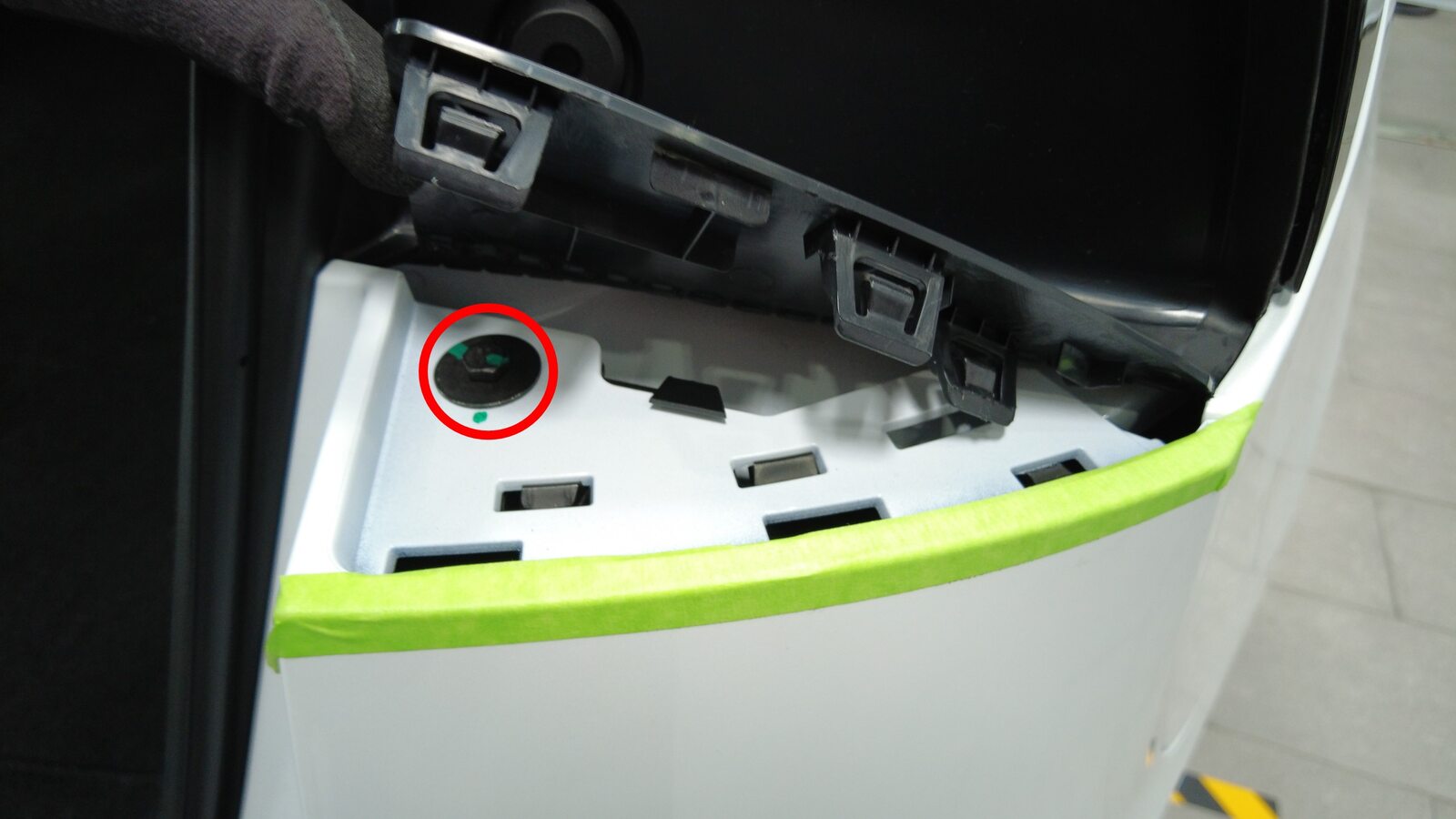

Remove screw securing LH rear fascia to body

Note
1x screw, 8mm, 2 Nm

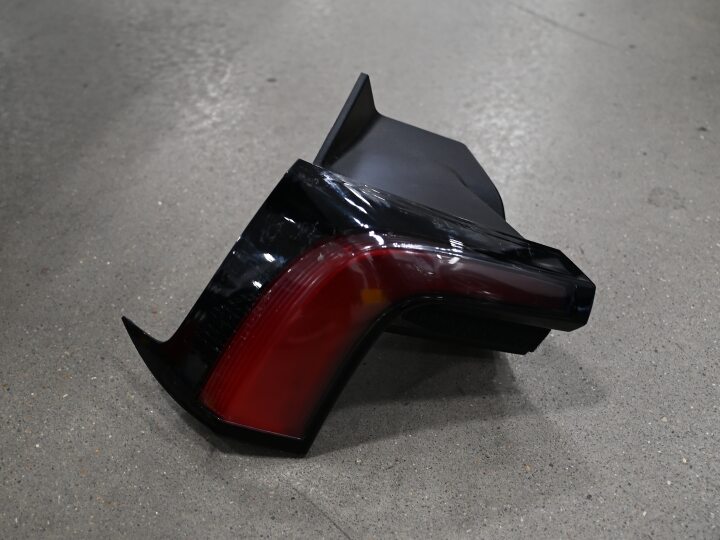

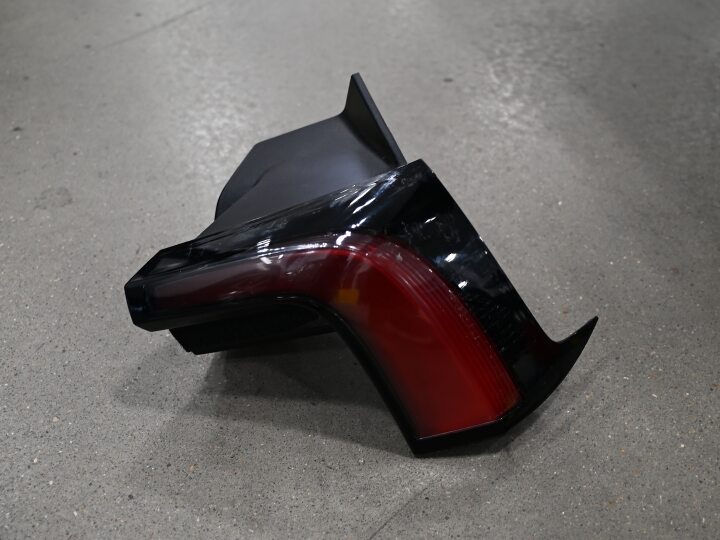

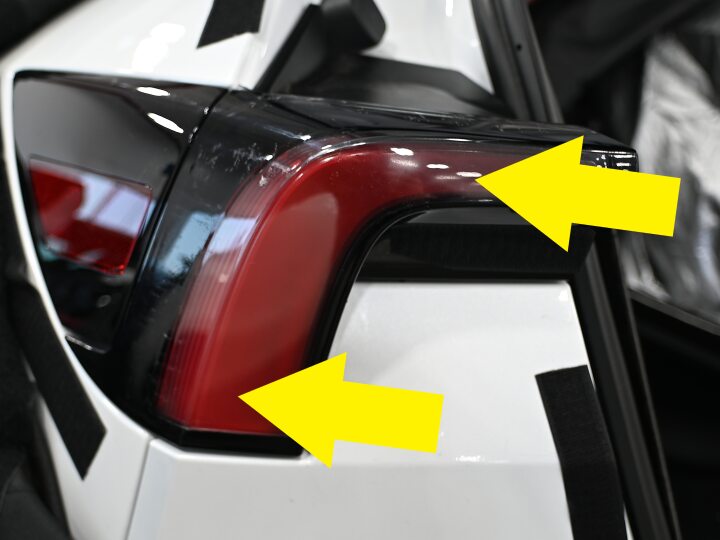

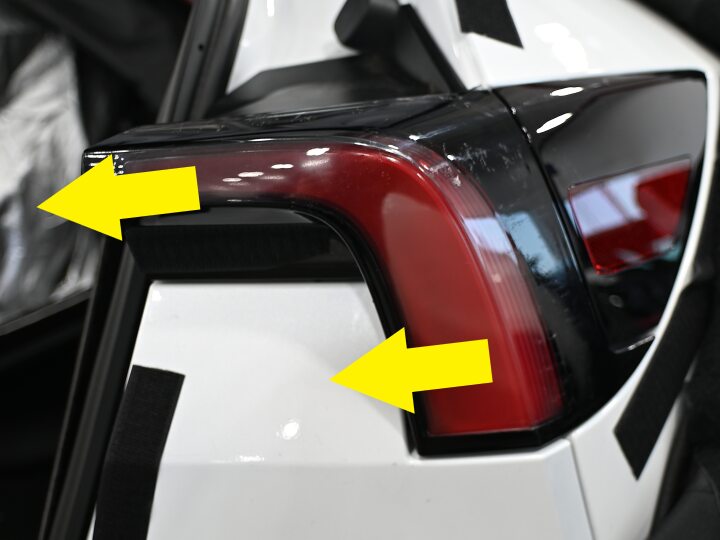

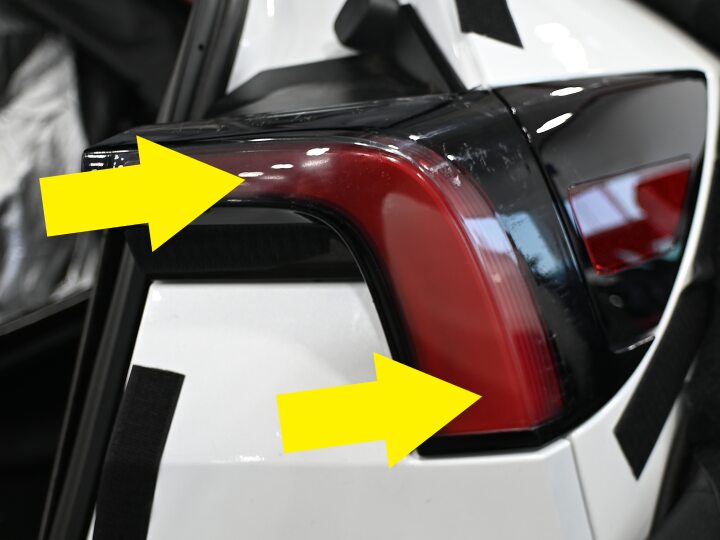

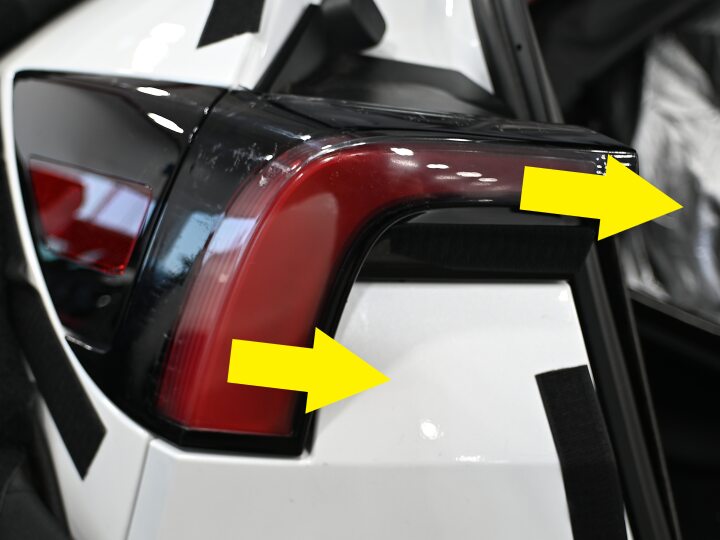

Remove LH tail lamp

Note
1x connector, 2x clips, 1x nut, 8mm, 3 Nm, Remove fastener and connector then firmly push lamp rearwards to release clips, Release locking tab

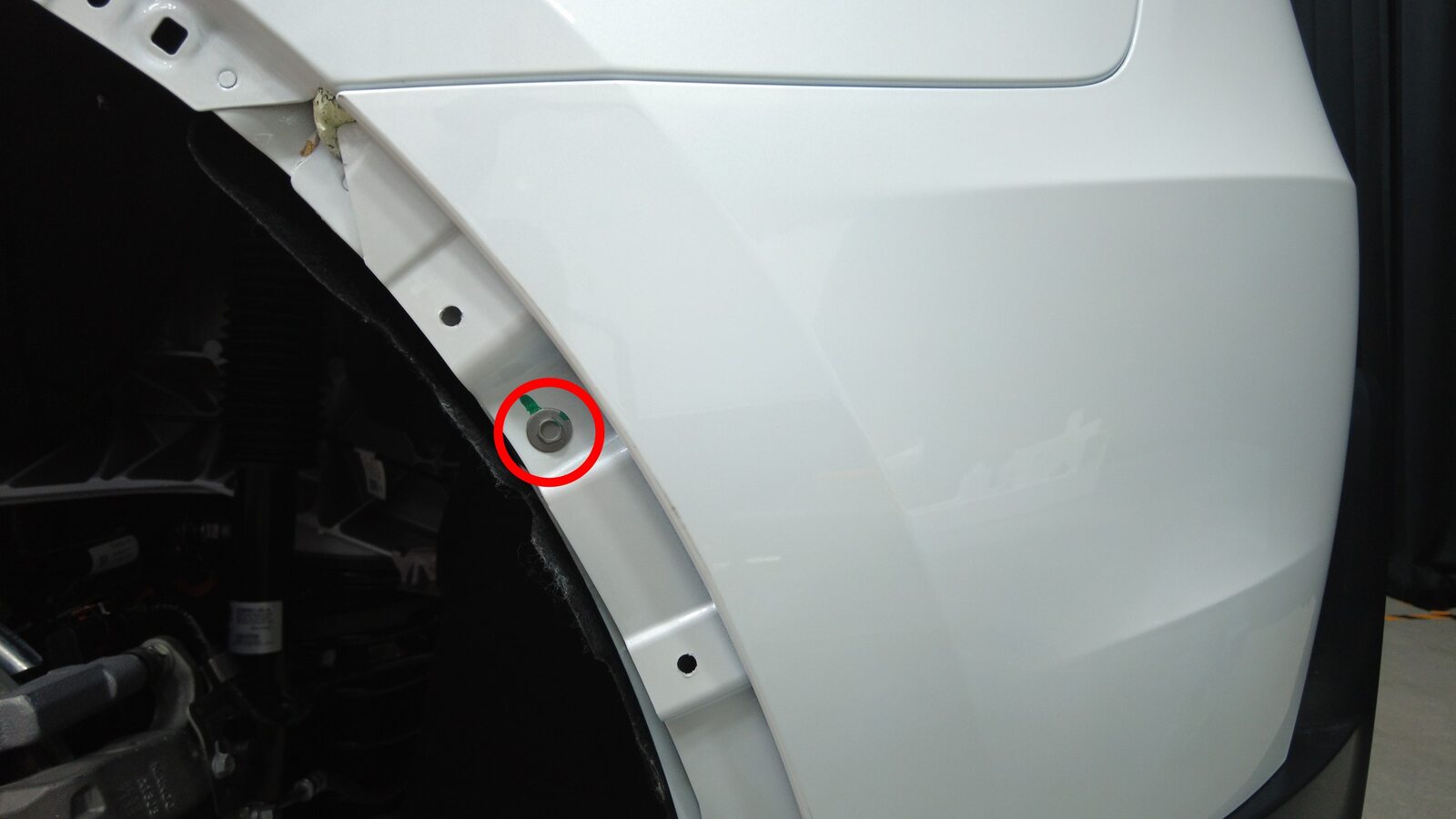

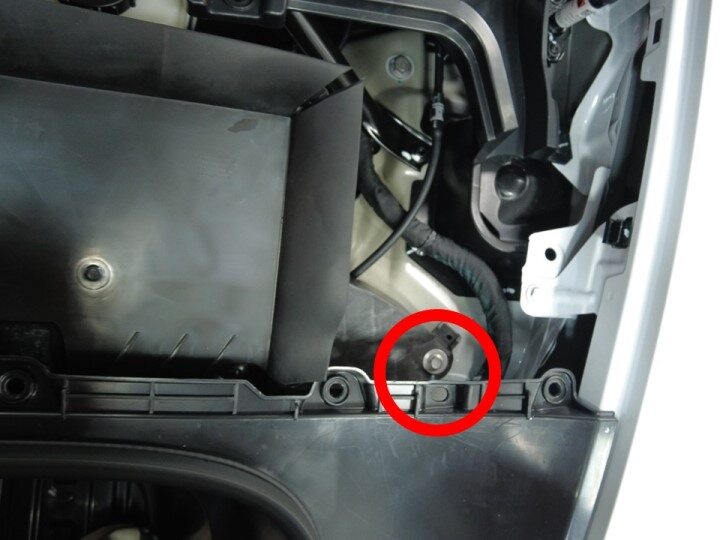

Remove bolt securing LH corner of rear fascia to body

Note
1x bolt, 10mm, 3.5 Nm

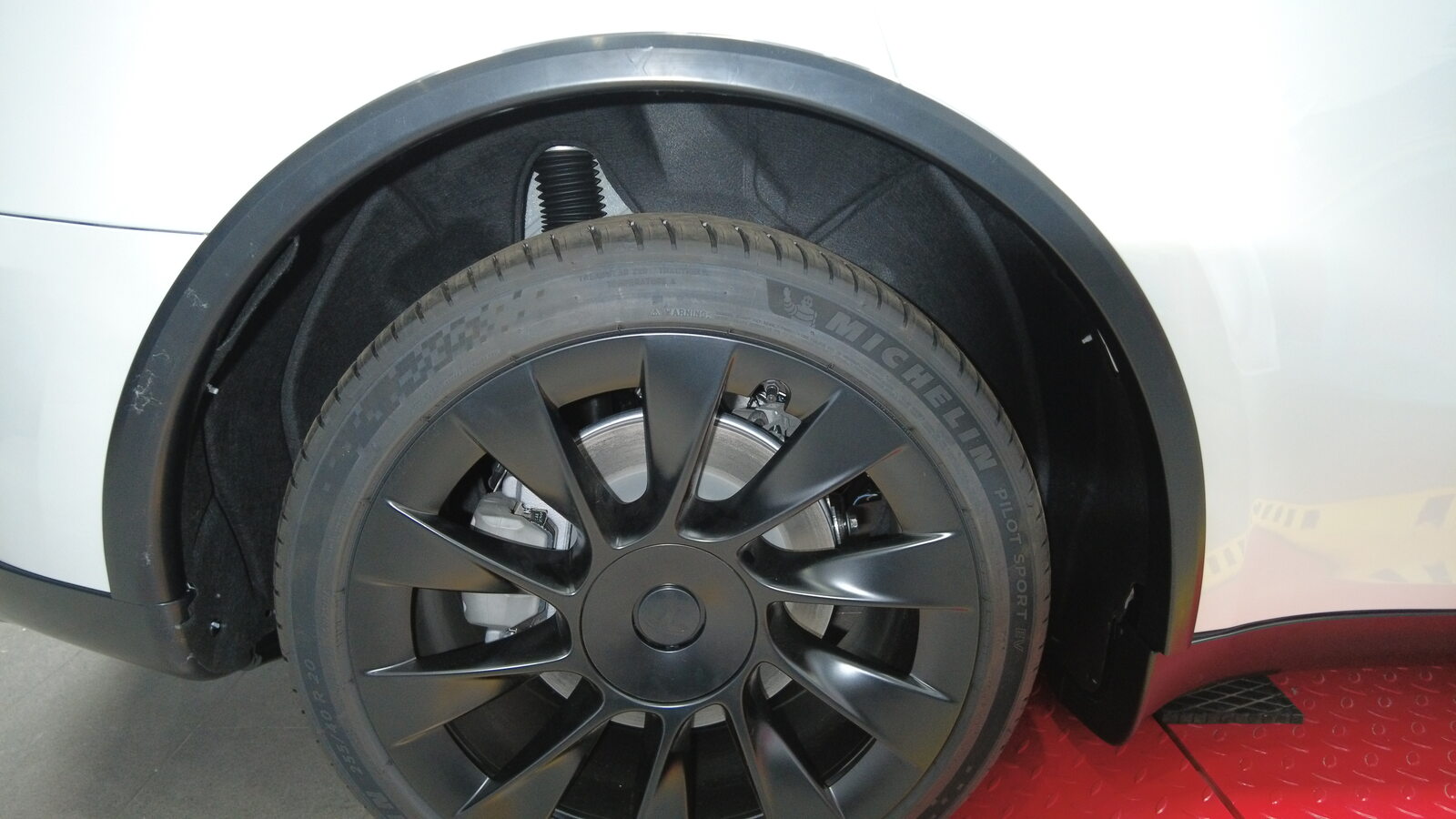

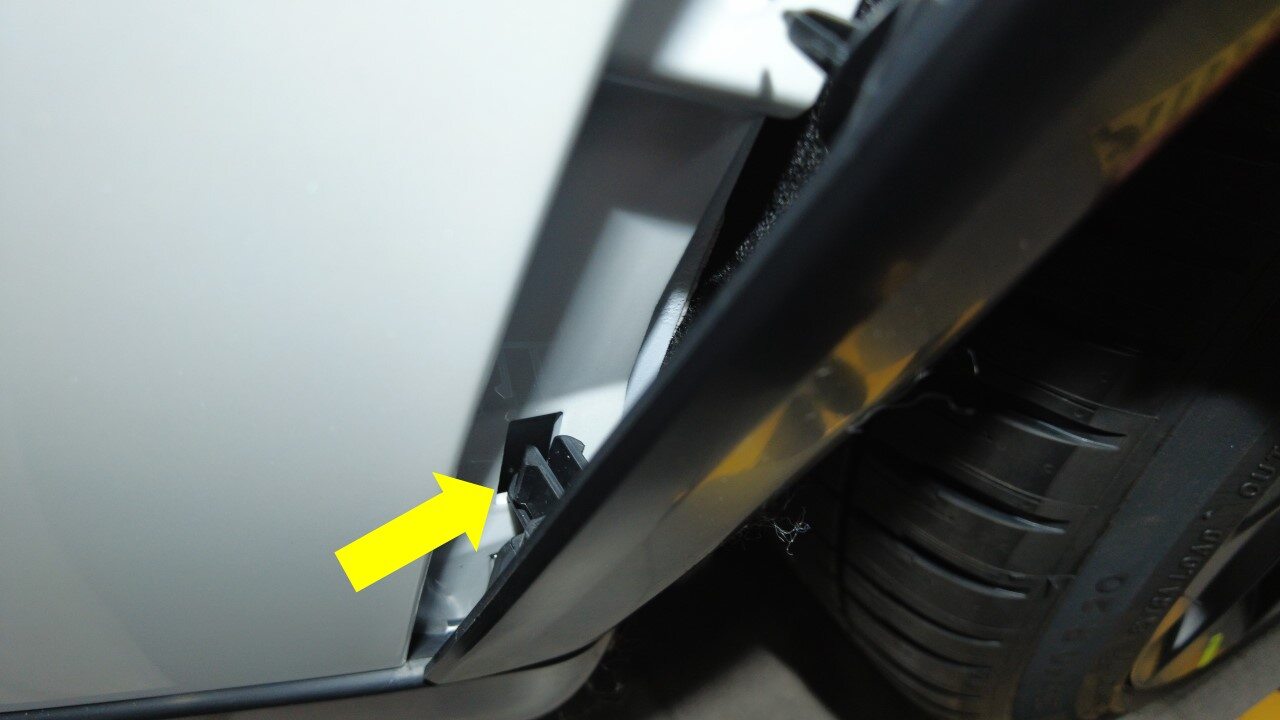

Remove RH rear fender garnish from vehicle

Note
11x clips, 2x tabs Release from center of garnish and work your way outward towards both ends, Using clip prytool release clips at rear of fascia to avoid damage to garnish

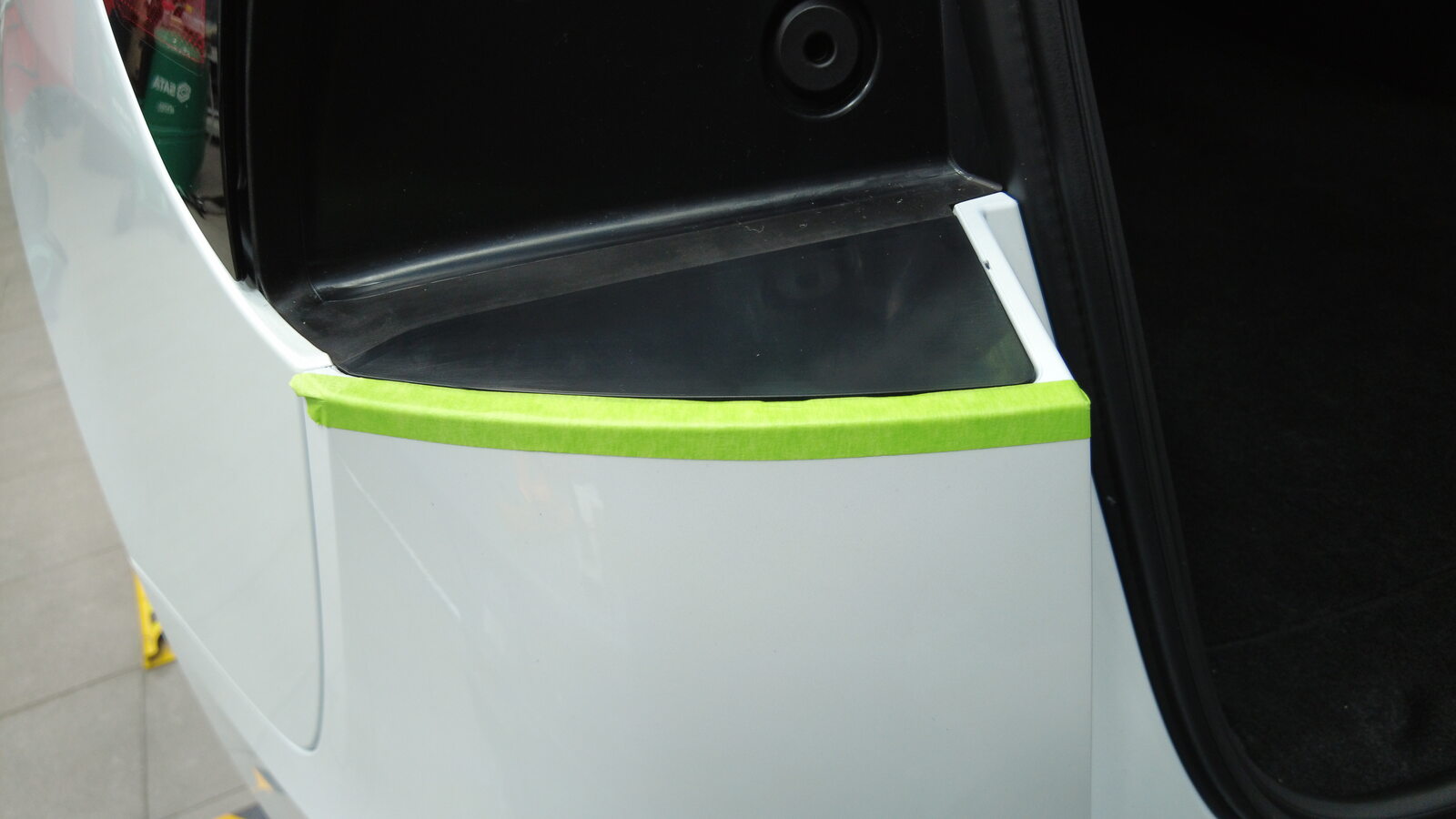

Apply masking tape around RH corner of rear upper fascia
Remove screw securing RH rear fascia to body

Note
1x screw, 8mm, 2 Nm
Remove RH tail lamp

Note
1x connector, 2x clips, 1x nut, 8mm, 3 Nm, Remove fastener and connector then firmly push lamp rearwards to release clips, Release locking tab

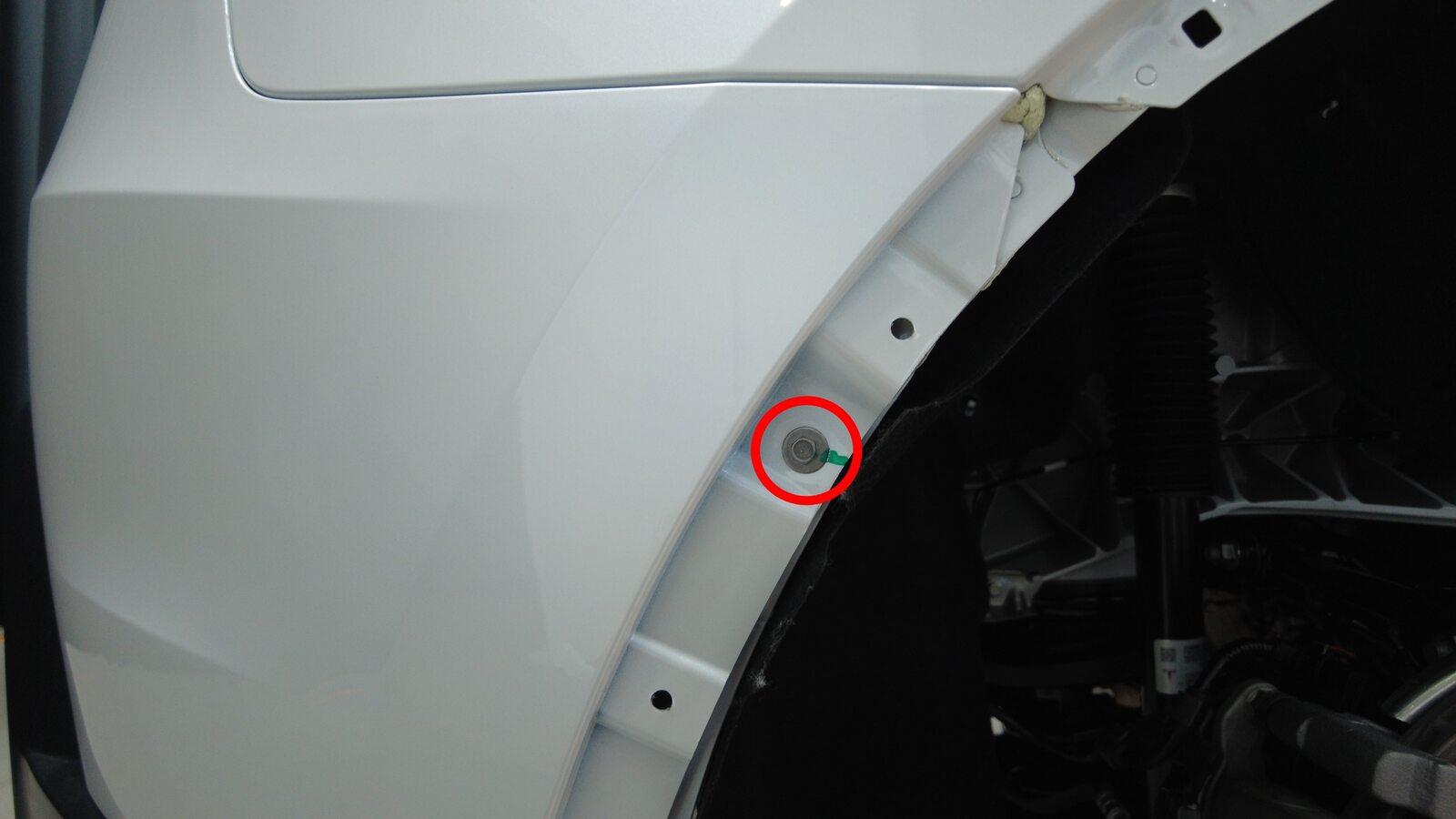

Remove bolt securing RH corner of rear fascia to body

Note
1x bolt, 10mm, 3.5 Nm

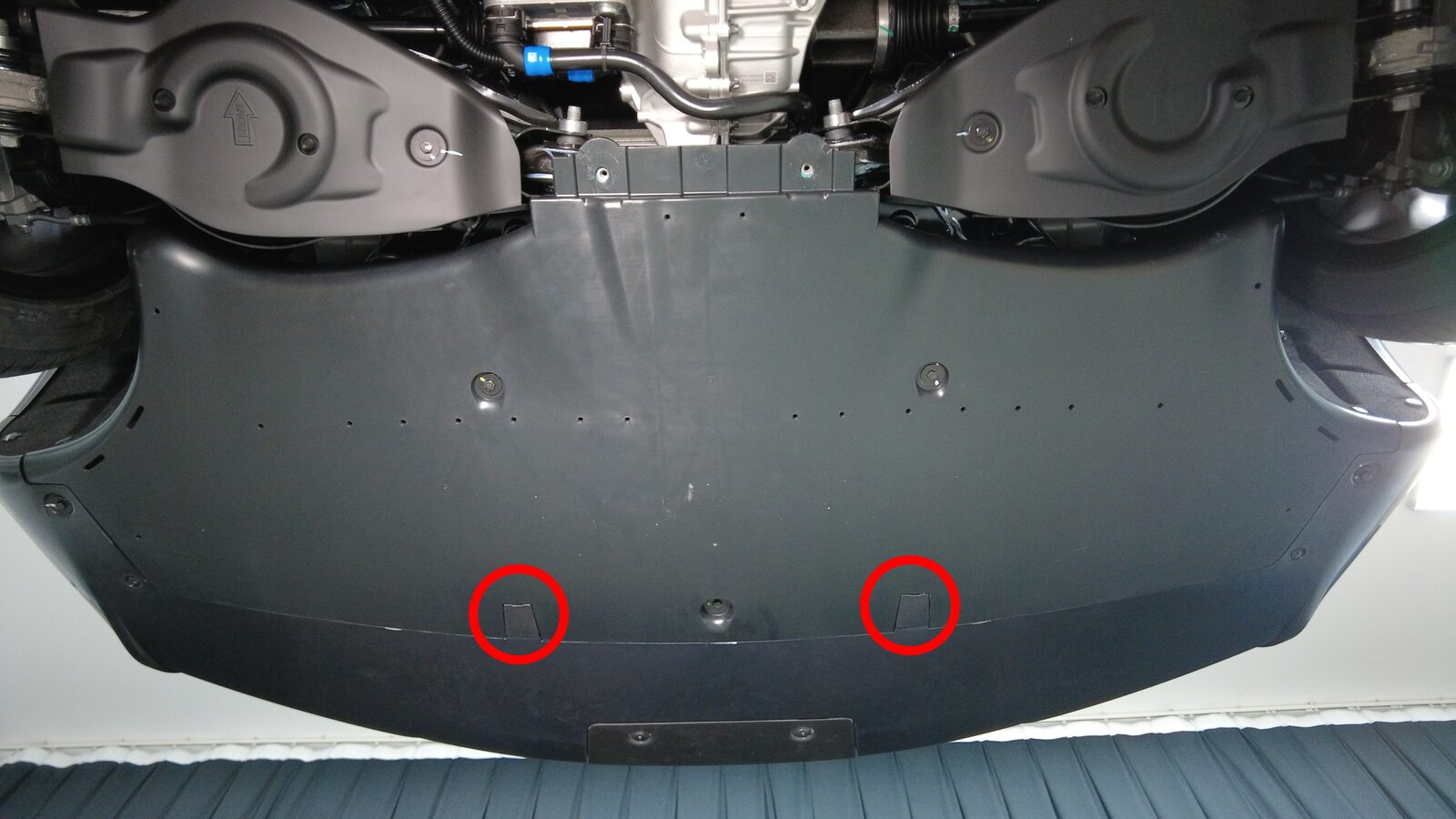

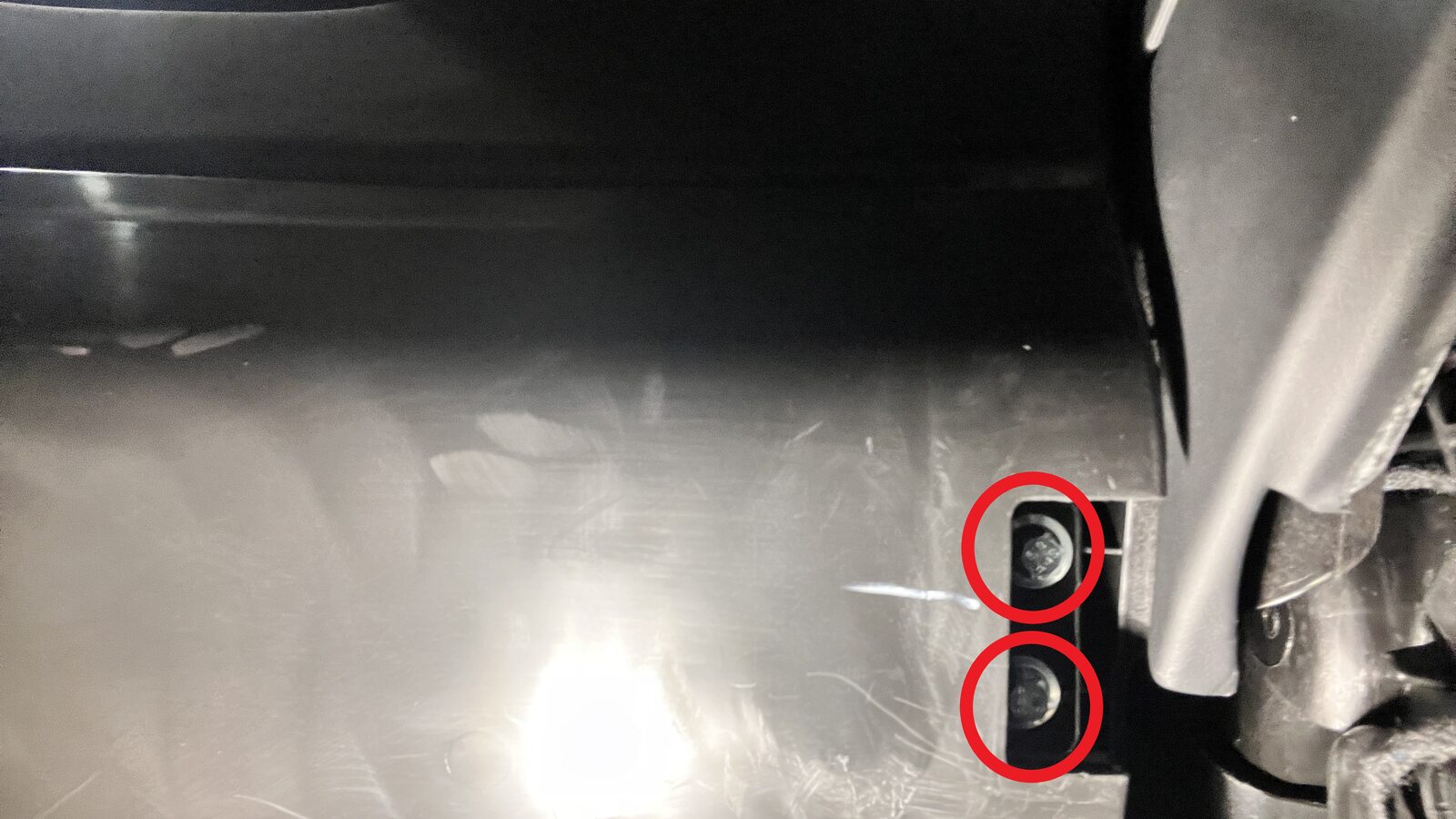

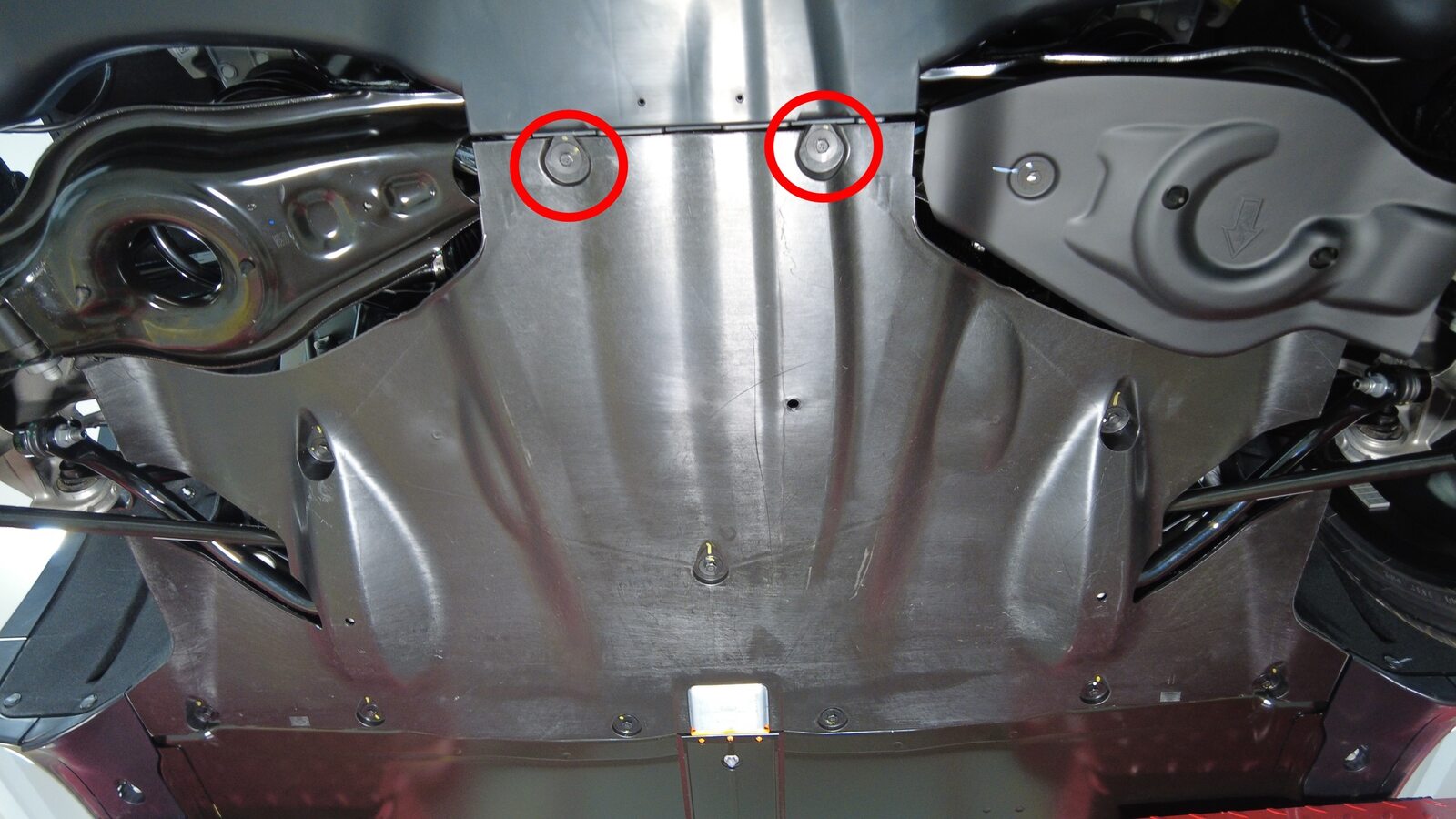

Remove rear fascia diffuser front bolts

Note
2x bolts, 10mm, 5 Nm

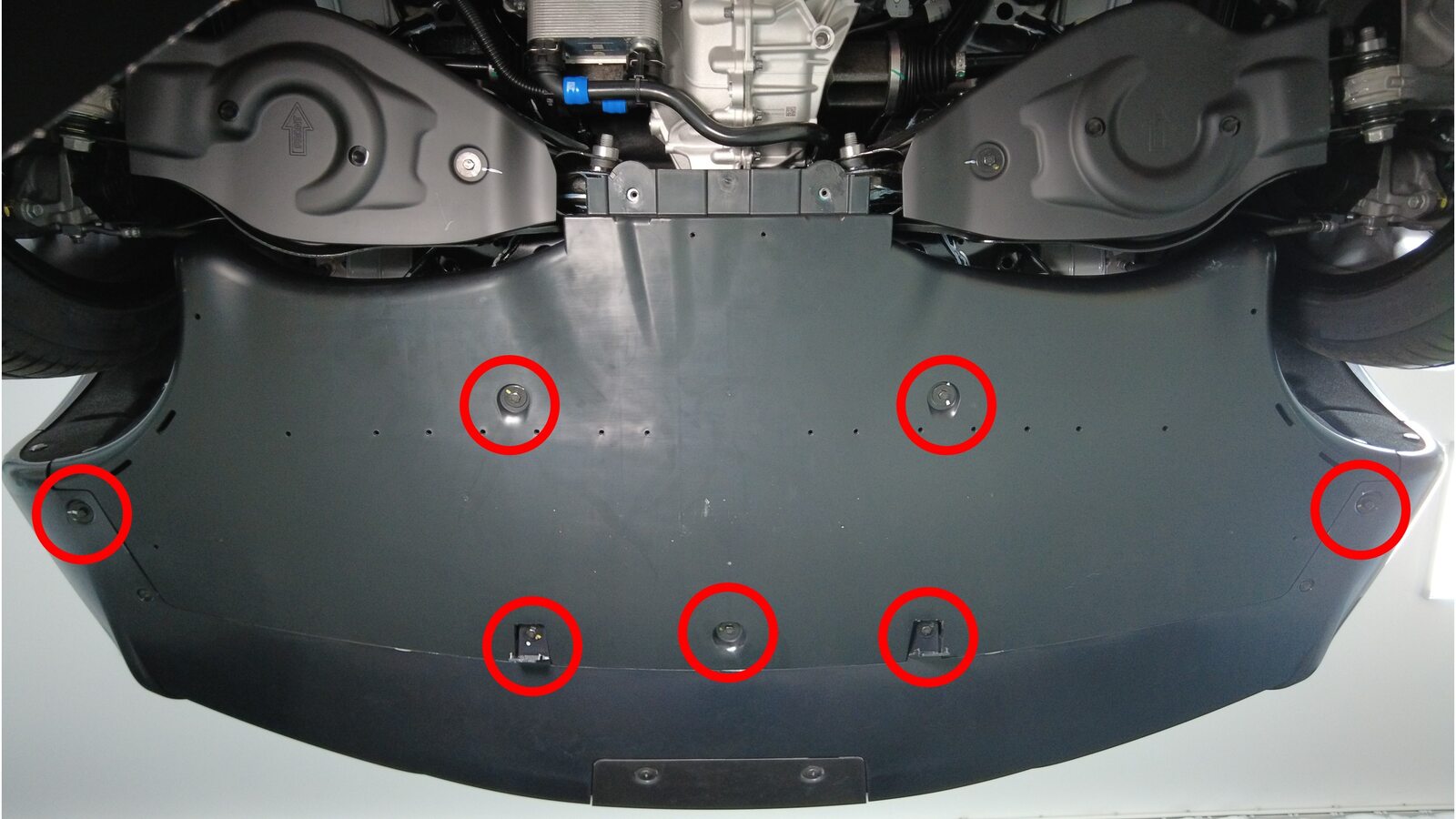

Release rear fascia diffuser

Note
7x bolts, 10mm, 5 Nm, 6x push clips, 2x fastener covers

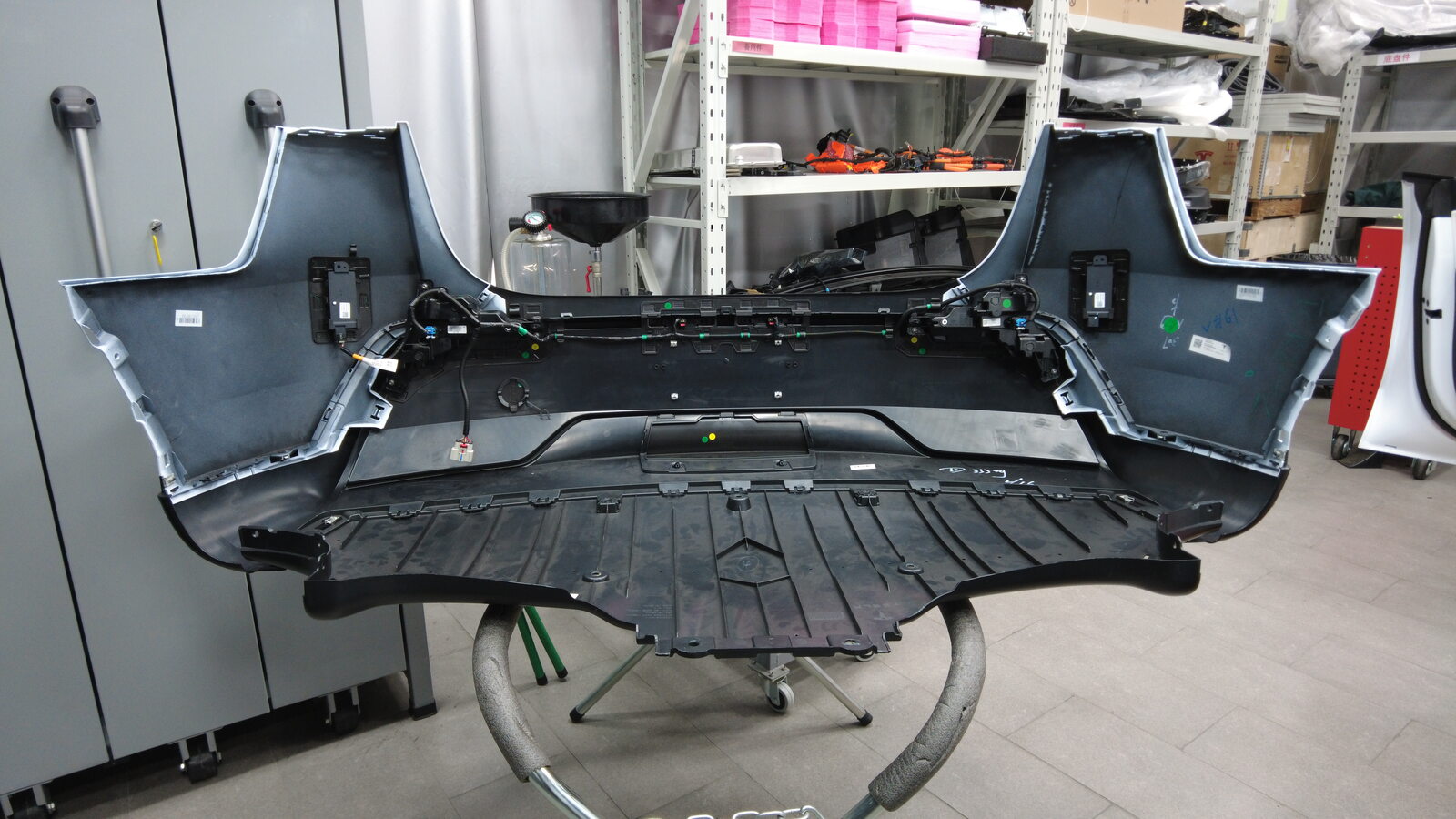

Release rear fascia assembly from body

Note
1x connector, Disengage locking tab, Recommend assistance, Place rear fascia on padded surface to avoid damage

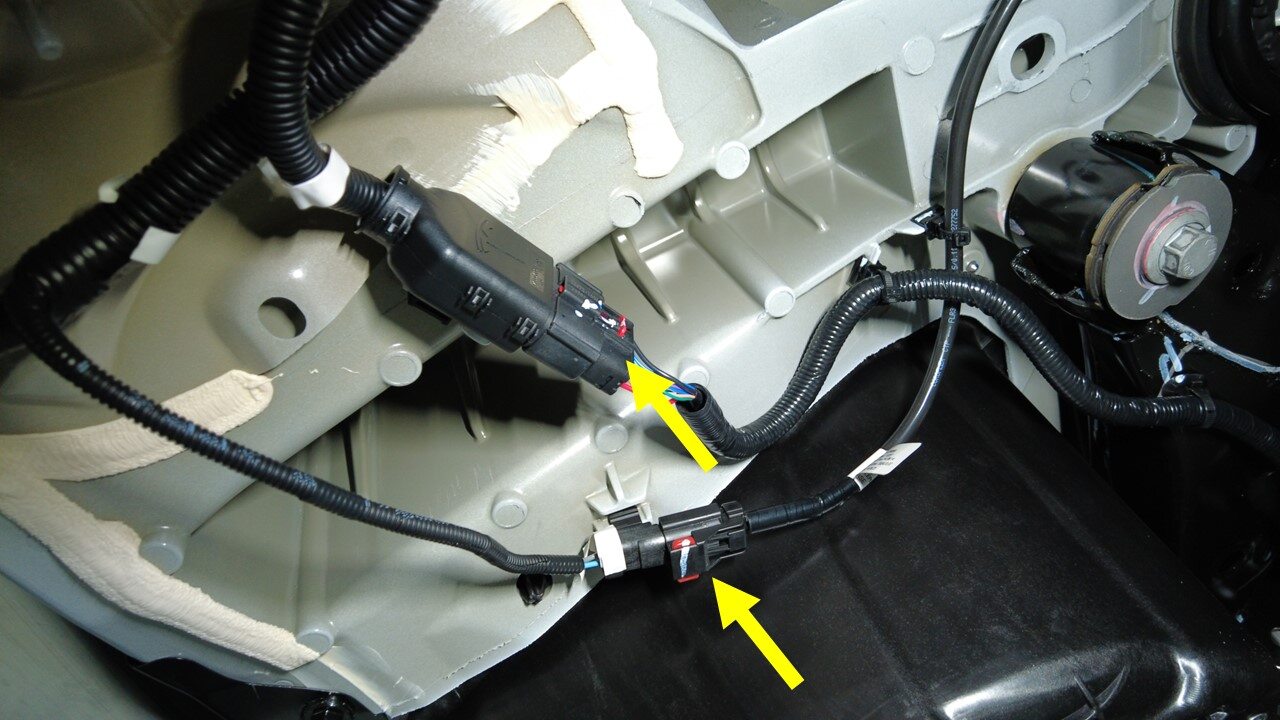

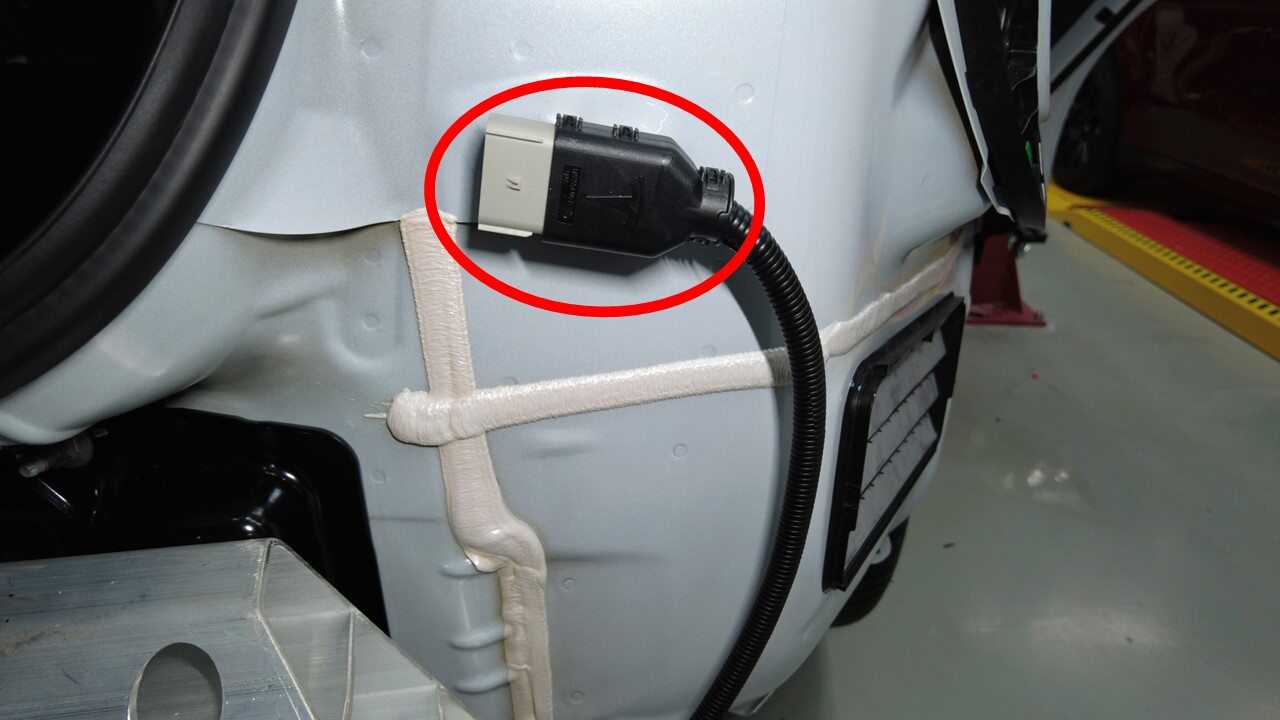

Disconnect rear subframe harness connector and RH rear EPB connector

Note
2x connectors, Disengage locking tab

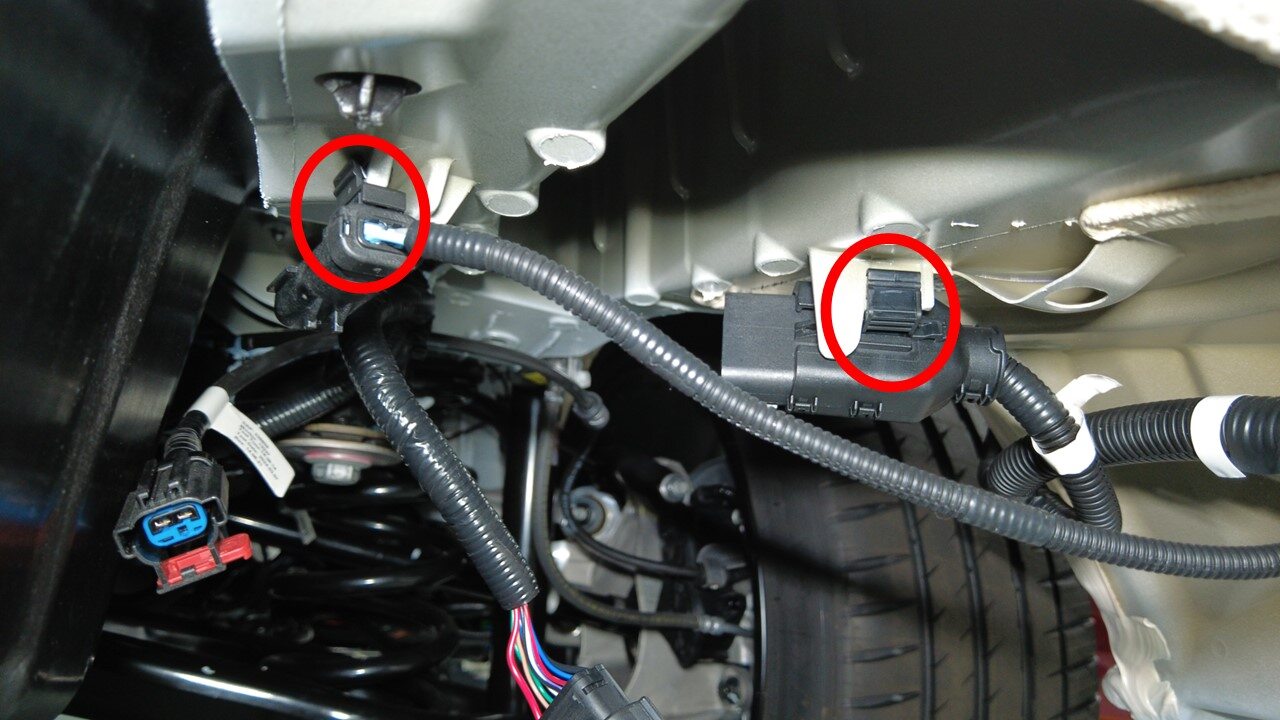

Release RH body harness clips from RH RUB area

Note
2x clips
Release RH body harness clips from rear fascia area

Note
2x clips

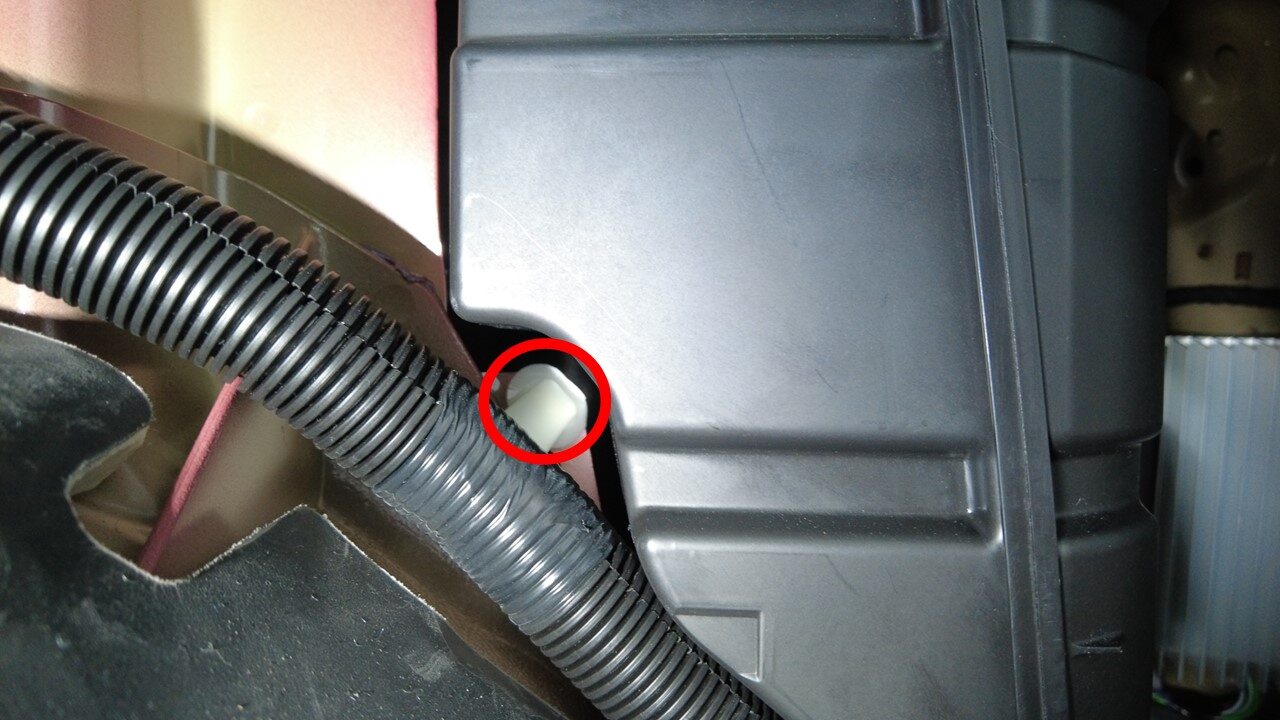

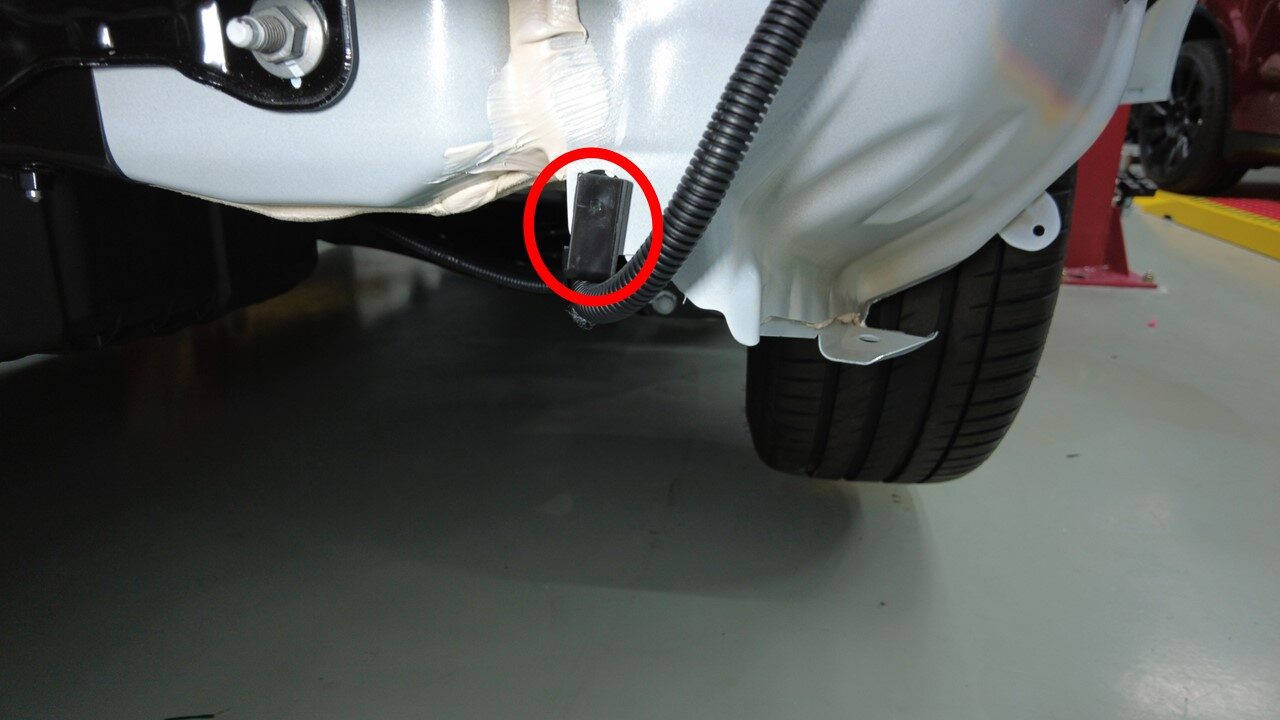

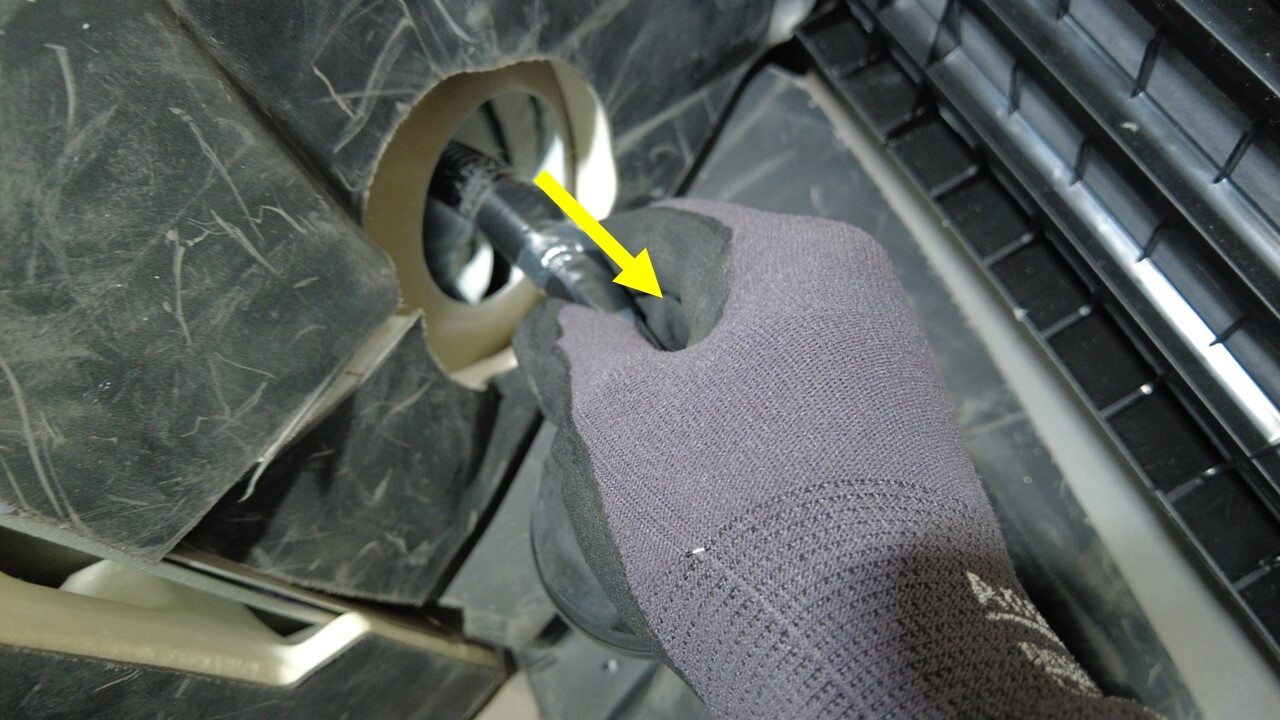

Push RH body harness through RH wheelhouse outer assembly

Note
1x grommet, Harness passes through RH wheelhouse outer assembly

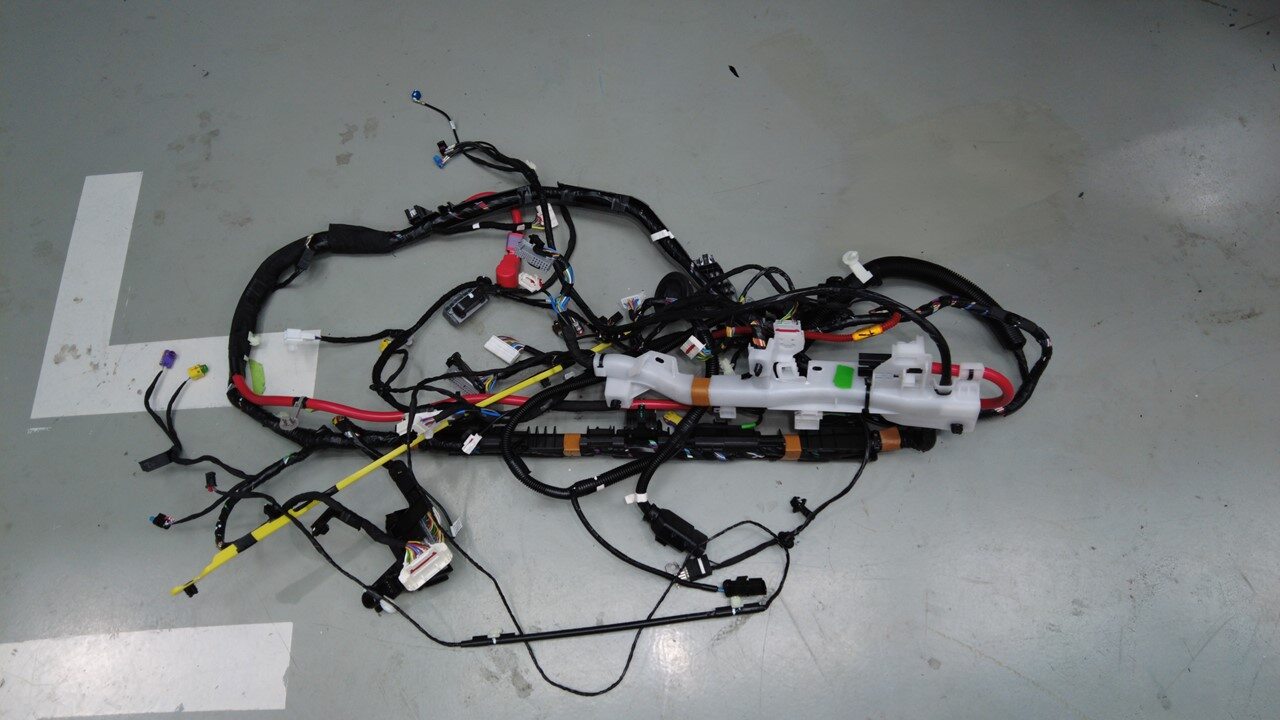

Remove RH body harness from vehicle

Install

Position RH body harness onto vehicle
Push RH body harness through RH wheelhouse outer assembly

Note
1x grommet, Harness passes through RH wheelhouse outer assembly, Make sure to install grommet in proper orientation
Secure RH body harness clips to rear fascia area

Note
2x clips
Secure RH body harness clips to RH RUB area

Note
2x clips

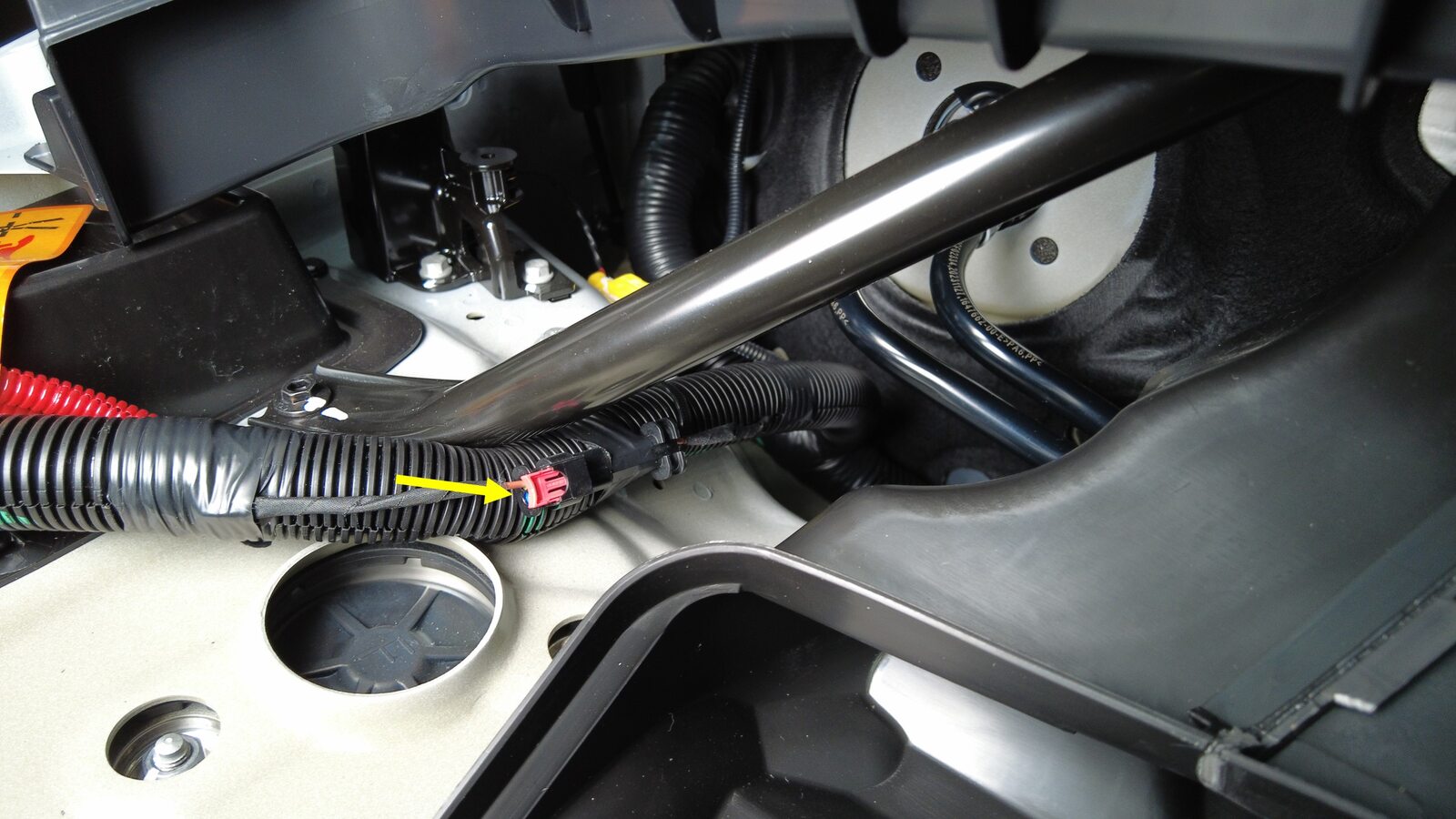

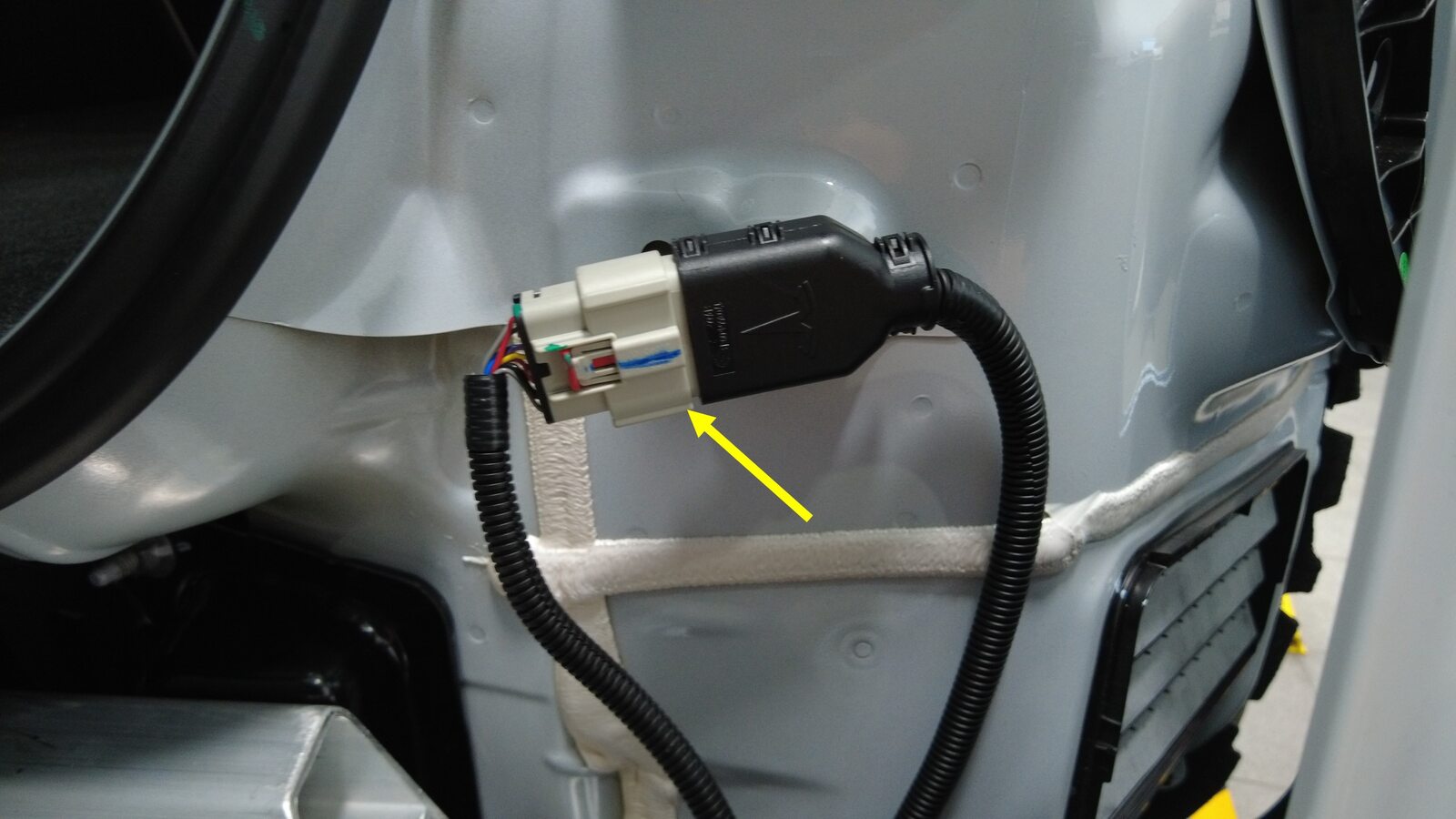

Connect rear subframe harness connector and RH rear EPB connector

Note
2x connectors, Engage red locking tab
Secure rear fascia assembly onto body

Note
1x connector, Engage locking tab, Recommend assistance
Secure rear fascia diffuser

Note

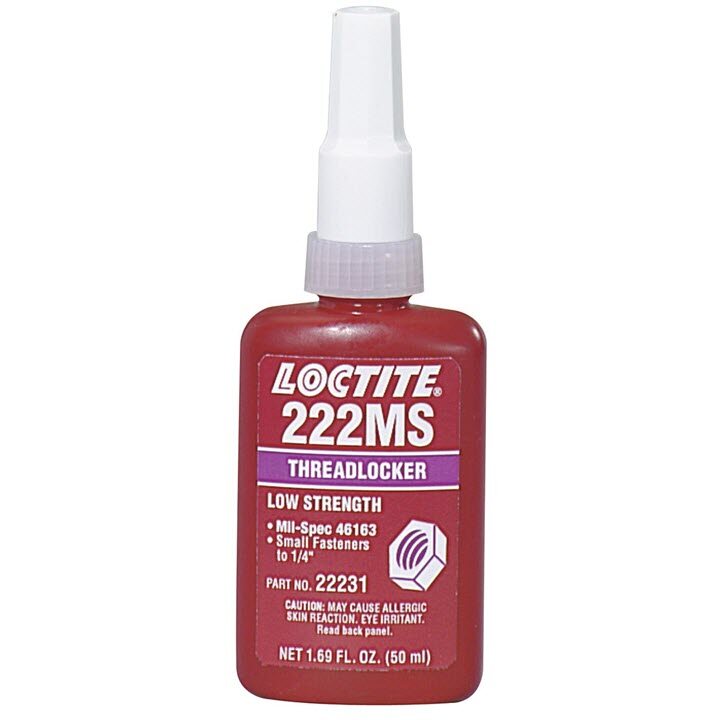

7x bolts, 10mm, 5 Nm, 6x push clips, 2x fastener covers, Apply Loctite 222 onto bolts
Install rear fascia diffuser front bolts

Note
2x bolts, 10mm, 5 Nm, Apply Loctite 222 onto rear aero shield bolts
Install bolt securing RH corner of rear fascia to body

Note
1x bolt, 10mm, 3.5 Nm
Install RH tail lamp

Note
1x connector, 2x clips, 1x nut, 8mm, 3 Nm, Ensure gaskets are in good condition, Align to body then firmly push lamp forwards to engage clips, Replace any missing or damaged clips, Engage locking tab
Install screw securing RH corner of rear fascia to body

Note
1x screw, 10mm, 2 Nm

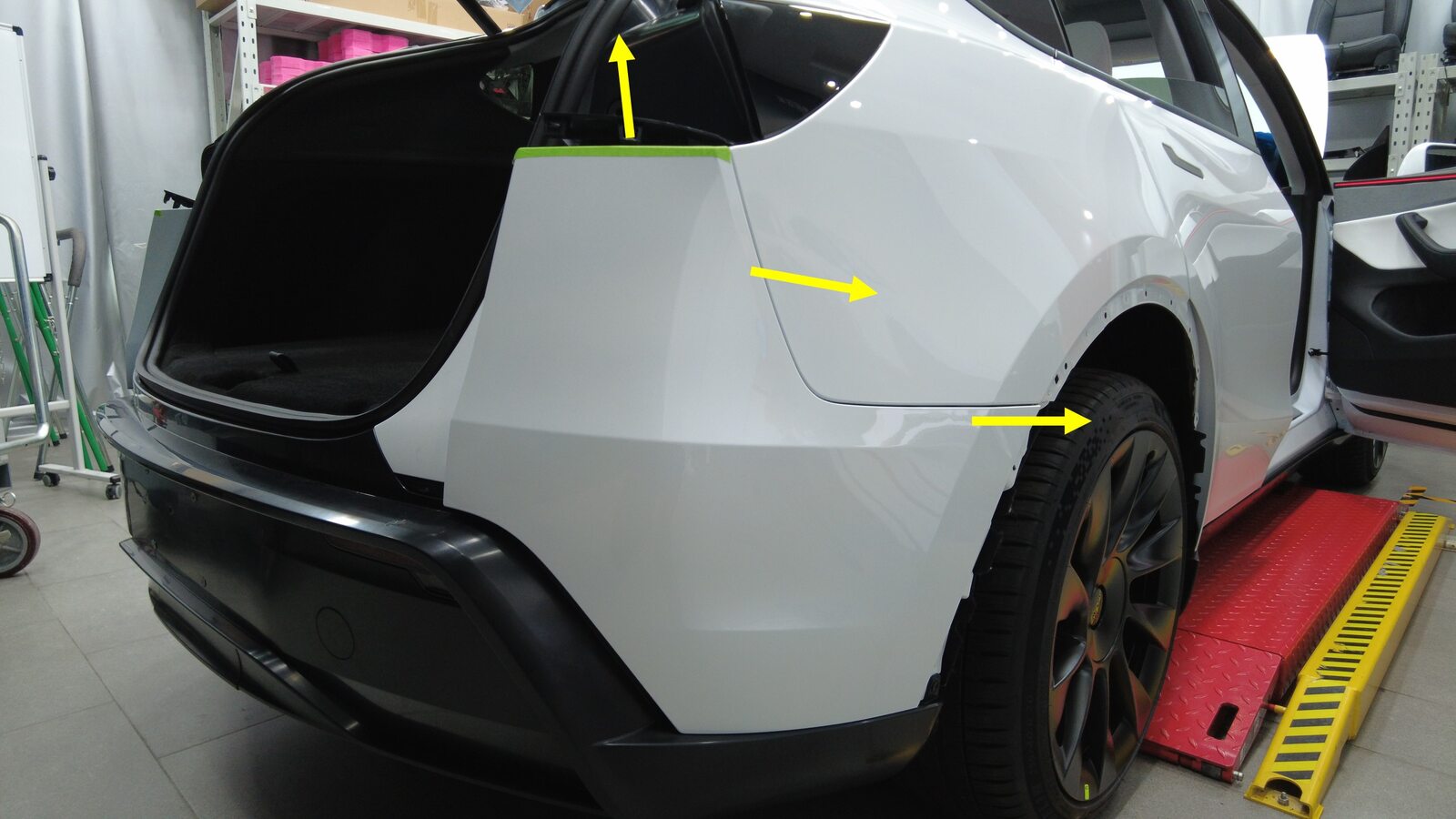

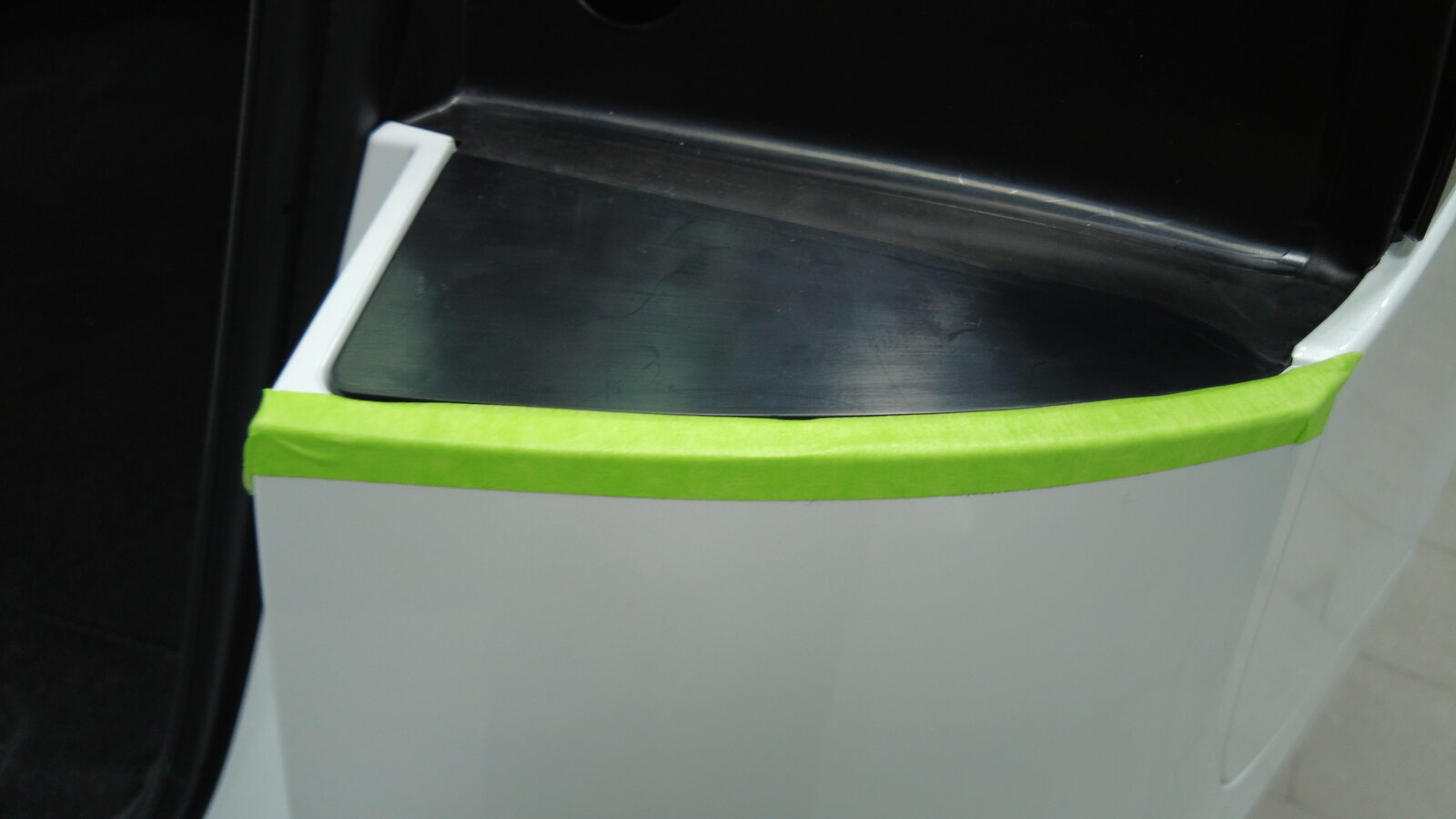

Remove masking tape from RH corner of rear upper fascia

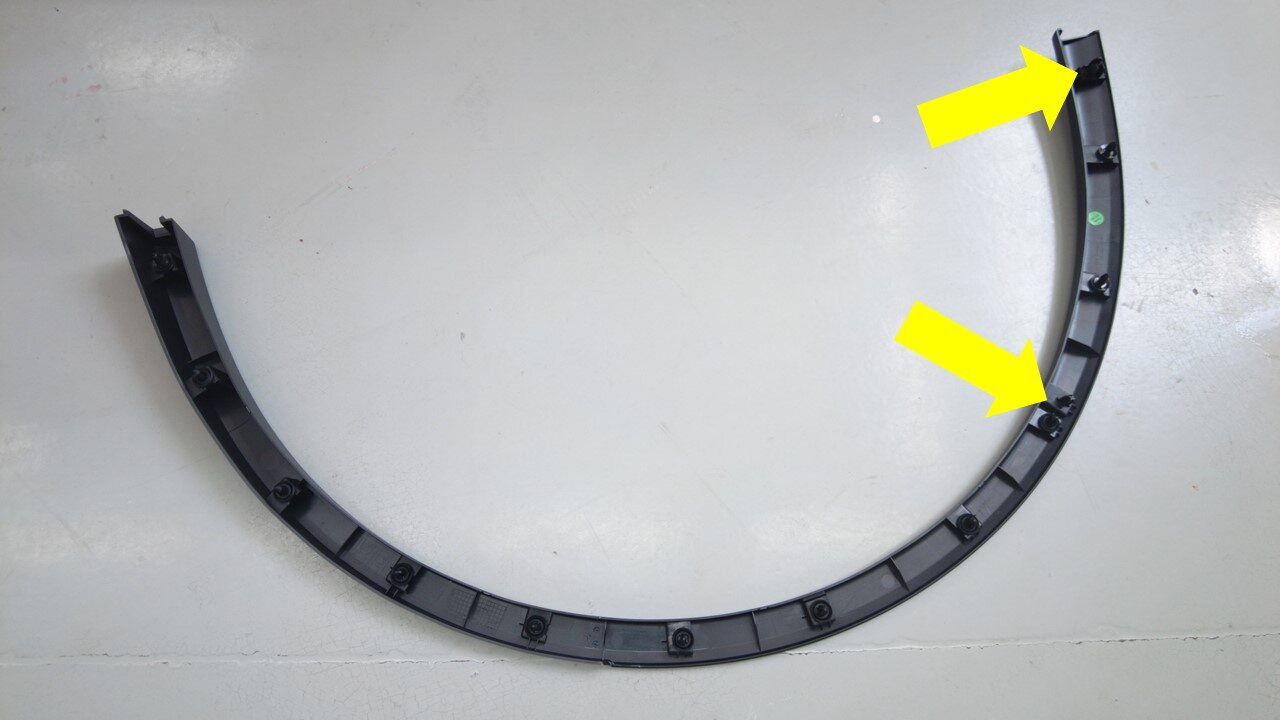

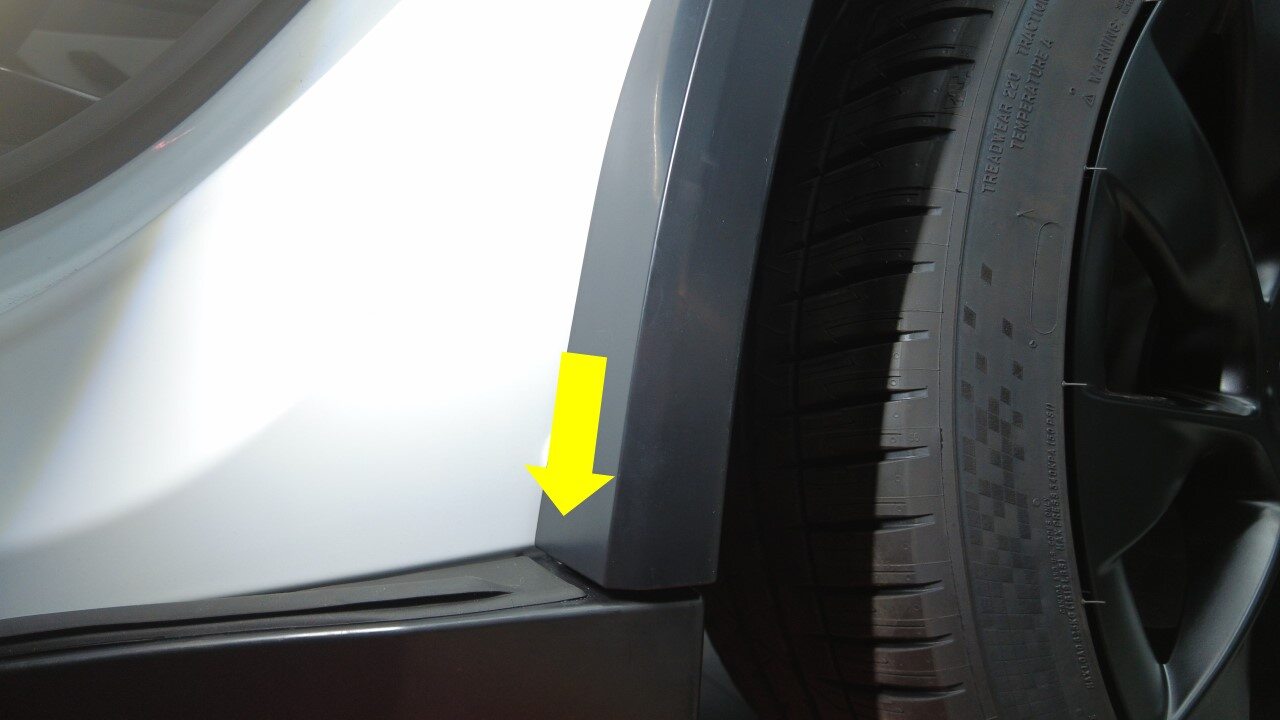

Install RH rear fender garnish

Note
11x clips, 2x tabs, Install ends of garnish into rocker panel and rear diffuser then work your way from rear towards front of garnish
Install bolt securing LH corner of rear fascia to body

Note
1x bolt, 10mm, 3.5 Nm
Install LH tail lamp

Note
1x connector, 2x clips, 1x nut, 8mm, 3 Nm, Ensure gaskets are in good condition, Align to body then firmly push lamp forwards to engage clips, Replace any missing or damaged clips, Engage locking tab
Install screw securing LH rear fascia to body

Note
1x screw, 8mm, 2 Nm
Remove masking tape from LH corner of rear upper fascia

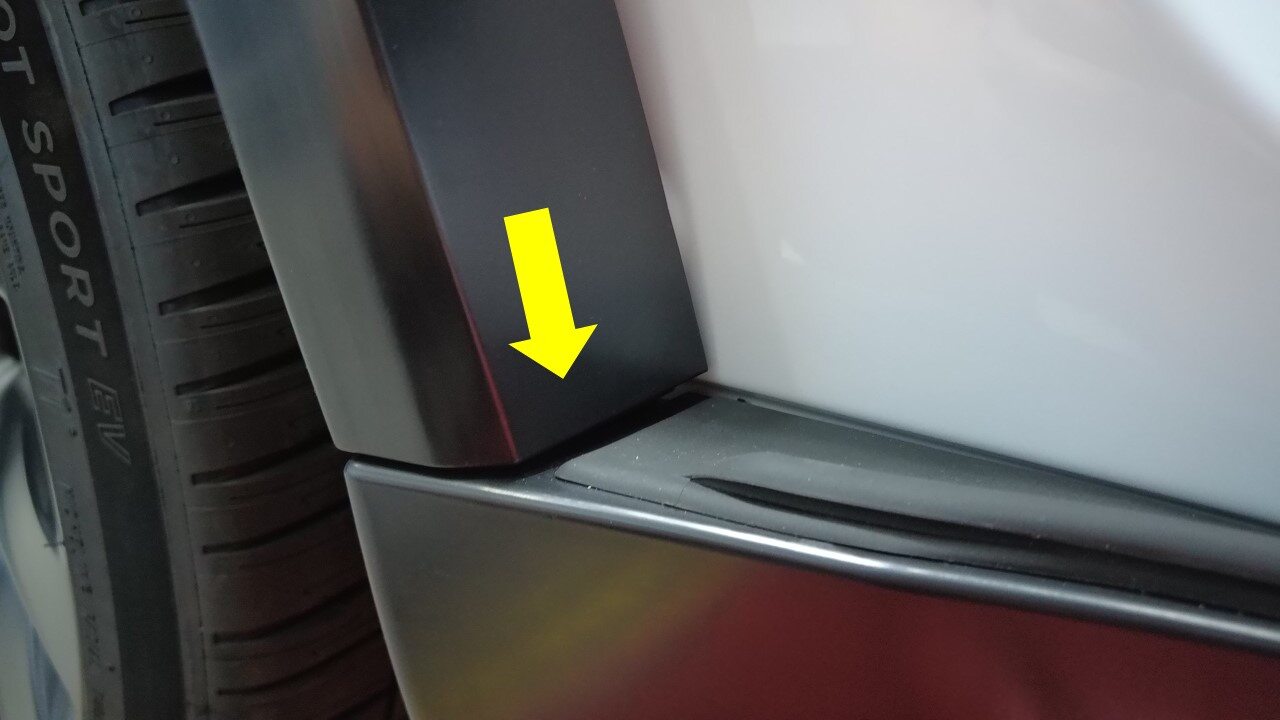

Install LH rear fender garnish to vehicle

Note
11x clips, 2x tabs, Install ends of garnish into rocker panel and rear diffuser then work your way from rear towards front of garnish
Secure RH body harness clips to RH side trunk area

Note
6x clips
Install RH body harness ground strap to RH side trunk area

Note
1x bolt, 10mm, 10 Nm
Secure RH body harness clips around RH C-pillar area

Note
4x clips
Secure RH body harness clips to RH rear head area

Note
8x clips
Connect harness connector for RH side curtain air bag

Note
1x connector, Press the connector. When the connector is fully seated, you will hear the click sound of the secondary locking pin returning
Connect RH power strut connector

Note
1x connector
Connect liftgate harness connectors

Note
3x connectors, Engage locking tab
Install fastening bolt rear RH side curtain air bag to body

Note
1x bolt, 10mm, 8 Nm

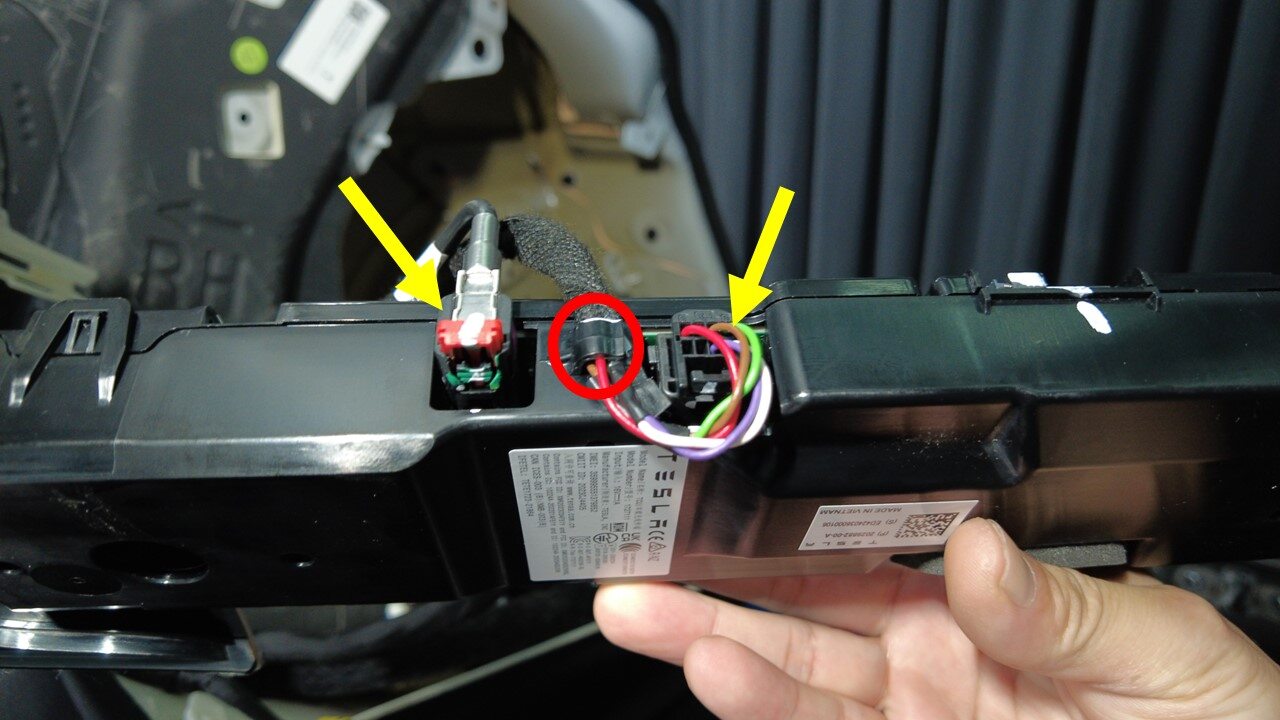

Connect TCU connectors

Note
2x connectors, 1x hook, Engage locking tab
Install TCU fastening bolts to body

Note
2x bolts, 13mm, 14 Nm, 1x datum

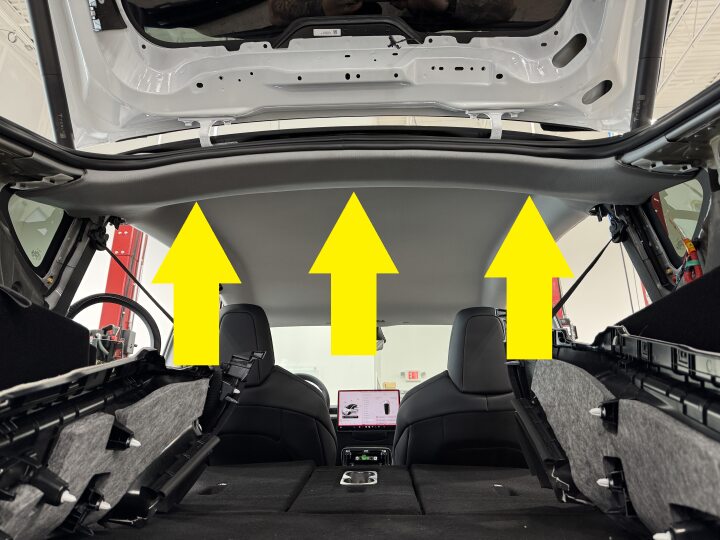

Secure rear section of headliner

Note
4x clips, Ensure all clips are fully seated, Seat liftgate seal over edge of headliner
Connect RH 2nd row retractor connector

Note
1x connector, When the connector is fully seated, you will hear the "click" sound, And install it onto the harness bracket
Fasten clips RH body harness to rear body

Note
2x clips
Install RH body harness onto rear body

Note
1x clip

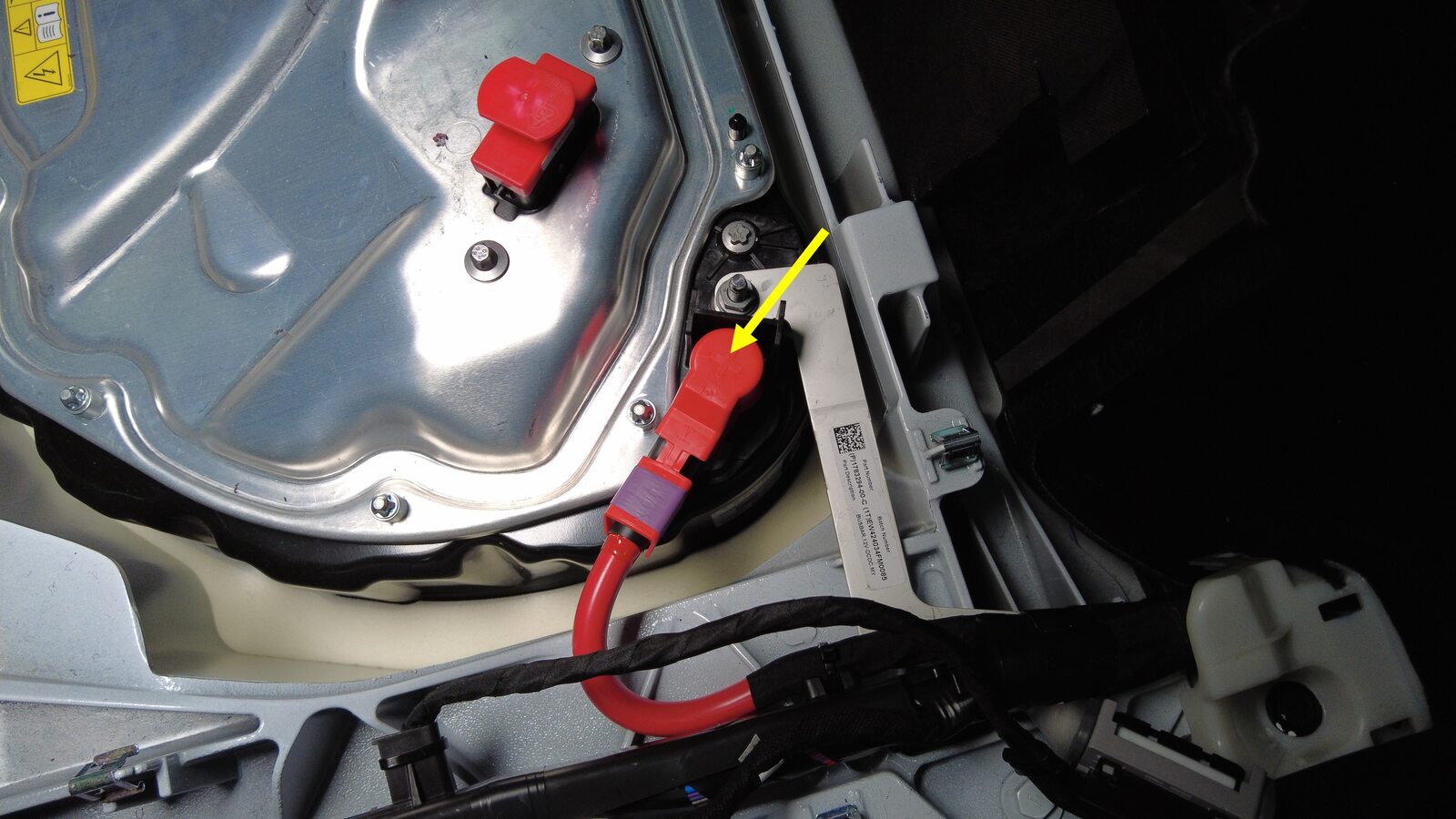

Install positive LV output from PCS cable and torque nut securing it

Note
1x nut, 13mm, 9 Nm, Install new nut, Mark the nut after torque
Install positive LV output cover to PCS cable

Note
1x cover

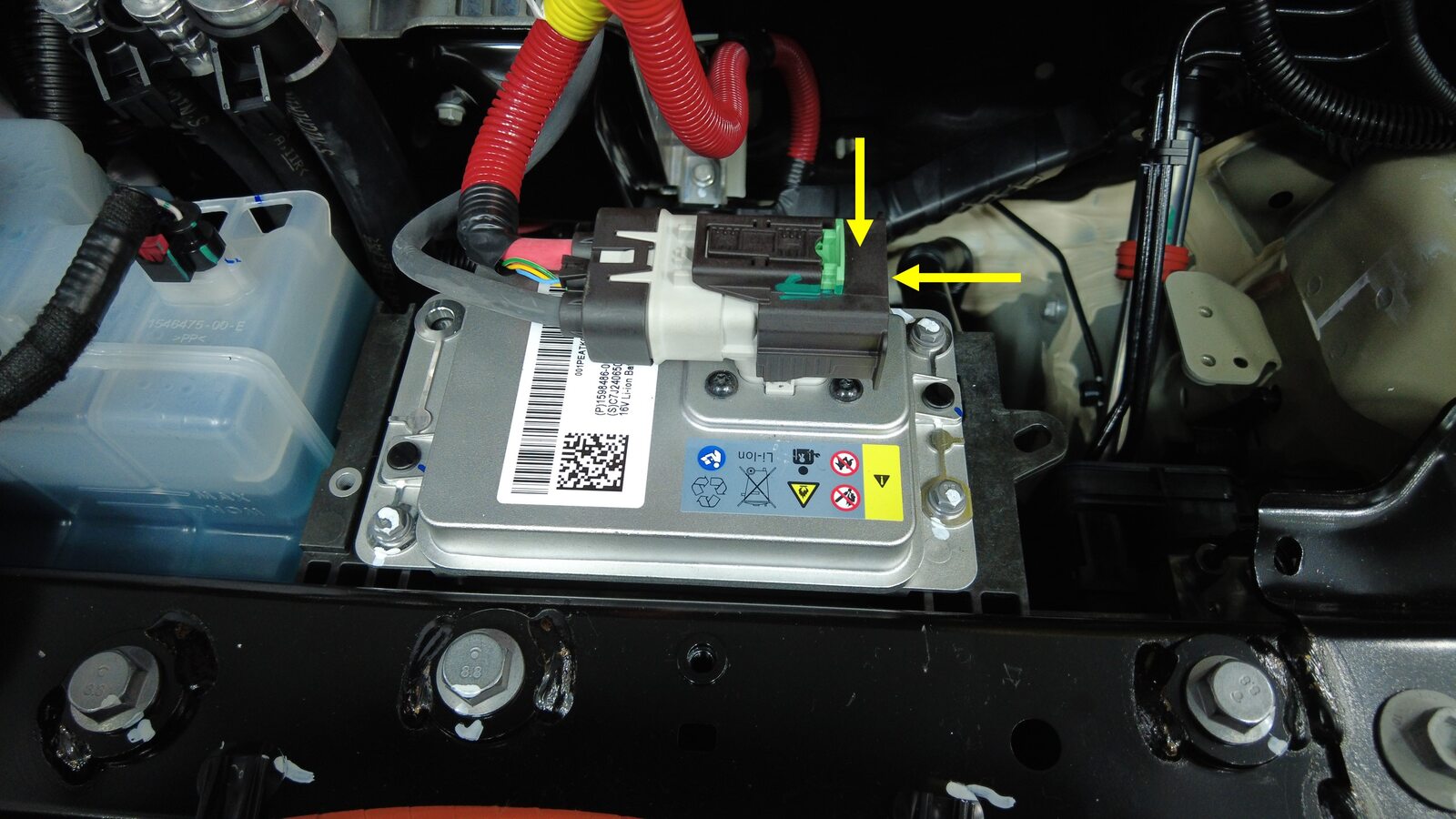

Remove logic cap and connect HVC logic connector

Note
1x connector, 1x logic cap, Align connector then pull the handle to locking position get connector fully seated
Connect 2nd row 40 seat connector

Note
1x connector, Engage the tab
Install RH body harness ground strap to RH rear sill area

Note
1x bolt, 10mm, 10 Nm

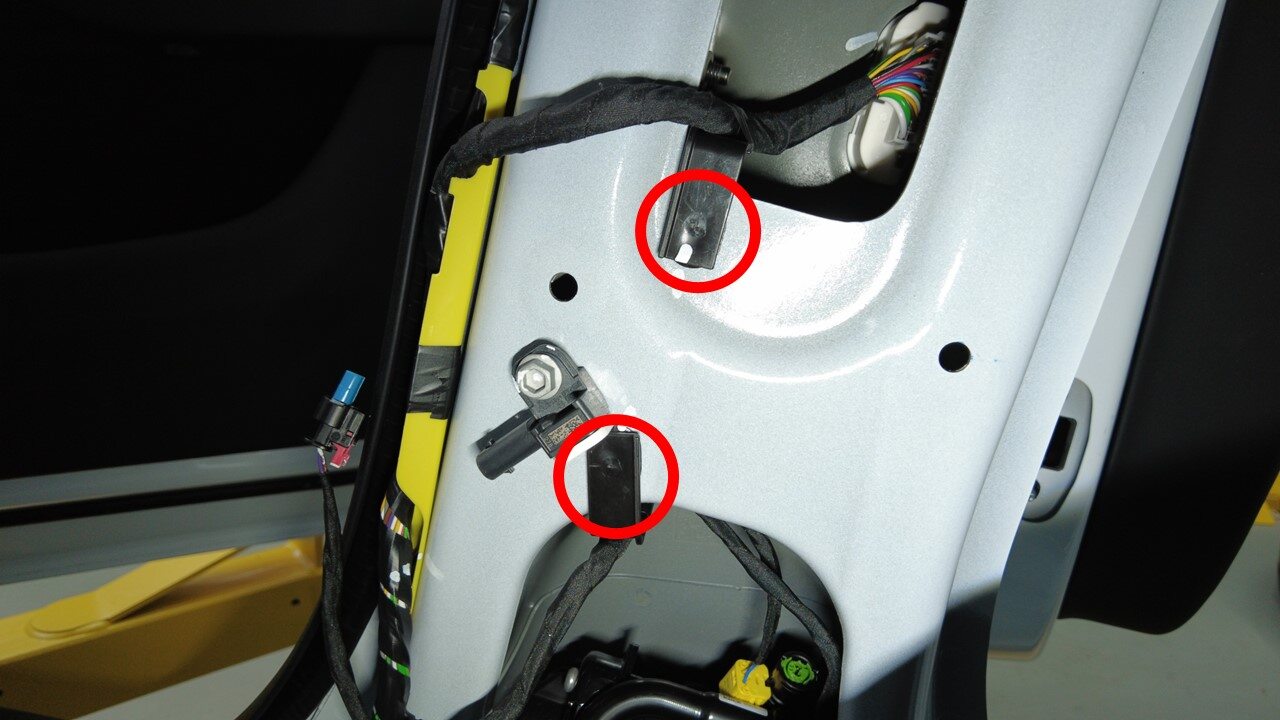

Install RH rear door harness connector to B-pillar area

Note
3x clips
Install RH rear door harness connector to B-pillar

Note
1x connector, 2x clips, 1x grommet, Verify seal is fully seated around white clip prior to installation, Press RH rear door harness connector to body harness connector, Hold body harness connector in place till audible click is heard, Gently pull body harness connector to ensure its secure, Ensure door harness grommet is seated to B-pillar

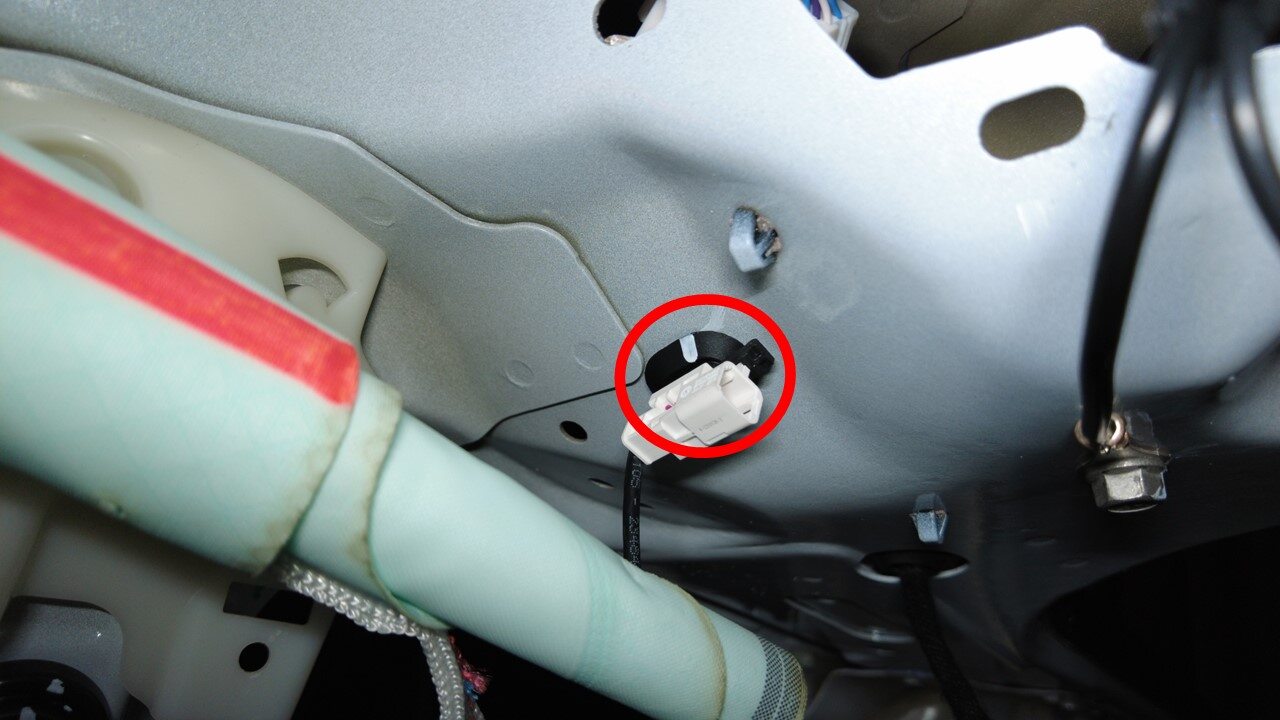

Connect RH B pillar accelerometer sensor connector

Note
1x connector, Engage locking tab
Connect RH front retractor connectors

Note
2x connectors, Press the connector. When the connector is fully seated, You will hear the click sound of the secondary locking pin returning,If new body harness does not have connector for the ALR connector, secure ALR connector tree clip into original position
Secure RH body harness clips to RH B-pillar side area

Note
3x clips
Secure RH harness clips from below RH B-pillar area

Note
6x clips
Secure RH body harness bracket clip to below RH front seat

Note
1x clip, 2x tabs
Connect LH body harness connectors to below RH front seat

Note
2x connectors, Engage locking tab
Secure RH body harness clips to RH front sill area

Note
3x clips, 1x location pin
Secure RH body harness guide to RH lower A-pillar area

Note
3x clips
Connect windshield harness connectors to harness guide RH lower A pillar area

Note
3x connectors, Engage locking tab
Connect RH body harness to RH controller

Note
4x connectors, Connectors J2 J4 J5 J12, Engage locking tabs
Connect connector to RH controller

Note
1x connector, Engage locking tab
Secure front main harness DCDC cable to RH harness bracket

Note
1x clip, 1x hook
Connect front main harness DCDC cable connector to RH body harness

Note
1x connector, Engage locking tab
Secure front main harness ground on RH A-pillar

Note
1x bolt, 10mm, 10 Nm
Secure RH body harness clips to RH cowl panel

Note
2x clips
Secure harness clip to left lower corner of car computer

Note
1x clip

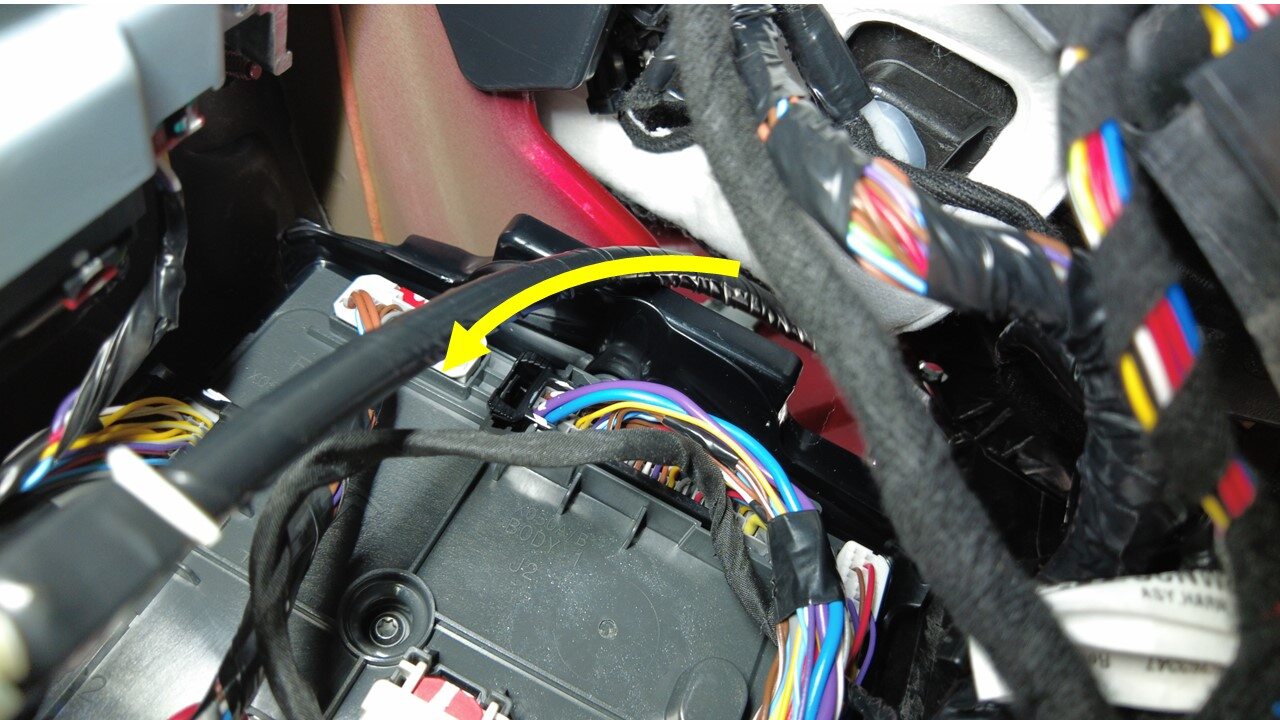

Connect RH body harness connectors on RH side of car computer

Note
3x connectors, Engage locking tab
Connect RH body harness connectors on LH side of car computer

Note
3x connectors, Engage locking tab

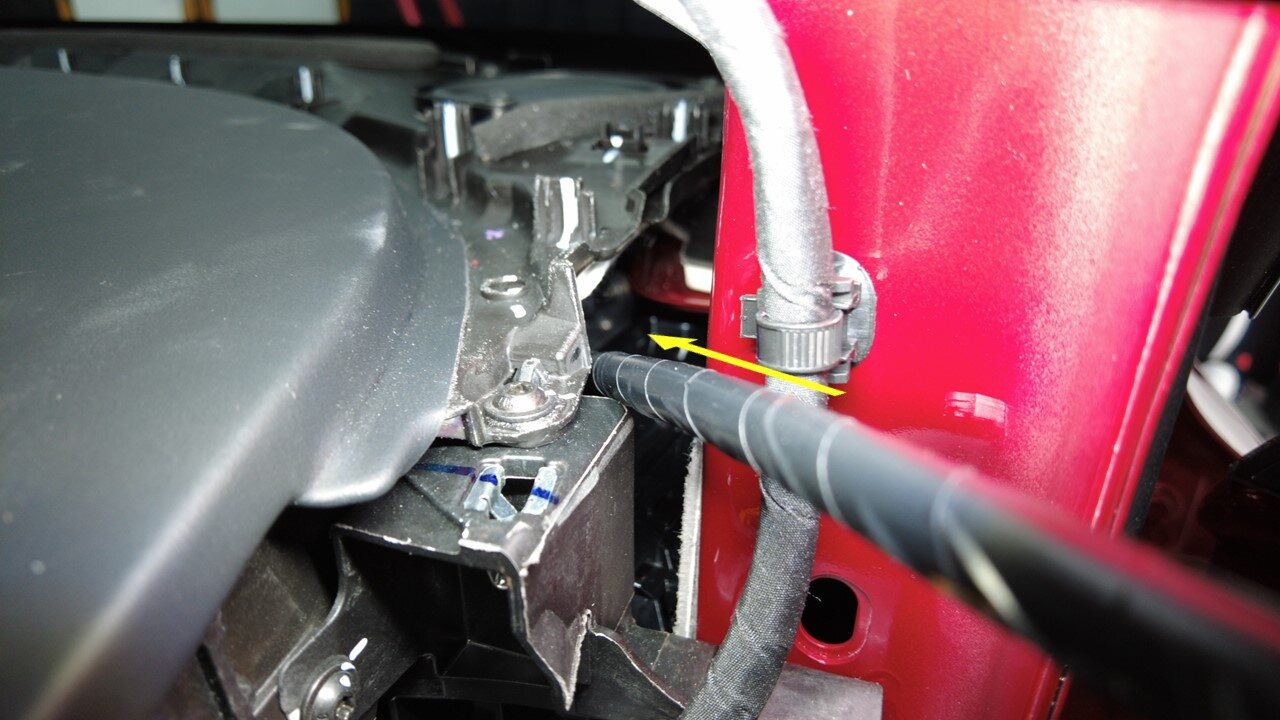

Thread RH body harness through RH IP
Secure RH body harness to RH A - pillar area

Note
4x nylon ties, 2x tapes
Secure RH body harness clips to front head area

Note
5x clips
Connect connector to interior endpoint

Note
1x connector, Engage locking tab

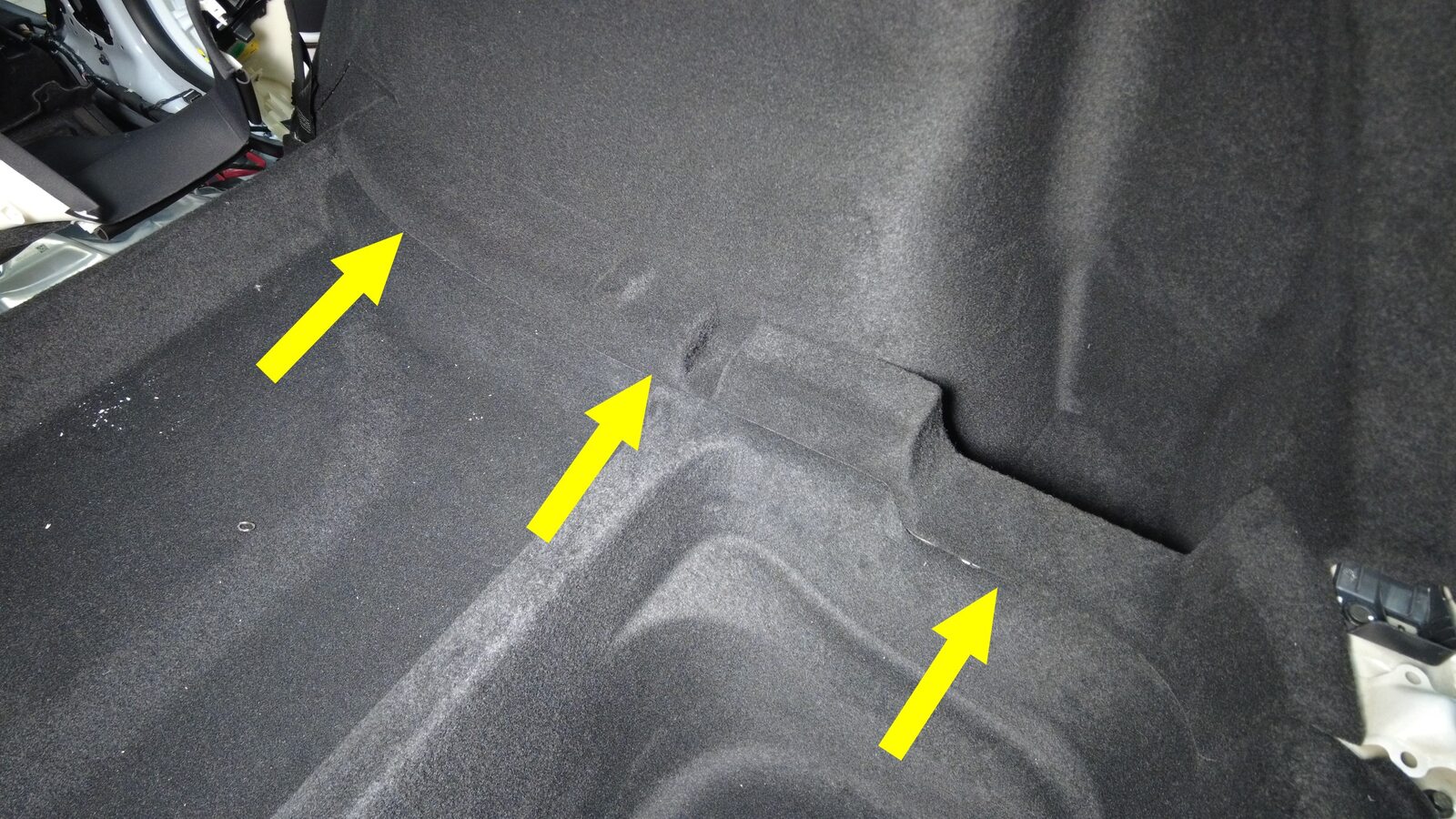

Install RH front cabin carpet

Note
2x push clips, Ensure carpet seated on properly position

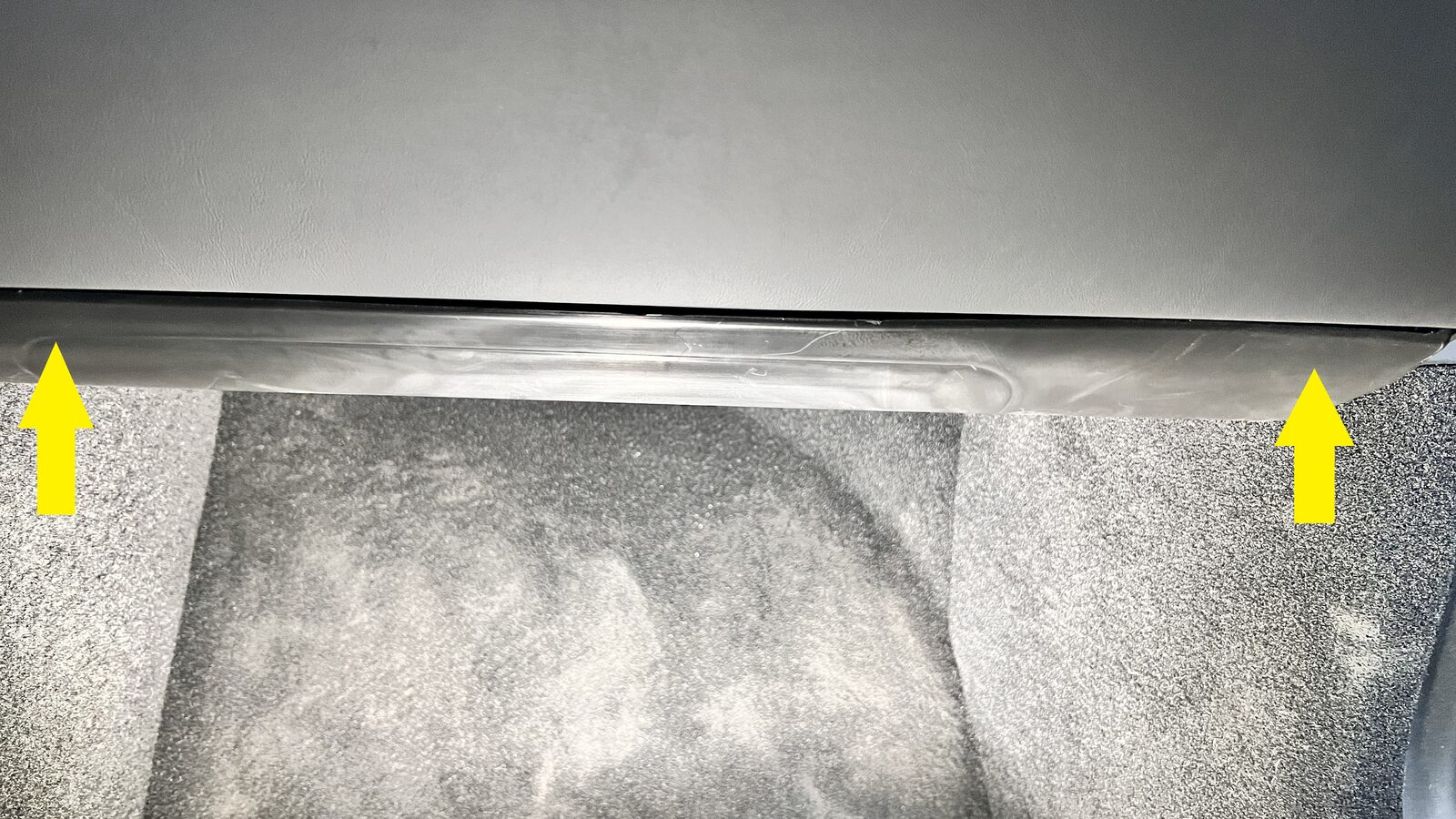

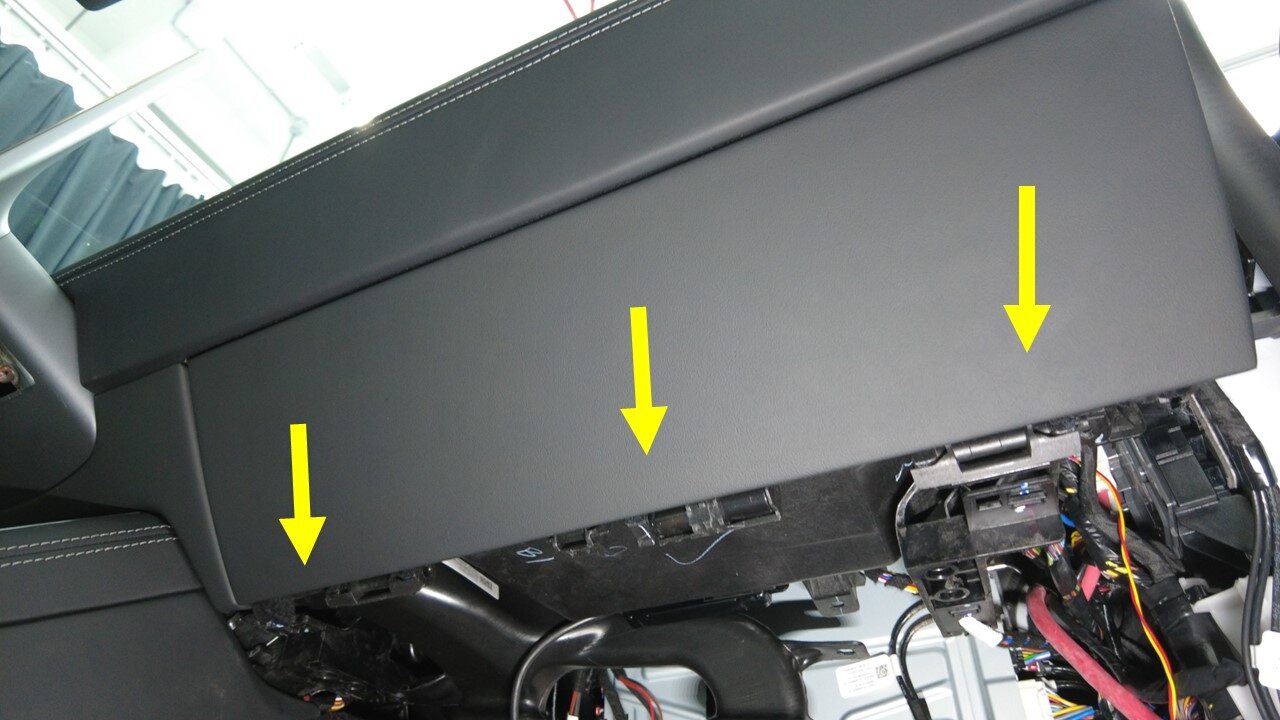

Install center console RH front side panel

Note
18x clips, 2x datums

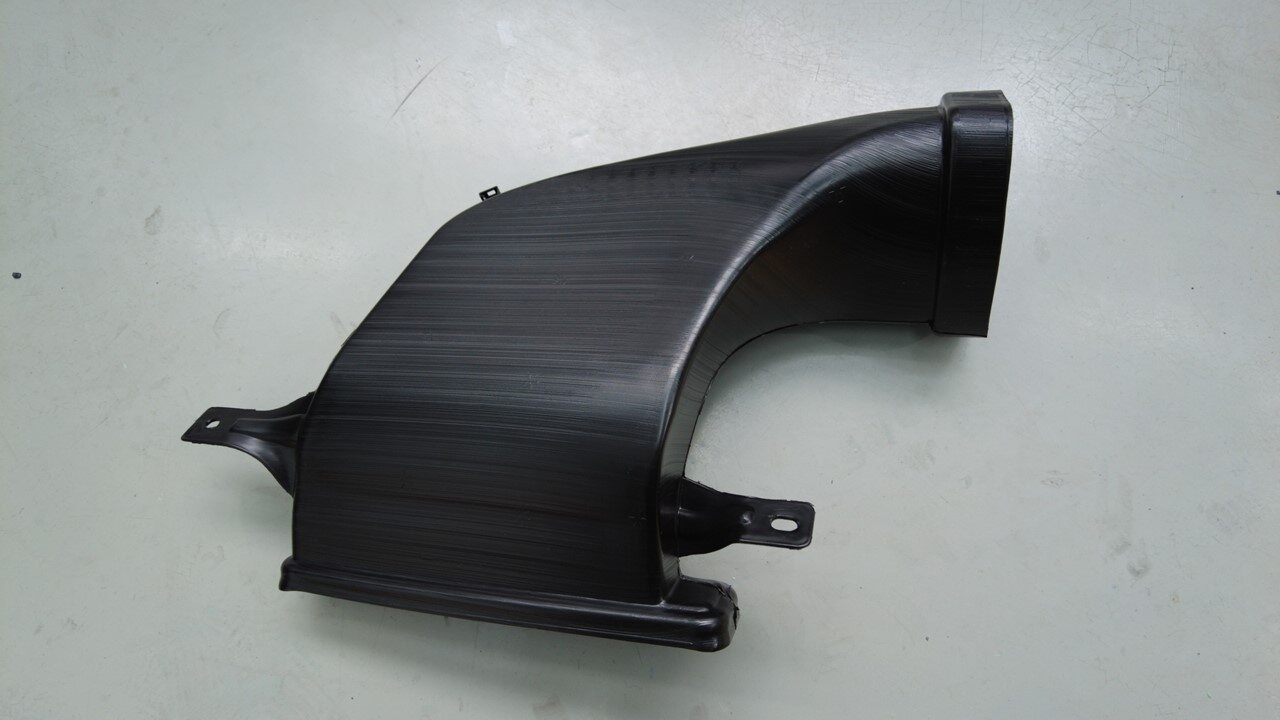

Install RH IP air wave duct to HVAC module
Install clips securing RH IP air wave duct

Note
2x push clips
Connect RH IP air wave duct thermistor connector

Note
1x connector

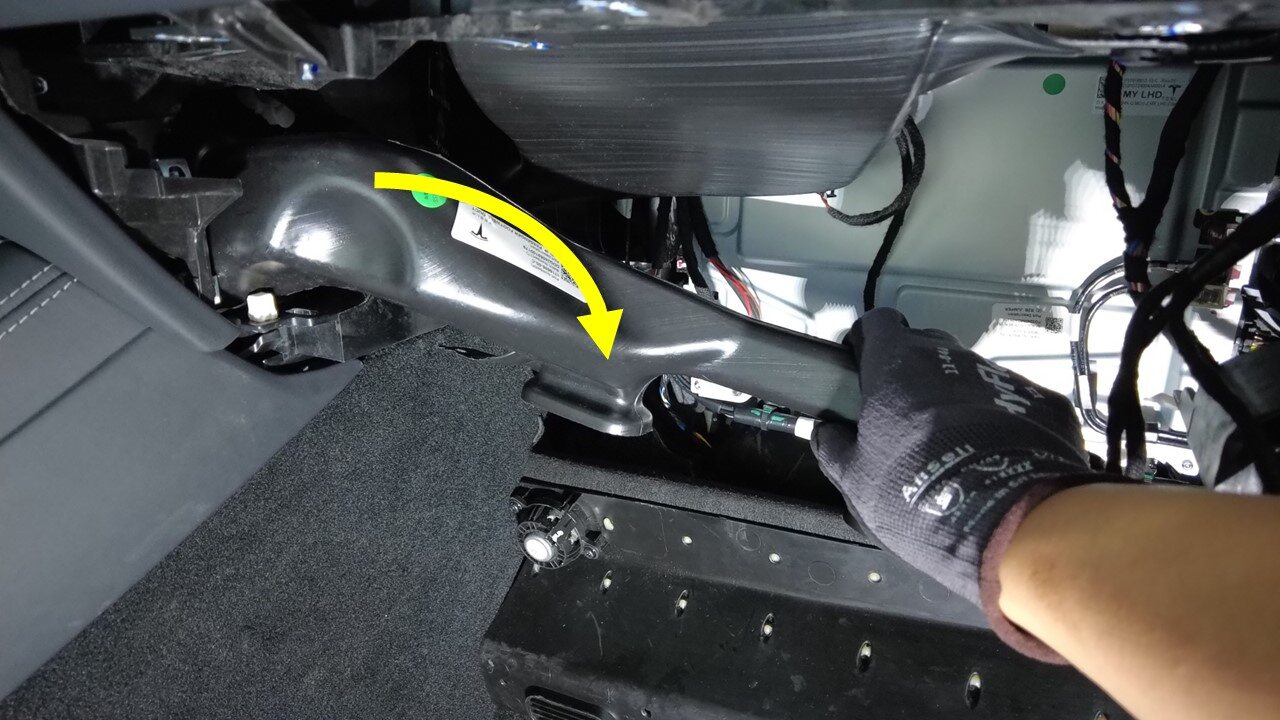

Install passenger footwell duct to HVAC module

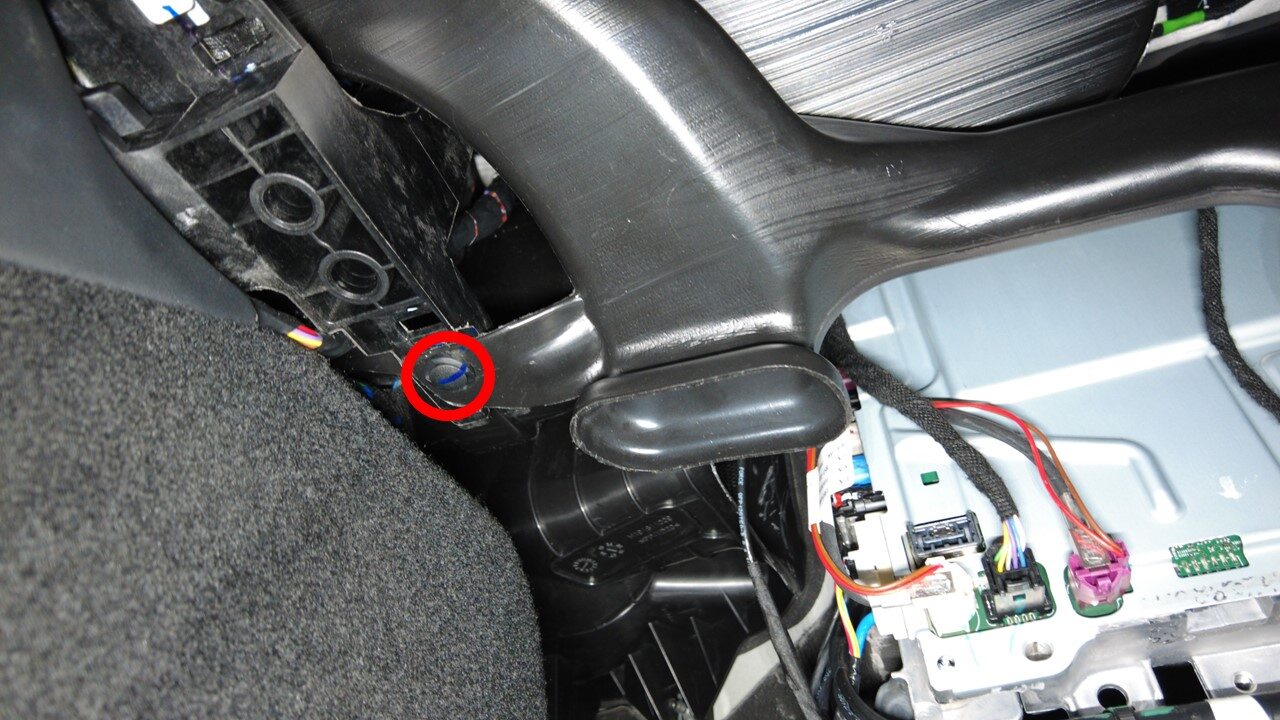

Install clip securing passenger footwell duct to IP carrier

Note
1x push clip
Connect glove box assembly connectors

Note
2x connectors, Some vehicles may not be equipped with glovebox lamp
Install glovebox to IP carrier

Note
8x clips, 3x datums
Install screws securing glove box assembly to IP carrier

Note
4x screws, T20, 2.3 Nm
Install clip securing passenger footwell duct to glove box

Note
1x push clip
Secure IP harness to glove box

Note
1x harness guide
Connect glove box USB cable to car computer

Note
1x connector, Engage locking tab
Install RH knee air bag assembly

Note
1x air bag connector, 1x connector, Ensure air bag connector is fully engaged, Place plastic film back over squib assembly
Install RH knee air bag bolts

Note
4x bolts, EP10, 8.5 Nm, Install new bolts
Install RH knee air bag bolt covers

Note
2x covers
Secure front RH cabin carpet cover to RH knee air bag cover

Note
1x connector, 2x magnets, 2x datums

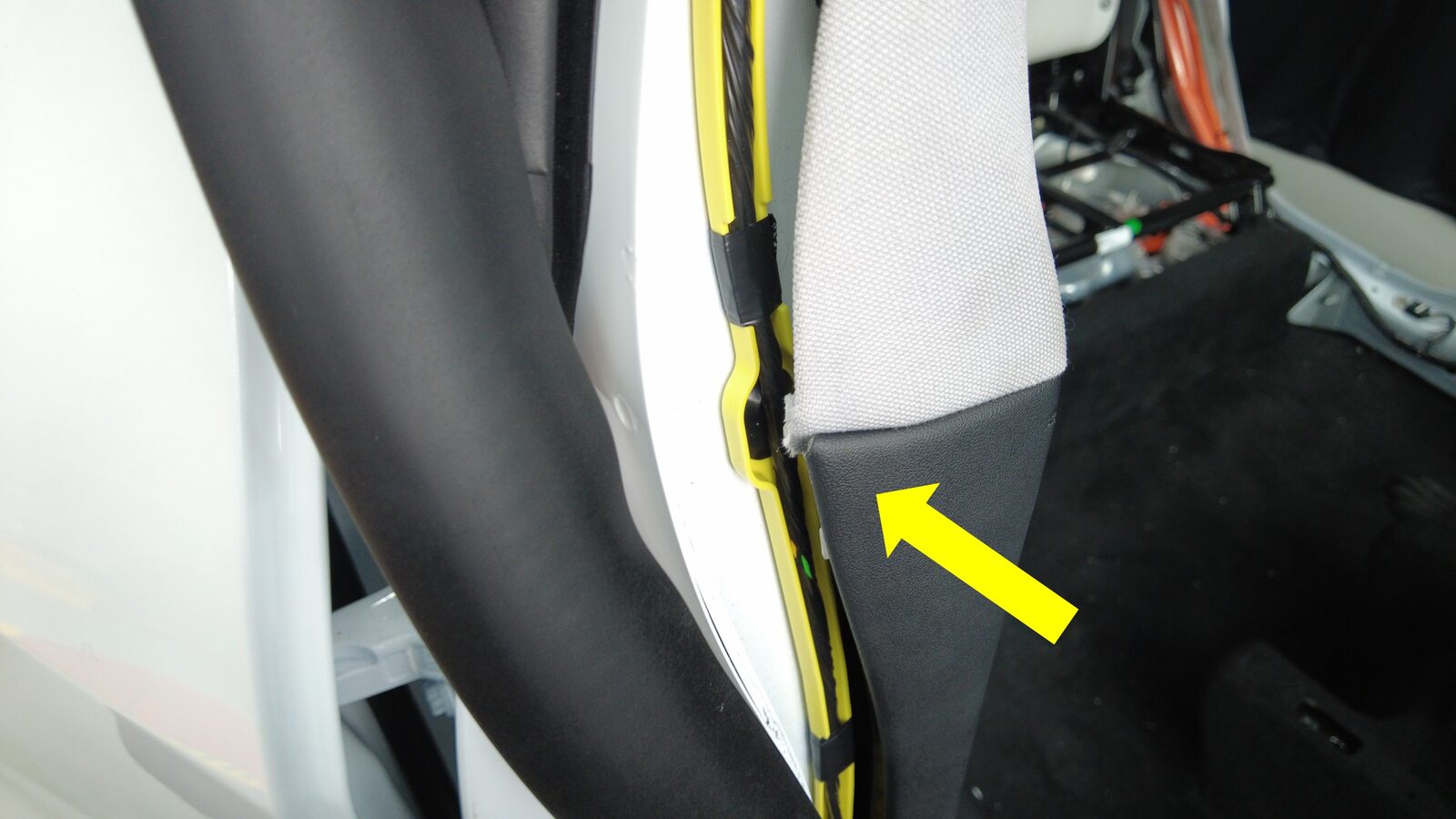

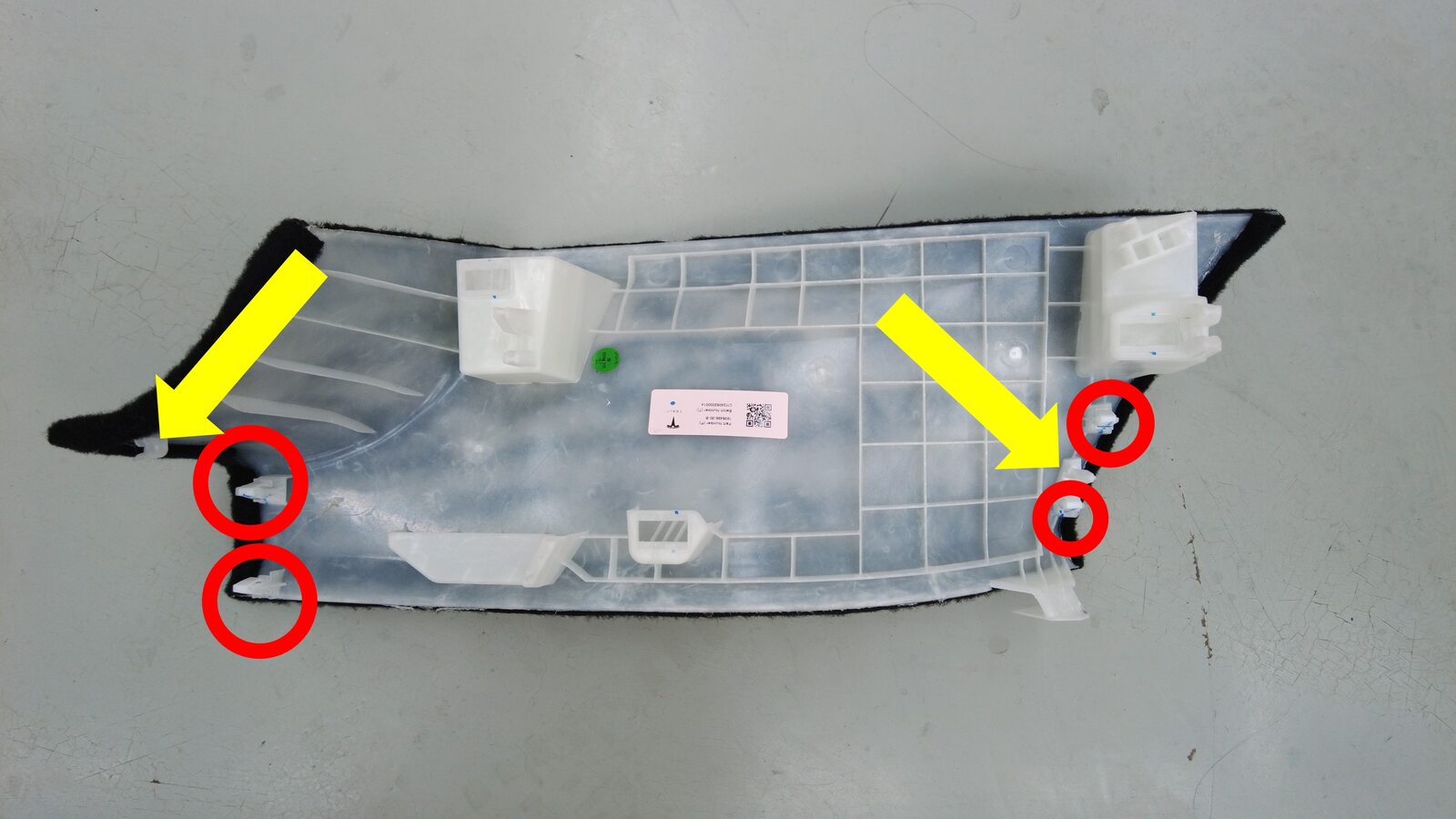

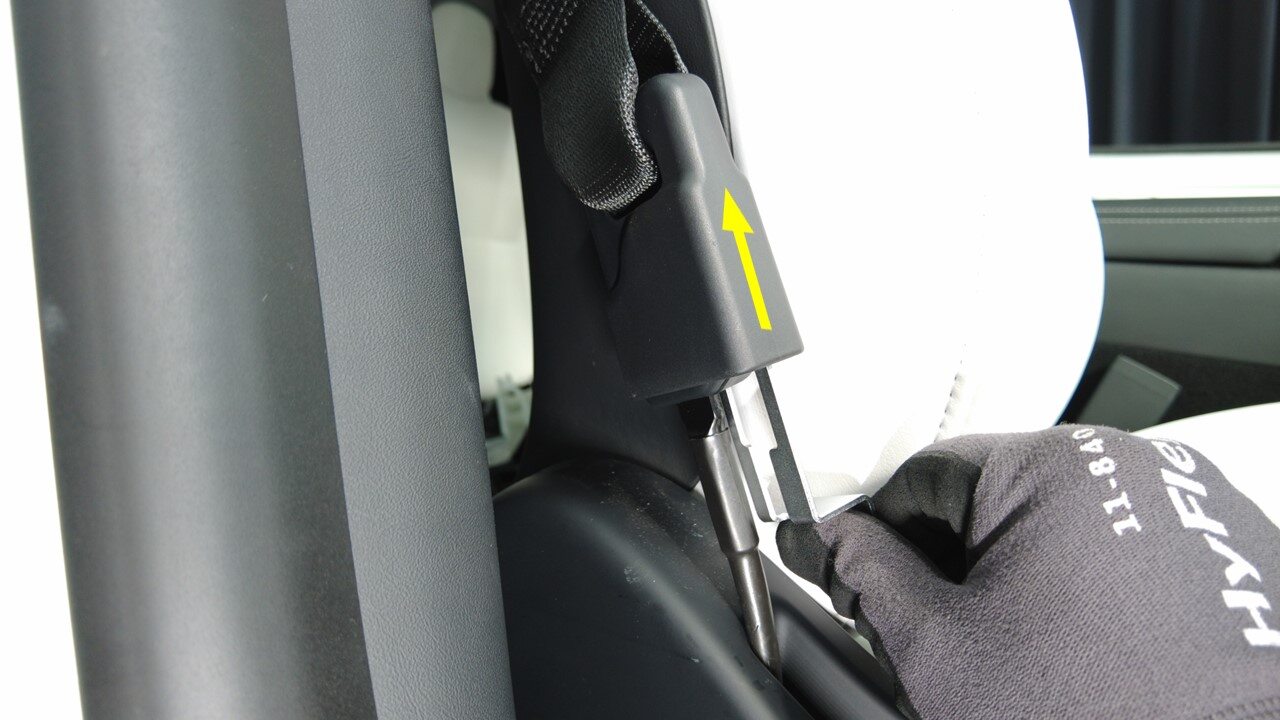

Install RH upper B pillar trim

Note

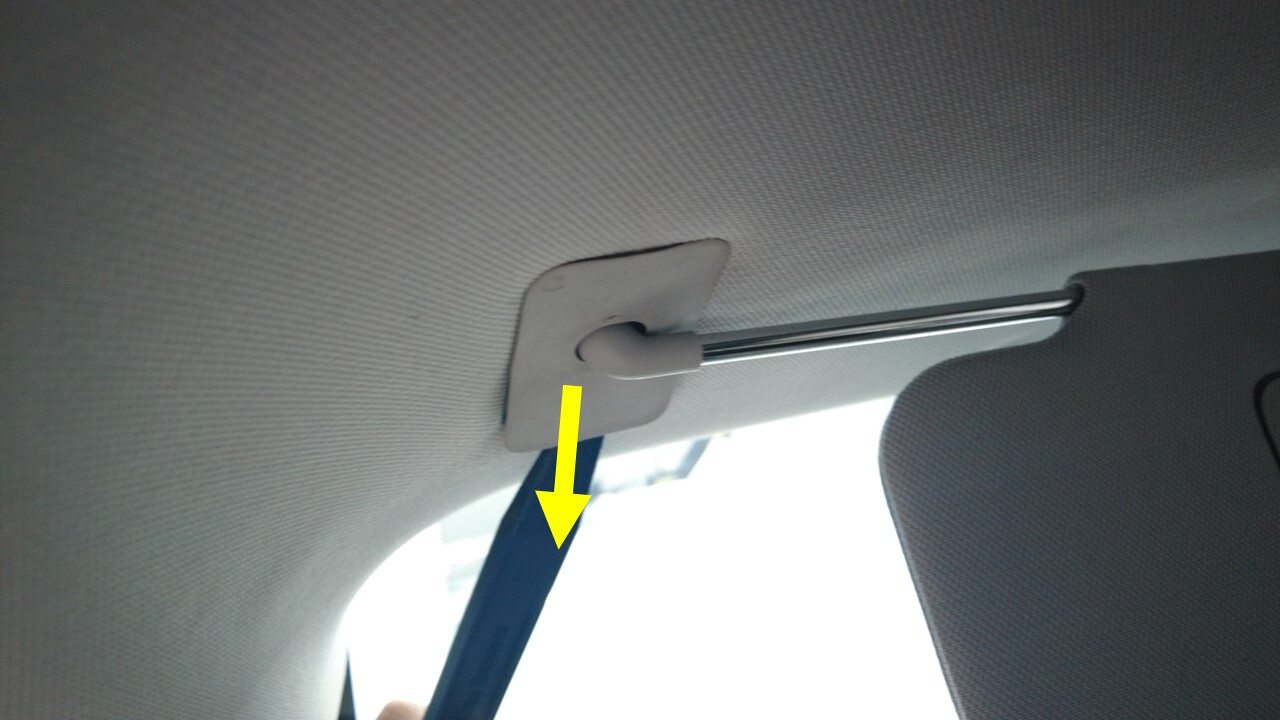

2x edge clips, 2x clips, 2x locator pins, Lower the seat belt slider to align it with the B-pillar panel, align the locating pin of the B-pillar upper trim panel with the slot, push in the direction of the arrow to install the clips after aligning them

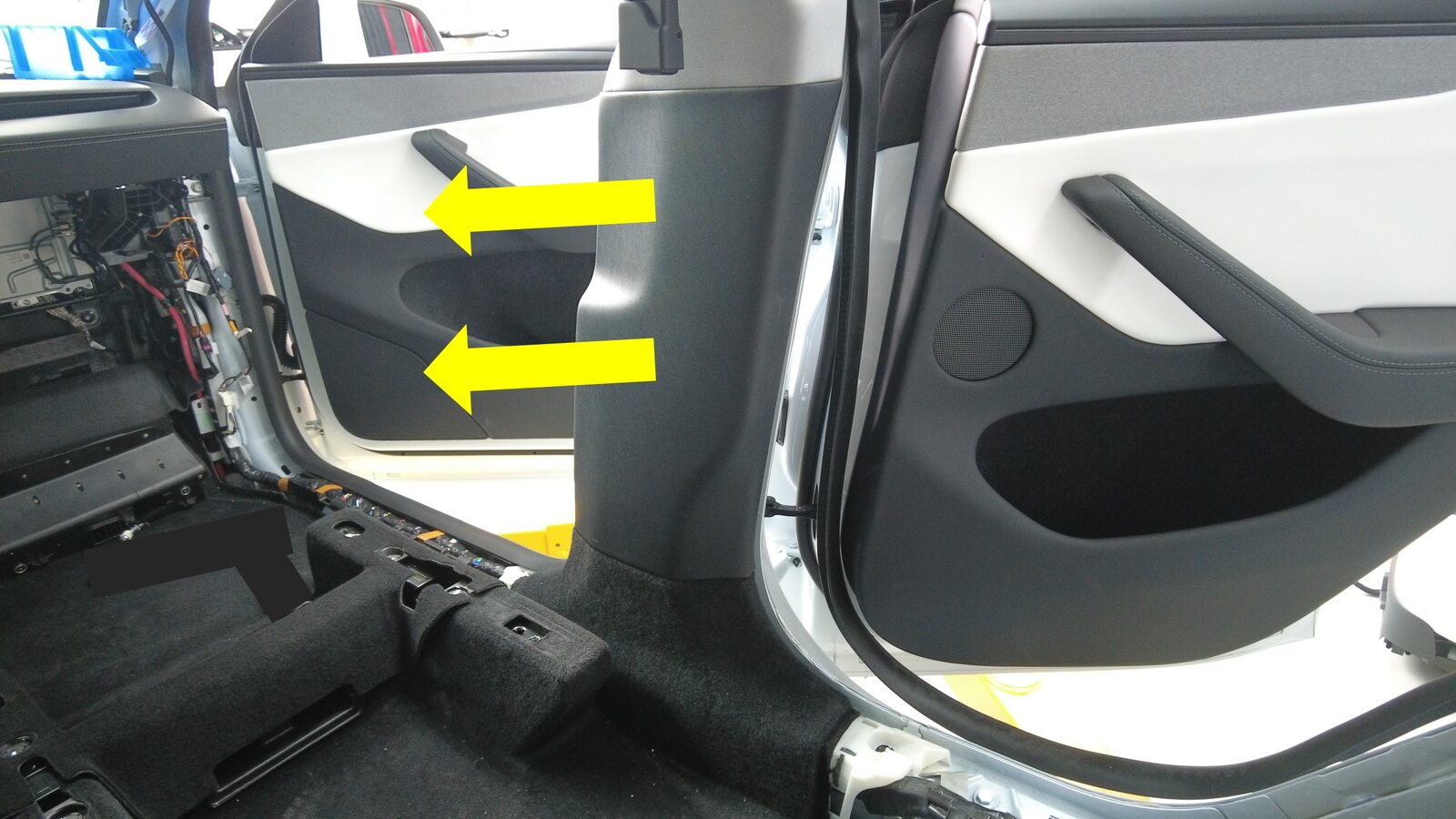

Install RH lower B pillar trim

Note
2x tabs, 1x locator tab, 9x clips, 1x push clip, Align the locator tab to slot, push in the direction of the arrow to install the clips after aligning them, then install both side tabs

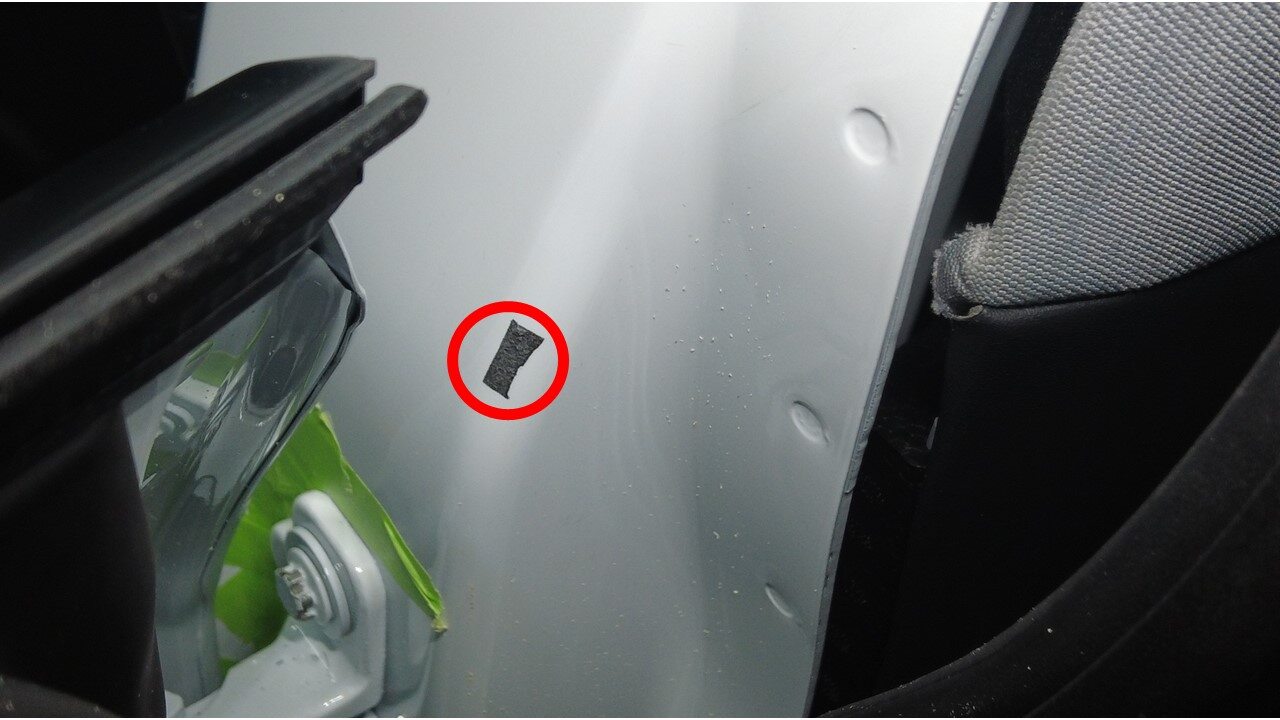

Clean residual adhesive from B-pillar

Note
Wipe surface with IPA once free from adhesive residue, Allow 1 minute for IPA to dry

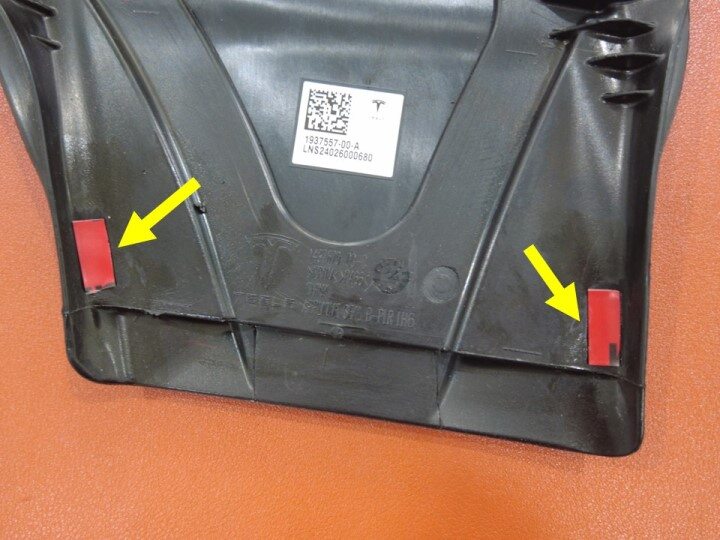

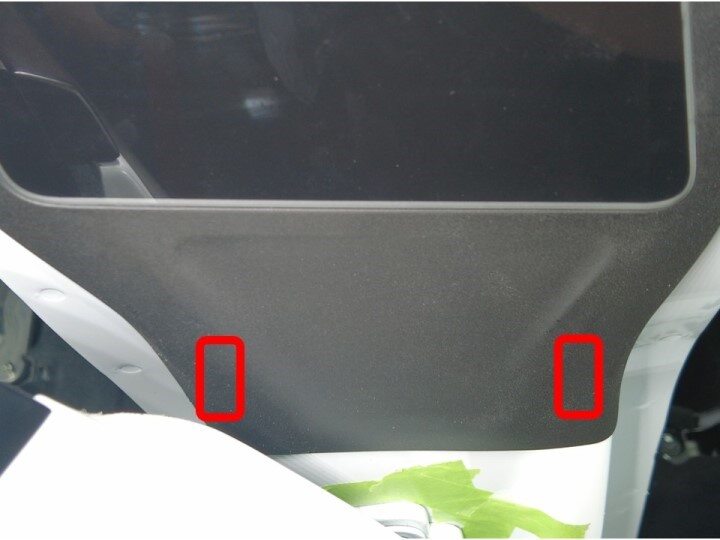

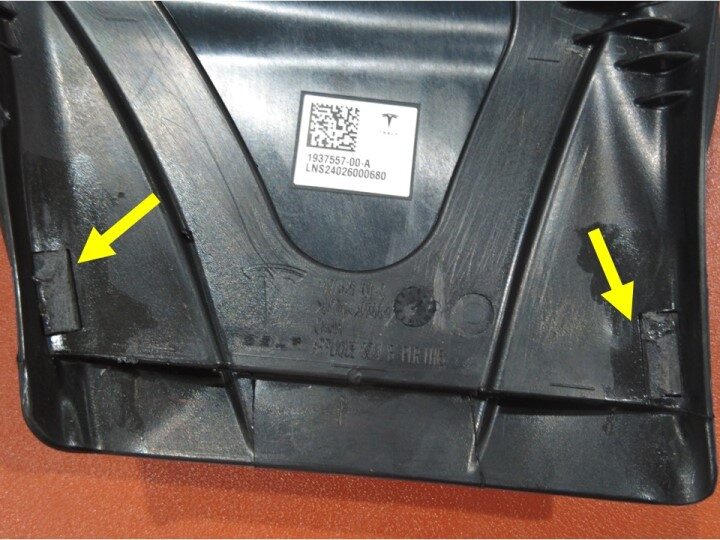

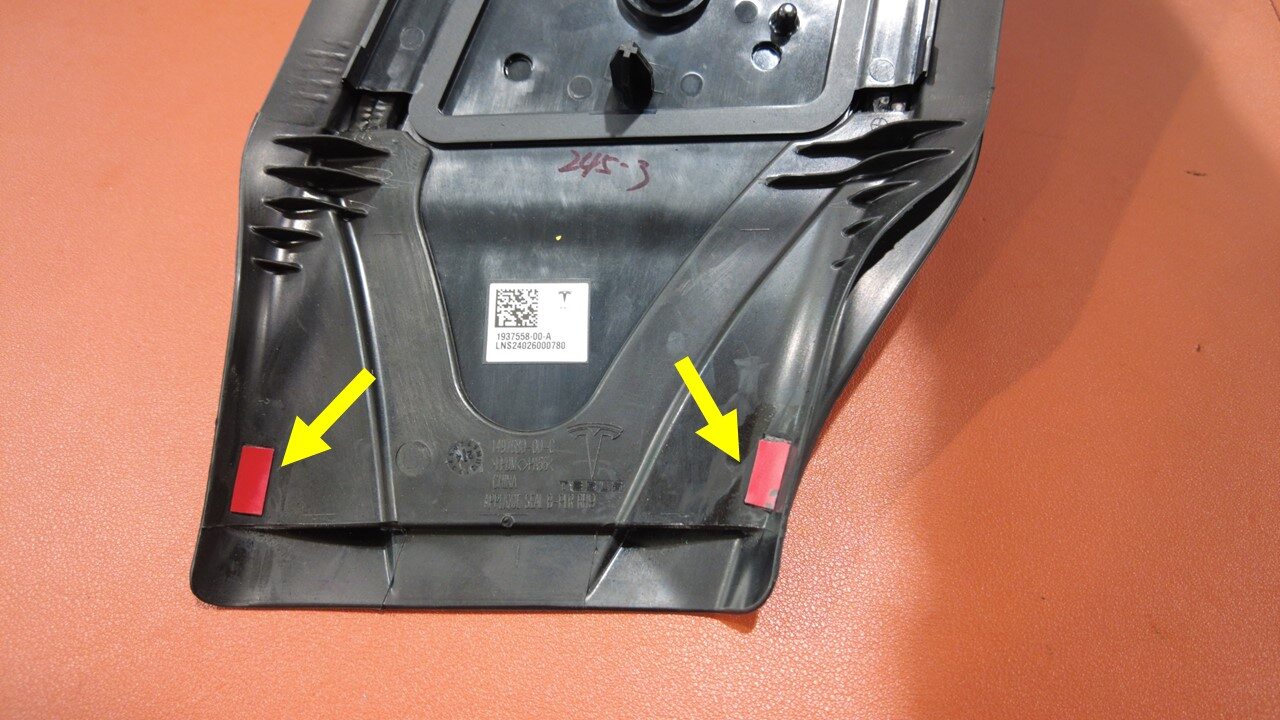

Replace double-sided tape on B-pillar applique seal

Note
Cut two sections of tape to match original adhesive strips, Apply to seal at indicated locations

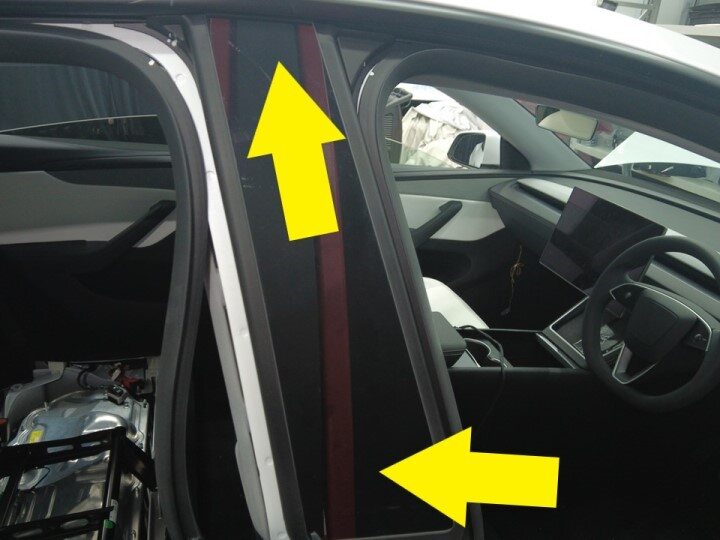

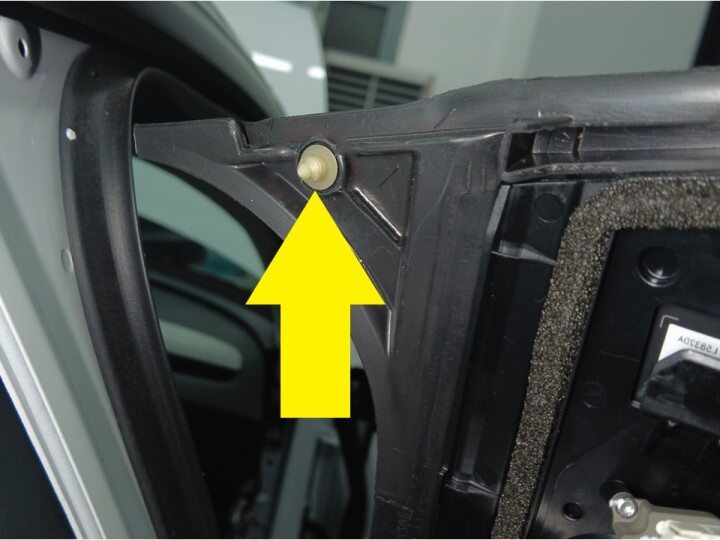

Install RH B-pillar applique

Note
2x connectors, 3x clips, 2x adhesive strips, 1x hook, 1x datum, Peel backing off double-sided adhesive, Secure connectors then engage locking tabs, Align hook by sliding upwards then push inwards from bottom of applique to secure clips, Apply pressure to applique seal to wet out adhesive strips

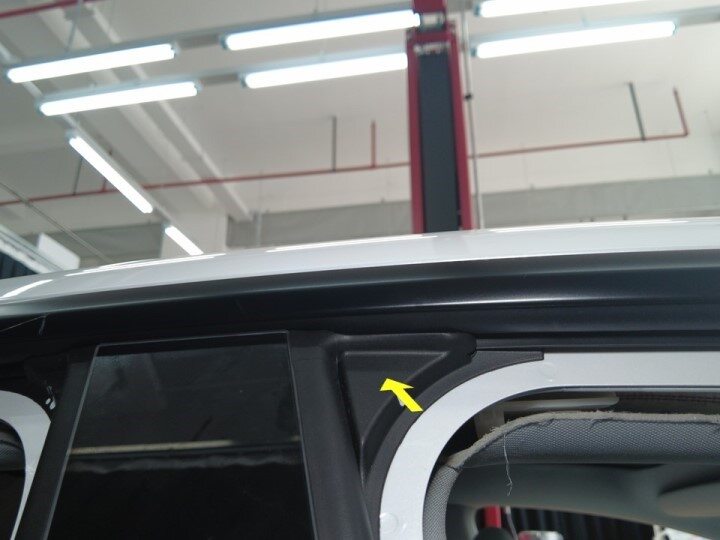

Install RH upper C-pillar trim

Note
7x clips, 4x location pins, 2x guide tabs, Insert guide tab to headliner behind quarterglass, Seat trunk seal to edge of trim

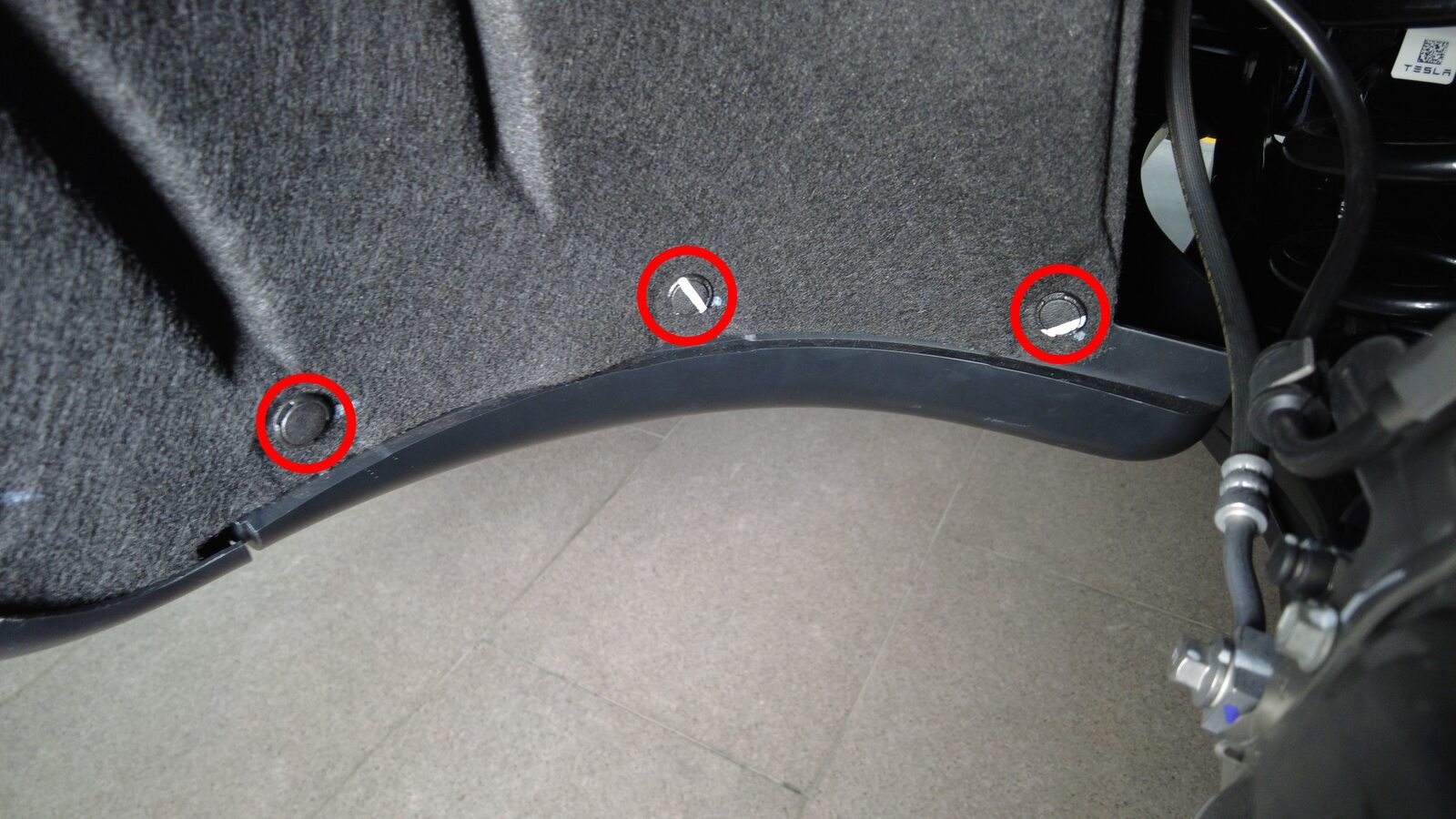

Install RH trunk side trim

Note
1x push clip, 12x clips, 1x guide tab, 7x location pins, Guide front clip stanchions around RH C-pillar, Seat trunk seal to edge of trim
Install RH trunk pocket bracket

Note
2x clips

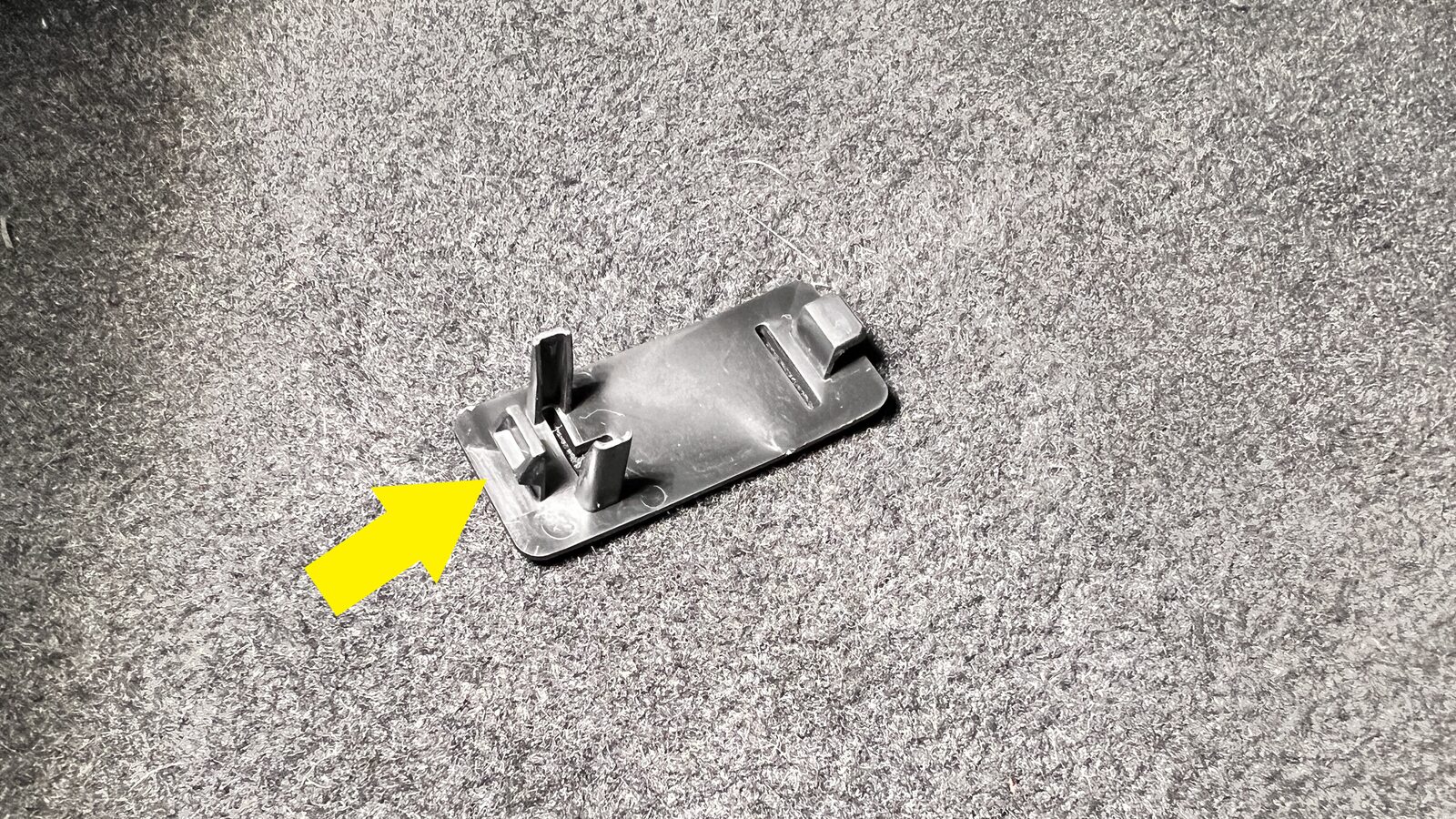

Install RH load floor bracket

Note
4x tabs, 2x clips, Confirm each installation with push-pull test, Clip position should not be adjusted after bracket is removed or will result in bracket not seating properly, If clip position is changed or push-pull action shows bracket not secure, Remove clip from tab and seat clip into doghouse on bracket and reinstall
Install trunk sill trim onto vehicle

Note
4x clips, 2x location pins, Seat seal around edge of trim
Install front load floor
Install rear load floor
Install RH lower C pillar trim

Note
7x clips, 2x guide tabs, Align guide tabs, Then press down to securing all clips

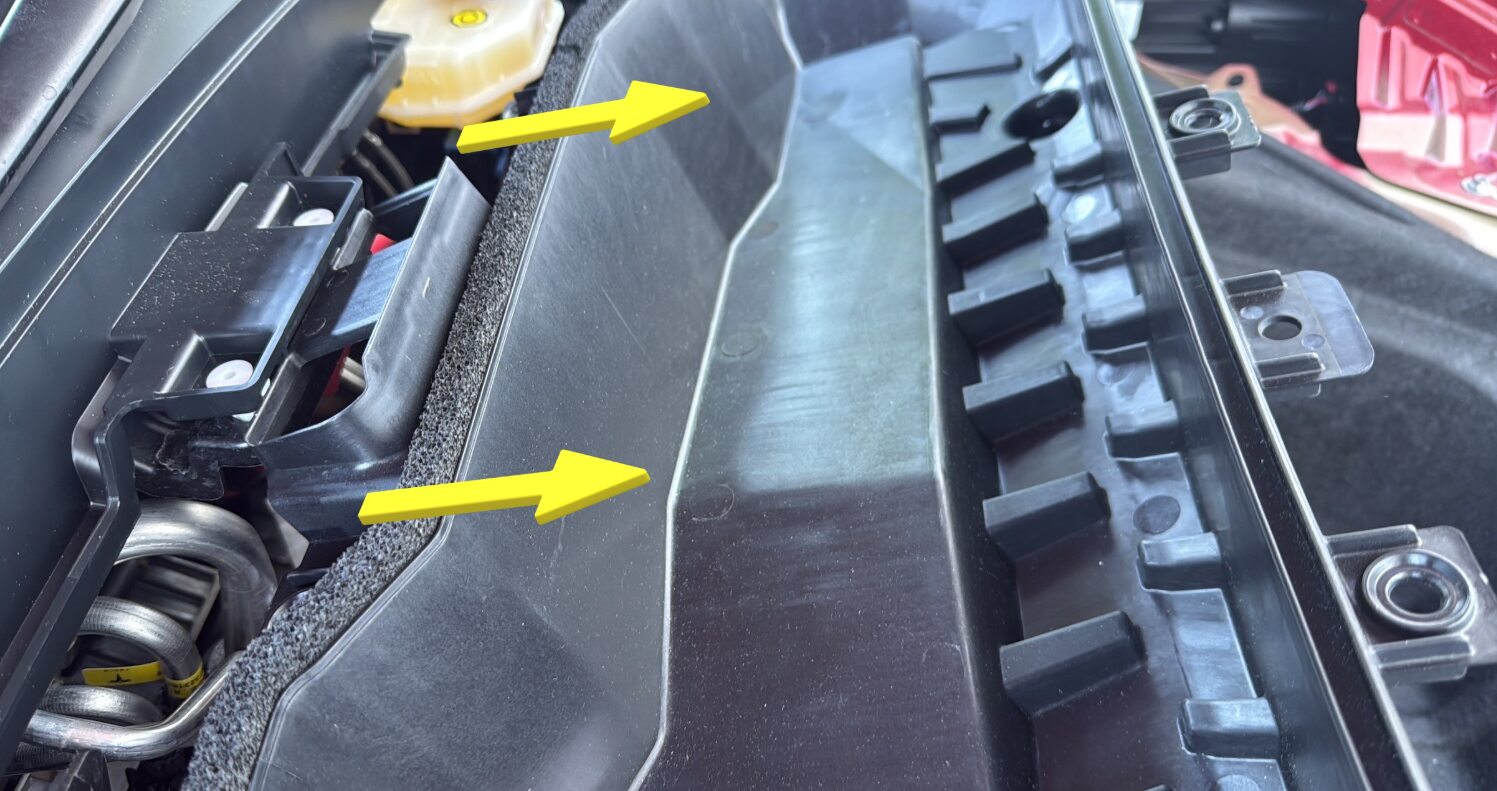

Partially install RH rear primary door seal

Note
Verify seal is seated properly on all trim panels
Install RH front seat into vehicle

Note
Recommend assistance, Install seat from front RH door opening, Assistant should be ready to support seatback once it is in the vehicle, Caution not to damage any trim
Secure RH front seat harness under RH front cabin carpet
Connect RH front seat harness to RH controller

Note
1x connector, Engage locking tab
Install RH lower A pillar trim

Note
7x clips, 4x guide tabs, 1x push clip, Align front guide tabs then align slot with harness bracket and then push rear clip to secure, Make sure all clips and tabs fully seated
Connect first responder loop and LV battery

Note
2x connectors, Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage green locking tab when fully seated

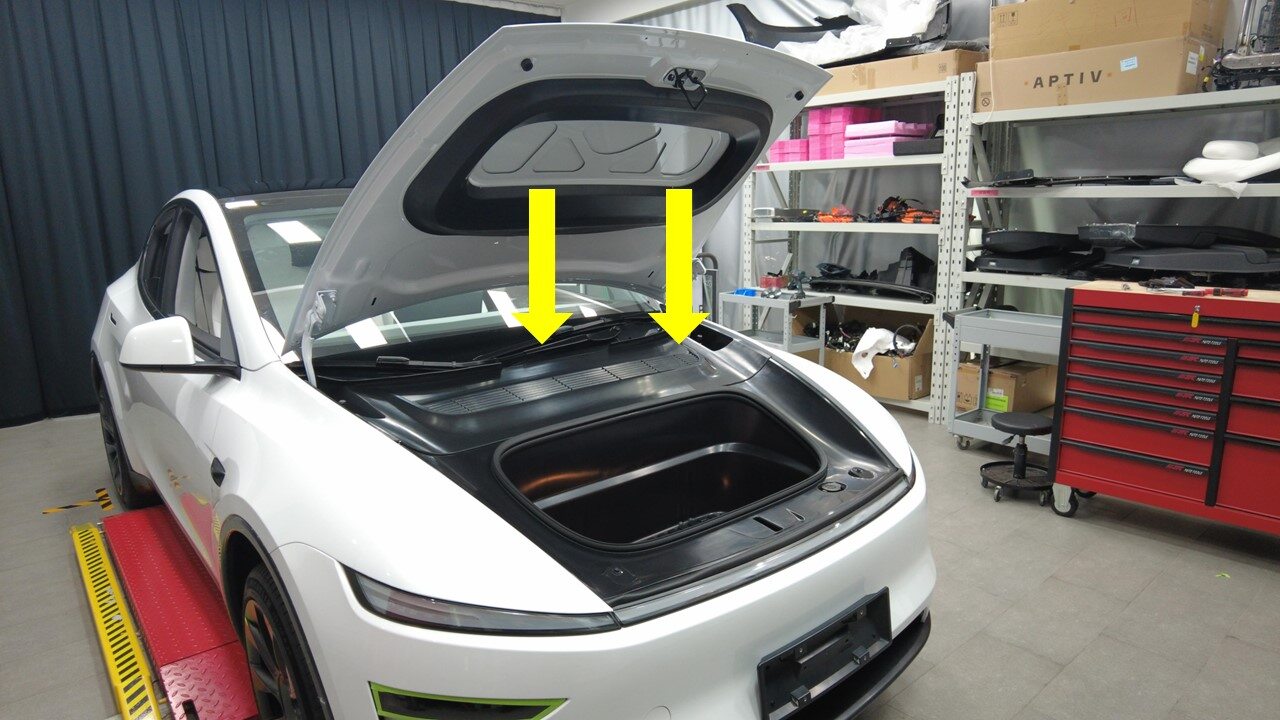

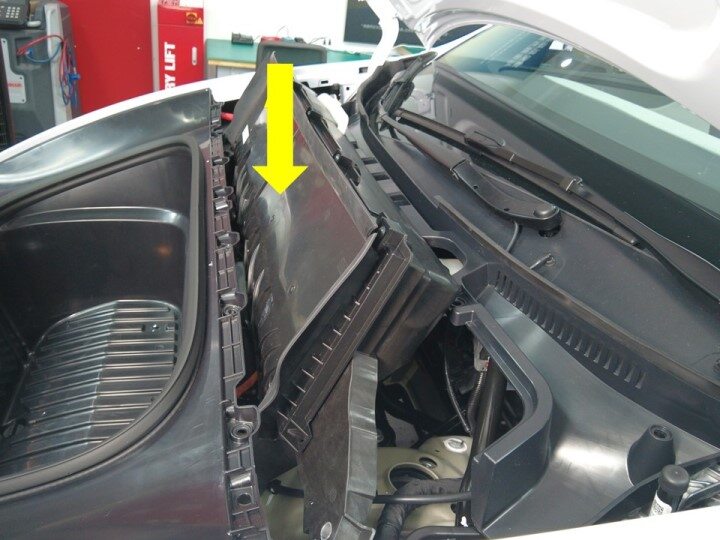

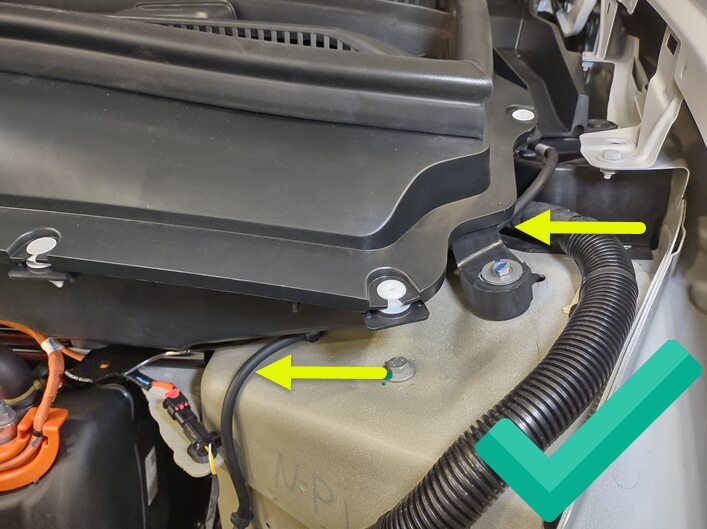

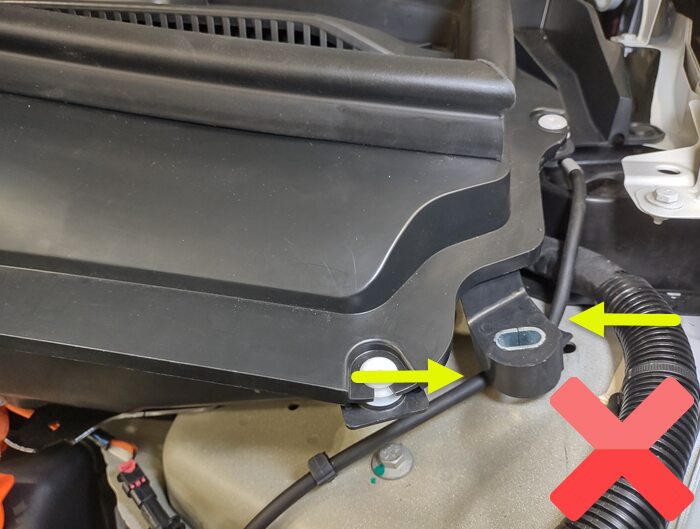

Install HEPA filter or big basin

Note
Vehicle configuration may vary, W/ HEPA: 2x bolts, 10mm, 10 Nm, Pivot forward edge down past frunk assembly, Then carefully move rear edge past brake reservoir and into position, Gently press on RH side of filter to seat seal onto duct, W/O HEPA: 2x bolts, 10mm, 10 Nm, 14x clips, Secure basin fasteners then install basin cowl, Fold rear flap of base frunk back to access front row of clips to cowl, Replace any missing or damaged clips, Do not pinch washer line in between big basin and body
Close hood
Move 2nd row 40 seatback to vertical position

Note
Via seat switch or manual tether, Remove seatback protection if necessary

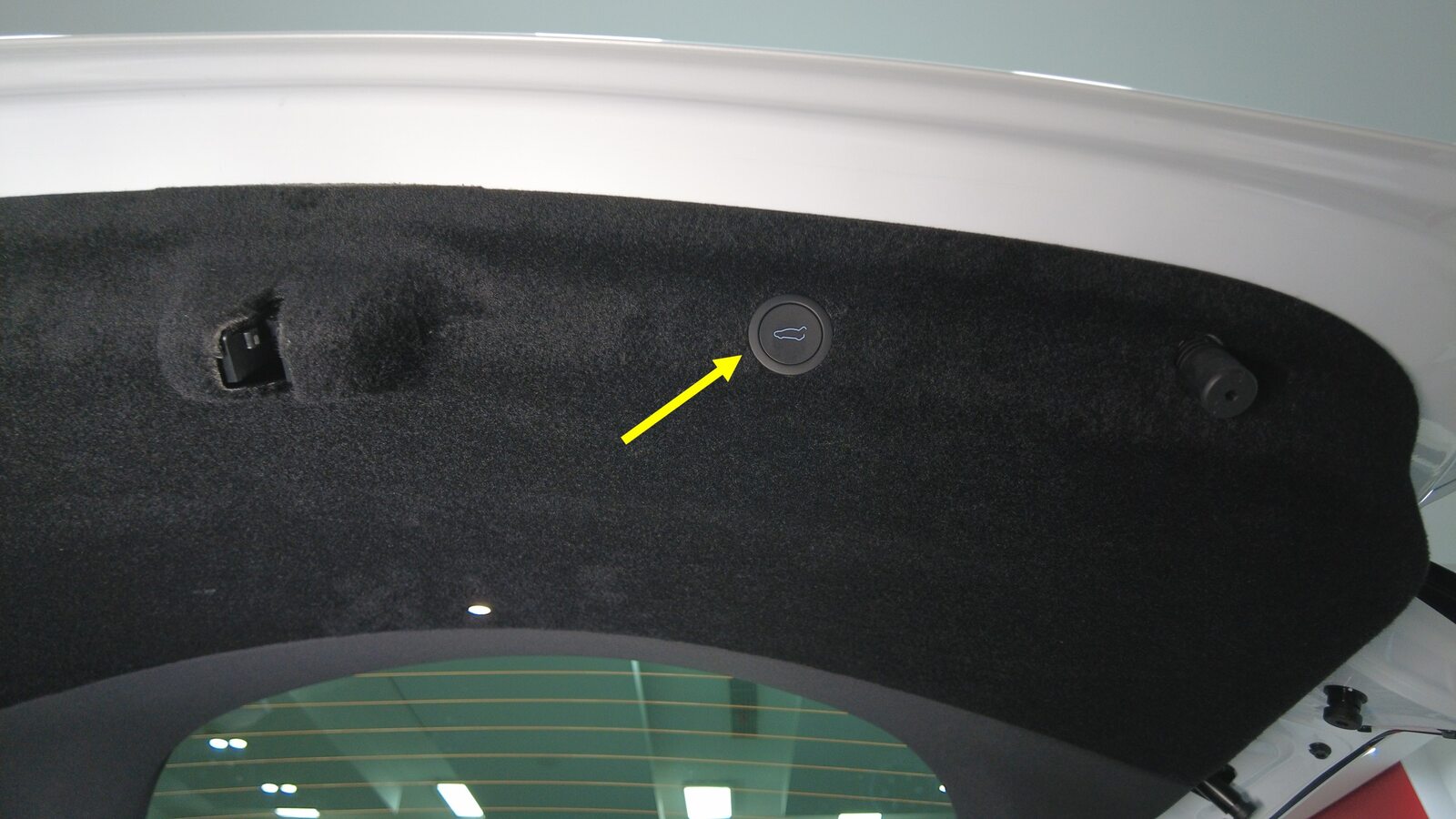

Close liftgate
Move RH front seat backward
Install RH front seat front bolts

Note
2x patch bolts, TP45, 33.5 Nm, Install new patch bolts

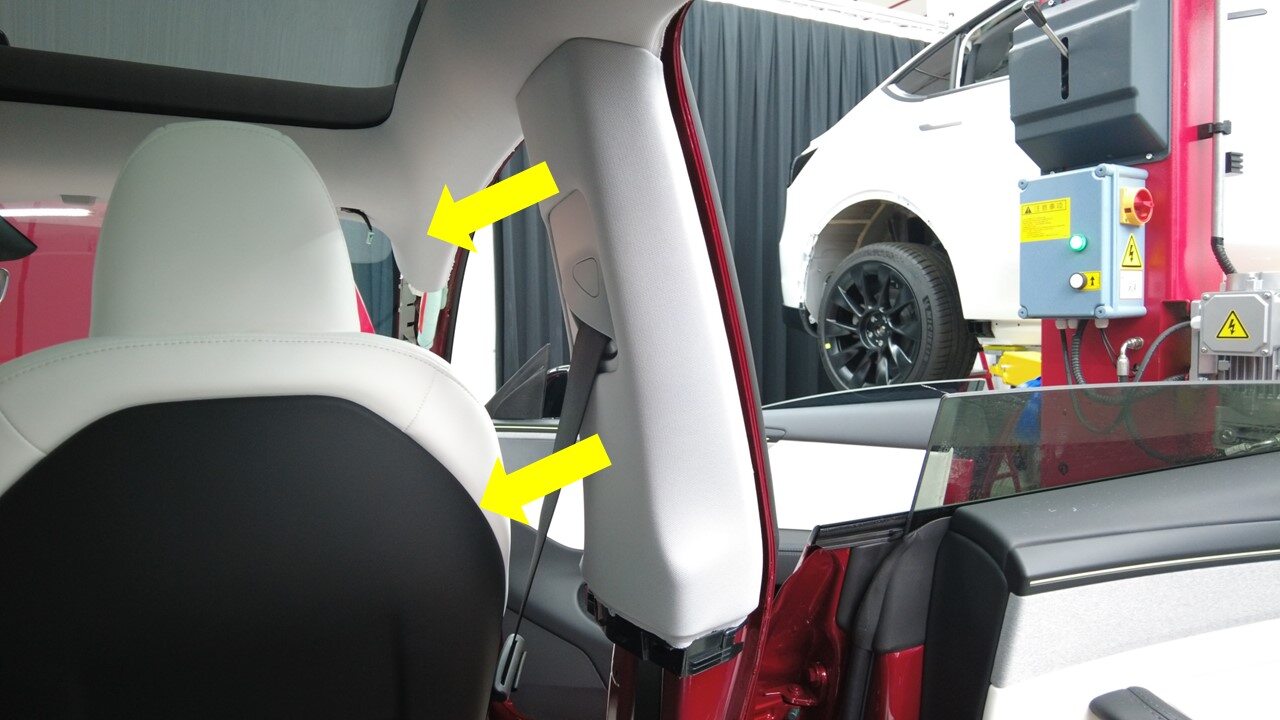

Move RH front seat forward

Note
Adjust seatback if needed to avoid contacting headliner
Install RH front seat rear bolts

Note
2x patch bolts, TP45, 33.5 Nm, Install new patch bolts

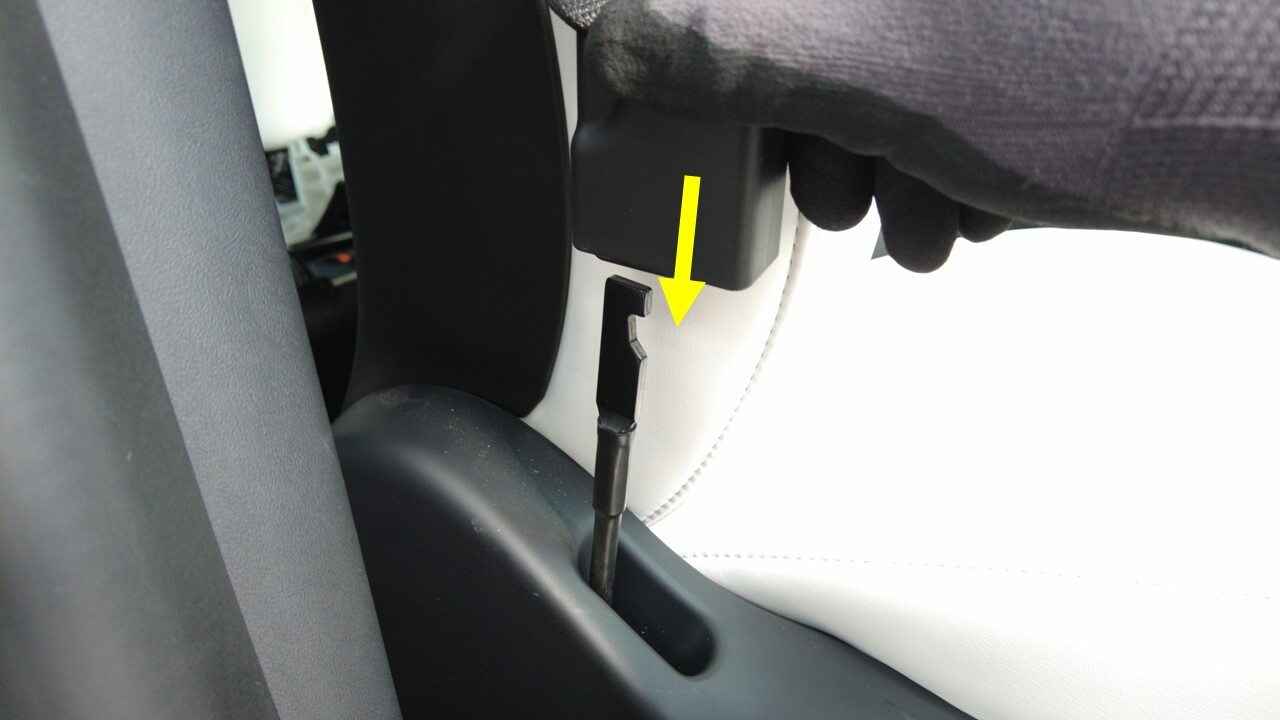

Install seat belt retractor to RH front seat pre tensioner

Note
Insert retractor into seat pre tensioner, Make sure it locks into position with push-pull-push test

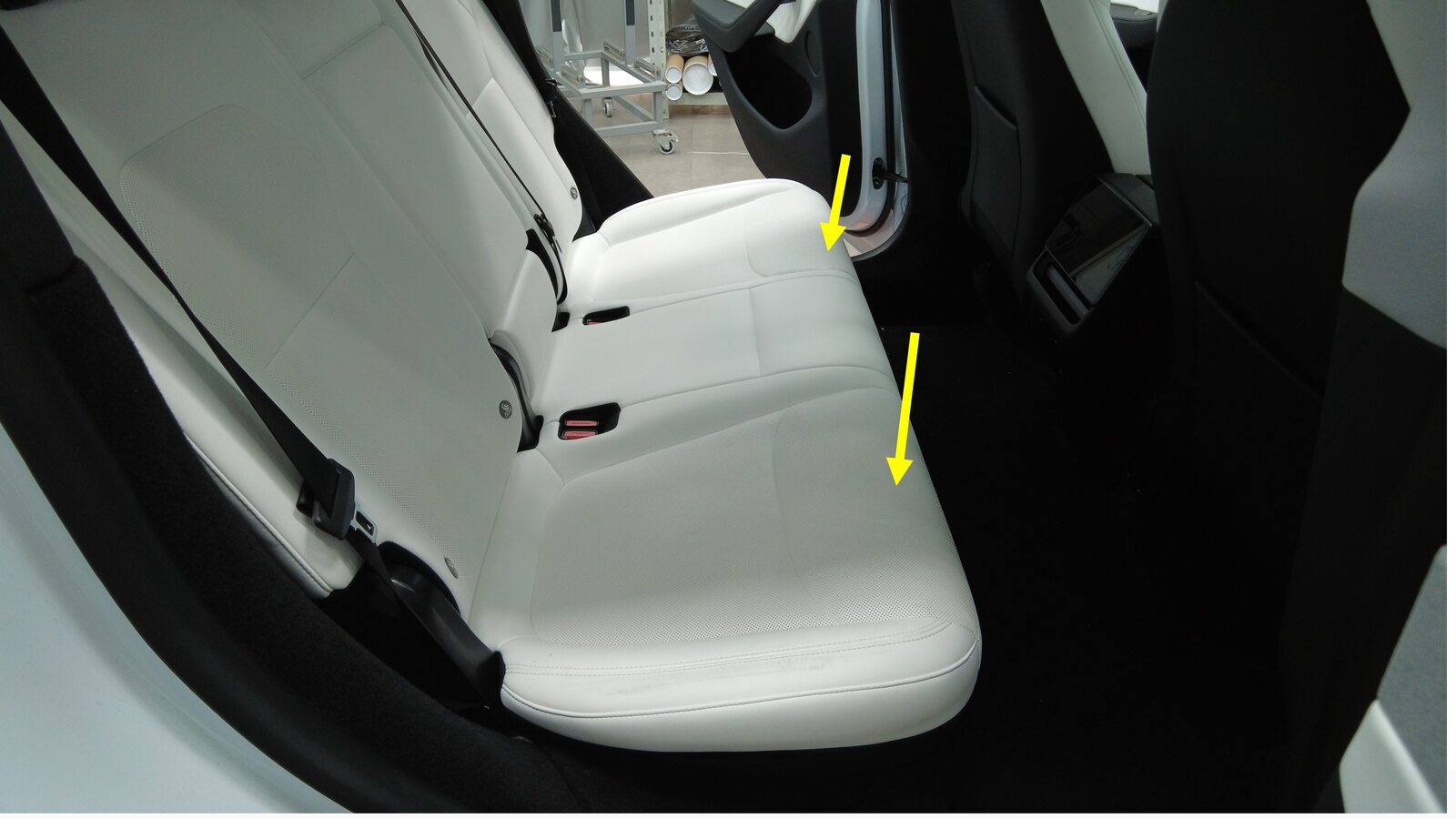

Install 2nd row seat cushion

Note
1x connector, Slide rear cushion rearward then align foam with seat rail, Make sure cushion is fully seated with push & pull test, And ensure the buckles get stuck under the 2nd row cushion
Move RH front seat to original position

Note
Via UI > Seat Controls
Move LH front seat to original position

Note
Via UI > Seat Controls, Use steering wheel scroll wheel as needed

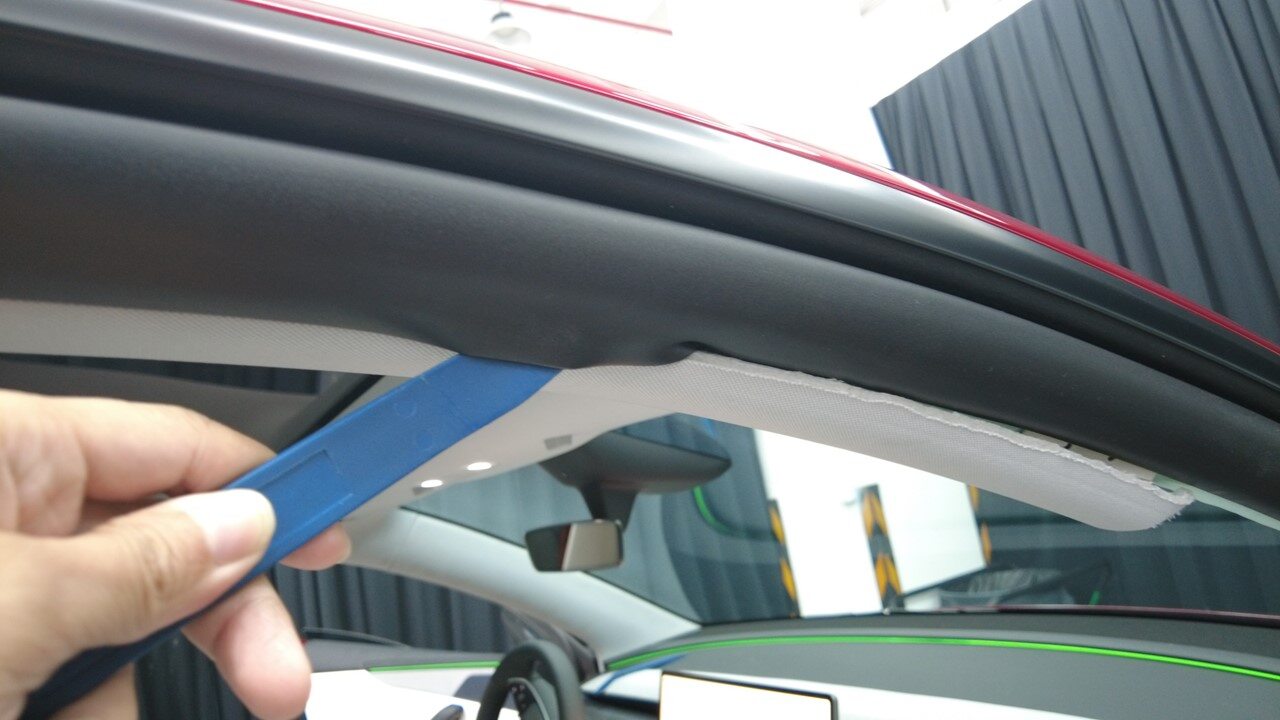

Install front end of headliner

Note
5x clips, 1x location pin, Pull seal over headliner

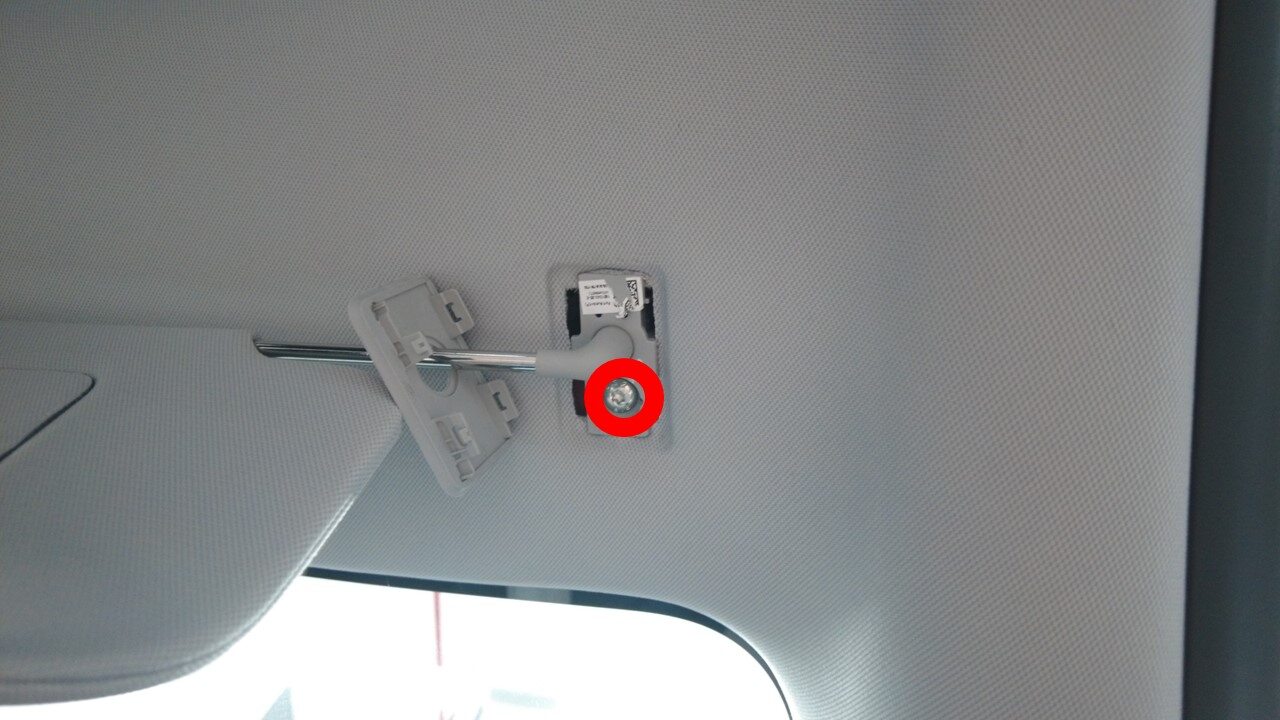

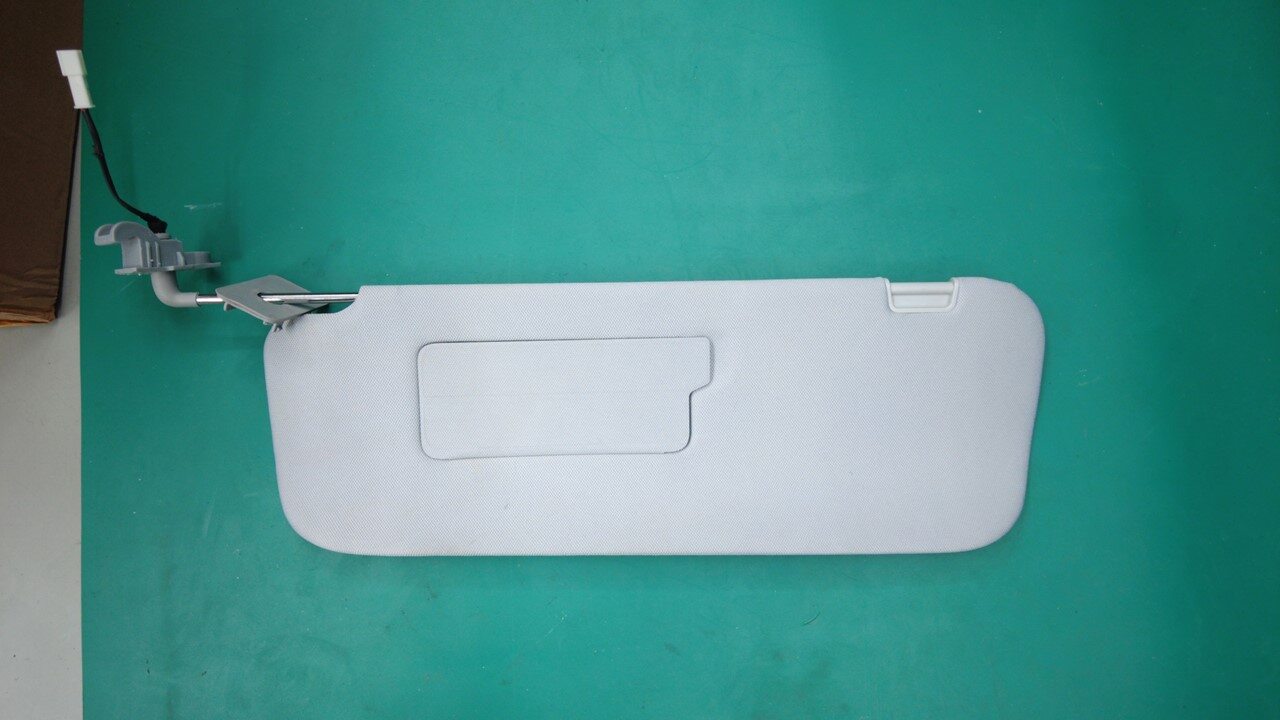

Install RH sun visor to headliner

Note
1x screw, T25, 3.5 Nm, 1x connector, Fold sunvisor to the closed and folded down position but do not latch in place

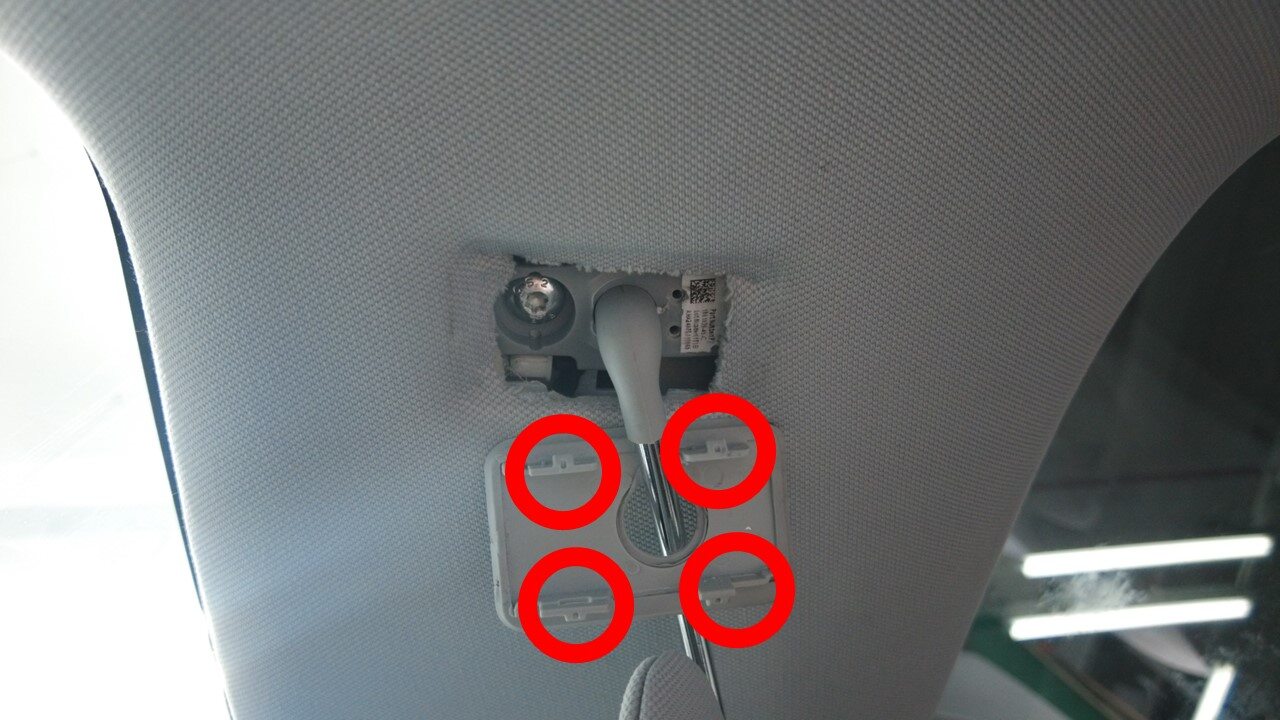

Install RH sun visor bracket cover

Note
4x tabs

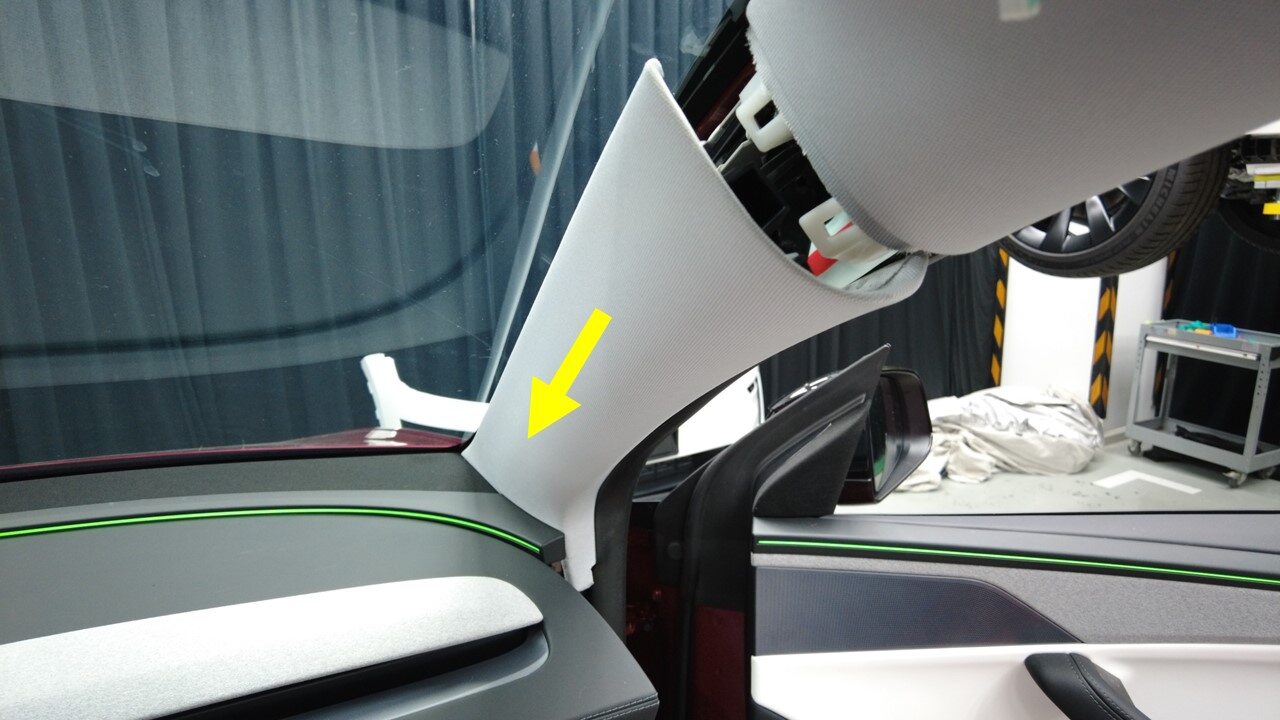

Install RH upper A pillar trim

Note
5x clips, 2x guide tabs, 1x datum, 1x tether, Slide lower section of trim into slot on IP, Secure tether to body, Engage clips working bottom to top, Ensure primary seal rests over trim, Tether may vary by revision
Install RH IP end cap

Note
5x clips, 2x guide tabs, Pull the seal over end cap
Install RH front primary door seal

Note
Verify seal is seated properly on all trim panels
Install LH sun visor to headliner

Note
1x screw, T25, 3.5 Nm, 1x connector, Fold sunvisor to the closed and folded down position but do not latch in place
Install LH sun visor bracket cover

Note
4x tabs
Install LH upper A pillar trim

Note
5x clips, 2x guide tabs, 1x datum, 1x tether, Slide lower section of trim into slot on IP, Secure tether to body, Engage clips working bottom to top, Ensure primary seal rests over trim, Tether may vary by revision
Install LH IP end cap

Note
5x clips, 2x guide tabs
Install LH front primary door seal near LH end cap
Run ODIN routine PROC_ICE_X_EXIT-SERVICE-MODEvia Toolbox: (link)
Raise all four window
Close all four doors

Note
Unlatch doors before closing if necessary

Harness - Body Harness - RH (Model Y Standard)(Remove and Install)

Remove

Install

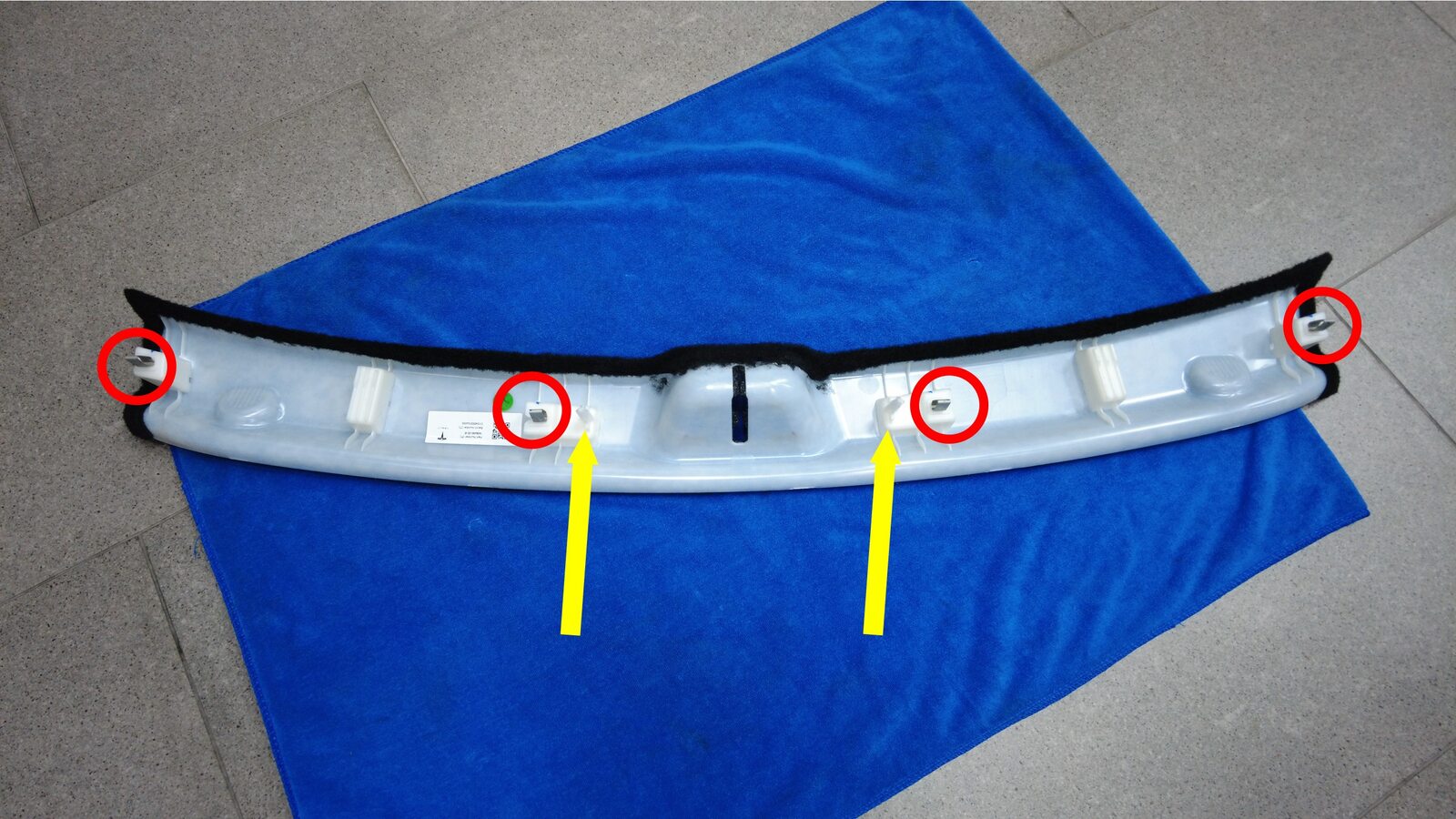

Figure 1

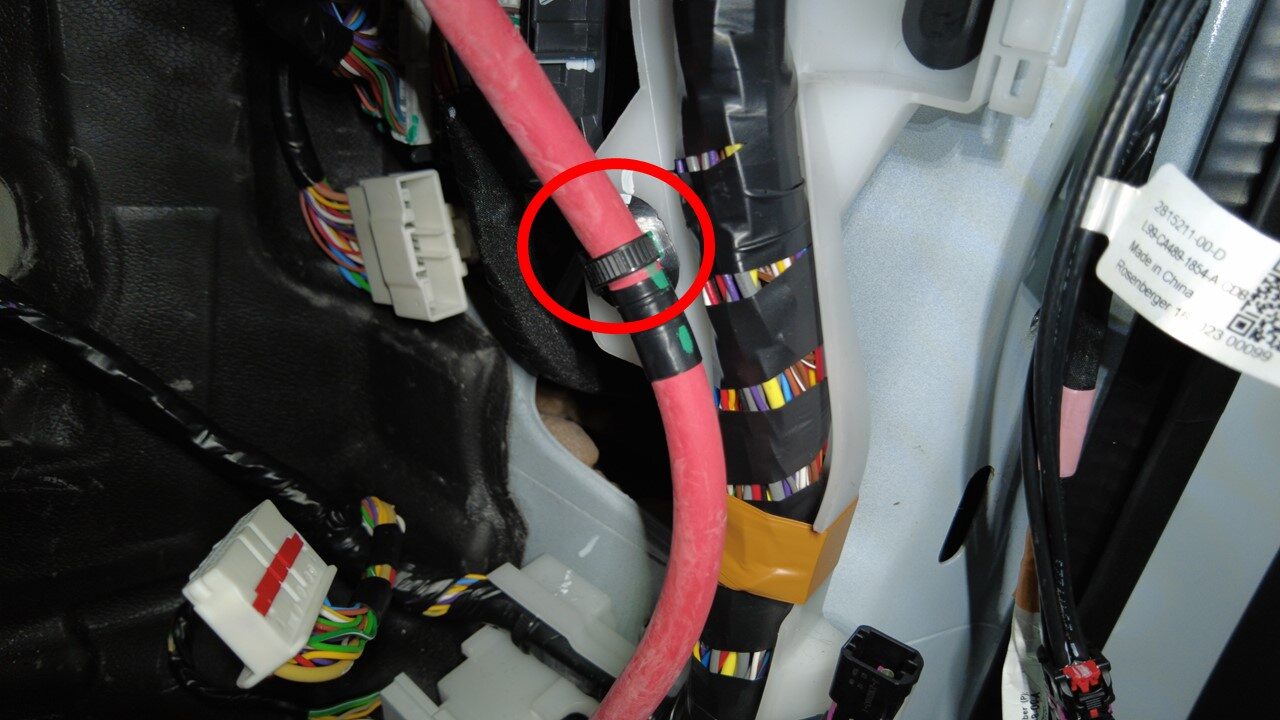

Figure 2

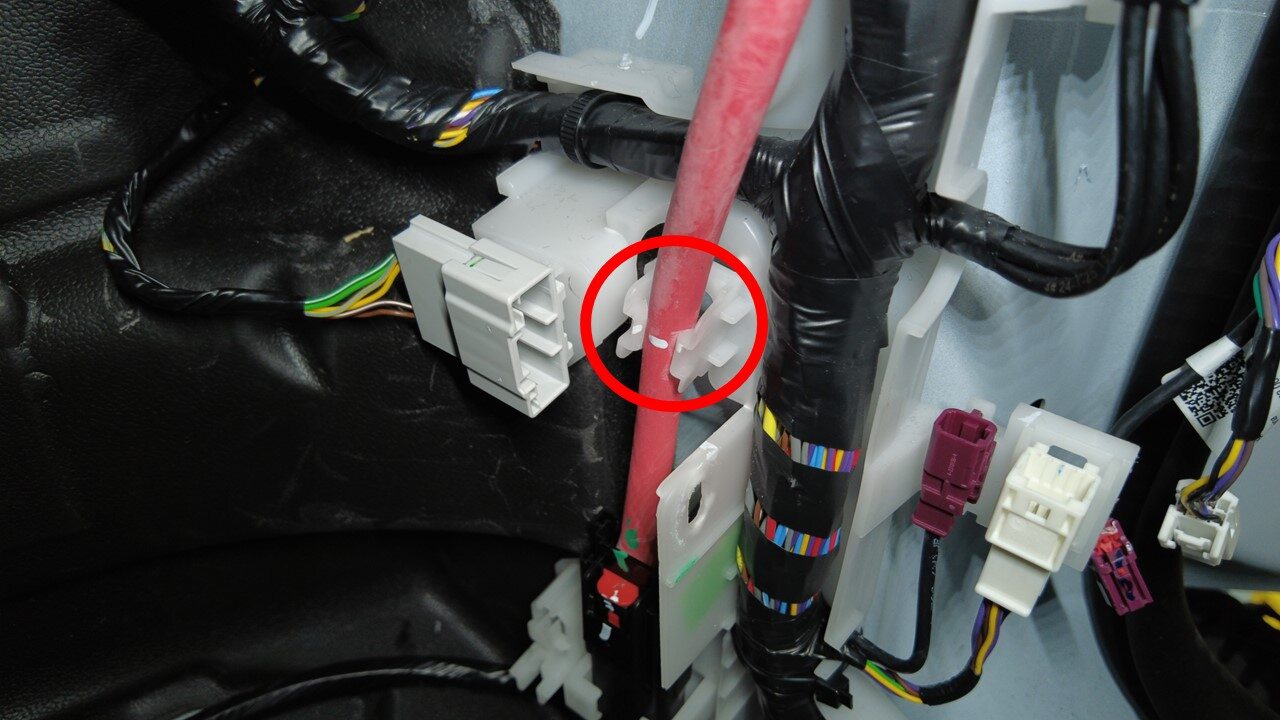

Figure 3
