Thermistor Duct - HVAC - LH (Remove and Replace)
Correction code
1810010092
FRT
0.06
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
Remove
- Remove the LH side panel from the center console. See Side Panel - Front - Center Console - LH (Remove and Replace).
-

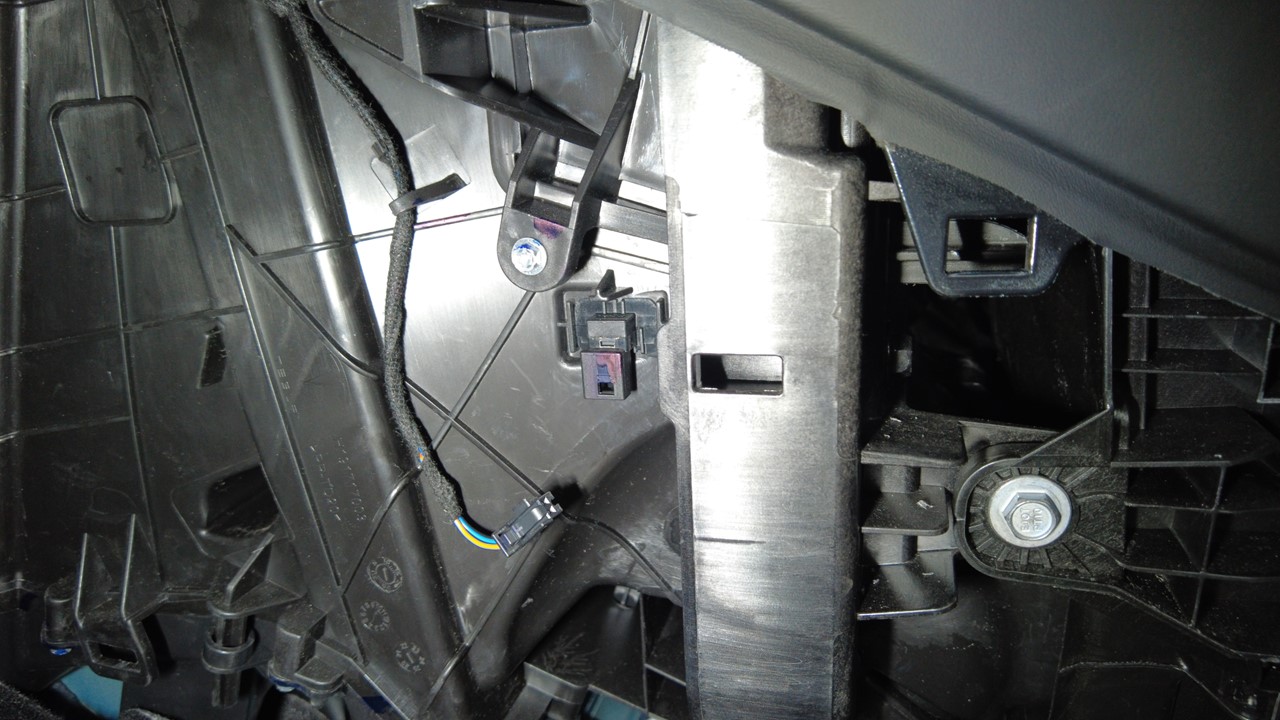

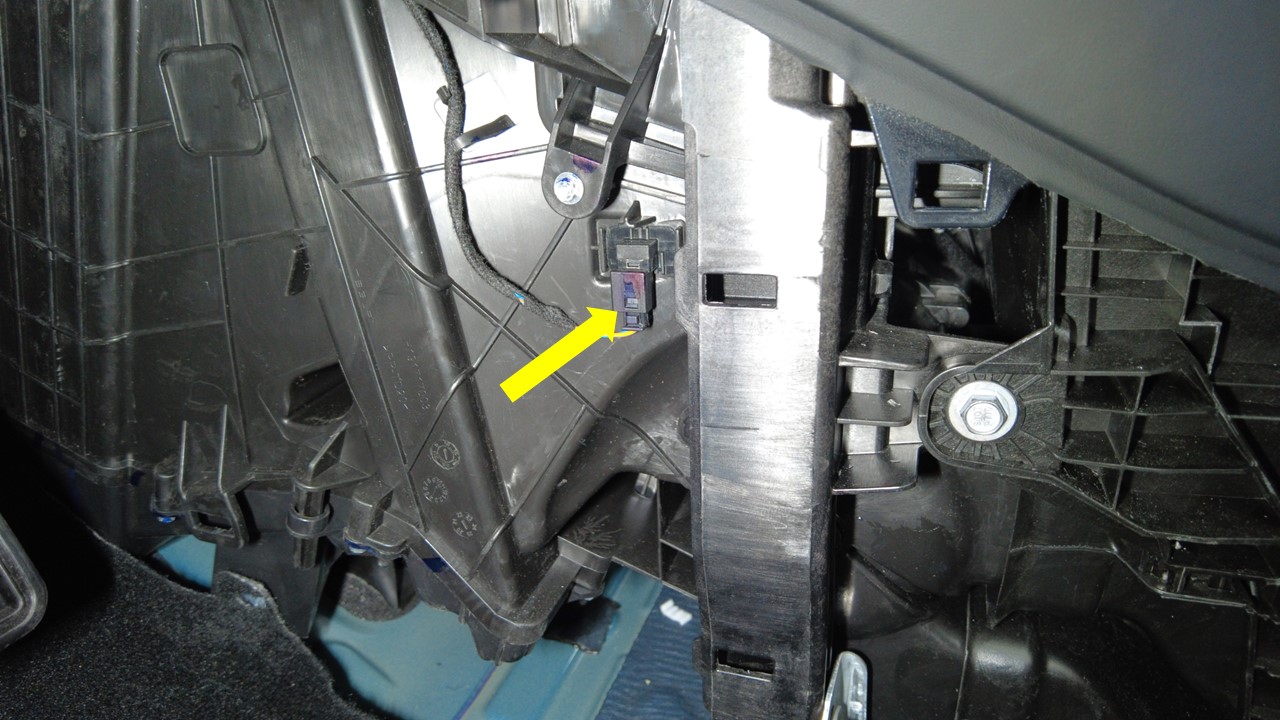

Disconnect the LH thermistor HVAC connector.
-

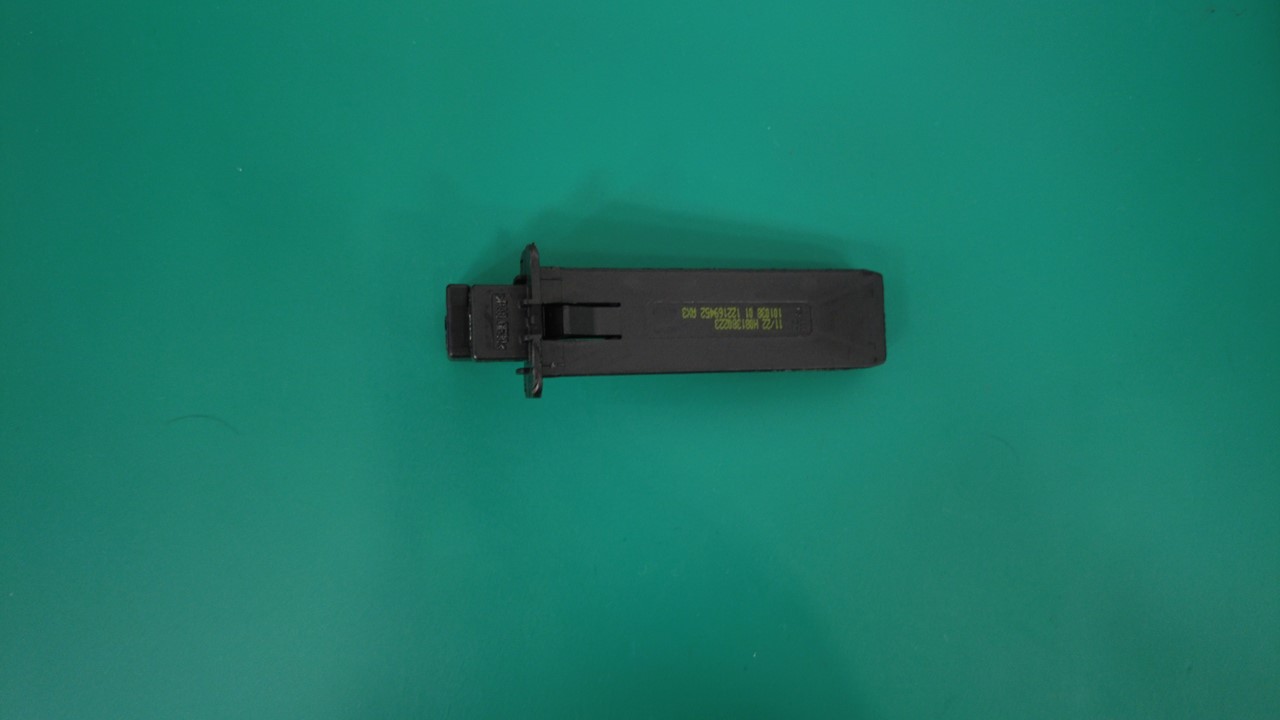

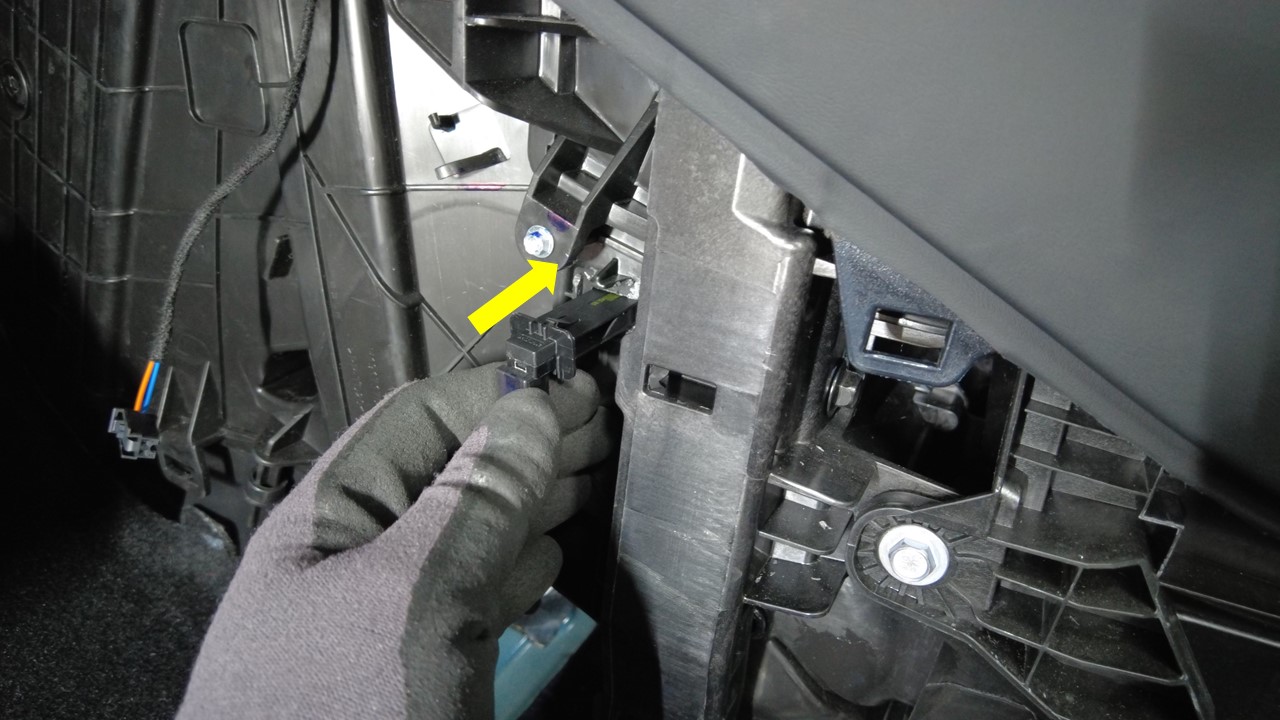

Release the tabs (x2) that attach the
LH duct thermistor to the duct assembly, and then remove the thermistor from the
assembly.
Install
-
Secure the tabs (x2) that attach the
LH duct thermistor to the duct assembly.
-
Connect the LH thermistor HVAC connector.
- Install the LH side panel to the center console. See Side Panel - Front - Center Console - LH (Remove and Replace).
