Cover - Switch - Liftgate (Remove and Replace)

Correction code 12200203400 FRT 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Remove the rear facing camera assembly. See Camera - Rear Facing (Remove and Install).
    Note
    It is not necessary to separate the rear facing camera from the cover.

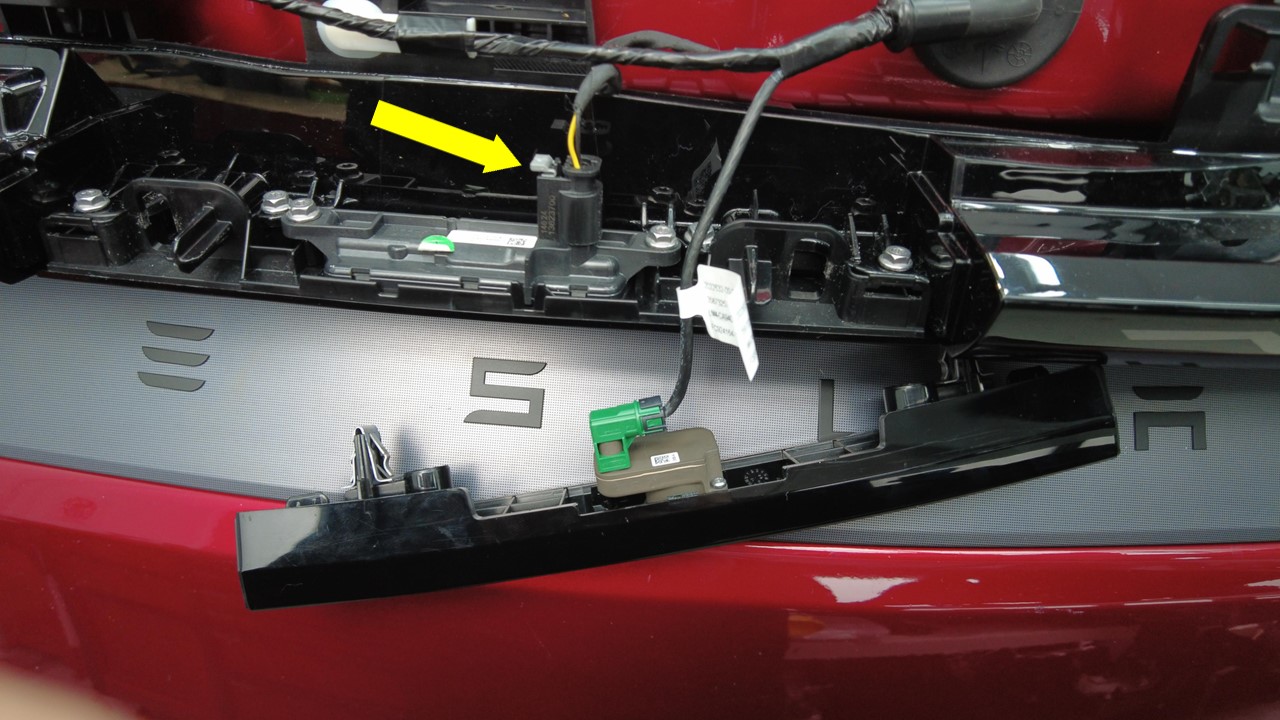

  2. Disconnect the liftgate handle switch connector.

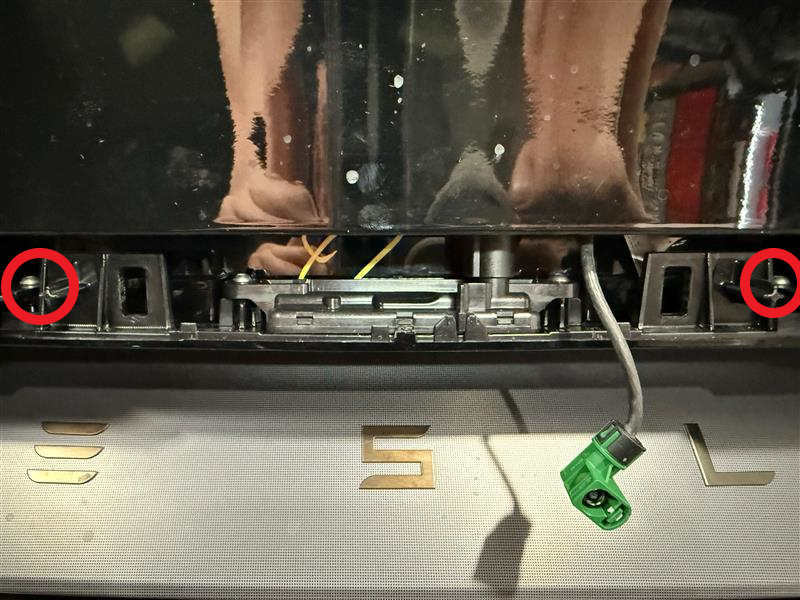

  3. Remove the bolts (x2) that attach the liftgate switch cover assembly to the liftgate.
    Tip
    Use of the following tool(s) is recommended:
    • Torx T20 socket
    • Low-profile ratchet

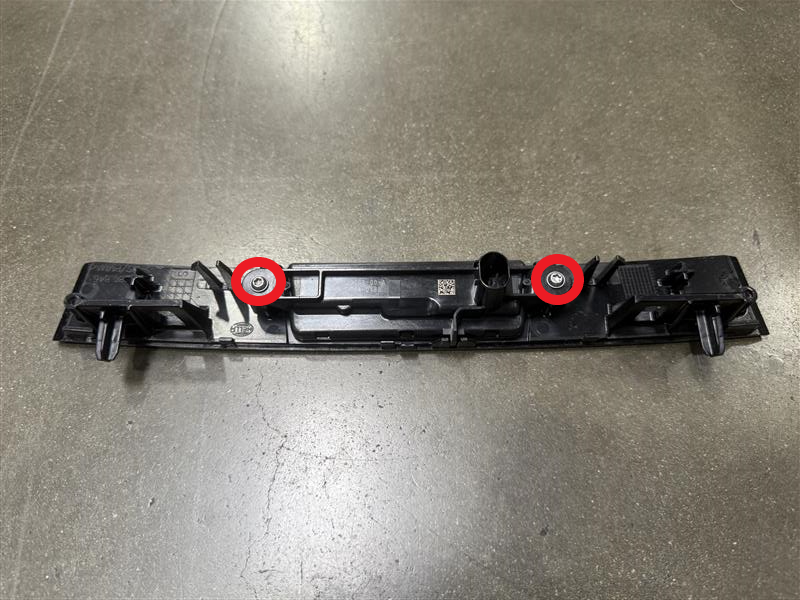

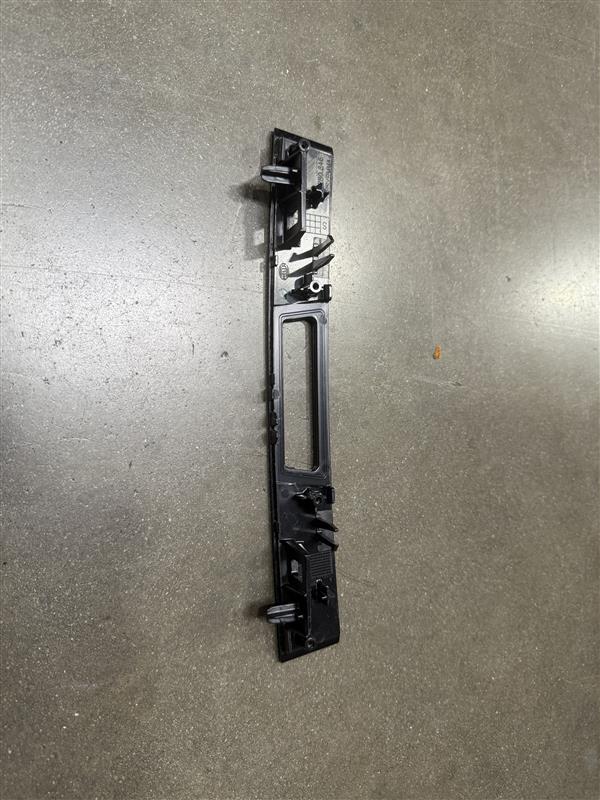

  4. Remove the bolts (x2) that attach the liftgate switch cover to the liftgate switch cover assembly.
    Tip
    Use of the following tool(s) is recommended:
    • Torx T10 bit

Install

  1. Install the bolts (x2) that attach the liftgate switch cover to the liftgate switch cover assembly.
    0.7 Nm (6 lbs-in)
    Tip
    Use of the following tool(s) is recommended:
    • Torx T10 bit
  2. Install the bolts (x2) that attach the liftgate switch cover assembly to the liftgate.
    2 Nm (1.5 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • Torx T10 bit
  3. Connect the liftgate handle switch connector.
  4. Install the rear facing camera assembly. See Camera - Rear Facing (Remove and Install).
