Door Trim - Rear - LH (Model Y Standard) (Remove and Replace)

Correction code TBD FRT 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.

Remove

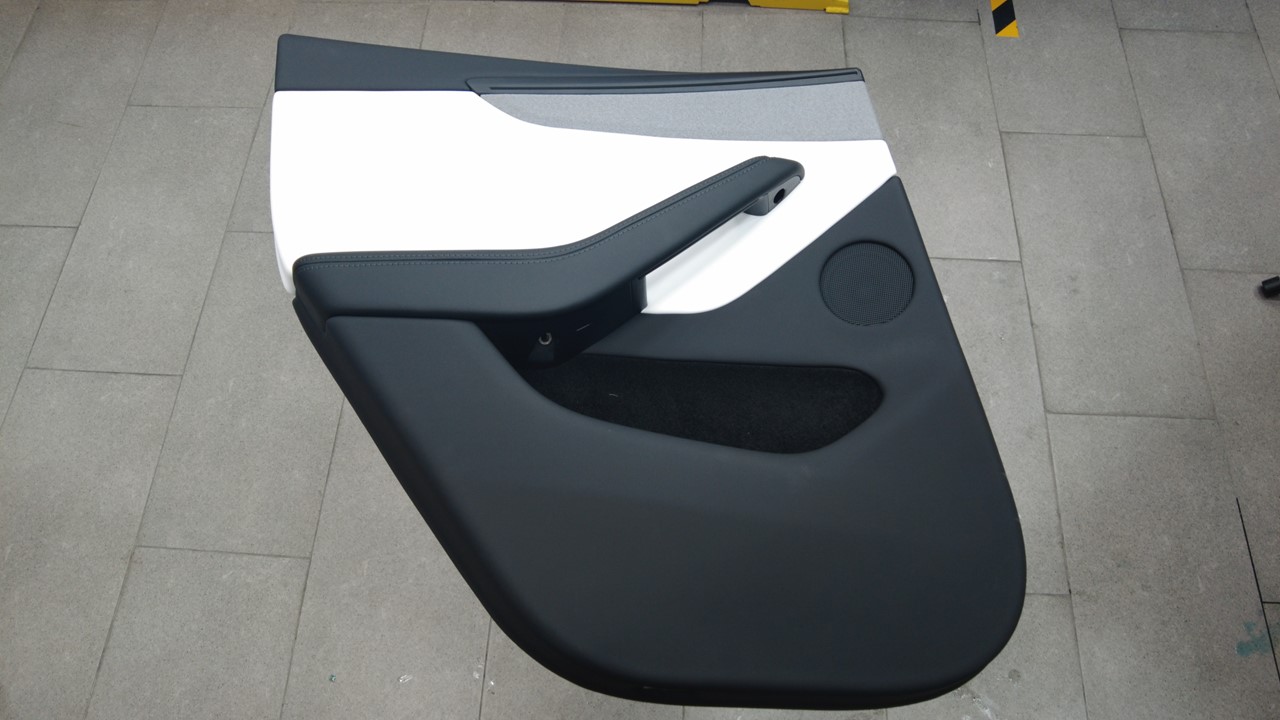

  1. Open the LH rear door and lower the LH rear window.
  2. Remove the bolts (x2) that attach the LH rear door trim panel to the door.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T30 socket
  3. Position an inflatable air bag in the gap between the door trim and the door.
  4. Inflate the airbag to release the clips (x10) that attach the door trim panel to the door from bottom up.

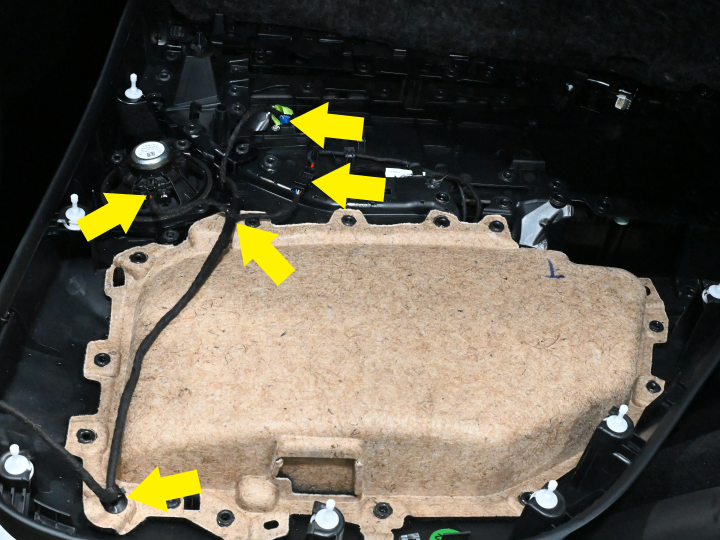

  5. Disconnect the LH rear door connectors (x3), release the clips (x2) that attach the electrical harness to the trim, and then remove the panel from the vehicle.

Install

  1. Connect the LH rear door connectors (x3), and then install the clips (x2) that attach the electrical harness to the trim.
  2. Slide the top portion of the door trim into the door seal, and then swing the bottom of the trim into place.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure that all clips (x10) are properly seated. Replace any missing or damaged clips.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure that the trim panel fits tightly, and that there are no gaps from misaligned or bent clips.
  3. Install the bolts (x2) that attach the LH rear door trim panel to the door.
    6 Nm (4.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T30 socket
  4. Raise the LH rear window and close the LH rear door.
