Corner Bracket - LH - Fabric Tonneau (Long Range) (Remove and Install)

Correction code NEW NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
  • 2025-05-12: Released new procedure.
  1. Open tailgate
    Informational PurposesAn informational icon, calling your attention
    Note
    Press button to release
  2. Remove LH sail applique
    Informational PurposesAn informational icon, calling your attention
    Note
    15x clips, 1x connector, 1x harness clip, Lift rear edge first to remove connector and harness clip
  3. Remove LH upper bed side wall assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    13x clips, Start from rear, Pull from the bottom downwards

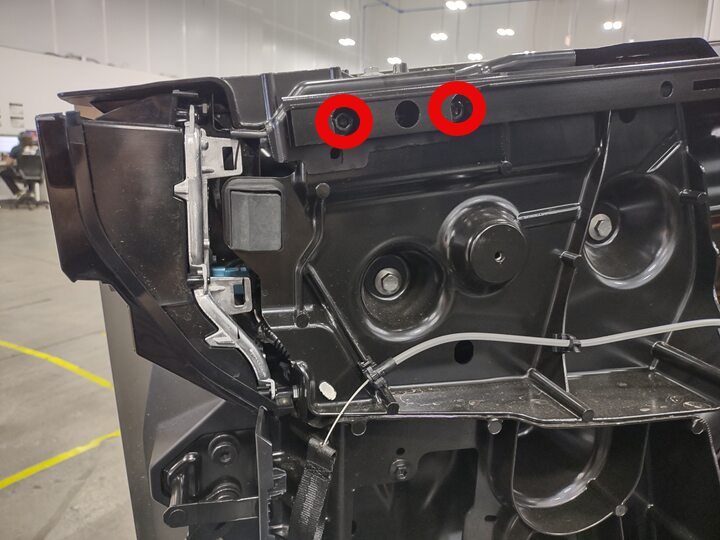

  4. Remove LH tonneau cam block
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 8mm, 10Nm

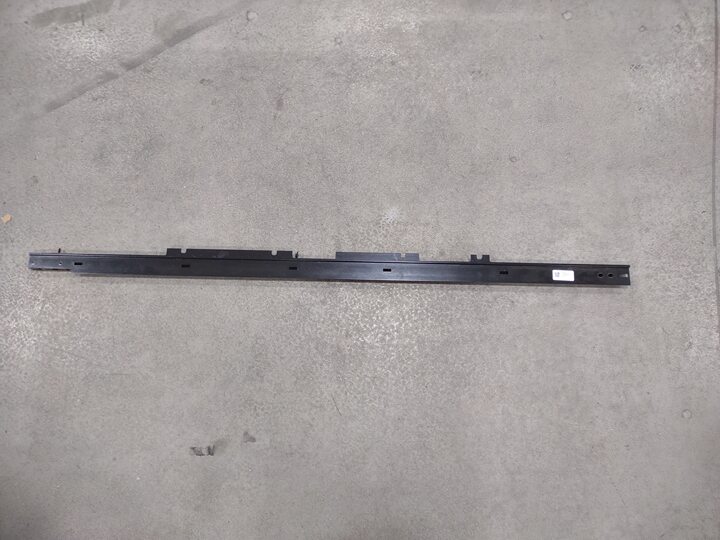

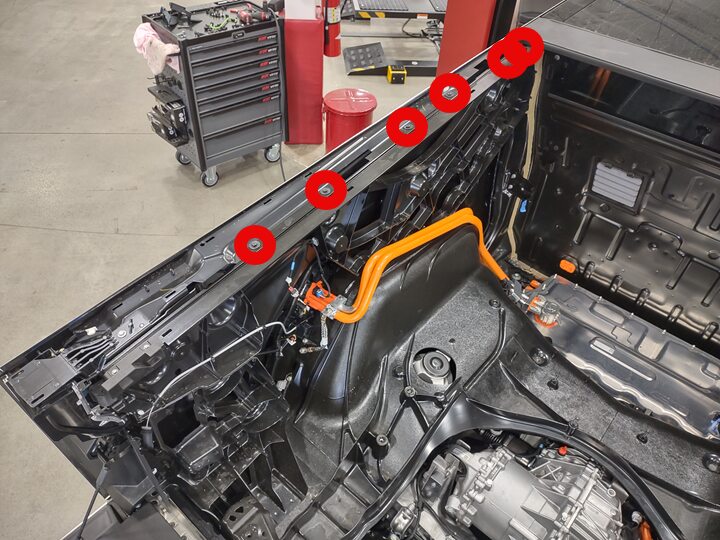

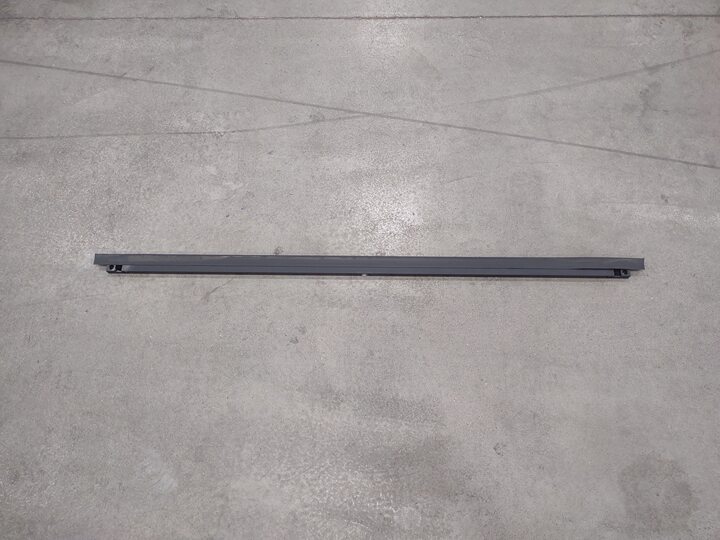

  5. Remove LH Tonneau horizon rail assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    4x bolts, 8 mm, 10Nm, 5x bolts, 10 mm, 10Nm

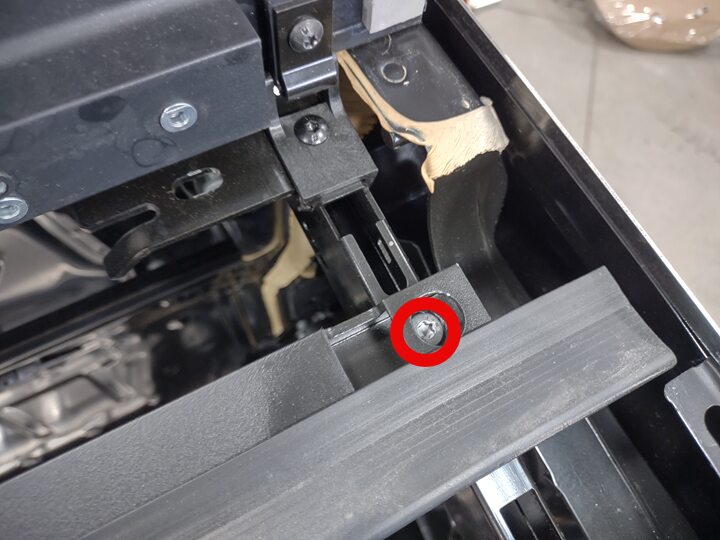

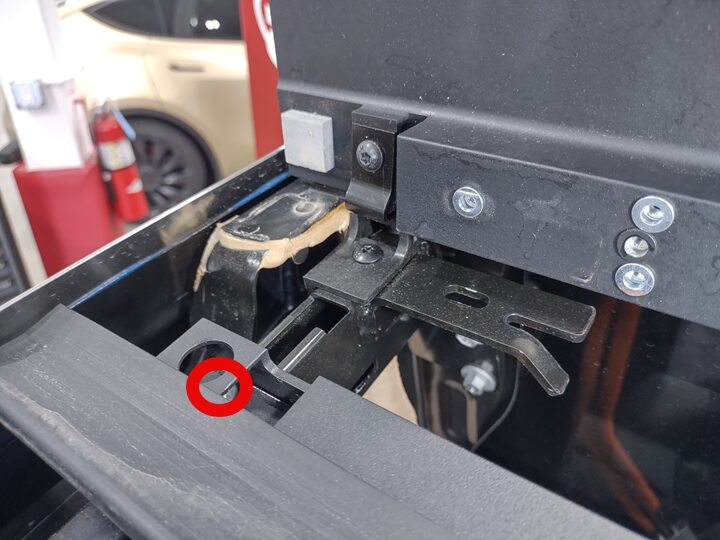

  6. Remove tonneau upper applique
    Informational PurposesAn informational icon, calling your attention
    Note
    4x bolts, T25, 10Nm, Release lower bolts, Pivot applique upwards, Release pivot bolts, Remove applique

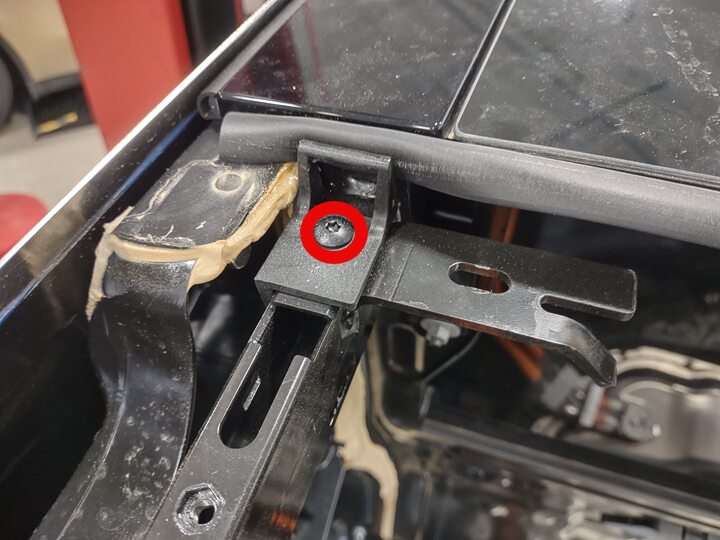

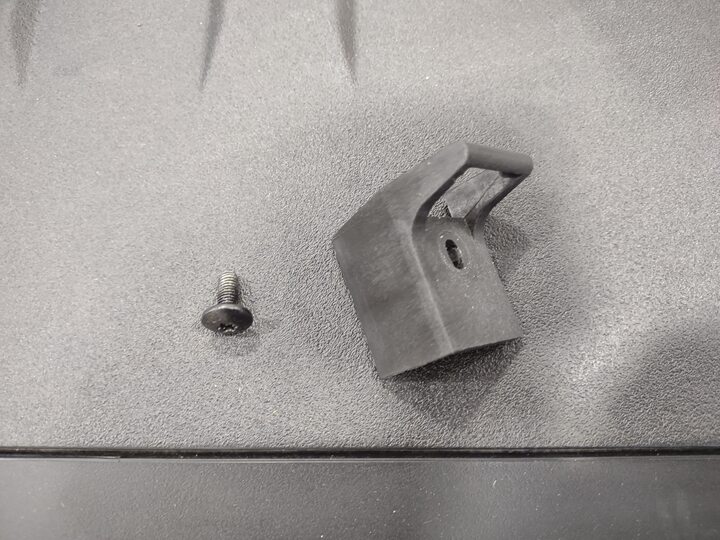

  7. Remove LH tonneau applique hinge pivot
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, T25, 10Nm

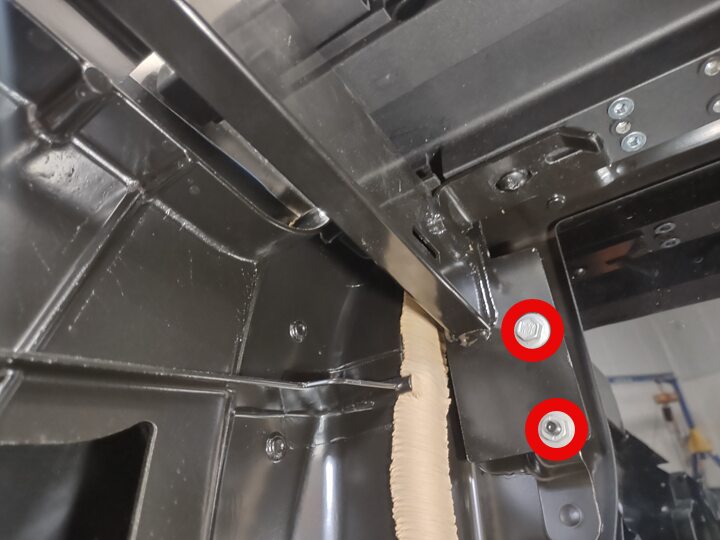

  8. Remove tonneau lower applique
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, T30, 10Nm

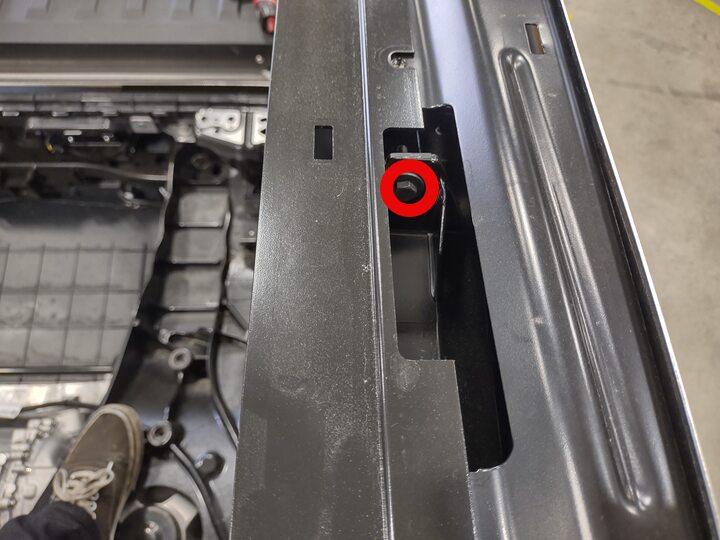

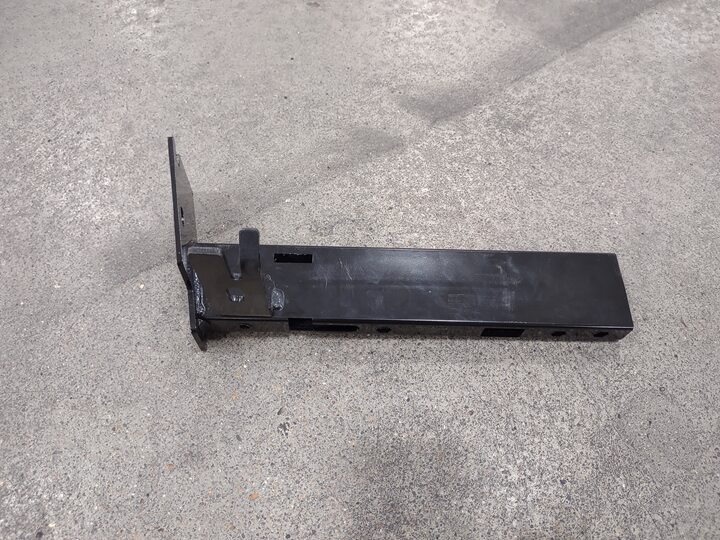

  9. Remove LH tonneau corner bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 10mm, 10Nm, 1x nut, 10mm, 10Nm
  10. Install LH tonneau corner bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 10mm, 10Nm, 1x nut, 10mm, 10Nm
  11. Install tonneau lower applique
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, T30, 10Nm
  12. Install LH tonneau applique hinge pivot
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, T25, 10Nm
  13. Install tonneau upper applique
    Informational PurposesAn informational icon, calling your attention
    Note
    4x bolts, T25, 10Nm, Install pivot bolts, Pivot applique downwards, Install lower bolts,
  14. Install LH Tonneau horizon rail assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    4x bolts, 8 mm, 10Nm, 5x bolts, 10 mm, 10Nm
  15. Install LH upper bed side wall assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    13x clips, Replace any missing or damaged clips, Lift tonneau seal as required
  16. Install LH tonneau cam block
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 8mm, 10Nm
  17. Install LH sail applique
    Informational PurposesAn informational icon, calling your attention
    Note
    15x clips, 1x connector, 1x harness clip, Replace any broken clips
  18. Close tailgate
