Door - Front - LH (Remove and Replace)

Correction code 1010025022 1010025032 0.90 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
Cybertruck electronics are powered by a 48V "mid voltage" or "MV" architecture that is designed to improve efficiency. Servicing MV components requires extra knowledge and care in order to avoid personal and/or vehicular harm. Read and understand MV precautions in Electrical Precautions and make sure any required MV-related training courses have been completed, as applicable.
  1. Open LH front door
    Informational PurposesAn informational icon, calling your attention
    Note
    Push LH B-pillar door trigger to release
  2. Lower all 4 windows
  3. Open powered front trunk
    Informational PurposesAn informational icon, calling your attention
    Note
    Via exterior switch or UI
  4. Run ODIN routine PROC_ICE_X_ENTER-SERVICE-MODEvia Toolbox: (link)
  5. Raise LH front window
  6. Manually latch LH front door
  7. Remove LH front lower beltline assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    18x clips, 2x connectors, Do not pull trim away forcefully, Pull trim back partially to release connectors, Replace clips if damaged or broken

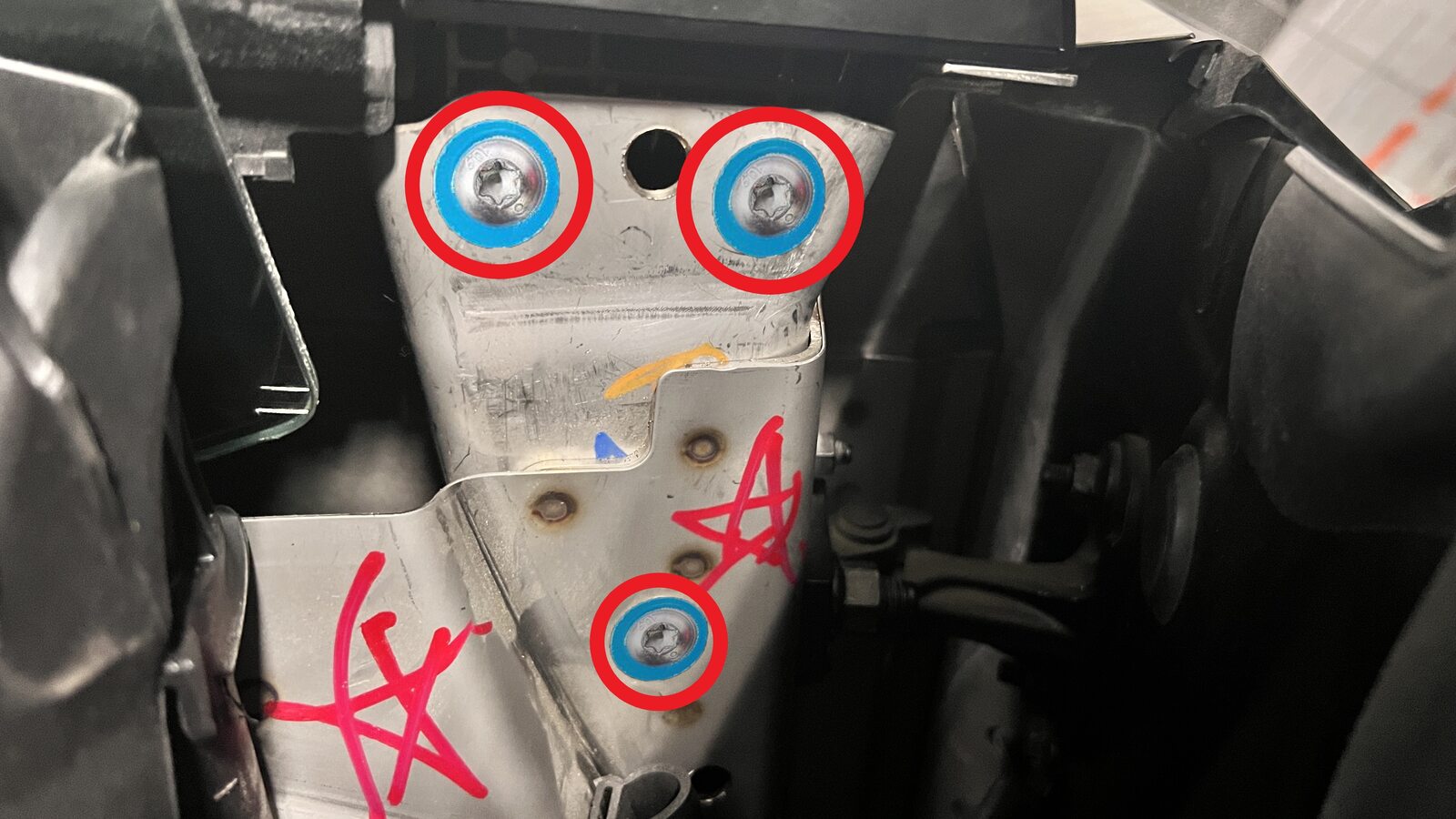

  8. Remove bolts securing LH front door trim
    Informational PurposesAn informational icon, calling your attention
    Note
    3x bolts, 8mm, 7 Nm

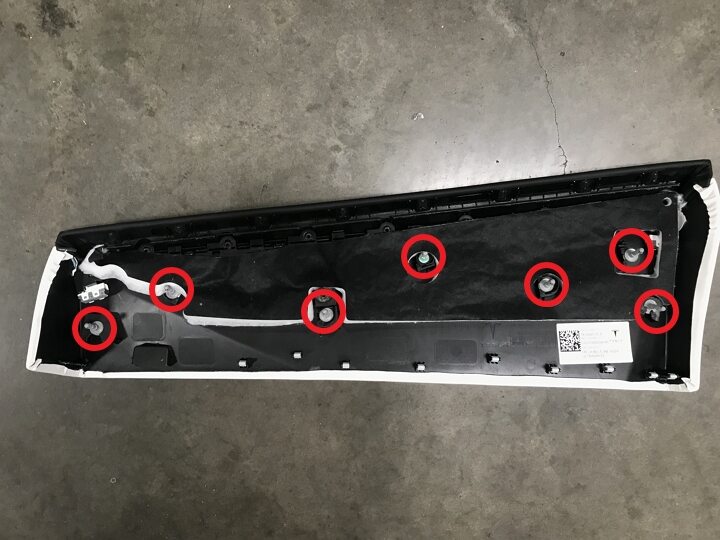

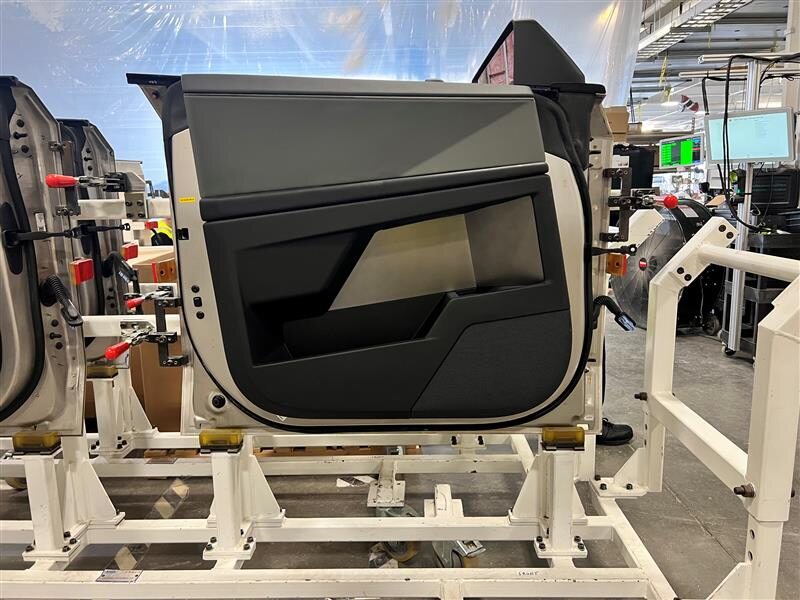

  9. Release LH front door trim
    Informational PurposesAn informational icon, calling your attention
    Note

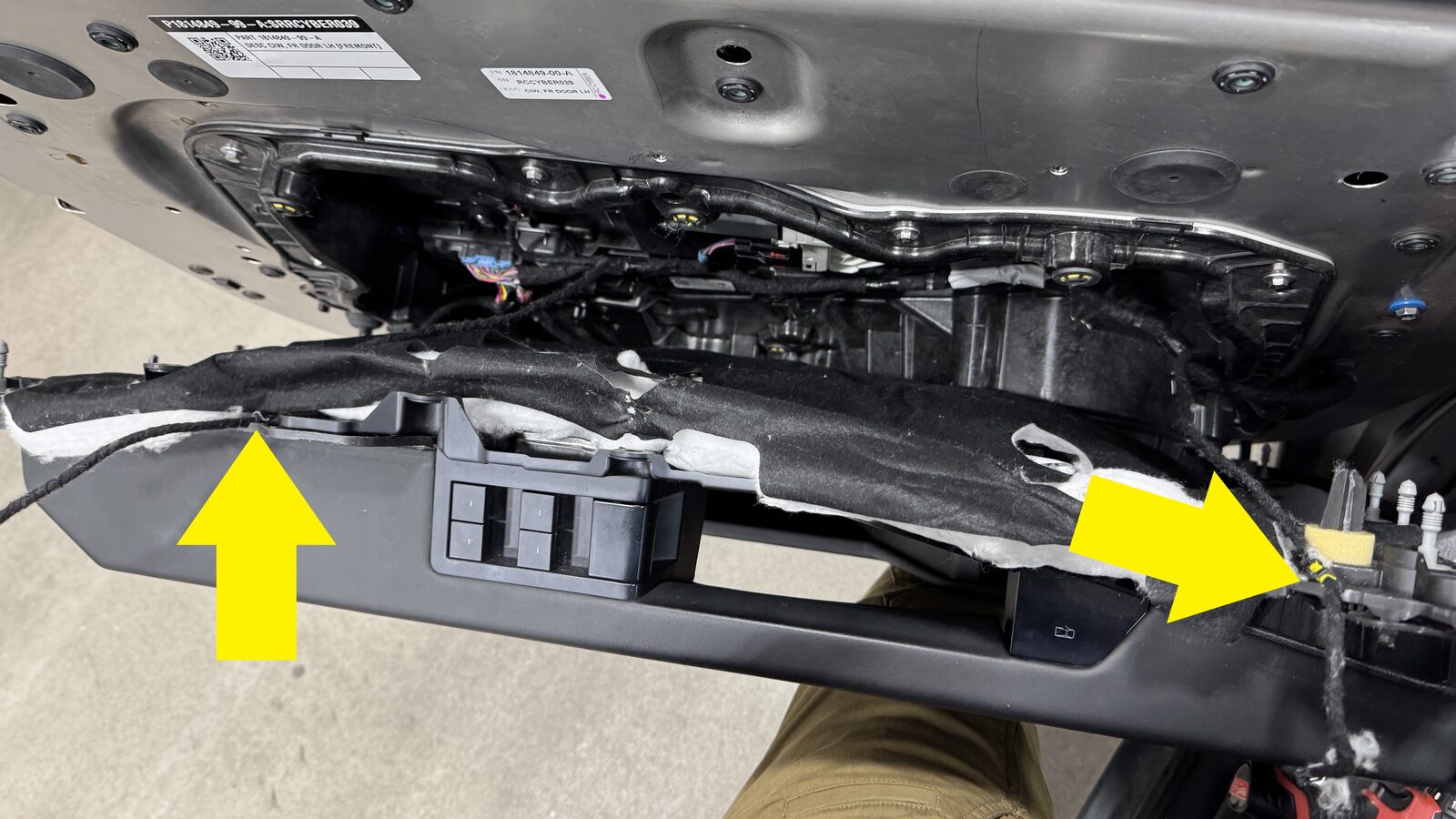

    14x clips, 2x harness guides, 1x connector, 1x manual release cable, Release beltline trim harness from harness guides, Release manual release cable lock then rotate to release cable end

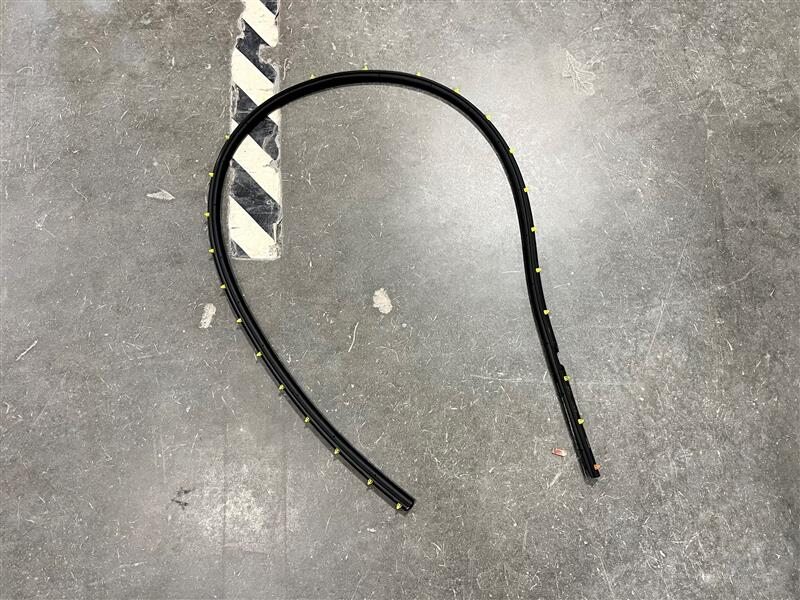

  10. Remove LH front inner waist belt seal
    Informational PurposesAn informational icon, calling your attention
    Note
    6x rubber datums

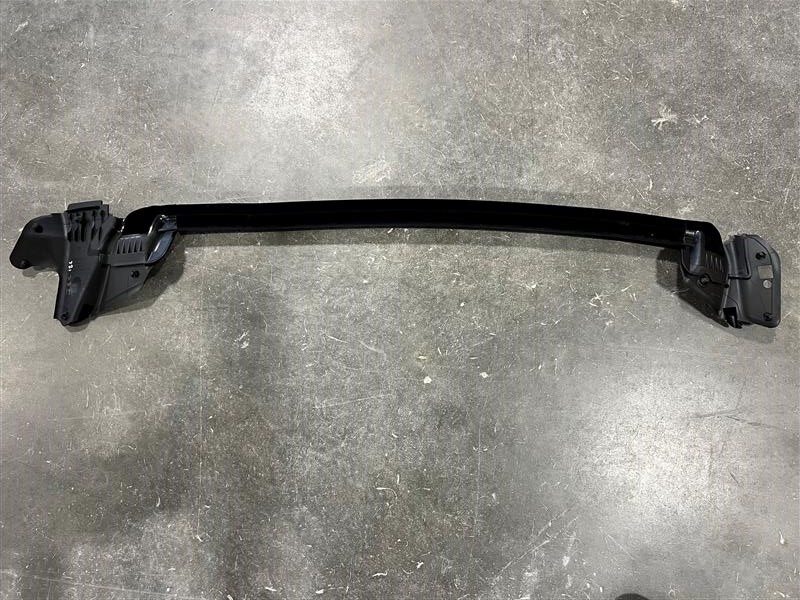

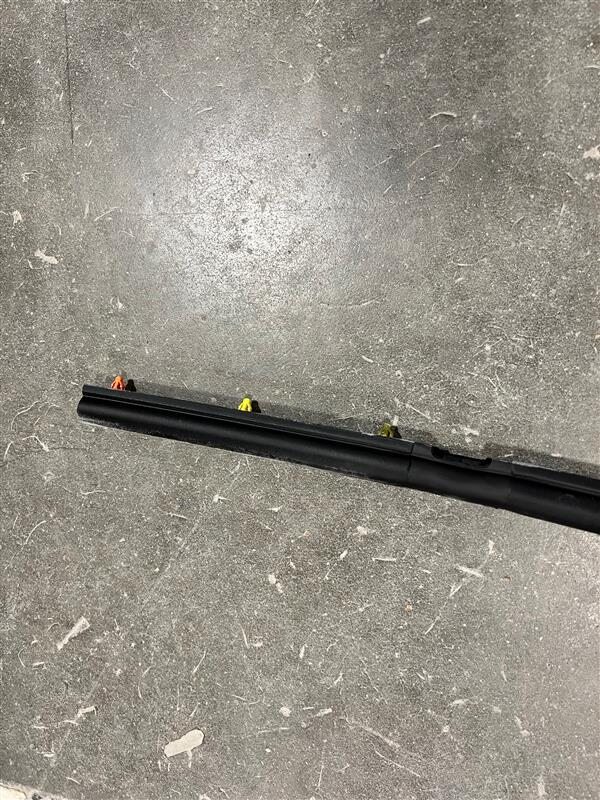

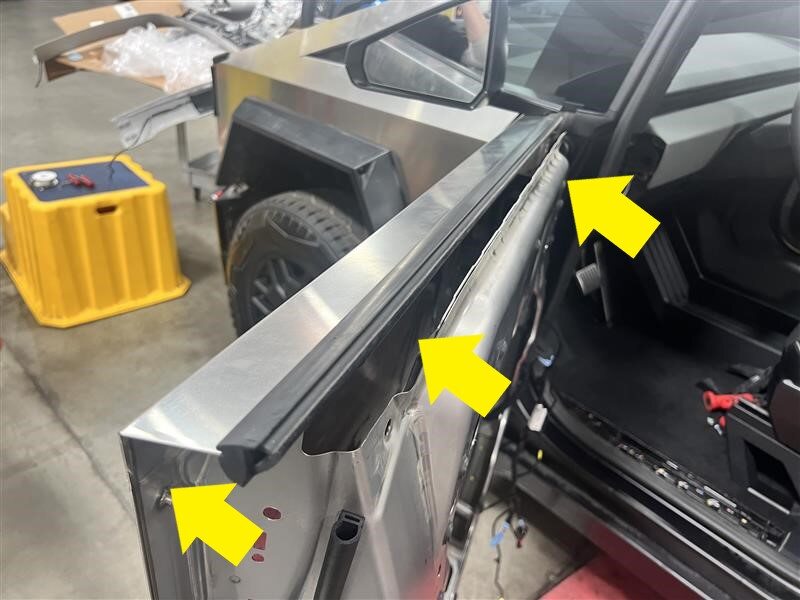

  11. Remove LH front outer waist belt seal
    Informational PurposesAn informational icon, calling your attention
    Note
    Pull inwards

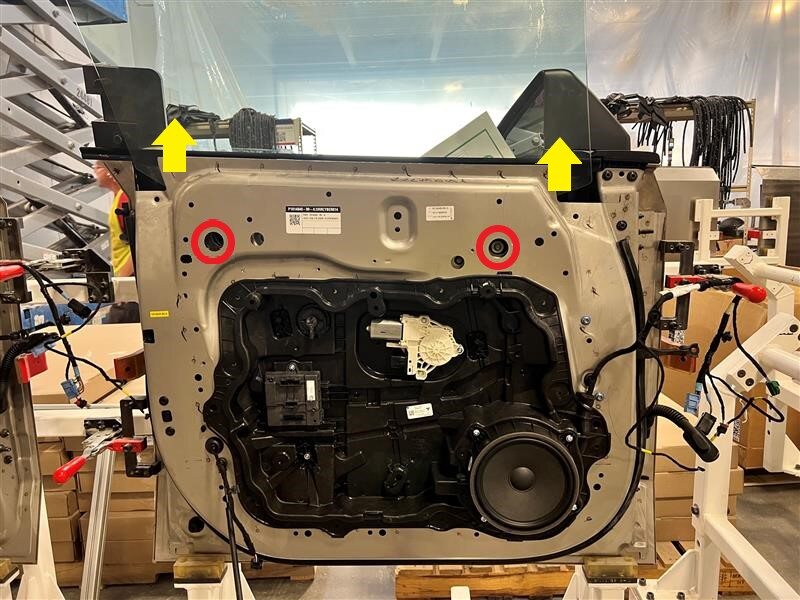

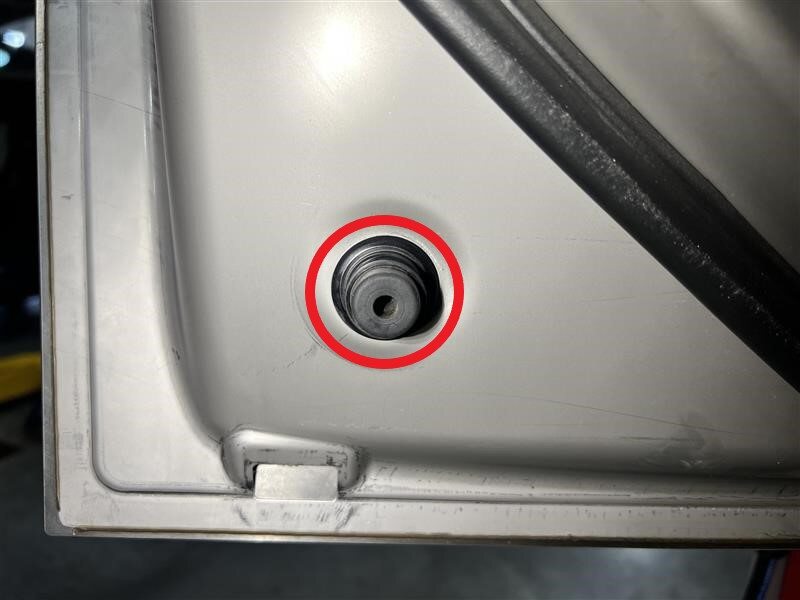

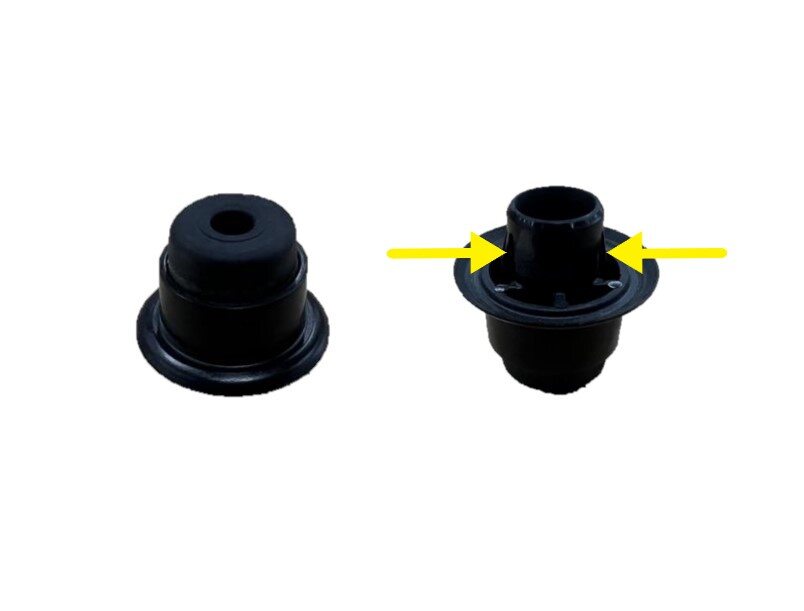

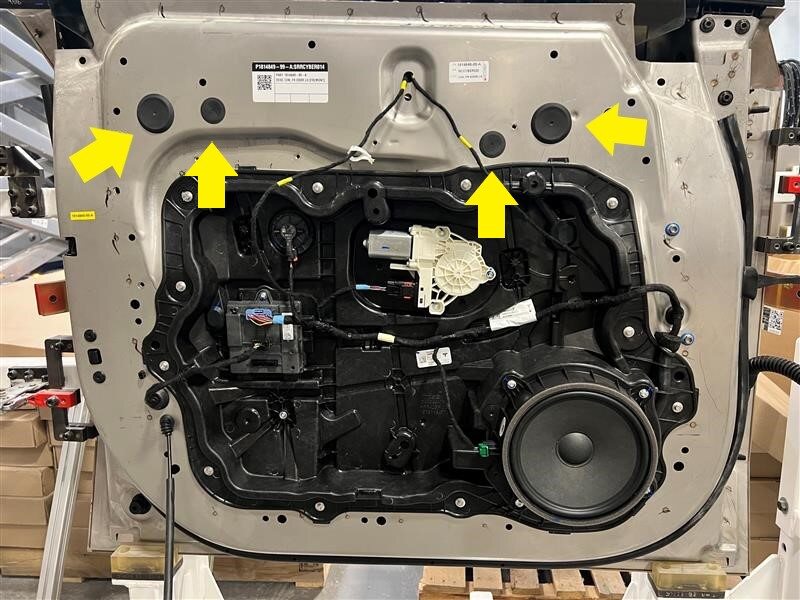

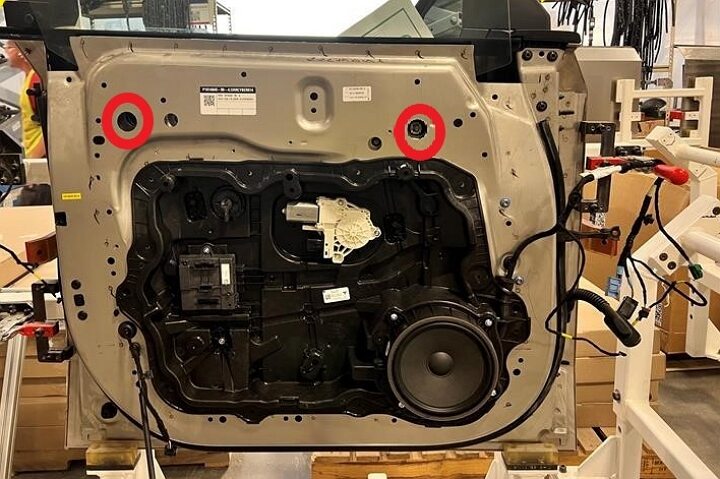

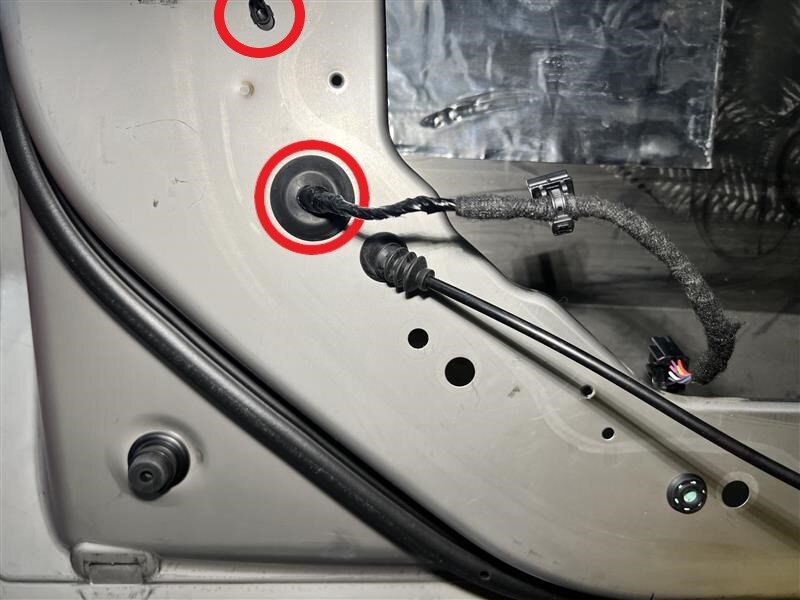

  12. Remove LH front door grommets
    Informational PurposesAn informational icon, calling your attention
    Note
    4x grommets

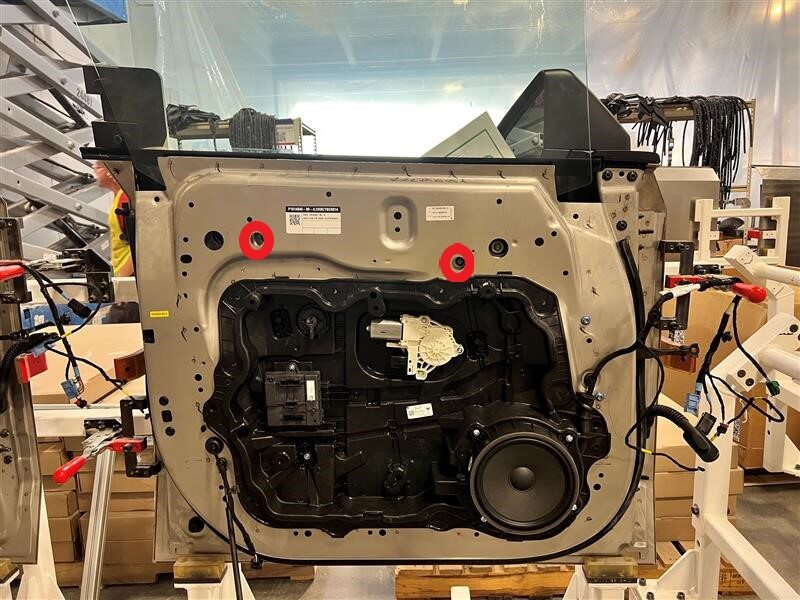

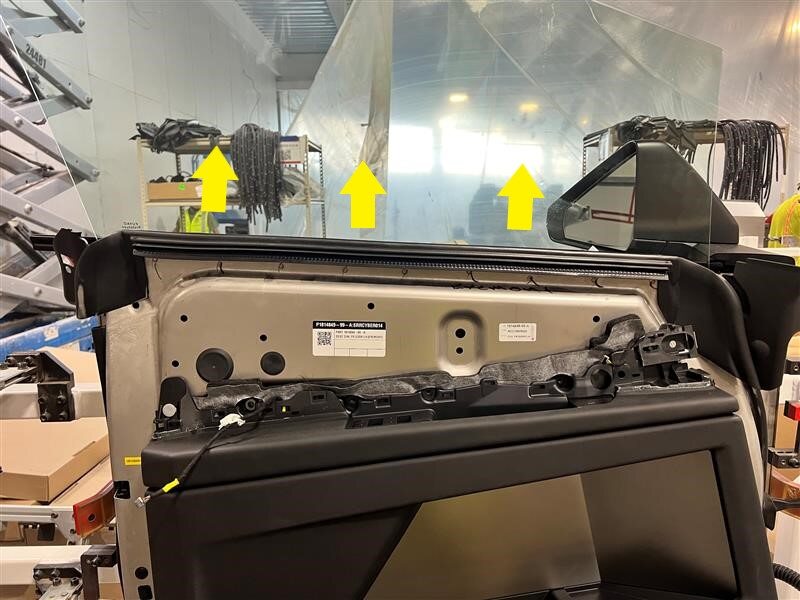

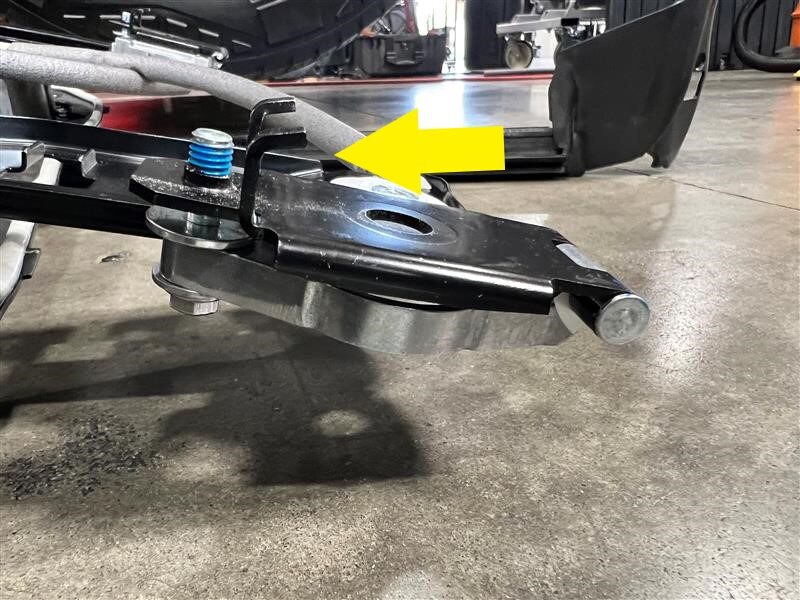

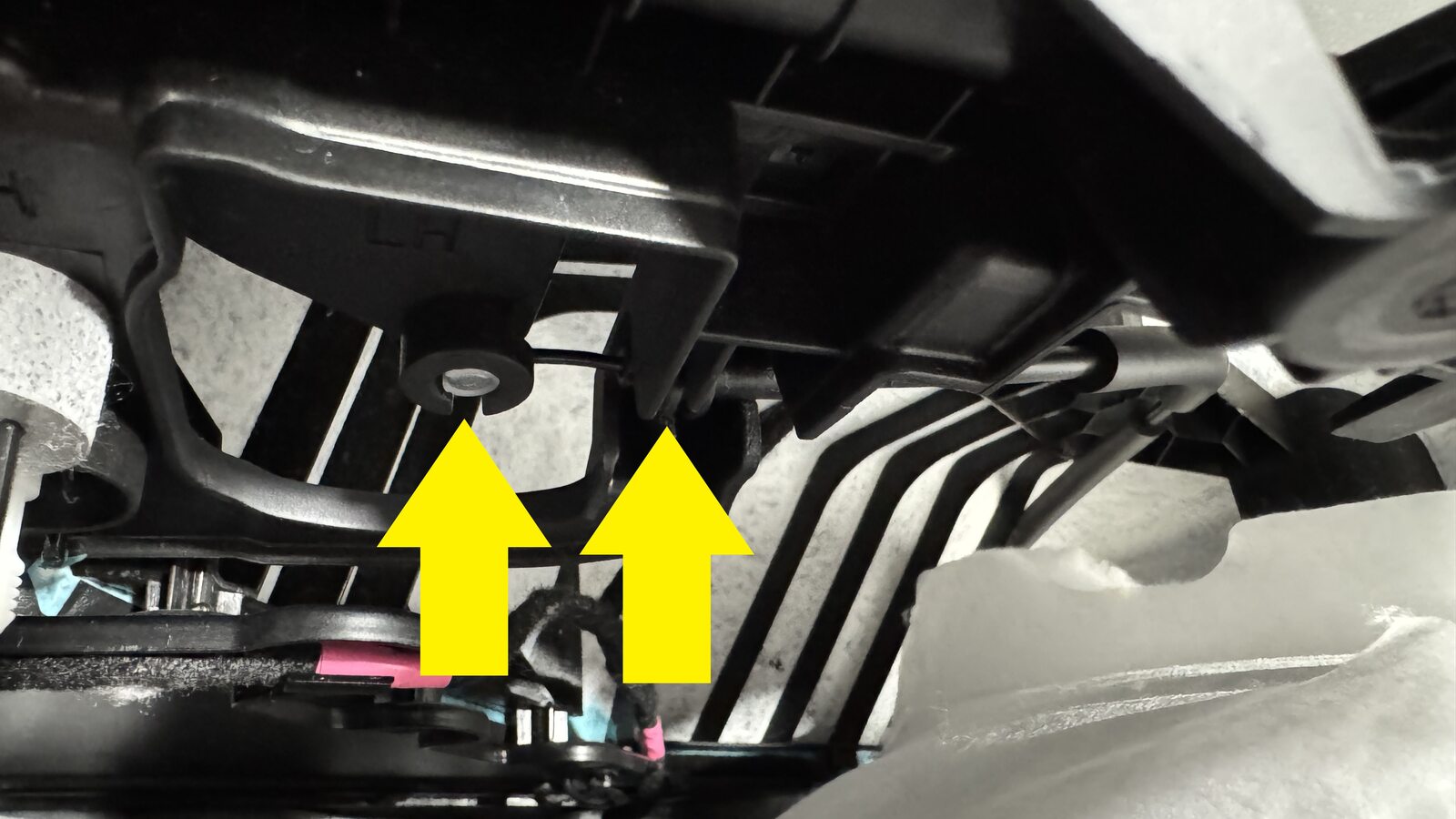

  13. Remove LH front door glass
    Informational PurposesAn informational icon, calling your attention
    Note

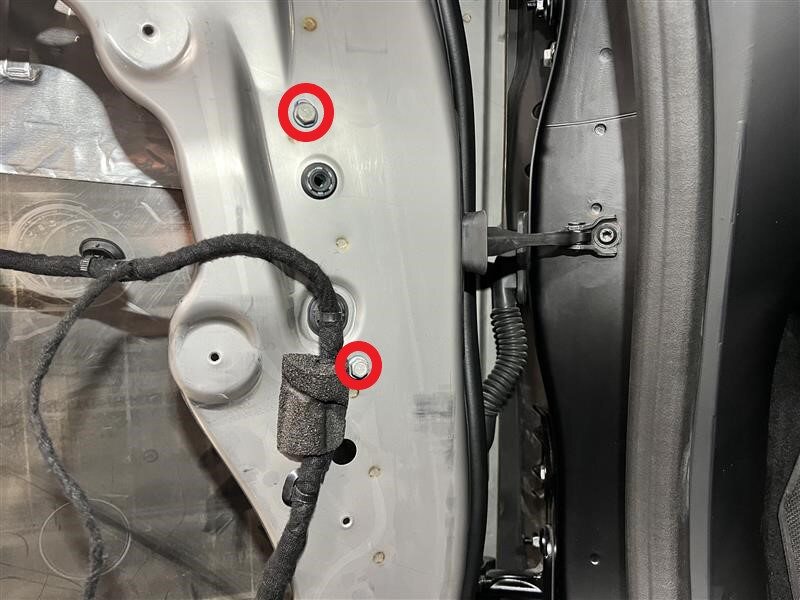

    2x bolts, 10mm, 4 Nm, The clamps do not hold the whole base of the regulator, Use assistance if needed
  14. Power down vehicle via UI
    Informational PurposesAn informational icon, calling your attention
    Note
    Verify EPBs are engaged, Select charge port icon to ensure drive state is disengaged then power down vehicle via Controls > Safety > Power Off
  15. Remove rear underhood apron
    Informational PurposesAn informational icon, calling your attention
    Note
    9x clips

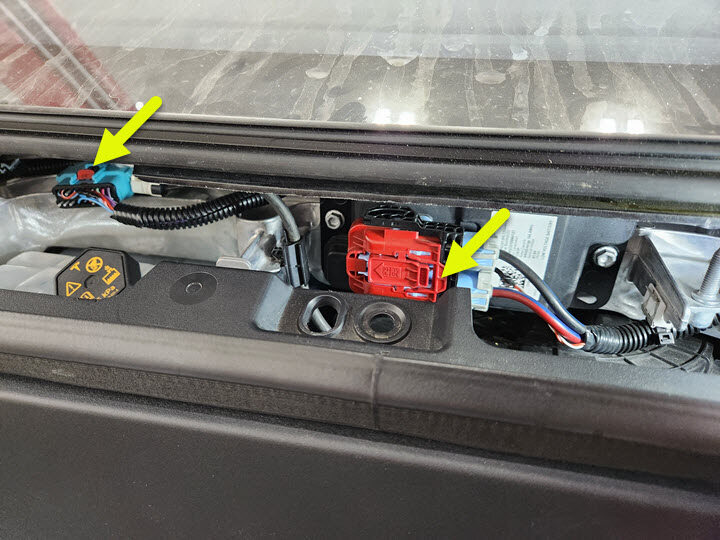

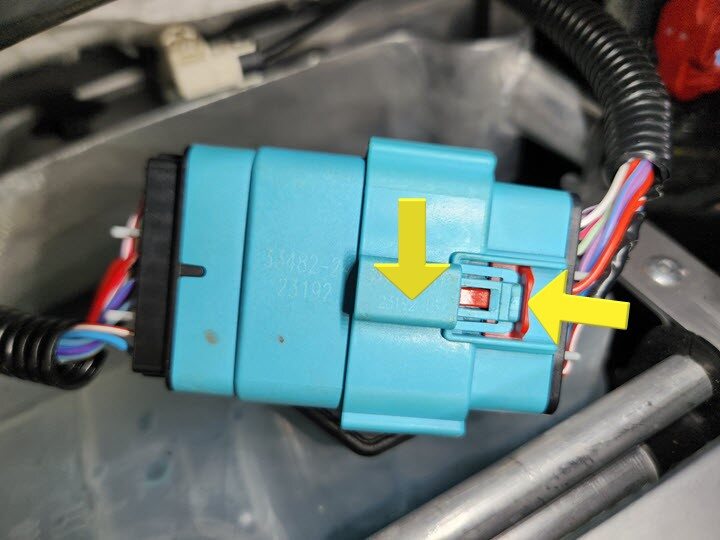

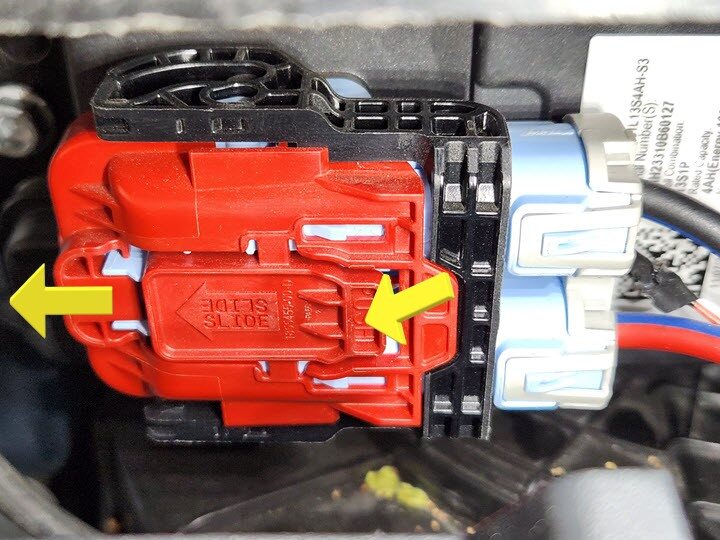

  16. Disconnect FRL connector then disconnect MV battery connector
    Informational PurposesAn informational icon, calling your attention
    Note

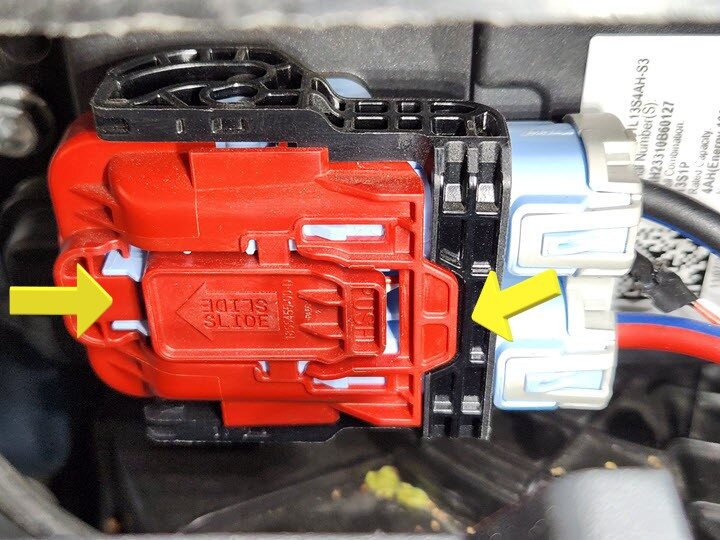

    2x connectors, Release locking tab then disconnect FRL connector, Slide eCPA to left then lift lever to release MV battery connector, Early production trucks may have black FRL connector, Release eCPA by pushing down to unlock and slide red locking tab, Wait 2 minutes for electrical circuits to discharge before disconnecting modules

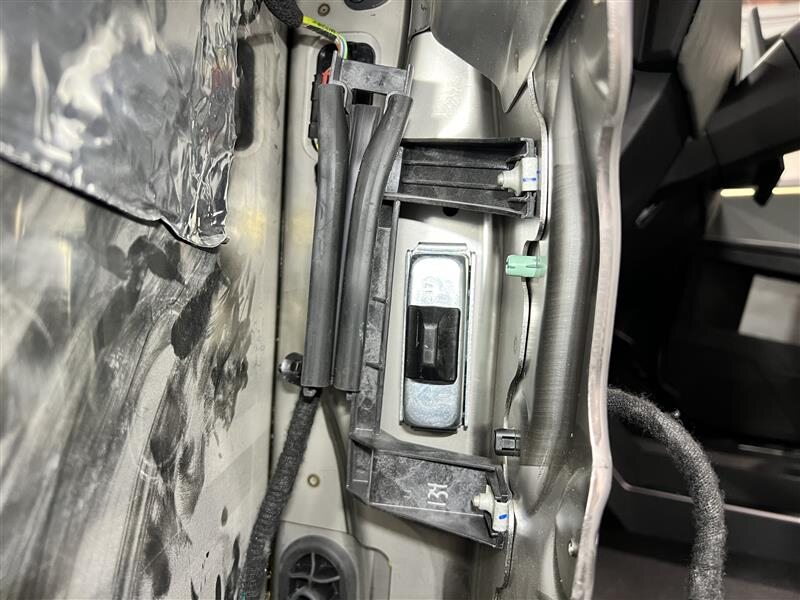

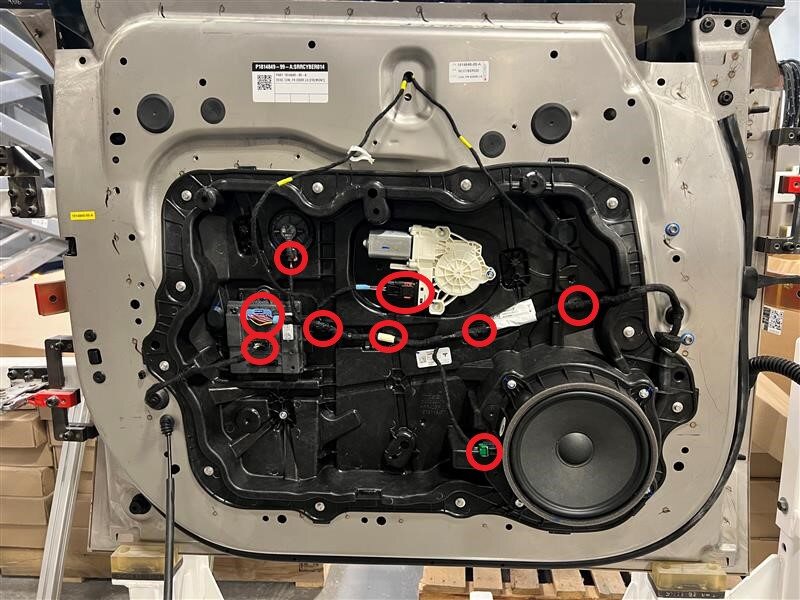

  17. Release LH front door harnesses from close out panel
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips, 5x connectors

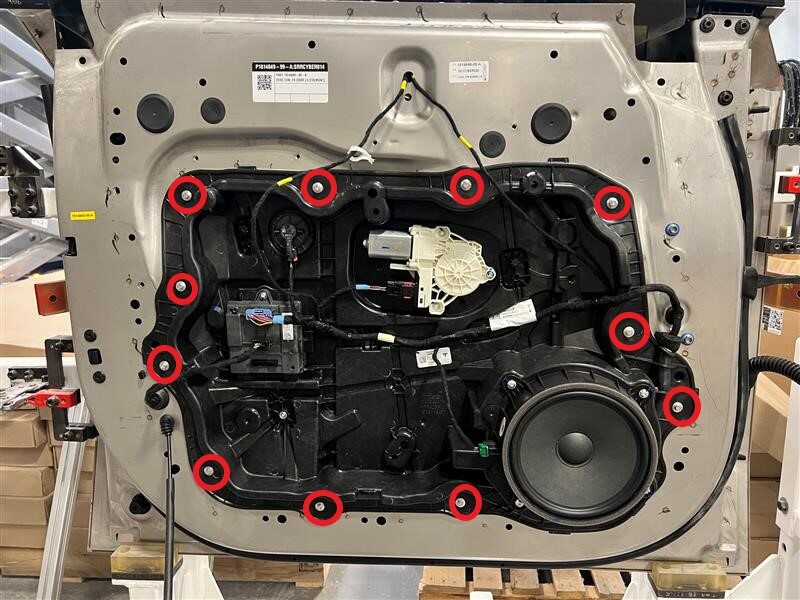

  18. Remove LH front door closeout panel
    Informational PurposesAn informational icon, calling your attention
    Note

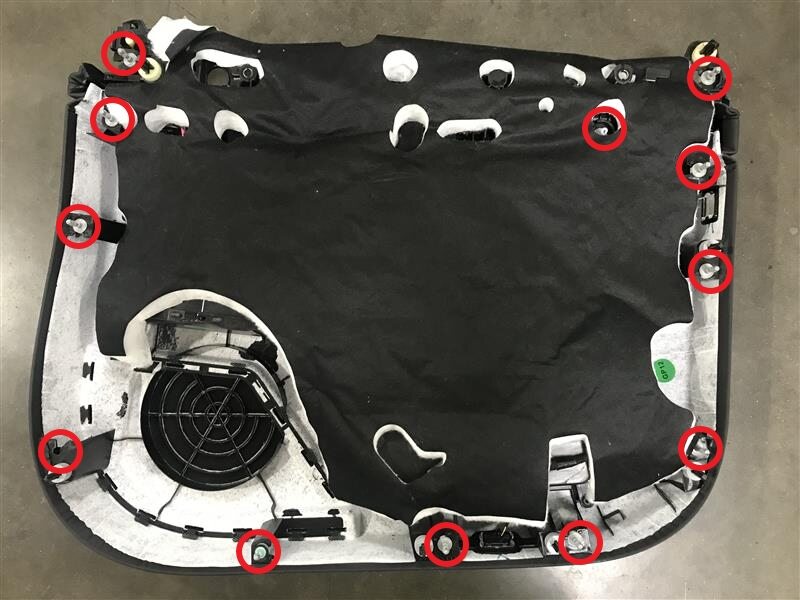

    11x bolts, 8mm, 4 Nm, 2x bolts 10mm, 12 Nm, 1x harness clip, 2x locking datums, Gently pry closeout panel to release locking datums, Pull bottom portion outwards and lower assembly to allow clearance for regulator rails

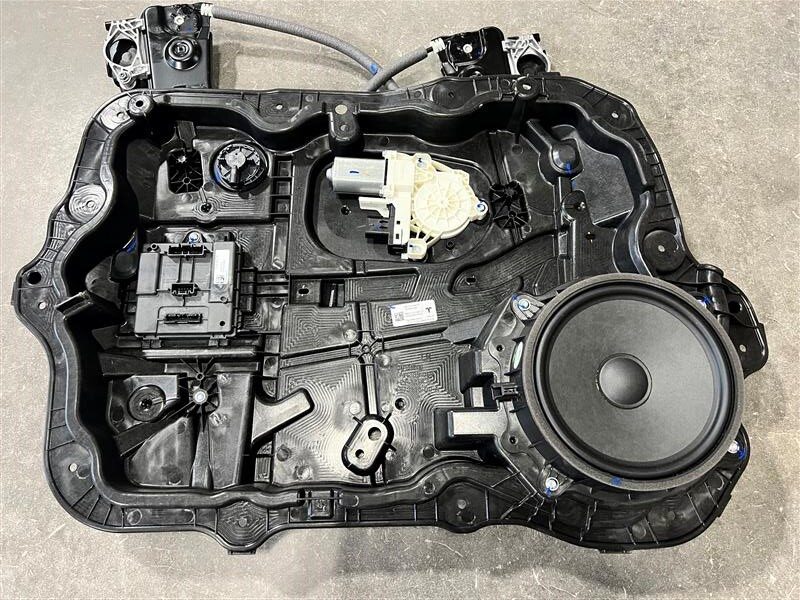

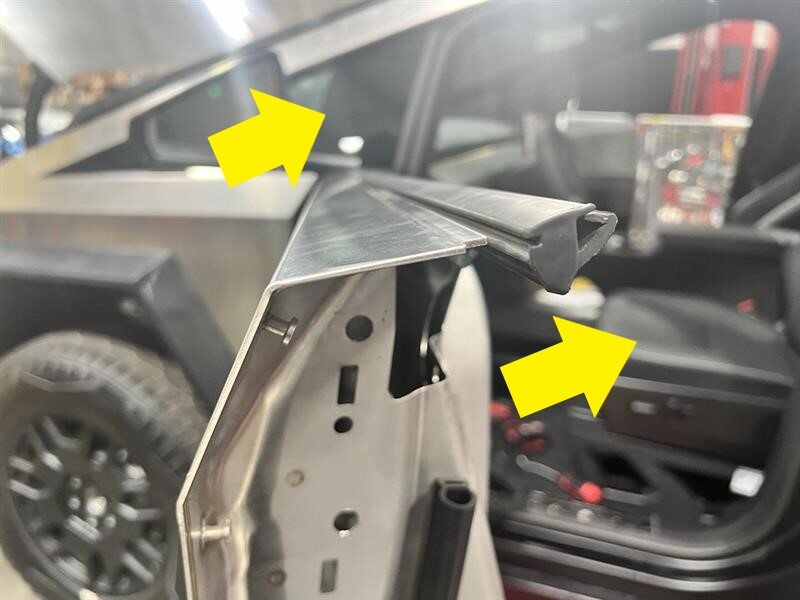

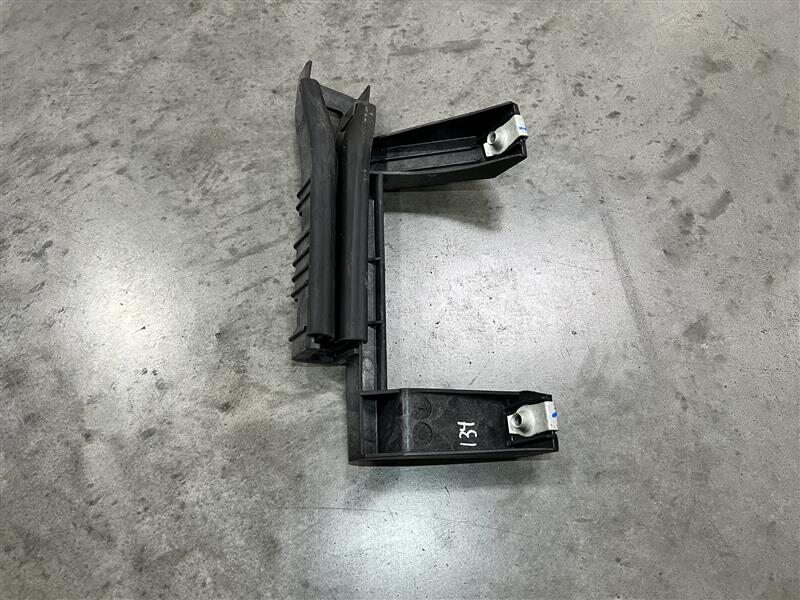

  19. Remove LH front door glass run channel
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 8 Nm

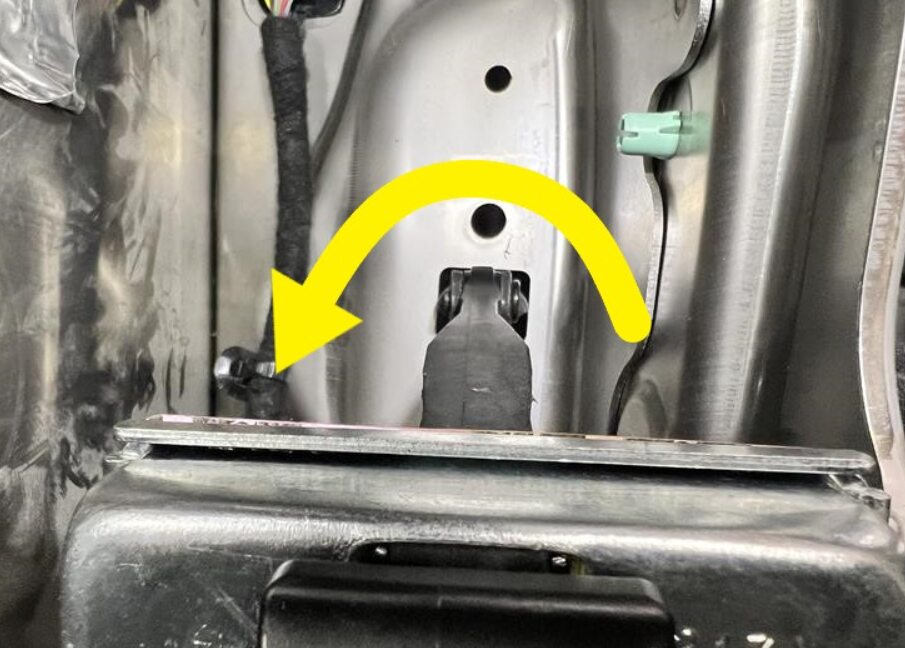

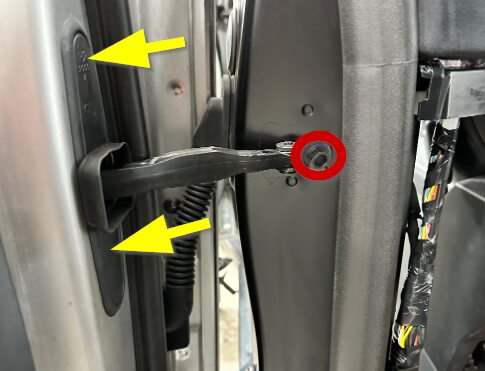

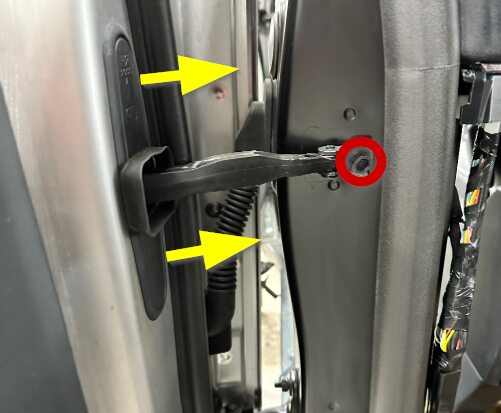

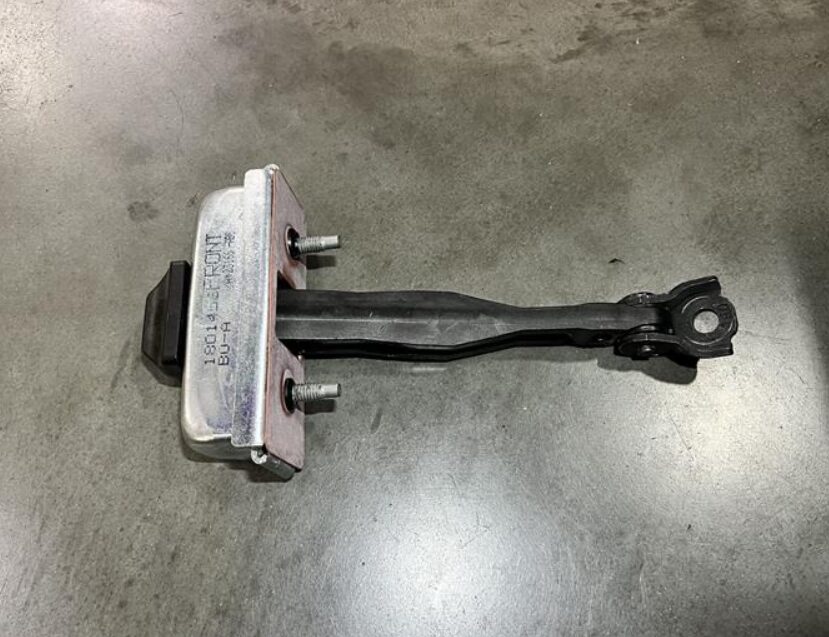

  20. Remove LH front door check strap and check strap close out
    Informational PurposesAn informational icon, calling your attention
    Note

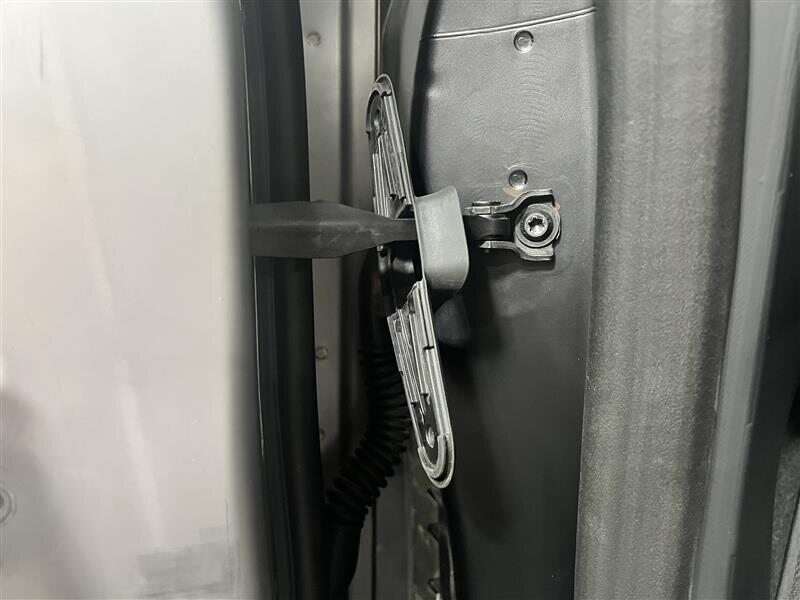

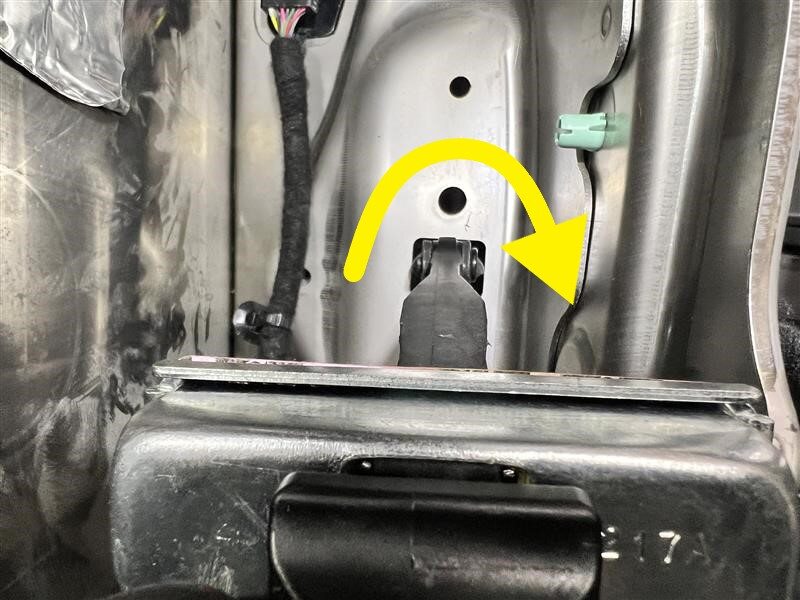

    1x Bolt, 13mm, 35 +/- 2 Nm, 2x nuts, 10mm, 8.5Nm, Rotate check strap 90 degrees to remove, Some vehicles have T40 fastener securing check strap to body, Fastener must be replaced with 1623708-00-A

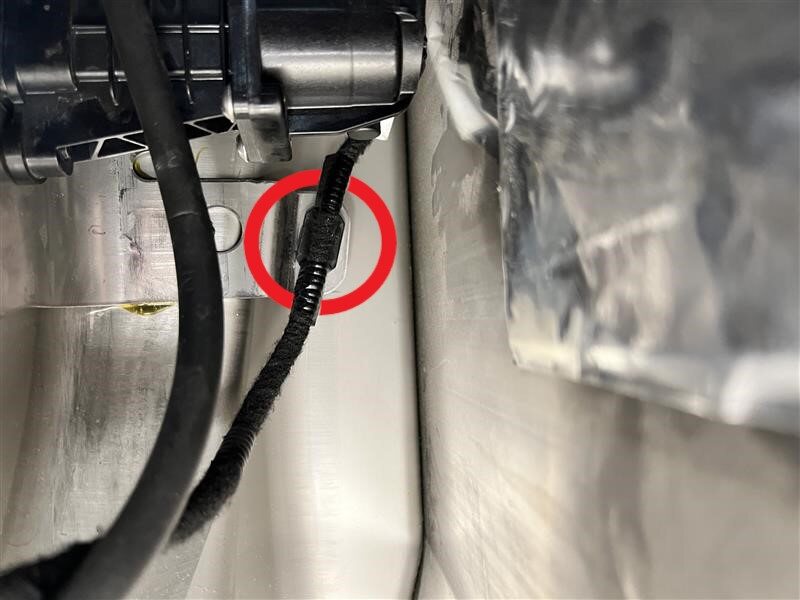

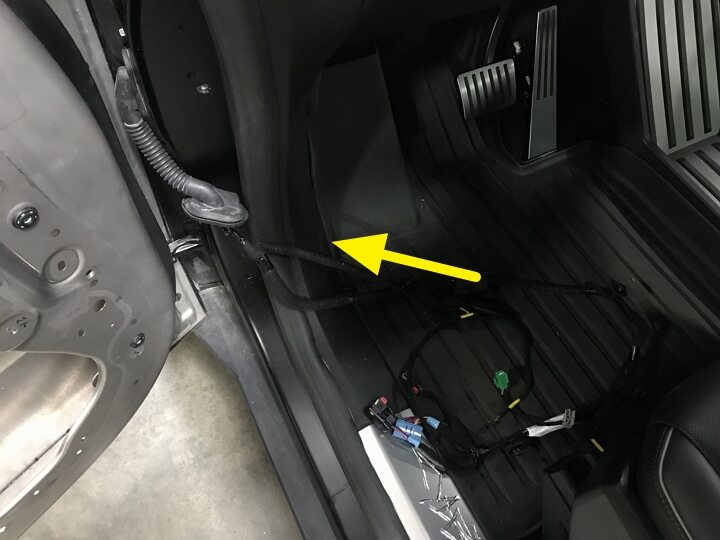

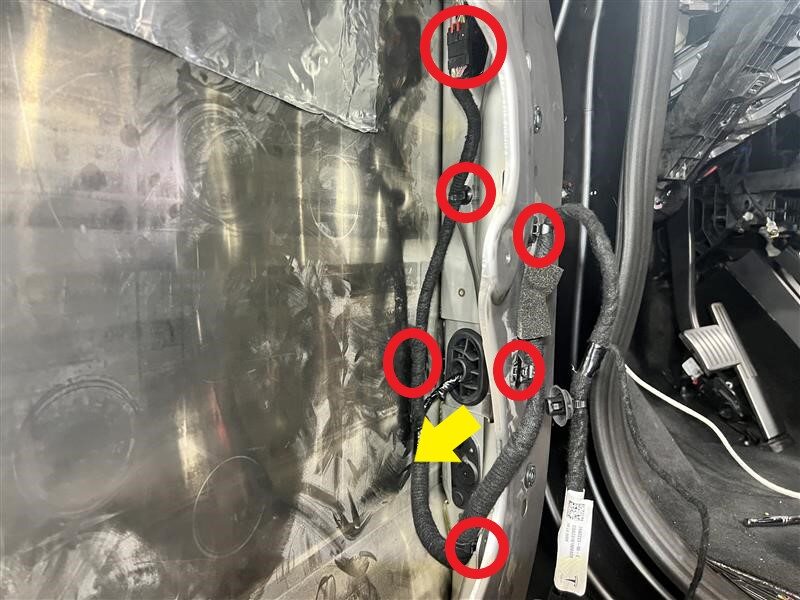

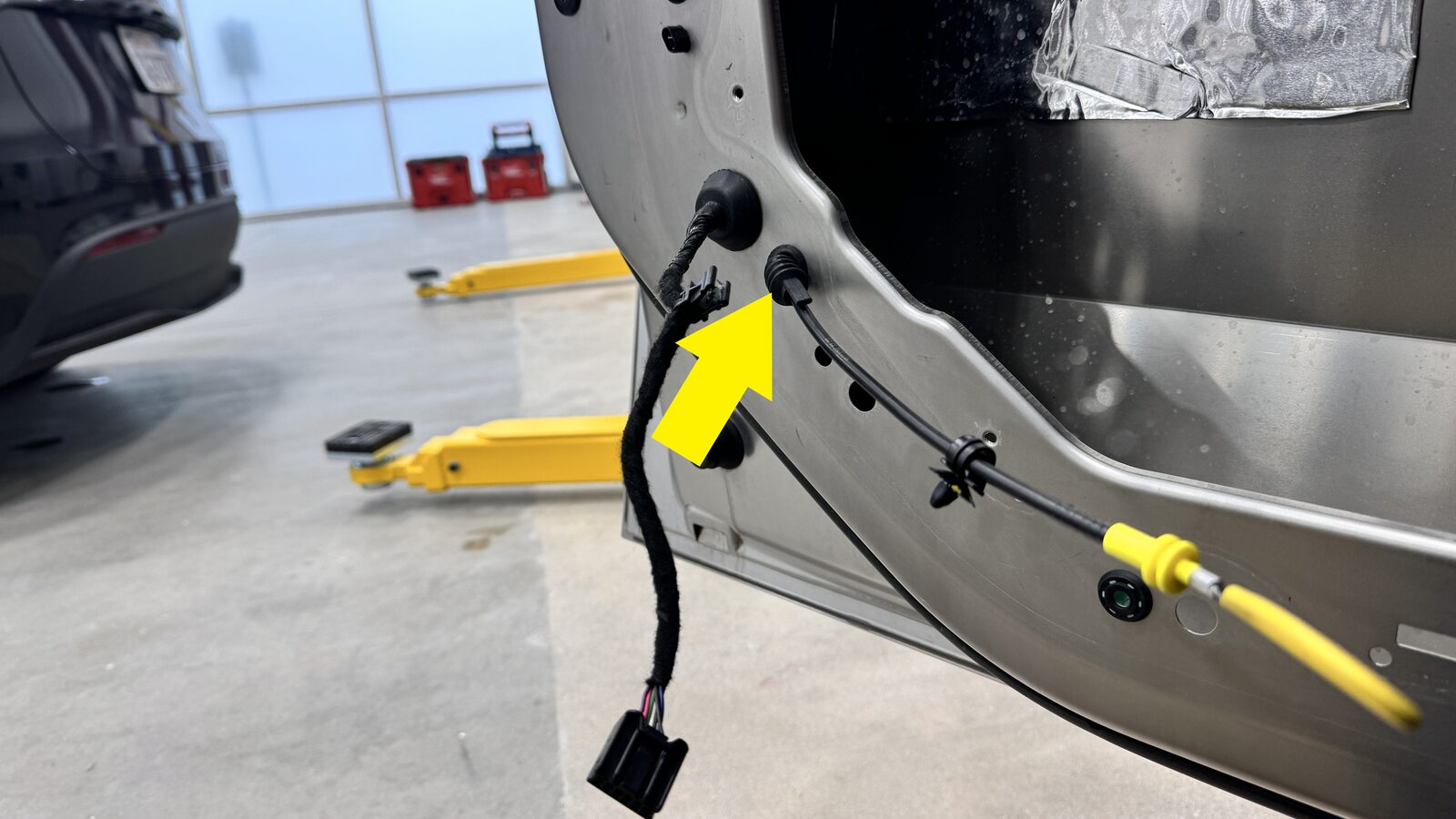

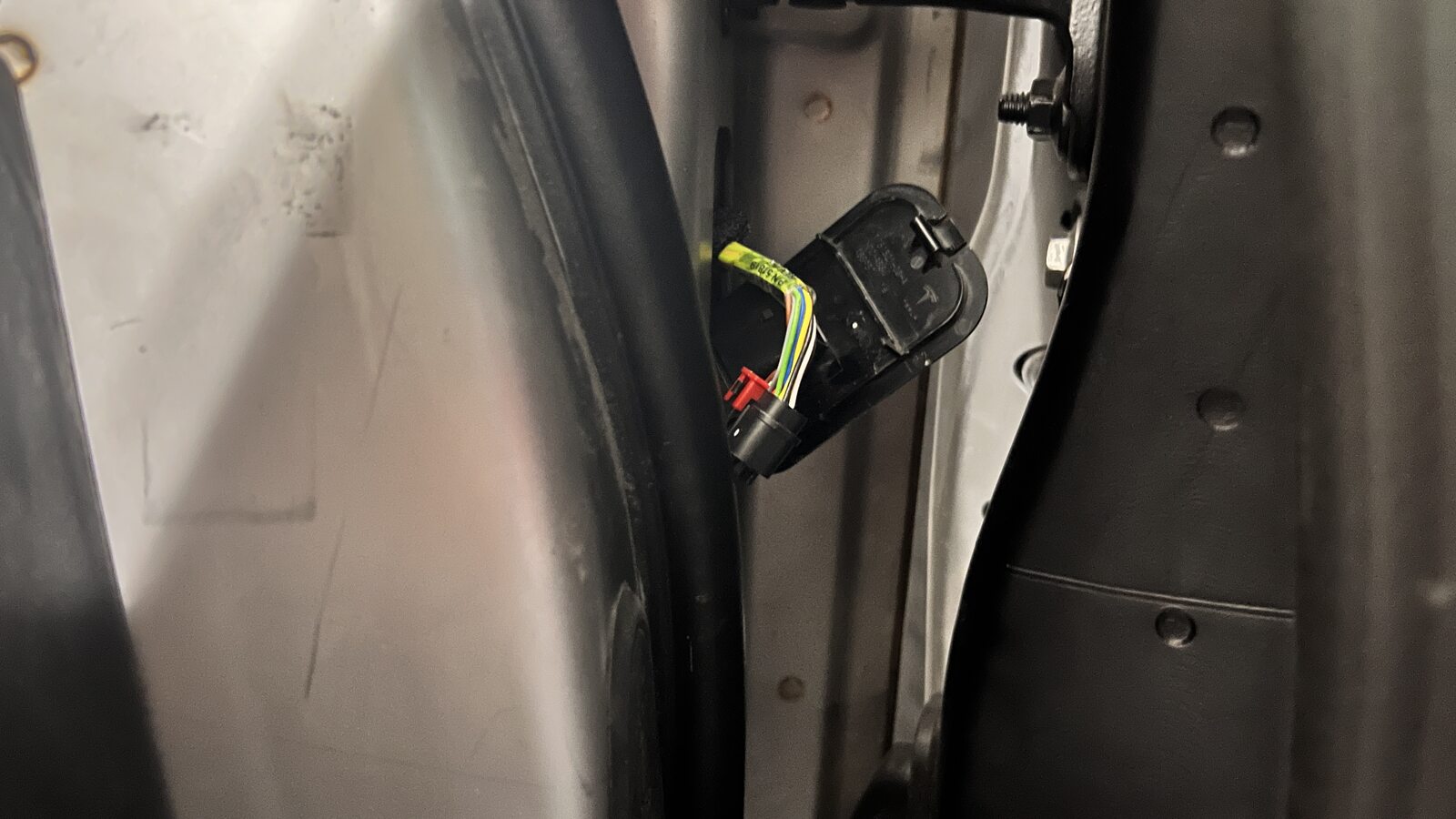

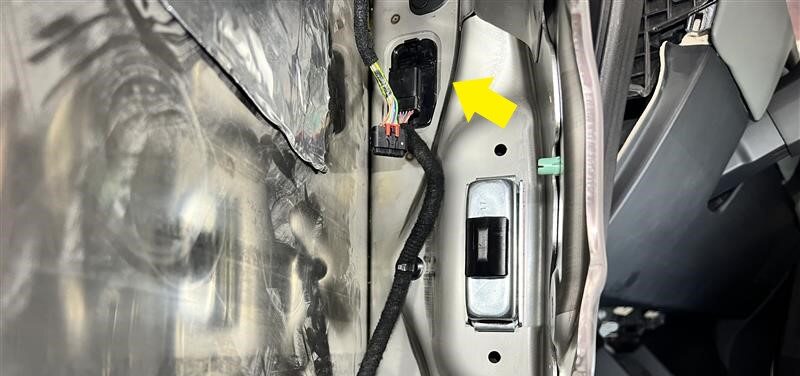

  21. Partially remove LH front door harness
    Informational PurposesAn informational icon, calling your attention
    Note

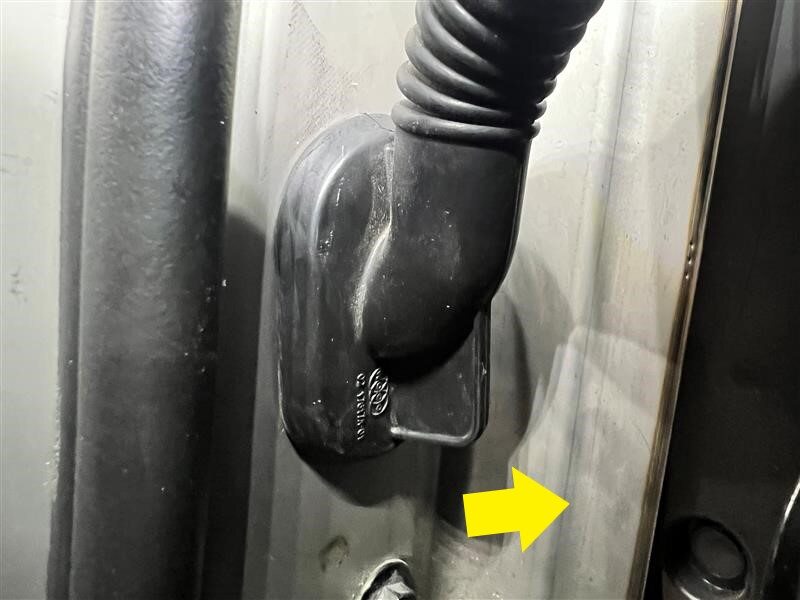

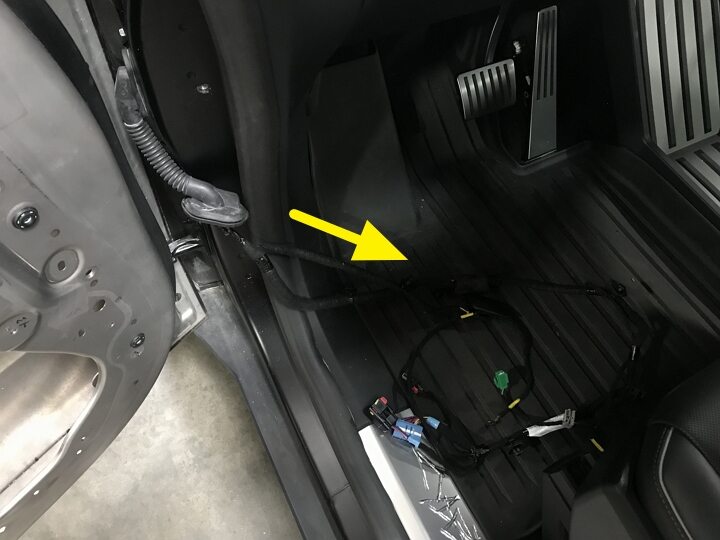

    1x connectors, 1x grommet, 1x close out panel, 5x fir tree clips, Do not disconnect door harness to A-pillar connection, Position harness to the side

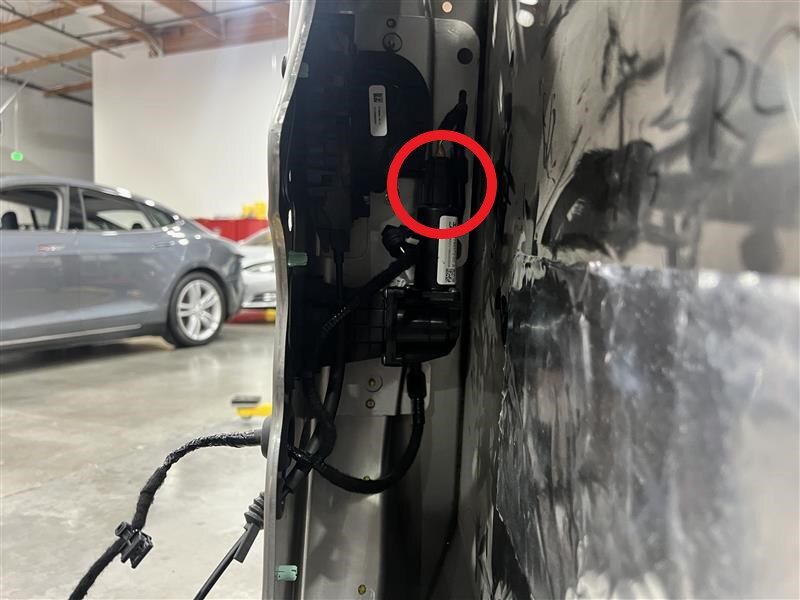

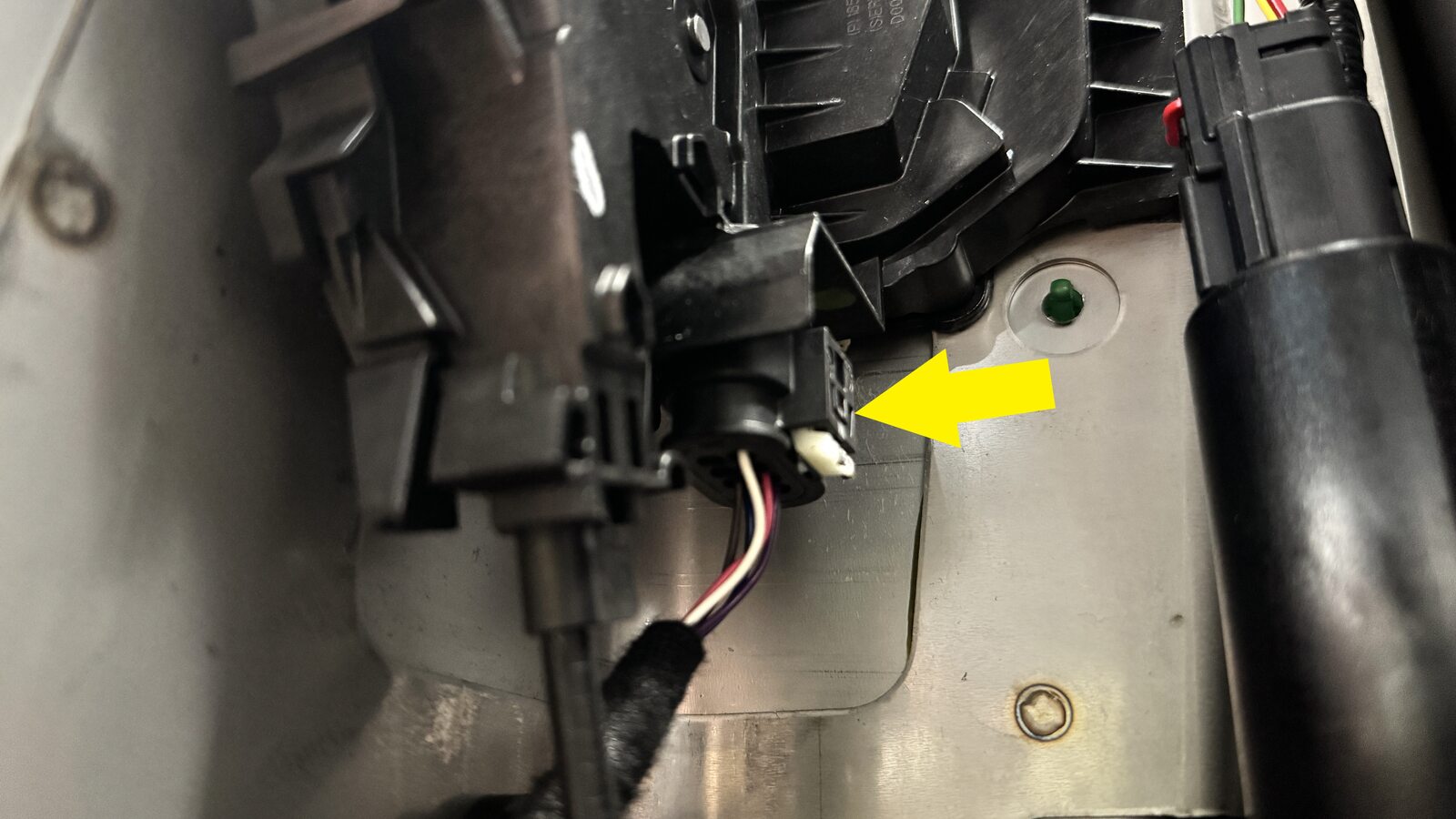

  22. Disconnect LH front door latch harness connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Release locking tab
  23. Disconnect LH front closure harness from door presenter
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector

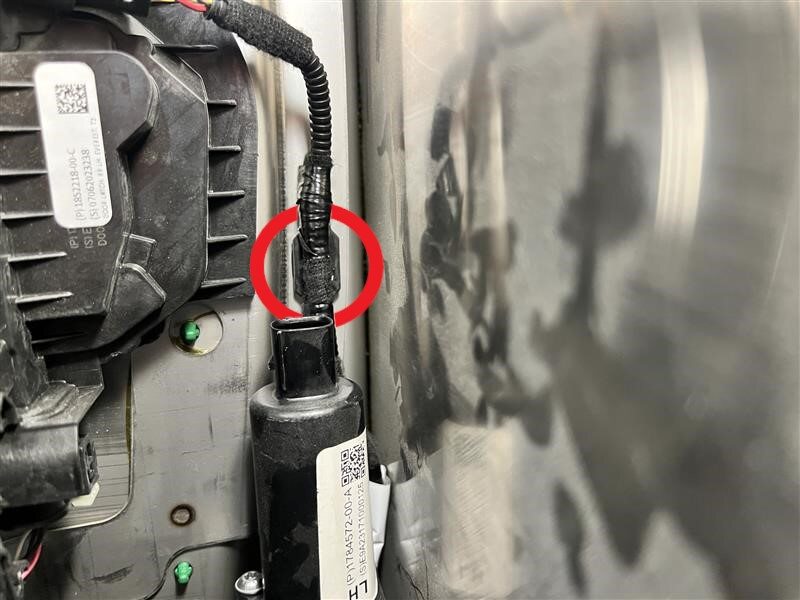

  24. Remove LH front closure device harness
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips 1x grommet

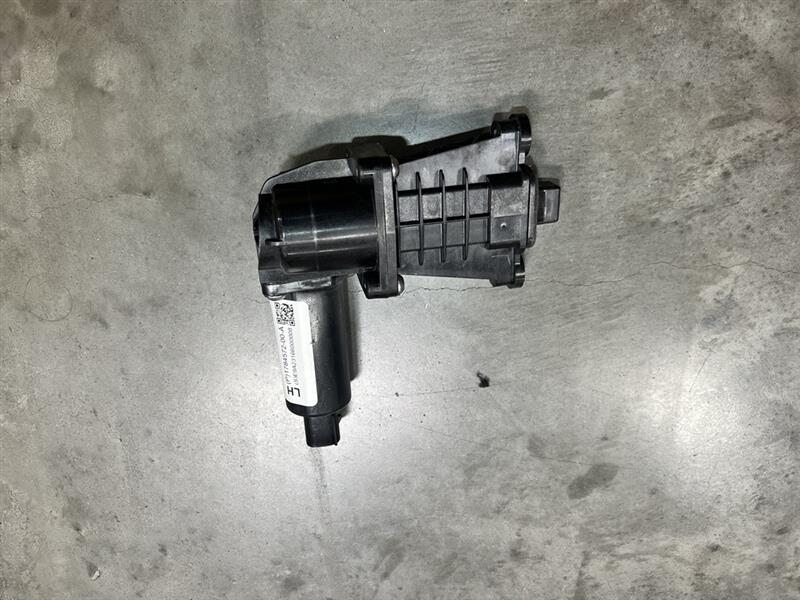

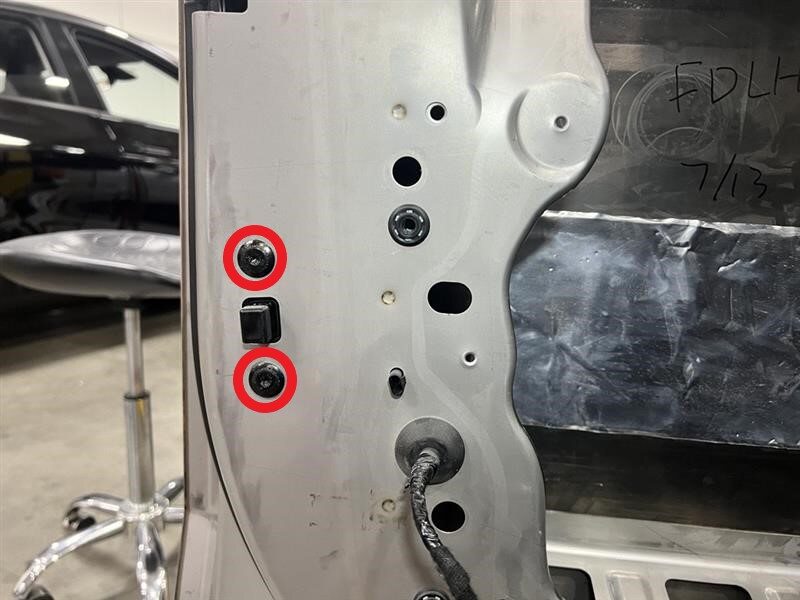

  25. Remove LH front door presenter
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, T30, 13 Nm,

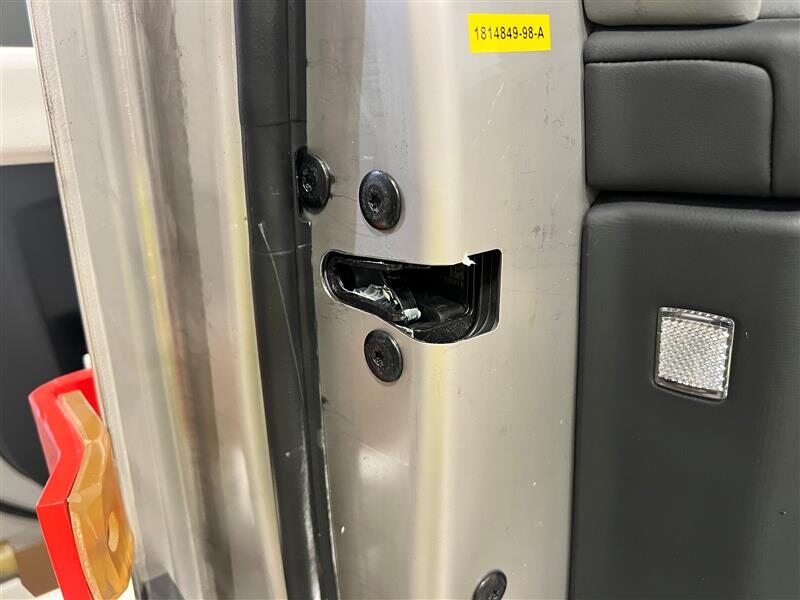

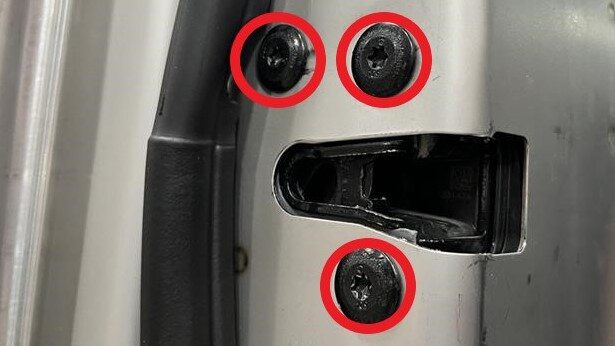

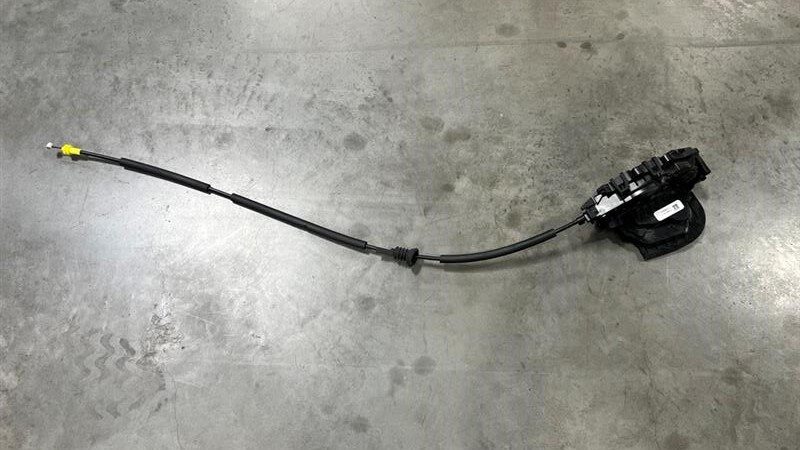

  26. Remove LH front door latch
    Informational PurposesAn informational icon, calling your attention
    Note
    1x grommet, 1x connector, 3x bolts, T30, 13 Nm, Release locking tab

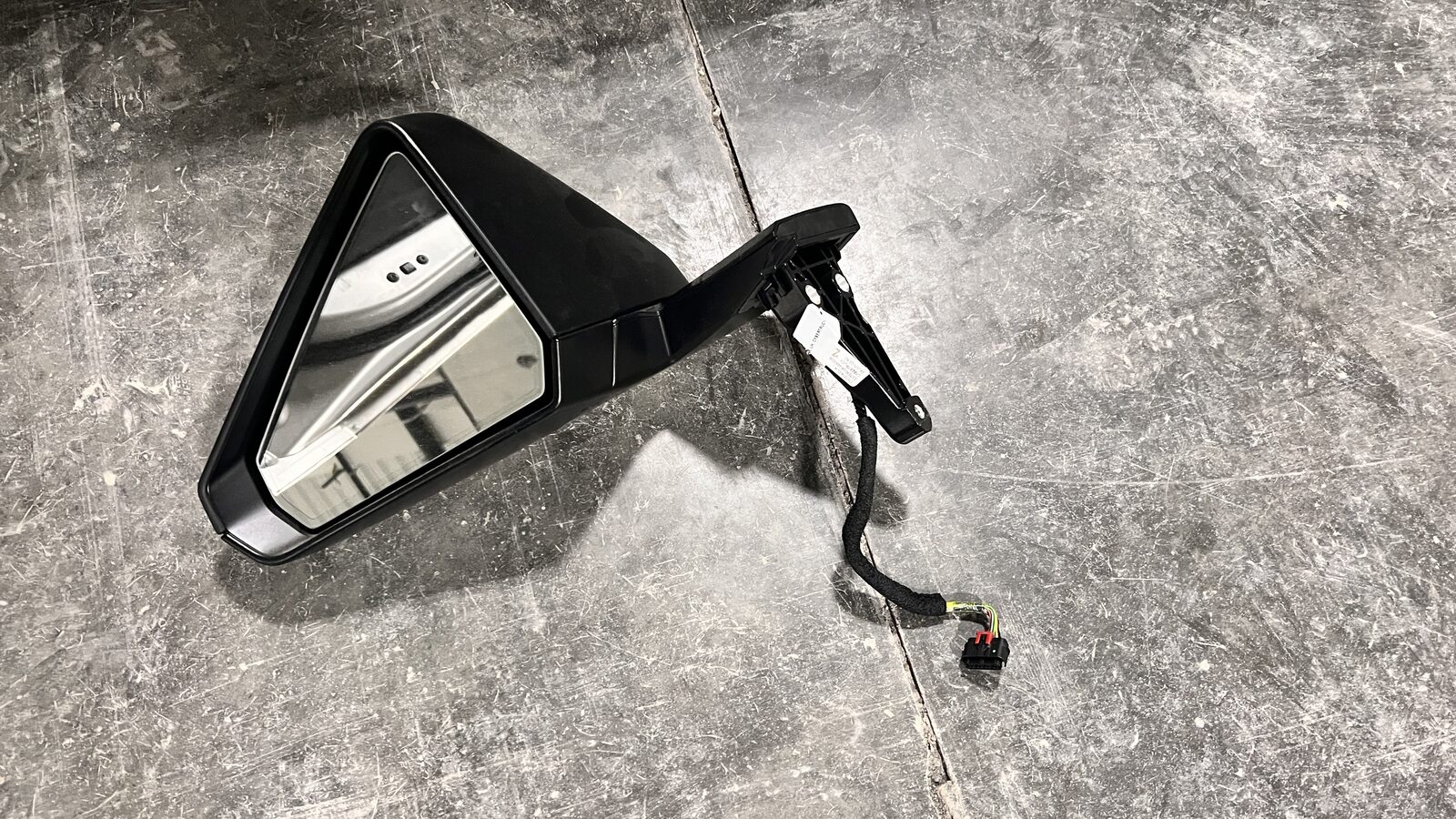

  27. Remove LH front door mirror assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    3x bolts, T40, 18 Nm, Move belt seal as required for access, Lift mirror assembly straight up to remove, Ensure harness is not caught inside door, Discard bolts after removal
  28. Remove LH front door overslam bumper
    Informational PurposesAn informational icon, calling your attention
    Note
    2x tabs
  29. Remove LH front door secondary seal
    Informational PurposesAn informational icon, calling your attention
    Note
    26x clips,

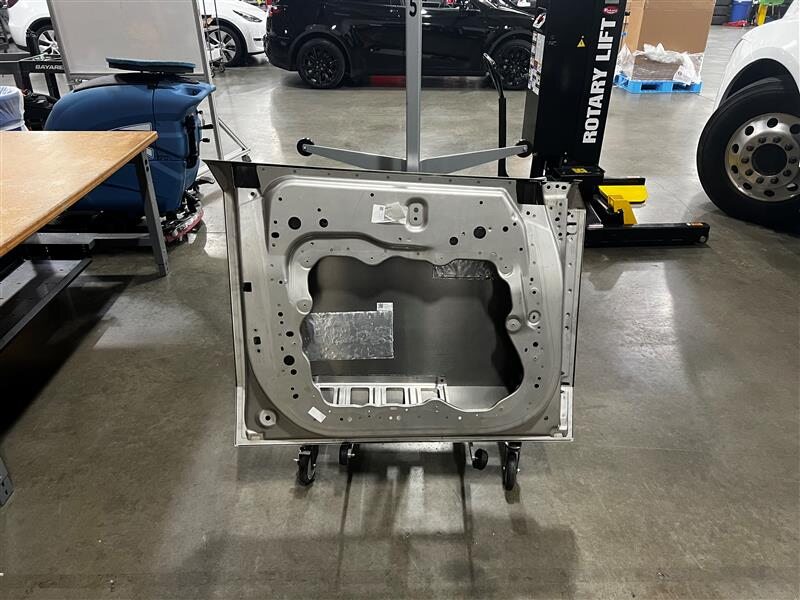

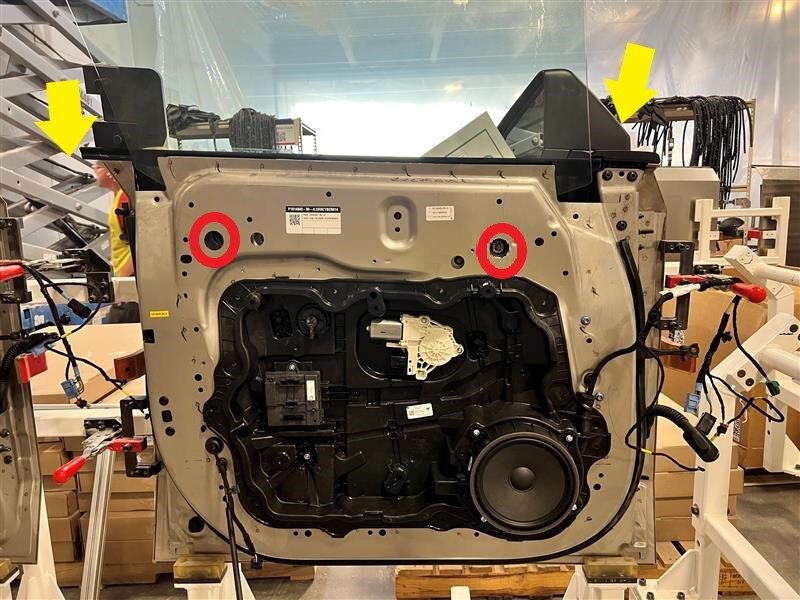

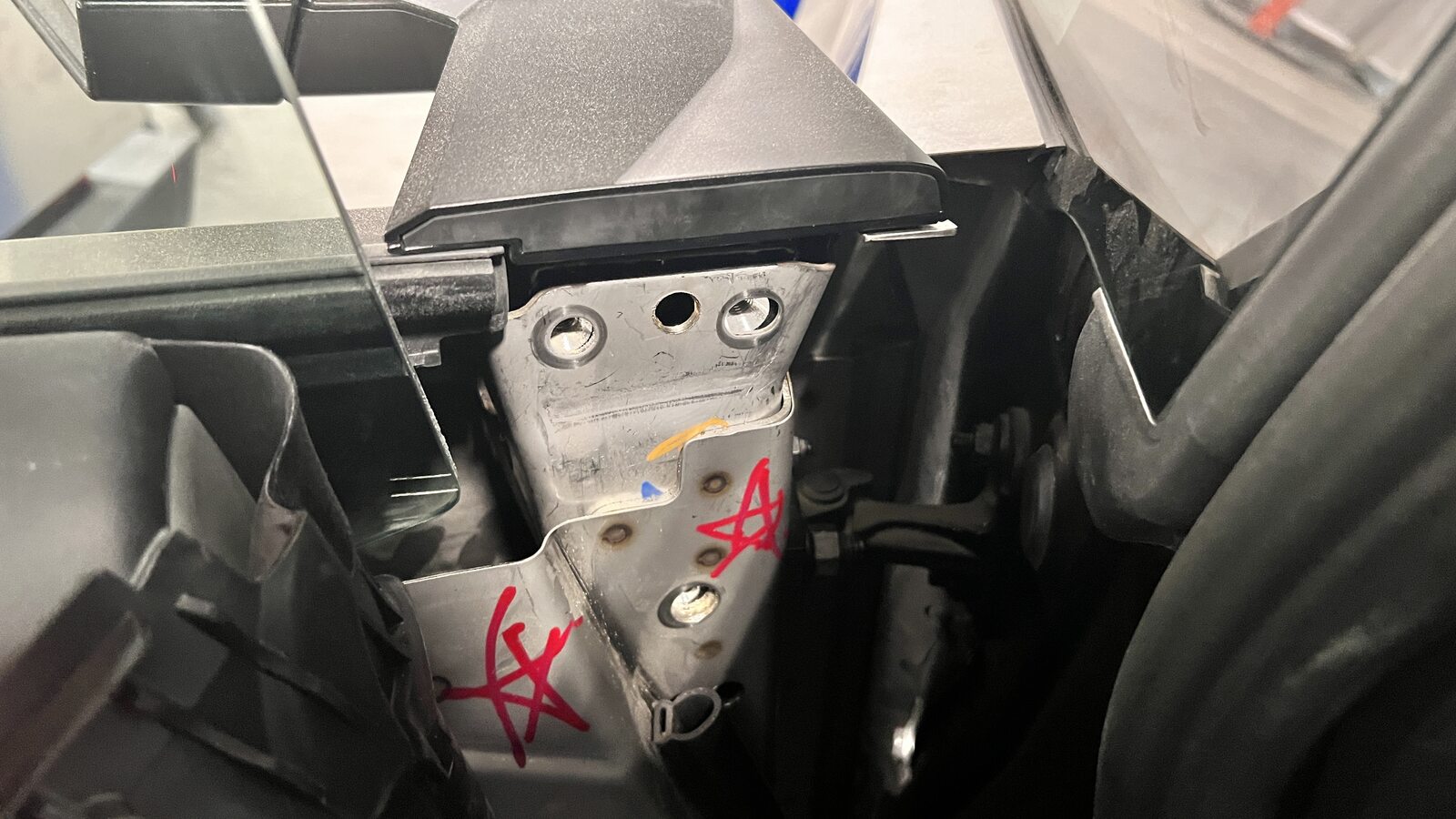

  30. Remove LH front door
    Informational PurposesAn informational icon, calling your attention
    Note

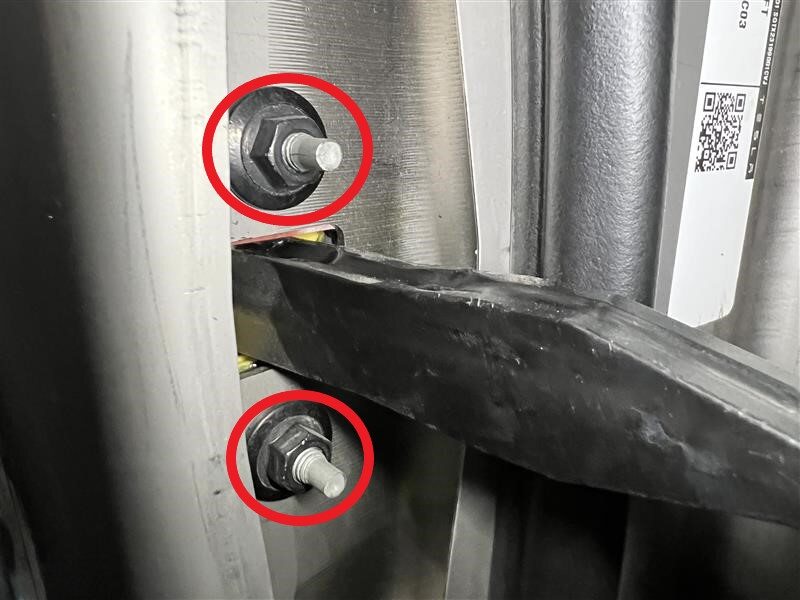

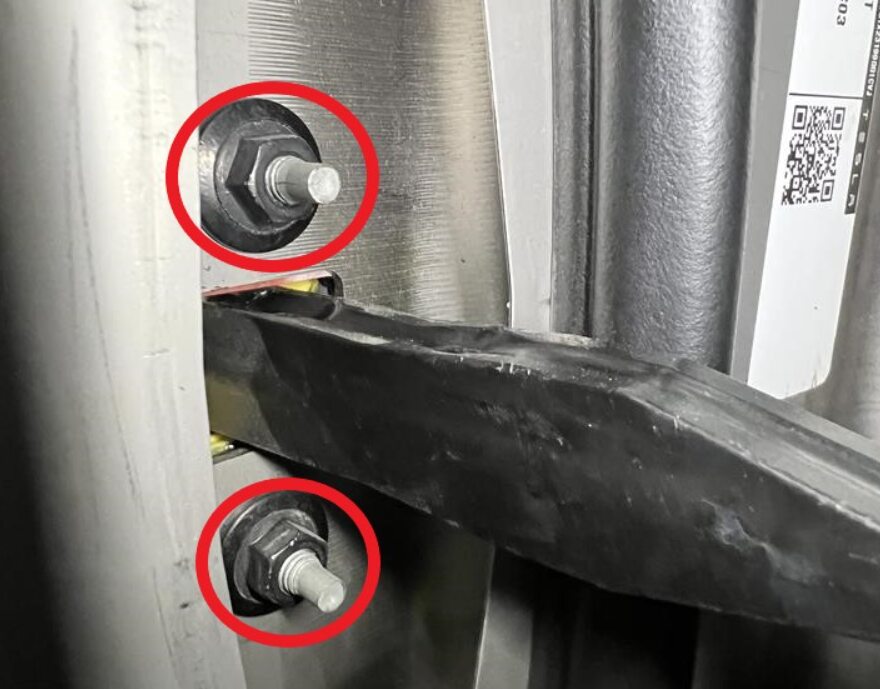

    2x nuts, 15mm, 38 Nm, Use assistance or rack holder to hold door
  31. Install LH front door
    Informational PurposesAn informational icon, calling your attention
    Note
    Align hinge with door stud

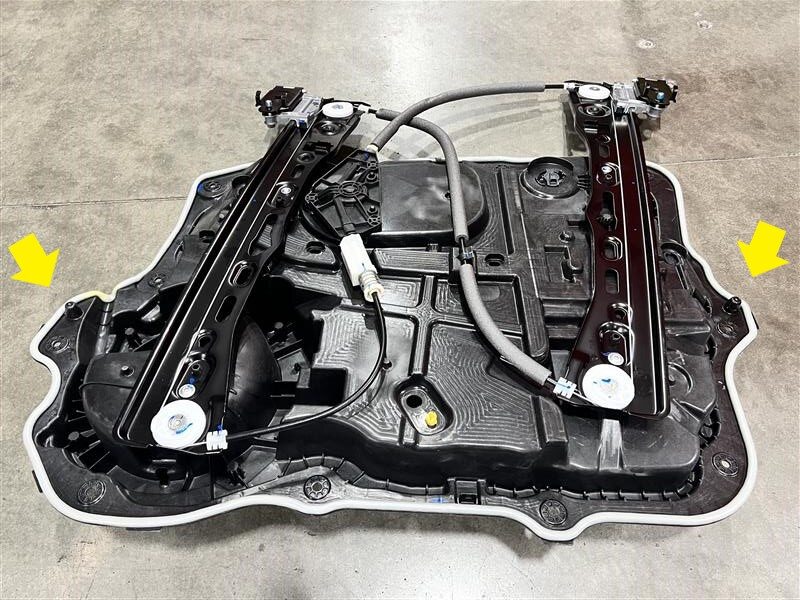

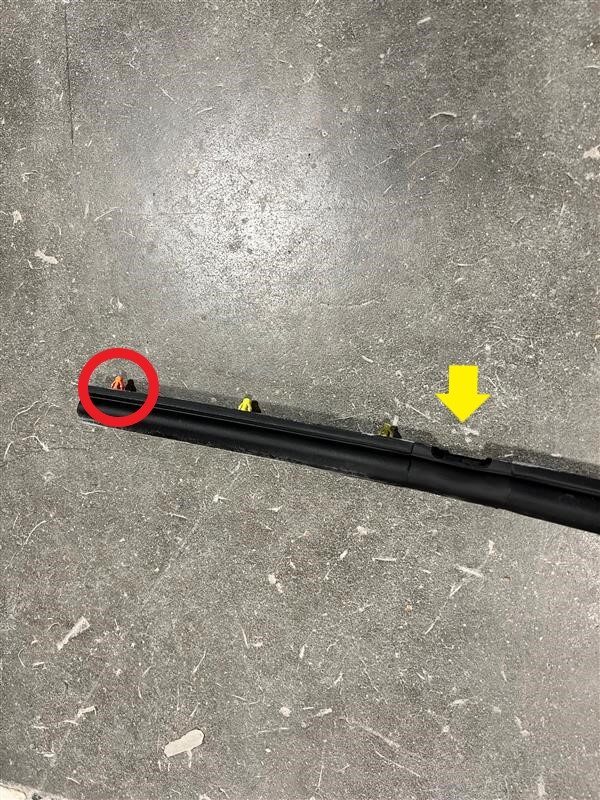

  32. Install LH front door secondary seal
    Informational PurposesAn informational icon, calling your attention
    Note
    26x clips, Installation begins with the orange clip on the outer edge of the door. There is a slit for the latch screws
  33. Install LH rear door overslam bumper
    Informational PurposesAn informational icon, calling your attention
    Note
    2x tabs
  34. Install LH front door mirror assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    3x bolts, T40, 18 Nm, Lower mirror assembly straight down, Ensure harness is accessible at door plug before securing bolts, Move belt seal as required for access, Install new bolts
  35. Install LH front door latch
    Informational PurposesAn informational icon, calling your attention
    Note
    1x grommet, 1x connector, 3x bolts, T30, 13 Nm, Engage locking tab
  36. Install LH front door presenter
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, T30, 13 Nm
  37. Install LH front closure device harness
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips, 1x grommet
  38. Connect LH front closure harness onto door presenter
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  39. Connect LH front door latch harness connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Secure locking tab

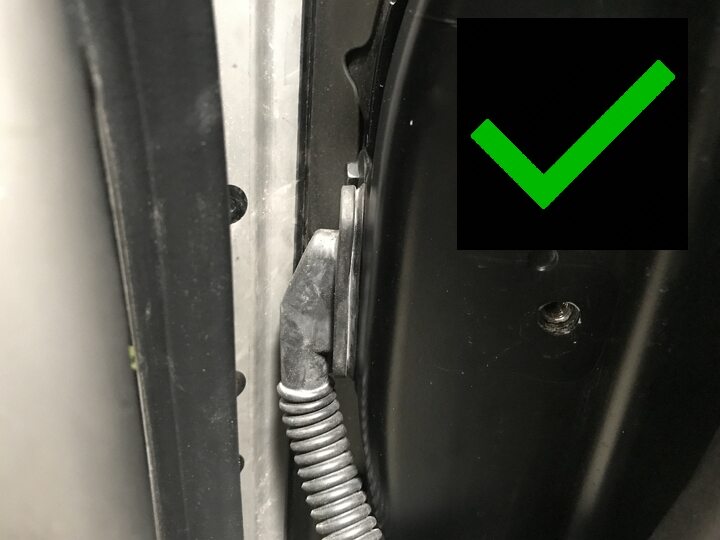

  40. Partially install LH front door harness
    Informational PurposesAn informational icon, calling your attention
    Note
    1x close out panel, 1x grommet, 4x clips, 1 connector, Use tab on rubber grommet to correctly seat the harness.
  41. Install LH front door check strap and check strap close out
    Informational PurposesAn informational icon, calling your attention
    Note
    2x nuts, 10mm, 8.5Nm, 1x Bolt, 13mm, 35 +/- 2 Nm, Rotate check strap 90 degrees to install, Slide closeout over check strap, Install fasteners then secure closeout, Some vehicles have T40 fastener securing check strap to body, Fastener must be replaced with 1623708-00-A
  42. Install LH front door glass run channel
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 8 Nm
  43. Install LH front door closeout panel
    Informational PurposesAn informational icon, calling your attention
    Note
    11x bolts, 8mm, 4 Nm, 2x bolts, 10mm, 12 Nm
  44. Secure LH front door harness onto close out panel
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips, 5x connectors
  45. Install LH front door glass
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 13 Nm, Hand tight, Torque at a later step, Watch for slippage of glass off mount
  46. Install LH front outer waist belt seal
    Informational PurposesAn informational icon, calling your attention
    Note
    Press firmly,
  47. Install LH front inner waist belt seal
    Informational PurposesAn informational icon, calling your attention
    Note
    6x rubber datums on either side
  48. Connect FRL connector then connect MV battery connector
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors, Connect FRL connector then secure locking tab, Position lever to secure MV battery connector then slide eCPA to right, Early production trucks may have black FRL connector, If power cycling vehicle then ensure at least 60 seconds has passed since powering down
  49. Install rear underhood apron
    Informational PurposesAn informational icon, calling your attention
    Note
    9x clips, Adjust windshield seal as required
  50. Close powered front trunk
    Informational PurposesAn informational icon, calling your attention
    Note
    Via exterior switch or UI
  51. Manually release the door latch
    Informational PurposesAn informational icon, calling your attention
    Note
    Pull manual release cable away from vehicle to unlatch
  52. Close LH front door

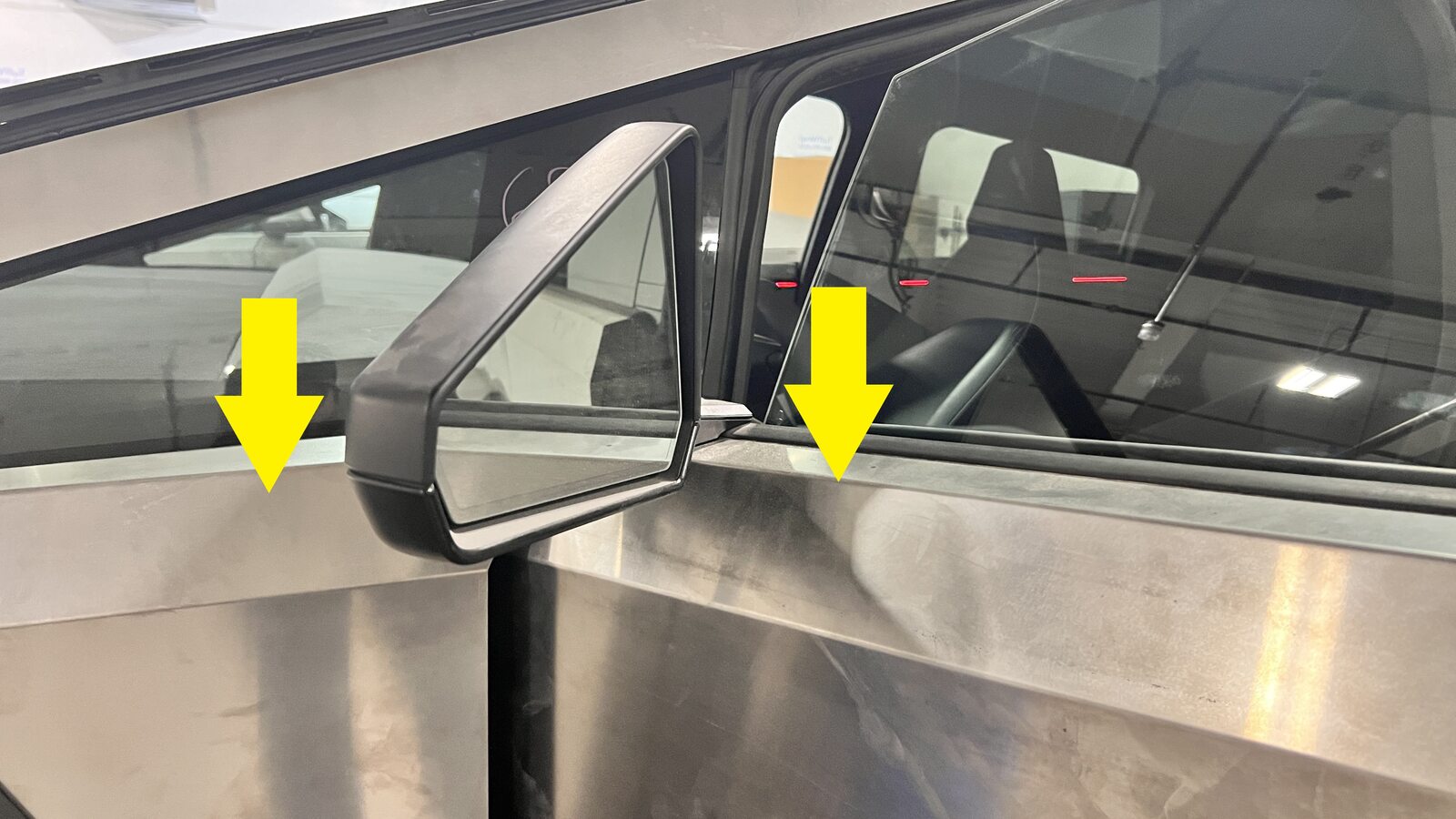

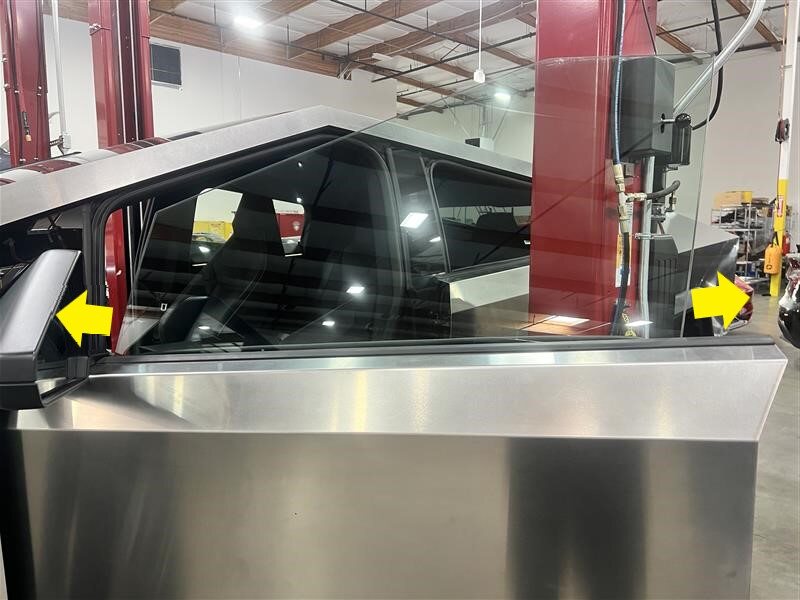

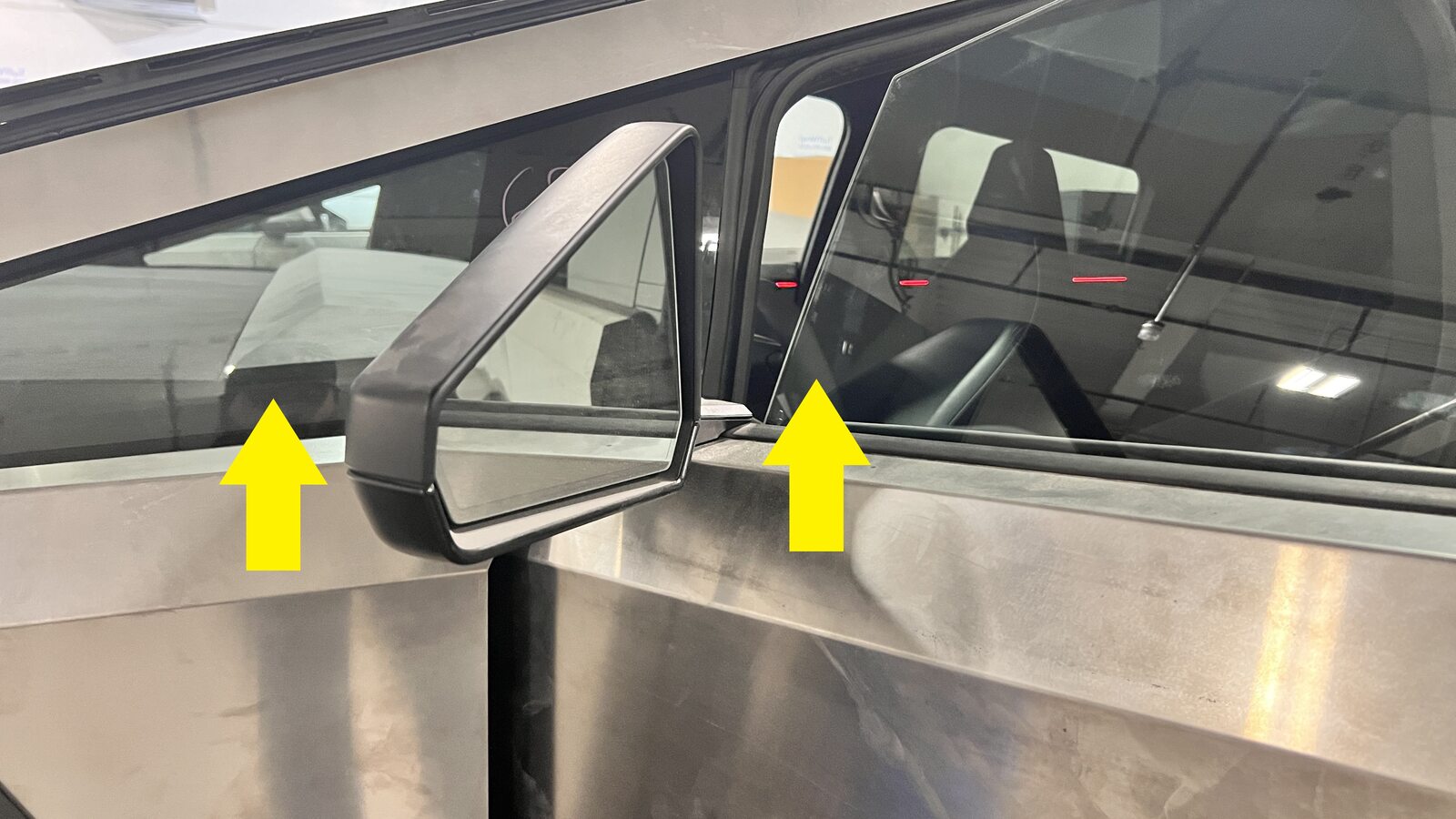

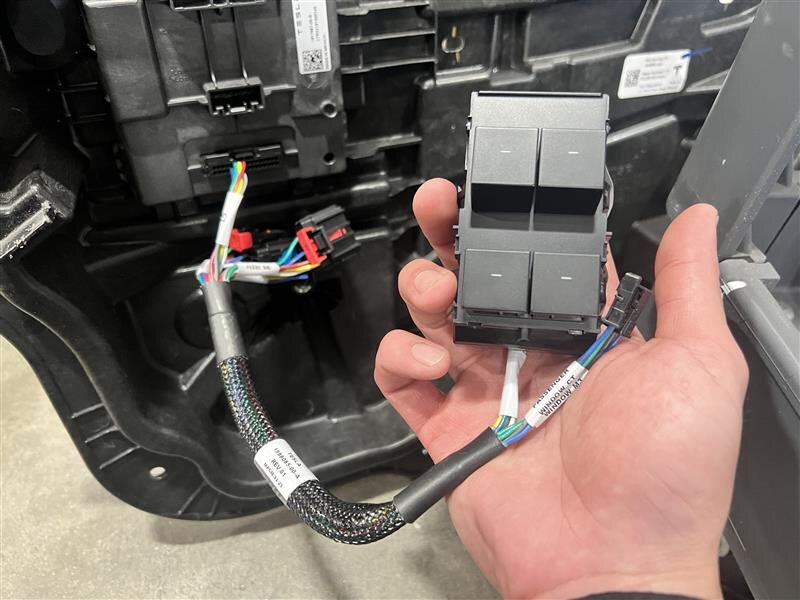

  53. Check and adjust gap and flushness
    Informational PurposesAn informational icon, calling your attention
    Note
    Connect external window switch to help with adjustment, Reference CVIS for specification https://quality.prd2.dt.teslamotors.com/
  54. Open LH front door
    Informational PurposesAn informational icon, calling your attention
    Note
    Push LH B-pillar door trigger to release
  55. Torque fasteners for window regulator
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 13Nm
  56. Install LH front door grommets
    Informational PurposesAn informational icon, calling your attention
    Note
    4x grommets

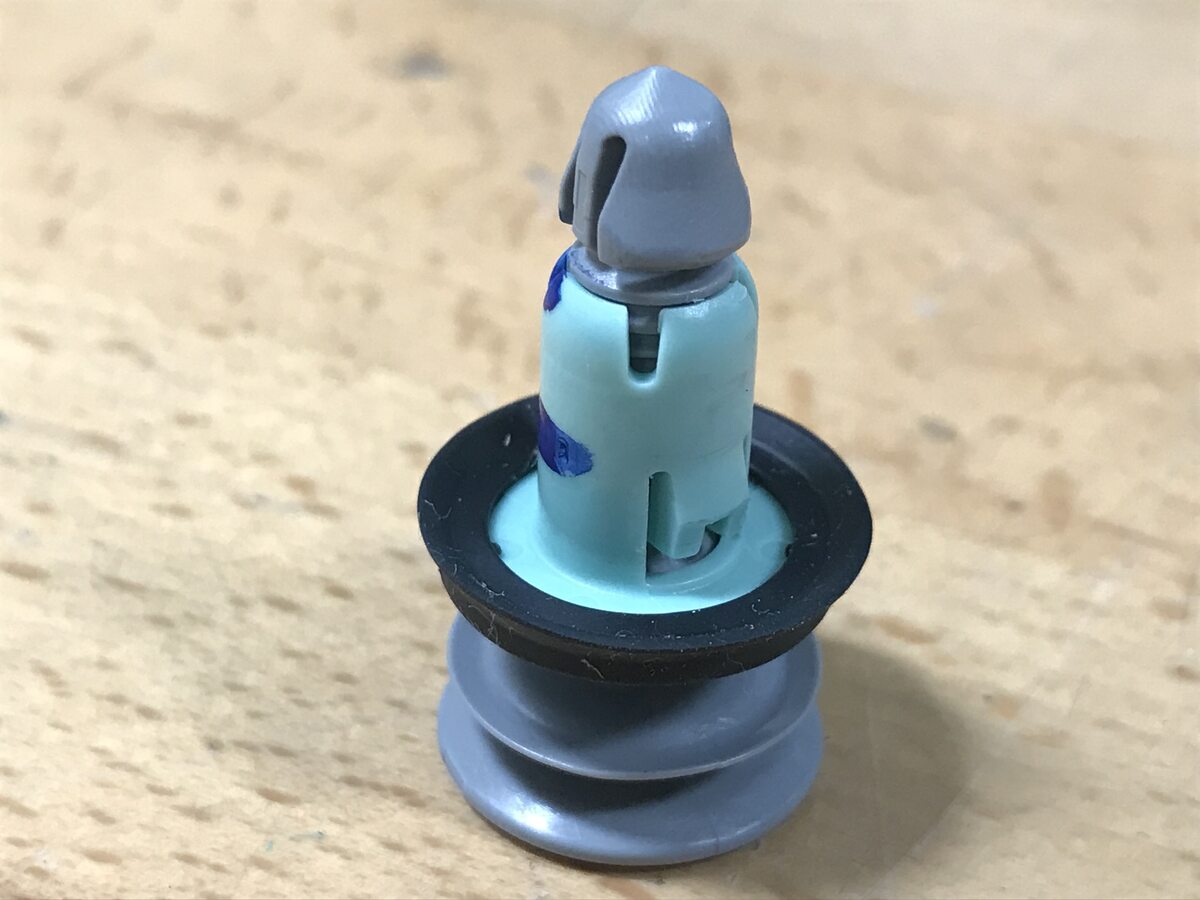

  57. Replace LH front door trim clips
    Informational PurposesAn informational icon, calling your attention
    Note
    12x clips, Remove and discard clips
  58. Install LH front door trim
    Informational PurposesAn informational icon, calling your attention
    Note
    14x clips, 1x connector, 1x manual release cable, Replace any missing or damaged clips
  59. Install bolts securing LH front door trim
    Informational PurposesAn informational icon, calling your attention
    Note
    3x bolts, 8mm, 7 Nm
  60. Replace LH front lower beltline assembly clips
    Informational PurposesAn informational icon, calling your attention
    Note
    6x clips, Remove and discard clips
  61. Install LH front lower beltline assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    18x clips, 2x connectors, Replace any missing or damaged clips
  62. Calibrate window
    Informational PurposesAn informational icon, calling your attention
    Note
    Press and hold down selected window for 15 seconds, raise window and hold for 15 seconds, Test window by hard pressing to see if auto roll function works
  63. Raise all 4 windows
  64. Close LH front door
  65. Check LF door gap and flushness
    Informational PurposesAn informational icon, calling your attention
    Note
    Verify door alignment. Readjust if needed. Reference current specifications in CVIS.
