Hydraulic Control Unit (Remove and Replace)

Correction code 3310007012 FRT 3.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
  1. Open the LH front door and lower the LH front window.
  2. Raise and support the vehicle. See Raise Vehicle - 2 Post Lift.
  3. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Install).
  4. Remove the frunk assembly. See Frunk Assembly (Remove and Install).
  5. Place the vehicle into Service Mode. See Service Mode.
  6. Unlock the vehicle Gateway. See Gateway (Unlock).
  7. On the vehicle touchscreen, navigate to Service Mode > Thermal > Refrigerant System.
  8. Touch Start Thermal Fill Drain (Coolant and Refrigerant) and allow the routine to complete.
    Informational PurposesAn informational icon, calling your attention
    Note
    Allow the routine to complete. Make sure the routine is successful.
  9. Disconnect MV power. See Disconnect MV Power (Modify).
  10. Remove all 4 wheels. See Wheels - Wheel (Remove and Install).

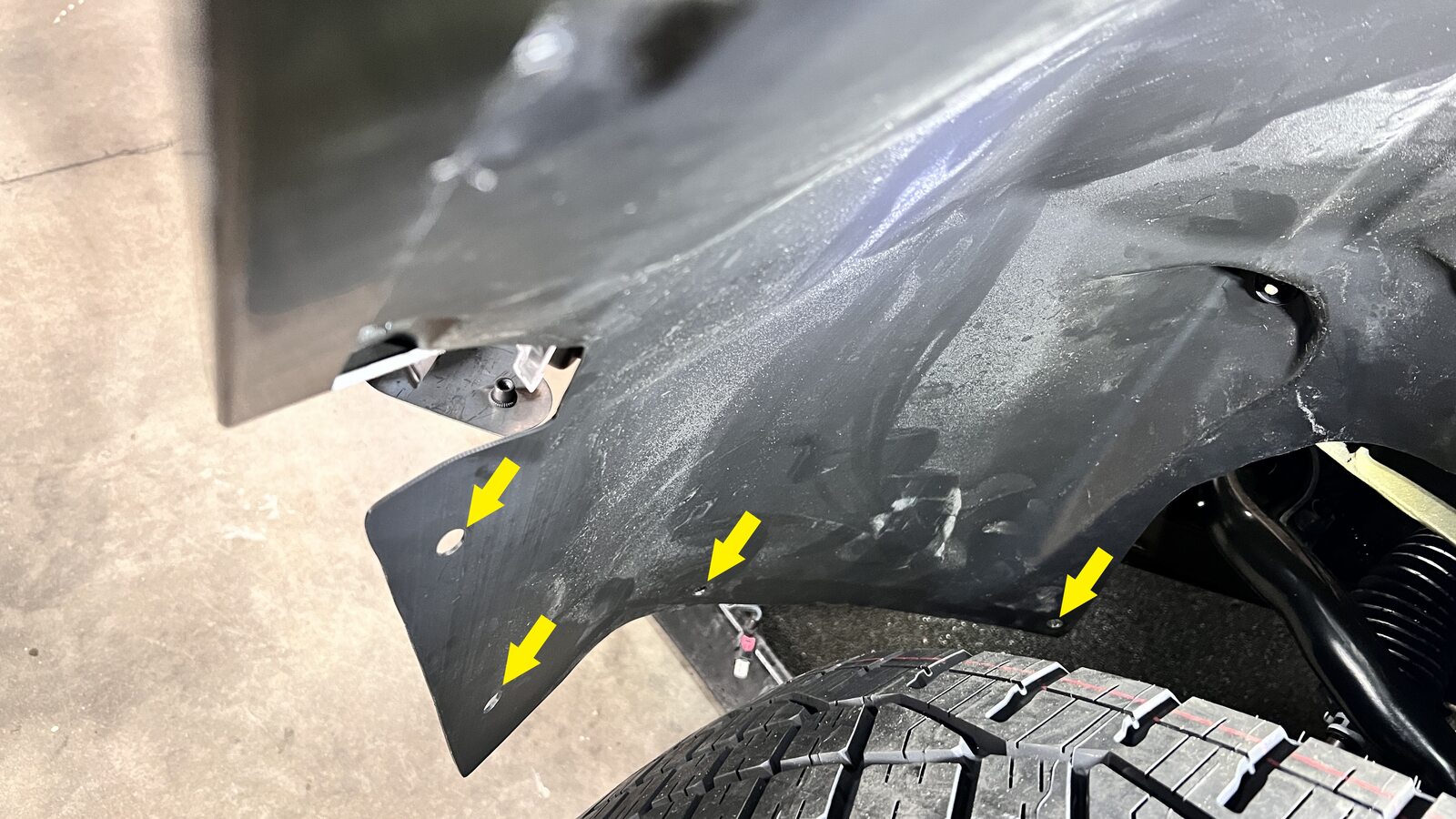

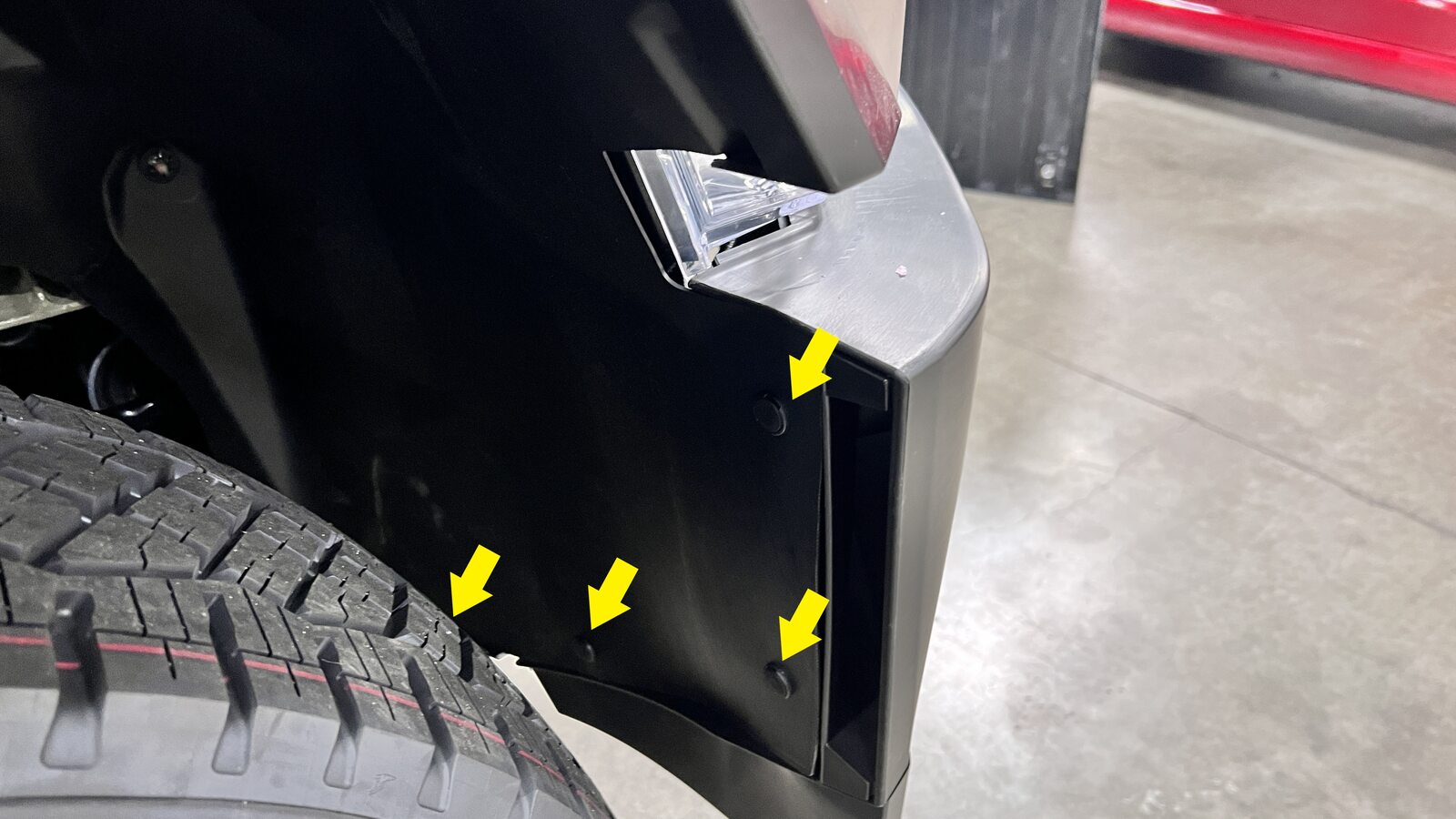

  11. Release clips securing front portion of the LH front wheel house liner
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips
  12. Remove LH fascia fastener
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 10mm, 6 Nm, Pull wheel liner back for access

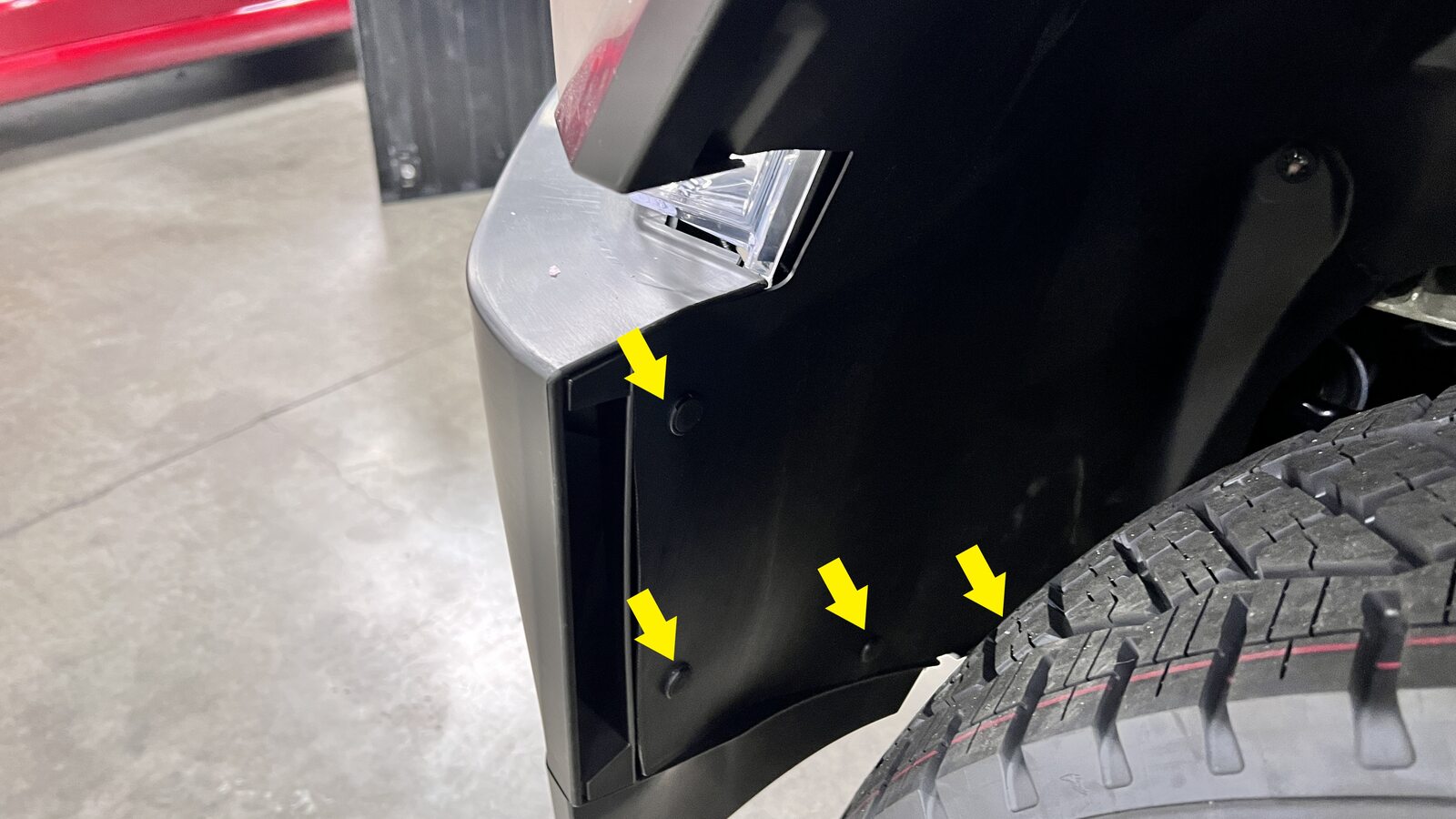

  13. Release clips securing front portion of the LH front wheel house liner
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips
  14. Remove front fascia LH side fastener
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 10mm, 6 Nm, Pull wheel liner back for access
  15. Release clips securing front portion of the RH front wheel house liner
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips

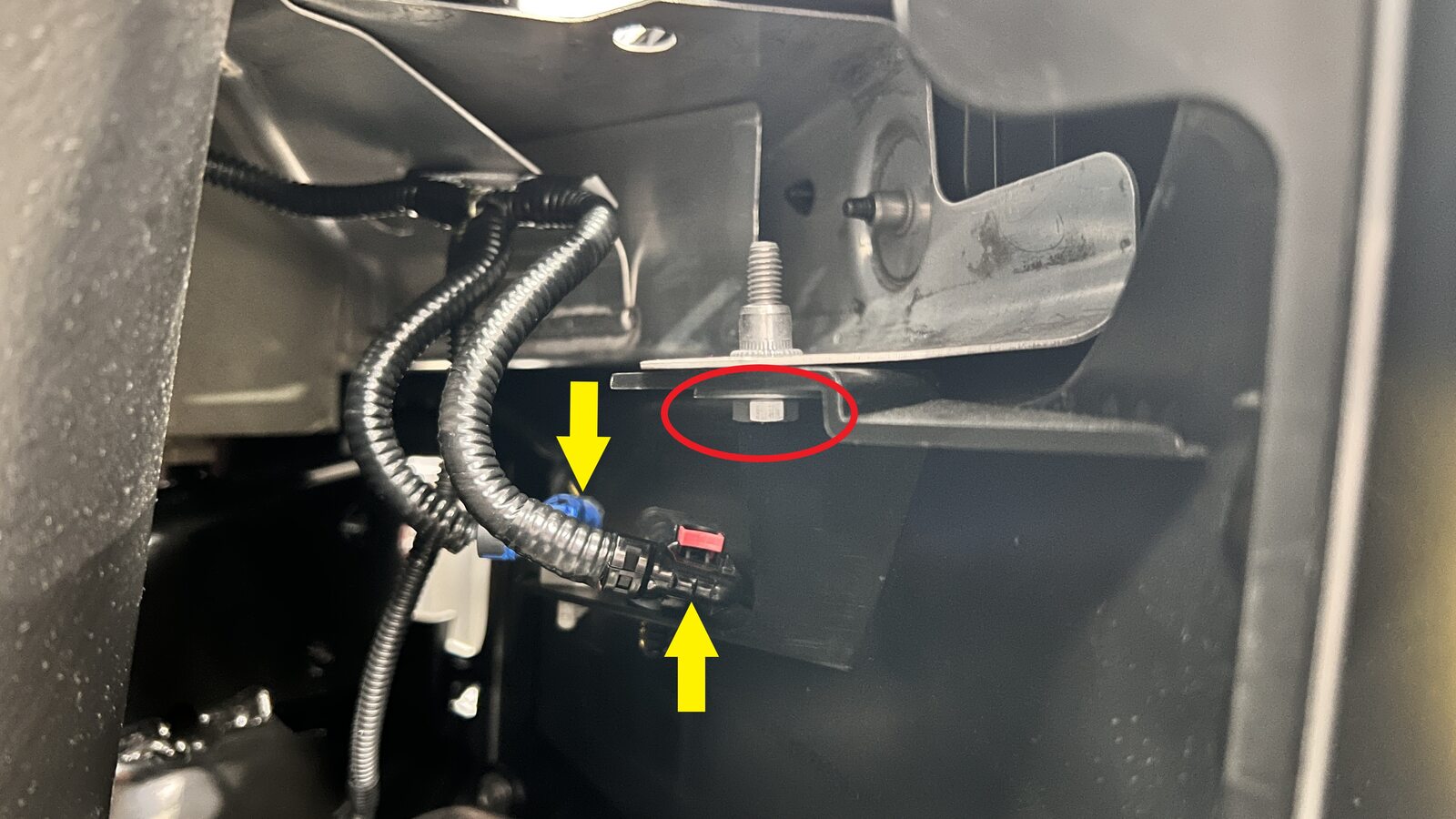

  16. Remove front fascia RH side fastener and connectors
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 10mm, 6 Nm, 1x clip, 3x connectors, Pull wheel liner back for access, Pull red locking tab to release, Do not push down on locking tab
  17. Raise vehicle fully
    Informational PurposesAn informational icon, calling your attention
    Note
    Set to a comfortable working height, Lower to locks, Ensure locks engage on both sides to prevent tilting

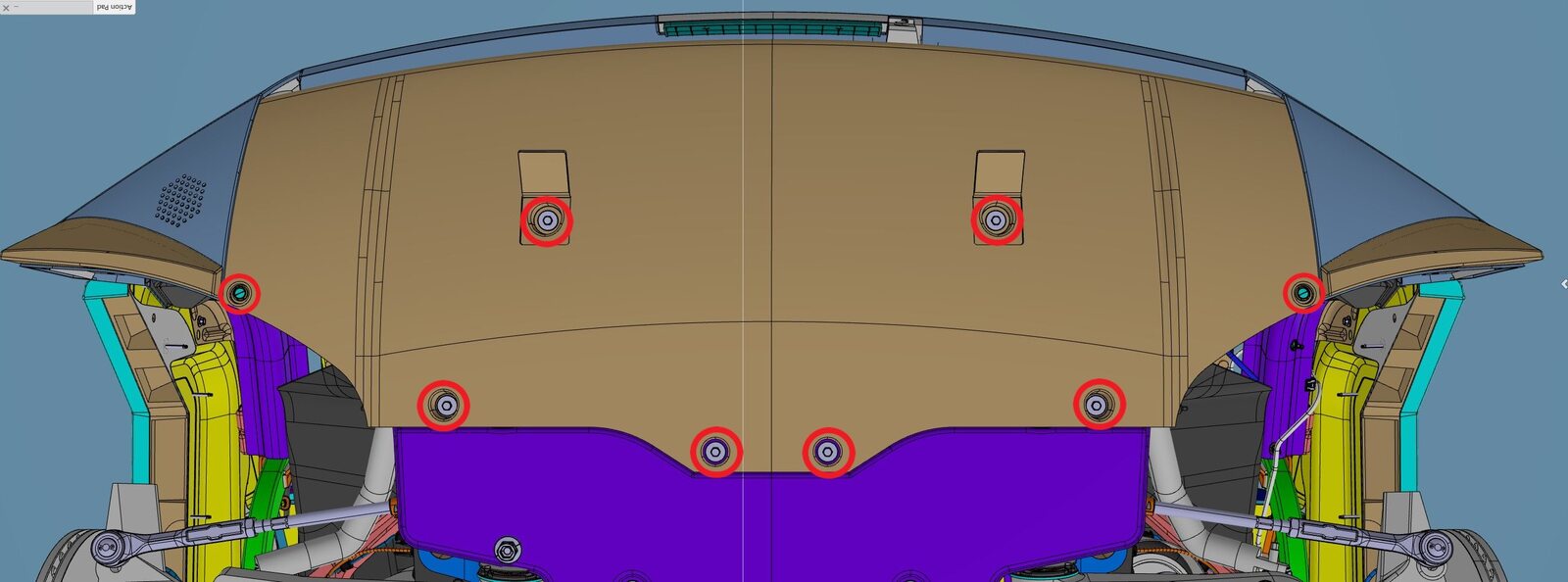

  18. Remove lower valence fasteners
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips, 2x covers, 6x bolts, 10mm, 6 Nm, Release covers to expose bolts
  19. Remove the front aeroshield. See Aeroshield - Front (Remove and Install).

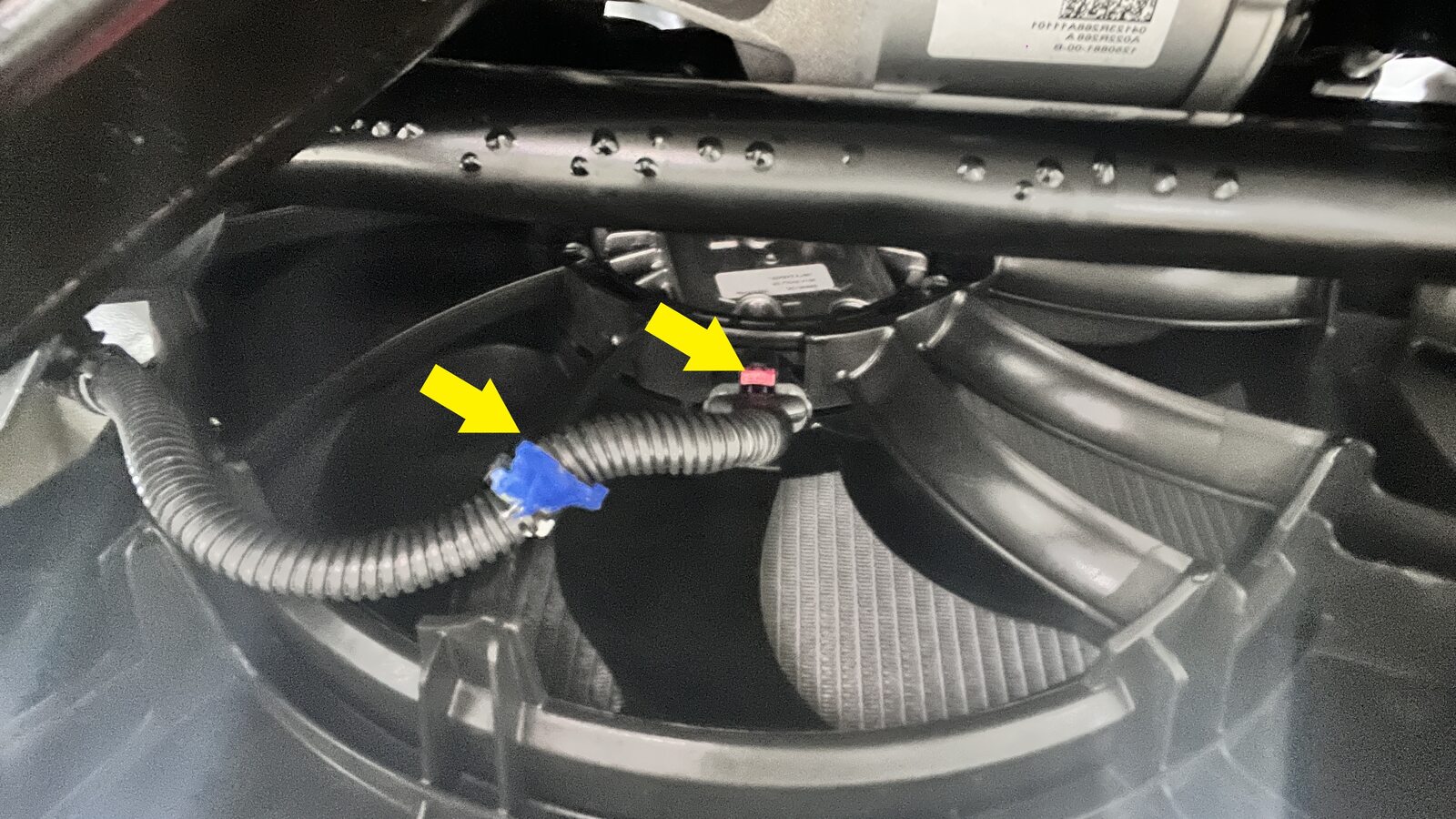

  20. Disconnect CFM connectors
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors
  21. Lower vehicle until tires are touching the ground
    Informational PurposesAn informational icon, calling your attention
    Note
    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered

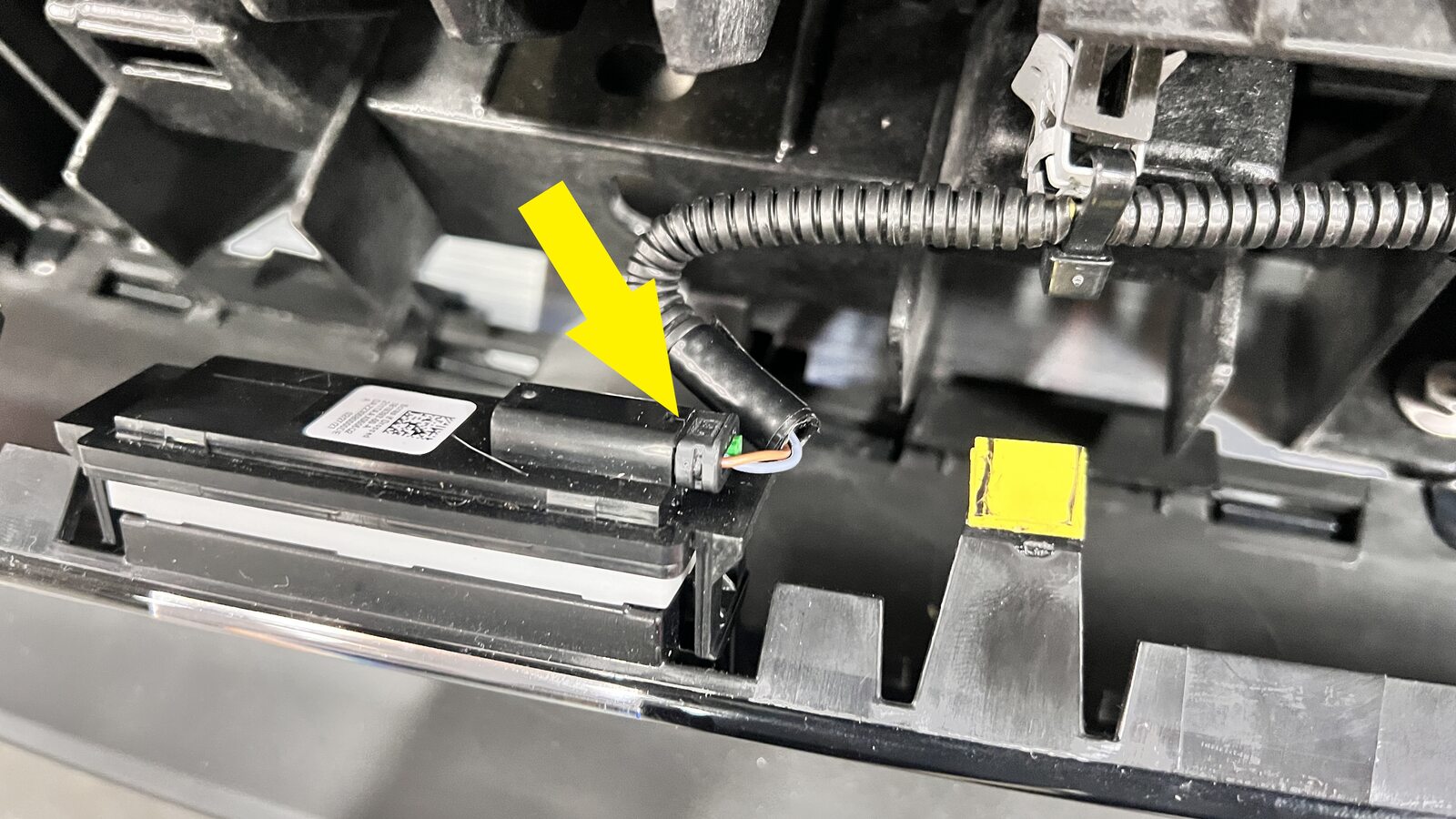

  22. Remove center applique
    Informational PurposesAn informational icon, calling your attention
    Note
    8x tabs, 1x connector, Release upper 4 tabs by pushing down then gently pull away, Release frunk release trigger connector

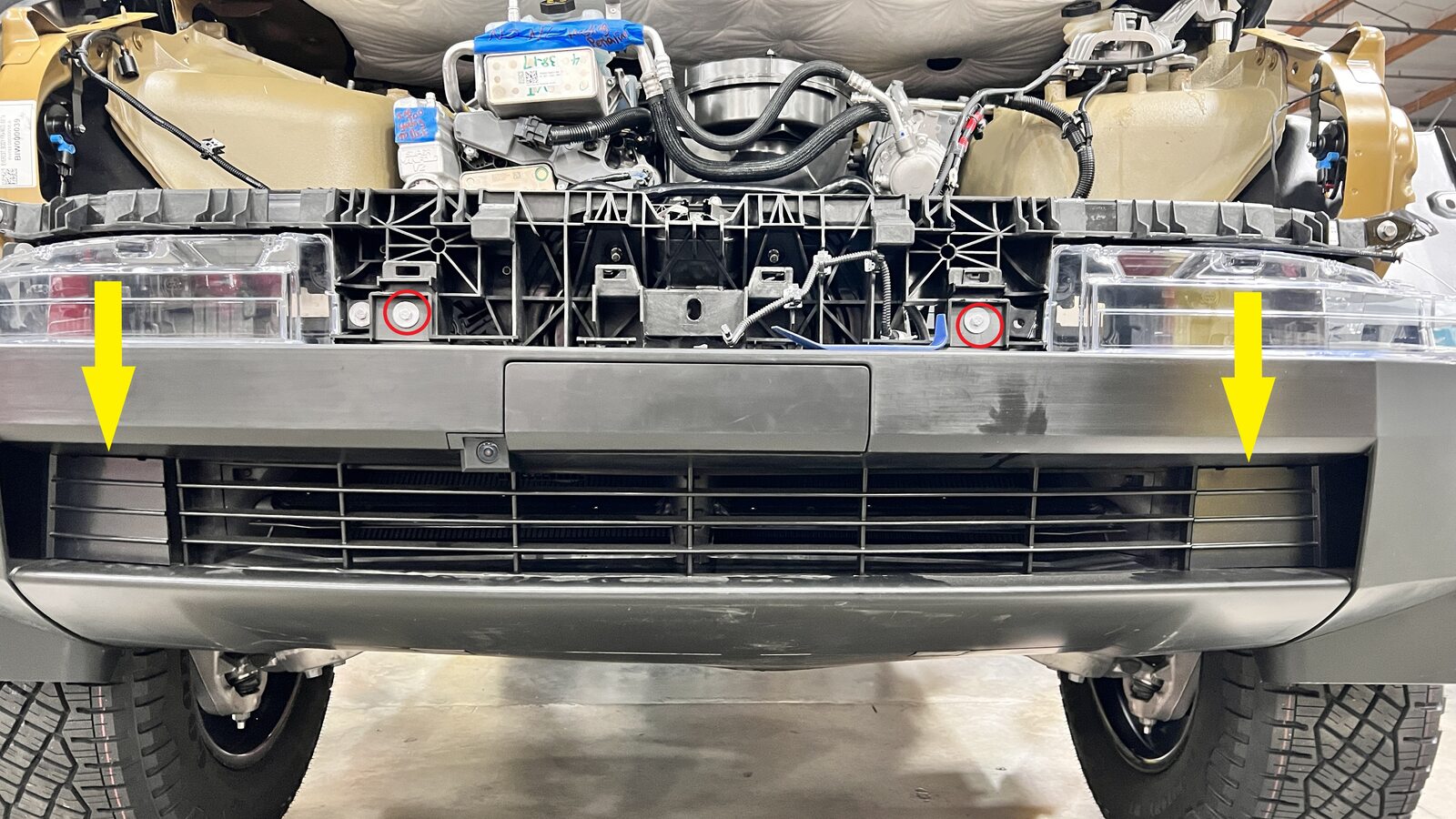

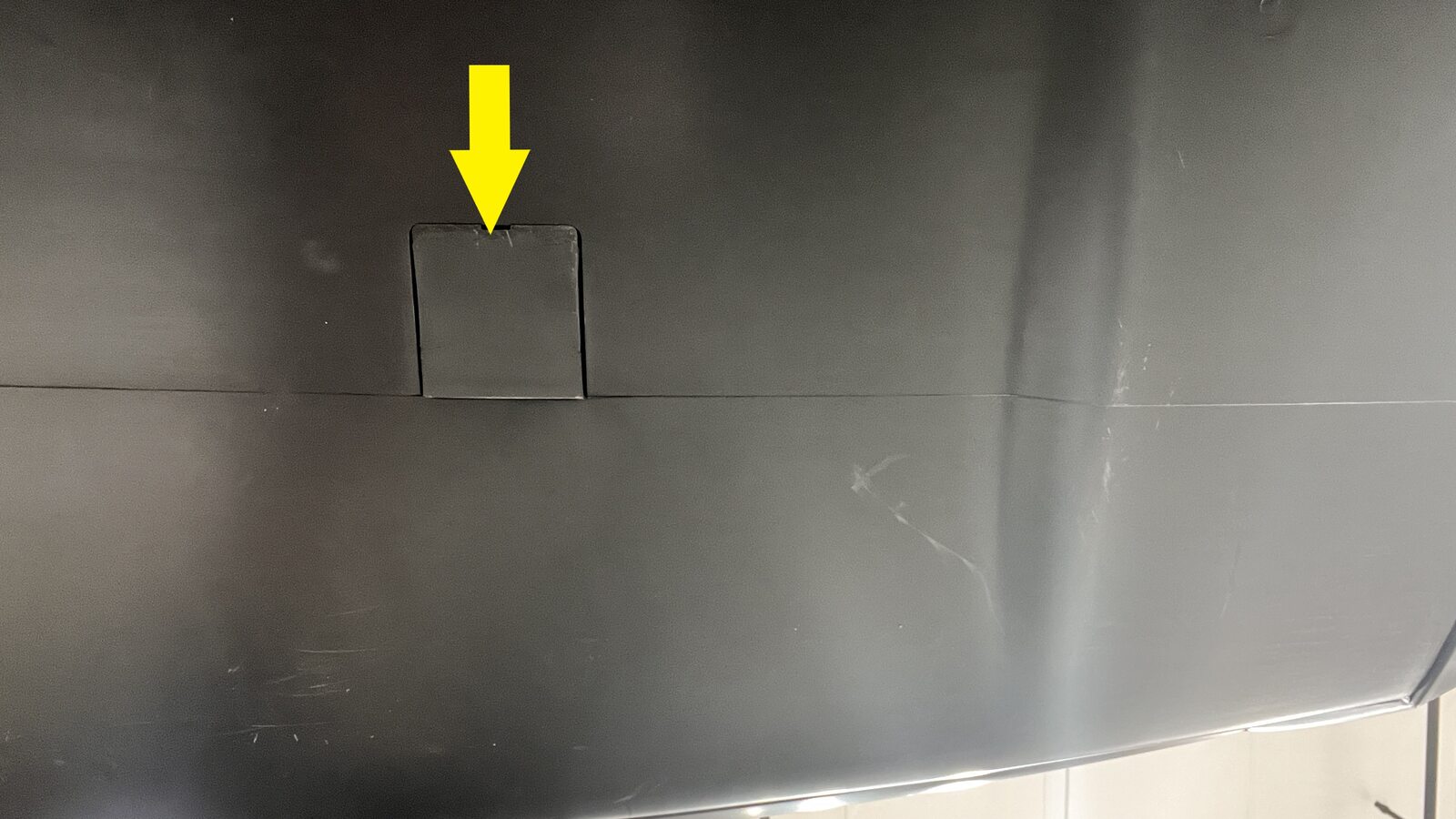

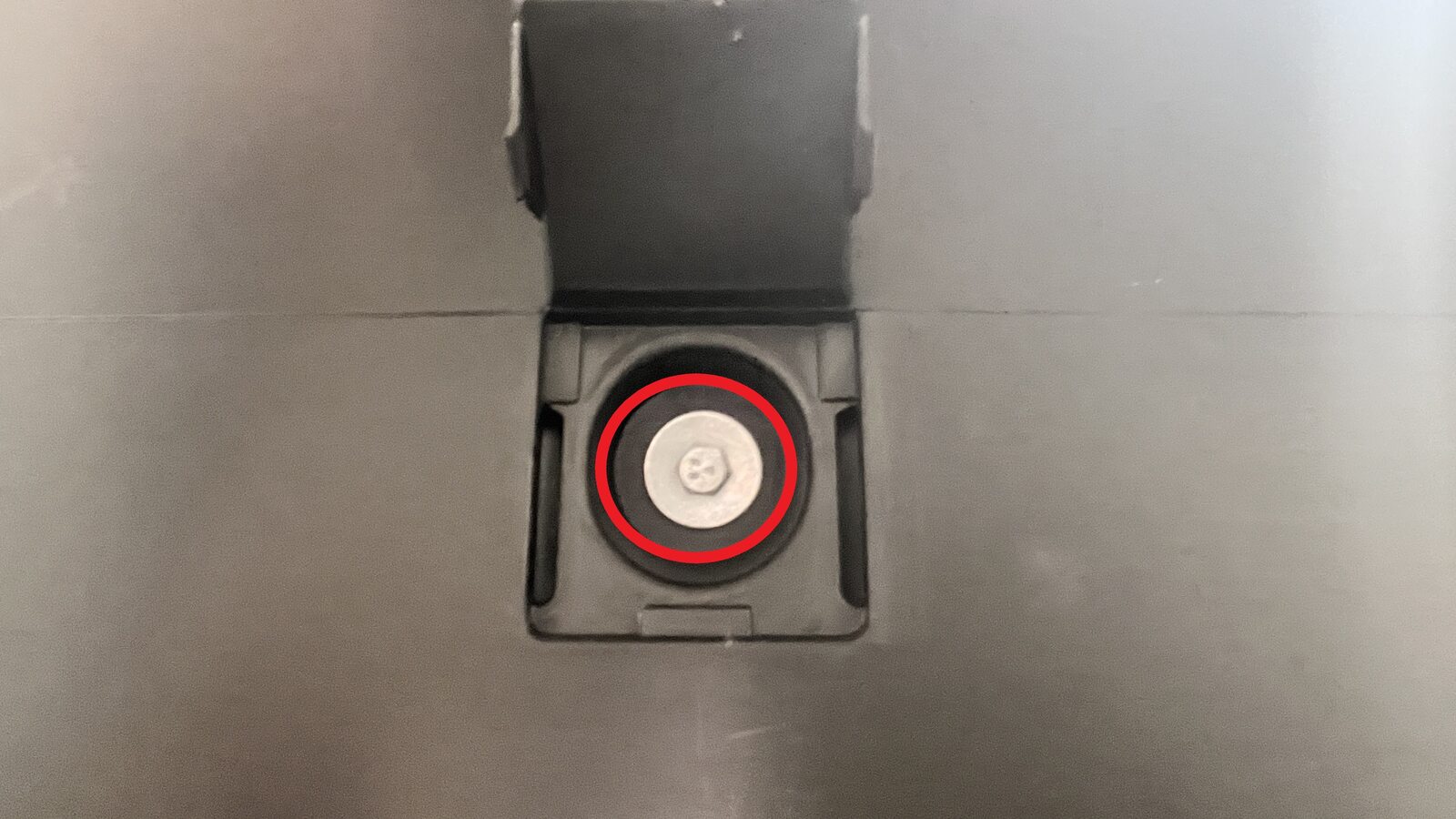

  23. Remove front fascia fasteners
    Informational PurposesAn informational icon, calling your attention
    Note
    2x covers, 4x bolts, 10mm, 4 Nm, Remove tow hook covers to expose bolts

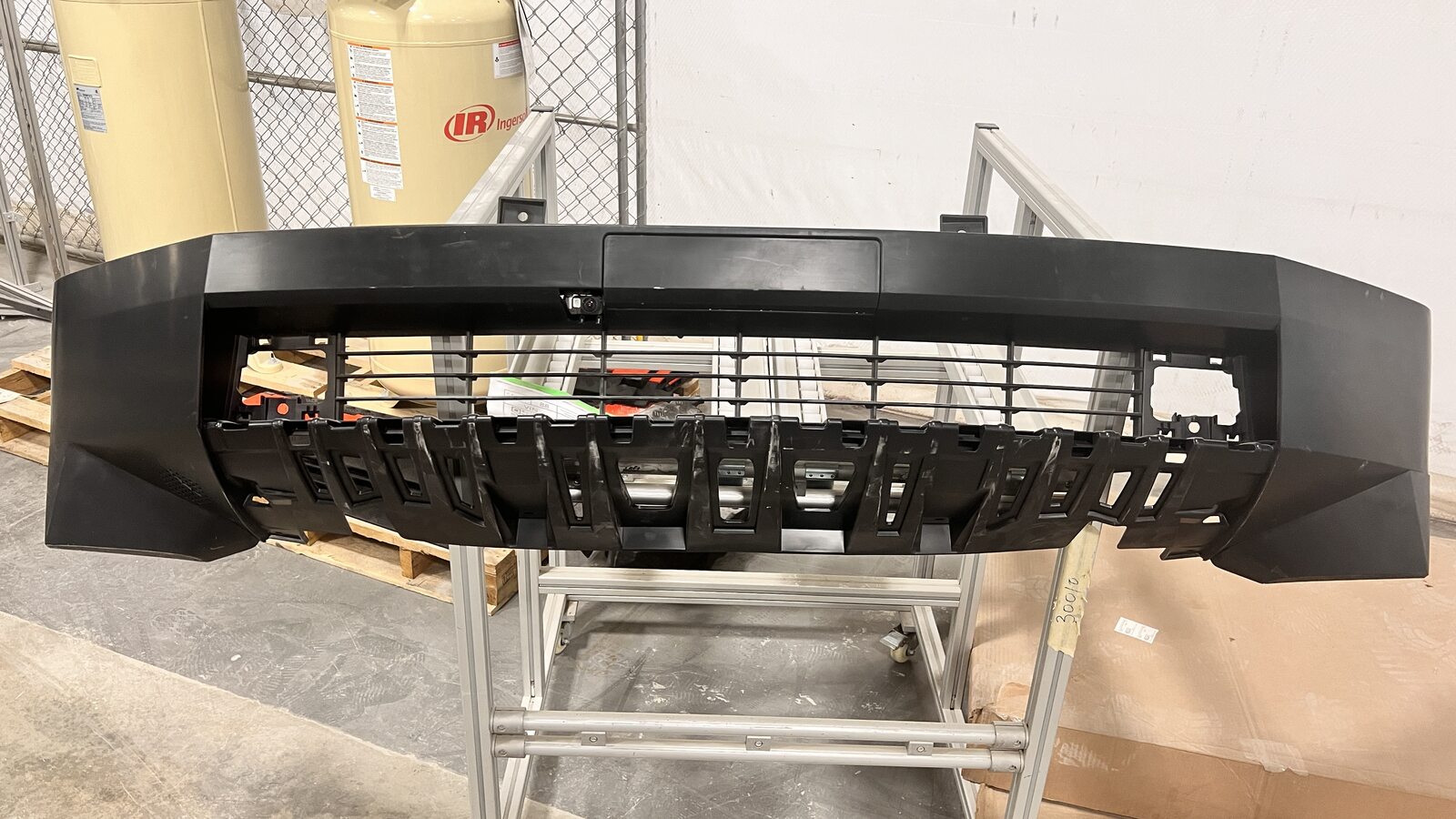

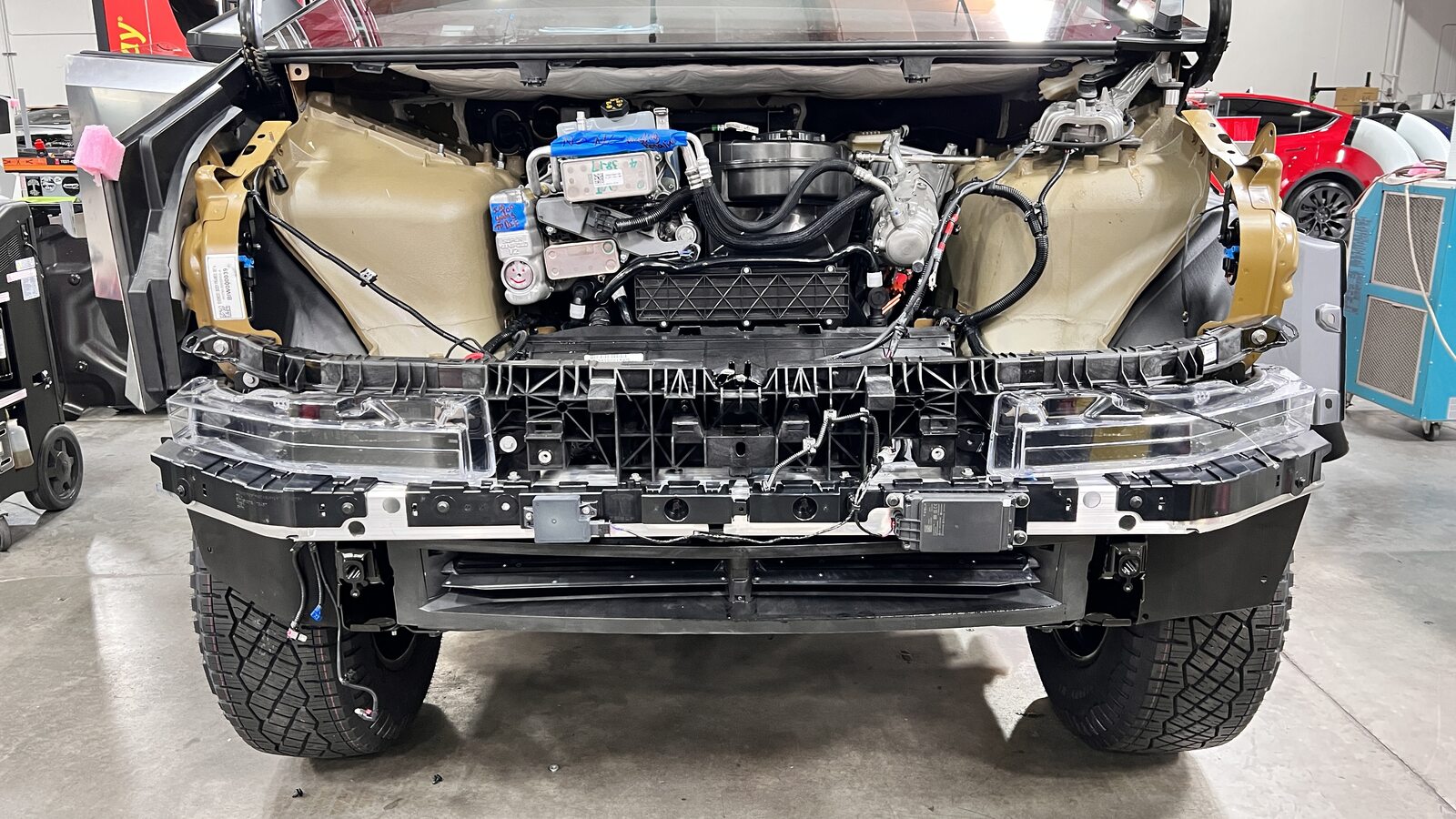

  24. Remove front lower fascia assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    Place on suitable protective surface

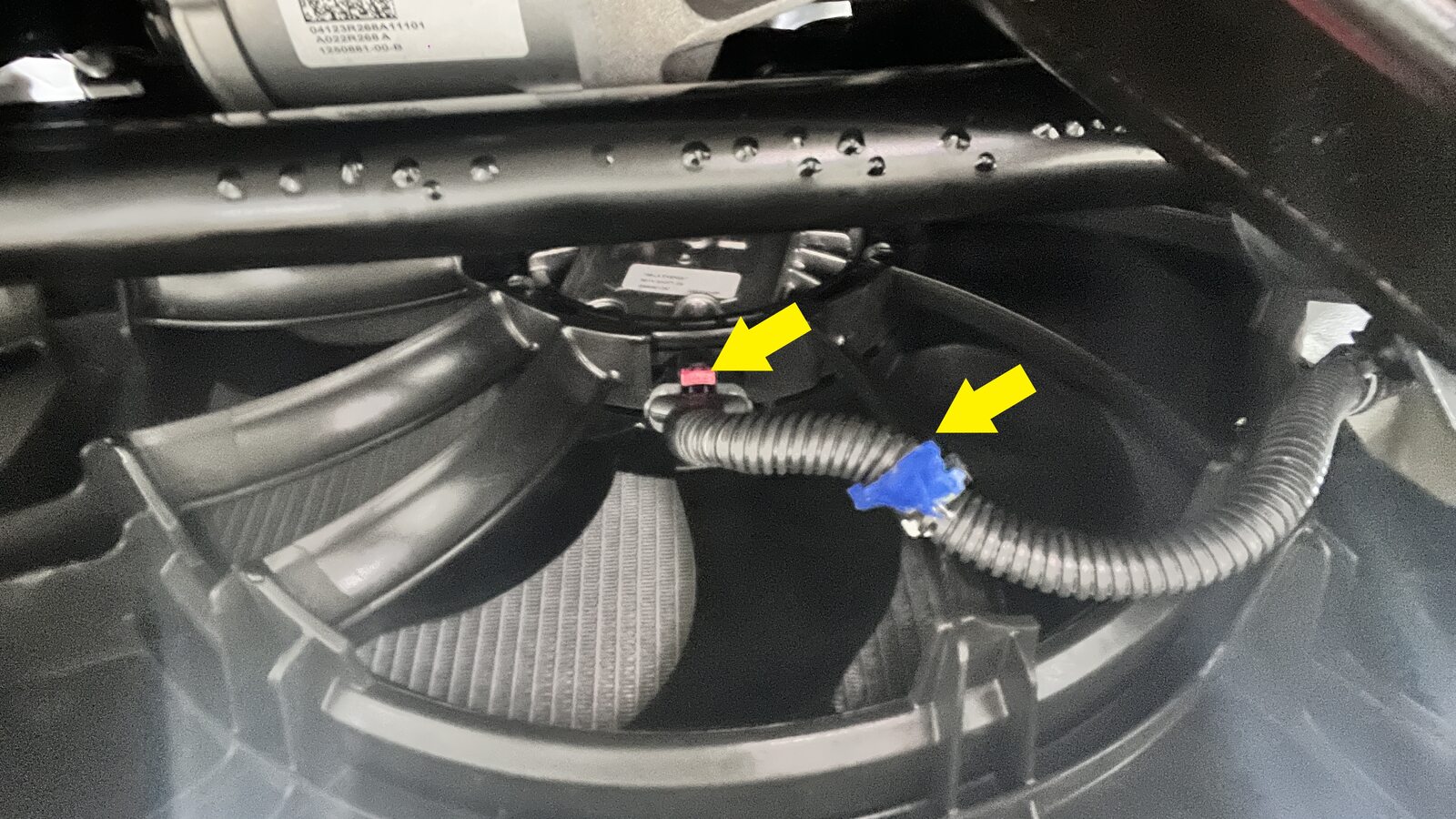

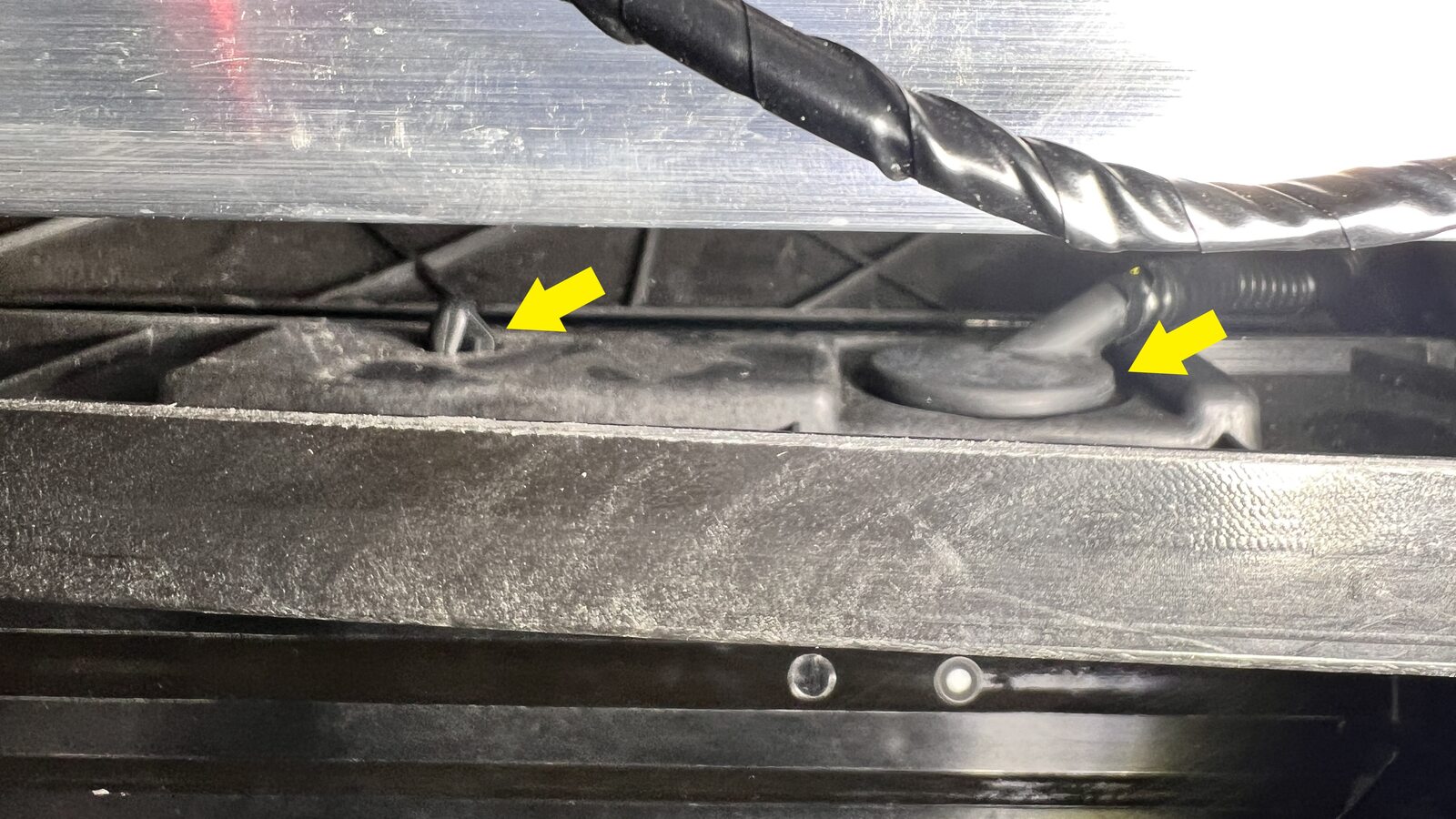

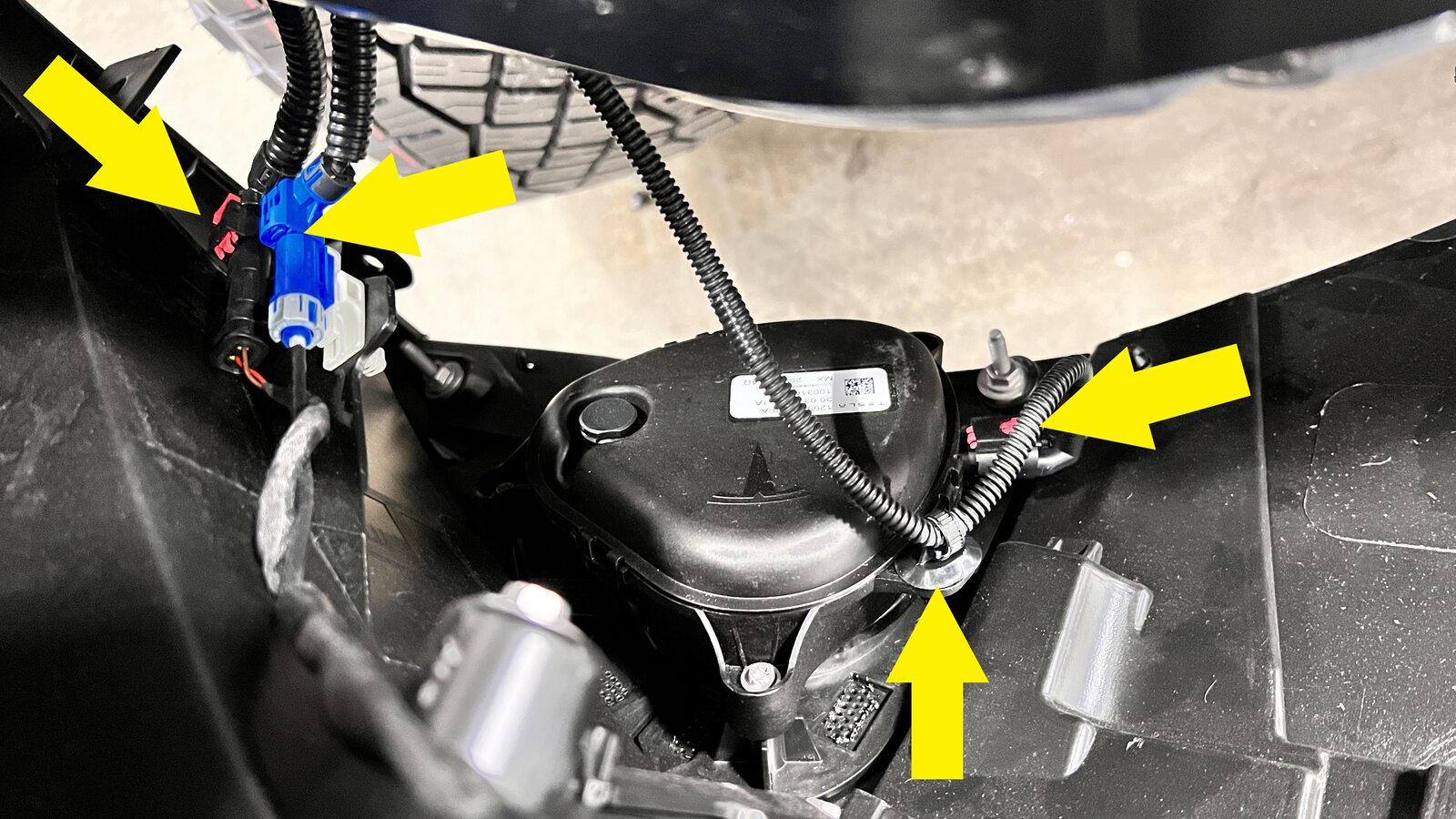

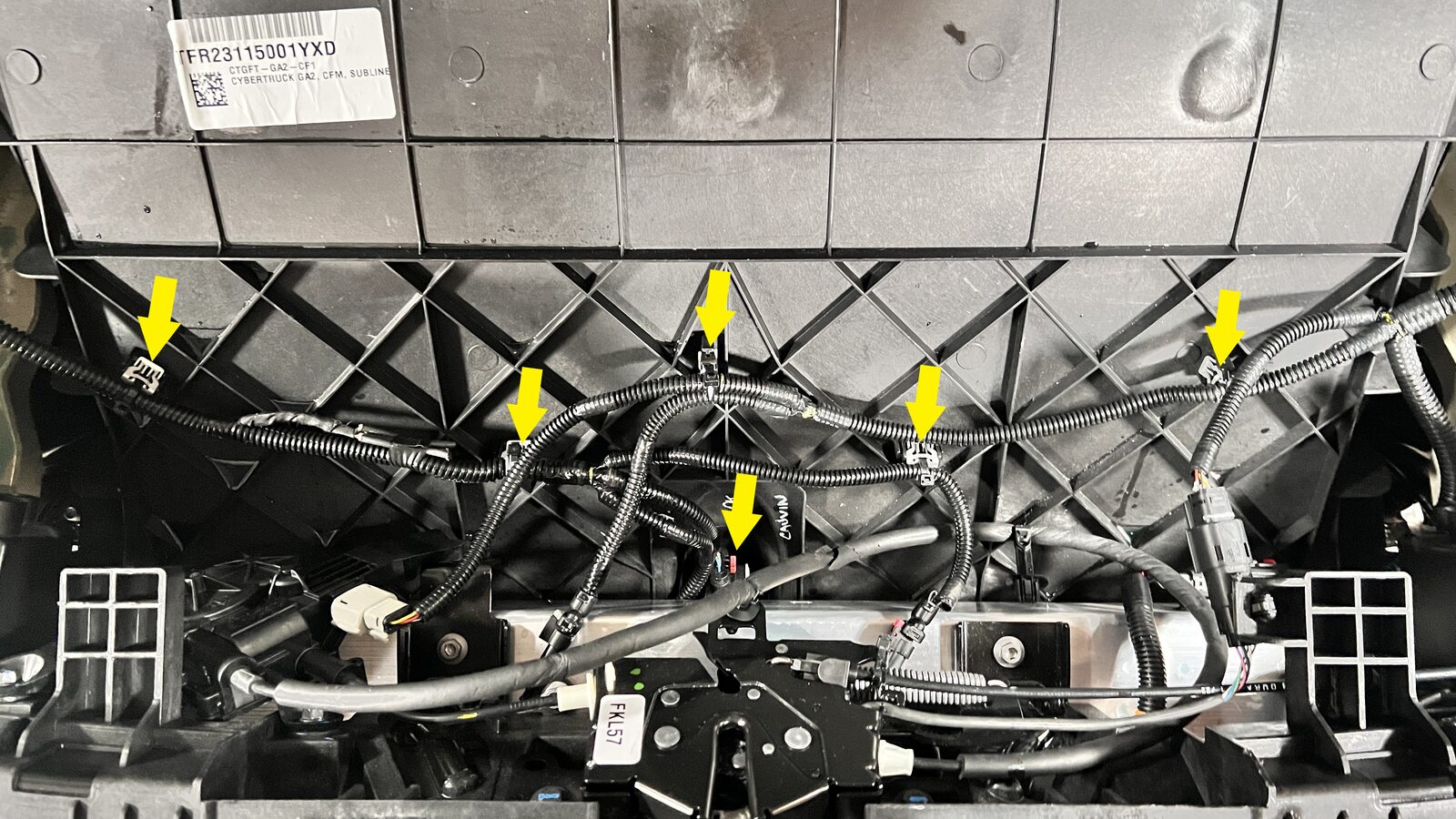

  25. Release harness from CFM
    Informational PurposesAn informational icon, calling your attention
    Note
    1x grommet, 2x connectors, 5x harness clips, Pull red locking tab to disengage louver connector, Release temperature sensor then disconnect, Release grommet and pull harness through from frunk area

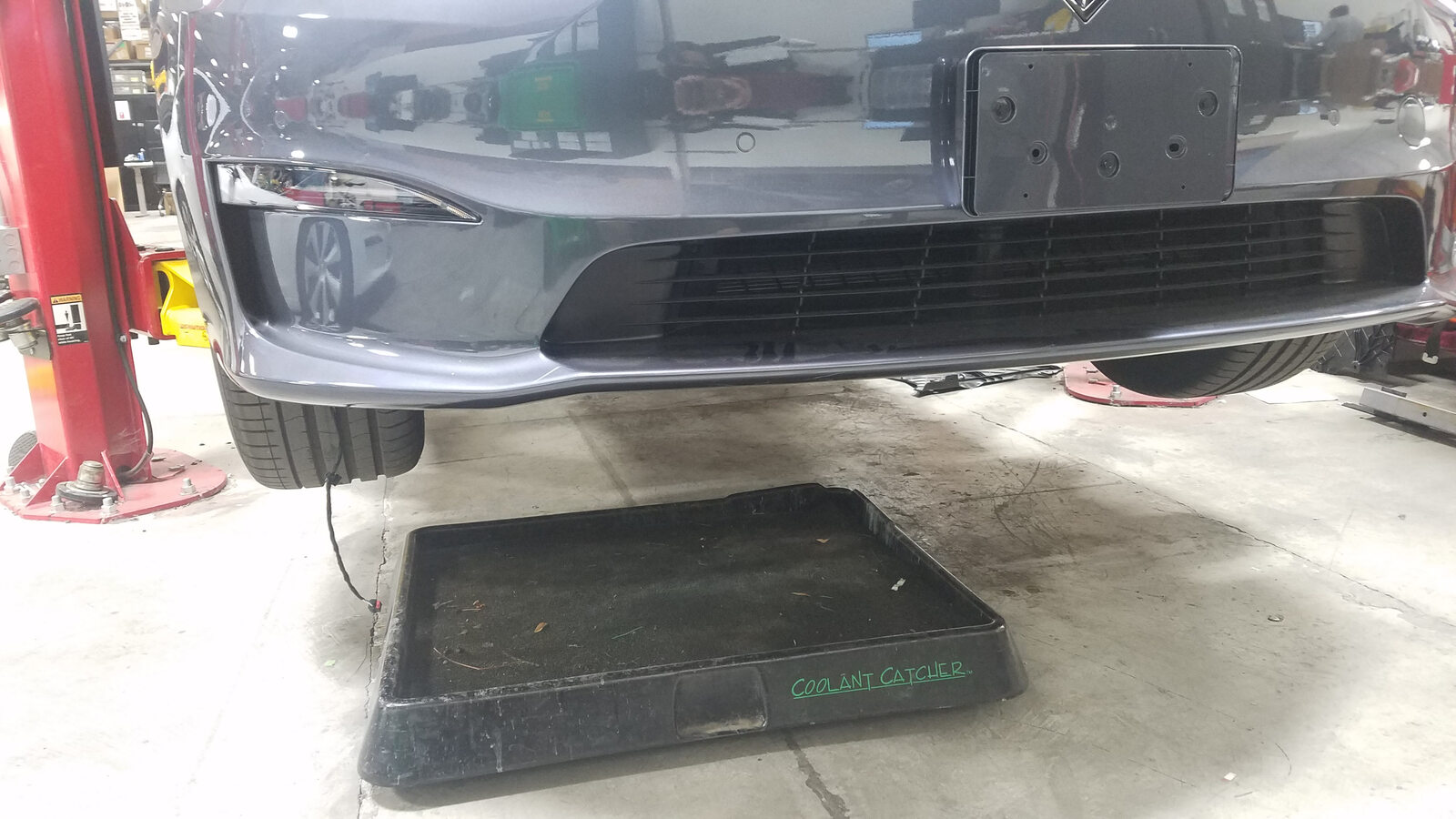

  26. Place coolant catcher below RH front of vehicle

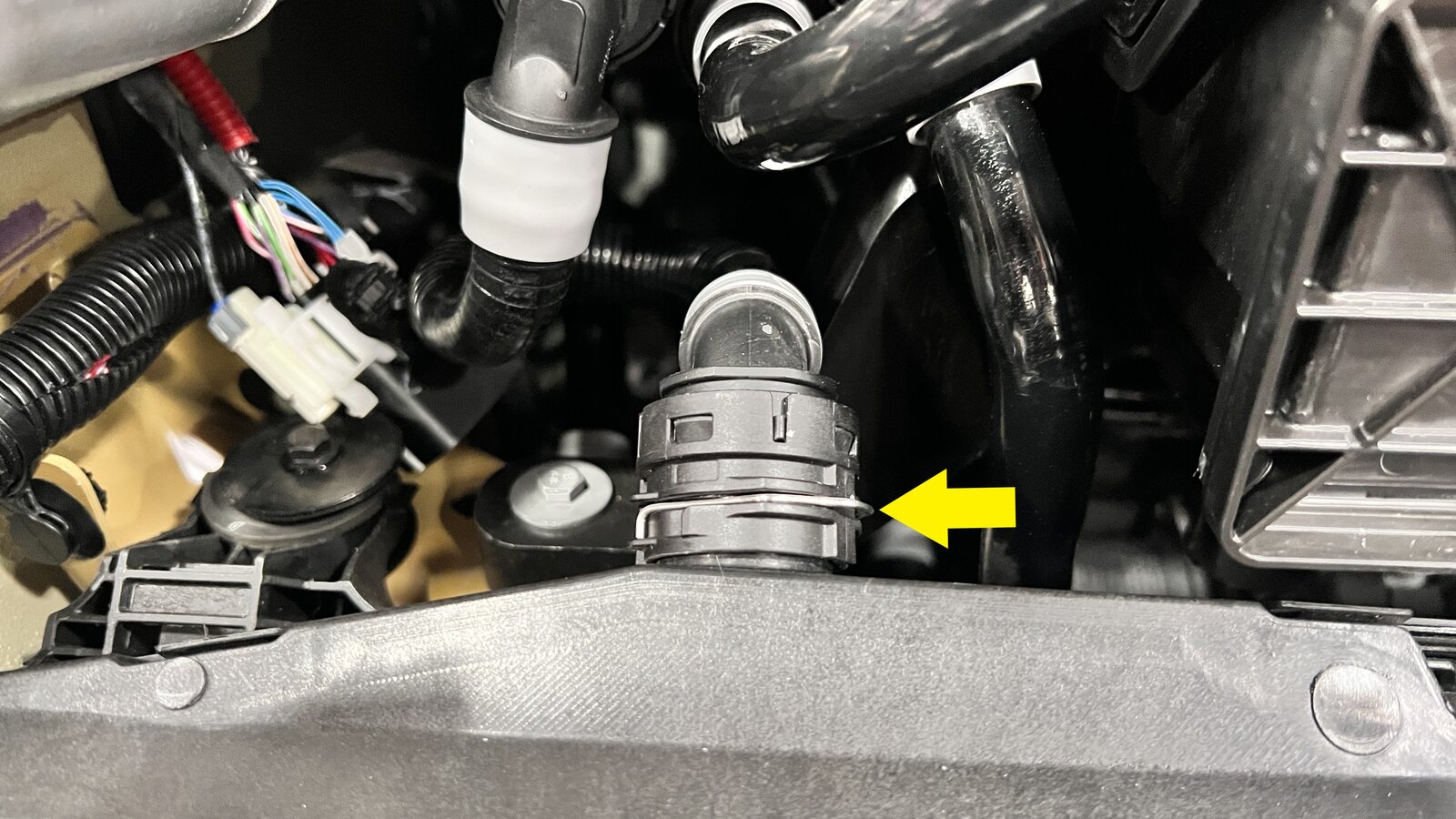

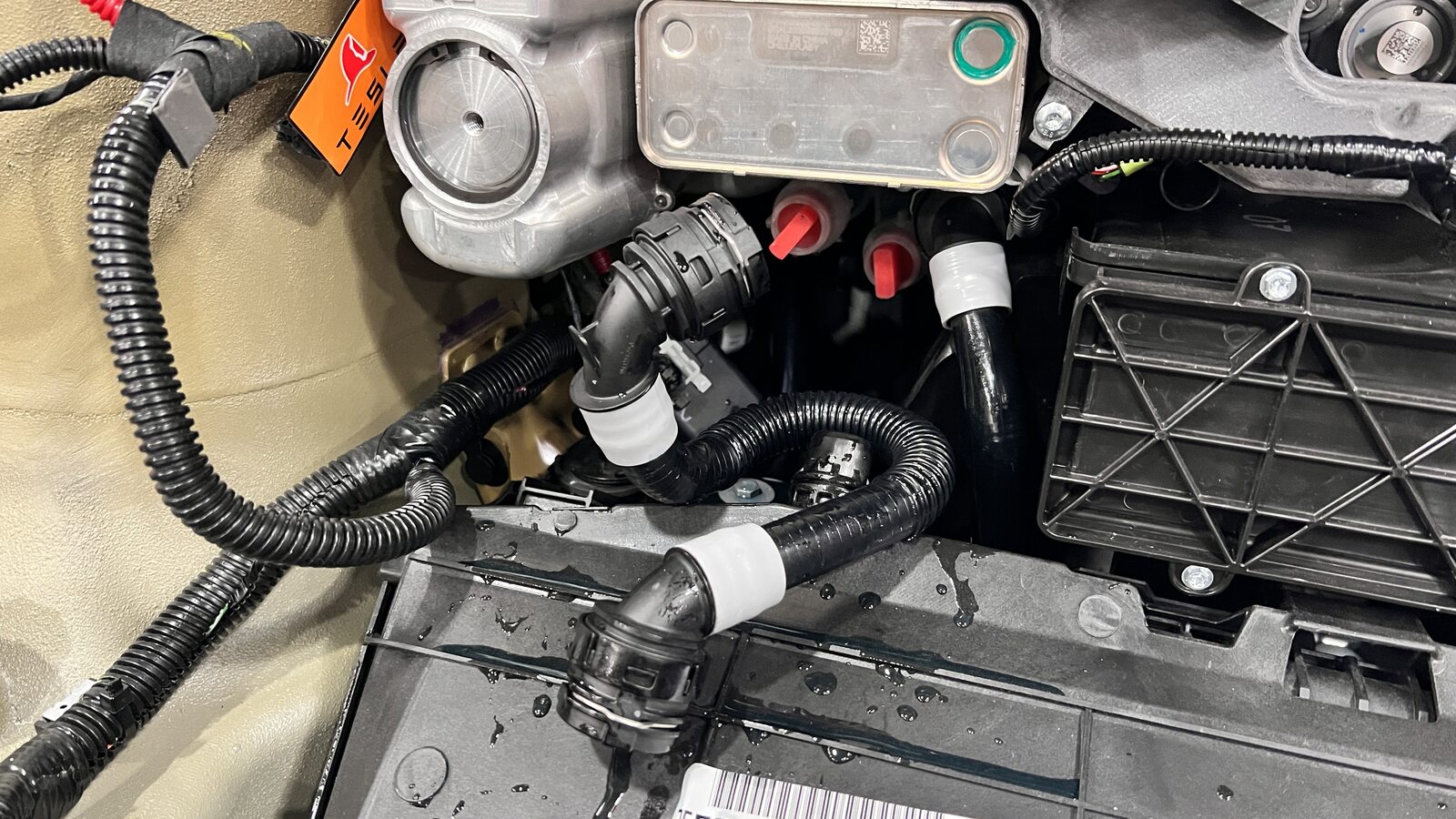

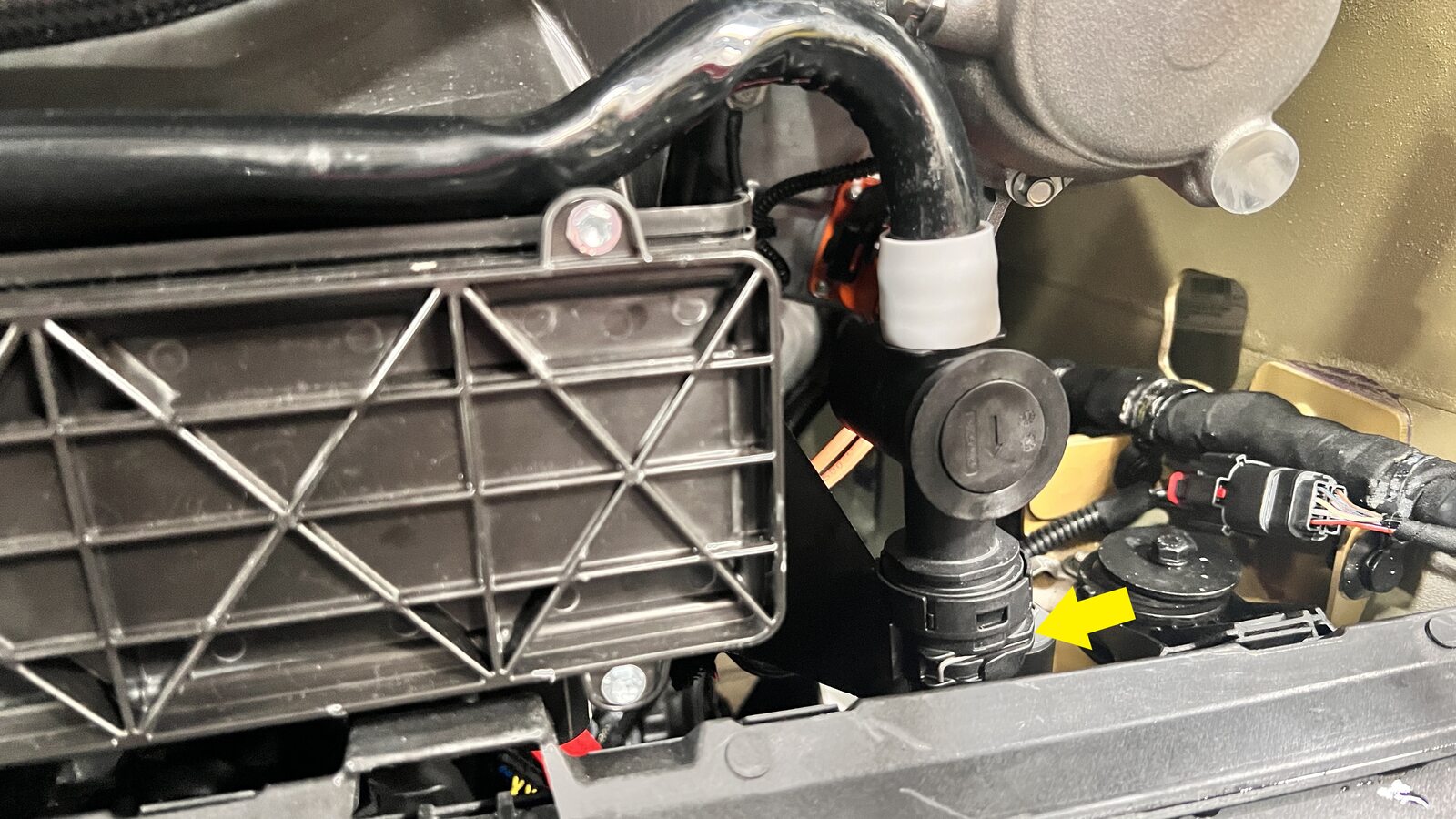

  27. Disconnect radiator outlet hose from radiator
    Informational PurposesAn informational icon, calling your attention
    Note
    1x spring clip, Remove from vehicle, Plug hoses
  28. Disconnect radiator inlet hose from radiator
    Informational PurposesAn informational icon, calling your attention
    Note
    1x spring clips, Plug hoses

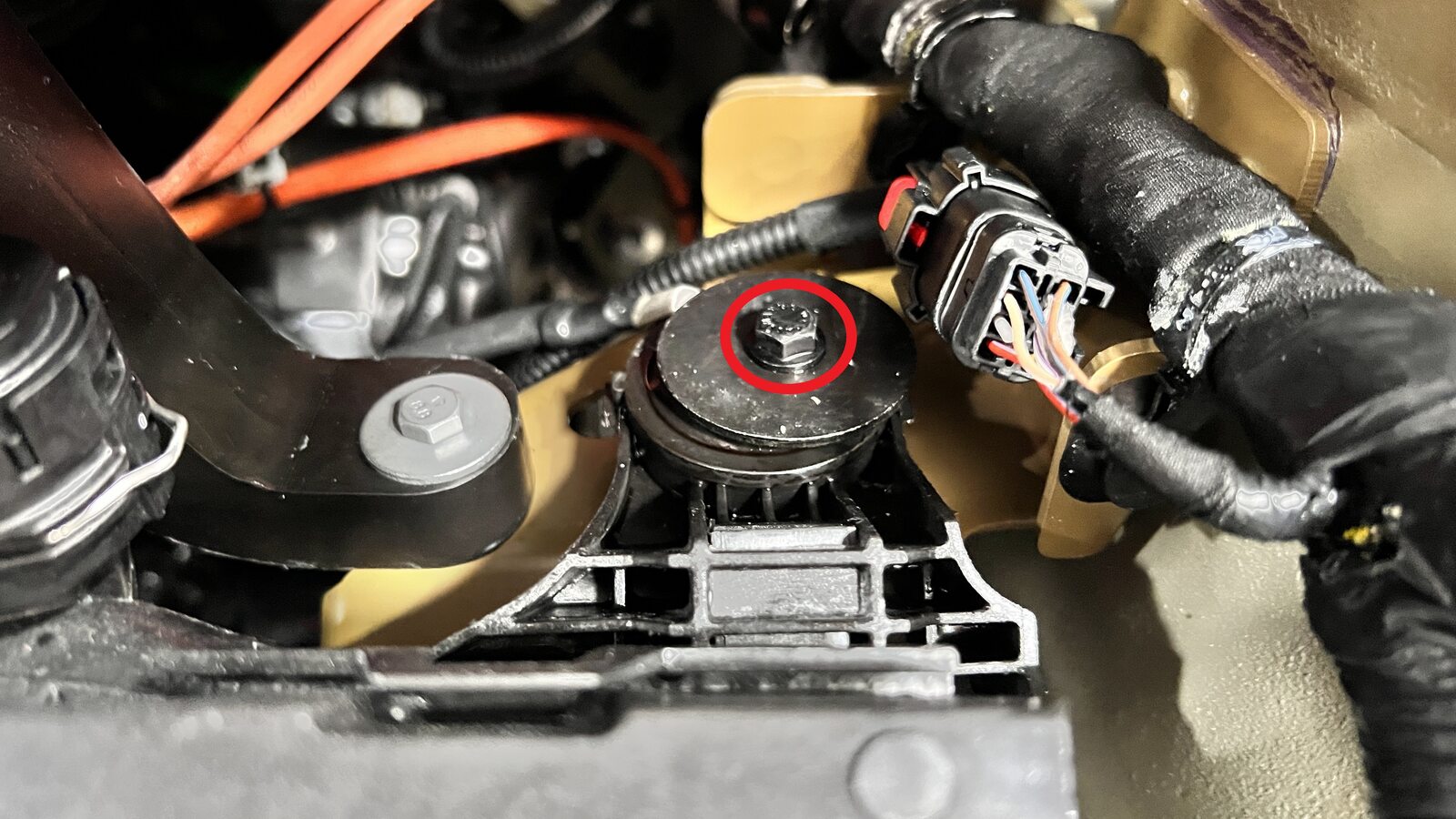

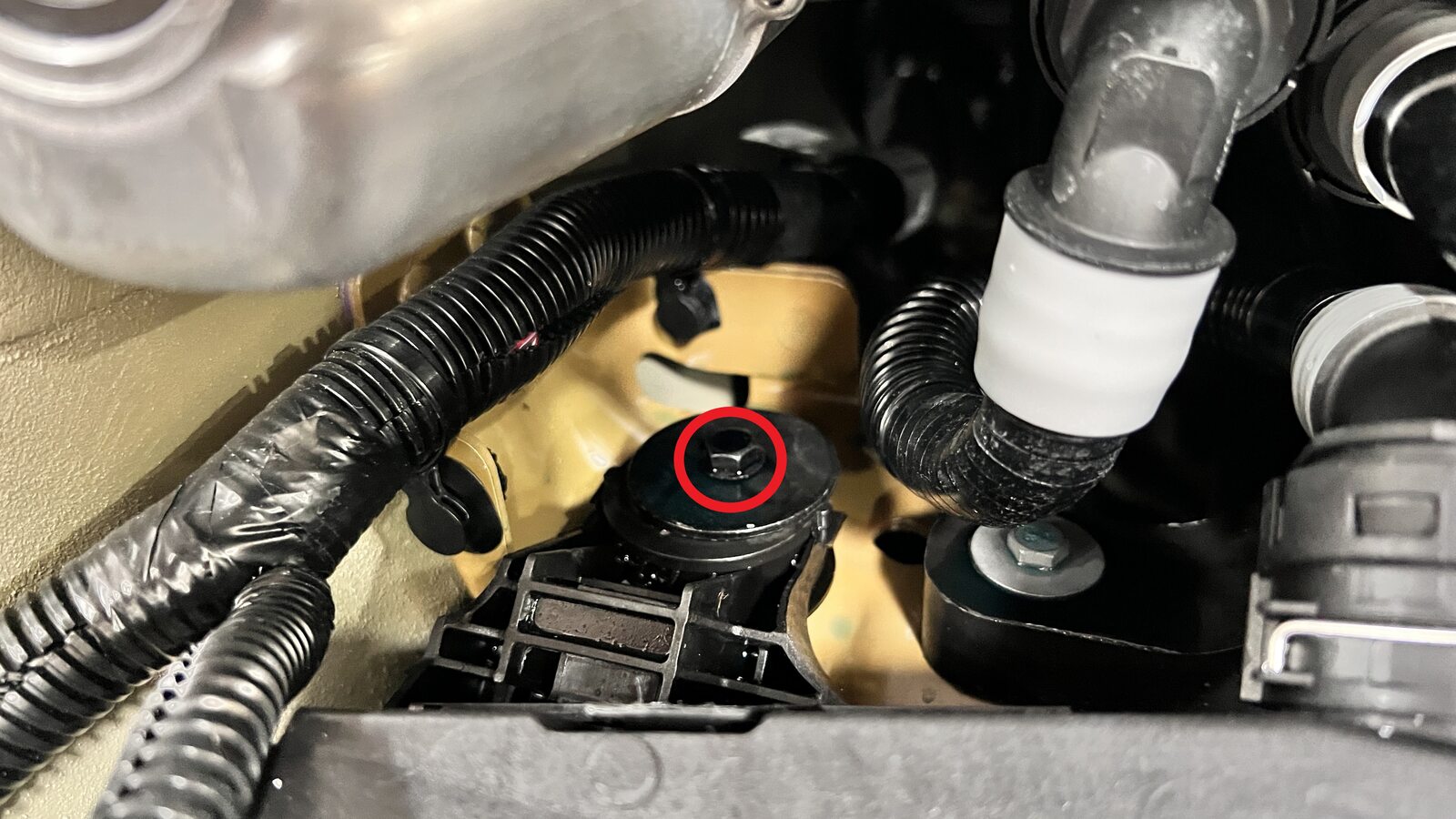

  29. Remove upper CFM fasteners
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 10 Nm, 2 upper fasteners accessible from frunk area
  30. Raise vehicle partially and lower onto locks
    Informational PurposesAn informational icon, calling your attention
    Note
    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side

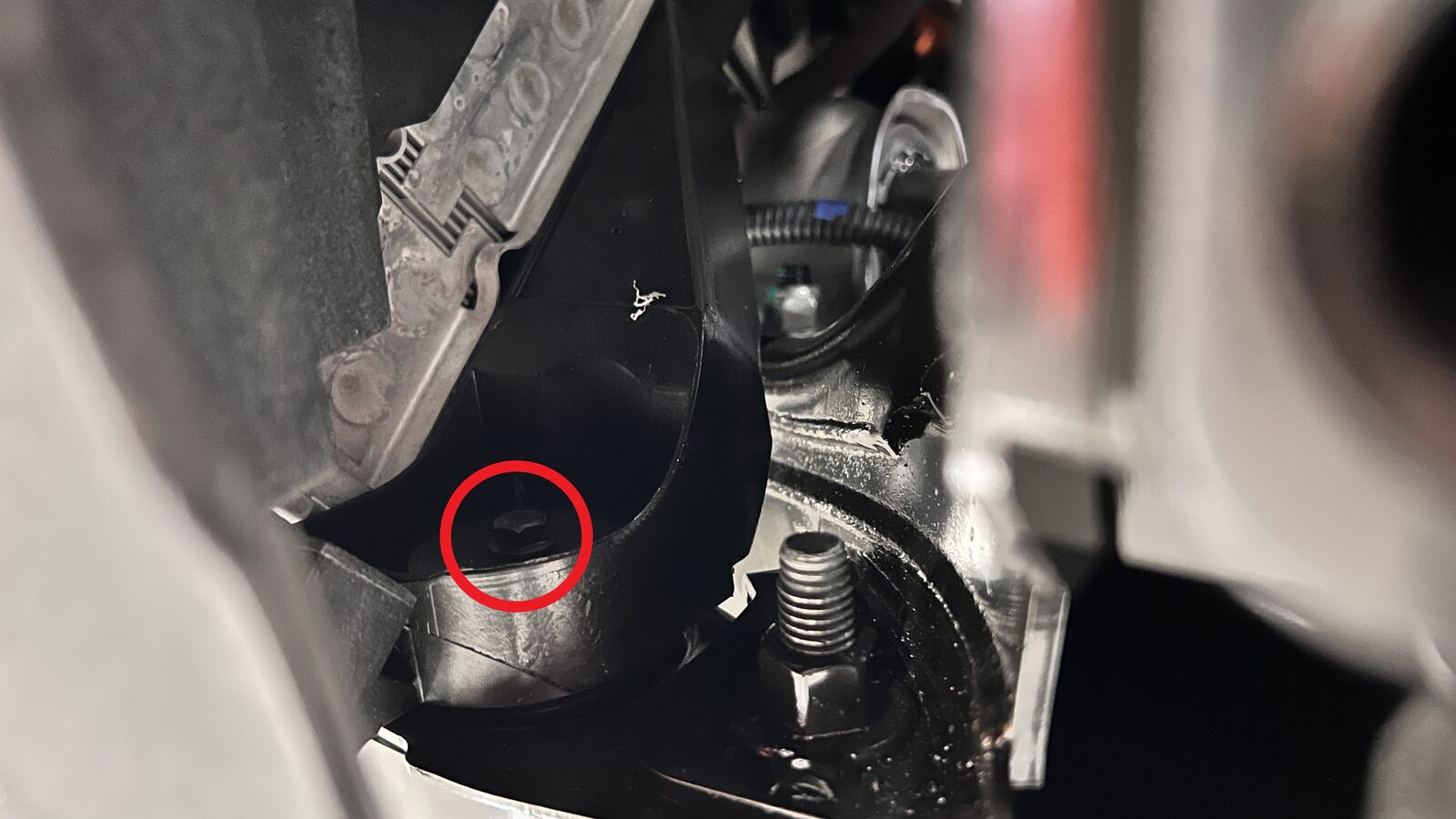

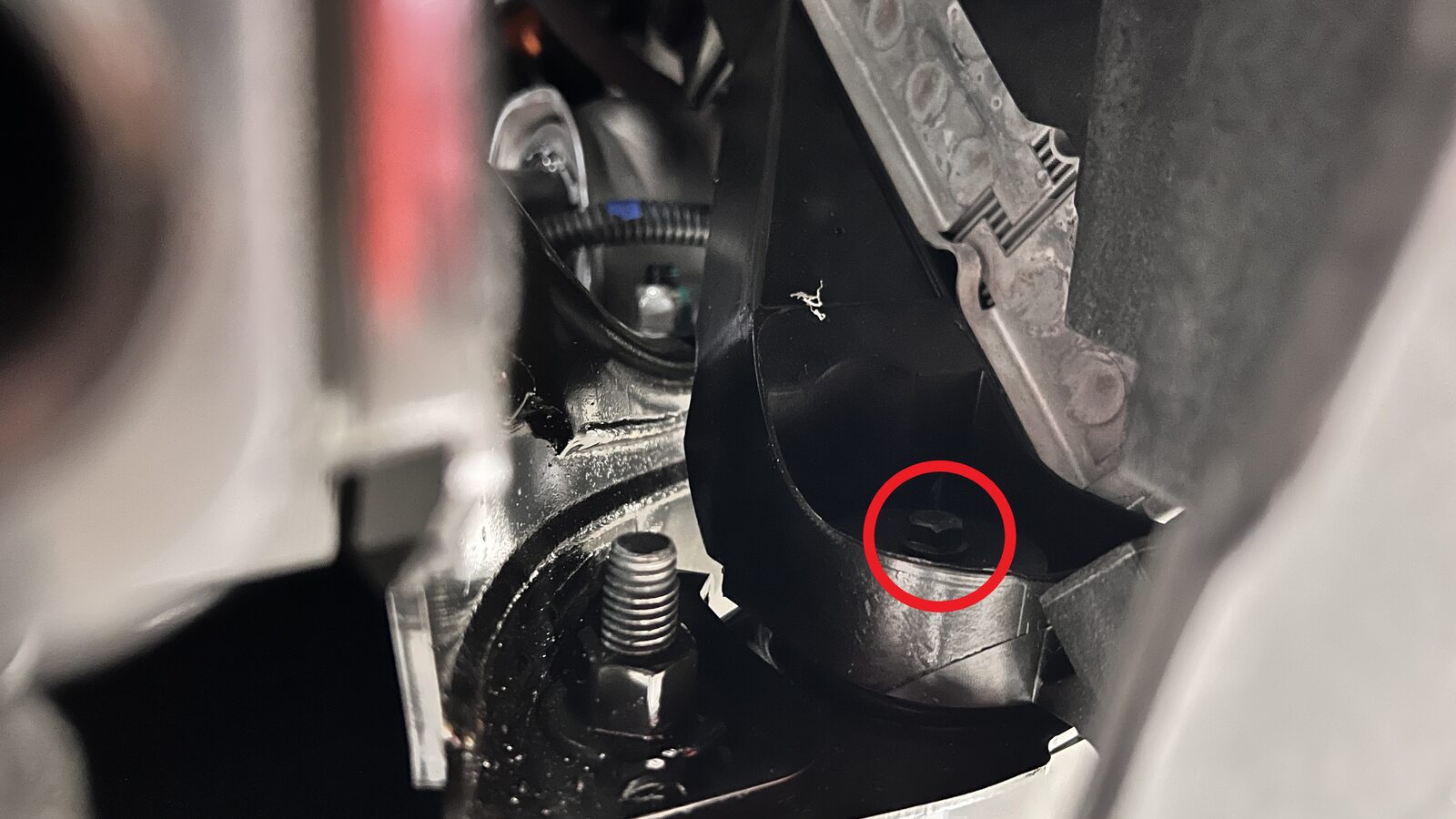

  31. Remove lower CFM fasteners
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 10 Nm, 2 lower fasteners accessible through sides of CFM

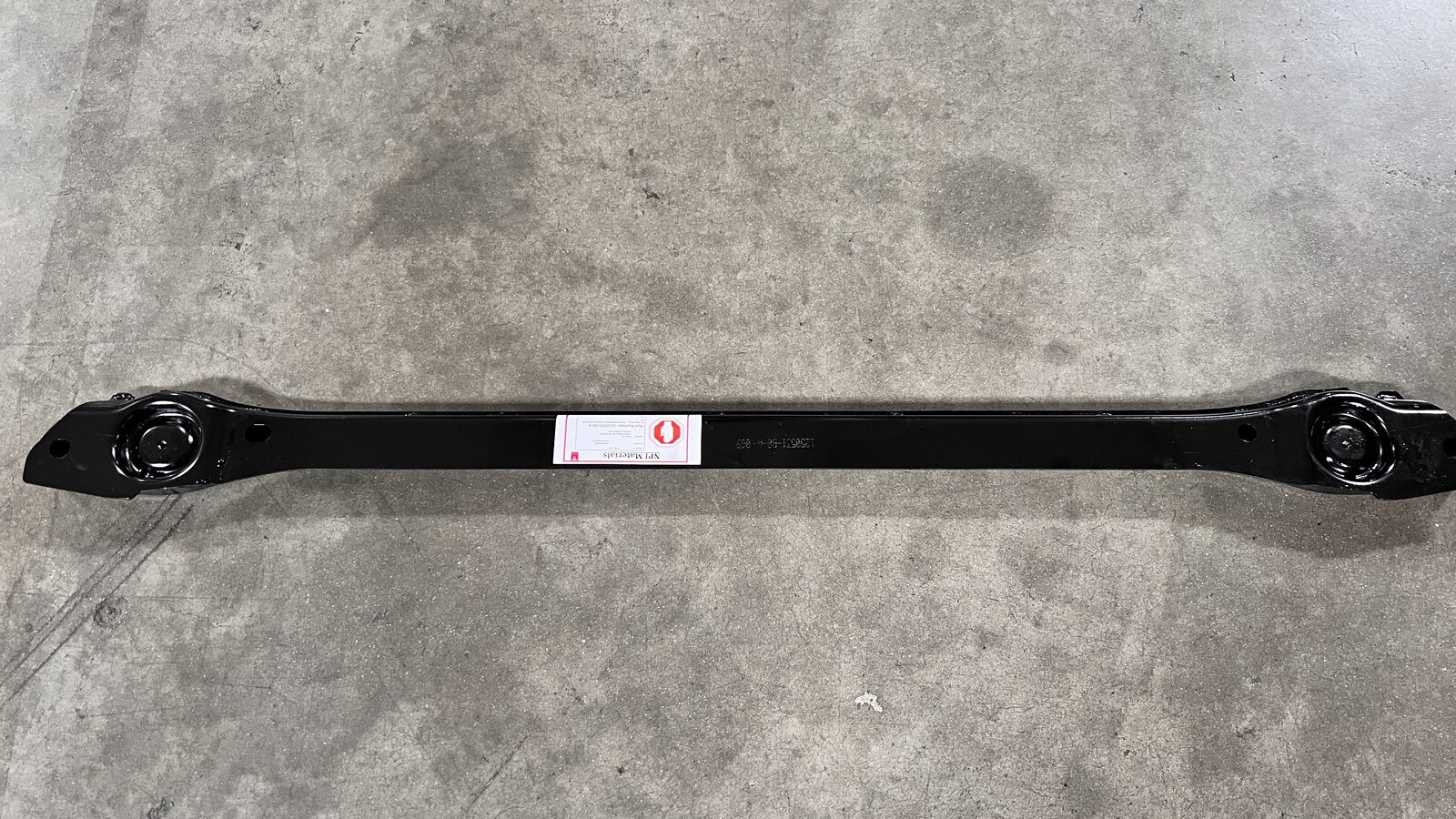

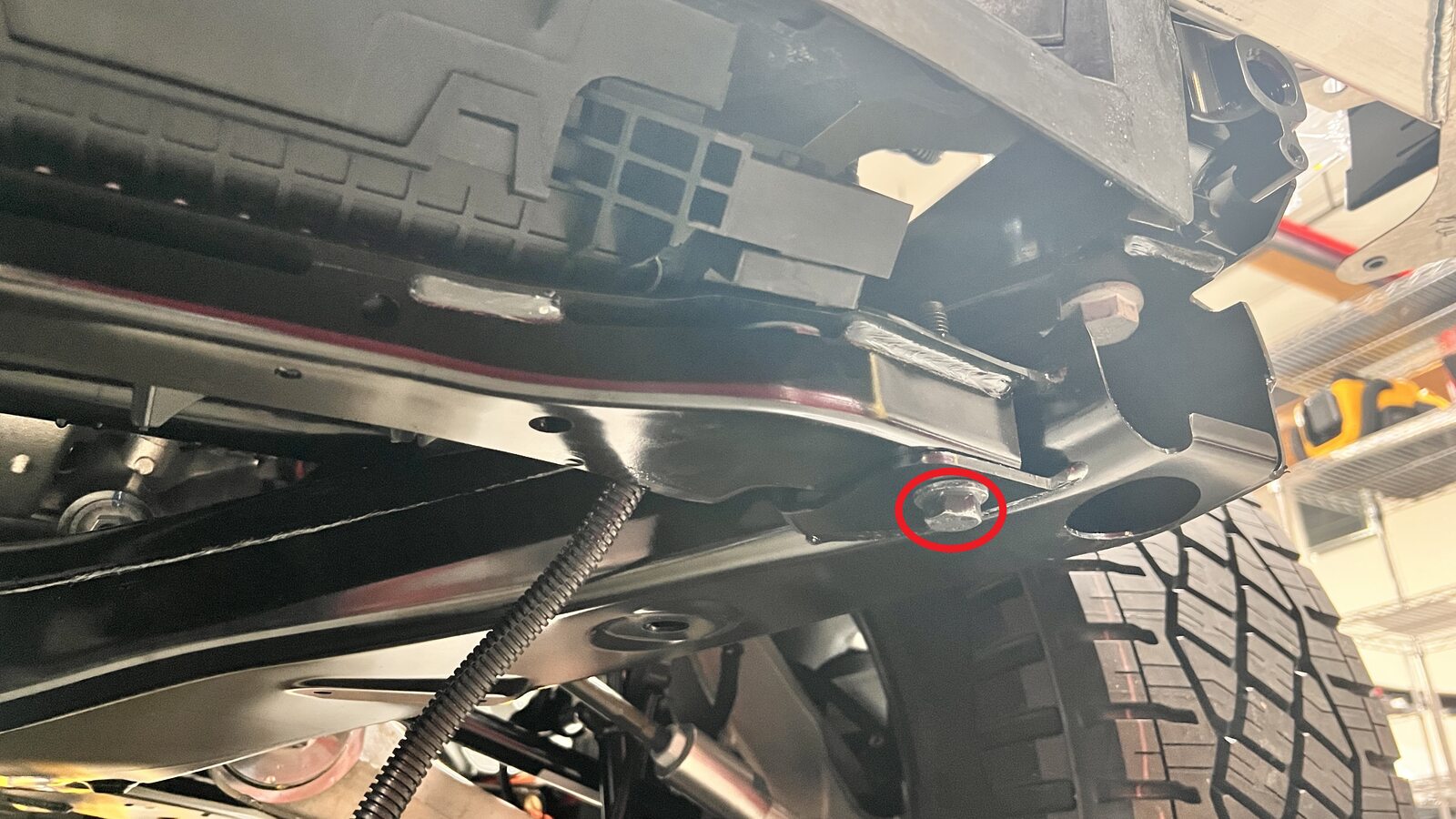

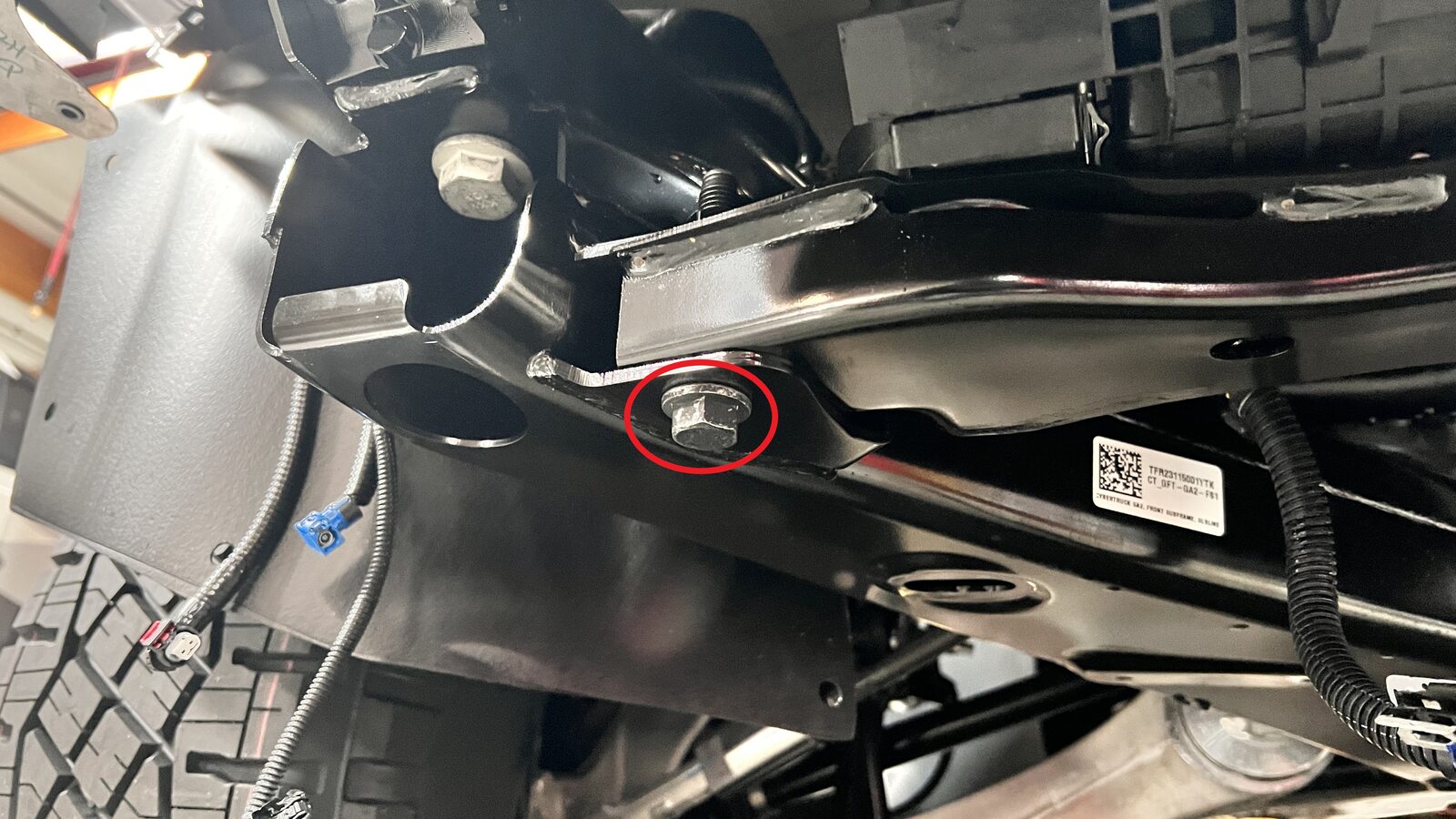

  32. Remove fore crossmember
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 18mm, 90 Nm, PUSH up on CFM . Use hammer if needed, Recommend assistance

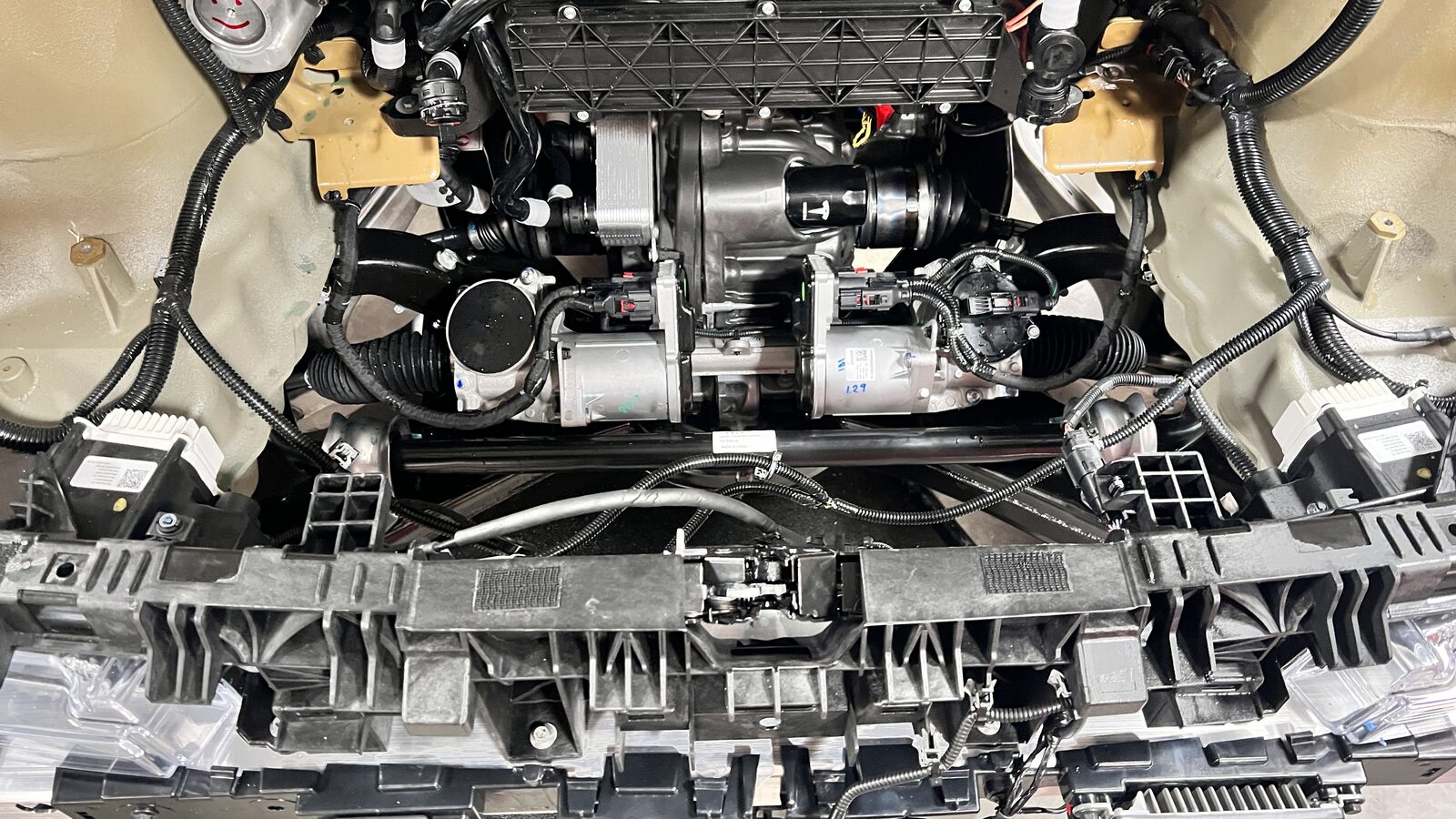

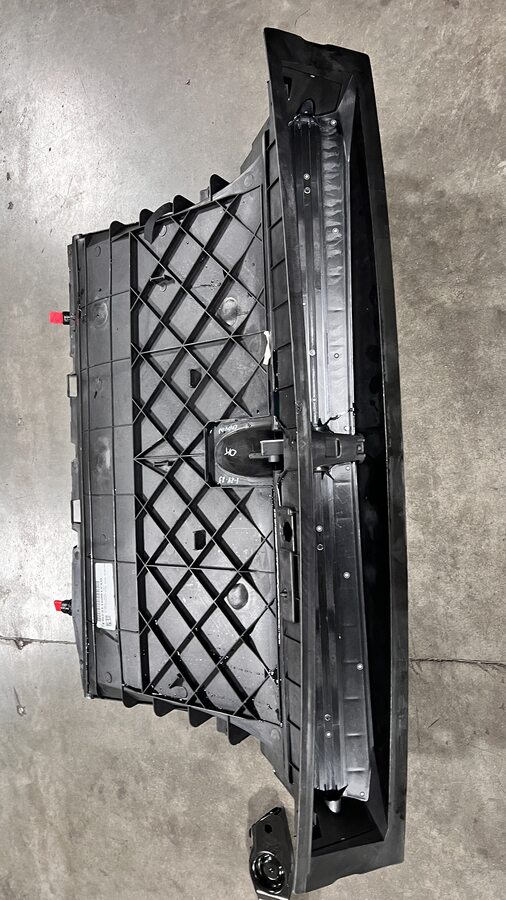

  33. Remove CFM
    Informational PurposesAn informational icon, calling your attention
    Note
    Recommend assistance, Remove from below vehicle, Ensure harness is not pinched during removal
  34. Lower vehicle until tires are touching the ground
    Informational PurposesAn informational icon, calling your attention
    Note
    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered

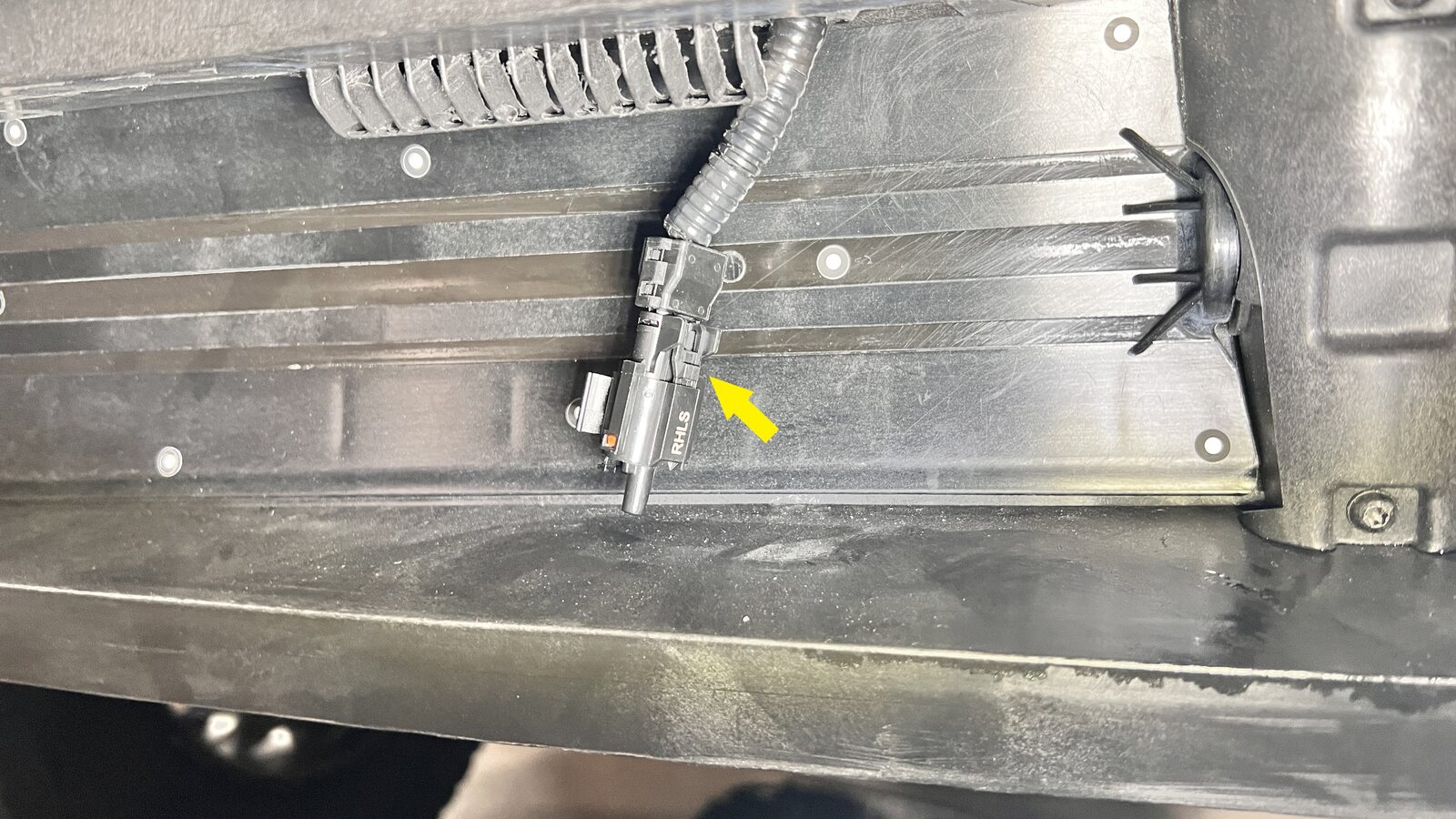

  35. Disconnect the HCU electrical connector.
    Informational PurposesAn informational icon, calling your attention
    Note
    Disengage the locking tab, and then pull up on the connector to release.

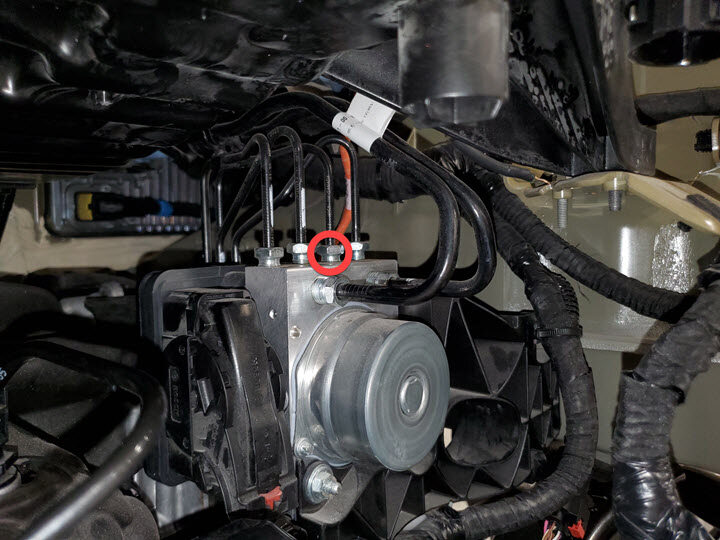

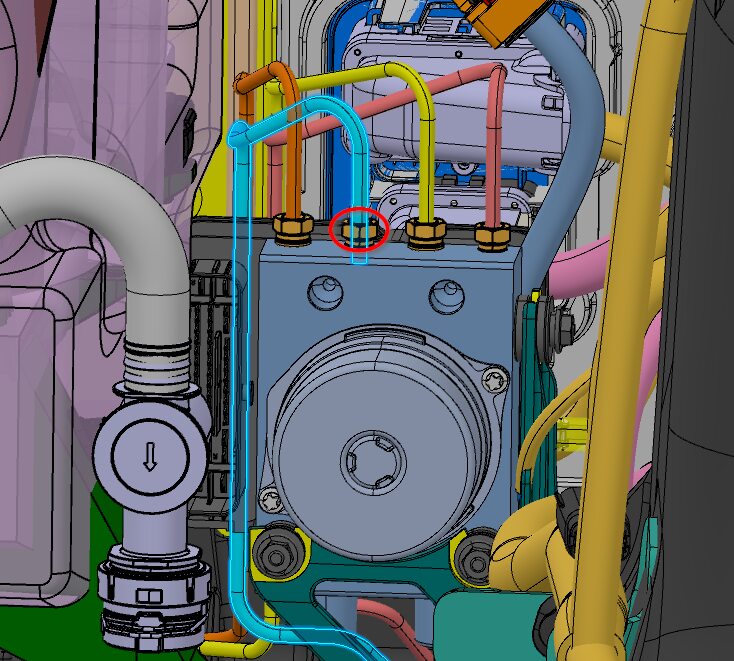

  36. Remove the flexible master cylinder brake lines (x2) from the HCU.
    16 Nm (11.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 14 mm combination wrench

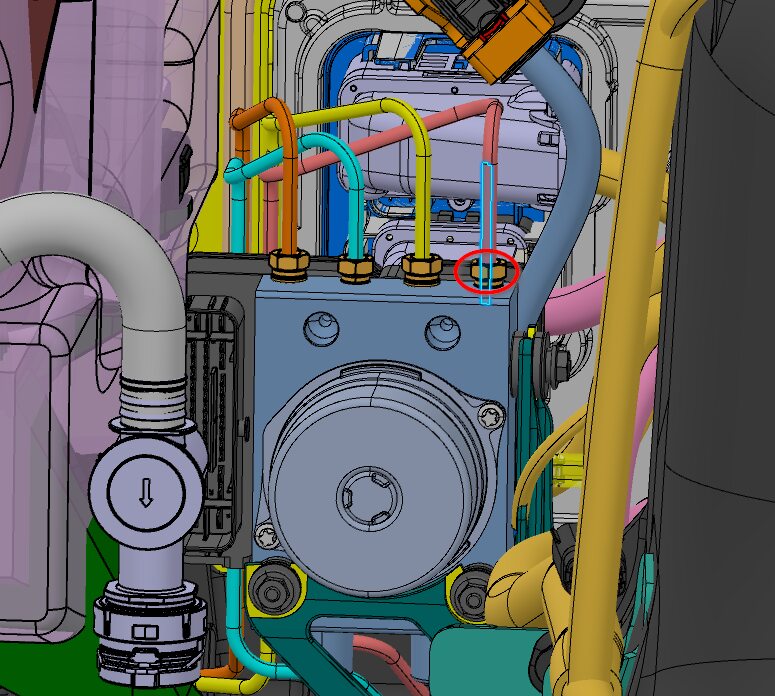

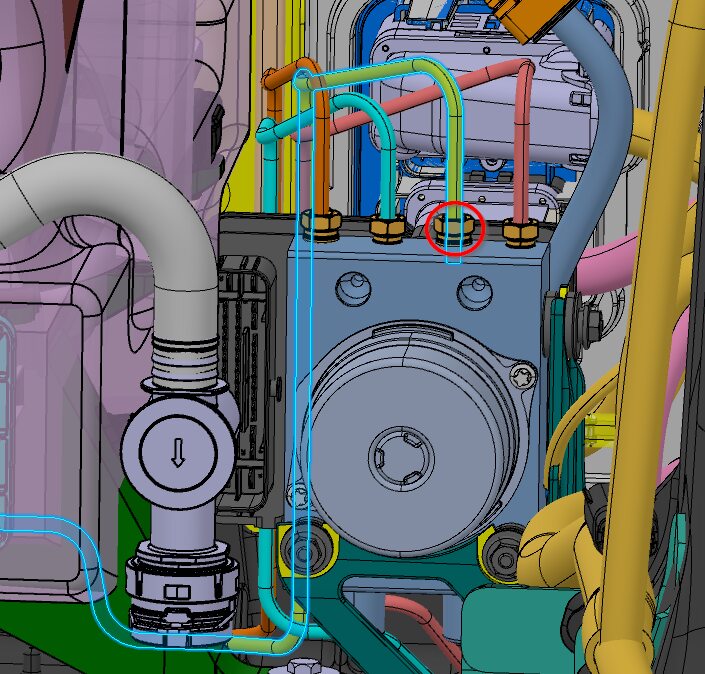

  37. Remove the RH front brake line tube nut from the HCU.
    16 Nm (11.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 14 mm combination wrench

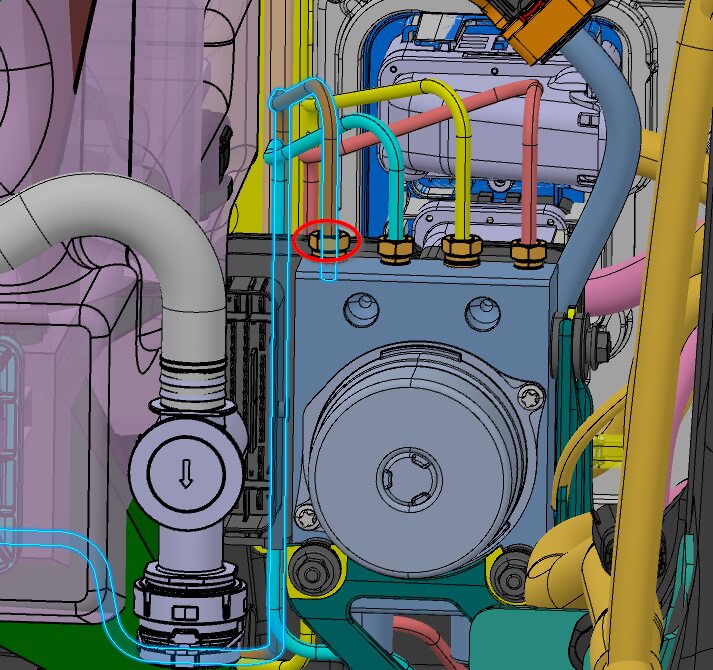

  38. Remove the LH rear brake line tube nut from the HCU.
    16 Nm (11.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 14 mm combination wrench
  39. Remove the RH rear brake line tube nut from the HCU.
    16 Nm (11.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 14 mm combination wrench
  40. Remove the LH front brake line tube nut from the HCU.
    16 Nm (11.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 14 mm combination wrench

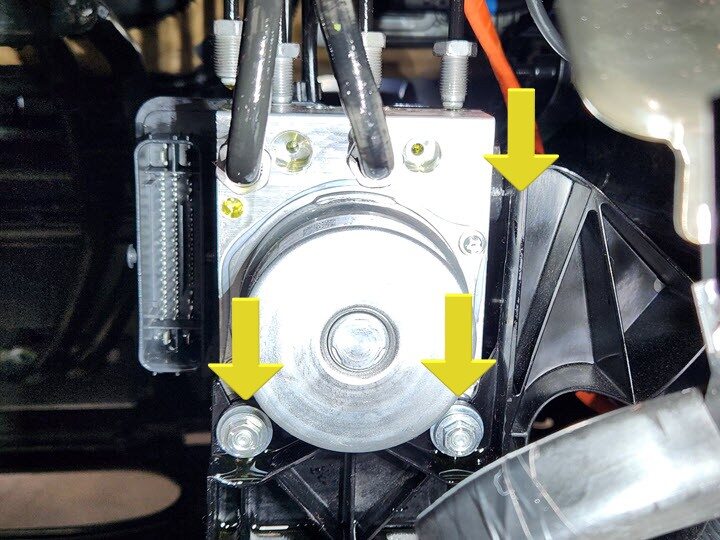

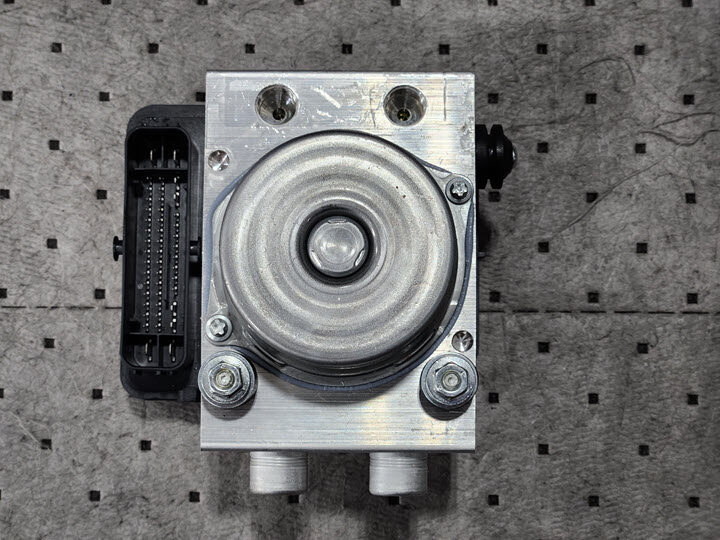

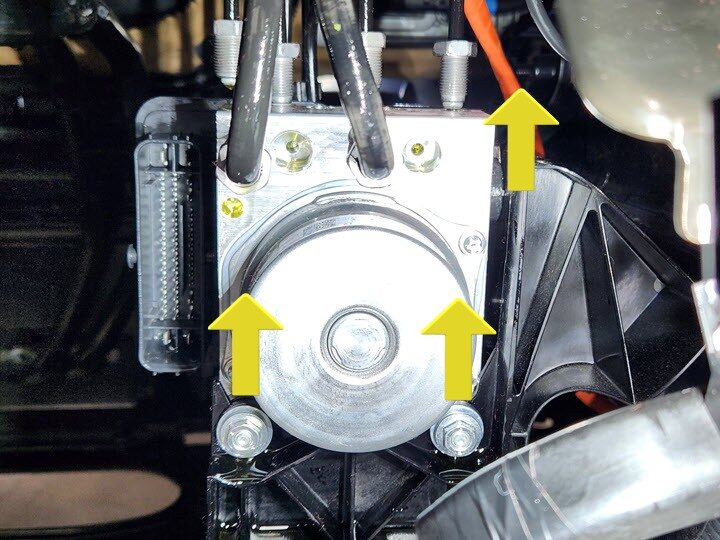

  41. Remove HCU from bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    3x rubber washers, Maneuver upward to release rubber washers from bracket, Be extremely cautious not to loose rubber washers, Move brake pipes as needed
  42. Install HCU onto bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    3x rubber washers, Maneuver downward to secure rubber washers onto bracket
  43. Install the LH front brake line tube nut onto hydraulic control unit hand tight
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 12mm, Hand tight
  44. Torque LH front brake line tube nut
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 12mm, 16 Nm
  45. Install the RH rear brake line tube nut onto hydraulic control unit hand tight
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 12mm, Hand tight
  46. Torque RH rear brake line tube nut
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 12mm, 16 Nm
  47. Install the LH rear brake line tube nut onto hydraulic control unit hand tight
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 12mm, Hand tight
  48. Torque LH rear brake line tube nut
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 12mm, 16 Nm
  49. Install the RH front brake line tube nut onto hydraulic control unit hand tight
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 12mm, Hand tight
  50. Torque RH front brake line tube nut
    Informational PurposesAn informational icon, calling your attention
    Note
    1x nut, 12mm, 16 Nm
  51. Install the flexible master cylinder brake lines (x2) onto the HCU.
    16 Nm (11.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 14 mm combination wrench
  52. Connect the HCU electrical connector.
    Informational PurposesAn informational icon, calling your attention
    Note
    Engage the electrical connector, and then secure the locking tab.
  53. Install CFM
    Informational PurposesAn informational icon, calling your attention
    Note
    Install from bottom, Assistance recommend Manipulate as required, Ensure harness is not pinched during install
  54. Raise vehicle fully
    Informational PurposesAn informational icon, calling your attention
    Note
    Set to a comfortable working height, Lower to locks, Ensure locks engage on both sides to prevent tilting
  55. Install fore crossmember
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 18mm, 90 Nm, Lift CFM away from beam to aid in clearance, Install beam by sliding rewards
  56. Install lower CFM fasteners
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 10 Nm, 2 lower fasteners accessible through sides of CFM
  57. Lower vehicle until tires are touching the ground
    Informational PurposesAn informational icon, calling your attention
    Note
    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
  58. Install upper CFM fasteners
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 10 Nm, Fasteners accessible from frunk area
  59. Connect radiator outlet hose to radiator
    Informational PurposesAn informational icon, calling your attention
    Note
    1x spring clip, Ensure hose is fully engaged with a push-pull-push test
  60. Connect radiator inlet hose to radiator
    Informational PurposesAn informational icon, calling your attention
    Note
    1x spring clips,Ensure hose is fully engaged with a push-pull-push test
  61. Secure harness to CFM
    Informational PurposesAn informational icon, calling your attention
    Note
    1x grommet, 2x connector, 1x harness clip, Secure grommet then connect temperature sensor, Engage locking tab on louver connector
  62. Remove coolant catcher from below vehicle
  63. Raise vehicle partially and lower lift onto locks
    Informational PurposesAn informational icon, calling your attention
    Note
    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
  64. Install front lower fascia assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    Ensure no harnesses are pinched
  65. Install front fascia fasteners and covers
    Informational PurposesAn informational icon, calling your attention
    Note
    2x covers, 4x bolts, 10mm, 4 Nm, Install tow hook covers
  66. Install center applique
    Informational PurposesAn informational icon, calling your attention
    Note
    8x tabs, 1x connector, Ensure all tabs engage, Secure frunk release trigger connector
  67. Install RH fascia fastener and connectors
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 10mm, 6 Nm, 1x clip, 3x connectors, Pull wheel liner back for access, Engage locking tab
  68. Secure RH wheel liner
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips
  69. Install LH fascia fastener
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 10mm, 6 Nm, Pull wheel liner back for access
  70. Secure LH wheel liner
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips
  71. Connect CFM connectors
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors, Engage locking tab
  72. Install the front aeroshield. See Aeroshield - Front (Remove and Install).
  73. Install lower valence fasteners
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips, 2x covers, 6x bolts, 10mm, 6 Nm, Secure covers
  74. Lower vehicle until tires are touching the ground
    Informational PurposesAn informational icon, calling your attention
    Note
    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
  75. Perform cooling system vacuum fill. See Cooling System (Vacuum Refill).
  76. Reconnect MV power. See Disconnect MV Power (Modify).
  77. On the vehicle touchscreen, navigate to Thermal > Actions > Test Thermal Performance, touch Run, and allow the routine to complete.
    Informational PurposesAn informational icon, calling your attention
    Note
    If the thermal test fails, follow Toolbox article 206000.
  78. Reinstall the vehicle software. See Software Reinstall - Touchscreen (Restore).
  79. Bleed all 4 brakes manually. See Brake Fluid Bleed - One Caliper.
  80. Bleed all 4 brakes using Toolbox. See Brake Fluid Bleed - One Caliper.
  81. Select "Actions" tab and search for ‘"Stiffness"
  82. Select "TEST_BRAKE_X_STIFFNESS-TEST-SERVICE", click "Run", and allow routine to complete
    Informational PurposesAn informational icon, calling your attention
    Note
    Select "X" at top right of window to close once complete
  83. Disconnect Toolbox 3 from vehicle and remove laptop
  84. Instal the frunk assembly. See Frunk Assembly (Remove and Install).
  85. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Install).
  86. Install all 4 wheels. See Wheels - Wheel (Remove and Install).
  87. Remove the vehicle from the lift. See Raise Vehicle - 2 Post Lift.
  88. Raise the LH front window and close the LH front door.
