BLE End Point - Wheel Well - Rear - RH (Remove and Replace)

Correction code 1745104082 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
  1. Open the LH front door and lower the LH front window.
  2. Place the vehicle into Service Mode. See Service Mode.
  3. Remove RH rear fender flare
    Informational PurposesAn informational icon, calling your attention
    Note
    18x clips
  4. Remove clips securing RH rear wheel liner to fore fender flare carrier
    Informational PurposesAn informational icon, calling your attention
    Note

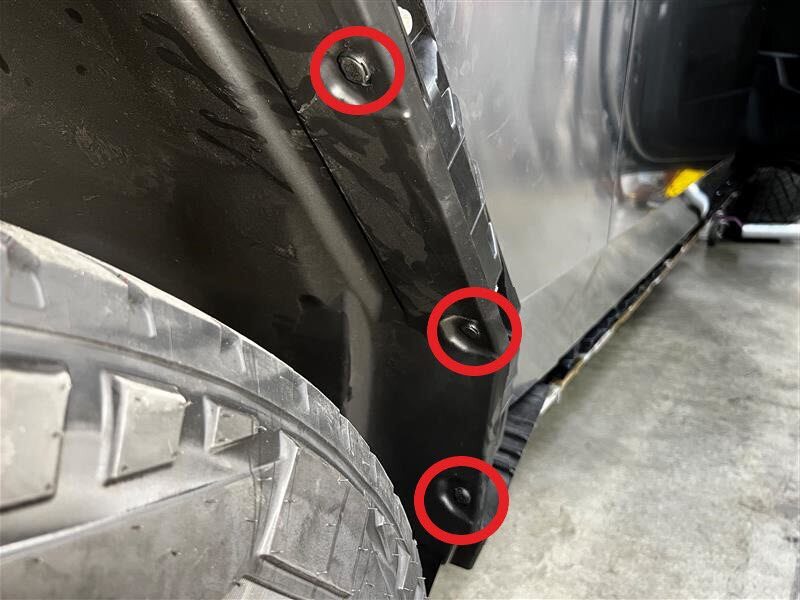

    5x clips

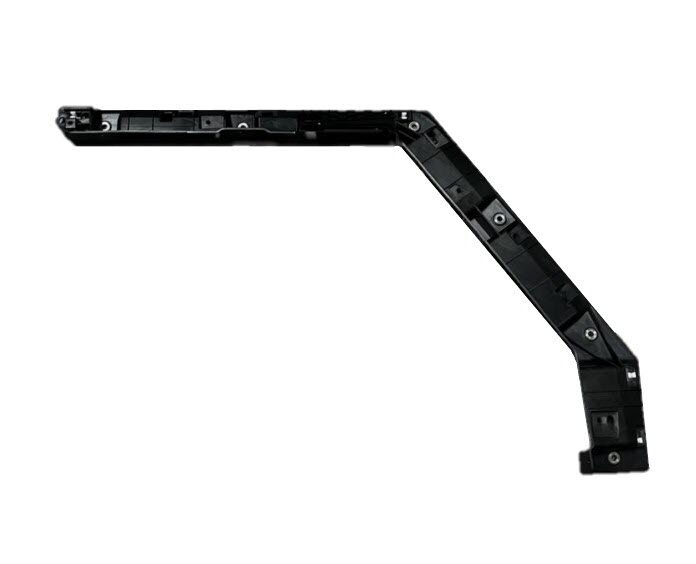

  5. Remove RH rear fore fender flare carrier
    Informational PurposesAn informational icon, calling your attention
    Note

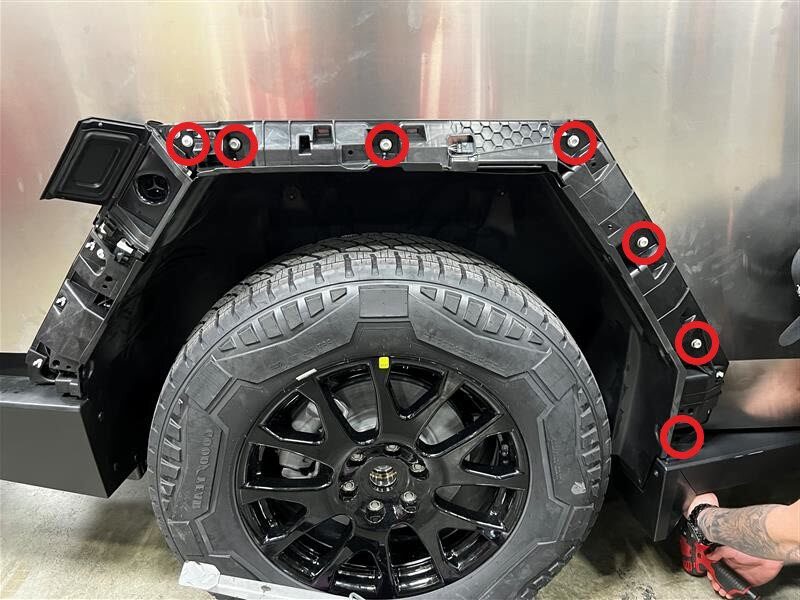

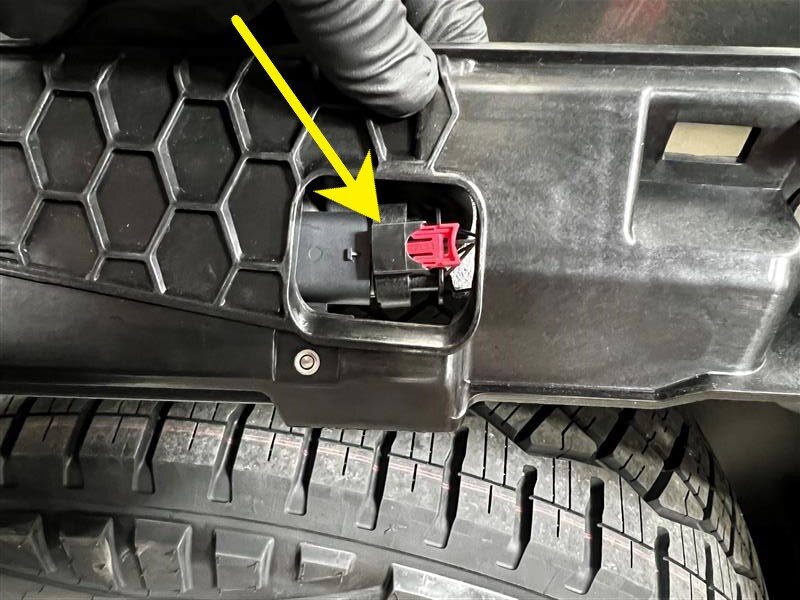

    6x bolts, 10mm, 7 Nm, 1x connector, Disconnect BLE module then remove carrier, Release locking tab
  6. Remove RH rear wheel well BLE endpoint
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, T20, 1.5 Nm, Discard bolts
  7. Install RH rear wheel well BLE endpoint
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, T20, 1.5 Nm, Install new bolts
  8. Install RH rear fore fender flare carrier
    Informational PurposesAn informational icon, calling your attention
    Note
    6x bolts, 10mm, 7 Nm, 1x connector, Connect BLE then install carrier, Engage locking tab
  9. Install clips securing RH rear wheel liner to fore fender flare carrier
    Informational PurposesAn informational icon, calling your attention
    Note
    5x clips
  10. Install RH rear fender flare
    Informational PurposesAn informational icon, calling your attention
    Note
    18x clips, Replace any missing or damaged clips
  11. Reinstall software via UI
    Informational PurposesAn informational icon, calling your attention
    Note
    Via Controls > Service Mode > Software Reinstall, Select Reinstall button at Software Reinstall dialogue box, Reinstall will begin immediately, Once firmware redeploy is complete, Verify release notes are present via UI
  12. Exit Service Mode. See Service Mode.
  13. Raise the LH front window and close the LH front door.
