Non-Driven Hub - Front - LH (Long Range) (Remove and Install)

Correction code 31010400201 FRT 0.48 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.
  • 2025-06-21: Released new procedure.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Raise and support the vehicle. See Raise Vehicle - 2 Post Lift.
  3. Remove the LH front wheel cap. See Wheel Cover - Front - LH (Remove and Install) or Cover - Wheel (Long Range) (Remove and Install).

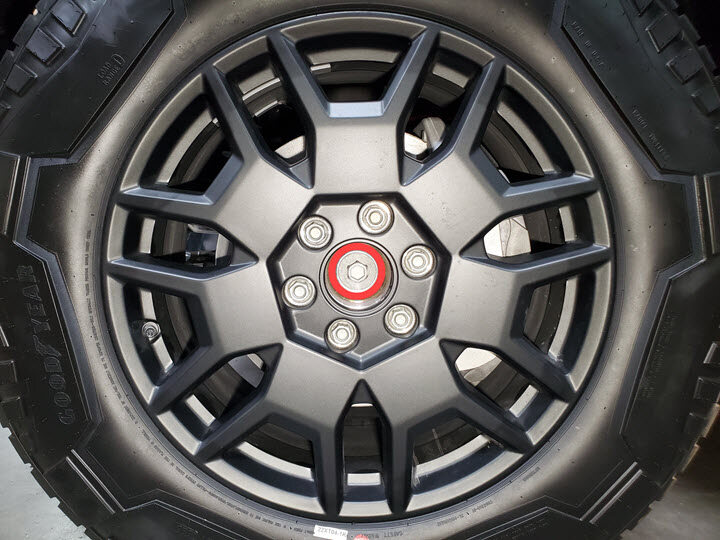

  4. Loosen the LH front wheel lug nuts (x6).
    205 Nm (151.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 21 mm socket
  5. Remove and discard the LH front halfshaft bolt.
    300 Nm (221.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 24 mm socket
  6. Raise the vehicle to a comfortable working height.
  7. Remove the LH front wheel. See Wheel Assembly (Remove and Install).
  8. Remove the bolt that attaches the LH front brake hose bracket to the vehicle, and then release the bracket from the vehicle.
    10 Nm (7.4 lbs-ft)
  9. Remove the bolts (x2) that attach the LH front caliper to knuckle, and then use an S-hook to set the caliper aside.
    315 Nm (232.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    The brake rotor will be loose until caliper is installed. Use lug nut to secure the rotor as needed.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 24 mm socket
  10. Remove the LH front brake rotor from the vehicle.
  11. Remove the nut that attaches the LH tie rod end to the knuckle.
    170 Nm (125.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 21 mm socket

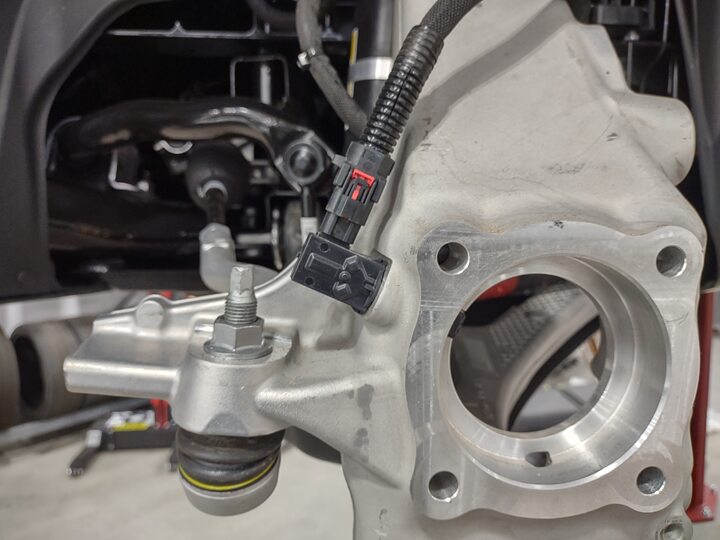

  12. Remove the LH tie rod end from the knuckle.
  13. Disconnect the LH front wheel speed sensor electrical connector.
  14. Release the clips (x2) that attach the LH front chassis jumper harness to the knuckle.

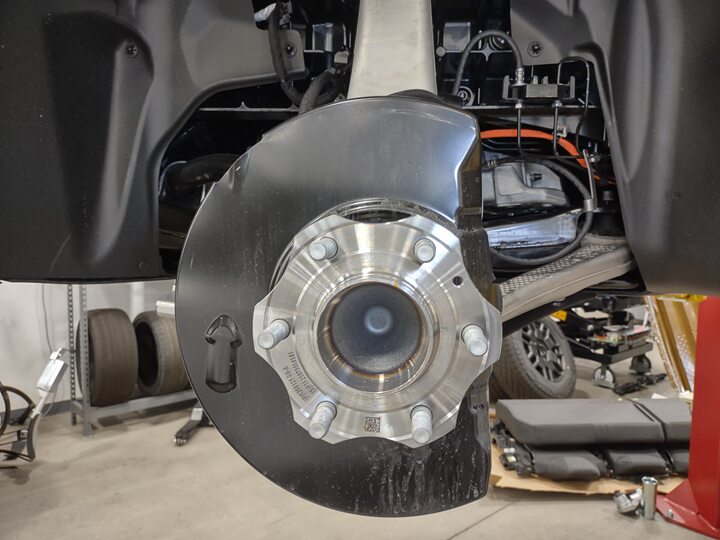

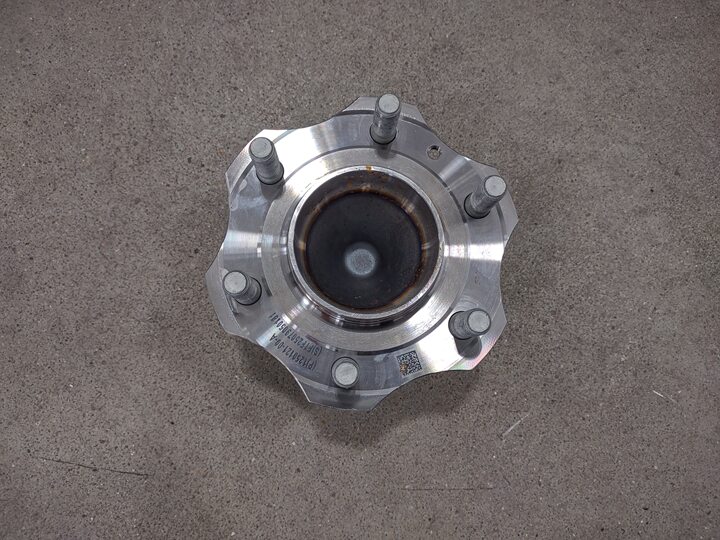

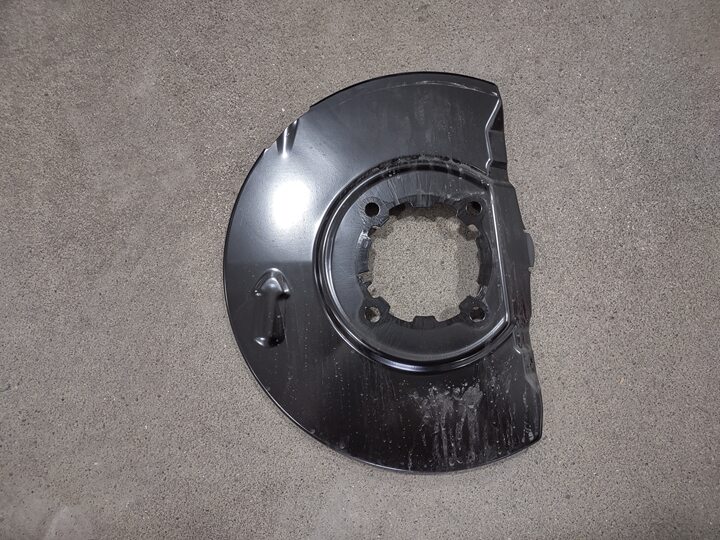

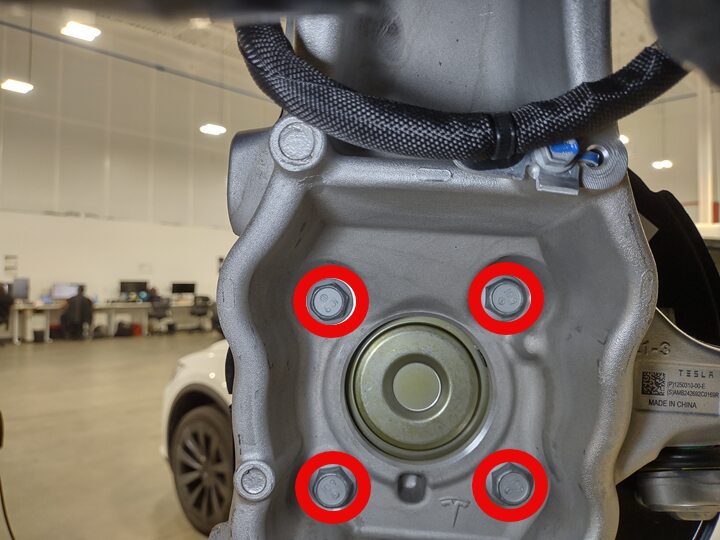

  15. Remove the bolts (x4) that attach the LH front hub and brake shield to the vehicle, and then remove the hub and brake shield from the vehicle.
    105 Nm (77.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 18 mm socket

Install

  1. Position the LH front hub and brake shield into the vehicle, and then install the bolts (x4) that attach the hub and brake shield to the vehicle.
    105 Nm (77.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 18 mm socket
  2. Install the clips (x2) that attach the LH front chassis jumper harness to the knuckle.
  3. Connect the LH front wheel speed sensor electrical connector.
  4. Position the LH tie rod end onto the knuckle.
  5. Install the nut that attaches the LH tie rod end to the knuckle.
    170 Nm (125.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 21 mm socket
  6. Install the LH front brake rotor onto the vehicle.
  7. Position the LH front caliper to the knuckle, and then install the bolts (x2) that attach the caliper to the knuckle.
    315 Nm (232.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    The brake rotor will be loose until caliper is installed. Use lug nut to secure the rotor as needed.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 24 mm socket
  8. Install the bolt that attaches the LH front brake hose bracket to the vehicle.
    10 Nm (7.4 lbs-ft)
  9. Position the LH front wheel onto the vehicle. See Wheel Assembly (Remove and Install).
  10. Lower the vehicle until tires are touching the ground.
  11. Install a new LH front halfshaft bolt.
    300 Nm (221.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 24 mm socket
  12. Torque the LH front wheel lug nuts (x6). See Wheel Assembly (Remove and Install).
  13. Install the LH front wheel cap. See Wheel Cover - Front - LH (Remove and Install) or Cover - Wheel (Long Range) (Remove and Install).
  14. Remove the vehicle from the lift. See Raise Vehicle - 2 Post Lift.
  15. Raise the LH front window and close the LH front door.
