Hose - Supply - Rear Drive Unit (Long Range) (Remove and Install)

Correction code NEW NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Warning

This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.

Warning

Cybertruck electronics are powered by a 48V "mid voltage" or "MV" architecture that is designed to improve efficiency. Servicing MV components requires extra knowledge and care in order to avoid personal and/or vehicular harm. Read and understand MV precautions in Electrical Precautions and make sure any required MV-related training courses have been completed, as applicable.

2025-05-06: Released new procedure.

Open LH front door

Note
Push LH B-pillar door trigger to release
Lower LH front window
Raise and support vehicle

Note
Set air suspension to "Jack Mode"
Run ODIN routine PROC_ICE_X_ENTER-SERVICE-MODEvia Toolbox: (link)
Unlock vehicle gateway

Note
After vehicle has been put into "Service Mode", place keycard on center console to turn on drive rails, hold down the brake pedal, while keep pressing right hand signal button simultaneously for at least 10 seconds, "GTW UNLOCKING" should pop up on the UI right next to the VIN during these 10 seconds, once gateway is unlocked "GTW UNLOCKED 5400" will be displayed on the UI next to the VIN, the gateway will remain unlocked for 90 minutes, follow steps on Toolbox article #5582900 for any additional information
Open tailgate

Note
Press button to release
Remove fastener covers from bed floor assembly

Note
14x covers
Remove bed floor assembly

Note
10x short bolts, 15mm, 56 Nm, 2x long bolts, 15mm, 46Nm, Lift front edge with trim tool then remove panel, Recommend assistance
Open powered front trunk

Note
Via exterior switch or UI
Remove rear underhood apron

Note
9x clips
Disconnect FRL connector then disconnect MV battery connector

Note
2x connectors, Release locking tab then disconnect FRL connector, Slide eCPA to left then lift lever to release MV battery connector, Early production trucks may have black FRL connector, Release eCPA by pushing down to unlock and slide red locking tab, Wait 2 minutes for electrical circuits to discharge before disconnecting modules
Raise vehicle fully

Note
Set to a comfortable working height, Lower to locks, Ensure locks engage on both sides to prevent tilting
Remove rear skid plate

Note
6x clips, 3x bolts, 15mm, 42 Nm, 5x bolts, 13mm, 28 Nm, 2x bolts, 10mm, 6 Nm
Position coolant drain below rear inverter
Remove RDU supply hose from exchanger

Note
1x spring clip
Lower vehicle until tires are touching the ground

Note
Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
Position coolant catcher below rear drive unit
Release acoustic cover surrounding RH motor mount

Note
5x clips, if acoustic cover is present on mount, remove and discard
Remove RDU supply hose from rear inverter

Note
1x spring clip, Plug both ends after disconnecting
Remove RDU supply hose

Note
1x clip
Install RDU supply hose

Note
1x clip
Install rear inverter coolant supply hose to inverter

Note
1x spring clip, Remove plugs from both ends, Perform push-pull test
Remove coolant catcher from below vehicle
Secure RH side acoustic cover

Note
5x clips, Secure above clips and remaining from below
Raise vehicle fully
Position coolant drain below rear inverter
Install RDU supply hose from exchanger

Note
1x spring clip, Perform push-pull test
Remove coolant drain container from underneath vehicle
Install rear skid plate

Note
6x clips, 3x bolts, 15mm, 42 Nm, 5x bolts, 13mm, 28 Nm, 2x bolts, 10mm, 6 Nm, Apply Loctite 222 to mid aero shield bolts and install fasteners
Lower vehicle until tires are touching the ground

Note
Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
Connect FRL connector then connect MV battery connector

Note
2x connectors, Connect FRL connector then secure locking tab, Position lever to secure MV battery connector then slide eCPA to right, Early production trucks may have black FRL connector, If power cycling vehicle then ensure at least 60 seconds has passed since powering down
Run ODIN routine
PROC_EGGRIGHT3_X_THERMAL-FILL-DRAIN-STOP
via Toolbox: (link)via Service Mode: Thermal ➜ Actions ➜ Stop Thermal Fill/Drainvia Service Mode Plus:
Drive Inverter ➜ Front Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
Drive Inverter ➜ Rear Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
Drive Inverter ➜ Rear Left Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
Drive Inverter ➜ Rear Right Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
Drive Unit ➜ Front Drive Unit Replacement ➜ Stop Coolant Fill/Drain
Drive Unit ➜ Rear Drive Unit Replacement ➜ Stop Coolant Fill/Drain
Install bed floor assembly

Note
10x short bolts, 15mm, 56 Nm, 2x long bolts, 15mm, 46Nm, Recommend assistance
Install fastener covers onto bed floor assembly

Note
14x covers
Close tailgate
Raise LH front window
Close LH front door

Cybertruck Service Manual

Hose - Supply - Rear Drive Unit (Long Range) (Remove and Install)

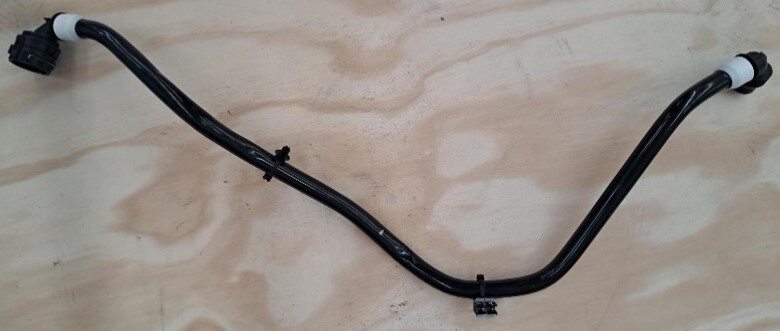

Figure 1

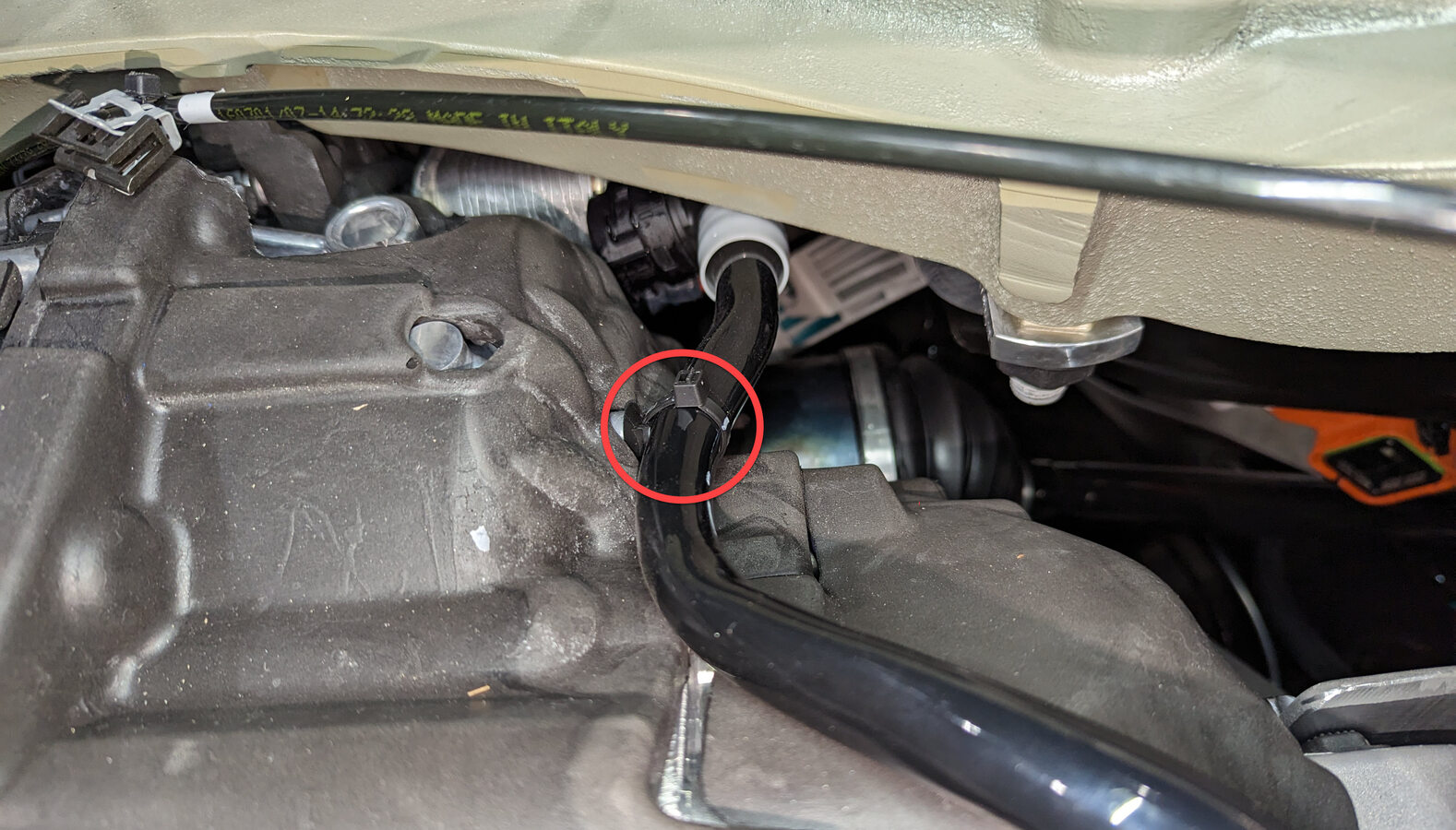

Figure 2
