Air Suspension Compressor and Reservoir - Air Suspension Compressor (Remove and Install)

Correction code 3110008011 3110008012 FRT 0.72 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

  • 2024-11-20: Remove airline removal tool and note. Fitting can be disconnected using 10mm wrench and flathead screwdriver.
Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.

Remove

  1. Raise and support the vehicle on a 2 post lift. See Raise Vehicle - 2 Post Lift.
  2. Open the LH front door and lower the LH front window.
  3. Deflate the air suspension system. See Air Suspension - Pressurize / Depressurize - Full System.
  4. Open the tonneau cover.
  5. Open the tailgate.
  6. Remove the bed floor assembly. See Truck Bed - Bed Floor Assembly (Remove and Install).
  7. Disconnect the air line from the air compressor.
    3 Nm (2.2 lbs-ft)
    Tip: Use of the following tool(s) is recommended:
    • 10 mm 12 point combination wrench
    • Flathead scewdriver
    Informational PurposesAn informational icon, calling your attention
    Note
    x1 VOSS fitting
    Informational PurposesAn informational icon, calling your attention
    Note
    Discard the air line fitting after removal.
  8. Disconnect the air compressor electrical connectors (x3) and release the clips (x4).
  9. Remove the nuts (x3) that attach the air suspension compressor carrier bracket to the body.
    12 Nm (8.8 lbs-ft)
    Tip: Use of the following tool(s) is recommended:
    • 13 mm deep socket
  10. Remove the bolts (x4) that attach the air suspension compressor carrier bracket to the air compressor.
    5.5 Nm (4.1 lbs-ft)
    Tip: Use of the following tool(s) is recommended:
    • Torx T30 socket

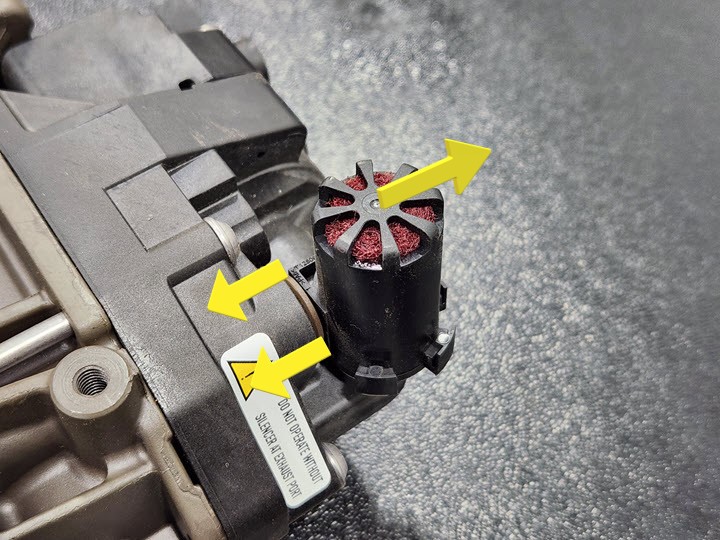

  11. Remove the air suspension compressor.
    4 Nm (2.9 lbs-ft)
    Tip: Use of the following tool(s) is recommended:
    • 12 mm 12 point combination wrench
    Informational PurposesAn informational icon, calling your attention
    Note
    x1 VOSS fitting
    Informational PurposesAn informational icon, calling your attention
    Note
    Discard the air line fitting after removal.

Install

  1. Install the air suspension compressor.
    4 Nm (2.9 lbs-ft)
    Tip: Use of the following tool(s) is recommended:
    • 12 mm 12-point deep socket
    Informational PurposesAn informational icon, calling your attention
    Note
    x1 VOSS fitting
    Informational PurposesAn informational icon, calling your attention
    Note
    Install new VOSS fitting.
    Informational PurposesAn informational icon, calling your attention
    Note
    Remove the white plug when the air lines are ready to be installed
    Informational PurposesAn informational icon, calling your attention
    Note
    Fully insert the air line into the fitting. It should sit between the two white marks on the air lines. Verify the lines are properly seated by performing a push-pull test.
  2. Install the bolts (x4) that attach the air suspension compressor carrier bracket to the air compressor.
    5.5 Nm (4.1 lbs-ft)
    Tip: Use of the following tool(s) is recommended:
    • Torx T30 socket
  3. Install the nuts (x3) that attach the air suspension compressor carrier bracket to the body.
    12 Nm (8.8 lbs-ft)
    Tip: Use of the following tool(s) is recommended:
    • 13 mm deep socket
  4. Connect the air compressor electrical connectors (x3) and fasten the clips (x4).
  5. Connect the air lines onto the air compressor.
    3 Nm (2.2 lbs-ft)
    Tip: Use of the following tool(s) is recommended:
    • 10 mm deep socket
    Informational PurposesAn informational icon, calling your attention
    Note
    x1 VOSS fitting
    Informational PurposesAn informational icon, calling your attention
    Note
    Install the air line hose.
    Informational PurposesAn informational icon, calling your attention
    Note
    Install new VOSS fitting.
    Informational PurposesAn informational icon, calling your attention
    Note
    Remove the white plug when the air lines are ready to be installed.
    Informational PurposesAn informational icon, calling your attention
    Note
    Fully insert the air line into fitting. It should sit between the two white marks on the air lines. Verify the lines are properly seated by performing a push-pull test.
  6. Install the bed floor assembly. See Truck Bed - Bed Floor Assembly (Remove and Install).
  7. Close the tonneau cover.
  8. Close the tailgate.
  9. Refill the air suspension system reservoir. See Air Suspension - Pressurize / Depressurize - Full System.
  10. Raise the LH front window and close the LH front door.
