Correction code NA NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

1. Open the tailgate.
2. Open the tonneau cover.
3. Remove the tonneau applique. See Tonneau Applique (Remove and Install).

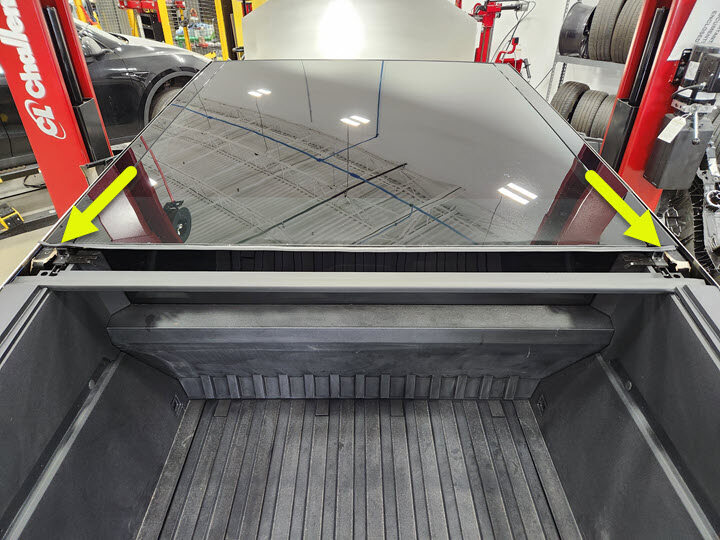

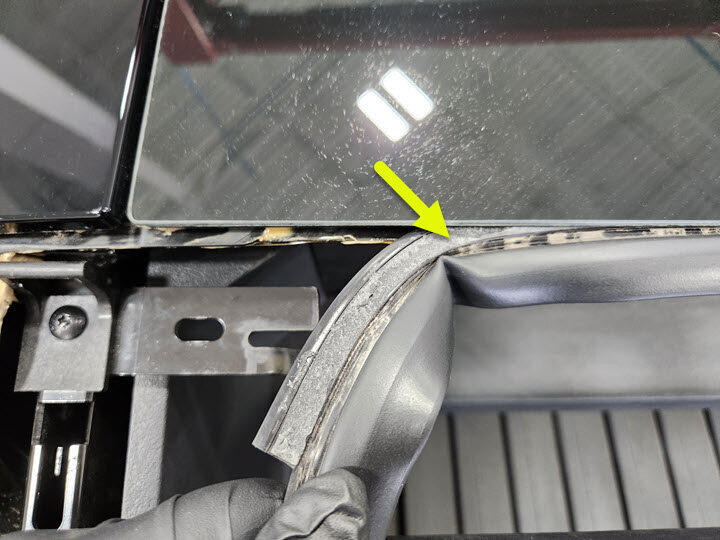

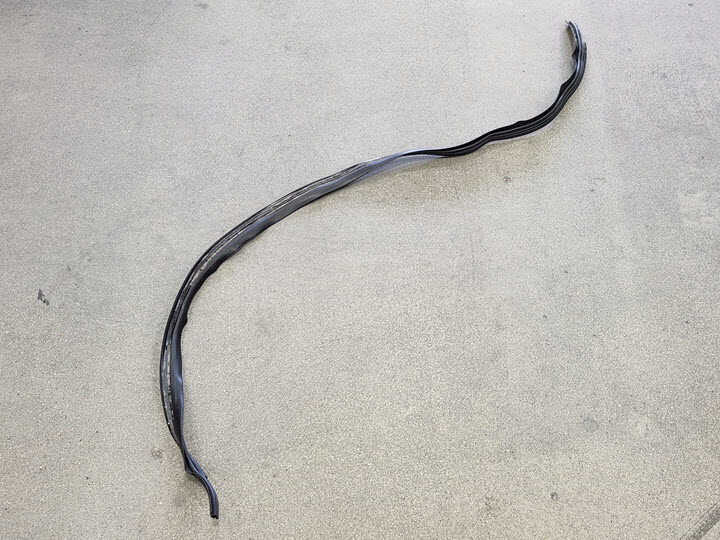

4. Remove the roof glass rear edge seal.

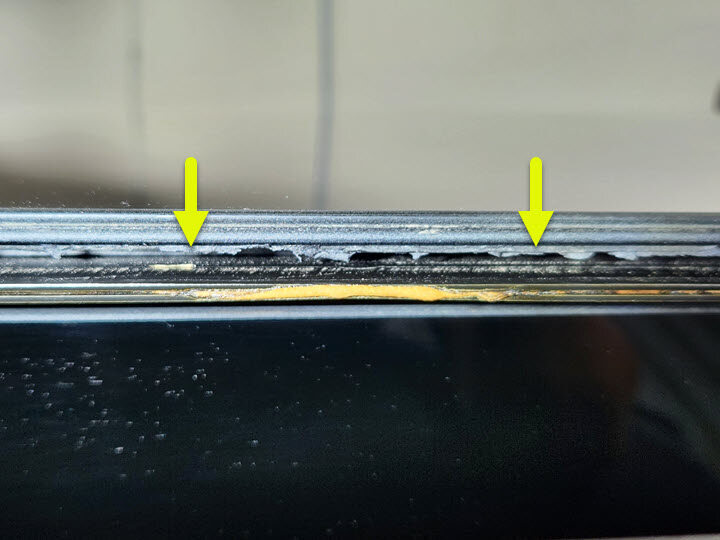

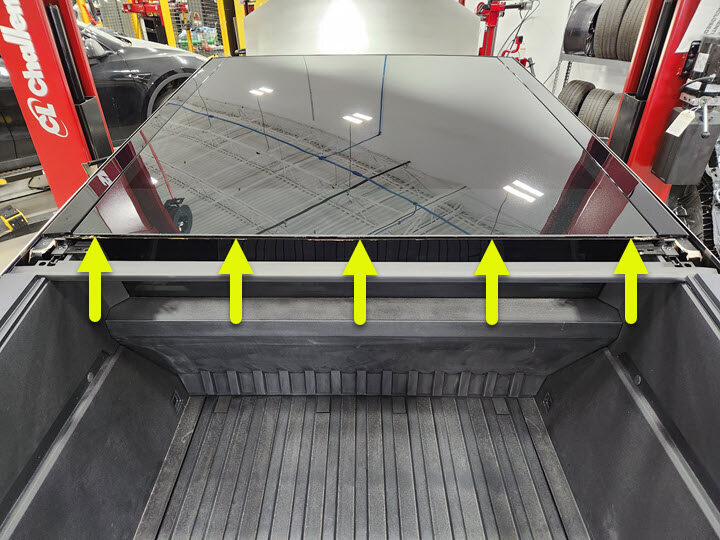

5. Remove adhesive residue from roof glass rear edge
   Note

   Use 3M adhesive remover.

   Note

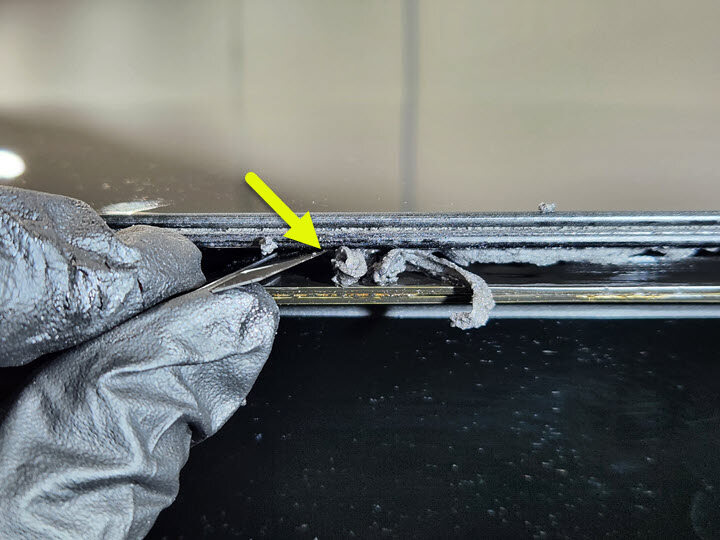

   Do not remove net pads, Use adhesive remover and blade to roll adhesive, Make sure to wear proper PPE for cutting, Rubber gloves used in pictures for demonstration purposes only

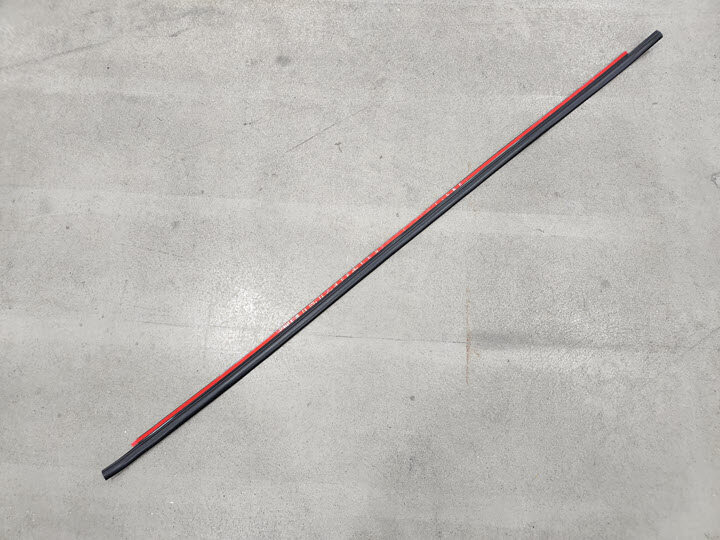

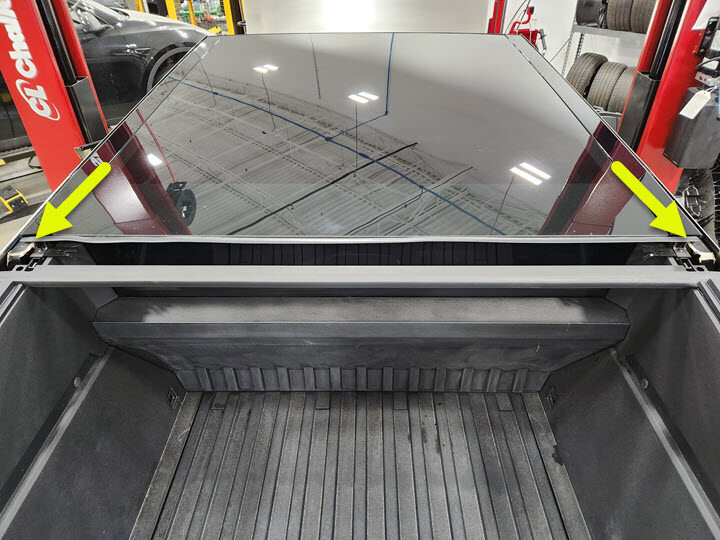

6. Position roof glass rear edge seal
   Note

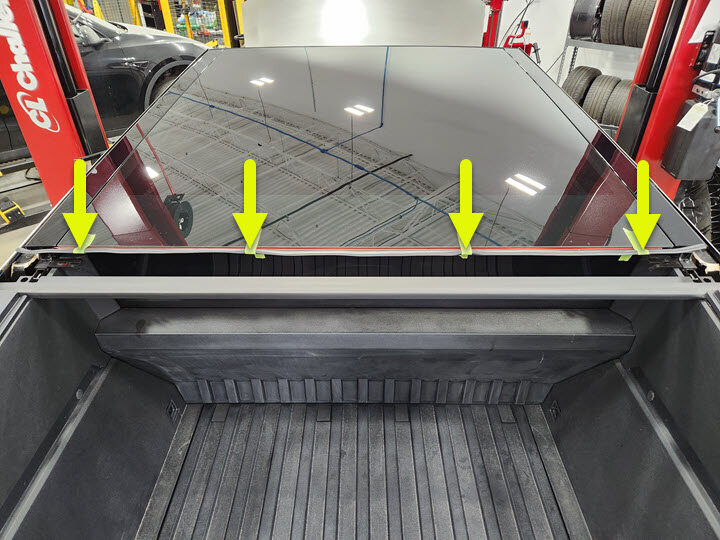

   Do not remove red backing, Apply tape as needed, Align seal with glass edge, Slightly tuck seal under glass





7. Adhere roof glass rear edge seal
   Note

   Use 3M adhesive promoter.

   Note

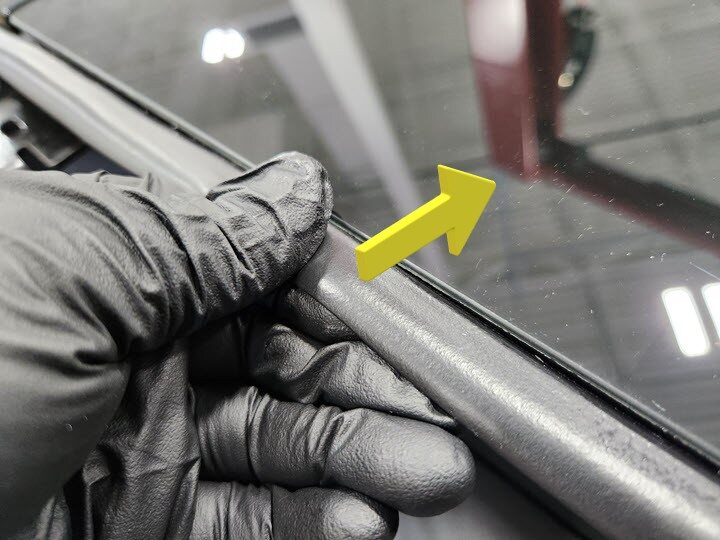

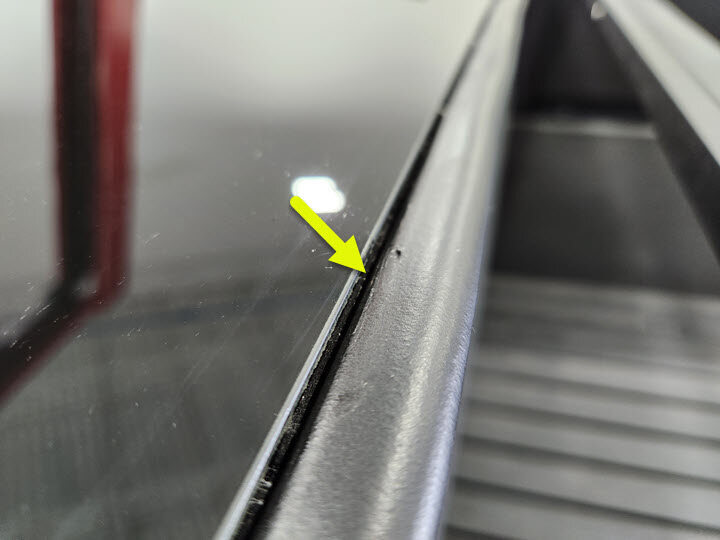

   Pull red backing then spray adhesive promoter onto seal double-sided tape, Fully press seal in between glass and body, Remove tape as needed, Align seal with glass edge

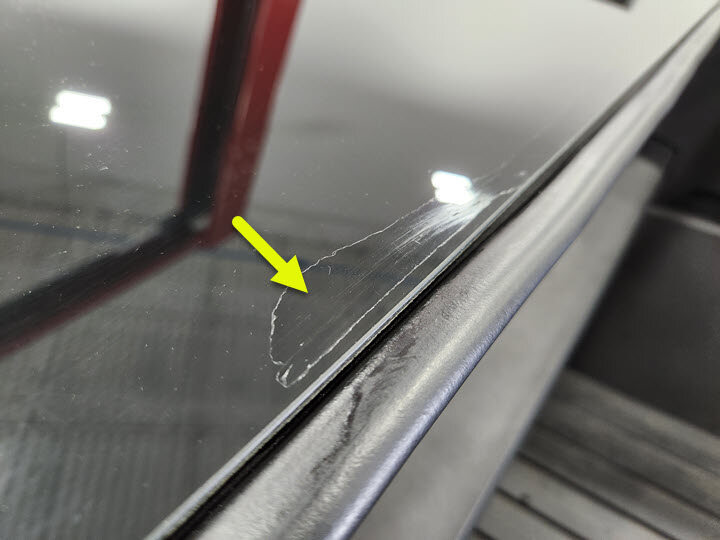

8. Clean roof glass rear edge
   Note

   Remove any remaining adhesive promoter with adhesive remover



9. Install the tonneau applique. See Tonneau Applique (Remove and Install).
10. Close the tonneau cover.
11. Close the tailgate.
