Cam Block - LH - Fabric Tonneau (Long Range) (Remove and Install)

Correction code NEW NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
  • 2025-06-21: Released new procedure.
  1. Open tailgate
    Informational PurposesAn informational icon, calling your attention
    Note
    Press button to release
  2. Remove LH sail applique
    Informational PurposesAn informational icon, calling your attention
    Note
    15x clips, 1x connector, 1x harness clip, Lift rear edge first to remove connector and harness clip

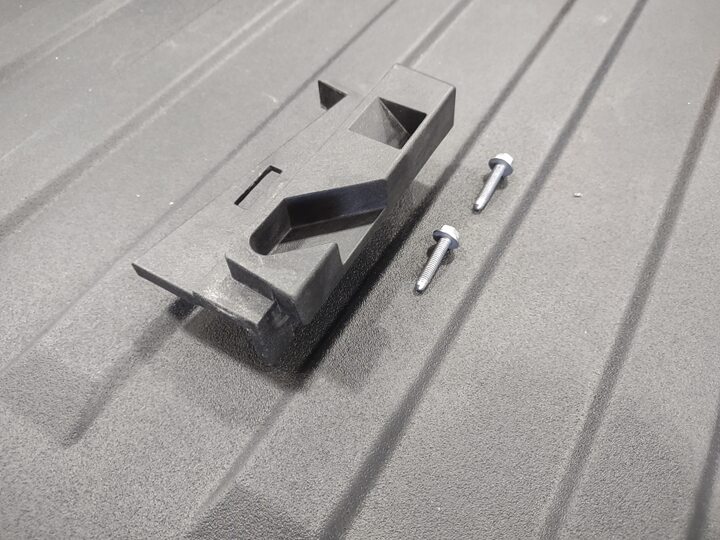

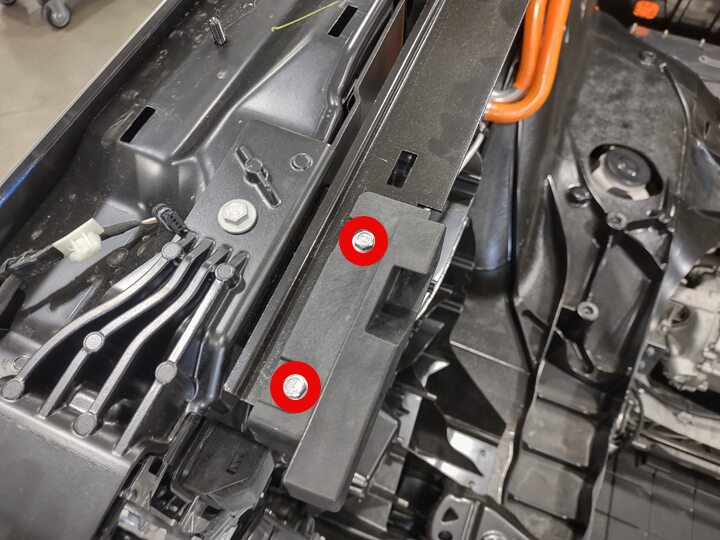

  3. Remove LH tonneau cam block
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 8mm, 10Nm
  4. Install LH tonneau cam block
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 8mm, 10Nm
  5. Install LH sail applique
    Informational PurposesAn informational icon, calling your attention
    Note
    15x clips, 1x connector, 1x harness clip, Replace any broken clips
  6. Close tailgate
