BLE End Point - Wheel Well - Front - LH (Remove and Replace)

Correction code 1745104032 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
  1. Close LH front door
  2. Open LH front door
    Informational PurposesAn informational icon, calling your attention
    Note
    Push LH B-pillar door trigger to release
  3. Lower LH front window
  4. Run ODIN routine PROC_ICE_X_ENTER-SERVICE-MODEvia Toolbox: (link)
  5. Remove LH front fender flare cover
    Informational PurposesAn informational icon, calling your attention
    Note
    11x clips, 3x datums, 1x connector, Release all clips then repeater connector before removal, Camera harness is very short, Ensure excess force is not exerted on harness

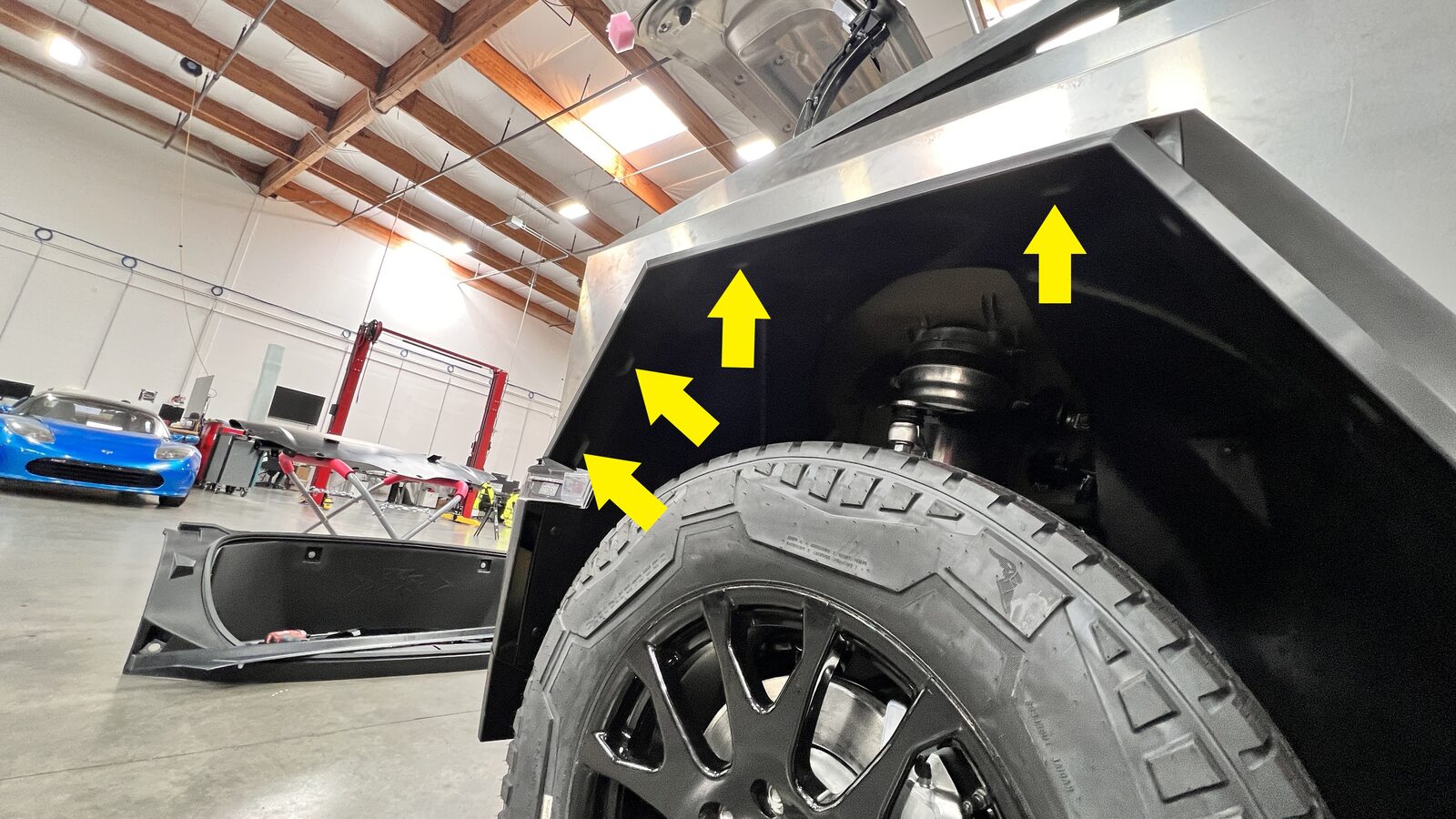

  6. Release LH front wheel liner from fore fender flare carrier
    Informational PurposesAn informational icon, calling your attention
    Note
    4x push clips
  7. Remove LH front fore fender flare carrier
    Informational PurposesAn informational icon, calling your attention
    Note
    6x bolts, 10mm, 6 Nm, 1x connector, Disconnect BLE module then remove carrier, Release locking tab
  8. Remove LH front wheel well BLE endpoint
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, T20, 1.5 Nm, Discard bolts
  9. Install LH front wheel well BLE endpoint
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, T20, 1.5 Nm, Install new bolts
  10. Install LH front fore fender flare carrier
    Informational PurposesAn informational icon, calling your attention
    Note
    6x bolts, 10mm, 6 Nm, 1x connector, Connect BLE then install carrier, Engage locking tab
  11. Install clips securing LH front wheel liner to fore fender flare carrier
    Informational PurposesAn informational icon, calling your attention
    Note
    4x push clips
  12. Install LH front fender flare cover
    Informational PurposesAn informational icon, calling your attention
    Note
    11x clips, 3x datums, 1x connector, Make camera connection before flare installation, Ensure excess force is not exerted on camera harness, Replace any missing or damaged clips
  13. Reinstall software via UI
    Informational PurposesAn informational icon, calling your attention
    Note
    Via Controls > Service Mode > Software Reinstall, Select Reinstall button at Software Reinstall dialogue box, Reinstall will begin immediately, Once firmware redeploy is complete, Verify release notes are present via UI
  14. Run ODIN routine PROC_ICE_X_EXIT-SERVICE-MODEvia Toolbox: (link)
  15. Raise LH front window
  16. Close LH front door
