Correction code 1513091041 1513091042 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

1. Open the LH front door and lower the LH front window.
2. Remove LH rear beltline assembly
   Note

   16x clips, 2x datums, 2x connectors







3. Remove bolts securing LH rear door trim
   Note

   3x bolts, 8mm, 4Nm



4. Release LH rear door trim
   Note

   15x clips, 2x connectors, Replace any broken clips

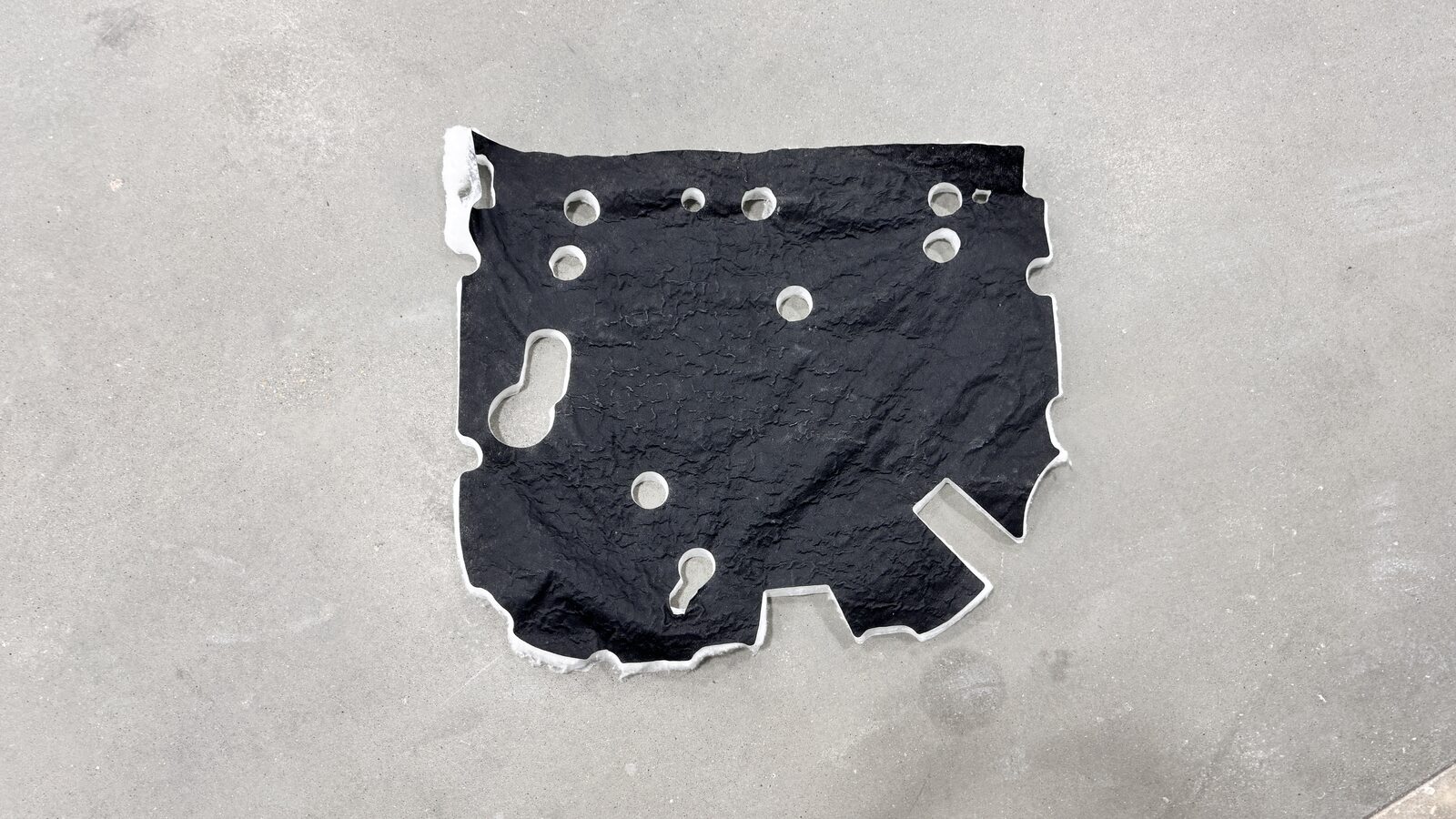

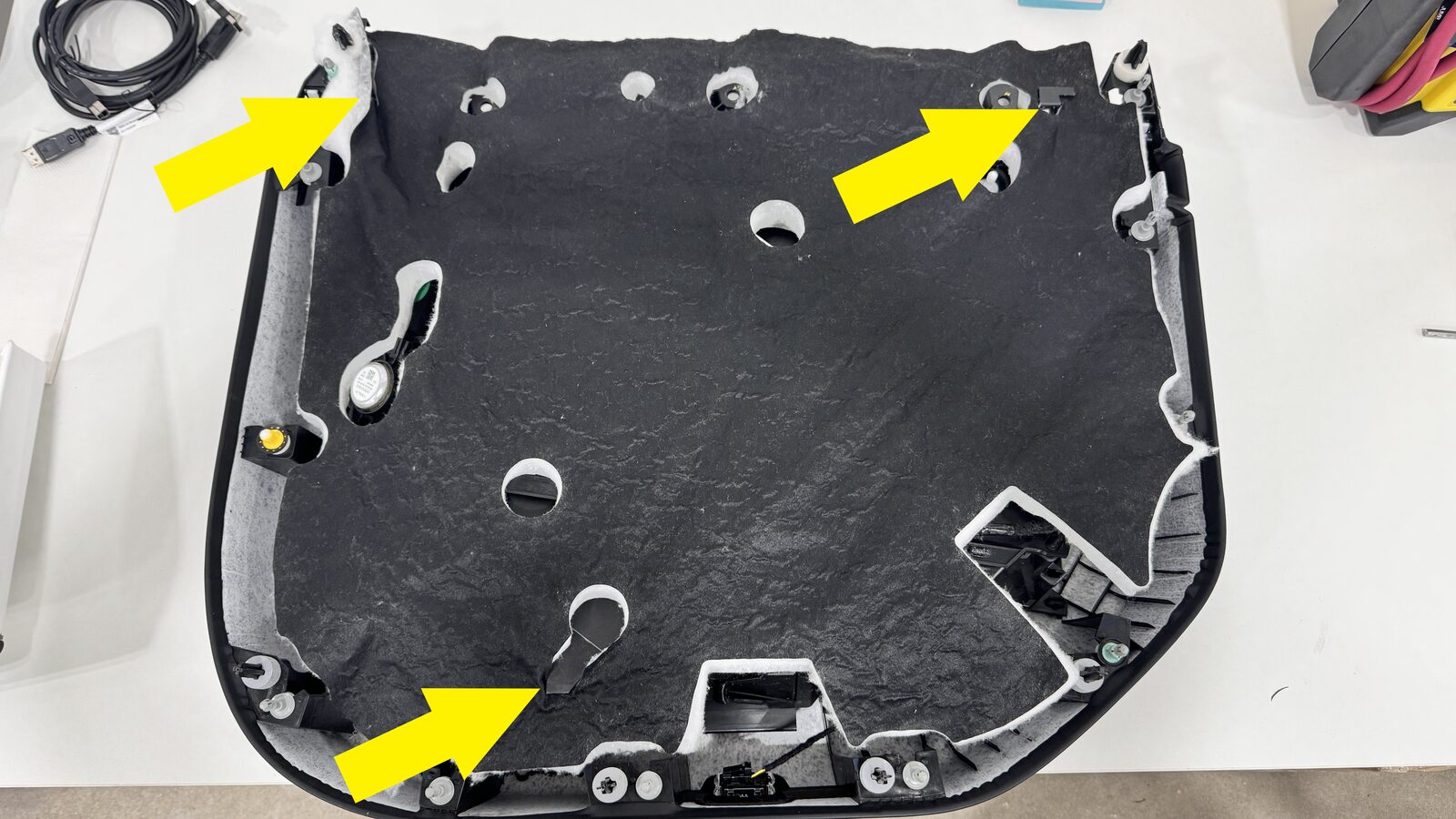

5. Remove LH rear door trim NVH foam
   Note

   Lift NVH foam off of retaining tabs

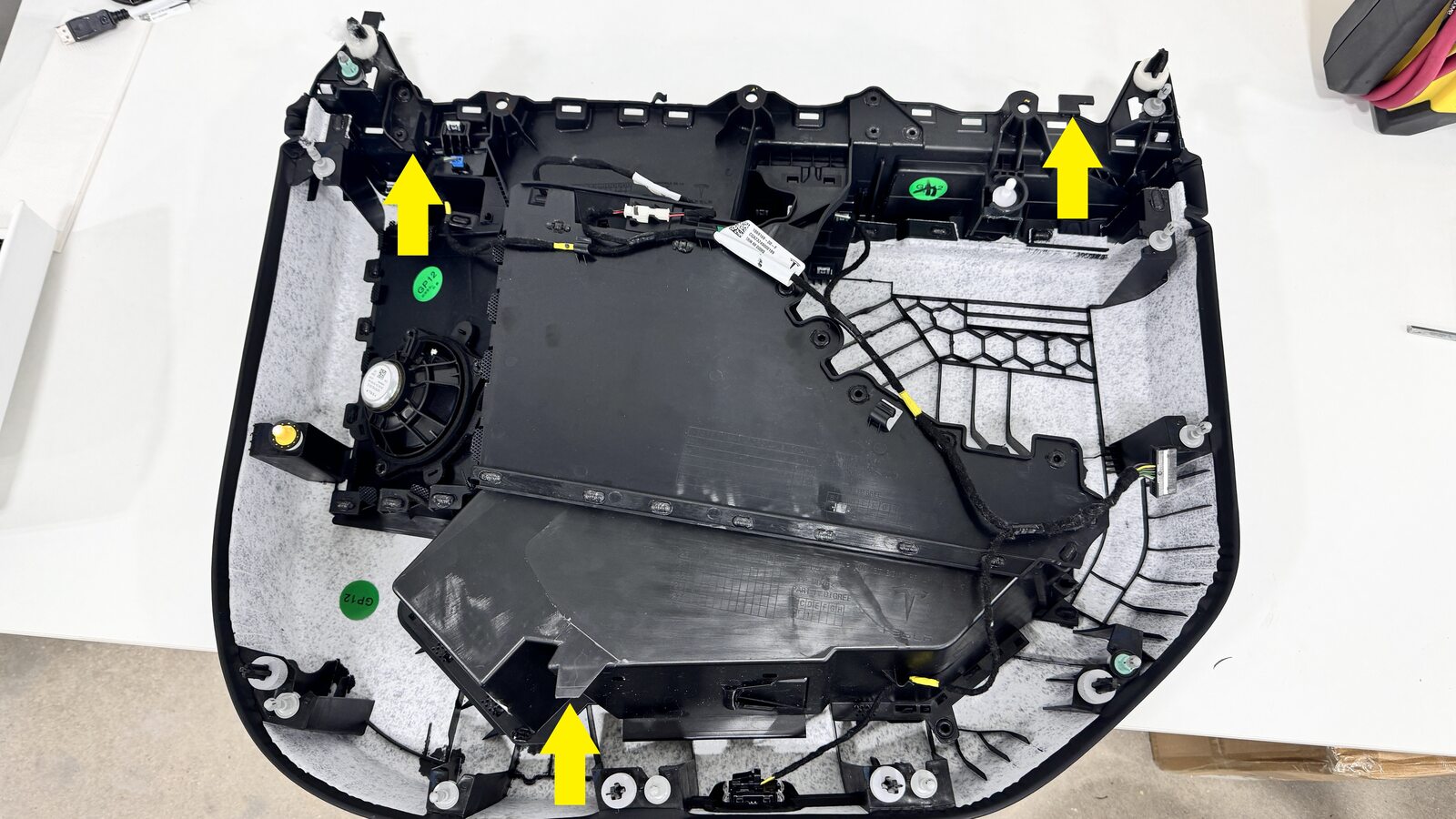

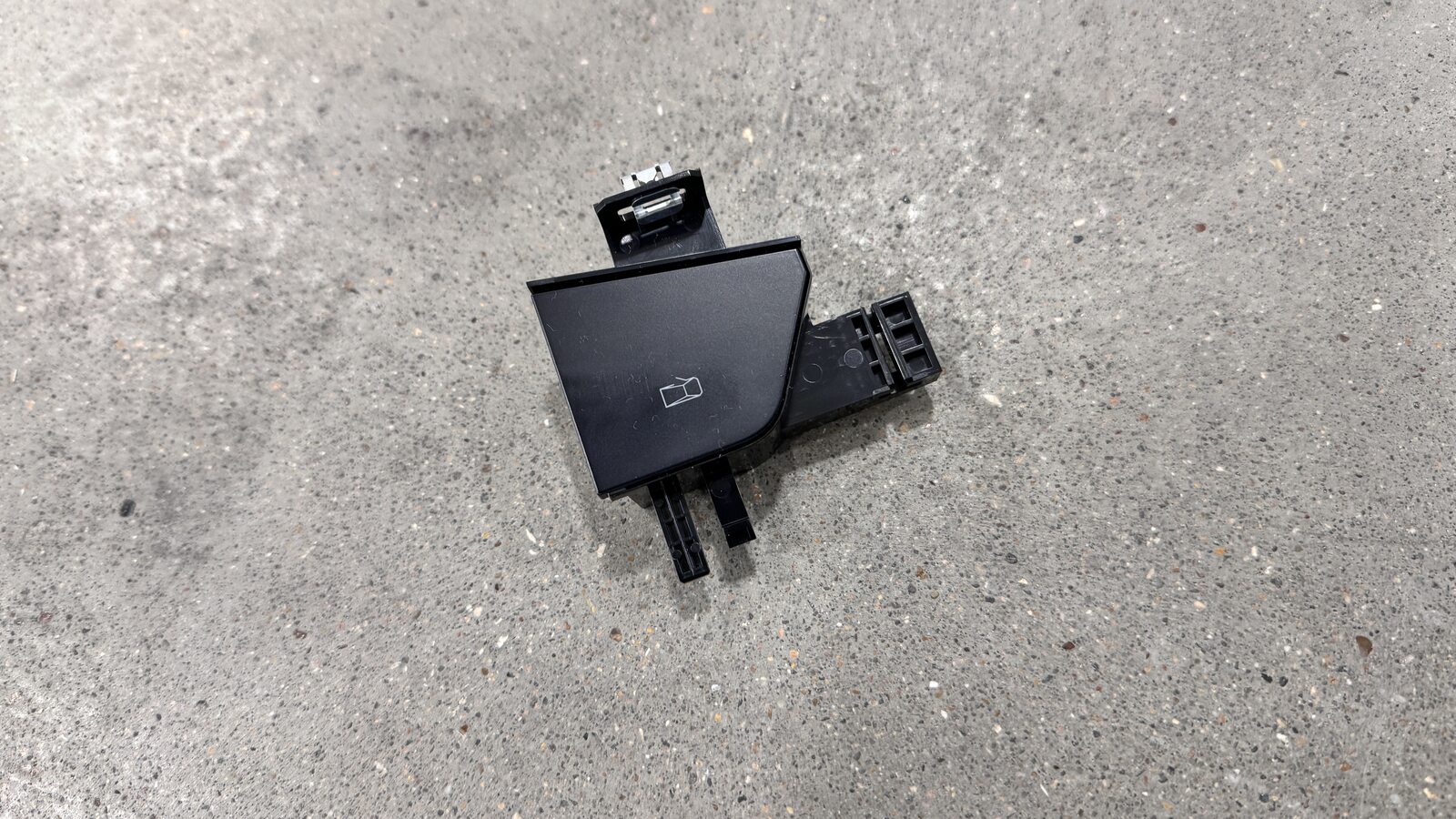

6. Remove LH rear door release switch
   Note

   1x connector, 1x clip, Slide switch assembly out of trim panel





7. Install LH front rear release switch
   Note

   1x connector, 1x clip, Slide switch assembly into trim panel





8. Install LH rear door trim NVH foam
   Note

   Secure NVH foam to retaining tabs







9. Install LH rear door trim
   Note

   Ensure beltline harness branch is routed properly, Replace any missing or damaged clips





10. Install bolts securing LH rear door trim
    Note

    3x bolts, 8mm, 4 Nm



11. Install LH rear beltline assembly
    Note

    16x clips, 2x datums, 2x connectors, Replace any missing or damaged clips







12. Raise the LH front window and close the LH front door.
