Key Card - Program (Existing Key Present) (Program)

Correction code 17450406 0.07 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
  • 2025-05-27: Released new procedure.
  1. Open the LH front door and lower the LH front window.
  2. Add key via UI
    Informational PurposesAn informational icon, calling your attention
    Note
    Via UI > Controls > Locks > Add Key

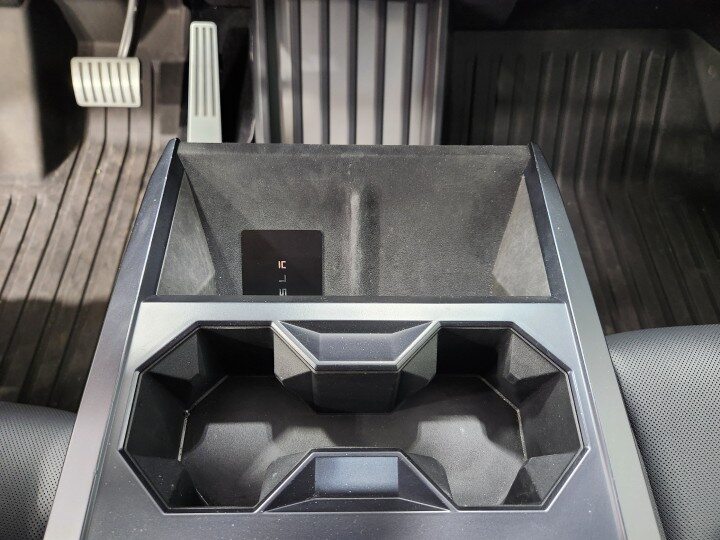

  3. Place NFC card(s) on on left side of phone dock
    Informational PurposesAn informational icon, calling your attention
    Note
    Key pairing will begin
  4. Tap existing key card to approve pairing
  5. Verify new key is paired via UI
    Informational PurposesAn informational icon, calling your attention
    Note
    Via UI > Controls > Locks > Keys
  6. Check function of programmed NFC keys
    Informational PurposesAn informational icon, calling your attention
    Note
    Tap driver side exterior B-pillar area to lock/unlock vehicle, Tap left side of phone dock to start vehicle
  7. Raise the LH front window and close the LH front door.
