Steering Gear - Rear (Long Range) (Remove and Install)

Correction code NEW NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Warning

This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.

Warning

Cybertruck electronics are powered by a 48V "mid voltage" or "MV" architecture that is designed to improve efficiency. Servicing MV components requires extra knowledge and care in order to avoid personal and/or vehicular harm. Read and understand MV precautions in Electrical Precautions and make sure any required MV-related training courses have been completed, as applicable.

2025-05-15: Released new procedure.

Open LH front door

Note
Push LH B-pillar door trigger to release
Lower LH front window
Raise and support vehicle

Note
Set air suspension to "Jack Mode"
Run ODIN routine PROC_ICE_X_ENTER-SERVICE-MODEvia Toolbox: (link)
Open tailgate

Note
Press button to release
Open powered front trunk

Note
Via exterior switch or UI
Power down vehicle via UI

Note
Verify EPBs are engaged, Select charge port icon to ensure drive state is disengaged then power down vehicle via Controls > Safety > Power Off
Remove rear underhood apron

Note
9x clips
Disconnect FRL connector then disconnect MV battery connector

Note
2x connectors, Release locking tab then disconnect FRL connector, Slide eCPA to left then lift lever to release MV battery connector, Early production trucks may have black FRL connector, Release eCPA by pushing down to unlock and slide red locking tab, Wait 2 minutes for electrical circuits to discharge before disconnecting modules
Remove fastener covers from bed floor assembly

Note
14x covers
Remove bed floor assembly

Note
10x short bolts, 15mm, 56 Nm, 2x long bolts, 15mm, 46Nm, Lift front edge with trim tool then remove panel, Recommend assistance
Remove LH rear wheel cap

Note
1x cap, 8x clips, Use both hands to firmly pull wheel cap to release clips, Cap may remove with or without mounting ring attached
Loosen LH rear wheel nuts

Note
6x nuts, 21mm, 205 Nm
Remove RH rear wheel cap

Note
1x cap, 8x clips, Use both hands to firmly pull wheel cap to release clips, Cap may remove with or without mounting ring attached
Loosen RH rear wheel nuts

Note
6x nuts, 21mm, 205 Nm
Raise vehicle partially and lower onto locks

Note
Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
Remove RH rear wheel

Note
6x nuts, 21mm, 205 Nm

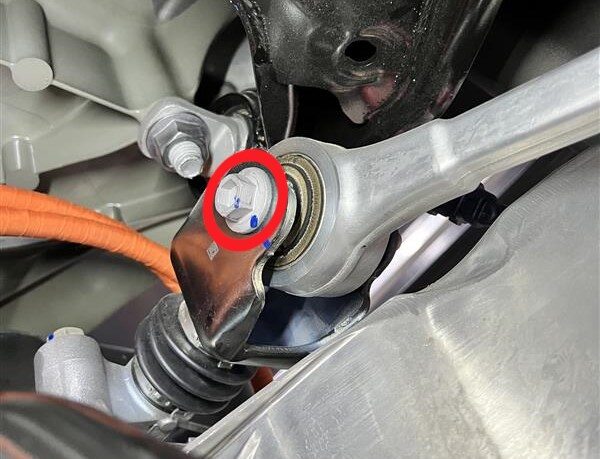

Remove bolt securing RH rear tie rod to rear steering actuator

Note
1x bolt, 18 mm, 180 Nm
Remove RH rear toe link from RH rear knuckle

Note

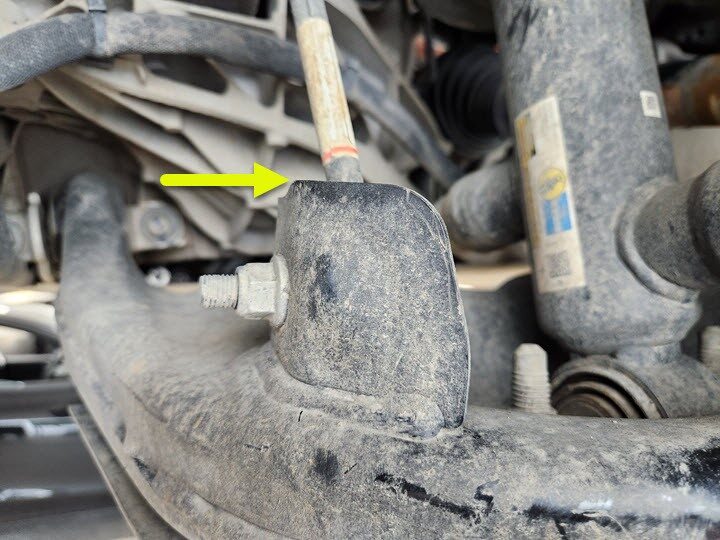

1x nut, 21mm, 170 Nm, Counter hold ball joint, Discard nyloc nut after removal
Remove LH rear wheel

Note
6x nuts, 21mm, 205 Nm

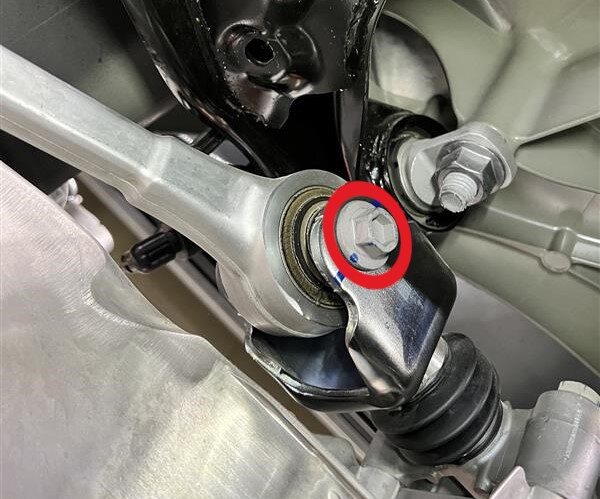

Remove LH rear toe link from rear steering actuator

Note
1x bolt, 18 mm, 180 Nm
Remove LH rear toe link from LH rear knuckle

Note
1x nut, 21mm, 170 Nm, Counter hold ball joint, Discard nyloc nut after removal
Lower vehicle partially and set lift onto locks

Note
Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height
Disconnect rear steering actuator connector

Note
1x connector, Release locking tab, 1x harness clip, Place harness aside for access

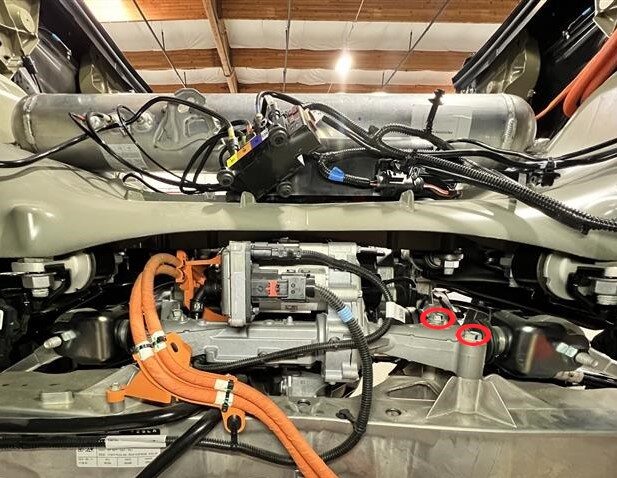

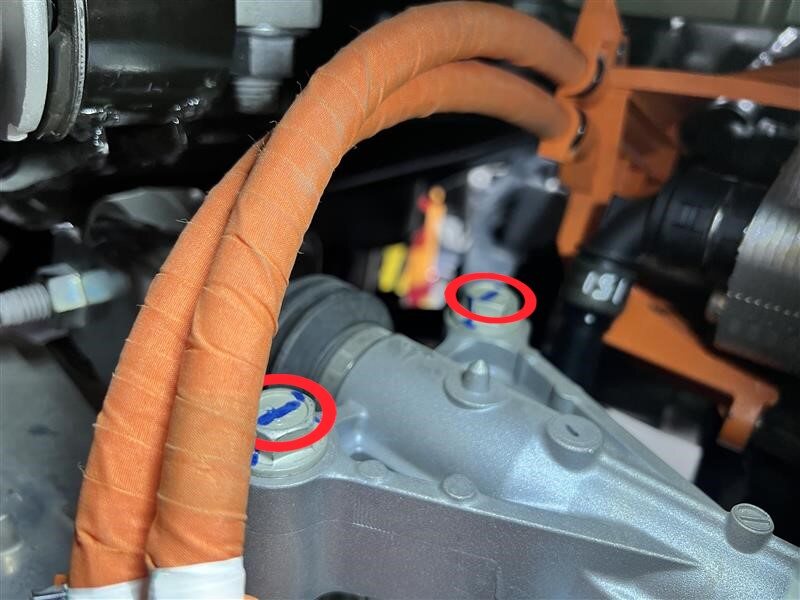

Remove bolts securing RH side of rear steering actuator onto rear subframe

Note

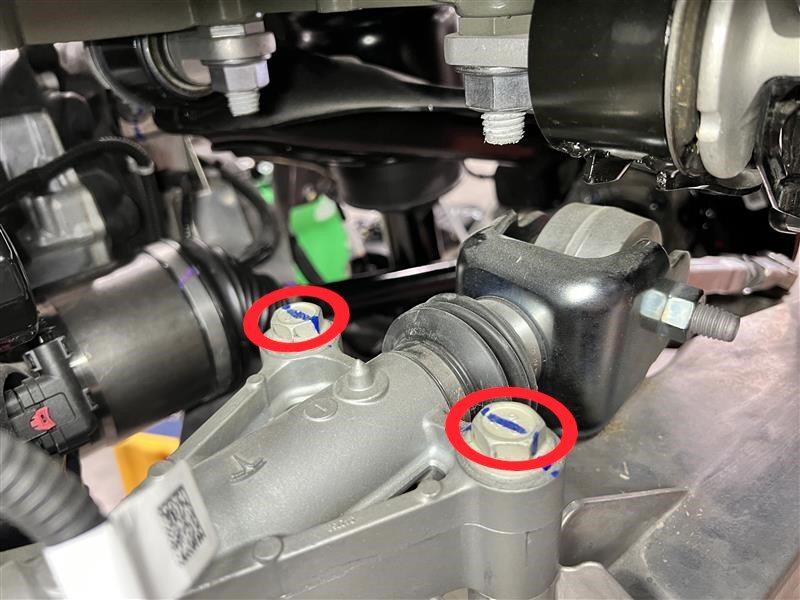

2x bolt, 18 mm, 120 Nm
Remove bolts securing LH side of rear steering actuator to rear subframe

Note
2x bolt, 18 mm, 120 Nm

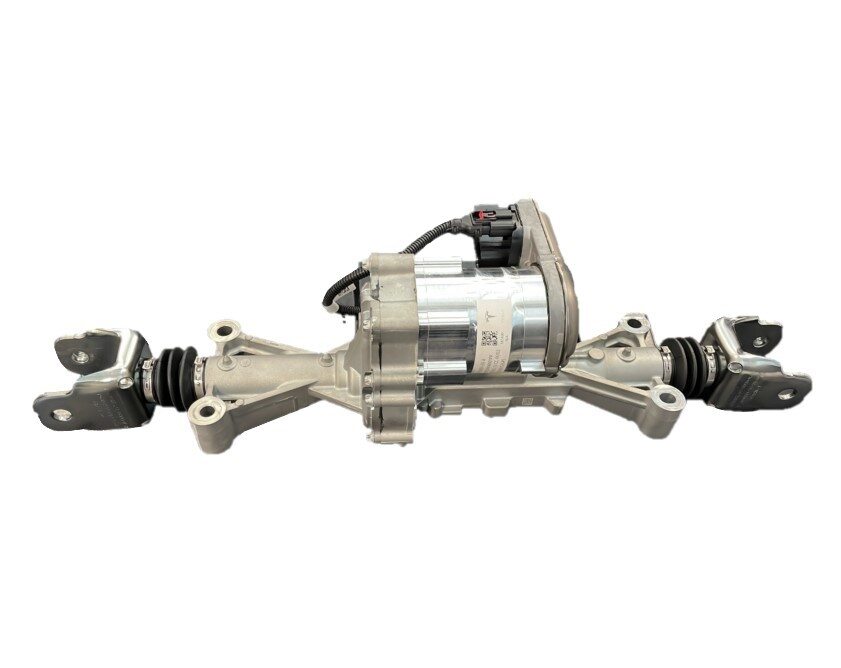

Remove rear steering actuator from vehicle

Note

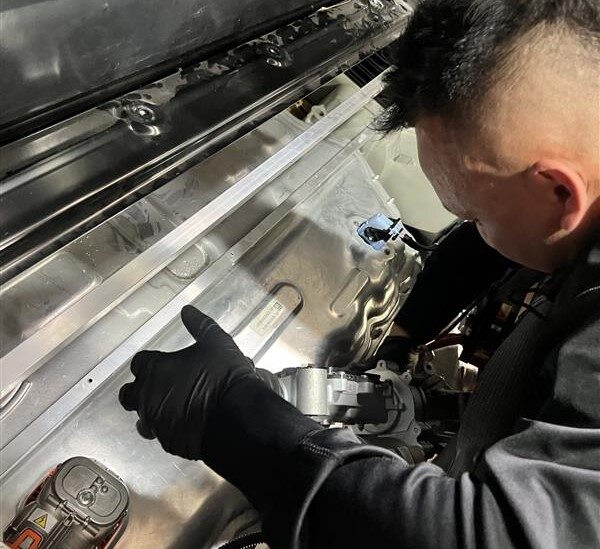

Rotate rear steering actuator onto side and pivot to the left side to release actuator out from rear subframe, Use caution when removing rear steering actuator from rear subframe, Avoid damaging any HV cable, body harness and ride height sensor
Position rear steering actuator into vehicle for installation

Note

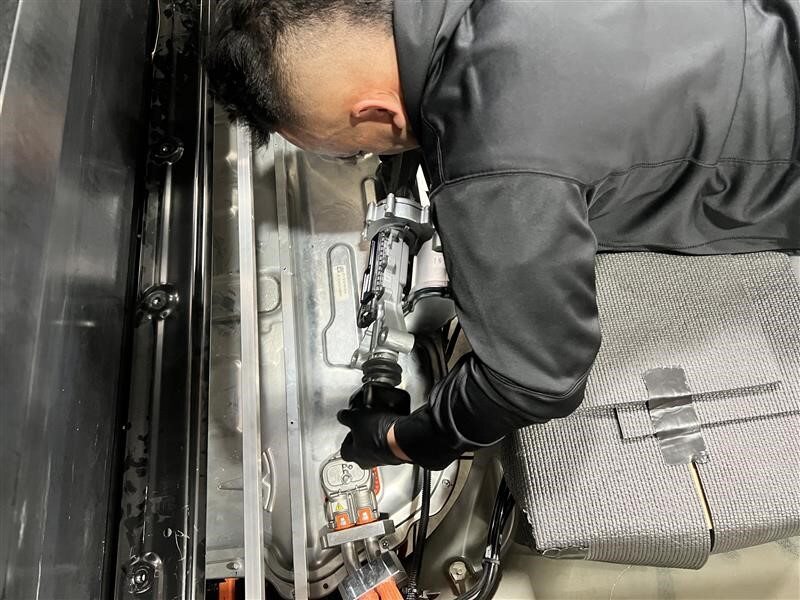

Rotate rear steering actuator onto side, Insert the right side of steering actuator to position onto rear subframe, Use caution when installing rear steering actuator onto rear subframe, Avoid damaging any HV cable, body harness and ride height sensor
Install bolts securing LH side of rear steering actuator to rear subframe

Note
2x bolt, 18 mm, 120 Nm
Install bolts securing RH side of rear steering actuator to rear subframe

Note
2x bolt, 18 mm, 120 Nm
Install rear steering actuator connector

Note
1x connector, Secure locking tab, 1x harness clip, Position harness into place for installation
Connect FRL connector then connect MV battery connector

Note
2x connectors, Connect FRL connector then secure locking tab, Position lever to secure MV battery connector then slide eCPA to right, Early production trucks may have black FRL connector, If power cycling vehicle then ensure at least 60 seconds has passed since powering down
Perform software reinstall

Note

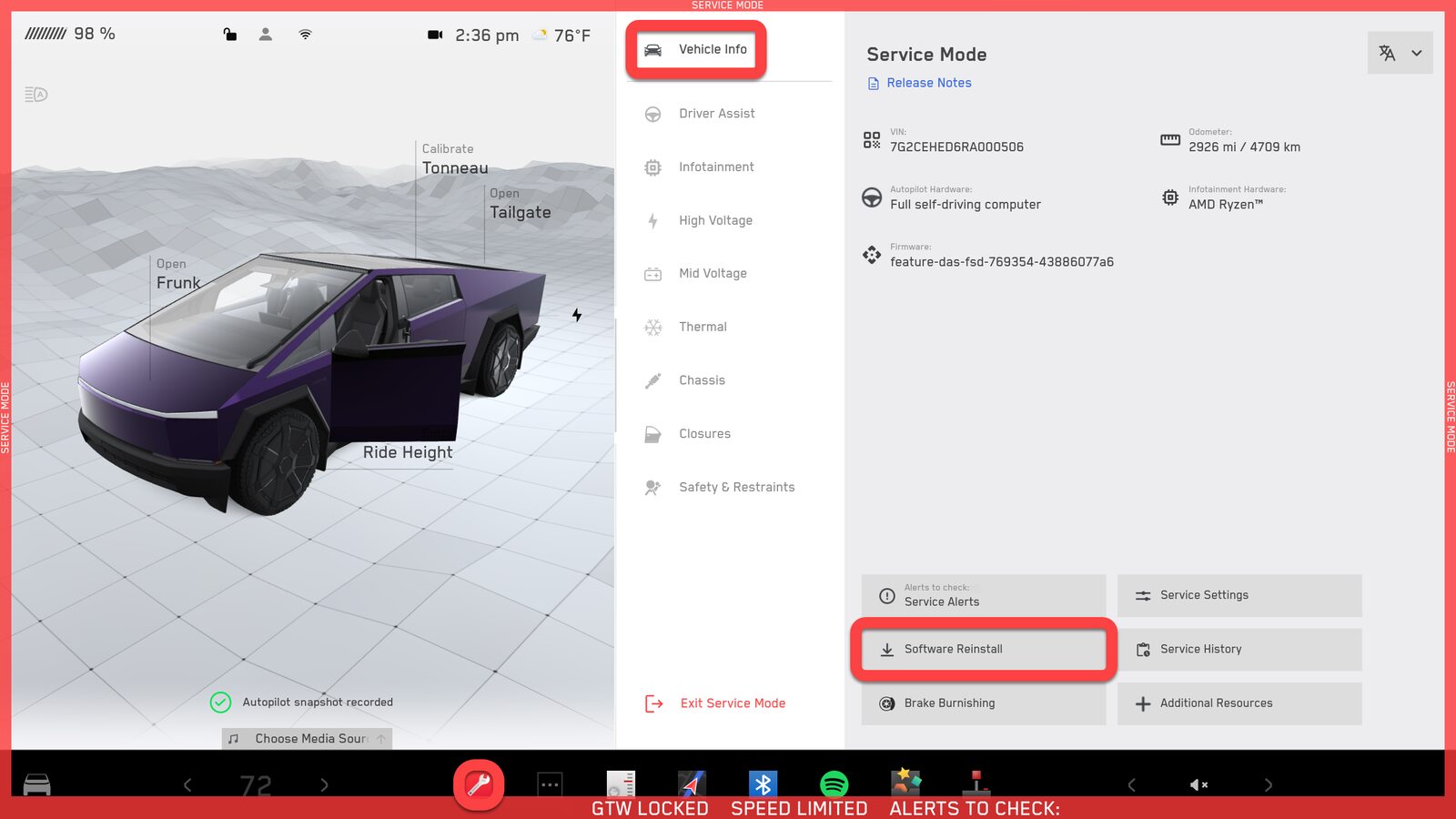

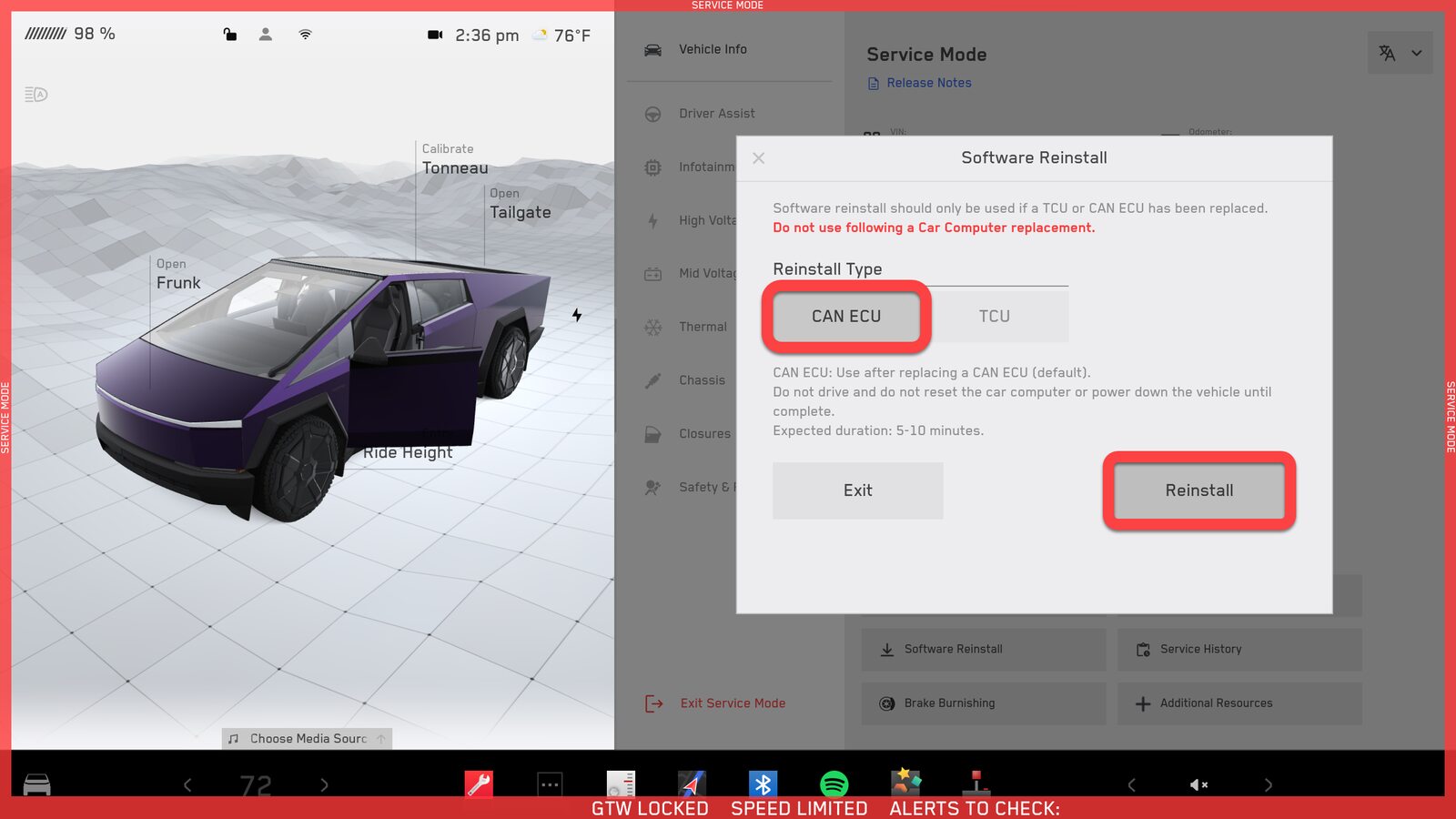

Via UI > Service Mode > Software Reinstall > CAN ECU > Reinstall, Reinstall will begin immediately, Once firmware redeploy is complete, Verify release notes are present via UI

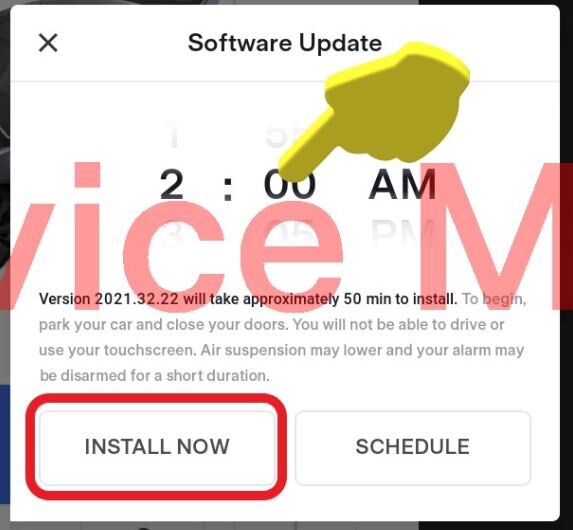

Select "Install Now" to start firmware update

Note

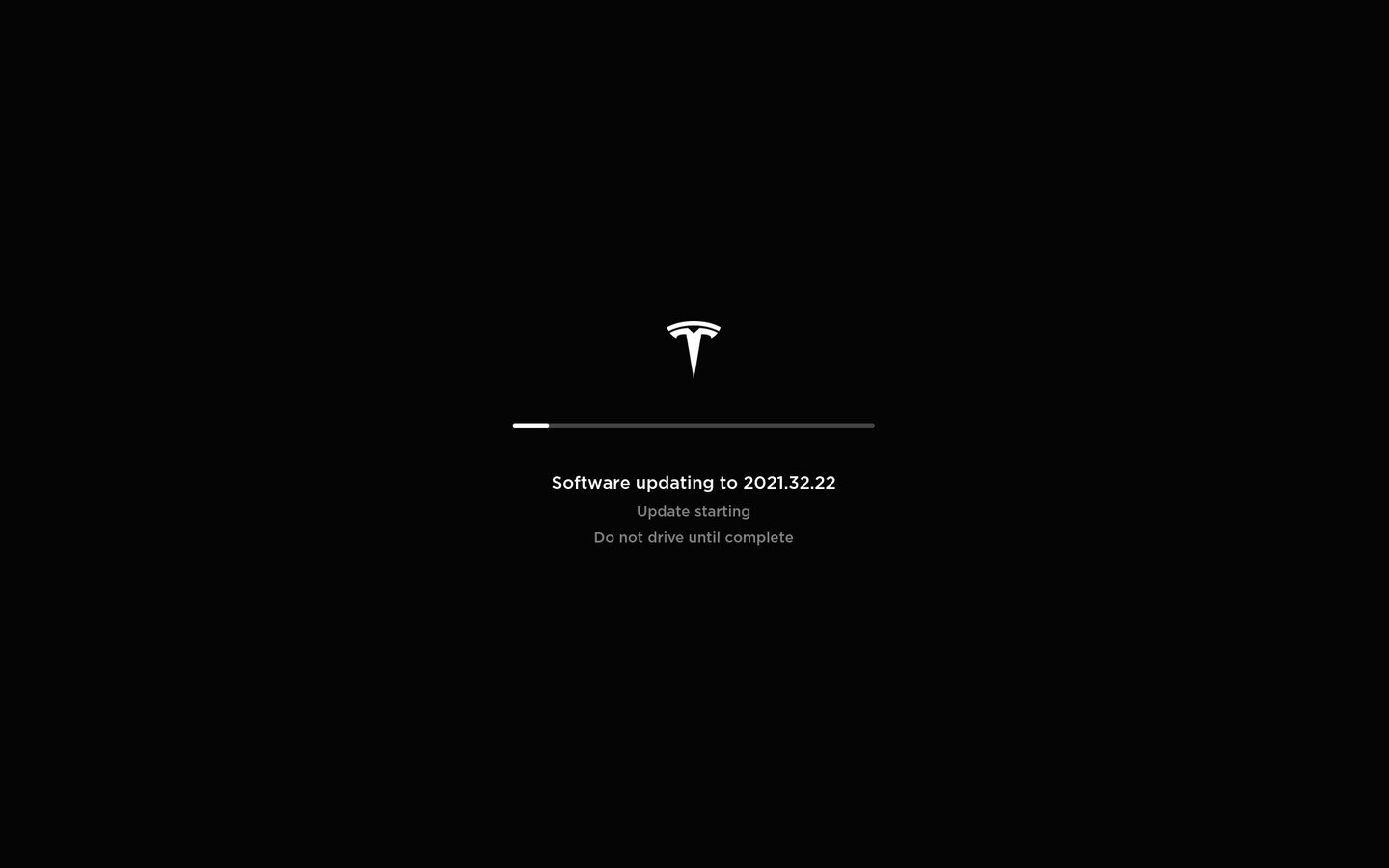

Tap center display next to software update window until clock runs down to 0,After displayed installation time, Check the center display and ensure the firmware package was successfully installed

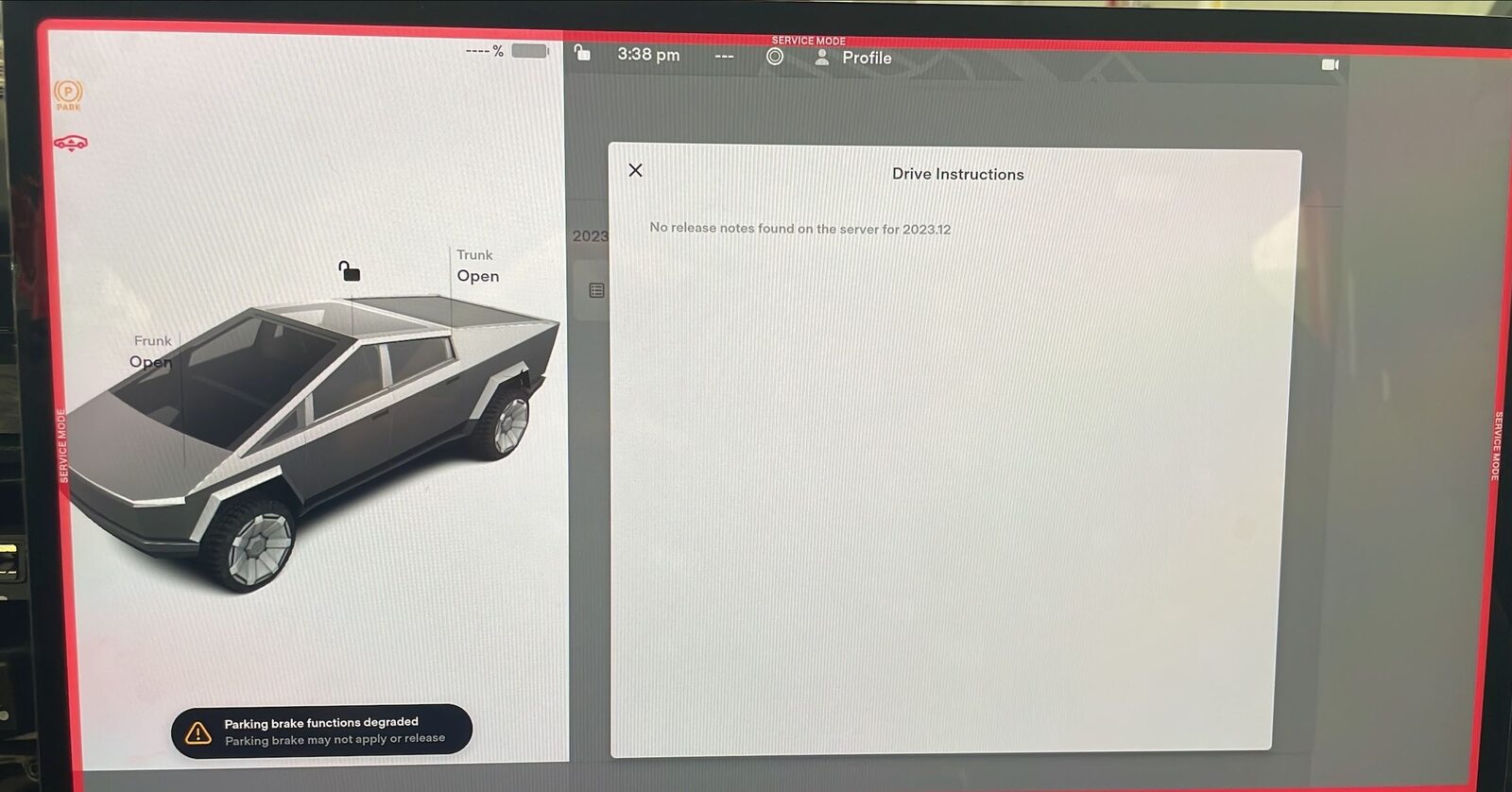

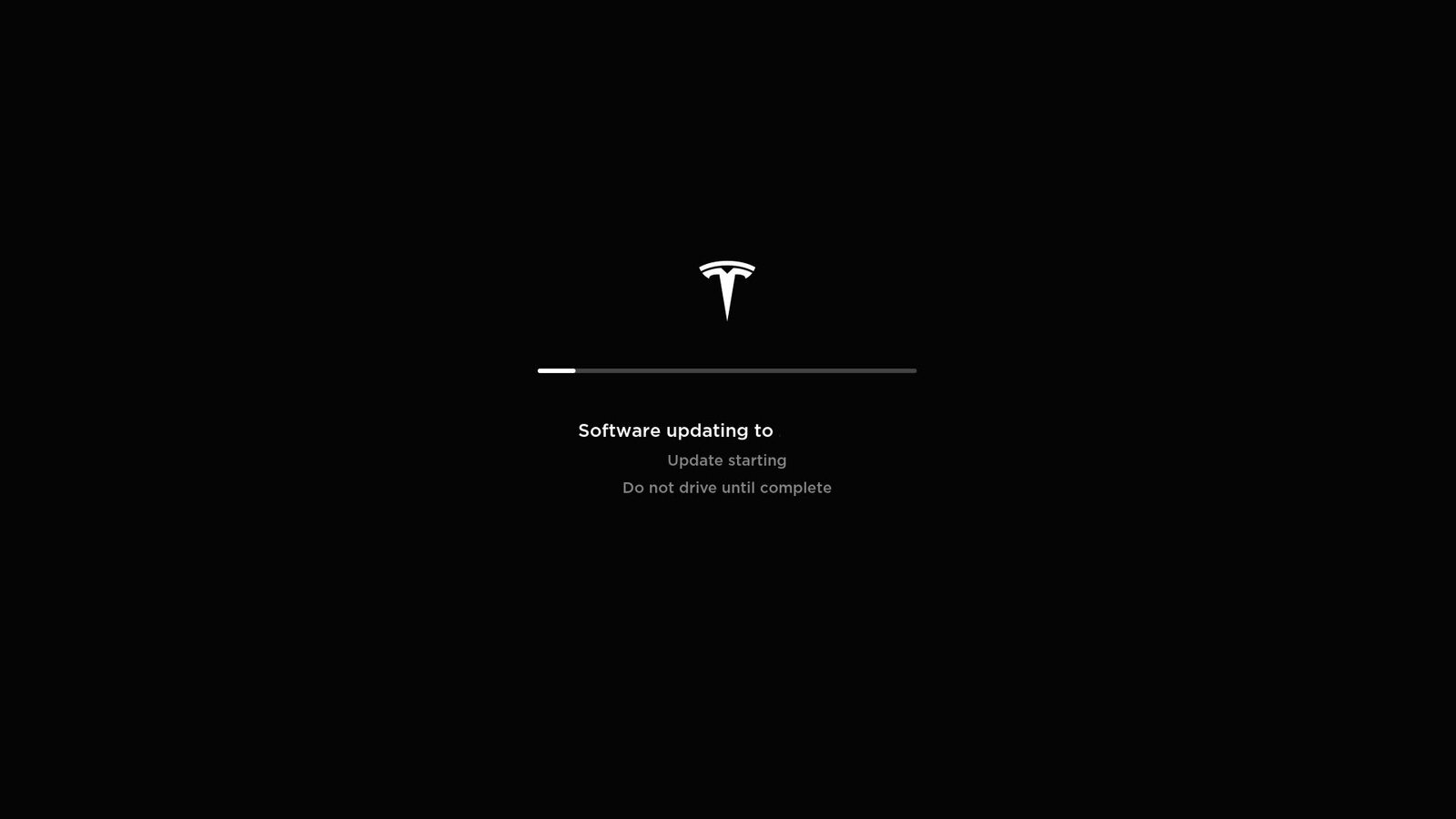

Once firmware redeploy is complete, Verify release notes are present on center display

Note
If the redeploy fails you may receive an error message on UI
Install bed floor assembly

Note
10x short bolts, 15mm, 56 Nm, 2x long bolts, 15mm, 46Nm, Recommend assistance
Install fastener covers onto bed floor assembly

Note
14x covers
Close tailgate
Disconnect FRL connector then disconnect MV battery connector

Note
2x connectors, Release locking tab then disconnect FRL connector, Slide eCPA to left then lift lever to release MV battery connector, Early production trucks may have black FRL connector, Release eCPA by pushing down to unlock and slide red locking tab, Wait 2 minutes for electrical circuits to discharge before disconnecting modules
Raise vehicle partially and lower lift onto locks

Note
Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
Position LH rear toe link onto rear steering actuator

Note
1x bolt, 18 mm, Hand tight, Torque at later step
Install LH rear toe link onto LH rear knuckle

Note
1x nut, 21mm, 170 Nm, Install new Nyloc nut
Position RH rear toe link onto rear steering actuator

Note
1x bolt, 18 mm, Hand tight, Torque at later step
Install RH rear toe link onto RH rear knuckle

Note
1x nut, 21mm, 170 Nm, Install new Nyloc nut

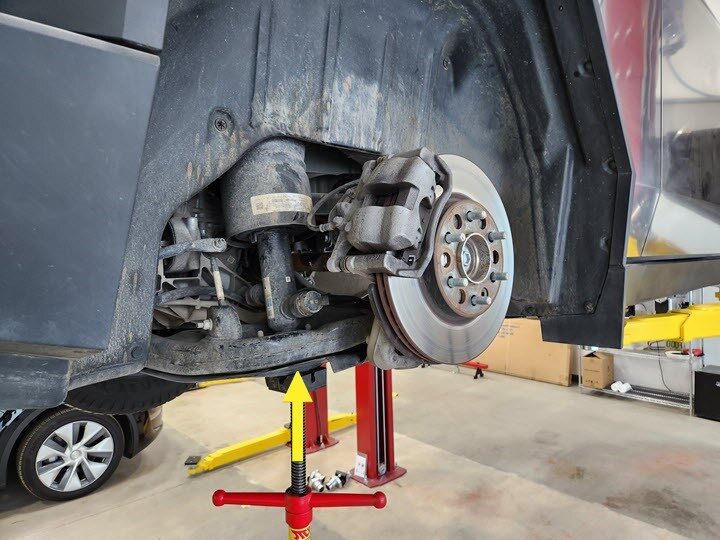

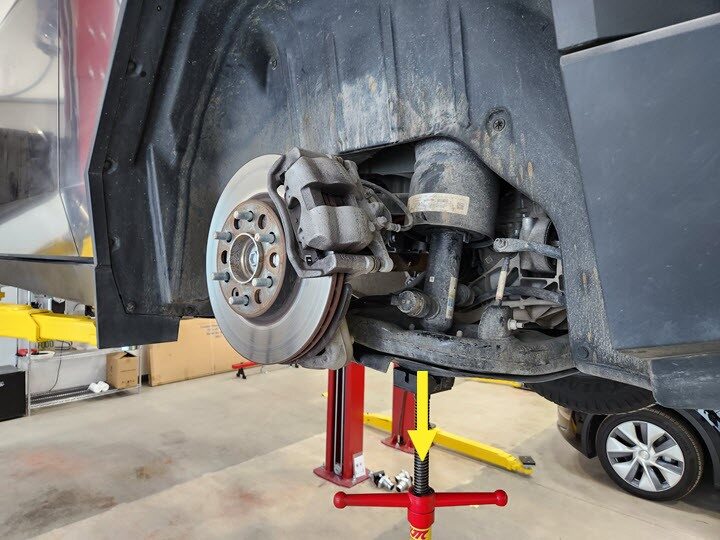

Position and raise pole jack onto LH rear lower control arm
Adjust LH rear suspension to ride height specification

Note

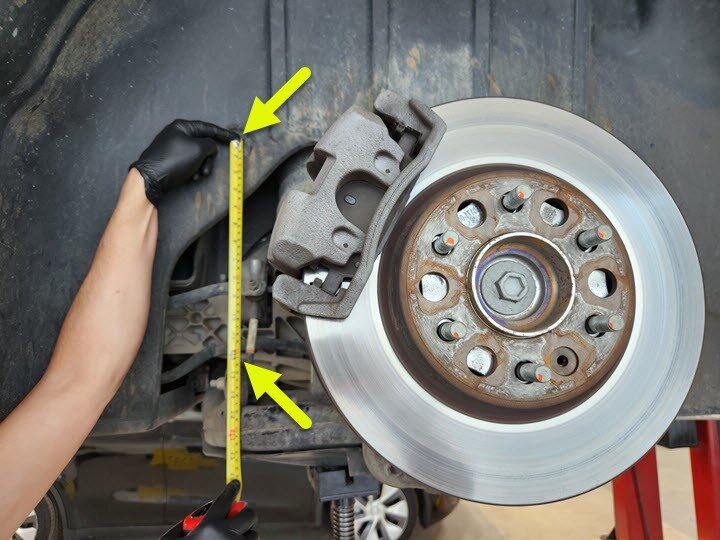

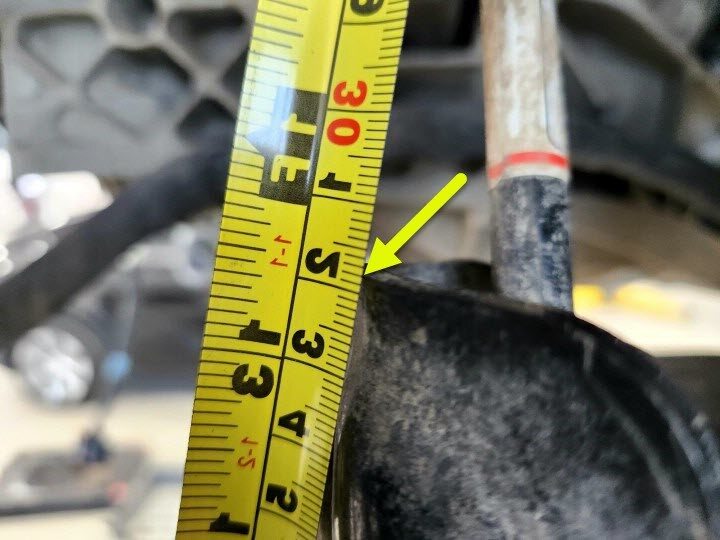

Measure from wheel housing stud to stabar link mount, Distance should be 31.8 cm, Adjust pole jack as needed
Torque bolt securing LH rear toe link to rear steering actuator

Note
1x bolt, 18 mm, 180 Nm
Lower and remove pole jack from LH rear lower control arm
Position and raise pole jack onto RH rear lower control arm
Adjust RH rear suspension to ride height specification

Note
Measure from wheel housing stud to stabar link mount, Distance should be 31.8 cm, Adjust pole jack as needed
Torque bolt securing RH rear toe link to rear steering actuator

Note
1x bolt, 18 mm, 180 Nm
Lower and remove pole jack from RH rear lower control arm
Install LH rear wheel

Note
6x nuts, 21mm, 205 Nm
Install RH rear wheel

Note
6x nuts, 21mm, 205 Nm
Lower vehicle until tires are touching the ground

Note
Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
Torque RH rear wheel nuts

Note
6x nuts, 21mm, 205 Nm, Use star pattern
Torque LH rear wheel nuts

Note
6x nuts, 21mm, 205 Nm, Use star pattern
Install LH rear wheel cap

Note
1x cap, 8x clips, Partially secure wheel cap to wheel, While partially installed wheel cover can be rotated to align with tire design, When aligned press inward from center of cap then secure all clips to mounting ring
Install RH rear wheel cap

Note
1x cap, 8x clips, Partially secure wheel cap to wheel, While partially installed wheel cover can be rotated to align with tire design, When aligned press inward from center of cap then secure all clips to mounting ring
Connect FRL connector then connect MV battery connector

Note
2x connectors, Connect FRL connector then secure locking tab, Position lever to secure MV battery connector then slide eCPA to right, Early production trucks may have black FRL connector, If power cycling vehicle then ensure at least 60 seconds has passed since powering down
Install rear underhood apron

Note

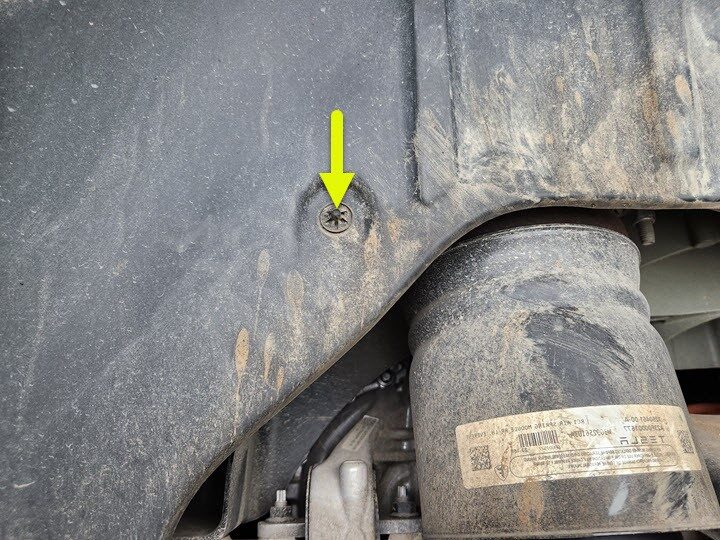

9x clips, Adjust windshield seal as required
Close powered front trunk

Note
Via exterior switch or UI
Remove vehicle from lift

Note
Lower rack arms fully and remove them from under vehicle, Remove air suspension from "Jack Mode"
Run ODIN routine PROC_ICE_X_EXIT-SERVICE-MODEvia Toolbox: (link)
Raise LH front window
Close LH front door
Review wheel alignment requirements and add correction code as needed
