Correction code 3303020102 3303020202 0.78 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

1. Open the LH front door and lower the LH front window.
2. Raise and support the vehicle. See Raise Vehicle - 2 Post Lift.
3. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Install).
4. Remove the LH front wheel. See Wheel Assembly (Remove and Install).
5. Position oil drain underneath LH front brake assembly
   Note

   Placeholder Image

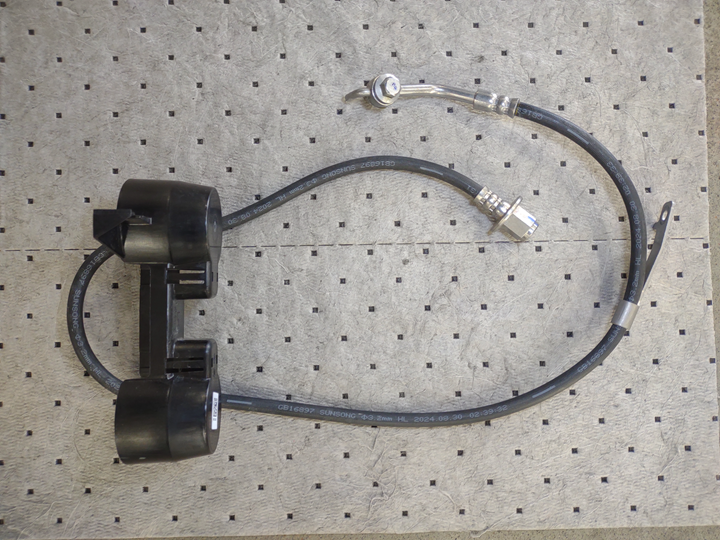

6. Remove LH front brake hose
   Note

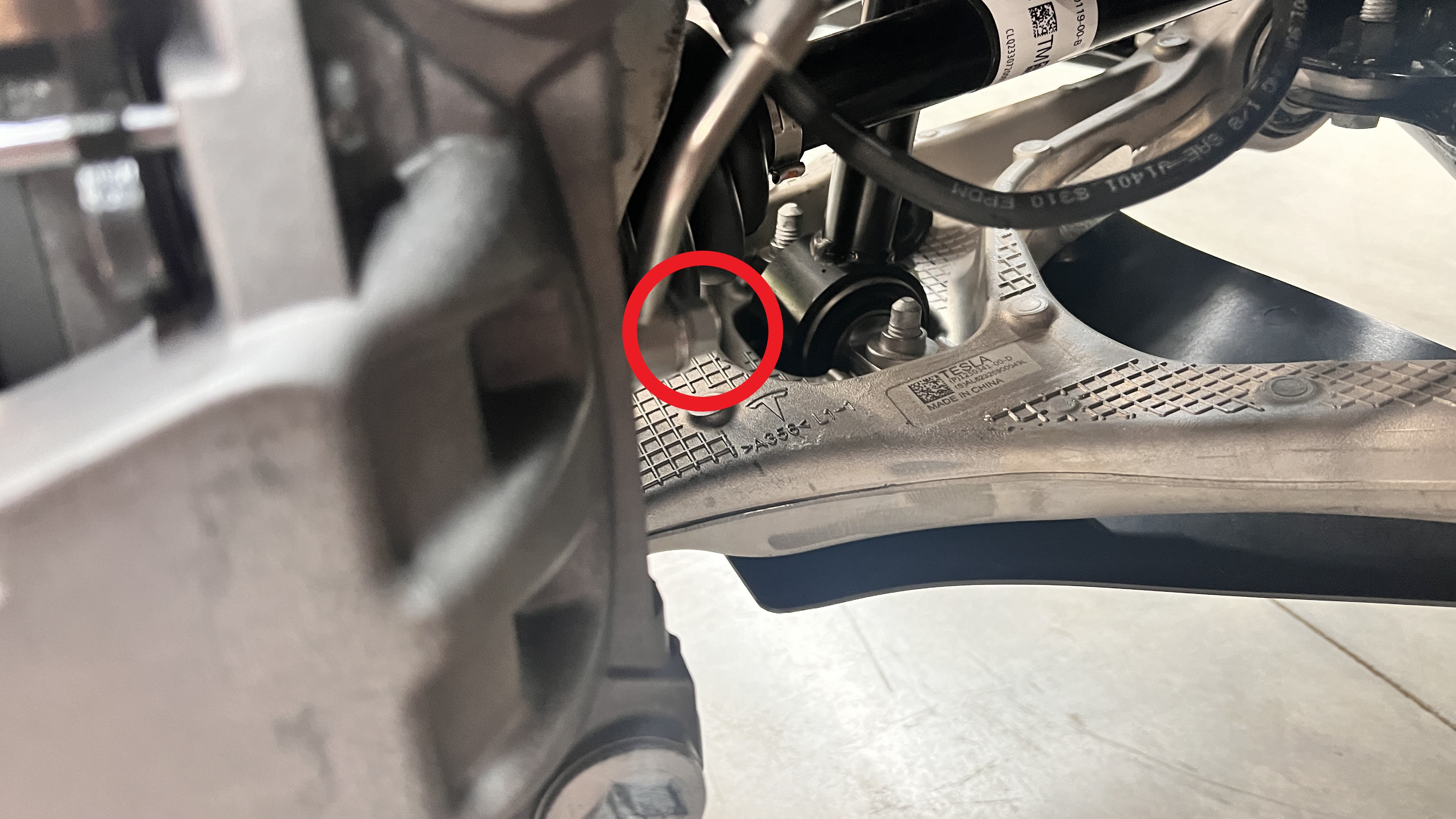

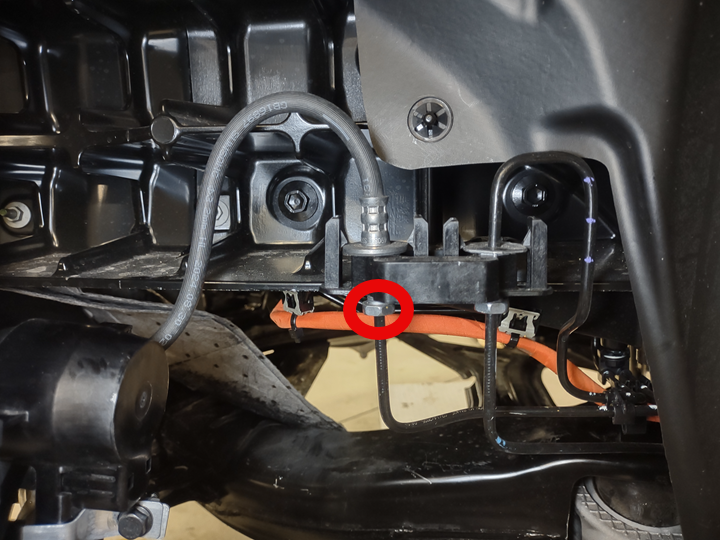

   1x bolt, 11mm, 42 Nm, 1x bolt, 10mm, 10 Nm, 1x flare nut, 14mm, 16 Nm









7. Install LH front brake hose
   Note

   1x bolt, 11mm, 42 Nm, 1x bolt, 10mm, 10 Nm, 1x flare nut, 14mm, 16 Nm









8. Remove oil drain from underneath vehicle



9. Lower vehicle to access frunk area
   Note

   Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Keep front suspension components free of contacting ground and surrounding items
10. Bleed the LH front brake using Toolbox 3. See Brake Fluid Bleed - One Caliper.
11. Install the LH front wheel. See Wheel Assembly (Remove and Install).
12. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Install).
13. Remove the vehicle from the lift. See Raise Vehicle - 2 Post Lift.
14. Raise the LH front window and close the LH front door.
15. Perform a road test and burnish brakes
    Note

    Ensure proper brake pedal feel and performance Add correction code 00040100 as needed
