Truck Bed Exterior Trim - Tailgate Top Applique (Remove and Replace)

Correction code 1220126032 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

  • 2024-08-16: Updated procedure to replace only; applique cannot be reused. Updated steps to include hooks and guide datums.
Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT, although it has been validated. Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near high voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Open the tailgate.

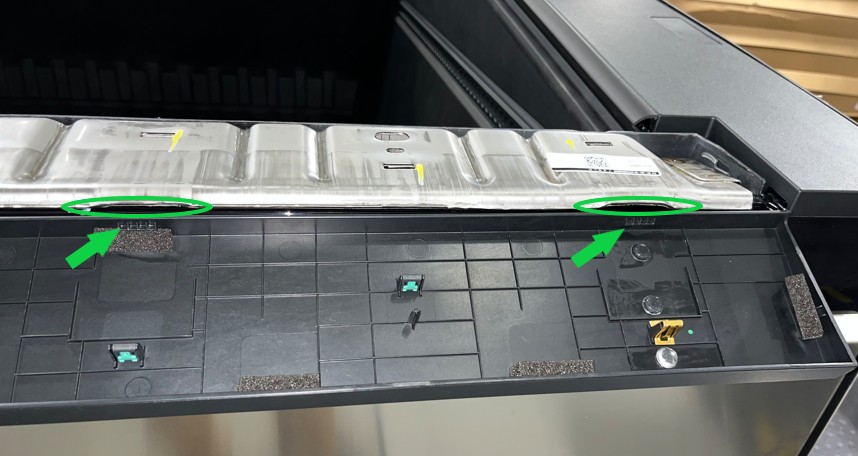

  3. Release the clips (x10), guide datums (x2), and hooks (x5) that attach the tailgate top applique to the tailgate, and then remove the top applique from the tailgate.
    Informational PurposesAn informational icon, calling your attention
    Note
    Discard the applique after removal. The applique cannot be reused.

Install

  1. Position the new tailgate top applique to the tailgate, and then secure the hooks (5), guide datums (x2), and clips (x10) that attach the top applique to the tailgate.
    Informational PurposesAn informational icon, calling your attention
    Note

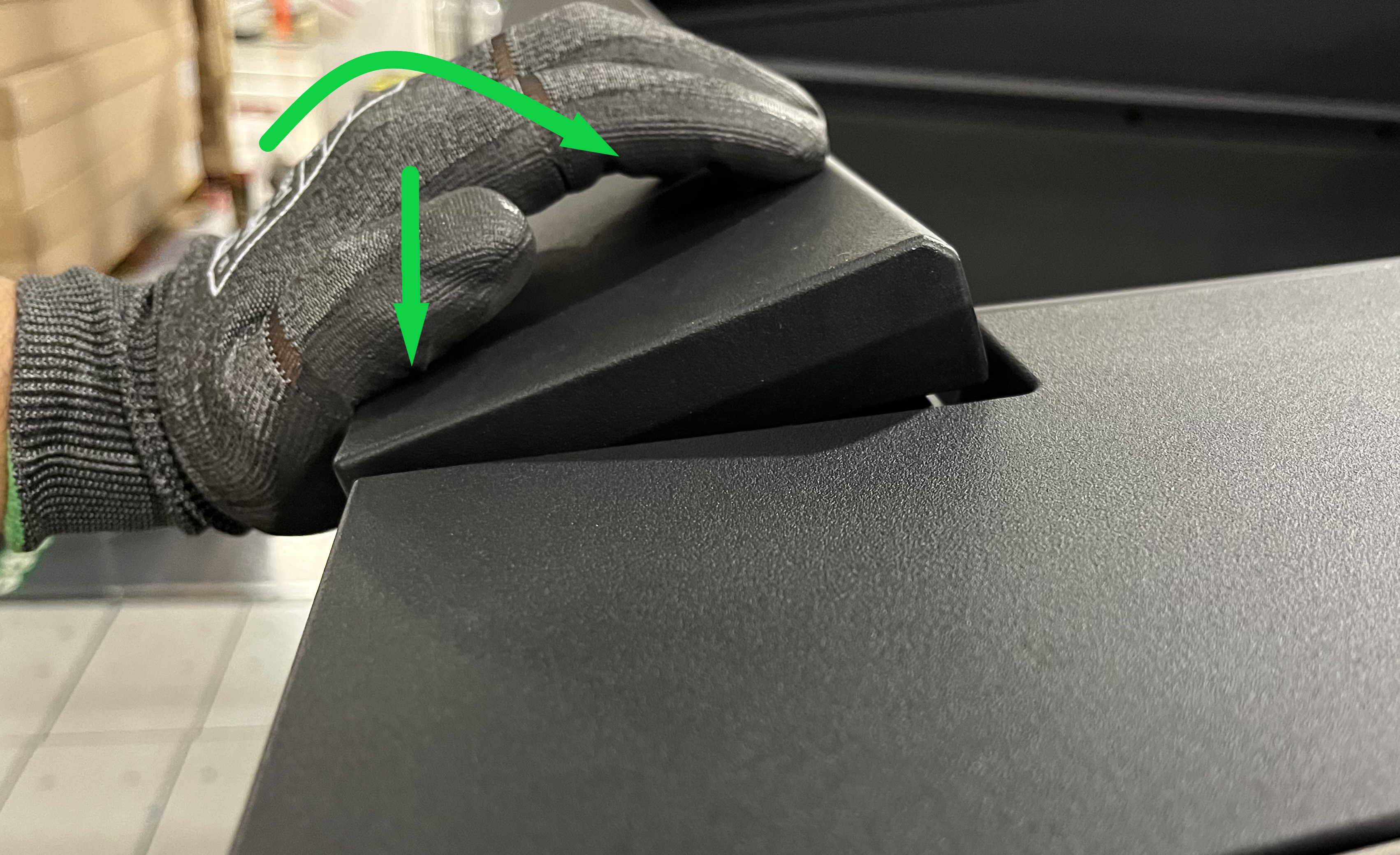

    Align the hooks, and then swing the applique rearwards.
    Informational PurposesAn informational icon, calling your attention
    Note
    Wrap a mallet with a microfiber towel, and then tap the applique to ensure hooks are fully engaged.
  2. Close the tailgate.
  3. Raise the LH front window and close the LH front door.
