Correction code NEW NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

1. Raise and support vehicle
   Note

   Set air suspension to "Jack Mode"





2. Open LH front door
   Note

   Push LH B-pillar door trigger to release





3. Lower LH front window



4. Run ODIN routine PROC_ICE_X_ENTER-SERVICE-MODEvia Toolbox: (link)
5. Unlock vehicle gateway
   Note

   After vehicle has been put into "Service Mode", place keycard on center console to turn on drive rails, hold down the brake pedal, while keep pressing right hand signal button simultaneously for at least 10 seconds, "GTW UNLOCKING" should pop up on the UI right next to the VIN during these 10 seconds, once gateway is unlocked "GTW UNLOCKED 5400" will be displayed on the UI next to the VIN, the gateway will remain unlocked for 90 minutes, follow steps on Toolbox article #5582900 for any additional information







6. Open powered front trunk
   Note

   Via exterior switch or UI

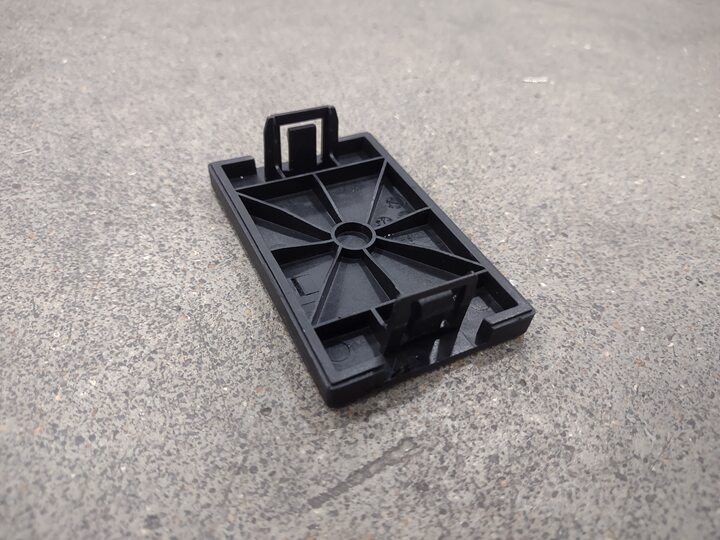

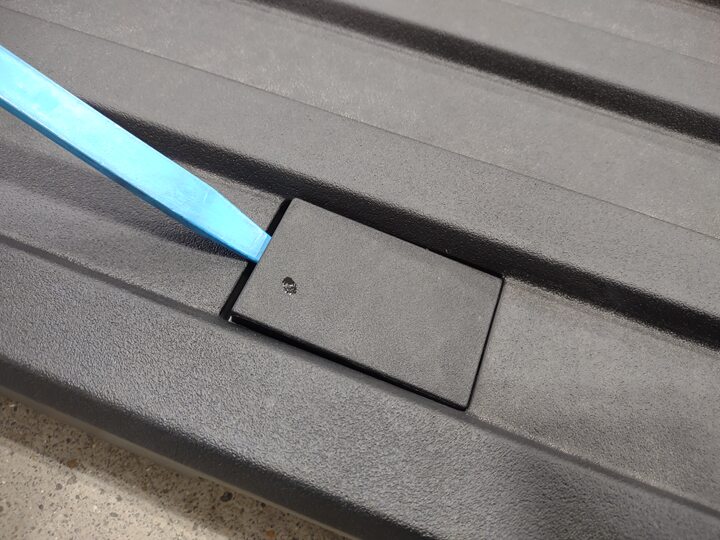

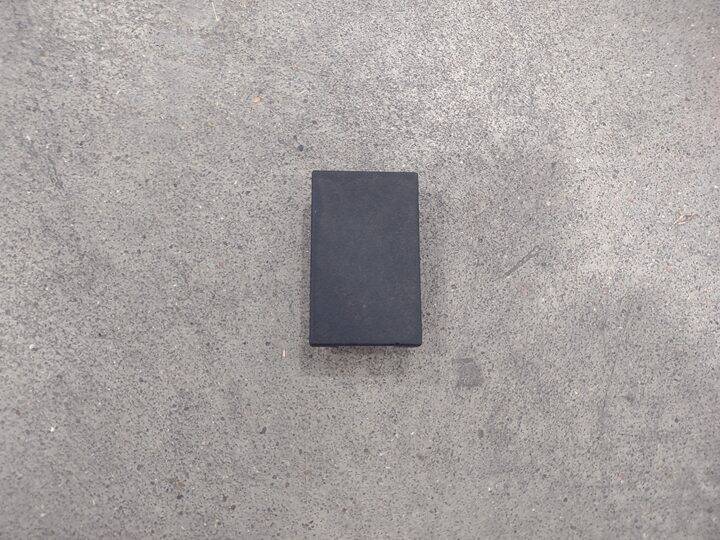

7. Remove fastener covers from bed floor assembly
   Note

   14x covers

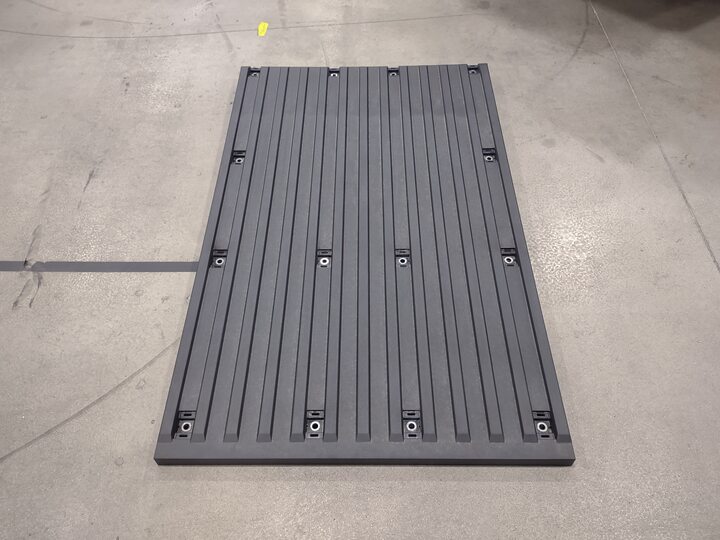

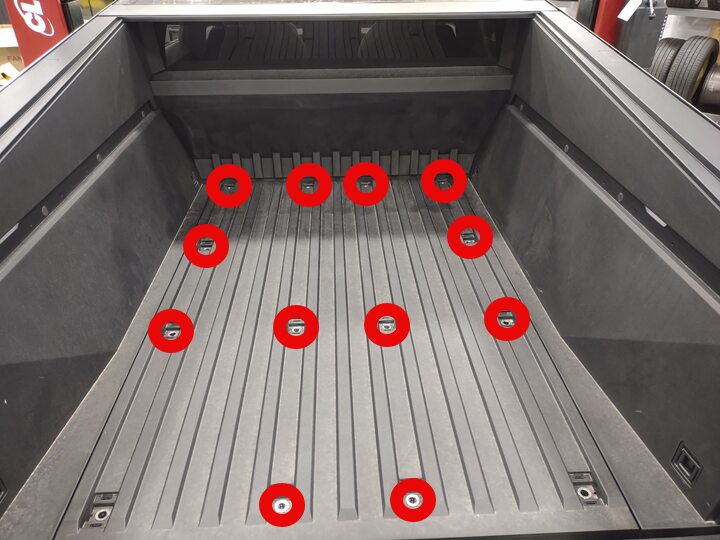

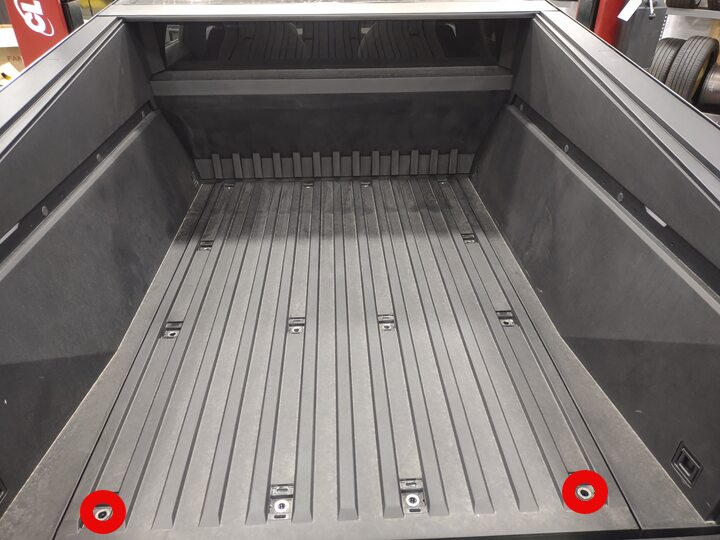

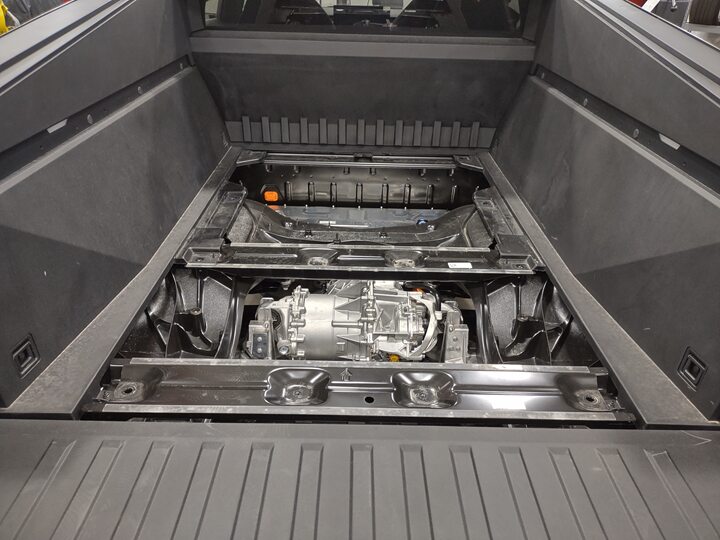

8. Remove bed floor assembly
   Note

   10x short bolts, 15mm, 56 Nm, 2x long bolts, 15mm, 46Nm, Lift front edge with trim tool then remove panel, Recommend assistance









9. Power down vehicle via UI
   Note

   Verify EPBs are engaged, Select charge port icon to ensure drive state is disengaged then power down vehicle via Controls > Safety > Power Off



10. Remove rear underhood apron
    Note

    9x clips





11. Disconnect FRL connector then disconnect MV battery connector
    Note

    2x connectors, Release locking tab then disconnect FRL connector, Slide eCPA to left then lift lever to release MV battery connector, Early production trucks may have black FRL connector, Release eCPA by pushing down to unlock and slide red locking tab, Wait 2 minutes for electrical circuits to discharge before disconnecting modules







12. Verify operation of multimeter
    Note

    Set multimeter to DC voltage, Confirm multimeter is properly measuring voltage by testing MV battery, Touch lightly and do not damage terminals





13. Raise vehicle fully
    Note

    Set to a comfortable working height, Lower to locks, Ensure locks engage on both sides to prevent tilting





14. Remove rear skid plate

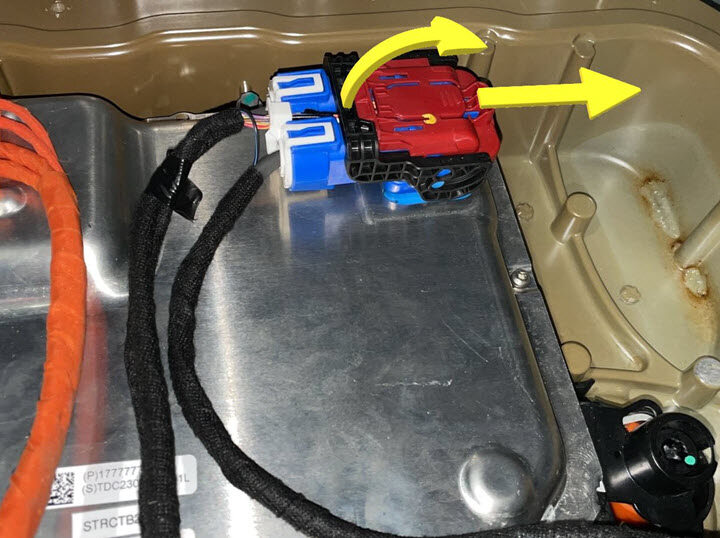

    Note

    6x clips, 3x bolts, 15mm, 42 Nm, 5x bolts, 13mm, 28 Nm, 2x bolts, 10mm, 6 Nm











15. Remove all items from pockets and ensure not wearing metal items



16. Inspect HV insulating gloves
    Note

    Check gloves for damage prior to use, Refer to service document TN-15-92-003



17. Put on HV insulating gloves and leather over gloves



18. Verify no HV - Install amp clamp to RDU HV harness
    Note

    Verify meter is zeroed out before performing measurement, Measure single cable. Verify ammeter is installed in correct direction. If current > 0.5A do not proceed with disconnecting HV connector. In this case, start vehicle electrical isolation again to make sure that all was properly shut down. Escalate for assistance as requiredIf current < 0.5A, Ok to disconnect and check voltage at HV plug on the battery side.Release locking tab and rotate the release lever up to disengage the connector, Release harness clip, Do not force the release lever up, Ensure the alignment tabs on the RDU header are not damagedMake sure to wear PPE (HV gloves, safety glasses) when working on high voltage component, Measure B+ to Ground, B- to Ground, B+ to B-, If voltage is greater than 10V, Pack contactors are not open or welded, Stop work and reach out to Service Engineering













19. Remove pyro fuse access cover
    Note

    4x bolts, E-Torx 5 lobe, 10 Nm



20. Remove primary pyro fuse
    Note

    2x bolts, 13mm, 5 Nm + 60 Degrees, Support pyro fuse while removing bolts





21. Remove secondary pyro fuse
    Note

    2x bolts, 13mm, 5 Nm + 60 Degrees, Support pyro fuse while removing bolts





22. Release connectors at 2x4 header (AC compressor and Inductive Charger headers)
    Note

    2x connectors, Fully release red lock tab, Pull black latch down to release connector





23. Release 2x4 header assembly
    Note

    4x bolts, 5-lobe 10mm, 6 Nm





24. Release drive unit connectors from ancillary headers
    Note

    3x connectors, Release blue lock tab, Rotate black latch







25. Remove bolts securing HC-Stak HV Headers for LHRDU, FDU, RHRDU from ancillary flange
    Note

    6x bolts, 5-lobe 10mm, 10 Nm





26. Remove LHRDU, FDU, RHRDU headers from ancillary flange
    Note

    3x headers, No tools required, inspect header seals, Replace header if damaged





27. Lower vehicle until tires are touching the ground
    Note

    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered





28. Disconnect ancillary bay MV connector
    Note

    1x connector, Double locking, Release tab then pivot lever, Release second tab to disengage connector, Wait 1 second between locking tab release to discharge and prevent arcing











29. Remove bolt securing busbar HV connector lid
    Note

    1x bolt, EP10, 9 Nm



30. Remove bolts securing HV connector to DC FC header
    Note

    2x bolts, 10mm, 9 Nm



31. Release HV connector from DC FC header
    Note

    1x connector, Use inflatable airbag to suspend busbar assembly above ancillary assembly



32. Support HV Busbar assembly
    Note

    Suspend assembly to maintain clearance



33. Remove fast charger header doubler
    Note

    2x bolts, E10 5 Lobe Torx, 10 Nm

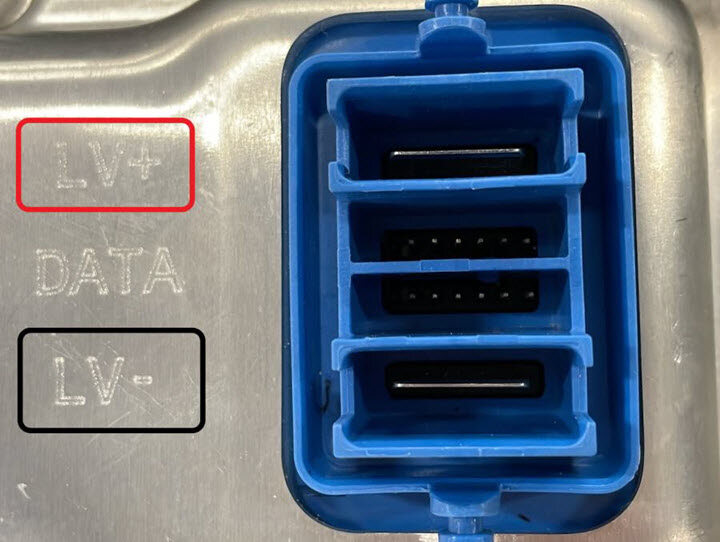

34. Release low voltage header
    Note

    2x bolts, EP10, 6 Nm



35. Release fasteners securing ancillary cover to HV battery
    Note

    22x bolts, E10 5-Lobe, 6 Nm, Use E10 5-Lobe socket without magnet, The fasteners are captive and will stay attached to the penthouse cover, Follow fastening order







36. Remove ancillary cover
    Note

    Use suction cup and maneuver around busbar and tonneau cage







37. Remove DC header
    Note

    Slide header off DC bus links, Inspect seal, Replace header if damaged







38. Disconnect PCS MV connector
    Note

    1x connector, 1x zip tie, Slide red lock off of lever, Rotate lever to release connector, Remove zip tie as needed





39. Release PCS MV harness
    Note

    1x bolt, EP10, 6 Nm, 2x clips, Move aside as needed



40. Release MV header
    Note

    4x datums, 1x edge clip, 1x fir tree clip

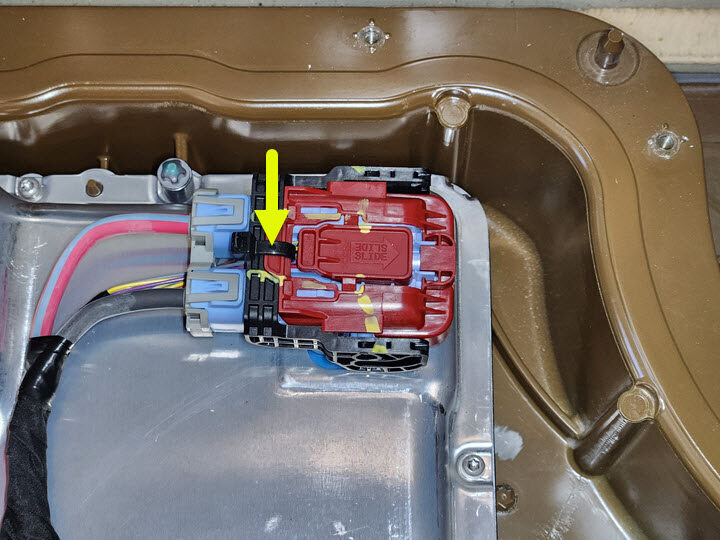

41. Release HVC connectors
    Note

    2x clips, 3x connectors, Release connector locks, Depress levers and pull at connector, Do not pull from harnessIf RTV is present at 2 connectors, using a ceramic knife cut through and remove RTV until connector can be disconnected











42. Release BMB passthrough connectors
    Note

    2x connectors, Release connector locks, Depress levers and pull at connector, Do not pull from harness

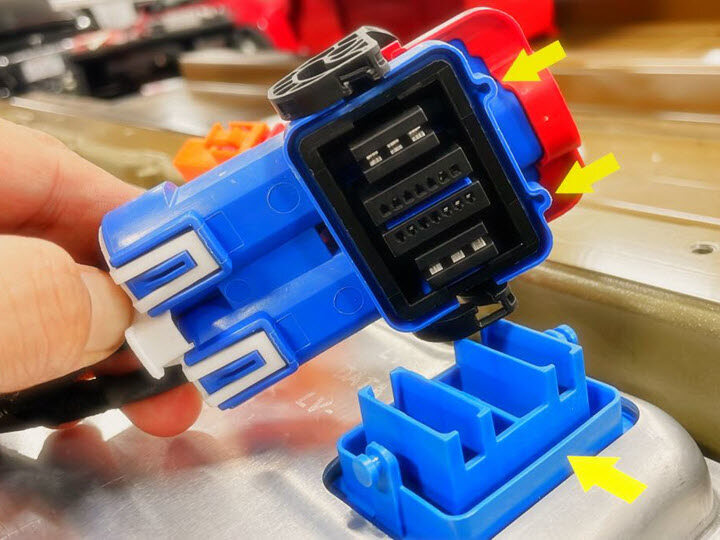

43. Release ACJB LV connector & ACJB to device cluster HV connector
    Note

    2x clips, 2x connectors, Release connector locks, Depress levers and pull at connectors, Do not pull at harness







44. Remove MV ancillary harness





45. Release HVC harness from PCS
    Note

    1x connectors, Release connector lock, Depress lever and pull at connector, Do not pull at harness



46. Release device cluster busbar fasteners
    Note

    4x bolts, Torx Plus 55, 5Nm + 60 Degrees, Captured bolts with insulated covers









47. Remove device cluster assembly fasteners
    Note

    4x bolts, E10 5 Lobe Torx, 6Nm









48. Remove device cluster from ancillary tray
    Note

    Place device cluster on stand to protect headers at bottom of assembly, Remove lifting/install tool, Make sure to wear PPE (HV gloves, safety glasses) when working on high voltage component





49. Install device cluster to ancillary tray
    Note

    Align datums and headers to ancillary and slowly lower into place, Avoid contact of drive unit headers to ancillary tray, Make sure to wear PPE (HV gloves, safety glasses) when working on high voltage component







50. Secure device cluster assembly fasteners
    Note

    4x bolts, E10 5 Lobe Torx, 6Nm









51. Secure device cluster busbar fasteners
    Note

    4x bolts, Torx Plus 55, 5Nm + 60 Degrees, Captured bolts with insulated covers









52. Perform Hioki measurements from device cluster assembly and busbar bolts
    Note

    1x bolts, E10 5 Lobe Torx, 6Nm, 4x bolts, Torx Plus 55, 5Nm + 60 Degrees, Perform zero adjust to Hioki meter prior to testingUse diagram in images to find probing locations and the reading specifications to look forLSL means: Lower Specification LimitUSL means: Upper Specification Limit1020_301 | T1 LSL 0.002 mΩ (2 μΩ) - USL 0.05 mΩ (50 μΩ)1020_304 | POS Contactor LSL 0.002 mΩ (2 μΩ) - USL 0.05 mΩ (50 μΩ)1010_603 | HVC Ground strap LSL 0.35 mΩ (350 μΩ) - USL 0.78 mΩ (780 μΩ)1020_303 | Shunt2 LSL 0.003 mΩ (3 μΩ) - USL 0.05 mΩ (50 μΩ)1020_302 | Shunt1 LSL 0.003 mΩ (3 μΩ) - USL 0.05 mΩ (50 μΩ)If readings are lower than the LSL numbers you are not probing correctlyIf readings are higher than USL numbers you have bolts that are not torqued correctly or connectors that may be softset or have internal connector issues



















53. Secure HVC harness to PCS
    Note

    1x connectors, Secure connector lock



54. Poistion MV ancillary harness for install





55. Secure ACJB LV and HV connectors
    Note

    2x clips, 2x connectors, Secure connector locks







56. Secure BMB passthrough connectors
    Note

    2x connectors, Secure connector locks, Connectors are poke yoked do not force engagement, Ensure locking tabs are facing front of vehicle when connecting







57. Secure HVC connectors
    Note

    2x clips, 3x connectors, Release connector locks, Depress levers and pull at connector, Do not pull from harness, Apply sealant to connectors at device cluster if it was present during disassembly











58. Secure MV header
    Note

    4x datums, 1x edge clip, 1x fir tree clip





59. Secure PCS MV harness
    Note

    1x bolt, EP10, 6 Nm, 2x clips

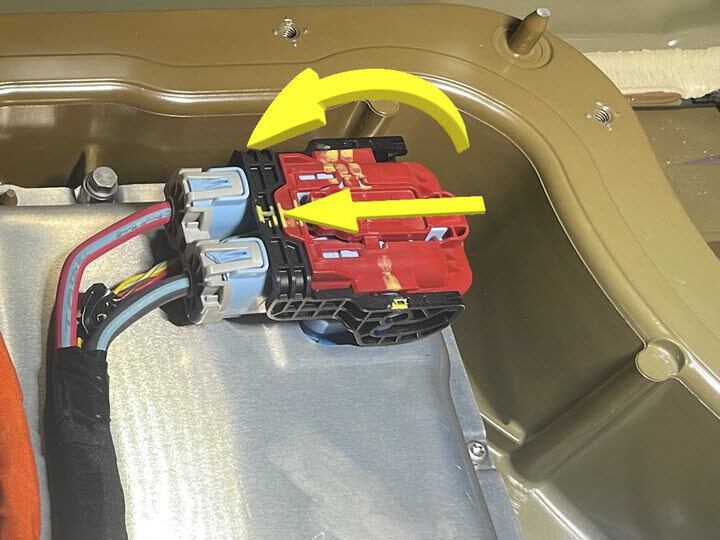

60. Connect PCS MV connector
    Note

    1x connector, 1x zip tie, Install zip tie onto ECPA latch, PCS header not datumed, Ensure correct orientation and polarity of connection, Harness color red for LV+ and black for LV-, Swing down locking lever, Slide lock fully to engage on top of lever









61. Install DC header
    Note

    Slide header on to DC bus links, Inspect seal, Replace header if damaged







62. Install ancillary cover
    Note

    Use suction cup and maneuver around busbar and tonneau cage









63. Secure fasteners of cover to HV battery
    Note

    22x bolts, E10 5-Lobe, 6 Nm, Use E10 5-Lobe socket without magnet, The fasteners are captive and will stay attached to the penthouse cover, Follow fastening order







64. Secure low voltage header
    Note

    2x bolts, EP10, 6 Nm



65. Secure fast charger header doubler
    Note

    2x bolts, E10 5 Lobe Torx, 10Nm





66. Clean HV connector contact surface of residual Penetrox
    Note

    Allow 1 minute dry time after removing Penetrox, New busbar comes with Penetrox applied to HV connector



67. Clean busbar HV connector contact surface of residual Penetrox
    Note

    Allow 1 minute dry time after removing Penetrox, It is necessary to clean HV connector during re-use of busbar



68. Apply Penetrox onto HV connector joints
    Note

    Apply 2 drops of Penetrox A-13 about 5mm in diameter to either side of the hole on both leads, Spread evenly to verify the contact surface is fully covered



69. Position busbar connector and lower onto HV header
    Note

    Release bungee cord



70. Install bolts securing charge port busbar kit to HV Header
    Note

    2x bolts, 10mm, 9 Nm



71. Perform Hioki resistance test at each HV joint from HV busbar lead to bolt head
    Note

    2x HV joints, When using Hioki tester, verify the meter has been properly adjusted and set prior to usageThe acceptable resistance is between 0.050 mΩ (50 μΩ) and 0.195 mΩ (195 μΩ).If the resistance is greater than 0.195 mΩ (195 μΩ), stop work and escalate the Toolbox session.If the resistance is lower than 0.050 mΩ (50 μΩ), reposition the probes and measure again.If the resistance is repeatedly between 0.00 mΩ and 0.050 mΩ (50 μΩ), hioki test passed, proceed to next step





72. Install bolt securing busbar HV connector lid
    Note

    1x bolt, EP10, 9 Nm



73. Remove leather over gloves and HV insulating gloves
74. Connect Ancillary bay MV connector
    Note

    1x connector, double locking, Rotate lever into 2nd lock, Perform a pull test to ensure connector engaged correctly











75. Raise vehicle fully



76. Inspect HV insulating gloves
    Note

    Check gloves for damage prior to use, Refer to service document TN-15-92-003



77. Put on HV insulating gloves and leather over gloves



78. Install LHRDU, FDU, RHRDU headers to ancillary flange
    Note

    3x headers, No tools required, inspect header seals, Replace header if damaged





79. Secure bolts to HC-Stak HV Headers for LHRDU, FDU, RHRDU to ancillary flange
    Note

    6x bolts, 5-lobe 10mm, 10 Nm





80. Secure 2x4 header assembly
    Note

    4x bolts, 5-lobe 10mm, 6 Nm, Confirm alignment of assembly with fastener openings







81. Secure connectors at 2x4 header (AC compressor and Inductive Charger headers)
    Note

    2x connectors, Fully engage red lock tab





82. Secure drive unit connectors to ancillary headers
    Note

    3x connectors, Rotate black latch, Ensure blue locking tab is fully engaged







83. Install secondary pyro fuse
    Note

    2x bolts, 13mm, 5 Nm + 60 degrees, Support pyro fuse while installing bolts





84. Install primary pyro fuse
    Note

    2x bolts, 13mm, 5 Nm + 60 degrees, Support pyro fuse while installing bolts





85. Perform Hioki resistance test at each HV joint from HV busbar lead to pyro fuse busbar
    Note

    4x HV joints, When using Hioki tester, verify the meter has been properly adjusted and set prior to usageThe acceptable resistance is between 0.050 mΩ (50 μΩ) and 0.195 mΩ (195 μΩ).If the resistance is greater than 0.195 mΩ (195 μΩ), stop work and escalate the Toolbox session.If the resistance is lower than 0.050 mΩ (50 μΩ), reposition the probes and measure again.If the resistance is repeatedly between 0.00 mΩ and 0.050 mΩ (50 μΩ), hioki test passed, proceed to next step





86. Install pyro fuse access cover
    Note

    4x bolts, E-Torx 5 lobe, 10 Nm, Ensure seal is fully seated and undamaged, If HV pack is being shipped then pyro fuses must be removed





87. Remove leather over gloves and HV insulating gloves
88. Install Mid-aero shield
    Note

    6x clips, 3x bolts, 15mm, 70 Nm, 3x bolts, 13mm, 28 Nm, 2x bolts, 10mm, 6 Nm











89. Lower vehicle until tires are touching the ground
    Note

    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered





90. Connect FRL connector then connect MV battery connector
    Note

    2x connectors, Connect FRL connector then secure locking tab, Position lever to secure MV battery connector then slide eCPA to right, Early production trucks may have black FRL connector, If power cycling vehicle then ensure at least 60 seconds has passed since powering down







91. Install rear underhood apron
    Note

    9x clips, Adjust windshield seal as required





92. Close powered front trunk
    Note

    Via exterior switch or UI

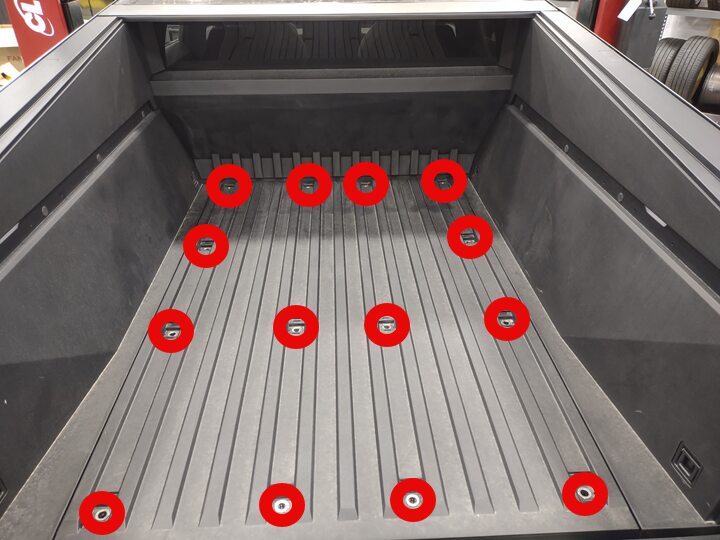

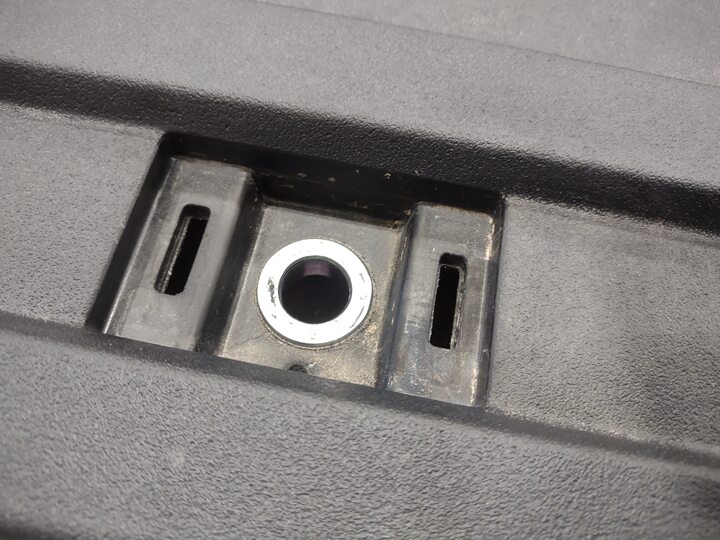

93. Install bed floor assembly
    Note

    10x short bolts, 15mm, 56 Nm, 2x long bolts, 15mm, 46Nm, Recommend assistance

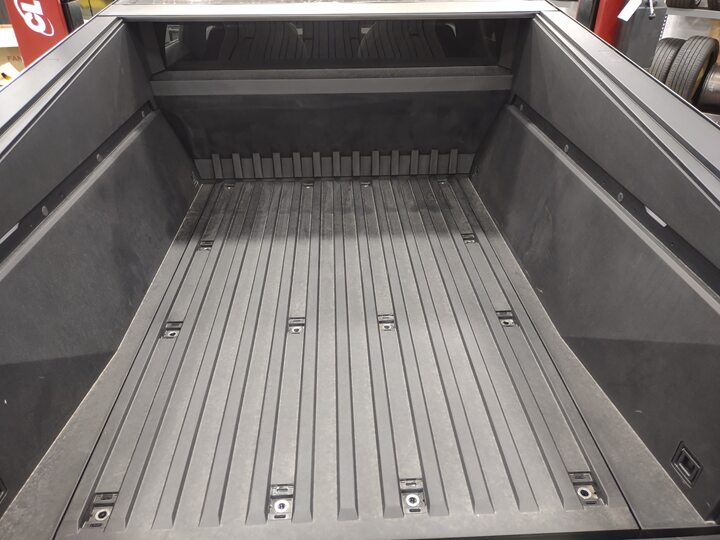

94. Install fastener covers onto bed floor assembly
    Note

    14x covers









95. Run ODIN routine PROC_ICE_X_EXIT-SERVICE-MODEvia Toolbox: (link)
96. Raise LH front window



97. Close LH front door



98. Remove vehicle from lift
    Note

    Lower rack arms fully and remove them from under vehicle, Remove air suspension from "Jack Mode"
