Cabin HVAC - Cabin Temperature Sensor, Fan Driven (Remove and Install)

Correction code 1810021011 1810021012 FRT 0.66 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT, although it has been validated. Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near high voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.

Remove

  1. Open the front doors and lower the front windows.
  2. Remove the LH mid A-pillar trim. See A-B-C Post Interior Trim - A-Pillar Mid Trim - LH (Remove and Install).
  3. Remove the LH lower A-pillar trim. See A-B-C Post Interior Trim - A-Pillar Lower Trim - LH (Remove and Install)
  4. Remove the footwell cover. See Dash Support Frame - Footwell Cover (Remove and Install).
  5. Repeat steps 2 and 3 for the RH side of the vehicle.
  6. Remove the rear underhood apron. See Underhood Trim - Rear Apron Assembly (Remove and Install).
  7. Disconnect MV power. See Disconnect MV Power.
  8. Remove the mid instrument panel assembly. See Dash Panel - IP Mid Panel Assembly (Remove and Install).
  9. Remove the lower instrument panel assembly. See Dash Panel - Instrument Panel Lower Assembly (Remove and Install).
  10. Remove the glovebox assembly. See Dash Panel - IP Glovebox Assembly (Remove and Install).
  11. Remove the RH air wave duct. See Passenger Ducting and Vents - Panel Duct, RH (Remove and Install).
  12. Remove the front passenger airbag. See Front Air Bags - MX - Passenger Airbag, NAR (Remove and Install).
  13. Remove the instrument panel top pad assembly. See Dash Panel - Instrument Panel Top Pad Assembly (Remove and Install).
  14. Remove the push clips that attach the LH panel duct to the HVAC assembly.

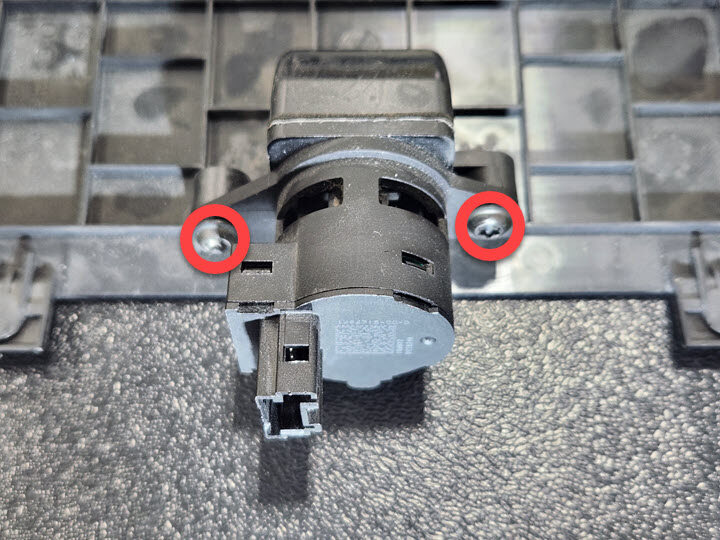

  15. Remove the bolts (x4) that attach the instrument panel airwave module to the vehicle, disconnect the electrical connectors (x2), and then remove the module from the vehicle.
    2.4 Nm (1.8 lbs-ft)
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Depress the latch on the ambient light carefully.
    Tip: Use of the following tool(s) is recommended:
    • Torx T20 socket

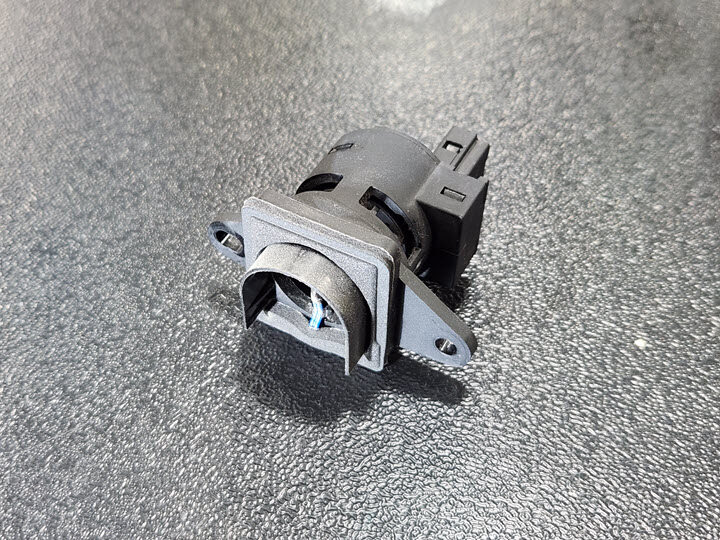

  16. Pull the vent towards the steering wheel for access, disconnect the cabin temperature electrical connector, and then remove the sensor from the vehicle.

Install

  1. Install the cabin temperature sensor into the vehicle, and then connect the electrical connector.
  2. Position the instrument panel airwave module into the vehicle, connect the electrical connectors (x2), and then install the bolts (x4) that attach the module to the vehicle.
    2.4 Nm (1.8 lbs-ft)
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Depress the latch on the ambient light carefully.
    Tip: Use of the following tool(s) is recommended:
    • Torx T20 socket
  3. Install the push clips (x2) that attach the LH panel duct to the HVAC assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure the LH panel duct is secured to the HVAC assembly.
  4. Install the instrument panel top pad assembly. See Dash Panel - Instrument Panel Top Pad Assembly (Remove and Install).
  5. Install the front passenger airbag. See Front Air Bags - MX - Passenger Airbag, NAR (Remove and Install).
  6. Install the RH air wave duct. See Passenger Ducting and Vents - Panel Duct, RH (Remove and Install).
  7. Install the glovebox assembly. See Dash Panel - IP Glovebox Assembly (Remove and Install).
  8. Install the lower instrument panel assembly. See Dash Panel - Instrument Panel Lower Assembly (Remove and Install).
  9. Install the mid instrument panel assembly. See Dash Panel - IP Mid Panel Assembly (Remove and Install).
  10. Reconnect MV power. See Disconnect MV Power.
  11. Install the rear underhood apron. See Underhood Trim - Rear Apron Assembly (Remove and Install).
  12. Install the RH lower A-pillar trim. See A-B-C Post Interior Trim - A-Pillar Lower Trim - LH (Remove and Install)
  13. Install the RH mid A-pillar trim. See A-B-C Post Interior Trim - A-Pillar Mid Trim - LH (Remove and Install).
  14. Install the footwell cover. See Dash Support Frame - Footwell Cover (Remove and Install).
  15. Repeat steps 12 and 13 for the LH side of the vehicle.
  16. Raise the front windows and close the front doors.
