Door - Rear - LH (Remove and Replace)

Correction code 1010025042 1010025052 0.90 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
Cybertruck electronics are powered by a 48V "mid voltage" or "MV" architecture that is designed to improve efficiency. Servicing MV components requires extra knowledge and care in order to avoid personal and/or vehicular harm. Read and understand MV precautions in Electrical Precautions and make sure any required MV-related training courses have been completed, as applicable.
  1. Open LH front door
    Informational PurposesAn informational icon, calling your attention
    Note
    Push LH B-pillar door trigger to release
  2. Lower all 4 windows
  3. Open LH rear door
    Informational PurposesAn informational icon, calling your attention
    Note
    Push LH C-pillar door trigger to release
  4. Remove LH rear beltline assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    16x clips, 2x datums, 2x connectors

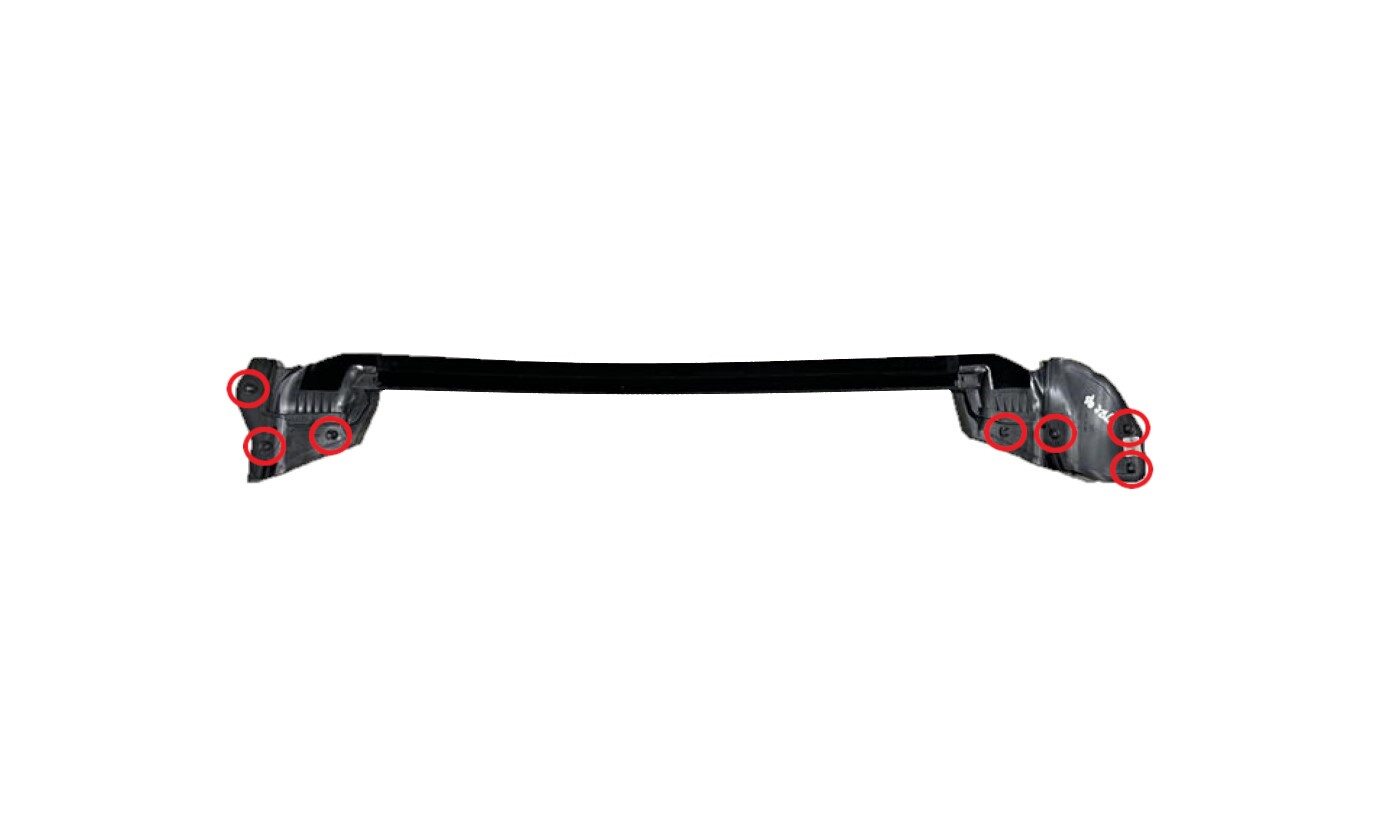

  5. Remove LH rear door inner waist belt seal
    Informational PurposesAn informational icon, calling your attention
    Note

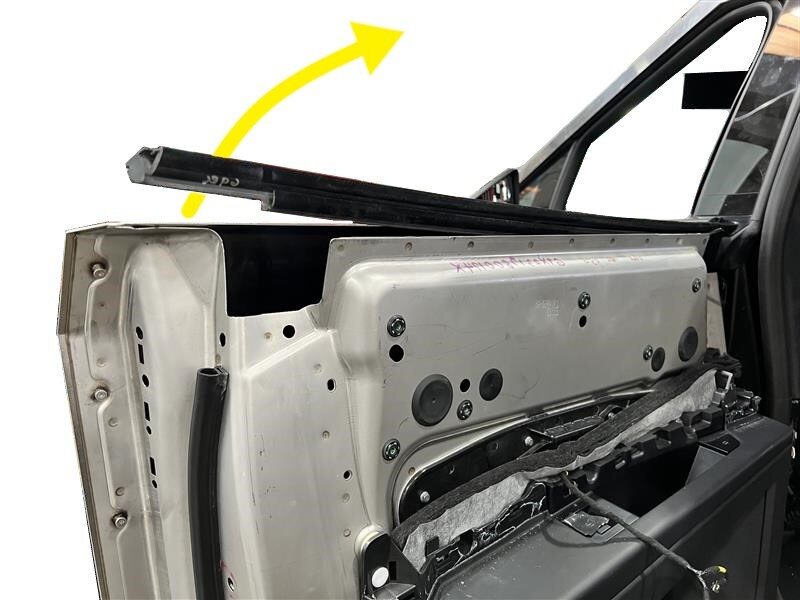

    7x rubber grommets, Release grommets from each end, Lift LH rear door inner waist belt seal upwards to remove from door assembly

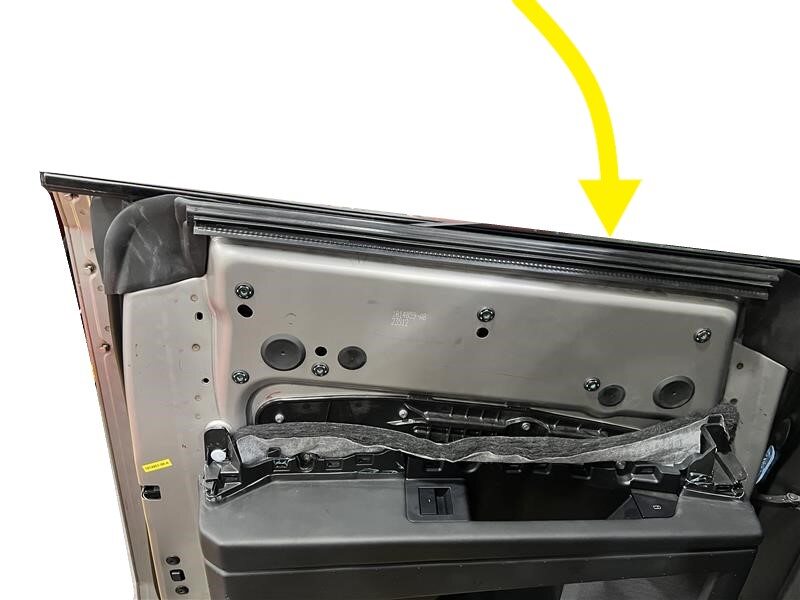

  6. Remove LH rear door outer waist belt seal
    Informational PurposesAn informational icon, calling your attention
    Note

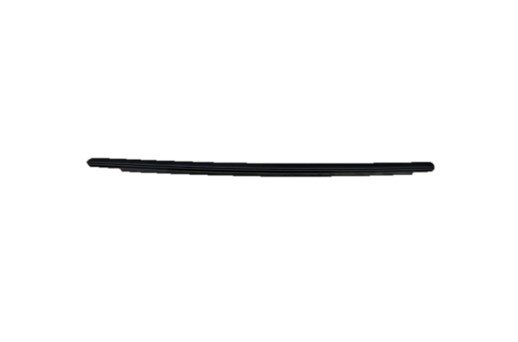

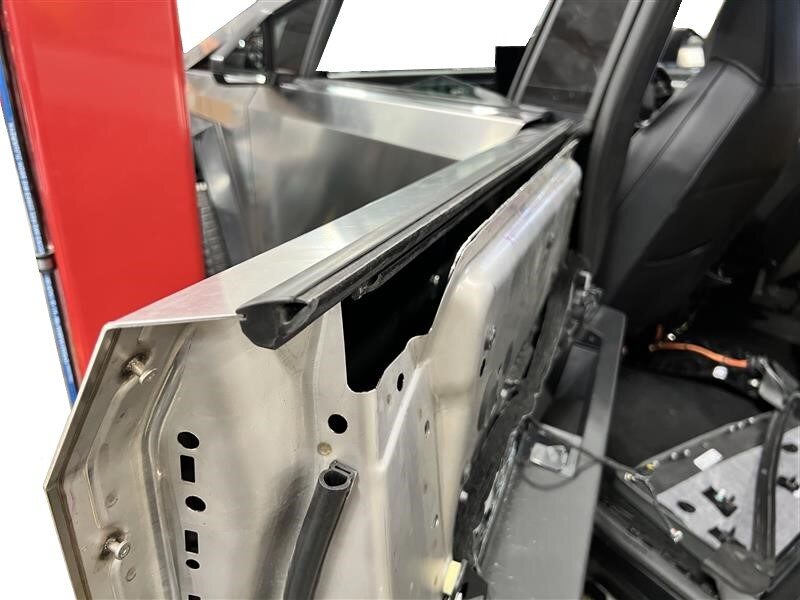

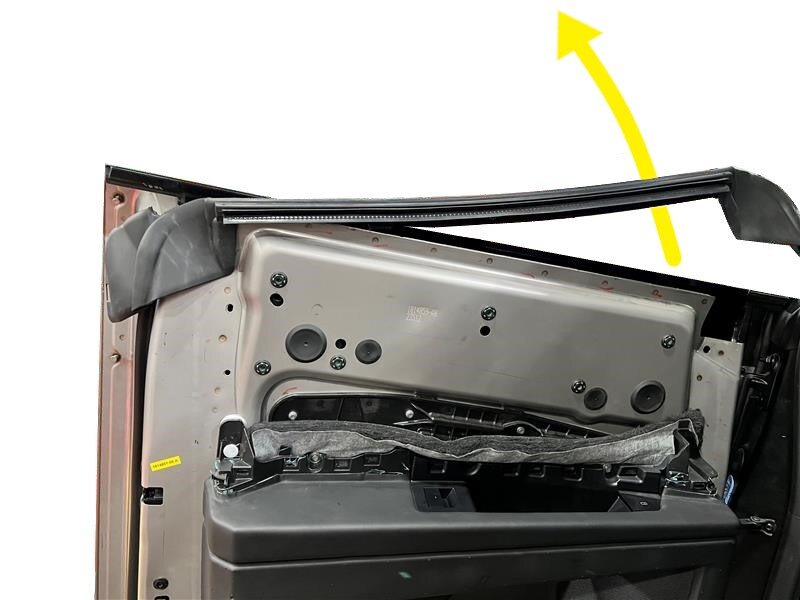

    Pull outwards to remove LH rear door outer waist belt seal from door assembly
  7. Raise LH rear window
  8. Manually latch LH rear door
  9. Remove bolts securing LH rear door trim
    Informational PurposesAn informational icon, calling your attention
    Note
    3x bolts, 8mm, 4Nm
  10. Release LH rear door trim
    Informational PurposesAn informational icon, calling your attention
    Note
    15x clips, 2x connectors, Replace any broken clips

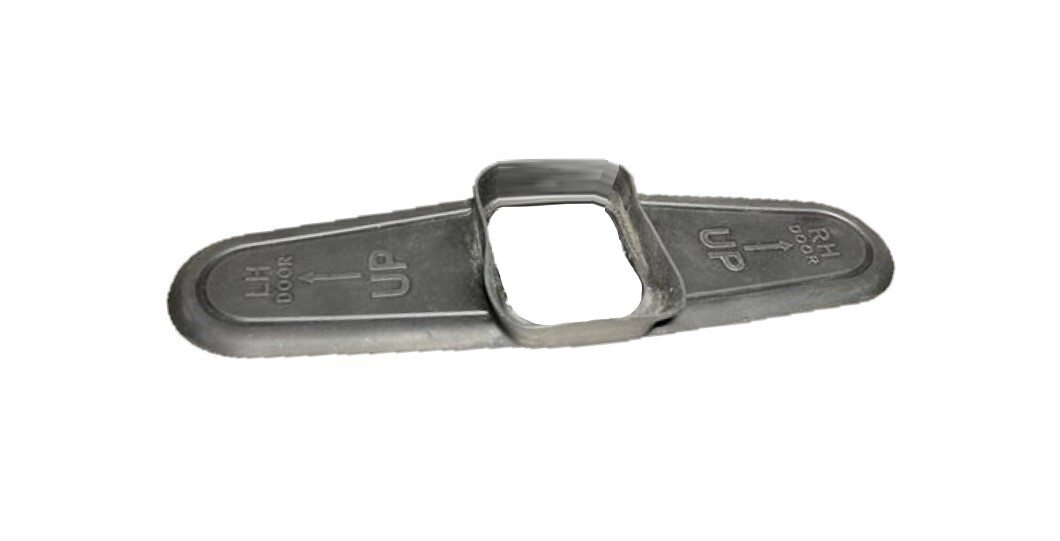

  11. Remove LH rear door grommets
    Informational PurposesAn informational icon, calling your attention
    Note

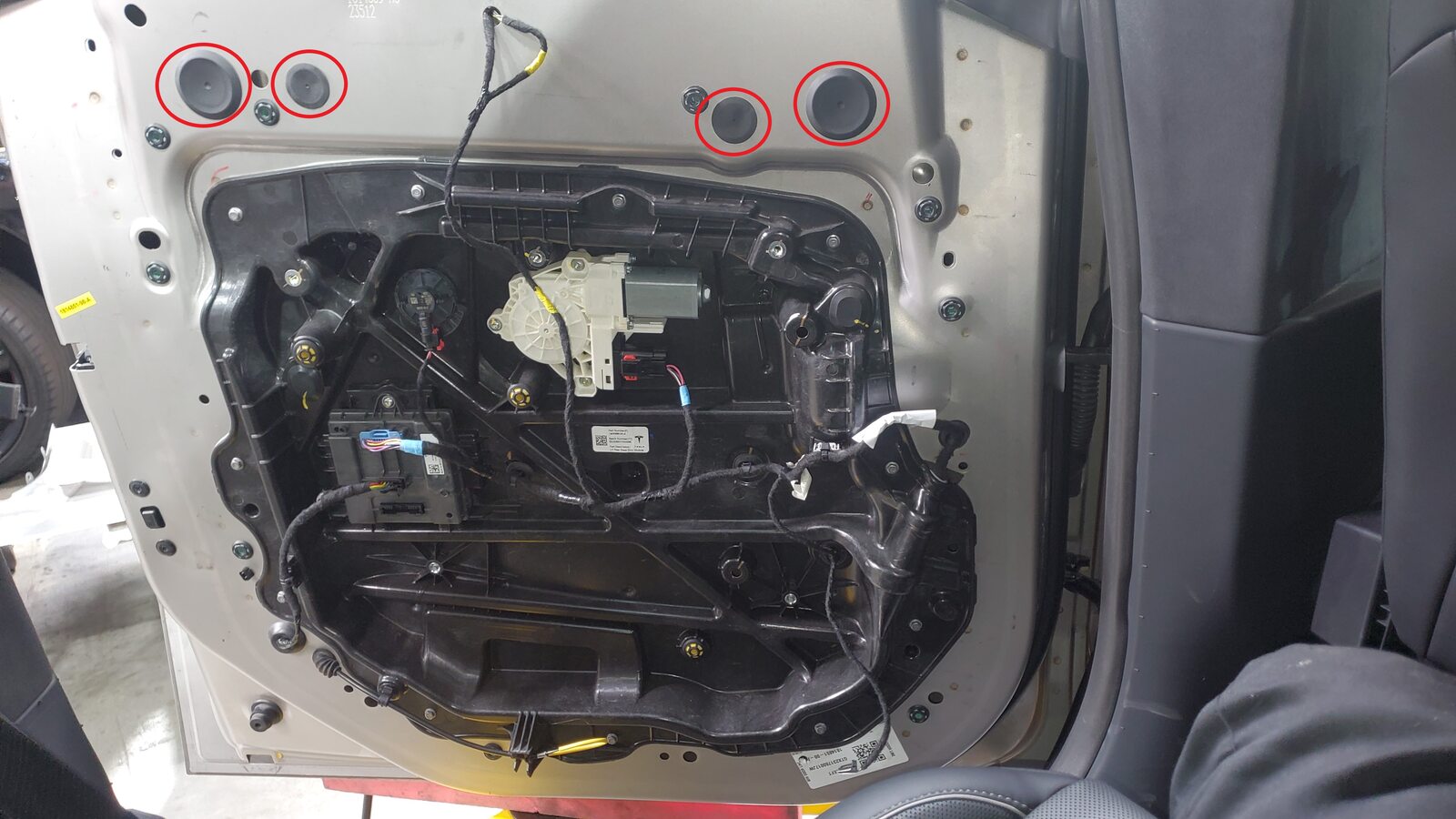

    4x grommets
  12. Remove LH rear door glass
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 4 Nm, Recommend assistance, Clamps do not hold whole base of regulator
  13. Open powered front trunk
    Informational PurposesAn informational icon, calling your attention
    Note
    Via exterior switch or UI
  14. Power down vehicle via UI
    Informational PurposesAn informational icon, calling your attention
    Note
    Verify EPBs are engaged, Select charge port icon to ensure drive state is disengaged then power down vehicle via Controls > Safety > Power Off
  15. Remove rear underhood apron
    Informational PurposesAn informational icon, calling your attention
    Note
    9x clips

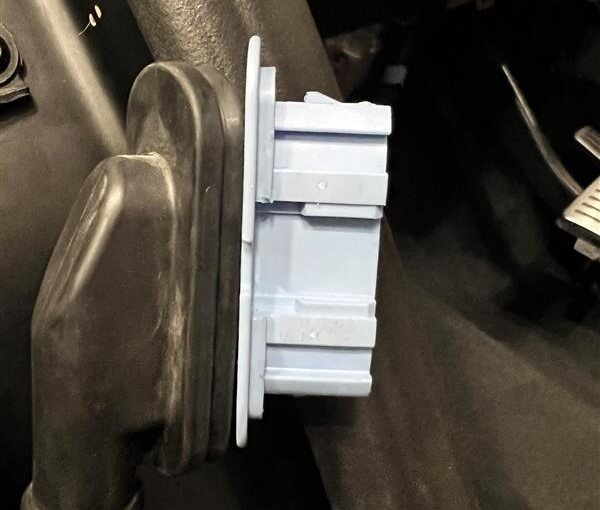

  16. Disconnect FRL connector then disconnect MV battery connector
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors, Release locking tab then disconnect FRL connector, Slide eCPA to left then lift lever to release MV battery connector, Early production trucks may have black FRL connector, Release eCPA by pushing down to unlock and slide red locking tab, Wait 2 minutes for electrical circuits to discharge before disconnecting modules
  17. Release LH rear door harness from close out panel
    Informational PurposesAn informational icon, calling your attention
    Note
    5x clips, 4x connectors, Release locking tabs

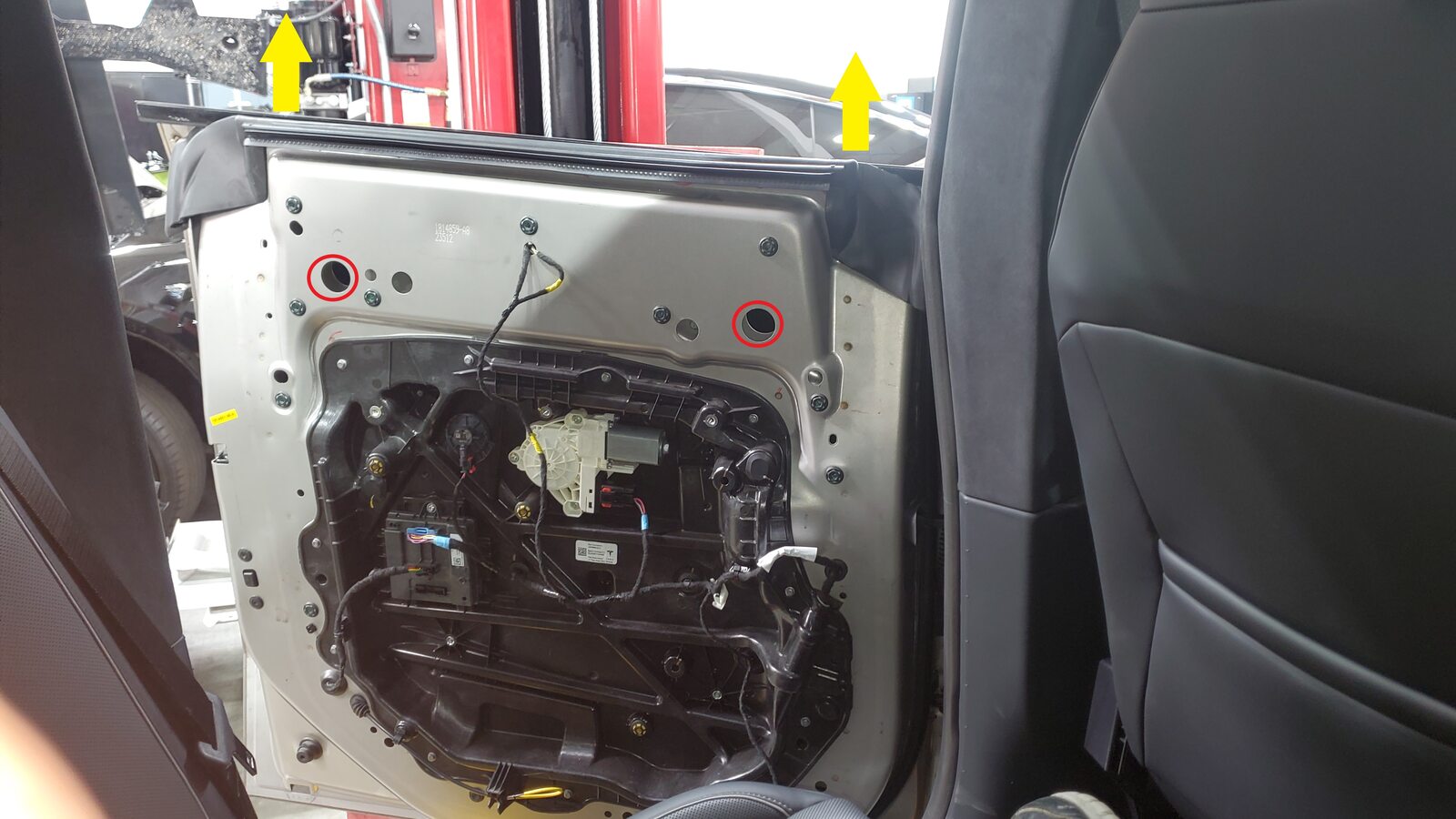

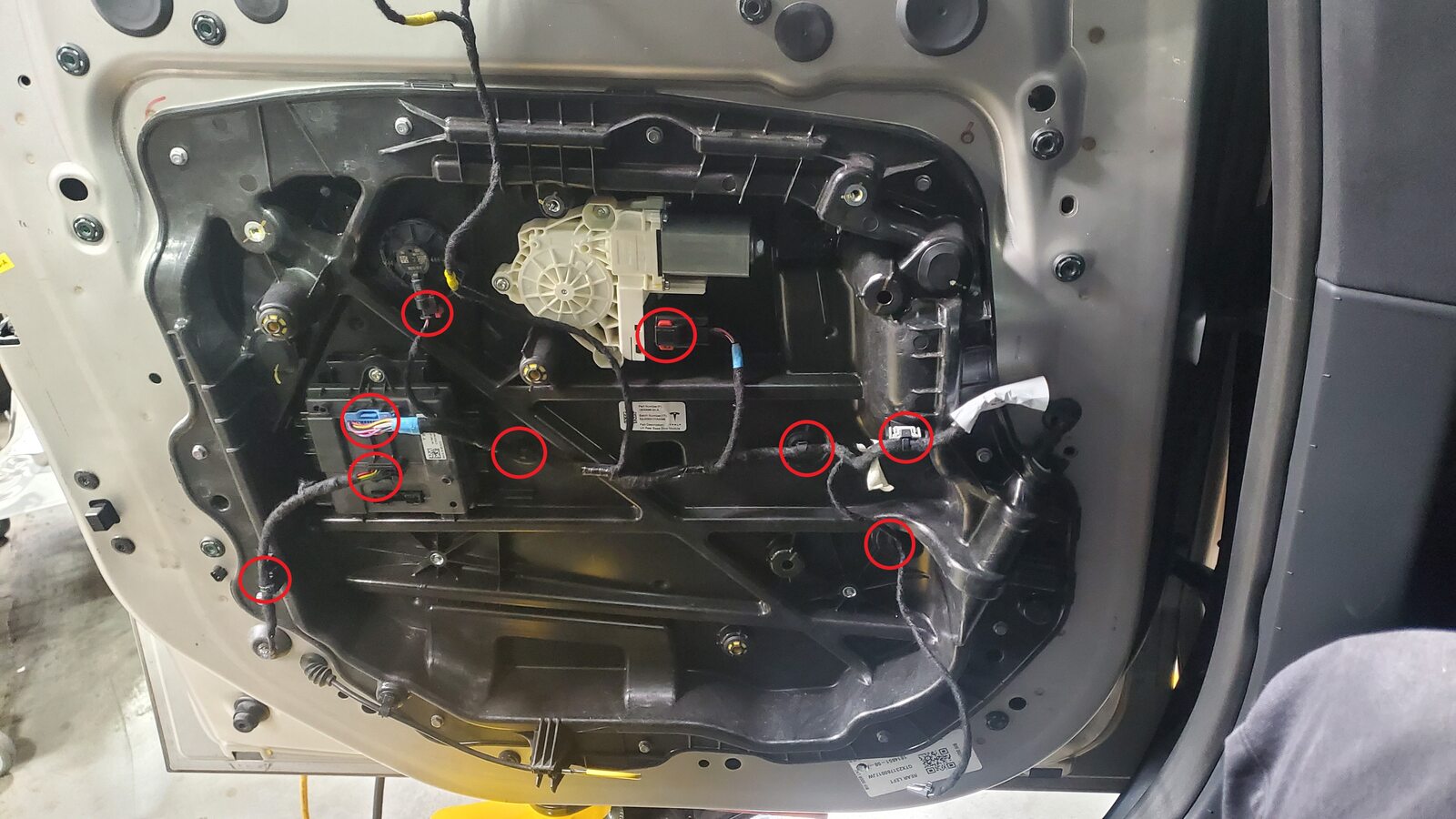

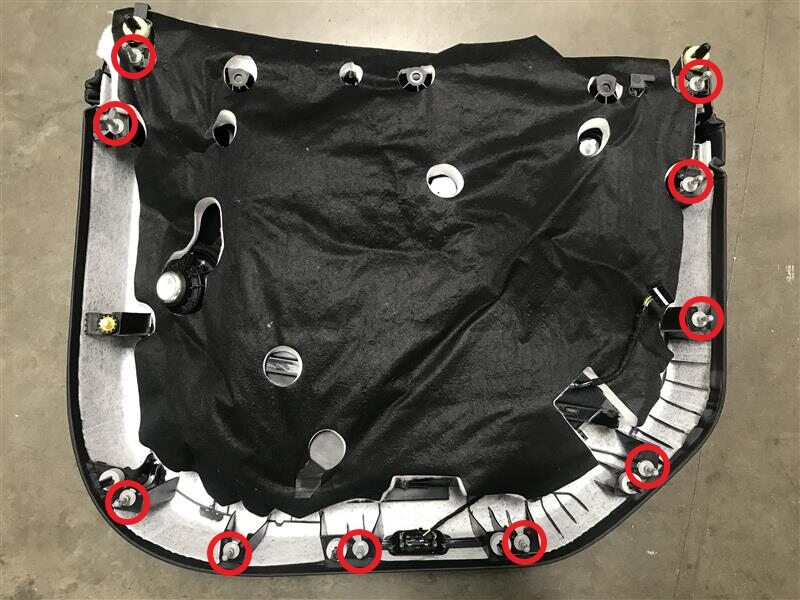

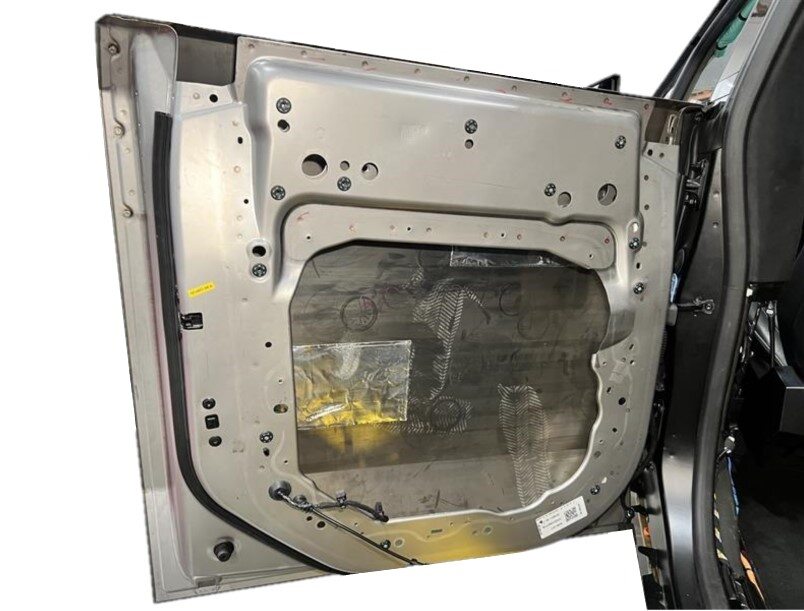

  18. Remove LH rear door closeout panel
    Informational PurposesAn informational icon, calling your attention
    Note

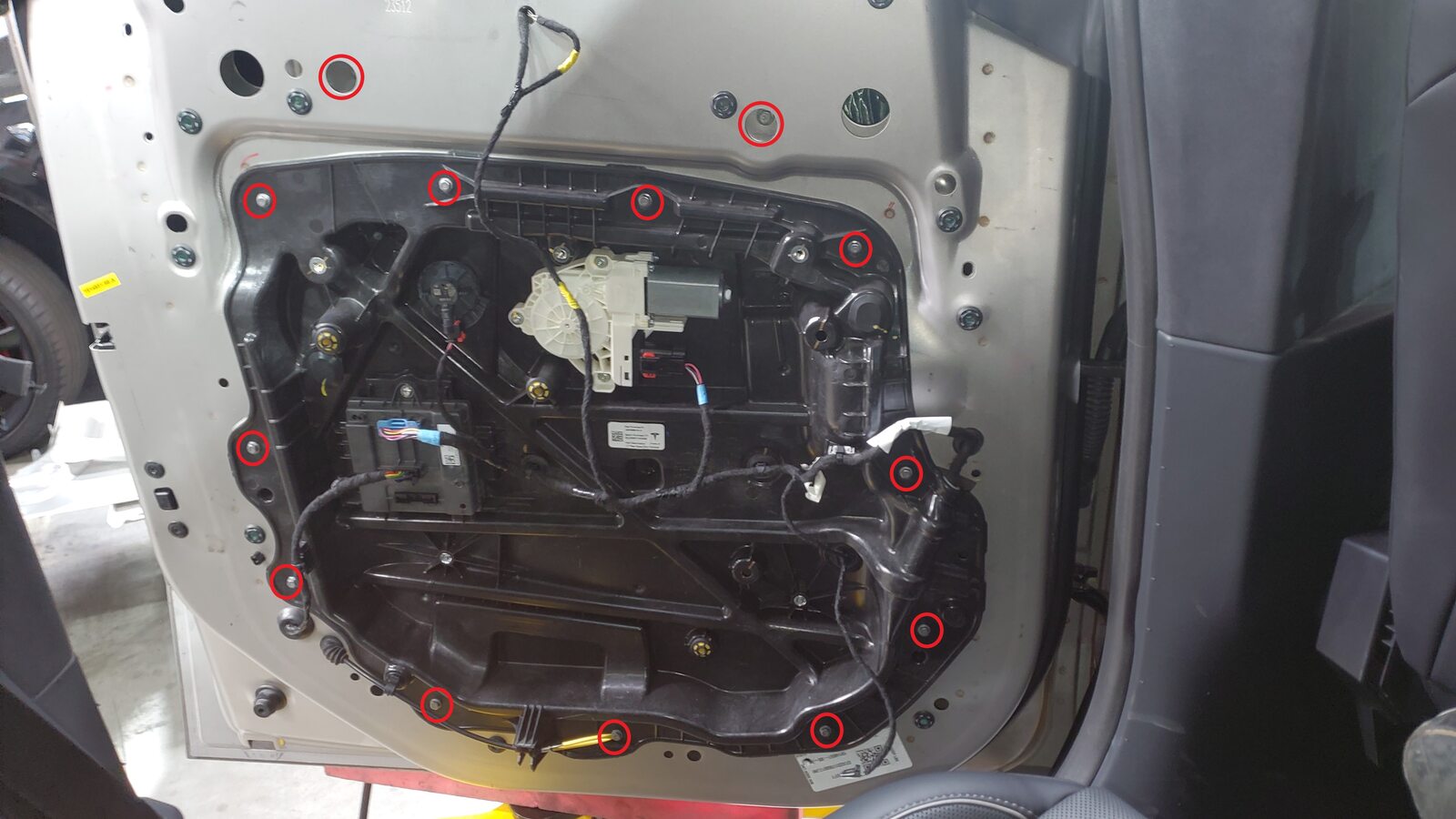

    11x bolts, 8mm, 4 Nm, 2x bolts, 10mm, Torque?, 2x datums, Gently pry panel to release datums, Pull bottom portion outwards and lower assembly to allow clearance for regulator rails

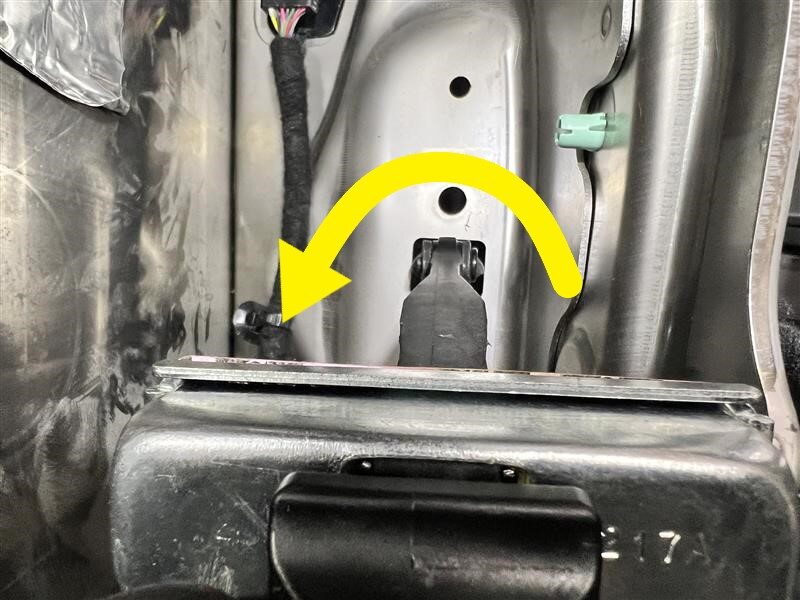

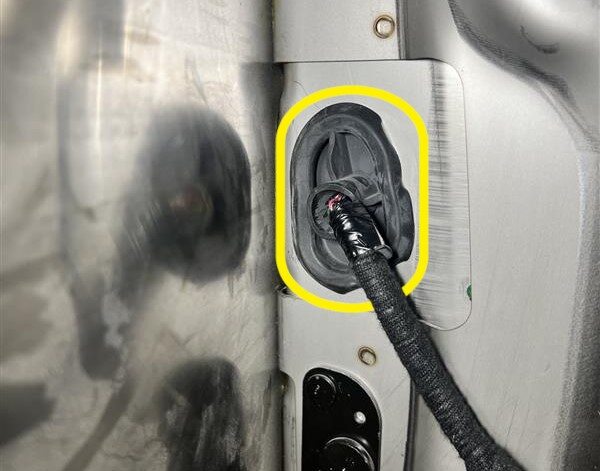

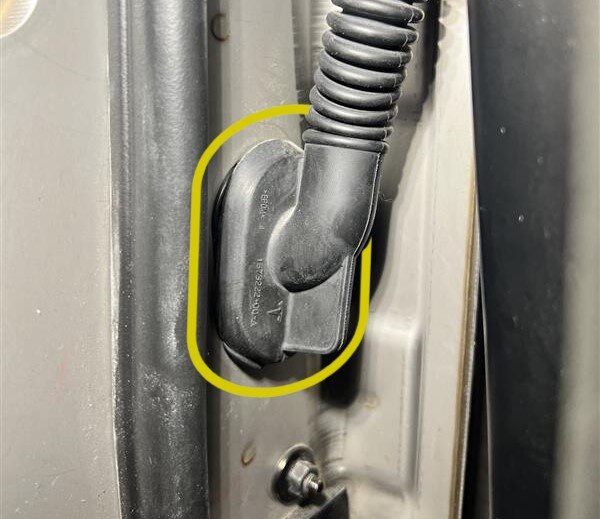

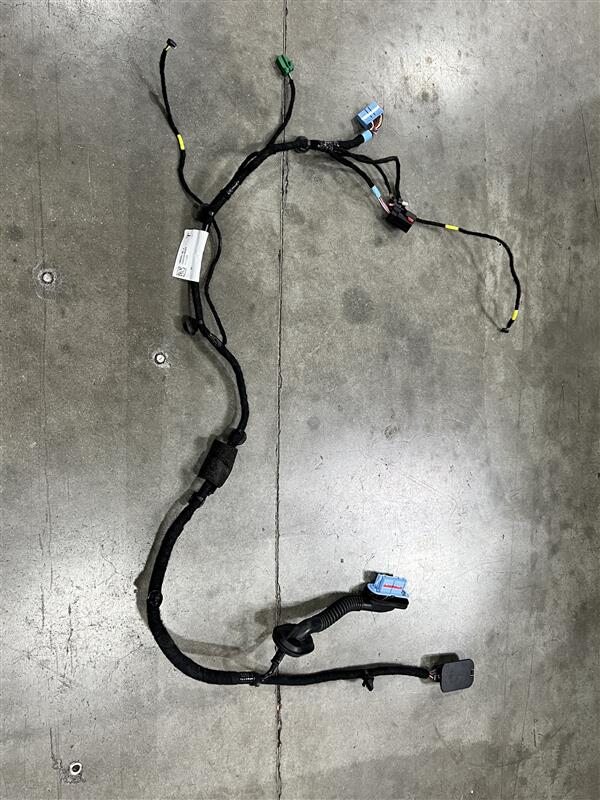

  19. Partially remove LH rear door harness
    Informational PurposesAn informational icon, calling your attention
    Note

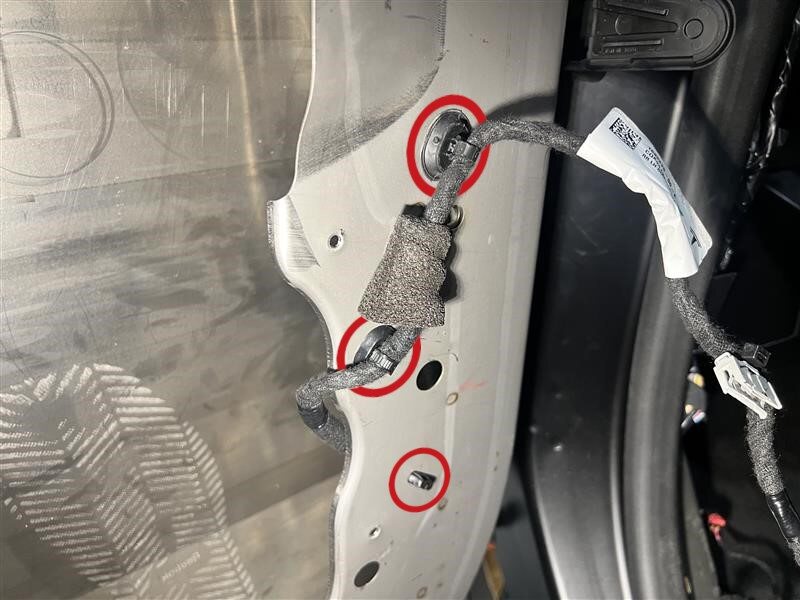

    1x grommet, 3x clips, Do not disconnect door harness to B-pillar connection, Position harness to the side

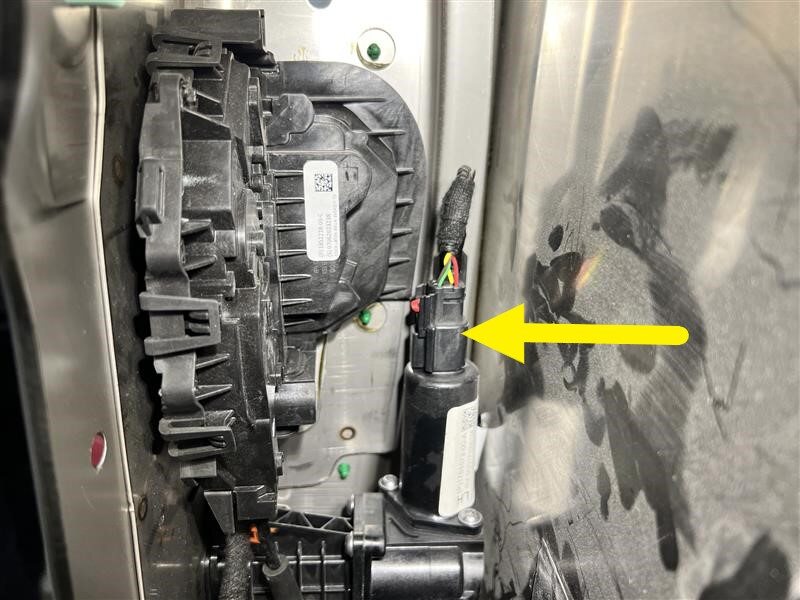

  20. Disconnect LH rear door latch harness connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Release locking tab
  21. Disconnect LH rear door presenter harness connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Release locking tab

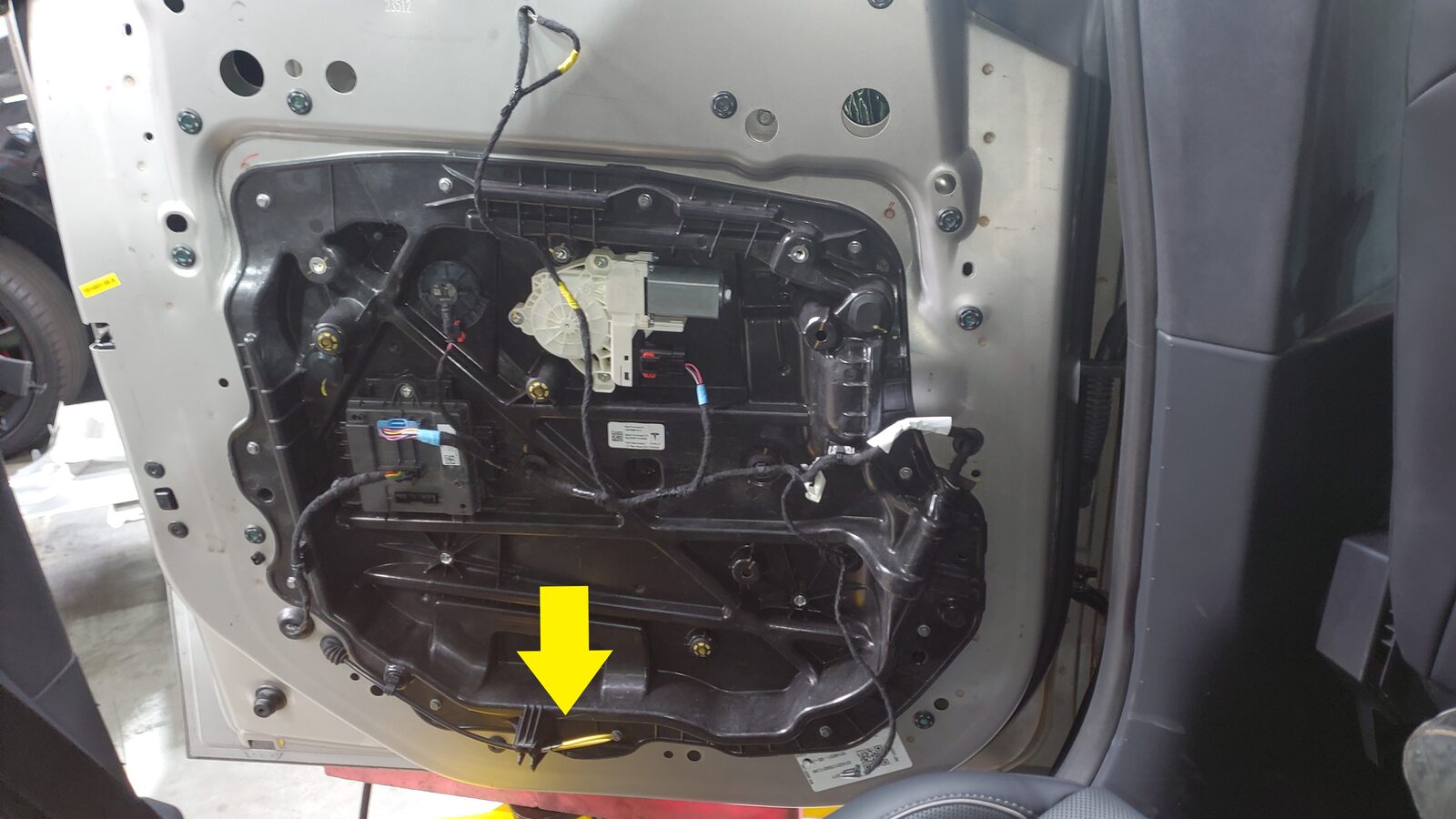

  22. Remove LH rear closure device harness
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips 1x grommet

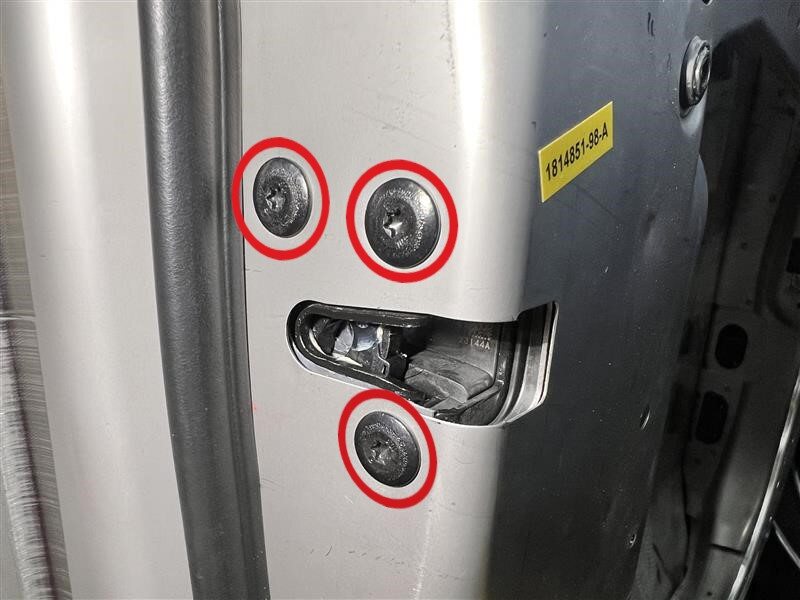

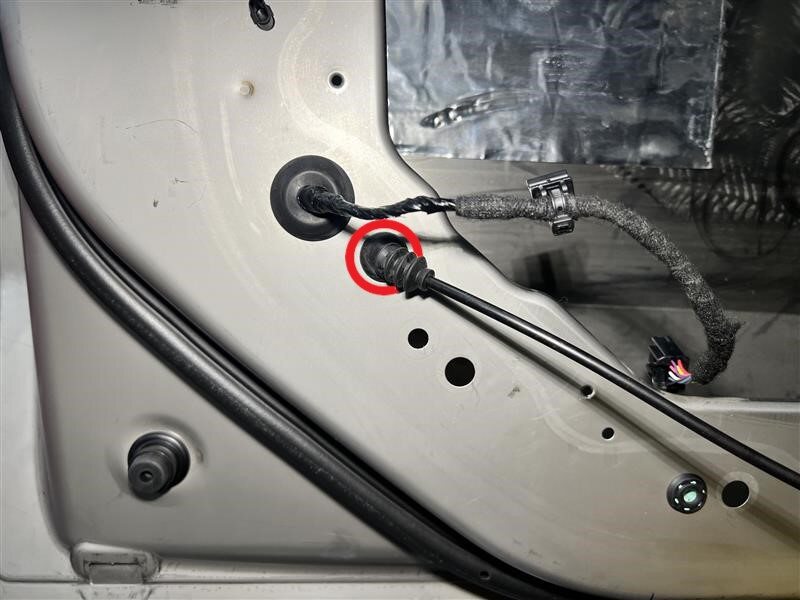

  23. Remove LH rear door latch
    Informational PurposesAn informational icon, calling your attention
    Note

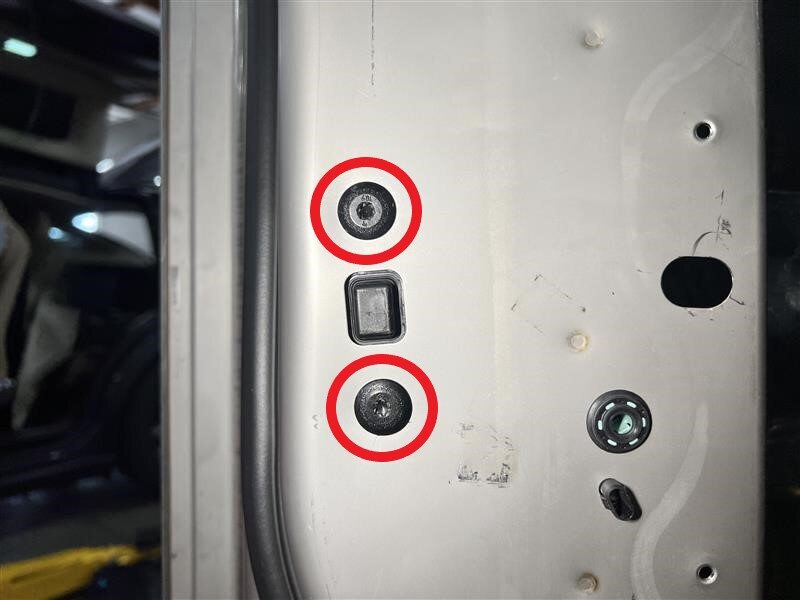

    1x grommet, 3x bolts, T30, 13 Nm

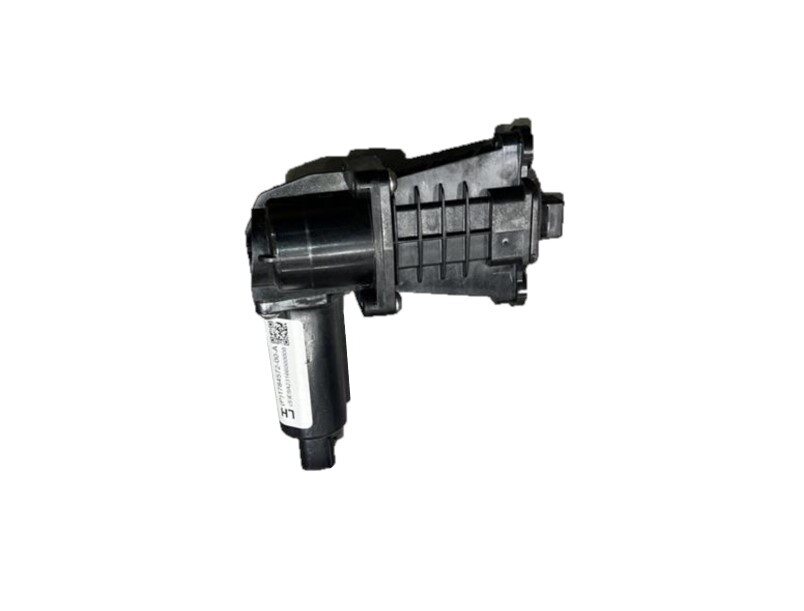

  24. Remove LH rear door presenter
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, T30, 13 Nm

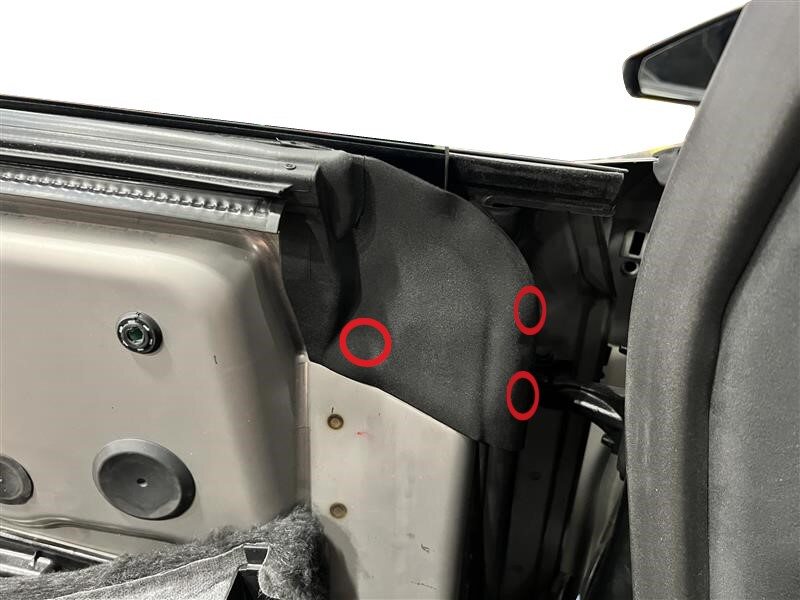

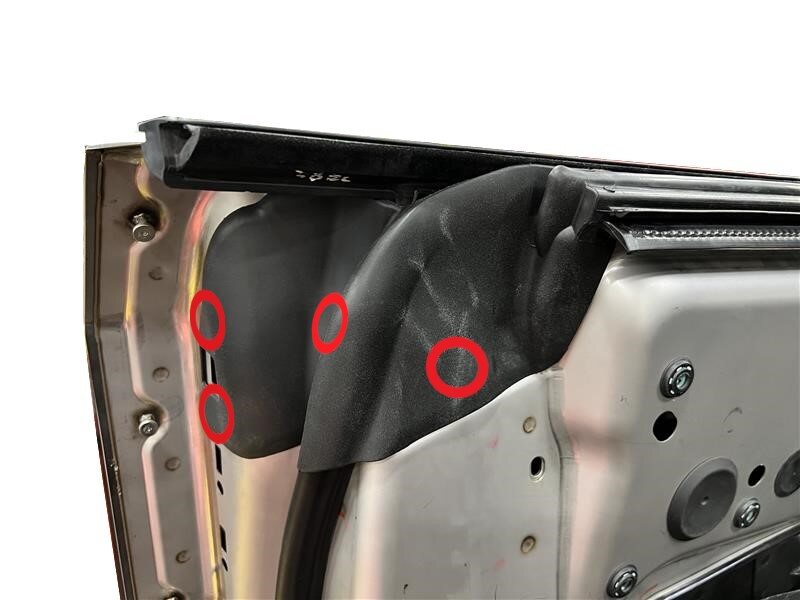

  25. Remove LH rear secondary seal
    Informational PurposesAn informational icon, calling your attention
    Note
    16x clips, Start from outer edge, Use trim pry tool to prevent clips from breaking inside door
  26. Remove LH rear door overslam bumper
    Informational PurposesAn informational icon, calling your attention
    Note
    2x tabs

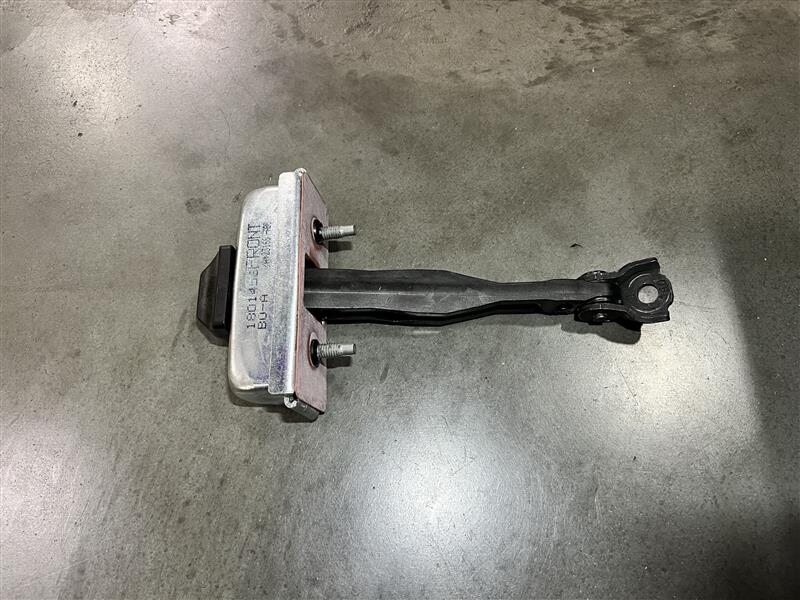

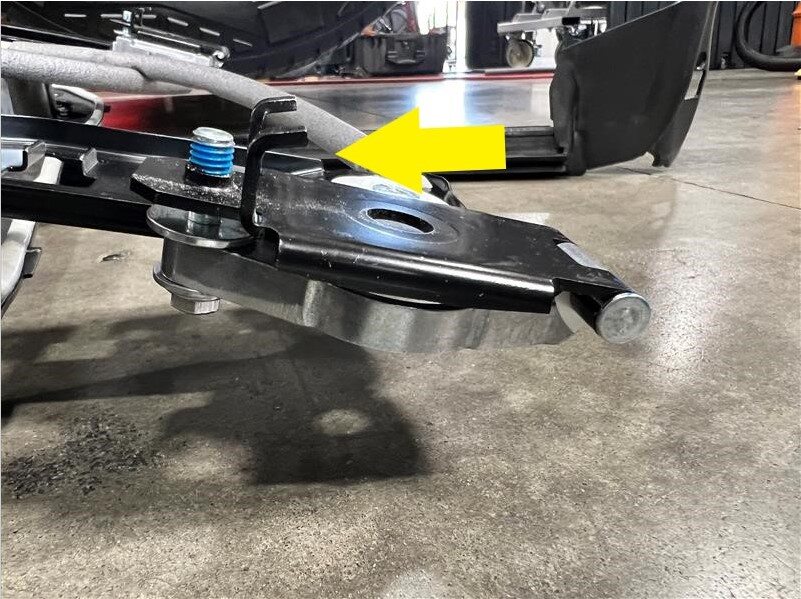

  27. Remove LH rear check strap and check strap close out
    Informational PurposesAn informational icon, calling your attention
    Note

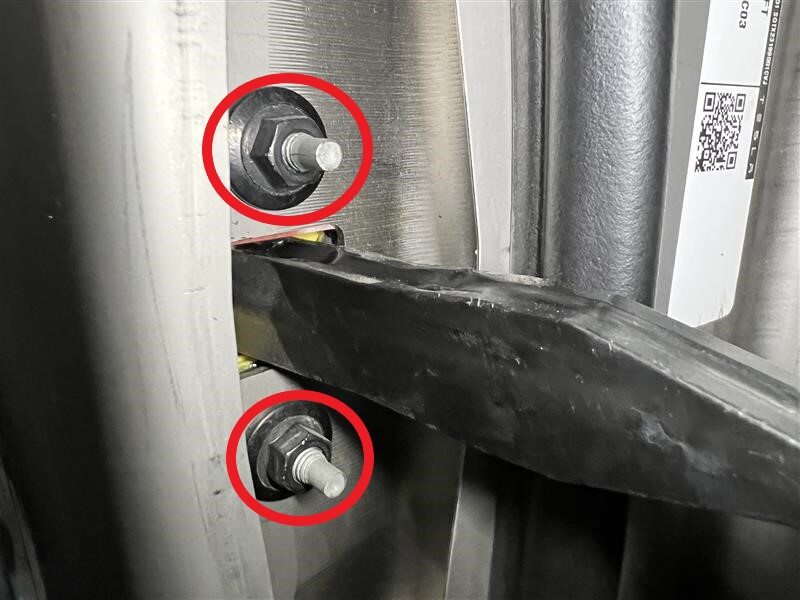

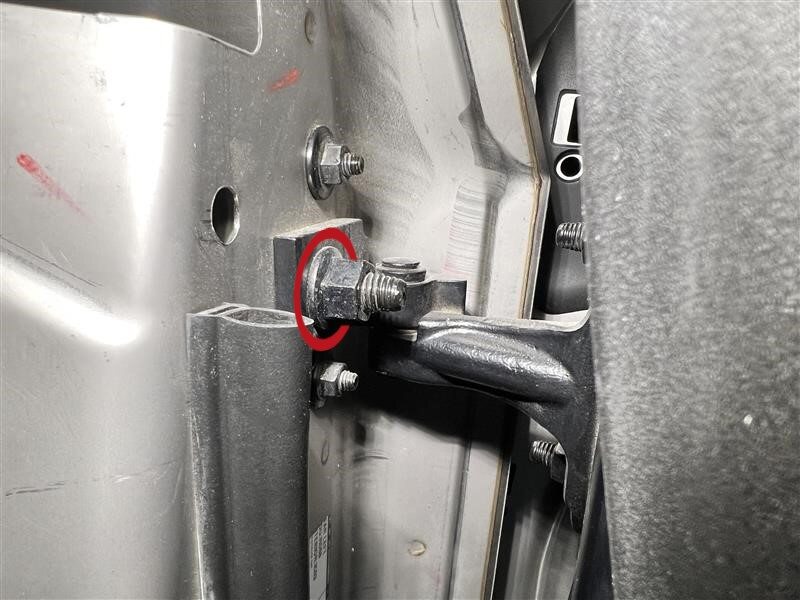

    1x bolt, T40, 23 Nm, 2x nuts, 10mm, 8.5 Nm, Remove rubber then nuts, Rotate device 90 degrees to remove
  28. Remove LH rear door
    Informational PurposesAn informational icon, calling your attention
    Note
    2x nuts, 15mm, 38 Nm, Recommend assistance
  29. Install LH rear door
    Informational PurposesAn informational icon, calling your attention
    Note
    2x nuts, 15mm, 38 Nm, Recommend assistance
  30. Install LH rear check strap and check strap close out
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, T40, 23 Nm, 2x nuts, 10mm, 8.5 Nm, Rotate device 90 degrees to position, Slide device through rubber then install fasteners
  31. Install LH rear door overslam bumper
    Informational PurposesAn informational icon, calling your attention
    Note
    2x tabs
  32. Install LH rear secondary seal
    Informational PurposesAn informational icon, calling your attention
    Note

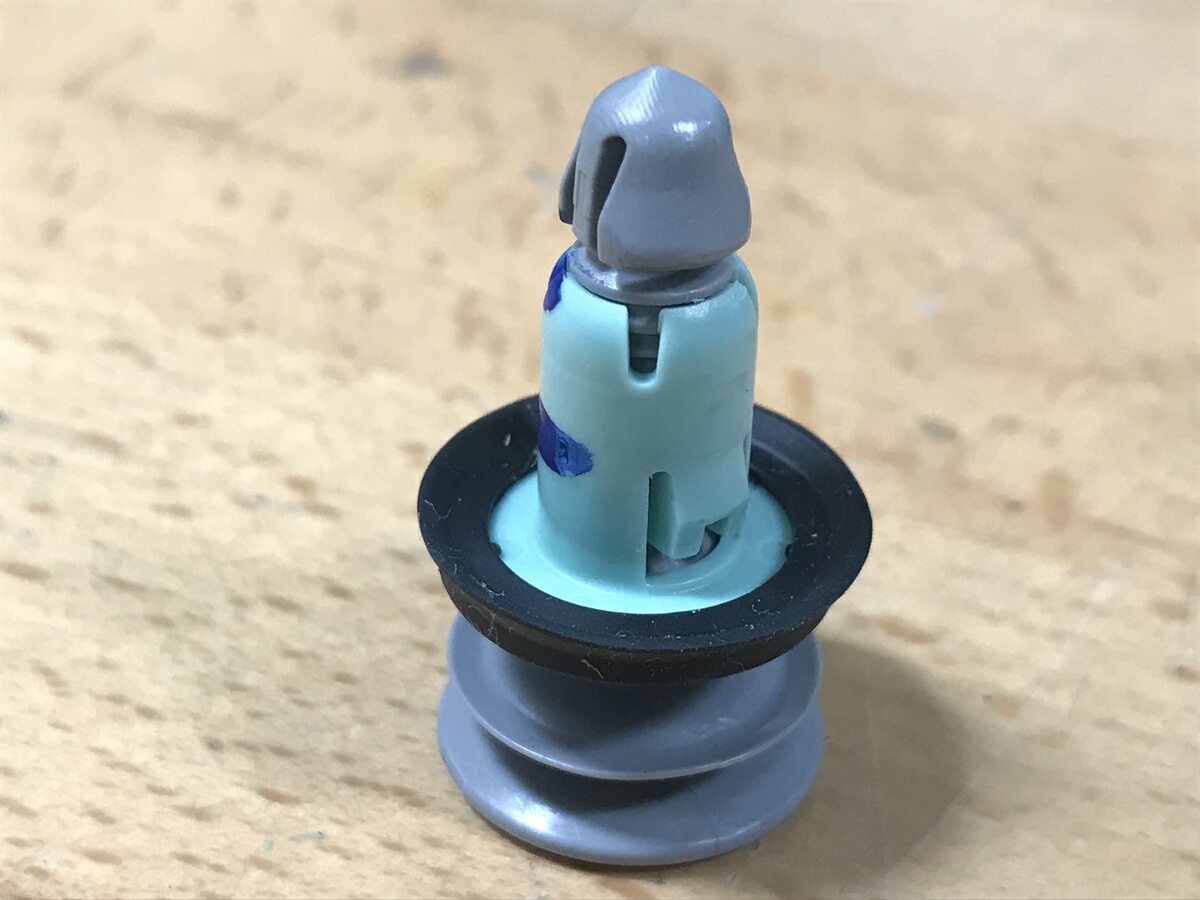

    16x clips, Note that ONE pin is different color, that begins on the outer edge
  33. Install LH rear door presenter
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, T30, 13 Nm
  34. Install LH rear door latch
    Informational PurposesAn informational icon, calling your attention
    Note
    3x bolts, T30, 13 Nm, Use tab on emergency release to guide grommet
  35. Install LH rear closure device harness
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips, 1x grommet
  36. Connect LH rear door presenter harness connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Secure locking tab
  37. Connect LH rear door latch harness connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Push in locking tab
  38. Install LH rear door harness
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, 1x grommet, 3x clips
  39. Install LH rear door closeout panel
    Informational PurposesAn informational icon, calling your attention
    Note
    11x bolts, 8mm, 4 Nm, 2x bolts,10mm, 12 Nm, 2x grommets
  40. Secure LH rear door harness onto close out panel
    Informational PurposesAn informational icon, calling your attention
    Note
    5x clips, 4x connectors
  41. Connect external window switch
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  42. Install LH rear door glass
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 4 Nm, Torque at later step, Make sure to properly secure onto regulator mount
  43. Install LH rear door outer waist belt seal
    Informational PurposesAn informational icon, calling your attention
    Note

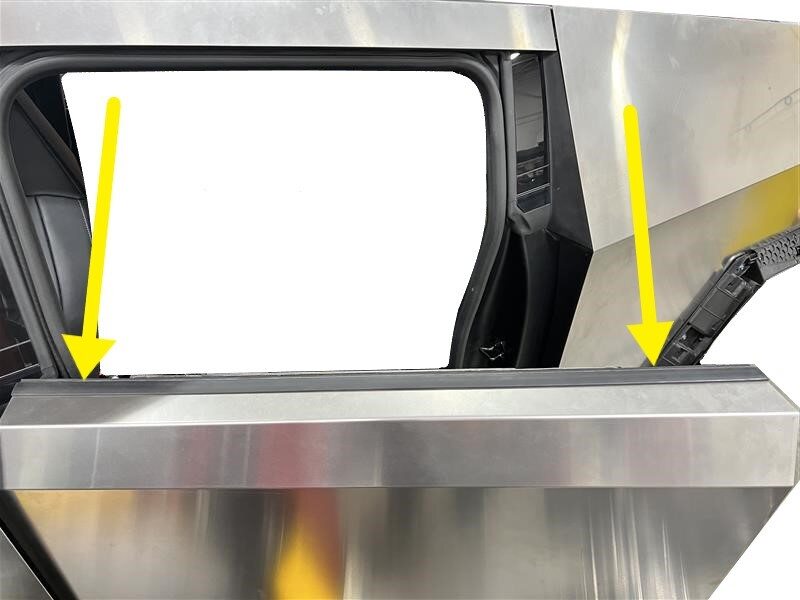

    Align LH rear door outer waist belt seal onto door assembly for installation, Ensure seal is properly seated onto door assembly
  44. Install LH rear door inner waist belt seal
    Informational PurposesAn informational icon, calling your attention
    Note
    7x rubber grommets, Ensure LH rear door inner waist belt seal is properly installed onto door assembly
  45. Manually unlatch LH rear door
    Informational PurposesAn informational icon, calling your attention
    Note
    Pull on the emergency cable to unlatch, If applicable
  46. Connect FRL connector then connect MV battery connector
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors, Connect FRL connector then secure locking tab, Position lever to secure MV battery connector then slide eCPA to right, Early production trucks may have black FRL connector, If power cycling vehicle then ensure at least 60 seconds has passed since powering down
  47. Close LH rear door

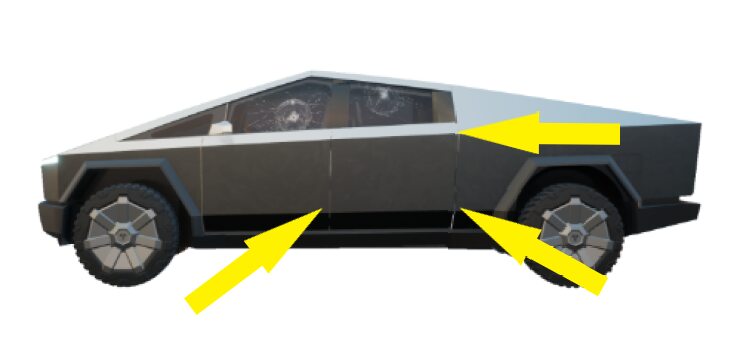

  48. Check and adjust gap and flushness
    Informational PurposesAn informational icon, calling your attention
    Note

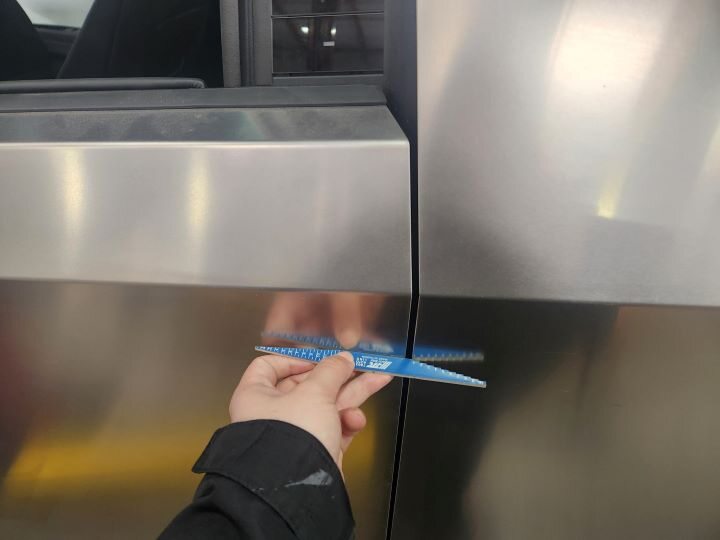

    Connect external window switch to help with adjustment, Reference CVIS for specification https://quality.prd2.dt.teslamotors.com/
  49. Open LH rear door
    Informational PurposesAn informational icon, calling your attention
    Note
    Push LH C-pillar door trigger to release
  50. Torque bolts securing LH rear window to regulator
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 13 Nm
  51. Install LH rear door grommets
    Informational PurposesAn informational icon, calling your attention
    Note
    4x grommets
  52. Disconnect external window switch
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  53. Replace LH front door trim clips
  54. Install LH rear door trim
    Informational PurposesAn informational icon, calling your attention
    Note
    Ensure beltline harness branch is routed properly, Replace any missing or damaged clips
  55. Install bolts securing LH rear door trim
    Informational PurposesAn informational icon, calling your attention
    Note
    3x bolts, 8mm, 4 Nm
  56. Replace LH rear lower beltline assembly clips
    Informational PurposesAn informational icon, calling your attention
    Note
    6x clips, Remove and discard original clips
  57. Install LH rear beltline assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    16x clips, 2x datums, 2x connectors, Replace any missing or damaged clips
  58. Raise all 4 windows
  59. Install rear underhood apron
    Informational PurposesAn informational icon, calling your attention
    Note
    9x clips, Adjust windshield seal as required
  60. Close powered front trunk
    Informational PurposesAn informational icon, calling your attention
    Note
    Via exterior switch or UI
  61. Close LH rear door
  62. Close LH front door
  63. Check LH rear door gap and flushness
    Informational PurposesAn informational icon, calling your attention
    Note

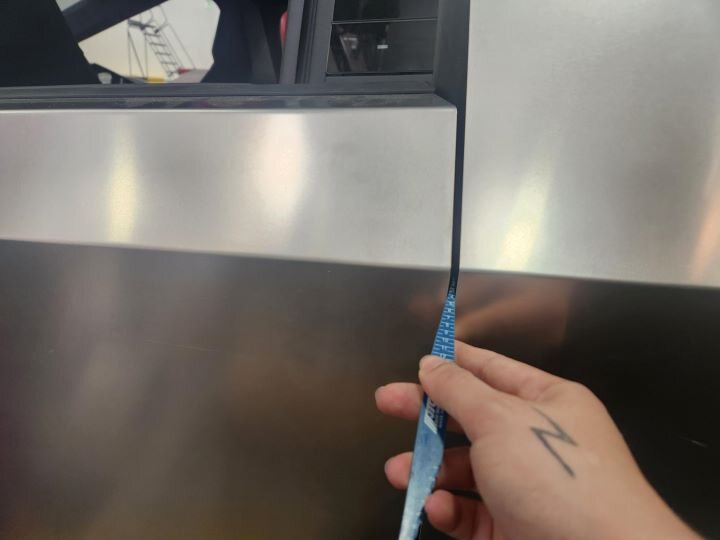

    Verify door alignment, If adjustment is needed then reference current CVIS specifications https://quality.prd2.dt.teslamotors.com/
