Harness - LH - Truck Bed (Long Range) (Remove and Install)

Correction code NEW NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Warning

This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.

Warning

Cybertruck electronics are powered by a 48V "mid voltage" or "MV" architecture that is designed to improve efficiency. Servicing MV components requires extra knowledge and care in order to avoid personal and/or vehicular harm. Read and understand MV precautions in Electrical Precautions and make sure any required MV-related training courses have been completed, as applicable.

2025-05-06: Released new procedure.

Open all 4 doors

Note
Push pillar door triggers to release
Lower all 4 windows
Manually latch all doors to prevent lockout

Note
Engage latch with screwdriver
Run ODIN routine PROC_ICE_X_ENTER-SERVICE-MODEvia Toolbox: (link)
Open tailgate

Note
Press button to release
Open powered front trunk

Note
Via exterior switch or UI
Remove rear underhood apron

Note
9x clips

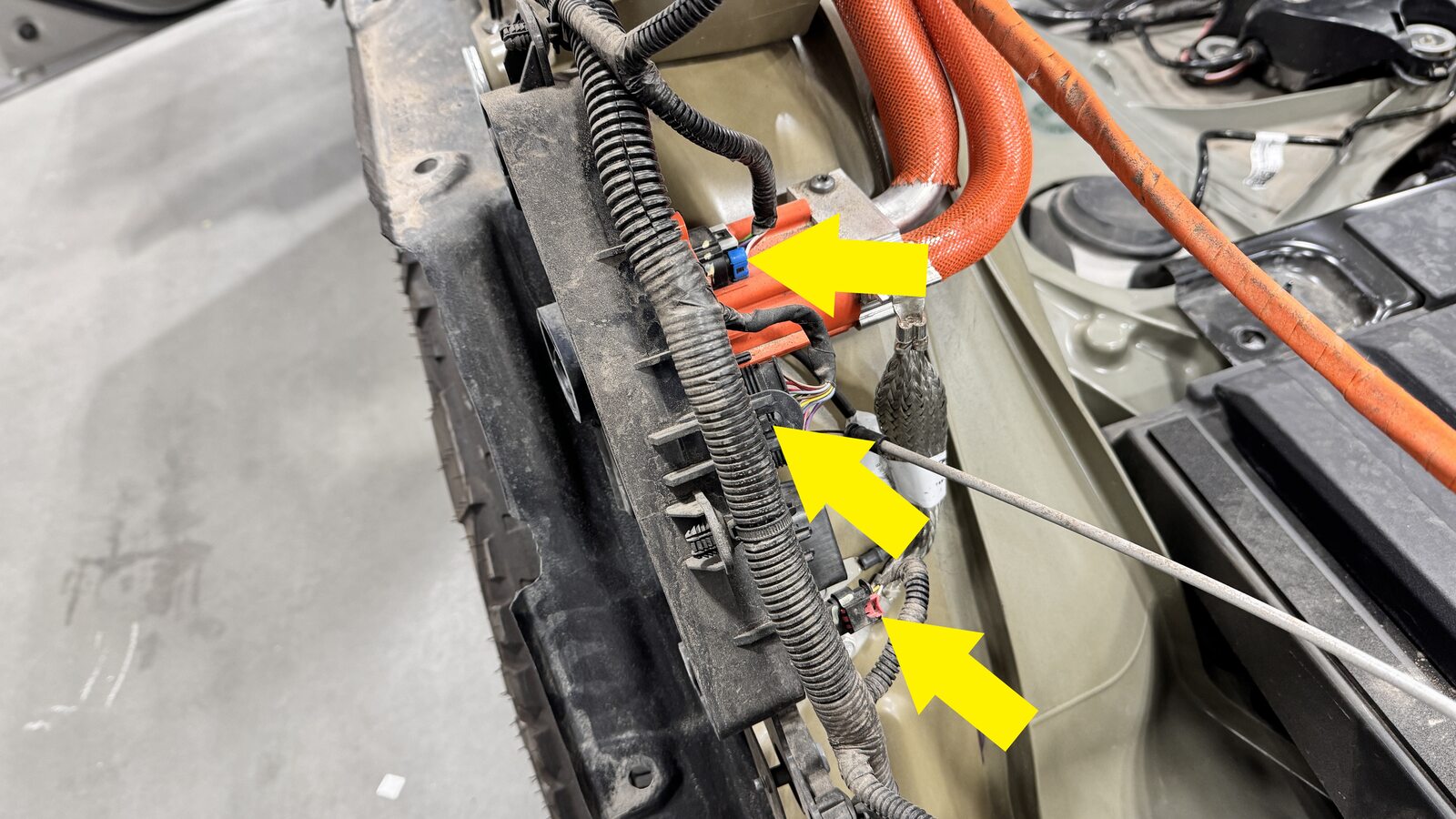

Disconnect FRL connector then disconnect MV battery connector

Note
2x connectors, Release locking tab then disconnect FRL connector, Slide eCPA to left then lift lever to release MV battery connector, Early production trucks may have black FRL connector, Release eCPA by pushing down to unlock and slide red locking tab, Wait 2 minutes for electrical circuits to discharge before disconnecting modules
Remove frunk assembly

Note
6x bolts, 10mm, 12 Nm, 2x bolt caps, 2x bumpstops, 1x connector, Remove bolt covers from frunk floor, Remove washer fluid cap by gently prying upwards, Rotate bumpstops counter clockwise to release, the 25mm socket from PT Sensor kit can be used, Avoid straining emergency frunk release connector
Remove LH underhood apron

Note
3x clips

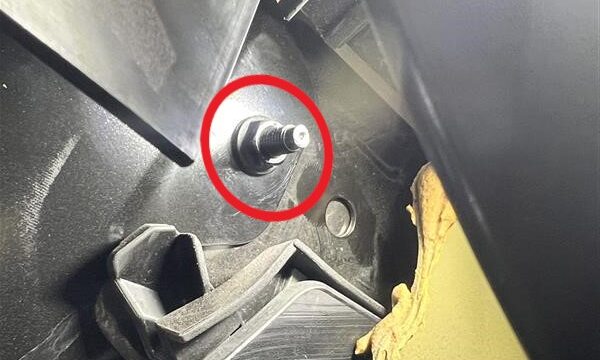

Remove front nut securing LH cantrail

Note
1x nut, 8mm, 4 Nm, Discard after removal

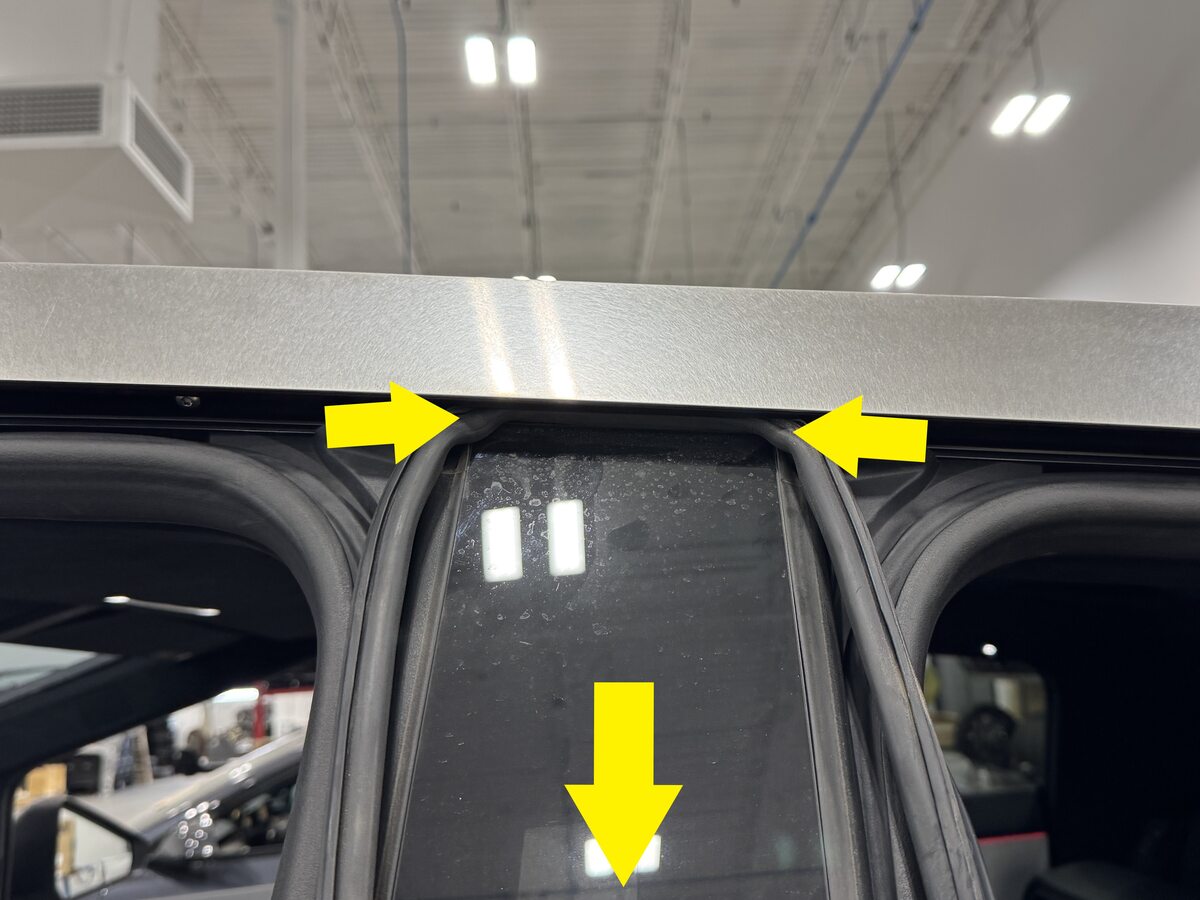

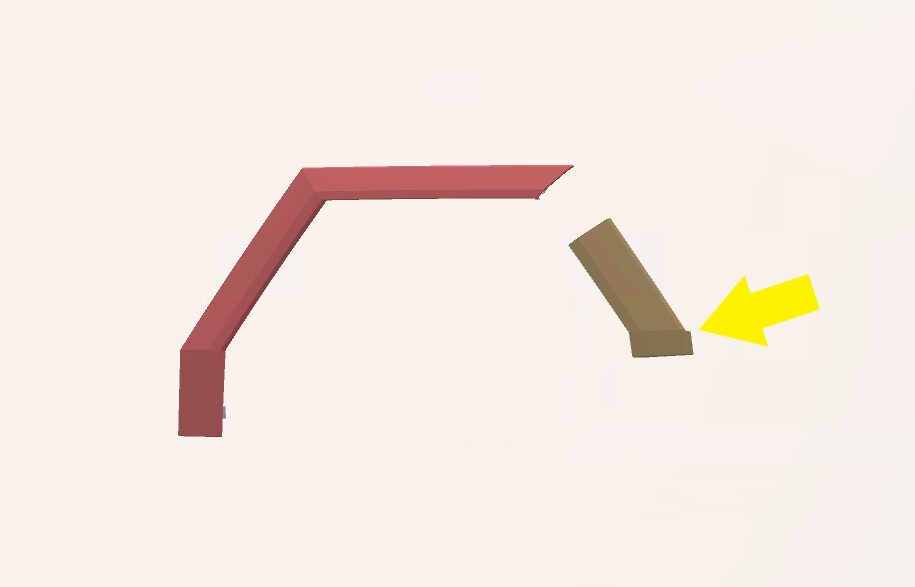

Remove LH header seal

Note
Seal begins at front quarter glass and ends at C-pillar applique, Start at C-pillar, Pull B-pillar applique down gently to release seal, Pull outwards to release seal from carrier grooves
Remove screws securing LH cantrail

Note
8x screws, T20, 2.5 Nm, Pull C-pillar applique down as required for access

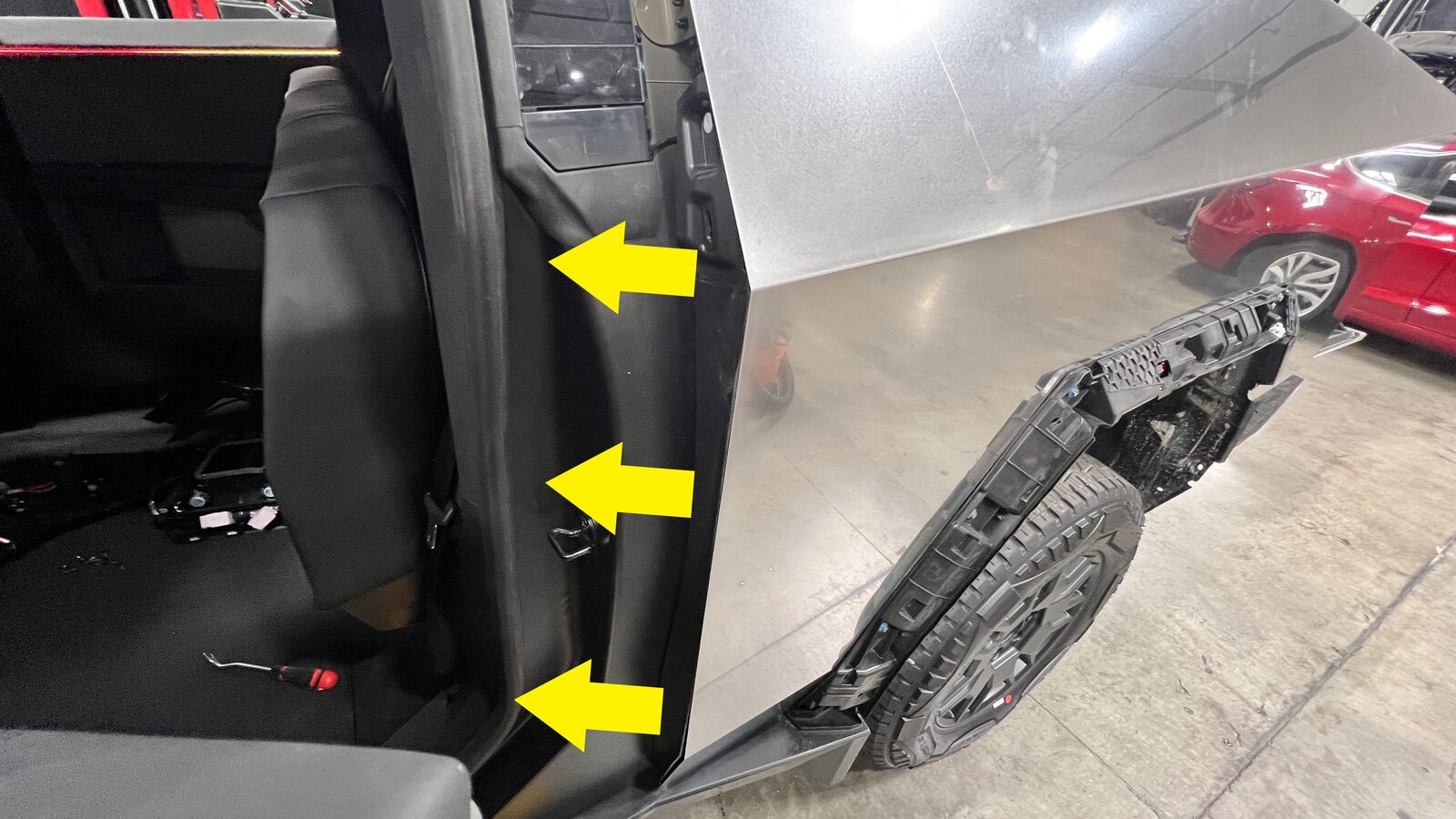

Remove LH cantrail assembly

Note
7x clips, Recommend assistance, Pull away from body side to release clips, Place on padded surface
Remove LH sail baffle applique

Note
3x clips, Release clips working from bottom upwards

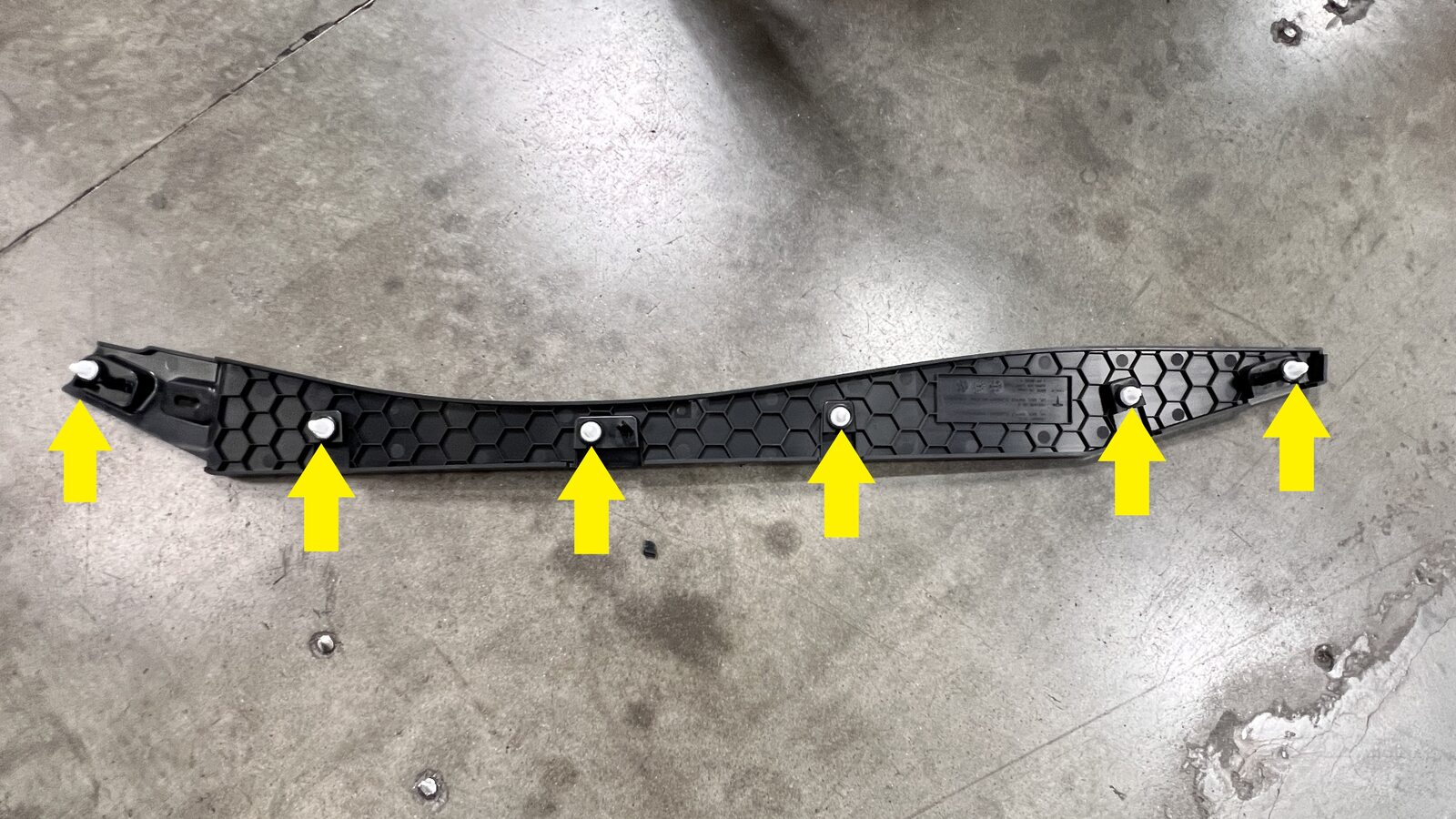

Remove LH sail baffle closeout

Note
6x clips
Remove LH rear fore fender flare

Note
12 clips, 9x tabs
Remove clips securing LH rear wheel liner to fore fender flare carrier

Note
5x clips

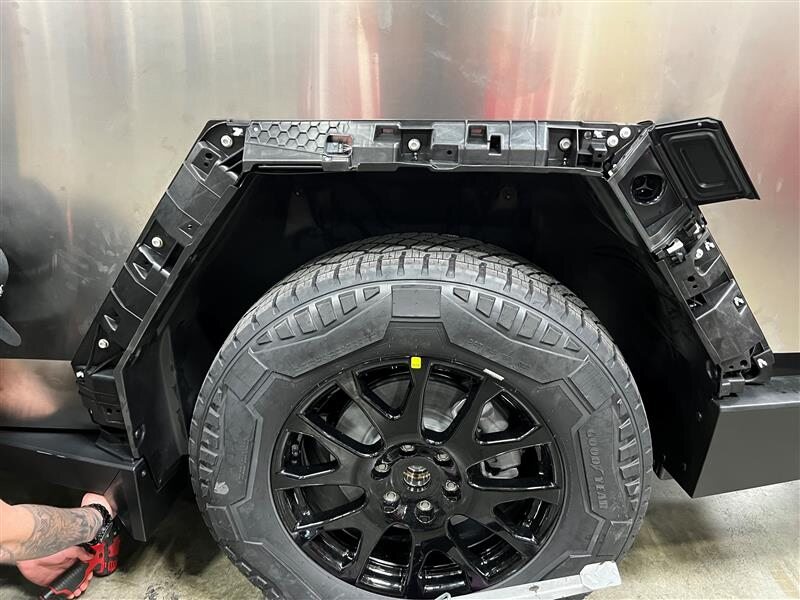

Remove LH rear fore fender flare carrier

Note
6x bolts, 10mm, 7 Nm, 1x connector, Disconnect BLE module then remove carrier, Release locking tab
Remove LH rear aft fender flare

Note
5x clips
Remove clips securing LH rear wheel liner to aft fender flare carrier

Note
2x clips
Remove LH rear aft fender flare carrier

Note
2x bolts, 10mm, 7 Nm, 2x datum

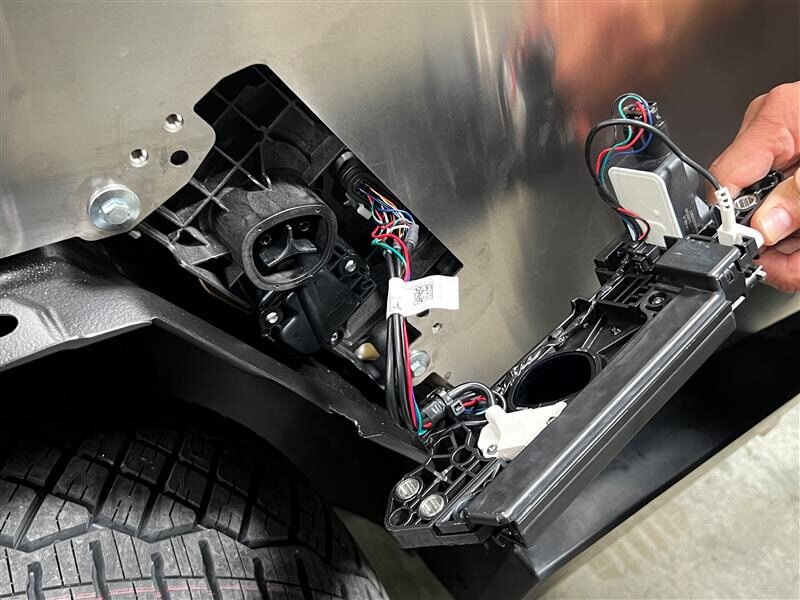

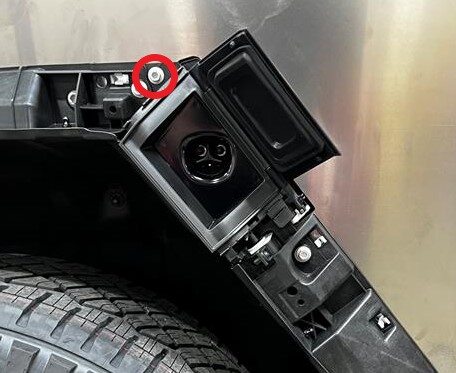

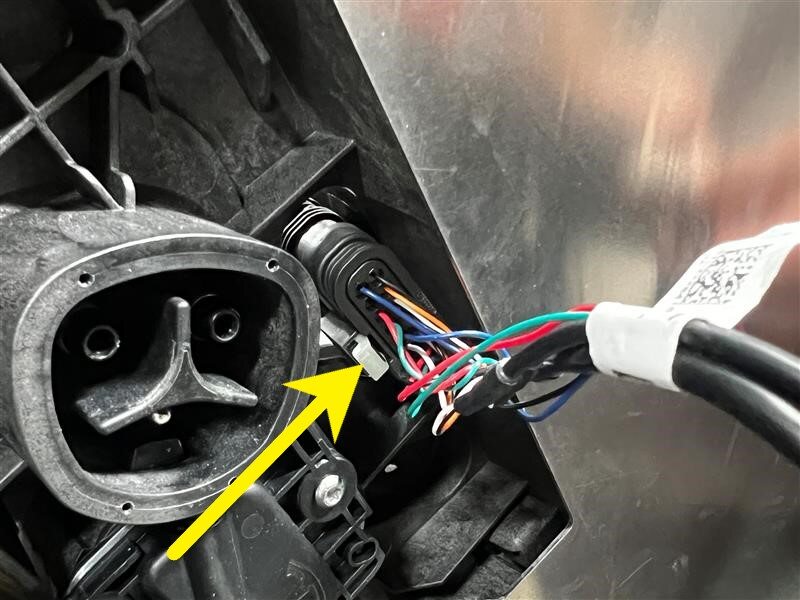

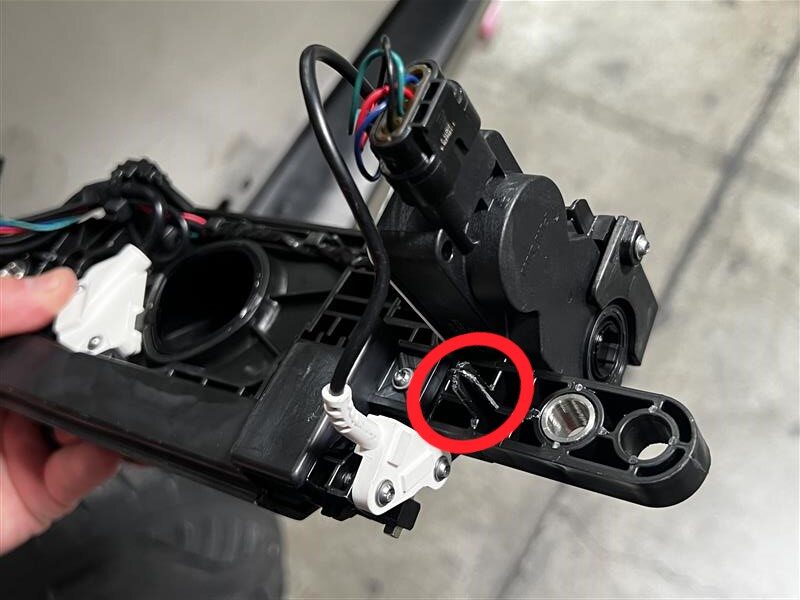

Remove chargeport door

Note
1x bolts, 10mm, 6 Nm, 1x connector, 1x datum, Rotate up and out of sail
Remove fastener covers from bed floor assembly

Note
14x covers
Remove bed floor assembly

Note
10x short bolts, 15mm, 56 Nm, 2x long bolts, 15mm, 46Nm, Lift front edge with trim tool then remove panel, Recommend assistance
Remove LH sail applique

Note
15x clips, 1x connector, 1x harness clip, Lift rear edge first to remove connector and harness clip
Remove LH upper bed side wall assembly

Note
13x clips, Start from rear, Pull from the bottom downwards
Remove LH bed closeout panel

Note
6x clips, 1x tab, Release LH tailgate cable by disengaging lock spring from bolt and sliding cable eyelet off to allow removal of bed closeout panel from vehicle

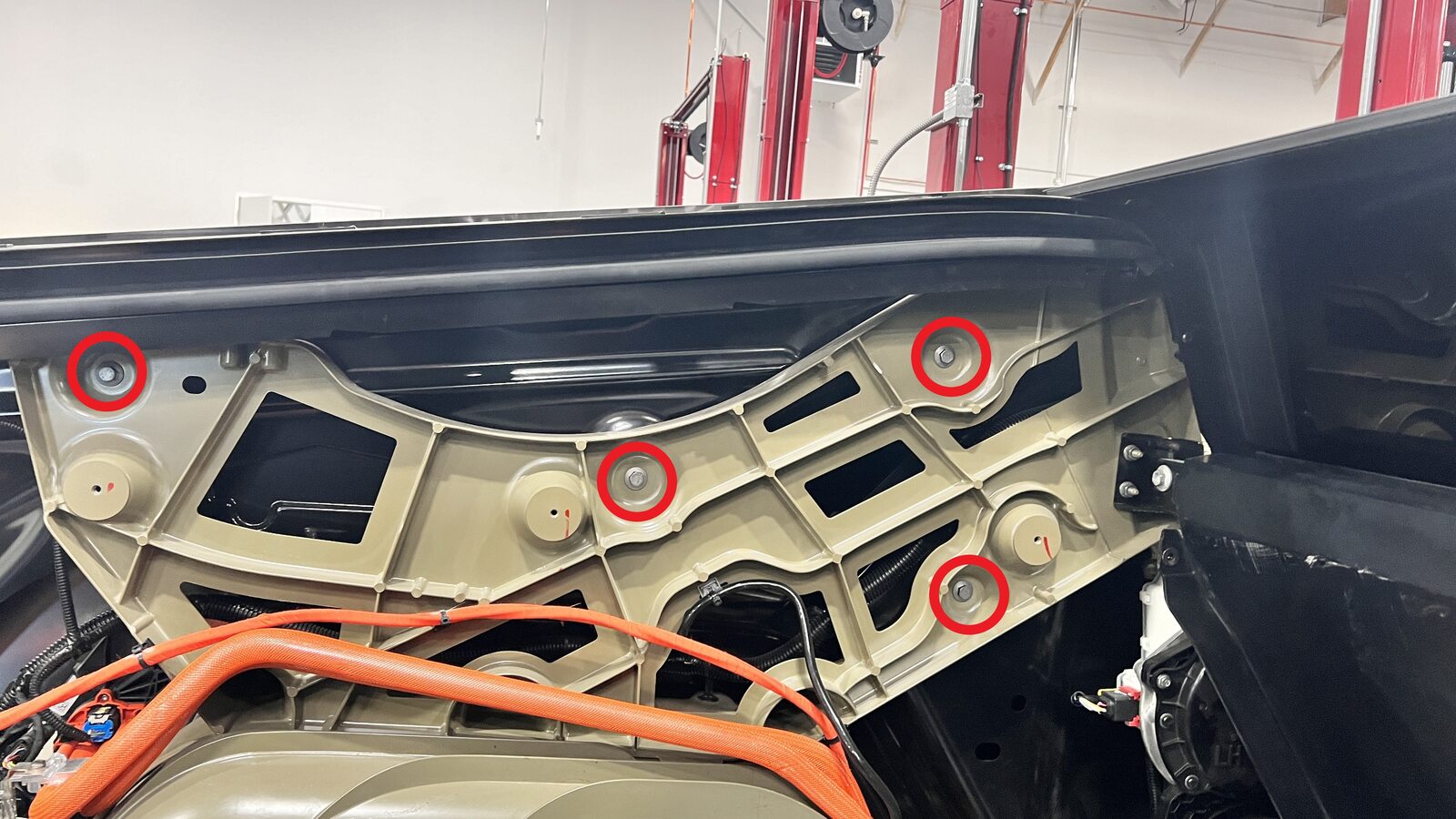

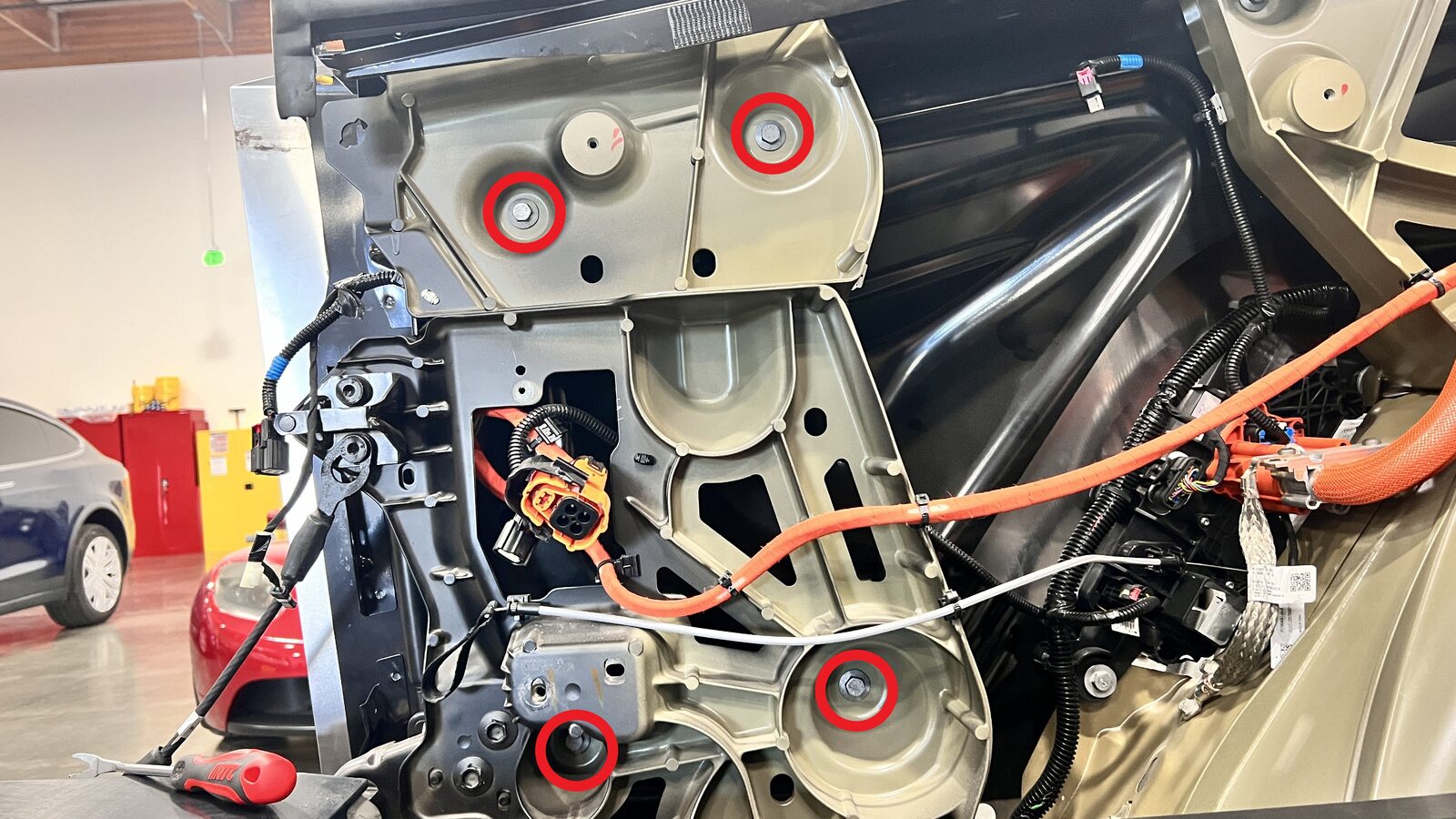

Remove LH lower bed side wall

Note
2x bolt, 15mm, 25 Nm, 4x bolts, 10mm, 11 Nm, 4x nuts, 10mm, 10 Nm, 1x connector, 4x L track fastener covers

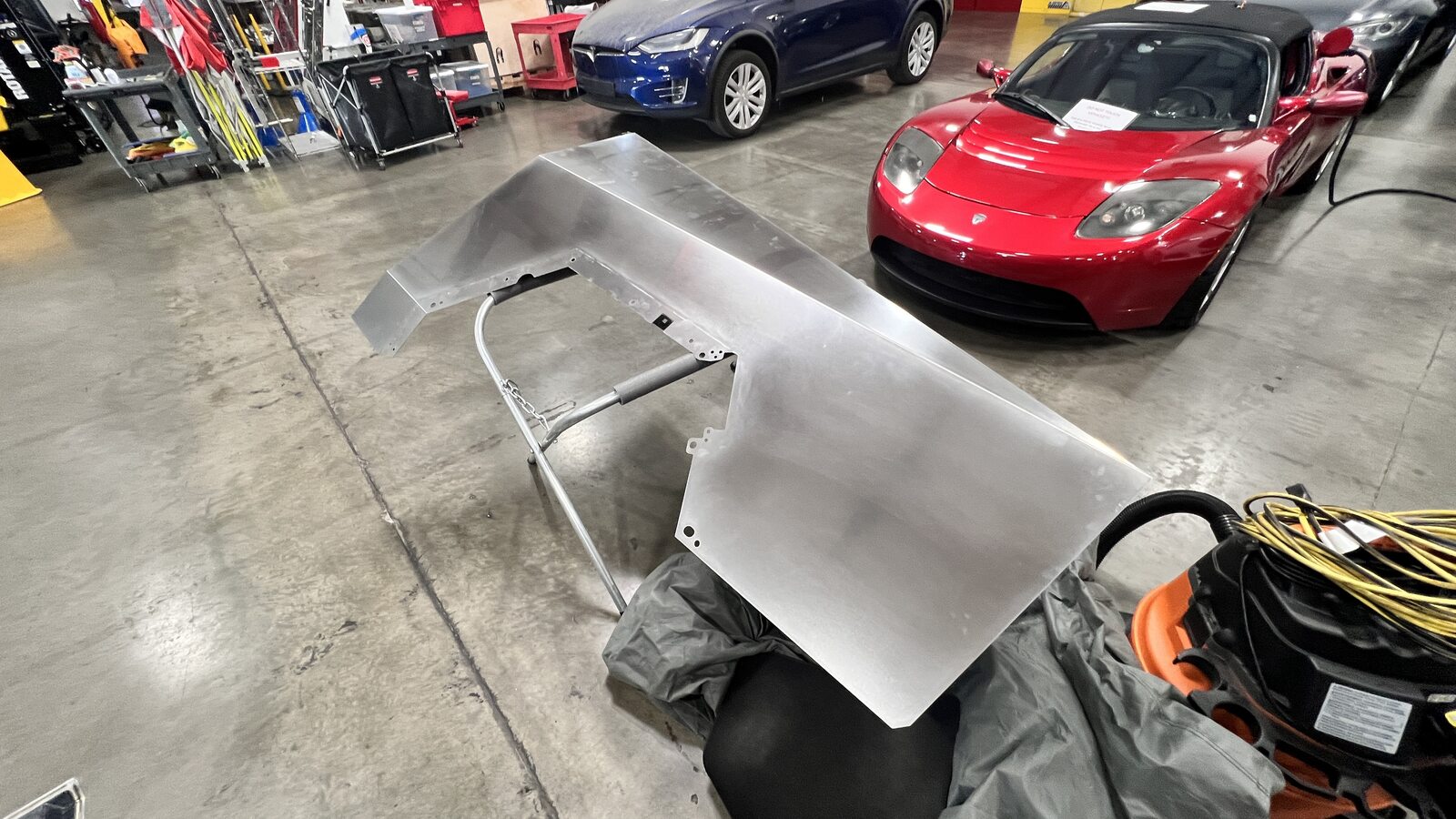

Remove LH outer bed side

Note

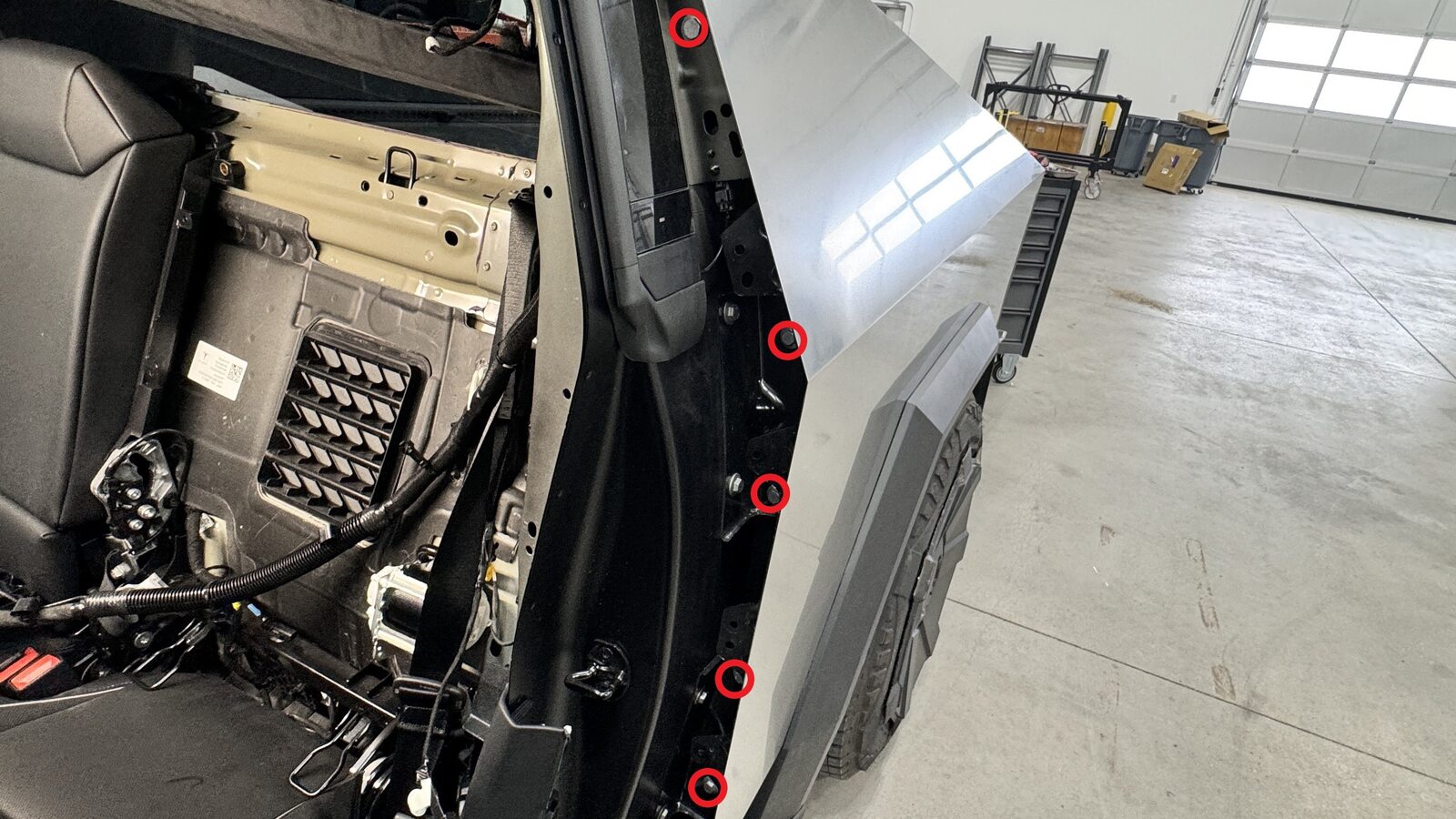

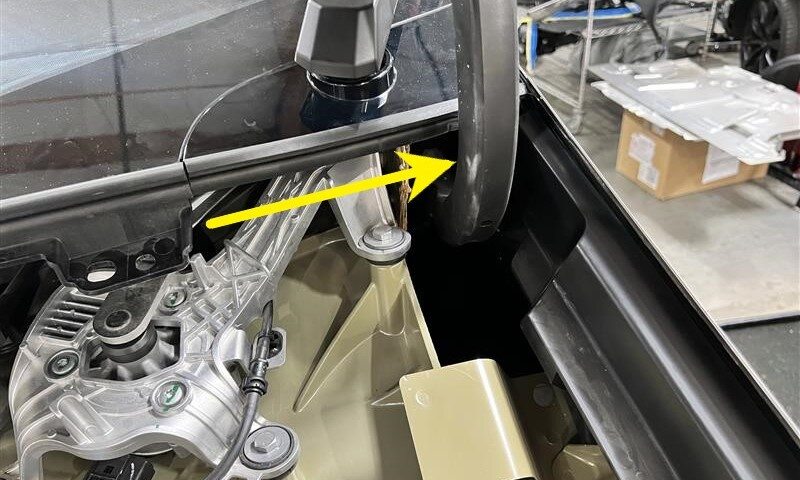

13x bolts, 13mm, 28 Nm, 1x screw, T25, 8 Nm, Assistance required, Have assistant hold bed side to body while bolts are removed, Place on padded surface once removed
Remove clips securing LH rear wheel liner onto rear fascia and diffuser

Note
5x clips
Remove bolts securing rear center fascia onto body

Note
2x bolts, 10mm, 6 Nm
Remove RH rear fender flare

Note
18x clips
Remove clips securing RH rear wheel liner to aft fender flare carrier

Note
2x clips
Remove RH rear aft fender flare carrier

Note
2x bolts, 10mm, 7 Nm
Remove clips securing RH rear wheel liner onto rear fascia and diffuser

Note
5x clips
Remove bolts securing rear diffuser onto body

Note
9x bolts, 10mm, 6 Nm
Disconnect rear fascia harness connector

Note
1x connector, Release locking tab, Harness is located behind rear of LH rear wheel liner
Remove rear fascia from vehicle

Note
16x tabs, Release RH and LH side of rear fascia from body, Remove rear fascia from vehicle, Recommended assistance, Place onto protected surface
Remove front header trim

Note
19x clips, 1x magnet, 1x connector, 1x harness clip
Remove LH mid A-pillar trim

Note
1x clip, 3x tabs, Release tabs then slightly bend live hinge and release clip
Remove LH upper A-pillar panel

Note
8x clips, 1x tether clip, 1x harness clip, 1x connector, 1x bolt, 10mm, 6 Nm, Pull inwards to release, Depress tabs on either side of tether clip to release
Remove rear header trim

Note
12x clips, 3x datums
Open LH coat hook

Note
Press to release
Release LH coat hook bolt cover

Note
2x tabs
Remove LH coat hook bolt

Note
1x bolt, T20, 2.5 Nm
Remove LH cantrail trim panel

Note
5x clips, 1x connector, 3x bolts, T30, 6 Nm, Release clips then allow cantrail to hang from tethers for access to fasteners
Remove LH 2nd row shoulder cover

Note
7x clips, 1x datum

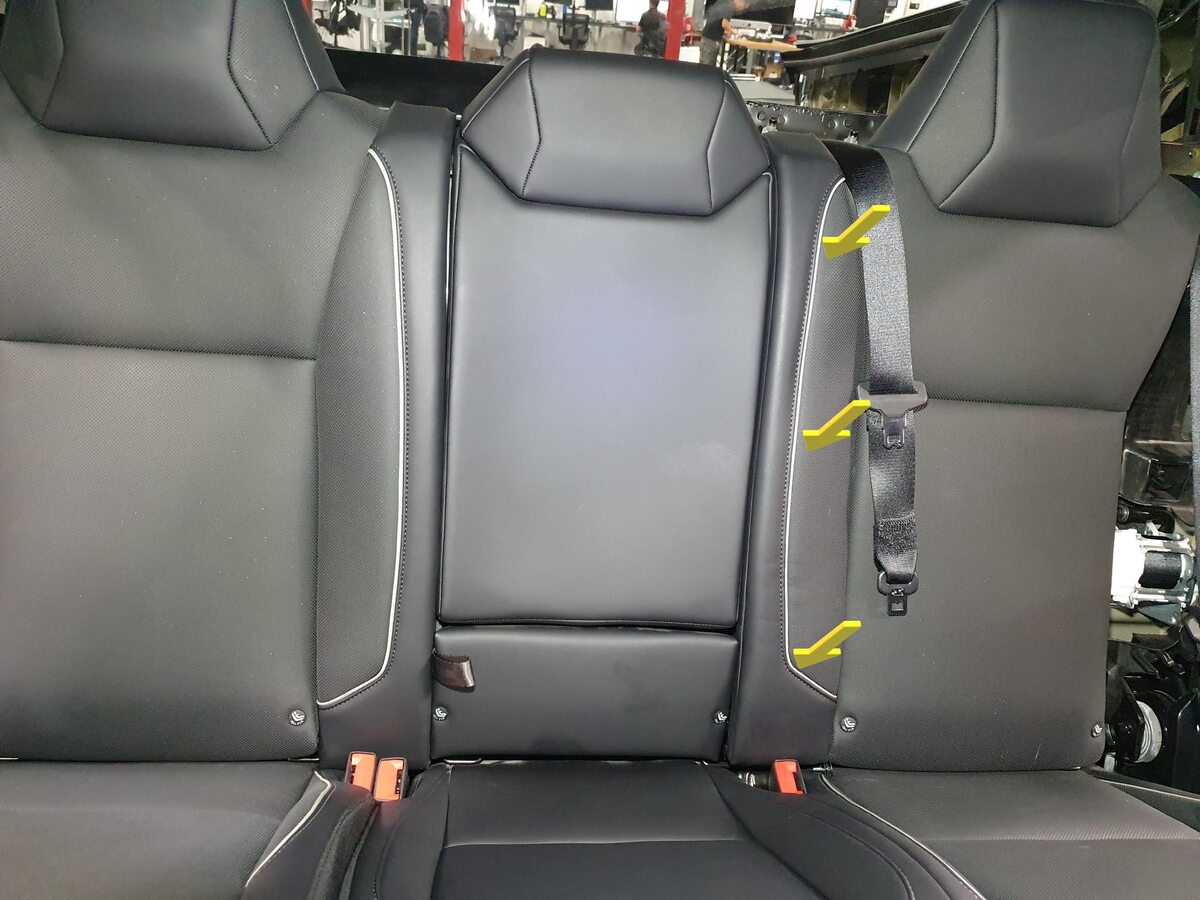

Remove 2nd row seatback LH outboard bolster

Note
2x tabs, 1x datum, 3x clips, Release tab near the bottom of LH outboard bolster, Partially release LH 2nd row shoulder cover and remove bolster from vehicle

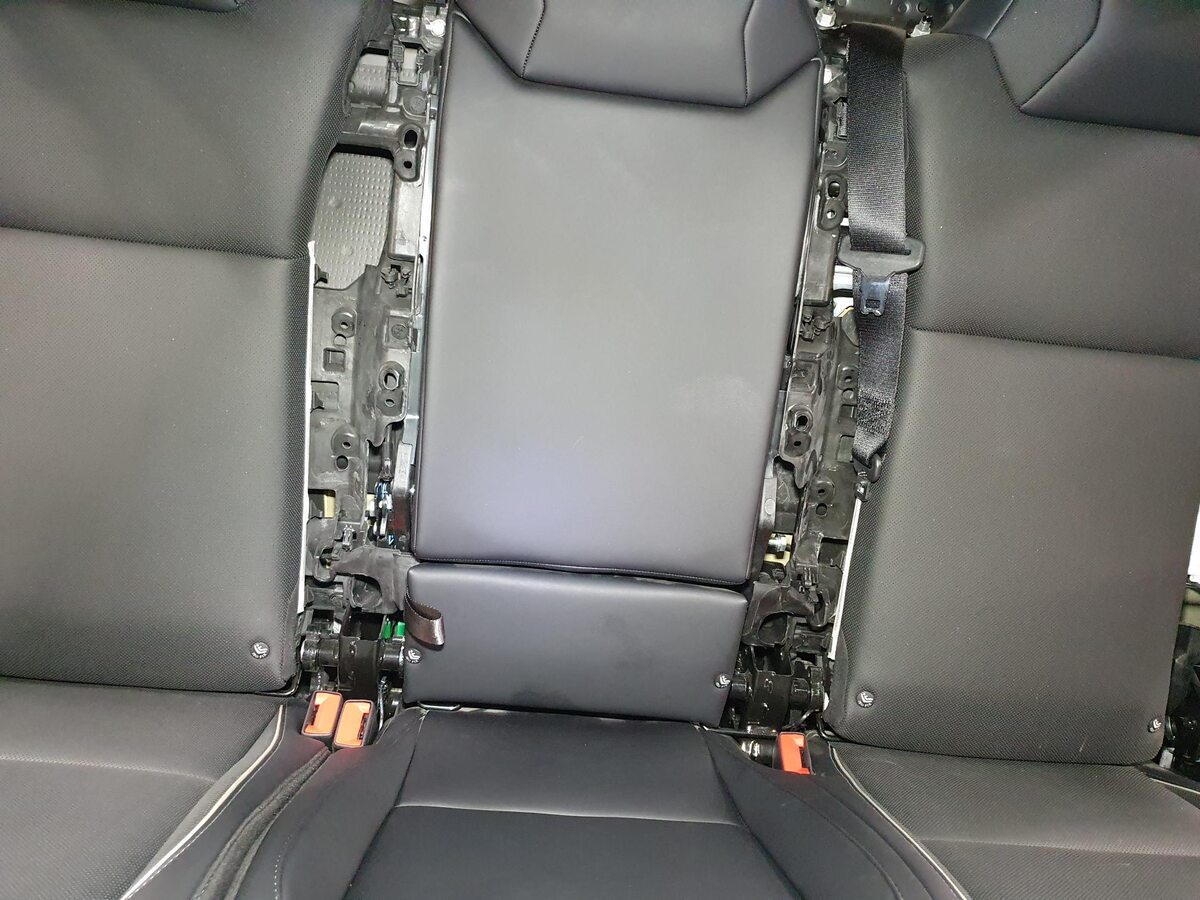

Remove 2nd row seatback LH inboard bolster

Note
4x clips, 2x datums

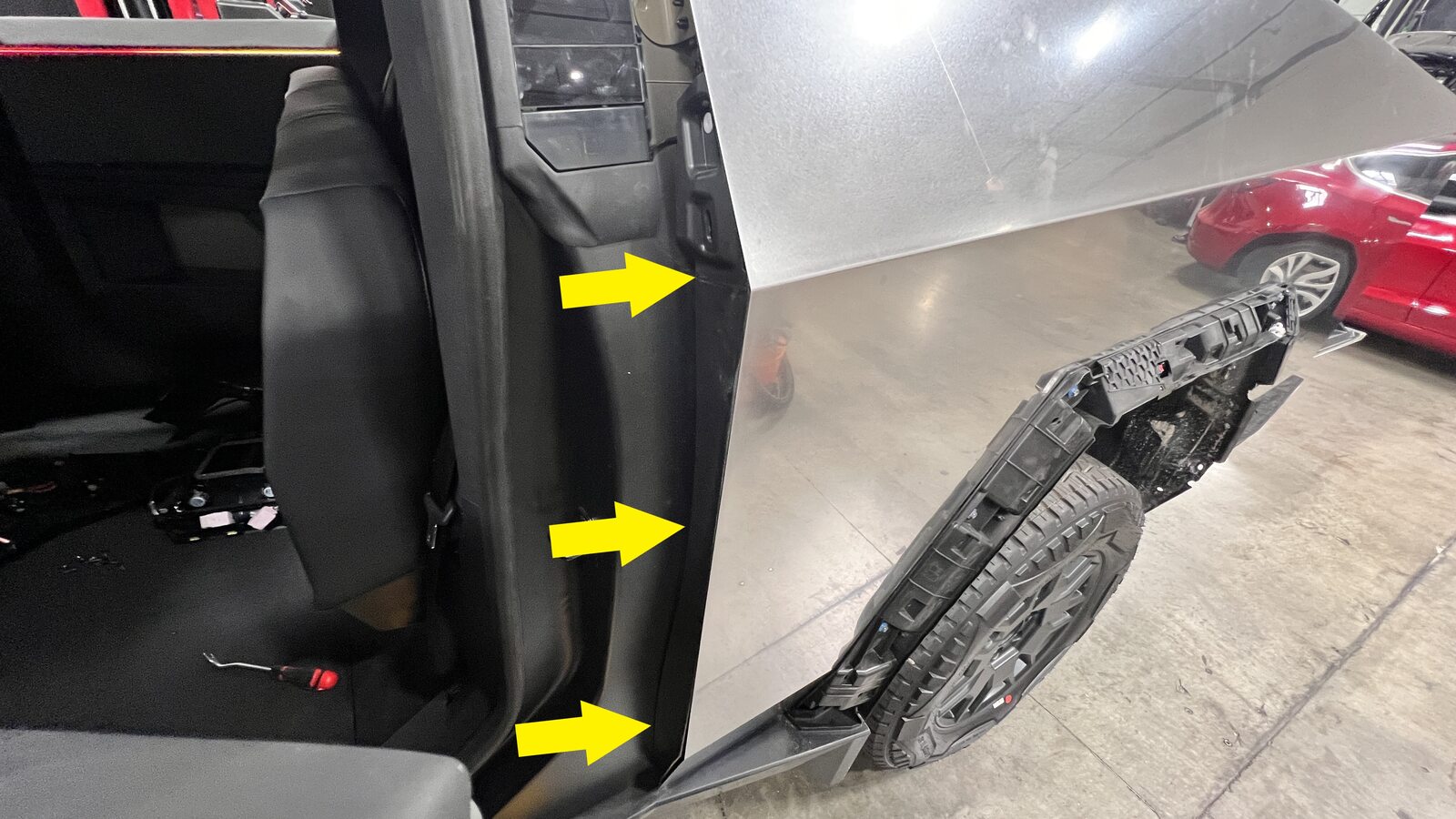

Remove LH lower C-pillar trim

Note
3x clips, 7x tabs, 4x datums, Starting at door sill pull upward then forward to release, Leave trim attached to seat belt
Remove LH C-pillar upper trim

Note
5x clips, 3x tabs

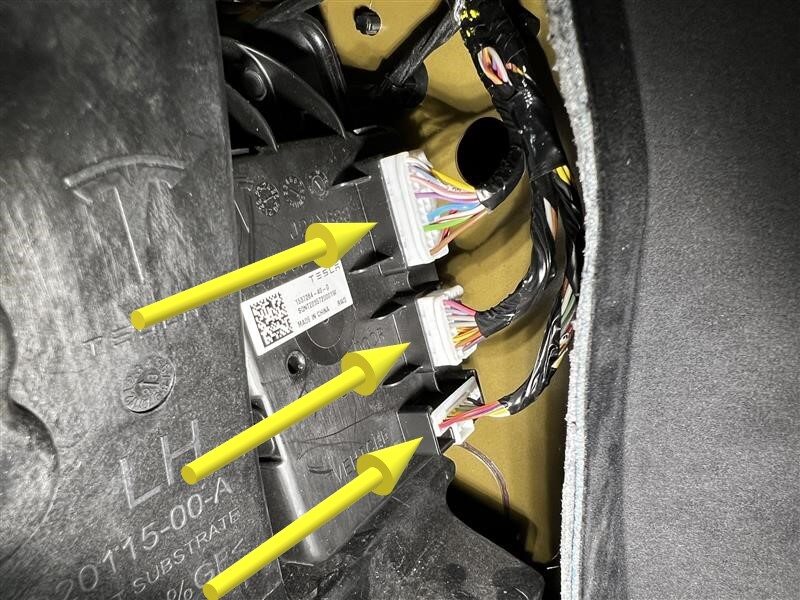

Release all connections from charge port ecu

Note
3x connectors

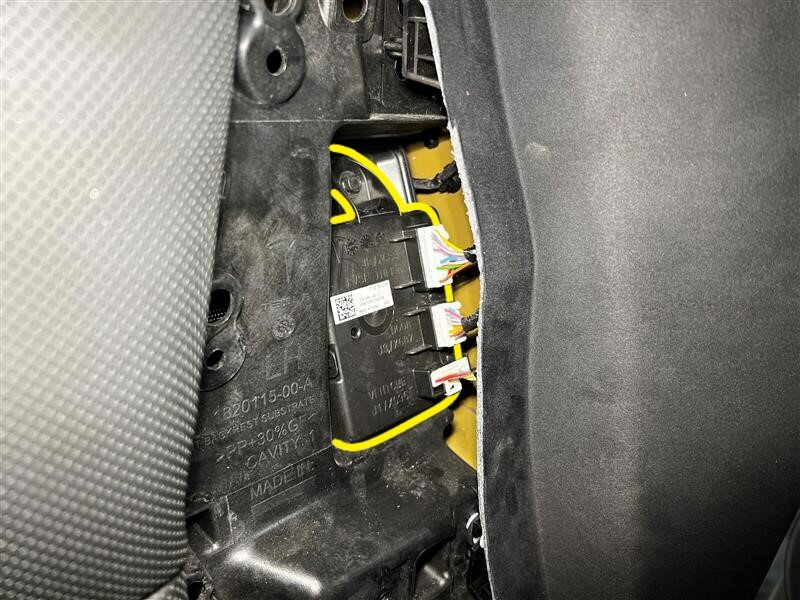

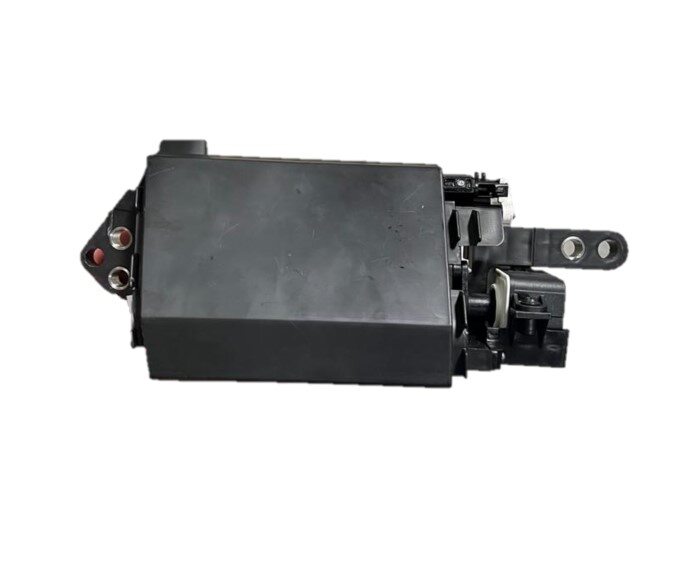

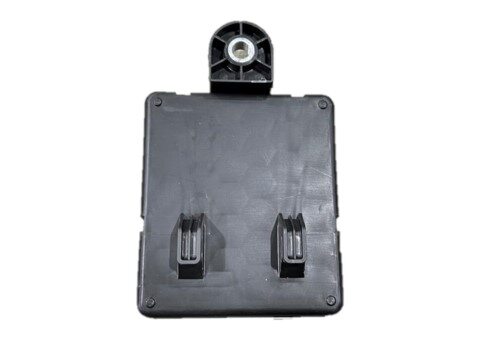

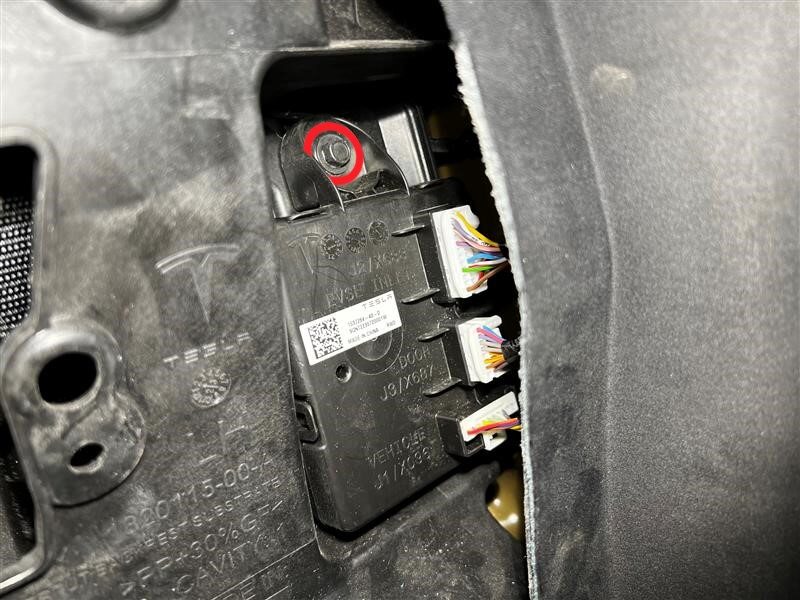

Remove charge port ECU

Note
1x bolts, 8 mm, 5 Nm, 2x tabs

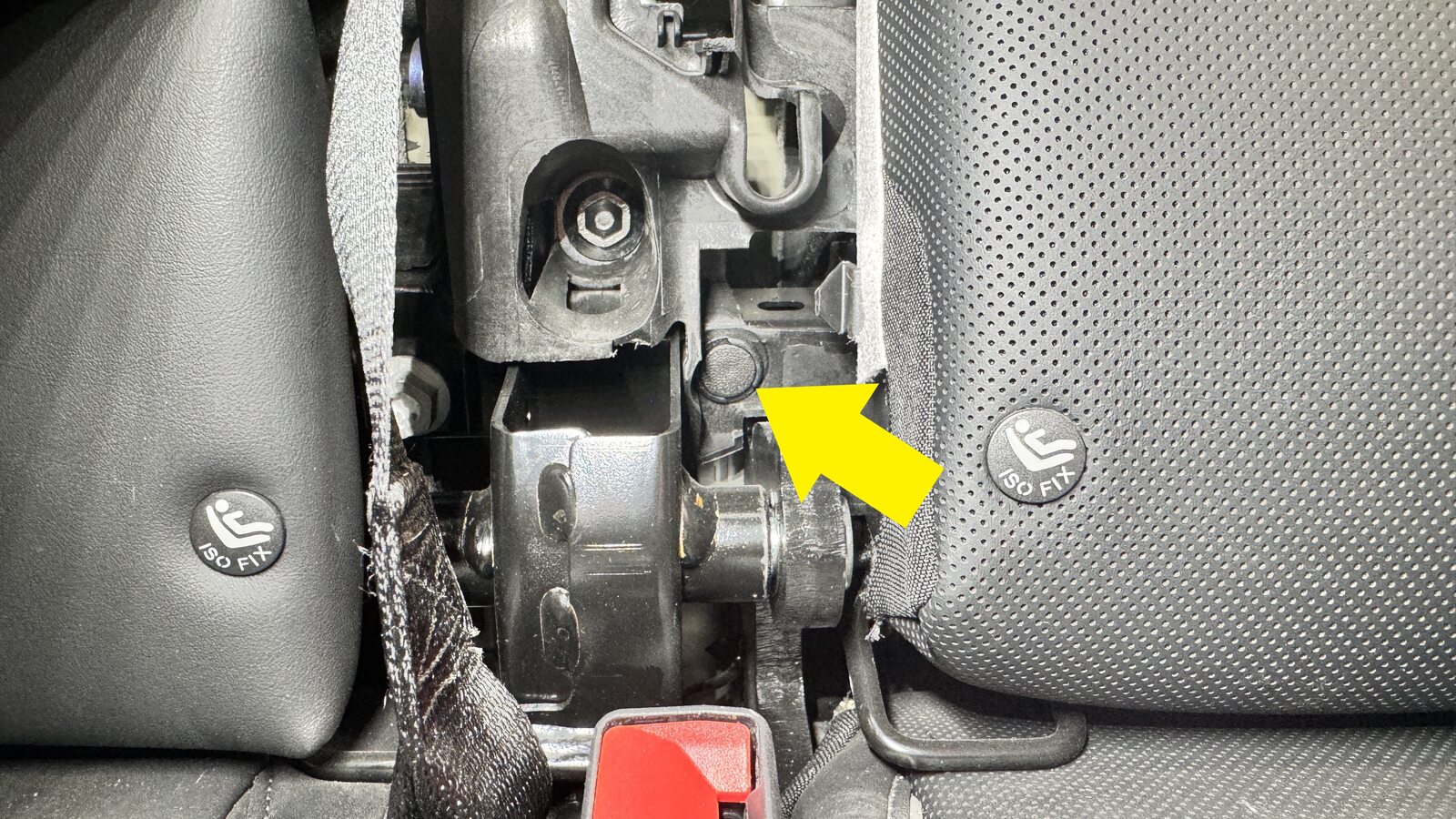

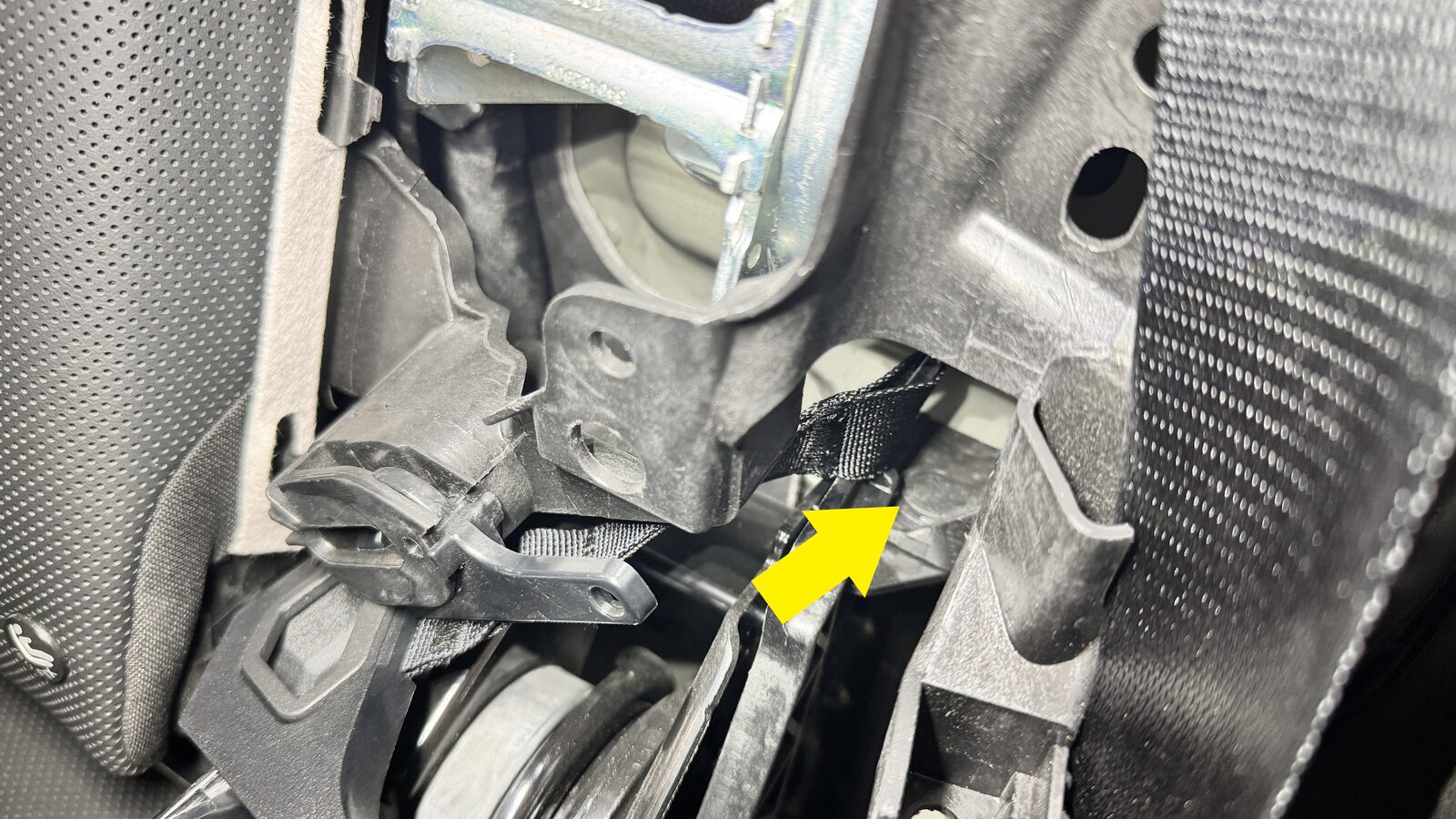

Remove clip securing LH 2nd row seat outboard B cover assembly

Note
1x clip, Position aside for access to clip

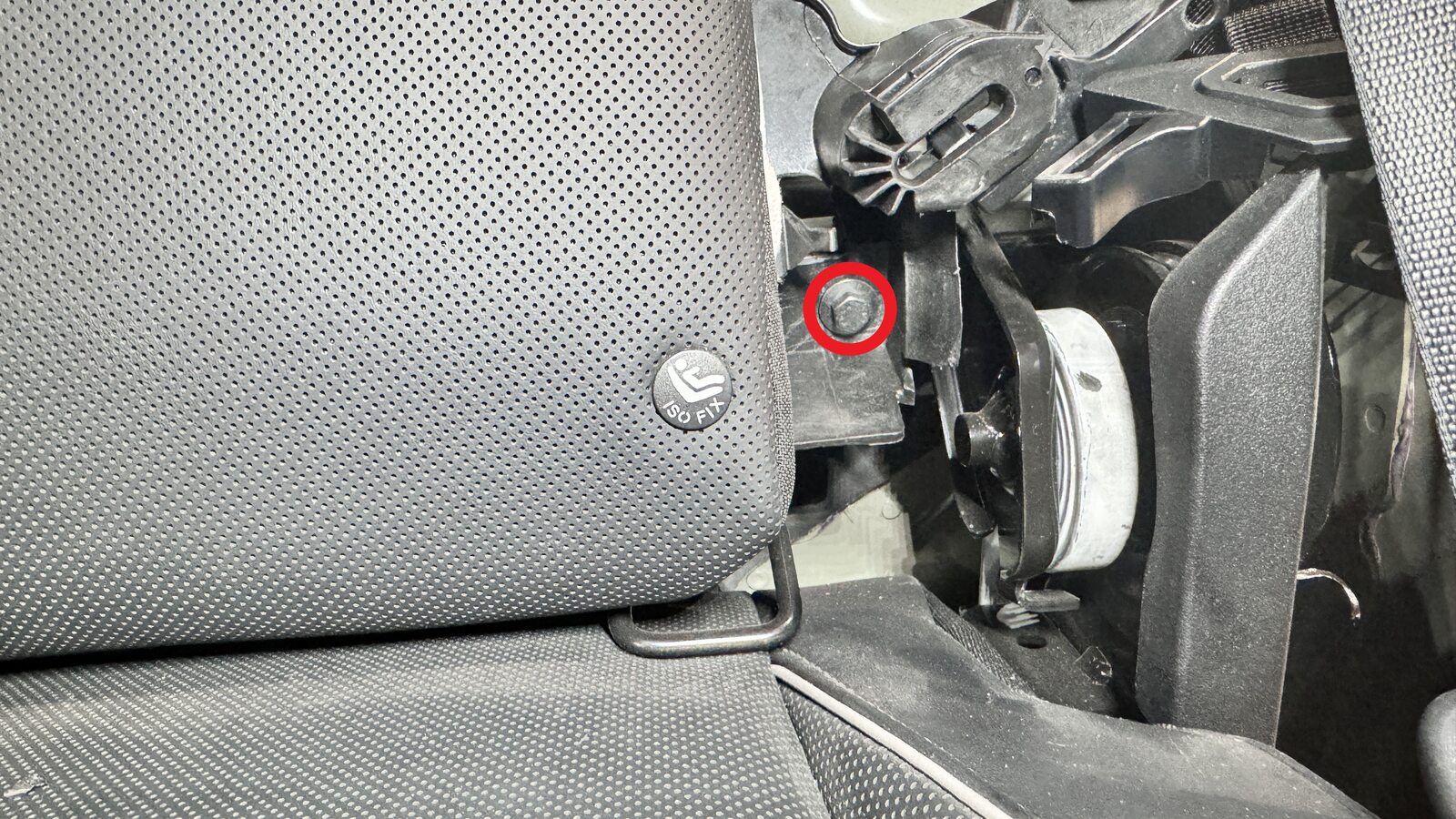

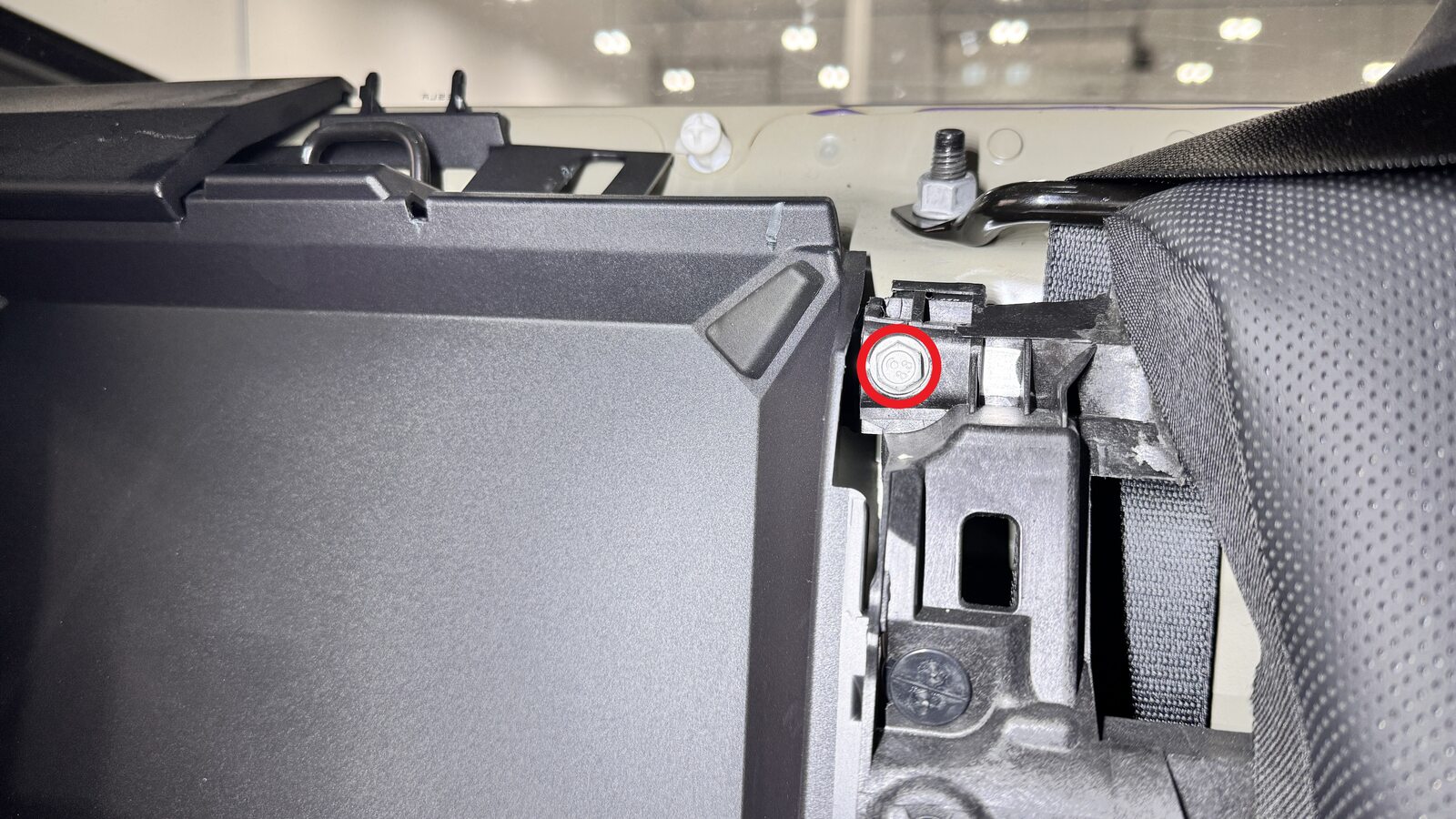

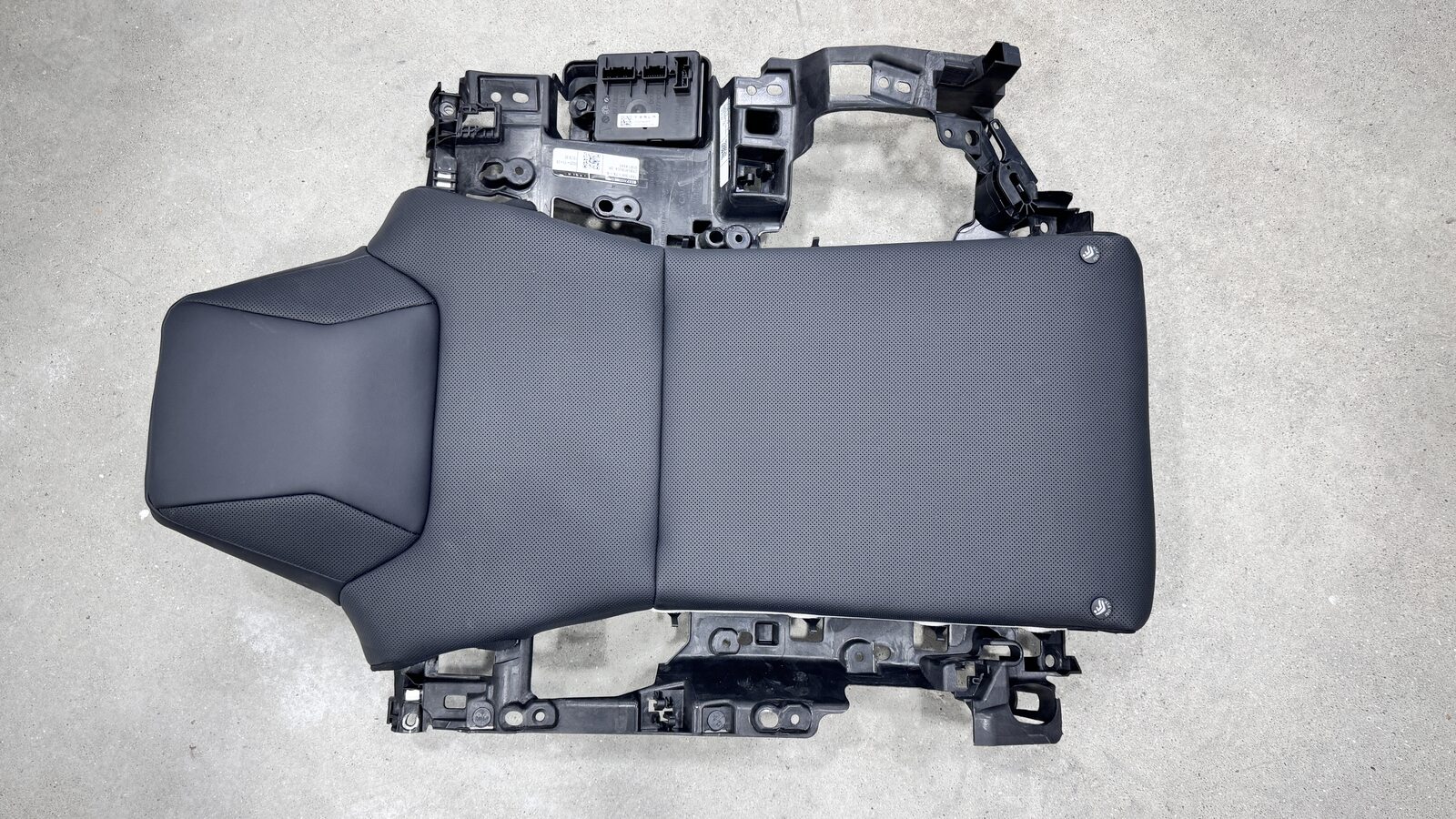

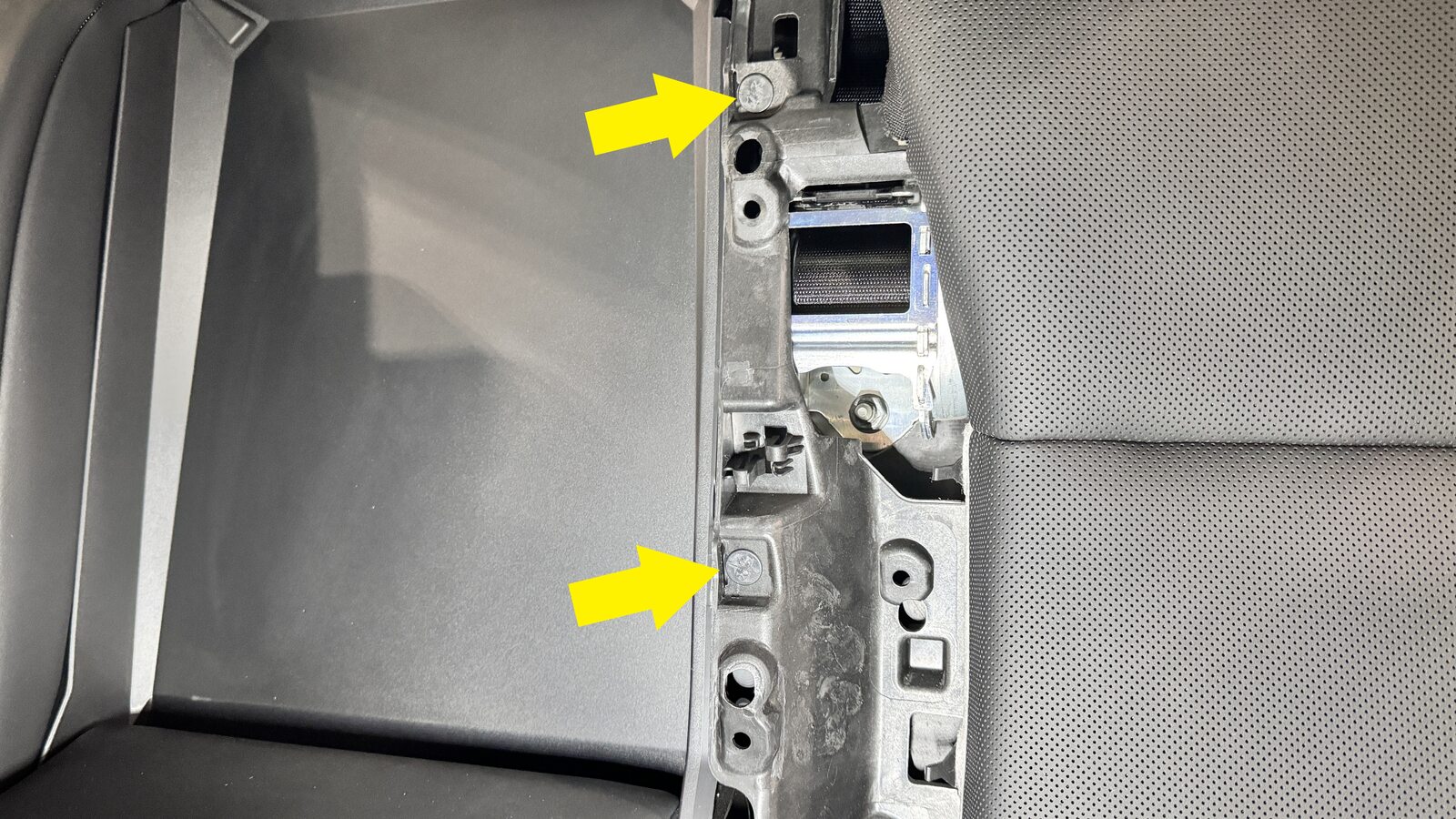

Remove LH 2nd row seat back assembly

Note

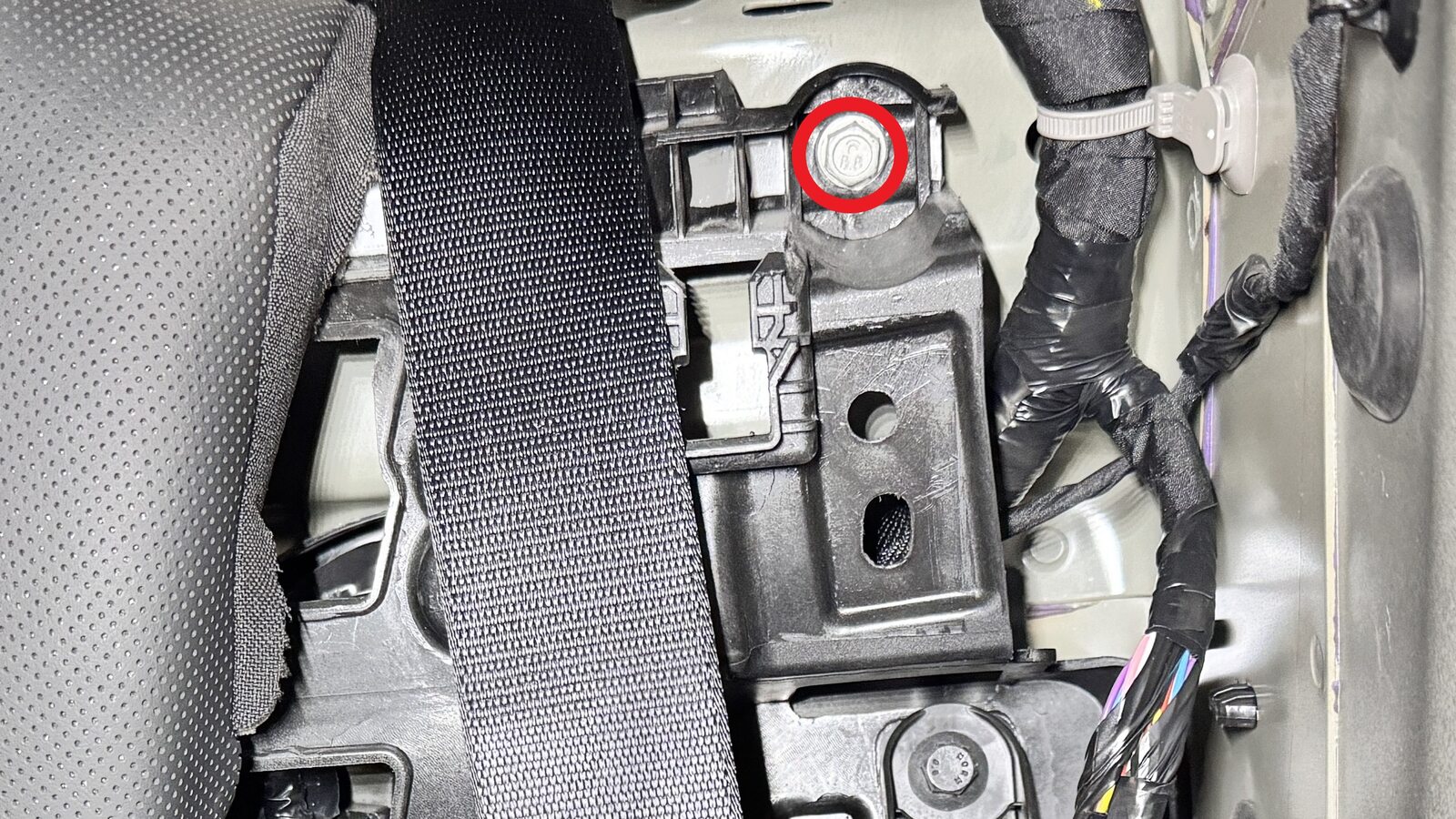

4x clips, 1x connector, 3x bolts, 10mm, 9 Nm, Pull upwards then away from frame then disconnect electrical harness, Release locking tab

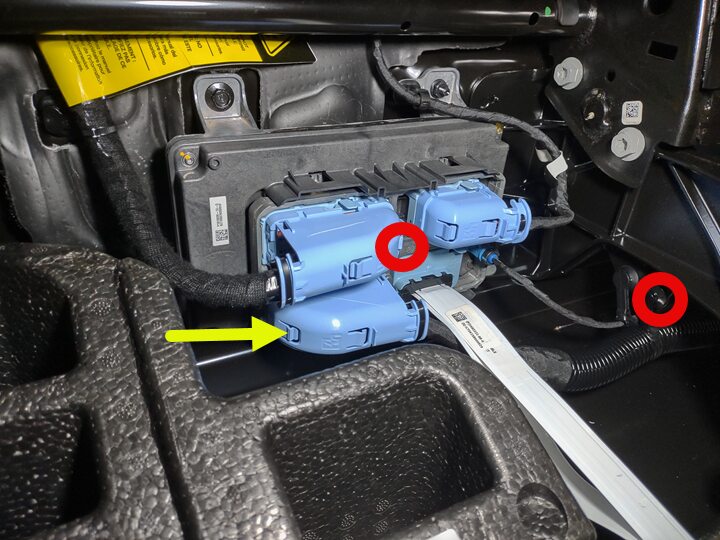

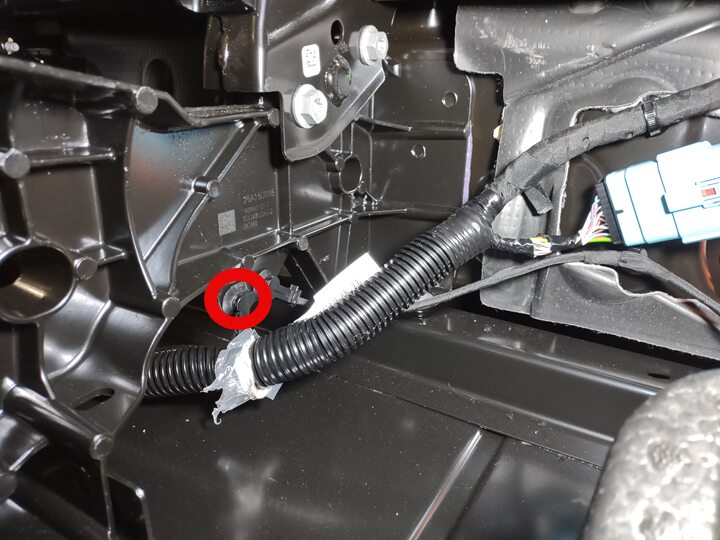

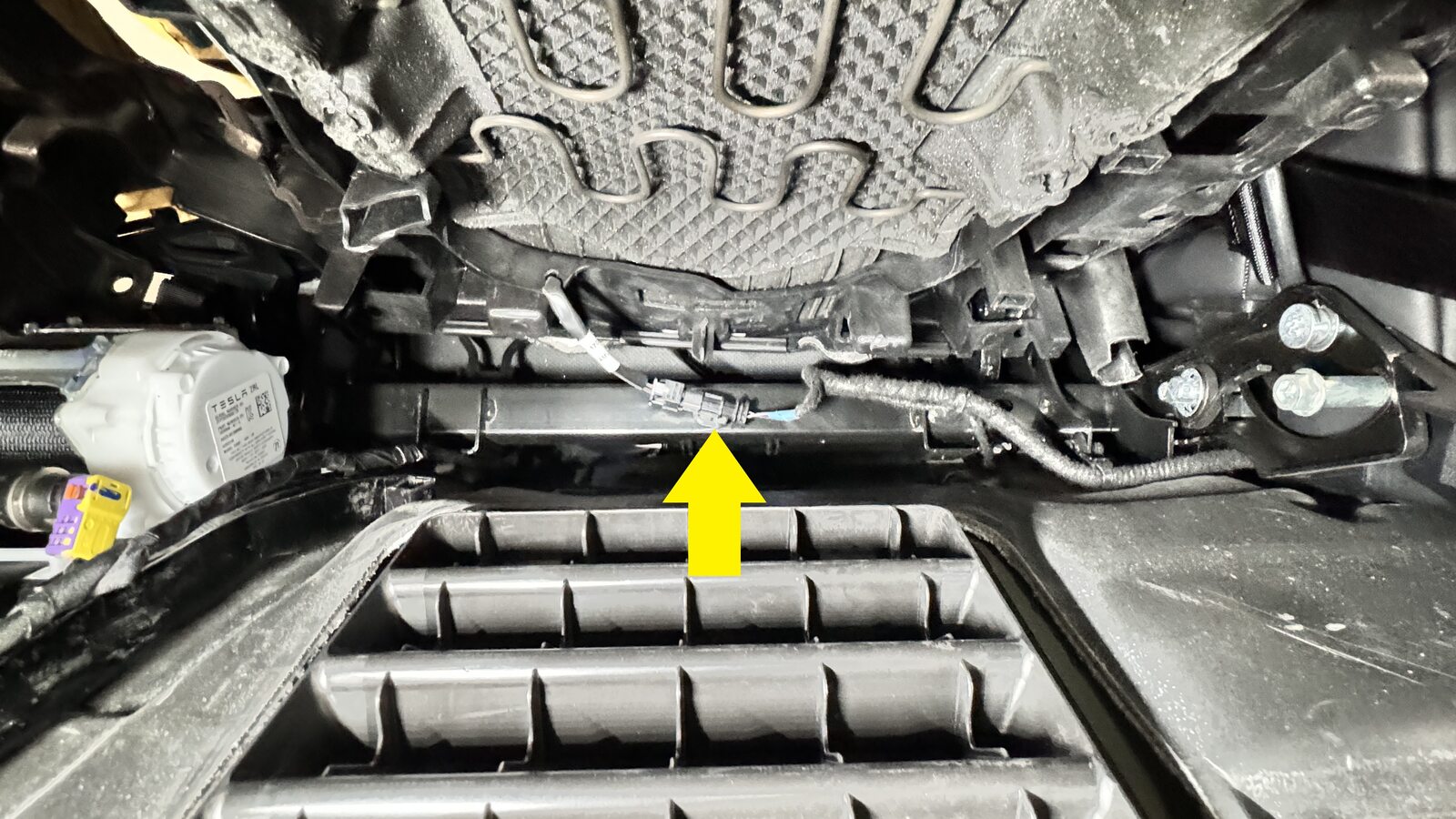

Disconnect LH bed harness at rear MV controller

Note
1x connector, 1x bolt, 8mm, 4 Nm, Do not remove locking cover, Loosen until bolt spins freely, Double check that bolt and locking cover are fully released before attempting to release any MV connectors, Depress tabs to release connectorPlastic Locking Cover Use hand tools on any plastic locking covers, The locking cover may release crooked causing it to get stuck, secure bolt a few turns to loosen the tension then release bolt while assisting plastic locking cover by gently prying on the side that's stuck Metal Locking Cover You can use power tools, Quickly disconnecting locking cover helps connectors remove symmetrically

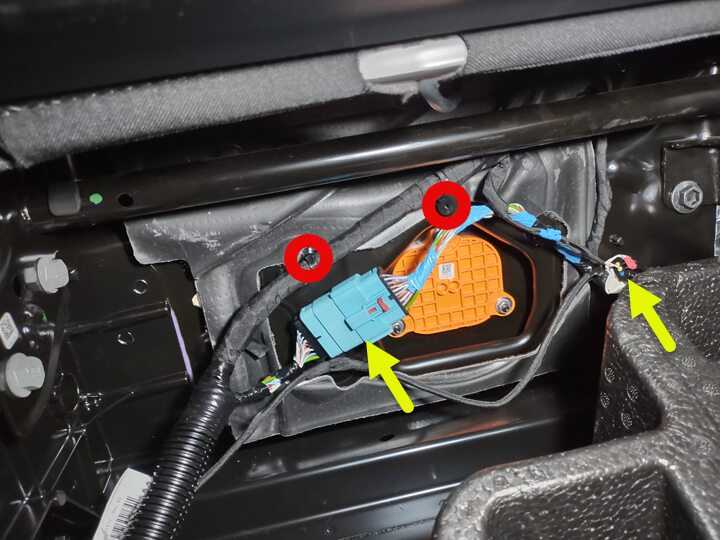

Release lower interior section of LH bed harness

Note
4x connectors, 5x clips, Release locking tabs

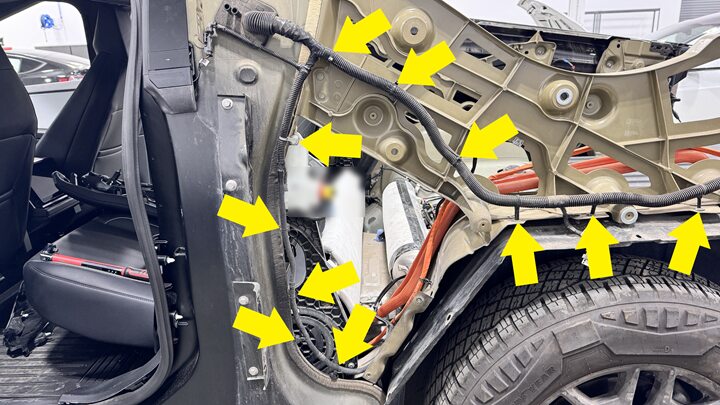

Release upper interior section of LH bed harness

Note
1x connector, 5x clips, 1x grommet, Release six tabs securing grommet from interior then pull harness outwards, Release locking tab
Release forward section of LH bed harness

Note
1x connector, 11x clips, Release locking tabs

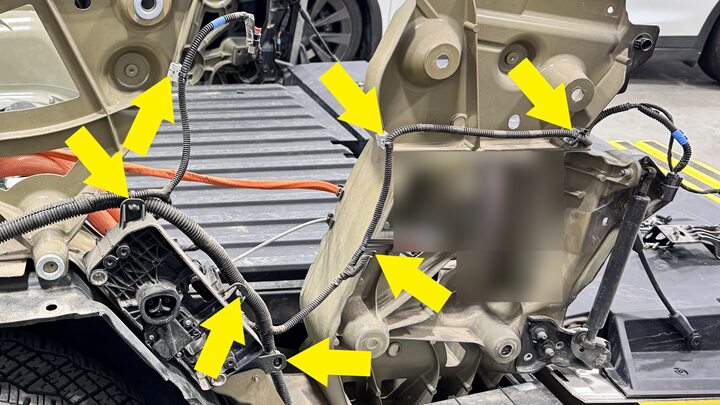

Release rear upper section of LH bed harness

Note
2x connectors, 9x clips, 1x bolt, 10mm, 7 Nm, Release locking tabs
Release rear lower section of LH bed harness

Note
4x connectors, 7x clips, Release locking tabs
Remove LH bed harness
Position LH bed harness
Secure rear lower section of LH bed harness

Note
4x connectors, 7x clips, Engage locking tabs
Secure rear upper section of LH bed harness

Note
2x connectors, 9x clips, 1x bolt, 10mm, 7 Nm, Engage locking tabs
Secure forward section of LH bed harness

Note
1x connector, 13x clips, Engage locking tabs
Secure upper interior section of LH bed harness

Note
1x connector, 5x clips, 1x grommet, Push grommet inwards to secure, Engage locking tab
Secure lower interior section of LH bed harness

Note
4x connectors, 5x clips, Engage locking tabs
Connect LH bed harness at rear MV controller

Note
1x connector, 1x bolt, 8mm, 4 Nm, Ensure connectors are aligned before securing bracket, Secure locking cover bolt by hand initially to prevent thread stripping Plastic Locking Cover Use hand tools on any plastic locking covers, The locking cover may secure crooked causing it to get stuck, release bolt a few turns to loosen the tension then secure bolt while assist plastic locking cover by gently pushing on the side that's stuck, Push connectors too while driving the locking cover bolt to ensure correct seating Metal Locking Cover You can use power tools, Slowly drive locking cover, Ensure locking cover and bolt are seated fully
Install LH 2nd row seat back assembly

Note
4x clips, 1x connector, 3x bolts, 10mm, 9 Nm, Connect electrical harness before fully seating assembly, Engage locking tab
Install clip securing LH 2nd row seat outboard B cover assembly

Note
1x clip, Ensure strap is not twisted

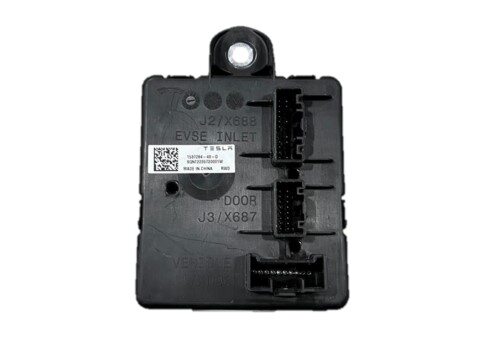

Install charge port ECU

Note
1x bolt, 8 mm, 5 Nm, 2x tabs, Align charge port ecu into cavity for installation
Secure all connections to charge port ecu connectors

Note
3x connectors
Install LH C-pillar upper panel

Note
5x clips, 3x tabs
Install LH lower C-pillar tr

Note
3x clips, 7x tabs, 4x datums
Install 2nd row seatback LH inboard bolster

Note
4x clips, 2x datums
Install 2nd row seatback LH outboard bolster

Note
2x tabs, 1x datum, 3x clips, Position LH outboard bolster into place, Ensure all clips and tabs are fully engaged, Replace any missing or damaged clips, Secure LH 2nd row shoulder cover, Perform push-pull-push test
Install LH 2nd row shoulder cover

Note
7x clips, 1x datum
Install LH cantrail panel

Note
5x clips, 1x connector, 3x bolts, T30, 6 Nm, Secure tethers then secure clips
Install rear header trim

Note
12x clips, 3x datums, Replace any missing or damaged clips
Install LH coat hook bolt

Note
1x bolt, T20, 2.5 Nm
Secure LH coat hook bolt cover

Note
2x tabs
Close LH coat hook

Note
Press to secure
Install LH upper A-pillar panel

Note
8x clips, 1x tether clip, 1x edge clip, 1x connector, 1x bolt, 10mm, 6 Nm, Ensure tethers are correctly oriented, Replace any missing or damaged clips
Install LH mid A-pillar trim

Note
1x clip, 3x tabs, Replace any missing or damaged clips
Install front header trim

Note
19x clips, 1x magnet, 1x connector, 1x harness clip
Install rear fascia onto vehicle

Note
16x tabs, Recommend assistance, Sides will need to be spread apart to clear bumper structure
Install bolts securing rear center fascia onto body

Note
2x bolts, 10mm, 6 Nm
Install bolts securing rear diffuser onto body

Note
9x bolts, 10mm, 6 Nm
Install rear fascia connector

Note
1x connector, Secure locking tab
Install clips securing LH rear wheel liner onto rear fascia and diffuser

Note
5x clips
Install clips securing RH rear wheel liner onto rear fascia and diffuser

Note
5x clips
Install RH rear aft fender flare carrier

Note
2x bolts, 10mm, 7 Nm
Install clips securing RH rear wheel liner to aft fender flare carrier

Note
2x clips
Install RH rear fender flare

Note
18x clips, Replace any missing or damaged clips
Install LH outer bed side

Note
13x bolts, 13mm, 28 Nm, 1x screw, T25, 8 Nm, Assistance required, Have assistant hold panel against body then install bolts hand tight, Adjust gap and flush as required then torque bolts
Install LH lower bed side wall

Note
2x bolt, 15mm, 25 Nm, 4x bolts, 10mm, 11 Nm, 4x nuts, 10mm, 10 Nm, 1x connector, 4x L track fastener covers
Install LH bed closeout panel

Note
6x clips, 1x tab, Secure LH tailgate cable once closeout installed
Install LH upper bed side wall assembly

Note
13x clips, Replace any missing or damaged clips, Lift tonneau seal as required
Install LH sail applique

Note
15x clips, 1x connector, 1x harness clip, Replace any broken clips
Install bed floor assembly

Note
10x short bolts, 15mm, 56 Nm, 2x long bolts, 15mm, 46Nm, Recommend assistance
Install fastener covers onto bed floor assembly

Note
14x covers
Install bolts securing chargeport assembly onto body

Note
2x bolts, 10mm, 6 Nm, Use only hand tools, Risk of galling if power tools are used on stainless fasteners
Install chargeport door

Note
1x bolts, 10mm, 6 Nm, 1x connector, 1x datum
Install LH rear fore fender flare carrier

Note
6x bolts, 10mm, 7 Nm, 1x connector, Connect BLE then install carrier, Engage locking tab
Install clips securing LH rear wheel liner to fore fender flare carrier

Note
5x clips
Install clips securing LH rear wheel liner to aft fender flare carrier

Note
2x clips
Install both LH rear fore and aft fender flares

Note
12 clips, 9x tabs
Instal LH sail baffle closeout

Note
6x clips, Replace any missing or damaged clips
Install LH sail baffle applique

Note
3x clips, Replace any missing or damaged clips
Install LH cantrail assembly

Note

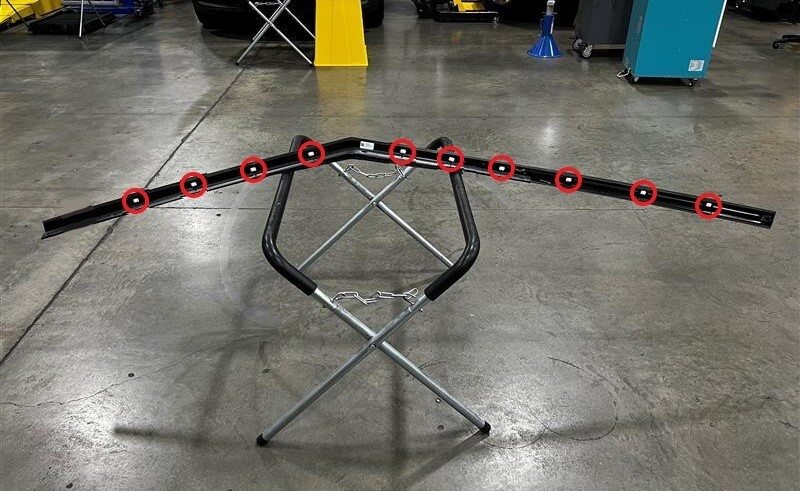

7x clips, Recommend assistance, Vehicles may be equipped with 10 or 11 clips in production range
Install screws securing LH cantrail

Note
8x screws, T20, 2.5 Nm, Pull C-pillar applique down as required for access
Install LH header seal

Note
Start from front quarter glass, Push upwards into seal carrier grooves
Install nut securing LH front outer cantrail

Note
1x nut, 8mm, 4 Nm, Install new nut
Install LH underhood apron

Note
3x clips, Replace any missing or damaged clips
Connect FRL connector then connect MV battery connector

Note
2x connectors, Connect FRL connector then secure locking tab, Position lever to secure MV battery connector then slide eCPA to right, Early production trucks may have black FRL connector, If power cycling vehicle then ensure at least 60 seconds has passed since powering down
Install frunk assembly

Note
6x bolts, 10mm, 12 Nm, 2x bolt caps, 2x bumpstops, 1x connector, Install bolt covers to frunk floor, Install washer fluid cap, Install bumpstops by aligning tabs then turning clockwise, Ensure emergency frunk release functions
Install rear underhood apron

Note
9x clips, Adjust windshield seal as required
Close powered front trunk

Note
Via exterior switch or UI
Run ODIN routine PROC_ICE_X_EXIT-SERVICE-MODEvia Toolbox: (link)
Raise all 4 windows
Close all 4 doors
Close tailgate

Cybertruck Service Manual

Harness - LH - Truck Bed (Long Range) (Remove and Install)

Figure 1

Figure 2

Figure 3
