HV Battery (AWD) (Remove and Install)

Correction code 16010201 FRT 6.55 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-10-15: Updated entire procedure to latest time study.
  • 2026-04-28: Rearranged battery alignment rod installation/removal steps to reflect latest validation.
  • 2026-01-14: Added guidance on disarming and transferring the RCM to the hew HV battery (only if the battery is being replaced).
  • 2025-12-30: Removed step to remove HV gloves. HV gloves should always be worn when touching HV busbars and fittings, even after disablement.
  • 2025-08-11: Updated entire procedure to latest validation.
  • 2024-11-22: Added warning to NOT skip steps to remove the tonneau slats.
  • 2024-09-18: Updated to latest time study.
  • 2024-08-20: Added steps to install backbone harness guide if the guide is not present.
  • 2024-08-09: Added PN of anti-abrasion tape.
  • 2024-07-15: Updated rear interior HV battery bolt steps: in addition to the 13 mm bolts, some vehicles might also have 15 mm bolts.
  • 2024-06-10: Updated entire procedure according to latest time study.
Warning
DO NOT SKIP the steps to remove the tonneau slats. Work on or around the ancillary bay REQUIRES the removal of the tonneau slats. Failure to remove the tonneau slats while working on or around the ancillary bay will result in conditions that may cause personal injury.
Warning
Only technicians who have been trained in High Voltage Awareness and have completed all required certification courses (if applicable) are permitted to perform this procedure. Proper personal protective equipment (PPE) and insulating HV gloves with a minimum rating of class 0 (1000V) must be worn at all times a high voltage cable, busbar, or fitting is handled. Refer to Tech Note TN-15-92-003, High Voltage Awareness Care Points for additional glove and safety information.
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.
Special tools required for this procedure:
Equipment:
  • 1134523-00-B - Battery Alignment Rods
  • 1065131-00-A - Battery Coolant Drain Kit
  • 1135762-00-A - Coolant Hose Plug Kit
  • 1080568-00-A - Fluid Catcher
  • 1076927-00-A - Hioki tester
  • 1020566-00-F - HV Battery Table
  • 1076928-00-A - Test Probes - Hioki 9461
  • 1936724-00-A - Universal Lift Pad adapters
  • 1050448-00-B - Vacuum Refill Tool
  • 1479505-00-A - Vacuum Fill Adapter -
  • 1879451-99-A - LV ABRASION STICKER,XM,HVB,CTSB

Remove

  1. Stage vehicle behind lift
    Note
    Position vehicle behind lift ensuring all four doors have enough clearance to open fully
  2. Open all the doors and lower all the windows.
  3. Manually latch all doors to prevent lockout
    Note
    Engage latch with screwdriver
  4. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Install).
  5. Place the vehicle into Service Mode. See Service Mode.
  6. Unlock the vehicle Gateway. See Gateway (Unlock).
  7. Run ODIN routine PROC_RCM_DISARMvia Service Mode Plus:
    • Safety & Restraints ➜ Airbags ➜ Disarm RCM
    • Safety & Restraints ➜ Seats ➜ Disarm RCM
    via Toolbox:(link)
  8. Remove the tonneau slats. See Slat System - Tonneau (Remove and Install).
  9. Remove the LH rocker panel assembly. See Rocker Panel Assembly - LH (Remove and Install).
  10. Remove the LH front rocker step reinforcement. See Rocker Step Reinforcement - Front - LH (Remove and Install).
  11. Remove the LH rear rocker step reinforcement. See Rocker Step Reinforcement - Rear - LH (Remove and Install).
  12. Remove the RH rocker panel assembly. See Rocker Panel Assembly - LH (Remove and Install).
  13. Remove the RH front rocker step reinforcement. See Rocker Step Reinforcement - Front - LH (Remove and Install).
  14. Remove the RH rear rocker step reinforcement. See Rocker Step Reinforcement - Rear - LH (Remove and Install).
  15. Move LH front seat backward
  16. Remove bolts securing front of LH front seat tracks to risers
    Note
    2x patch bolts, T45P, 34 Nm, Discard after removal
  17. Raise and move LH front seat forward
  18. Remove bolts securing rear of LH front seat tracks to floor
    Note
    2x patch bolts, T45P, 34 Nm, Discard after removal
  19. Adjust position of LH front seat for easy removal
    Note
    Move seat to middle of track at most upright position with seat fully up off floor
  20. Move RH front seat backward
  21. Remove bolts securing front of RH front seat tracks to risers
    Note
    2x patch bolts, T45P, 34 Nm, Discard after removal
  22. Move RH front seat forward
  23. Remove bolts securing rear of RH front seat tracks to floor panel
    Note
    2x patch bolts, T45P, 34 Nm, Discard after removal
  24. Adjust position of RH front seat for easy removal
    Note
    Move seat to middle of track at most upright position with seat fully up off floor
  25. Select "Coolant Fill/Drain" through Service UI
    Note
    Select 'Coolant System' to enter coolant circuit screen, Select 'Coolant Fill/Drain' and 'PROC_VCFRONT_X_START-THERMAL-FILL-DRAIN-COOLANT' window will appear, Select 'Run', Verify indicator displays green for Coolant readiness, Thermal Fill Drain routine has a 5 hour time limit
  26. Position wheel chocks fore and aft of RH rear wheel
  27. Run ODIN routine PROC_EPB_X_SERVICE-MODE-STARTvia Toolbox:(link)
  28. Disconnect MV power. See Mid-Voltage Power (Disconnect and Connect) (Modify).
  29. Fold up 2nd row 60 seat
    Note
    Pull tether to release then lift up until locked in place
  30. Fold up 2nd row 40 seat
    Note
    Pull tether to release then lift up until locked in place
  31. Release LH front seat belt from pretensioner
    Note
    Unlock linkage by rotating lock screw counterclockwise, audible click when horizontal, do not rotate clockwise to avoid damage
  32. Disconnect LH front seat harness
    Note
    1x connector, 2 stage locking tab, Release yellow locking tab, then release black lever to disconnect
  33. Remove LH front seat from vehicle
    Note
    Recommend assistance, Use caution to not damage other components, Lift seat off risers, Rotate sideways and remove out back door opening
  34. Release RH front seat belt from pretensioner
    Note
    Unlock the linkage by rotating the lock screw counterclockwise A light audible click will be heard, and the screw should remain horizontal Do not rotate clockwise to avoid damage to the mechanism
  35. Disconnect RH seat
    Note
    1x connector, 2 stage locking tab, Release yellow locking tab, then release black lever to disconnect
  36. Remove RH front seat from vehicle
    Note
    Recommend assistance, Use caution to not damage other components, Lift seat off risers, Rotate sideways and remove out back door opening
  37. Remove center console front panel
    Note
    10x clips
  38. Release HV outlet from front console panel
    Note
    2x screws, T20, 1 Nm, 1x clip
  39. Remove front bolts securing center console to riser
    Note
    4x bolts, 10mm, 5 Nm
  40. Disconnect center console harness connectors
    Note
    2x connectors
  41. Remove center console back panel
    Note
    10x clips, 3x connectors, 3x harness clips
  42. Release HV outlet from rear console panel
    Note
    2x screws, T20, 1 Nm, 2x clips
  43. Remove rear bolts securing center console to riser
    Note
    2x bolts, 10mm, 5 Nm
  44. Remove center console
    Note
    Lift up to release from riser and remove center console from rear right door opening
  45. Remove RH mid A-pillar trim
    Note
    1x clip, 3x tabs, Release tabs then slightly bend live hinge and release clip
  46. Remove RH lower A-pillar trim
    Note
    7x clips, 3x datums, 2x tabs, Release sill plate, Pull rearward then upward
  47. Remove RH outboard riser bolt cover
    Note
    Lift from outer edge then pull away
  48. Remove RH seat riser assembly from vehicle
    Note
    4x bolts, 13mm, 40 Nm, 3x clips, release cabin MV harness and 1x clip air duct from riser assembly
  49. Remove LH mid A-pillar trim
    Note
    1x clip, 3x tabs, Release tabs then slightly bend live hinge and release clip
  50. Remove LH lower A-pillar trim
    Note
    7x clips, 3x datums, 2x tabs, Release sill plate, Pull rearward then upward
  51. Remove LH outboard riser bolt cover
    Note
    Lift from outer edge then pull away
  52. Remove LH seat riser assembly from vehicle
    Note
    4x bolts, 13mm, 40 Nm, 3x clips, release cabin MV harness,6x clips If vehicle has cabin outlets release cabin HV outlet harness, and 1x clips release air duct from riser assembly
  53. Remove footwell cover
    Note
    3x clips, 3x magnets, 1x bolt, 10mm, 3 Nm, Bolt is captive to tether
  54. Remove LH front floor mat
  55. Remove LH center floor rail
    Note
    4x clips, 3x datums, Pull upwards to release
  56. Remove accelerator pedal side trim
    Note
    3x clips, Lift from forward edge then slide over accelerator pedal
  57. Remove accelerator pedal
    Note
    2x nuts, 13mm, 10 Nm, 1x connector, Release locking tab
  58. Remove LH front cabin carpet
    Note
    Plastic portions at rear of carpet need to clear risers, if needed break EPA at line to allow the corner to pass over the risers
  59. Remove LH carpet support foam
    Note
    Lift up from rear edge
  60. Remove LH front interior HV Battery mounting bolts
    Note
    3x bolts, 24mm, 160 Nm
  61. Remove RH front floor mat
  62. Remove RH center floor rail
    Note
    4x clips, 3x datums, Pull upwards to release
  63. Remove center floor trim
    Note
    17x clips, Release upper section first
  64. Remove RH front cabin carpet
    Note
    Plastic portions at rear of carpet need to clear risers
  65. Remove RH carpet support foam
    Note
    Lift up from bottom edge
  66. Remove RH interior front HV battery mounting bolts
    Note
    3x bolts, 24mm, 160 Nm
  67. Remove 2nd row floor mat
  68. Partially release LH lower C-pillar trim
    Note
    1x clip, 1x datum
  69. Partially release RH lower C-pillar trim
    Note
    1x clip, 1x datum
  70. Remove rear wall lower trim
    Note
    2x push clips, 4x clips, Remove outermost push clips, then pull straight forward to release inner clips
  71. Remove rear carpet LH duct bezel
    Note
    4x clips
  72. Remove rear carpet RH duct bezel
    Note
    4x clips
  73. Remove LH lower B-pillar trim
    Note
    2x push clips, 11x clips, 4x datums, 4x seal retainers, 2x hooks, Release bottom rear section first
  74. Release HV cabin outlets harness from foam
    Note
    Slide outwards out of groove
  75. Remove rear carpet assembly
    Note
    4x clips, 17x stands, 6x datums, Release stands around LH and RH floor ducts then release stands at center console, Fold back carpet and stands from forward edge, Fold rear carpet and foam forwards then pull center of carpet and foam upwards to remove, Remove clips if they remain on pack side
  76. Remove RH subwoofer
    Note
    1x connector, 2x bolts, 13mm, 8 Nm, Slide towards center of vehicle to release outer port from body

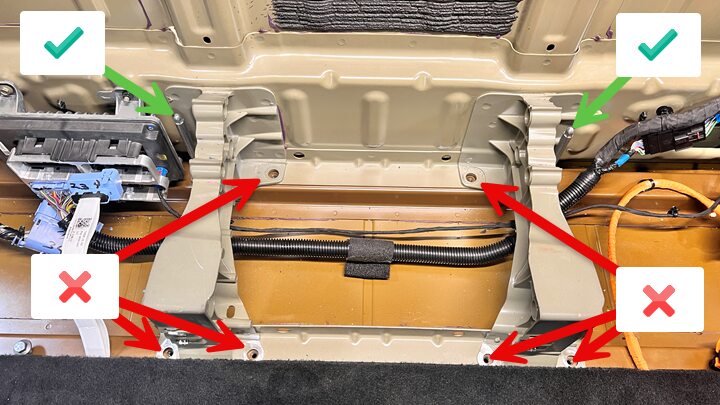

  77. Remove RH rear interior HV battery mounting bolts
    Note
    4x bolts, 13mm, 60 Nm, Bolts on both sides of stanchion, Some vehicles may have a mix of 13mm and 15mm bolts
  78. Remove LH subwoofer
    Note
    1x connector, 2x bolts, 13mm, 8 Nm, Slide towards RH of vehicle to release outer port from body, Release locking tab
  79. Remove LH rear interior HV battery mounting bolts
    Note
    4x bolts, 13mm, 60 Nm, Bolts on both sides of stanchion, Some vehicles may have a mix of 13mm and 15mm bolts
  80. Remove interior HV harness bulkhead cover
    Note
    3x nuts, 10mm, 9 NmHV harness bulkhead cover located underneath LH rear bench seat
  81. Remove center floor upper bracket
    Note
    2x push clips, 2x edge clips, 2x retaining clips, Depress either side of retaining clip then push inward to release upper bracket from duct
  82. Remove center floor lower support bracket
    Note
    4x clips
  83. Remove center console riser duct
    Note
    2x clips, Maneuver forward to clear riser assembly
  84. Remove floor jumper duct
    Note
    Push forward then lift and slide out
  85. Remove 2nd row duct on rails
    Note
    Pull from the bottom to release
  86. Release connectors from RCM
    Note
    2x connectors, Release red locking tabs first then depress connecter and slide forward
  87. Remove RCM fasteners
    Note
    3x nuts, 10mm, 10 Nm, Discard fasteners after removal
  88. Remove RCM from vehicle
  89. Release LH MV controller dry side locking cover
    Note
    1x bolt, 8mm, 6 Nm, Do not remove locking cover, Loosen until bolt spins freely, Double check that bolt and locking cover are fully released before attempting to release any MV connectors, Plastic Locking CoverUse hand tools on any plastic locking covers, The locking cover may release crooked causing it to get stuck, secure bolt a few turns to loosen the tension then release bolt while assisting plastic locking cover by gently prying on the side that's stuck, Metal Locking CoverYou can use power tools, Quickly disconnecting locking cover helps connectors remove symmetrically, Video uses rear controller for demonstration purposes only
  90. Release floor harness from LH MV controller
    Note
    1x connector, 1x clip, Depress tabs to release connector housing from locking cover
  91. Release RH MV controller connector lower locking cover
    Note
    1x bolt, 8mm, 6 Nm, Do not remove locking covers, Loosen until bolts spins freely, Double check that bolts and locking covers are fully released before attempting to release any MV connectorsPlastic Locking Cover Use hand tools on any plastic locking covers, The locking covers may release crooked causing them to get stuck, secure bolts a few turns to loosen the tension then release bolts while assisting plastic locking covers by gently prying on the stuck sidesMetal Locking Cover You can use power tools, Quickly disconnecting locking covers helps connectors remove symmetrically
  92. Release cabin floor and backbone harnesses from RH MV controller
    Note
    1x connector, 1x backbone cable, 2x edge clipsPull from edges of connector housing, Do not pull backbone cable, Avoid bending cable at a tight radiusDo not remove locking cover, Loosen until bolt spins freely, Double check that bolt and locking cover has fully released before attempting to release any MV connectors, Depress tabs on connector housing to releasePlastic Locking CoverUse hand tools on any plastic locking covers, The locking covers may release crooked causing them to get stuck, Thread bolt a few turns to avoid damage then gently pry stuck edges of locking coverMetal Locking CoverYou can use power tools, Quickly disconnecting locking covers helps connectors release evenly
  93. Disconnect rear display connector from car computer
    Note
    1x connector
  94. Remove cabin floor harness
    Note
    4x clips, 2x bolts, 10mm, 10 Nm
  95. Remove RH 2nd row floor duct
    Note
    1x clip, Lift up then pull away to release duct from Y duct
  96. Remove 2nd row floor Y-Duct
    Note
    1x clip, Release from passenger side duct then maneuver out of position
  97. Release front section of backbone
    Note
    3x harness clips, Pass connector under cabin floor harness
  98. Disconnect backbone harness from rear MV controller
    Note
    1x connector, 1x bolts, 8mm, 6 Nm, Do not remove locking cover, Loosen until bolt spins freely, Double check that bolt and locking cover has fully released before attempting to release any MV connectors, Depress tabs on connector housing to releasePlastic Locking CoverUse hand tools on any plastic locking covers, The locking covers may release crooked causing them to get stuck, Thread bolt a few turns to avoid damage then gently pry stuck edges of locking coverMetal Locking CoverYou can use power tools, Quickly disconnecting locking covers helps connectors release evenly
  99. Remove backbone harness
    Note
    6x harness clips, Pull harness through to 2nd row then remove
  100. Roll vehicle forward
    Note
    Remove fore wheel chock, Move vehicle to position necessary to place onto lift
  101. Install Universal Lift Pad adapters
    Note
    4x Adapters, Remove original lift pads from lift arms then install respective adapter, Remove plugs from BIW holes, Align pins with lift point holes on body
  102. Raise and support the vehicle. See Raise Vehicle - 2 Post Lift.
  103. Remove the RH front and rear wheel assemblies. See Wheel Assembly (Remove and Install).
  104. Verify operation of multimeter
    Note
    Set multimeter to DC voltage, Confirm multimeter is properly measuring voltage by testing MV battery, Touch lightly and do not damage terminals
  105. Raise vehicle fully, lower lift onto locks
    Note
    Set vehicle to comfortable working height, Ensure an audible click of locks on both sides is heard before lowering, Vehicle may tilt to side if both locks are not engaged
  106. Partially remove aft section of RH front wheel liner and secure
    Note
    2x 10mm bolt, 1x push clip Remove fasteners and clips then secure bottom aft portion of the wheel liner aside with bungee cord
  107. Partially remove fore section of RH rear wheel liner and secure
    Note
    1x push clip 1x push nutRemove push clip and push nut and secure lower fore section wheel liner using bungee cord
  108. Remove front aero shield stamping assembly and front fascia plastic skid plate fasteners
    Note
    17x bolts, 10mm, 6 Nm, Open bolt lids
  109. Remove the front skid plate
    Note
    8x nuts, 15mm, 50 Nm, 2x bolts, 11mm, 50 Nm
  110. Remove the rear skid plate. See Skid Plate - Rear (Remove and Install).
  111. Position coolant drain container underneath RH rear of HV battery
  112. Disconnect RDU return hose from PT return hose
    Note
    1x spring clip, 1x clamp clip, Move wheel liner aside as needed, Plug coolant connections as needed, Hose connection near RH rear of HV battery
  113. Disconnect coolant hoses from PCS coolant inlet and outlet couplers
    Note
    1x spring clip, Plug hoses and let coolant fully drain from PCS HV battery outlets before moving drain container, Hose connections located at RH rear of HV battery
  114. Move coolant drain container to front right of HV battery
  115. Disconnect PT supply and return hoses
    Note
    2x spring clips, Plug hoses, Hose connections located at RH front side of the vehicle
  116. Disconnect battery coolant supply and return hoses
    Note
    2x spring clips, Hose connections located in the Front Center of the HV Battery, Use caution with pick near HV harness, Plug Hoses, Position coolant drain as needed
  117. Remove coolant drain container from underneath vehicle
  118. Release clips securing LH pressurized pack line
    Note
    3x clips
  119. Disconnect pressurized pack lines at pyro cover
    Note
    2x VOSS fittings, 12mm, 8Nm
  120. Remove all items from pockets and ensure not wearing metal items
    Note
    This includes: rings, watches, bracelets, necklaces, earrings, piercings, phones, badges, metal belt buckles, airpods and headphones
  121. Inspect HV insulating gloves
    Note
    Check gloves for damage prior to use, Refer to service document TN-15-92-003, For information on inspecting HV gloves
  122. Put on HV insulating gloves and leather over gloves
    Note
    Use HV cut resistant insulated gloves or HV insulating gloves and leather over gloves, Perform a visual inspection of HV insulating gloves for any damage before putting on, Retest for leaks immediately following any incidents that can reasonably be suspected as causing damage to the HV insulating gloves, HV Insulating gloves must be worn any time a Hioki Tester or Hi-Pot Tester is used, Refer to service document TN-15-92-003 for PPE requirements depending on vehicle configuration
  123. Verify no High Voltage on DC Link bus
    Note
    Verify with measurements performed at RDU HV harness connections to HV batteryMake sure to wear PPE (HV gloves, safety glasses) when working on high voltage componentVerify amp clamp meter is zeroed out before performing measurement, Measure single cable at rear drive unit HV harness, For Dual motor there is only one rear harness to measure, For AWD measure the RH rear harness, Verify ammeter is installed in correct direction. If current > 0.5A do not proceed with disconnecting HV connector. In this case, start HV disablement procedure again to make sure vehicle was properly shut down. Escalate for assistance as requiredIf current < 0.5A, Ok to disconnect and check voltage at HV plug on the battery side. For AWD disconnect LH rear drive unit harness for measurements, For Dual motor remove HV dummy plug for measurementsRelease locking tab and rotate the release lever up to disengage the connector, Release harness clip, Do not force the release lever up, Ensure the alignment tabs on the RDU header are not damagedMeasure B+ to Ground, B- to Ground, B+ to B-, If voltage is greater than 10V, Pack contactors are not open or welded, Stop work and reach out to Service Engineering
  124. Release A/C compressor HV harness from HV battery
    Note
    1x locking connector, 4x clips, Pull down red locking tab and disengage the release lever, Do not force the release lever up, Number of connections may vary by vehicle configuration
  125. Release RDU HV harness from HV battery
    Note
    1x connector, Release locking tab and rotate release lever up, Do not force release lever up, Ensure alignment tabs on header are not damaged, NOTE: During HV battery assembly replacement transfer HV battery dummy plugs to new HV battery pack assembly as needed
  126. Release FDU HV harness from FDU
    Note
    1x connector, 1x bolt, 10mm, 10 Nm, Move harness clear of subframe
  127. Remove leather over gloves and HV insulating gloves
    Note
    HV gloves should always be stored in the original packaging and inside a storage box or bag to prevent damage, Make sure that gloves are lying flat not bent or folded
  128. Lower vehicle until tires are touching ground
    Note
    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
  129. Remove the bed floor assembly. See Bed Floor Assembly (Remove and Install).
  130. Install ancillary access bench onto bed floor opening
    Note
    1x bench, Position above rear casting ensuring no air lines or harnesses are being pinched
  131. Disconnect harness pigtail from scuba valve and air reservoir
    Note
    1x connector, 1x clip, release red locking clip on connector to disconnect from valve, Release harness clip from air reservoir
  132. Disconnect ANC air line from scuba valve block
    Note
    1x VOSS fitting, 12mm, 3.5 Nm, 1x cable tie, Disconnect lower airline and fitting with brown color tape indicator and "ANC" label, Do not release air line to reservoir, Rapid loss of pressure will result if wrong air line is released, Cut cable tie to release airline from bundle
  133. Release air suspension valve block
    Note
    3x rubber grommets, Rotate clockwise until top 2 rubber feet have released from bracket, Pull upwards at 45 degree angle to release bottom rubber foot from bracket, Leave all air lines and connections secured and set assembly aside
  134. Remove air suspension reservoir fasteners
    Note
    2x nuts, 13mm, 33 Nm, 2x fir tree clips, Wrench needed on right side nut due to low clearance to bed trim, Disconnect harness fir clips from each end of reservoir assembly
  135. Place air suspension reservoir in service position
    Note
    Raise and swing air suspension reservoir to the side of the bed, Ancillary access bench may need to be temporarily removed to position air reservoir, Place Ancillary Access Bench back into bed ensuring no air lines or harnesses are being pinched
  136. Remove the tonneau NVH barrier. See Tonneau NVH Barrier Assembly (Remove and Install).
  137. Remove two rear tonneau square profile support braces
    Note
    8x screws, T30, 5 Nm, 2x support braces, Remove two square support braces that are closest to rear of vehicle, Remove bolts at each end of support braces, Slide braces off of mounting points on flat cassette assemblies, Braces slide off in same direction of fasteners, maneuver each brace out of bed opening (*Note: No part number provided for the screws, they come with the square profile brace)

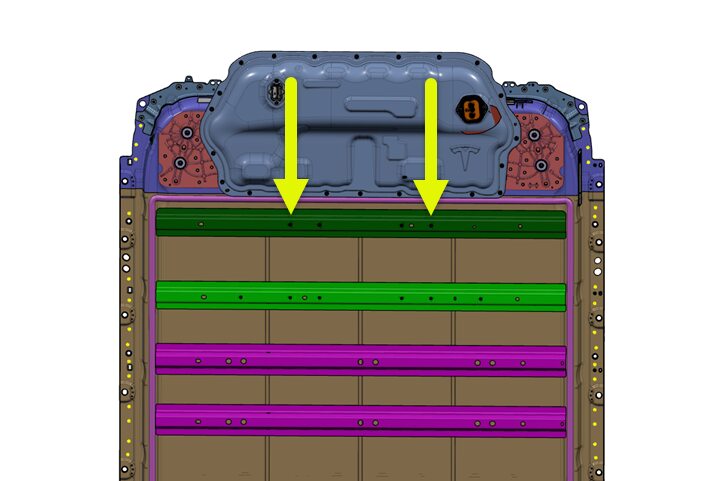

  138. Remove bolts securing HV battery to RUB
    Note
    4x bolts, 21mm, 115 Nm, Break free before using power tools, Tonneau slats must be closed or removed to access forward bolts, Shown without tonneau for clarity
  139. Disconnect ancillary bay MV connector
    Note
    1x connector, Double locking, Release tab then pivot lever, Release second tab to disengage connector, Wait 1 second between locking tab release to discharge and prevent arcing
  140. Remove all items from pockets and ensure not wearing metal items
    Note
    This includes: rings, watches, bracelets, necklaces, earrings, piercings, phones, badges, metal belt buckles, airpods and headphones
  141. Put on HV insulating gloves and leather over gloves
    Note
    Use HV cut resistant insulated gloves or HV insulating gloves and leather over gloves, Perform a visual inspection of HV insulating gloves for any damage before putting on, Retest for leaks immediately following any incidents that can reasonably be suspected as causing damage to the HV insulating gloves, HV Insulating gloves must be worn any time a Hioki Tester or Hi-Pot Tester is used, Refer to service document TN-15-92-003 for PPE requirements depending on vehicle configuration
  142. Remove bolt securing busbar HV connector lid
    Note
    1x bolt, EP10, 9 Nm
  143. Remove bolts securing HV connector to DC FC header
    Note
    2x bolts, 10mm, 9 Nm
  144. Release HV connector from DC FC header
    Note
    1x connector, Use inflatable airbag if needed to suspend busbar assembly above ancillary assembly
  145. Support HV Busbar assembly
    Note
    1X Bungee, Suspend assembly to maintain clearance, wrap bungee around busbar assembly to achieve required cord length, Connect bungee to tie down hook on bed side
  146. Disconnect Bed outlet and Cabin outlet HV Harness
    Note
    2x connectors, Release red locking tab then slide open black lever to remove, Push cabin harness into interior
  147. Remove leather over gloves and HV insulating gloves
    Note
    HV gloves should always be stored in the original packaging and inside a storage box or bag to prevent damage, Make sure that gloves are lying flat not bent or folded
  148. Release interior HV harness from HV battery and remove from vehicle
    Note
    1x bolt, 10mm, 10 Nm, 8x clips, Remove from slot in EPP, Lift rear carpet and EPP as required for access
  149. Raise vehicle fully
    Note
    Set to a comfortable working height, Lower to locks, Ensure locks engage on both sides to prevent tilting

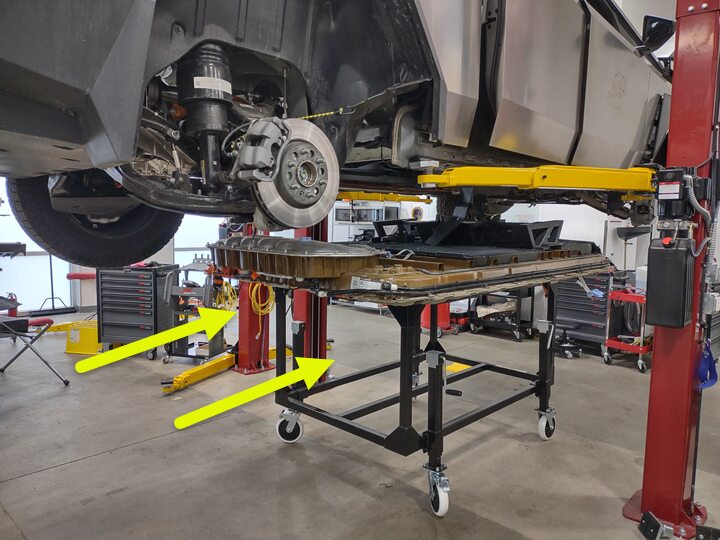

  150. Position battery table under vehicle
    Note
    Ensure table is level, center table to HV battery
  151. Lower vehicle onto battery table
    Note
    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Lower until HV battery surface touches table evenly, *Do not lower full weight of vehicle onto table, Recommend assistance, Align table to vehicle and raise casters to level table if necessary
  152. Remove front exterior HV Battery mounting bolts and ground strap
    Note
    6x bolts, 18mm, 115 Nm, 1x bolt, 10mm, 10 Nm, Ensure ground strap is clear of battery
  153. Remove side exterior HV battery mounting bolts from LH and RH side
    Note
    16x bolts, 15mm, 60 Nm
  154. Raise vehicle away from HV battery
    Note
    Raise vehicle fully off of HV battery and lower lift onto locks, Ensure an audible click of locks on both sides is heard before lowering, Vehicle may tilt to the side if both locks are not engaged, Ensure no coolant hoses harnesses or brake lines are caught while lifting, If lift is shorter then remove rear wheels as needed
  155. Remove HV battery from underneath vehicle
    Note
    Recommend assistance
  156. IF THE HV BATTERY IS TO BE REPLACED: remove the RCM from the old pack. See Restraint Control Module (Remove and Install).

Install

  1. IF THE HV BATTERY IS TO BE REPLACED: install the RCM on the new pack. See Restraint Control Module (Remove and Install).
  2. Position HV battery beneath vehicle
    Note
    Recommend assistance
  3. Install HV battery alignment rods into front casting
    Note
    4x alignment rods, Hand tight, Install 2x larger rods onto front casting, Install 2x smaller rods onto seat stancion mounting holes on pack, New battery packs may not yet have threads in the required holes. Suggest installing bolt to create threads prior to rod installation, It is not recommended to use any holes other than instructed
  4. Lower vehicle onto HV battery
    Note
    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Align the pack to the vehicle using the alignment rods, Ensure no coolant hoses, harnesses, or brake lines are caught while lowering, Recommend assistance to ensure good alignment whilst lowering
  5. Install side exterior HV battery mounting bolts onto LH and RH side
    Note
    16x bolts, 15mm, 60 Nm
  6. Remove HV battery alignment rods from front casting
    Note
    2x alignment rods
  7. Install front exterior HV Battery mounting bolts and ground strap
    Note
    6x bolts, 18mm, 115 Nm, 1x bolt, 10mm, 10 Nm
  8. Raise vehicle away from battery table
    Note
    Set to a comfortable working height, Ensure lift is lowered onto a lock
  9. Remove battery table from under vehicle
  10. Remove all items from pockets and ensure not wearing metal items
    Note
    This includes: rings, watches, bracelets, necklaces, earrings, piercings, phones, badges, metal belt buckles, airpods and headphones
  11. Put on HV insulating gloves and leather over gloves
    Note
    Use HV cut resistant insulated gloves or HV insulating gloves and leather over gloves, Perform a visual inspection of HV insulating gloves for any damage before putting on, Retest for leaks immediately following any incidents that can reasonably be suspected as causing damage to the HV insulating gloves, HV Insulating gloves must be worn any time a Hioki Tester or Hi-Pot Tester is used, Refer to service document TN-15-92-003 for PPE requirements depending on vehicle configuration
  12. Connect FDU HV harness to front Drive Unit
    Note
    1x connector, 1x bolt, 10mm, 10 Nm, Ensure locking tab engages
  13. Secure RDU HV harness to HV battery
    Note
    1x connector, 1x harness clip, Ensure locking tab is engaged, NOTE: During HV battery assembly replacement transfer HV battery dummy plugs to new HV battery pack assembly as needed
  14. Secure A/C compressor HV harness onto battery
    Note
    1x locking connector, 4x clips, Engage locking tab, Do not force lever up, Number of connections may vary by vehicle configuration
  15. Remove leather over gloves and HV insulating gloves
    Note
    HV gloves should always be stored in the original packaging and inside a storage box or bag to prevent damage, Make sure that gloves are lying flat not bent or folded
  16. Install clips securing pressurized pack line
    Note
    3x clips
  17. Install airlines to HV pyro cover
    Note
    2x VOSS fittings, 12mm, 8 Nm, Remove plastic caps from VOSS fittings if installing new pyro cover, Press air lines into fitting until mark aligns with top of fitting, Verify line is properly secured by performing push and pull test
  18. Move coolant drain container to front right of HV battery
  19. Connect battery supply and return coolant hoses
    Note
    2x edge clips, 2x spring clips, Remove plugs, Secure edge clips to casting, Perform a push-pull-push test to ensure hose is engaged, Hose connections located at center of battery front edge, Reposition coolant drain container as needed
  20. Connect PT supply and return hoses
    Note
    2x spring clips, Remove plugs, Perform a push-pull-push test to ensure hose is engaged, Hose connections located at RH front of HV Battery
  21. Position coolant drain container underneath RH rear of HV battery
  22. Connect RDU supply hose to HV Battery
    Note
    1x spring clip, Remove coolant plugs, Perform a push-pull-push test to ensure hose is engaged, Hose connections located at RH rear of HV Battery
  23. Connect RDU return hose to PT return hose
    Note
    1x spring clip, Remove coolant plugs, Pull back wheel liner as required, Perform a push-pull-push test to ensure hose is engaged, Hose connection located at RH rear of HV Battery
  24. Remove coolant drain container from underneath vehicle
  25. Install the rear skid plate. See Skid Plate - Rear (Remove and Install).
  26. Install the skid plate stamping. See Skid Plate Stamping (Remove and Replace).
  27. Install front aero shield stamping assembly and front fascia plastic skid plate fasteners
    Note
    17x bolts, 10mm, 6 Nm, Apply Loctite 222 to aero shield fasteners, Close bolt lids
  28. Install RH rear wheel liner
    Note
    1x push clip 1x push nutRemove bungee cord, install push clip and push nut
  29. Install RH front wheel liner
    Note
    2x 10mm bolt, 1x push clip Remove bungee cord and install fasteners and clips
  30. Install the RH front and rear wheels. See Wheel Assembly (Remove and Install).
  31. Position wheel chocks fore and aft of RH rear wheel
  32. Place Cabin Outlet HV harness inside cabin of vehicle and install bulkhead cover
    Note
    Feed ancillary connector through hole in rear bulkhead, 3x nuts, 10mm, 9 Nm
  33. Secure interior Cabin outlet HV harness to HV battery
    Note
    1x bolt, 10mm, 10 Nm, 8x clips, Remove from slot in EPP, Lift rear carpet and EPP as required for access
  34. Remove all items from pockets and ensure not wearing metal items
    Note
    This includes: rings, watches, bracelets, necklaces, earrings, piercings, phones, badges, metal belt buckles, airpods and headphones
  35. Put on HV insulating gloves and leather over gloves
  36. Connect Bed and Cabin outlet HV ancillary harnesses
    Note
    2x connectors, Slide black lever to engage then push in red locking tab
  37. Clean contact surface of HV DC inlet posts
    Note
    Allow 1 minute dry time after removing Penetrox, New busbar comes with Penetrox applied to HV connector, Clean residual penetrox
  38. Clean busbar HV connector contact surface of residual Penetrox
    Note
    Allow 1 minute dry time after removing Penetrox, It is necessary to clean HV connector during re-use of busbar
  39. Apply Penetrox onto HV DC Inlet posts
    Note
    Apply 2 drops of Penetrox A-13 about 5mm in diameter to either side of the hole on both leads, Spread evenly to verify the contact surface is fully covered
  40. Install busbar onto HV header and install bolts
    Note
    2x bolts, 10mm, 9 Nm
  41. Perform Hioki resistance test at each HV joint from HV busbar lead to bolt head
    Note
    2x HV joints, When using Hioki tester, verify the meter has been properly adjusted and set prior to usageThe acceptable resistance is between 0.005 mΩ (5 μΩ) and 0.195 mΩ (195 μΩ).If resistance is consistently greater than 0.195 mΩ (195 μΩ) remove bolt clean busbar and bolt with ISO alcohol reinstall bolt and remeasure. If resistance still too high stop work and escalate Toolbox session.If resistance is lower than 0.005 mΩ (5 μΩ), reposition the probes and measure again.If resistance is repeatedly between 0.005 mΩ (5 μΩ) and 0.195 mΩ (195 μΩ) Hioki test passed, proceed to next step
  42. Install bolt securing busbar HV connector lid
    Note
    1x bolt, EP10, 9 Nm
  43. Remove leather over gloves and HV insulating gloves
    Note
    HV gloves should always be stored in the original packaging and inside a storage box or bag to prevent damage, Make sure that gloves are lying flat not bent or folded
  44. Connect ancillary bay MV connector
    Note
    1x connector, double locking, Rotate lever into 2nd lock, Perform a pull test to ensure connector engaged correctly
  45. Install bolts securing HV battery to RUB
    Note
    4x bolts, 21mm, 115 Nm, Tonneau must be closed or removed to access forward bolts, Shown without tonneau for clarity
  46. Install two rear tonneau square profile support braces
    Note
    8x screws, T30, 5 Nm, Install two square support braces, The tope and bottom braces that are closest to rear of vehicle, Slide notches at each of support brace to mounting points on flat cassette assemblies, Square supports install in the same direction of the fasteners
  47. Install the tonneau NVH barrier. See Tonneau NVH Barrier Assembly (Remove and Install).
  48. Place air suspension reservoir into position for installation
    Note
    1x air reservoir, Raise and swing air suspension reservoir to the mounting position, Ensure air lines are not twisted, Ensure no harnesses are caught, Ancillary access bench may need to be temporarily removed to position air reservoir, Place Ancillary Access Bench back into bed ensuring no air lines or harnesses are being pinched
  49. Install air suspension reservoir fasteners
    Note
    2x nuts, 13mm, 33 Nm, 2x fir tree clips, Install nuts by hand then torque, Use extension and deep socket for LH nut, Use extension and crow foot socket for RH nut, crow foot socket needs to be oriented 90 degrees to torque wrench handle when tightening nut for proper spec, secure harness clips at each end of reservoir
  50. Secure air suspension valve block
    Note
    3x rubber grommets, Rotate counter-clockwise until top 2 rubber feet are secured onto bracket, Push downwards at 45 degree angle to secure bottom rubber foot into bracket, Position air lines and connections into place for installation
  51. Connect ANC air line to scuba valve block
    Note
    1x VOSS fitting, 12mm, 3.5 Nm, Inspect O-ring on fitting and metal collet on airline for any damage or missing parts, Replace VOSS fitting if damaged or missing parts are identified, install fitting to valve by hand to avoid cross threading then torque to specification, Install cable tie to secure airlines, Cut off extra cable tie length with side cutters
  52. Connect harness pigtail to scuba valve and air reservoir
    Note
    1x connector, 1x clip, Connect harness connector to valve and lock red locking clip, Secure harness mounting clip to air reservoir
  53. Remove ancillary access bench from bed floor opening
    Note
    1x bench
  54. Install the bed floor assembly. See Bed Floor Assembly (Remove and Install).
  55. Remove vehicle from lift
    Note
    Lower rack arms fully and remove them from under vehicle,
  56. Remove Universal Lift Pad adapters
    Note
    4x Adapters, Install original lift pads, Install plugs back into holes in BIW
  57. Roll vehicle rearward
    Note
    Position vehicle so front doors can be fully opened, Chock wheels once vehicle is in desired position
  58. Apply backbone harness abrasion protection
    Note
    6x abrasion tape strips, Apply narrow patch to forwardmost position between should bracket ribs, Refer to image for clarity, Skip step if abrasion protection already present and installed correctly, Wide patch dimensions: 50mm wide, 150mm long, Narrow patch dimensions: 25.4mm wide, 235mm long
  59. Install backbone harness
    Note
    6x harness clips, Push harness through to 1st row
  60. Inspect backbone harness for misalignment near rear ribs
    Note
    Ensure cable is lying flat without twist, Ensure cable is secured correctly to rib, Apply surface protection at seam of rearmost rib under backbone cable if missing
  61. Inspect for presence of backbone harness guide at front casting
    Note
    Ensure backbone harness guide is installed
  62. Secure front section of backbone
    Note
    3x clips, Route connector under cabin floor harness
  63. Connect backbone harness to rear MV controller
    Note
    1x connector, 1x bolt, 8mm, 6 Nm, Push backbone connector housing into plastic locking cover, Ensure connector housing is secured to locking frame with a push-pull-push test, Ensure connectors are aligned before securing bracket, Secure locking cover bolt by hand initially to prevent thread stripping Plastic Locking Cover Use hand tools on any plastic locking covers, The locking cover may secure crooked causing it to get stuck, release bolt a few turns to loosen the tension then secure bolt while assist plastic locking cover by gently pushing on the side that's stuck, Push connectors too while driving the locking cover bolt to ensure correct seating Metal Locking Cover You can use power tools, Slowly drive locking cover, Ensure locking cover and bolt are seated fully
  64. Install 2nd row floor Y-Duct
    Note
    1x clip, Maneuver into position then secure to passenger side duct
  65. Install RH 2nd row floor duct
    Note
    1x clip, Align floor duct with Y duct then push inward to engage
  66. Install cabin floor harness
    Note
    (USE THIS STEP FOR HV BATTERY REPLACEMENT PROCEDURES WHEN RCM AND SEAT RISERS ARE NOT INSTALLED) 4x clips, 2x bolts, 10mm, 10 Nm, Harness clips to HV Battery top surface near area HV battery meets front vehicle body, Bolts secure two harness ground points to top of HV Battery
  67. Connect rear display connector to car computer
    Note
    1x connector
  68. Secure cabin floor and backbone harnesses onto RH MV controller
    Note
    1x connector, 1x backbone cable, 2x edge clips, 3x harness clips, Push from edges of connector housing, Avoid bending ribbon cable at a tight radius
  69. Secure RH MV controller connector locking cover
    Note
    1x bolt, 8mm, 6 Nm, Ensure connector housing is secured to locking frame with a push-pull-push test, Ensure connectors are aligned before securing bracket, Secure locking cover bolt by hand initially to prevent thread stripping Plastic Locking Cover Use hand tools on any plastic locking covers, The locking cover may secure crooked causing it to get stuck, release bolt a few turns to loosen the tension then secure bolt while assist plastic locking cover by gently pushing on the side that's stuck, Push connectors while driving the locking cover bolt to ensure correct seating Metal Locking Cover You can use power tools, Slowly drive locking cover, Ensure locking cover and bolt
  70. Secure floor harness onto LH MV controller
    Note
    1x connector, 1x clip, Secure in locking cover
  71. Secure left MV controller connector locking frame
    Note
    1x bolt, 8mm, 6 Nm, Ensure connectors are aligned before tightening center bolt
  72. Position RCM for installation
  73. Install RCM to HV battery assembly
    Note
    3x nuts, 10mm, 10 Nm, Install new nuts
  74. Connect floor harness connectors to RCM
    Note
    2x connectors, Engage locking tabs
  75. Install 2nd row dual duct on rails
    Note
    Maneuver as needed through foam insert
  76. Install floor jumper duct
    Note
    2x clips
  77. Install center console riser duct
    Note
    2x clips, Install from front of riser assembly, Replace any missing or damaged clips
  78. Install center floor lower support bracket
    Note
    4x clips, Replace any missing or damaged clips
  79. Install center floor upper bracket
    Note
    2x push clips, 4x clips
  80. Remove HV battery alignment rods from stancion mounting holes on pack
    Note
    2x alignment rods
  81. Install LH rear interior HV battery mounting bolts
    Note
    4x bolts, 13mm, 60 Nm, Bolts on both sides of stanchion, Some vehicles may have a mix of 13mm and 15mm bolts
  82. Install LH subwoofer
    Note
    1x connector, 2x bolts, 13mm, 8 Nm, Slide towards LH of vehicle to secure outer port to body, Engage locking tab
  83. Install RH rear interior HV battery mounting bolts
    Note
    4x bolts, 13mm, 60 Nm, Bolts on both sides of stanchion, Some vehicles may have a mix of 13mm and 15mm bolts
  84. Install RH subwoofer
    Note
    1x connector, 2x bolts, 13mm, 8 Nm, Slide towards outside of vehicle to secure port
  85. Install rear carpet assembly
    Note
    4x clips, 6x datums, Secure center foams and datums, Secure stands at center console then secure stands around LH and RH floor ducts, Fully tuck carpet under risers and trim, Replace any missing or damaged clips
  86. Secure HV cabin outlets harness to foam
    Note
    Tuck harness into groove
  87. Install LH lower B-pillar trim
    Note
    2x push clips, 11x clips, 4x datums, 4x seal retainers, 2x hooks, Secure top hooks first
  88. Install rear carpet RH duct bezel
    Note
    4x clips, Replace any missing or damaged clips
  89. Install rear carpet LH duct bezel
    Note
    4x clips, Replace any missing or damaged clips
  90. Install rear wall lower trim
    Note
    2x push clips, 4x clips
  91. Secure RH lower C-pillar trim
    Note
    1x clip, 1x datum
  92. Secure LH lower C-pillar trim
    Note
    1x clip, 1x datum
  93. Install 2nd row floor mat
  94. Install RH interior front HV battery mounting bolts
    Note
    3x bolts, 24mm, 160 Nm
  95. Install RH carpet support foam
    Note
    Seat at rear edge
  96. Install RH front cabin carpet
    Note
    Plastic portions at rear of carpet need to clear risers
  97. Install center floor trim
    Note
    17x clips, Replace any missing or damaged clips, Install lower section first
  98. Install RH center floor rail
    Note
    4x clips, 3x datums
  99. Install RH front floor mat
  100. Install LH front interior HV Battery mounting bolts
    Note
    3x bolts, 24mm, 160 Nm
  101. Install LH carpet support foam
    Note
    Seat at rear edge
  102. Install LH front cabin carpet
    Note
    Plastic portions at rear of carpet need to clear risers
  103. Install accelerator pedal
    Note
    2x nuts, 13mm, 10 Nm, 1x connector, Secure locking tab
  104. Install accelerator pedal side trim
    Note
    3x clips, Replace any missing or damaged clips
  105. Install LH center floor rail
    Note
    4x clips, 3x datums
  106. Install LH front floor mat
  107. Install footwell cover
    Note
    3x clips, 3x magnets, 1x bolt, 10mm, 3 Nm, Bolt is captive to tether, Replace any missing or damaged clips or magnets
  108. Install LH seat riser assembly
    Note
    4x bolts, 13mm, 40 Nm, 8x clips, release cabin MV harness, If vehicle has cabin outlets attach cabin HV outlet harness to seat riser, Attach air duct to seat riser
  109. Install LH outboard riser bolt cover
  110. Install LH Lower A-pillar trim
    Note
    7x clips, 3x datums, 2x tabs, Replace any missing or damaged clips
  111. Install LH mid A-pillar trim
    Note
    1x clip, 3x tabs, Replace any missing or damaged clips
  112. Install RH seat riser assembly
    Note
    4x bolts, 13mm, 40 Nm, 3x clips attach cabin MV harness,6x clips attach cabin HV outlet harness, and attach1x clips release air duct onto riser assembly
  113. Install RH outboard riser bolt cover
  114. Install RH lower A-pillar trim
    Note
    7x clips, 3x datums, 2x tabs
  115. Install RH mid A-pillar trim
    Note
    1x clip, 3x tabs, Replace any missing or damaged clips
  116. Position center console in vehicle
    Note
    Lower onto riser
  117. Install rear bolts securing center console to riser
    Note
    2x bolts, 10mm, 5 Nm
  118. Secure HV outlet onto rear console panel
    Note
    3x screws, T20, 1 Nm, 2x clips
  119. Install center console rear panel
    Note
    10x clips, 3x connectors, 3x harness clips, Replace any missing or damaged clips
  120. Connect center console harness connectors
    Note
    2x connectorsConnectors located toward the bottom on the front of the center console
  121. Install front bolts securing center console to riser
    Note
    4x bolts, 10mm, 5 Nm
  122. Secure HV outlet onto front console panel
    Note
    2x screws, T20, 1 Nm, 1x clip
  123. Install center console front panel
    Note
    10x clips, Replace any missing or damage clips
  124. Position RH front seat into vehicle
    Note
    Recommend Assistance and position seat through rear door, Be cautious not to damage surrounding components while lifting the seat into the vehicle, Seat bolts will be installed on a later step
  125. Connect RH front seat harness
    Note
    1x connector, 2 stage locking tabs, Make connection and engage black lever, then engage yellow locking tab
  126. Secure RH front seat belt to pretensioner
    Note
    Ensure the lock screw is in the horizonal position. If it is not, unlock it by following the linkage removal instructions.Slide the linkage onto the pretensioner cable, an audible click will be heard, and the screw should rotate to the locked position. Verify there are no twists in the webbing from the upper trim to the pretensioner. Perform a firm pull test with at least 15 pounds of force.
  127. Position LH front seat into vehicle
    Note
    Recommend assistance and position seat through rear seat, Be cautious not to damage surrounding components while lifting the seat into the vehicle, Seat bolts will be installed on a later step
  128. Connect LH front seat harness
    Note
    1x connector, 2 stage locking tabs, Make connection and engage black lever, then engage yellow locking tab
  129. Secure LH front seat belt to pretensioner
    Note
    Ensure lock screw is in horizontal position, slide linkage onto pretensioner cable, audible click when screw rotates to locked position, verify no twists in webbing, perform firm pull test with 15 pounds of force
  130. Fold down 2nd row 40 seat
    Note
    Pull tether to release then pivot down until locked in place
  131. Fold down 2nd row 60 seat
    Note
    Pull tether to release then pivot down until locked in place
  132. Perform cooling system vacuum refill. See Cooling System (Vacuum Refill).
  133. Reconnect MV power. See Mid-Voltage Power (Disconnect and Connect) (Modify).
  134. Move RH front seat backward
  135. Install bolts securing RH front seat front tracks to vehicle
    Note
    2x patch bolts, T45P, 34 Nm, Install new bolts
  136. Move RH front seat forward
  137. Install bolts securing RH front seat rear tracks to vehicle
    Note
    2x patch bolts, T45P, 34 Nm, Install new bolts
  138. Move LH front seat backward
  139. Install bolts securing both LH front seat front tracks to vehicle
    Note
    2x patch bolts, T45P, 34 Nm, Install new bolts
  140. Move LH front seat forward
  141. Install bolts securing LH front seat rear tracks to vehicle
    Note
    2x patch bolts, T45P, 34 Nm, Install new bolts
  142. Hold brake pedal and select park on UI to disable EPB service mode
  143. Remove wheel chocks from RH rear wheel
    Note
    Confirm the truck is in Park and does not roll, then remove the fore and aft chocks from the RH rear wheel.
  144. Run ODIN routine PROC_EGGRIGHT3_X_THERMAL-FILL-DRAIN-STOPvia Service Mode:
    • Thermal ➜ Actions ➜ Stop Thermal Fill/Drain
    • Thermal ➜ Coolant System ➜ Stop Coolant Fill/Drain
    • Thermal ➜ Refrigerant System ➜ Stop Refrigerant Fill/Drain
    via Service Mode Plus:
    • Drive Inverter ➜ Front Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
    • Drive Inverter ➜ Rear Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
    • Drive Inverter ➜ Rear Left Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
    • Drive Inverter ➜ Rear Right Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
    • Drive Unit ➜ Front Drive Unit Replacement ➜ Stop Coolant Fill/Drain
    • Drive Unit ➜ Rear Drive Unit Replacement ➜ Stop Coolant Fill/Drain
    via Toolbox:(link)
  145. Select "Start Coolant Air Purge" using the UI
    Note
    Touch time only, wait until coolant pumps stop running (audible noise), Routine Passed will appear, but pumps will run for 10 minutes, If you start next another routine during this time it will fail, Make sure vehicle is not in "Drive", Routine is still running despite the completed message, Speeds can be monitored in garage under PT Thermal tab, Idle speed = ~1500 RPM, Test will vary speeds from 3500-6500 RPM and actuate valves between SERIES and PARALLEL, Putting vehicle into "Drive" will stop this routine, If speeds hover at 7000 RPM, this indicates the pumps are air locked, perform a vacuum fill, Continue to add coolant and purge until the coolant level reaches between the NOM and MAX Lines on the bottle
  146. Inspect coolant level and top off as necessary
    Note
    Ensure the fluid level is at the Max line, Top off fluid as required
  147. Install coolant bottle cap
  148. Install the RH rear rocker step reinforcement. See Rocker Step Reinforcement - Rear - LH (Remove and Install).
  149. Install the RH front rocker step reinforcement. See Rocker Step Reinforcement - Front - LH (Remove and Install).
  150. Install the RH rocker panel assembly. See Rocker Panel Assembly - LH (Remove and Install).
  151. Install the LH rear rocker step reinforcement. See Rocker Step Reinforcement - Rear - LH (Remove and Install).
  152. Install the RH front rocker step reinforcement. See Rocker Step Reinforcement - Front - LH (Remove and Install).
  153. Install the RH rocker panel assembly. See Rocker Panel Assembly - LH (Remove and Install).
  154. Perform Thermal Performance Test through the UI
    Note
    Select Thermal > Actions > Test Thermal Performance, click Run, close once routine is completed
  155. Install the tonneau slats. See Slat System - Tonneau (Remove and Install)
  156. Run ODIN routine PROC_EGGREAR1_TONNEAU-CALIBRATEvia Service Mode:Closures ➜ Tonneau ➜ Calibrate Tonneauvia Toolbox:(link)
  157. Run ODIN routine PROC_RCM_X_SERVICE-TASKSvia Service Mode Plus:Safety & Restraints ➜ Safety Testing ➜ RCM Service Tasksvia Toolbox:(link)
  158. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Install).
  159. IF THE HV BATTERY WAS REPLACED: Arm the RCM. Run the following routine: PROC_RCM_ARMvia Service Mode Plus:
    • Safety & Restraints ➜ Airbags ➜ Re-Arm RCM
    • Safety & Restraints ➜ Seats ➜ Re-Arm RCM
    via Toolbox:(link)
    .
  160. Run PROC_ICE_X_EXIT-SERVICE-MODEvia Toolbox:(link)
  161. Raise all the windows and close all the doors.
