Panel - Door Trim - Rear - LH (Remove and Install)

Correction code 1513091031 1513091032 1513091061 1513091062 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

  • 2025-08-28: Added door panel and assembly inspection and rework steps.
Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.

Remove

  1. Open the LH rear door and lower the LH rear window.
  2. Remove the LH rear beltline assembly. See Beltline Assembly - Door Panel - Rear - LH (Remove and Install).
  3. Remove the bolts (x3) that attach the LH rear door trim to the door assembly.
    4 Nm (2.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 8 mm socket
  4. Release the clips (x15) that attach the LH rear door trim to the door assembly, and then remove the door trim from the assembly.

Install

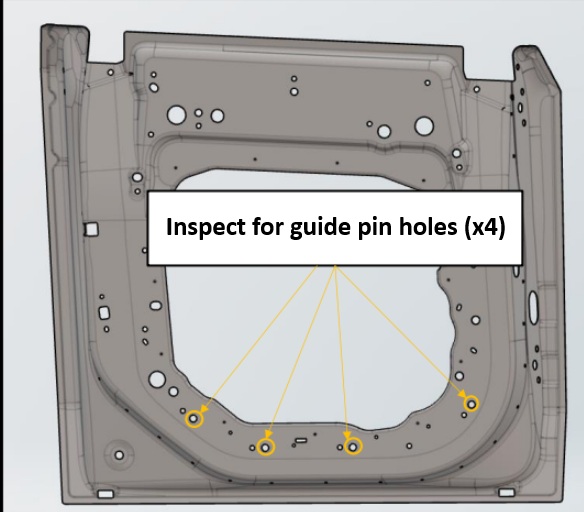

  1. If replacing the LH rear door panel or LH rear door assembly, inspect the new door panel and new door assembly for alignment pins (door panel) and alignment pin holes (door assembly).
    • If the door panel has guide pins and the door assembly does not have guide pin holes, continue to the next step to rework the door panel. Add Correction Code 1513091037 (or 1513091067 for the RH door rework).
    • If the door panel does not have guide pins and the door assembly has guide pin holes, continue to the next step to rework the door assembly. Add Correction Code 1513091037 (or 1513091067 for the RH door rework).
    • If the door panel has guide pins and the door assembly has guide pin holes, or if the door panel does not have guide pins and the door assembly does not have guide pin holes, skip to step 5.

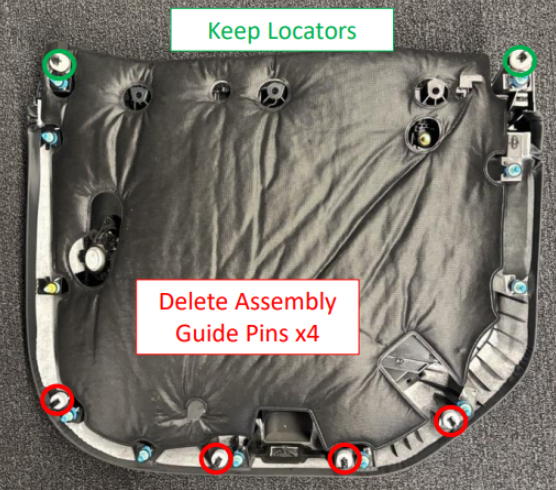

  2. Use diagonal cutters to remove the guide pins (x5) highlighted in the image below. Skip to the next step if door panel rework is not required.

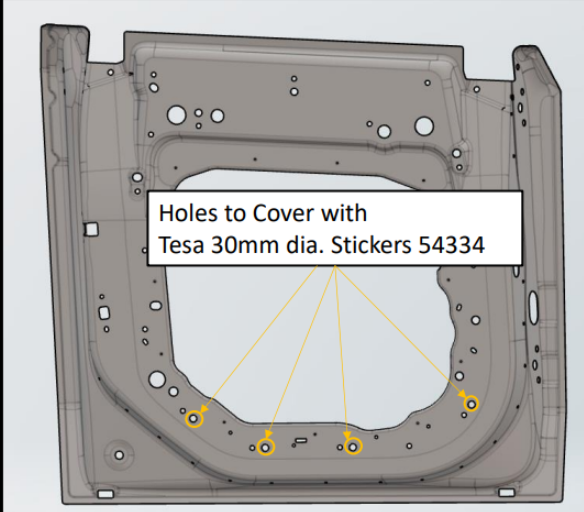

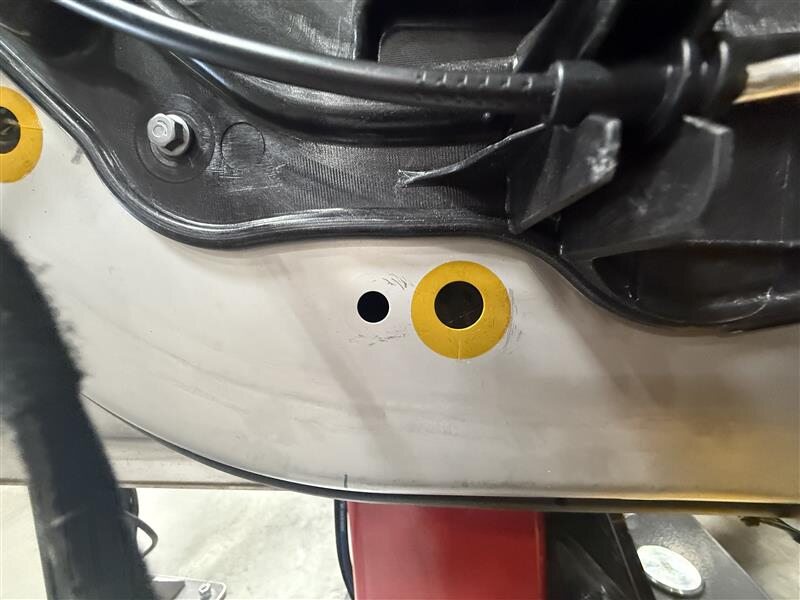

  3. Use IPA wipes to clean the surface area on the LH door assembly around the alignment pin holes (x5), and then install an NVH pad on each hole (x5). Skip to the next step if door assembly rework is not required.
    Informational PurposesAn informational icon, calling your attention
    Note
    Allow 1 min for the IPA to dry.
  4. Position the LH rear door trim to the door assembly, and then secure the clips (x15).
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure the beltline harness branch is routed properly.
  5. Install the bolts (x3) that attach the LH rear door trim to the door assembly.
    4 Nm (2.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 8 mm socket
  6. Install the LH rear beltline assembly. See Beltline Assembly - Door Panel - Rear - LH (Remove and Install).
  7. Raise the LH rear window and close the LH rear door.
