Tonneau Applique (Remove and Install)

Correction code 1120122111 FRT 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2025-11-19: Added steps for adjustment.
Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.

Remove

  1. Open the tailgate.
  2. Open the tonneau cover.
  3. Remove the bolts (x2) that attach the tonneau applique to the body, and then firmly pull upward from the rear edge of applique to release the rear of applique. Press the locking tab on the forward mounting points to release the roof applique.
    9 Nm (6.6 lbs-ft)
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Be extremely careful not to strip the bolts during removal/install.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T30 socket

Install

  1. Position the tonneau applique over the mounting points, apply downward pressure to engage the front and rear attachment points, and then install the bolts (x2) that attach the tonneau applique to the body.
    9 Nm (6.6 lbs-ft)
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Make sure the seal is not caught outboard of the applique. Use a trim tool to adjust the seal position, as needed.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Be extremely careful not to strip the bolts during removal/install.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T30 socket
    Informational PurposesAn informational icon, calling your attention
    Note
  2. Measure the gap between tonneau slats to tonneau applique.
    Informational PurposesAn informational icon, calling your attention
    Note

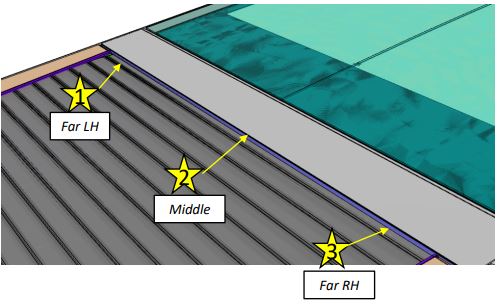

    Measure at three points across tonneau applique.
    Informational PurposesAn informational icon, calling your attention
    Note

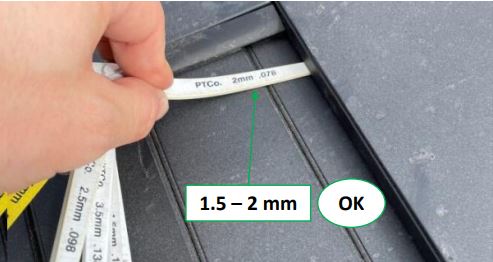

    Make sure the gap is 1.5mm to 2.0mm.
  3. If gap measurements are out of specificition, remove the tonneau applique and adjust the snap clips (x2), as necessary.
    Informational PurposesAn informational icon, calling your attention
    Note

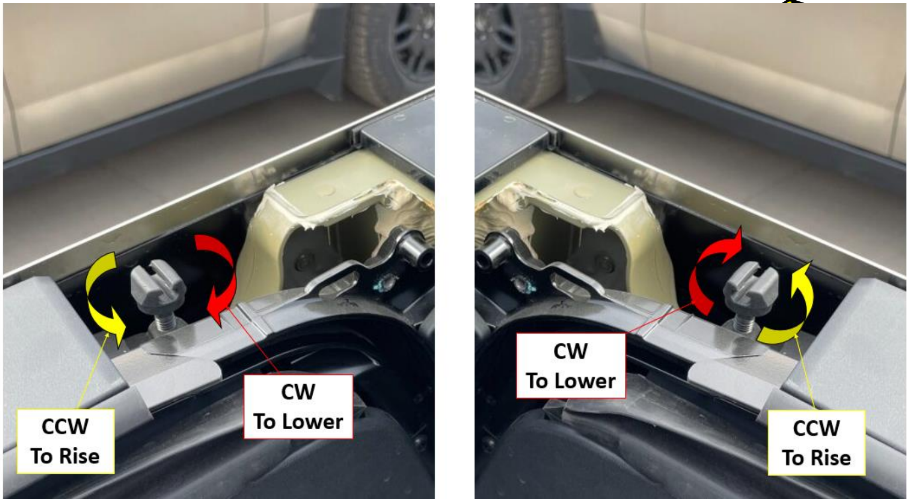

    If gap is over 2.0mm, rotate the bolts clockwise to close the gap. If the gap is under 1.5mm, rotate the bolts counter-clockwise to open the gap.
  4. Close the tonneau cover.
  5. Close the tailgate.
