Off Road Lightbar (Remove and Replace)

Correction code 61010002 1.20 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

1145158-00-A - Ballast Bag, 25 lb.
1706381-00-A - Cordless Heat Gun
1060908-00-A - Cordless, Self-Igniting Soldering Iron And Heat Tool Kit
Diagonal Cutters
Flashlight LED
1082502-00-A - Inflatable Air Bag
1061177-00-C - Kit, Wire Harness Repair
Needle Nose Pliers
Nutsetter 1/4 in. Dr. 6 in. x 10 mm Magnetic Deep
1115191-00-A - Pick Miniature Soft Grip 90 Degree Tip 6 in.
1115421-00-B - Plastic Trim Tool
Pressure Roller
1082497-00-A - Retractable Blade Knife
Scissors
1064740-00-A - Scraper, Razor Blade
Small Flat Head Screwdriver
1636784-00-A - Square Wire
Step Stool
1078806-00-A - T-Handles
1080601-00-A - WK6 BTB Winged Scraper Set

PT1500 - 3M Acrylic Plus Double-Sided Tape
1076300-00-A - Adhesive Promoter
Felt Tape
Isopropyl Alcohol (IPA) Wipes
1937354-00-A - Off Road Lightbar, Cybertruck
1042541-00-A - Tape, Painters, 1.5 in. x 60 yards, Blue
Note
These part numbers were current at the time of publication. Use the revisions listed or later, unless otherwise specified in the Parts Catalog.

2025-11-13: Added lightbar LH/RH body bracket R&I steps and updated the adhesion process with double-sided tape direction.
2025-10-01: Added additional images of BETASEAL 43533 primer and BETAPRIME 5504G for clarity.
2025-05-30: Added caution to further specify how to avoid using BETASEAL 43533 on the windshield.
2025-05-20: Updated the BETASEAL 43533 primer minimum dry time note to include the maximum dry time limit (110 hours).
2025-05-07: Added caution to BETASEAL 43533 primer application step.
2025-04-30: Updated general vehicle access steps; Open/close all the doors and open/close all the windows.
2025-02-25: Added tools and consumables list at the top of the procedure for clarification. Added a new note to the windshield primer application step. Updated BETAPRIME 5504G minimum drying time to align with supplier requirements. Removed duplicate note about general cleaning requirements.
2025-02-19: Added lightbar installation video for clarification.
2025-02-12: Updated the cautions, notes, and part number for the lightbar primer application. Replaced soldering direction with B-pillar connector steps.
2025-02-03: Added urethane description and part number.
2024-12-02: Added caution to the RH roof applique reinstallation step to avoid pinching the lightbar harness.

Warning

This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.

Warning

Cybertruck electronics are powered by a 48V "mid voltage" or "MV" architecture that is designed to improve efficiency. Servicing MV components requires extra knowledge and care in order to avoid personal and/or vehicular harm. Read and understand MV precautions in Electrical Precautions and make sure any required MV-related training courses have been completed, as applicable.

Warning

The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

Remove

Note

The Tesla Lightbar for Cybertruck is designed only for off road use. Tesla by law cannot install the lightbar electronics and configure the vehicle for lightbar control.

Open all the doors and open all the windows.
Disconnect Mid Voltage (MV) power. See Disconnect MV Power (Modify).
Release the clips (x4) that attach the front end of the RH roof applique to the vehicle.
TIp
Use of the following tool(s) is recommended:

1115421-00-B - Plastic Trim Tool
Place the inflatable airbag under the RH roof applique, and then inflate the airbag as required to partially release the applique from the vehicle for access to the roof accessory jumper harness.
TIp
Use of the following tool(s) is recommended:

1082502-00-A - Inflatable Air Bag
Remove the RH B-pillar applique. See Applique - B-Pillar - LH (Remove and Install).
Release the red locking tab and then disconnect the roof accessory jumper harness connector (X0965F) from the off road lightbar harness connector (X0965M).
Use felt tape to secure the roof accessory jumper harness connector to the vehicle.
Warning
Tesla employees are not permitted to connect or assist with the RH B-pillar connection of the Cybertruck off road lightbar harness to the roof accessory jumper harness connector. Only the customer or a third-party entity is permitted to complete the lightbar harness connection.
TIp
Use of the following tool(s) is recommended:

Felt Tape
Release the clip that attaches the off road lightbar harness connector to the vehicle body, and then disconnect the connector from the B-pillar.
Remove the roof accessory grommet plug from the vehicle, and then carefully remove the off road lightbar harness from the B-pillar through the roof accessory grommet opening.
TIp
Use of the following tool(s) is recommended:

1115421-00-B - Plastic Trim Tool

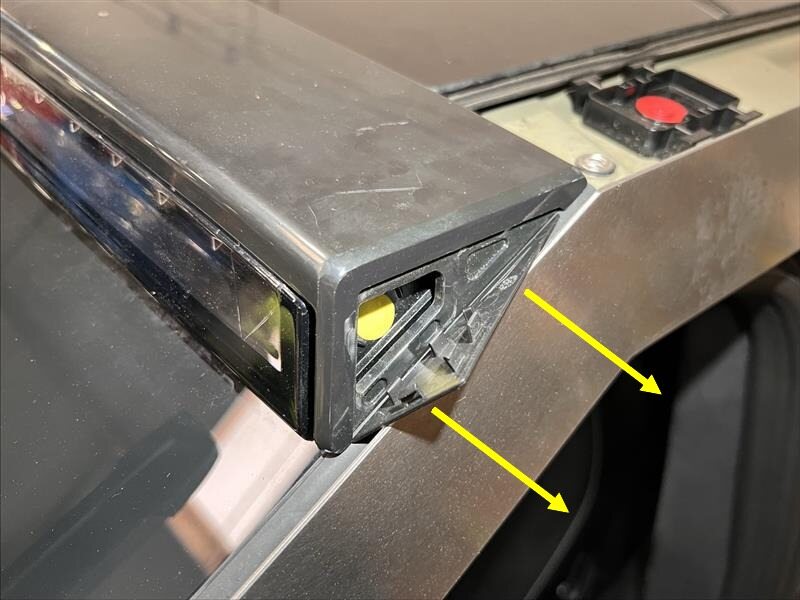

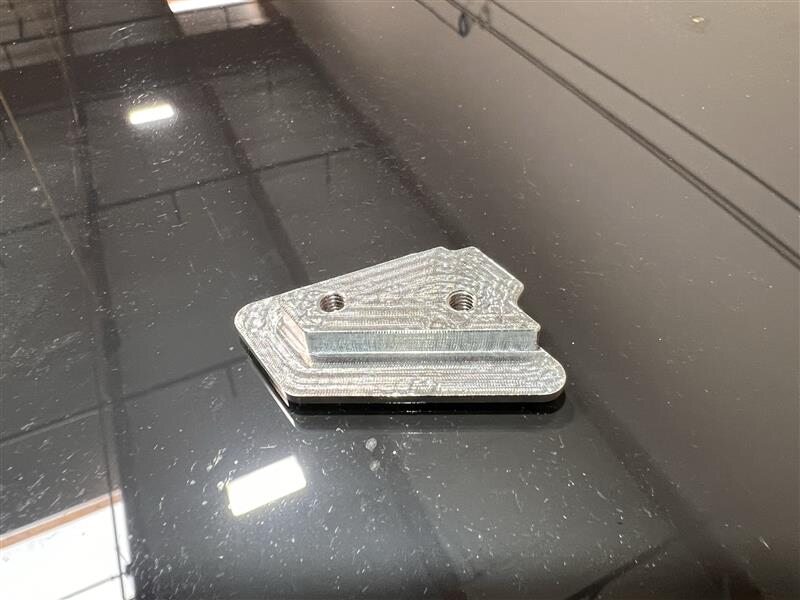

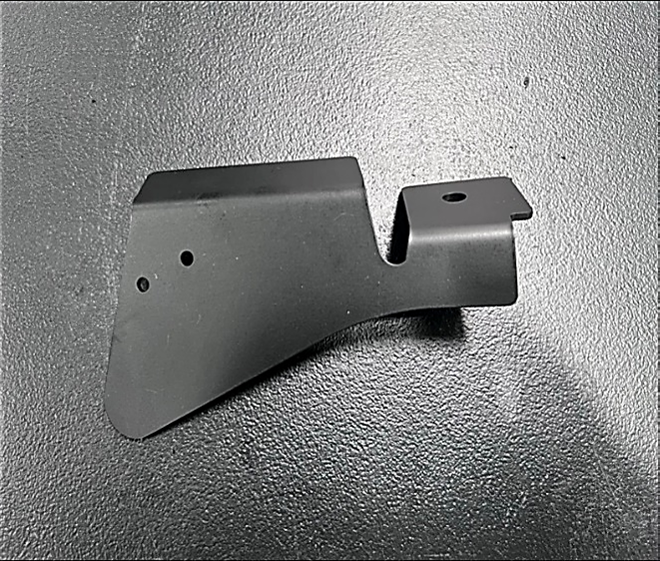

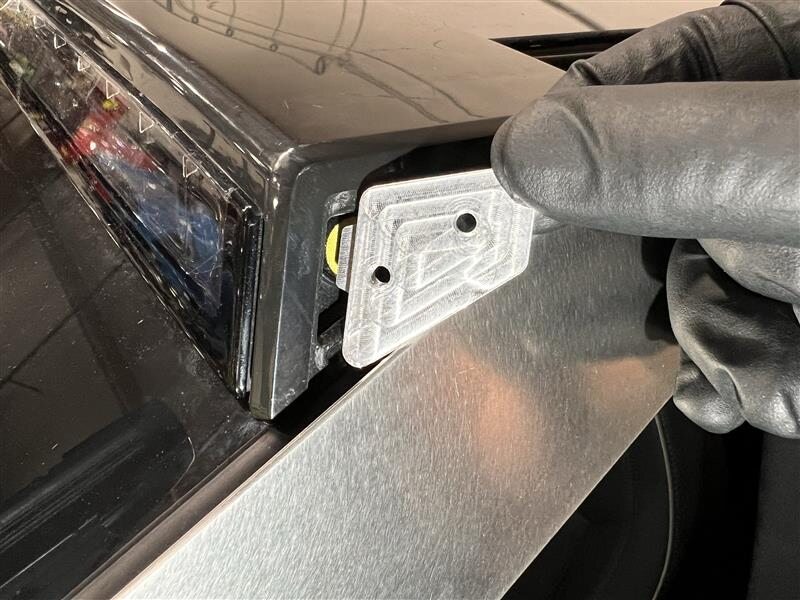

Remove the RH body bracket and aluminum end cap from the off road lightbar.

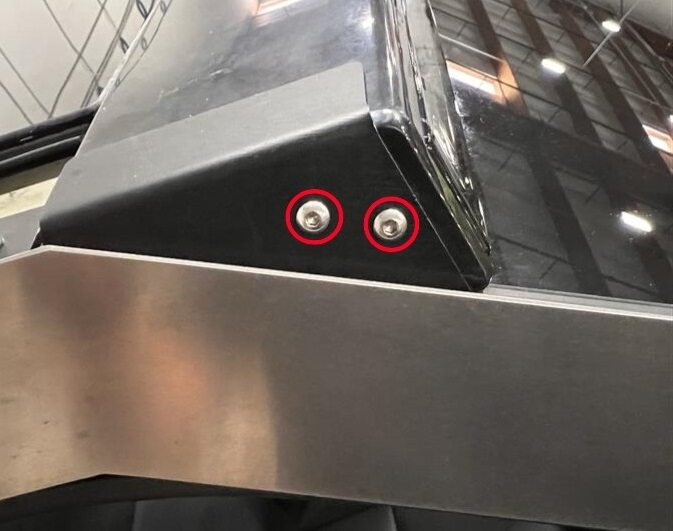

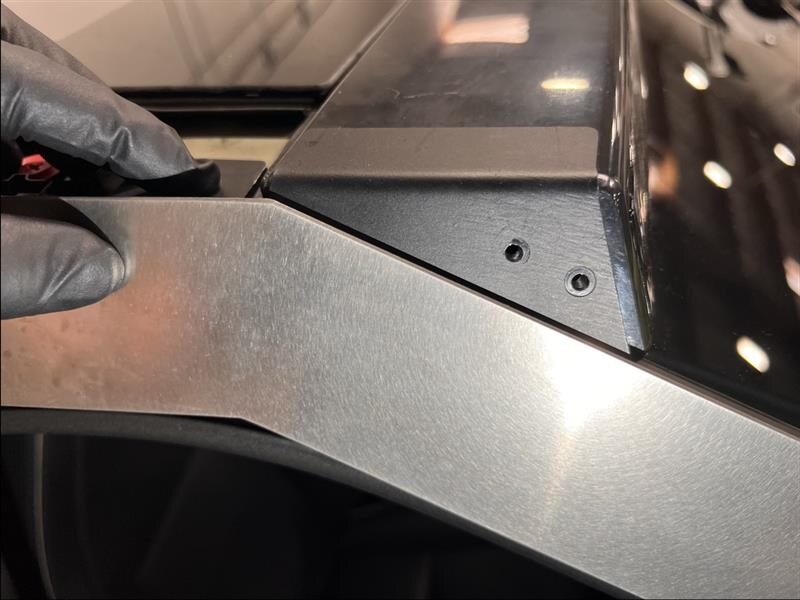

1. Remove the bolts (x2) that attach the RH body bracket to the off road lightbar.
  TIp
  Use of the following tool(s) is recommended:

  4 in extension

  Flex head ratchet/flex head torque wrench

  Torx T20 socket

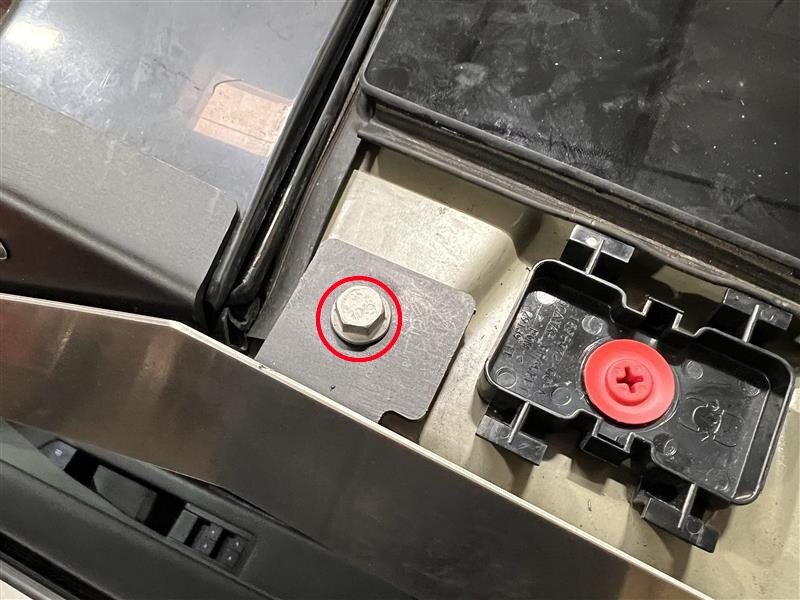

2. Remove the bolt that attaches the RH body bracket to the roof of the vehicle, and then remove the bracket from the vehicle.
  TIp
  Use of the following tool(s) is recommended:

  4 in extension

  Flex head ratchet/flex head torque wrench

  Torx T30 socket

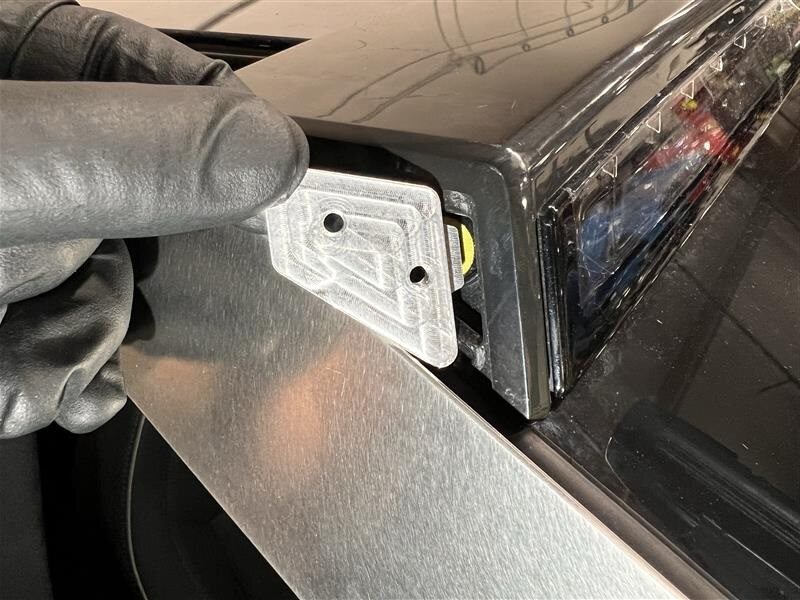

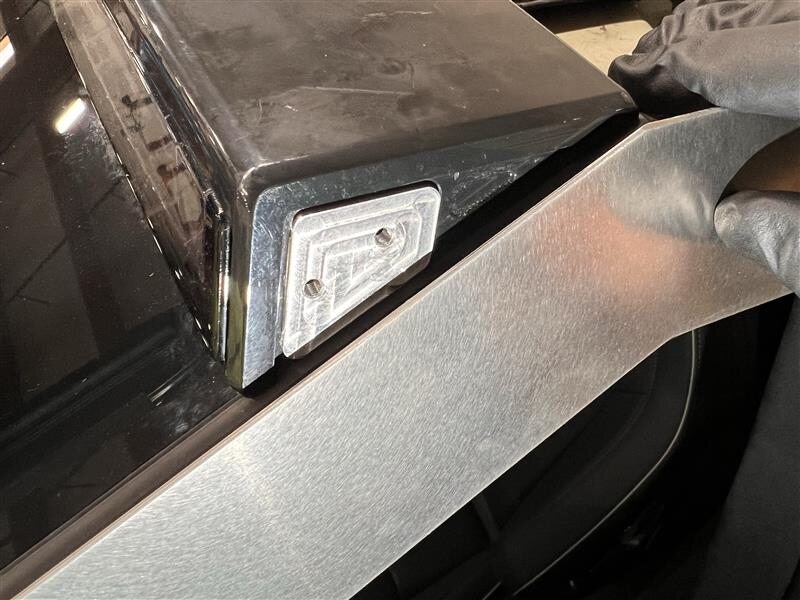

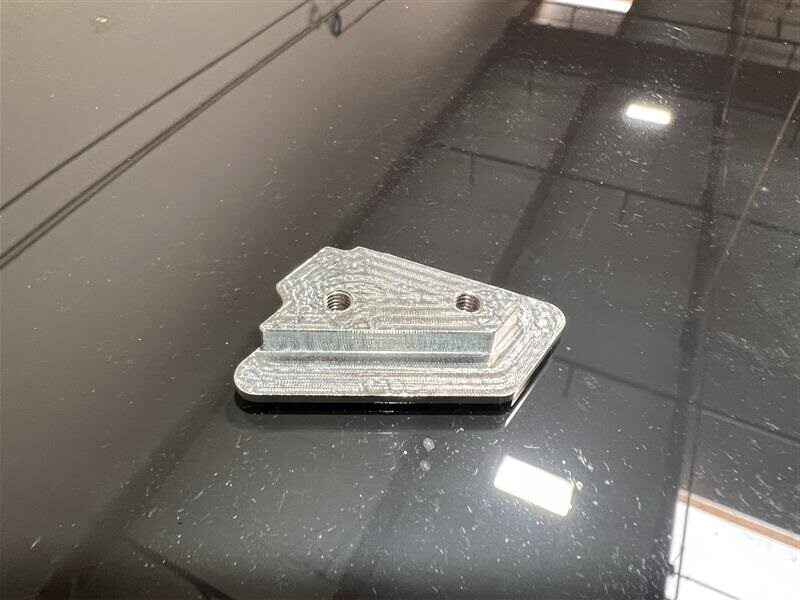

3. Release the tab that attaches the RH aluminum end cap to the off road lightbar, and then remove the cap from the vehicle.
Release the clips (x4) that attach the front end of the LH roof applique to the vehicle.
TIp
Use of the following tool(s) is recommended:

1115421-00-B - Plastic Trim Tool
Place the inflatable airbag under the LH roof applique, and then inflate the airbag as required to partially release the applique from the vehicle.
TIp
Use of the following tool(s) is recommended:

1082502-00-A - Inflatable Air Bag

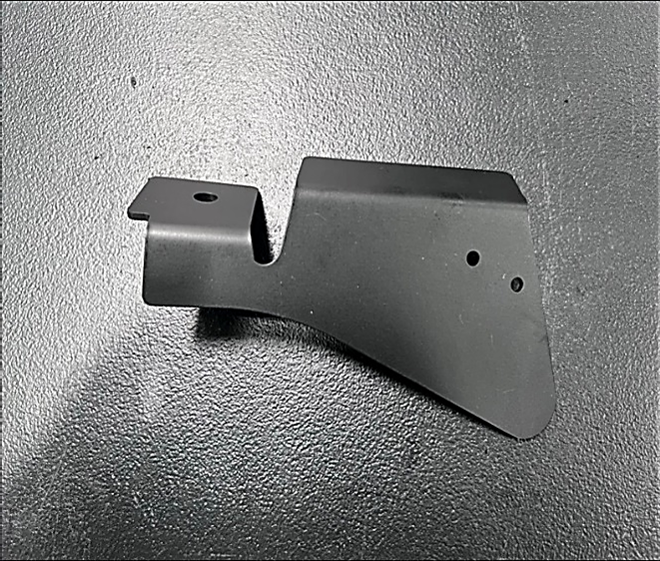

Remove the LH body bracket and aluminum end cap from the off road lightbar.

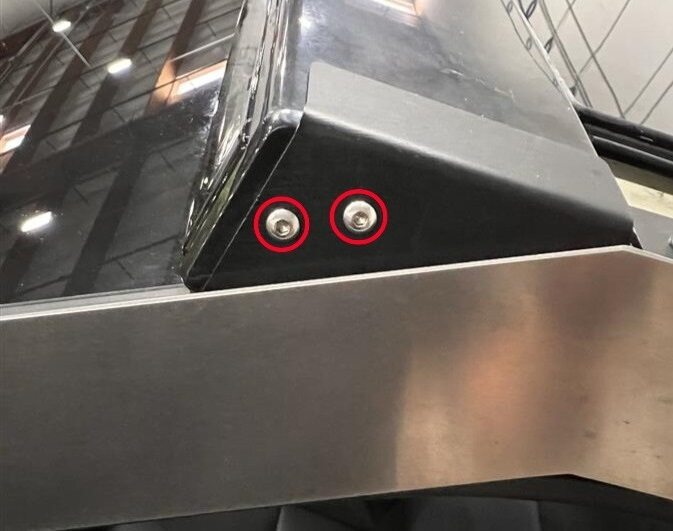

1. Remove the bolts (x2) that attach the LH body bracket to the off road lightbar.
  TIp
  Use of the following tool(s) is recommended:

  4 in extension

  Flex head ratchet/flex head torque wrench

  Torx T20 socket
2. Remove the bolt that attaches the LH body bracket to the roof of the vehicle, and then remove the bracket from the vehicle.
  TIp
  Use of the following tool(s) is recommended:

  4 in extension

  Flex head ratchet/flex head torque wrench

  Torx T30 socket

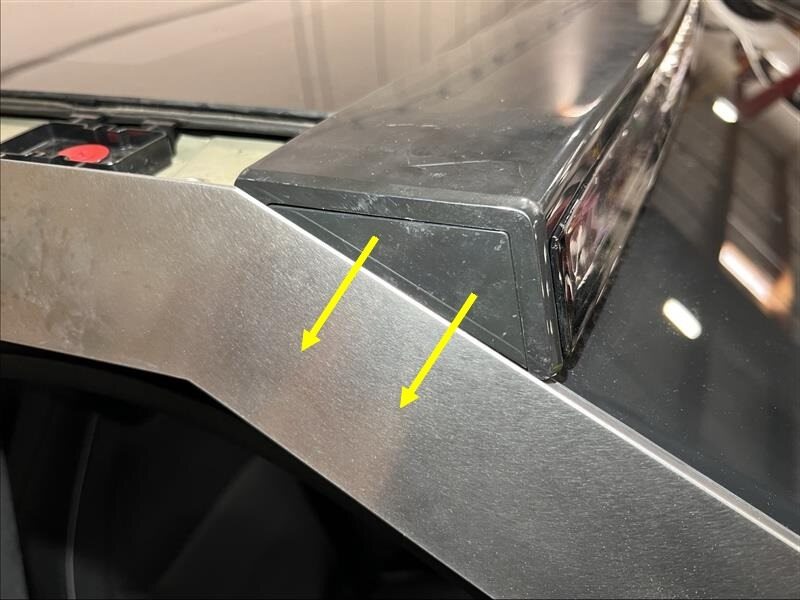

3. Release the tab that attaches the LH aluminum end cap to the off road lightbar, and then remove the cap from the vehicle.
Prepare the T-handles (x2) and square wire kit as required.
Note
Cut the desired length of wire and then secure the wire onto the T-handles.
TIp
Use of the following tool(s) is recommended:

Diagonal Cutters

Needle Nose Pliers

1636784-00-A - Square Wire

1078806-00-A - T-Handles

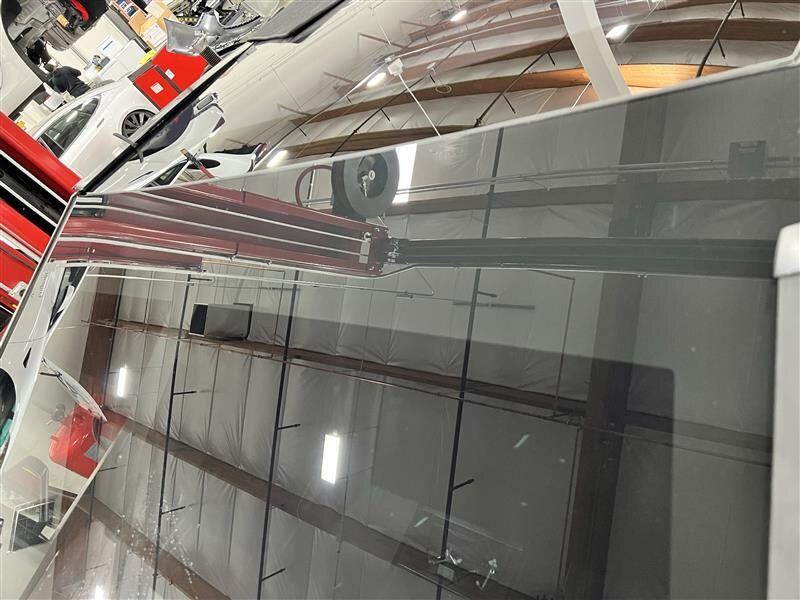

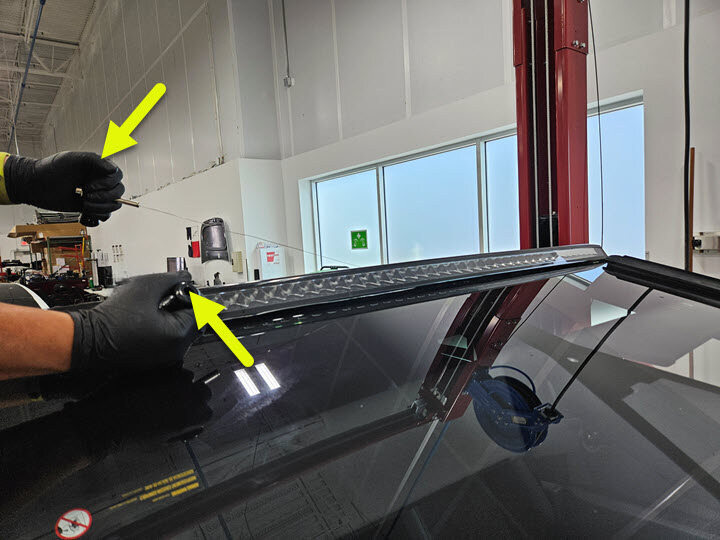

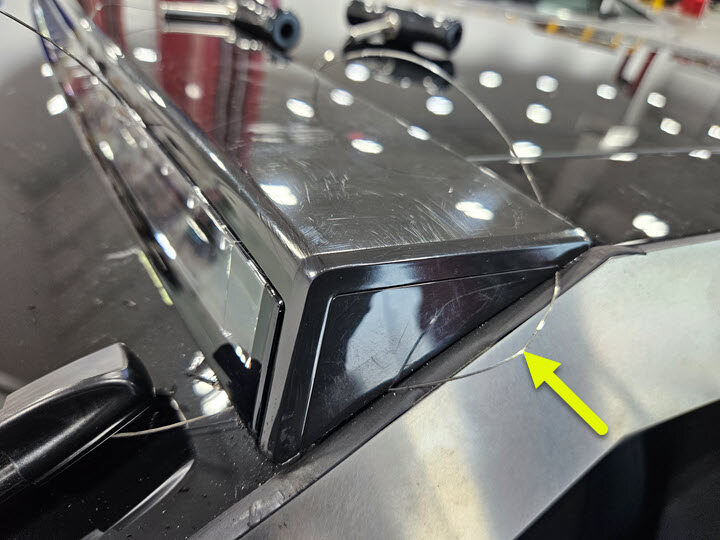

With assistance, use the T-handles (x2) and square wire kit to carefully remove the off road lightbar from the windshield, and then remove the lightbar from the vehicle.

CAUTION
Do not damage the windshield or the lightbar harness during removal.

Note
Newer versions of the off road lightbar come equipped with double-sided tape pre-installed.

Note
The lightbar may be adhered to the windshield with urethane or double-sided tape.

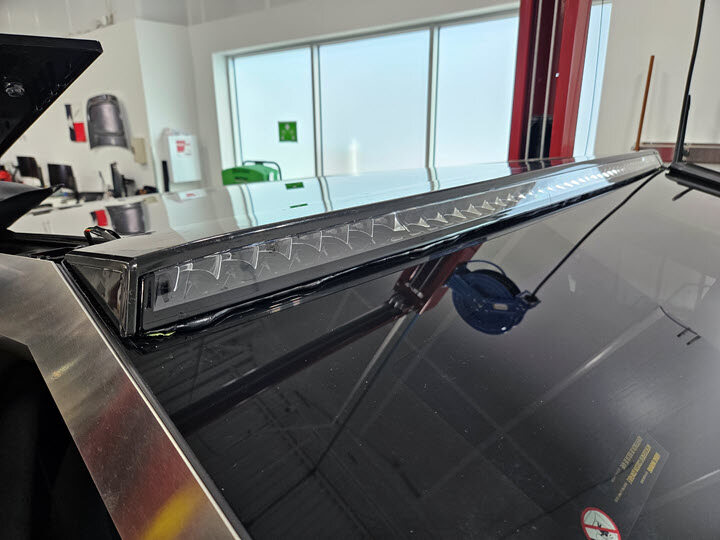

Figure 1. Urethane adhesive shown for reference

Figure 2. Double-sided tape shown for reference
If present, carefully remove all urethane from the upper exterior portion of the windshield.
CAUTION
Do not damage the windshield during urethane removal.

Note
Cut the urethane flush with windshield surface.
TIp
Use of the following tool(s) is recommended:

1064740-00-A - Scraper, Razor Blade

1080601-00-A - WK6 BTB Winged Scraper Set
If present, carefully remove all double-sided tape residue from the upper exterior portion of the windshield.
CAUTION
Do not damage the windshield during double-sided tape removal.
TIp
Use of the following tool(s) is recommended:

1064740-00-A - Scraper, Razor Blade

1080601-00-A - WK6 BTB Winged Scraper Set

Replace

Use IPA wipes to clean the upper exterior portion of the windshield.

Note
Allow 1 minute of dry time.
If not already installed, remove the protective cover from the blackout film tape, and then install the blackout film tape on the lightbar.

CAUTION
The blackout film tape must be installed on the lightbar prior to delivering the vehicle to the customer. Only the customer or a third-party entity is permitted to remove the blackout film tape.

Note
Position the lightbar on a level surface while applying the tape. Make sure the tape fully covers the front side of the lightbar.
Dry fit the off road lightbar on the windshield, and then apply masking tape along the lower portion of the lightbar to create a perimeter across the windshield. Remove the lightbar from the windshield after the tape is applied, and then place the lightbar onto the roof of the vehicle.

Note
Make sure that the lightbar is properly aligned on the windshield.
Prepare the off road lightbar.
1. Use IPA wipes to clean the entire lightbar mating surface.

  Note
  Allow 1 minute of dry time.
2. Apply adhesive promoter to the lightbar on the entire outer path on the lightbar.
  Note
  Newer versions of the off road lightbar come equipped with double-sided tape pre-installed.

  Note
  All bonding surfaces must be free of impurities (dirt, dust, water, oil, grease, release agent or similar contaminants).

  Note
  Allow the adhesive promoter to completely dry before proceeding to the next step.
  TIp
  Use of the following tool(s) is recommended:

  1076300-00-A - Adhesive Promoter

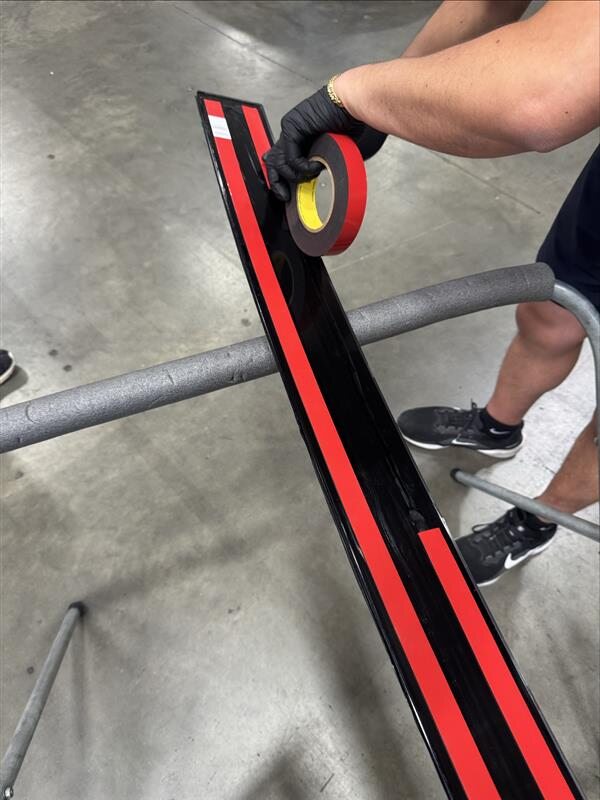

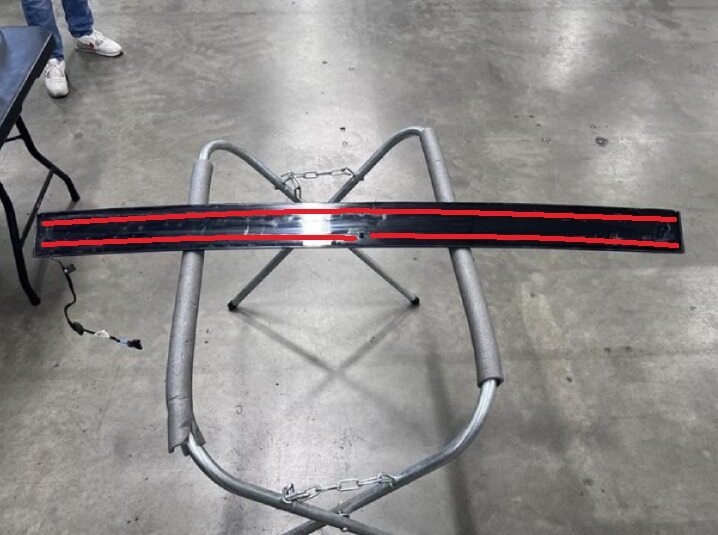

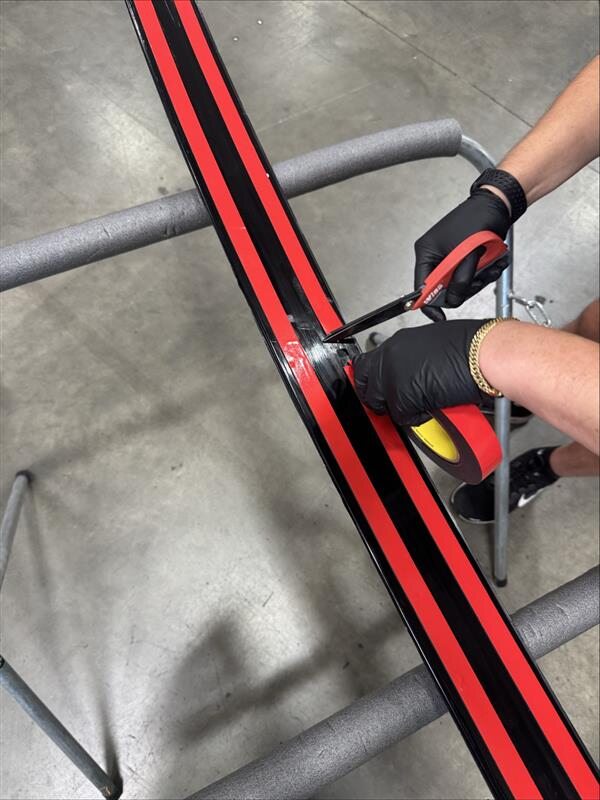

3. If not already installed, apply double-sided tape across the full length of the off road lightbar on both sides of the lightbar.
  Note
  The double-sided tape must be applied on both sides of the lightbar. Do not cover the center hole of the lightbar with tape, as shown.

  Note

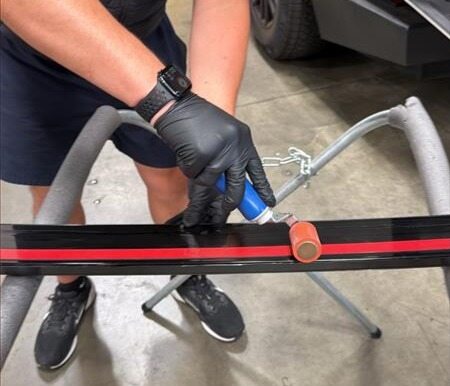

  Use a pressure roller to help adhere the double-sided tape to the off road lightbar.

  Note
  Newer versions of the off road lightbar come equipped with double-sided tape pre-installed.

  Note
  If the double-sided tape is already installed, remove the backing paper to expose the adhesive surface of the tape.
  TIp
  Use of the following tool(s) is recommended:

  PT1500 - 3M Acrylic Plus Double-Sided Tape

  Pressure Roller

  Scissors
  Figure 3. Lightbar center hole; Do not cover with tape
With assistance, align the upper portion of the lightbar with the upper exterior portion of the windshield, position the lightbar evenly on the windshield, and then press down on the lightbar to fully adhere the double-sided tape onto the windshield.
Carefully place the ballast bags (x2) evenly across the off road lightbar to aid with double-sided tape adhesion. The ballast bags must be left in place for 1 minute.
Note
Make sure that the ballast bags are positioned properly and the lightbar is securely taped to the windshield to prevent the lightbar from sliding down the windshield.
TIp
Use of the following tool(s) is recommended:

1145158-00-A - Ballast Bag, 25 lb.
After 1 minute has passed, carefully remove the ballast bags (x2) from the off road lightbar.
Install the LH body bracket and aluminum end cap.

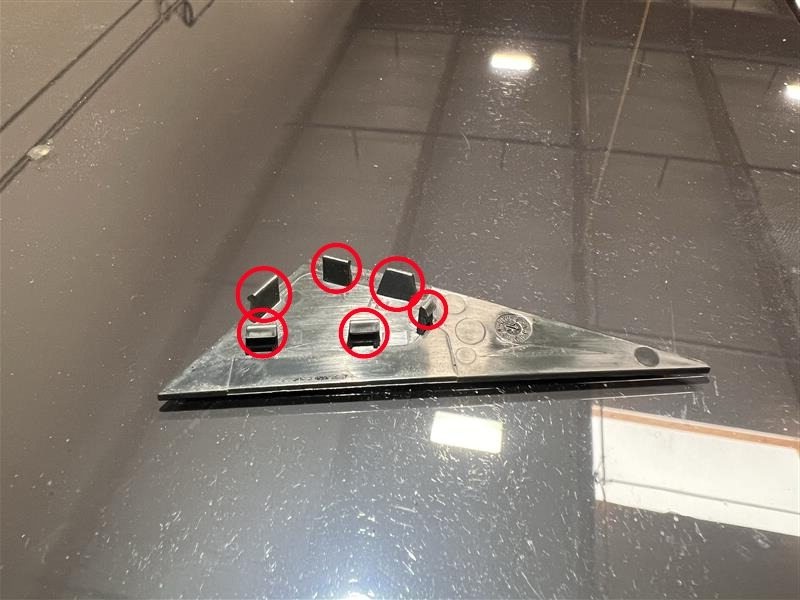

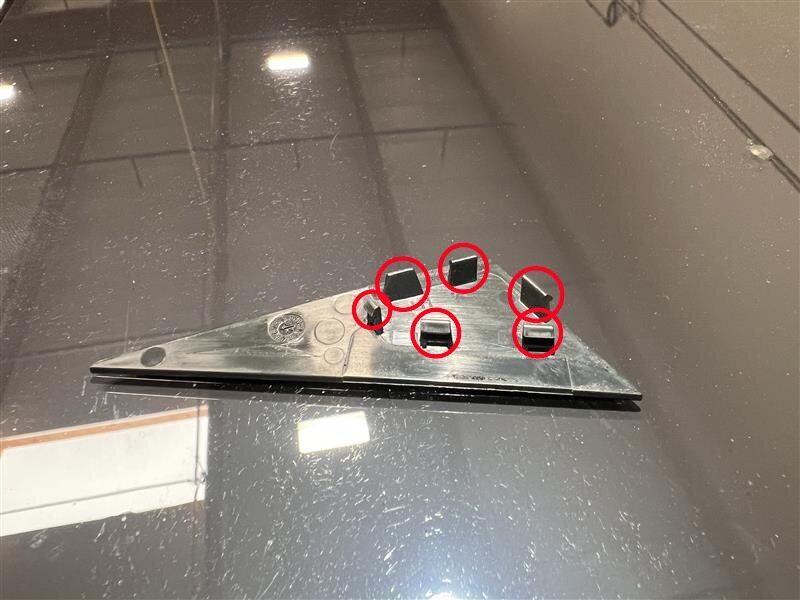

1. Release the tabs (x6) that attach the off road lightbar LH end cap cover to the lightbar, and then remove the end cap cover from the vehicle.

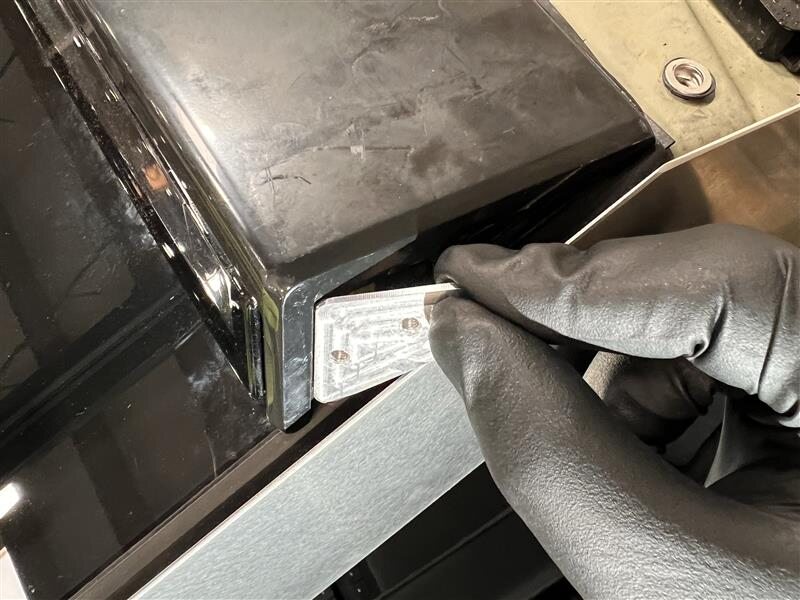

2. Insert the tab on the LH aluminum end cap into the off road lightbar, and then install the end cap on the lightbar.

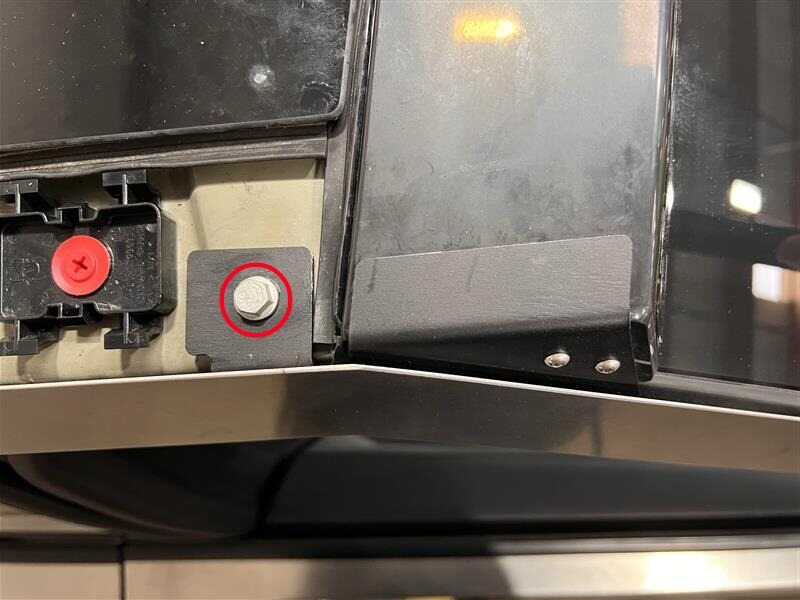

3. Position the LH body bracket on the vehicle, and then install the bolts (x2) that attach the body bracket to the lightbar.
  2.5 Nm (1.8 lbs-ft)
  TIp
  Use of the following tool(s) is recommended:

  4 in extension

  Flex head ratchet/flex head torque wrench

  Ratchet/torque wrench

  Torx T20 socket
4. Install the bolt that attaches the LH body bracket to the roof of the vehicle.
  7 Nm (5.2 lbs-ft)
  TIp
  Use of the following tool(s) is recommended:

  4 in extension

  Flex head ratchet/flex head torque wrench

  Ratchet/torque wrench

  Torx T30 socket
Deflate and remove the inflatable airbag from the LH roof applique.
Install the tabs (x4) that attach the front end of the LH roof applique to the vehicle.
Install the RH body bracket and aluminum end cap.

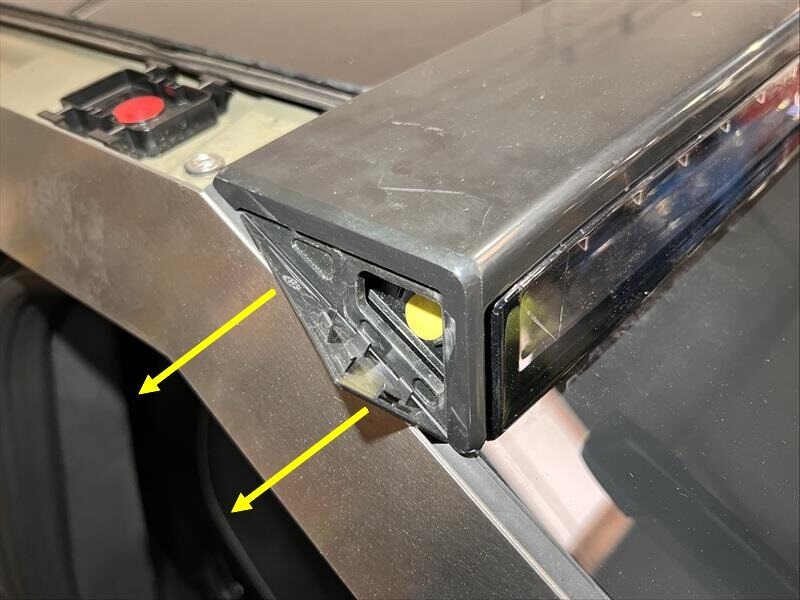

1. Release the tabs (x6) that attach the off road lightbar RH end cap cover to the lightbar, and then remove the end cap cover from the vehicle.
2. Insert the tab on the RH aluminum end cap into the off road lightbar, and then install the end cap on the lightbar.
3. Position the RH body bracket on the vehicle, and then install the bolts (x2) that attach the body bracket to the lightbar.
  2.5 Nm (1.8 lbs-ft)
  TIp
  Use of the following tool(s) is recommended:

  4 in extension

  Flex head ratchet/flex head torque wrench

  Ratchet/torque wrench

  Torx T20 socket
4. Install the bolt that attaches the RH body bracket to the roof of the vehicle.
  7 Nm (5.2 lbs-ft)
  TIp
  Use of the following tool(s) is recommended:

  4 in extension

  Flex head ratchet/flex head torque wrench

  Ratchet/torque wrench

  Torx T30 socket
Use IPA wipes to clean the off road lightbar and the windshield as required.

Note
Allow 1 minute of dry time.
If the off road lightbar jumper harness is present, perform the Off Road Lightbar Jumper Harness Soldering section of this procedure, and then continue to the next step.
Route the off road lightbar harness into the vehicle through the roof accessory grommet opening as required to prevent pinching or rubbing when the RH roof applique is reinstalled, and then install the roof accessory grommet plug on the vehicle.

CAUTION
Make sure that the harness is adequately supported or restrained to prevent future damage.
Position the off road lightbar harness connector on the B-pillar, and then install the clip that attaches the connector to the vehicle body.
Deflate and remove the inflatable airbag from the RH roof applique.
Install the tabs (x4) that attach the front end of the RH roof applique to the vehicle.

CAUTION
Make sure that the off road lightbar harness does not pinch.
Install the RH B-pillar applique. See Applique - B-Pillar - LH (Remove and Install).
Connect MV power. See Disconnect MV Power (Modify).
Raise all the windows and close all the doors.
Refer to CD-24-90-001 for Cybertruck off road lightbar harness connection instructions.

Warning
Tesla employees are not permitted to connect or assist with the RH B-pillar connection of the Cybertruck off road lightbar harness to the roof accessory jumper harness connector. Only the customer or a third-party entity is permitted to complete the lightbar harness connection.

Figure 4. Roof accessory jumper harness connector; Tesla employees are not permitted to complete this connection

Off Road Lightbar Jumper Harness Soldering

Note

The Tesla Lightbar for Cybertruck is designed only for off road use. Tesla by law cannot install the lightbar electronics and configure the vehicle for lightbar control.

Prepare the soldering and splicing tools and consumables for the following steps as required.
Note
Allow 1 minute of dry time.
TIp
Use of the following tool(s) is recommended:

1060908-00-A - Cordless, Self-Igniting Soldering Iron And Heat Tool Kit

1061177-00-C - Kit, Wire Harness Repair
Prepare the off road lightbar jumper and heat shrink tubes (x6) for installation.

Note
The off road lightbar jumper may come with a green or blue Local Interconnect Network (LIN) wire. Make note of this for the jumper connection steps later in this procedure.
1. Remove and discard the pre-cut insulation from the off road lightbar jumper wire ends (x6).

  Note
  The off road lightbar jumper sleeve is shown removed from the jumper for the remainder of this procedure for clarity purposes. Do not remove the jumper sleeve from the jumper at any point.
Remove and discard the protective caps (x6) from the roof accessory jumper harness wire ends (x3) and the off road lightbar harness wire ends (x3).

CAUTION
Failure to properly disconnect MV power prior to splicing into the MV power circuit can result in damage to the vehicle or the MV battery. Tesla is not responsible for any damage to the vehicle or MV battery.
Use a wire stripper to strip approximately ½ inch of insulation from the roof accessory jumper harness wire ends (x3) and the off road lightbar harness ends (x3).

Warning
Wear appropriate Personal Protective Equipment (PPE) including cut-resistant gloves and safety glasses when performing this step.

CAUTION
Do not cut or damage the harness wires while removing the insulation.
Prepare to install the off road lightbar jumper wires (x3) to the roof accessory jumper harness according to the wiring configuration diagram.
Carefully wrap the roof accessory jumper harness wire ends (x3) around the off road lightbar jumper wire ends (x3).

CAUTION
Splicing the off-road lightbar harness into the jumper harness incorrectly may damage the lightbar.

Note
Make sure that the wire ends are properly secured and wrapped evenly.
Put on cut-resistant mechanic’s gloves or other heat-resistant gloves.

Warning
Always read and understand the soldering iron operator’s manual before using it to solder or shrink heat shrink tubing.

CAUTION
Do not use the soldering iron in an area where surrounding surfaces, materials, or components could be damaged by hot air.
Use the wire harness repair kit to solder the roof accessory jumper harness and the off road lightbar jumper connections (x3).
1. Make sure that the wires are free of dirt and grease.
2. Install the soldering tip on the soldering iron.
3. Turn on the soldering iron and allow it to fully warm up.
4. Clean the tip of the soldering iron with a damp sponge.

  Note
  Replace the tip if it does not have a shiny appearance, or if solder does not melt on the tip when it is fully warmed up.
5. Apply a small amount of solder to the tip of the soldering iron.
6. Use the soldering iron to apply solder onto the wires (x3).
7. Stop applying solder when it evenly covers the outer surfaces of the wires.
8. Remove the soldering iron from the wires before the solder wicks into the wire insulation or the soldering iron overheats the insulation.
9. Hold the solder connections still while returning the soldering iron to a safe location.
10. Turn off the soldering iron and allow it to cool down.

  CAUTION
  Heating the soldering iron unnecessarily degrades the surface of the soldering tip.
Inspect the solder connections. If the solder is in a spherical shape, or did not evenly flow across the wires, the soldering iron was not hot enough, repeat step 8.
Slide the heat shrink tubes (x3) over the roof accessory jumper harness and the off road lightbar jumper connections (x3), aligning the center of the tubes with the center of the connections.

CAUTION
Do not skip this step. The procedure will have to be repeated if the wires are spliced without installing the heat shrink tubes on the wires.

CAUTION
Make sure the soldered wires have cooled down before sliding the heat shrink tubes over the jumper connections.
Once the soldering tip has cooled, remove it from the soldering iron and install the flame tip and deflector tip.

Warning
Make sure that the soldering tip has cooled completely before removing it.
While continuously moving the soldering iron or heat gun in a left-to-right motion, apply heat over the length and diameter of the heat shrink tubes (x3) to affix the tubes to the wires connections (x3).

CAUTION
Avoid overheating any specific section of the heat shrink tubes or wiring. Any discoloration of the wiring insulation indicates overheating.
Turn off the soldering iron and return it to a safe location.
Allow the heat shrink tubes (x3) and wires to cool.
Inspect the heat shrink tubes (x3) to make sure that the tubes are fully sealed and bonded to the wire insulation.
Prepare to install the off road lightbar jumper wires (x3) to the off road lightbar harness according to the wiring configuration diagram.
Slide the remaining heat shrink tubes (x3) over the off road lightbar jumper wires (x3) and move them aside.

CAUTION
Do not skip this step. The procedure will have to be repeated if the wires are spliced without installing the heat shrink tubes on the wires.
Repeat steps 6 through 15 for the remaining off road lightbar jumper wire ends (x3) and the off road lightbar harness wire ends (x3) as required.
Wrap the entire off road lightbar harness and splice areas with electrical tape.
Wrap the entire off road lightbar harness and splice areas with new harness tape.
Route the off road lightbar harness into the vehicle as required to prevent pinching or rubbing when the RH roof applique is reinstalled, and then use harness tape to secure the harness to the vehicle.

CAUTION
Make sure that the harness is adequately supported or restrained to prevent future damage.
