Ground Strap - Rear Drive Unit (Long Range) (Remove and Install)

Correction code NEW NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Warning

This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.

2025-05-05: Released new procedure.

Open tailgate

Note
Press button to release
Remove fastener covers from bed floor assembly

Note
14x covers
Remove bed floor assembly

Note
10x short bolts, 15mm, 56 Nm, 2x long bolts, 15mm, 46Nm, Lift front edge with trim tool then remove panel, Recommend assistance

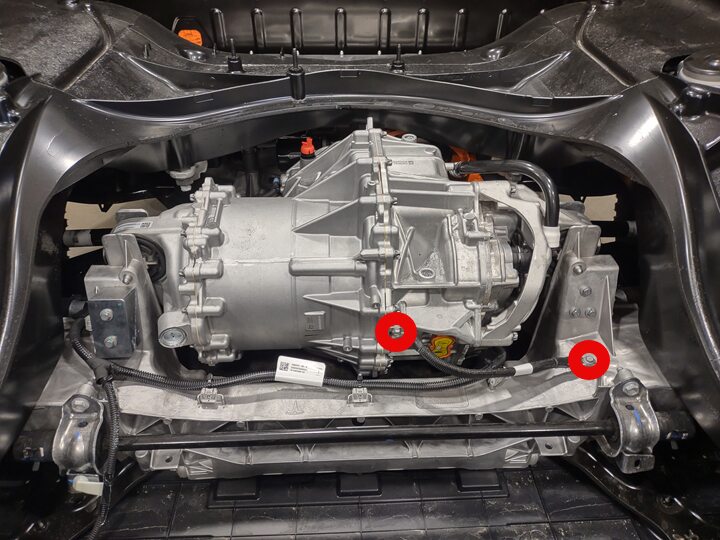

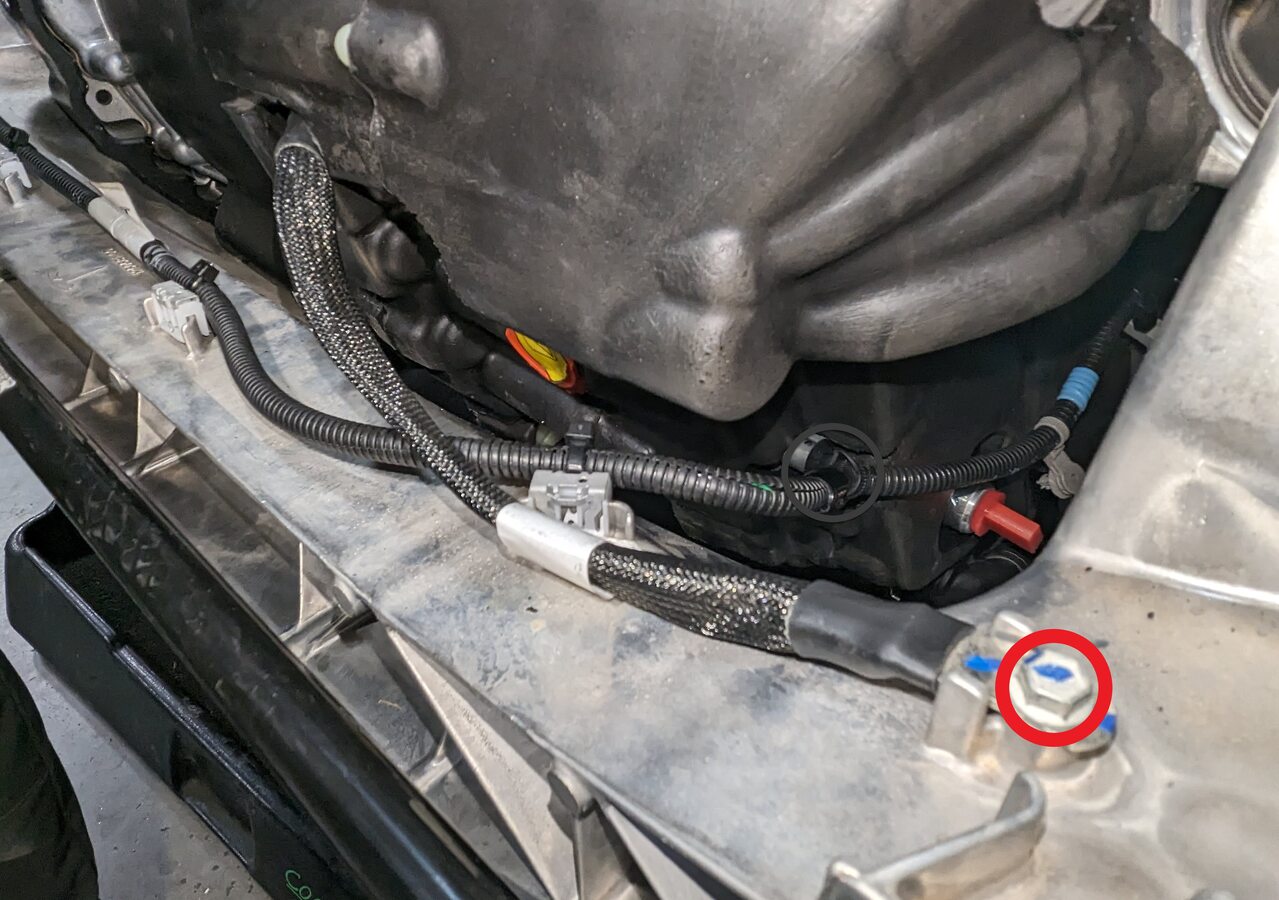

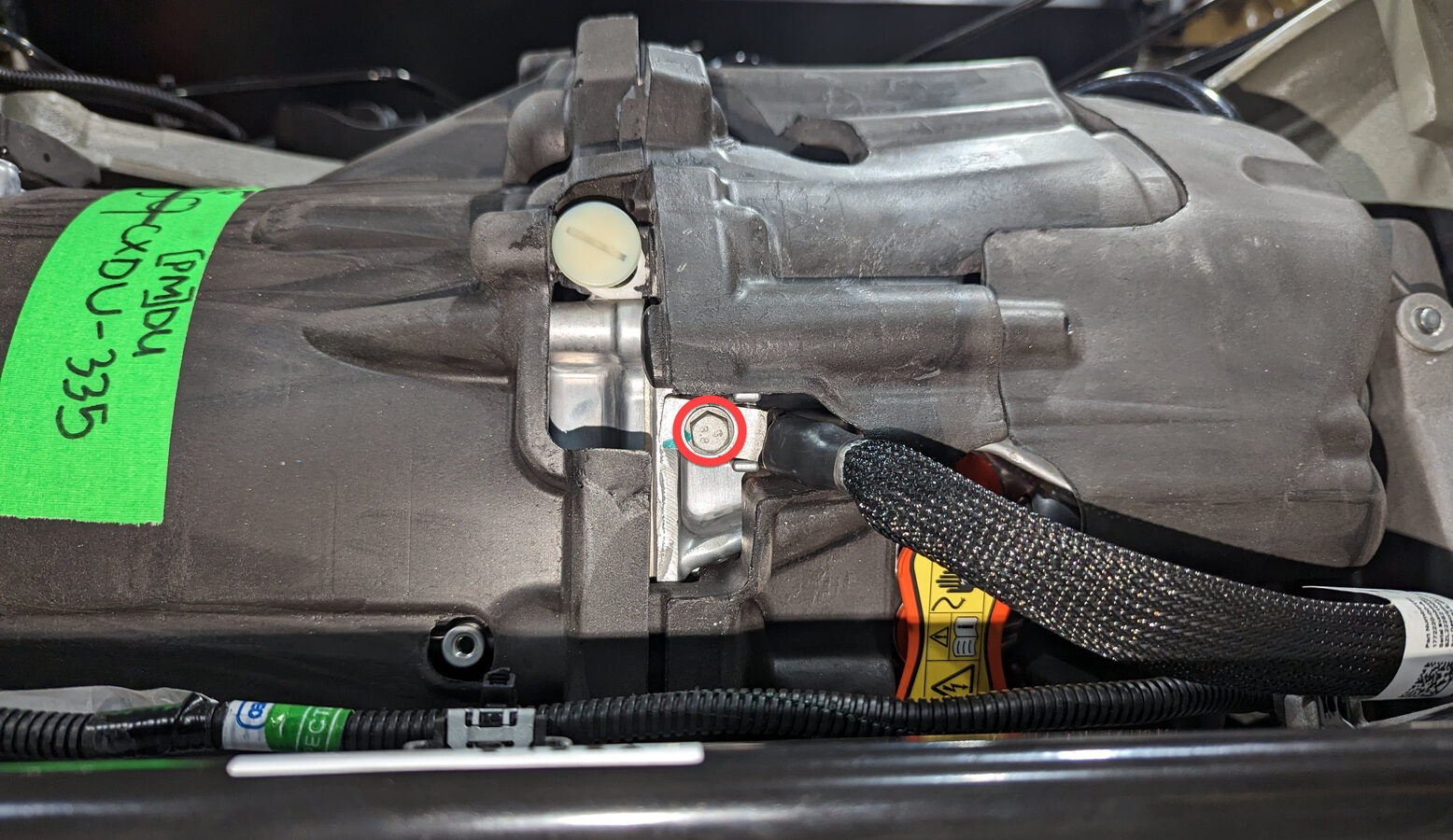

Remove rear drive unit ground strap

Note
2x bolts, 10mm, 10 Nm
Install rear drive unit ground strap

Note
2x bolts, 10mm, 10 Nm
Install bed floor assembly

Note
10x short bolts, 15mm, 56 Nm, 2x long bolts, 15mm, 46Nm, Recommend assistance
Install fastener covers onto bed floor assembly

Note
14x covers
Close tailgate

Cybertruck Service Manual

Ground Strap - Rear Drive Unit (Long Range) (Remove and Install)

Figure 1

Figure 2

Figure 3
