Spot Lamp - LH - Headliner (Long Range) (Remove and Install)

Correction code NEW NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
  • 2025-05-27: Released new procedure.
  1. Open LH front door
    Informational PurposesAn informational icon, calling your attention
    Note
    Push LH B-pillar door trigger to release
  2. Lower LH front window
  3. Open LH rear door
    Informational PurposesAn informational icon, calling your attention
    Note
    Push LH C-pillar door trigger to release
  4. Lower LH rear window
  5. Remove front header trim
    Informational PurposesAn informational icon, calling your attention
    Note
    19x clips, 1x magnet, 1x connector, 1x harness clip
  6. Remove LH mid A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note

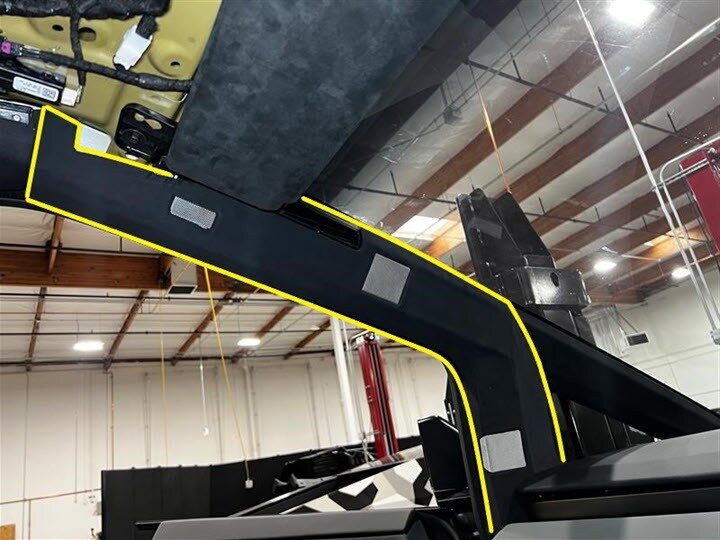

    1x clip, 3x tabs, Release tabs then slightly bend live hinge and release clip
  7. Remove LH upper A-pillar panel
    Informational PurposesAn informational icon, calling your attention
    Note

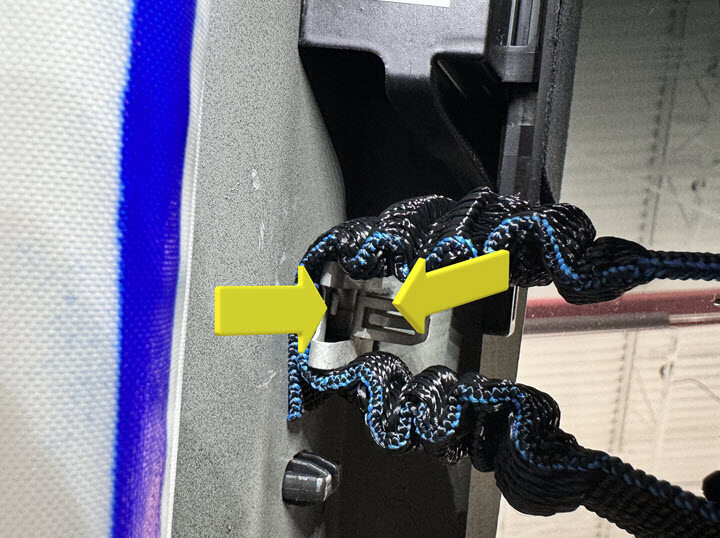

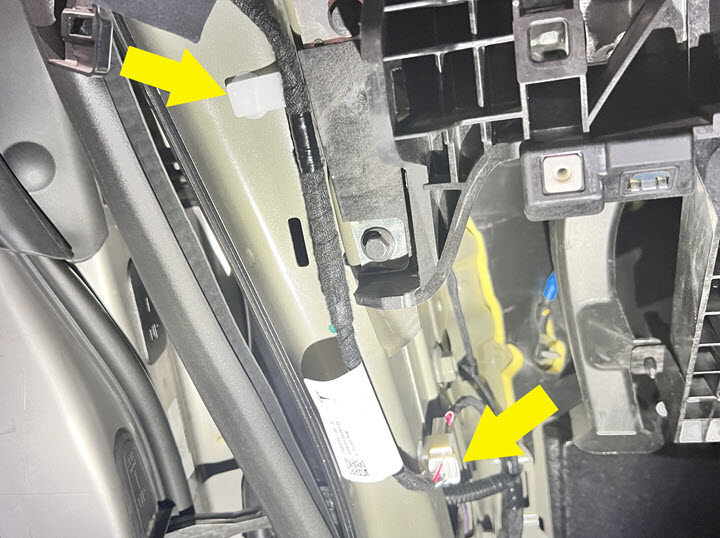

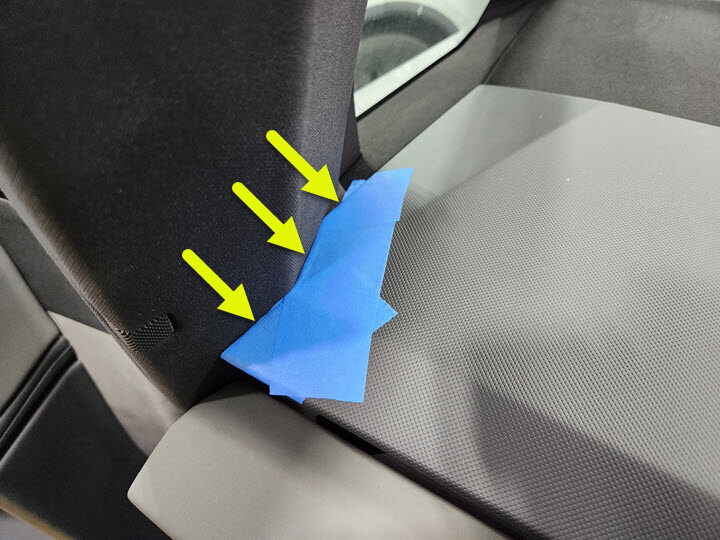

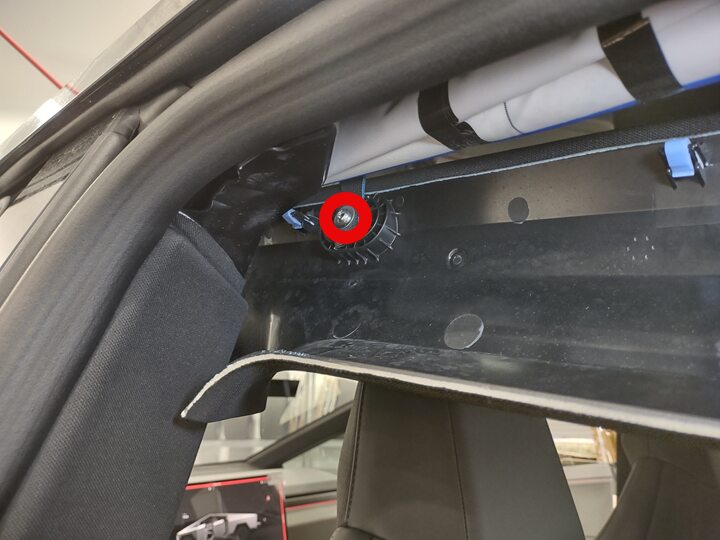

    8x clips, 1x tether clip, 1x harness clip, 1x connector, 1x bolt, 10mm, 6 Nm, Pull inwards to release, Depress tabs on either side of tether clip to release, Apply tape onto top pad to prevent damage
  8. Move LH front seat forward
  9. Remove rear header trim
    Informational PurposesAn informational icon, calling your attention
    Note

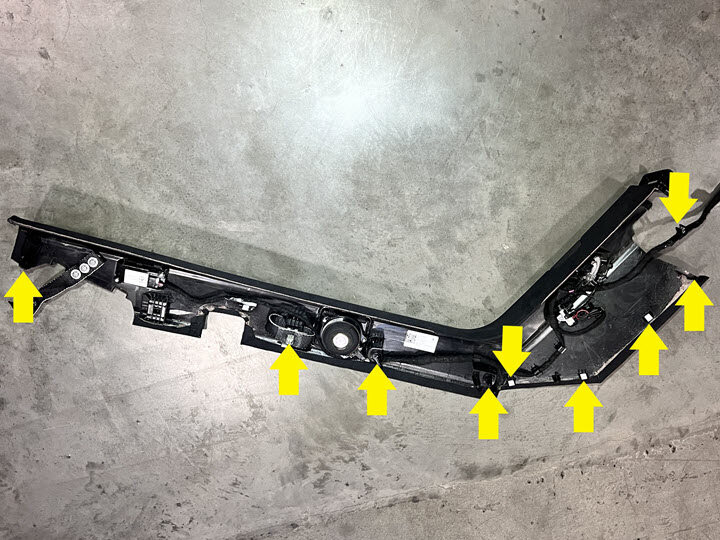

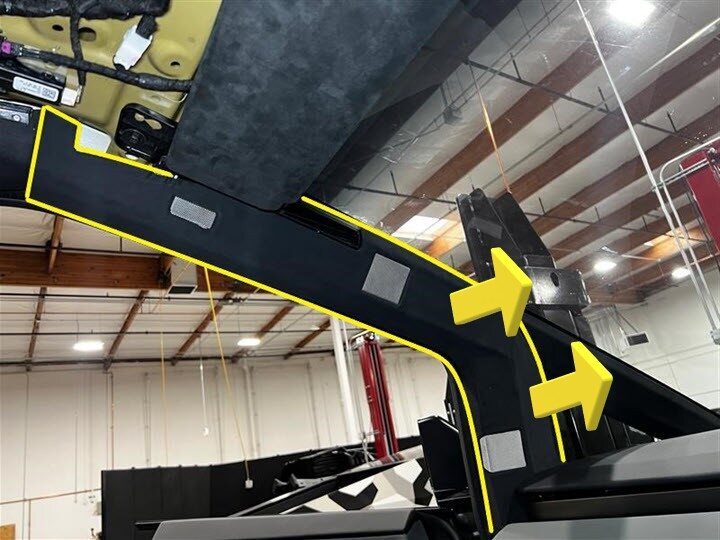

    12x clips, 3x datums
  10. Remove LH cantrail trim panel
    Informational PurposesAn informational icon, calling your attention
    Note

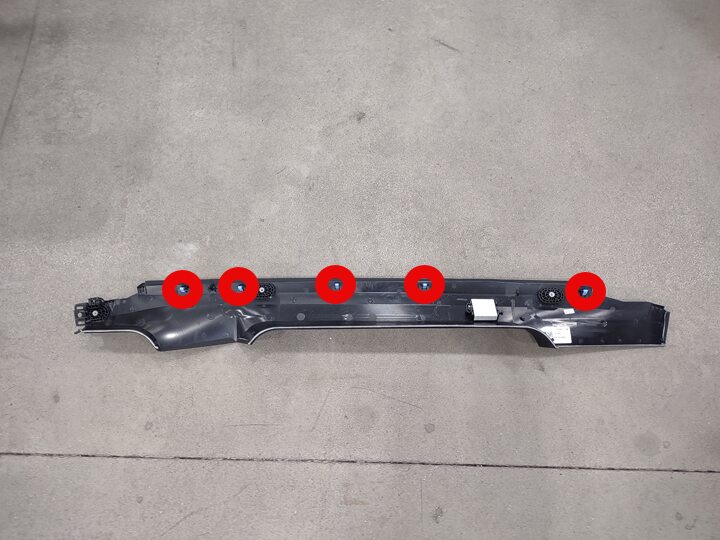

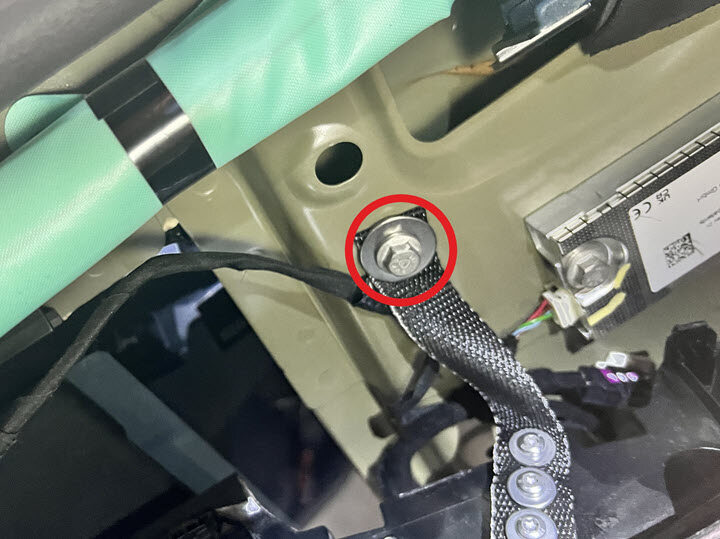

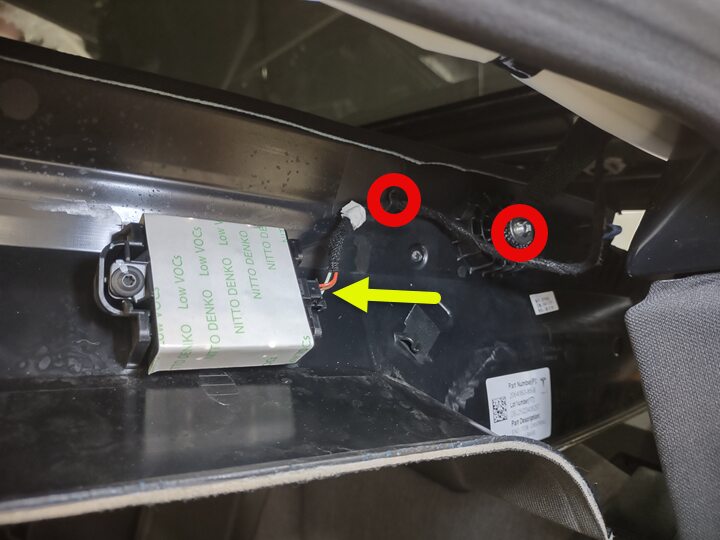

    5x clips, 1x connector, 1x tab, 3x bolts, T30, 6 Nm, Release clips then allow cantrail to hang from tethers for access to fasteners
  11. Remove LH spot lamp
    Informational PurposesAn informational icon, calling your attention
    Note

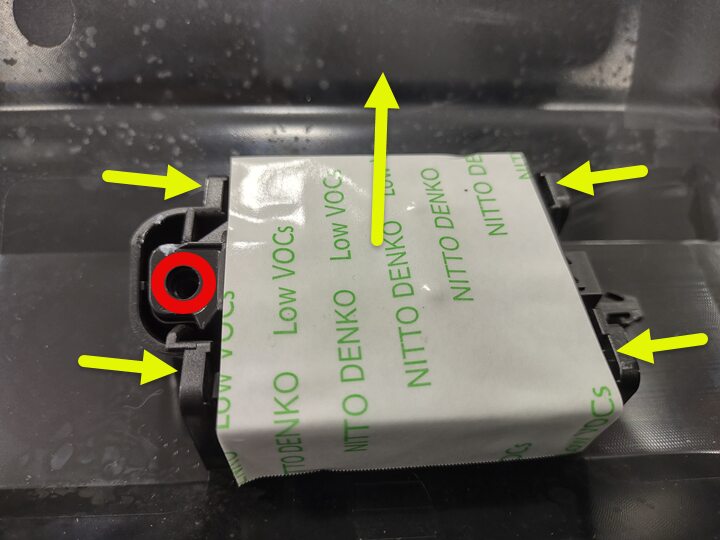

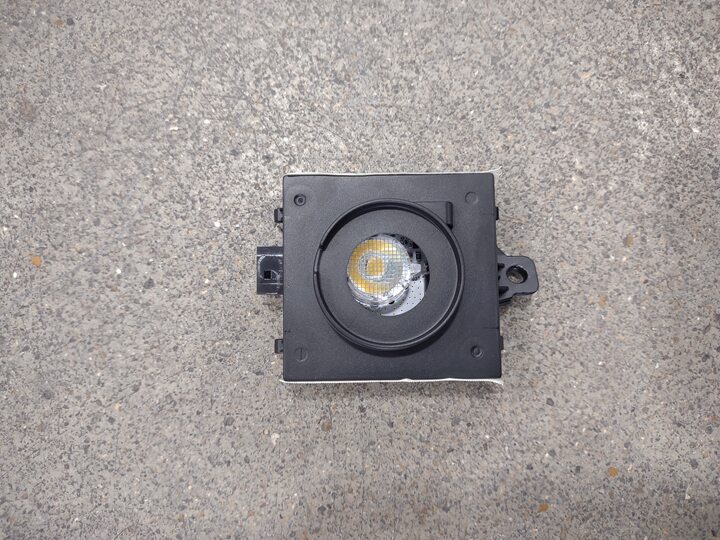

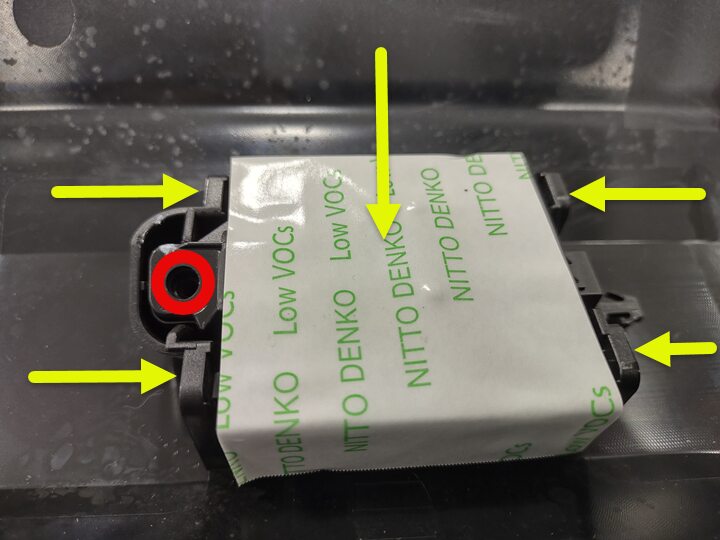

    1x screws, T15, 1 Nm, 4x tabs, Release spot lamp upwards from cantrail trim
  12. Install LH spot lamp
    Informational PurposesAn informational icon, calling your attention
    Note
    1x screw, T15, 1 Nm, 4x tabs, Install spot lamp onto cantrail trim, Ensure all 4 tabs engage
  13. Install LH cantrail panel
    Informational PurposesAn informational icon, calling your attention
    Note
    5x clips, 1x connector, 3x bolts, T30, 6 Nm, Secure tethers then secure clips
  14. Install rear header trim
    Informational PurposesAn informational icon, calling your attention
    Note
    12x clips, 3x datums, Replace any missing or damaged clips
  15. Install LH upper A-pillar panel
    Informational PurposesAn informational icon, calling your attention
    Note
    8x clips, 1x tether clip, 1x edge clip, 1x connector, 1x bolt, 10mm, 6 Nm, Ensure tethers are correctly oriented, Replace any missing or damaged clips, Remove tape as needed
  16. Install LH mid A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip, 3x tabs, Replace any missing or damaged clips
  17. Install front header trim
    Informational PurposesAn informational icon, calling your attention
    Note
    19x clips, 1x magnet, 1x connector, 1x harness clip
  18. Raise LH rear window
  19. Close LH rear door
  20. Raise LH front window
  21. Close LH front door
