Bed Light - LH (Long Range) (Remove and Install)

Correction code NEW NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
  • 2025-05-01: Released new procedure.
  1. Open tailgate
    Informational PurposesAn informational icon, calling your attention
    Note
    Press button to release

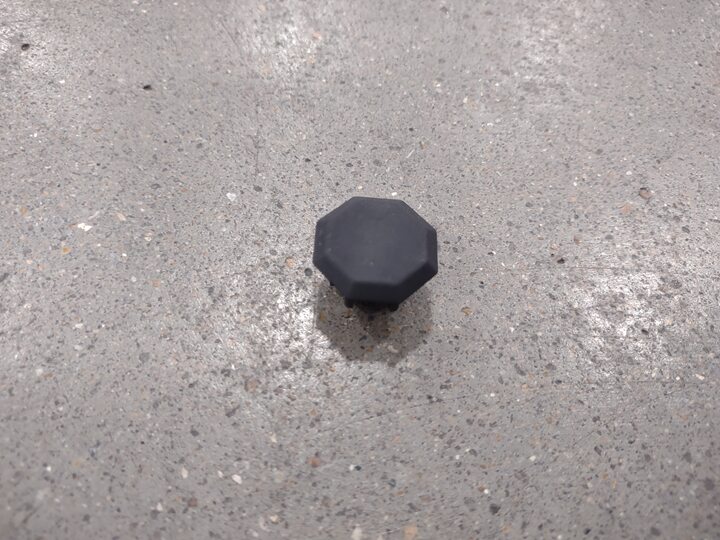

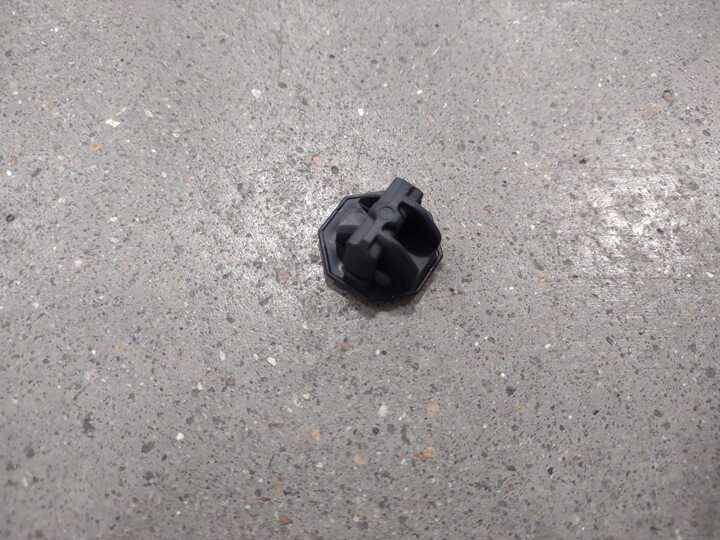

  2. Remove fastener covers from bed floor assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    14x covers
  3. Remove bed floor assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    10x short bolts, 15mm, 56 Nm, 2x long bolts, 15mm, 46Nm, Lift front edge with trim tool then remove panel, Recommend assistance

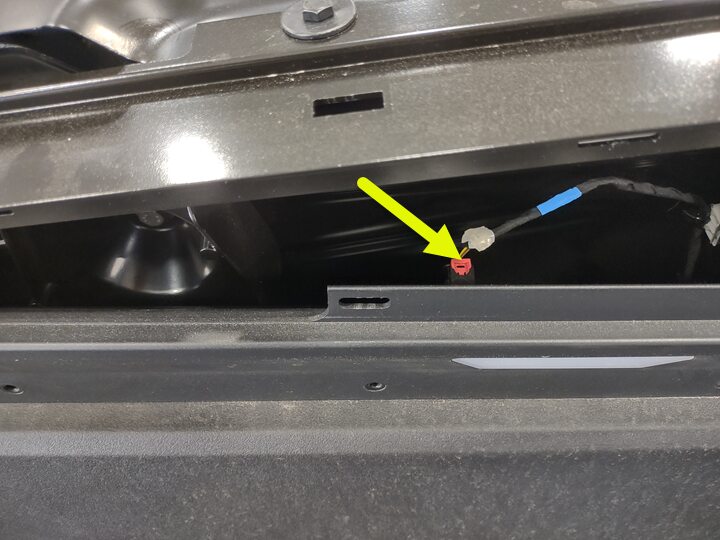

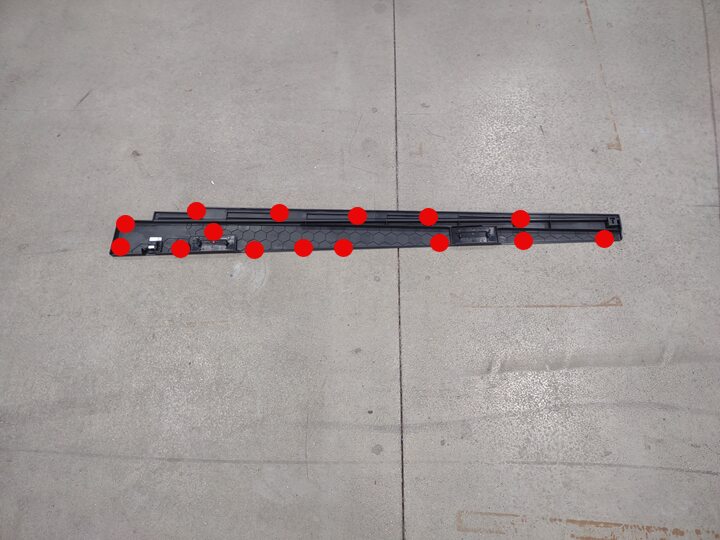

  4. Remove LH sail applique
    Informational PurposesAn informational icon, calling your attention
    Note
    15x clips, 1x connector, 1x harness clip, Lift rear edge first to remove connector and harness clip

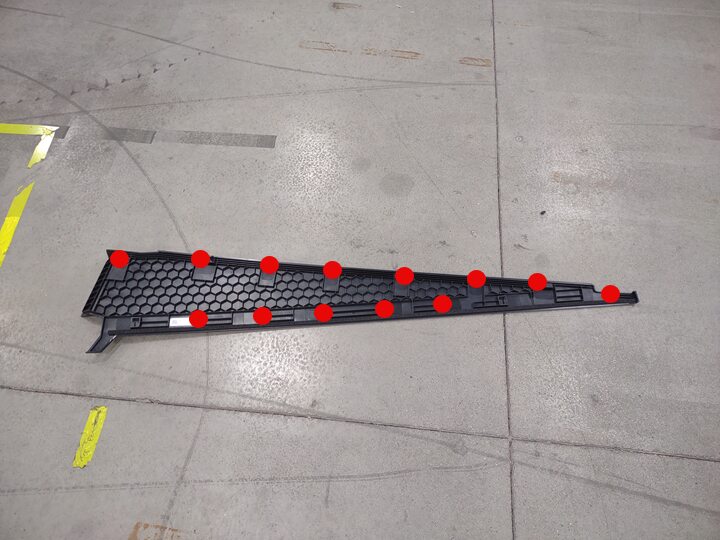

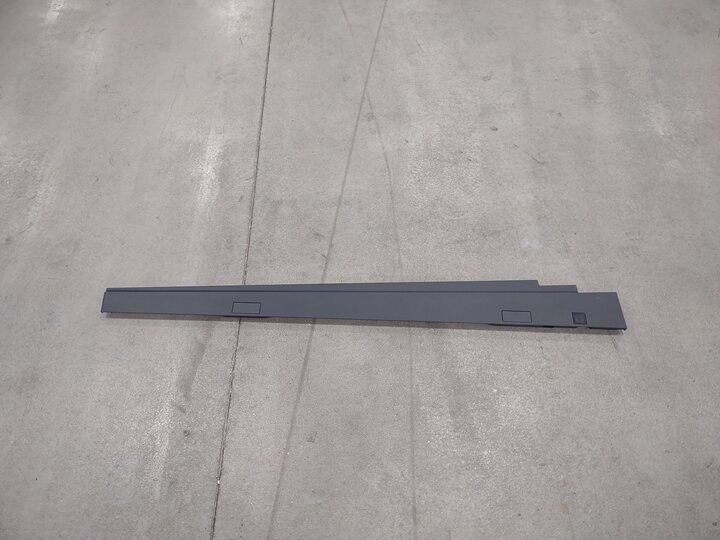

  5. Remove LH upper bed side wall assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    13x clips, Start from rear, Pull from the bottom downwards

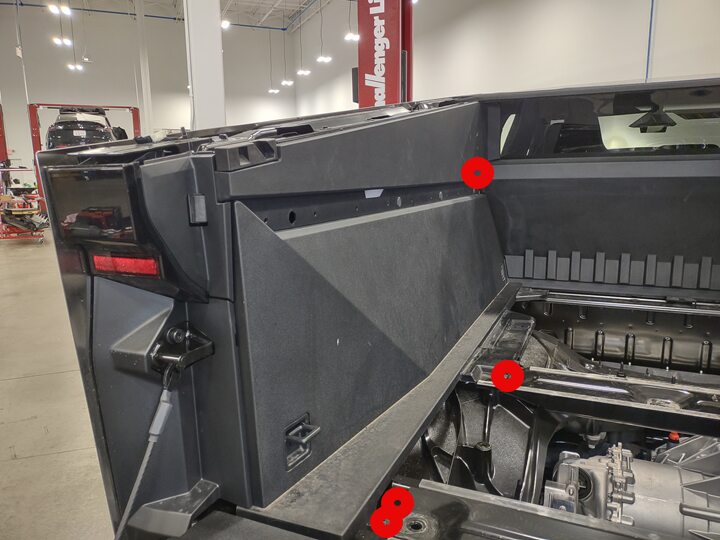

  6. Remove LH bed closeout panel
    Informational PurposesAn informational icon, calling your attention
    Note
    6x clips, 1x tab, Release LH tailgate cable by disengaging lock spring from bolt and sliding cable eyelet off to allow removal of bed closeout panel from vehicle

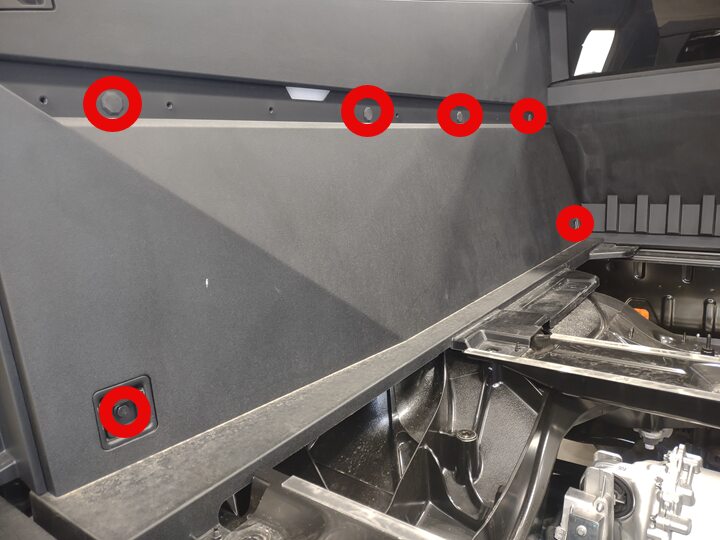

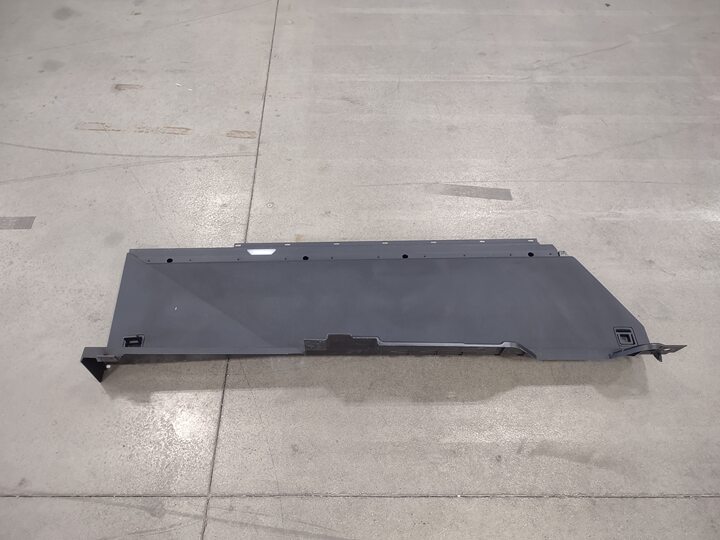

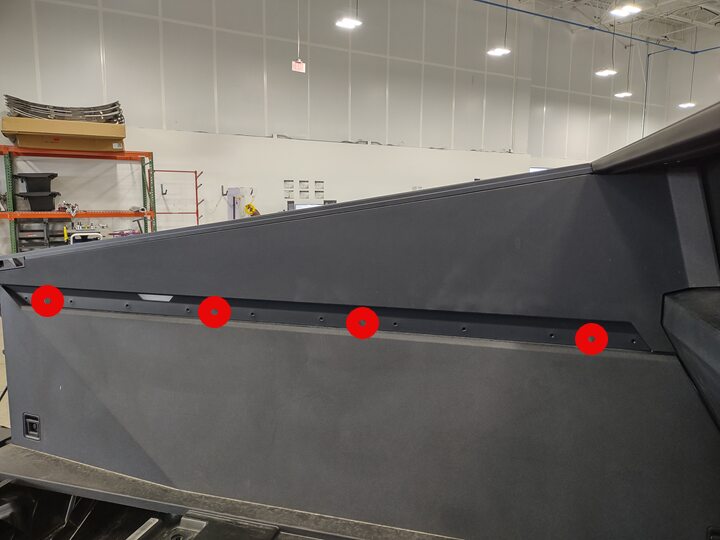

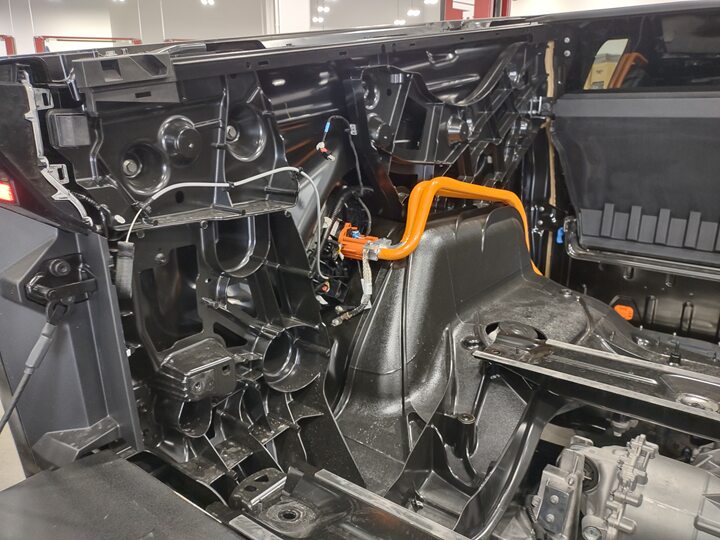

  7. Remove LH lower bed side wall
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolt, 15mm, 25 Nm, 4x bolts, 10mm, 11 Nm, 4x nuts, 10mm, 10 Nm, 1x connector, 4x L track fastener covers

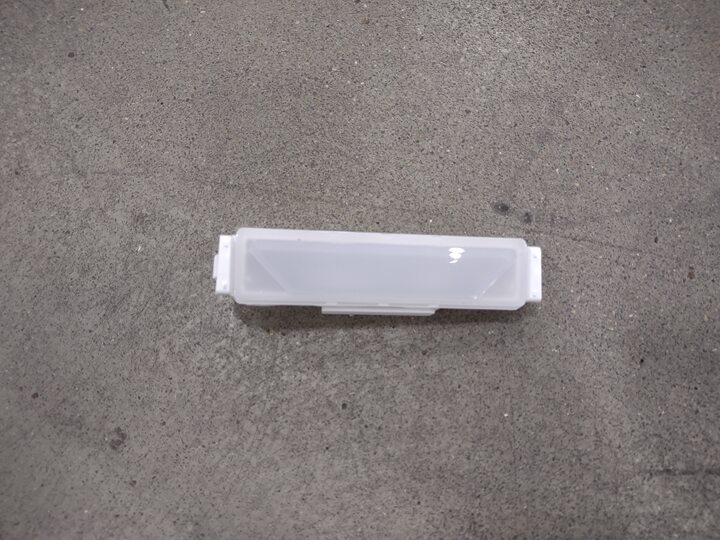

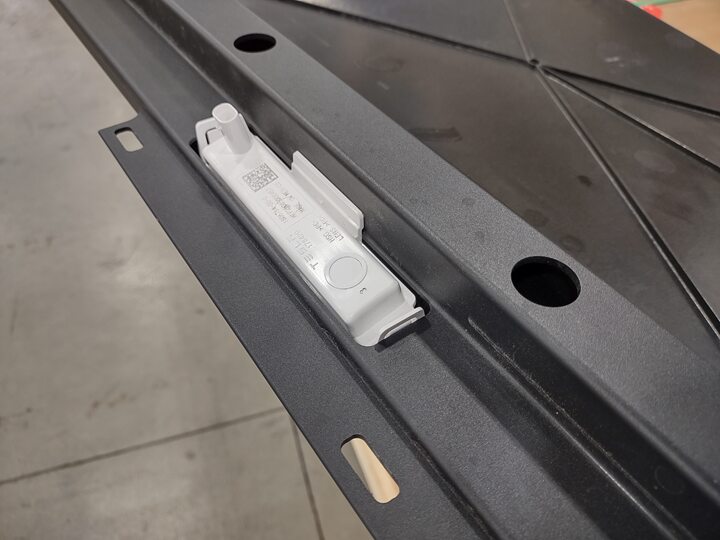

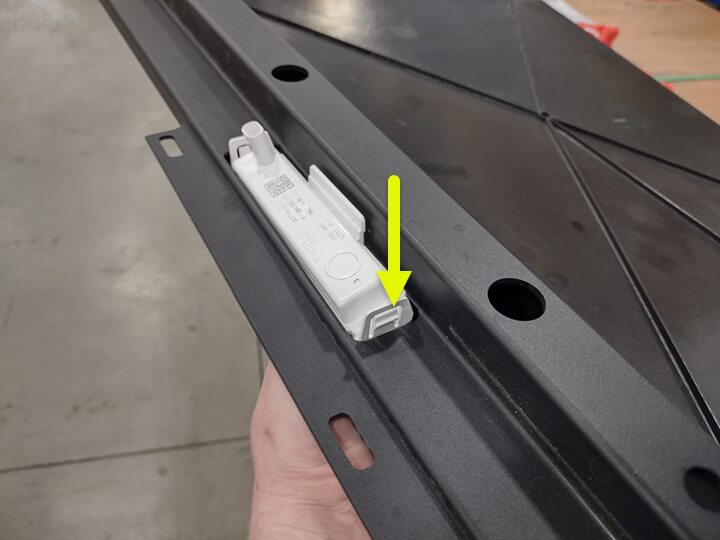

  8. Remove LH bed light
    Informational PurposesAn informational icon, calling your attention
    Note

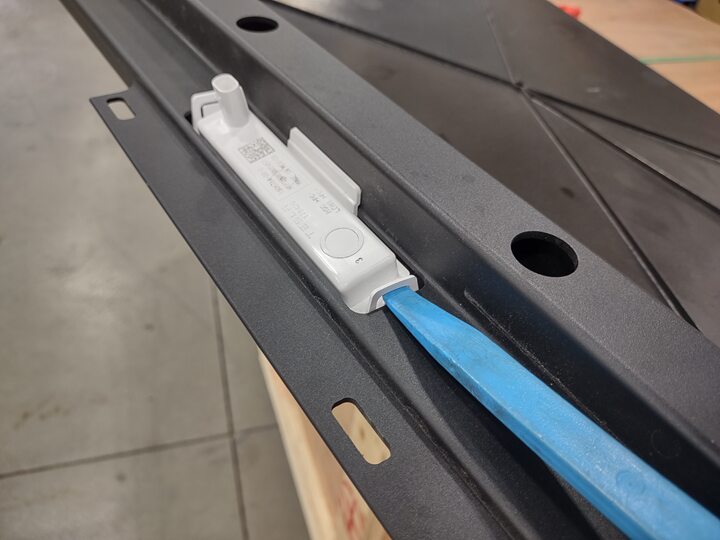

    2x tabs, Release tab and lift upwards
  9. Install LH bed light
    Informational PurposesAn informational icon, calling your attention
    Note
    2x tabs, Place lamp and push downward, Ensure both tabs engage
  10. Install LH lower bed side wall
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolt, 15mm, 25 Nm, 4x bolts, 10mm, 11 Nm, 4x nuts, 10mm, 10 Nm, 1x connector, 4x L track fastener covers
  11. Install LH bed closeout panel
    Informational PurposesAn informational icon, calling your attention
    Note
    6x clips, 1x tab, Secure LH tailgate cable once closeout installed
  12. Install LH upper bed side wall assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    13x clips, Replace any missing or damaged clips, Lift tonneau seal as required
  13. Install LH sail applique
    Informational PurposesAn informational icon, calling your attention
    Note
    15x clips, 1x connector, 1x harness clip, Replace any broken clips
  14. Install bed floor assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    10x short bolts, 15mm, 56 Nm, 2x long bolts, 15mm, 46Nm, Recommend assistance
  15. Install fastener covers onto bed floor assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    14x covers
  16. Close tailgate
