Breather Housing - Rear Drive Unit (Long Range) (Remove and Install)

Correction code 40011000501, 40011000502 0.48 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.
  • 2025-06-21: Released new procedure.
  1. Open tailgate
    Note
    Press button to release
  2. Remove fastener covers from bed floor assembly
    Note
    14x covers
  3. Remove bed floor assembly
    Note
    10x short bolts, 15mm, 56 Nm, 2x long bolts, 15mm, 46Nm, Lift front edge with trim tool then remove panel, Recommend assistance

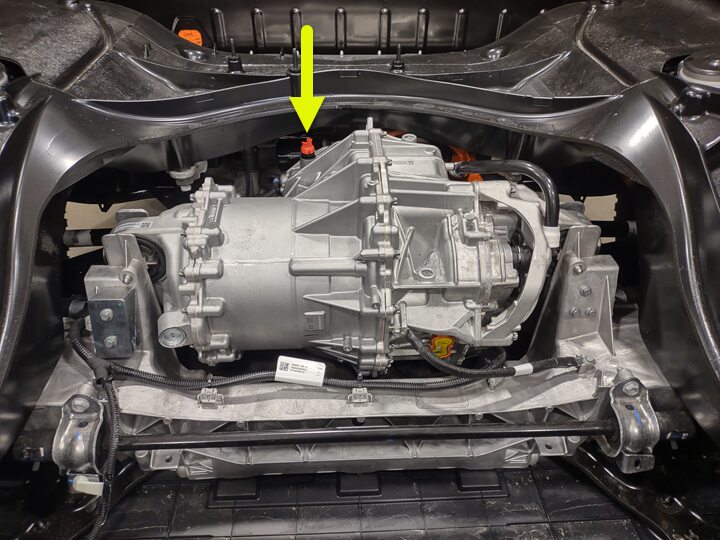

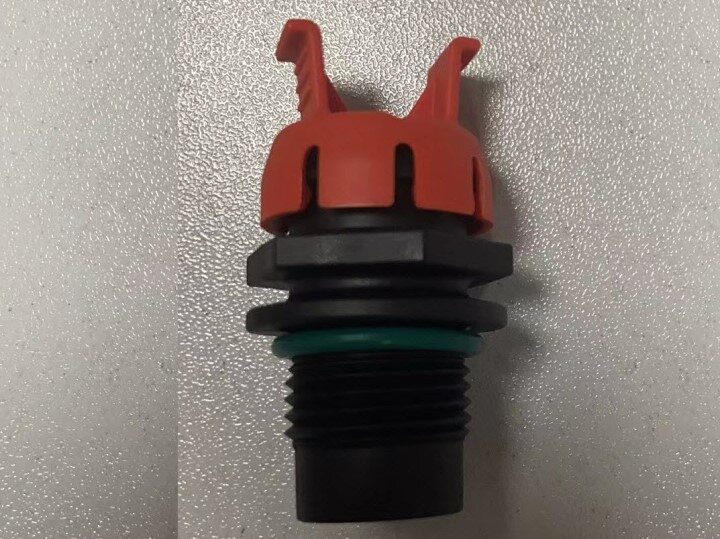

  4. Remove RDU breather housing
    Note
    1x breather, 24mm, 5 Nm
  5. Install RDU breather housing
    Note
    1x breather, 24mm, 5 Nm
  6. Install bed floor assembly
    Note
    10x short bolts, 15mm, 56 Nm, 2x long bolts, 15mm, 46Nm, Recommend assistance
  7. Install fastener covers onto bed floor assembly
    Note
    14x covers
  8. Close tailgate
