Tailgate Torsion Rod (Remove and Install)

Correction code 1133116111, 1133116112 0.48 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-08-07: Added note in install for proper torque sequence.
  • 2025-06-04: Added steps for bracket/alignment bolts.
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Open the tailgate.
  3. Close the tonneau cover.
  4. Remove the tailgate assembly from the vehicle. See Tailgate Assembly (Remove and Install).
  5. Remove the tailgate inner cover. See Cover - Inner - Tailgate (Remove and Install).
  6. Loosen the bolt that secures the tailgate torsion rod to the tailgate assembly, but do not remove the bolt from the assembly.
    Tip
    Use of the following tool(s) is recommended:
    • 13 mm socket

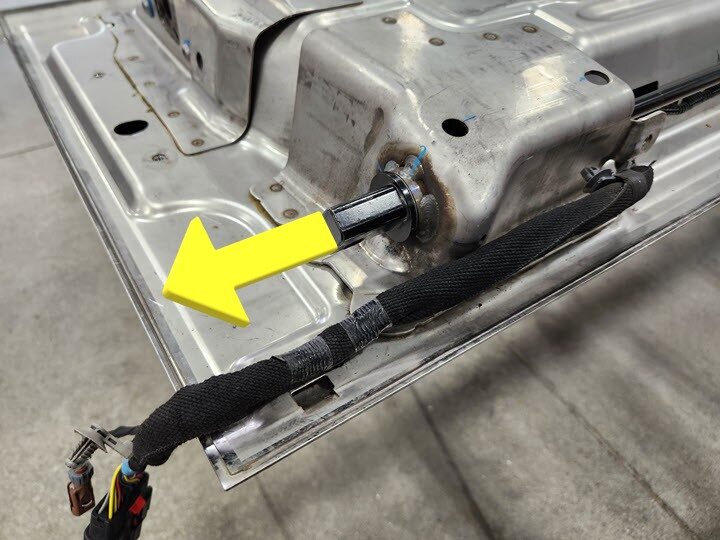

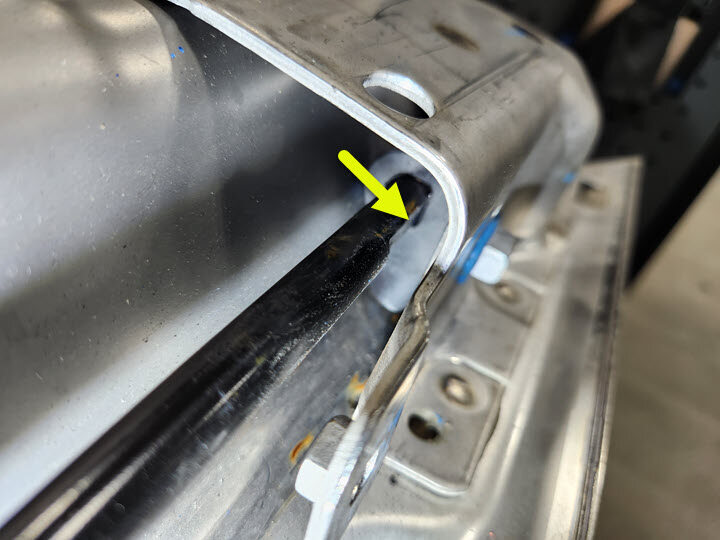

  7. Remove the tailgate torsion rod from the tailgate assembly.
    Note
    Note the orientation of the flat edge on the torsion rod.

Install

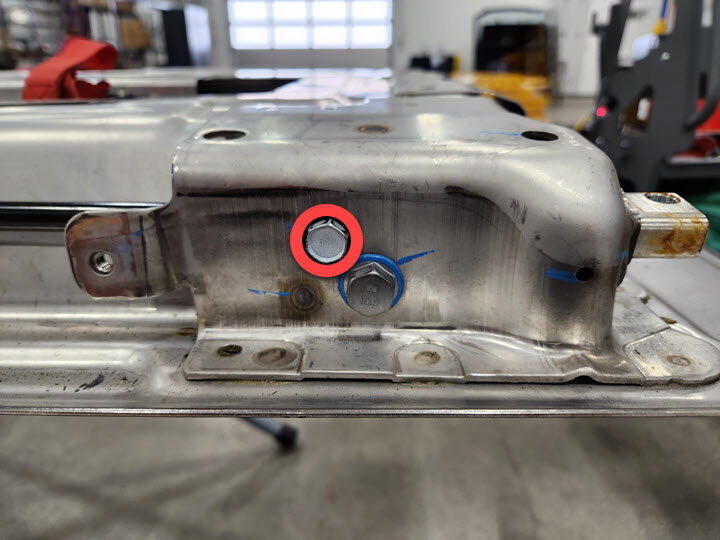

  1. Torque the bolt that secures the tailgate torsion rod bracket to the tailgate assembly.
    55 Nm (40.6 lbs-ft)
    Note
    The bracket bolt must be torqued down to ensure proper torsion rod alignment.
    Note
    Do not remove the bolt.
    Tip
    Use of the following tool(s) is recommended:
    • 15 mm socket

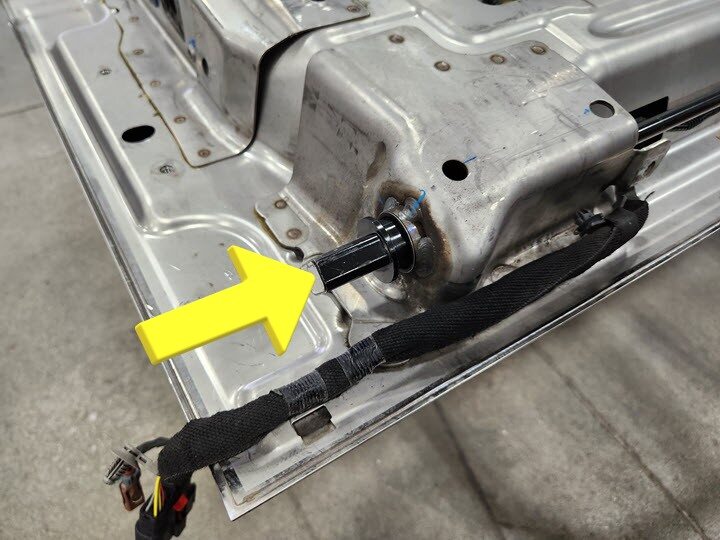

  2. Install the tailgate torsion rod into the tailgate assembly.
    Note
    Make sure the flat edge is in the correct orientation, and then gently tap the rod with a hammer until it is in position.

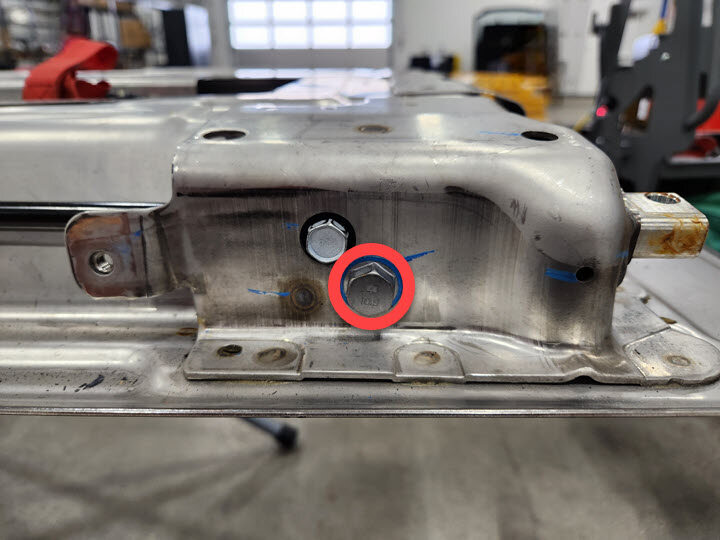

  3. Torque the bolt that secures the tailgate torsion rod to the tailgate assembly.
    80 Nm (59.0 lbs-ft)
    CAUTION
    Make sure the torsion rod bracket bolt (step 1) is torqued before tightening this fastener. The bracket bolt must be torqued down to ensure proper torsion rod alignment.
    Tip
    Use of the following tool(s) is recommended:
    • 13 mm socket
  4. Install the tailgate assembly into the vehicle. See Tailgate Assembly (Remove and Install).
  5. Close the tonneau cover.
  6. Close the tailgate.
  7. Raise the LH front window and close the LH front door.
