Harness - Seat - 1st Row - RH (Remove and Replace)

Correction code 1710091012 1710091011 0.84 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. See Ergonomic Precautions for safe and healthy working practices.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
Cybertruck electronics are powered by a 48V "mid voltage" or "MV" architecture that is designed to improve efficiency. Servicing MV components requires extra knowledge and care in order to avoid personal and/or vehicular harm. Read and understand MV precautions in Electrical Precautions and make sure any required MV-related training courses have been completed, as applicable.
  • 2025-08-07: Released new procedure.
  1. Remove the RH 1st row seat assembly from the vehicle, and then place the seat on a protected surface. See Seat Assembly - 1st Row - RH (Remove and Install).
    Informational PurposesAn informational icon, calling your attention
    Note
    Recommended assistance. Position so that the underside of the seat is accessible.
  2. Remove the RH 1st row seat outboard side shield. See Side Shield - Outboard - 1st Row Seat - LH (Remove and Install).

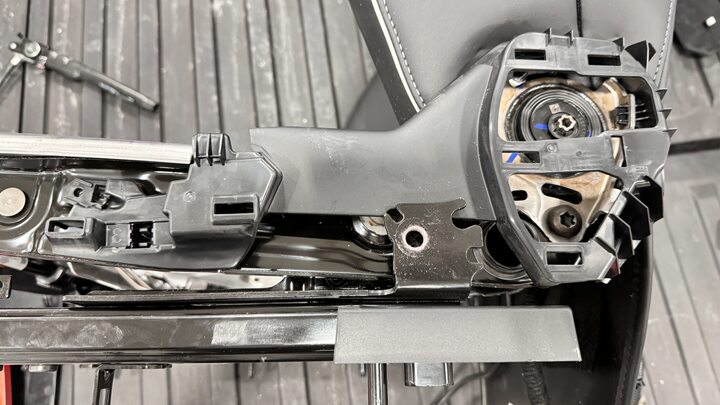

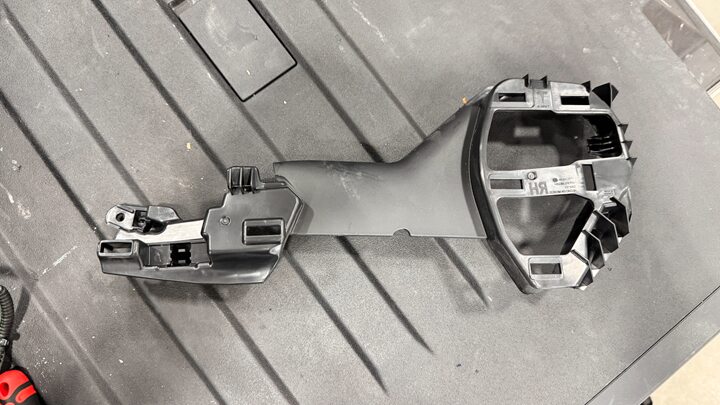

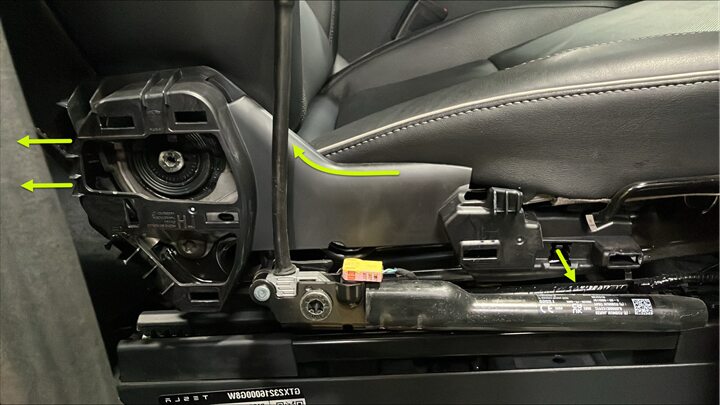

  3. Remove RH front seat outboard side shield carrier
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips, 2x tabs, Release leading edge of trim and slide away from seat frame
  4. Remove the RH 1st row seat inboard side shield. See Side Shield - Inboard - 1st Row Seat - LH (Remove and Install).

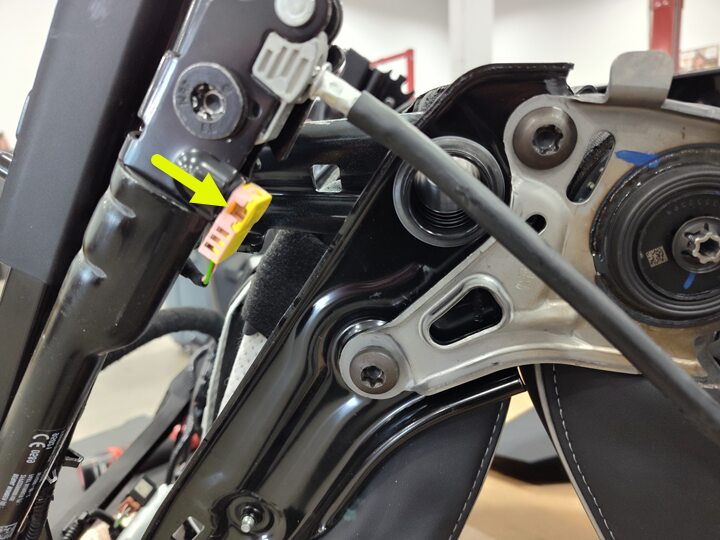

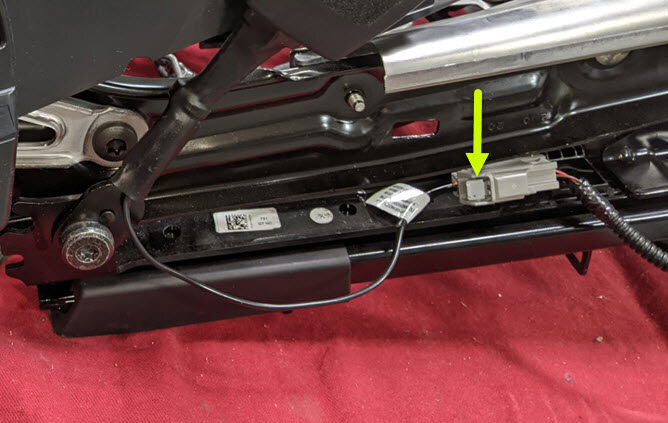

  5. Disconnect RH front seat buckle harness
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector

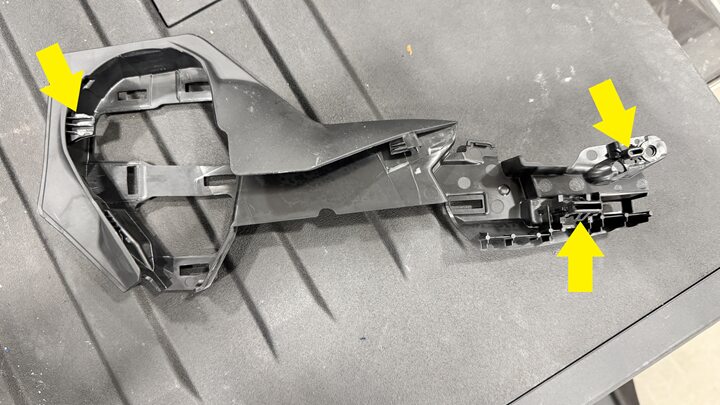

  6. Remove RH front seat inboard side shield carrier
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips, 1x datums, Release leading edge of trim and slide away from seat frame
  7. Release seat back elastic straps from seat frame
    Informational PurposesAn informational icon, calling your attention
    Note
    2x straps
  8. Unzip RH front seatback trim
    Informational PurposesAn informational icon, calling your attention
    Note
    2x zippers, Pull tails of zippers outside seatback then unzip, Use of a straight pick can aid in moving zipper pulls
  9. Fold RH front seat back trim
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips, Fold material upward
  10. Disconnect RH front seat harness connectors
    Informational PurposesAn informational icon, calling your attention
    Note
    13x connectors
  11. Remove RH front seat harness
    Informational PurposesAn informational icon, calling your attention
    Note
    15x clips
  12. Install RH front seat harness
    Informational PurposesAn informational icon, calling your attention
    Note
    15x clips
  13. Connect RH front seat harness connectors
    Informational PurposesAn informational icon, calling your attention
    Note
    14x connectors
  14. Unfold RH front seat back trim
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips,
  15. Zip RH front seatback trim
    Informational PurposesAn informational icon, calling your attention
    Note
    2x zippers, Zip each side of seatback trim then tuck in tails, Use of a straight pick can aid in moving zipper pulls
  16. Install seat back elastic straps onto seat frame
    Informational PurposesAn informational icon, calling your attention
    Note
    2x straps
  17. Install the RH 1st row seat inboard side shield carrier
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips, 2x tabs, Position leading edge of trim and slide into seat frame
  18. Install the RH 1st row seat inboard side shield. See Side Shield - Inboard - 1st Row Seat - LH (Remove and Install).
  19. Connect RH front seat buckle
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  20. Install RH side shield carrier onto RH front seat
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips, 2x tabs, Slide forward onto seat frame aligning clips and tabs
  21. Install the RH 1st row seat outboard side shield. See Side Shield - Outboard - 1st Row Seat - LH (Remove and Install).
  22. Install the RH 1st row seat assembly. See Seat Assembly - 1st Row - RH (Remove and Install).
