Brake Hose - Rear - LH (Remove and Replace)

Correction code 3303020302 3303020502 0.78 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
  • 2025-06-09: Released new procedure.
  1. Open the LH front door and lower the LH front window.
  2. Raise and support the vehicle. See Raise Vehicle - 2 Post Lift.
  3. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Install).
  4. Connect to the vehicle using Toolbox 3. See Toolbox 3 (Connect and Disconnect).
  5. Select "Actions" and search for "EPB"
  6. Select PROC_EPBL_START-SERVICE-MODE, click 'Run', and allow routine to complete
    Informational PurposesAn informational icon, calling your attention
    Note
    Chock wheel if necessary, Select ‘X’ at top right of window to close once complete
  7. Remove the LH rear wheel. See Wheel Assembly (Remove and Install).
  8. Remove the LH rear wheel liner. See Wheel Liner - Rear - LH (Remove and Install)
  9. Position oil drain under LH rear brake caliper

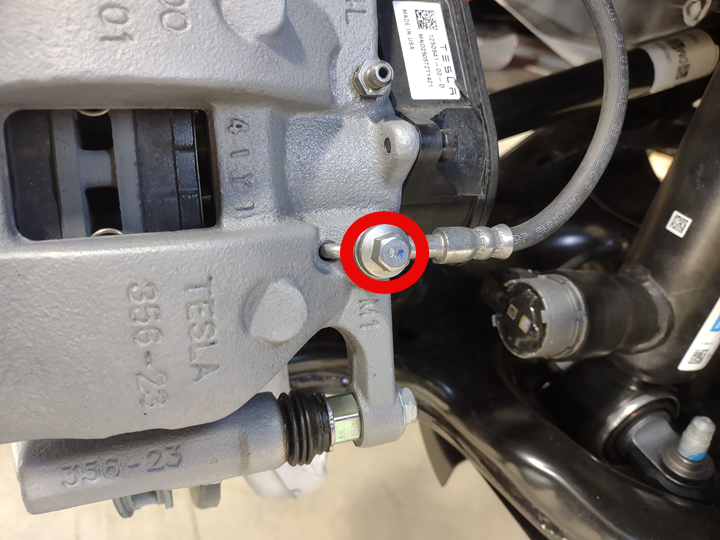

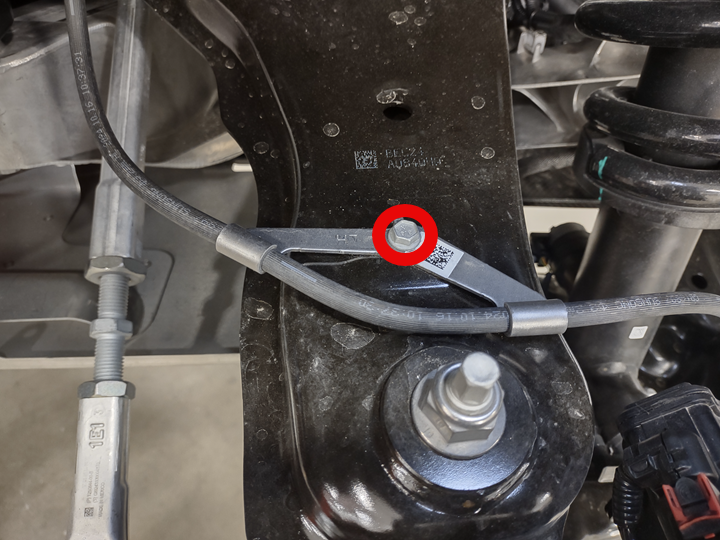

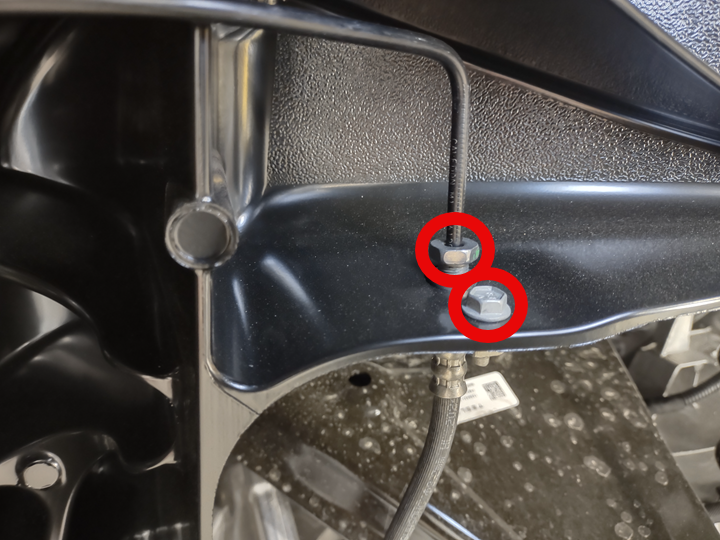

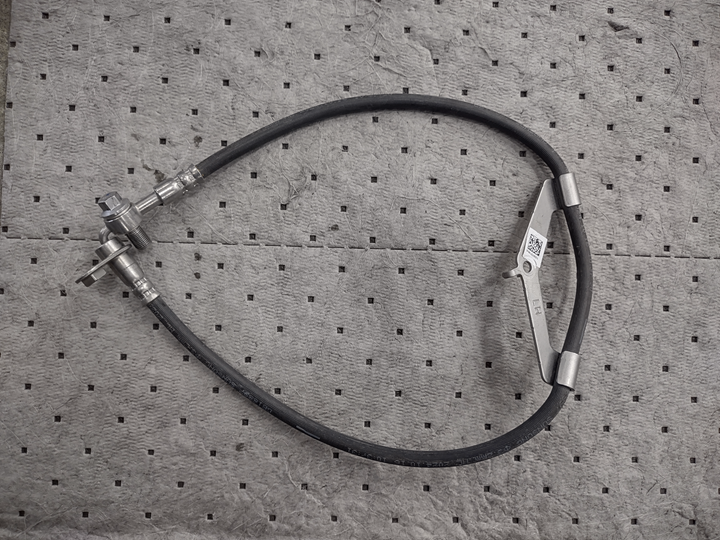

  10. Remove LH rear brake hose
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 11mm, 42 Nm, 1x bolt, 10mm, 10 Nm, 1x flare nut, 14mm, 16 Nm
  11. Install LH rear brake hose
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 11mm, 42 Nm, 1x bolt, 10mm, 10 Nm, 1x flare nut, 14mm, 16 Nm
  12. Remove oil drain from underneath vehicle
  13. Install the LH rear wheel liner. See Wheel Liner - Rear - LH (Remove and Install).
  14. Hold brake pedal and select park on UI to disable EPB service mode
  15. Bleed the LH rear brake using Toolbox 3. See Brake Fluid Bleed - One Caliper.
  16. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Install).
  17. Install the LH rear wheel. See Wheel Assembly (Remove and Install).
  18. Remove the vehicle from the lift. See Raise Vehicle - 2 Post Lift.
  19. Raise the LH front window and close the LH front door.
