Stone Guard (Remove and Replace)

Correction code 18200332 FRT 1.14 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. See Ergonomic Precautions for safe and healthy working practices.

  • 2025-12-29: Released new procedure.

Remove

  1. Remove the cooling fan module assembly. See Module - Cooling Fan (Remove and Install).
  2. Release the locking tabs (x14) that attach the active grille shutter to the cooling fan and shroud assembly, and then remove the active grille shutter.
  3. Release the locking tabs (x4) that attach the radiator to the fan and shroud assembly, and then slide the radiator out of the holding mounts.

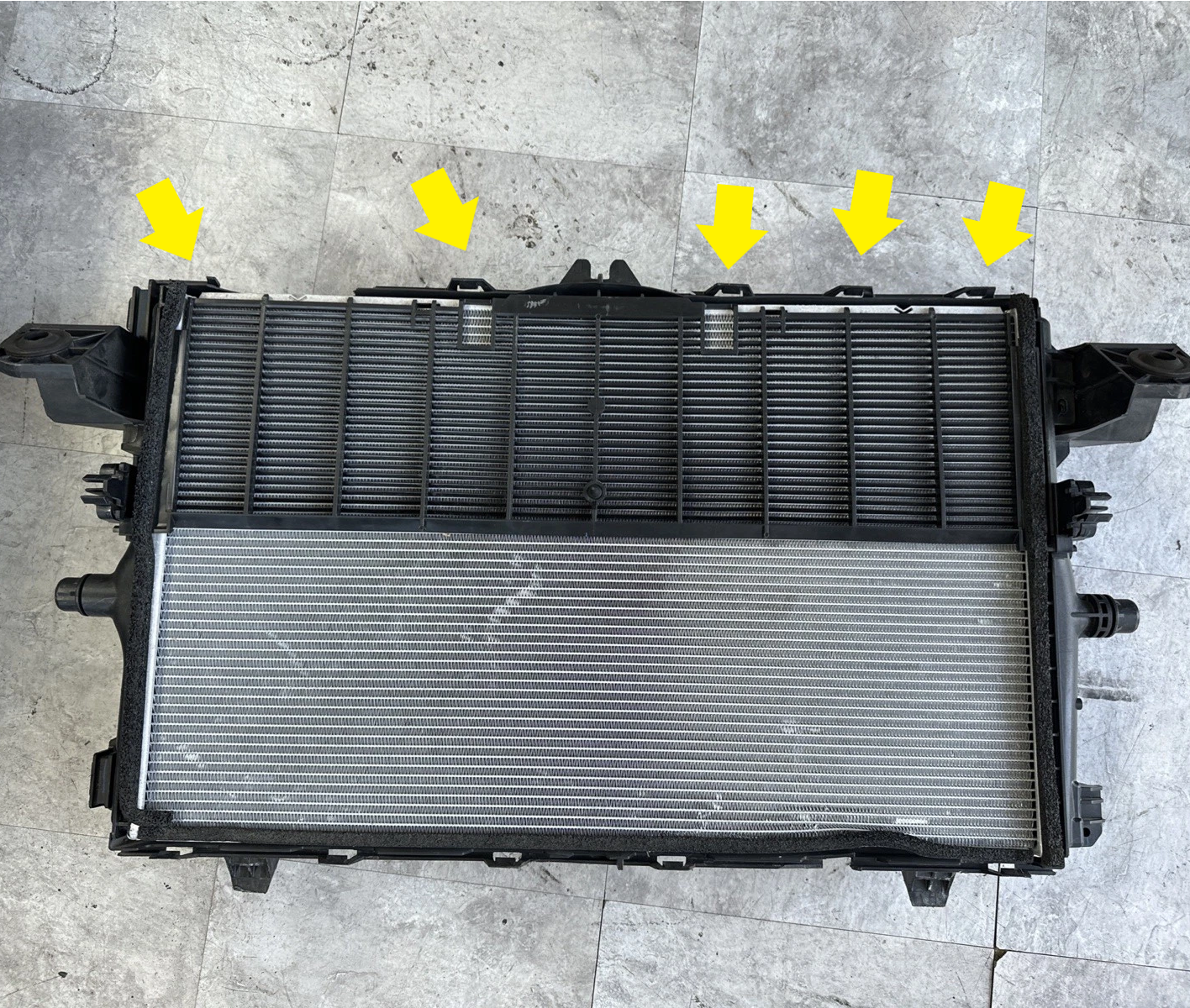

  4. Release the clips that attach the stone guard to the radiator, and then slide the stone guard out to remove it from the radiator.

Install

  1. Align the tabs of the stone guard with the guide datums, and then install the clips that attach the stone guard to the radiator.
  2. Install the locking tabs (x4) that attach the radiator to the fan and shroud assembly.
  3. Install the active grille shutter onto the cooling fan and shroud assembly, and then fasten the locking tabs that attach the shutter to the assembly.
  4. Install the cooling fan module assembly. See Module - Cooling Fan (Remove and Install).
  5. Perform a cooling system vacuum refill. See Cooling System (Vacuum Refill).
  6. Install the underhood storage unit. See Underhood Storage Unit (Remove and Replace).
