Radar - Cabin (Remove and Replace)

Correction code 17200012 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-07-17: Removed the check base and overhead console removal/installation steps, and added the radar bolt part number.
  • 2025-08-20: Added missing images for overhead console connector and releasing headliner.

Torque Specifications

Table 1. Torque Specifications: Radar - Cabin (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolt that attaches the cabin radar to the body
9 Nm (6.6 lbs-ft)
  • Torx T30 socket
 Replace 1128091-00-B

Remove

  1. Open the LH front door and lower the LH front window.
  2. Rotate both sun visors away from the check bases.

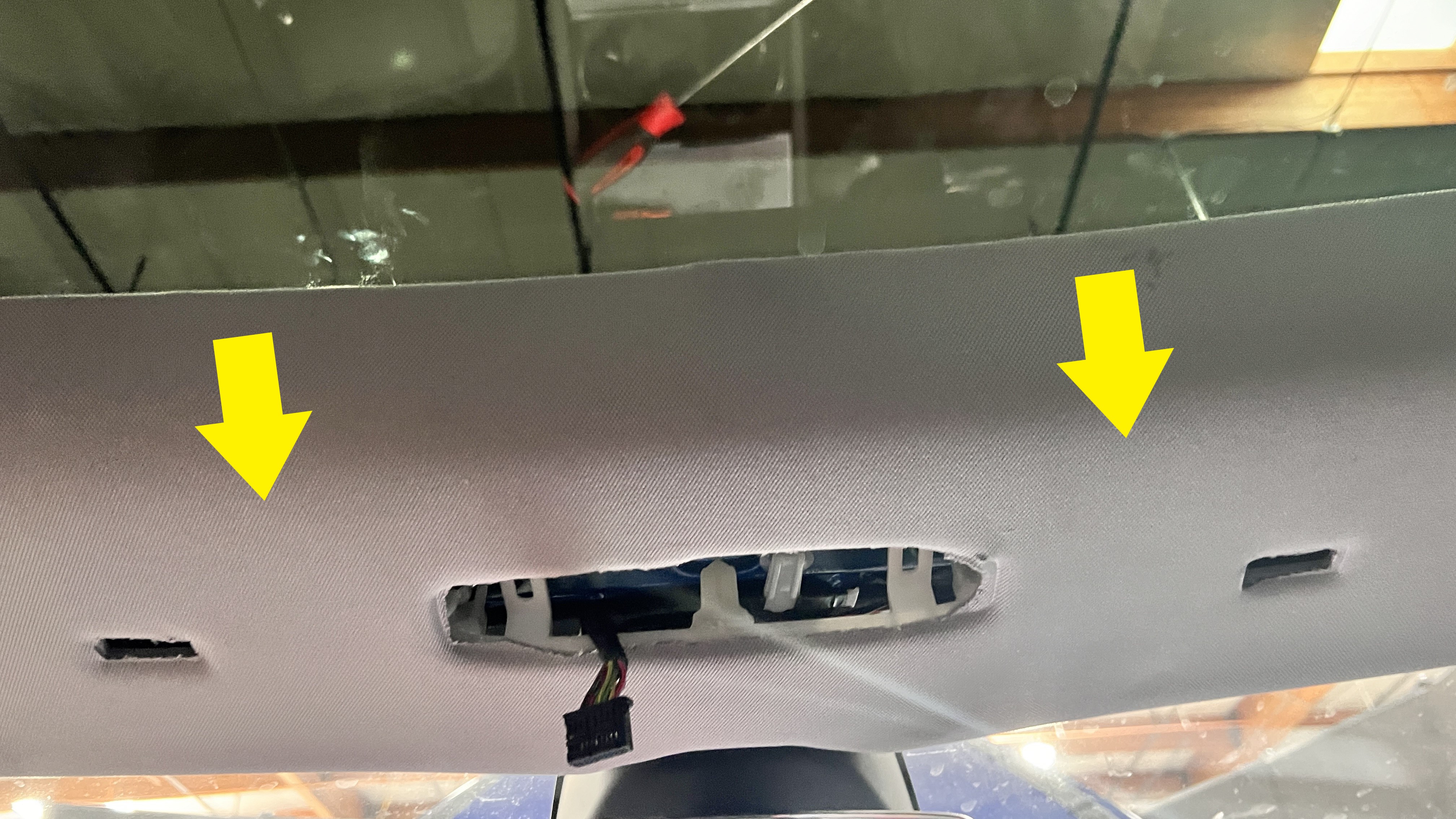

  3. With assistance, pull downwards on the front portion of the headliner to release the clips (x5) from the body.
    Informational PurposesAn informational icon, calling your attention
    Note
    Start to release from the front center. Place shop towels between the headliner and body to gain access.
    Informational PurposesAn informational icon, calling your attention
    Note

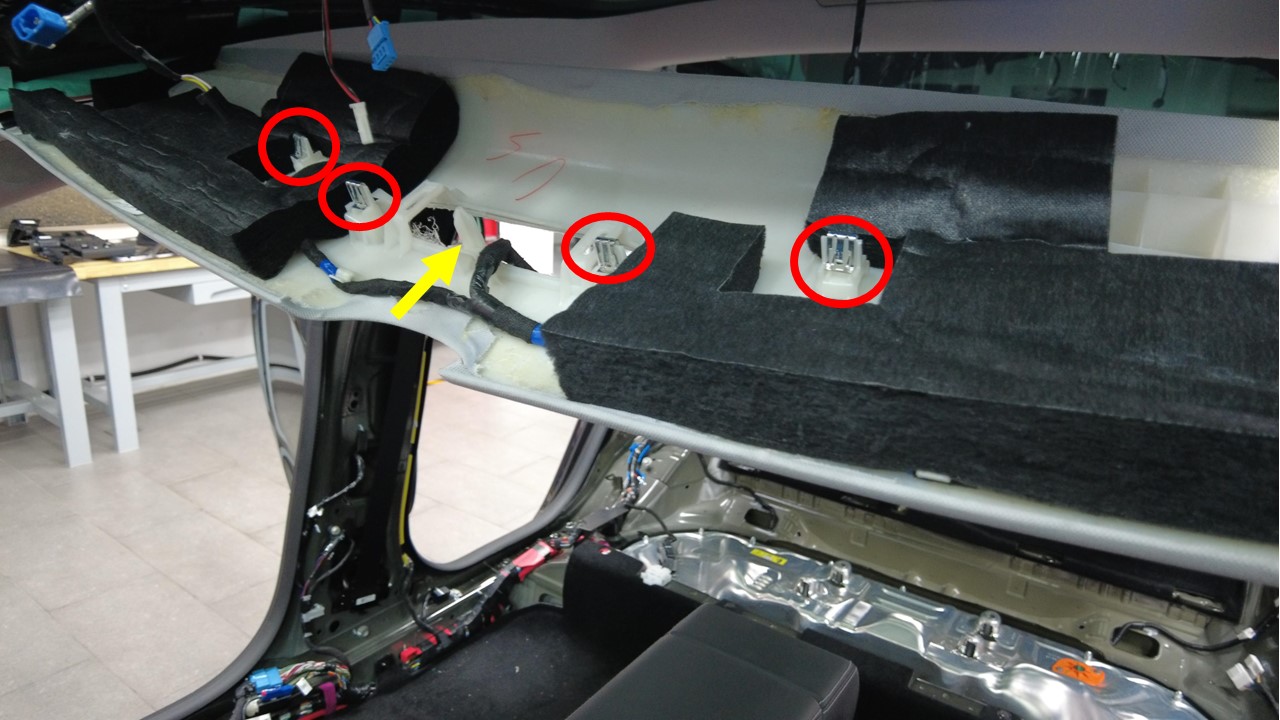

    The headliner is shown removed in the illustration for clarity.

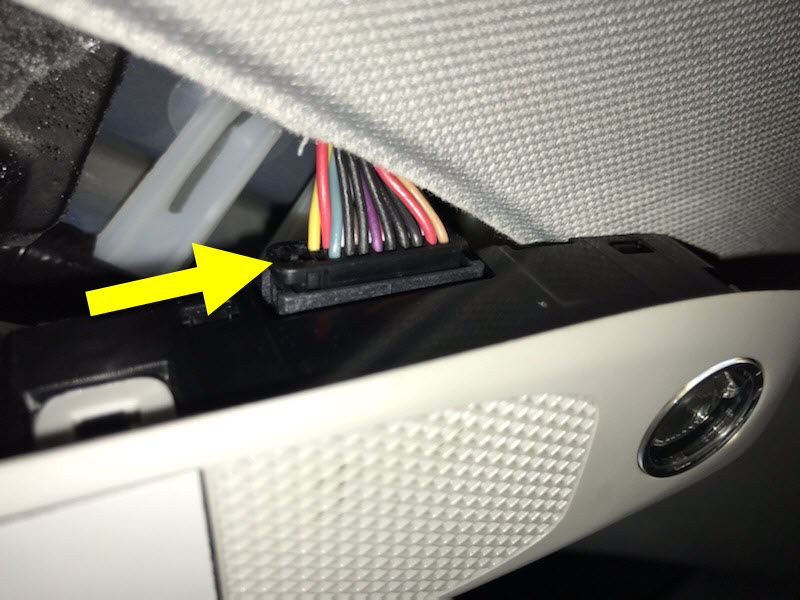

  4. Disconnect the connector from the cabin radar.
  5. Release the bolt that attaches the cabin radar to the body, release the clip (x1) and then remove the cabin radar from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    The bolt is captive inside the radar housing and cannot be removed from the radar assembly.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T30 socket

Install

  1. Clip the cabin radar to the body, and then install a new bolt that attaches the cabin radar to the body.
    9 Nm (6.6 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T30 socket
  2. Connect the connector to the cabin radar.
  3. Secure the front center of the headliner to the body.
  4. Reinstall the firmware. See Software Reinstall - Touchscreen.
  5. Return both sun visors back to their original positions.
  6. Raise the LH front window and close the LH front door.
