Correction code 15300401 15300402 FRT 0.96 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

1. Open all four doors



2. Lower all four windows



3. Open the hood.



4. Remove the rear apron.





5. Release washer fluid reservoir neck from frunk
   Note

   1x bolt, 10mm, 5 Nm, Some vehicles may have a push clip in this location



6. Release washer tank neck from washer tank and set aside
   Note

   1x O-ring, No need to remove hose from neck





7. Remove HEPA filter assembly
   Note

   2x bolts, 10mm, 5 Nm, Pivot rearward edge up and past brake reservoir, Then lift up to clear frunk assembly, Note: Not all Model Y vehicles have a HEPA filter assembly installed

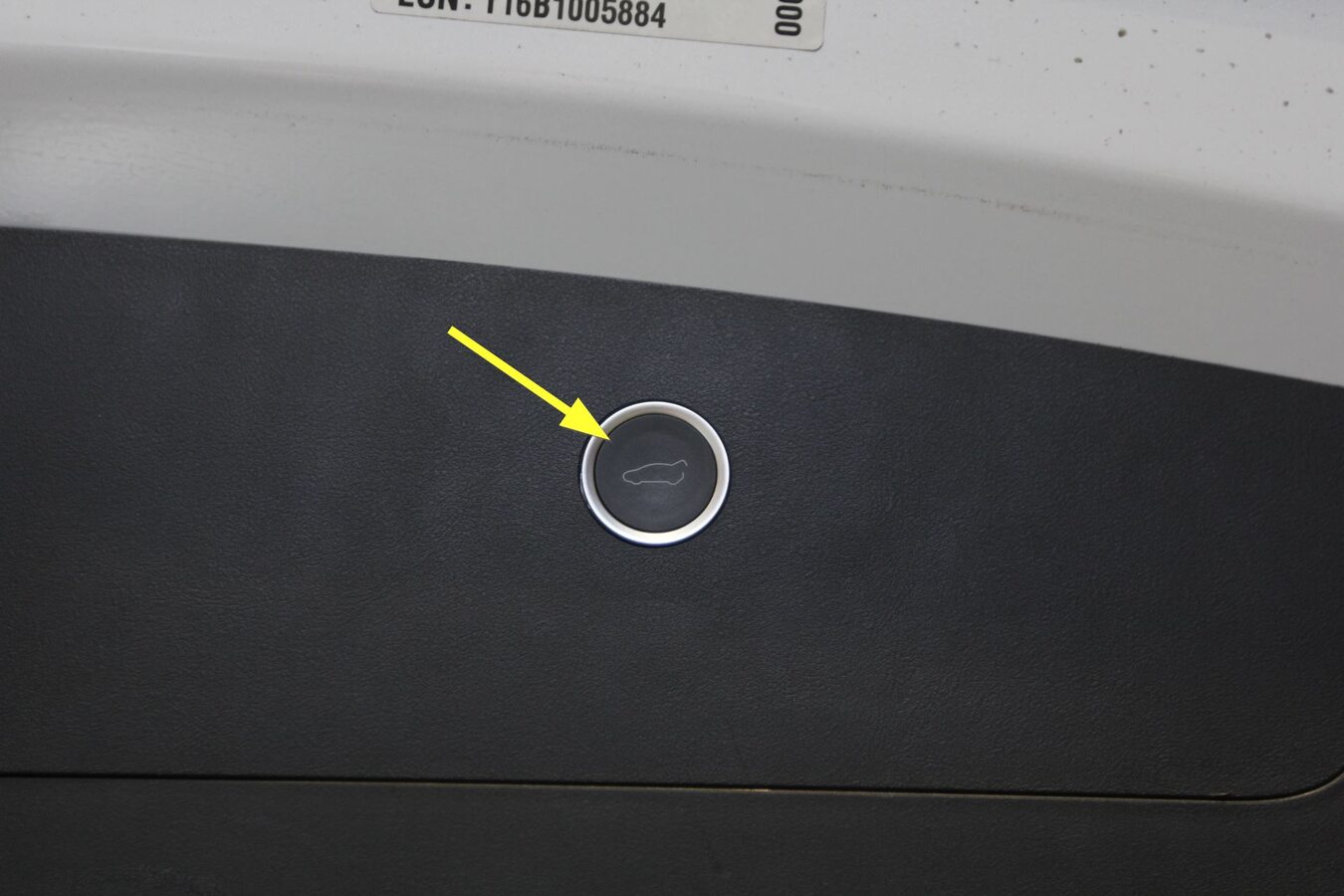

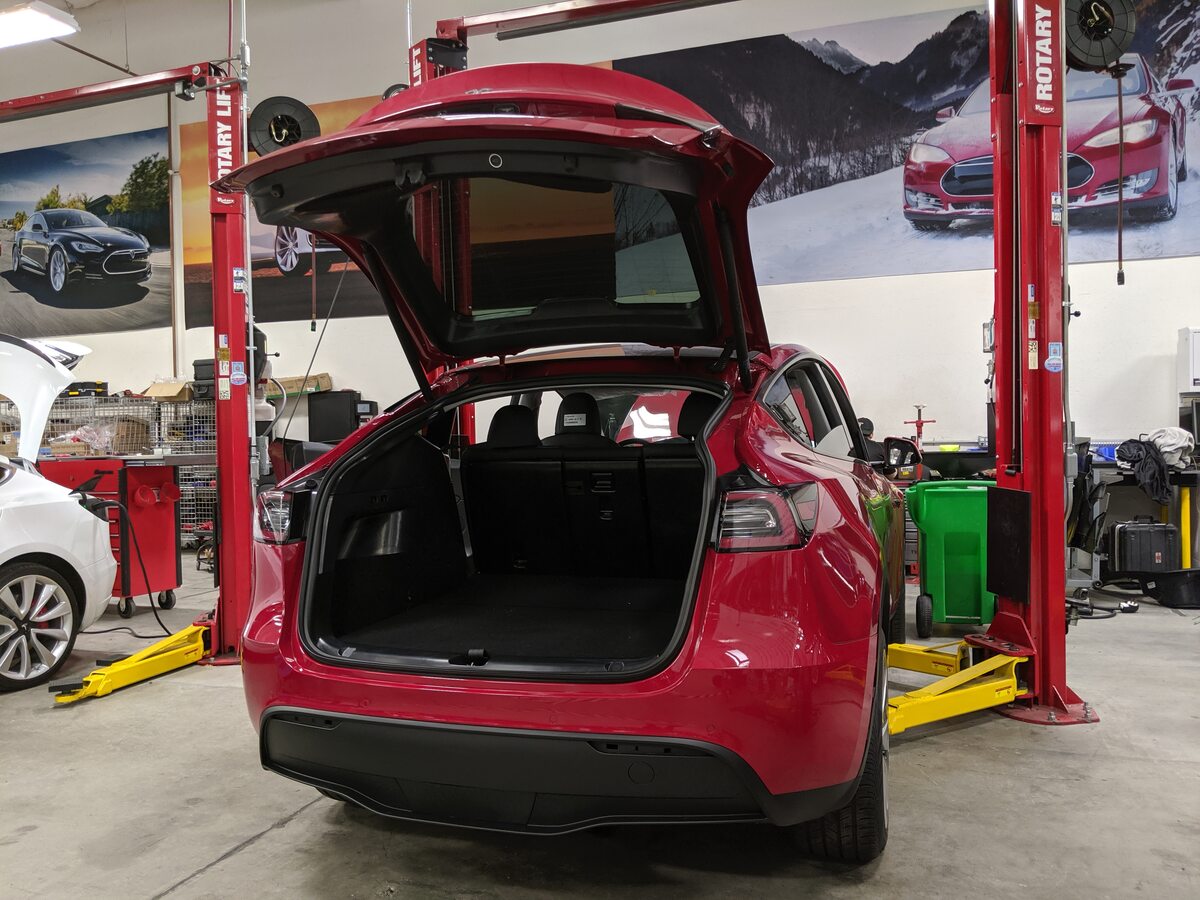

8. Open liftgate



9. Power off vehicle from center display
   Note

   Via Controls > Safety > Power Off, Select Power Off button at warning dialogue box





10. Disconnect the 12V negative battery cable and First Responder Loop.

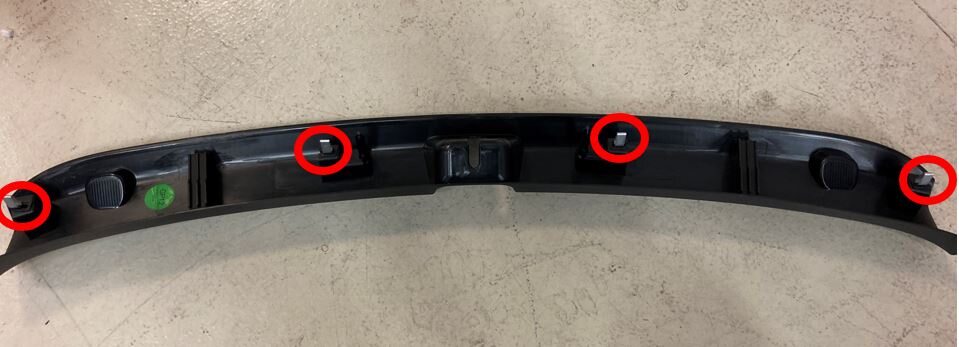

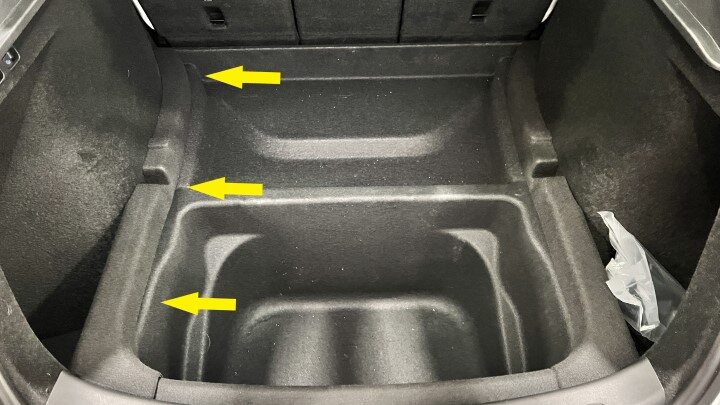

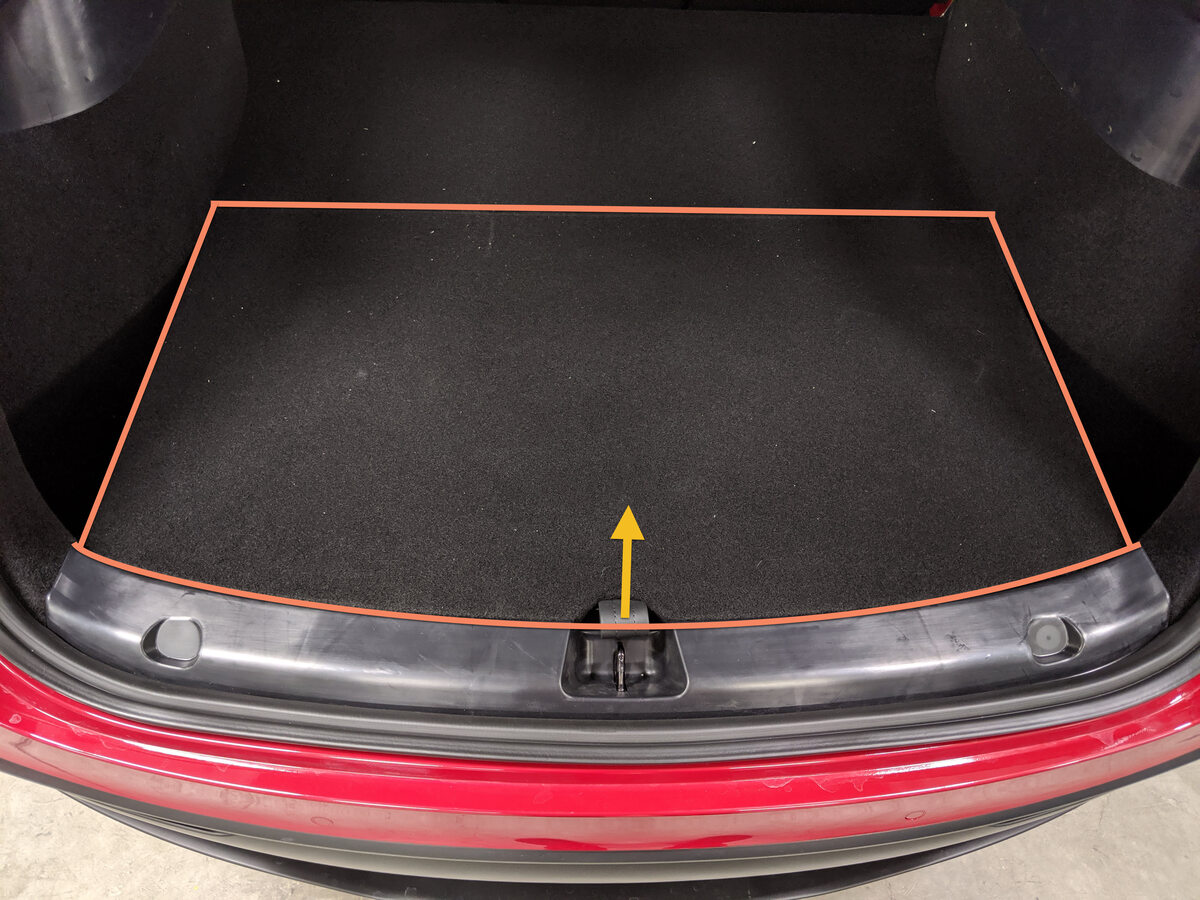

11. Remove rear load floor

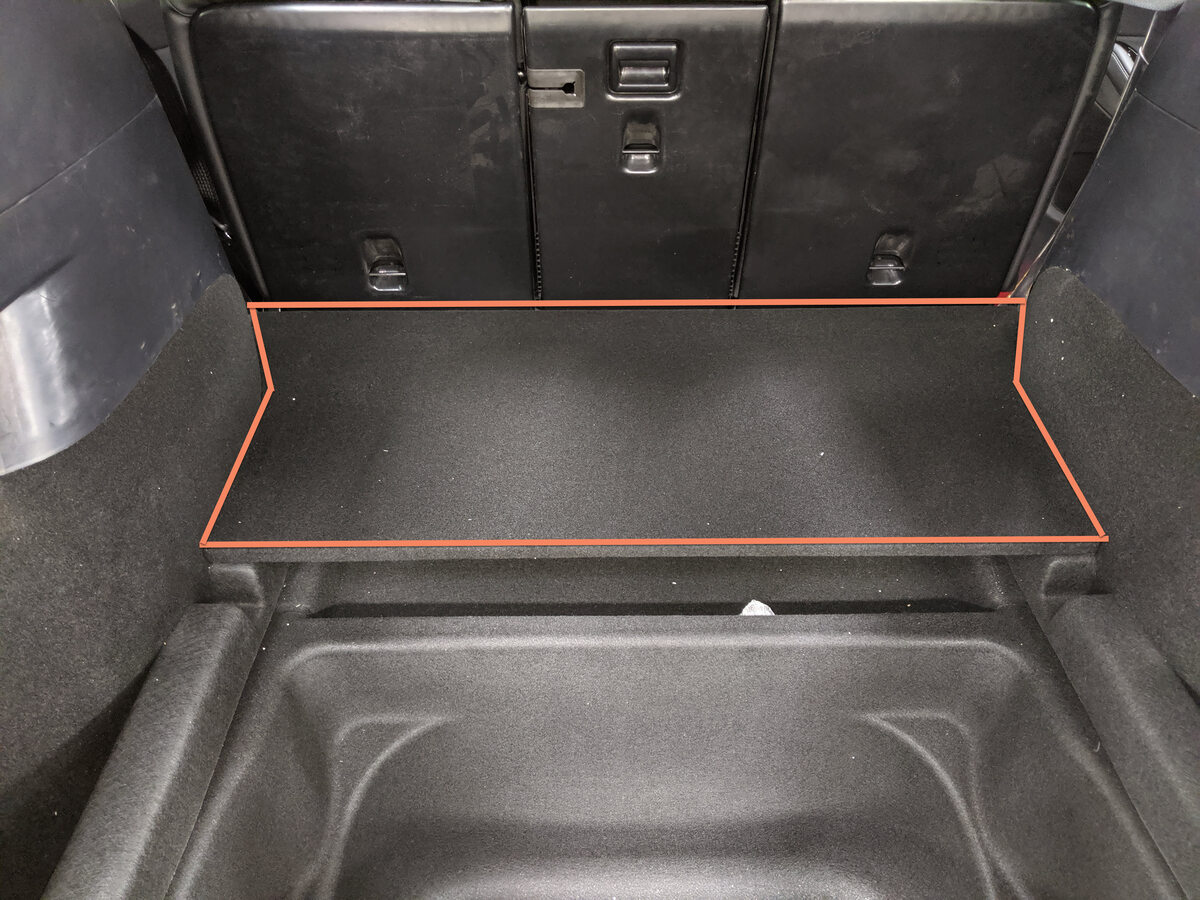

12. Remove front load floor

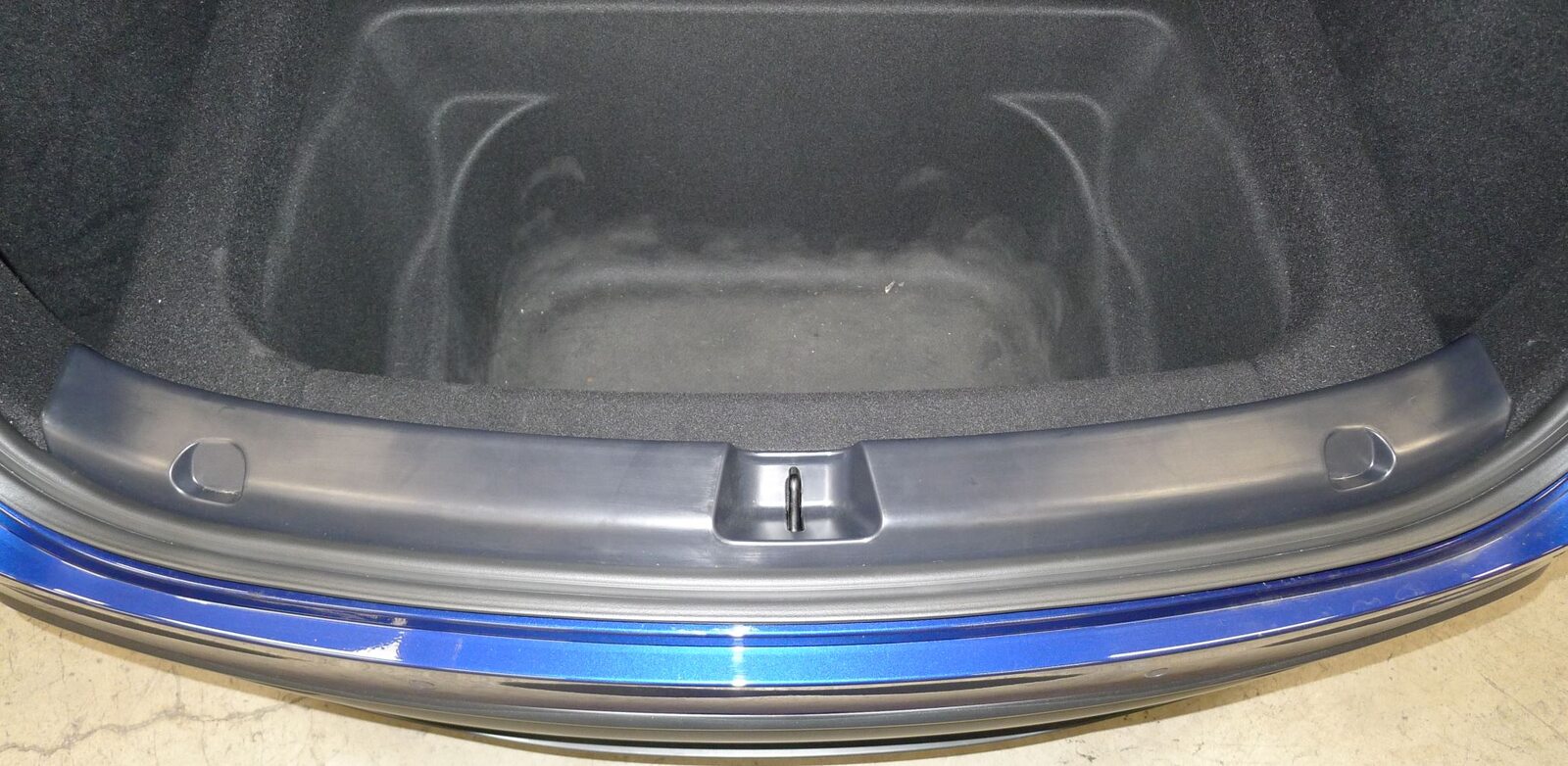

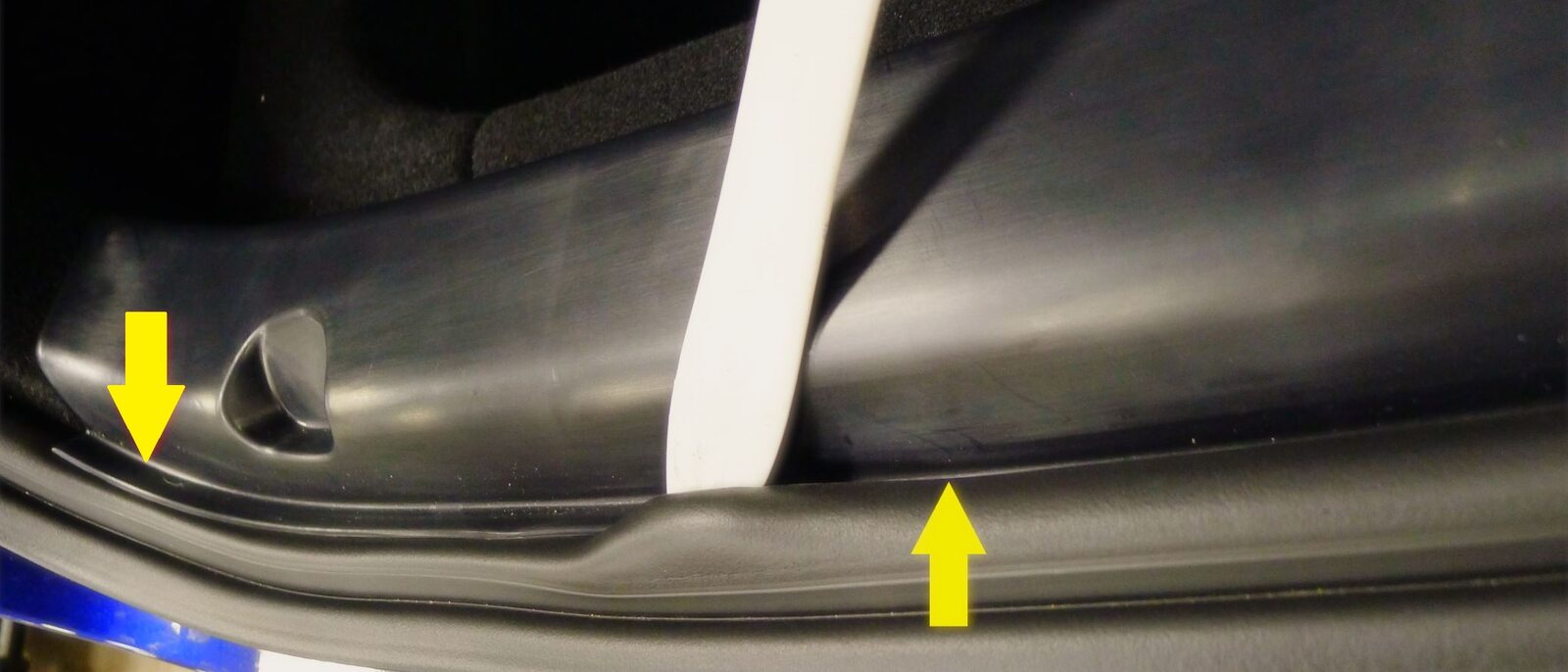

13. Remove trunk sill trim
    Note

    4x clips

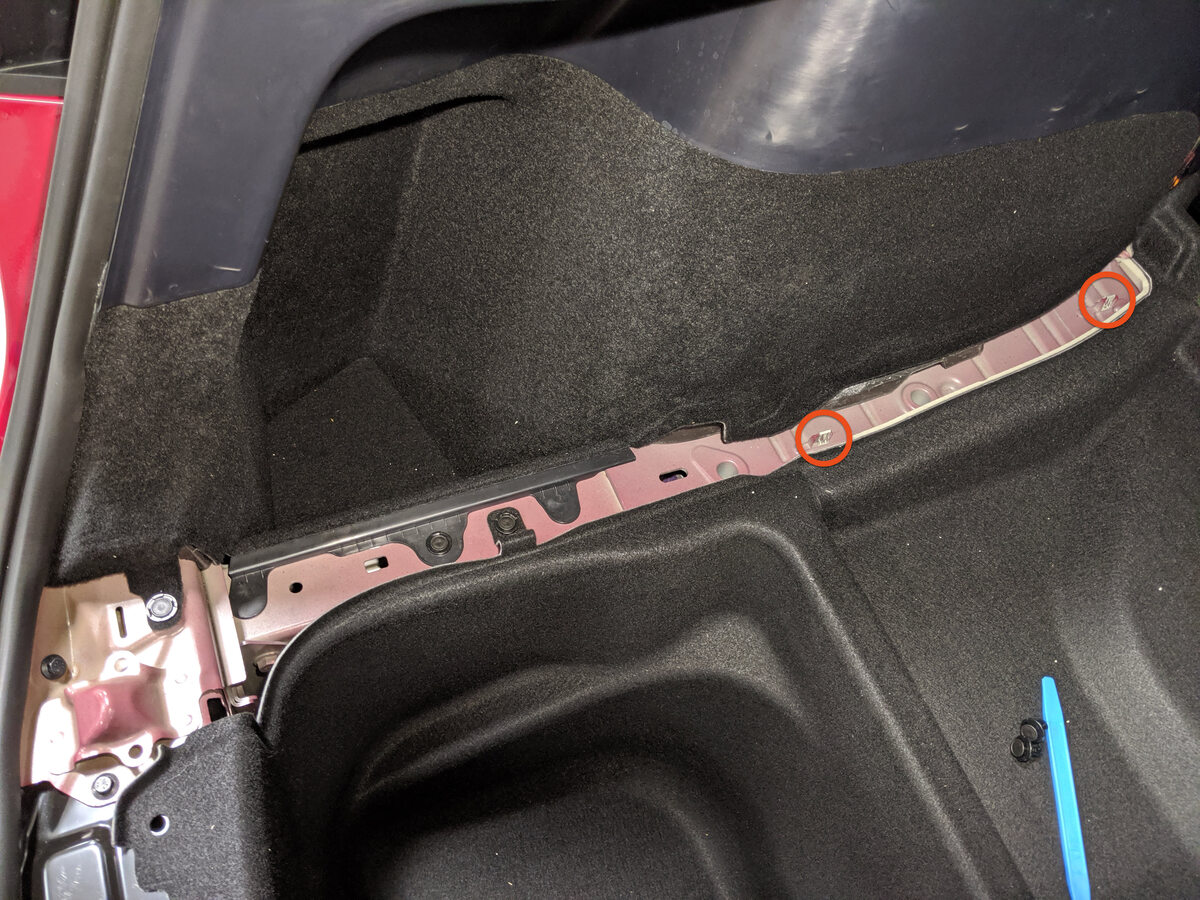

14. Remove RH load floor bracket
    Note

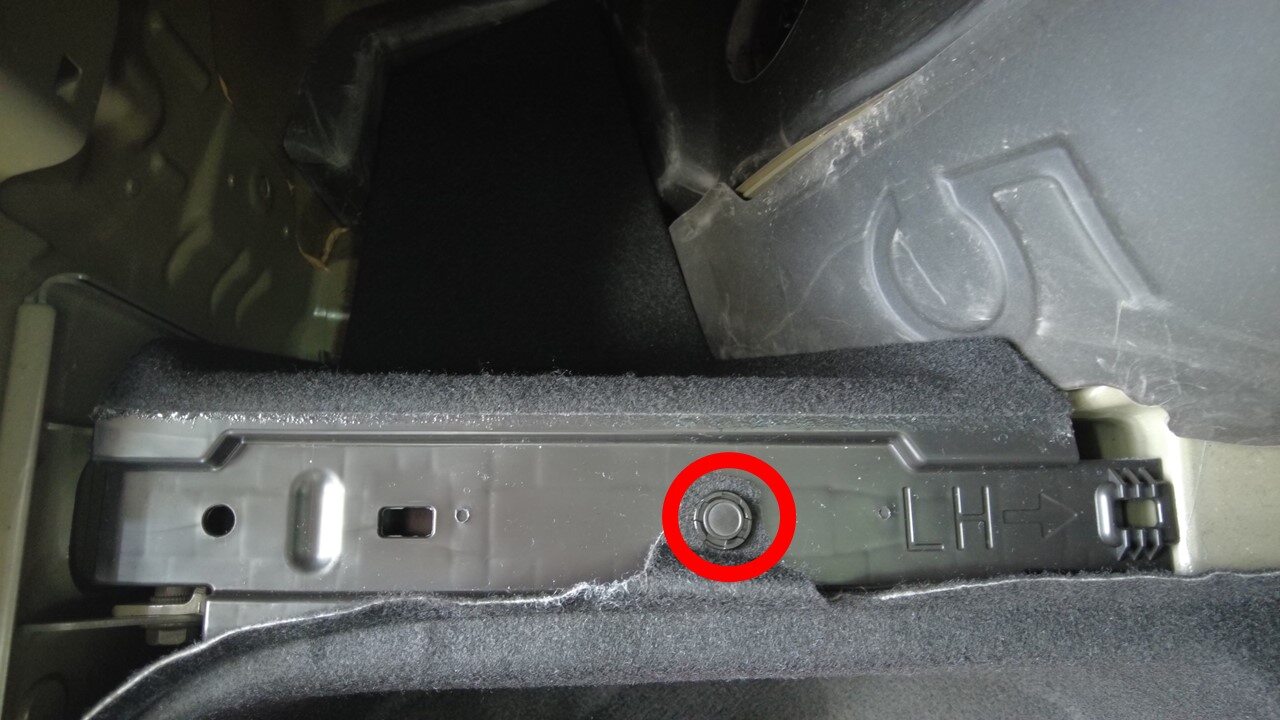

    3x tabs, 2x clips, Confirm each installation with push-pull test, Clip position should not be adjusted after bracket is removed or will result in bracket not seating properly, if clip position is changed or push-pull action shows bracket not secure, remove clip from tab and seat clip into doghouse on bracket and reinstall

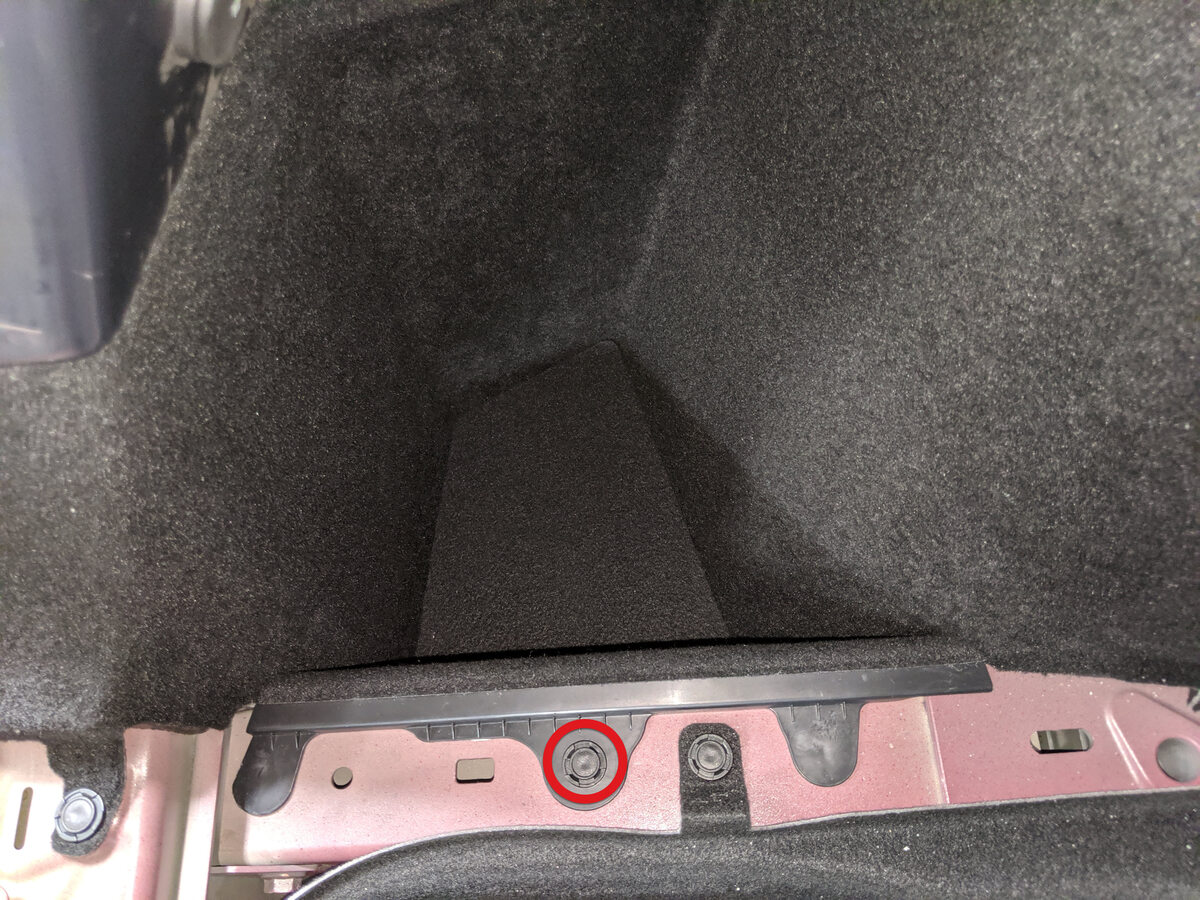

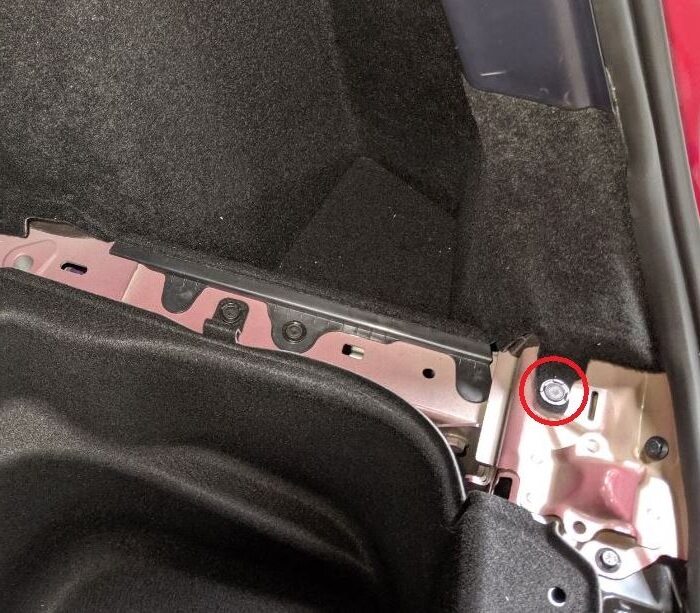

15. Remove RH trunk pocket bracket
    Note

    1x push clip, 5x alignment tabs

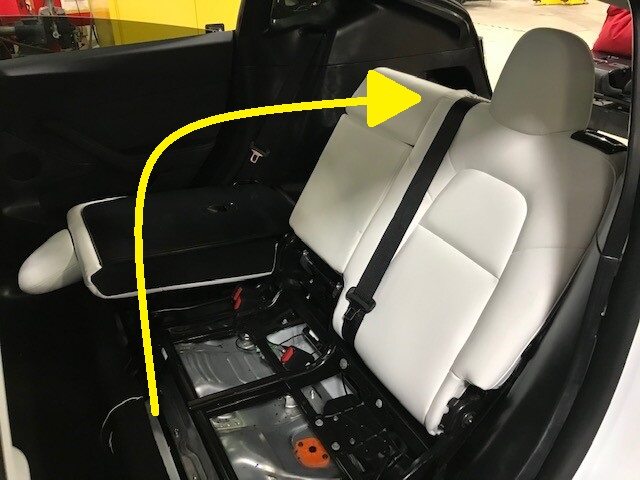

16. Fold 2nd row 40 seatback down
    Note

    Protect seat cushion, Do not put weight on seat in folded position without cushion present due to risk of bending locator tab on frame

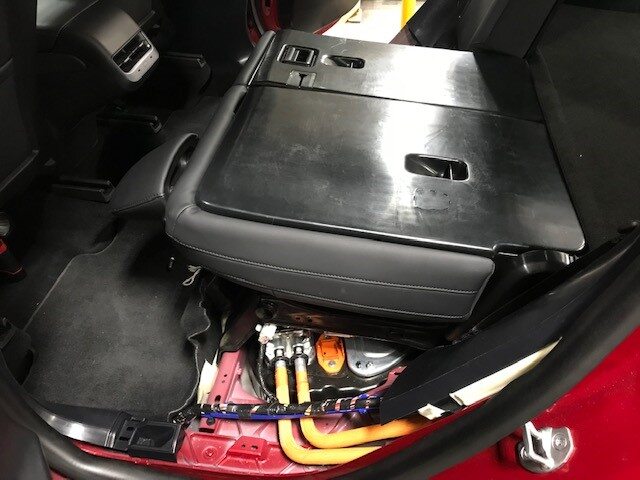

17. Fold 2nd row 60 seatback down
    Note

    Protect seat back upholstery if necessary, Do not put weight on seat in folded position without cushion present due to risk of bending locator tab on frame

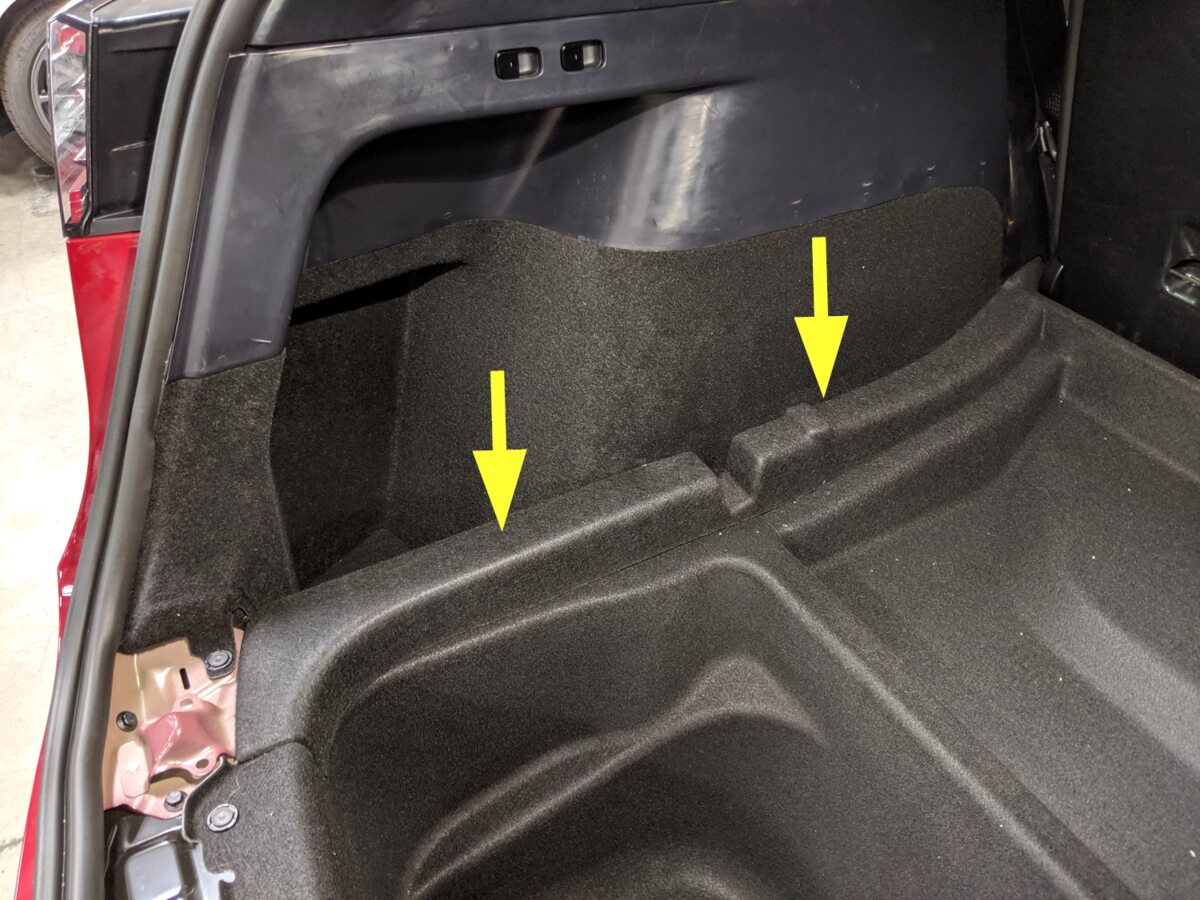

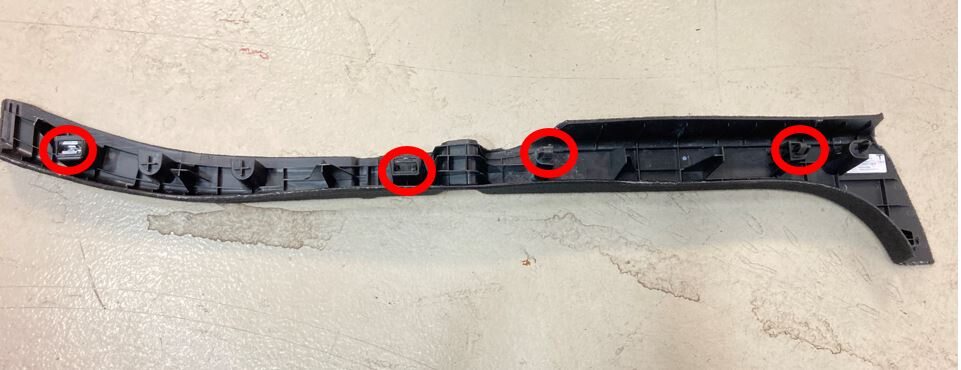

18. Remove LH load floor bracket
    Note

    2x tabs, 2x clips, Clip position should not be adjusted after bracket is removed or will result in bracket not seating properly later





19. Remove LH trunk pocket bracket
    Note

    1x push clip, 5x alignment tabs

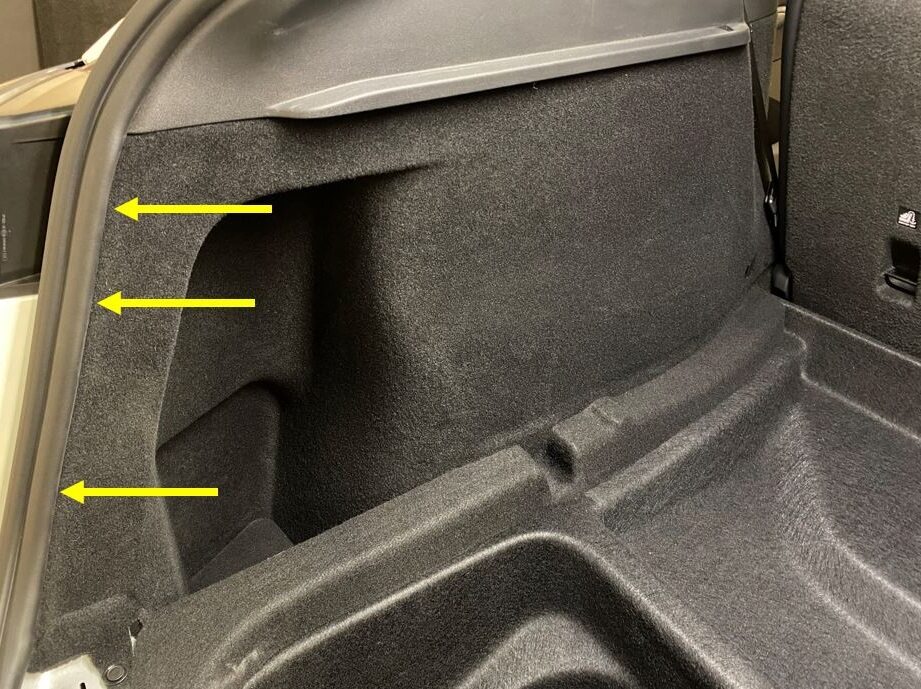

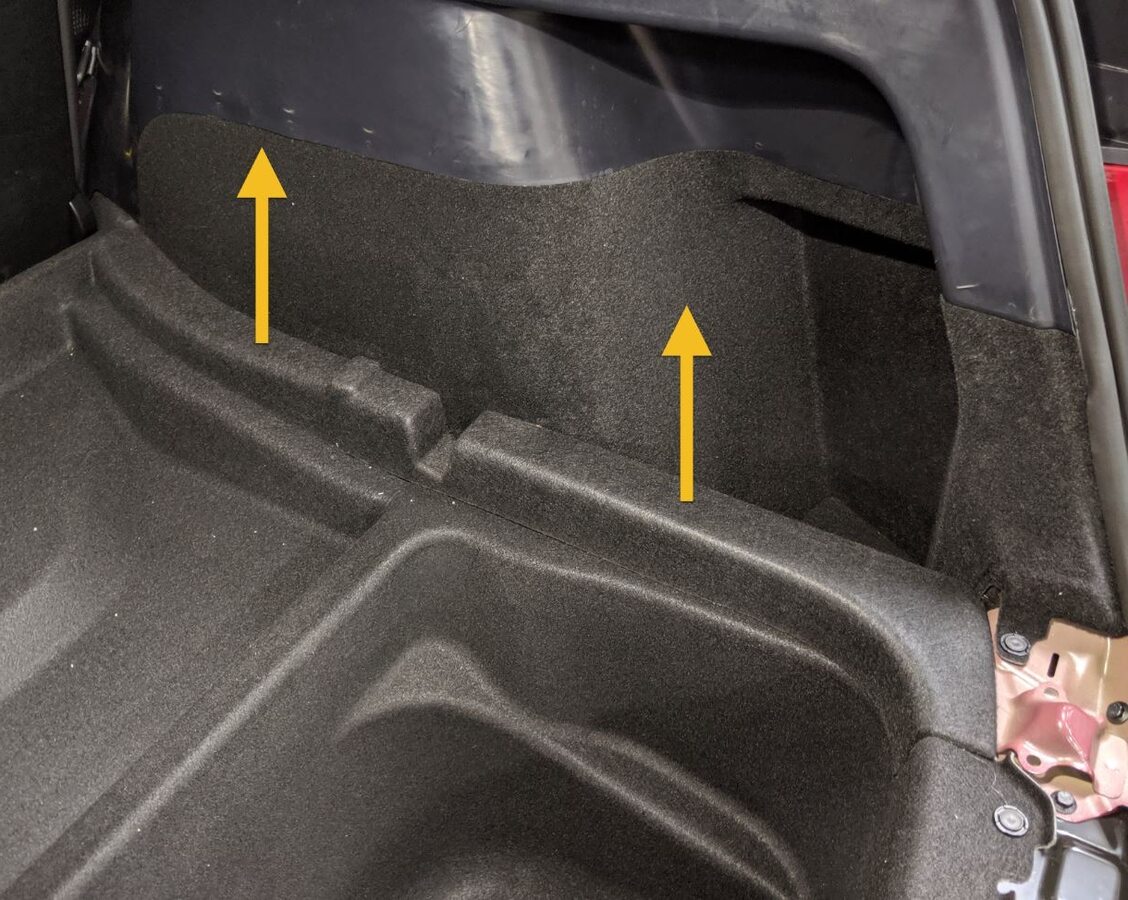

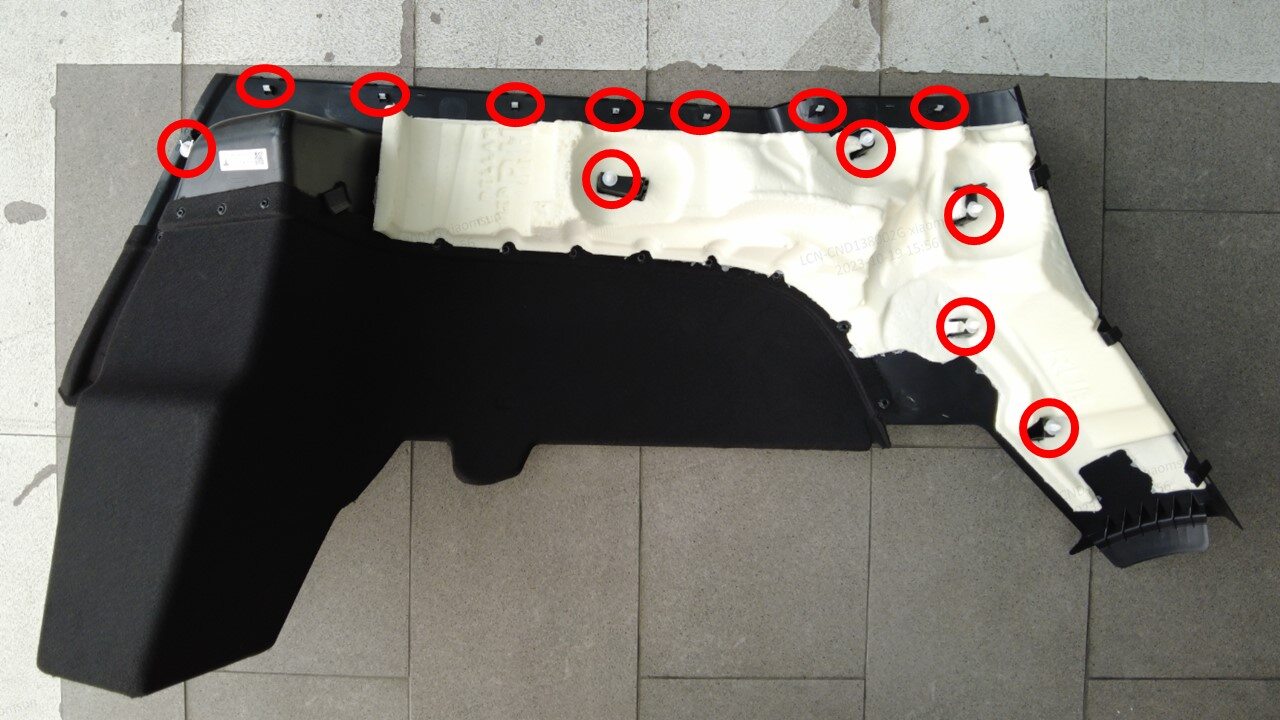

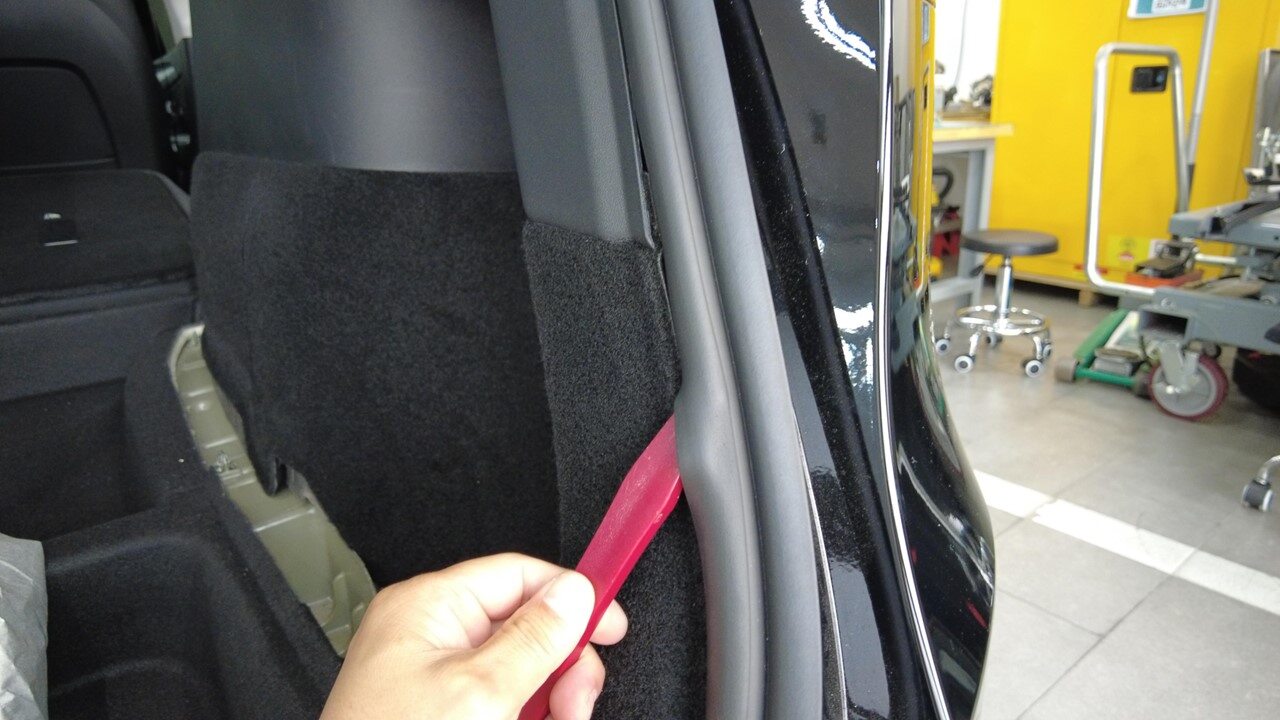

20. Remove LH trunk side trim
    Note

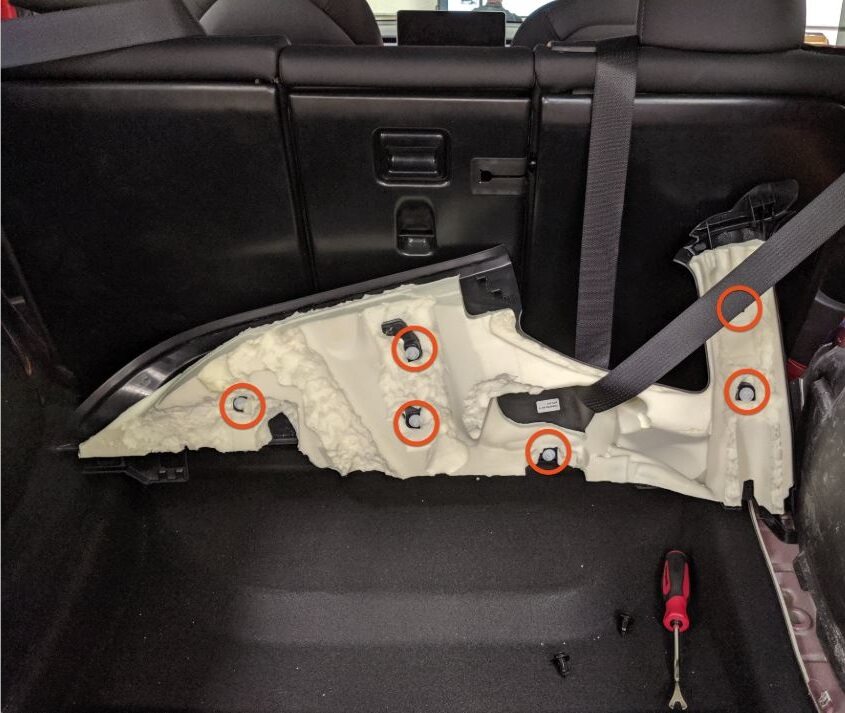

    2x connectors, 1x push clip, 8x clips, 7x tabs, guide front clip stanchions around LH C-pillar, trim part may slightly differ by vehicle build location, and the number of clips may also vary









21. Release top edge of RH trunk side trim
    Note

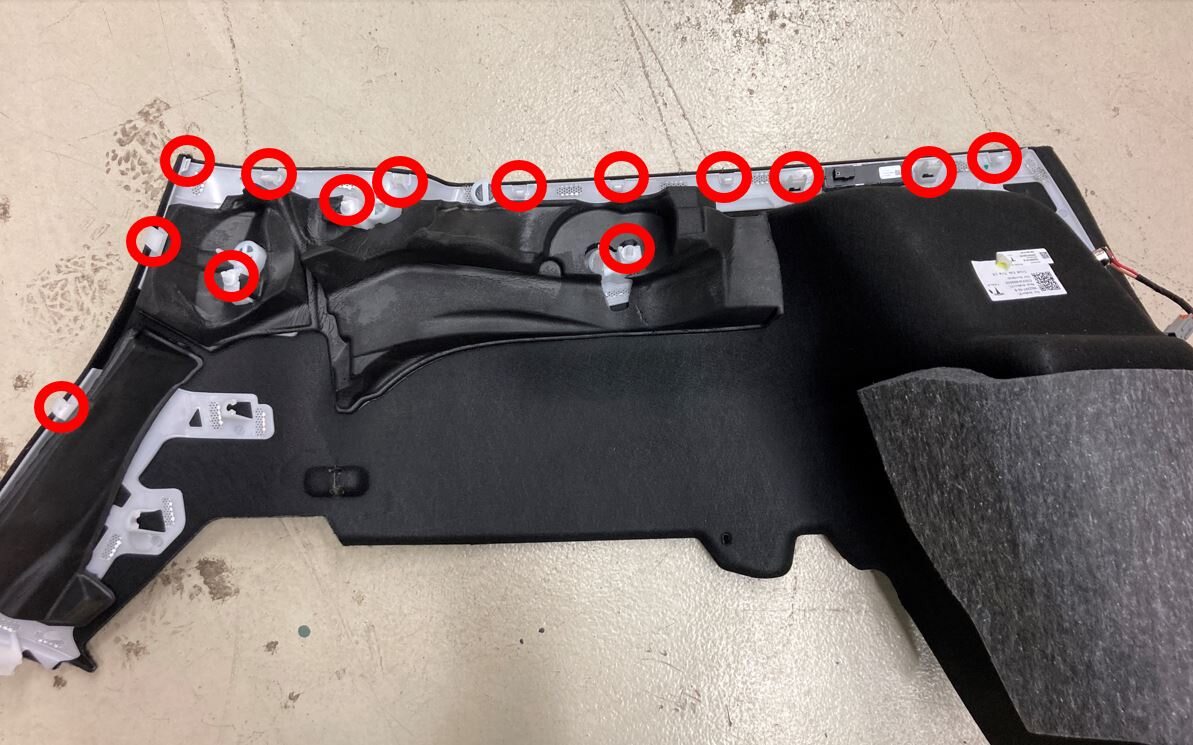

    1x push clip, 13x clips, trim part may slightly differ by vehicle build location, and the number of clips may also vary

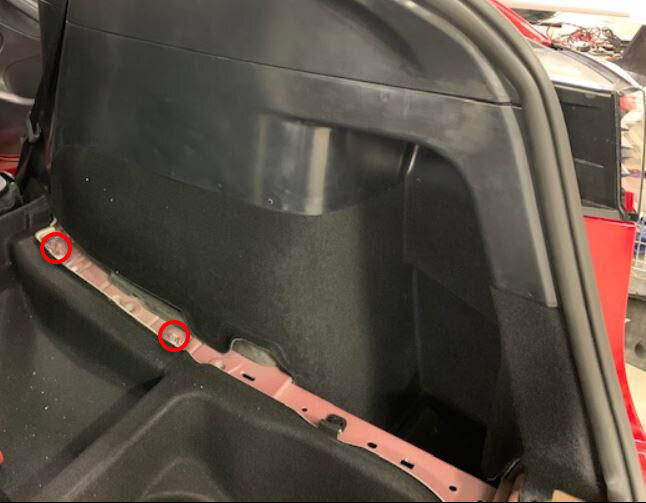

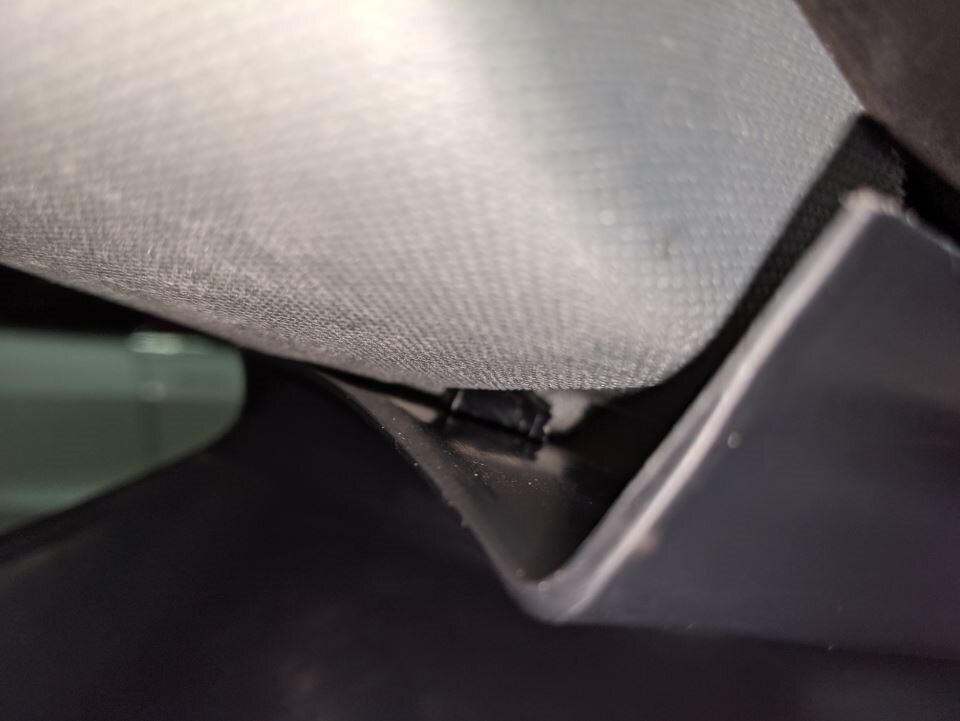

22. Remove RH upper C-pillar trim
    Note

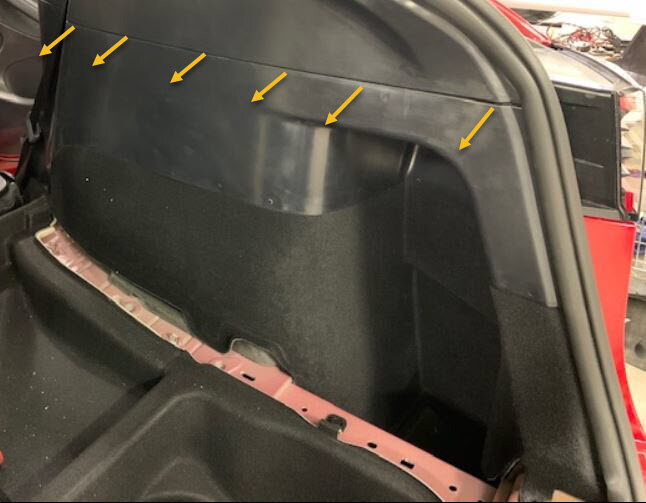

    6x clips, Guide front upper corner groove out from headliner and place trim aside, trim part may slightly differ by vehicle build location, and the number of clips may also vary

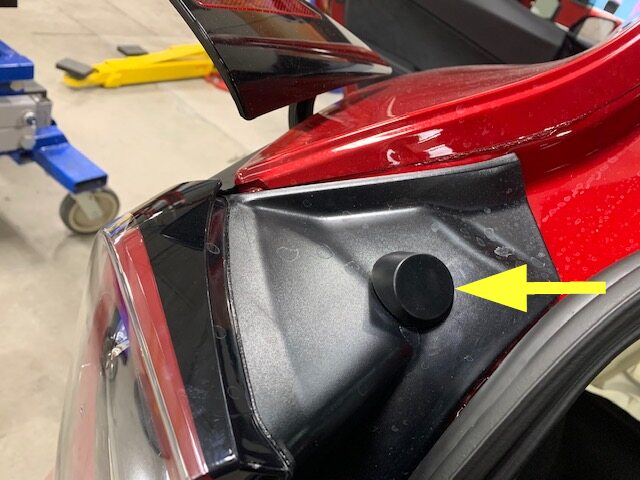

23. Remove LH liftgate stop
    Note

    1x liftgate stop, Pull up to remove

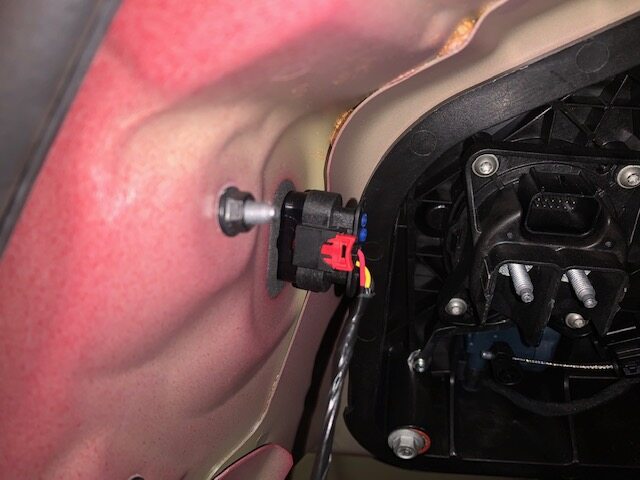

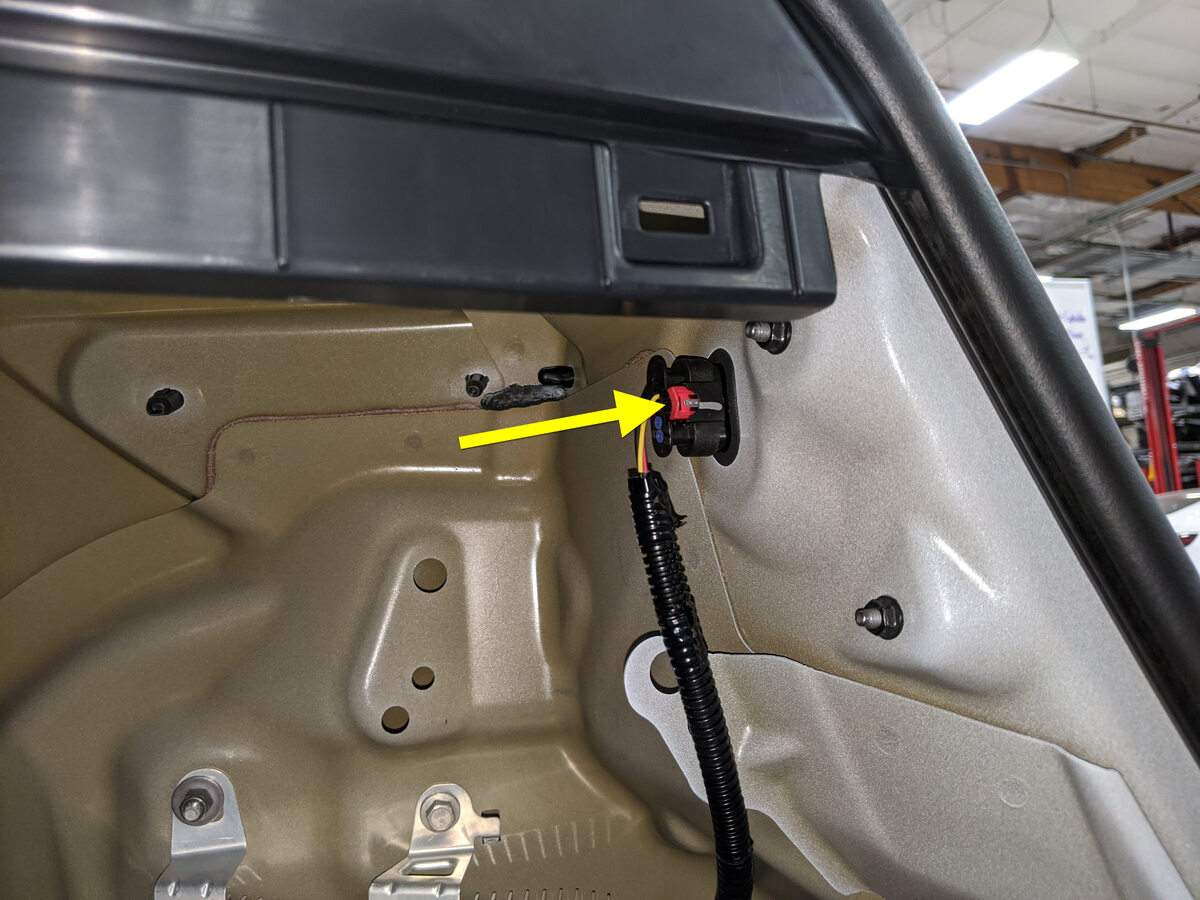

24. Disconnect LH rear bodyside tail lamp assembly
    Note

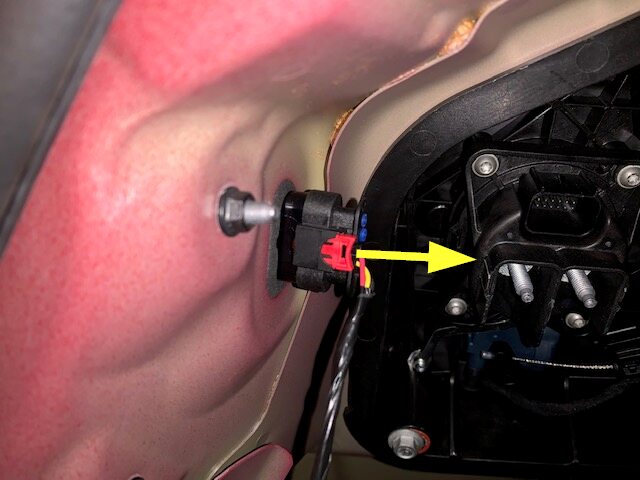

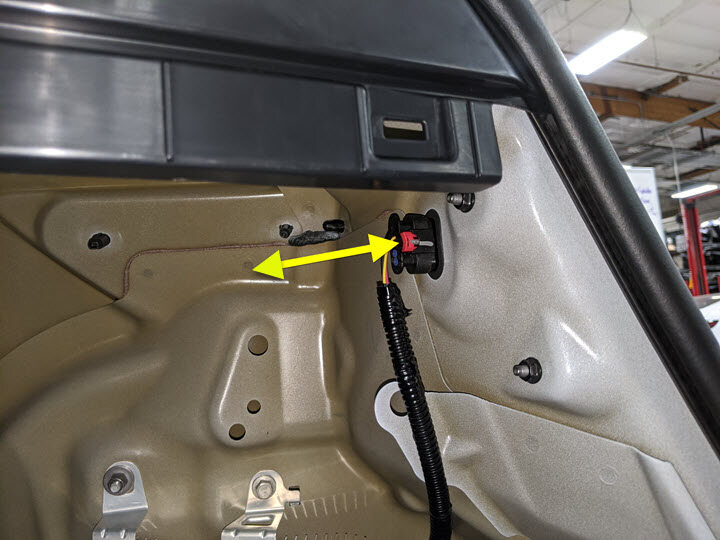

    1x connector, Do not push down on red tab, Pull red tab to disengage lock, Pull again to release connector





25. Release LH rear bodyside tail lamp assembly
    Note

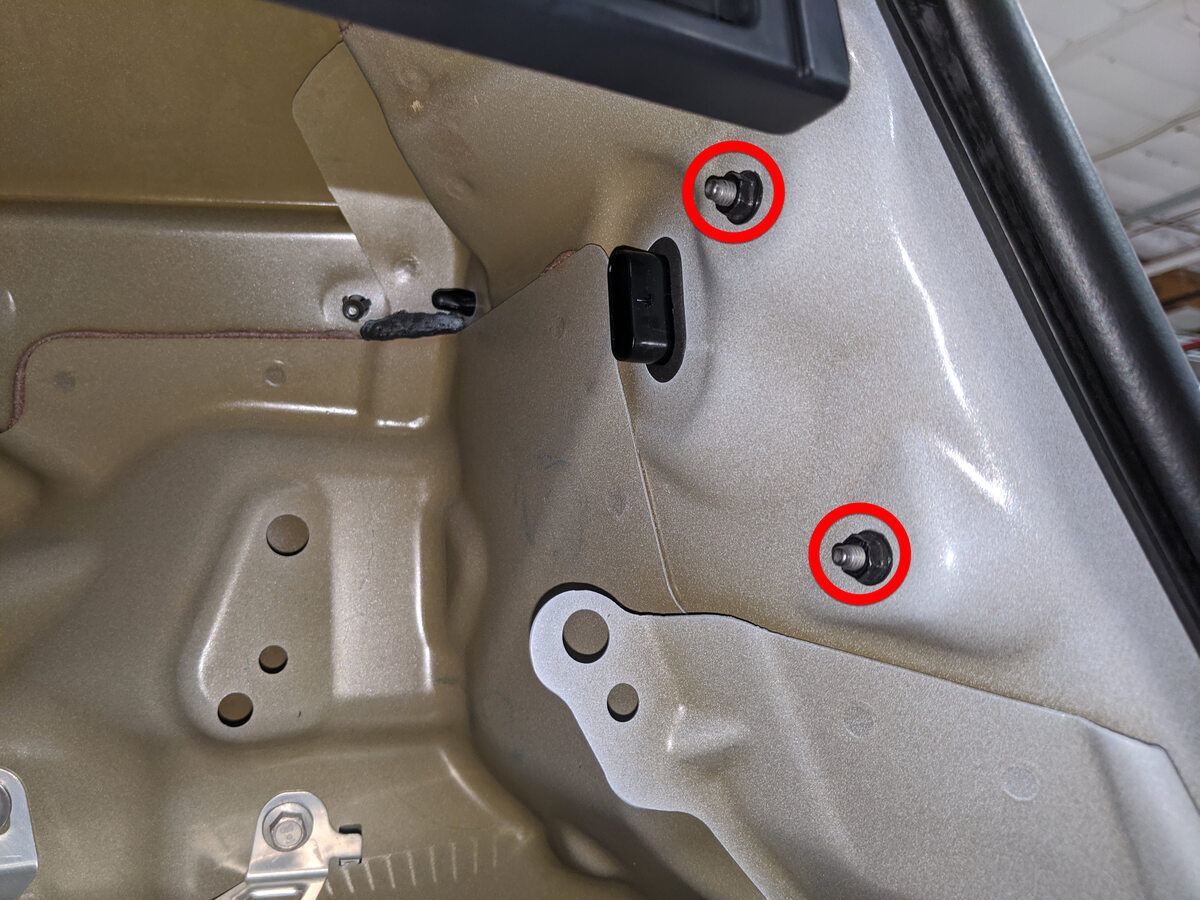

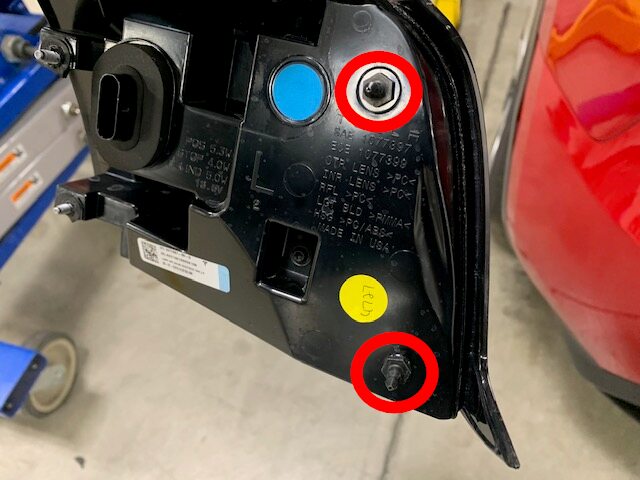

    2x nuts, 8mm, 3.2 Nm



26. Remove LH rear bodyside tail lamp assembly from vehicle
    Note

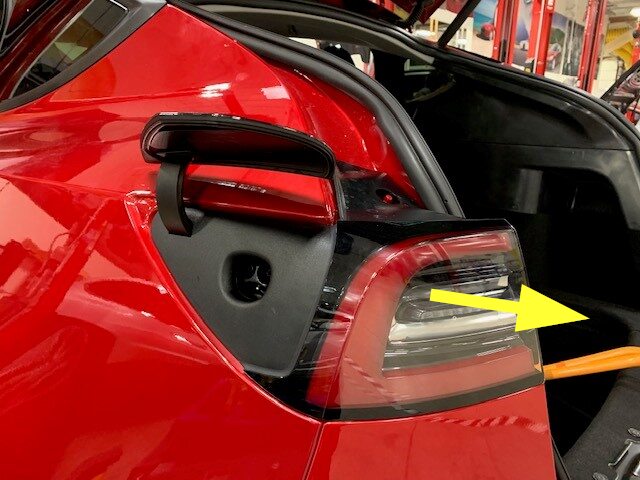

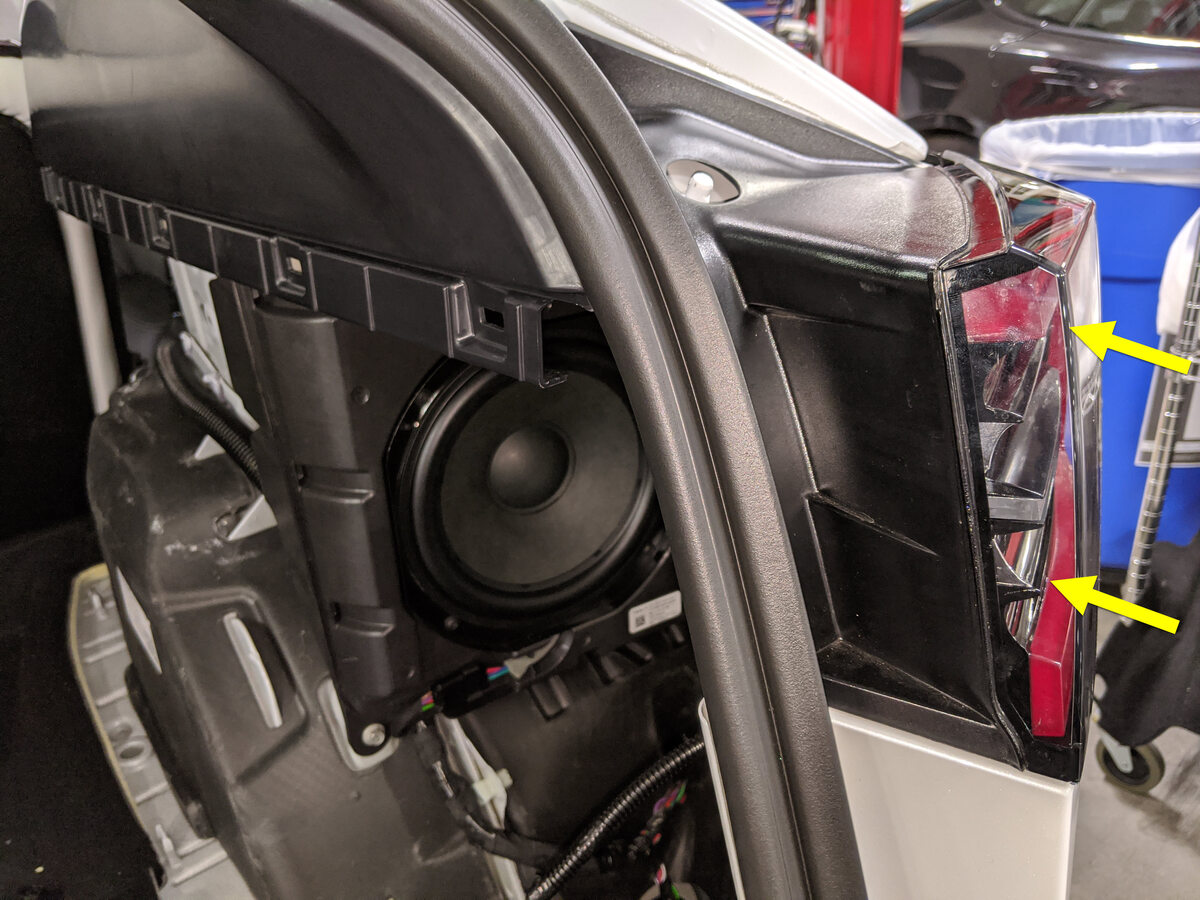

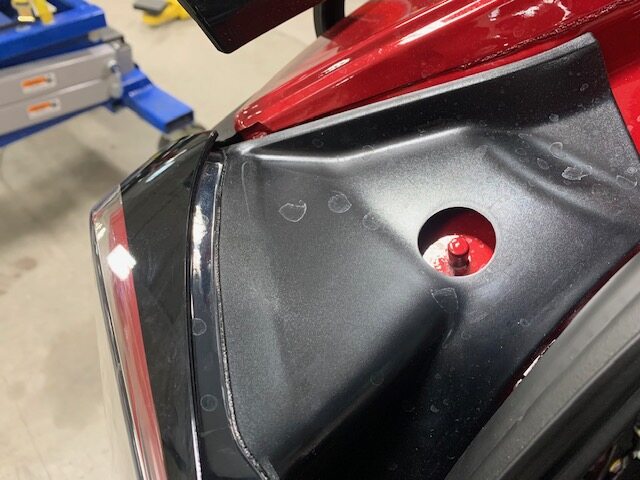

    2x studs, To ease removal use trim tool to release lamp from body near each stud. While releasing studs, Pull from opposite end of lamp.

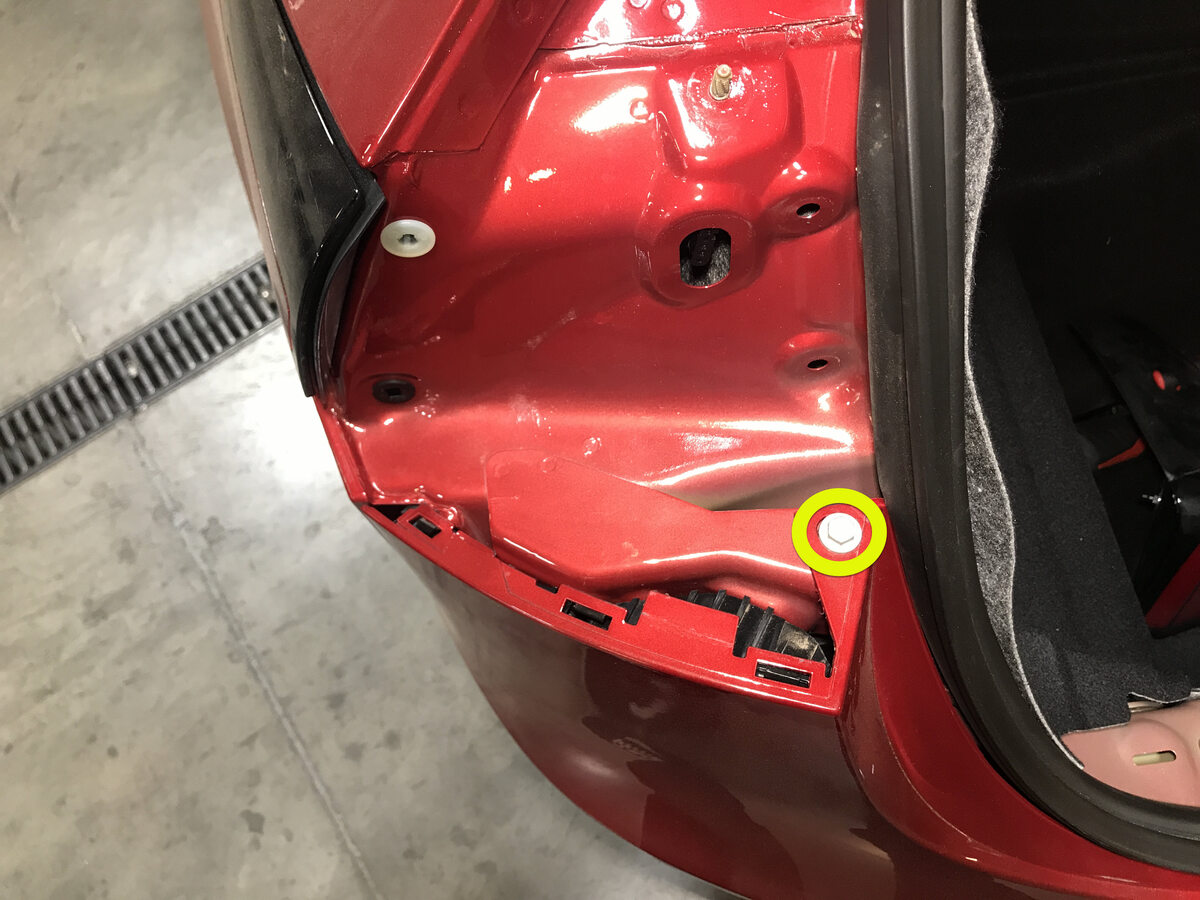

27. Remove bolt securing LH corner of rear fascia to body
    Note

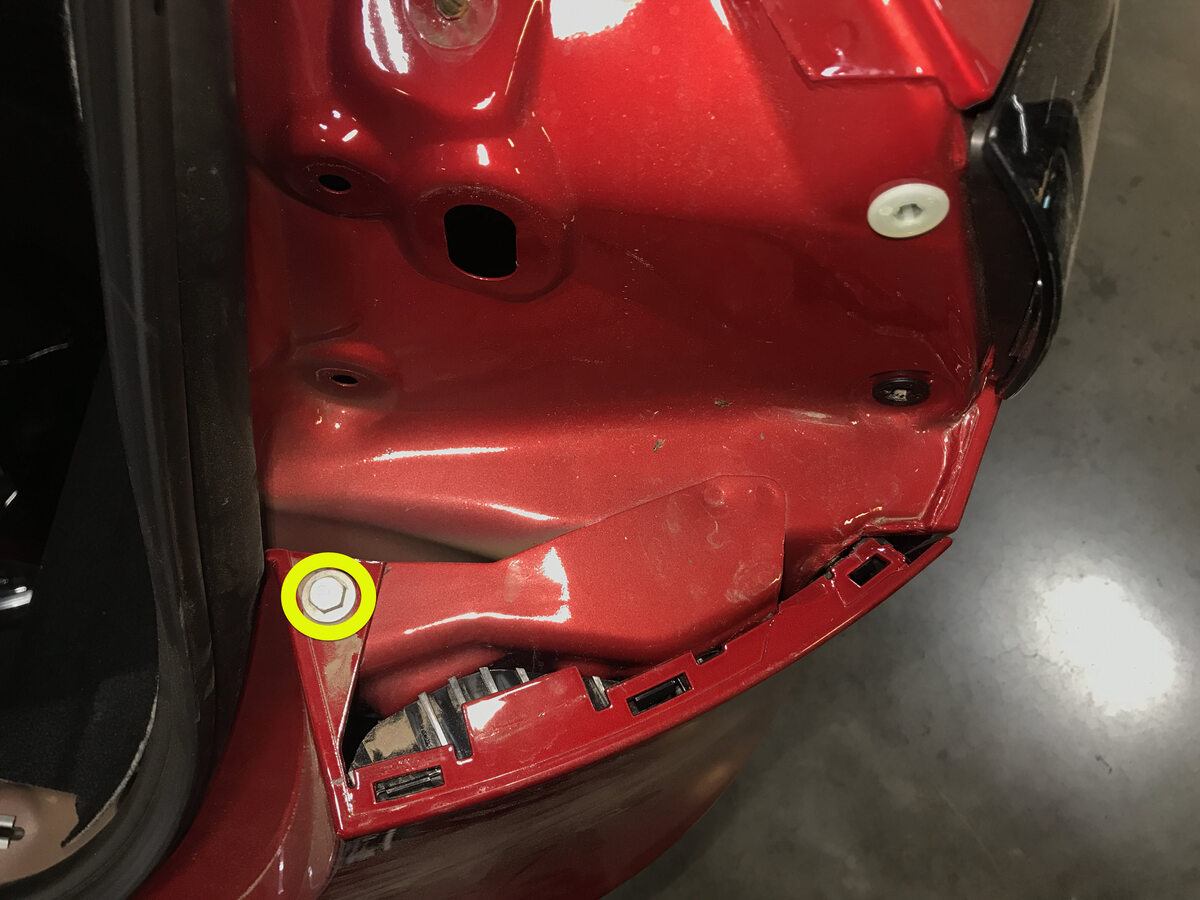

    1x bolt, 10mm, 4 Nm



28. Remove RH liftgate stop
    Note

    1x liftgate stop, Pull up to remove

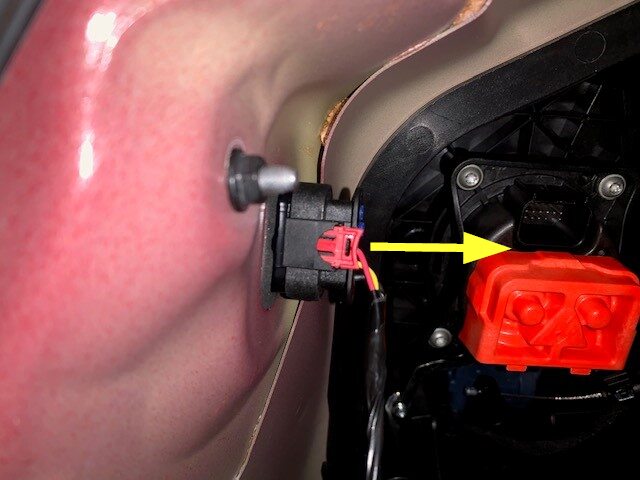

29. Disconnect RH rear bodyside tail lamp assembly connector
    Note

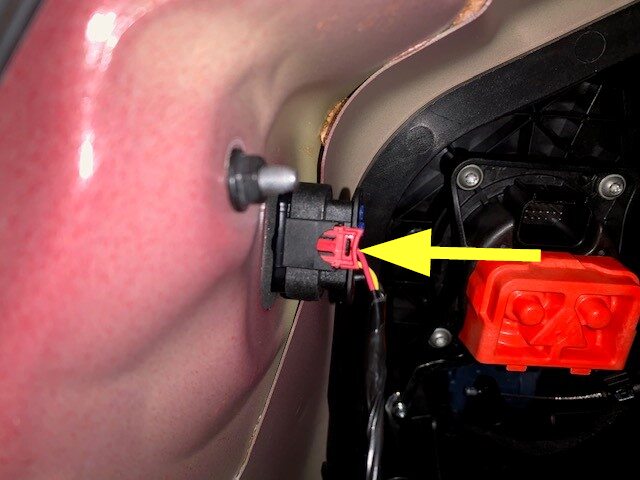

    1x connector, Do not push down on red tab, Pull red tab to disengage lock, Pull again to release connector

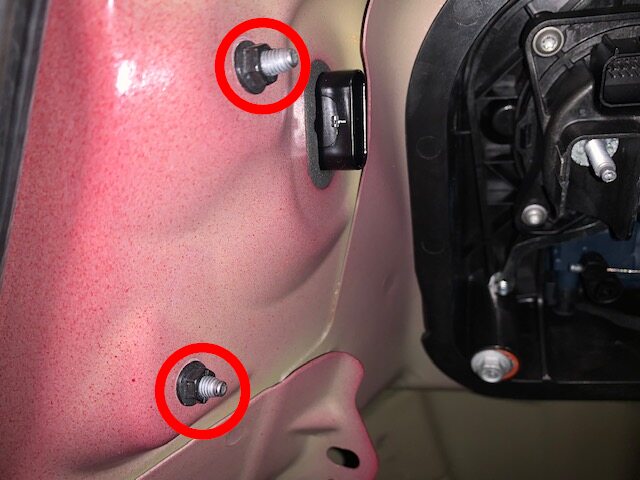

30. Remove nuts securing RH rear bodyside tail lamp assembly to vehicle
    Note

    2x nuts, 8mm, 3.2 Nm



31. Remove RH rear bodyside tail lamp assembly from vehicle
    Note

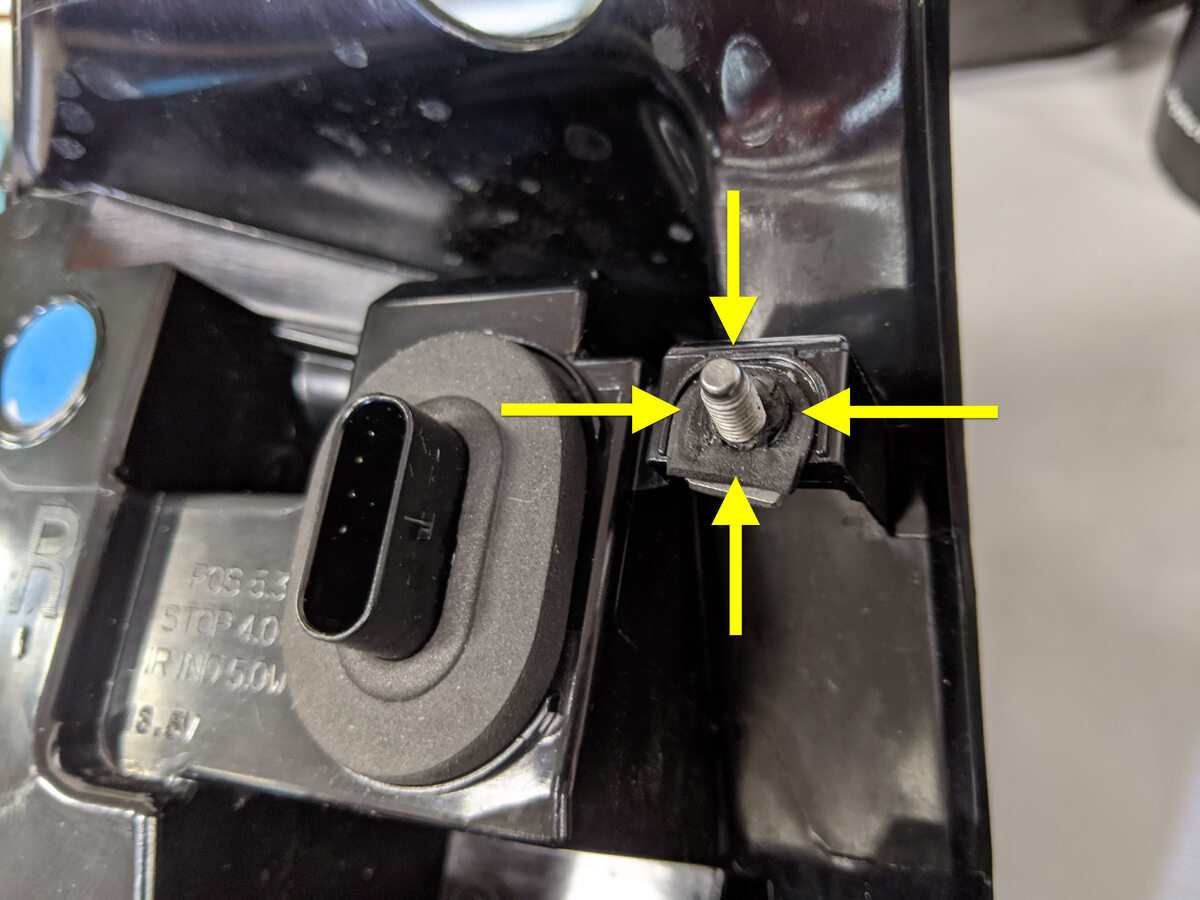

    2x studs





32. Remove bolt securing RH corner of rear fascia to body
    Note

    1x bolt, 10mm, 4 Nm

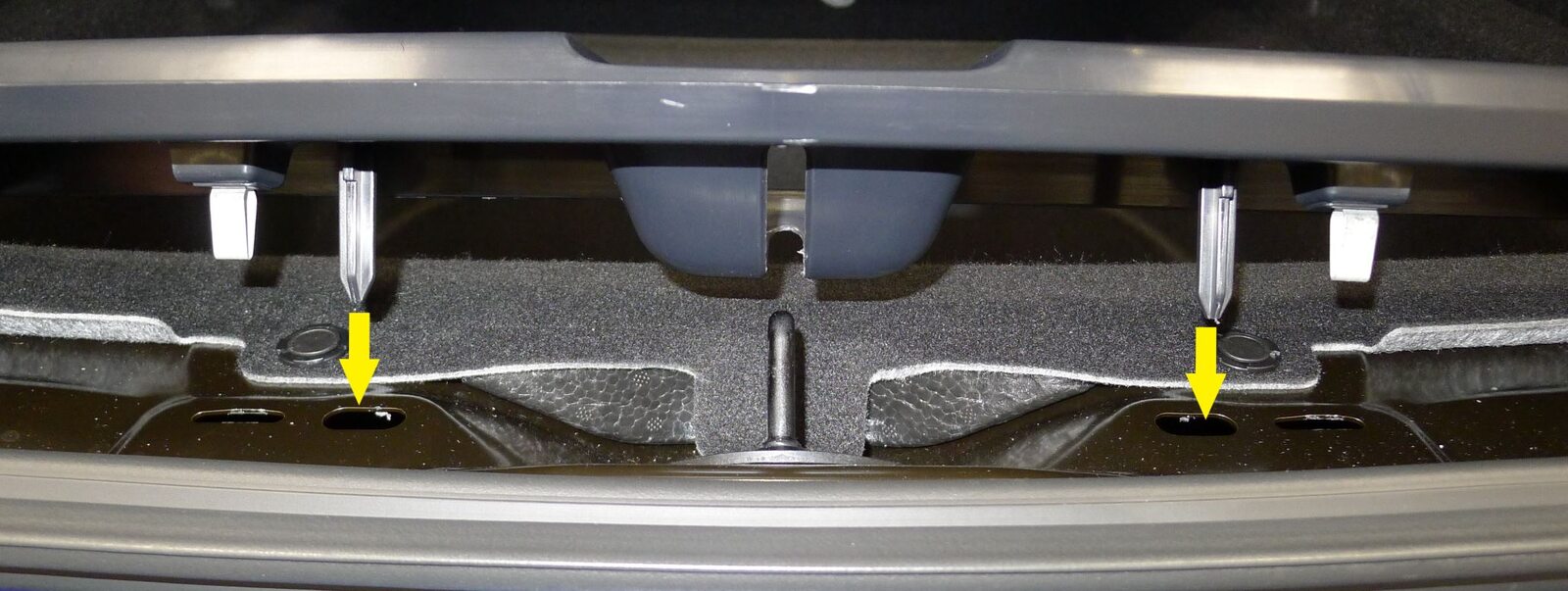

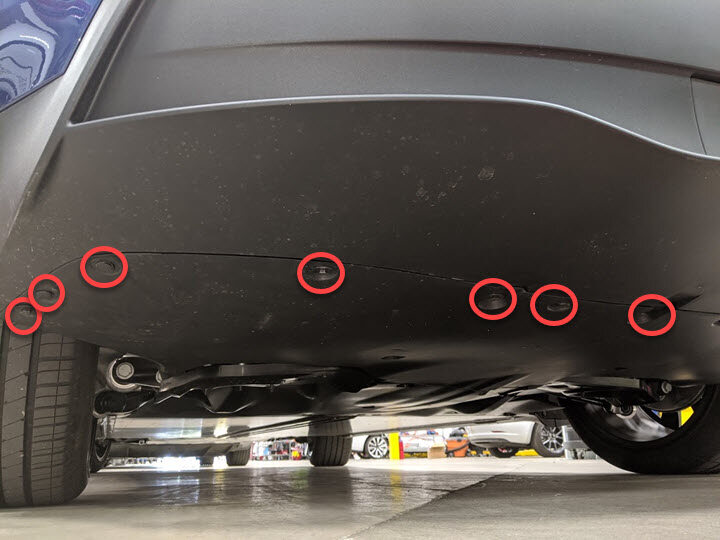

33. Release rear fascia from rear diffuser
    Note

    6x clips, 7x bolts, 10mm, 4 Nm

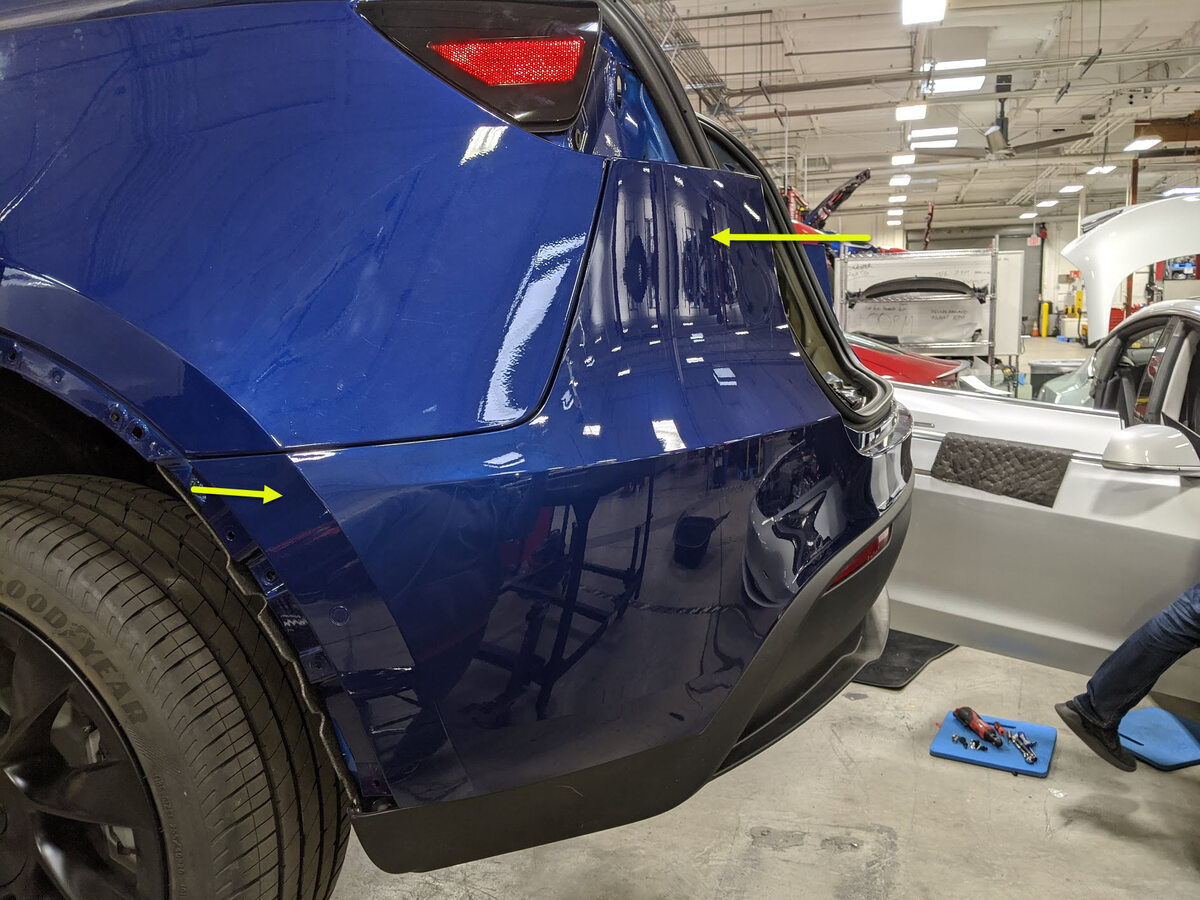

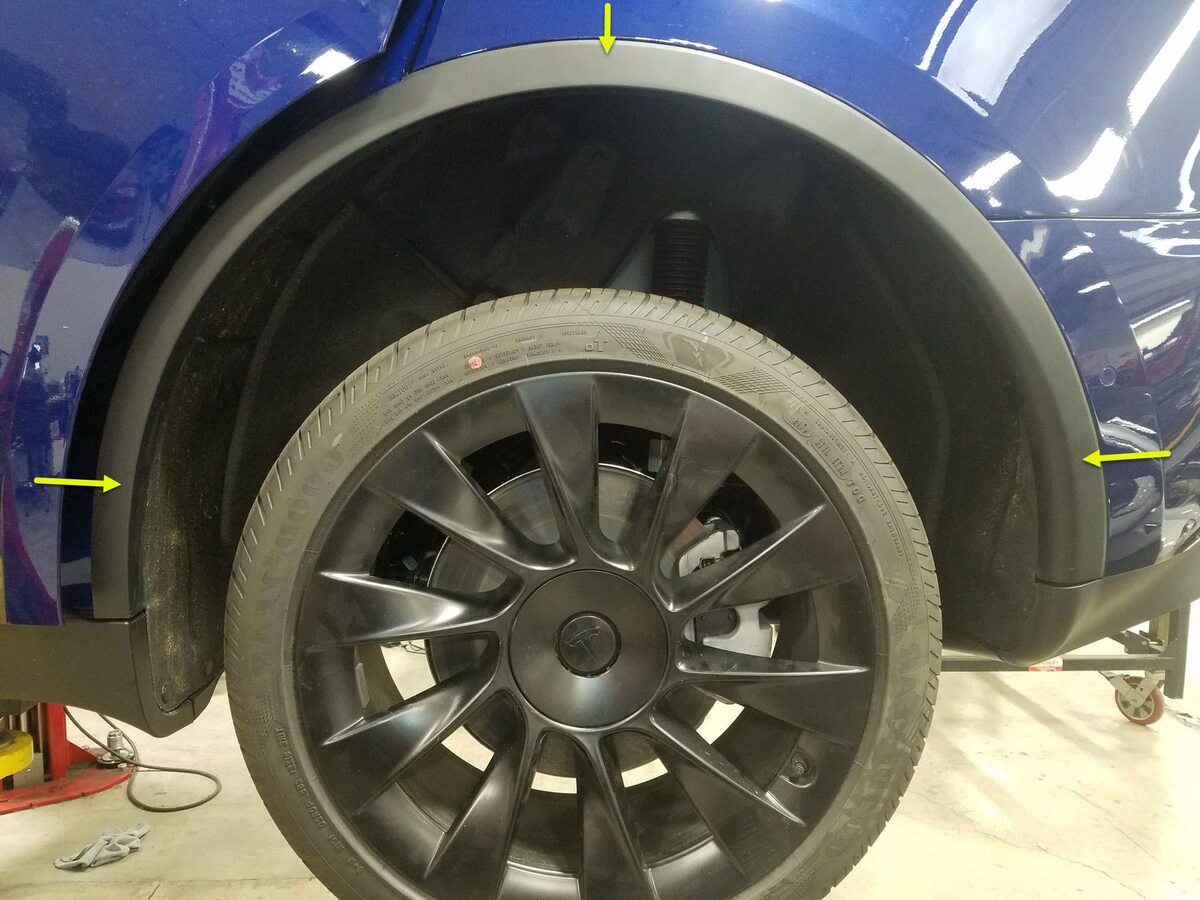

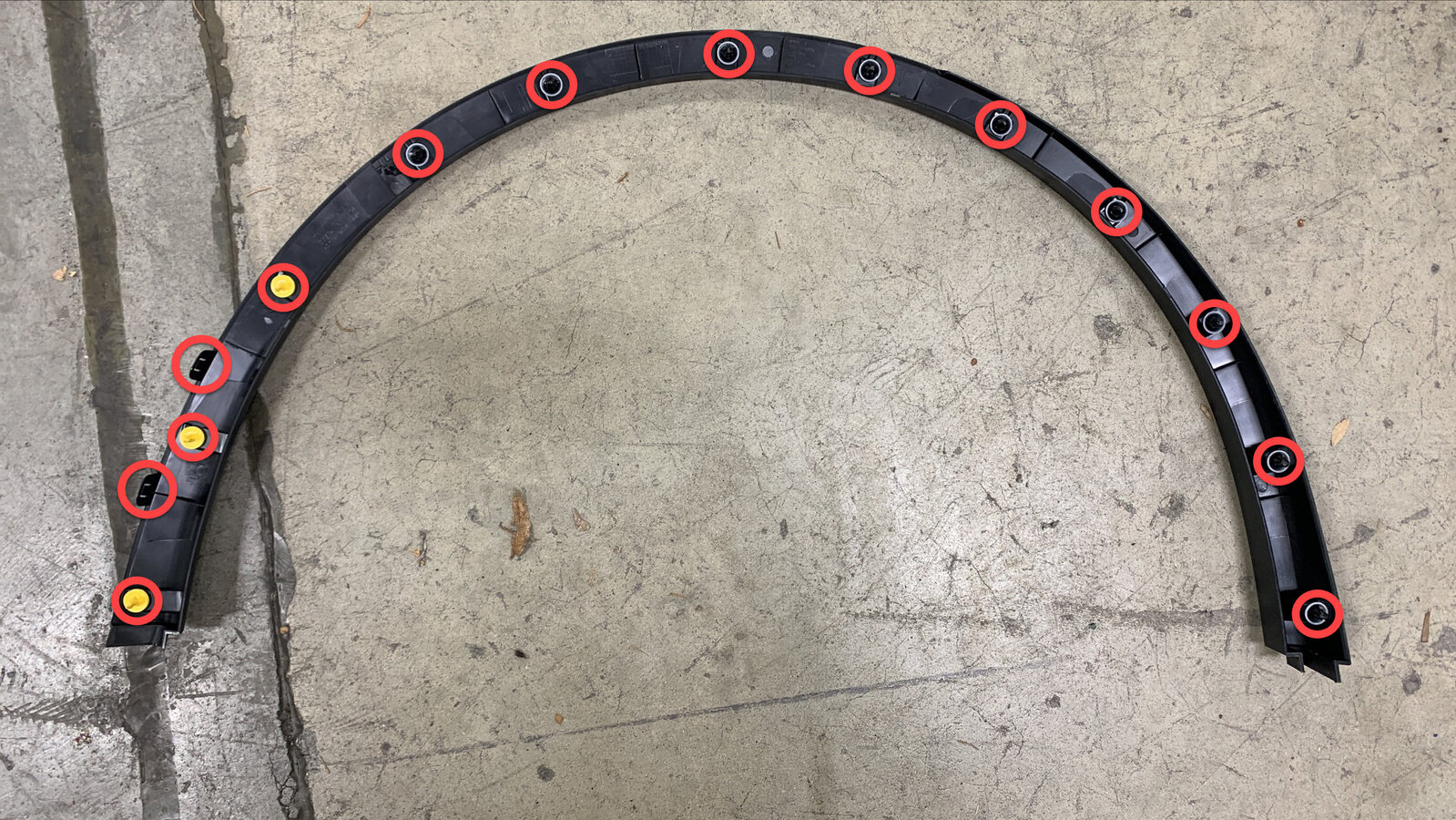

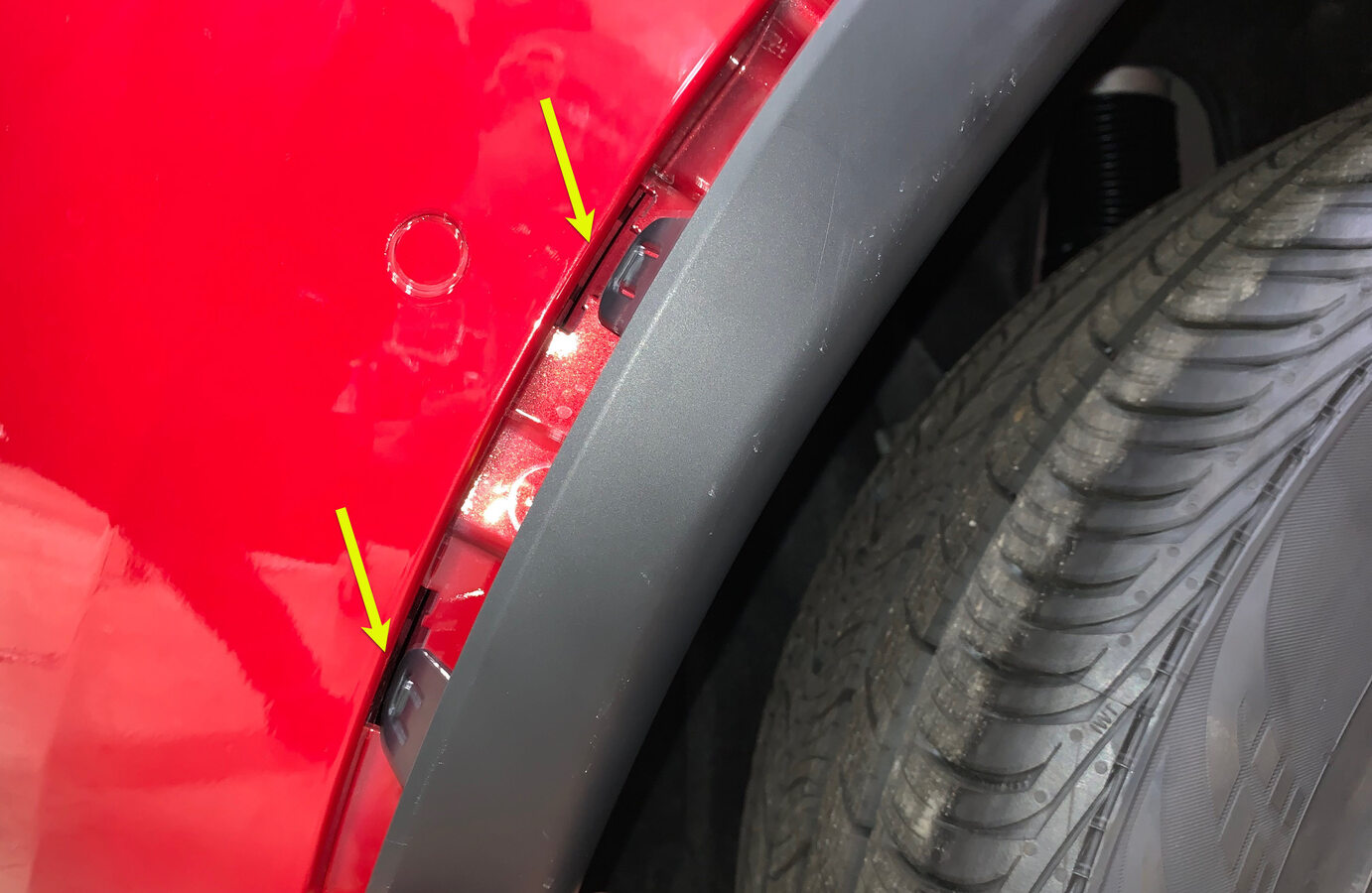

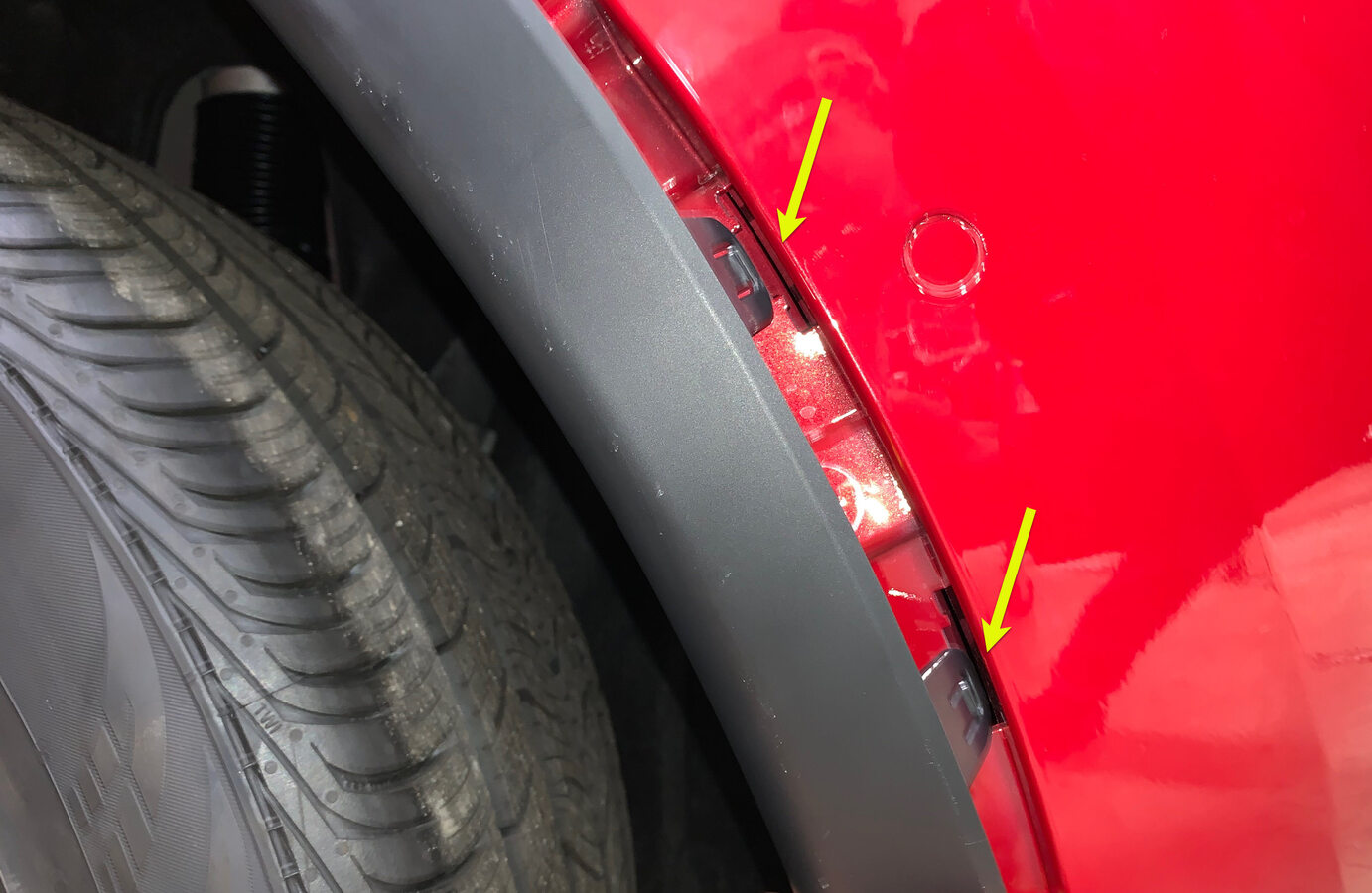

34. Remove LH rear fender garnish from vehicle
    Note

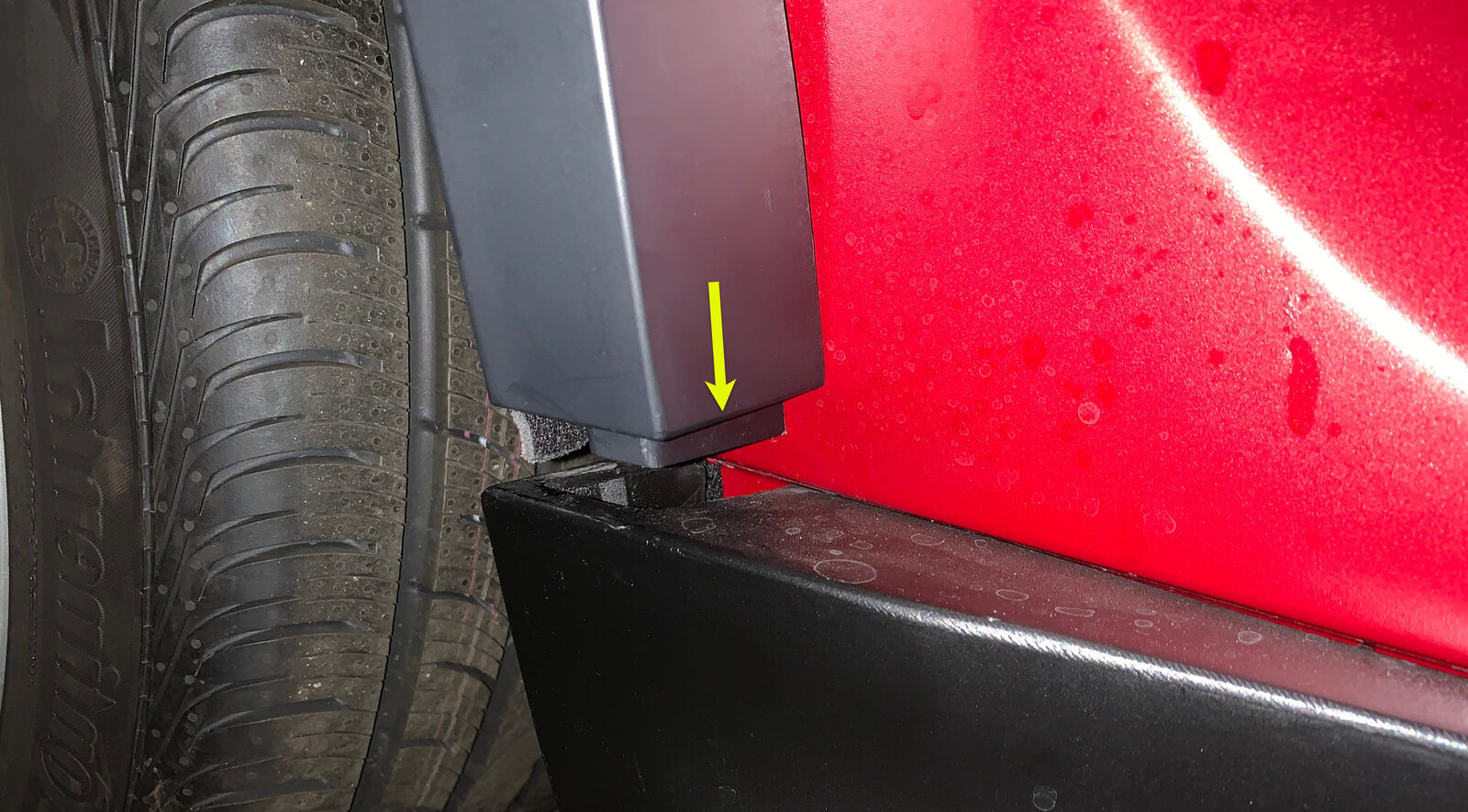

    14x clips, Release from center of garnish and work your way outward towards both ends, Using clip prytool release yellow clips at rear of fascia to avoid damage to garnish









35. Remove bolt securing LH rear fascia to body
    Note

    1x bolt, 8mm, 4 Nm



36. Remove RH rear fender garnish from vehicle
    Note

    14x clips, Release from center of garnish and work your way outward towards both ends, Using clip prytool release yellow clips at rear of fascia to avoid damage to garnish









37. Remove bolt securing RH rear fascia to body
    Note

    1x bolt, 8mm, 4 Nm

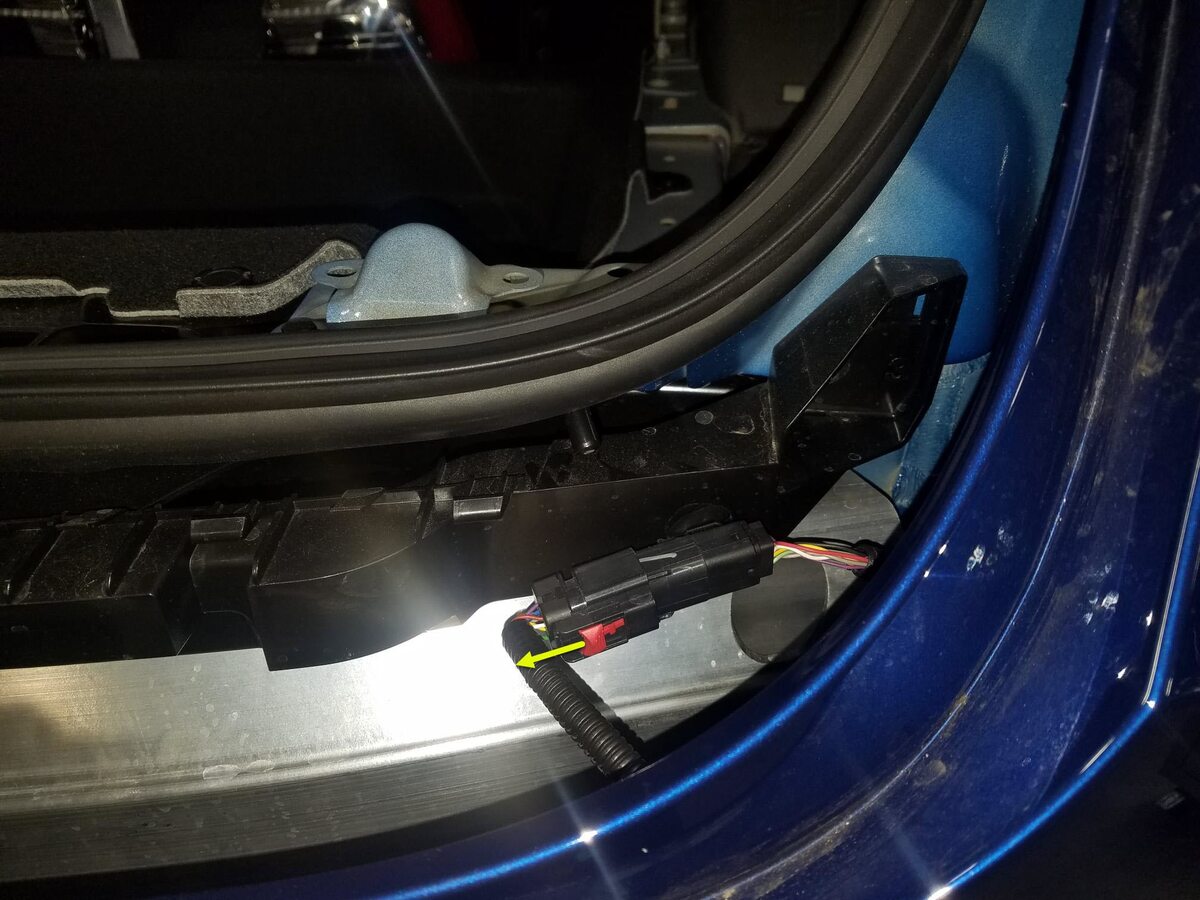

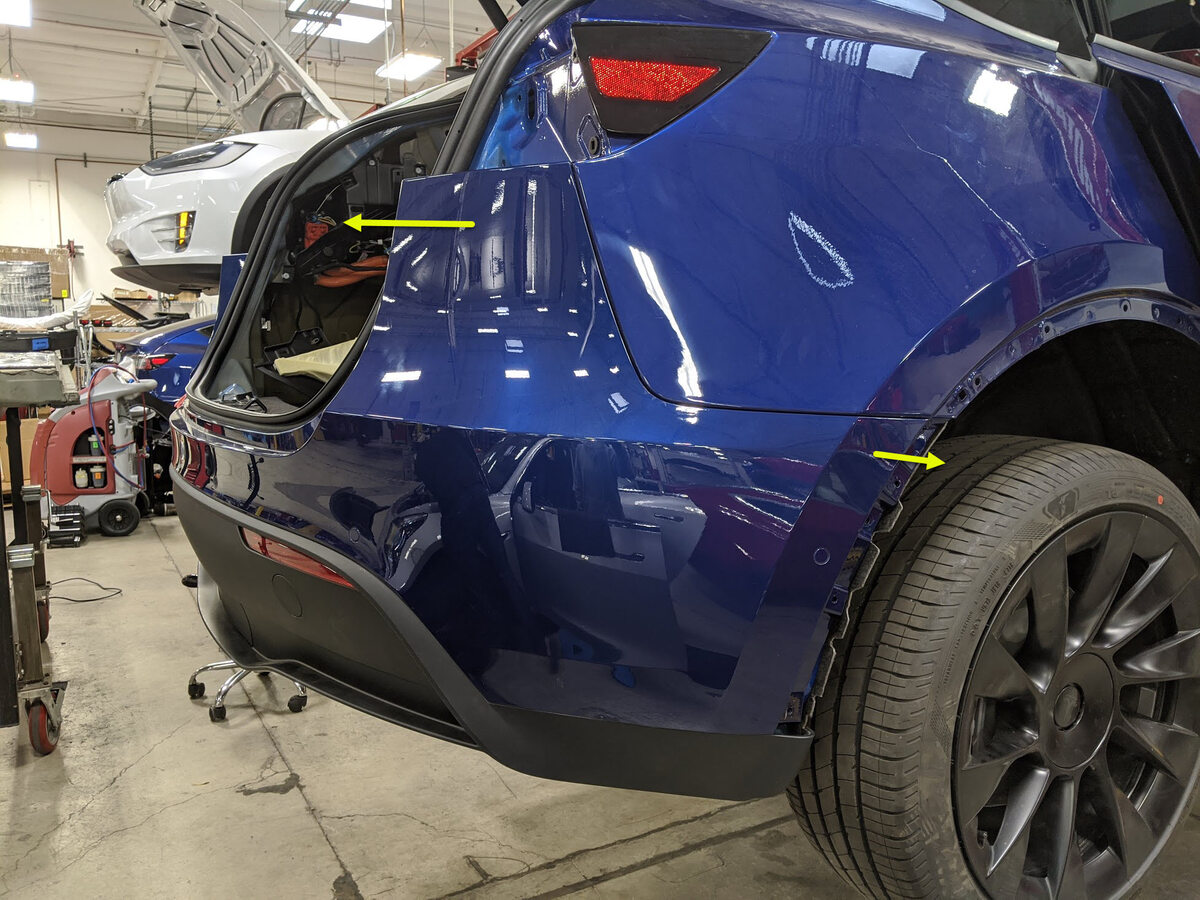

38. Release rear fascia from body and disconnect rear fascia harness then remove assembly from vehicle
    Note

    1x connector, Slide red locking tab away from connector, Then depress black locking tab to release the connector. Recommend assistance, Place rear fascia on padded surface to avoid damage. Not need to disconnect rear fascia connector for AP4.

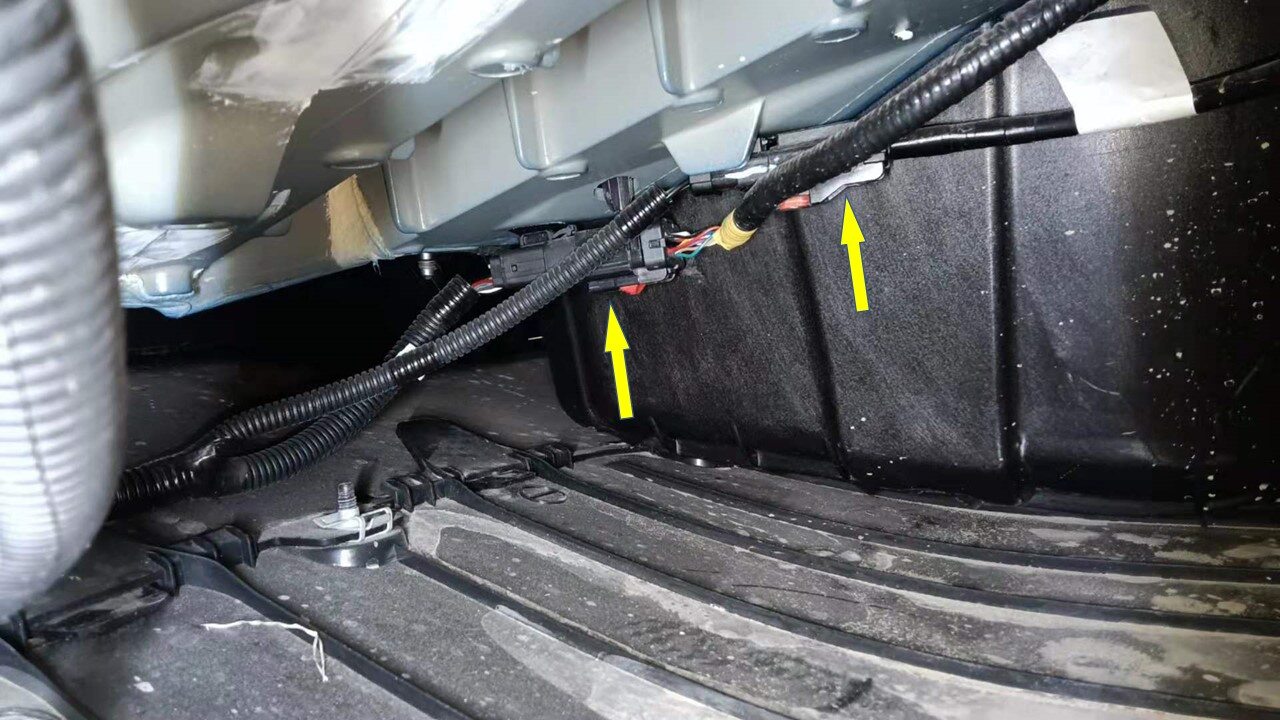

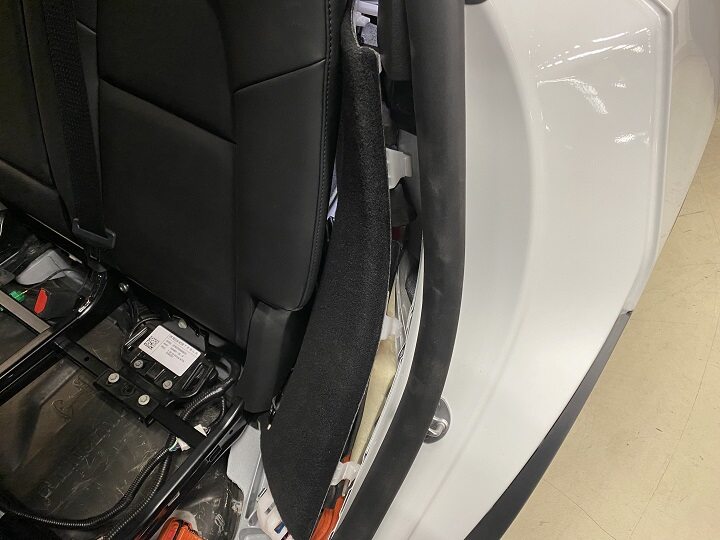

39. Disconnect the RH body harness from rear subframe and RH rear EPB connector
    Note

    2x connectors

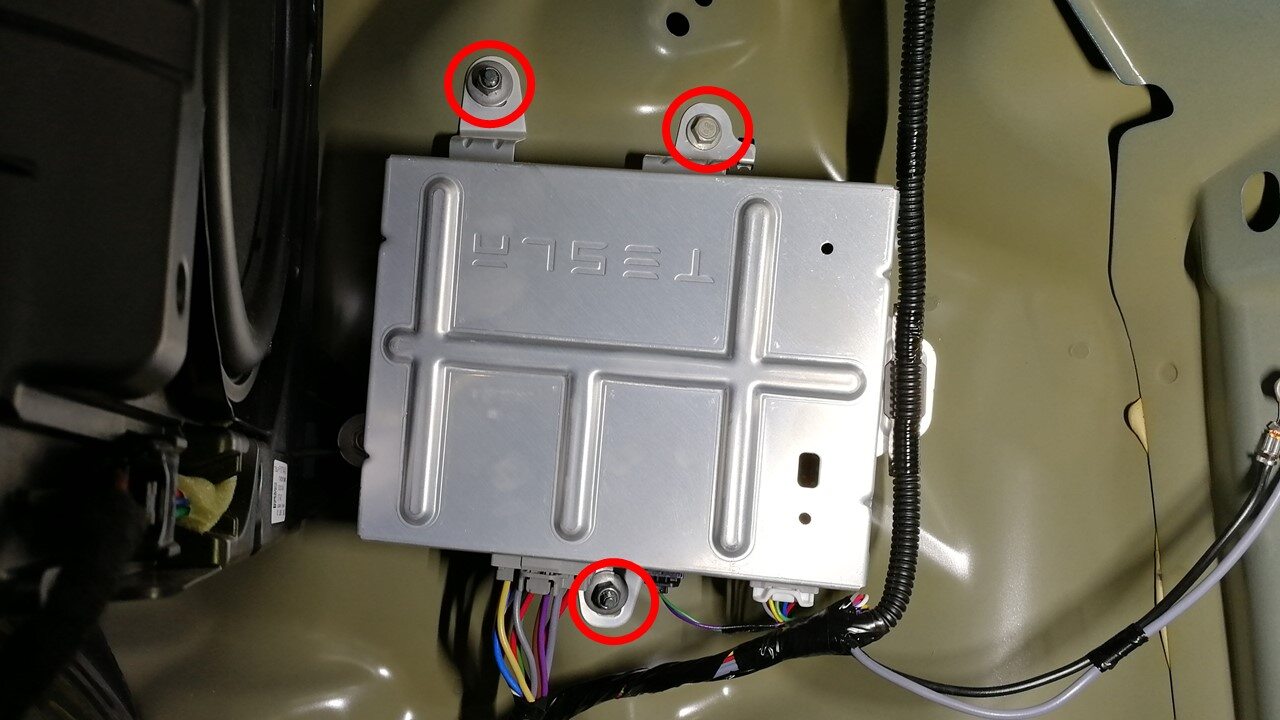

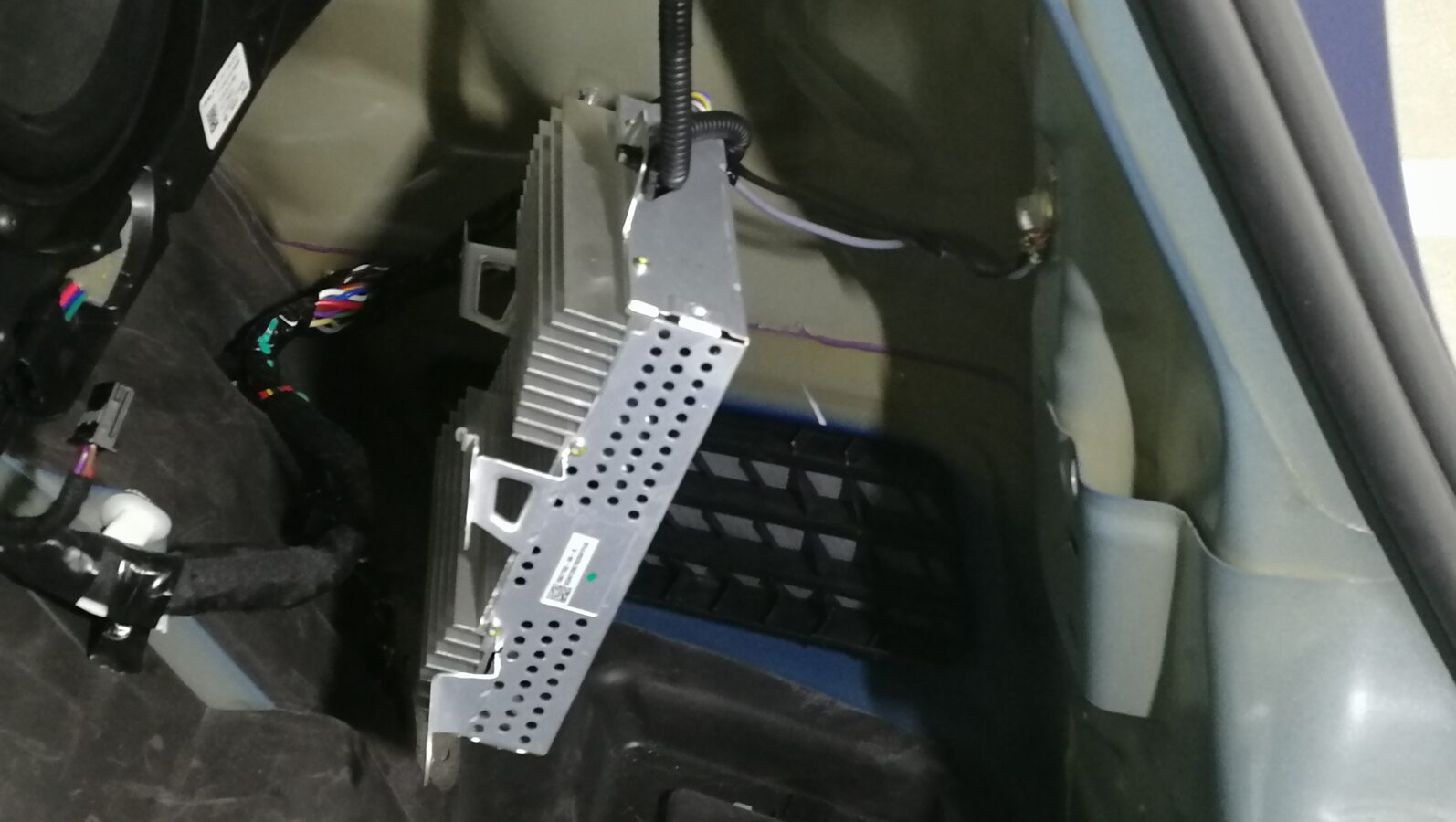

40. Remove bolts securing amplifier to body and remove amplifier
    Note

    2x nuts, 10mm, 1x bolt,10mm, Set amplifier aside, be cautious not to apply excessive tension to harness

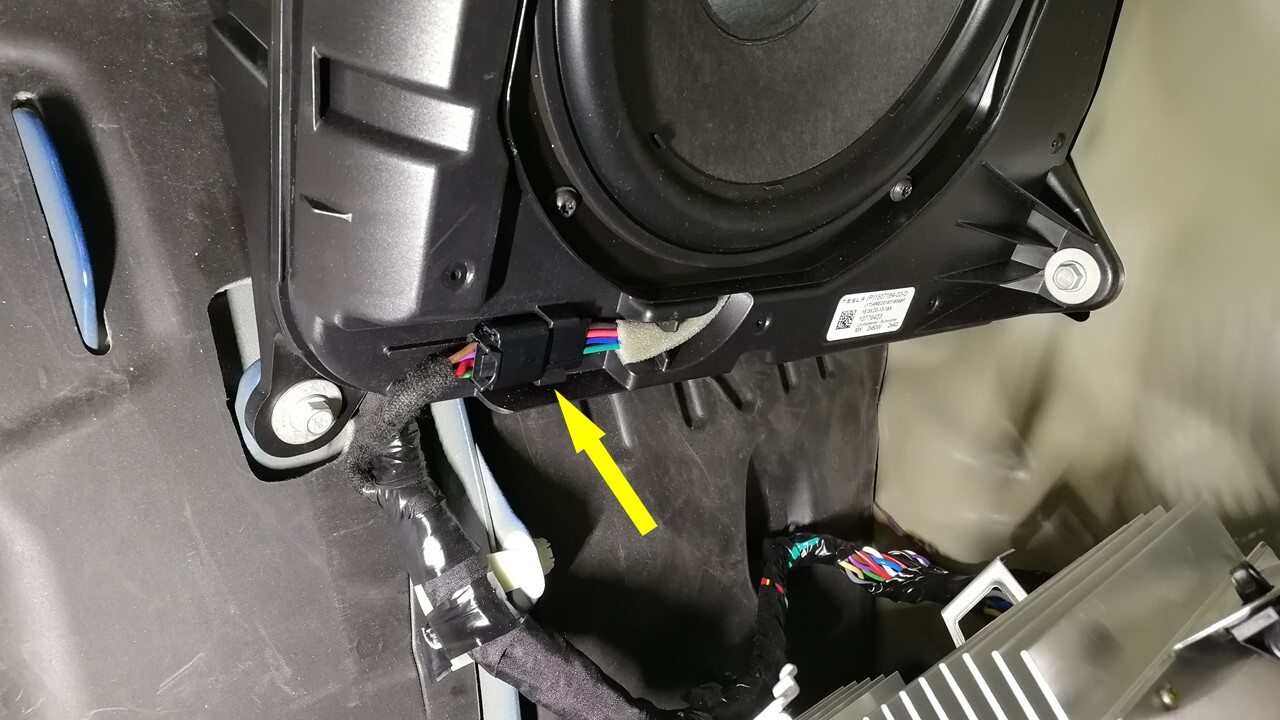

41. Disconnect subwoofer assembly
    Note

    1x connector

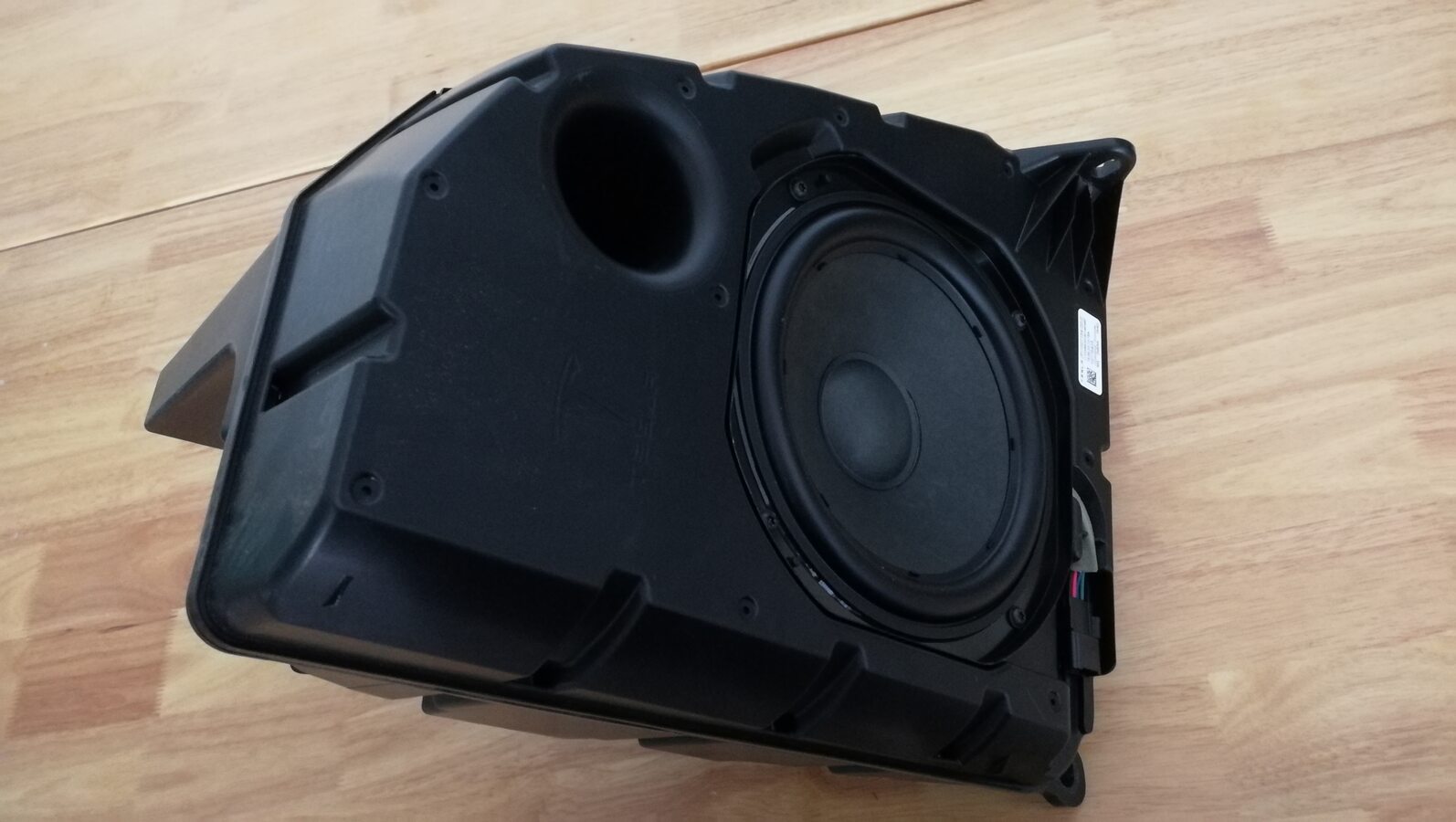

42. Remove subwoofer assembly
    Note

    1x nut, 10mm, 5.4 Nm, 2x bolts, 10mm, 5.4 Nm

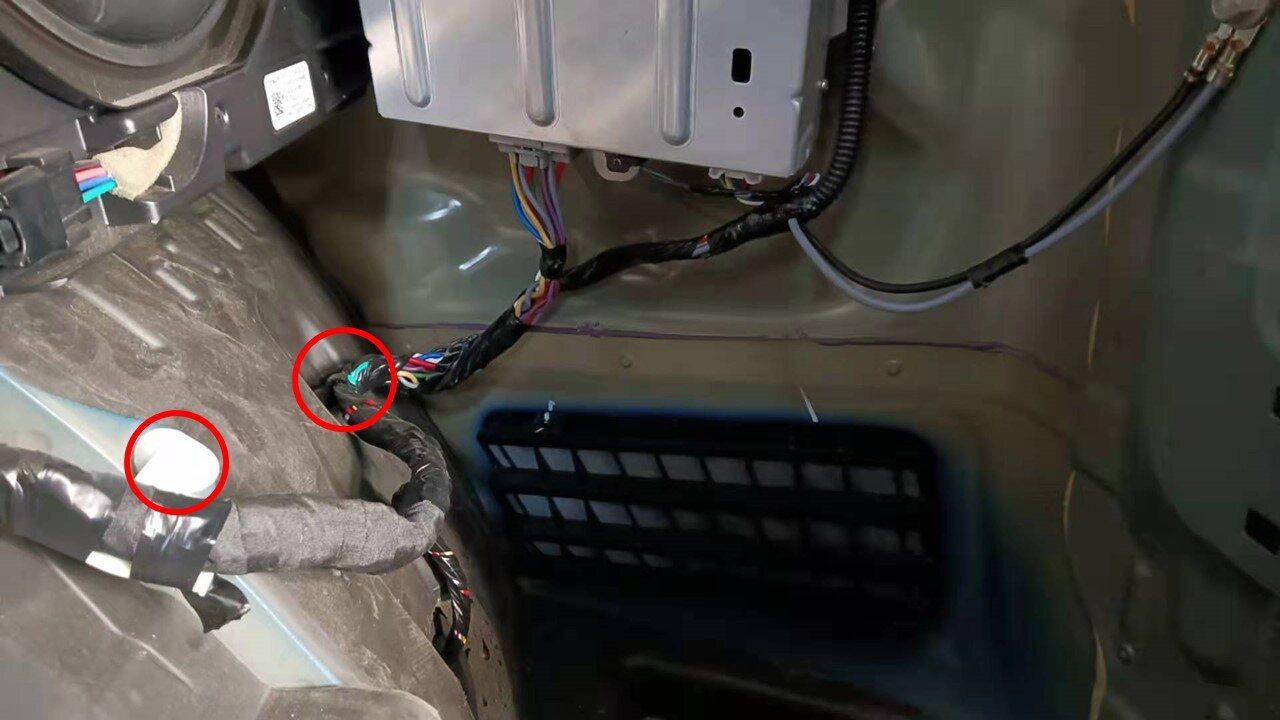

43. Release clips securing RH body harness from RH side trunk bulkhead
    Note

    2x clips

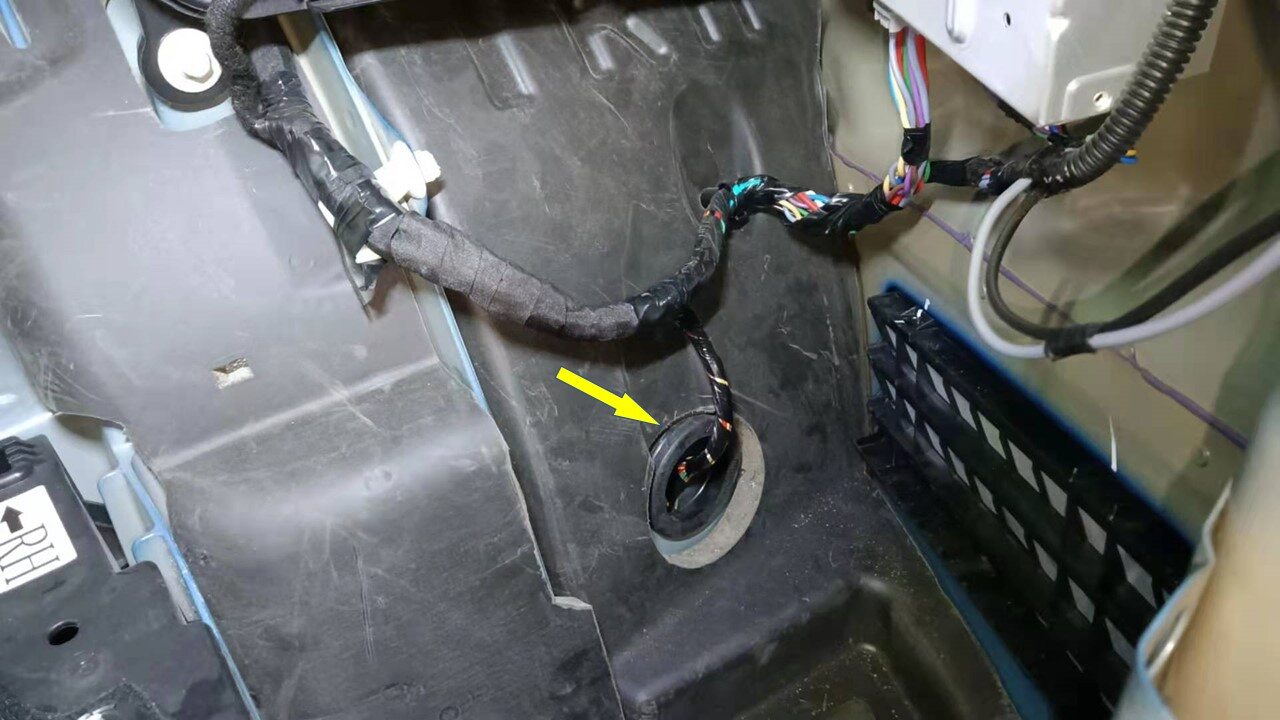

44. Push grommet through RH side trunk bulkhead and feed harness through
    Note

    1x grommet

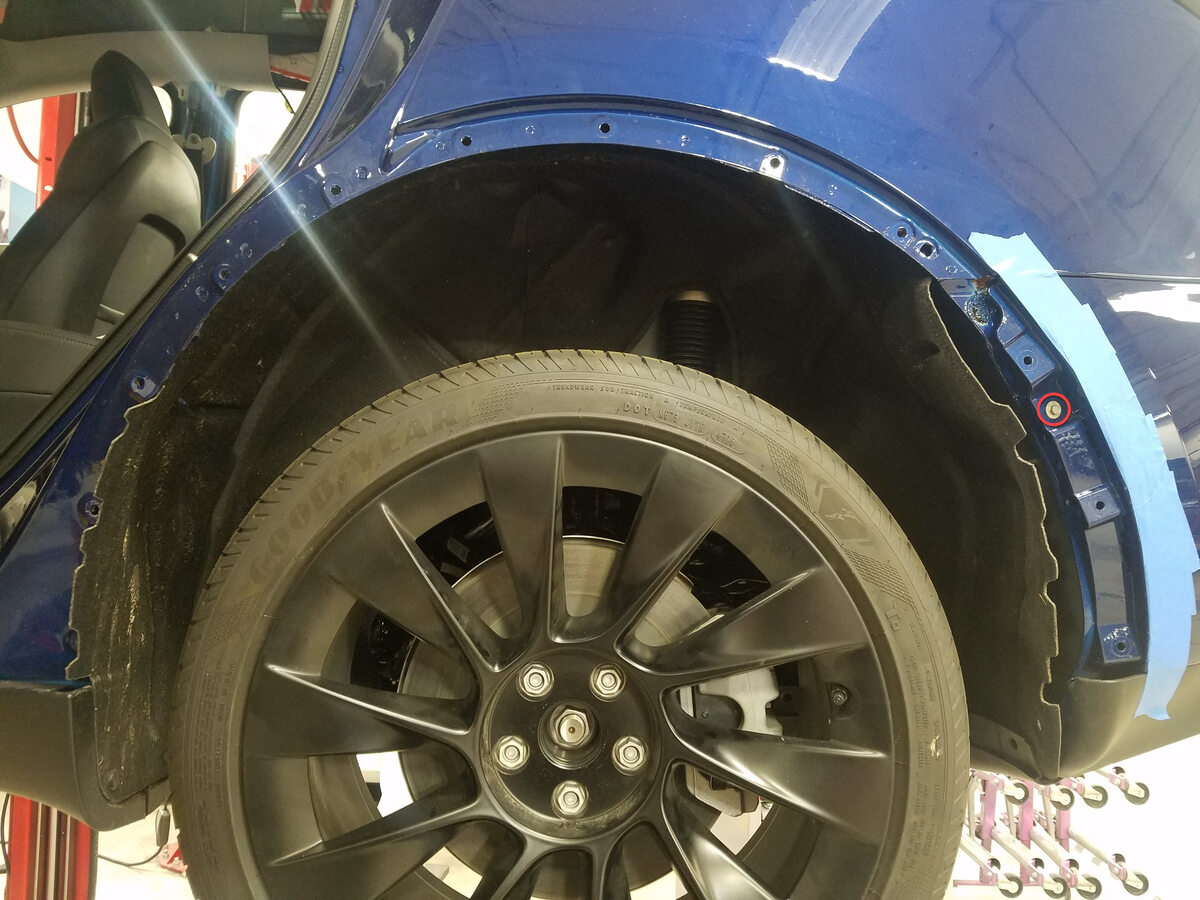

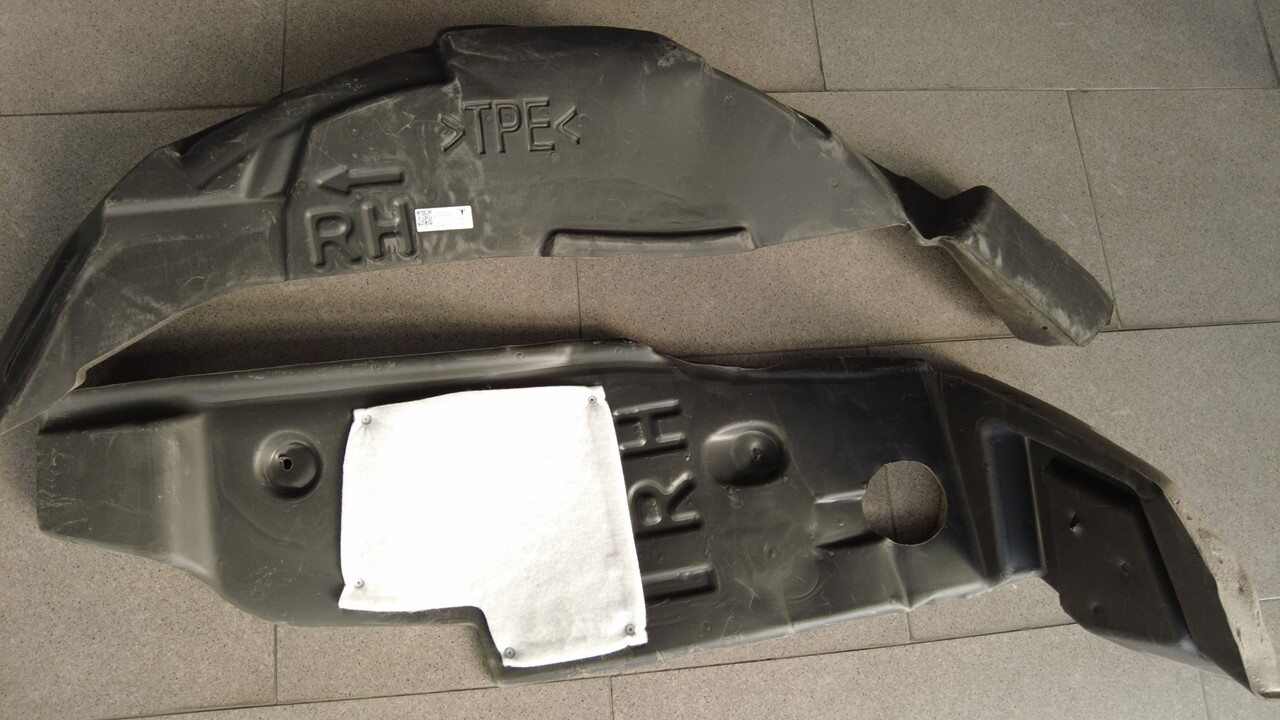

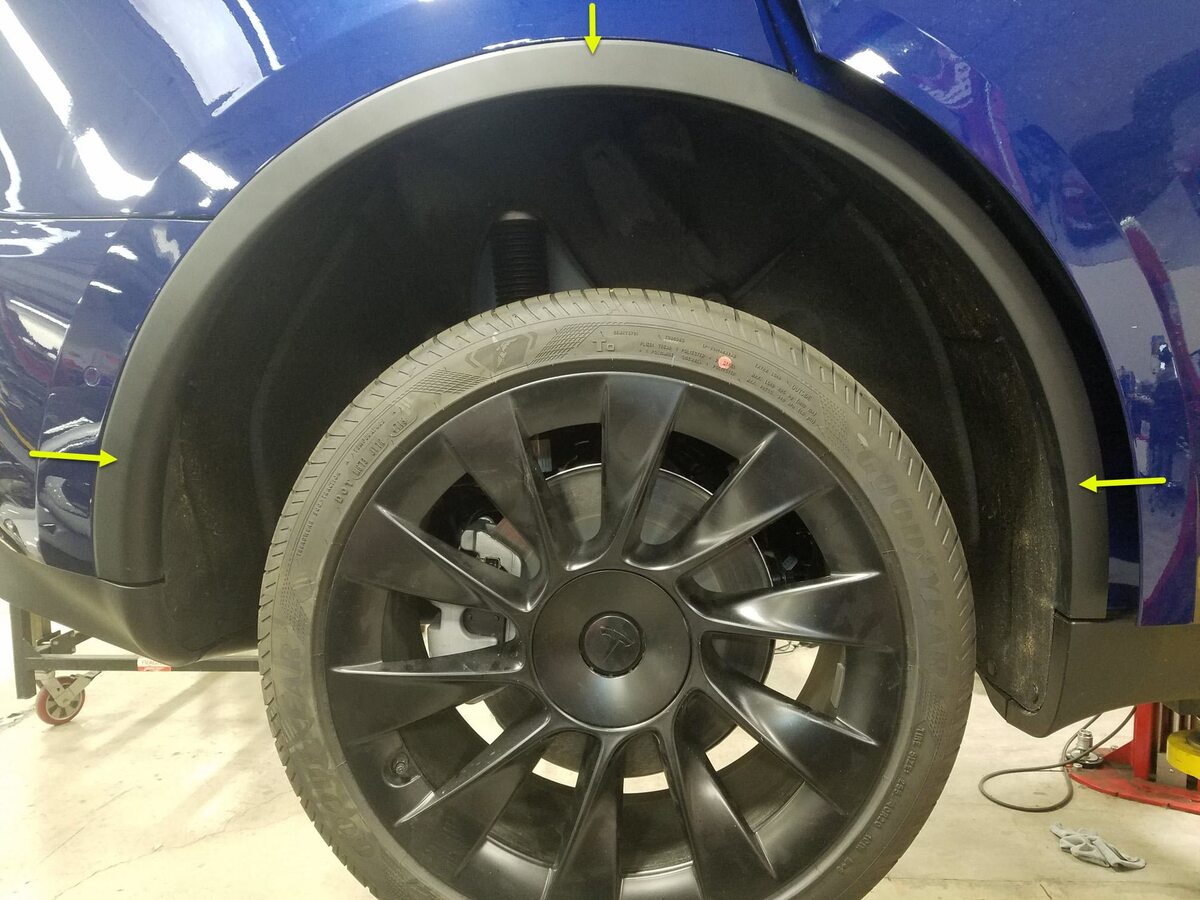

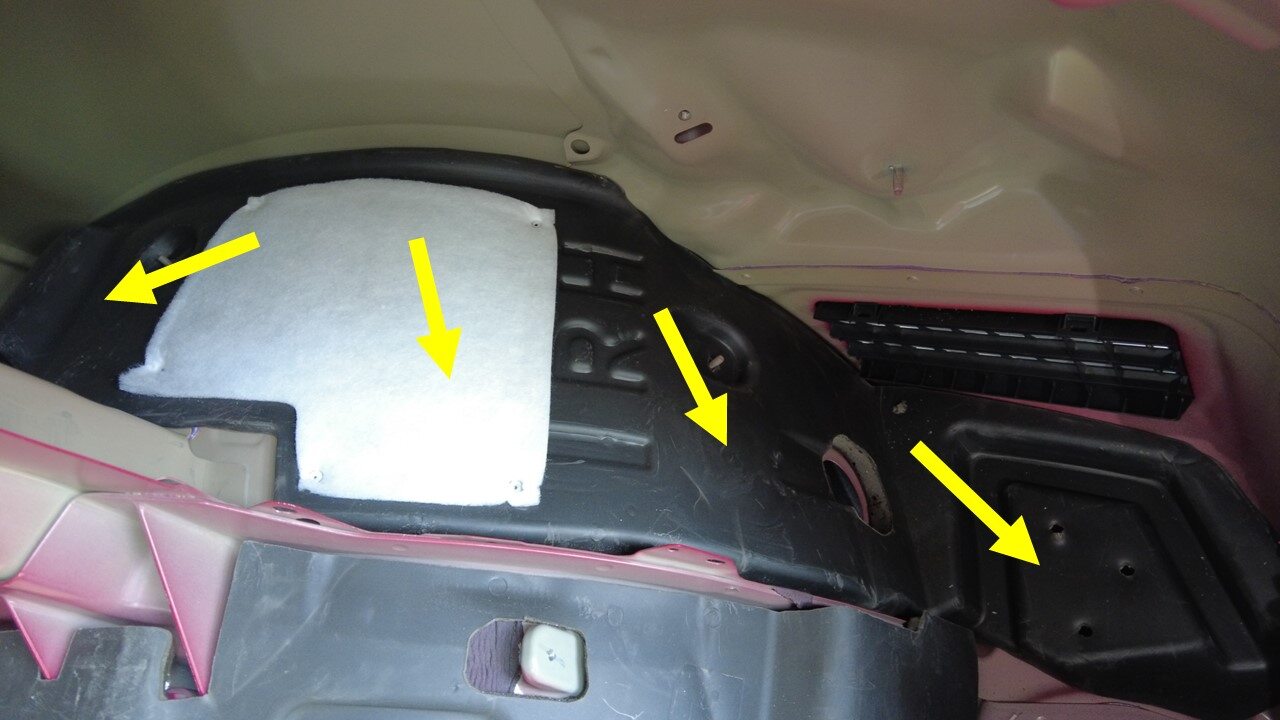

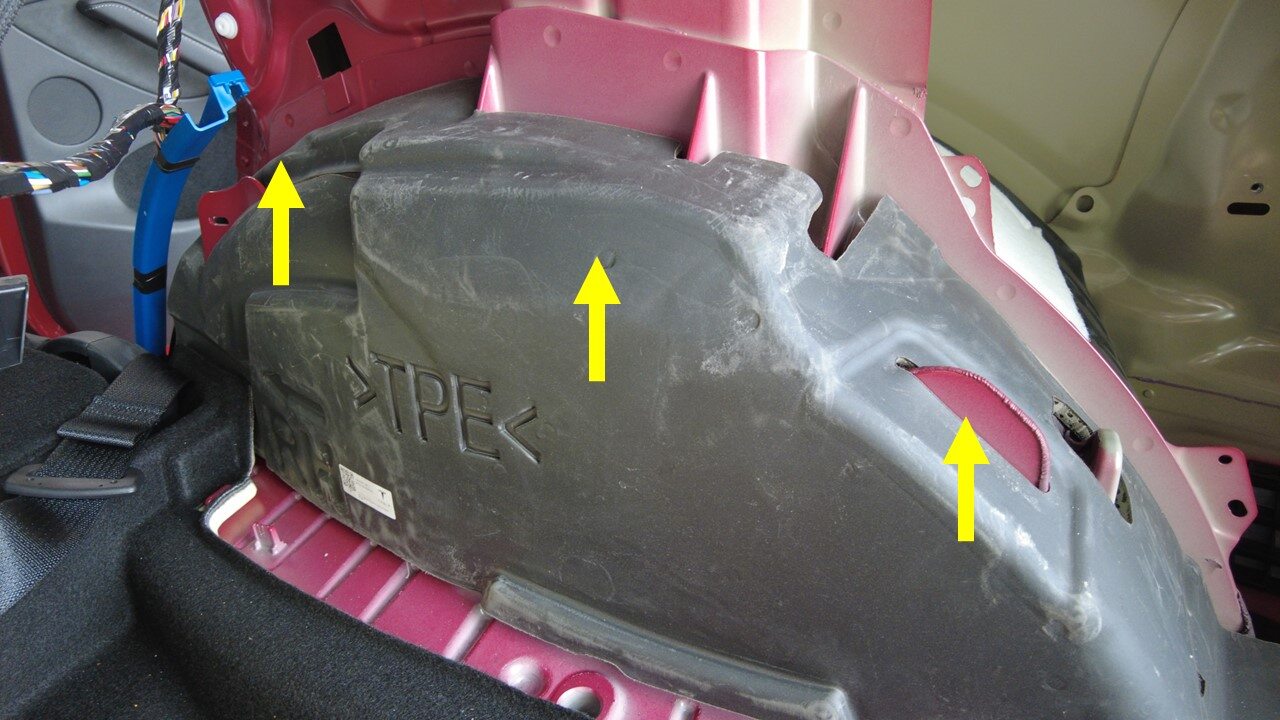

45. Remove RH rear wheelhouse Insulator from body







46. Install RH rear wheelhouse Insulator to body







47. Install subwoofer assembly
    Note

    1x nut, 10mm, 5.4 Nm, 2x bolts, 10mm, 5.4 Nm



48. Connect subwoofer assembly



49. Install amplifier on body
    Note

    2x nuts, 10mm, 1x bolt,10mm



50. Install securing clips RH body harness on RH side trunk bulkhead
    Note

    2x clips



51. Install grommet to RH side trunk bulkhead
    Note

    1x grommet



52. Connect the RH body harness from rear subframe and RH rear EPB connector
    Note

    2x connectors



53. Connect and install rear fascia onto vehicle
    Note

    1x connector, Engage red locking tab, Recommend assistance, Verify lower portion aligns with rear diffuser. Not need to connect rear fascia connector for AP4.









54. Apply Loctite 222 onto rear diffuser bolts and secure rear fascia to rear diffuser
    Note

    6x clips, 7x bolts, 10mm, 4 Nm





55. Install bolt securing RH rear fascia to body
    Note

    1x bolt, 8mm, 4 Nm



56. Install RH rear fender garnish
    Note

    14x clips, Install ends of garnish into rocker panel and rear diffuser then work your way from rear towards front of garnish









57. Install bolt securing LH rear fascia to body
    Note

    1x bolt, 8mm, 4 Nm



58. Install LH rear fender garnish
    Note

    14x clips, Install ends of garnish into rocker panel and rear diffuser then work your way from rear towards front of garnish









59. Install bolt securing RH corner of rear fascia
    Note

    1x bolt, 10mm, 4 Nm

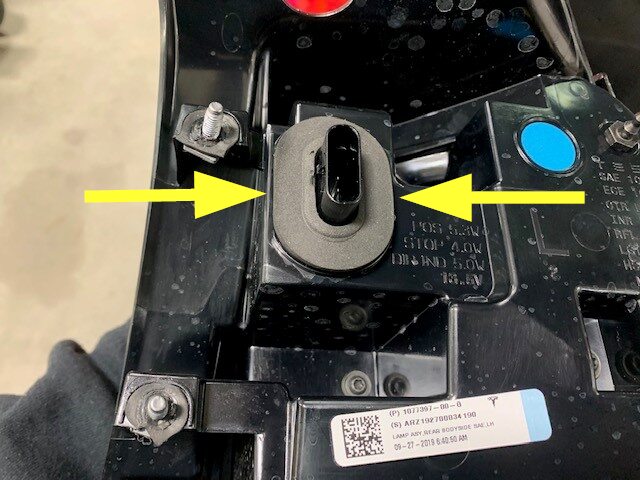

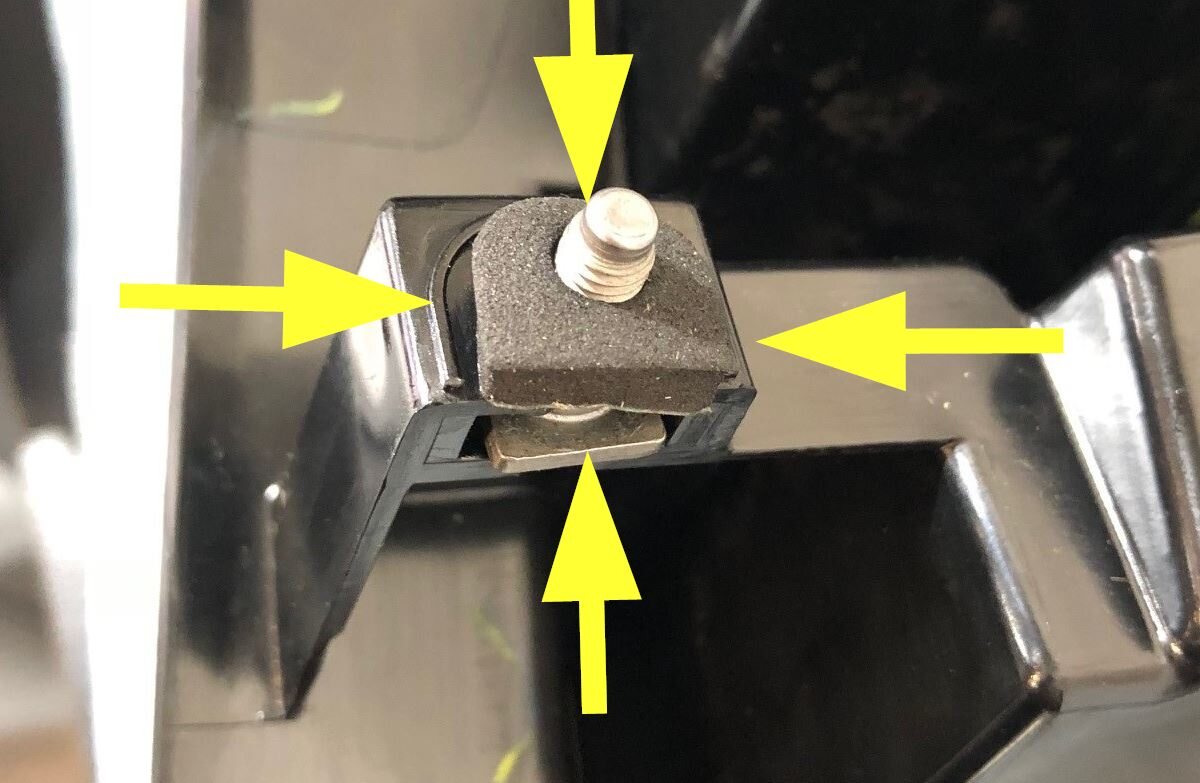

60. Remove RH bodyside lamp connector gasket
    Note

    1x gasket



61. Install RH bodyside lamp connector gasket
    Note

    1x gasket

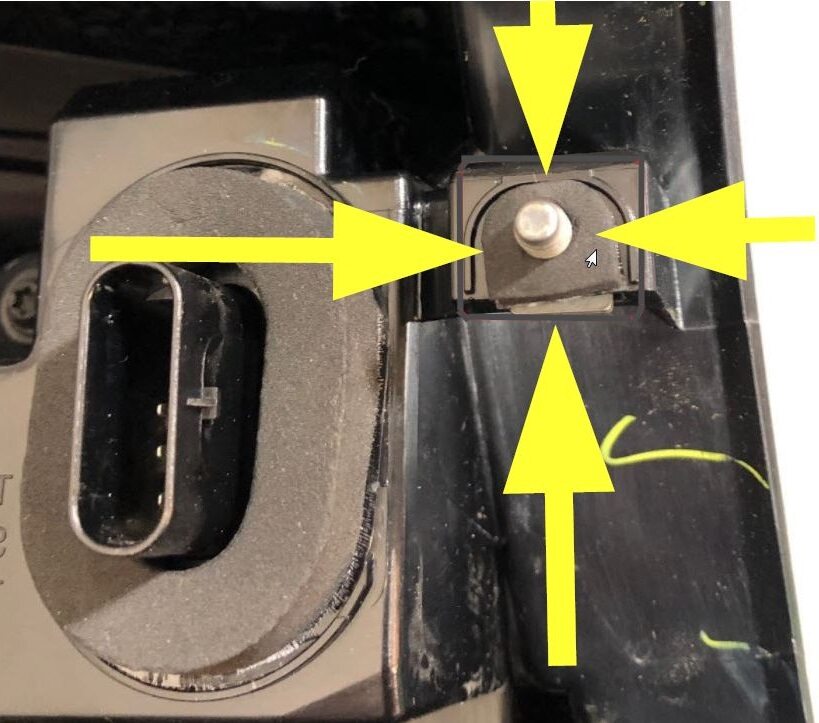

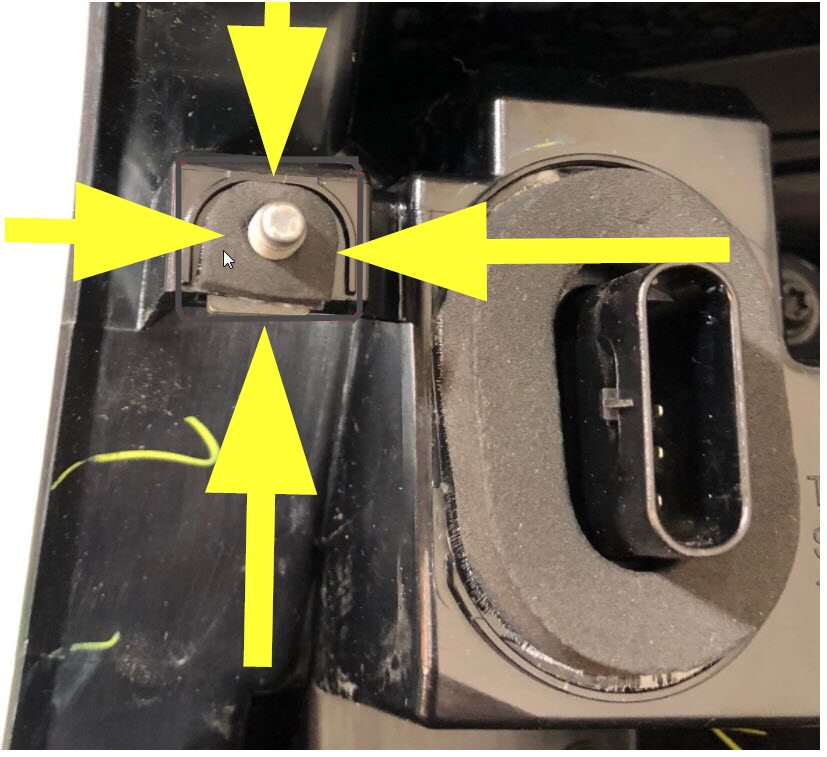

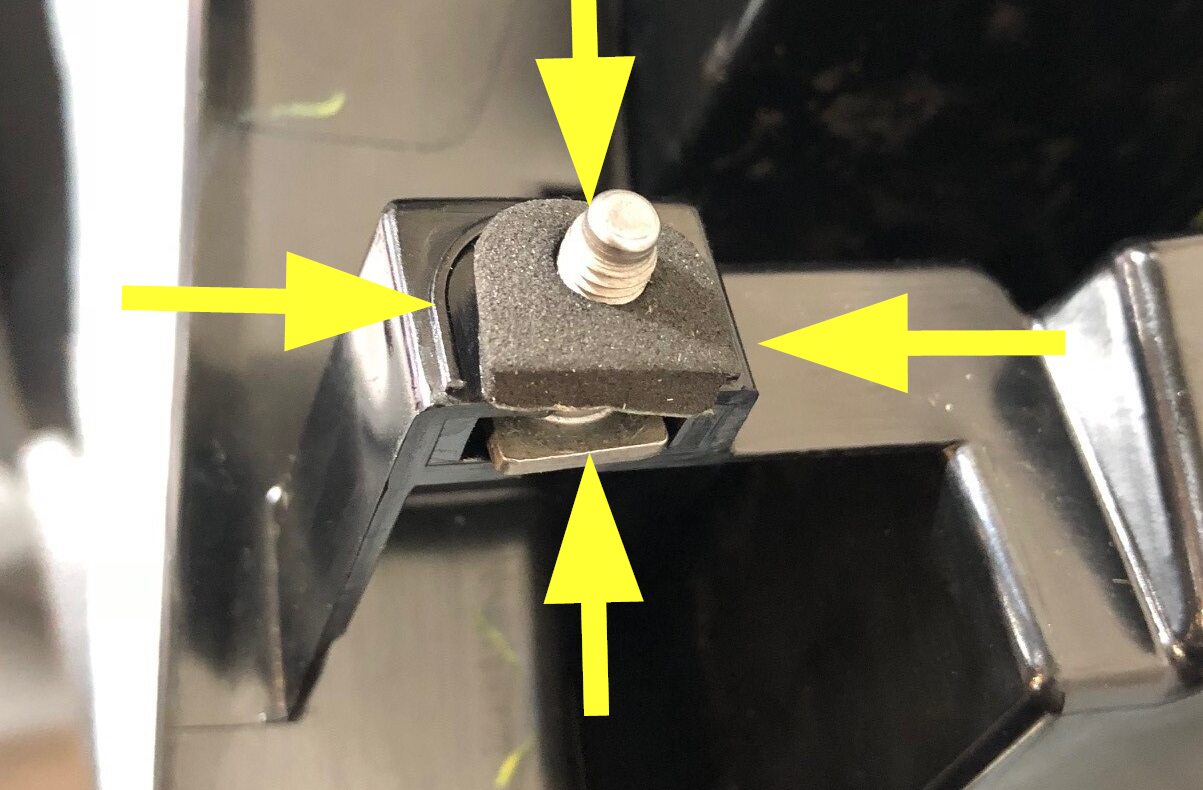

62. Remove upper T-stud gasket from RH bodyside lamp
    Note

    1x gasket



63. Install upper T-stud gasket to RH bodyside lamp
    Note

    1x gasket



64. Remove lower T-stud gasket from RH bodyside lamp
    Note

    1x gasket



65. Install lower T-stud gasket to RH bodyside lamp
    Note

    1x gasket



66. Install RH rear bodyside tail lamp assembly into vehicle
    Note

    2x studs





67. Install nuts securing RH rear bodyside tail lamp assembly to vehicle
    Note

    2x nuts, 8mm, 3.2 Nm



68. Connect RH rear bodyside tail lamp assembly
    Note

    1x connector, Engage locking tab



69. Install RH liftgate stop
    Note

    1x liftgate stop, Align tab and push down to secure



70. Install bolt securing LH corner of rear fascia
    Note

    1x bolt, 10mm, 4 Nm



71. Remove LH bodyside lamp connector gasket
    Note

    1x gasket



72. Install LH bodyside lamp connector gasket
    Note

    1x gasket



73. Remove upper T-stud gasket from LH bodyside lamp
    Note

    1x gasket



74. Install upper T-stud gasket to LH bodyside lamp
    Note

    1x gasket



75. Remove lower T-stud gasket from LH bodyside lamp
    Note

    1x gasket



76. Install lower T-stud gasket to LH bodyside lamp
    Note

    1x gasket



77. Install LH rear bodyside tail lamp assembly into vehicle
    Note

    2x studs





78. Install LH rear bodyside tail lamp assembly to vehicle
    Note

    2x nuts, 8mm, 3.2 Nm



79. Connect LH rear bodyside tail lamp assembly
    Note

    1x connector, Engage locking tab





80. Install LH liftgate stop
    Note

    1x liftgate stop, Align tab and push down to secure



81. Install RH upper C-pillar trim
    Note

    6x clips, Guide front upper corner groove under headliner, Insert guide tab to headliner behind quarter glass, Seat trunk seal to edge of trim, trim part may slightly differ by vehicle build location, and the number of clips may also vary











82. Install RH trunk side trim
    Note

    1x push clip, 13x clips, Guide front clip stanchions around RH C-pillar, trunk seal to edge of trim, trim part may slightly differ by vehicle build location, and the number of clips may also vary









83. Install RH trunk pocket bracket
    Note

    1x push clip, 5x alignment tabs





84. Install RH load floor bracket
    Note

    3x tabs, 2x clips, Confirm each installation with push-pull test, Clip position should not be adjusted after bracket is removed or will result in bracket not seating properly, if clip position is changed or push-pull action shows bracket not secure, remove clip from tab and seat clip into doghouse on bracket and reinstall





85. Install LH trunk side trim
    Note

    2x connectors, 1x push clip, 8x clips, 7x tabs, guide front clip stanchions around LH C-pillar, trim part may slightly differ, by vehicle build location











86. Install LH trunk pocket bracket
    Note

    1x push clip, 5x alignment tabs





87. Install LH load floor bracket
    Note

    3x tabs, 2x clips, Confirm each installation with push-pull test, Clip position should not be adjusted after bracket is removed or will result in bracket not seating properly, if clip position is changed or push-pull action shows bracket not secure, remove clip from tab and seat clip into doghouse on bracket and reinstall





88. Install trunk sill trim
    Note

    4x clips, Seat seal around edge of trim









89. Install front load floor



90. Install rear load floor



91. Move 2nd row 40 seatback to vertical position
    Note

    Remove seat cushion protection



92. Move 2nd row 60 seatback to vertical position
    Note

    Remove seat back protection if necessary



93. Connect the First Responder Loop and 12V negative battery cable.





94. Install HEPA filter assembly
    Note

    2x bolts, 10mm, 5 Nm, Pivot forward edge down past frunk assembly, Then carefully move rear edge past brake reservoir and into position, Gently press on RH side of filter to seat seal onto duct, Note: Not all Model Y vehicles have a HEPA filter assembly installed









95. Secure washer tank neck onto washer tank
    Note

    1x O-ring, Ensure washer hose is properly routed



96. Secure washer fluid reservoir neck to frunk
    Note

    1x bolt, 10mm, 5 Nm, Some vehicles may have a push clip in this location



97. Install the rear apron.





98. Close the hood.



99. Close liftgate





100. Raise all four windows



101. Close all four doors
     Note

     If LV is powered up, Unlatch rear doors before closing
