Access Panel - Underhood Storage Unit (Remove and Replace)

Correction code 15241002 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so.NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Remove

  1. Open the hood.
  2. Release the clips that attach the access panel to the underhood storage unit, and then carefully pull the panel away from the vehicle.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Do not completely remove the panel as a harness is still connected to it.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Grab the panel from the top, and then pull it rearward to release the clips.

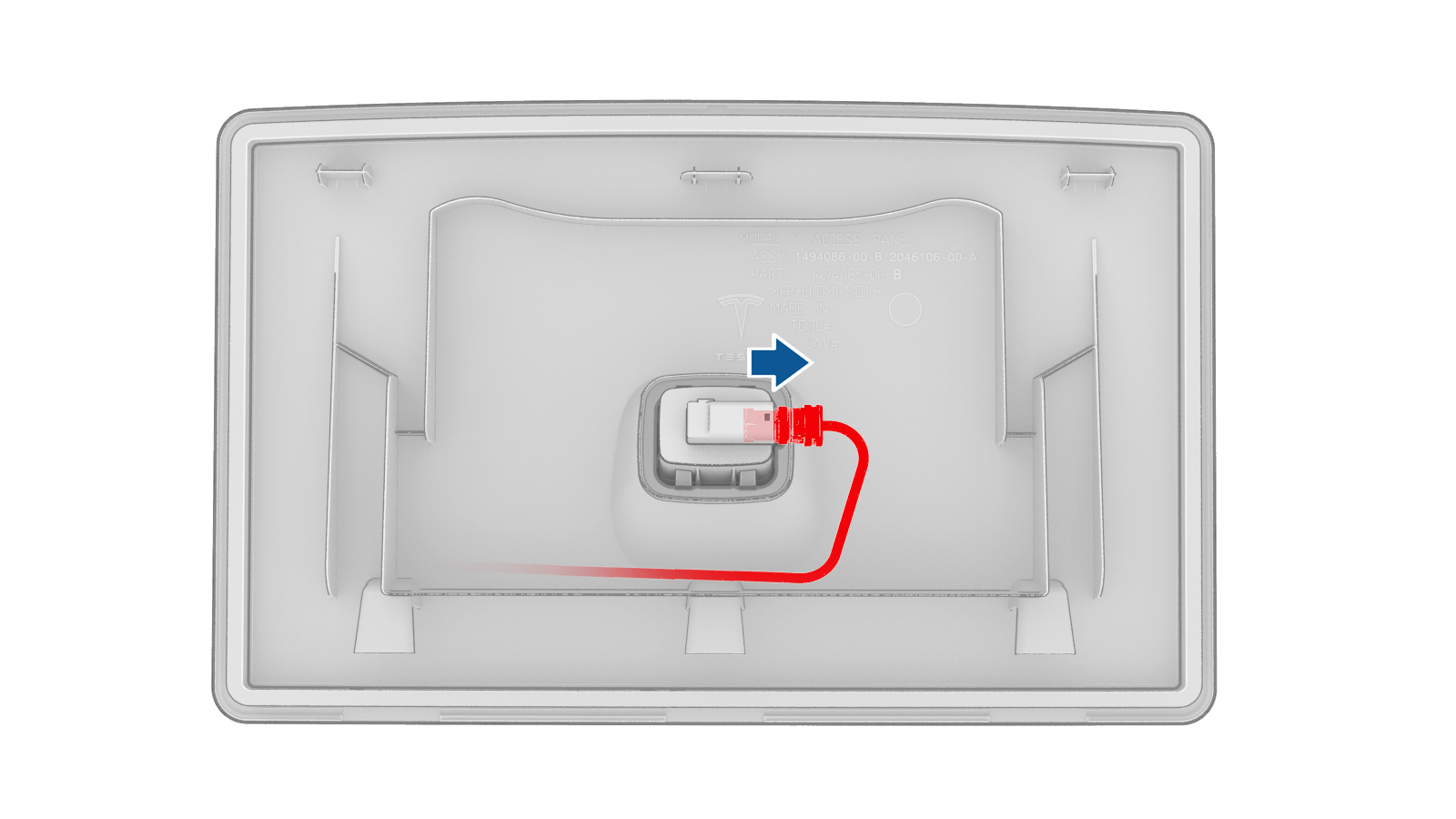

  3. Disconnect the electrical harness from the access panel, and then remove the panel from the vehicle.

Install

Installation procedure is the reverse of removal.
