Fuse Holder - Positive Terminal - 12V Battery (Remove and Replace)

Correction code 17010402 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. See Ergonomic Precautions for safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: Fuse Holder - Positive Terminal - 12V Battery (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Nut that attaches the cable eyelet terminal to the fuse holder
9 Nm (6.6 lbs-ft)
  • 10 mm deep socket
Reuse
Nut that attaches the positive post terminal and fuse to the 12V battery
6 Nm (4.4 lbs-ft)
  • 10 mm deep socket
Reuse

Remove

  1. Disconnect the LV battery power. See 12V/LV Power (Disconnect and Connect).

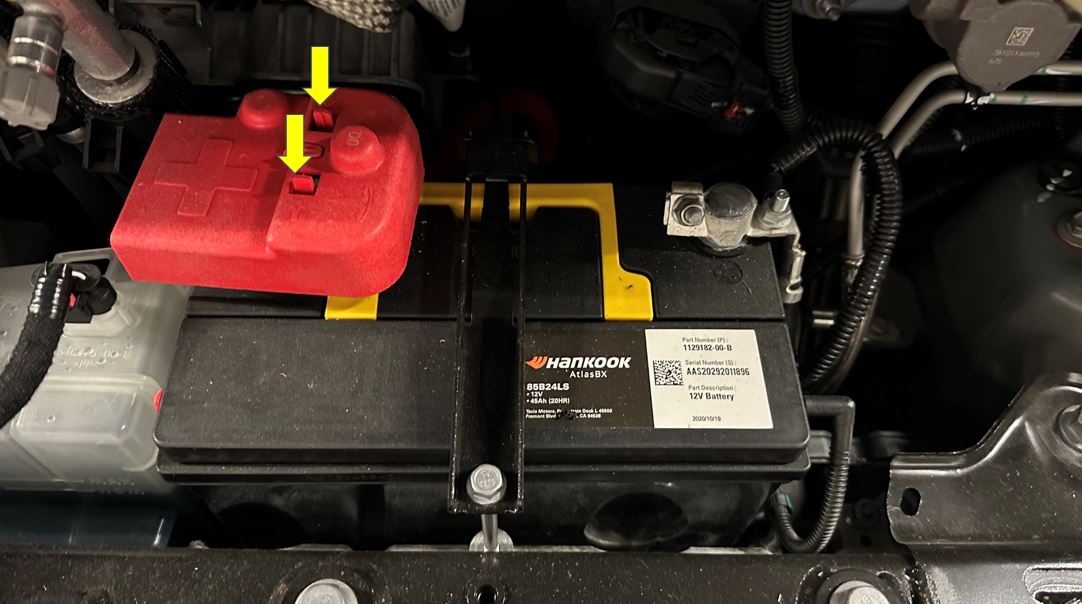

  2. Release the 12V positive terminal cover by squeezing the tabs together and pulling the cover upwards.

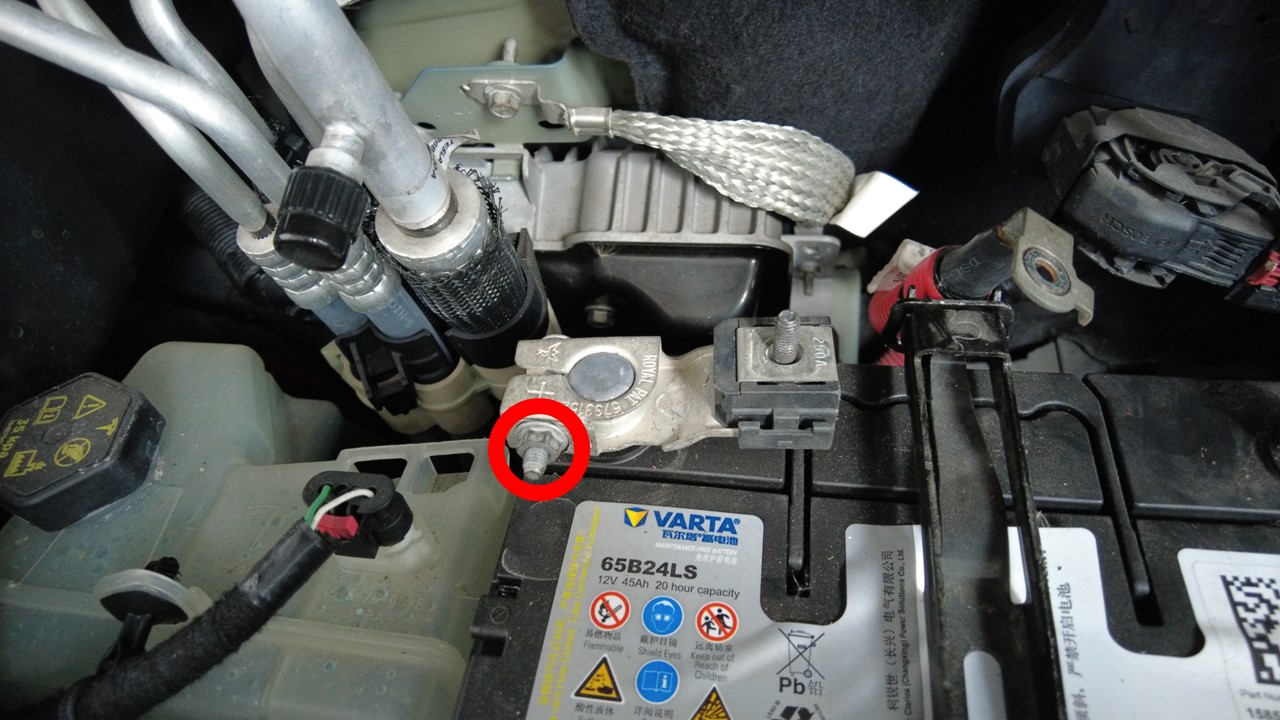

  3. Remove the nut that attaches the cable eyelet terminal to the fuse holder.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm deep socket

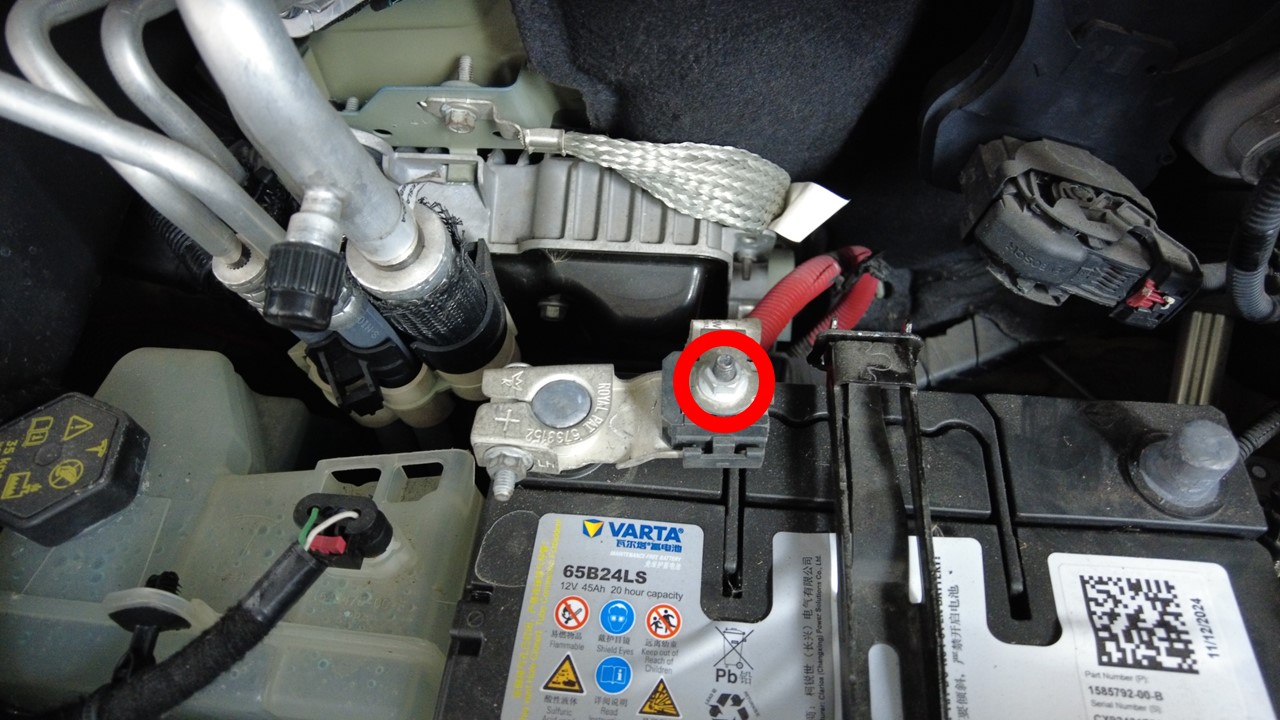

  4. Loosen the nut that attaches the positive post terminal and fuse to the 12V battery.
    Informational PurposesAn informational icon, calling your attention
    Note
    Do not fully remove the positive terminal nut.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm deep socket

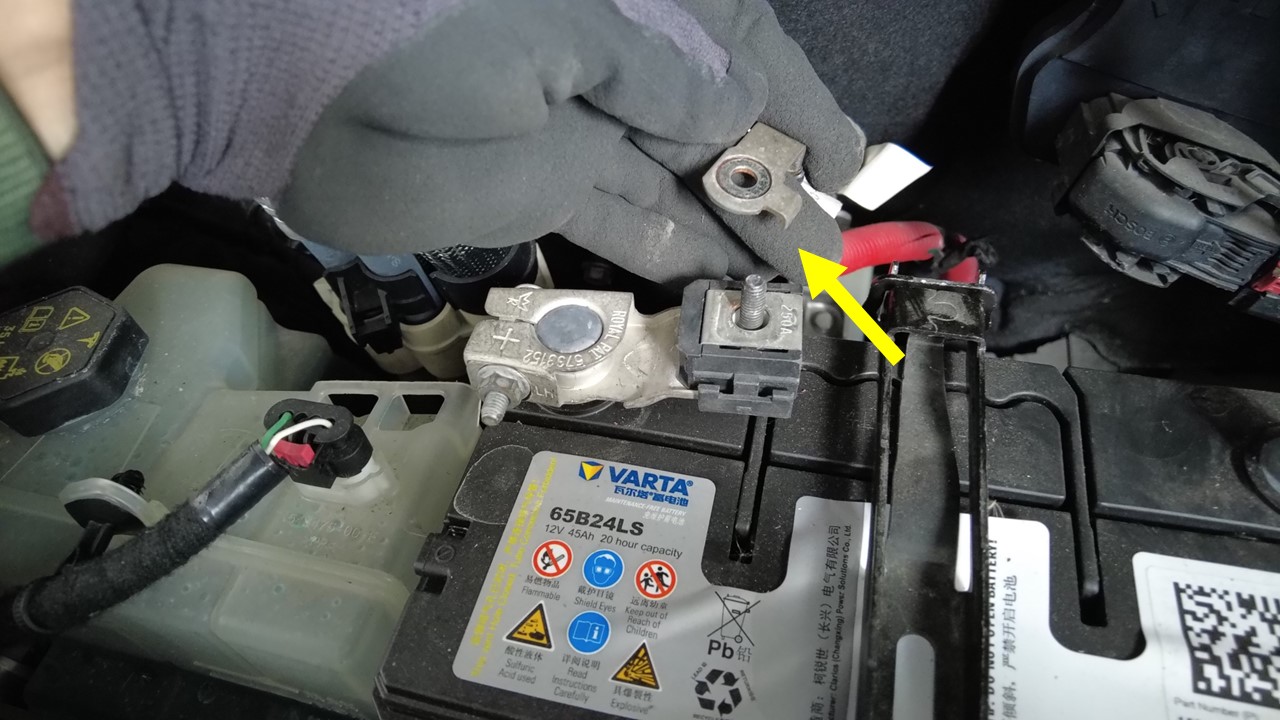

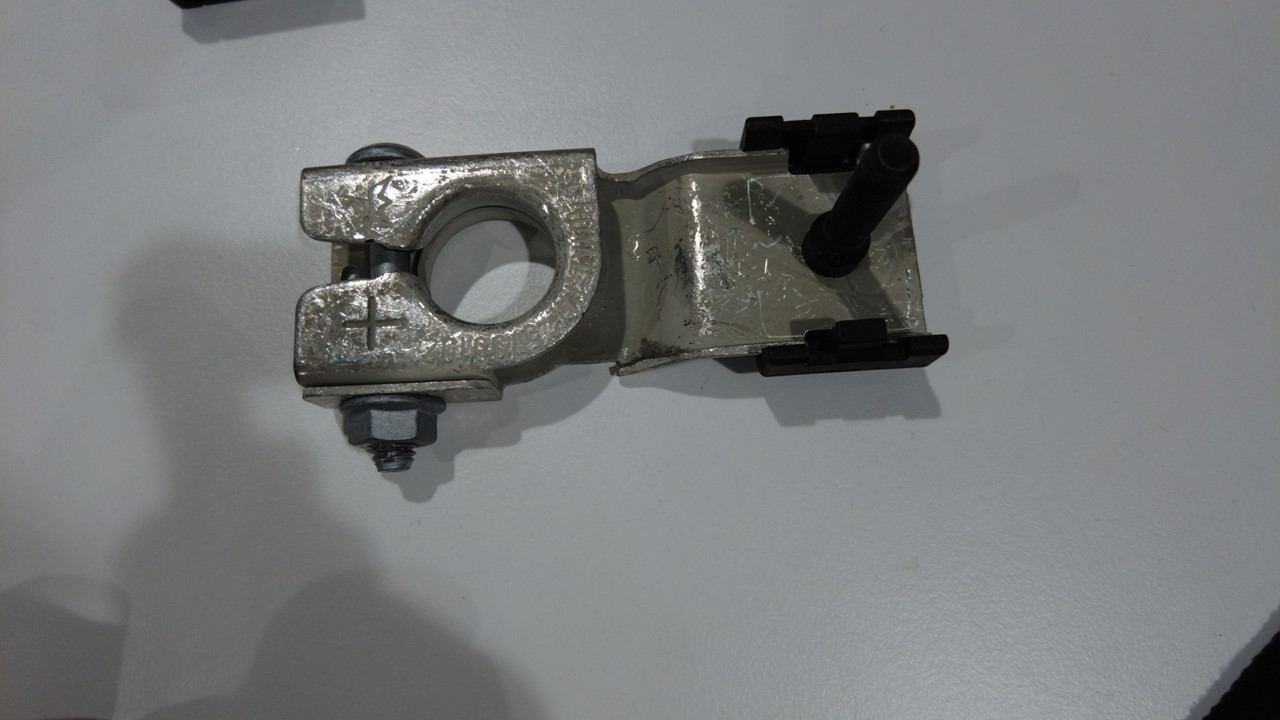

  5. Release the tabs on both sides, and then remove the little fuse from the 12V battery positive fuse holder.

Install

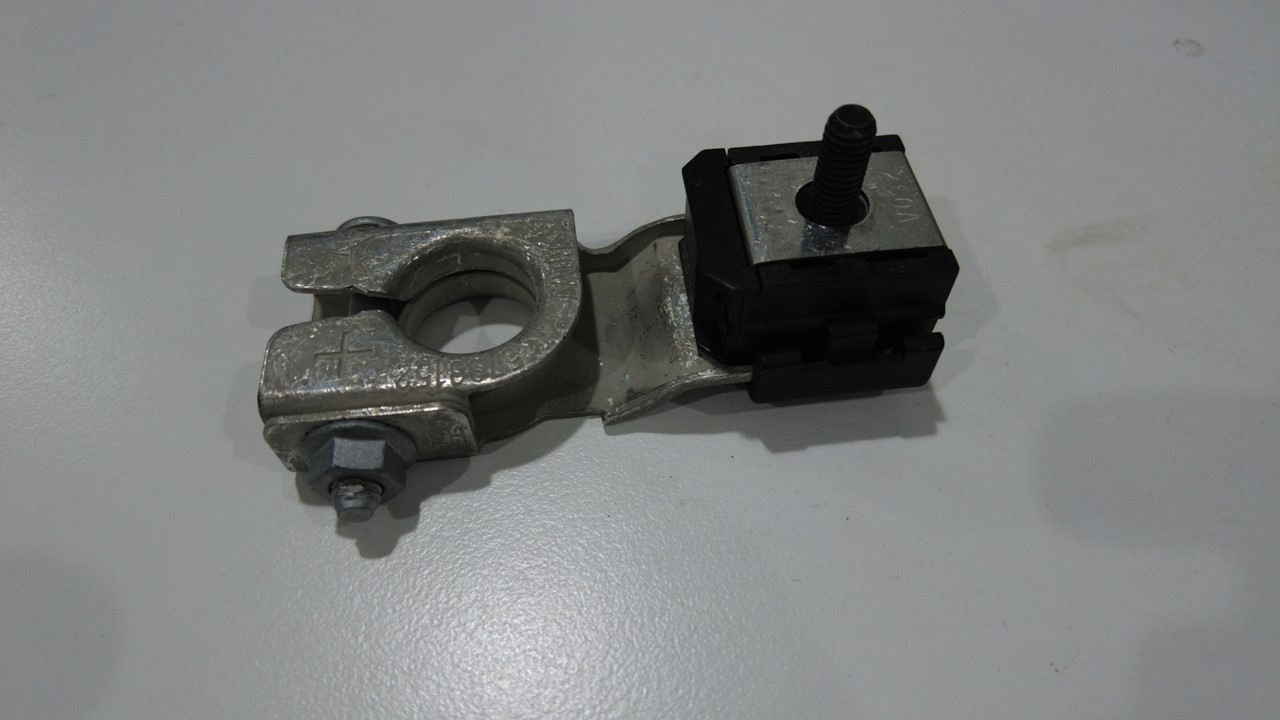

  1. Install the little fuse to the 12V battery positive fuse holder.
    Informational PurposesAn informational icon, calling your attention
    Note

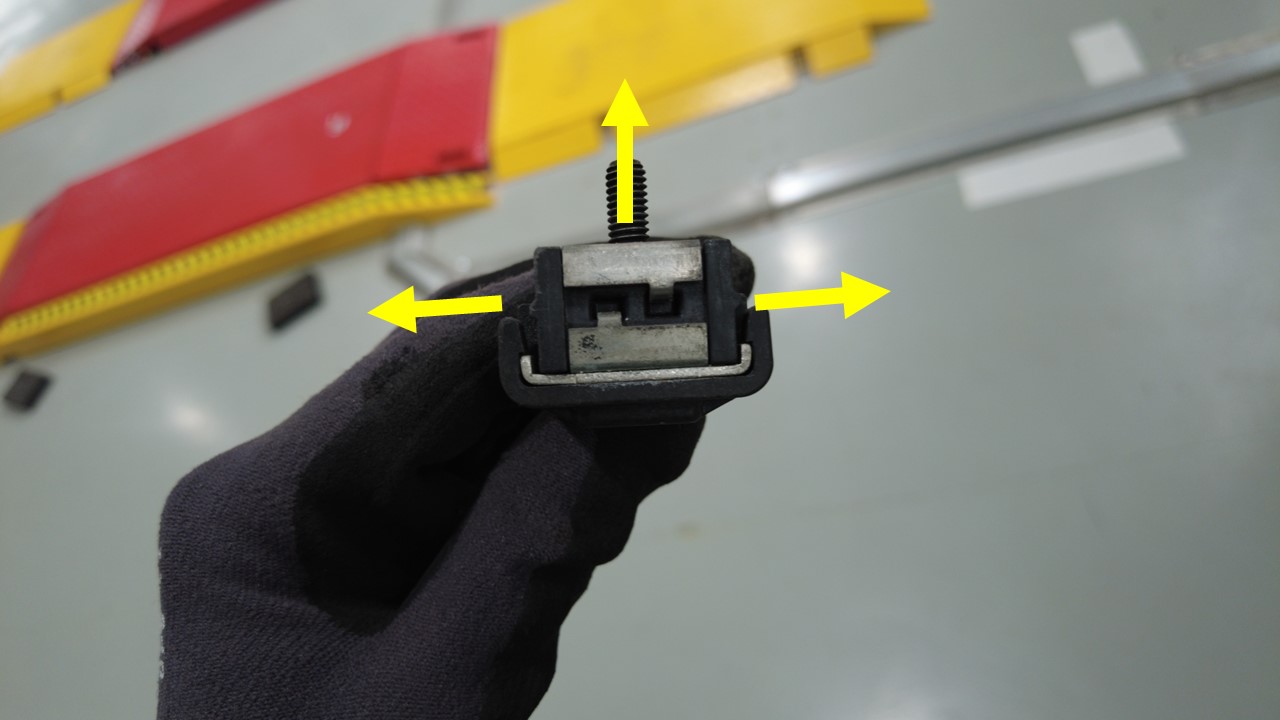

    Make sure that the tabs on both sides are completely fixed to the fuse.
  2. Secure the nut that attaches the positive post terminal and fuse to the 12V battery.
    6 Nm (4.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm deep socket
  3. Install the nut that attaches the cable eyelet terminal to the fuse holder.
    9 Nm (6.6 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    The edge of the cable terminal shall be parallel to the edge of the battery post terminal.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm deep socket
  4. Install the 12V positive terminal cover.
  5. Connect the LV battery power. See 12V/LV Power (Disconnect and Connect).
