Platter Enclosure Air Leak Test

Correction code 16102000 0.55 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so.NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

  • 1026636-00-A Pack Enclosure Leak Tester, HV Battery
  • 1140501-00-A Pack Kit, Enclosure, Leak Test, HV Battery, Complete
  • 1144879-00-A Kit, Encl Leak Test Adapters, HV Battery
  • 1080978-00-B Force Gauge

Procedure

  1. Raise and support the vehicle. See Raise Vehicle - 2 Post Lift.
  2. Open the LH front door and fully lower the LH front window.
  3. Connect to vehicle using Toolbox 3.0.
  4. Select the Actions/Autodiag tab, and then search for "Plus".
  5. Click Enter Service ModePROC_ICE_X_ENTER-SERVICE-MODECommon/tasks/PROC_ICE_X_ENTER-SERVICE-MODEInfotainment, click Run, and allow the routine to complete.
  6. On the vehicle touchscreen, touch the Notifications icon to check for alerts related to internal isolation.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    If "BMS_a123" or "BMS_w123" is present, do not perform the procedure and contact Service Engineering. The HV battery is compromised.
  7. Click Exit Service ModePROC_ICE_X_EXIT-SERVICE-MODECommon/tasks/PROC_ICE_X_EXIT-SERVICE-MODEInfotainment, click Run, and allow the routine to complete.
  8. Disconnect the laptop from the vehicle.
  9. Disconnect 12V power. See 12V/LV Power (Disconnect and Connect).
  10. Remove the mid aero shield panel. See Panel - Aero Shield - Mid (Remove and Replace).
  11. Remove and discard the breather from the RH HV battery vent shroud assembly.
  12. Install the leak test adapter plug into the RH shroud assembly.
  13. Remove and discard the breather from the LH HV battery vent shroud assembly.
  14. Install the leak test adapter into the LH shroud assembly.

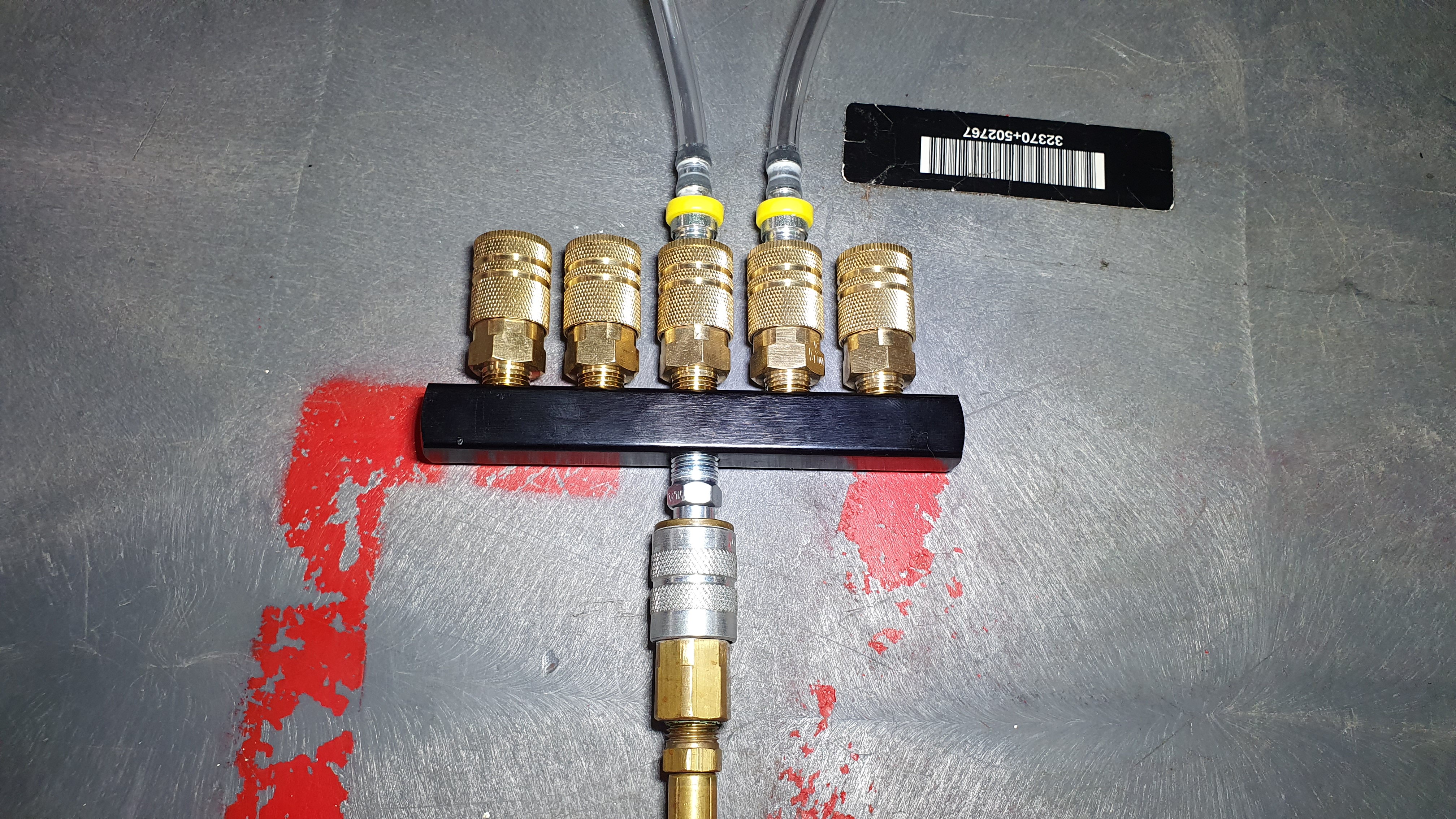

  15. Connect the pack enclosure leak tester to the leak test adapter in the LH HV battery shroud assembly.
  16. Close both valves on the pack enclosure leak tester, and then connect a compressed air supply line.
  17. Fully close the regulator, and then open the inlet valve.
  18. Set the regulator to 0.15 psi.
  19. Open the outlet valve, and allow at least 45 seconds for the pressure to stabilize to 0.15 psi.
  20. Close the inlet valve, record the starting pressure displayed, and then start a 60-second timer.
  21. After 60 seconds record the ending pressure displayed.
  22. Subtract the ending pressure from the starting pressure, and if:
    • The difference is greater than 0.0054 psi, check the hose, adapter, and plug fittings, close the outlet valve and open the inlet valve, check the regulator pressure, and then retest from step 19. If the difference is still greater than 0.0054 psi, escalate a Toolbox session.
    • The difference is 0.0054 psi or less, continue the procedure.
  23. Disconnect the air supply from the pack enclosure leak tester.
  24. Open the inlet valve, and then disconnect the pack enclosure leak tester from the leak test adapter in the LH HV battery shroud assembly.
  25. Remove the leak test adapter from the LH HV battery shroud assembly, and then install a new breather into the LH shroud assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use force gauge to apply 200N of force to secure the breather valve into the vent shroud assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    When using the force gauge, make sure to press perpendicular to the vent shroud.
  26. Inspect the breather plug is fully seated into the LH HV battery vent shroud assembly.
  27. Remove the leak test adapter plug from the RH HV battery shroud assembly, and then install a new breather into the RH shroud assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use force gauge to apply 200N of force to secure the breather valve into the vent shroud assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    When using the force gauge, make sure to press perpendicular to the vent shroud.
    Figure 1. LH shown, RH similar
  28. Inspect the breather plug is fully seated into the RH HV battery vent shroud assembly.
  29. Install the mid aero shield panel. See Panel - Aero Shield - Mid (Remove and Replace).
  30. Connect 12V power. See 12V/LV Power (Disconnect and Connect).
