Surround - Steering Wheel (Remove and Replace)

Correction code 320518120.36 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so.NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Remove

  1. Remove the HEPA filter assembly. See Assembly - Filter - HEPA (Remove and Replace).
  2. Disconnect 12V power. See 12V/LV Power (Disconnect and Connect).
  3. Remove the driver airbag. See Airbag - Driver (Remove and Replace).
  4. Disconnect the steering wheel electrical wiring harness connector.
  5. Disconnect the LH steering wheel switch electrical connector. Repeat this step for the RH steering wheel switch electrical connector.
    Figure 1. LH shown, RH similar
  6. Release the clips (x3) that attach the horn to the steering wheel assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Pull the horn assembly straight out to release it.
  7. Disconnect the lower electrical connector from the steering wheel controller, and then remove the horn assembly from the steering wheel.
  8. Remove the bolts that attach the steering wheel surround to the steering wheel.
    5.4 Nm (4.0 lbs-ft)
    Tip: Pry the lower portion of the bright surround first.
    Tip: Use of the following tool(s) is recommended:
    • T20 socket
    • 4 in extension
  9. Remove the bolts that attach the RH steering wheel switch to the steering wheel surround, and then remove the switch from the assembly.
    0.9 Nm (8 lbs-in)
    Tip: Use of the following tool(s) is recommended:
    • T10 Torx bit
  10. Remove the bolts that attach the steering wheel controller to the steering wheel surround.
    0.9 Nm (8 lbs-in)
    Tip: Use of the following tool(s) is recommended:
    • T10 Torx bit

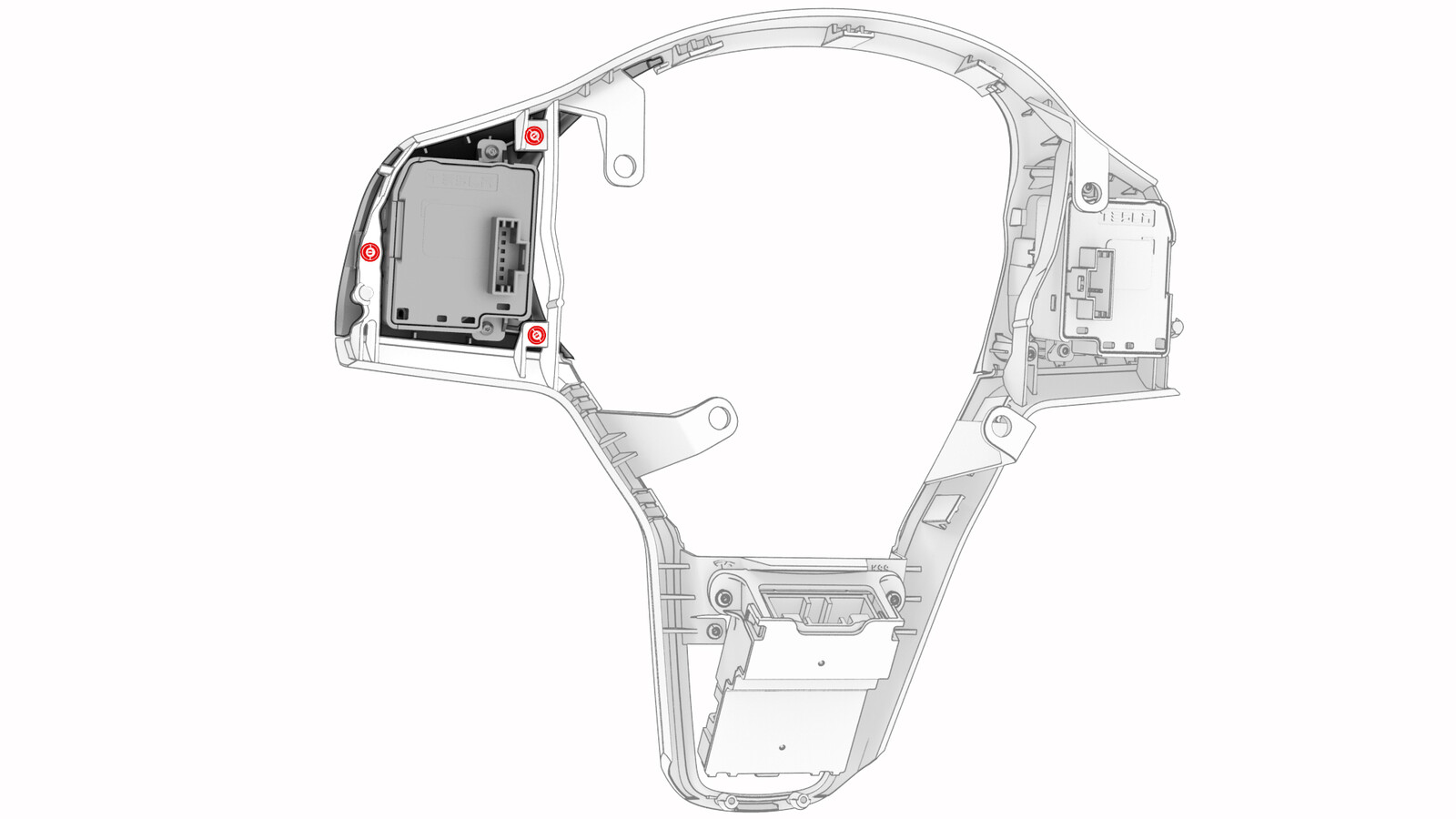

  11. Remove the bolts that attach the LH steering wheel switch to the steering wheel surround, and then remove the switch from the assembly.
    0.9 Nm (8 lbs-in)
    Tip: Use of the following tool(s) is recommended:
    • T10 Torx bit
  12. Remove the bolts that attach the lower spoke cover to the steering wheel surround.
    0.9 Nm (8 lbs-in)
    Tip: Use of the following tool(s) is recommended:
    • T10 Torx bit

Install

  1. Position the lower spoke cover onto the steering wheel surround, and then install the bolts.
    0.9 Nm (8 lbs-in)
    Informational PurposesAn informational icon, calling your attention
    Note
    Insert the lower edge of the lower spoke.
    Tip: Use of the following tool(s) is recommended:
    • T10 Torx bit
  2. Install the bolts that attach the steering wheel controller to the steering wheel surround.
    0.9 Nm (8 lbs-in)
    Tip: Use of the following tool(s) is recommended:
    • T10 Torx bit
  3. Position the LH steering wheel switch onto the steering wheel surround, and then install the bolts.
    0.9 Nm (8 lbs-in)
    Informational PurposesAn informational icon, calling your attention
    Note
    Take note of the correct installation position.
    Tip: Use of the following tool(s) is recommended:
    • T10 Torx bit
  4. Position the RH steering wheel switch onto the steering wheel surround, and then install the bolts.
    0.9 Nm (8 lbs-in)
    Tip: Use of the following tool(s) is recommended:
    • T10 Torx bit
  5. Position the steering wheel surround onto the steering wheel, and then install the bolts.
    5.4 Nm (4.0 lbs-ft)
    Tip: Use of the following tool(s) is recommended:
    • T20 socket
    • 4 in extension
  6. Position the horn to the steering wheel assembly, and then fasten the clips.
  7. Connect the LH steering wheel switch electrical connector. Repeat this step for the RH steering wheel switch electrical connector.
    Figure 2. LH shown, RH similar
  8. Connect the lower connection from the steering wheel controller, and then remove the horn assembly from the steering wheel.
  9. Connect the steering wheel electrical wiring harness connector.
  10. Install the driver airbag. See Airbag - Driver (Remove and Replace).
  11. Connect 12V power. See 12V/LV Power (Disconnect and Connect).
  12. Install the HEPA filter assembly. See Assembly - Filter - HEPA (Remove and Replace).
