Bushing Bracket - Stabilizer Bar - Front - Set (Remove and Replace)

Correction code 31016202 0.66 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. See Ergonomic Precautions for safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: Stabilizer Bar - Front (Remove and Replace) / Bushing Bracket - Stabilizer Bar - Front - LH (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Nuts that attach the front stabilizer bar to the LH and RH front stabilizer bar links
98 Nm (72.3 lbs-ft)
  • Torx T40 bit
  • Combination Wrench 12pt 18mm
 Replace 1111543-00-A
Nuts that attach the front stabilizer bar to the front subframe
35 Nm (25.8 lbs-ft)
  • 15 mm deep socket
Replace 1111145-00-A

Remove

  1. Remove the front aero shield panel. See Panel - Aero Shield - Front (Non-Structural Pack) (Remove and Replace).
  2. Remove the clips that attach the front valance to the LH wheel arch liner.
  3. Remove the clips that attach the front valance to the RH wheel liner.

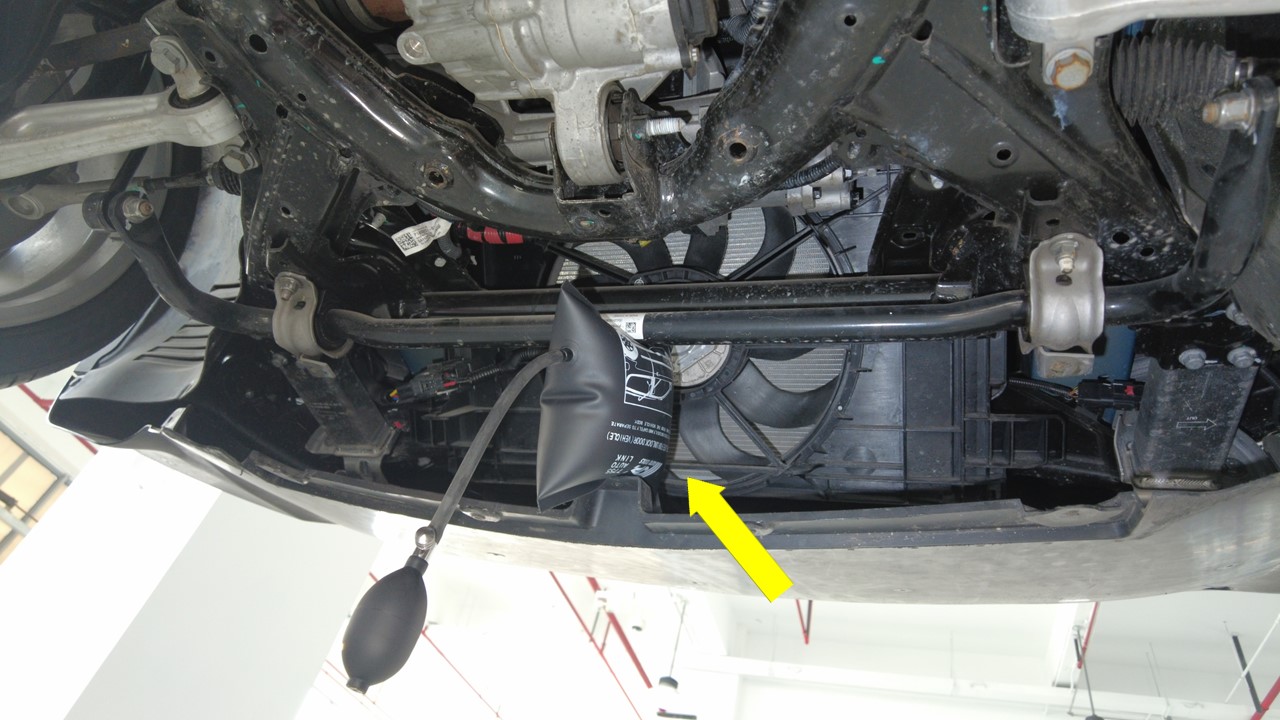

  4. Install an inflatable bag vertically between the front stabilizer bar and front valance to ensure sufficient working space.
  5. Position the support stand underneath to support the front stabilizer bar.
  6. Remove and discard the nuts (x2) that attach the LH front stabilizer bar to the front subframe.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 15 mm deep socket
  7. Remove the LH front bracket from the front stabilizer bar bushing.
    Informational PurposesAn informational icon, calling your attention
    Note
    Carefully remove the bracket with a flat head screwdriver, taking care not to damage the stabilizer bar bushing.
  8. Repeat step 6 to 7 to remove the RH front bracket.

Install

  1. Install the LH bracket to the front stabilizer bar bushing.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure to fit the bracket onto the bushing, apply lubricant for better installation.
  2. Install new nuts (x2) to attach the stabilizer bar to the subframe, and then mark the nuts with a paint pen after they are torqued.
    35 Nm (25.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 15 mm deep socket
  3. Repeat step 1 to 2 to install the RH front bracket.
  4. Lower the support stand and remove it from underneath.
  5. Remove the inflatable bag.
  6. Install the clips that attach the front valance to the LH wheel arch liner.
  7. Install the clips that attach the front valance to the RH wheel liner.
  8. Install the front aero shield panel. See Panel - Aero Shield - Front (Non-Structural Pack) (Remove and Replace).
